MICROWAVEOVEN

OWNER'SMANUAL&COOKINGGUIDE

PLEASE READ THIS OWNER'S MANUAL

THOROUGHLY BEFORE OPERATING.

LMV1630WW

LMV1630BB

LMV1630ST

P/NO.: 3828W5A8536

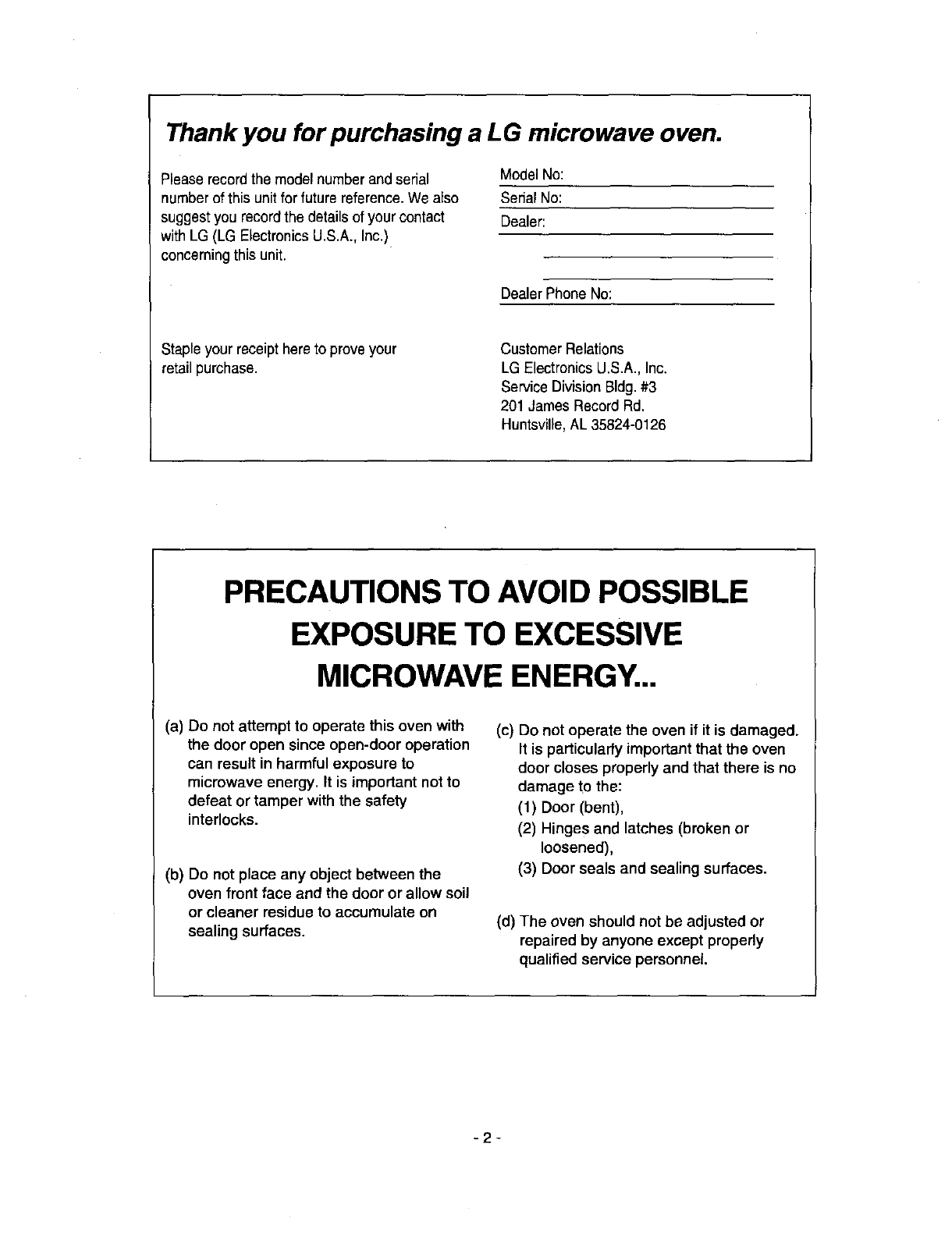

Thank you for purchasing a LG microwave oven.

Please record the model number and serial Model No:

number of this unit for future reference. We also Serial No:

suggest you record the details of your contact Dealer:

with LG (LG Electronics U.S.A., Inc.)

concerning this unit.

Dealer Phone No:

Staple your receipt here to prove your

retail purchase.

Customer Relations

LG Electronics U.S.A., Inc.

Service Division Bldg. #3

201 James Record Rd.

Huntsville, AL 35824-0126

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY,..

(a) Do not attempt to operate this oven with

the door open since open-door operation

can result in harmful exposure to

microwave energy. It is important not to

defeat or tamper with the safety

interlocks.

(b) Do not place any object between the

oven front face and the door or allow soil

or cleaner residue to accumulate on

sealing surfaces.

It is particularly important that the oven

door closes properly and that there is no

damage to the:

(1) Door (bent),

(2) Hinges and latches (broken or

loosened),

(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or

repaired by anyone except properly

qualified service personnel.

-2-

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY ............................................................... 2

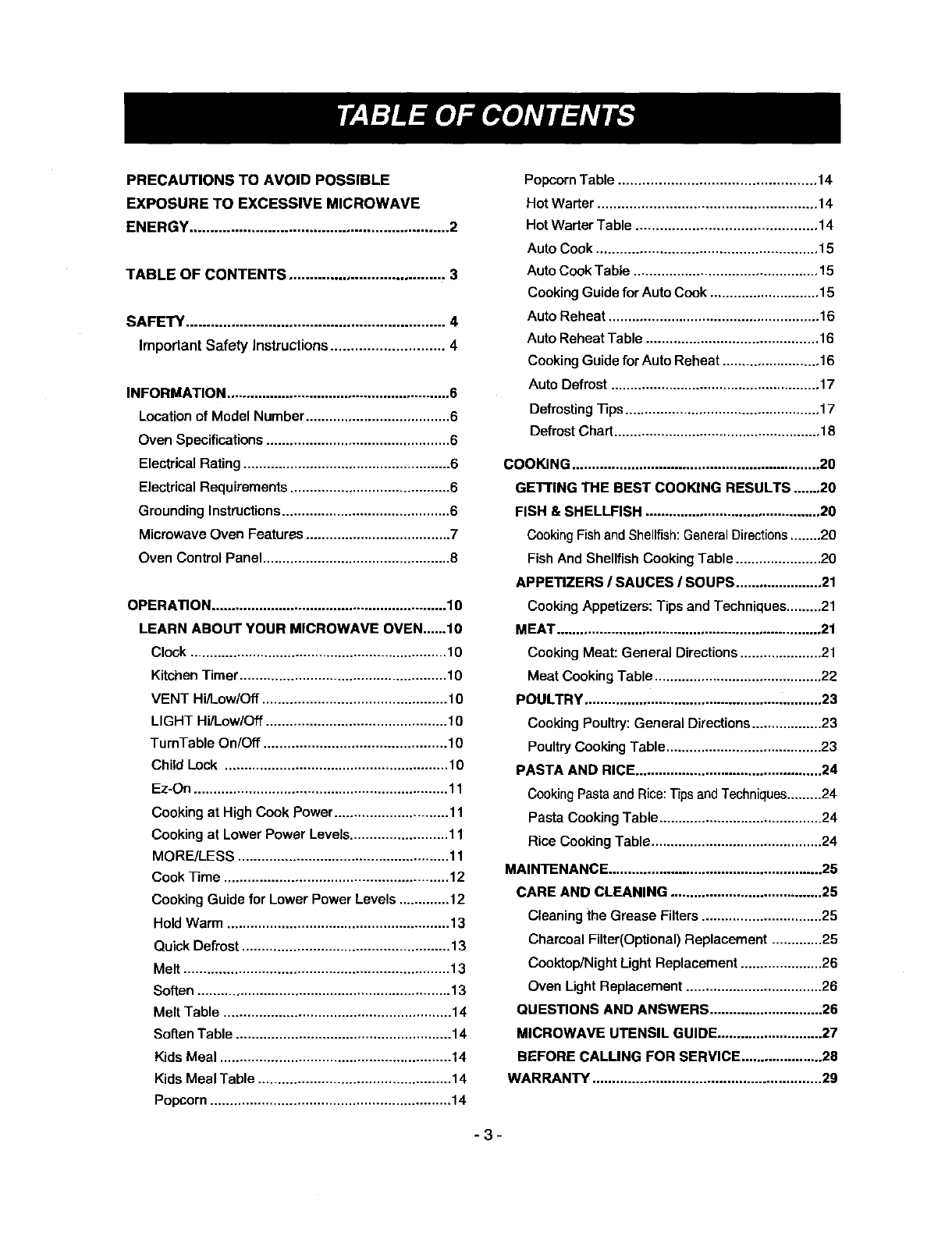

TABLE OF CONTENTS ...................................... 3

SAFETY ............................................................... 4

Important Safety Instructions............................ 4

INFORMATION ......................................................... 6

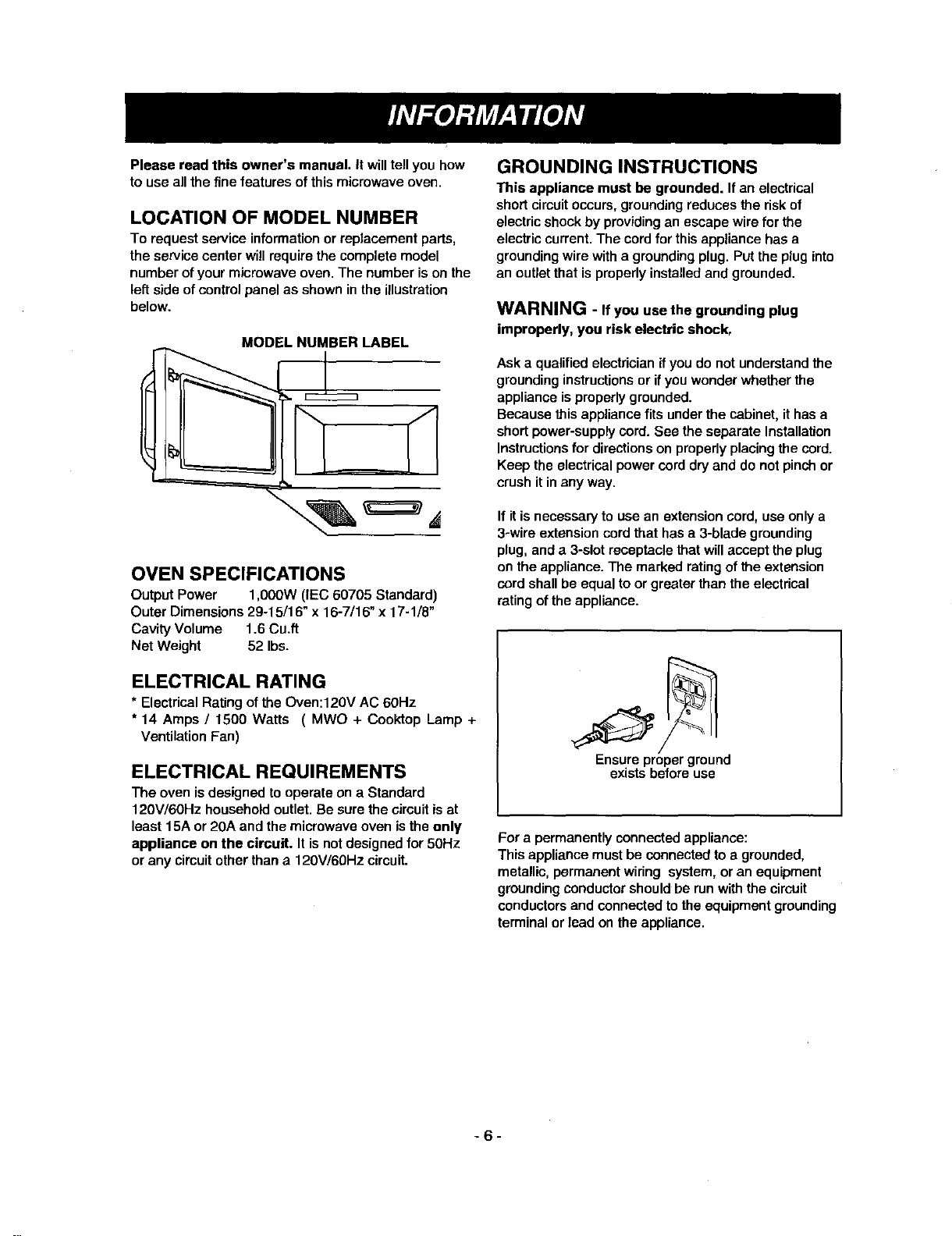

Location of Model Number ..................................... 6

Oven Specifications ............................................... 6

Electrical Rating ..................................................... 6

Electrical Requirements ......................................... 6

Grounding Instructions ........................................... 6

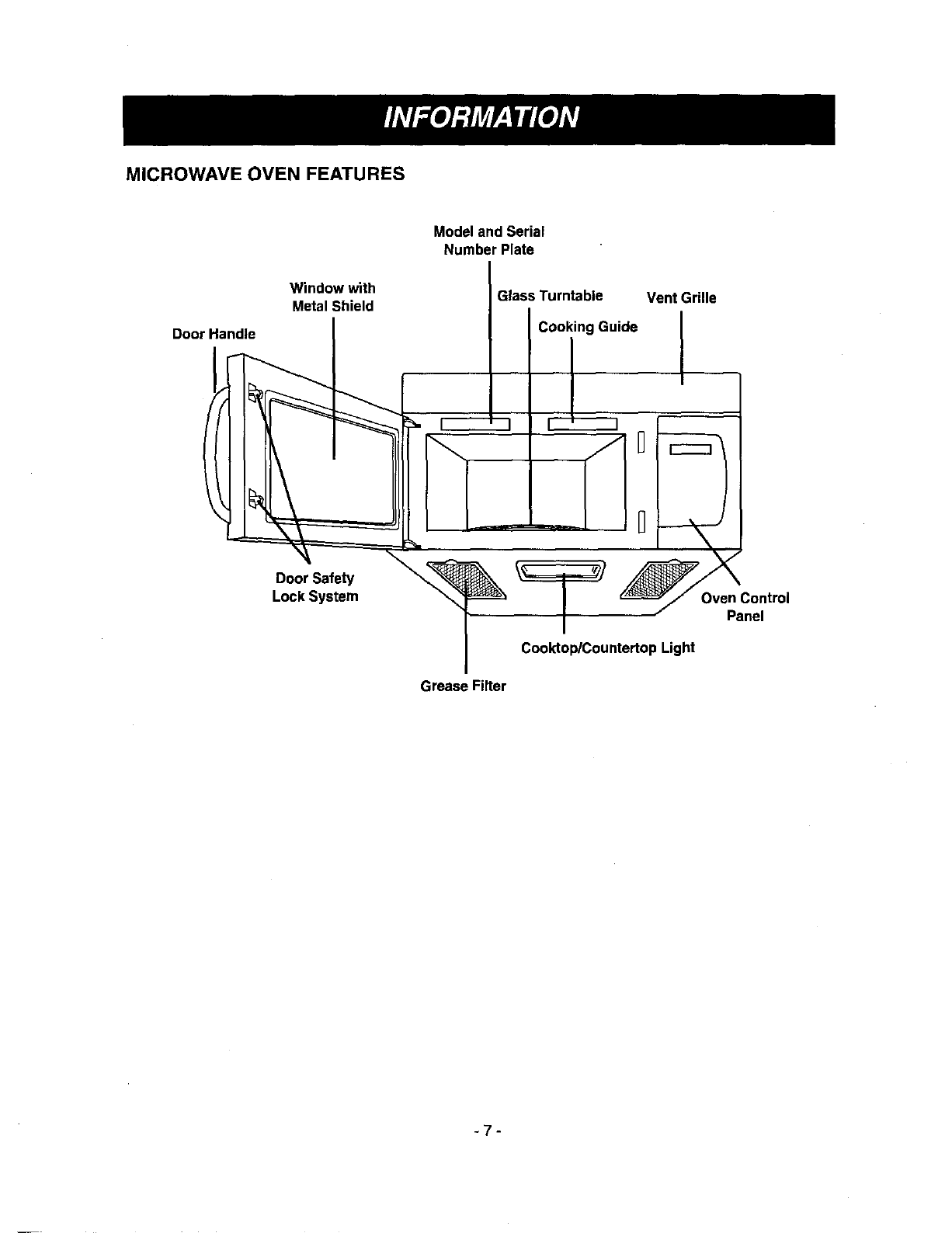

Microwave Oven Features ..................................... 7

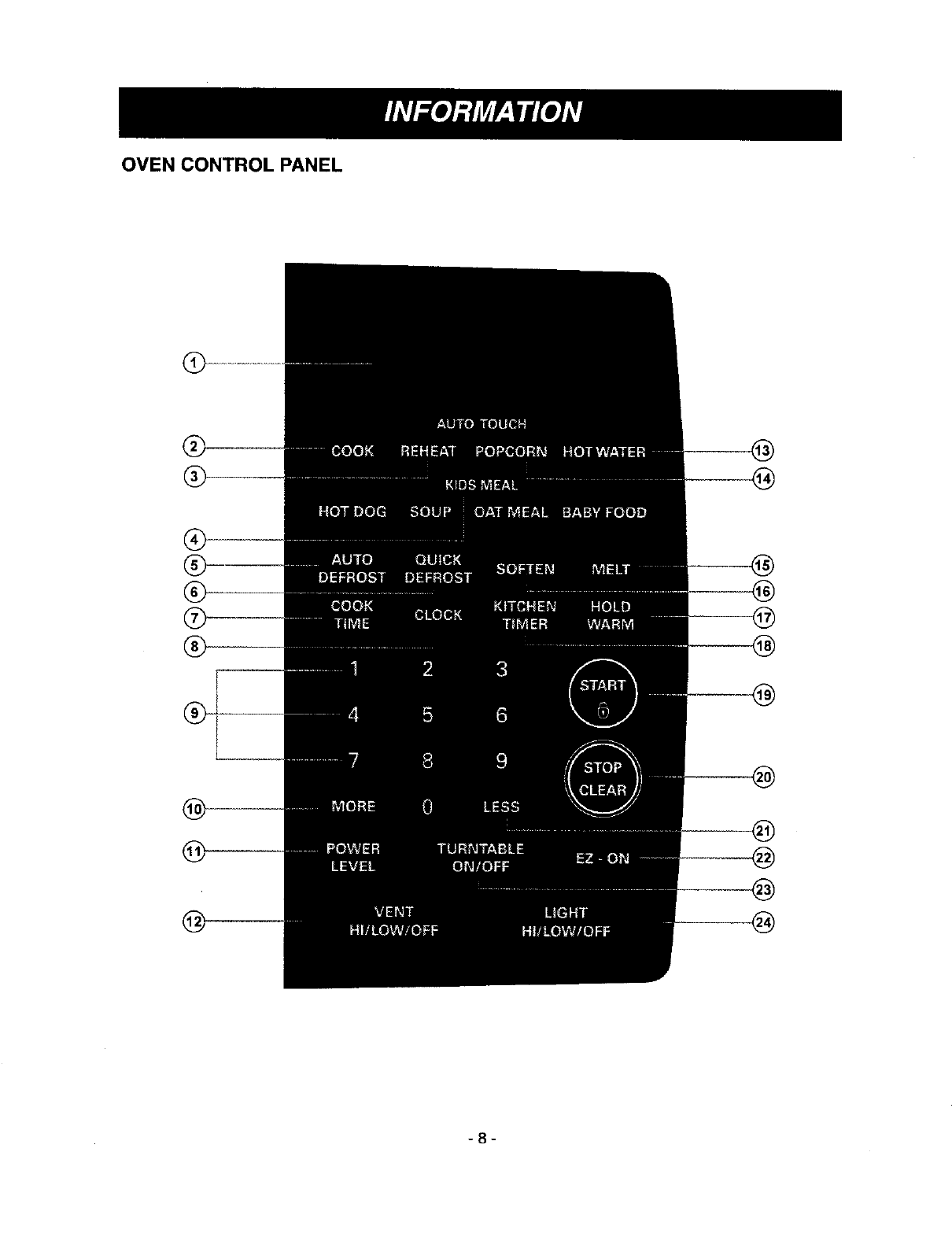

Oven Control Panel ................................................ 8

OPERATION ............................................................ 10

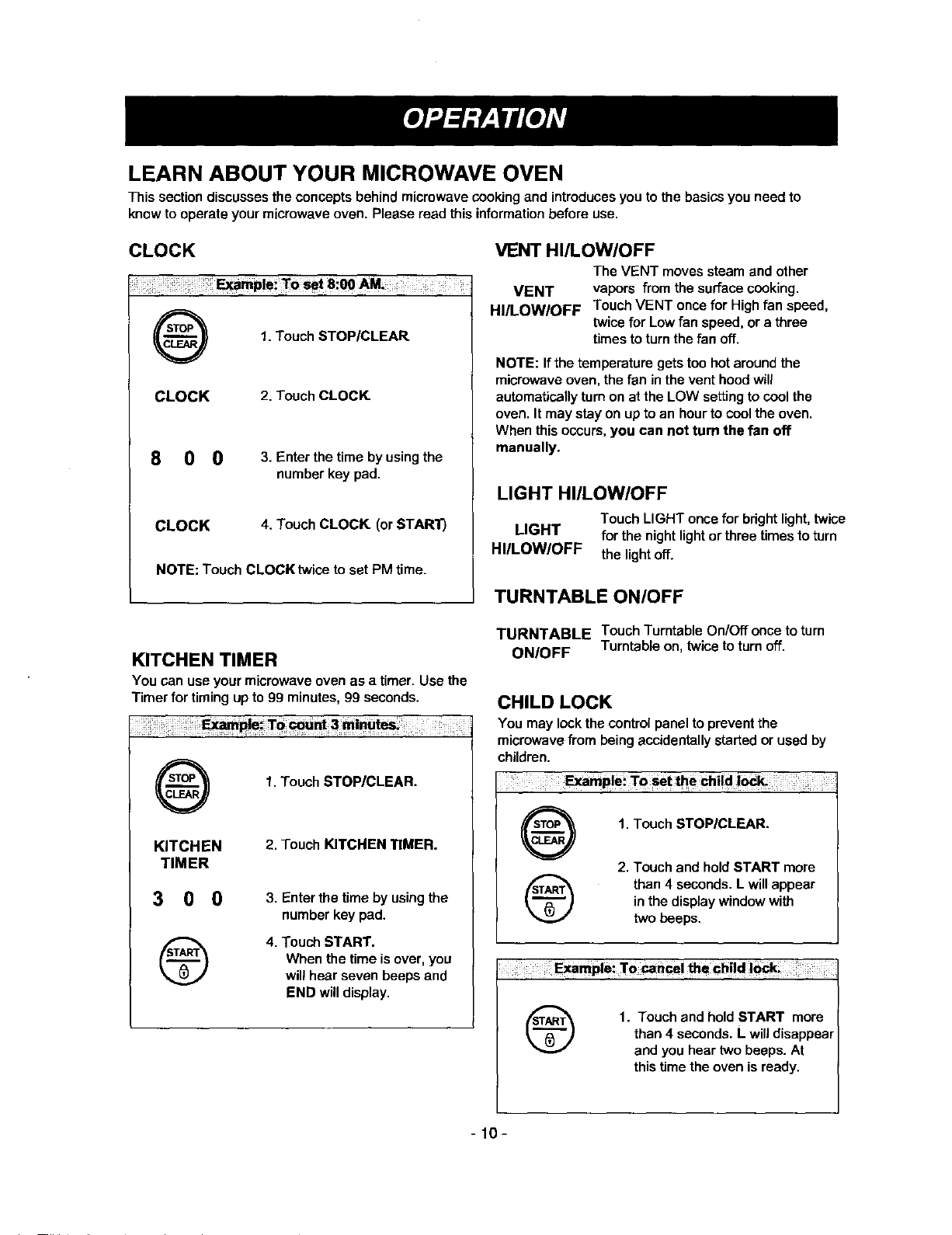

LEARN ABOUT YOUR MICROWAVE OVEN......10

Clock .................................................................. 10

Kitchen Timer ..................................................... 10

VENT Hi/Low/Off ............................................... 10

LIGHT Hi/Low/Off .............................................. t 0

TurnTable On/Off .............................................. 10

Child Lock ......................................................... 10

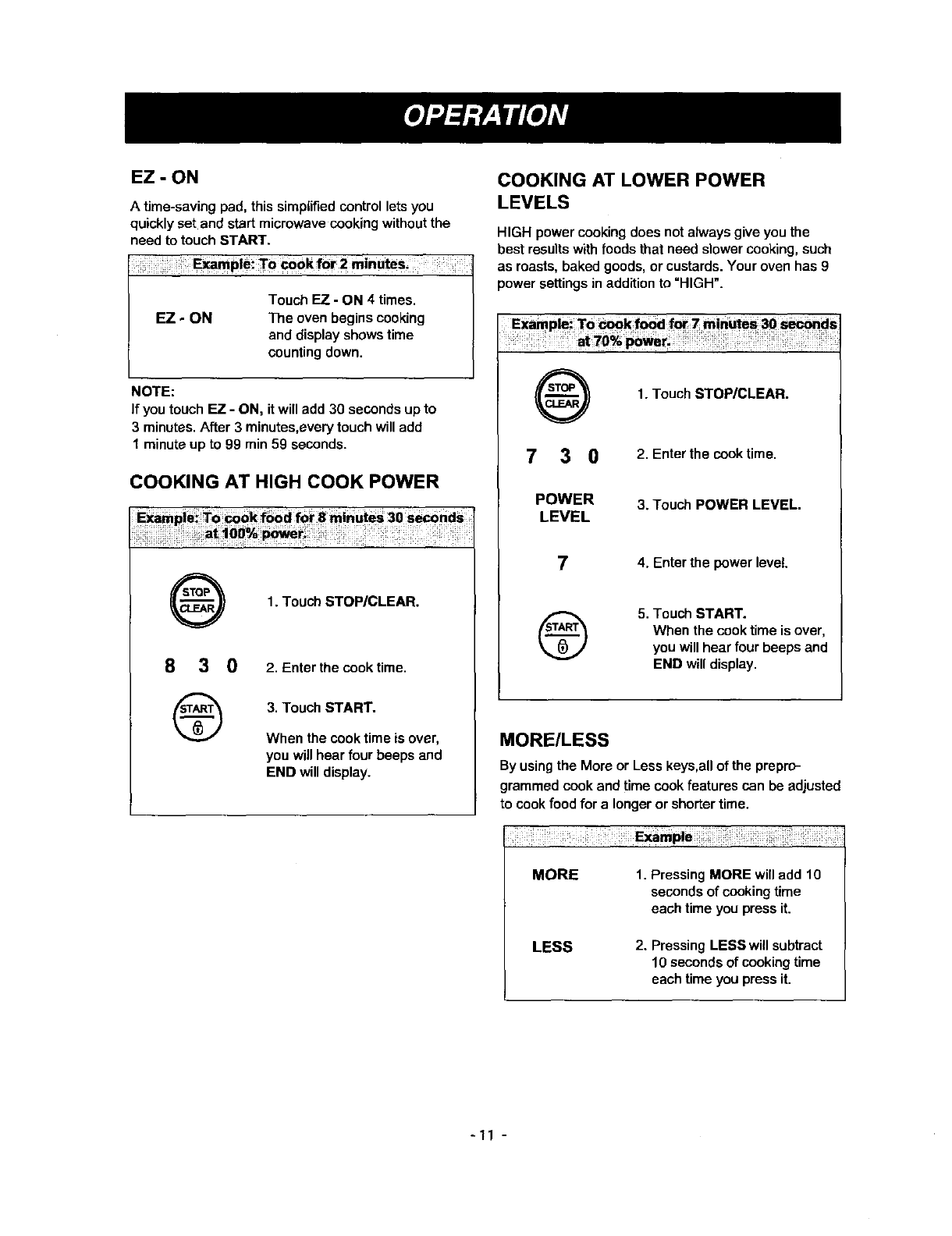

Ez-On ................................................................. 11

Cooking at High Cook Power ............................. 11

Cooking at Lower Power Levels ......................... 11

MORE/LESS ...................................................... 11

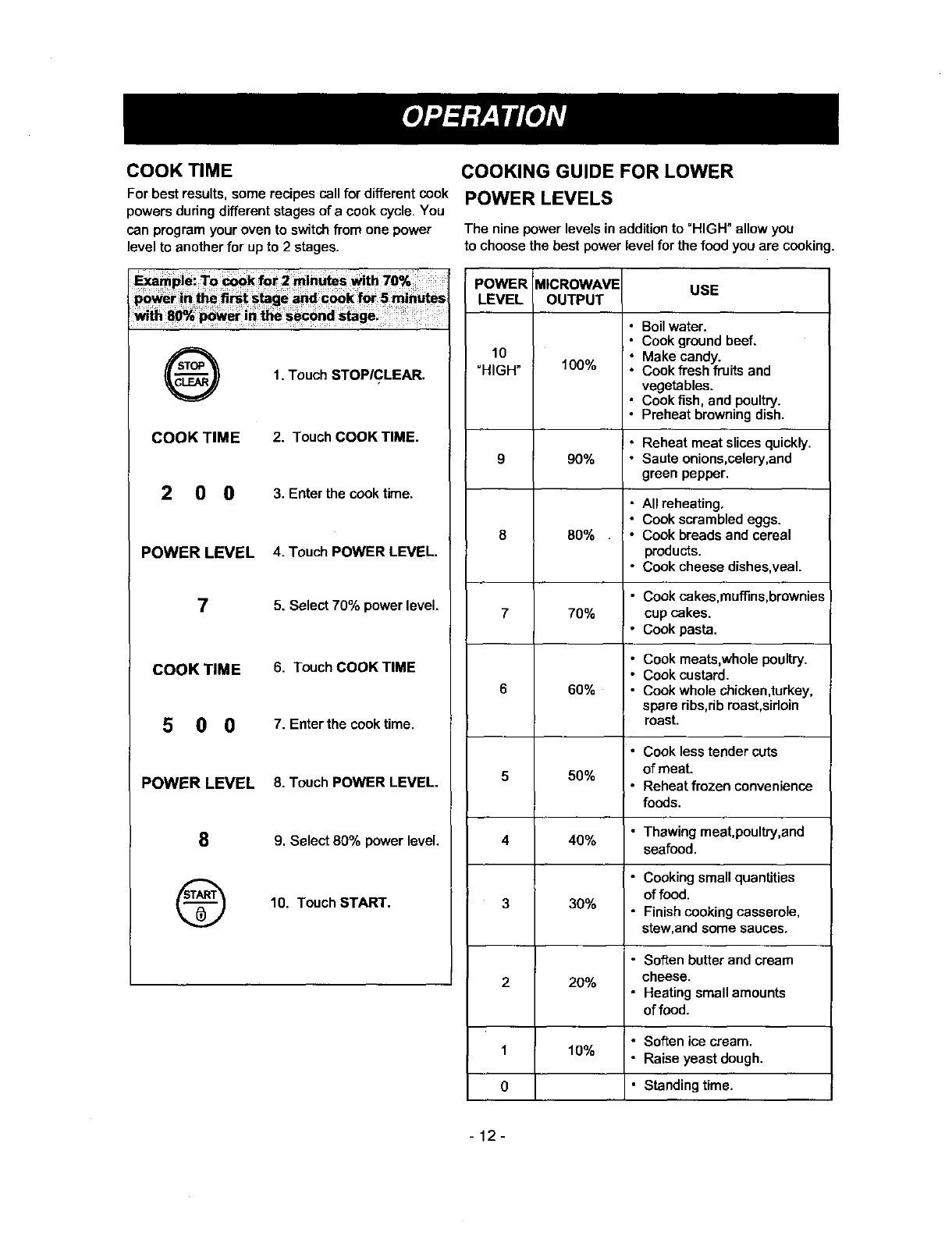

Cook Time ......................................................... 12

Cooking Guide for Lower Power Levels ............. 12

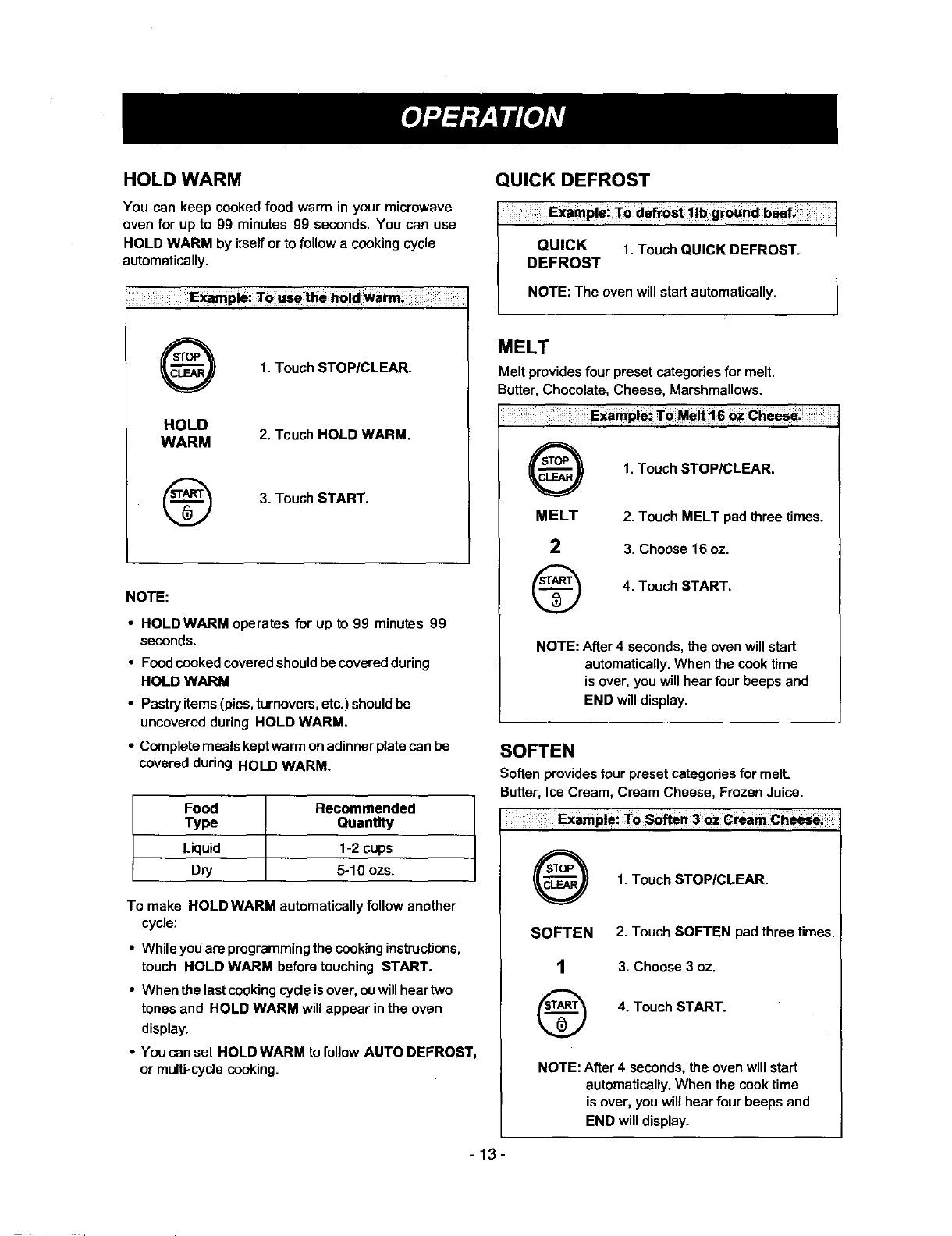

Hold Warm ......................................................... 13

Quick Defrost ..................................................... 13

Melt .................................................................... 13

Soften ................................................................. 13

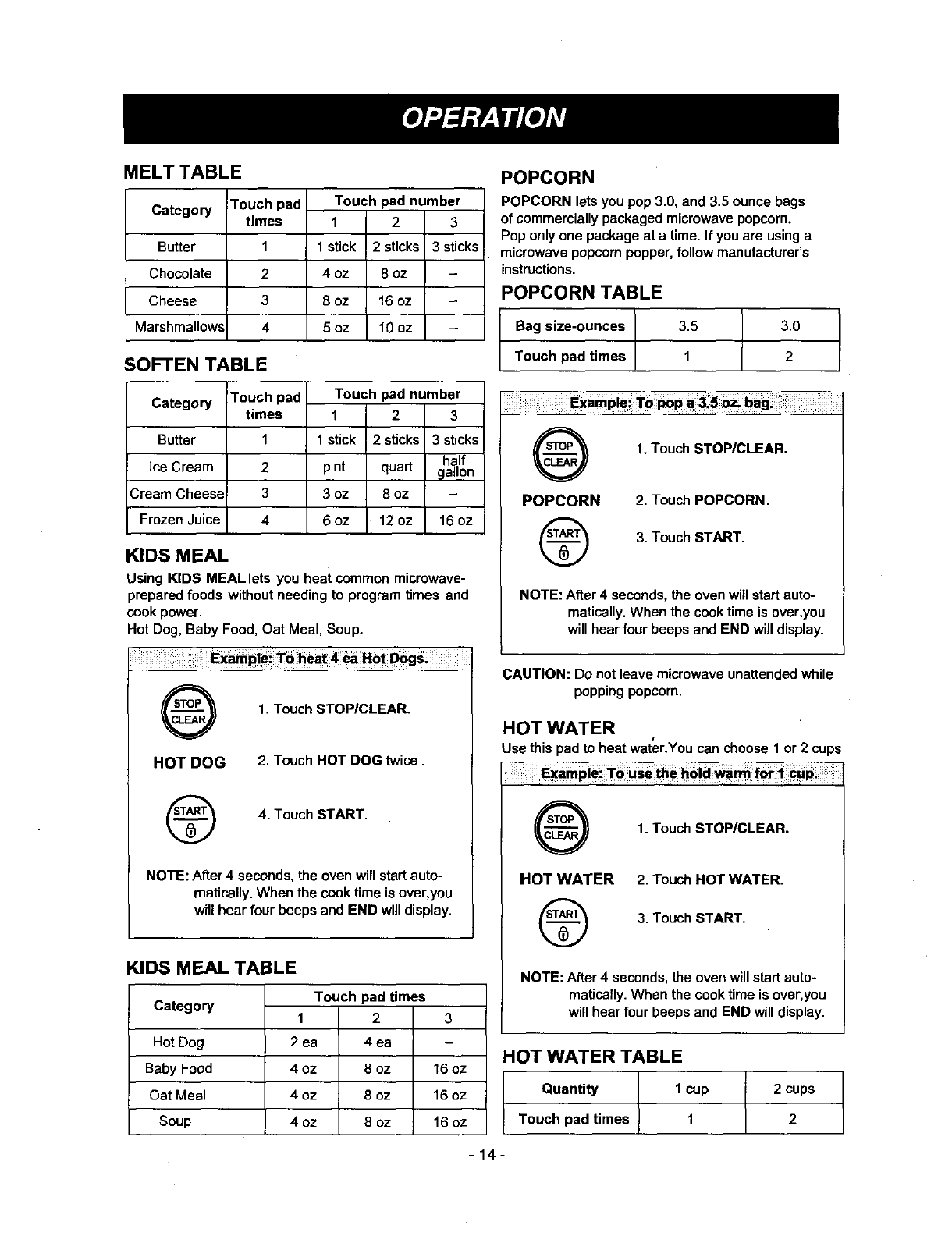

Melt Table .......................................................... 14

Soften Table ....................................................... 14

Kids Meal ........................................................... 14

Kids Meal Table ................................................. 14

Popcorn ............................................................. 14

Popcorn Table ................................................. 14

Hot Warter ....................................................... 14

Hot Wafter Table ............................................. 14

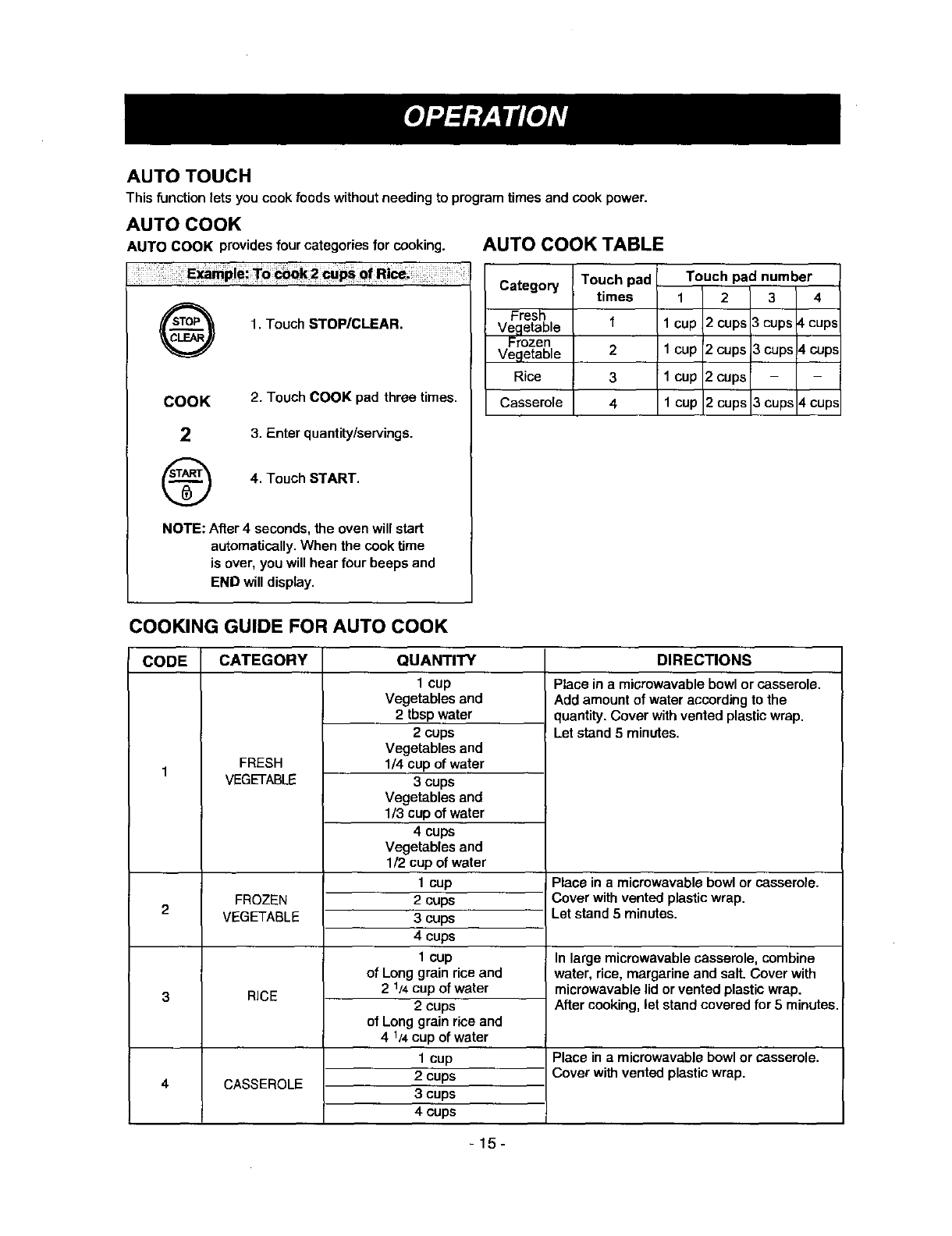

Auto Cook ........................................................ 15

Auto Cook Table ............................................... 15

Cooking Guide for Auto Cook ............................ 15

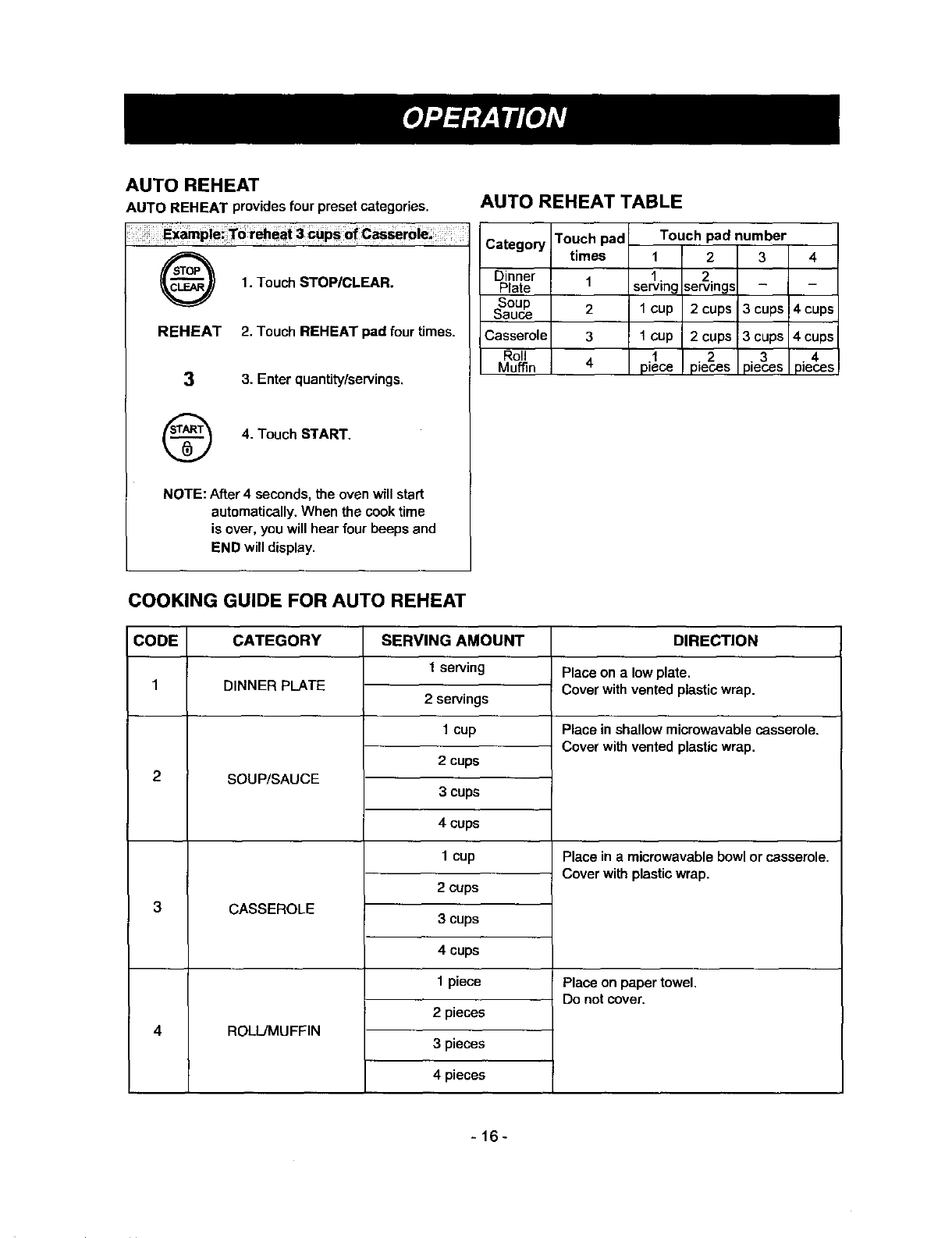

Auto Reheat ...................................................... 16

Auto Reheat Table ............................................ 16

Cooking Guide for Auto Reheat ......................... 16

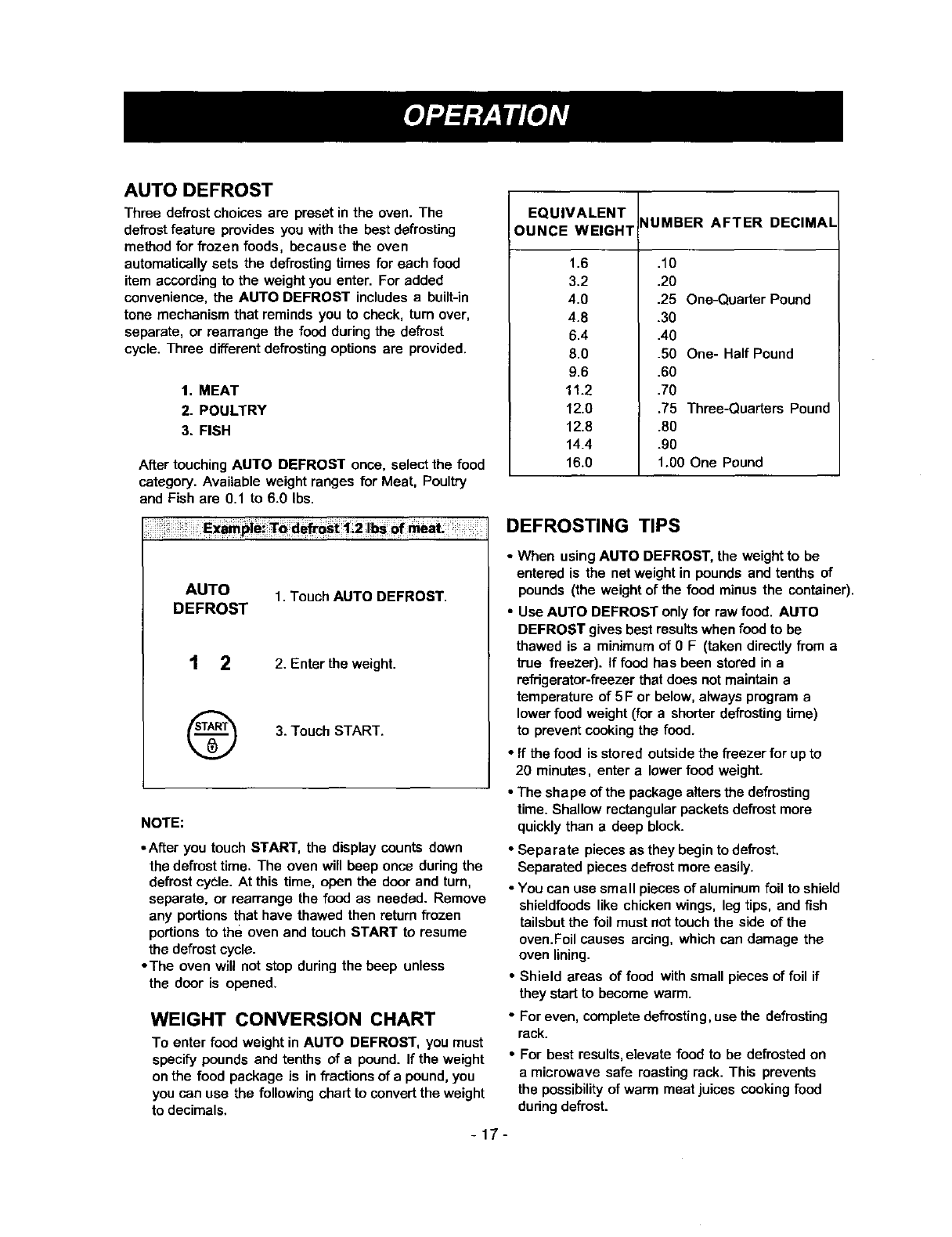

Auto Defrost ...................................................... 17

Defrosting 33ps .................................................. 17

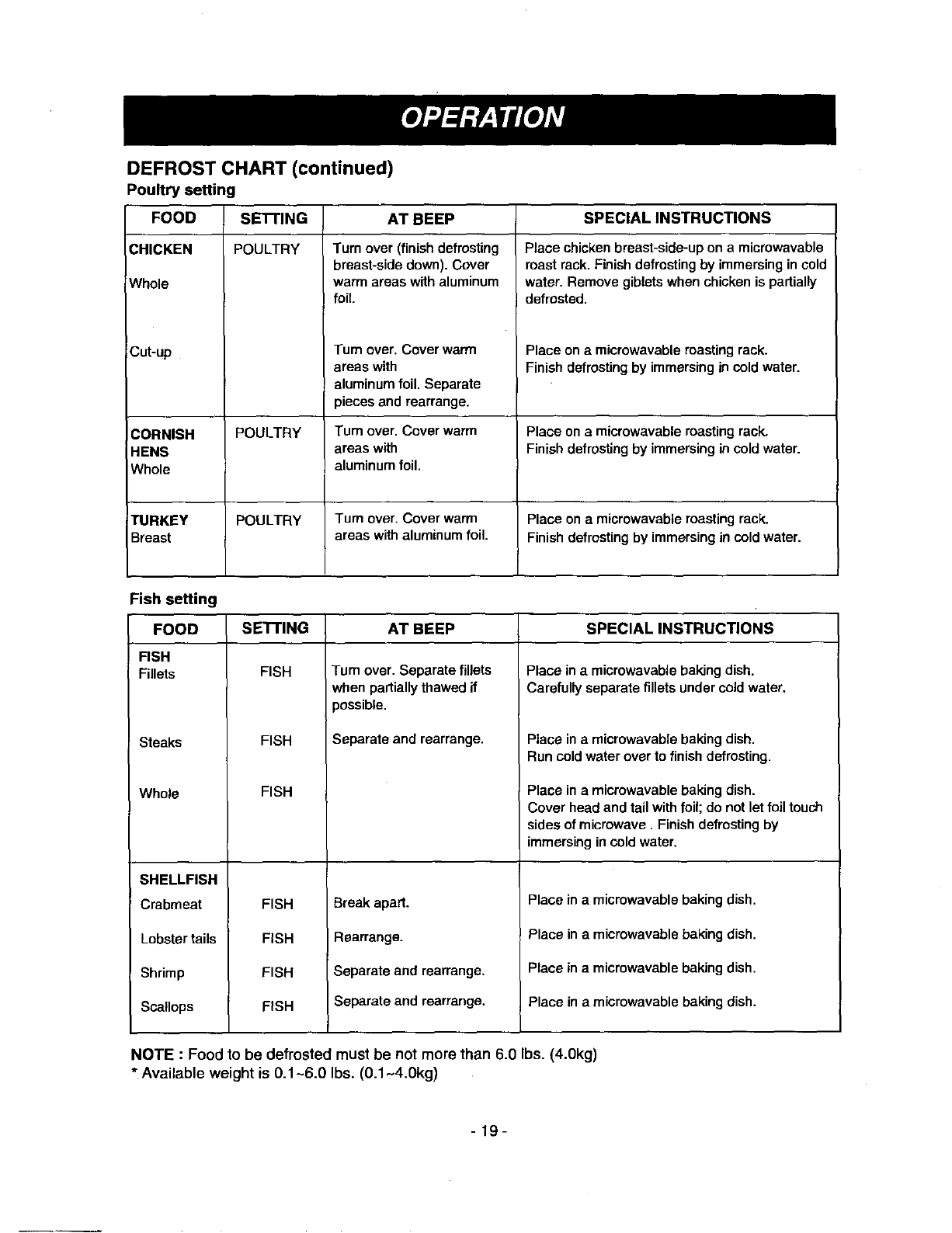

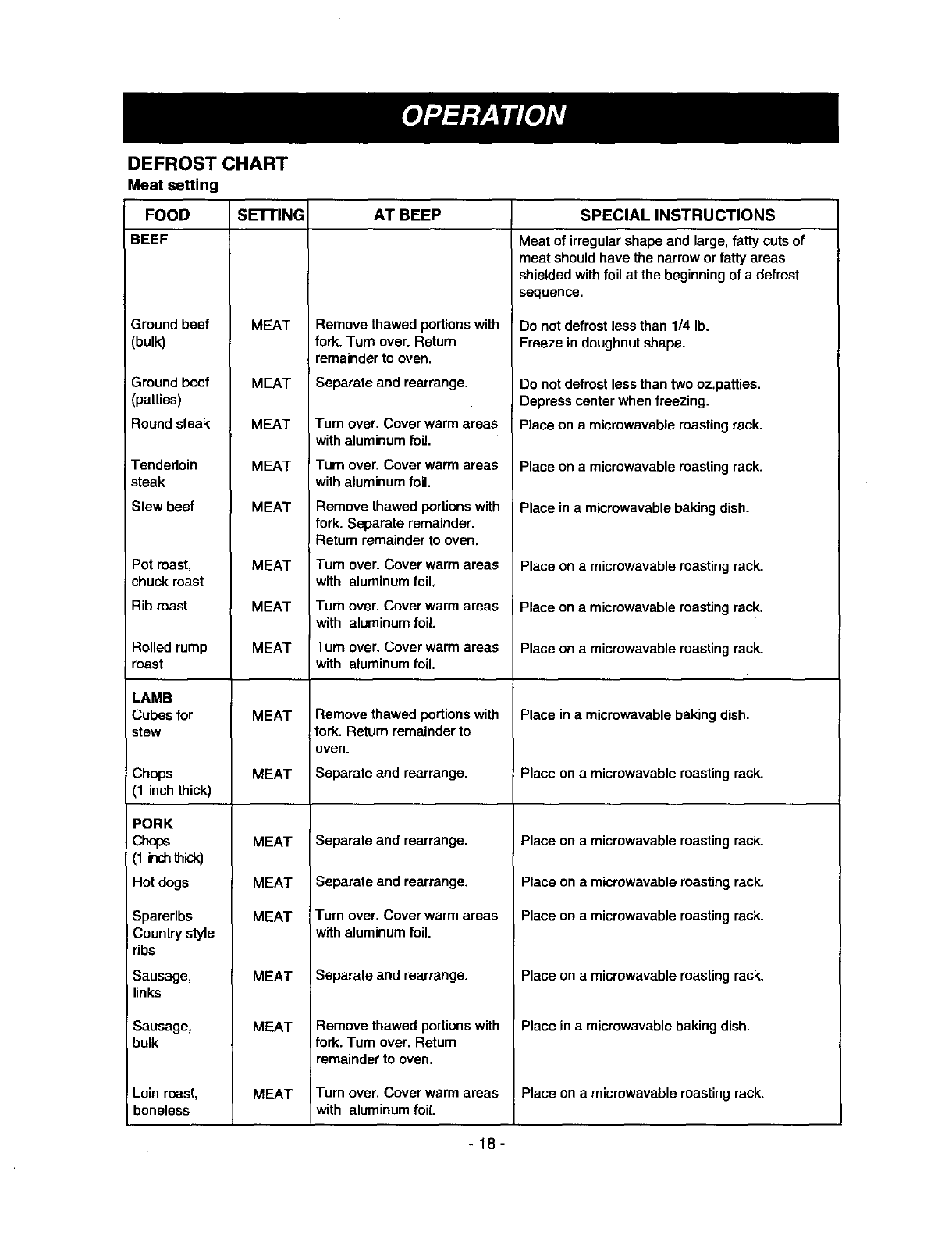

Defrost Chart ..................................................... 18

COOKING ............................................................... 20

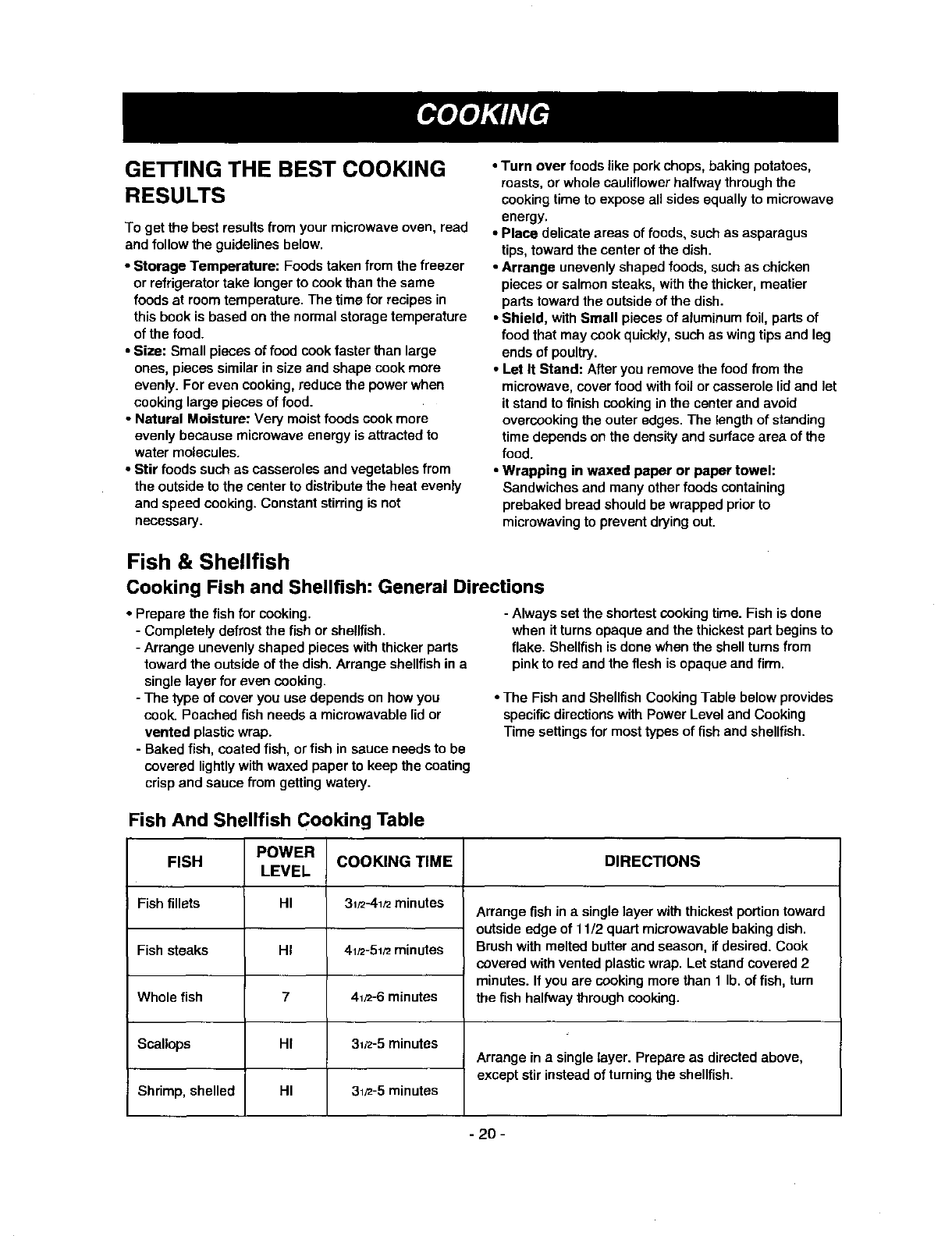

GE'I'rlNG THE BEST COOKING RESULTS .......20

FISH & SHELLFISH ............................................. 20

Cooking Fishand Shellfish: General Directions ........20

Fish And Shellfish Cooking Table ...................... 20

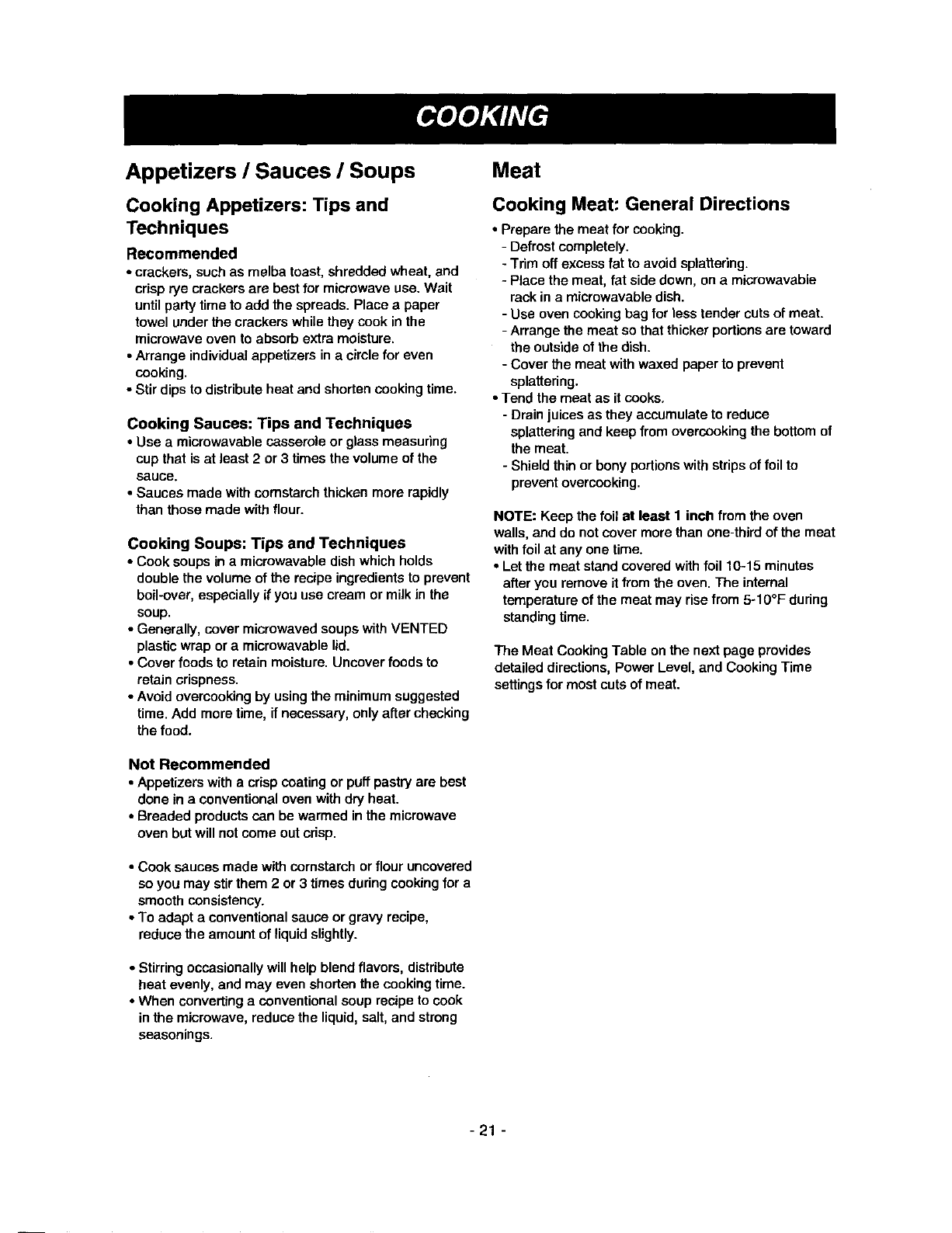

APPETIZERS /SAUCES /SOUPS ...................... 21

Cooking Appetizers: Tips and Techniques ......... 21

MEAT .................................................................... 21

Cooking Meat: General Directions ..................... 21

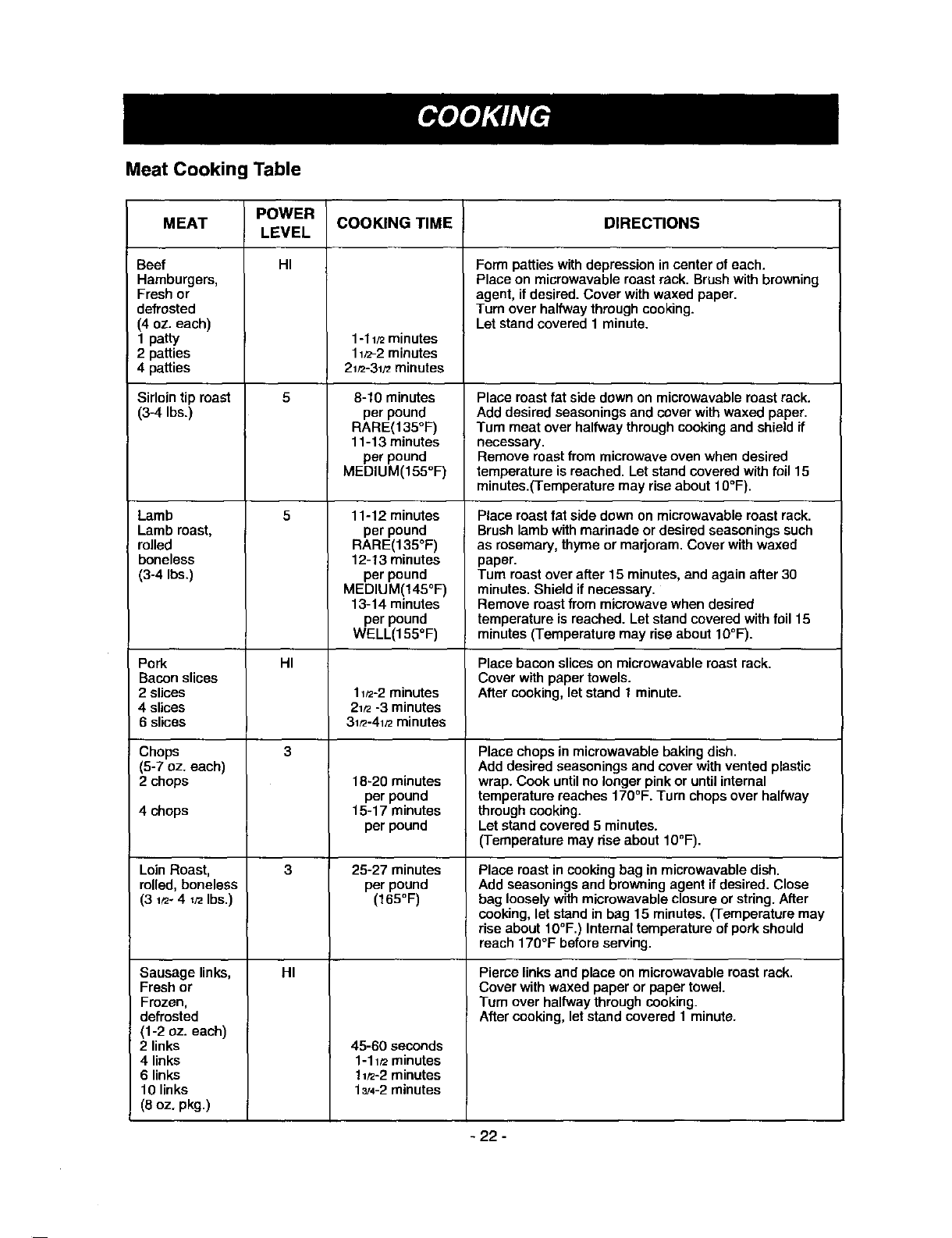

Meat Cooking Table ........................................... 22

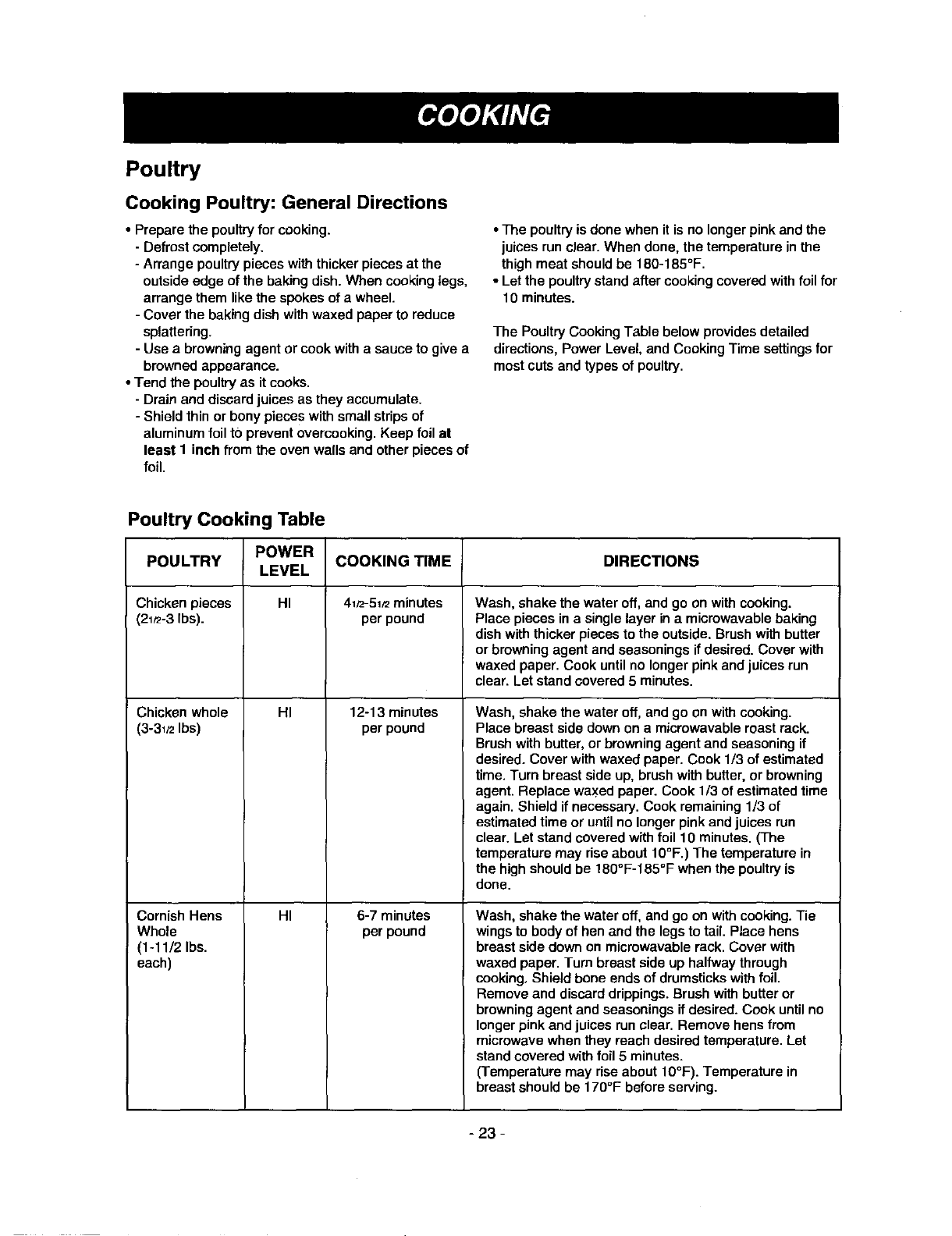

POULTRY ............................................................. 23

Cooking Poultry: General Directions .................. 23

Poultry Cooking Table ........................................ 23

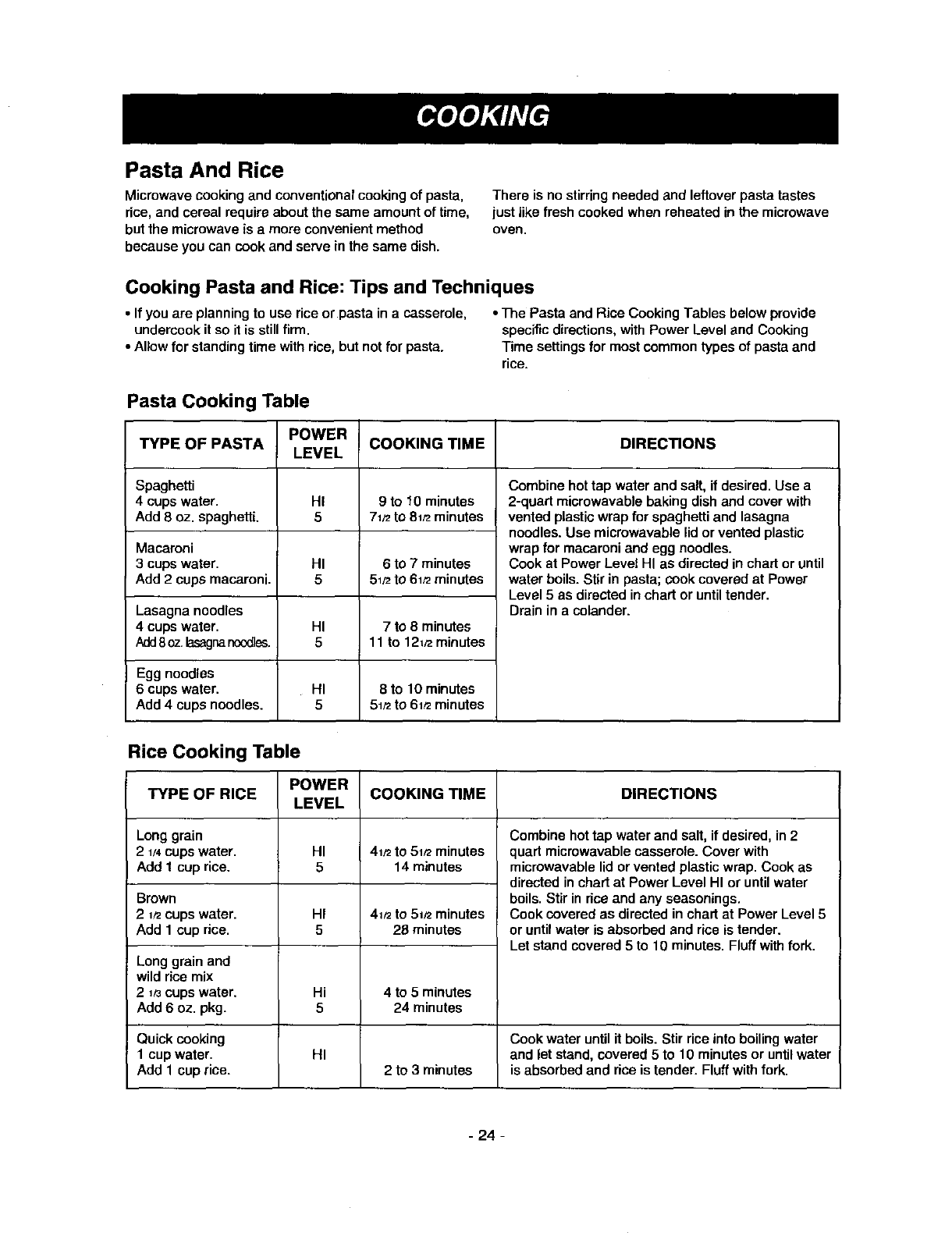

PASTA AND RICE ................................................ 24

CookingPasta and Rice:Tips and Techniques......... 24

Pasta Cooking Table .......................................... 24

Rice Cooking Table ............................................ 24

MAINTENANCE ....................................................... 25

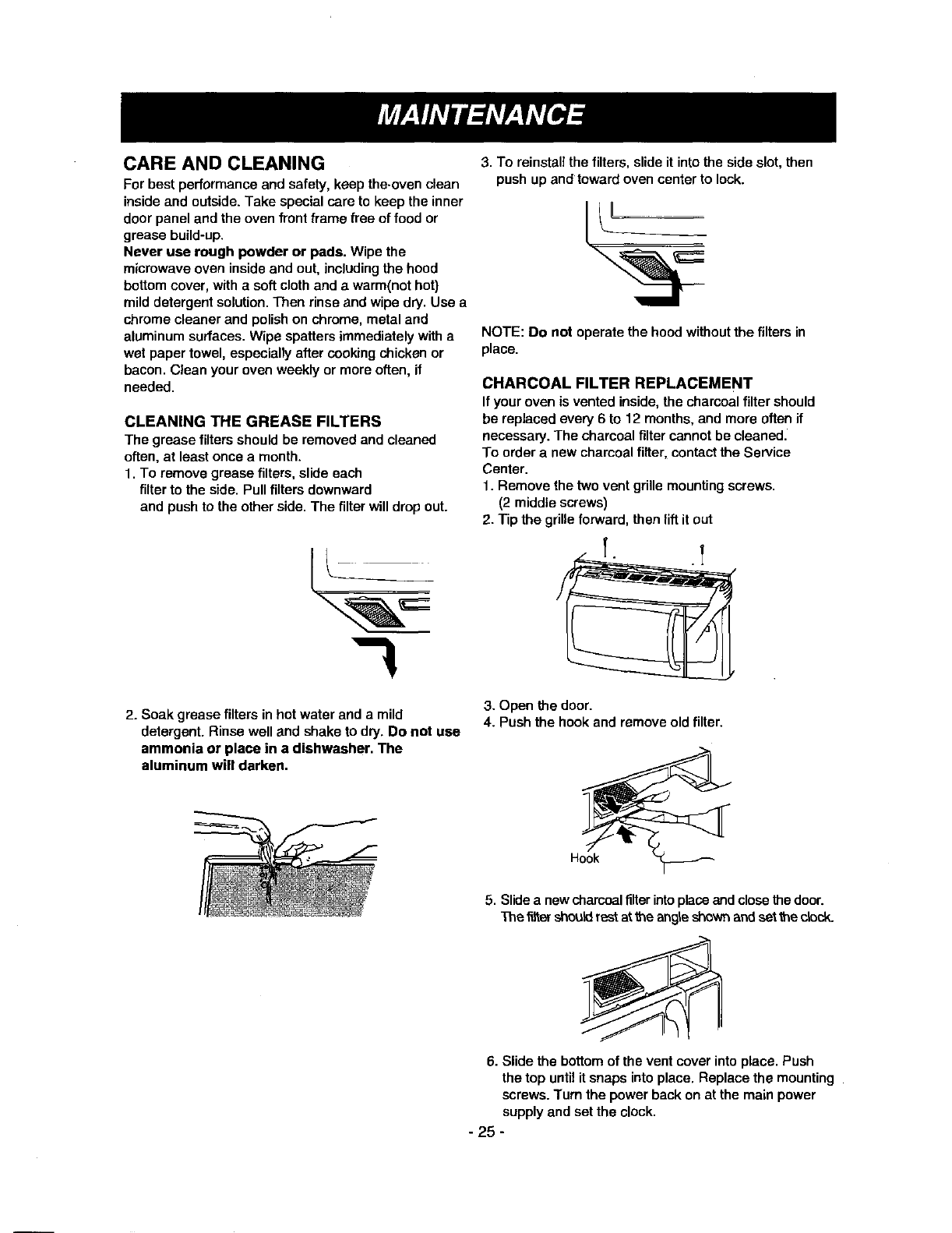

CARE AND CLEANING ....................................... 25

Cleaning the Grease Filters ............................... 25

Charcoal Filter(Optional) Replacement ............. 25

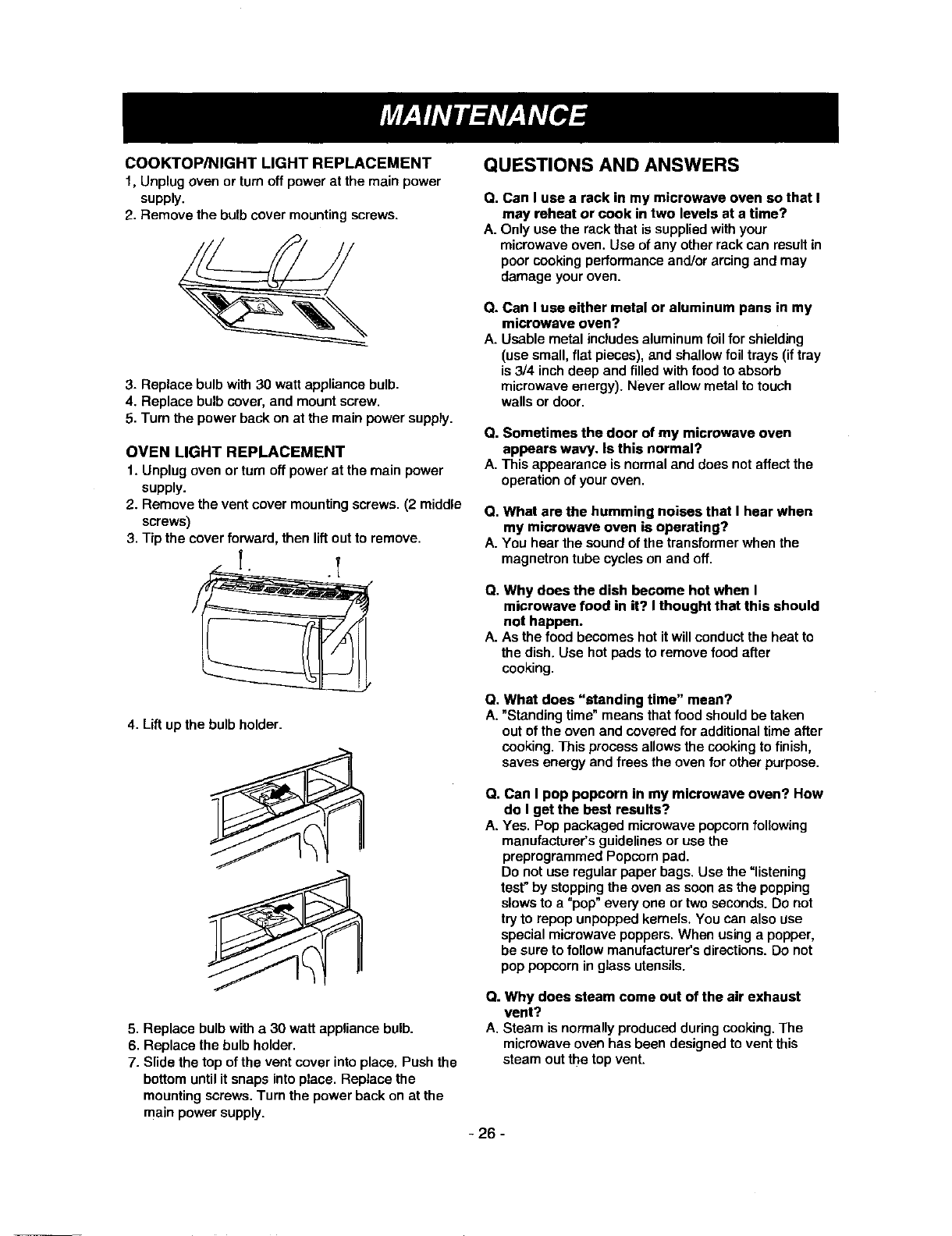

Cooktop/Night Light Replacement ..................... 26

Oven Light Replacement ................................... 26

QUESTIONS AND ANSWERS ............................. 26

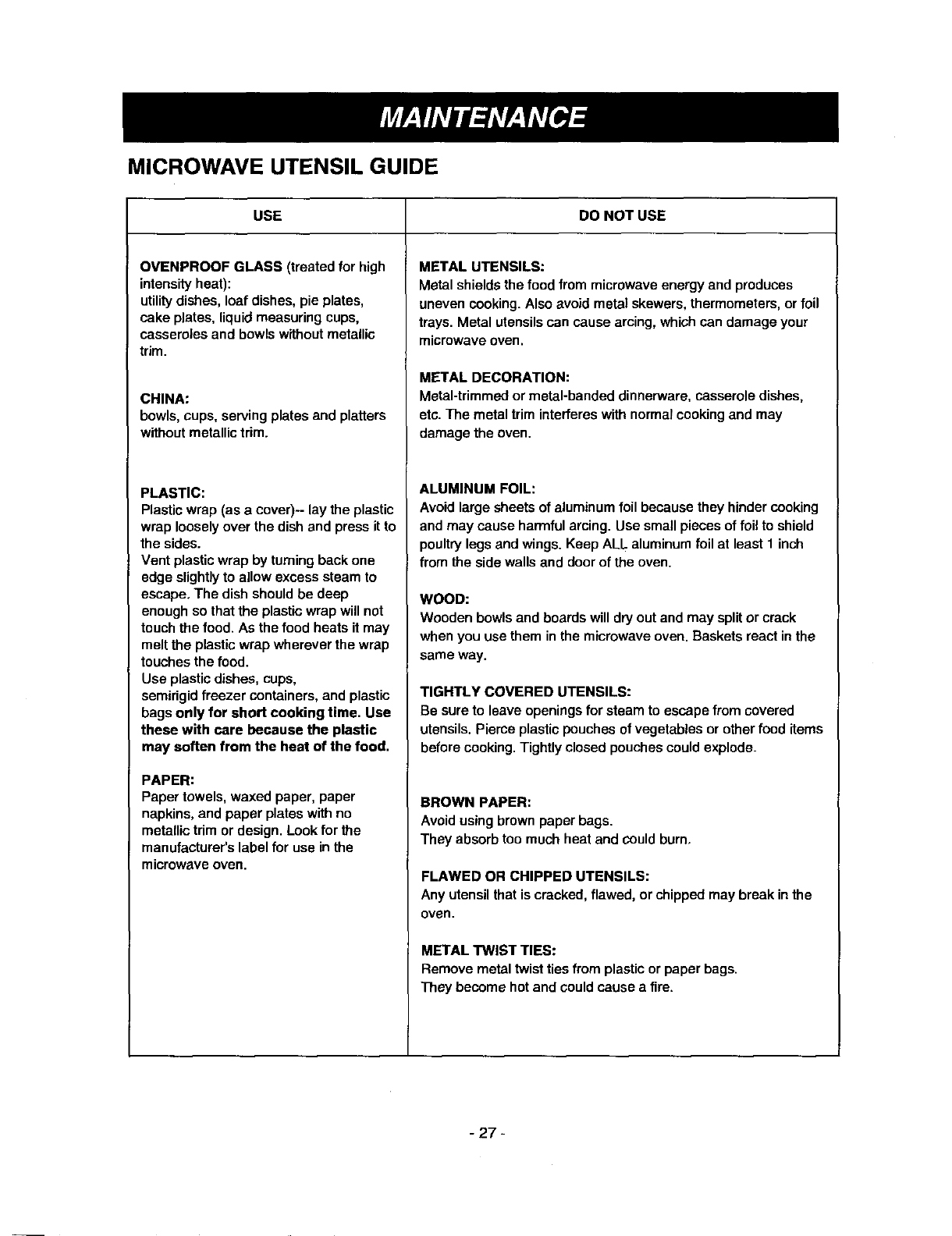

MICROWAVE UTENSIL GUIDE ........................... 27

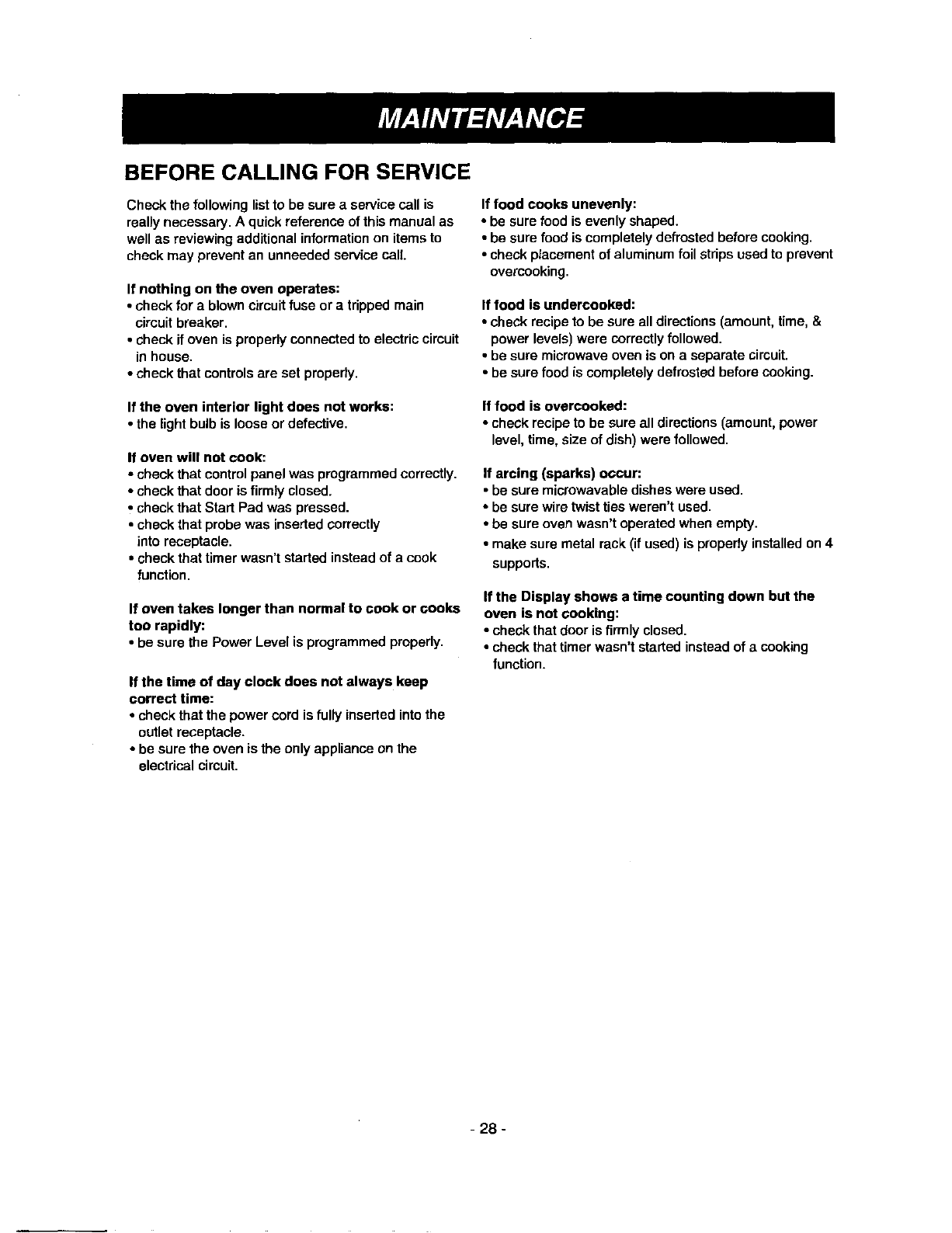

BEFORE CALLING FOR SERVICE ..................... 28

WARRANTY .......................................................... 29

-3-

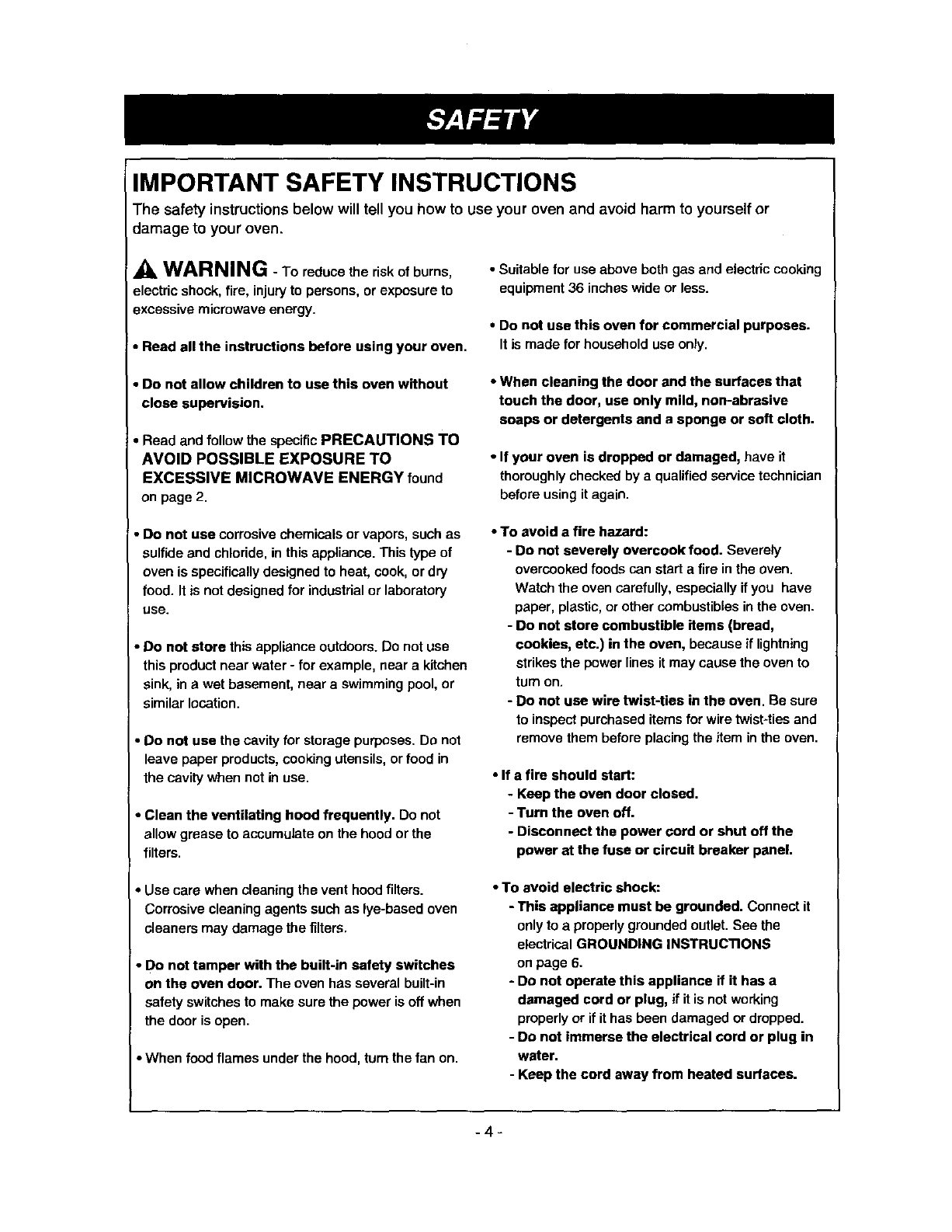

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions below will tell you how to use your oven and avoid harm to yourself or

damage to your oven.

"_IL WARNING- To reduce the risk of burns,

electric shock, fire, injunJto persons, or exposure to

excessive microwave energy.

• Read all the instructions before using your oven.

•Suitable for use above both gas and electric cooking

equipment 36 inches wide or less.

• Do not use this oven for commercial purposes.

It is made for householduse only.

•Do not allow children to use this oven without

close supervision.

• Read and follow the specific PRECAUTIONS TO

AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY found

on page 2.

• When cleaning the door and the surfaces that

touch the door, use only mild, non-abrasive

soaps or detergents and a sponge or soft cloth.

•If your oven is dropped or damaged, have it

thoroughly checked by a qualified service technician

before using it again.

Do not use corrosive chemicals or vapors, such as

sulfide and chloride, in this appliance. This type of

oven is specifically designed to heat, cook, or dry

food. It is not designed for industrial or laboratory

use.

•Do not store this appliance outdoors. Do not use

this product near water - for example, near a kitchen

sink, in awet basement, near a swimming pool, or

similar location.

•Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils, or food in

the cavity when not in use.

•Clean the ventilating hood frequently. Do not

allow grease to accumulate on the hood or the

filters.

•To avoid a fire hazard:

-Do not severely overcook food. Severely

overcooked foods can start a fire in the even.

Watch the oven carefully, especially ifyou have

paper, plastic, or other combustibles in the oven.

-Do not store combustible items (bread,

cookies, etc.) in the oven, because if lightning

strikes the power lines it may cause the oven to

turn on.

- Do not use wire twist-ties in the oven. Be sure

to inspect purchased items for wire twisHies and

remove them before placing the item inthe oven.

•If a fire should start:

- Keep the oven door closed.

-Turn the oven off.

-Disconnect the power cord or shut off the

power at the fuse or circuit breaker panel.

•Use care when cleaning the vent hood filters.

Corrosive cleaning agents such as lye-based oven

cleaners may damage the filters.

•Do not tamper with the built-in safety switches

on the oven door. The oven has several built-in

safety switches to make sure the power is off when

the door is open.

• When food flames under the hood, tum the fan on.

•To avoid electric shock:

-This appliance must be grounded. Connect it

only to a properly grounded outlet. See the

electrical GROUNDING INSTRUCTIONS

on page 6.

-Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly or if it has been damaged or dropped.

-Do not immerse the electrical cord or plug in

water.

-Keep the cord away from heated surfaces.

-4-

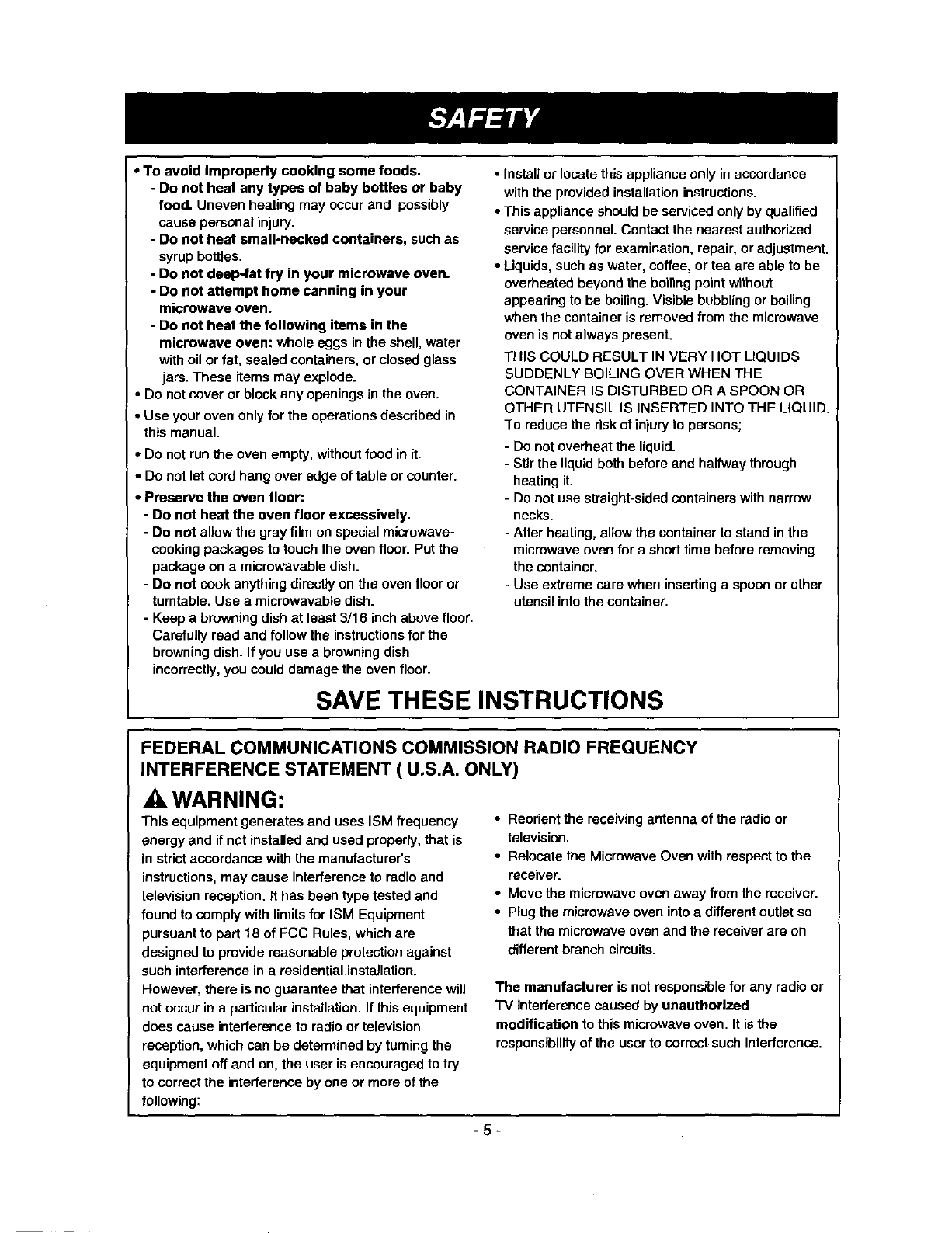

• To avoid improperly cooking some foods.

- Do not heat any types of baby bottles or baby

food. Uneven heating may occur and possibly

cause personal injury.

-Do not heat small-necked containers, such as

syrup bottles.

-Do not deep-fat fry in your microwave oven.

-Do not attempt home canning in your

microwave oven.

-Do not heat the following items in the

microwave oven: whole eggs in the shell, water

with oil or fat, sealed containers, or closed glass

jars. These items may explode.

• Do not cover or block any openings in the oven.

•Use your oven only for the operations described in

this manual.

•Do not run the oven empty, without food in it.

• Do not let cord hang over edge of table or counter.

•Preserve the oven floor:

-Do not heat the oven floor excessively.

-Do not allow the gray film on special microwave-

cooldng packages to touch the oven floor. Put the

package on a microwavable dish.

-Do not cook anything directly on the oven floor or

tumtable. Use a microwavable dish.

-Keep a browning dish at least 3/16 inch above floor.

Carefully read and follow the instructions for the

browning dish. If you use a browning dish

incorrectly, you could damage the oven floor.

• Install or locate this appliance only in accordance

with the provided installation instructions.

• This appliance should be serviced only by qualified

service personnel. Contact the nearest authorized

service facility for examination, repair, or adjustment.

•Liquids, such as water, coffee, or tea are able to be

overheated beyond the boiling point without

appearing to be boiling. Visible bobbling or boiling

when the container is removed from the microwave

oven is not always present.

THIS COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN THE

CONTAINER IS DISTURBED OR A SPOON OR

OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons;

- Do not overheat the liquid.

- Stir the liquid both before and halfway through

heating it.

- Do not use straight-sided containers with narrow

necks.

-After heating, allow the container to stand in the

microwave oven for a short time before removing

the container.

-Use extreme care when inserting a spoon or other

utensil into the container.

SAVE THESEINSTRUCTIONS

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY

INTERFERENCE STATEMENT ( U.S,A, ONLY)

WARNING:

This equipment generates and uses ISM frequency

energy and if not installed and used properly, that is

in strict accordance with the manufacturer's

instructions, may cause interference to radio and

television reception, it has been type tested and

found to comply with limits for ISM Equipment

pursuant to part 18 of FCC Rules, which are

designed to provide reasonable protection against

such interference in a residential installation.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try

to correct the interference by one or more of the

following:

• Reorient the receiving antenna of the radio or

television.

•Relocate the Microwave Oven with respect to the

receiver.

•Move the microwave oven away from the receiver.

•Plug the microwave oven intoa different outlet so

that the microwave oven and the receiver are on

different branch circuits.

The manufacturer is not responsible for any radio or

TV interference caused by unauthorized

modification to this microwave oven. It is the

responsibility of the user to correct such interference.

-5-

Please read this owner's manual. It will tell you how

to use all the fine features of this microwave oven.

LOCATION OF MODEL NUMBER

To request service information or replacement parts,

the service center will require the complete model

number of your microwave oven. The number is on the

left side of control panel as shown in the illustration

below.

MODEL NUMBER LABEL

OVEN SPECIFICATIONS

Output Power 1,000W (IEC 60705 Standard)

Outer Dimensions 29-15/16" x 16-7/16" x 17-1/8"

Cavity Volume 1.6 Cu.ft

Net Weight 52 Ibs.

ELECTRICAL RATING

* Electrical Rating of the Oven:120V AC 60Hz

* 14 Amps /1500 Watts ( MWO + Cooktop Lamp +

Ventilation Fan)

ELECTRICAL REQUIREMENTS

The oven is designed to operate on a Standard

120V/60Hz household outlet. Be sure the cimuit is at

least 15A or 20A and the microwave oven isthe only

appliance on the circuit. It is not designed for 50Hz

or any circuit other than a 120V/60Hz circuit.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If an electrical

short circuit occurs, grounding reduces the risk of

electric shock by providing an escape wire for the

electric current. The cord for this appliance has a

grounding wire with a grounding plug. Put the plug into

an outlet that is properly installed and grounded.

WARNING - If you use the grounding plug

improperly, you risk electric shock,

Ask a qualified electrician if you do not understand the

grounding instructionsor if you wonder whether the

appliance is properly grounded.

Because this appliance fits under the cabinet, it has a

short power-supply cord. See the separate Installation

Instructions for directions on properly placing the cord.

Keep the electrical power cord dry and do not pinch or

crush it in any way.

If it is necessary to use an extension cord, use only a

3-wire extension cord that has a3-blade grounding

plug, and a 3-slot receptacle that will accept the plug

on the appliance. The marked rating of the extension

cord shall be equal to or greater than the electrical

rating of the appliance.

Ensure proper ground

exists before use

For a permanently connected appliance:

This appliance must be connected to agrounded,

metallic, permanent wiring system, or an equipment

grounding conductor should be run with the circuit

conductors and connected to the equipment grounding

terminal or lead on the appliance.

-6-

MICROWAVE OVEN FEATURES

Model and Serial

Number Plate

Window with

Metal Shield

Door Handle

Door Safety

Lock System

Grease Filter

Glass Turntable Vent Grille

Cooking Guide

Oven Control

Panel

Cooktop/Countertop Light

_7-

OVEN CONTROLPANEL

®.

®,

-8-

1. DISPLAY: The Display includes aclock and

indicators to tell you time of day, cooking time

settings and cooking functions selected.

2. COOK: Touch this pad to cook fresh vegetable,

frozen vegetable,rice, or casseroles.

3. REHEAT: Touchthis pad to reheat dinner

plate, soup/sauce, casserole, roll/muffin.

4. KIDS MEAL: Selects type of dish to reheat hot dog,

baby food,oat meal or soup.

5.AUTO DEFROST: Meat ,peultry,fish.Touch this pad

to select food type and defrost food by weight.

6. QUICK DEFROST: This pad provides you with the

RAPID defrosting method for 1.0 pound frozen foods.

7. COOK TIME: Touch this pad to set a cooking time.

8. CLOCK: Touch this pad to enter the time of day.

9. NUMBER: Touch number pads to enter cooking

time, power level, quantities or weights.

10. MORE: Touch this pad to add ten seconds of

cooking time each time you press it.

11. POWER LEVEL: Touch this pad to select a

cooking power level.

12. VENT HI/i_OWlOFF: Touch this pad to turn the

Vent on or off.

14. POPCORN: Touch this pad when popping

popcorn in your microwave oven.

15. MELT: Touch this pad to melt butter or margarine,

chocolate,cheese,marsh mallow.

16. SOFTEN: Touch this pad to soften butter,ice

cream,cream cheese,frozen juice.

17. HOLD WARM: Touch this pad to keep hot,

cooked foods warm in your microwave oven for

up to 99 minutes 99 seconds.

18. KITCHEN TIMER: Touch this pad to set the

kitchen timer.

19. START: Touch this pad to start a function. If you

open the door after oven begins to cook, retouch

START.

20. STOPICLEAR: Touch this pad to stop the oven

or clear all entries.

21. LESS: Touch this pad to subtract ten seconds

of cooking time each time you press it.

22. EZ -ON: Touch this pad to set and start quickly

at 100% power level.

23. TURNTABLE ONIOFF: Touch this pad to control

the turntable on or off.

13. HOT WATER: Touchthis pad when heating water in

your microwave oven.

24. LIGHT HIILOWlOFF: Touch this pad to turn the

cooktop/countertop lighton or off.

-9-

LEARN ABOUT YOUR MICROWAVE OVEN

This section discusses the concepts behind microwave cooking and introduces you to the basics you need to

know to operate your microwave oven. Please read this information before use.

CLOCK

1. Touch STOP/CLEAR

2. Touch CLOCK

8 0 0 3. Enter the time by using the

number key pad.

CLOCK 4. Touch CLOCK (or START)

NOTE: Touch CLOCK twice to set PM time.

VENT HI/LOW/OFF

The VENT moves steam and other

VENT vapors from the surface cooking.

HI/LOW/OFF Touch VENT once for High fan speed,

twice for Low fan speed, or a throe

times to turn the fan off.

NOTE: If the temperature gets too hot around the

microwave oven, the fan in the vent hood will

automatically turn on at the LOW setting to cool the

oven. It may stay on up to an hour to cool the oven.

When this occurs, you can not turn the fan off

manually,

LIGHT HI/LOW/OFF

Touch LIGHT once for bright light, twice

LIGHT for the night lightor three times to turn

HI/LOW/OFF the light off.

TURNTABLE ON/OFF

KITCHEN TIMER

You can use your microwave oven as a timer. Use the

Timer for timing up to 99 minutes, 99 seconds.

KITCHEN

TIMER

300

1. Touch STOP/CLEAR.

2. Touch KITCHEN TIMER.

3. Enter the time by using the

number key pad.

4. Touch START.

When the time is over, you

will hear seven beeps and

END will display.

TURNTABLE Touch Turntable On/Off once to turn

ON/OFF Turntable on, twice to turn off.

CHILD LOCK

You may lock the control panel to prevent the

microwave from being accidentally started or used by

children.

1. Touch STOP/CLEAR.

2. Touch and hold START more

than 4 seconds. L will appear

in the display window with

two beeps.

®1. Touch end hold START more

than 4seconds. L will disappear

and you hear two beeps. At

this time the oven is ready.

-10-

EZ -ON

A time-saving pad, this simplified control lets you

qu ck y set.and start microwave cook ng without the

need to touch START.

Touch EZ - ON 4 times.

EZ -ON The oven begins cooking

and display shows time

counting down.

NOTE:

If you touch EZ - ON, it will add 30 seconds up to

3 minutes. After 3 minutes,every touch will add

1 minute up to 99 min 59 seconds.

COOKING AT HIGH COOK POWER

8 3 0

1. Touch STOP/CLEAR.

2. Enter the cook time.

3. Touch START.

When the cook time is over,

you will hear four beeps and

END will display.

COOKING AT LOWER POWER

LEVELS

HIGH power cooking does not always give you the

best results with foods that need slower cooking, such

as roasts, baked goods, or custards. Your oven has 9

power settings in addition to =HIGH".

7 3 0

1. Touch STOP/CLEAR.

2. Enter the cook time.

POWER

LEVEL 3. Touch POWER LEVEL.

74. Enter the power level.

@5. Touch START.

When the cook time is over,

you will hear four beeps and

END will display.

MORE/LESS

By using the More or Less keys,all of the prepro-

grammed cook and time cook features can be adjusted

to cook food for alonger or shorter time.

LESS

1. Pressing MORE will add 10

seconds of cooking time

each time you press it.

2. Pressing LESS will subtract

10 seconds of cooking time

each time you press it.

-11 -

COOK TIME

For best results, some recipes call for different cook

powers during different stages of a cook cycle. You

can program your oven to switch from one power

level to another for up to 2 stages.

COOK TIME

20 0

POWER LEVEL

COOK TIME

5 0 0

POWER LEVEL

1. Touch STOPICLEAR.

2. Touch COOK TIME.

3. Enter the cook time.

4. Touch POWER LEVEL.

5. Select 70% power level.

6. Touch COOK TIME

7. Enter the cook time.

8. Touch POWER LEVEL.

9. Select 80% power level.

10. Touch START.

COOKING GUIDE FOR LOWER

POWER LEVELS

The nine power levels in addition to =HIGH" allow you

to choose the best power level for the food you are cooking.

POWER MICROWAVE USE

LEVEL OUTPUT

•Boil water.

•Cook ground beef.

10 •Make candy.

=HIGH" 100% •Cook fresh fruits and

vegetables.

• Cookfish, and poultry.

•Preheat browning dish.

•Reheat meat slices quickly.

9 90% • Saute onions,celery,and

green pepper.

• All reheating.

• Cook scrambled eggs.

8 80% . •Cook breads and cereal

products.

• Cook cheese dishes,veal.

• Cook cakes,muffins,brownies

7 70% cup cakes.

• Cook pasta.

• Cook meats,whole poultry.

• Cook custard.

6 60% •Cook whole chicken,turkey,

spare ribs,rib roast,sirloin

roast.

• Cook less tender cuts

5 50% of meat.

•Reheat frozen convenience

foods.

4 40% • Thawing meat,poultry,and

seafood.

•Cooking small quantities

of food.

3 30% • Finish cooking casserole,

stew,and some sauces.

- Soften butter and cream

2 20% cheese.

- Heating small amounts

of food.

• Soften ice cream.

1 10% • Raise yeast dough.

O I "Standing time.

-12-

HOLD WARM

You can keep cooked food warm in your microwave

oven for up to 99 minutes 99 seconds. You can use

HOLD WARM by itself or to follow acooking cycle

automatically.

HOLD

WARM

1. Touch STOPICLEAR.

2. Touch HOLD WARM.

3. Touch START.

NOTE:

•HOLDWARM operates for up to 99 minutes 99

seconds.

•Food cooked covered should be covered during

HOLD WARM

•Pastry items (pies, turnovers, etc.) should be

uncovered during HOLD WARM.

•Complete meals kept warm on adinner plate can be

covered during HOLD WARM.

Food Recommended

Type Quantity

Liquid 1-2 cups

Dry 5-10 ozs.

To make HOLD WARM automatically follow another

cycle:

•While you are programming the cooking instruc#ons,

touch HOLD WARM before touching START.

•When the last cooking cycle is over, ou willhear two

tones and HOLD WARM will appear in the oven

display.

•You can set HOLD WARM to follow AUTO DEFROST,

or multi-cycle cooking.

QUICK DEFROST

QUICK 1. TouchQUICK DEFROST.

DEFROST

NOTE: The oven will start automatically.

MELT

Melt provides four preset categories for melt.

Butter, Chocolate, Cheese, Marshmallows.

MELT

1. Touch STOP/CLEAR.

2. Touch MELT pad three times.

3. Choose 16 oz.

4. Touch START.

NOTE: After 4 seconds, the oven will start

automatically. When the cook time

is over, you will hear four beeps and

END will display.

SOFTEN

Soften provides four preset categories for melt.

Butter, Ice Cream, Cream Cheese, Frozen Juice.

-13-

O 1. Touch STOPICLEAR.

SOFTEN 2. Touch SOFTEN pad three times.

1 3. Choose 3 oz.

4. Touch START.

NOTE: After 4 seconds, the oven will start

automatically. When the cook time

is over, you will hear four beeps and

END will display.

MELT TABLE

Category Touch pad Touch pad number

times 1 2 3

Butter 1 1 stick 2 sticks 3 sticks

Chocolate 2 4 oz 8 oz -

Cheese 3 8 oz 16 oz -

Marshmallows 4 5 oz 10 oz

SOFTEN TABLE

Category Touch pad Touch pad number

times 1 2 3

Butter 1 1 stick 2 sticks 3 sticks

half

Ice Cream 2pint quart 9allon

Cream Cheese 3 3 oz 8 oz -

Frozen Juice 4 6 oz 12 oz 16 oz

KIDS MEAL

Using KIDS MEALlets you heat common microwave-

prepared foods without needing to program times and

cook power.

Hot Dog, Baby Food, Oat Meal, Soup.

POPCORN

POPCORN lets you pop 3.0, and 3.5 ounce bags

of commercially packaged microwave popcorn.

Pop only one package at a time. If you are using a

microwave popcorn popper, follow manufacturer's

instructions.

POPCORN TABLE

Bag size-ounces

Touch pad times

3.5

3.0

POPCORN

1. Touch STOP/CLEAR.

2. Touch POPCORN.

3. Touch START.

NOTE: After 4 seconds, the oven will start auto-

matically. When the cook time is over,you

will hear four beeps and END will display.

]

HOT DOG

4. Touch START.

NOTE: After 4 seconds, the oven will start auto-

matically. When the cook time is over,you

will hear four beeps and END will display.

1. Touch STOPICLEAR.

2. Touch HOT DOG twice.

KIDS MEAL TABLE

Category 3

Hot Dog

Baby Food 16 oz

Oat Meal 16 oz

16 oz

Soup

Touch pad times

1 2

2ea 4ea

4oz 8 oz

4 oz 8 oz

CAUTION: Do not leave microwave unattended while

popping popcorn.

HOT WATER

Use this pad to heat water.You can choose 1 or 2 cups

HOT WATER

1. Touch STOP/CLEAR.

2. Touch HOT WATER.

3. Touch START.

NOTE: After 4 seconds, the oven willstart auto-

matically. When the cook time is over,you

will hear four beeps and END will display.

HOT WATER TABLE

Quantity 1 cup

Touch pad times 1 t2cups

-14-

AUTO TOUCH

This _n_ion lets _u cook _ods without needing _program times and cook power.

AUTO COOK

AUTOCOOKprovidesfourcategoriesforcooking. AUTO COOK TABLE

@1. Touch STOP/CLEAR.

COOK

2. Touch COOK pad three times.

3. Enter quantity/servings.

4. Touch START.

NOTE: After 4 seconds, the oven will start

automatically. When the cook time

is over, you will hear four beeps and

END will display.

Category

Dinner

Plate

Soup

Sauce

Casserole

Roll

Muffin

Touch pad

ti:es seling ser_22ngs 3_ _4

3 I 1cup I 2 cups!3 cups[4 cup

,IIp -d pie3cedpie4ce

COOKING GUIDE FOR AUTO REHEAT

CODE

CATEGORY SERVING AMOUNT

1 serving

DINNER PLATE

2 servings

1 cup

2 cups

SOUP/SAUCE 3 cups

DIRECTION

Place on a low plate.

Cover with vented plastic wrap.

Place in shallow microwavable casserole.

Cover with vented plastic wrap.

4 cups

CASSEROLE

1 cup

2 cups

3 cups

Place in amicrowavable bowl or casserole.

Cover with plastic wrap.

4cups

ROLL/MUFFIN

1 piece

2pieces

3pieces

Place on paper towel,

Do not cover.

4 pieces

-16-

AUTO DEFROST

Three defrost choices are preset in the oven. The

defrost feature provides you with the best defrosting

method for frozen foods, because the oven

automatically sets the defrosting times for each food

item according to the weight you enter. For added

convenience, the AUTO DEFROST includes abuilt-in

tone mechanism that reminds you to check, turn over,

separate, or rearrange the food during the defrost

cycle. Three different defrosting options are provided.

1. MEAT

2. POULTRY

3. FISH

After touching AUTO DEFROST once, select the food

category. Available weight ranges for Meat, Poultry

and Fish are 0.1 to 6.0 Ibs.

AUTO

DEFROST 1. Touch AUTO DEFROST.

1 2 2. Enter the weight.

3. Touch START.

NOTE:

•After you touch START, the display counts down

the defrost time. The oven will beep once during the

defrost cycle. At this time, open the door and turn,

separate, or rearrange the food as needed. Remove

any portions that have thawed then return frozen

portions to the oven and touch START to resume

the defrost cycle.

*The oven will not stop during the beep unless

the door is opened.

WEIGHT CONVERSION CHART

To enter food weight in AUTO DEFROST, you must

specify pounds and tenths of a pound. If the weight

on the food package is in fractions of a pound, you

you can use the following chart to convert the weight

to decimals.

EQUIVALENT NUMBER AFTER DECIMAL

OUNCE WEIGHT

1.6

3.2

4.0

4.8

6.4

8.0

9.6

11.2

12.0

12.8

14.4

16.0

.10

.20

.25 One-Quarter Pound

.30

.40

.50 One- Half Pound

.60

.70

.75 Three-Quarters Pound

.80

.90

1.00 One Pound

DEFROSTING TIPS

•When using AUTO DEFROST, the weight to be

entered is the net weight in pounds and tenths of

pounds (the weight of the food minus the container).

•Use AUTO DEFROST only for raw food. AUTO

DEFROST gives best results when food to be

thawed is a minimum of 0F (taken directly from a

true freezer). If food has been stored in a

refrigerator-freezer that does not maintain a

temperature of 5F or below, always program a

lower food weight (for a shorter defrosting time)

to prevent cooking the food.

• If the food is stored outside the freezer for up to

20 minutes, enter a lower food weight.

•The sh ape of the package alters the defrosting

time. Shallow rectangular packets defrost more

quickly than a deep block.

• Separate pieces as they begin to defrost.

Separated pieces defrost more easily.

• You can use small pieces of aluminum foil to shield

shieldfoods like chicken wings, leg tips, and fish

tailsbut the foil must not touch the side of the

oven.Foil causes arcing, which can damage the

oven lining.

•Shield areas of food with small pieces of foil if

they start to become warm.

• For even, complete defrosting, use the defrosting

rack.

• For best results, elevate food to be defrosted on

a microwave safe roasting rack. This prevents

the possibility of warm meat juices cooking food

dudng defrost.

-17-

DEFROST CHART

Meat setting

FOOD SE'I-rlNG AT BEEP SPECIAL INSTRUCTIONS

BEEF

Ground beef

(bulk)

Ground beef

(patties)

Round steak

Tenderloin

steak

Stew beef

Pot roast,

chuck roast

Rib roast

Rolled rump

' roast

LAMB

Cubes for

stew

Chops

(1 inch thick)

PORK

Chops

(1 _ch thick)

Hot dogs

Spareribs

Country style

ribs

Sausage,

links

Sausage,

bulk

Loin roast,

boneless

MEAT

Remove thawed portions with

fork. Turn over. Return

remainder to oven.

Separate and rearrange.

Tum over. Cover warm areas

with aluminum foil.

Turn over. Cover warm areas

with aluminum foil.

Remove thawed portions with

fork. Separate remainder.

Return remainder to oven.

Tum over. Cover warm areas

with aluminum foil,

Turn over. Cover warm areas

with aluminum foil.

Tum over. Cover warm areas

with aluminum foil.

Remove thawed portions with

fork. Return remainder to

oven.

Separate and rearrange.

'Tum over. Cover warm areas

with aluminum foil.

Separate and rearrange.

Remove thawed portions with

fork. Turn over. Return

remainder to oven.

Tum over. Cover warm areas

with aluminum foil.

Meat of irregular shape and large, fatty cuts of

meat should have the narrow or fatty areas

shielded with foil at the beginning of a defrost

sequence.

:Do not defrost less than 1/4 lb.

Freeze in doughnut shape.

Do not defrost less than two oz.patties.

Depress center when freez rig.

Place on a microwavable masting rack.

Place on a microwavable roasting rack.

Place in amicrowavable baking dish.

Place on a microwavable roasting rack.

Place on amicmwavable masting rack.

Place on a microwavable roasting rack.

Place in amicrowavable baking dish.

Place on a micrewavable roasting rack.

Place on a microwavable roasting rack.

Place on amicrowavable roasting rack.

Place in a microwavable baking dish.

Place on a microwavable roasting rack.

-18-

DEFROST CHART (continued)

Poultry setting

FOOD

CHICKEN

Whole

Cut-up

CORNISH

HENS

Whole

TURKEY

Breast

SE'n'ING AT BEEP SPECIAL INSTRUCTIONS

POULTRY

Turn over (finish defrosting

breast-side down). Cover

warm areas with aluminum

foil,

Tum over. Cover warm

areas with

aluminum foil. Separate

pieces and rearrange.

Turn over. Cover warm

areas with

aluminum foil.

Turn over, Cover warm

areas with aluminum foil.

Place chicken breast-side-up on amicrowavable

roast rack. Finish defrosting by immersing in cold

water. Remove giblets when chicken is partially

defrosted.

Place on a microwavable masting rack.

Finish defrosting by immersing in cold water.

Place on amicrowavable roasting rack,

Finish defrosting by immersing in cold water.

Place on amicrowavable masting rack.

Finish defrosting by immersing in cold water.

Fish setting

FOOD

FISH

Fillets

Steaks

Whole

SHELLFISH

Crabmeat

Lobster tails

Shrimp

Scallops

SETTING

FISH

AT BEEP

Tum over, Separate fillets

when partially thawed if

)ossible,

Separate and rearrange,

Break apart.

Rea_ange.

Separate and rearmnge.

Separate and rearrange.

SPECIAL INSTRUCTIONS

Place in a microwavable baking dish.

Carefully separate fillets under cold water,

Place in a microwavable baking dish.

Run cold water over to finish defrosting.

Place in amicmwavable baking dish.

Cover head and tail with foil; do not let foil touch

sides of microwave. Finish defrosting by

immersing in cold water.

Place in a microwavable baking dish.

Place in a micrawavable baking dish.

Place in a microwavable baking dish.

NOTE : Food to be defrosted must be not more than 6.0 Ibs. (4.0kg)

* Available weight is 0.1-6.0 Ibs. (0.1 ~4.0kg)

-19-

GETFING THE BEST COOKING

RESULTS

To get the best results from your microwave oven, read

and follow the guidelines below.

•Storage Temperature: Foods taken from the freezer

or refrigerator take longer to cook than the same

foods at room temperature. The time for recipes in

this book is based on the normal storage temperature

of the food.

• Size: Small pieces of food cook faster than large

ones, pieces similar in size and shape cook more

evenly. For even cooking, reduce the power when

cooking large pieces of food.

•Natural Moisture: Very moist foods cook more

evenly because microwave energy is attracted to

water molecules.

•Stir foods such as casseroles and vegetables from

the outside to the center to distribute the heat evenly

and speed cooking. Constant stirring is not

necessary.

•Turn over foods like pork chops, baking potatoes,

roasts, or whole cauliflower halfway through the

cooking time to expose all sides equally to microwave

energy.

•Place delicate areas of foods, such as asparagus

tips, toward the center of the dish.

•Arrange unevenly shaped foods, such as chicken

pieces or salmon steaks, with the thicker, meatier

parts toward the outside of the dish.

•Shield, with Small pieces of aluminum foil, parts of

food that may cook quickly, such as wing tips and leg

ends of poultry.

•Let It Stand: After you remove the food from the

microwave, cover food with foil or casserole lid and let

it stand to finish cooking in the center and avoid

overcooking the outer edges. The length of standing

time depends on the density and surface area of the

food.

•Wrapping in waxed paper or paper towel:

Sandwiches and many other foods containing

prebaked bread should be wrapped prior to

microwaving to prevent drying out.

Fish & Shellfish

Cooking Fish and Shellfish: General Directions

• Prepare the fish for cooking.

-Completely defrost the fish or shellfish.

- Arrange unevenly shaped pieces with thicker parts

toward the outside of the dish. Arrange shellfish in a

single layer for even cooking.

- The type of cover you use depends on how you

cook. Poached fish needs a microwavable lid or

vented plastic wrap.

- Baked fish, coated fish, or fish in sauce needs to be

covered lightly with waxed paper to keep the coating

crisp and sauce from getting watery.

-Always set the shortest cooking time. Fish is done

when it turns opaque and the thickest part begins to

flake. Shellfish is done when the shell tums from

pink to red and the flesh is opaque and firm.

•The Fish and Shellfish Cooking Table below provides

specific directions with Power Level and Cooking

Time settings for most types of fish and shellfish.

Fish And Shellfish Cooking Table

DIRECTIONS

FISH

Fish fillets

Fish steaks

Whole fish

Scallops

Shrimp, shelled

POWER

LEVEL

COOKING TIME

31_-41t2minutes

41/2-5v2 minutes

4_1_-6minutes

3_/2-5 minutes

3_-5 minutes

Arrange fish in a single layer with thickest portion toward

outside edge of 11/2 quart roicrowavable baking dish.

Brush with melted butter and season, if desired. Cook

covered with vented plastic wrap. Let stand covered 2

minutes. If you are cooking more than 1 lb. of fish, turn

the fish halfway through cooking.

Arrange in a single layer. Prepare as directed above,

except stir instead of turning the shellfish.

- 20 -

Appetizers /Sauces /Soups

Cooking Appetizers: Tips and

Techniques

Recommended

• crackers, such as melba toast, shredded wheat, and

crisp rye crackers are best for microwave use. Wait

until party time to add the spreads. Place apaper

towel under the crackers while they cook in the

microwave oven to absorb extra moisture.

•Arrange individual appetizers in a cimle for even

cooking.

•Stir dips to distribute heat and shorten cooking time.

Cooking Sauces: Tips and Techniques

•Use a microwavable casserole or glass measuring

cup that is at least 2 or 3 times the volume of the

sauce.

•Sauces made with cornstarch thicken more rapidly

than those made with flour.

Cooking Soups: Tips and Techniques

•Cook soups in a microwavable dish which holds

double the volume of the recipe ingredients to prevent

boil-over, especially if you use cream or milk in the

soup.

•Generally, cover microwaved soups with VENTED

plastic wrap or a microwavable lid.

•Cover foods to retain moisture. Uncover foods to

retain crispness.

•Avoid cvercooking by using the minimum suggested

time. Add more time, if necessary, only after checking

the food.

Not Recommended

•Appetizers with acrisp coating or puff pastry are best

done in a conventional oven with dry heat.

•Breaded products can be warmed in the microwave

oven but will not come out crisp.

•Cook sauces made with cornstarch or flour uncovered

so you may stir them 2 or 3 times during cooking for a

smooth consistency.

•To adapt a conventional sauce or gravy recipe,

reduce the amount of liquid slightly.

• Stirring occasionally will help blend flavors, distribute

heat evenly, and may even shorten the cooking time.

•When converting a conventional soup recipe to cook

in the microwave, reduce the liquid, salt, and strong

seasonings.

Meat

Cooking Meat: General Directions

• Prepare the meat for cooking.

- Defrost completely.

-Trim off excess fat to avoid splattering.

-Place the meat, fat side down, on a microwavable

rack in a microwavable dish.

-Use oven cooking bag for less tender cuts of meat.

- Arrange the meat so that thicker portions are toward

the outside of the dish.

- Cover the meat with waxed paper to prevent

splattering.

•Tend the meat as it cooks.

- Drain juices as they accumulate to reduce

splattering and keep from overceoking the bottom of

the meat.

- Shield thin or bony portions with stripsof foil to

prevent overcooking.

NOTE: Keep the foil at least 1 inch from the oven

walls, and do not cover more than one-third of the meat

with foil at any one time.

•Let the meat stand covered with foil 10-15 minutes

after you remove it from the oven. The internal

temperature of the meat may rise from 5-10°F during

standing time.

The Meat Cooking Table on the next page provides

detailed directions, Power Level, and Cooking Time

settings for most cuts of meat.

-21 -

Meat Cooking Table

POWER

MEAT COOKING TIME DIRECTIONS

LEVEL

HIBeef

Hamburgers,

Fresh or

defrosted

(4 oz. each)

1 patty

2 patties

4 patties

Sirloin tip roast

(3-4 Ibs.)

Lamb

Lamb roast,

rolled

boneless

(3-4 Ibs.)

Pork

Bacon slices

2 slices

4 slices

6slices

Chops

(5-7 oz. each)

2 chops

4chops

Loin Roast,

rolled, boneless

(3 1/2-4 I/2 Ibs.)

Sausage links,

Fresh or

Frozen,

defrosted

(1-2 oz. each)

2 links

4 links

6 links

10 links

(8 oz. pkg.)

1-11/2 minutes

11/2-2 minutes

21/2-31/2minutes

8-10 minutes

per pound

RARE(135°F)

11-13 minutes

per pound

MEDIUM(155°F)

11-12 minutes

per pound

RARE(135°F)

12-13 minutes

per pound

MEDIUM(145°F)

13-14 minutes

per pound

WELL(155°F)

11/2-2minutes

21/2-3minutes

31!2-41!2minutes

18-20minutes

perpound

15-17 minutes

perpoued

25-27 minutes

per pound

(165°F)

45-60 seconds

1-11/2 minutes

11/2-2minutes

1_4-2 minutes

Form patties with depression in center of each.

Place on microwavable roast rack. Brush with browning

agent, ifdesired. Cover with waxed paper.

Turn over halfway through cooking.

Let stand covered 1 minute.

Place roast fat side down on microwavable roast rack.

Add desired seasonings and cover with waxed paper.

Turn meat over halfway through cooking and shield if

necessary.

Remove roast from microwave oven when desired

temperature is reached. Let stand covered with foil 15

minutes.(Temperature may rise about 10°F).

Place roast fat side down on microwavable roast rack.

Brush lamb with marinade or desired seasonings such

as rosemary, thyme or marjoram. Cover with waxed

paper.

Turn roast over after 15 minutes, and again after 30

minutes. Shield if necessary.

Remove roast from microwave when desired

temperature is reached. Let stand covered with foil 15

minutes (Temperature may rise about 10°F).

Place bacon slices on microwavable roast rack.

Cover with paper towels.

After cooking, let stand 1minute.

Place chops in microwavable baking dish.

Add desired seasonings and cover with vented plastic

wrap. Cook until no longer pink or until internal

temperature reaches 170°F. Turn chops over halfway

through cooking.

Let stand covered 5 minutes.

(Temperature may rise about 1O°F).

Place roast in cooking bag in microwavable dish.

Add seasonings and browning agent if desired. Close

bag loosely with microwavable closure or string. After

cooking, let stand in bag 15 minutes. (Temperature may

rise about 10°F.) Internal temperature of pork should

reach 170°F before serving.

Pierce links and place on microwavable roast rack.

Cover with waxed paper or paper towel.

Turn over halfway through cooking.

After cooking, let stand covered 1 minute.

-22 -

Poultry

Cooking Poultry: General Directions

•Prepare the poultry for cooking.

-Defrost completely.

- Arrange poultry pieces with thicker pieces at the

outside edge of the baking dish. When cooking legs,

arrange them like the spokes of a wheel.

- Cover the baking dish with waxed paper to reduce

splattering.

- Use a browning agent or cook with a sauce to give a

browned appearance.

• Tend the poultry as it cooks.

- Drain and discard juices as they accumulate.

- Shield thin or bony pieces with small strips of

aluminum foil to prevent overcooking. Keep foil at

least 1 inch from the oven walls and other pieces of

foil.

• The poultry is done when it is no longer pink and the

juices run clear. When done, the temperature in the

thigh meat should be 180-185°F.

• Let the poultry stand after cooking covered with foil for

10 minutes.

The Poultry Cooking Table below provides detailed

directions, Power Level, and Cooking Time settings for

most cuts and types of poultry.

Poultry Cooking Table

POWER

POULTRY COOKING TIME DIRECTIONS

LEVEL

Chicken pieces HI 41t2-51/2minutes Wash, shake the water off, and go on with cooking.

(21t_-3 Ibs). per pound Place pieces in a single layer in a microwavable baking

dish with thicker pieces to the outside. Brush with butter

or browning agent and seasonings if desired. Cover with

waxed paper. Cook until no longer pink and juices run

clear. Let stand covered 5 minutes.

Chicken whole HI 12-13 minutes

(3-31t2 Ibs) per pound

Cornish Hens

Whole

(1-11/2 Ibs.

each)

HI 6-7 minutes

per pound

Wash, shake the water off, and go on with cooking.

Place breast side down on a microwavable roast rack.

Brush with butter, or browning agent and seasoning if

desired. Cover with waxed paper. Cook 1/3 of estimated

time. Turn breast side up, brush with butter, or browning

agent. Replace waxed paper. Cook 1/3 of estimated time

again. Shield if necessary. Cook remaining 1/3 of

estimated time or until no longer pink and juices run

clear. Let stand covered with foil 10 minutes. (The

temperature may rise about 10°F.) The temperature in

the high should be 180°F-185°F when the poultry is

done.

Wash, shake the water off, and go on with cooking. Tie

wings to body of hen and the legs to tail. Place hens

breast side down on microwavable rack. Cover with

waxed paper. Turn breast side up halfway through

cooking. Shield bone ends of drumsticks with foil.

Remove and discard drippings. Brush with butter or

browning agent and seasonings if desired. Cook until no

longer pink and juices run clear. Remove hens from

microwave when they reach desired temperature. Let

stand covered with foil 5 minutes.

(Temperature may rise about 10°F). Temperature in

breast should be 170°F before serving.

- 23 -

Pasta And Rice

Microwave cooking and conventional cooking of pasta,

rice, and cereal require about the same amount of time,

but the microwave is a more convenient method

because you can cook and senle in the same dish.

There is no stirring needed and leftover pasta tastes

just like fresh cooked when reheated in the microwave

oven.

Cooking Pasta and Rice: Tips and Techniques

• If you are planning to use rice or pasta in a casserole, • The Pasta and Rice Cooking Tables below provide

undercook it so it is still firm. specific directions, with Power Level and Cooking

• Allow for standing time with rice, but not for pasta. Time settings for most common types of pasta and

rice.

Pasta Cooking Table

POWER

TYPE OF PASTA COOKING TIME DIRECTIONS

LEVEL

Spaghetti

4 cups water.

Add 8oz. spaghetti.

HI 9to 10 minutes

5 71_ to 81_2minutes

Macaroni

3 cups water. HI 6 to 7 minutes

Add 2 cups macaroni. 5 51f_to 61/2minutes

Lasagna noodles

4 cups water. HI 7 to 8 minutes

Add8 oz. bsag_ noodles. 5 11 to 121tzminutes

Egg noodles

6 cups water.

Add 4 cups noodles.

58 to 10 minutes

51/2to 61t2minutes

Combine hot tap water and salt, if desired. Use a

2-quad microwavable baking dish and cover with

vented plastic wrap for spaghetti and lasagna

noodles. Use microwavable lid or vented plastic

wrap for macaroni and egg noodles.

Cook at Power Level HI as directed in chart or until

water boils. Stir in pasta; cook covered at Power

Level 5 as directed in chart or until tender.

Drain in a colander.

Rice Cooking Table

POWER

TYPE OF RICE COOKING TIME DIRECTIONS

LEVEL

Long grain

2 1/4cups water.

Add 1 cup rice.

HI 41_ to 51/2minutes

5 14 minutes

Brown

21/2cups water. HI 41t2to 51_ minutes

Add 1 cup rice. 5 28 minutes

Long grain and

wild rice mix

2 lt3 cups water.

Add 6 oz. pkg.

Combine hot tap water and salt, ifdesired, in 2

quart micmwavable casserole. Cover with

microwavable lid or vented plastic wrap. Cook as

directed in chart at Power Level HI or until water

boils. Stir in rice and any seasonings,

Cook covered as directed in chart at Power Level 5

or until water is absorbed and rice is tender.

Let stand covered 5 to 10 minutes. Fluff with fork.

Hi 4 to 5 minutes

524 minutes

Quick cooking Cook water until it boils. Stir rice into boiling water

1 cup water. HI and let stand, covered 5 to 10 minutes or until water

Add 1 cup rice. 2 to 3 minutes is absorbed and rice is tender. Fluff with fork.

-24 -

CARE AND CLEANING

For best performance and safety, keep the.oven clean

inside and outside. Take special care to keep the inner

door panel and the oven front frame free of food or

grease build-up.

Never use rough powder or pads. Wipe the

microwave oven inside and out, including the hood

bottom cover, with a soft cloth and awarm(not hot)

mild detergent solution. Then rinse and wipe dry. Use a

chrome cleaner and polish on chrome, metal and

aluminum surfaces. Wipe spatters immediately with a

wet paper towel, especially after cooking chicken or

bacon. Clean your oven weekly or more often, if

needed.

CLEANING THE GREASE FILTERS

The grease filters should be removed and cleaned

often, at least once a month.

1. To remove grease filters, slide each

filter to the side. Pull filters downward

and push to the other side. The filter will drop out.

2. Soak grease filters in hot water and a mild

detergent. Rinse well end shake to dry. Do not use

ammonia or place in a dishwasher. The

aluminum will darken.

3. To reinstall the filters, slide it into the side slot, then

push up and toward oven center to lock.

NOTE: Do not operate the hood without the filters in

place.

CHARCOAL FILTER REPLACEMENT

If your oven is vented inside, the charcoal filter should

be replaced every 6 to 12 months, and more often if

necessary. The charcoal filter cannot be cleaned.

To order a new chamoal filter, contact the Service

Center.

1. Remove the two vent grille mounting screws.

(2 middle screws)

2. Tip the grille forward, then liftit out

3. Open the door.

4. Push the hook and remove old filter.

5. Slide anew charcoal filterintoplace and close the door.

The filter should rest at the angle st'_wn and set the c_:k.

6. Slide the bottom of the vent cover into place. Push

the top until it snaps into place. Replace the mounting

screws. Turn the power back on at the main power

supply and set the clock.

- 25 -

COOKTOP/NIGHT LIGHT REPLACEMENT

1, Unplug oven or turn off power at the main power

supply.

2. Remove the bulb cover mounting screws.

QUESTIONS AND ANSWERS

Q. Can I use a rack in my microwave oven so that I

may reheat or cook in two levels at a time?

A. Only use the rack that is supplied with your

microwave oven. Use of any other rack can result in

poor cooking performance and/or arcing and may

damage your oven.

3. Replace bulb with 30 watt appliance bulb.

4. Replace bulb cover, and mount screw.

5. Turn the power back on at the main power supply.

OVEN LIGHT REPLACEMENT

1. Unplug oven or turn off power at the main power

supply.

2. Remove the vent cover mounting screws. (2 middle

screws)

3. Tip the cover forward, then lift out to remove.

4. Lift up the bulb holder.

5. Replace bulb with a30 watt appliance bulb.

6. Replace the bulb holder.

7. Slide the top of the vent cover into place. Push the

bottom until it snaps into place. Replace the

mounting screws. Turn the power back on at the

main power supply.

Q. Can I use either metal or aluminum pans in my

microwave oven?

A. Usable metal includes aluminum foil for shielding

(use small, flat pieces), and shallow foil trays (if tray

is 3/4 inch deep and filled with food to absorb

microwave energy). Never allow metal to touch

walls or door.

Q. Sometimes the door of my microwave oven

appears wavy. Is this normal?

A. This appearance is normal and does not affect the

operation of your oven.

Q. What are the humming noises that I hear when

my microwave oven is operating?

A. You hear the sound of the transformer when the

magnetron tube cycles on and off.

Q. Why does the dish become hot when I

microwave food in it? I thought that this should

not happen.

A. As the food becomes hot itwill conduct the heat to

the dish. Use hot pads to remove food after

cooking.

Q. What does "standing time" mean?

A. "Standing time" means that food should be taken

out of the oven and covered for additional time after

cooking. This process allows the cooking to finish,

saves energy and frees the oven for other purpose.

Q. Can I pop popcorn in my microwave oven? How

do I get the best results?

A. Yes. Pop packaged microwave popcorn following

manufacturer's guidelines or use the

preprogrammed Popcorn pad.

Do not use regular paper bags. Use the "listening

test" by stopping the oven as soon as the popping

slows to a =pop" every one or two seconds. Do not

try to repop unpopped kernels. You can also use

special microwave poppers. When using apopper,

be sure to follow manufacturer's directions. Do not

pop popcorn in glass utensils.

Q. Why does steam come out of the air exhaust

vent?

A. Steam is normally produced during cooking. The

microwave oven has been designed to vent this

steam out the top vent.

-26 -

MICROWAVE UTENSIL GUIDE

USE DO NOT USE

OVENPROOF GLASS (treated for high

intensity heat):

utility dishes, loaf dishes, pie plates,

cake plates, liquid measuring cups,

casseroles and bowls without metallic

trim.

CHINA:

bowls, cups, serving plates and platters

without metallic trim.

PLASTIC:

Plastic wrap (as a cover)-- lay the plastic

wrap loosely over the dish and press it to

the sides.

Vent plastic wrap by turning back one

edge slightlyto allow excess steam to

escape. The dish should be deep

enough so that the plastic wrap will not

touch the food. As the food heats it may

melt the plastic wrap wherever the wrap

touches the food.

Use plastic dishes, cups,

semirigid freezer containers, and plastic

bags only for short cooking time. Use

these with care because the plastic

may soften from the heat of the food.

PAPER:

Paper towels, waxed paper, paper

napkins, and paper plates with no

metallic trim or design. Look for the

manufacturer's label for use in the

microwave oven.

METAL UTENSILS:

Metal shields the food from microwave energy and produces

uneven cooking. Also avoid metal skewers, thermometers, or foil

trays. Metal utensils can cause arcing, which can damage your

microwave oven.

METAL DECORATION:

Metal-trimmed or metal-banded dinnerware, casserole dishes,

etc. The metal trim interferes with normal cooking and may

damage the oven.

ALUMINUM FOIL:

Avoid large sheets of aluminum foil because they hinder cooking

and may cause harmful arcing. Use small pieces of foil to shield

poultry legs and wings. Keep ALL aluminum foil at least 1 inch

from the side walls and door of the oven.

WOOD:

Wooden bowls and boards will dry out and may split or crack

when you use them in the microwave oven. Baskets react in the

same way.

TIGHTLY COVERED UTENSILS:

Be sure to leave openings for steam to escape from covered

utensils. Pierce plastic pouches of vegetables or other food items

before cooking. Tightly closed pouches could explode.

BROWN PAPER:

Avoid using brown paper bags.

They absorb too much heat and could burn,

FLAWED OR CHIPPED UTENSILS:

Any utensil that is cracked, flawed, or chipped may break in the

oven.

METAL TWIST TIES:

Remove metal twist ties from plastic or paper bags.

They become hot and could cause a fire.

- 27 -

BEFORE CALLING FOR SERVICE

Check the following list to be sure a service coil is

really necessary. A quick reference of this manual as

well as reviewing additional information on items to

check may prevent an unneeded service coil

If nothing on the oven operates:

•check for ablown circuit fuse or a tripped main

circuit breaker.

•check if oven is propedy connected to electric circuit

in house.

• check that controls are set properly.

If the oven interior light does not works:

•the light bulb is loose or defective.

If oven will not cook:

•check that control panel was programmed correctly.

•check that door is firmly closed.

•check that Start Pad was pressed.

•check that probe was inserted correctly

into receptacle.

•check that timer wasn't started instead of a cook

function.

If oven takes longer than normal to cook or cooks

too rapidly:

• be sure the Power Level is programmed properly,

If the time of day clock does not always keep

correct time:

•check that the power cord is fully inserted into the

outlet receptacle.

•be sure the oven is the only appliance on the

electrical circuit,

If food cooks unevenly:

•be sure food is evenly shaped.

•be sure food is completely defrosted before cooking.

•check placement of aluminum foil strips used to prevent

overcooking.

If food is undercooked:

•check recipe to be sure all directions (amount, time, &

power levels) were correctly followed.

•be sure microwave oven is on a separate circuit.

•be sure food is completely defrosted before cooking.

If food is overcooked:

•check recipe to be sure all directions (amount, power

level, time, size of dish) were followed.

If arcing (sparks) occur:

• be sure microwavable dishes were used.

•be sure wire twist ties weren't used.

• be sure oven wasn't operated when empty.

•make sure metal rack (if used) is properly installed on 4

supports.

If the Display shows a time counting down but the

oven is not cooking:

•check that door is firmly closed,

•check that timer wasn't started instead of acooking

function.

-28-

LG Electronics Inc. will repair or replace your product, at LG's option, if it proves to be defective in material or

workmanship under normal use, during the warranty period set forth below, effective from the date of original

consumer purchase of the product. This limited warranty is good only to the original purchaser of the product and

effective only when used in the United States, including U.S. Territories.

WARRANTY PERIOD:

Model: LMVI630WW/BBIST

Labor: 1 Year from the Date of Purchase.

Parts: 1 Year from the Date of Purchase.

Magnetron: 8 Years from the Date of Purchase.

HOW SERVICE IS HANDLED:

Call f-800-2,43-0000 and choose the appropriate prompt.

Please have product type (Microwave) and ZIP code ready.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO

THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE

EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT,

OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION

WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED

WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE

ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house

fuses or correct wiring, or correction of unauthorized repairs; and

2. Damages or operating problems that result from misuse, abuse, operation outside environmental

specifications or contrary to the requirements or precautions in the Operating Guide, accident,

vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect

electrical current or voltage, or commercial use, or use for other than intended purpose.

Therefore, the cost of repair or replacement of such a defective product shall be borne by the

consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

To Prove Warranty Coverage

To Obtain Nearest Authorized Service

Center or Sales Dealer, or to Obtain Product,

Customer, or Service Assistance

Retain your Sales Receipt to prove date of purchase. A

copy of your Sales Receipt must be submitted at the time

warranty service is provided.

Call 1-800-243-0000 (Phone answered 24 hours -365 days

a year) and choose the appropriate prompt from the menu;

or visit our website at:

http://us.lgearvice.com.

-29 -

P/NO. 3828W5A8536 Printed in China

LG LMV1630BB User Manual MICROWAVE Manuals And Guides L0603260

LG Microwave/Hood Combo Manual L0603260 LG Microwave/Hood Combo Owner's Manual, LG Microwave/Hood Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
