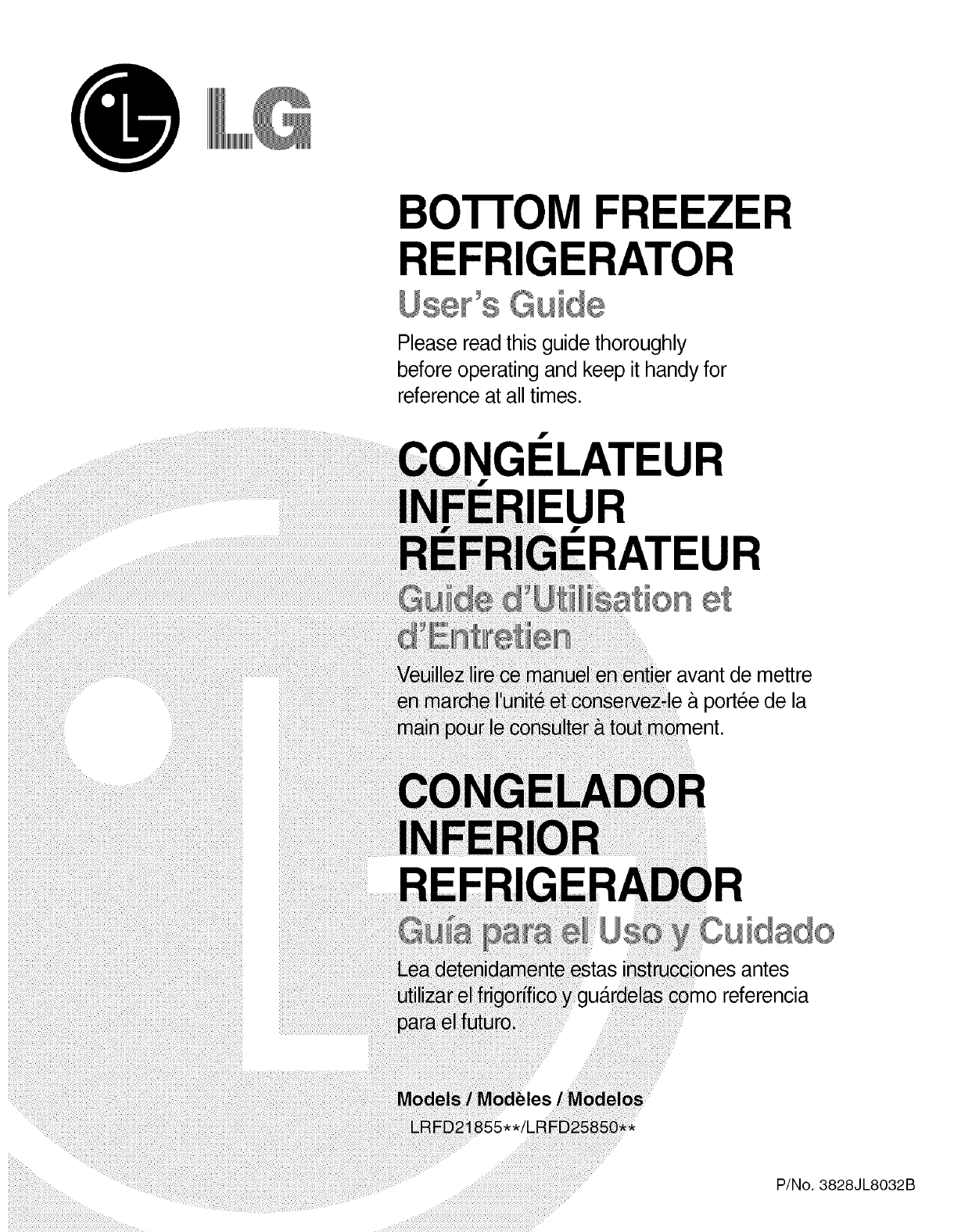

BO'I-I'OMFREEZER

REFRIGERATOR

°sGuide

Please read this guide thoroughly

before operating and keep it handy for

reference at all times.

'rEUR

RI"EUR

avant de mettre

& portee de la

referencia

P/No. 3828JL8032B

English Version

French Version

Spanish Version

Warranty (U.S.A.)

Warranty (CANADA)

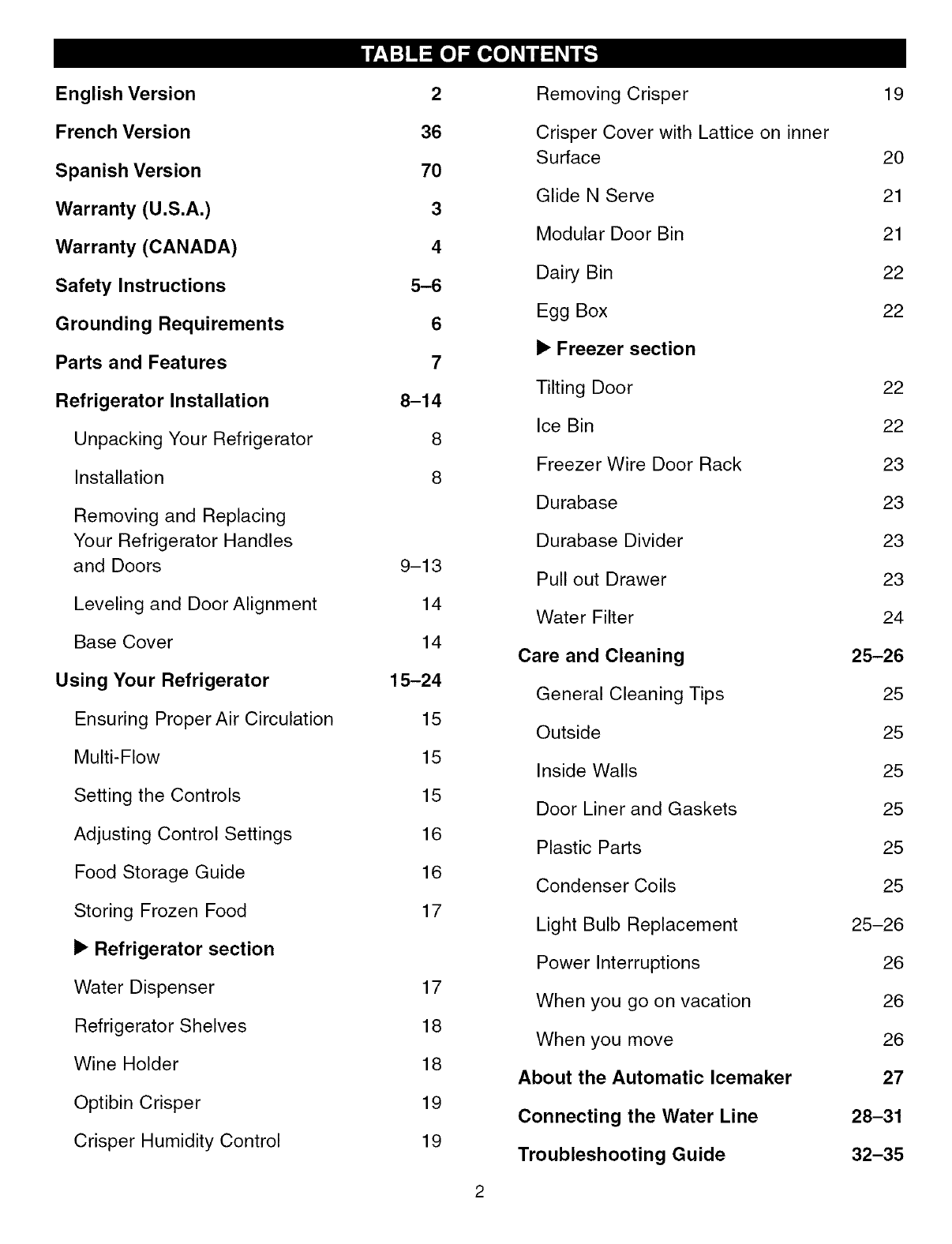

Safety Instructions

Grounding Requirements

Parts and Features

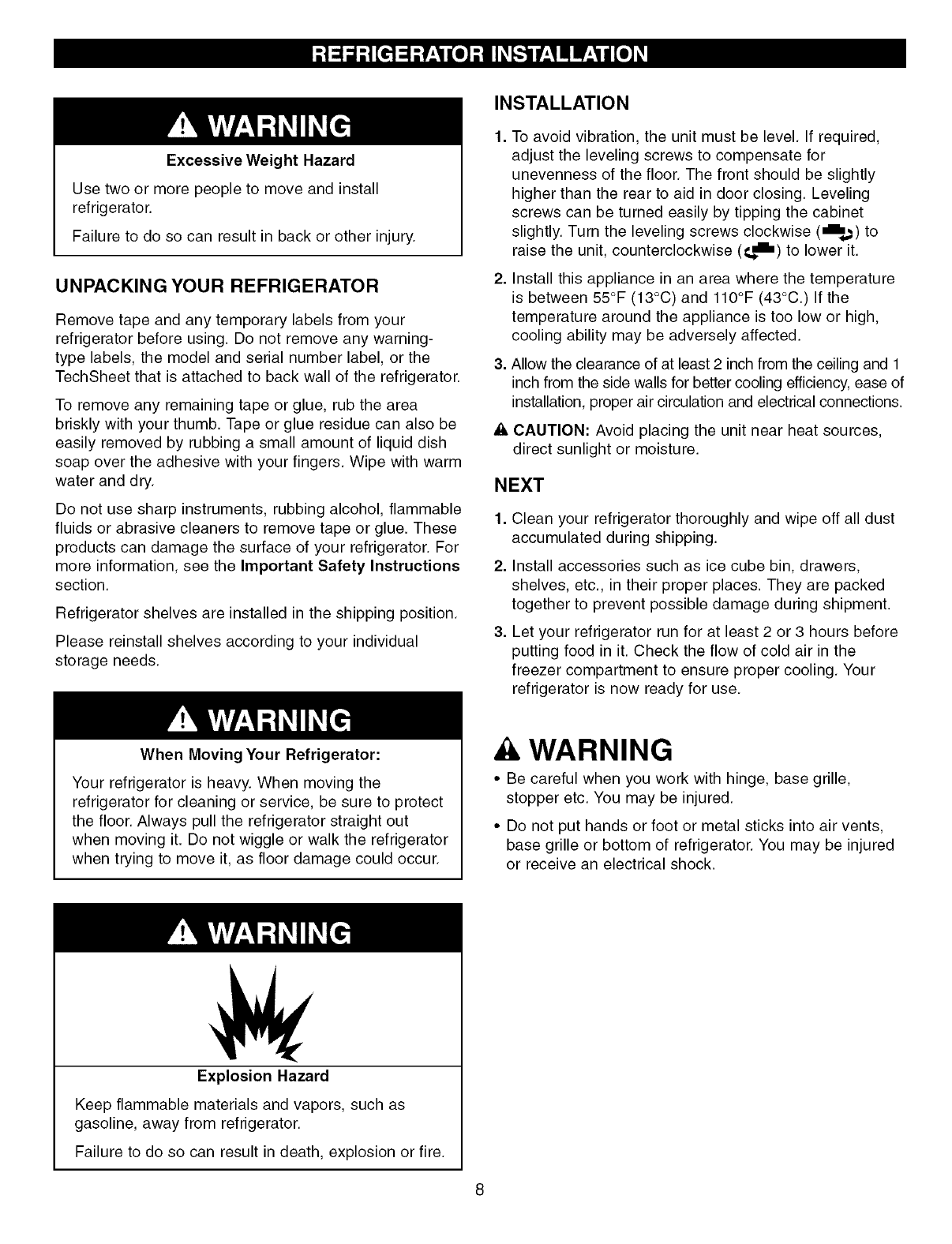

Refrigerator Installation

Unpacking Your Refrigerator

Installation

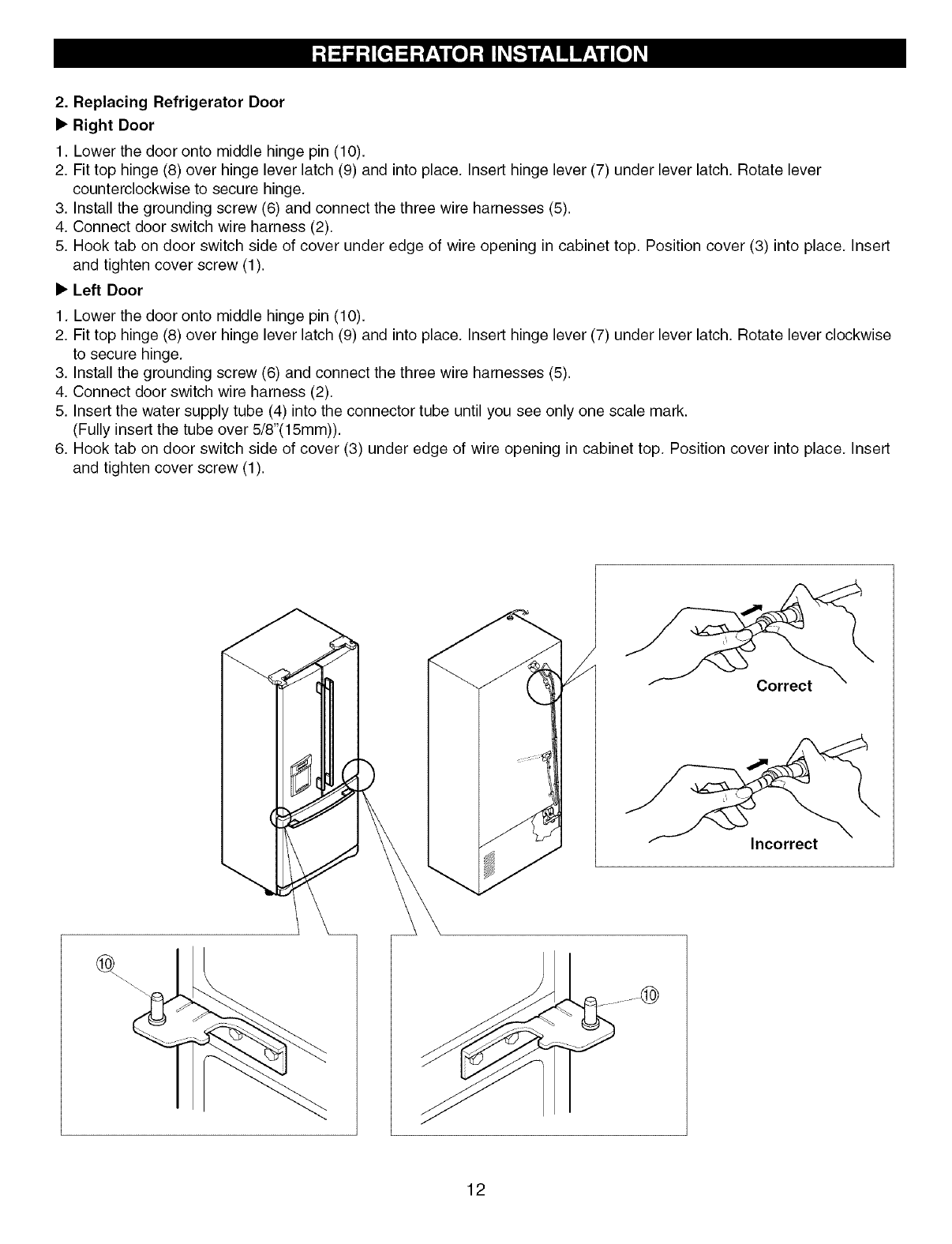

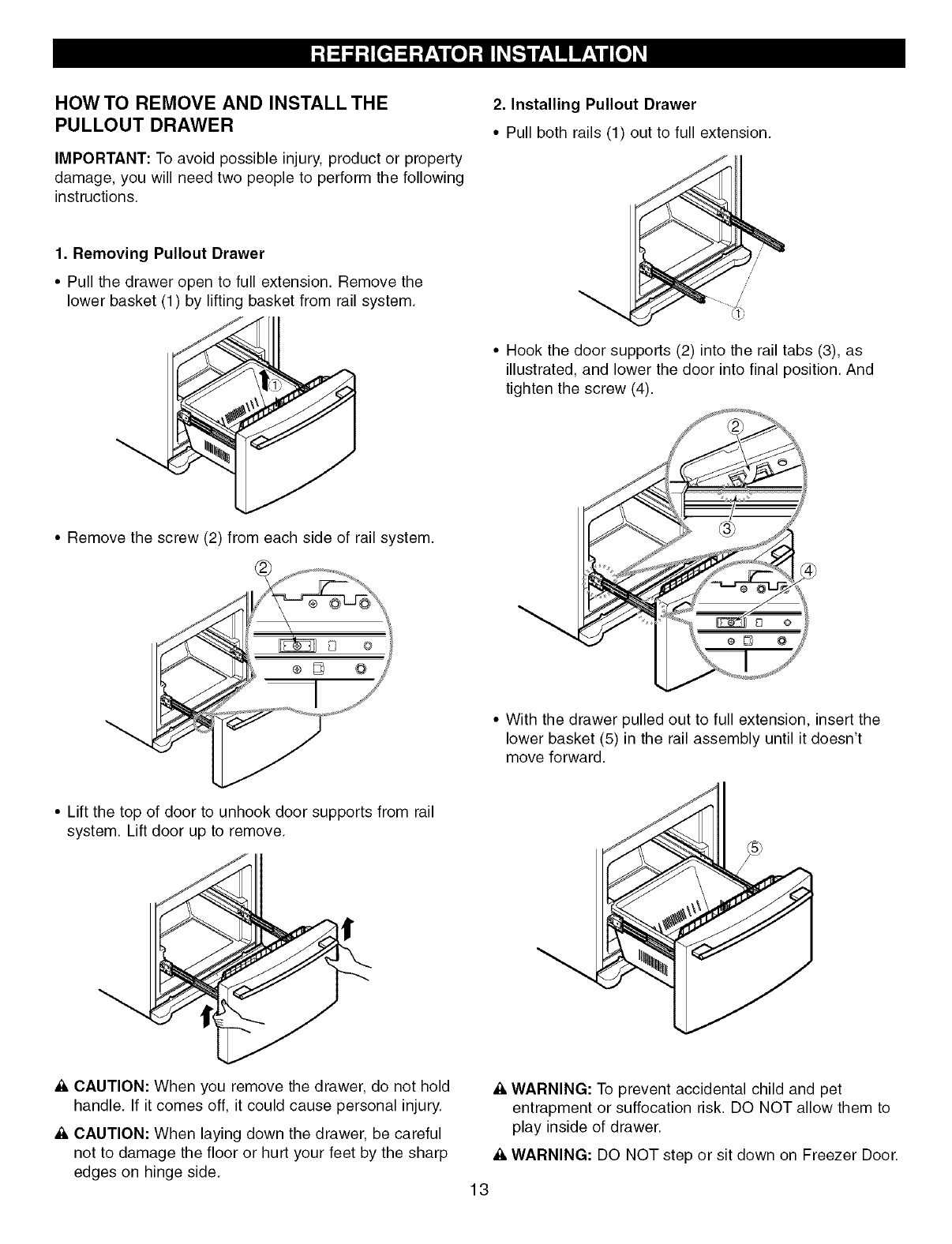

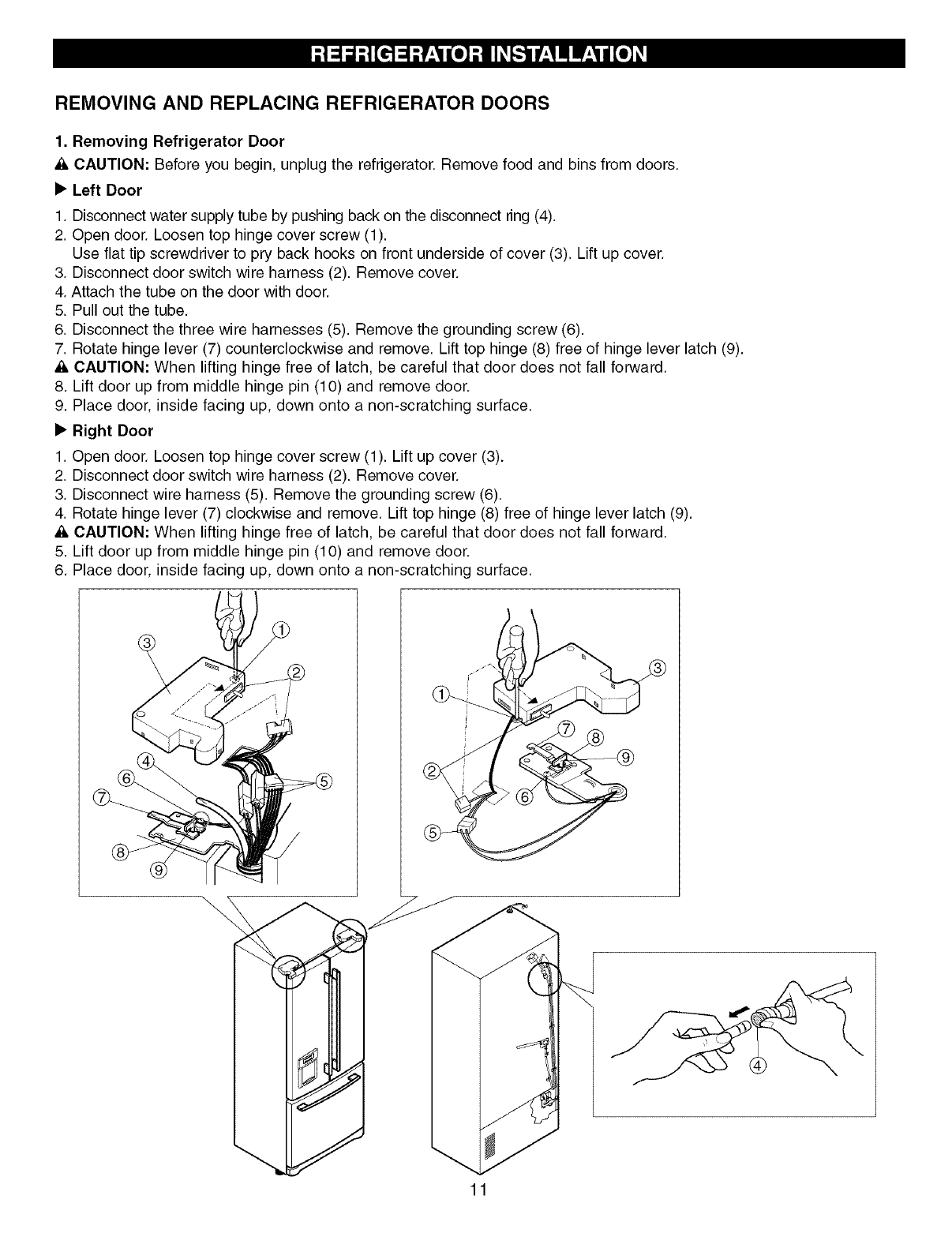

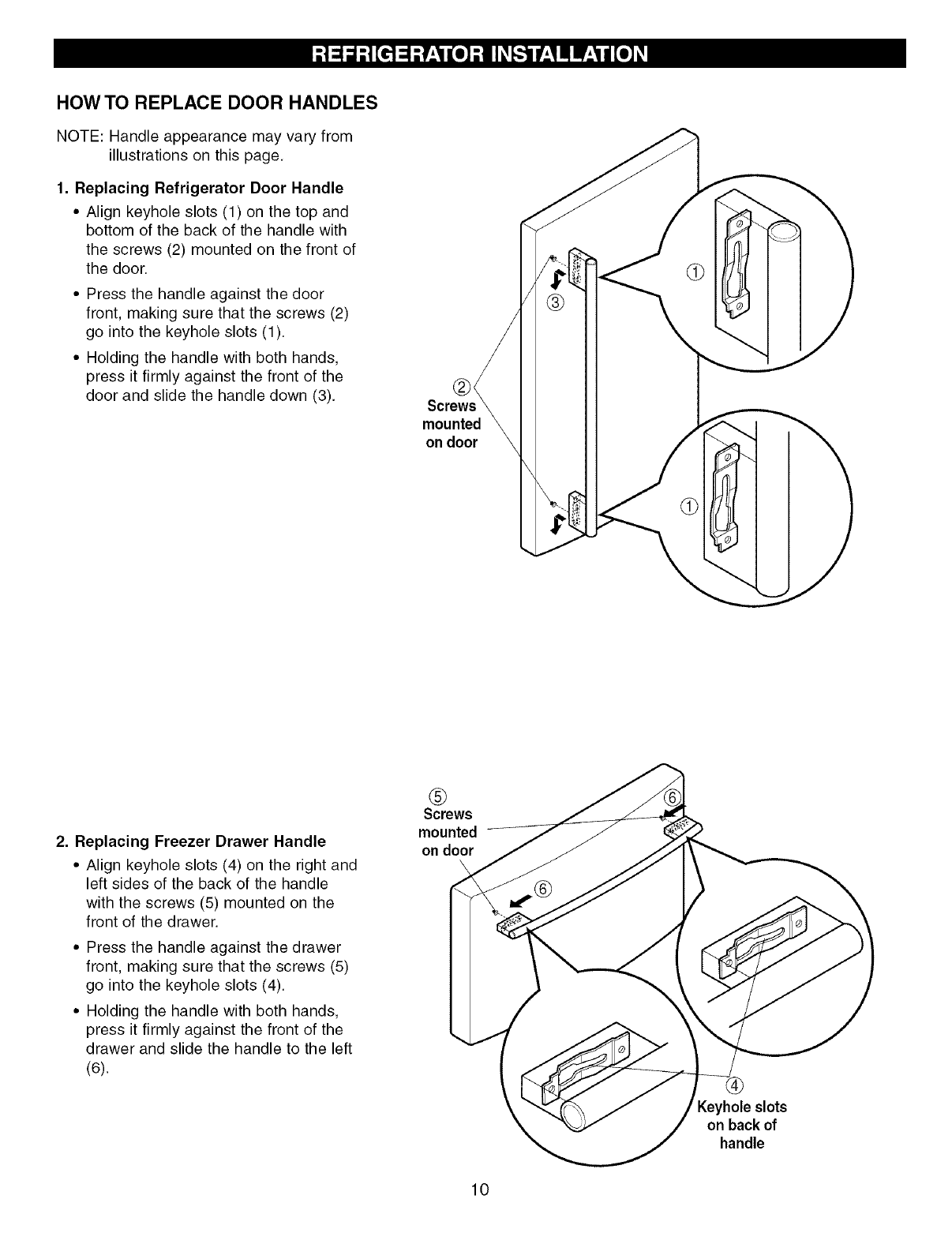

Removing and Replacing

Your Refrigerator Handles

and Doors

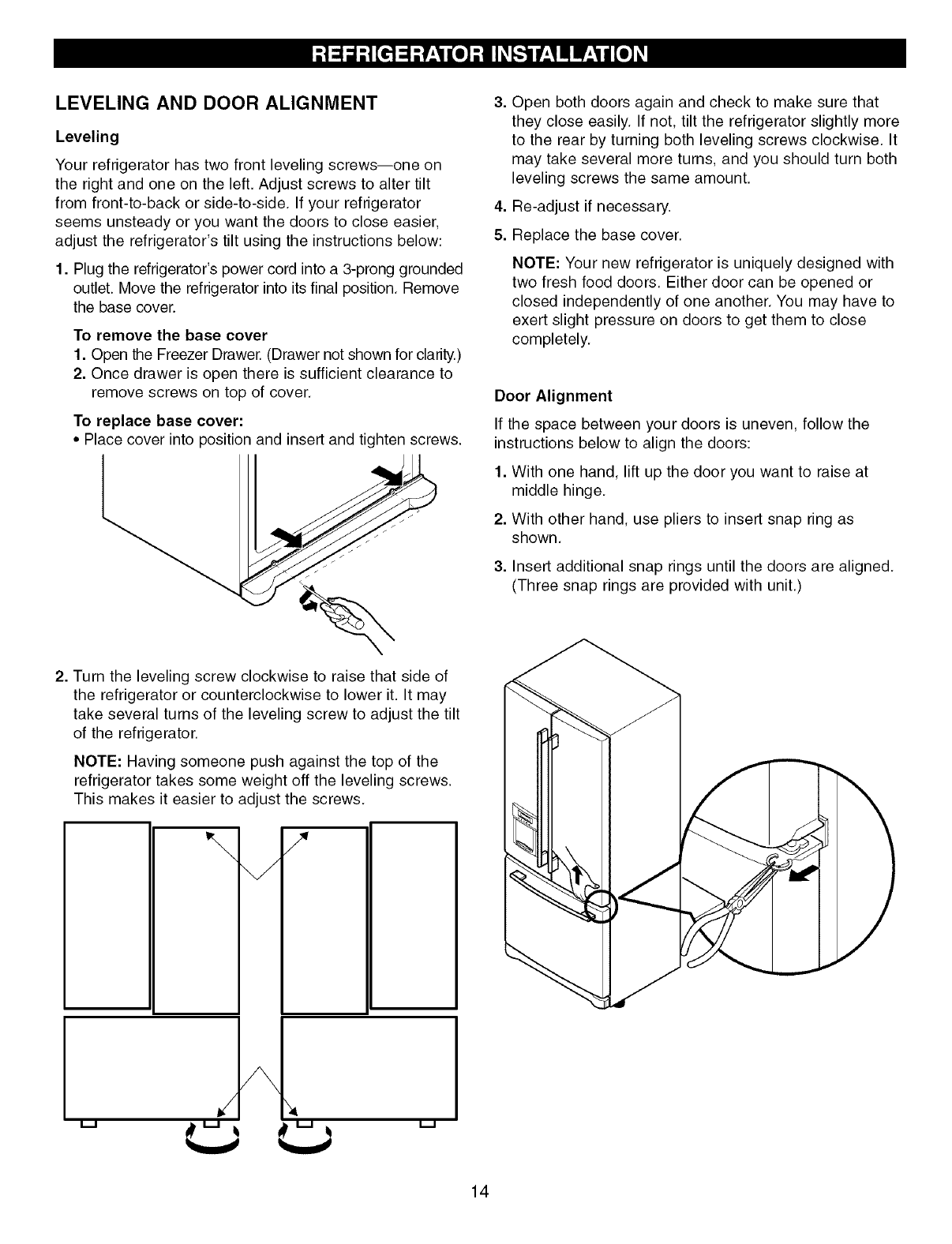

Leveling and Door Alignment

Base Cover

Using Your Refrigerator

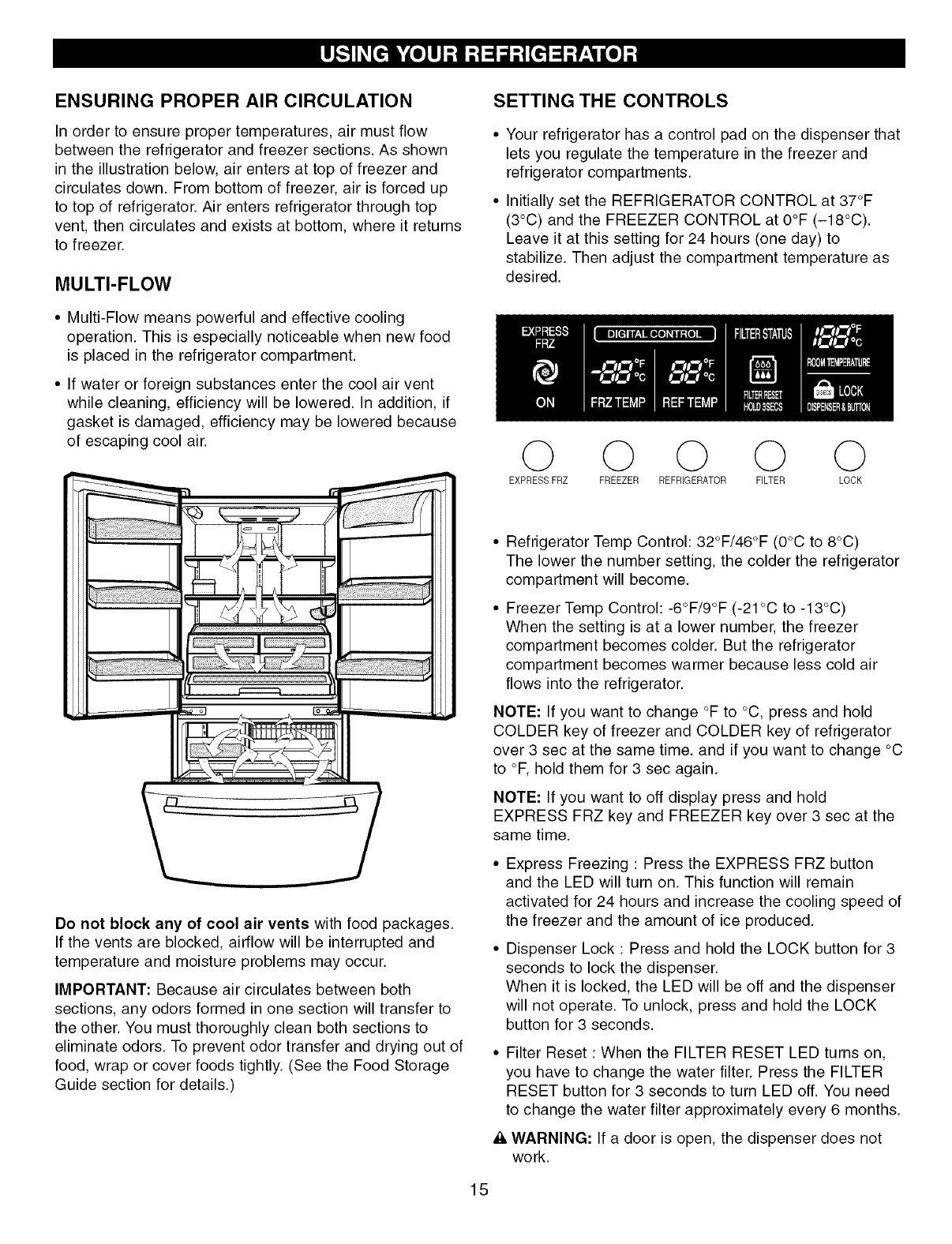

Ensuring Proper Air Circulation

Multi-Flow

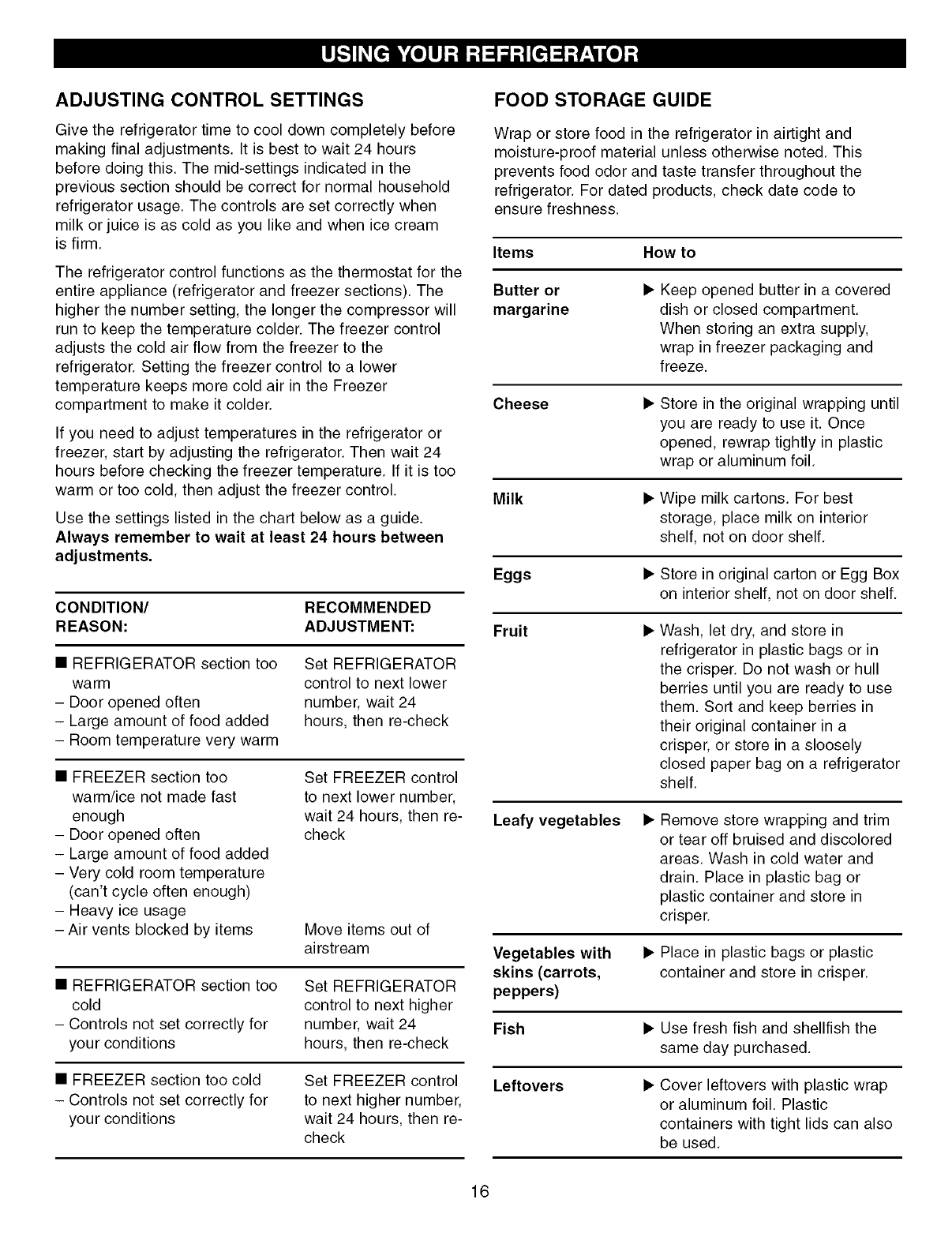

Setting the Controls

Adjusting Control Settings

Food Storage Guide

Storing Frozen Food

I_ Refrigerator section

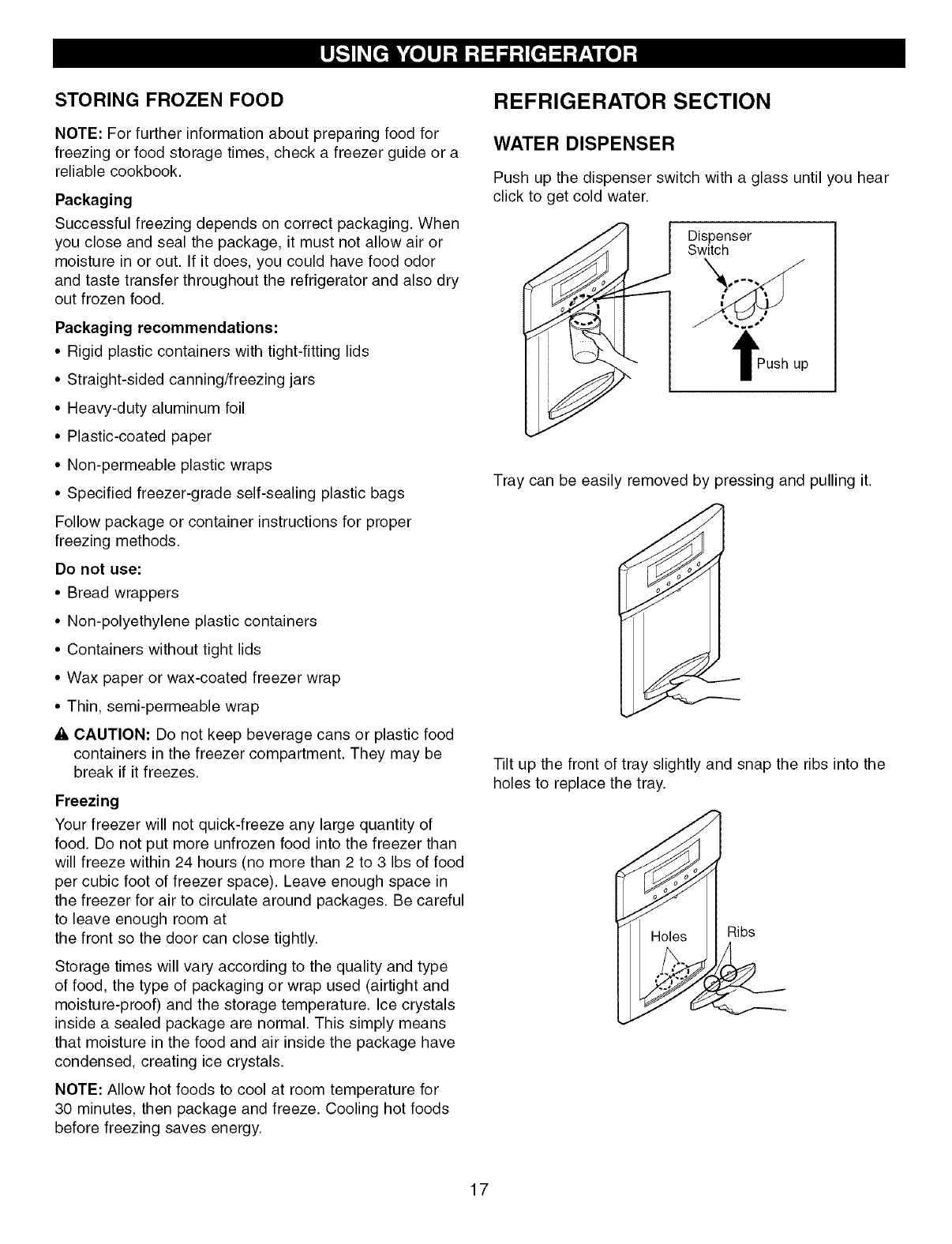

Water Dispenser

Refrigerator Shelves

Wine Holder

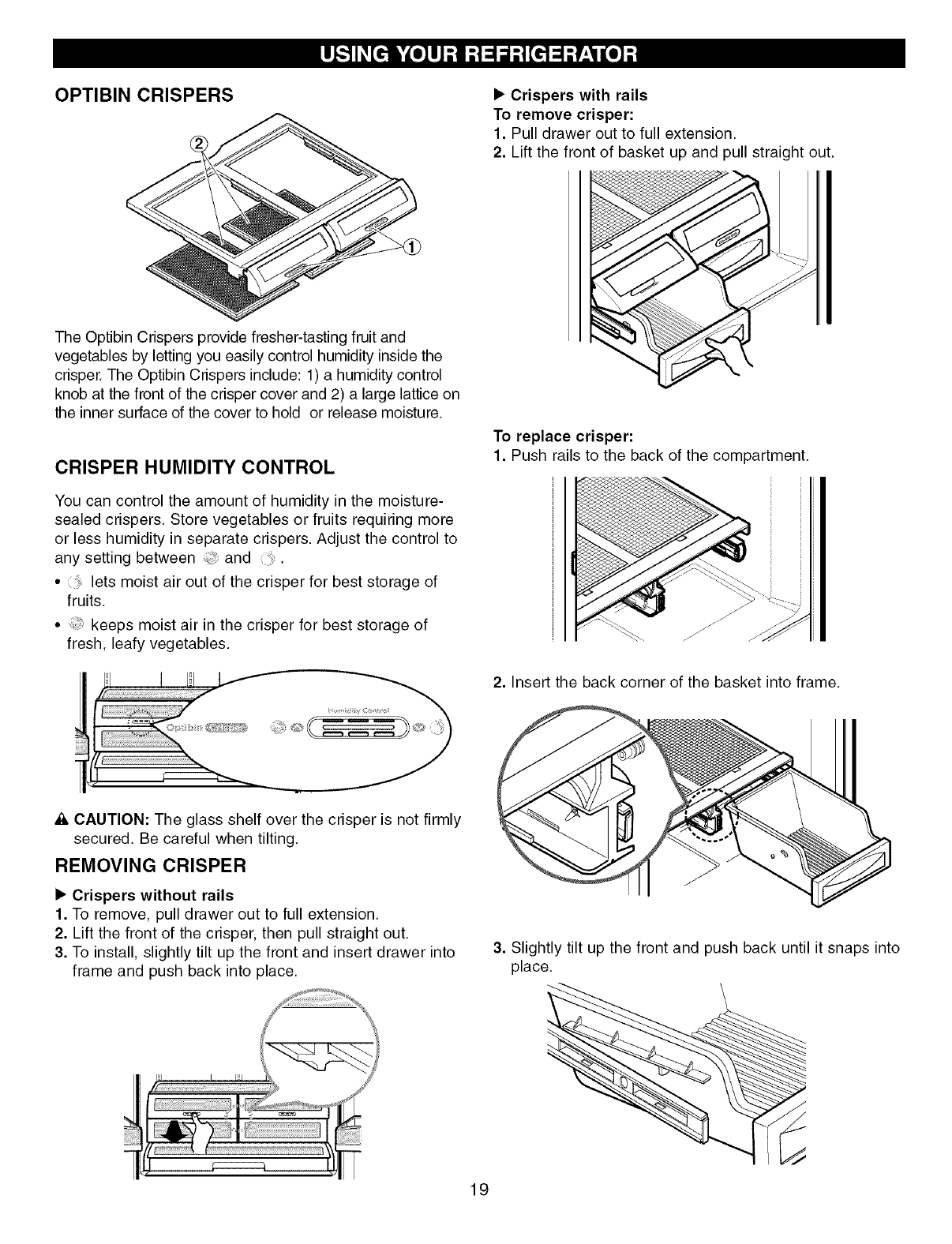

Optibin Crisper

Crisper Humidity Control

5-6

8-14

9-13

15-24

Removing Crisper 19

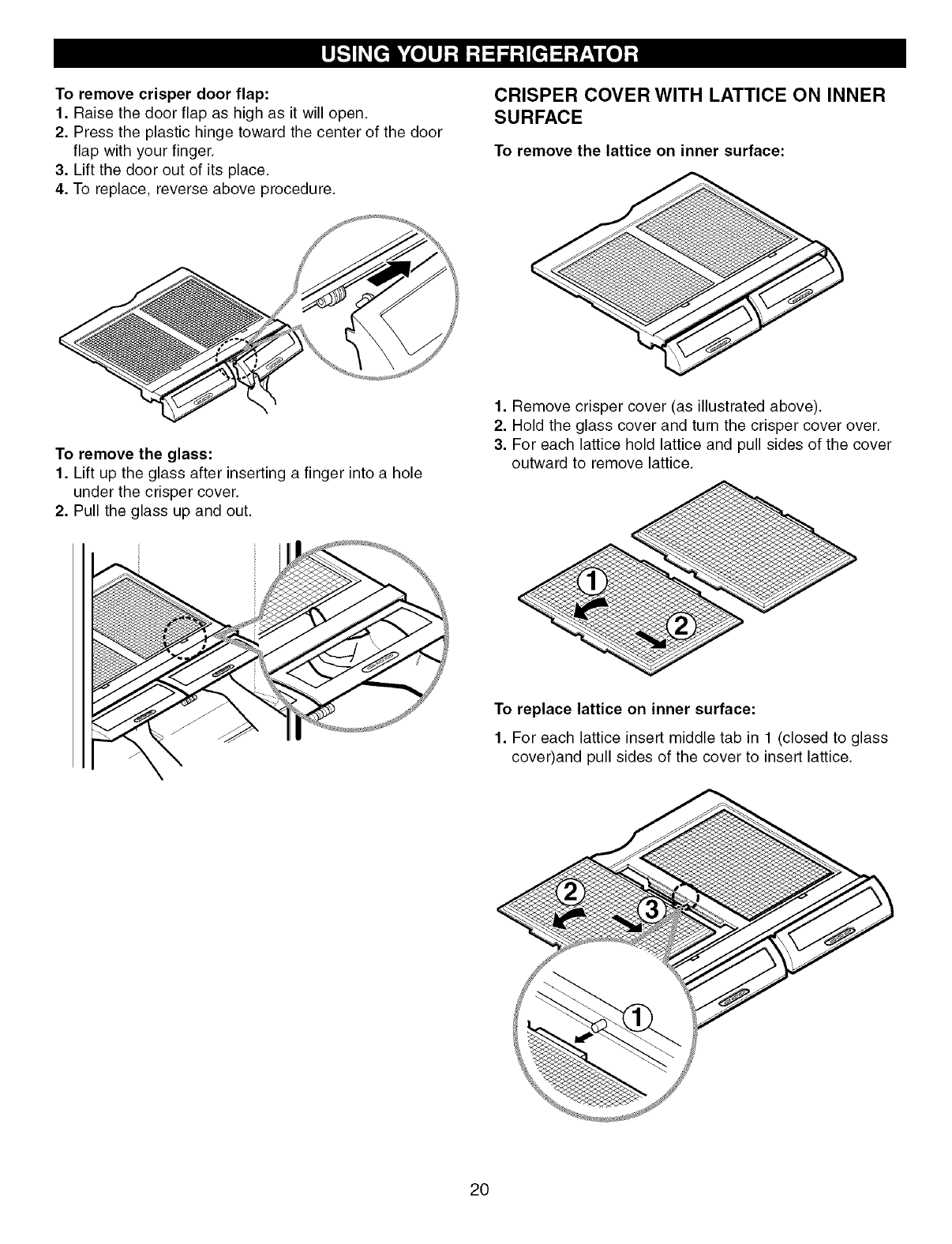

Crisper Cover with Lattice on inner

Surface 20

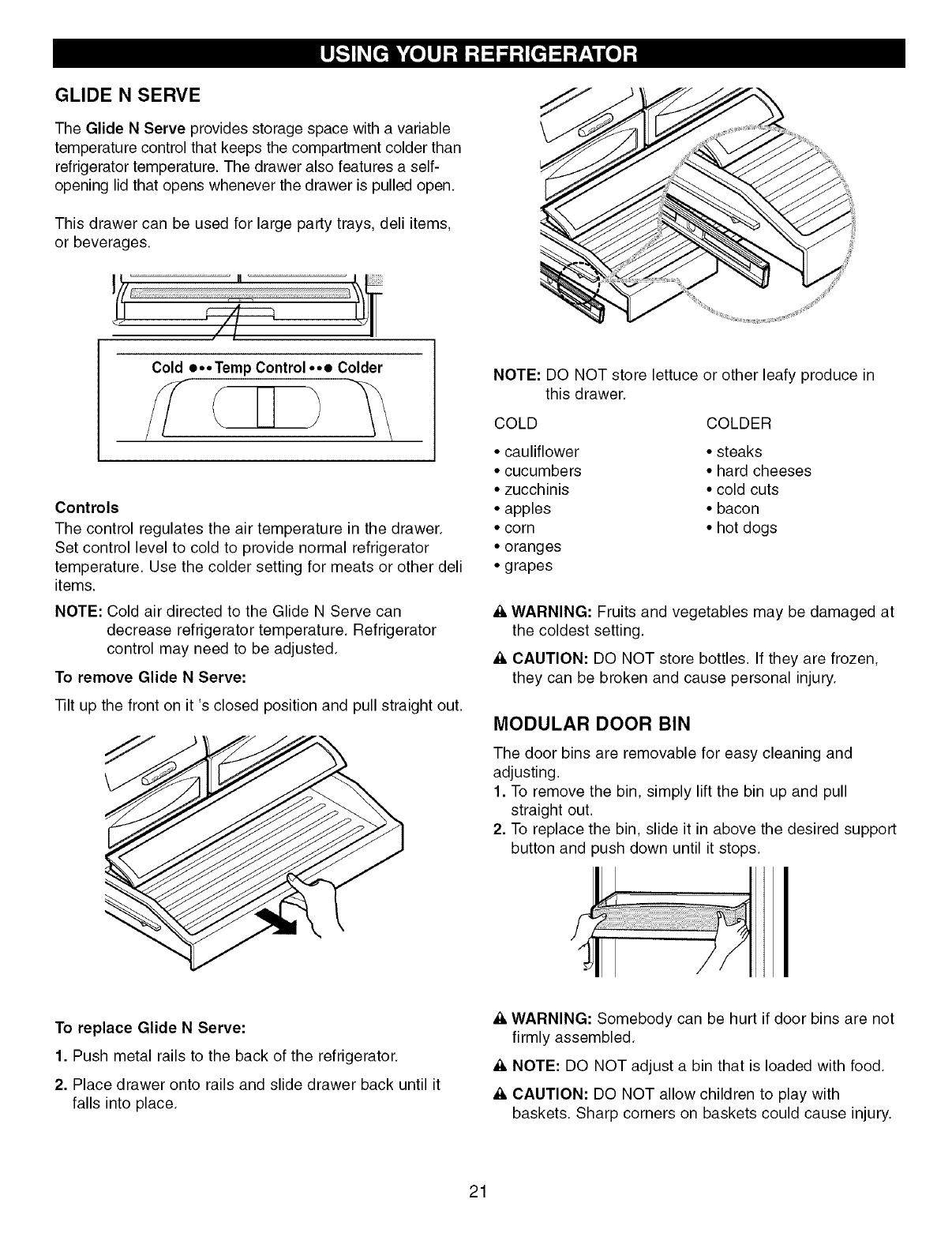

Glide N Serve 21

Modular Door Bin 21

Dairy Bin 22

Egg Box 22

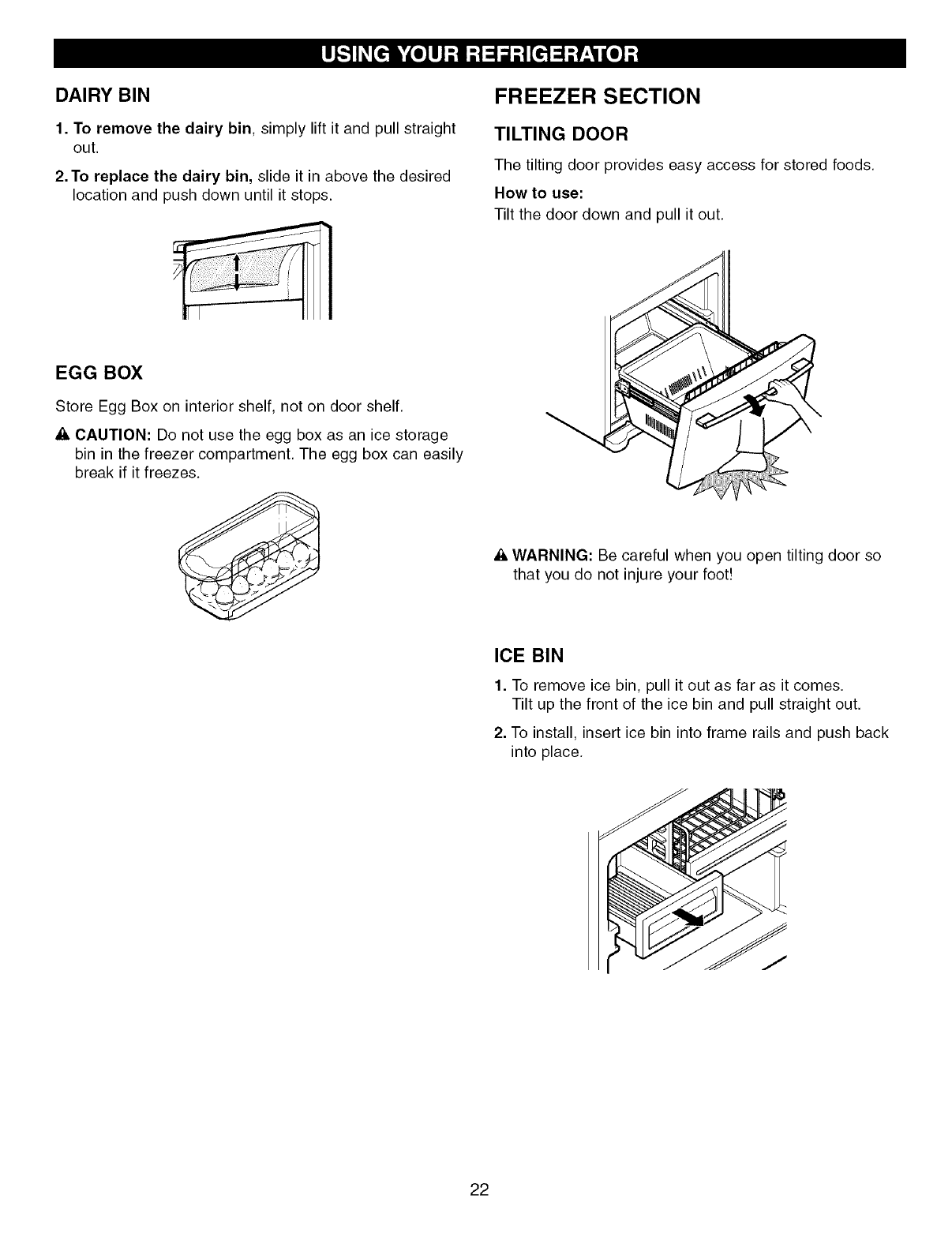

I_ Freezer section

Tilting Door 22

Ice Bin 22

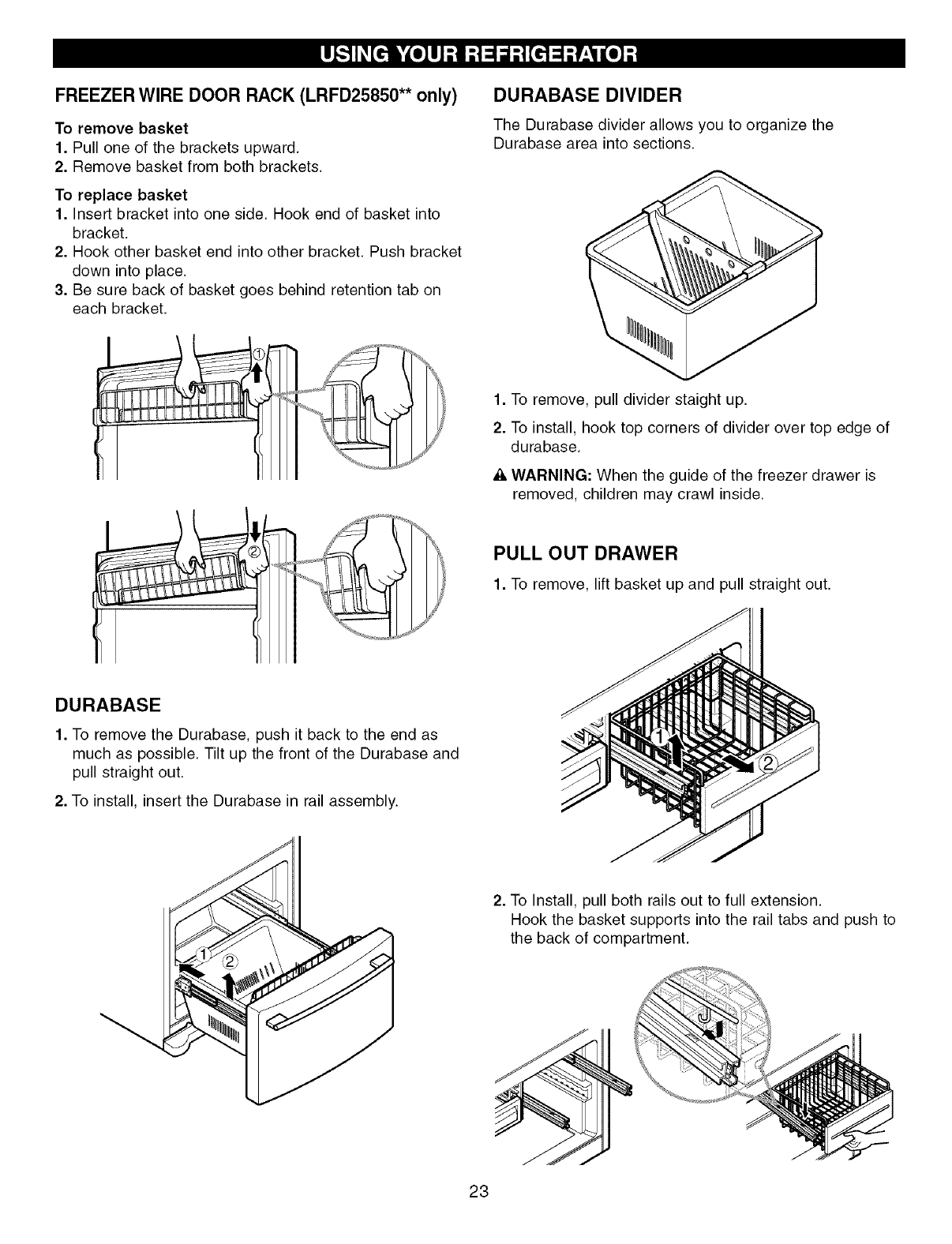

Freezer Wire Door Rack 23

Durabase 23

Durabase Divider 23

Pull out Drawer 23

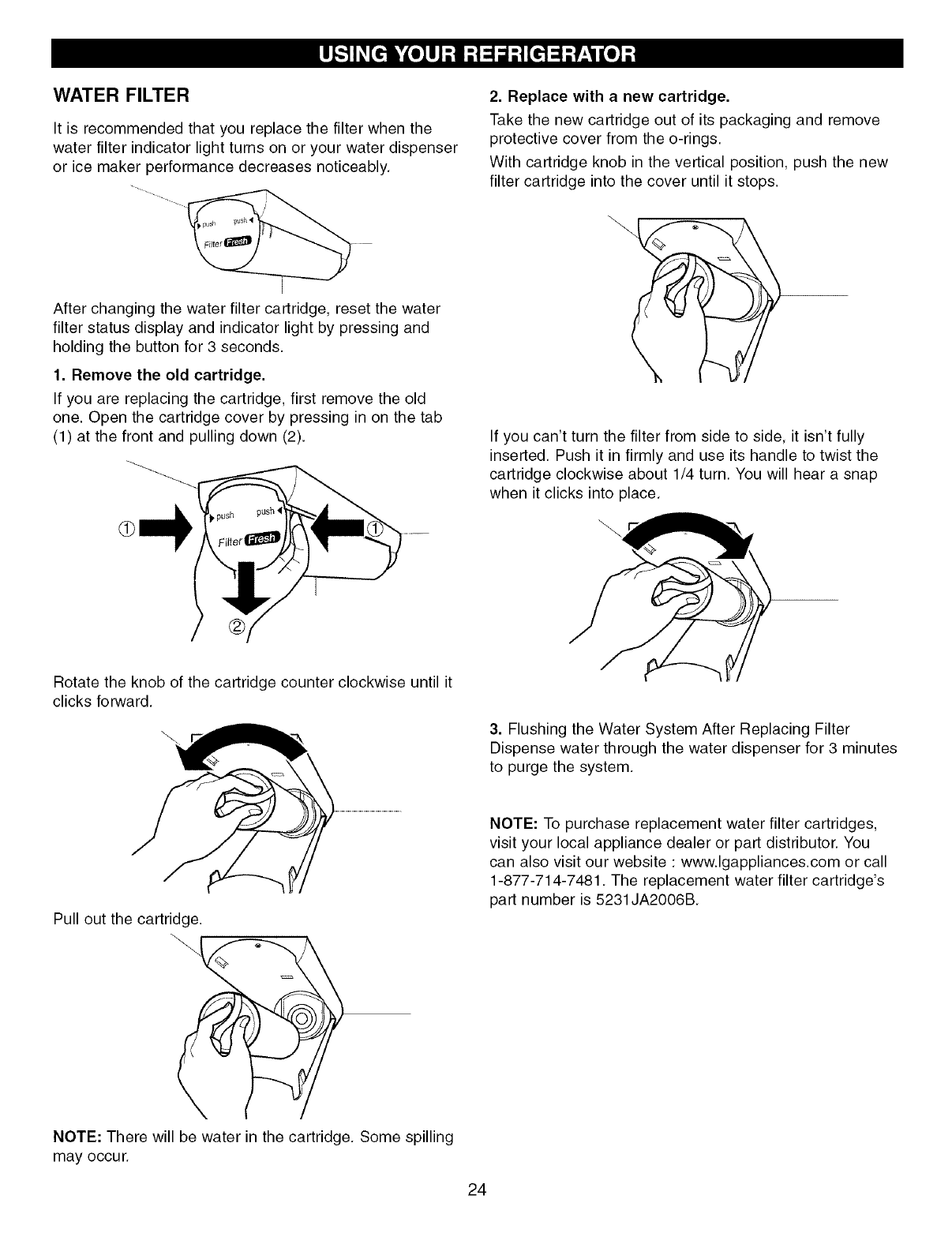

Water Filter 24

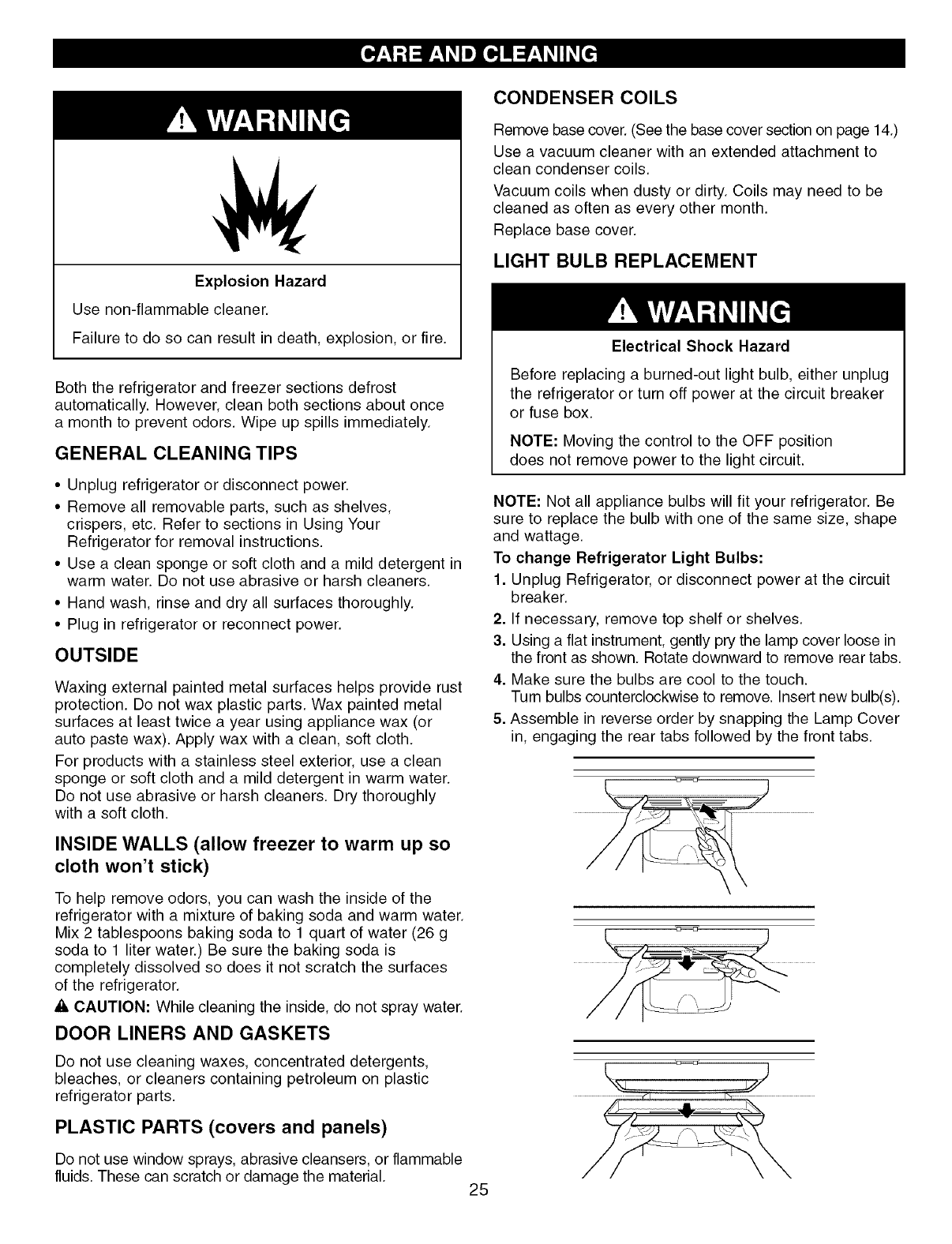

Care and Cleaning 25-26

General Cleaning Tips 25

Outside 25

Inside Walls 25

Door Liner and Gaskets 25

Plastic Parts 25

Condenser Coils 25

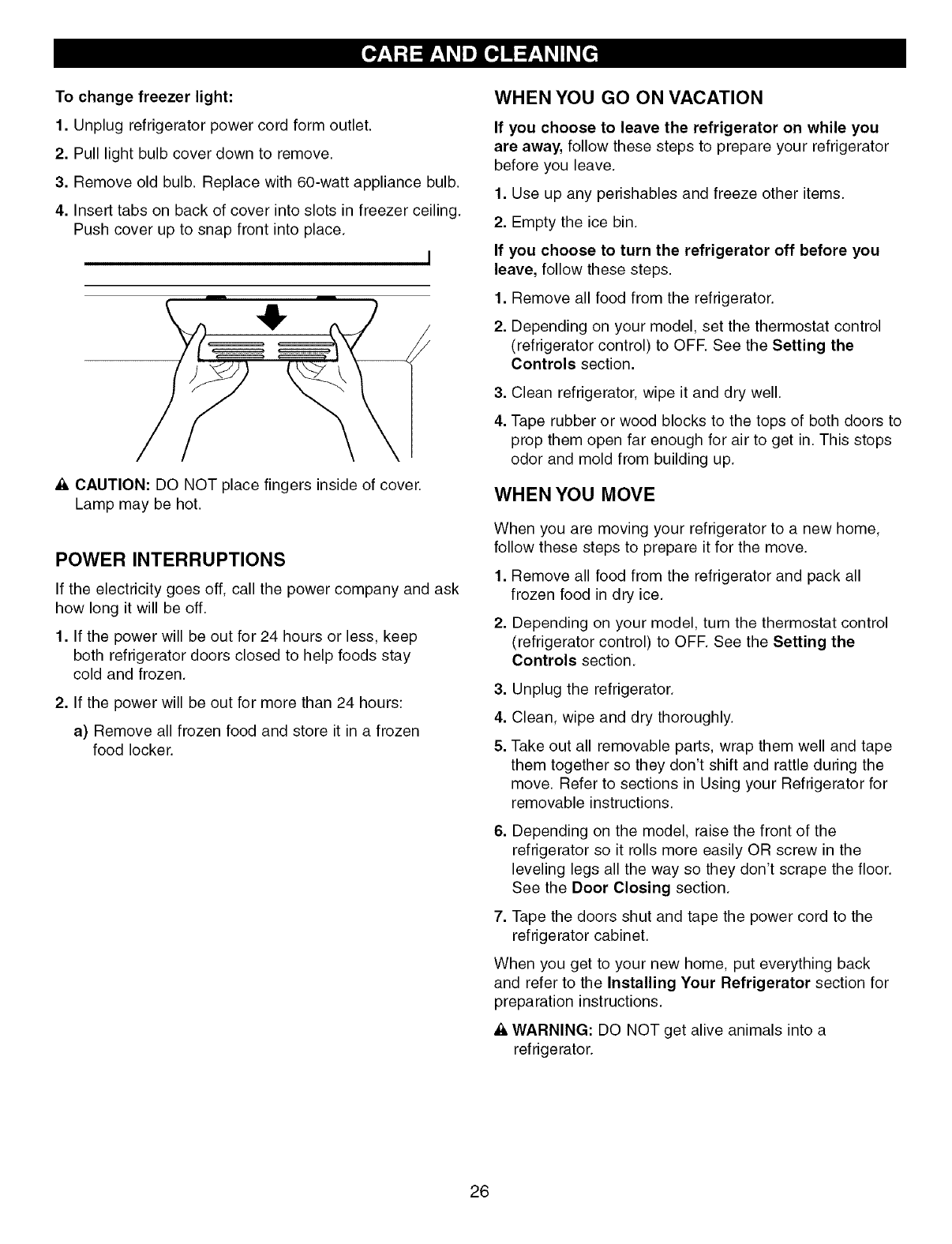

Light Bulb Replacement 25-26

Power Interruptions 26

When you go on vacation 26

When you move 26

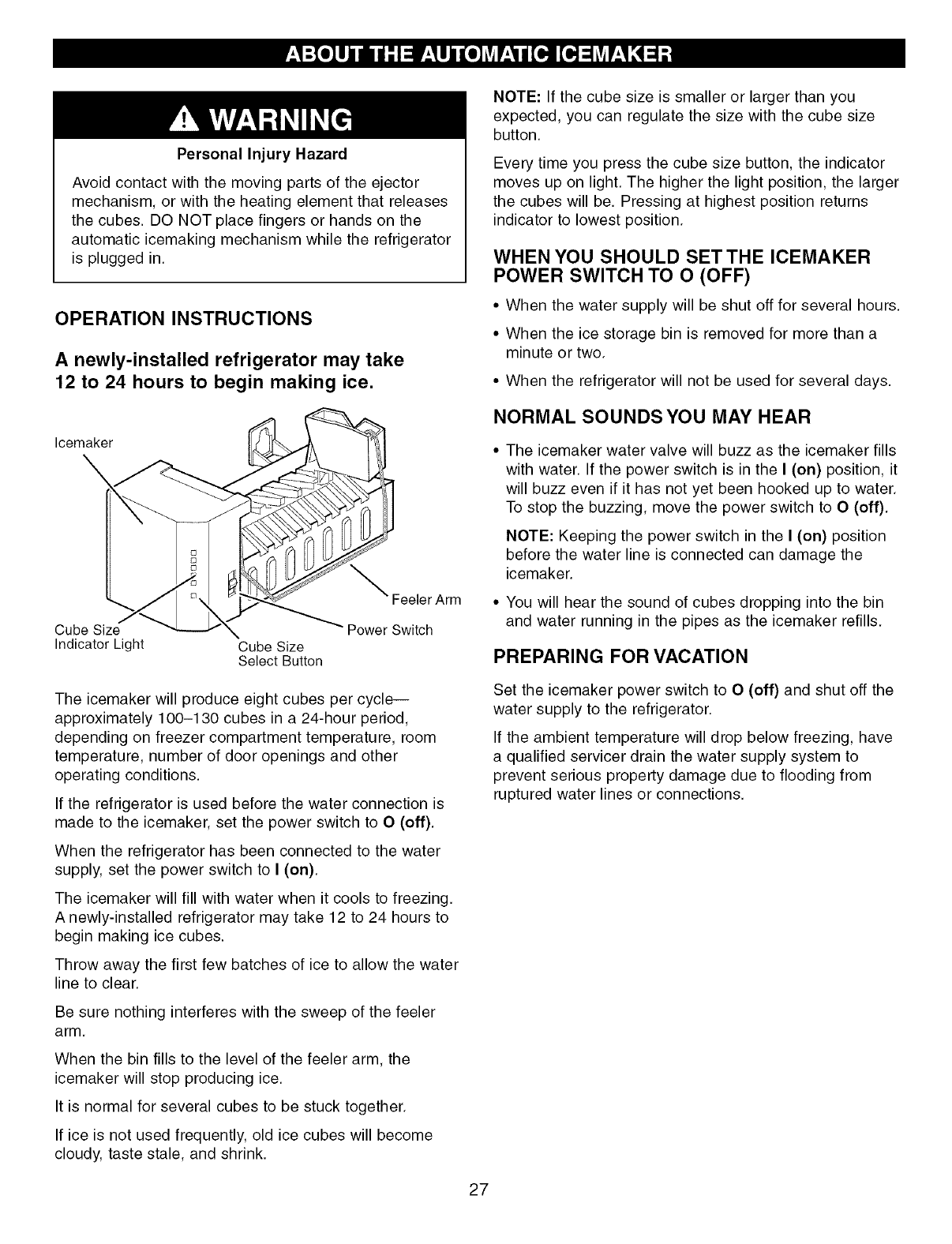

About the Automatic Icemaker 27

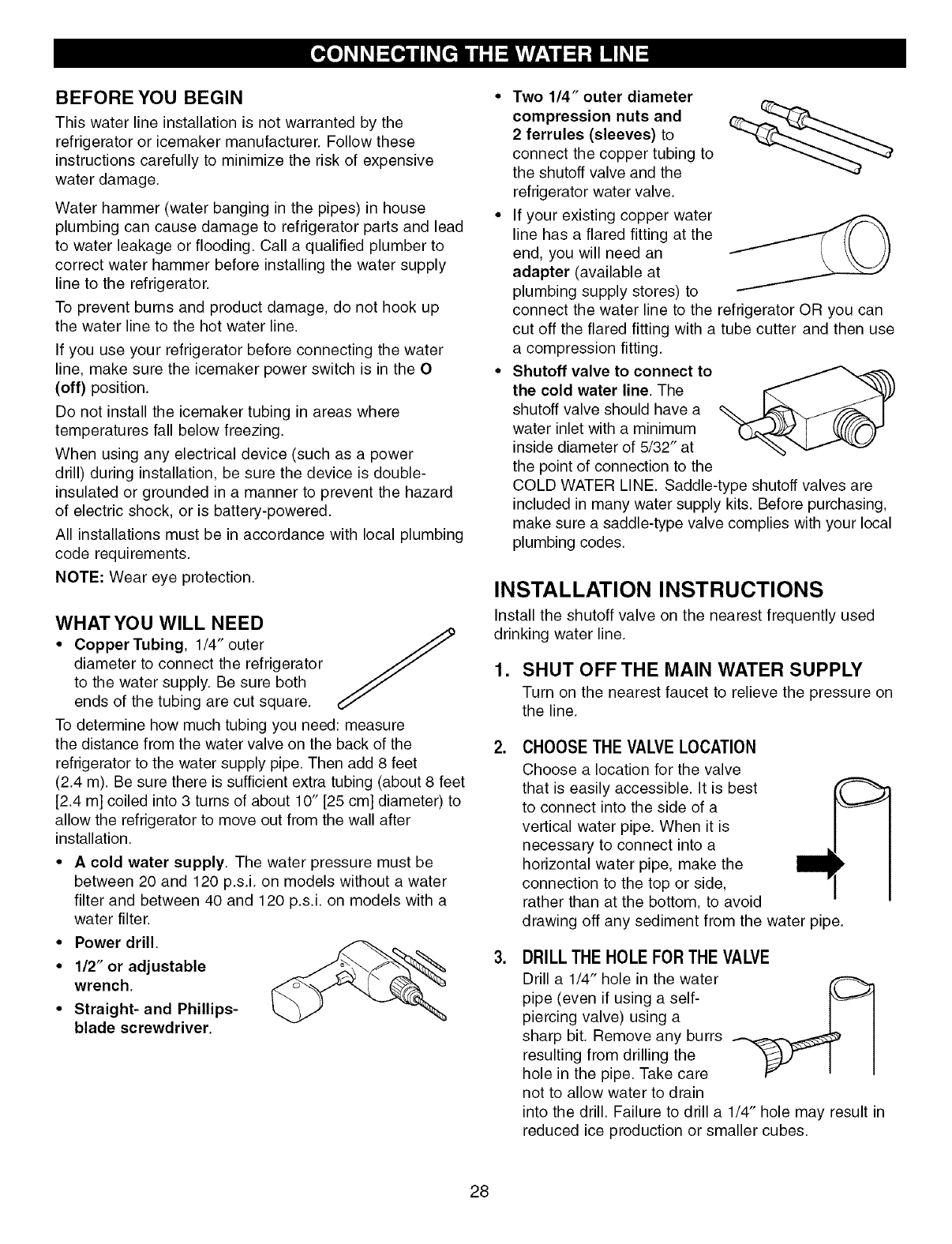

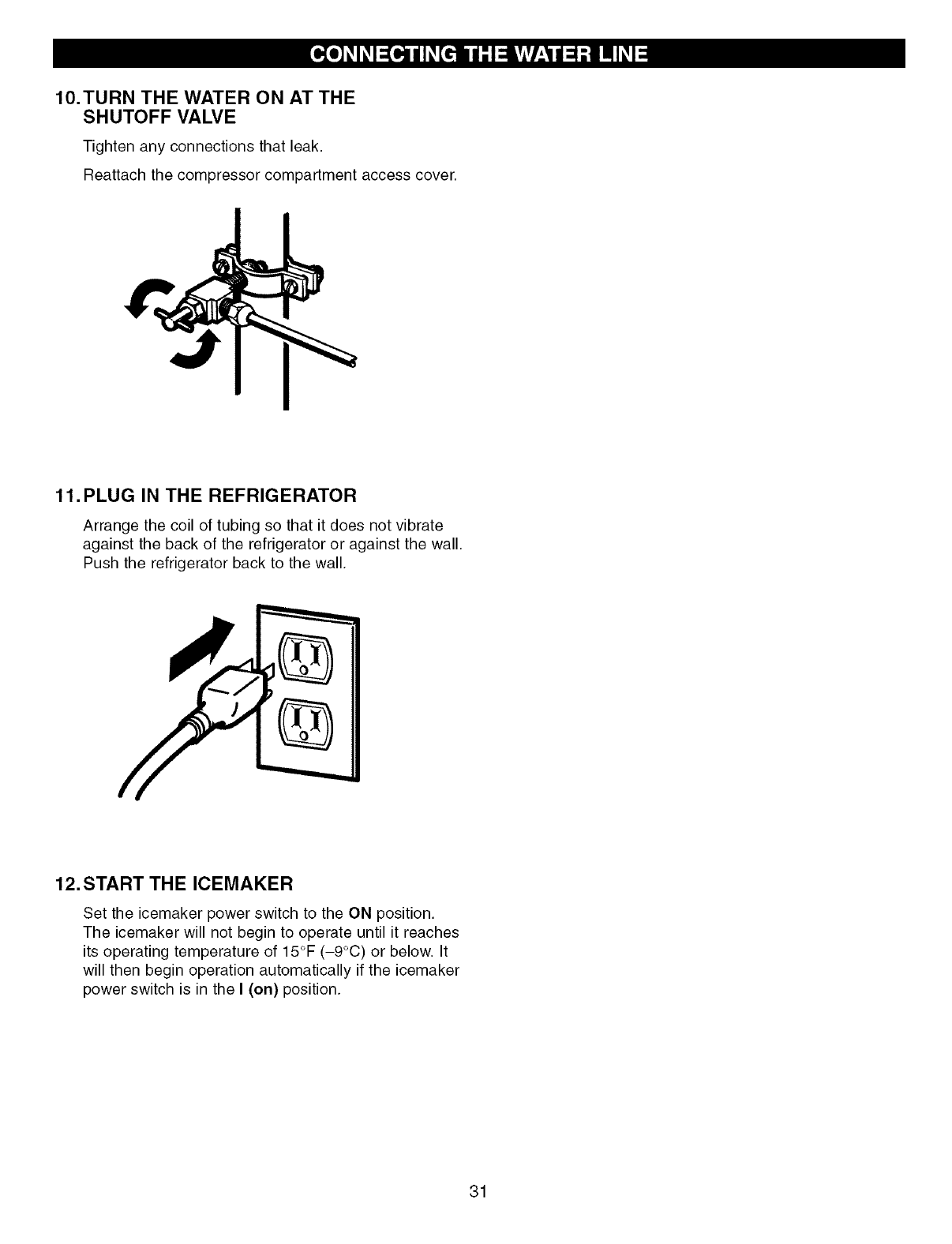

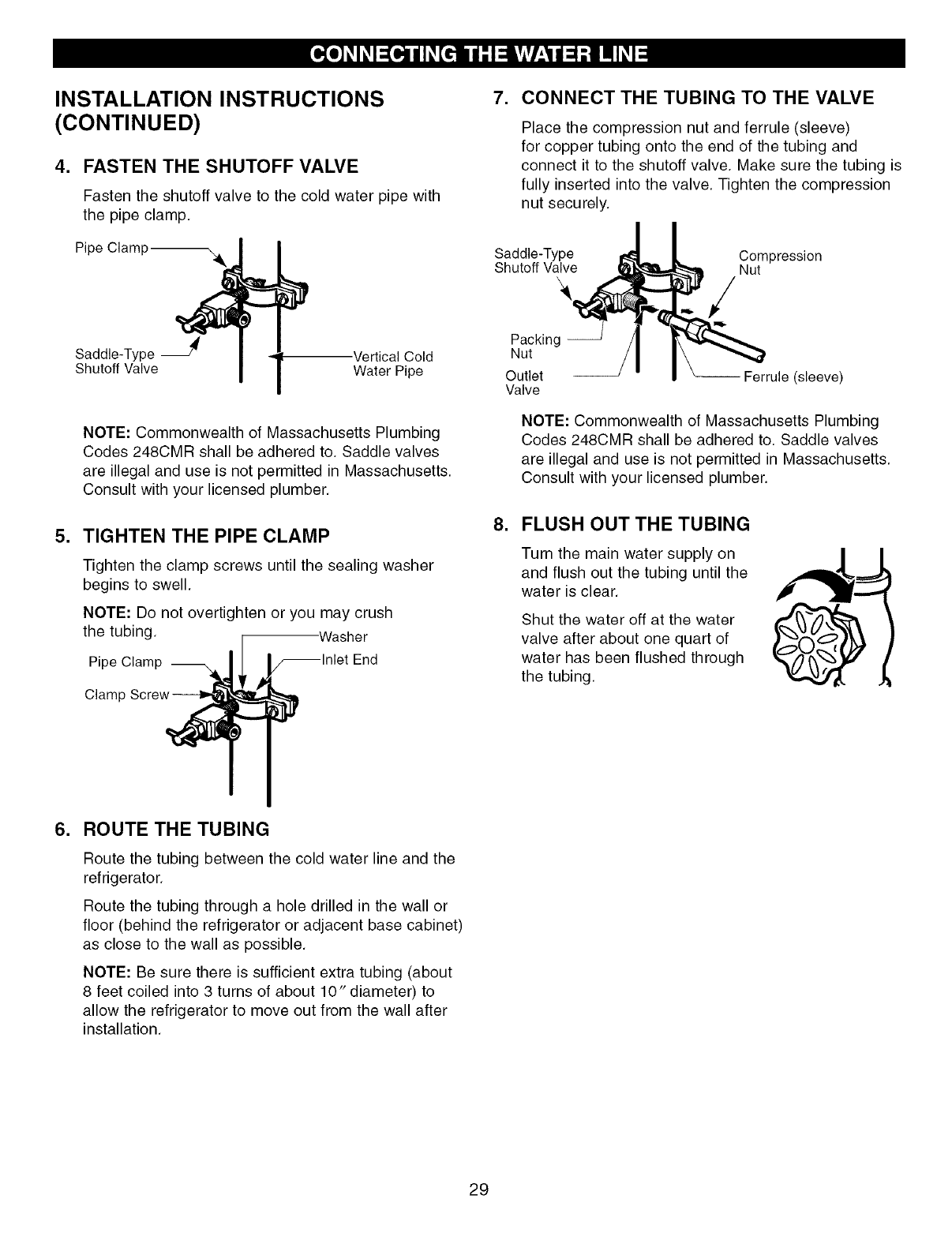

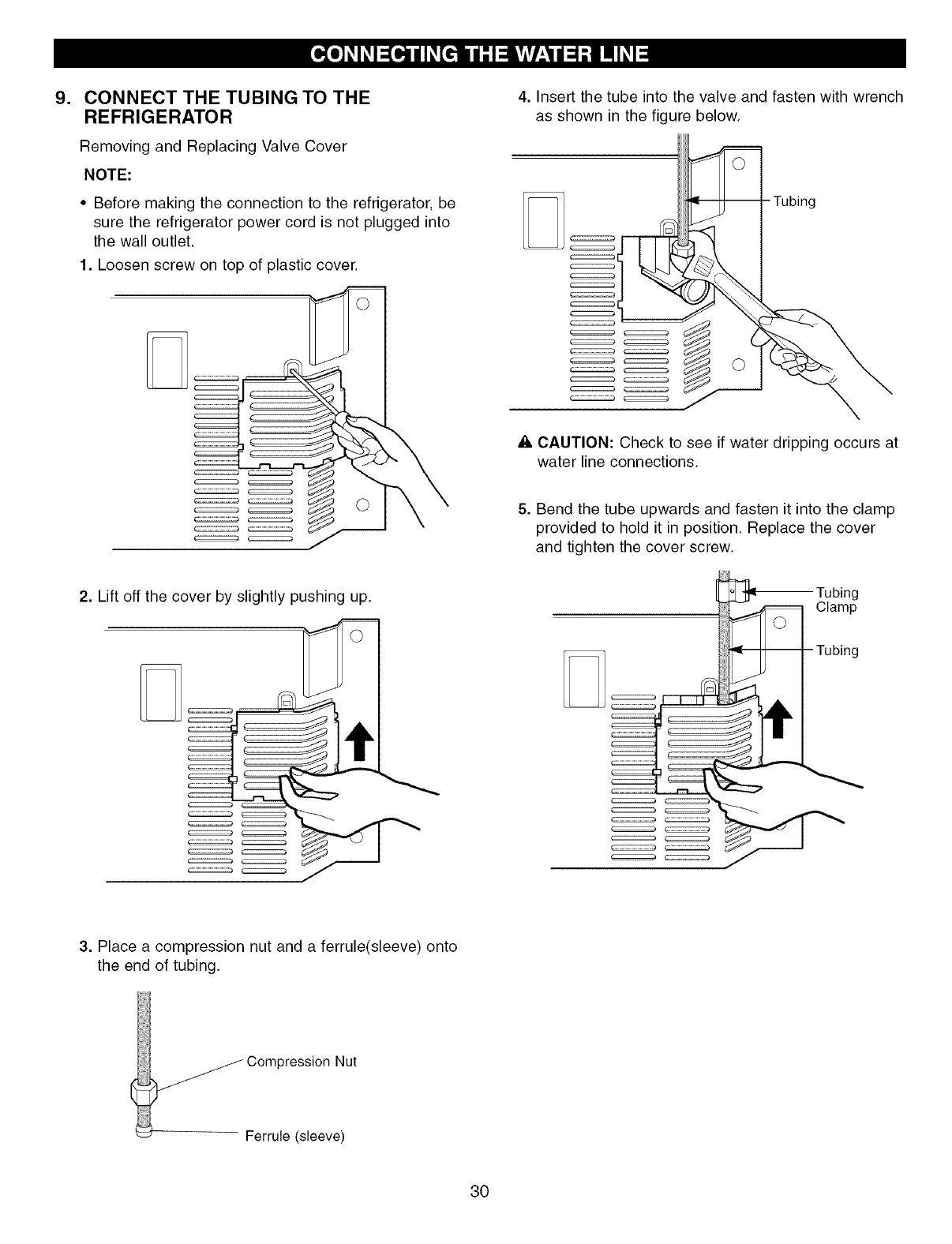

Connecting the Water Line 28-31

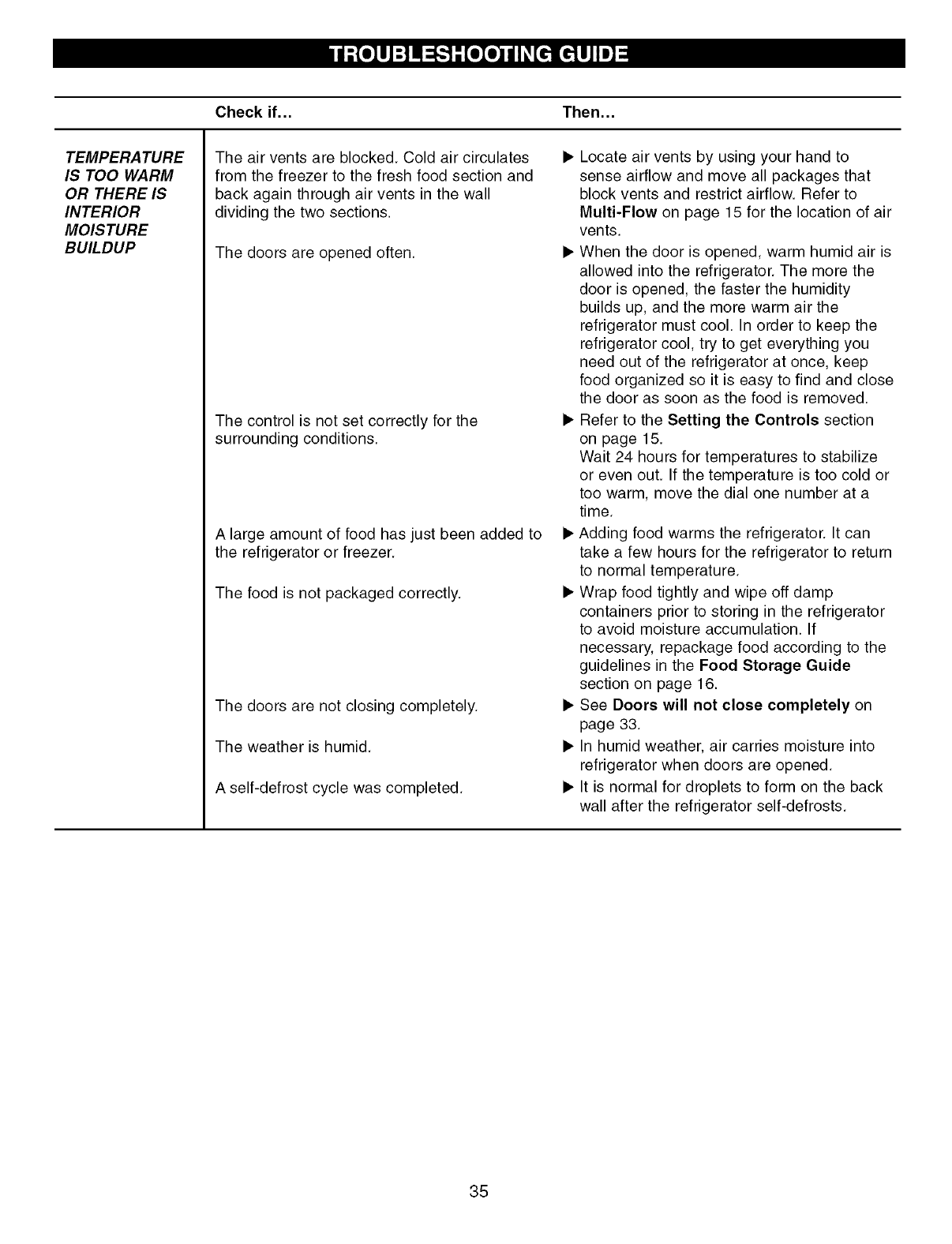

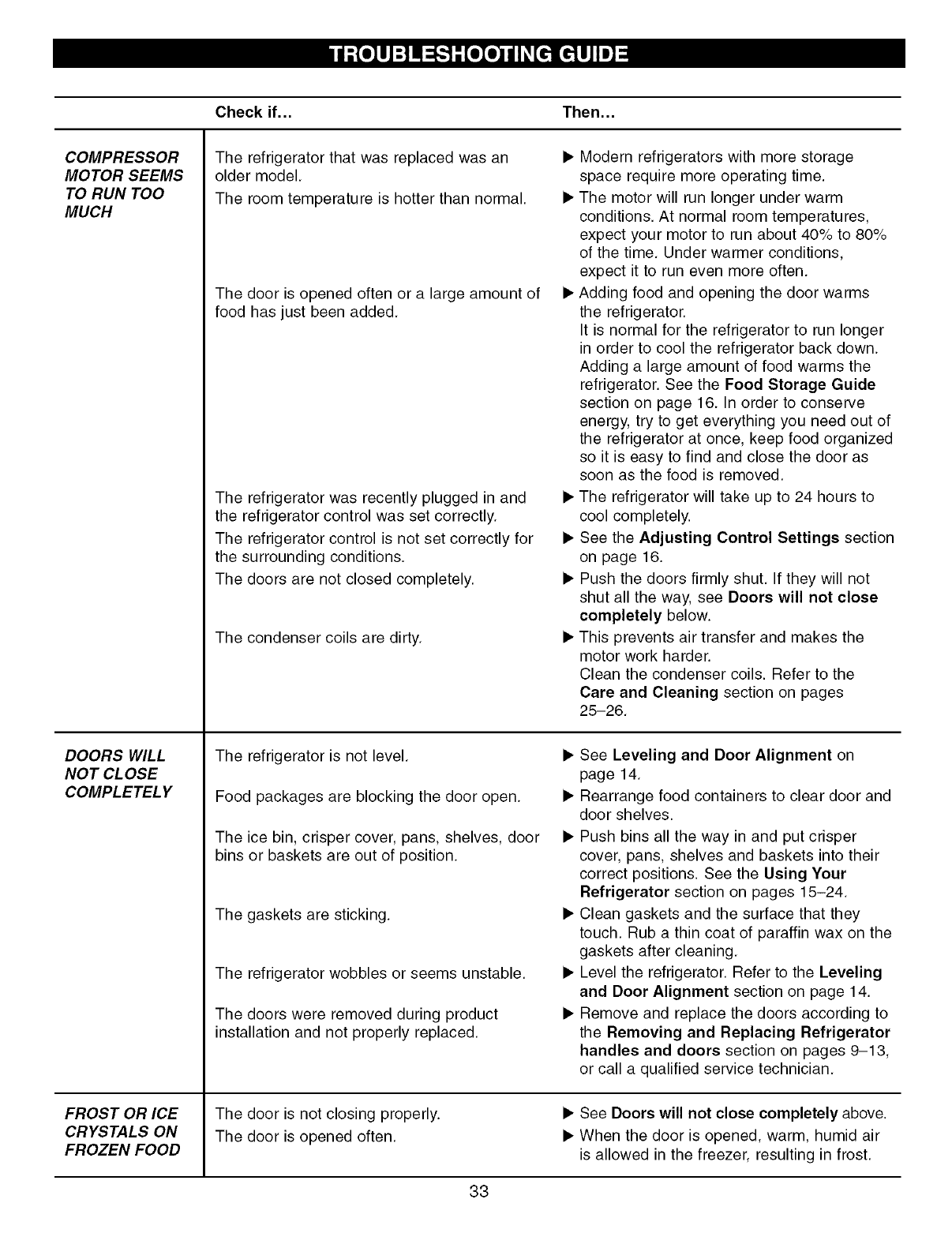

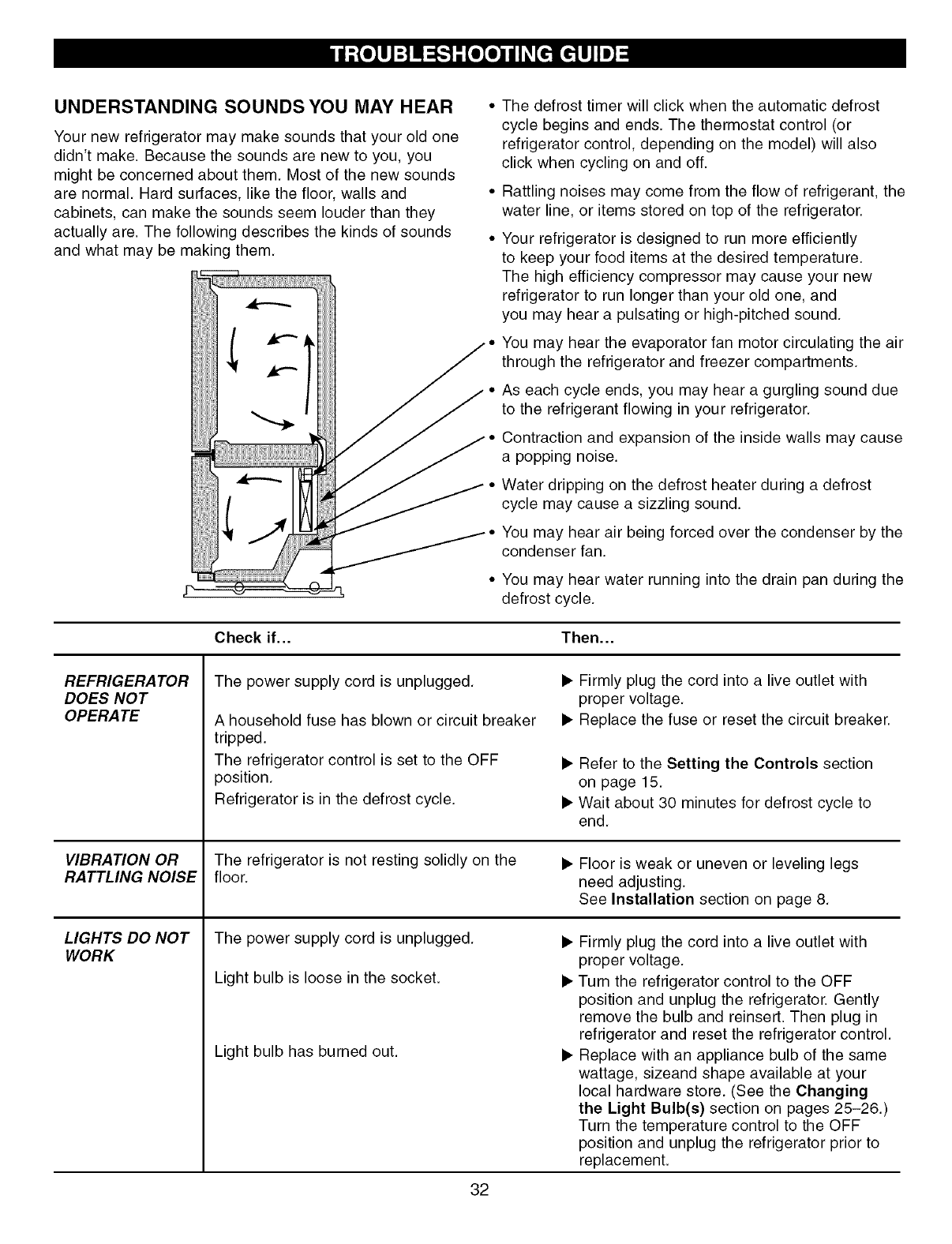

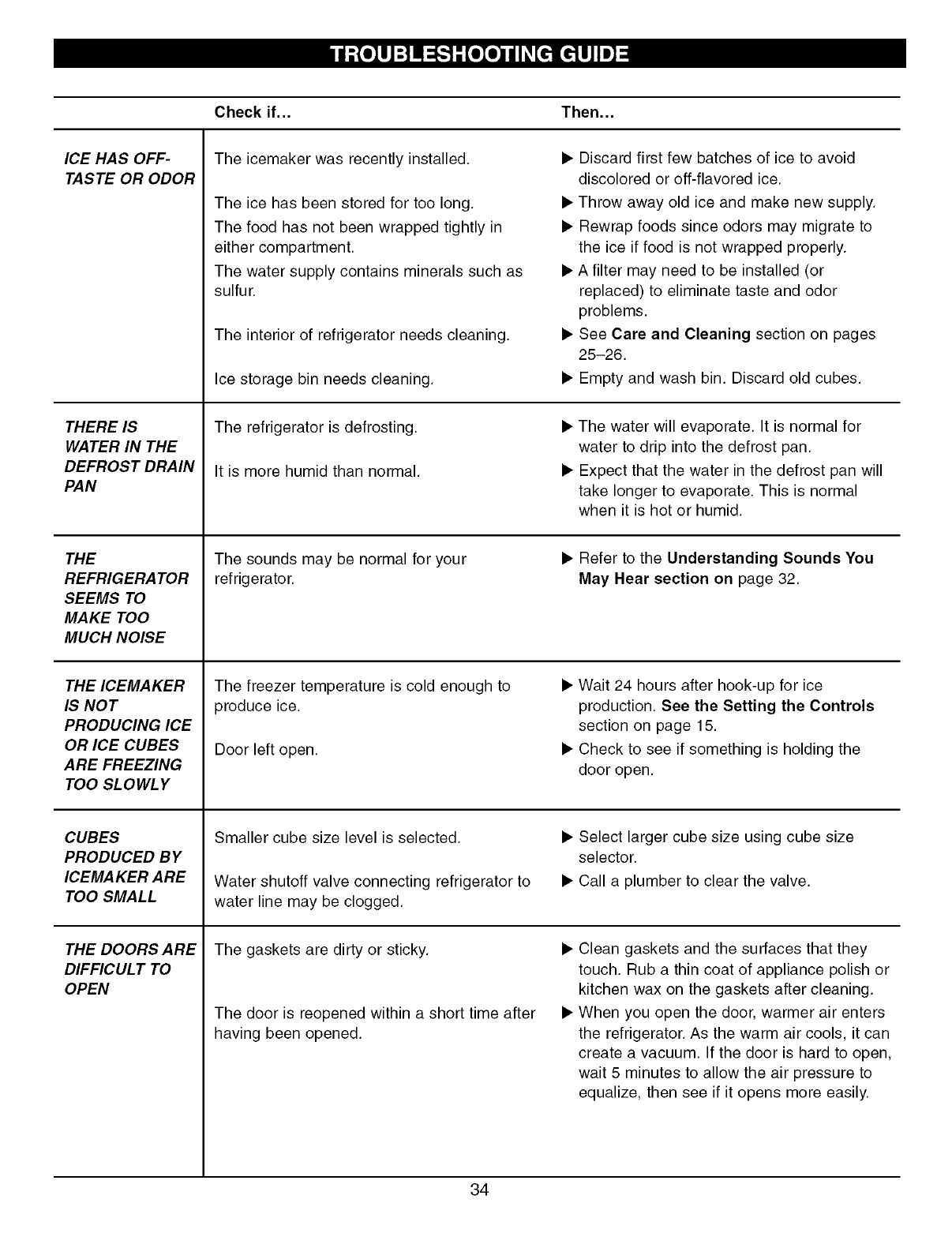

Troubleshooting Guide 32-35

Your LG Refrigerator will be will repaired or replaced, at LG's option, if it proves to be defective in material or

workmanship under normal use, during the warranty period ("Warranty Period") set forth below, effective from the date

("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser

of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.

WARRANTY PERIOD:

REFRIGERATOR/FREEZER

LABOR: One Year from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

SEALED SYSTEM (Compressor, Condenser, and

Evaporator)

LABOR: One Year from the Date of Purchase.

PARTS: Seven years from the Date of Purchase.

Replacement Units and Repair Parts are warranted

for the remaining portion of the original unit's warranty

period.

HOW SERVICE IS HANDLED:

In-Home Service (Except Model GR051):

Please retain dealer's dated bill of sale or delivery

ticket as evidence of the Date of Purchase for proof of

warranty, and submit a copy of the bill of sale to the

service person at the time warranty service is

provided.

Please call 1-800-243-0000 and choose the

appropriate option to locate your nearest LG

Authorized Service Center. (Phones are answered

24 hours a day, 365 days per year.)

Or visit our website at: http://www.lgservice.com

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE

FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,

INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER

BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may

not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to

state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct wiring, or

correction of unauthorized repairs.

• Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the

requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized

modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.

• Repairs when your LG refrigerator is used in other than normal, single-family household use.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CUSTOMER INTERACTIVE CENTER NUMBERS

To obtain Customer Assistance, Product Information, or

Dealer or Authorized Service Center location: Call 1-800-243-0000 (24 hours a day, 365 days per

year) and select the appropriate option from the menu.

Or visit our website at: http://www.lgservice.com

TO CONTACT LG ELECTRONICS BY MAIL:

LG Customer Interactive Center

P. O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

ATTN: CIC

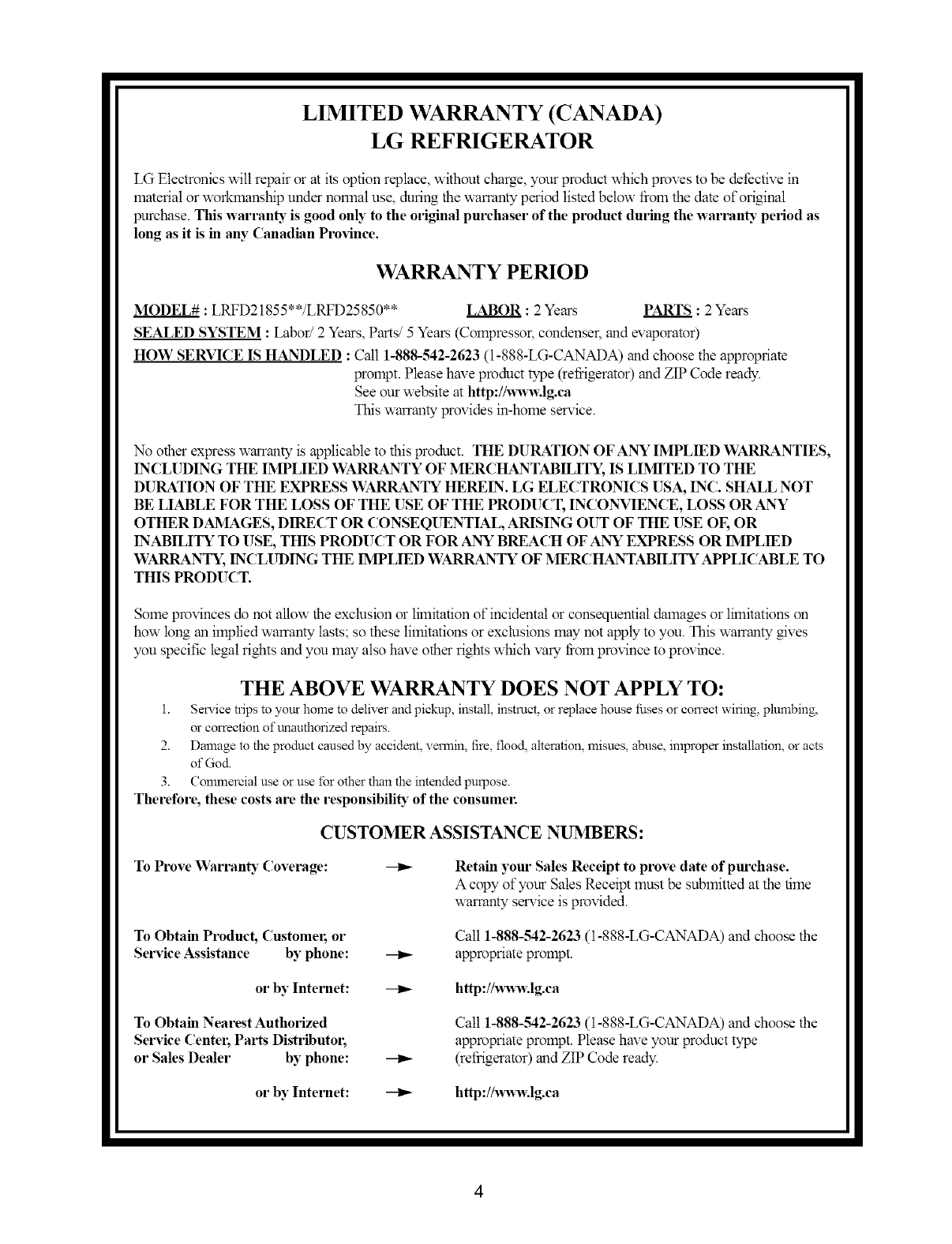

LIMITED WARRANTY (CANADA)

LG REFRIGERATOR

LG Electronics will repair or at its option replace, without charge, yore product which proves to be detective in

material or workananship under normal use, during the warranty period listed below fiom the date of original

purchase. This warranD is good onb 7to the original purchaser of the product during the warranD period as

long as it is in any Canadian Pro+Jnce.

WARRANTY PERIOD

MODEL# : LRFD21855**/LRFD25850** LABOR : 2 Years PARTS : 2 Years

SEALED SYSTEM : Labor/2 Years, Parts/5 Years (Compressoi; condensm; and evaporator)

HOW SERVICE IS HANDLED : Call 1-888-542-2623 (1-888-LG-CANADA) and choose the appropriate

prompt. Please have product type (refrigerator) and ZIP Code ready.

See our website at http:iA_vw.lg.ca

This wananty provides in-home sin:ice.

No other express warranty is applicable to this product. THE DURATION OF AN_f IMPLIED WARRANTIES,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE

DURATION OF THE EXPRESS WARRANTY HEREIN'. LG ELECTRONICS USA, INC. SHALL NOT

BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONWIENCE, LOSS OR ANY

OTHER DAMAGES, DIRECT OR CONSEQUENTIAL ARISING OUT OF THE USE OF, OR

INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED

WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO

THIS PRODUCT.

Some provinces do not allow the exclusion or lhnitation of incidental or consequential damages or lhnitations on

how long an implied wananty lasts; so these limitations or exclusions may not apply to you. This wananty gives

you specific legal rights and you may also have other rights which vary fiom province to provthce.

THE ABOVE WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct wiring, plumbing,

o1"correction of unauthorized repairs.

2. Damage to the product caused by accident, verlnin, fire, flood, alteration, misues, abuse, improper installation, or acts

of God.

3. Commercial use or use for other than the intended purpose.

Therefore, these costs are the responsibiliO of the consumel:

CUSTOMER ASSISTANCE NUMBERS:

To Prove WarranO _Coverage:

To Obtain Product, Customel; or

Selwice Assistance by phone:

or by Internet:

To Obtain Nearest Authorized

Service Centel; Parts Distributol;

or Sales Dealer by phone:

Retain your Sales Receipt to prove date of purchase.

A copy of your Sales Receipt must be submitted at the time

wananty smice is provided.

Call 1-888-842-2623 (1-888-LG-CANADA) and choose the

appropriate prompt.

http://_v.lg.ca

Call 1-888-842-2623 (1-888-LG-CANADA) and choose the

appropriate prompt. Please have your product type

(ret?igerator) and ZIP Code ready.

or by Internet: --_ http://_v.lg.ca

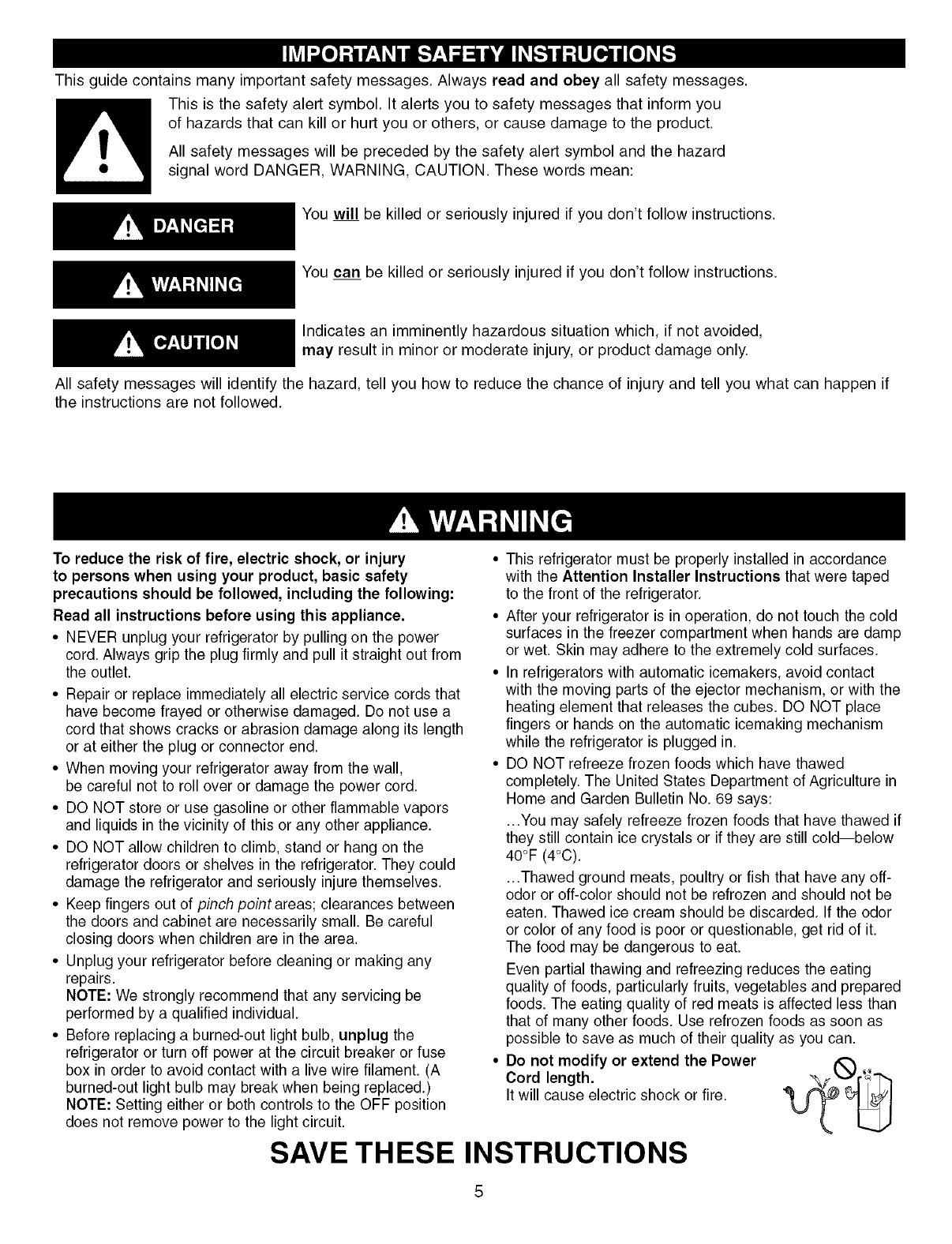

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, CAUTION. These words mean:

You will be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed.

To reduce the risk of fire, electric shock, or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out from

the outlet.

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage along its length

or at either the plug or connector end.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

• Keep fingers out of pinch point areas; clearances between

the doors and cabinet are necessarily small. Be careful

closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any

repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse

box in order to avoid contact with a live wire filament. (A

burned-out light bulb may break when being replaced.)

NOTE: Setting either or both controls to the OFF position

does not remove power to the light circuit.

• This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped

to the front of the refrigerator.

• After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp

or wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with the

heating element that releases the cubes. DO NOT place

fingers or hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in

Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still coldIbelow

40°F (4°C).

...Thawed ground meats, poultry or fish that have any off-

odor or off-color should not be refrozen and should not be

eaten. Thawed ice cream should be discarded. If the odor

or color of any food is poor or questionable, get rid of it.

The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating

quality of foods, particularly fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can.

•Do not modify or extend the Power .. ,,,..vt&-%.14.-,,.

Cord length. _

It will cause electric shock or fire.

SAVE THESE INSTRUCTIONS

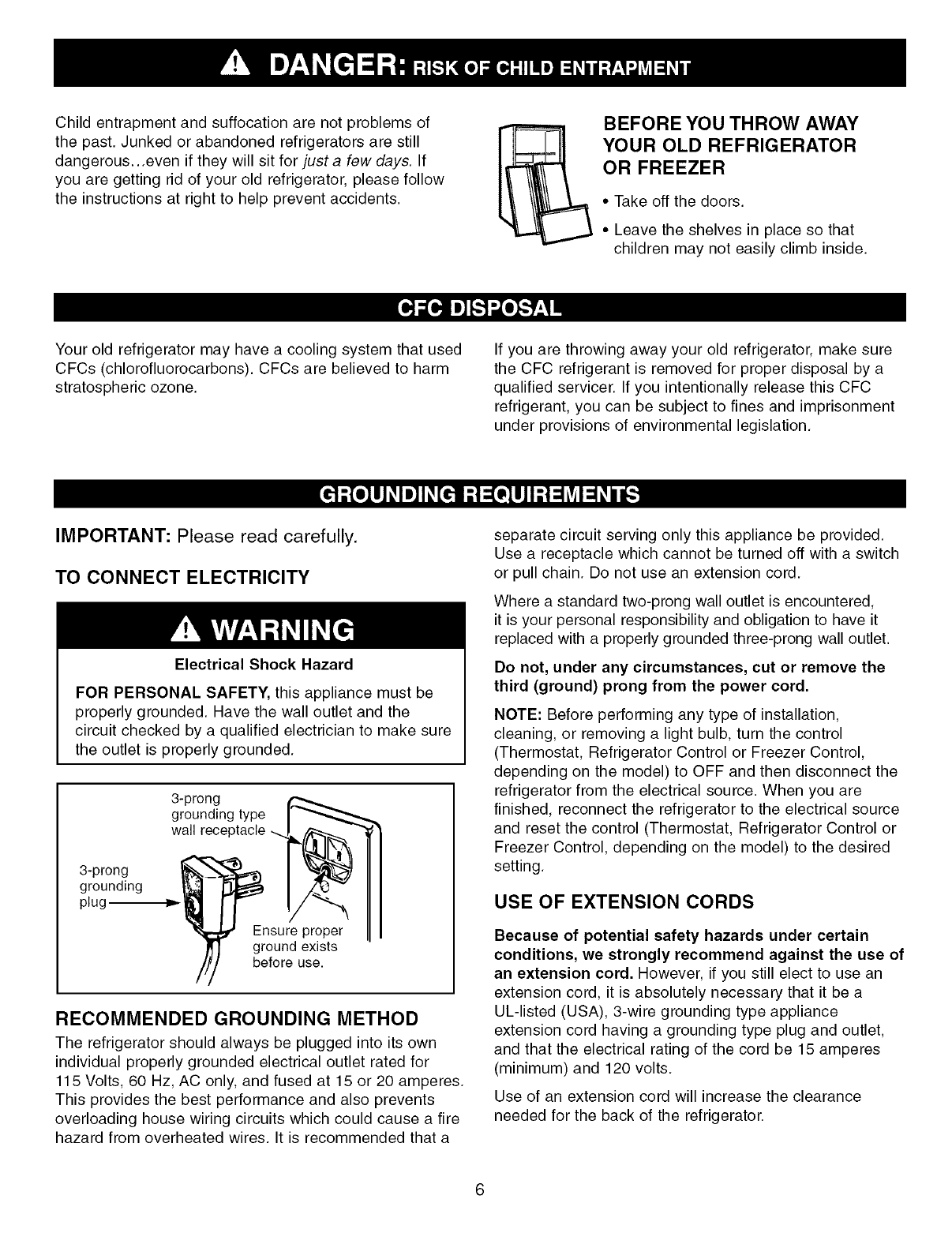

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous...even if they will sit for just a few days. If

you are getting rid of your old refrigerator, please follow

the instructions at right to help prevent accidents.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

• Take off the doors.

• Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding

plug

3;oPr°nngngtype

wall receptacle ___

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source. When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (USA), 3-wire grounding type appliance

extension cord having a grounding type plug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Use this page to become more familiar with the parts and features. Page references are included for your convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

O Refrigerator Light (p.25)

Filter (Inside) (p.24)

Modular Door Bins (p.21)

Shelves (p.18)

Optibin Crisper (p.19)

(Keeps fruits and vegetable fresh and crisper)

_Glide N Serve (p.21)

Customcube Icemaker (p.27)

_lce Bin (p.22)

_lPull out Drawer (p.23)

0Durabase (p.23)

0 Divider (p.23)

0 Freezer Door Rack (Tilting-LRFD258 .... only) (p.23)

_)Dairy Bin (p.22)

Egg Box (p.22)

OWine Holder (p.18)

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or the

TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

INSTALLATION

1. To avoid vibration, the unit must be level. If required,

adjust the leveling screws to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly. Turn the leveling screws clockwise (.,L_) to

raise the unit, counterclockwise (_.,L) to lower it.

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C.) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

3. Allow the clearance of at least 2 inch from the ceiling and 1

inch from the side walls for better cooling efficiency, ease of

installation, proper air circulation and electrical connections.

&CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it. Check the flow of cold air in the

freezer compartment to ensure proper cooling. Your

refrigerator is now ready for use.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out

when moving it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage could occur.

WARNING

• Be careful when you work with hinge, base grille,

stopper etc. You may be injured.

• Do not put hands or foot or metal sticks into air vents,

base grille or bottom of refrigerator. You may be injured

or receive an electrical shock.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

HOW TO REMOVE DOOR HANDLES

To move refrigerator through a house door, it maybe necessary to remove the refrigerator door handles.

NOTE: Handle appearance may vary from

illustrations on this page.

1. Removing Refrigerator Handle

•Grasp the handle tightly with both hands

and slide the handle up (1)(this may

require some force).

• The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3).

& CAUTION: The handle could be

damaged if you hit it with a hammer

while removing or attaching.

&CAUTION: When you assemble or

disassemble handle, you must push or

pull with some force.

Screws _

mounted(_)

on door

Keyholeslots

on back of

handle

2. Removing Freezer Drawer Handle

• Press the handle against door first.

• Grasp the handle tightly with both hands

and slide the handle to right (1)(this may

require some force).

• The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3).

Screws

mounted (_)

on door

Keyhole slots

on back of

handle

HOW TO REPLACE DOOR HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Replacing Refrigerator Door Handle

• Align keyhole slots (1) on the top and

bottom of the back of the handle with

the screws (2) mounted on the front of

the door.

• Press the handle against the door

front, making sure that the screws (2)

go into the keyhole slots (1).

• Holding the handle with both hands,

press it firmly against the front of the

door and slide the handle down (3).

mounted

on door

2. Replacing Freezer Drawer Handle

• Align keyhole slots (4) on the right and

left sides of the back of the handle

with the screws (5) mounted on the

front of the drawer.

• Press the handle against the drawer

front, making sure that the screws (5)

go into the keyhole slots (4).

• Holding the handle with both hands,

press it firmly against the front of the

drawer and slide the handle to the left

(6).

Screws

mounted

on door

Keyholeslots

on back of

handle

REMOVING AND REPLACING REFRIGERATOR DOORS

1. Removing Refrigerator Door

A, CAUTION: Before you begin, unplug the refrigerator. Remove food and bins from doors.

• Left Door

1. Disconnect water supply tube by pushing back on the disconnect ring (4).

2. Open door. Loosen top hinge cover screw (1).

Use flat tip screwdriver to pry back hooks on front underside of cover (3). Lift up cover.

3. Disconnect door switch wire harness (2). Remove cover.

4. Attach the tube on the door with door.

5. Pull out the tube.

6. Disconnect the three wire harnesses (5). Remove the grounding screw (6).

7. Rotate hinge lever (7) counterclockwise and remove. Lift top hinge (8) free of hinge lever latch (9).

A, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.

8. Lift door up from middle hinge pin (10) and remove door.

9. Place door, inside facing up, down onto a non-scratching surface.

• Right Door

1. Open door. Loosen top hinge cover screw (1). Lift up cover (3).

2. Disconnect door switch wire harness (2). Remove cover.

3. Disconnect wire harness (5). Remove the grounding screw (6).

4. Rotate hinge lever (7) clockwise and remove. Lift top hinge (8) free of hinge lever latch (9).

_, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.

5. Lift door up from middle hinge pin (10) and remove door.

6. Place door, inside facing up, down onto a non-scratching surface.

2. Replacing Refrigerator Door

•Right Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever

counterclockwise to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).

4. Connect door switch wire harness (2).

5. Hook tab on door switch side of cover under edge of wire opening in cabinet top. Position cover (3) into place. Insert

and tighten cover screw (1).

• Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever clockwise

to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).

4. Connect door switch wire harness (2).

5. Insert the water supply tube (4) into the connector tube until you see only one scale mark.

(Fully insert the tube over 5/8"(15mm)).

6. Hook tab on door switch side of cover (3) under edge of wire opening in cabinet top. Position cover into place. Insert

and tighten cover screw (1).

Incorrect

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injury, product or property

damage, you will need two people to perform the following

instructions.

1. Removing Pullout Drawer

• Pull the drawer open to full extension. Remove the

lower basket (1) by lifting basket from rail system.

2. Installing Pullout Drawer

• Pull both rails (1) out to full extension.

• Hook the door supports (2) into the rail tabs (3), as

illustrated, and lower the door into final position. And

tighten the screw (4).

• Remove the screw (2) from each side of rail system.

• With the drawer pulled out to full extension, insert the

lower basket (5) in the rail assembly until it doesn't

move forward.

• Lift the top of door to unhook door supports from rail

system. Lift door up to remove.

CAUTION: When you remove the drawer, do not hold

handle. If it comes off, it could cause personal injury.

CAUTION: When laying down the drawer, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side.

_, WARNING: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

WARNING: DO NOT step or sit down on Freezer Door.

LEVELING AND DOOR ALIGNMENT

Leveling

Your refrigerator has two front leveling screws--one on

the right and one on the left. Adjust screws to alter tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady or you want the doors to close easier,

adjust the refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord into a 3-prong grounded

outlet. Move the refrigerator into its final position. Remove

the base cover.

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for clarity.)

2. Once drawer is open there is sufficient clearance to

remove screws on top of cover.

To replace base cover:

• Place cover into position and insert and tighten screws.

2. Turn the leveling screw clockwise to raise that side of

the refrigerator or counterclockwise to lower it. It may

take several turns of the leveling screw to adjust the tilt

of the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws.

This makes it easier to adjust the screws.

3. Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling screws clockwise. It

may take several more turns, and you should turn both

leveling screws the same amount.

4. Re-adjust if necessary.

5. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of one another. You may have to

exert slight pressure on doors to get them to close

completely.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. With one hand, lift up the door you want to raise at

middle hinge.

2. With other hand, use pliers to insert snap ring as

shown.

3. Insert additional snap rings until the doors are aligned.

(Three snap rings are provided with unit.)

ENSURING PROPER AIR CIRCULATION SETTING THE CONTROLS

In order to ensure proper temperatures, air must flow •

between the refrigerator and freezer sections. As shown

in the illustration below, air enters at top of freezer and

circulates down. From bottom of freezer, air is forced up

to top of refrigerator. Air enters refrigerator through top •

vent, then circulates and exists at bottom, where it returns

to freezer.

MULTI-FLOW

• Multi-Flow means powerful and effective cooling

operation. This is especially noticeable when new food

is placed in the refrigerator compartment.

• If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

Your refrigerator has a control pad on the dispenser that

lets you regulate the temperature in the freezer and

refrigerator compartments.

Initially set the REFRIGERATOR CONTROL at 37°F

(3°C) and the FREEZER CONTROL at O°F (-18°C).

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature as

desired.

Q Q Q Q Q

EXPRESS FRZ FREEZER REFRIGERATOR FILTER LOCK

Do not block any of cool air vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both

sections, any odors formed in one section will transfer to

the other. You must thoroughly clean both sections to

eliminate odors. To prevent odor transfer and drying out of

food, wrap or cover foods tightly. (See the Food Storage

Guide section for details.)

• Refrigerator Temp Control: 32°F/46°F (O°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become.

• Freezer Temp Control: -6°F/9°F (-21°C to -13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. But the refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

NOTE: If you want to change °F to °C, press and hold

COLDER key of freezer and COLDER key of refrigerator

over 3 sec at the same time. and if you want to change °C

to °F, hold them for 3 sec again.

NOTE: If you want to off display press and hold

EXPRESS FRZ key and FREEZER key over 3 sec at the

same time.

• Express Freezing : Press the EXPRESS FRZ button

and the LED will turn on. This function will remain

activated for 24 hours and increase the cooling speed of

the freezer and the amount of ice produced.

• Dispenser Lock : Press and hold the LOCK button for 3

seconds to lock the dispenser.

When it is locked, the LED will be off and the dispenser

will not operate. To unlock, press and hold the LOCK

button for 3 seconds.

• Filter Reset : When the FILTER RESET LED turns on,

you have to change the water filter. Press the FILTER

RESET button for 3 seconds to turn LED off. You need

to change the water filter approximately every 6 months.

WARNING: If a door is open, the dispenser does not

work.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

making final adjustments. It is best to wait 24 hours

before doing this. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage. The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator. Then wait 24

hours before checking the freezer temperature. If it is too

warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

•REFRIGERATOR section too

wa rm

- Door opened often

- Large amount of food added

- Room temperature very warm

Set REFRIGERATOR

control to next lower

number, wait 24

hours, then re-check

•FREEZER section too

warm/ice not made fast

enough

- Door opened often

- Large amount of food added

- Very cold room temperature

(can't cycle often enough)

- Heavy ice usage

- Air vents blocked by items

Set FREEZER control

to next lower number,

wait 24 hours, then re-

check

Move items out of

airstream

• REFRIGERATOR section too

cold

- Controls not set correctly for

your conditions

Set REFRIGERATOR

control to next higher

number, wait 24

hours, then re-check

• FREEZER section too cold

- Controls not set correctly for

your conditions

Set FREEZER control

to next higher number,

wait 24 hours, then re-

check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to

Butter or

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk • Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs • Store in original carton or Egg Box

on interior shelf, not on door shelf.

Fruit • Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a sloosely

closed paper bag on a refrigerator

shelf.

Leafy vegetables •Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables with

skins (carrots,

peppers)

• Place in plastic bags or plastic

container and store in crisper.

Fish • Use fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can also

be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If it does, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use:

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

A CAUTION: Do not keep beverage cans or plastic food

containers in the freezer compartment. They may be

break if it freezes.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

REFRIGERATOR SECTION

WATER DISPENSER

Push up the dispenser switch with a glass until you hear

click to get cold water.

Dispenser I

Switch

tPush up

Tray can be easily removed by pressing and pulling it.

Tilt up the front of tray slightly and snap the ribs into the

holes to replace the tray.

Ribs

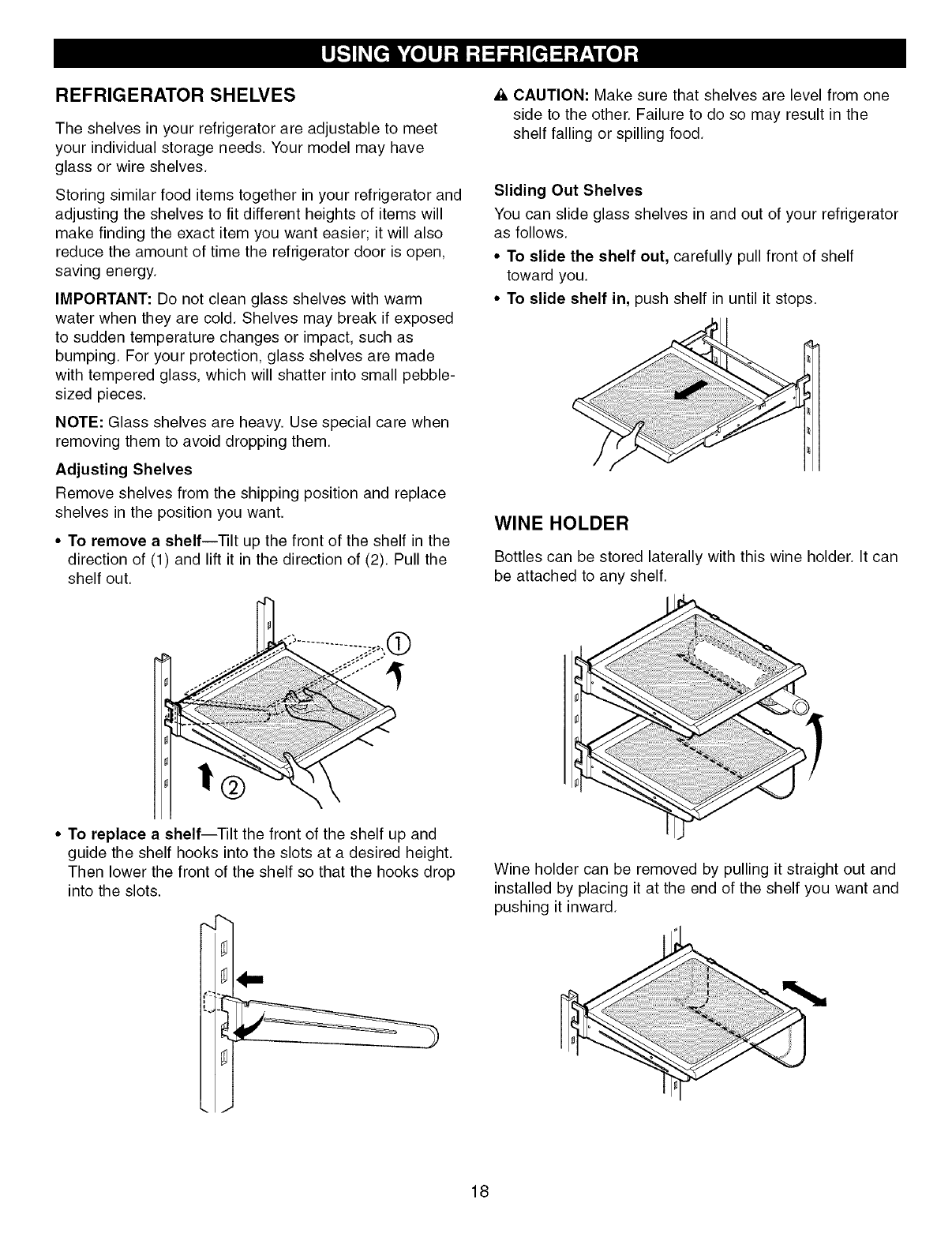

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf--Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

_, CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the

shelf falling or spilling food.

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator

as follows.

• To slide the shelf out, carefully pull front of shelf

toward you.

• To slide shelf in, push shelf in until it stops.

WINE HOLDER

Bottles can be stored laterally with this wine holder. It can

be attached to any shelf.

• To replace a shelf--Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

Wine holder can be removed by pulling it straight out and

installed by placing it at the end of the shelf you want and

pushing it inward.

OPTIBIN CRISPERS • Crispers with rails

To remove crisper:

1. Pull drawer out to full extension.

2. Lift the front of basket up and pull straight out.

The Optibin Crispers provide fresher-tasting fruit and

vegetables by letting you easily control humidity inside the

crisper. The Optibin Crispers include: 1) a humidity control

knob at the front of the crisper cover and 2) a large lattice on

the inner surface of the cover to hold or release moisture.

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Store vegetables or fruits requiring more

or less humidity in separate crispers. Adjust the control to

any setting between ._;:and _:.

• .:_ lets moist air out of the crisper for best storage of

fruits.

• ,_:: keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

_, CAUTION: The glass shelf over the crisper is not firmly

secured. Be careful when tilting.

REMOVING CRISPER

• Crispers without rails

1. To remove, pull drawer out to full extension.

2. Lift the front of the crisper, then pull straight out.

3. To install, slightly tilt up the front and insert drawer into

frame and push back into place.

To replace crisper:

1. Push rails to the back of the compartment.

2. Insert the back corner of the basket into frame.

3. Slightly tilt up the front and push back until it snaps into

place.

To remove crisper door flap:

1. Raise the door flap as high as it will open.

2. Press the plastic hinge toward the center of the door

flap with your finger.

3. Lift the door out of its place.

4. To replace, reverse above procedure.

CRISPER COVER WITH LATTICE ON INNER

SURFACE

To remove the lattice on inner surface:

To remove the glass:

1. Lift up the glass after inserting a finger into a hole

under the crisper cover.

2. Pull the glass up and out.

1. Remove crisper cover (as illustrated above).

2. Hold the glass cover and turn the crisper cover over.

3. For each lattice hold lattice and pull sides of the cover

outward to remove lattice.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass

cover)and pull sides of the cover to insert lattice.

GLIDE N SERVE

The Glide N Serve provides storage space with a variable

temperature control that keeps the compartment colder than

refrigerator temperature. The drawer also features a self-

opening lid that opens whenever the drawer is pulled open.

This drawer can be used for large party trays, deli items,

or beverages.

Cold e..Temp Control ..e Colder

Controls

The control regulates the air temperature in the drawer.

Set control level to cold to provide normal refrigerator

temperature. Use the colder setting for meats or other deli

items.

NOTE: Cold air directed to the Glide N Serve can

decrease refrigerator temperature. Refrigerator

control may need to be adjusted.

To remove Glide N Serve:

-lilt up the front on it's closed position and pull straight out.

NOTE: DO NOT store lettuce or other leafy produce in

this drawer.

COLD COLDER

• cauliflower • steaks

• cucumbers • hard cheeses

• zucchinis • cold cuts

• apples • bacon

• corn • hot dogs

• oranges

• grapes

WARNING: Fruits and vegetables may be damaged at

the coldest setting.

CAUTION: DO NOT store bottles. If they are frozen,

they can be broken and cause personal injury.

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull

straight out.

2. To replace the bin, slide it in above the desired support

button and )ush down until it stops.

To replace Glide N Serve:

1. Push metal rails to the back of the refrigerator.

2. Place drawer onto rails and slide drawer back until it

falls into place.

WARNING: Somebody can be hurt if door bins are not

firmly assembled.

NOTE: DO NOT adjust a bin that is loaded with food.

CAUTION: DO NOT allow children to play with

baskets. Sharp corners on baskets could cause injury.

DAIRY BIN

1. To remove the dairy bin, simply lift it and pull straight

out.

2. To replace the dairy bin, slide it in above the desired

location and push down until it stops.

EGG BOX

Store Egg Box on interior shelf, not on door shelf.

A CAUTION: Do not use the egg box as an ice storage

bin in the freezer compartment. The egg box can easily

break if it freezes.

FREEZER SECTION

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use:

Tilt the door down and pull it out.

_, WARNING: Be careful when you open tilting door so

that you do not injure your foot!

ICE BIN

1. To remove ice bin, pull it out as far as it comes.

Tilt up the front of the ice bin and pull straight out.

2. To install, insert ice bin into frame rails and push back

into place.

FREEZER WIRE DOOR RACK (LRFD25850** only)

To remove basket

1. Pull one of the brackets upward.

2. Remove basket from both brackets.

To replace basket

1. Insert bracket into one side. Hook end of basket into

bracket.

2. Hook other basket end into other bracket. Push bracket

down into place.

3. Be sure back of basket goes behind retention tab on

each bracket.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

1. To remove, pull divider staight up.

2. To install, hook top corners of divider over top edge of

durabase.

_, WARNING: When the guide of the freezer drawer is

removed, children may crawl inside.

PULL OUT DRAWER

1. To remove, lift basket up and pull straight out.

DURABASE

1. To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and

pull straight out.

2. To install, insert the Durabase in rail assembly.

2. To Install, pull both rails out to full extension.

Hook the basket supports into the rail tabs and push to

the back of compartment.

WATER FILTER

It is recommended that you replace the filter when the

water filter indicator light turns on or your water dispenser

or ice maker performance decreases noticeably.

-....

After changing the water filter cartridge, reset the water

filter status display and indicator light by pressing and

holding the button for 3 seconds.

1. Remove the old cartridge.

If you are replacing the cartridge, first remove the old

one. Open the cartridge cover by pressing in on the tab

(1) at the front and pulling down (2).

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and remove

protective cover from the o-rings.

With cartridge knob in the vertical position, push the new

filter cartridge into the cover until it stops.

If you can't turn the filter from side to side, it isn't fully

inserted. Push it in firmly and use its handle to twist the

cartridge clockwise about 1/4 turn. You will hear a snap

when it clicks into place.

Rotate the knob of the cartridge counter clockwise until it

clicks forward.

3. Flushing the Water System After Replacing Filter

Dispense water through the water dispenser for 3 minutes

to purge the system.

Pull out the cartridge.

NOTE: To purchase replacement water filter cartridges,

visit your local appliance dealer or part distributor. You

can also visit our website : www.lgappliances.com or call

1-877-714-7481. The replacement water filter cartridge's

part number is 5231JA2006B.

NOTE: There will be water in the cartridge. Some spilling

may occur.

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freefler sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

CONDENSER COILS

Remove base cover. (See the base cover section on page 14.)

Use a vacuum cleaner with an extended attachment to

clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be

cleaned as often as every other month.

Replace base cover.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position

does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of the same size, shape

and wattage.

To change Refrigerator Light Bulbs:

1. Unplug Refrigerator, or disconnect power at the circuit

breaker.

2. If necessary, remove top shelf or shelves.

3. Using a flat instrument, gently pry the lamp cover loose in

the front as shown. Rotate downward to remove rear tabs.

4. Make sure the bulbs are cool to the touch.

Turn bulbs counterclockwise to remove. Insert new bulb(s).

5. Assemble in reverse order by snapping the Lamp Cover

in, engaging the rear tabs followed by the front tabs.

INSIDE WALLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces

of the refrigerator.

&CAUTION: While cleaning the inside, do not spray water.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable

fluids. These can scratch or damage the material. 25

Tochangefreezerlight:

1. Unplug refrigerator power cord form outlet.

2. Pull light bulb cover down to remove.

3. Remove old bulb. Replace with 60-watt appliance bulb.

4. Insert tabs on back of cover into slots in freezer ceiling.

Push cover up to snap front into place.

_, CAUTION: DO NOT place fingers inside of cover.

Lamp may be hot.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask

how long it will be off.

1. If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFR See the Setting the

Controls section.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Unplug the refrigerator.

4. Clean, wipe and dry thoroughly.

5. Take out all removable parts, wrap them well and tape

them together so they don't shift and rattle during the

move. Refer to sections in Using your Refrigerator for

removable instructions.

6. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don't scrape the floor.

See the Door Closing section.

7. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

WARNING: DO NOT get alive animals into a

refrigerator.

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

Icemaker

Cube Size

Indicator Light Cube Size

Select Button

Feeler Arm

The icemaker will produce eight cubes per cycle--

approximately 100-130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up on light. The higher the light position, the larger

the cubes will be. Pressing at highest position returns

indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house •

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O •

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED

•Copper Tubing, 1/4" outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

•A cold water supply. The water pressure must be

between 20 and 120 p.s.i, on models without a water

filter and between 40 and 120 p.s.i, on models with a

water filter.

•Power drill.

• 1/2" or adjustable

wrench.

• Straight- and Phillips-

blade screwdriver.

Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

CHOOSETHE VALVELOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

DRILLTHEHOLEFORTHEVALVE

Drill a 1/4" hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1/4" hole may result in

reduced ice production or smaller cubes.

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

Saddle-Type --;_

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush

the tubing.

Pipe Clamp

Clamp Screw_

-Washer

_lnlet End

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type

Shutoff Valve ,_.

Packing_

Nut

Outlet

Valve

Compression

_rule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10" diameter) to

allow the refrigerator to move out from the wall after

installation.

.CONNECT THE TUBING TO THE

REFRIGERATOR

Removing and Replacing Valve Cover

NOTE:

• Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

1. Loosen screw on top of plastic cover.

4. Insert the tube into the valve and fasten with wrench

as shown in the figure below.

A CAUTION: Check to see if water dripping occurs at

water line connections.

2. Lift off the cover by slightly pushing up.

5. Bend the tube upwards and fasten it into the clamp

provided to hold it in position. Replace the cover

and tighten the cover screw.

Tubing

Clamp

3. Place a compression nut and a ferrule(sleeve) onto

the end of tubing.

Compression Nut

Ferrule (sleeve)

10.TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11.PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9°C) or below. It

will then begin operation automatically if the icemaker

power switch is in the I (on) position.

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn't make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

•The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

• Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

• Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

• As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause

a popping noise.

• Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the

defrost cycle.

Check if... Then...

REFRIGERATOR

DOES NOT

OPERATE

VIBRATION OR

RATTLING NOISE

LIGHTS DO NOT

WORK

The power supply cord is unplugged.

A household fuse has blown or circuit breaker

tripped.

The refrigerator control is set to the OFF

position.

Refrigerator is in the defrost cycle.

• Firmly plug the cord into a live outlet with

proper voltage.

• Replace the fuse or reset the circuit breaker.

• Refer to the Setting the Controls section

on page 15.

• Wait about 30 minutes for defrost cycle to

end.

The refrigerator is not resting solidly on the

floor. • Floor is weak or uneven or leveling legs

need adjusting.

See Installation section on page 8.

The power supply cord is unplugged.

Light bulb is loose in the socket.

Light bulb has burned out.

• Firmly plug the cord into a live outlet with

proper voltage.

• Turn the refrigerator control to the OFF

position and unplug the refrigerator. Gently

remove the bulb and reinsert. Then plug in

refrigerator and reset the refrigerator control.

• Replace with an appliance bulb of the same

wattage, sizeand shape available at your

local hardware store. (See the Changing

the Light Bulb(s) section on pages 25-26.)

Turn the temperature control to the OFF

position and unplug the refrigerator prior to

replacement.

Check if... Then...

COMPRESSOR

MOTOR SEEMS

TO RUN TOO

MUCH

DOORS WILL

NOT CLOSE

COMPLETELY

FROST OR ICE

CRYSTALS ON

FROZEN FOOD

The refrigerator that was replaced was an

older model.

The room temperature is hotter than normal.

The door is opened often or a large amount of

food has just been added.

The refrigerator was recently plugged in and

the refrigerator control was set correctly.

The refrigerator control is not set correctly for

the surrounding conditions.

The doors are not closed completely.

The condenser coils are dirty.

• Modern refrigerators with more storage

space require more operating time.

• The motor will run longer under warm

conditions. At normal room temperatures,

expect your motor to run about 40% to 80%

of the time. Under warmer conditions,

expect it to run even more often.

• Adding food and opening the door warms

the refrigerator.

It is normal for the refrigerator to run longer

in order to cool the refrigerator back down.

Adding a large amount of food warms the

refrigerator. See the Food Storage Guide

section on page 16. In order to conserve

energy, try to get everything you need out of

the refrigerator at once, keep food organized

so it is easy to find and close the door as

soon as the food is removed.

• The refrigerator will take up to 24 hours to

cool completely.

• See the Adjusting Control Settings section

on page 16.

• Push the doors firmly shut. If they will not

shut all the way, see Doors will not close

completely below.

• This prevents air transfer and makes the

motor work harder.

Clean the condenser coils. Refer to the

Care and Cleaning section on pages

25-26.

The refrigerator is not level.

Food packages are blocking the door open.

The ice bin, crisper cover, pans, shelves, door

bins or baskets are out of position.

The gaskets are sticking.

The refrigerator wobbles or seems unstable.

The doors were removed during product

installation and not properly replaced.

• See Leveling and Door Alignment on

page 14.

• Rearrange food containers to clear door and

door shelves.

• Push bins all the way in and put crisper

cover, pans, shelves and baskets into their

correct positions. See the Using Your

Refrigerator section on pages 15-24.

• Clean gaskets and the surface that they

touch. Rub a thin coat of paraffin wax on the

gaskets after cleaning.

• Level the refrigerator. Refer to the Leveling

and Door Alignment section on page 14.

• Remove and replace the doors according to

the Removing and Replacing Refrigerator

handles and doors section on pages 9-13,

or call a qualified service technician.

The door is not closing properly.

The door is opened often.

• See Doors will not close completely above.

• When the door is opened, warm, humid air

is allowed in the freezer, resulting in frost.

Check if... Then...

ICE HAS OFF-

TASTE OR ODOR

THERE IS

WATER IN THE

DEFROST DRAIN

PAN

THE

REFRIGERATOR

SEEMS TO

MAKE TOO

MUCH NOISE

THE ICEMAKER

IS NOT

PRODUCING ICE

OR ICE CUBES

ARE FREEZING

TOO SLOWLY

CUBES

PRODUCED BY

ICEMAKER ARE

TOO SMALL

THE DOORS ARE

DIFFICULT TO

OPEN

The icemaker was recently installed.

The ice has been stored for too long.

The food has not been wrapped tightly in

either compartment.

The water supply contains minerals such as

sulfur.

The interior of refrigerator needs cleaning.

Ice storage bin needs cleaning.

• Discard first few batches of ice to avoid

discolored or off-flavored ice.

• Throw away old ice and make new supply.

• Rewrap foods since odors may migrate to

the ice if food is not wrapped properly.

• A filter may need to be installed (or

replaced) to eliminate taste and odor

problems.

• See Care and Cleaning section on pages

25-26.

• Empty and wash bin. Discard old cubes.

The refrigerator is defrosting.

It is more humid than normal.

• The water will evaporate. It is normal for

water to drip into the defrost pan.

• Expect that the water in the defrost pan will

take longer to evaporate. This is normal

when it is hot or humid.

The sounds may be normal for your

refrigerator.

• Refer to the Understanding Sounds You

May Hear section on page 32.

The freezer temperature is cold enough to

produce ice.

Door left open.

• Wait 24 hours after hook-up for ice

production. See the Setting the Controls

section on page 15.

• Check to see if something is holding the

door open.

Smaller cube size level is selected.

Water shutoff valve connecting refrigerator to

water line may be clogged.

• Select larger cube size using cube size

selector.

• Call a plumber to clear the valve.

The gaskets are dirty or sticky.

The door is reopened within a short time after

having been opened.

Clean gaskets and the surfaces that they

touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

When you open the door, warmer air enters

the refrigerator. As the warm air cools, it can

create a vacuum. If the door is hard to open,

wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

Check if... Then...

TEMPERATURE

IS TOO WARM

OR THERE IS

INTERIOR

MOISTURE

BUILDUP

The air vents are blocked. Cold air circulates

from the freezer to the fresh food section and

back again through air vents in the wall

dividing the two sections.

The doors are opened often.

The control is not set correctly for the

surrounding conditions.

A large amount of food has just been added to

the refrigerator or freezer.

The food is not packaged correctly.

The doors are not closing completely.

The weather is humid.

A self-defrost cycle was completed.

• Locate air vents by using your hand to

sense airflow and move all packages that

block vents and restrict airflow. Refer to

Multi-Flow on page 15 for the location of air

vents.

• When the door is opened, warm humid air is

allowed into the refrigerator. The more the

door is opened, the faster the humidity

builds up, and the more warm air the

refrigerator must cool. In order to keep the

refrigerator cool, try to get everything you

need out of the refrigerator at once, keep

food organized so it is easy to find and close

the door as soon as the food is removed.

• Refer to the Setting the Controls section

on page 15.

Wait 24 hours for temperatures to stabilize

or even out. If the temperature is too cold or

too warm, move the dial one number at a

time.

• Adding food warms the refrigerator. It can

take a few hours for the refrigerator to return

to normal temperature.

• Wrap food tightly and wipe off damp

containers prior to storing in the refrigerator

to avoid moisture accumulation. If

necessary, repackage food according to the

guidelines in the Food Storage Guide

section on page 16.

• See Doors will not close completely on

page 33.

• In humid weather, air carries moisture into

refrigerator when doors are opened.

• It is normal for droplets to form on the back

wall after the refrigerator self-defrosts.

II I _ics IHG=

LG LRFD21855ST User Manual REFRIGERATOR Manuals And Guides L0521420

LG Bottom Mount Refrigerator Manual L0521420 LG Bottom Mount Refrigerator Owner's Manual, LG Bottom Mount Refrigerator installation guides

LRFD25850 L0521420

Navigation menu

Versions of this User Manual:

Views

Navigation
