User Manual 2
![](/img.php?id=777615&img=bg1.png)
45
Chapter 5: Configuring the Wireless-N ADSL2+ Gateway
The Administration Tab
Wireless-N ADSL2+ Gateway
The Factory Defaults Tab
If you want to restore the Gateway’s factory default settings, then use this screen.
Factory Defaults
Restore Factory Defaults. If you wish to restore the Gateway to its factory default settings and lose all your
settings, click Restore Factory Defaults. Then follow the on-screen instructions. Click Help for more
information.

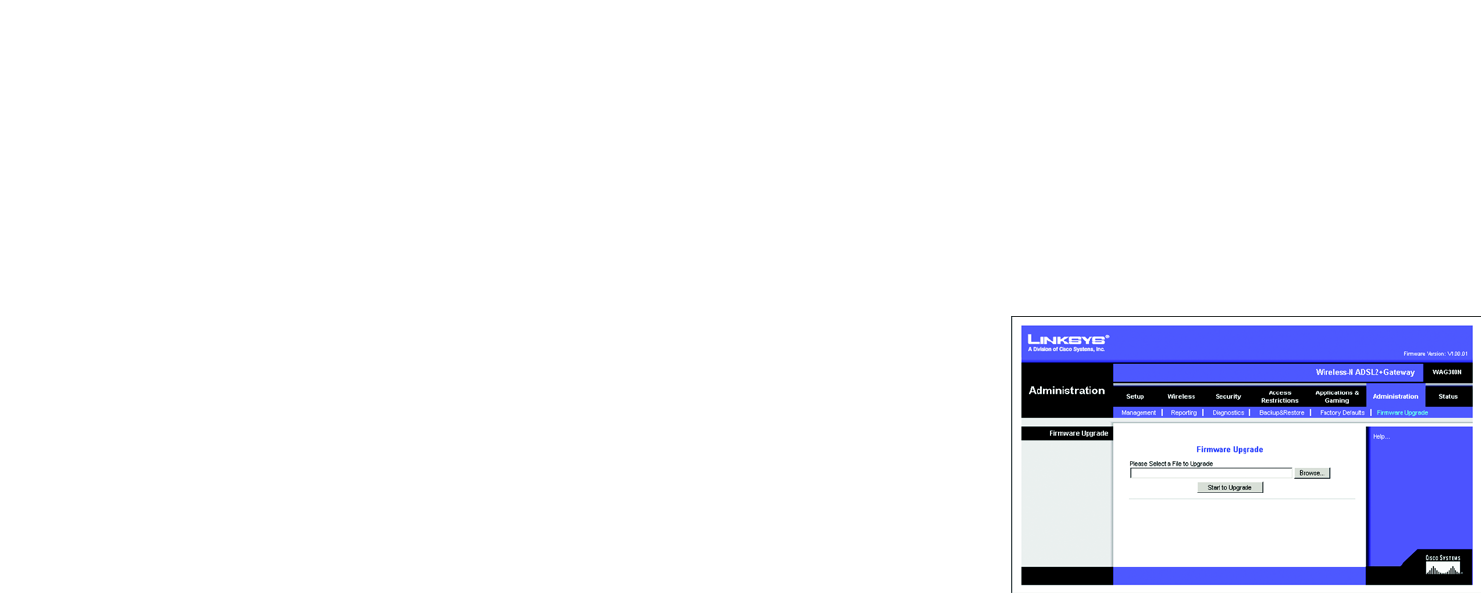

The Firmware Upgrade Tab
Use this screen to upgrade the Gateway’s firmware.
Firmware Upgrade
To upgrade the Gateway’s firmware:
1. Download the Gateway’s firmware upgrade file from www.linksys.com/international.
2. Extract the file on your computer.
3. On the Firmware Upgrade screen, click the Browse button to find the firmware upgrade file.
4. Double-click the firmware file that you have downloaded and extracted.
5. Click the Start to Upgrade button, and follow the on-screen instructions.
Click Help for more information. Figure 5-47: Firmware Upgrade
Figure 5-46: Factory Defaults
![](/img.php?id=777615&img=bg2.png)
46
Chapter 5: Configuring the Wireless-N ADSL2+ Gateway
The Status Tab
Wireless-N ADSL2+ Gateway
The Status Tab

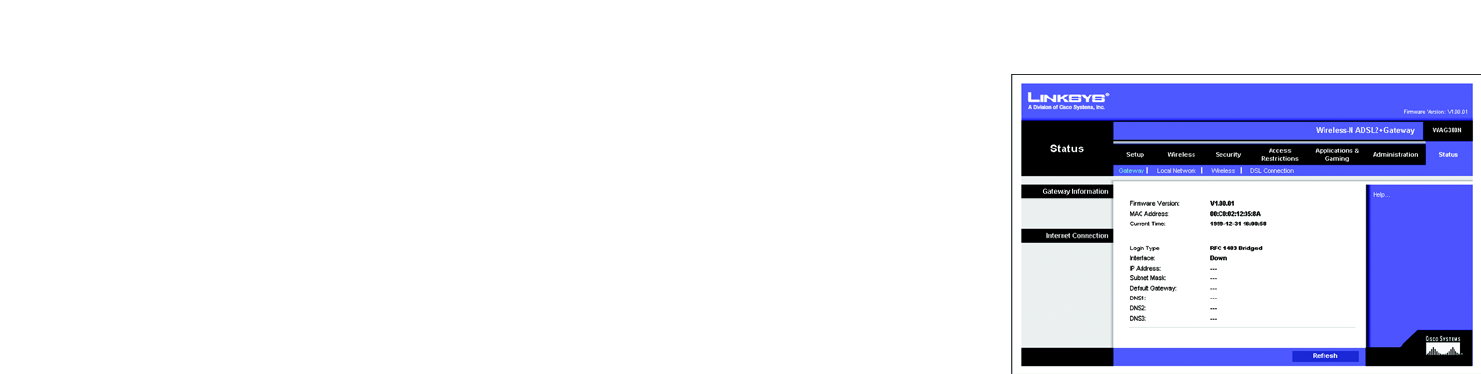

The Gateway Tab
This screen displays information about the Gateway and its Internet connection.
Gateway Information
This section displays the Gateway’s Firmware Version, MAC Address, and Current Time.
Internet Connection
This section shows the following information: Login Type, Interface, IP Address, Subnet Mask, Default Gateway,
and DNS 1, 2, and 3 server IP addresses.
DHCP Renew. If available, click the DHCP Renew button to replace the Gateway’s current IP address with a new
IP address.
DHCP Release. If available, click the DHCP Release button to delete the Gateway’s current IP address.
Click the Refresh button if you want to refresh the displayed information. Click Help for more information.
Figure 5-48: Gateway
![](/img.php?id=777615&img=bg3.png)
47
Chapter 5: Configuring the Wireless-N ADSL2+ Gateway
The Status Tab
Wireless-N ADSL2+ Gateway

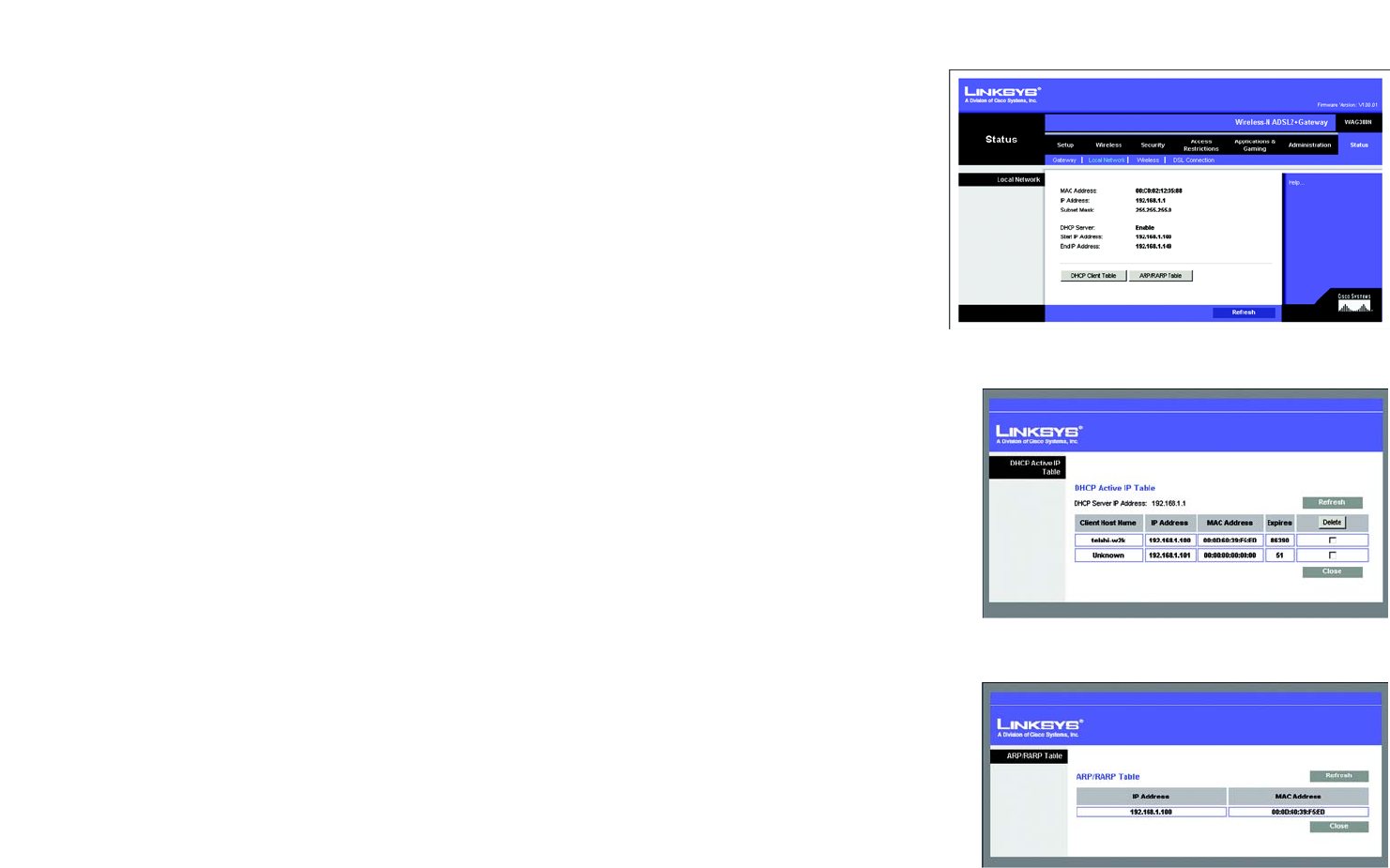

The Local Network Tab
This screen displays information about the Gateway’s local network.
Local Network
This screen displays the following: the local Mac Address, IP Address, Subnet Mask, DHCP Server, Start IP
Address, and End IP Address.
To view the DHCP Client Table, click the DHCP Client Table button. To view the ARP/RARP Table, click the
ARP/RARP Table button.
DHCP Clients Table. The DHCP Active IP Table shows the current DHCP Client data. You will see the computer
name, IP address, MAC address, and expiration time of the dynamic IP address for the clients using the DHCP
server. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if you want
to refresh the displayed information. To delete a client from the DHCP server, select the client, and then click the
Delete button. Click the Close button to return to the Local Network screen.
ARP/RARP Table. An ARP request is a request sent by the Gateway asking clients with IP addresses for their MAC
addresses, so the Gateway can map IP addresses to MAC addresses. RARP is the reverse of ARP. The ARP/RARP
Table shows the current data for the local network clients of the Gateway. You will see their IP addresses and
MAC addresses. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if
you want to refresh the displayed information. Click the Close button to return to the Local Network screen.
Click the Refresh button if you want to refresh the displayed information. Click Help for more information.
Figure 5-51: ARP/RARP Table
Figure 5-49: Local Network
Figure 5-50: DHCP Active IP Table
![](/img.php?id=777615&img=bg4.png)
48
Chapter 5: Configuring the Wireless-N ADSL2+ Gateway
The Status Tab
Wireless-N ADSL2+ Gateway

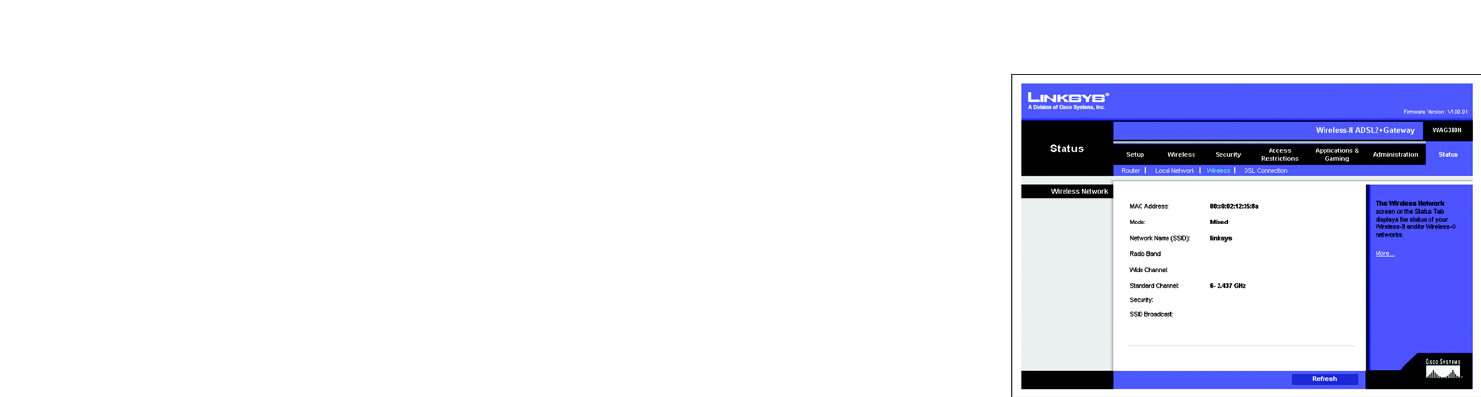

The Wireless Tab
This screen displays information about the Gateway’s wireless network.
Wireless Network
This screen displays the following: MAC Address, Mode, Network Name (SSID), Radio Band, Wide Channel,
Standard Channel, Security method, and SSID Broadcast status.
Click the Refresh button if you want to refresh the displayed information. Click Help for more information.
Figure 5-52: Wireless
![](/img.php?id=777615&img=bg5.png)
49
Chapter 5: Configuring the Wireless-N ADSL2+ Gateway
The Status Tab
Wireless-N ADSL2+ Gateway

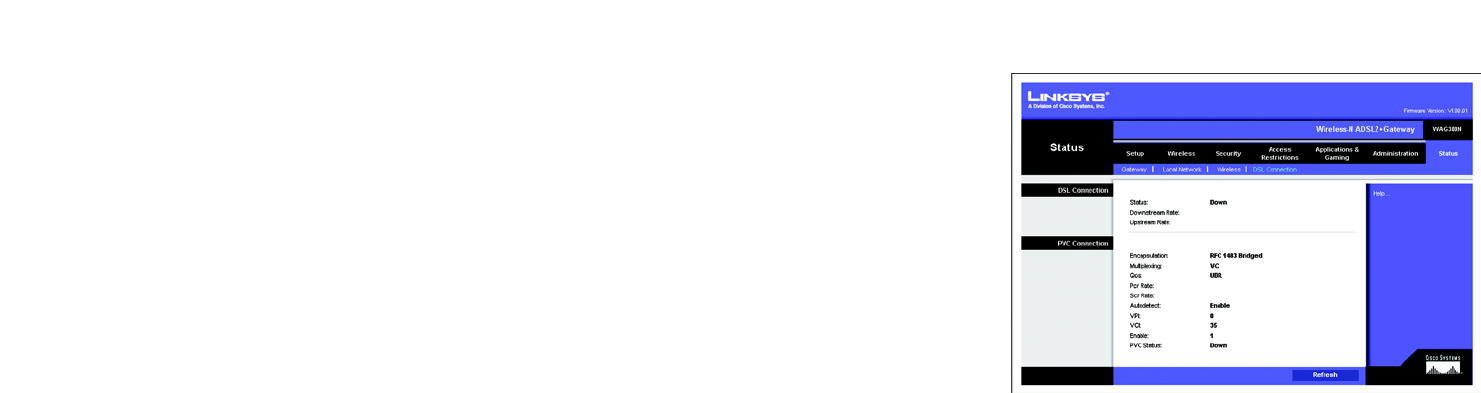

The DSL Connection Tab
This screen shows information about the DSL connection.
DSL Status
This section shows the following: Status, Downstream Rate, and Upstream Rate.
PVC Connection
This section displays the following information: Encapsulation, Multiplexing, QoS, Pcr Rate, Scr Rate, Autodetect,
VPI, VCI, Enable status, and PVC Status.
Click the Refresh button if you want to refresh the displayed information. Click Help for more information.
Figure 5-53: DSL Connection
![](/img.php?id=777615&img=bg6.png)
50
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
Appendix A: Troubleshooting
This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.”
Provided are possible solutions to problems that may occur during the installation and operation of the Gateway.
Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys
international website at www.linksys.com.
Common Problems and Solutions
1. I need to set a static IP address on a computer.
You can assign a static IP address to a computer by performing the following steps:
• For Windows 98 and Me:
1. Click Start, Settings, and Control Panel. Double-click Network.
2. In The following network components are installed box, select the TCP/IP-> associated with your
Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line
with no association to an Ethernet adapter. Highlight it and click the Properties button.
3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a
unique IP address that is not used by any other computer on the network connected to the Gateway.
Make sure that each IP address is unique for each computer or network device.
4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP
address of the Gateway. Click the Add button to accept the entry.
5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain
names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your
ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website
for the information.
6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the
Network window.
7. Restart the computer when asked.
• For Windows 2000:
1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections.
2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and
select the Properties option.
3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and
click the Properties button. Select Use the following IP address option.
4. Enter a unique IP address that is not used by any other computer on the network connected to the
Gateway.
5. Enter the Subnet Mask, 255.255.255.0.
6. Enter the Default Gateway, 192.168.1.1 (Gateway’s default IP address).
![](/img.php?id=777615&img=bg7.png)
51
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the
Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its
website to find the information.
8. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the
Local Area Connection Properties window.
9. Restart the computer if asked.
• For Windows XP:
The following instructions assume you are running Windows XP with the default interface. If you are using
the Classic interface (where the icons and menus look like previous Windows versions), please follow the
instructions for Windows 2000.
1. Click Start and Control Panel.
2. Click the Network and Internet Connections icon and then the Network Connections icon.
3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using,
and select the Properties option.
4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click
the Properties button.
5. Enter a unique IP address that is not used by any other computer on the network connected to the
Gateway.
6. Enter the Subnet Mask, 255.255.255.0.
7. Enter the Default Gateway, 192.168.1.1 (Gateway’s default IP address).
8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the
Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its
website to find the information.
9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the
Local Area Connection Properties window.
2. I want to test my Internet connection.
A. Check your TCP/IP settings.
For Windows 98, Me, 2000, and XP:
• Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings.
For Windows NT 4.0:
• Click Start, Settings, and Control Panel. Double-click the Network icon.
• Click the Protocol tab, and double-click on TCP/IP Protocol.
• When the window appears, make sure you have selected the correct Adapter for your Ethernet adapter
and set it for Obtain an IP address from a DHCP server.
• Click the OK button in the TCP/IP Protocol Properties window, and click the Close button in the Network
window.
• Restart the computer if asked.
B. Open a command prompt.
![](/img.php?id=777615&img=bg8.png)
52
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
For Windows 98 and Me:
• Click Start and Run. In the Open field, type in command. Press the Enter key or click the OK button.
For Windows NT, 2000, and XP:
• Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the
command prompt, type ping 192.168.1.1 and press the Enter key.
• If you get a reply, the computer is communicating with the Gateway.
• If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is
selected in the TCP/IP settings for your Ethernet adapter.
C. In the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key.
The Internet or WAN IP Address can be found on the Status screen of the Gateway’s Web-based Utility. For
example, if your Internet or WAN IP address is 1.2.3.4, you would enter ping 1.2.3.4 and press the Enter
key.
• If you get a reply, the computer is connected to the Gateway.
• If you do NOT get a reply, try the ping command from a different computer to verify that your original
computer is not the cause of the problem.
D. In the command prompt, type ping www.yahoo.com and press the Enter key.
• If you get a reply, the computer is connected to the Internet. If you cannot open a webpage, try the ping
command from a different computer to verify that your original computer is not the cause of the problem.
• If you do NOT get a reply, there may be a problem with the connection. Try the ping command from a
different computer to verify that your original computer is not the cause of the problem.
3. I am not getting an IP address on the Internet with my Internet connection.
• Refer to “Problem #2, I want to test my Internet connection” to verify that you have connectivity.
1. Make sure you are using the right Internet connection settings. Contact your ISP to see if your Internet
connection type is RFC 1483 Bridged, RFC 1483 Routed, RFC 2516 PPPoE, RFC 2364 PPPoA, Bridged
Mode Only, or IPoA. Please refer to the Setup section of “Chapter 5: Configuring the Wireless-N
ADSL2+ Gateway” for details on Internet connection settings.
2. Make sure you have the right cable. Check to see if the Gateway column has a solidly lit ADSL LED.
3. Make sure the cable connecting from your Gateway’s DSL port is connected to the wall jack of the
ADSL service line. Verify that the Status page of the Gateway’s Web-based Utility shows a valid IP
address from your ISP.
4. Turn off the computer and Gateway. Wait 30 seconds, and then turn on the Gateway, and computer.
Check the Status tab of the Gateway’s Web-based Utility to see if you get an IP address.
4. I am not able to access the Setup page of the Gateway’s Web-based Utility.
• Refer to “Problem #2, I want to test my Internet connection” to verify that your computer is properly
connected to the Gateway.
1. Refer to “Appendix C: Finding the MAC Address and IP address for Your Ethernet Adapter” to verify
that your computer has an IP Address, Subnet Mask, Gateway, and DNS.
2. Set a static IP address on your system; refer to “Problem #1: I need to set a static IP address.”
![](/img.php?id=777615&img=bg9.png)
53
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
3. Refer to “Problem #10: I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-
up window.”
5. I can’t get my Virtual Private Network (VPN) working through the Gateway.
Access the Gateway’s web interface by going to http://192.168.1.1 or the IP address of the Gateway, and go
to the Security tab. Make sure you have IPsec passthrough and/or PPTP pass-through enabled.
• VPNs that use IPSec with the ESP (Encapsulation Security Payload known as protocol 50) authentication
will work fine. At least one IPSec session will work through the Gateway; however, simultaneous IPSec
sessions may be possible, depending on the specifics of your VPNs.
• VPNs that use IPSec and AH (Authentication Header known as protocol 51) are incompatible with the
Gateway. AH has limitations due to occasional incompatibility with the NAT standard.
• Change the IP address for the Gateway to another subnet to avoid a conflict between the VPN IP address
and your local IP address. For example, if your VPN server assigns an IP address 192.168.1.X (X is a
number from 1 to 254) and your local LAN IP address is 192.168.1.X (X is the same number used in the
VPN IP address), the Gateway will have difficulties routing information to the right location. If you change
the Gateway’s IP address to 192.168.2.1, that should solve the problem. Change the Gateway’s IP address
through the Setup tab of the web interface.
• If you assigned a static IP address to any computer or network device on the network, you need to change
its IP address accordingly to 192.168.2.Y (Y being any number from 1 to 254). Note that each IP address
must be unique within the network.
• Your VPN may require port 500/UDP packets to be passed to the computer that is connecting to the IPSec
server. Refer to “Problem #7, I need to set up online game hosting or use other Internet applications” for
details.
• Check the Linksys international website for more information at www.linksys.com.
6. I need to set up a server behind my Gateway and make it available to the public.
To use a server like a web, ftp, or mail server, you need to know the respective port numbers they are using.
For example, port 80 (HTTP) is used for web; port 21 (FTP) is used for FTP, and port 25 (SMTP outgoing) and
port 110 (POP3 incoming) are used for the mail server. You can get more information by viewing the
documentation provided with the server you installed.
• Follow these steps to set up port forwarding through the Gateway’s Web-based Utility. We will be setting
up web, ftp, and mail servers.
1. Access the Gateway’s Web-based Utility by going to http://192.168.1.1 or the IP address of the
Gateway. Go to the Applications and Gaming => Port Range Forwarding tab.
2. Enter any name you want to use for the Application.
3. Enter the port range of the service you are using. For example, if you have a web server, you would
enter the range 80 to 80.
4. Select the protocol you will be using, TCP and/or UDP.
5. Enter the IP address of the computer or network device that you want the port server to go to. For
example, if the web server’s Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the
![](/img.php?id=777615&img=bga.png)
54
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
field provided. Check “Appendix C: Finding the MAC Address and IP Address for Your Ethernet
Adapter” for details on getting an IP address.
6. Check the Enable option for the port services you want to use. Consider the example below:
When you have completed the configuration, click the Save Settings button.
7. I need to set up online game hosting or use other Internet applications.
If you want to play online games or use Internet applications, most will work without doing any port
forwarding or DMZ hosting. There may be cases when you want to host an online game or Internet
application. This would require you to set up the Gateway to deliver incoming packets or data to a specific
computer. This also applies to the Internet applications you are using. The best way to get the information on
what port services to use is to go to the website of the online game or application you want to use. Follow
these steps to set up online game hosting or use a certain Internet application:
1. Access the Gateway’s web interface by going to http://192.168.1.1 or the IP address of the Gateway.
Go to the Applications and Gaming => Port Range Forwarding tab.
2. Enter any name you want to use for the Application.
3. Enter the port range of the service you are using. For example, if you want to host Unreal Tournament
(UT), you would enter the range 7777 to 27900.
4. Select the protocol you will be using, TCP and/or UDP.
5. Enter the IP address of the computer or network device that you want the port server to go to. For
example, if the web server’s Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the
field provided. Check “Appendix C: Finding the MAC Address and IP Address for Your Ethernet
Adapter” for details on getting an IP address.
6. Check the Enable option for the port services you want to use. Consider the example below:
Application Start and End Protocol IP Address Enable
Web server 80 to 80 Both 192.168.1.100 X
FTP server 21 to 21 TCP 192.168.1.101 X
SMTP (outgoing) 25 to 25 Both 192.168.1.102 X
POP3 (incoming) 110 to 110 Both 192.168.1.102 X
Application Start and End Protocol IP Address Enable
UT 7777 to 27900 Both 192.168.1.100 X
Halflife 27015 to 27015 Both 192.168.1.105 X
![](/img.php?id=777615&img=bgb.png)
55
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
When you have completed the configuration, click the Save Settings button.
8. I can’t get the Internet game, server, or application to work.
If you are having difficulties getting any Internet game, server, or application to function properly, consider
exposing one computer to the Internet using DeMilitarized Zone (DMZ) hosting. This option is available when
an application requires too many ports or when you are not sure which port services to use. Make sure you
disable all the forwarding entries if you want to successfully use DMZ hosting, since forwarding has priority
over DMZ hosting. (In other words, data that enters the Gateway will be checked first by the forwarding
settings. If the port number that the data enters from does not have port forwarding, then the Gateway will
send the data to whichever computer or network device you set for DMZ hosting.)
• Follow these steps to set DMZ hosting:
1. Access the Gateway’s Web-based Utility by going to http://192.168.1.1 or the IP address of the
Gateway. Go to the Applications and Gaming => DMZ tab. Click Enable and enter the IP address of the
computer.
2. Check the Port Forwarding pages and disable or remove the entries you have entered for forwarding.
Keep this information in case you want to use it at a later time.
• Once completed with the configuration, click the Save Settings button.
9. I forgot my password, or the password prompt always appears when I am saving settings to the
Gateway.
• Reset the Gateway to factory default by pressing the Reset button for 10 seconds and then releasing it. If
you are still getting prompted for a password when saving settings, then perform the following steps:
1. Access the Gateway’s Web-based Utility by going to http://192.168.1.1 or the IP address of the
Gateway. Enter the default username and password admin, and click the Administrations =>
Management tab.
2. Enter a different password in the Gateway Password field, and enter the same password in the
second field to confirm the password.
3. Click the Save Settings button.
10. I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window.
If you have proxy settings, you need to disable these on your computer. Because the Gateway is the gateway
for the Internet connection, the computer does not need any proxy settings to gain access. Please follow
these directions to verify that you do not have any proxy settings and that the browser you use is set to
connect directly to the LAN.
PC Anywhere 5631 to 5631 UDP 192.168.1.102 X
VPN IPSEC 500 to 500 UDP 192.168.1.100 X
Application Start and End Protocol IP Address Enable
![](/img.php?id=777615&img=bgc.png)
56
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
• For Microsoft Internet Explorer 5.0 or higher:
1. Click Start, Settings, and Control Panel. Double-click Internet Options.
2. Click the Connections tab.
3. Click the LAN settings button and remove anything that is checked.
4. Click the OK button to go back to the previous screen.
5. Click the option Never dial a connection. This will remove any dial-up pop-ups for PPPoE users.
• For Netscape 6 or higher:
1. Start Netscape Navigator, and click Edit, Preferences, Advanced, and Proxies.
2. Make sure you have Direct connection to the Internet selected on this screen.
3. Close all the windows to finish.
11. To start over, I need to set the Gateway to factory default.
Hold the Reset button for 10 seconds and then release it. This will return the Internet settings, password,
forwarding, and other settings on the Gateway to the factory default settings. In other words, the Gateway will
revert to its original factory configuration.
12. I need to upgrade the firmware.
In order to upgrade the firmware with the latest features, you need to go to the Linksys international website
and download the latest firmware at www.linksys.com/international.
• Follow these steps:
1. Go to the Linksys international website at http://www.linksys.com and select your region or country.
2. Click the Products tab and select the Gateway.
3. On the Gateway’s webpage, click Firmware, and then download the latest firmware for the Gateway.
4. To upgrade the firmware, follow the steps in the Administration section found in “Chapter 5:
Configuring the Wireless-N ADSL2+ Gateway.”
13. The firmware upgrade failed, and/or the Power LED is flashing.
The upgrade could have failed for a number of reasons. Follow these steps to upgrade the firmware and/or
make the Power LED stop flashing:
• If the firmware upgrade failed, use the TFTP program (it was downloaded along with the firmware). Open
the pdf that was downloaded along with the firmware and TFTP program, and follow the pdf’s
instructions.
• Set a static IP address on the computer; refer to “Problem #1, I need to set a static IP address.” Use the
following IP address settings for the computer you are using:
IP Address: 192.168.1.50
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
![](/img.php?id=777615&img=bgd.png)
57
Appendix A: Troubleshooting
Common Problems and Solutions
Wireless-N ADSL2+ Gateway
• Perform the upgrade using the TFTP program or the Gateway’s Web-based Utility through its
Administration tab.
14. My DSL service’s PPPoE is always disconnecting.
PPPoE is not actually a dedicated or always-on connection. The DSL ISP can disconnect the service after a
period of inactivity, just like a normal phone dial-up connection to the Internet.
• There is a setup option to “keep alive” the connection. This may not always work, so you may need to re-
establish connection periodically.
1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of
the Gateway.
2. Enter the username and password, if asked. (The default username and password is admin.)
3. On the Setup screen, select the option Keep Alive, and set the Redial Period option to 30 (seconds)
(this will keep the connection to the ISP and will not disconnect.
4. Click the Save Settings button. Click the Status tab, and click the Connect button.
5. You may see the login status display as Connecting. Press the F5 key to refresh the screen, until you
see the login status display as Connected.
6. Click the Save Settings button to continue.
• If the connection is lost again, follow steps 1- 6 to re-establish connection.
15. I can’t access my e-mail, web, or VPN, or I am getting corrupted data from the Internet.
The Maximum Transmission Unit (MTU) setting may need to be adjusted. By default, the MTU is set
automatically.
• If you are having some difficulties, perform the following steps:
1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of
the Gateway.
2. Enter the username and password, if asked. (The default username and password is admin.)
3. Look for the MTU option, and select Manual. In the Size field, enter 1492.
4. Click the Save Settings button to continue.
• If your difficulties continue, change the Size to different values. Try this list of values, one value at a time,
in this order, until your problem is solved:
1462
1400
1362
1300
16. The Power LED flashes continuously.
The Power LED lights up when the device is first powered up. In the meantime, the system will boot up itself
and check for proper operation. After finishing the checking procedure, the LED remains steady to show that
the system is working fine. If the LED continues to flash after this time, the device is not working properly. Try
![](/img.php?id=777615&img=bge.png)
58
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
to flash the firmware by assigning a static IP address to the computer, and then upgrade the firmware. Try
using the following settings, IP Address: 192.168.1.50 and Subnet Mask: 255.255.255.0.
17. When I enter a URL or IP address, I get a time-out error or am prompted to retry.
• Check if other computers work. If they do, ensure that your computer’s IP settings are correct (IP Address,
Subnet Mask, Default Gateway, and DNS). Restart the computer that is having a problem.
• If the computers are configured correctly, but still not working, check the Gateway. Ensure that it is
connected and powered on. Connect to it and check its settings. (If you cannot connect to it, check the
LAN and power connections.)
• If the Gateway is configured correctly, check your Internet connection (DSL/cable modem, etc.) to see if it
is working correctly. You can remove the Gateway to verify a direct connection.
• Manually configure the TCP/IP settings with a DNS address provided by your ISP.
• Make sure that your browser is set to connect directly and that any dial-up is disabled. For Internet
Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is
set to Never dial a connection. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy.
Make sure that Netscape Navigator is set to Direct connection to the Internet.
18. I’m trying to access the Gateway’s Web-based Utility, but I do not see the login screen. Instead, I see
a screen saying, “404 Forbidden.”
If you are using Windows Explorer, perform the following steps until you see the Web-based Utility’s login
screen (Netscape Navigator will require similar steps):
1. Click File. Make sure Work Offline is NOT checked.
2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages,
not cached ones.
• Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the
security level is Medium or lower. Then click the OK button.
Frequently Asked Questions
What is the maximum number of IP addresses that the Gateway will support?
The Gateway will support up to 253 IP addresses.
Is IPSec Passthrough supported by the Gateway?
Yes, it is a built-in feature that is enabled by default.
Where is the Gateway installed on the network?
In a typical environment, the Gateway is installed between the ADSL wall jack and the LAN.
![](/img.php?id=777615&img=bgf.png)
59
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
Does the Gateway support IPX or AppleTalk?
No. TCP/IP is the only protocol standard for the Internet and has become the global standard for communications.
IPX, a NetWare communications protocol used only to route messages from one node to another, and AppleTalk,
a communications protocol used on Apple and Macintosh networks, can be used for LAN to LAN connections, but
those protocols cannot connect from the Internet to a LAN.
Does the LAN connection of the Gateway support 100Mbps Ethernet?
The Gateway supports 100Mbps over the auto-sensing Fast Ethernet 10/100 switch on the LAN side of the
Gateway.
What is Network Address Translation and what is it used for?
Network Address Translation (NAT) translates multiple IP addresses on the private LAN to one public address that
is sent out to the Internet. This adds a level of security since the address of a computer connected to the private
LAN is never transmitted on the Internet. Furthermore, NAT allows the Gateway to be used with low cost Internet
accounts when only one TCP/IP address is provided by the ISP. The user may have many private addresses
behind this single address provided by the ISP.
Does the Gateway support any operating system other than Windows 98SE, Windows Millennium,
Windows 2000, or Windows XP?
Yes, but Linksys does not, at this time, provide technical support for setup, configuration or troubleshooting of
any non-Windows operating systems.
Does the Gateway support ICQ send file?
Yes, with the following fix: click ICQ menu -> preference -> connections tab->, and check I am behind a firewall
or proxy. Then set the firewall time-out to 80 seconds in the firewall setting. The Internet user can then send a file
to a user behind the Gateway.
I set up an Unreal Tournament Server, but others on the LAN cannot join. What do I need to do?
If you have a dedicated Unreal Tournament server running, you need to create a static IP for each of the LAN
computers and forward ports 7777, 7778, 7779, 7780, 7781, and 27900 to the IP address of the server. You can
also use a port forwarding range of 7777 ~ 27900. If you want to use the UT Server Admin, forward another port.
(Port 8080 usually works well but is used for remote admin. You may have to disable this.) Then in the
[UWeb.WebServer] section of the server.ini file, set the ListenPort to 8080 (to match the mapped port above) and
ServerName to the IP assigned to the Gateway from your ISP.
Can multiple gamers on the LAN get on one game server and play simultaneously with just one public IP
address?
It depends on which network game or what kind of game server you are using. For example, Unreal Tournament
supports multi-login with one public IP.
![](/img.php?id=777615&img=bg10.png)
60
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
How do I get Half-Life: Team Fortress to work with the Gateway?
The default client port for Half-Life is 27005. The computers on your LAN need to have “+clientport 2700x”
added to the HL shortcut command line; the x would be 6, 7, 8, and on up. This lets multiple computers connect
to the same server. One problem: Version 1.0.1.6 won’t let multiple computers with the same CD key connect at
the same time, even if on the same LAN (not a problem with 1.0.1.3). As far as hosting games, the HL server does
not need to be in the DMZ. Just forward port 27015 to the local IP address of the server computer.
The web page hangs; downloads are corrupt, or nothing but junk characters are being displayed on the
screen. What do I need to do?
Force your Ethernet adapter to 10Mbps or half duplex mode, and turn off the “Auto-negotiate” feature of your
Ethernet adapter as a temporary measure. (Please look at the Network Control Panel in your Ethernet adapter’s
Advanced Properties tab.) Make sure that your proxy setting is disabled in the browser. Check our website at
www.linksys.com for more information.
If all else fails in the installation, what can I do?
Reset the Gateway by holding down the reset button until the Power LED fully turns on and off. Reset your DSL
modem by powering the unit off and then on. Obtain and flash the latest firmware release that is readily available
on the Linksys international website, www.linksys.com.
How will I be notified of new Gateway firmware upgrades?
All Linksys firmware upgrades are posted on the Linksys international website at www.linksys.com, where they
can be downloaded for free. To upgrade the Gateway’s firmware, use the Administration tab of the Gateway’s
Web-based Utility. If the Gateway’s Internet connection is working well, there is no need to download a newer
firmware version, unless that version contains new features that you would like to use.
Will the Gateway function in a Macintosh environment?
Yes, but the Gateway’s setup pages are accessible only through Internet Explorer 4.0 or Netscape Navigator 4.0
or higher for Macintosh.
I am not able to get the web configuration screen for the Gateway. What can I do?
You may have to remove the proxy settings on your Internet browser, e.g., Netscape Navigator or Internet
Explorer. Check with your browser documentation, and make sure that your browser is set to connect directly
and that any dial-up is disabled. For Internet Explorer, click Tools, Internet Options, and then the Connection tab.
Make sure that Internet Explorer is set to Never dial a connection. For Netscape Navigator, click Edit,
Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct connection to the Internet.
What is DMZ Hosting?
Demilitarized Zone (DMZ) allows one IP address (computer) to be exposed to the Internet. Some applications
require multiple TCP/IP ports to be open. It is recommended that you set your computer with a static IP if you
![](/img.php?id=777615&img=bg11.png)
61
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
want to use DMZ Hosting. To get the LAN IP address, see “Appendix C: Finding the MAC Address and IP Address
for Your Ethernet Adapter.”
If DMZ Hosting is used, does the exposed user share the public IP with the Gateway?
No.
Does the Gateway pass PPTP packets or actively route PPTP sessions?
The Gateway allows PPTP packets to pass through.
Is the Gateway cross-platform compatible?
Any platform that supports Ethernet and TCP/IP is compatible with the Gateway.
How many ports can be simultaneously forwarded?
Theoretically, the Gateway can establish 520 sessions at the same time, but you can only forward 10 ranges of
ports.
What are the advanced features of the Gateway?
The Gateway’s advanced features include Advanced Wireless settings, Filters, Port Forwarding, Routing, and
DDNS.
How can I check whether I have static or DHCP IP Addresses?
Consult your ISP to obtain this information.
How do I get mIRC to work with the Gateway?
Under the Port Forwarding tab, set port forwarding to 113 for the computer on which you are using mIRC.
Can the Gateway act as my DHCP server?
Yes. The Gateway has DHCP server software built-in.
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over a network. Consult the
application’s documentation to determine if it supports operation over a network.
What is the IEEE 802.11g standard?
It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware
from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard.
The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz.
![](/img.php?id=777615&img=bg12.png)
62
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
What is the IEEE 802.11b standard?
It is one of the IEEE standards for wireless networks. The 802.11b standard allows wireless networking hardware
from different manufacturers to communicate, provided that the hardware complies with the 802.11b standard.
The 802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.
What IEEE 802.11b and 802.11g features are supported?
The product supports the following IEEE 802.11b and IEEE 802.11g functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
It also supports OFDM technology for 802.11g networking.
What is ad-hoc mode?
When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to
communicate directly with each other, peer-to-peer without the use of an access point.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with
a network through a wireless access point.
What is roaming?
Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout
an area greater than that covered by a single access point. Before using the roaming function, the computer must
make sure that it is the same channel number with the access point of dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each
node and access point, for example, must always acknowledge receipt of each message. Each node must
maintain contact with the wireless network even when not actually transmitting data. Achieving these functions
simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a
system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates
such factors as signal strength and quality, as well as the message load currently being carried by each access
point and the distance of each access point to the wired backbone. Based on that information, the node next
selects the right access point and registers its address. Communications between end node and host computer
can then be transmitted up and down the backbone.
As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in
touch with the original access point or whether it should seek a new one. When a node no longer receives
![](/img.php?id=777615&img=bg13.png)
63
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it
then re-registers, and the communication process continues.
What is the ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM
(Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in
the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in
reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for
reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband
transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that
the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to
the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives,
Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that
is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical
channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-
Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip
(or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if
one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can
recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low
power wideband noise and is rejected (ignored) by most narrowband receivers.
Will the information be intercepted while it is being transmitted through the air?
WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread Spectrum
technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption
function (WEP) to enhance security and access control.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as
described in the IEEE 802.11 standard.
What is a MAC Address?
The Media Access Control (MAC) address is a unique number assigned by the manufacturer to any Ethernet
networking device, such as a network adapter, that allows the network to identify it at the hardware level. For all
![](/img.php?id=777615&img=bg14.png)
64
Appendix A: Troubleshooting
Frequently Asked Questions
Wireless-N ADSL2+ Gateway
practical purposes, this number is usually permanent. Unlike IP addresses, which can change every time a
computer logs onto the network, the MAC address of a device stays the same, making it a valuable identifier for
the network.
How do I reset the Gateway?
Press the Reset button on the back panel for about ten seconds. This will reset the Gateway to its default settings.
How do I resolve issues with signal loss?
There is no way to know the exact range of your wireless network without testing. Every obstacle placed between
the Gateway and a wireless computer will create signal loss. Lead glass, metal, concrete floors, water and walls
will inhibit the signal and reduce range. Start with the Gateway and your wireless computer in the same room
and move it away in small increments to determine the maximum range in your environment.
You may also try using different channels, as this may eliminate interference affecting only one channel.
I have excellent signal strength, but I cannot see my network.
Wireless security is probably enabled on the Gateway, but not on your wireless adapter (or vice versa). Verify that
the same wireless security settings are being used on all devices of your wireless network.
How many channels/frequencies are available with the Gateway?
There are eleven available channels, ranging from 1 to 11, in most of North, Central, and South America. There
are thirteen available channels, ranging from 1 to 13, in most of Europe. There may be additional channels
available in other regions, subject to the regulations of your region and/or country.
If your questions are not addressed here, refer to the Linksys website, www.linksys.com.
![](/img.php?id=777615&img=bg15.png)
65
Appendix B: Wireless Security
Security Precautions
Wireless-N ADSL2+ Gateway
Appendix B: Wireless Security
Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of
Linksys products provide several network security features, but they require specific action on your part for
implementation. So, keep the following in mind whenever you are setting up or using your wireless network.
Security Precautions
The following is a complete list of security precautions to take (at least steps 1 through 5 should be followed):
1. Change the default SSID.
2. Disable SSID Broadcast.
3. Change the default password for the Administrator account.
4. Enable MAC Address Filtering.
5. Change the SSID periodically.
6. Use the highest encryption algorithm possible. Use WPA if it is available. Please note that this may reduce
your network performance.
7. Change the WEP encryption keys periodically.
For information on implementing these security features, refer to “Chapter 5: Configuring the Wireless-N ADSL2+
Gateway.”
Security Threats Facing Wireless Networks
Wireless networks are easy to find. Hackers know that in order to join a wireless network, wireless networking
products first listen for “beacon messages”. These messages can be easily decrypted and contain much of the
network’s information, such as the network’s SSID (Service Set Identifier). Here are the steps you can take:
Change the administrator’s password regularly. With every wireless networking device you use, keep in mind
that network settings (SSID, WEP keys, etc.) are stored in its firmware. Your network administrator is the only
person who can change network settings. If a hacker gets a hold of the administrator’s password, he, too, can
change those settings. So, make it harder for a hacker to get that information. Change the administrator’s
password regularly.
NOTE: Some of these security features are
available only through the network gateway,
router, or access point. Refer to the gateway,
router, or access point’s documentation for more
information.
![](/img.php?id=777615&img=bg16.png)
66
Appendix B: Wireless Security
Security Threats Facing Wireless Networks
Wireless-N ADSL2+ Gateway
SSID. There are several things to keep in mind about the SSID:
1. Disable Broadcast
2. Make it unique
3. Change it often
Most wireless networking devices will give you the option of broadcasting the SSID. While this option may be
more convenient, it allows anyone to log into your wireless network. This includes hackers. So, don’t broadcast
the SSID.
Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.)
Hackers know these defaults and can check these against your network. Change your SSID to something unique
and not something related to your company or the networking products you use.
Change your SSID regularly so that any hackers who have gained access to your wireless network will have to
start from the beginning in trying to break in.
MAC Addresses. Enable MAC Address filtering. MAC Address filtering will allow you to provide access to only
those wireless nodes with certain MAC Addresses. This makes it harder for a hacker to access your network with
a random MAC Address.
WEP Encryption. Wired Equivalent Privacy (WEP) is often looked upon as a cure-all for wireless security
concerns. This is overstating WEP’s ability. Again, this can only provide enough security to make a hacker’s job
more difficult.
There are several ways that WEP can be maximized:
1. Use the highest level of encryption possible
2. Use “Shared Key” authentication
3. Change your WEP key regularly
WPA. Pre-Shared Key (WPA) is the newest and best available standard in Wi-Fi security. WPA2 is the newer
version of Pre-Shared Key with stronger encryption than WPA. WPA gives you a choice of two encryption
methods: TKIP (Temporal Key Integrity Protocol), which utilizes a stronger encryption method and incorporates
Message Integrity Code (MIC) to provide protection against hackers, and AES (Advanced Encryption System),
which utilizes a symmetric 128-Bit block data encryption. WPA-Enterprise and WPA2-Enterprise use a RADIUS
(Remote Authentication Dial-In User Service) server for authentication. RADIUS uses a RADIUS server and WEP
encryption.
IMPORTANT: Always remember that each device
in your wireless network MUST use the same
encryption method and encryption key or your
wireless network will not function properly.
![](/img.php?id=777615&img=bg17.png)
67
Appendix B: Wireless Security
Security Threats Facing Wireless Networks
Wireless-N ADSL2+ Gateway
WPA-Personal. Select the type of algorithm, TKIP or AES, enter a password in the Passphrase field of 8-63
characters, and enter a Group Key Renewal period time between 0 and 99,999 seconds, which instructs the
Gateway or other device how often it should change the encryption keys.
WPA2-Personal. WPA2 gives you one encryption method, AES, with dynamic encryption keys. Enter a
Passphrase of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Gateway how
often it should change the encryption keys.
WPA-Enterprise. This method is WPA used in coordination with a RADIUS server. Enter the IP address and
port number of the RADIUS server. Then enter the key shared between the Gateway and its RADIUS server.
Then enter a Key Renewal Timeout period, which instructs the Gateway how often it should change the
encryption keys.
WPA2-Enterprise. This method is WPA2 used in coordination with a RADIUS server. Enter the IP address and
port number of the RADIUS server. Then enter the key shared between the Gateway and its RADIUS server.
Then enter a Key Renewal Timeout period, which instructs the Gateway how often it should change the
encryption keys.
RADIUS. This method is WEP used in coordination with a RADIUS server. Enter the IP address and port
number of the RADIUS server. Then enter the key shared between the Gateway and its RADIUS server. Enter
the WEP settings.
Implementing encryption may have a negative impact on your network’s performance, but if you are transmitting
sensitive data over your network, encryption should be used.
These security recommendations should help keep your mind at ease while you are enjoying the most flexible
and convenient technology Linksys has to offer.
![](/img.php?id=777615&img=bg18.png)
68
Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter
Windows 98 or Me Instructions
Wireless-N ADSL2+ Gateway
Appendix C: Finding the MAC Address and IP Address for
Your Ethernet Adapter
This section describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC
filtering feature of the Gateway. You can also find the IP address of your computer’s Ethernet adapter. This IP
address is used for the Gateway’s filtering, forwarding, and/or DMZ features. Follow the steps in this appendix to
find the adapter’s MAC or IP address in Windows 98, Me, 2000, or XP.
Windows 98 or Me Instructions
1. Click Start and Run. In the Open field, enter winipcfg. Then press the Enter key or the OK button.
2. When the IP Configuration screen appears, select the Ethernet adapter you have connected to the Gateway
via a CAT 5 Ethernet network cable. See Figure C-1.
3. Write down the Adapter Address as shown on your computer screen (see Figure C-2). This is the MAC address
for your Ethernet adapter and is shown in hexadecimal as a series of numbers and letters.
The MAC address/Adapter Address is what you will use for MAC filtering. The example in Figure D-2 shows
the Ethernet adapters’s MAC address as 00-00-00-00-00-00. Your computer will show something different.
The example in Figure C-2 shows the Ethernet adapter’s IP address as 192.168.1.100. Your computer may
show something different.

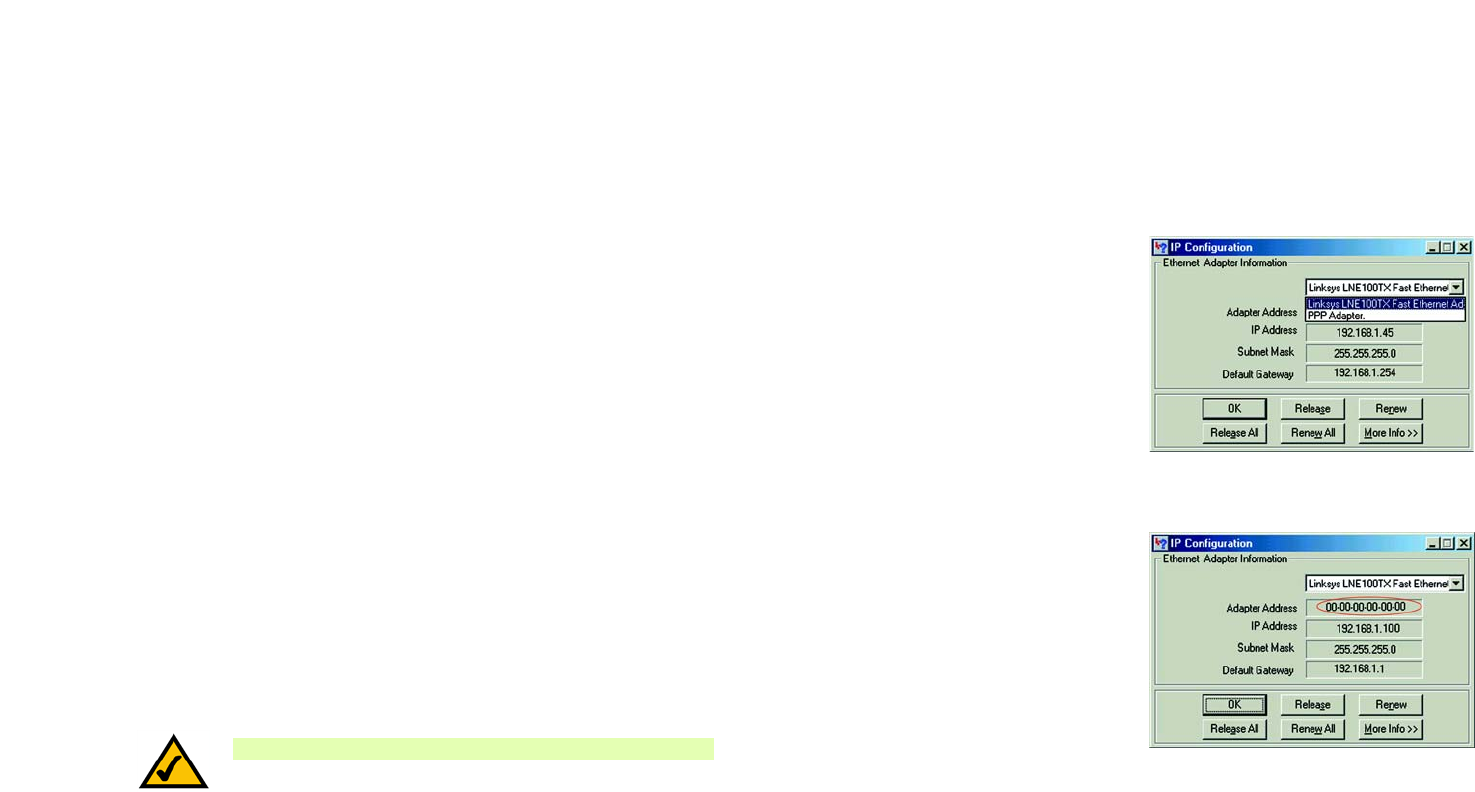

Figure C-2: MAC Address/Adapter
Address
Figure C-1: IP Configuration Screen
NOTE: The MAC address is also called the Adapter Address.
![](/img.php?id=777615&img=bg19.png)
69
Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter
Windows 2000 or XP Instructions
Wireless-N ADSL2+ Gateway
Windows 2000 or XP Instructions
1. Click Start and Run. In the Open field, enter cmd. Press the Enter key or click the OK button.
2. At the command prompt, enter ipconfig /all. Then press the Enter key.
3. Write down the Physical Address as shown on your computer screen (Figure C-3); it is the MAC address for
your Ethernet adapter. This appears as a series of numbers and letters.
The MAC address/Physical Address is what you will use for MAC filtering. The example in Figure C-3 shows
the Ethernet adapters’s MAC address as 00-00-00-00-00-00. Your computer will show something different.
The example in Figure C-3 shows the Ethernet adapter’s IP address as 192.168.1.100. Your computer may
show something different.
Figure C-3: MAC Address/Physical Address
NOTE: The MAC address is also called the Physical Address.
![](/img.php?id=777615&img=bg1a.png)
70
Appendix D: Upgrading Firmware
Wireless-N ADSL2+ Gateway
Appendix D: Upgrading Firmware
To upgrade the Gateway’s firmware:
1. Download the Gateway’s firmware upgrade file from www.linksys.com/international.
2. Extract the file on your computer.
3. Open the Gateway’s Web-based Utility and click the Administration tab.
4. Click the Firmware Upgrade tab.
5. Click the Browse button to find the extracted file, and then double-click it.
6. Click the Upgrade button, and follow the on-screen instructions.
Figure D-1: Firmware Upgrade
![](/img.php?id=777615&img=bg1b.png)
71
Appendix E: Glossary
Wireless-N ADSL2+ Gateway
Appendix E: Glossary
This glossary contains some basic networking terms you may come across when using this product. For more
advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary.
Access Point - A device that allows wireless-equipped computers and other devices to communicate with a
wired network. Also used to expand the range of a wireless network.
Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of
an access point.
AES (Advanced Encryption Standard) - A security method that uses symmetric 128-bit block data encryption.
Bandwidth - The transmission capacity of a given device or network.
Bit - A binary digit.
Boot - To start a device and cause it to start executing instructions.
Broadband - An always-on, fast Internet connection.
Browser - An application program that provides a way to look at and interact with all the information on the
World Wide Web.
Byte - A unit of data that is usually eight bits long.
Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the
Internet.
Daisy Chain - A method used to connect devices in a series, one after the other.
DDNS (Dynamic Domain Name System) - Allows the hosting of a website, FTP server, or e-mail server with a
fixed domain name (e.g., www.xyz.com) and a dynamic IP address.
Default Gateway - A device that forwards Internet traffic from your local area network.
DHCP (Dynamic Host Configuration Protocol) - A networking protocol that allows administrators to assign
temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time,
instead of assigning permanent IP addresses.
![](/img.php?id=777615&img=bg1c.png)
72
Appendix E: Glossary
Wireless-N ADSL2+ Gateway
DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be “seen” from
the Internet.
DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP
addresses.
Domain - A specific name for a network of computers.
Download - To receive a file transmitted over a network.
DSL (Digital Subscriber Line) - An always-on broadband connection over traditional phone lines.
Dynamic IP Address - A temporary IP address assigned by a DHCP server.
EAP (Extensible Authentication Protocol) - A general authentication protocol used to control network access.
Many specific authentication methods work within this framework.
Encryption - Encoding data transmitted in a network.
Ethernet - IEEE standard network protocol that specifies how data is placed on and retrieved from a common
transmission medium.
Firewall - A set of related programs located at a network gateway server that protects the resources of a
network from users from other networks.
Firmware - The programming code that runs a networking device.
FTP (File Transfer Protocol) - A protocol used to transfer files over a TCP/IP network.
Full Duplex - The ability of a networking device to receive and transmit data simultaneously.
Gateway - A device that interconnects networks with different, incompatible communications protocols.
Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a
time.
HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on the World
Wide Web.
Infrastructure - A wireless network that is bridged to a wired network via an access point.
IP (Internet Protocol) - A protocol used to send data over a network.
![](/img.php?id=777615&img=bg1d.png)
73
Appendix E: Glossary
Wireless-N ADSL2+ Gateway
IP Address - The address used to identify a computer or device on a network.
IPCONFIG - A Windows 2000 and XP utility that displays the IP address for a particular networking device.
IPSec (Internet Protocol Security) - A VPN protocol used to implement secure exchange of packets at the IP layer.
ISP (Internet Service Provider) - A company that provides access to the Internet.
LAN - The computers and networking products that make up your local network.
MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking
device.
Mbps (MegaBits Per Second) - One million bits per second; a unit of measurement for data transmission.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different
IP address for the Internet.
Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or
transmission between users.
Packet - A unit of data sent over a network.
Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically
generating the WEP encryption keys for Linksys products.
Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.
POP3 (Post Office Protocol 3) - A standard mail server commonly used on the Internet.
Port - The connection point on a computer or networking device used for plugging in cables or adapters.
Power over Ethernet (PoE) - A technology enabling an Ethernet network cable to deliver both data and power.
PPPoE (Point to Point Protocol over Ethernet) - A type of broadband connection that provides authentication
(username and password) in addition to data transport.
PPTP (Point-to-Point Tunneling Protocol) - A VPN protocol that allows the Point to Point Protocol (PPP) to be
tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe.
RADIUS (Remote Authentication Dial-In User Service) - A protocol that uses an authentication server to control
network access.
![](/img.php?id=777615&img=bg1e.png)
74
Appendix E: Glossary
Wireless-N ADSL2+ Gateway
RJ-45 (Registered Jack-45) - An Ethernet connector that holds up to eight wires.
Roaming - The ability to take a wireless device from one access point's range to another without losing the
connection.
Router - A networking device that connects multiple networks together.
Server - Any computer whose function in a network is to provide user access to files, printing, communications,
and other services.
SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet.
SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.
SPI (Stateful Packet Inspection) Firewall - A technology that inspects incoming packets of information before
allowing them to enter the network.
SSID (Service Set IDentifier) - Your wireless network's name.
Static IP Address - A fixed address assigned to a computer or device that is connected to a network.
Static Routing - Forwarding data in a network via a fixed path.
Subnet Mask - An address code that determines the size of the network.
Switch - 1. A data switch that connects computing devices to host computers, allowing a large number of
devices to share a limited number of ports. 2. A device for making, breaking, or changing the connections in an
electrical circuit.
TCP (Transmission Control Protocol) - A network protocol for transmitting data that requires acknowledgement
from the recipient of data sent.
TCP/IP (Transmission Control Protocol/Internet Protocol) - A set of instructions PCs use to communicate over a
network.
Telnet - A user command and TCP/IP protocol used for accessing remote PCs.
TFTP (Trivial File Transfer Protocol) - A version of the TCP/IP FTP protocol that has no directory or password
capability.
Throughput - The amount of data moved successfully from one node to another in a given time period.
![](/img.php?id=777615&img=bg1f.png)
75
Appendix E: Glossary
Wireless-N ADSL2+ Gateway
TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for
each packet transmitted.
Topology - The physical layout of a network.
TX Rate - Transmission Rate.
Upgrade - To replace existing software or firmware with a newer version.
Upload - To transmit a file over a network.
URL (Uniform Resource Locator) - The address of a file located on the Internet.
VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another
over the Internet.
WAN (Wide Area Network)- The Internet.
WEP (Wired Equivalent Privacy) - A method of encrypting network data transmitted on a wireless network for
greater security.
WLAN (Wireless Local Area Network) - A group of computers and associated devices that communicate with
each other wirelessly.
WPA (Wi-Fi Protected Access) - A wireless security protocol using TKIP (Temporal Key Integrity Protocol)
encryption, which can be used in conjunction with a RADIUS server.
![](/img.php?id=777615&img=bg20.png)
76
Appendix F: Specifications
Wireless-N ADSL2+ Gateway
Appendix F: Specifications
Model Number WAG325N V2
Standards Draft802.11n,802.11g,802.11b
g.992.5, T1.413i2, Annex B
(W AG300N-EU), UR-2 Deutsche Tele
Ports Power, DSL, Ethernet (1-4)
Button Reset, Power
Cabling Type CAT 5 UTP
LEDs Power, Wireless, Ethernet (1-4), DSL, Internet
Number of Antennas 3
Connector Type Fixed
Detachable (yes/no) no
UPnP able/cert Able
![](/img.php?id=777615&img=bg21.png)
77
Appendix F: Specifications
Wireless-N ADSL2+ Gateway
Security Features Password protected configuration for web access
PAP and CHAP authentication
Denial of Service (DoS) Prevention
URL filtering, and keyword, Java, ActiveX, Proxy, Cookie blocking
ToD filter (Blocks Access by Time
VPN Passthrough for IPSec, PPTP, and L2TP Protocols
128, 64 bits WEP with Passphrase WEP key generation
SSID Broadcast Disable
Access restriction by MAC and IP addresses
WEP Key Bits 64, 128
Dimensions 140 mm x 140 mm x 27 mm
Unit Weight 0.27 kg
Power 12VDC, 1A
Certifications CE
Operating Temp. 0º to 40ºC
Storage Temp. -20º to 70ºC
Operating Humidity 10 to 85% Non-Condensing
Storage Humidity 5 to 90% Non-Condensing
Note: Actual broadband speeds are dependent on the ISP, wireless security, and other factors.
![](/img.php?id=777615&img=bg22.png)
78
Appendix G: Warranty Information
Wireless-N ADSL2+ Gateway
Appendix G: Warranty Information
Linksys warrants to You that, for a period of three years (the “Warranty Period”), your Linksys Product will be substantially
free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys' entire liability under
this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates.
This limited warranty extends only to the original purchaser.
If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return
Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are
requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a
copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You
are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You
only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling
charges.
ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED
TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives
You specific legal rights, and You may also have other rights which vary by jurisdiction.
This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated,
repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal physical
or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new techniques for
intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or
attack.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT,
OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF
LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT
(INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT
WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if
any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You.
This Warranty is valid and may be processed only in the country of purchase.
Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.
91
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
Appendix I: Regulatory Information
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
Safety Notices
Caution: To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord.
Do not use this product near water, for example, in a wet basement or near a swimming pool.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
Industry Canada (Canada)
This device complies with Industry Canada ICES-003 and RSS210 rules.
Cet appareil est conforme aux normes NMB003 et RSS210 d'Industrie Canada.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
92
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
IC Statement
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Règlement d’Industry Canada
Le fonctionnement est soumis aux conditions suivantes :
1. Ce périphérique ne doit pas causer d'interférences;
2. Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d'entraîner un
fonctionnement indésirable.
![](/img.php?id=777615&img=bg25.png)
93
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
Compliance Information for 2,4GHz Wireless Product
Relevant to the EU and Other Countries Following the EU Directive
1999/5/EC (R&TTE Directive)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
(R&TTE Directive)
![](/img.php?id=777615&img=bg26.png)
94
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
The following standards were applied during the assessment of the product against the requirements of the Directive
1999/5/EC:
• Radio: EN 300 328 as applicable
• EMC: EN 301 489-1, EN 301 489-17
• Safety: EN 60950 and either EN 50385
CE Marking
For the Linksys Wireless-N, -G, -B, and/or -A products, the following CE mark, notified body number (where applicable),
and class 2 identifier are added to the equipment.
Check the CE label on the product to find out which notified body was involved during the assessment.
NOTE: For all products, the Declaration of Conformity (DofC) is available through one or more of these options:
• A pdf file is included on the product's CD.
• A print copy is included with the product.
• A pdf file is available on the product's webpage. Visit www.linksys.com/international and select your country or
region. Then select your product.
If you need any other technical documentation, see the “Technical Documents on www.linksys.com/international”
section, as shown later in this appendix.
or oror
![](/img.php?id=777615&img=bg27.png)
95
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
National Restrictions
This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any
limitation except for the countries mentioned below:
Ce produit peut être utilisé dans tous les pays de l’UE (et dans tous les pays ayant transposés la directive 1999/5/CE) sans
aucune limitation, excepté pour les pays mentionnés ci-dessous:
Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive EU 1999/5/EC) senza
nessuna limitazione, eccetto per i paesii menzionati di seguito:
Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in anderen Staaten die der EU
Direktive 1999/5/CE folgen) mit Außnahme der folgenden aufgeführten Staaten:
In the majority of the EU and other European countries, the 2,4GHz band have been made available for the use of
wireless local area networks (LANs). Table 1 provides an overview of the regulatory requirements applicable for the
2,4GHz band.
Later in this document you will find an overview of countries in which additional restrictions or requirements or both are
applicable.
The requirements for any country may evolve. Linksys recommends that you check with the local authorities for the latest
status of their national regulations for both the 2,4GHz wireless LAN.
Table 1: Overview of Regulatory Requirements for Wireless LANs
Frequency Band (MHz) Max Power Level
(EIRP) (mW)
Indoor
ONLY
Indoor &
Outdoor
2400-2483.5 100 X
![](/img.php?id=777615&img=bg28.png)
96
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
The following countries have restrictions and/or requirements in addition to those given in Table 1:
France
For 2,4 GHz, the output power is restricted to 10 mW eirp when the product is used outdoors in the band
2454 - 2483,5 MHz. There are no restrictions when used in other parts of the 2,4 GHz band. Check http://www.arcep.fr/ for
more details.
Pour la bande 2,4 GHz, la puissance est limitée à 10 mW en p.i.r.e. pour les équipements utilisés en extérieur dans la bande
2454 - 2483,5 MHz. Il n'y a pas de restrictions pour des utilisations dans d'autres parties de la bande 2,4 GHz. Consultez
http://www.arcep.fr/ pour de plus amples détails.
Italy
This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table
for Italy. Unless this 2,4-GHz wireless LAN product is operating within the boundaries of the owner’s property, its use
requires a “general authorization”. Please check http://www.comunicazioni.it/it/ for more details.
Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di ripartizione delle
frequenze in Italia. Se non viene installato all’interno del proprio fondo, l’utilizzo di prodotti Wireless LAN a 2,4 GHz richiede
una “Autorizzazione Generale”. Consultare http://www.comunicazioni.it/it/ per maggiori dettagli.
Table 2: Applicable Power Levels in France
Location Frequency Range (MHz) Power (EIRP)
Indoor (No restrictions) 2400-2483.5 100 mW (20 dBm)
Outdoor 2400-2454
2454-2483.5
100 mW (20 dBm)
10 mW (10 dBm)
![](/img.php?id=777615&img=bg29.png)
97
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
Latvia
The outdoor usage of the 2,4 GHz band requires an authorization from the Electronic Communications Office. Please check
http://www.esd.lv for more details.
Notes: (1) Although Norway, Switzerland and Liechtenstein are not EU member states, the EU Directive 1999/5/EC has also
been implemented in those countries.
(2) The regulatory limits for maximum output power are specified in eirp. The eirp level of a device can be calculated by
adding the gain of the antenna used (specified in dBi) to the output power available at the connector (specified in dBm).
Product Usage Restrictions
This product is designed for indoor usage only. Outdoor usage is not recommended, unless otherwise noted.
2,4 GHz Restrictions
This product is designed for use with the standard, integral or dedicated (external) antenna(s) that is/are shipped together
with the equipment. However, some applications may require the antenna(s), if removable, to be separated from the
product and installed remotely from the device by using extension cables. For these applications, Linksys offers an R-SMA
extension cable (AC9SMA) and an R-TNC extension cable (AC9TNC). Both of these cables are 9 meters long and have a
cable loss (attenuation) of 5 dB. To compensate for the attenuation, Linksys also offers higher gain antennas, the HGA7S
(with R-SMA connector) and HGA7T (with R-TNC connector). These antennas have a gain of 7 dBi and may only be used
with either the R-SMA or R-TNC extension cable.
Combinations of extension cables and antennas resulting in a radiated power level exceeding 100 mW EIRP are illegal.
Power Output of Your Device
To comply with your country’s regulations, you may have to change the power output of your wireless device. Proceed to
the appropriate section for your device.
NOTE: The power output setting may not be available on all wireless products. For more information, refer to the
documentation on your product’s CD or at http://www.linksys.com/international.
![](/img.php?id=777615&img=bg2a.png)
98
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
Wireless Adapters
For wireless adapters operating in the 2,4-GHz band, the typical radiated output power is 18 dBm EIRP, while the maximum
radiated output power will not exceed 20 dBm
Windows XP
1. Double-click the Wireless icon in your desktop’s system tray.
2. Open the Wireless Network Connection window.
3. Click the Properties button.
4. Select the General tab, and click the Configure button.
5. In the Properties window, click the Advanced tab.
6. Select Power Output.
7. From the pull-down menu on the right, select the adapter’s power output percentage.
Windows 2000
1. Open the Control Panel.
2. Double-click Network and Dial-Up Connections.
3. Select your current wireless connection, and select Properties.
4. From the Properties screen, click the Configure button.
5. Click the Advanced tab, and select Power Output.
6. From the pull-down menu on the right, select the adapter’s power setting.
If your computer is running Windows Millennium or 98, then refer to Windows Help for instructions on how to access the
advanced settings of a network adapter.
![](/img.php?id=777615&img=bg2b.png)
99
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
Wireless Access Points, Routers, or Other Wireless Products
If you have a different wireless product, use its Web-based Utility to configure its power output setting (refer to the
product’s documentation for more information).
Technical Documents on www.linksys.com/international
Follow these steps to access technical documents:
1. Enter http://www.linksys.com/international in your web browser.
2. Select the country or region in which you live.
3. Click the Products tab.
4. Select the appropriate product category.
5. Select the product sub-category, if necessary.
6. Select the product.
7. Select the type of documentation you want from the More Information section. The document will open in PDF format if
you have Adobe Acrobat installed on your computer.
NOTE: If you have questions regarding the compliance of this product or you cannot find the information you need,
please contact your local sales office or visit http://www.linksys.com/international for more details.
![](/img.php?id=777615&img=bg2c.png)
100
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic
Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of Linksys
products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
![](/img.php?id=777615&img=bg2d.png)
101
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
![](/img.php?id=777615&img=bg2e.png)
102
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
![](/img.php?id=777615&img=bg2f.png)
103
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
![](/img.php?id=777615&img=bg30.png)
104
Appendix I: Regulatory Information
Wireless-N ADSL2+ Gateway
For more information, visit www.linksys.com.
![](/img.php?id=777615&img=bg31.png)
105
Wireless-N ADSL2+ Gateway
Appendix J: Contact Information
Appendix J: Contact Information
Need to contact Linksys?
Visit us online for information on the latest products and updates to your existing products at:
http://www.linksys.com/international
If you experience problems with any Linksys product, you can e-mail us at:
In Europe E-mail Address
Austria support.at@linksys.com
Belgium support.be@linksys.com
Czech Republic support.cz@linksys.com
Denmark support.dk@linksys.com
Finland support.fi@linksys.com
France support.fr@linksys.com
Germany support.de@linksys.com
Greece support.gr@linksys.com (English only)
Hungary support.hu@linksys.com
Ireland support.ie@linksys.com
Italy support.it@linksys.com
Netherlands support.nl@linksys.com
Norway support.no@linksys.com
Poland support.pl@linksys.com
Portugal support.pt@linksys.com
Russia support.ru@linksys.com
Spain support.es@linksys.com
Sweden support.se@linksys.com
![](/img.php?id=777615&img=bg32.png)
106
Wireless-N ADSL2+ Gateway
Appendix J: Contact Information
Note: For some countries, support may be available only in English.
Switzerland support.ch@linksys.com
United Kingdom support.uk@linksys.com
Outside of Europe E-mail Address
Asia Pacific asiasupport@linksys.com (English only)
Latin America support.portuguese@linksys.com or support.spanish@linksys.com
Middle East & Africa support.mea@linksys.com (English only)
South Africa support.ze@linksys.com (English only)
UAE support.ae@linksys.com (English only)
U.S. and Canada support@linksys.com
In Europe E-mail Address
