JukeBlox Networked Media Module
CR Series CR870-2K
Datasheet
Complete audio networking system on a small module
Integrated Ethernet + USB2.0
WiFi-certified 802.11b/g (optional)
Built-in PIFA antenna
DAB radio receiver (optional)
Glueless audio, video and control ports
FCC certified
CONFIDENTIAL
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 2 of 15
Introduction
The CR-series module is a single-board networked media player module, based on BridgeCo’s DM860
and DM870 media processors, and enables fast product developments with Ethernet, USB and
optional WiFi and/or DAB radio connectivity. The module connects to standard legacy components in
various audio, video/LCD and control formats.

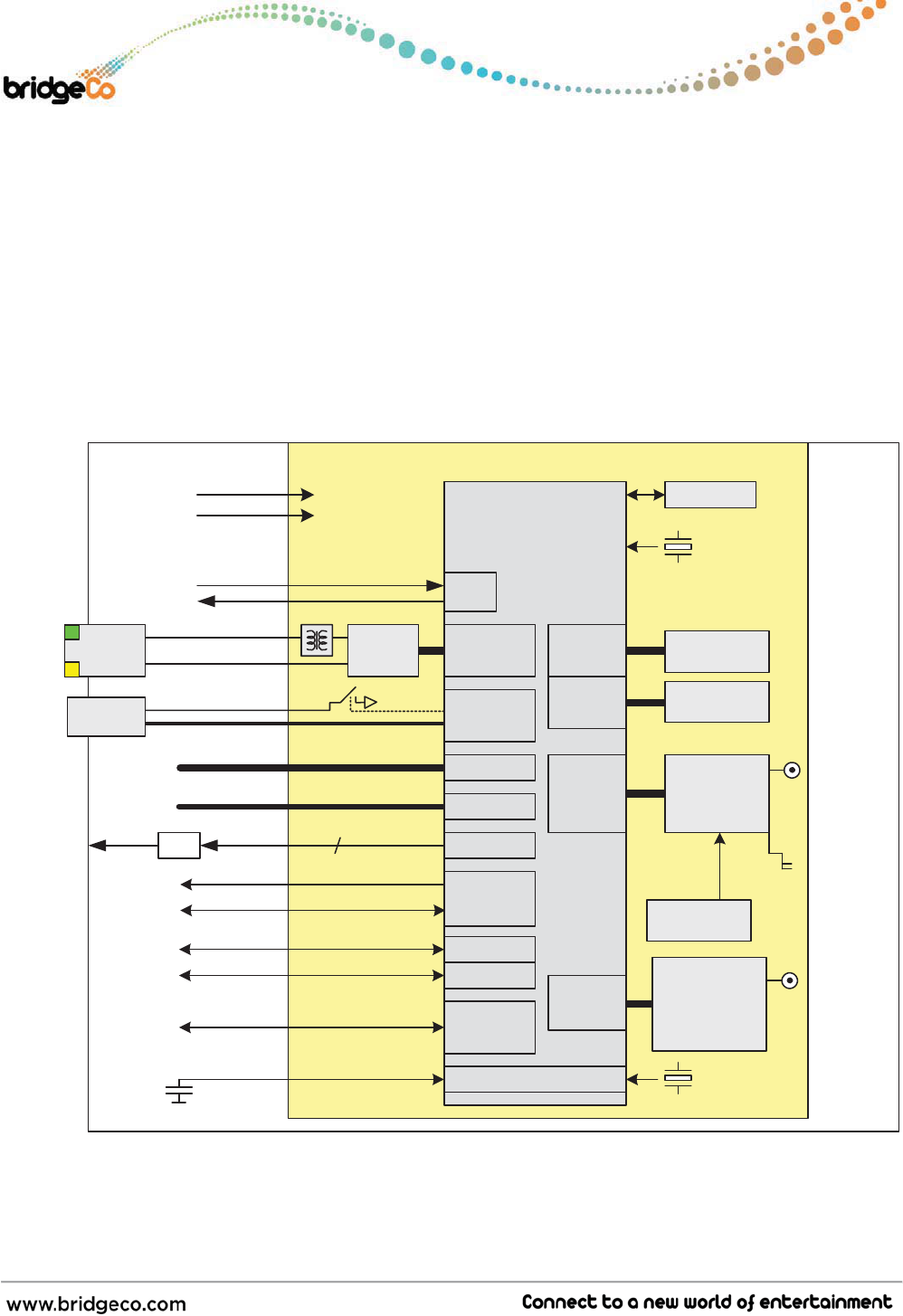

Block Diagram
Ethernet
PHY
DM860
or
DM870
256 Mbit
SDRAM
JTAG
RJ-45
100B-T
Mem
USB
GPIO
24.000 MHz
Reset In
NAND 1 GB
NAND flash
802.11
RF amp
(optional)
802.11
RMII
SPI
RTC 32.768 kHz
USB
(Host)
USB
RST
UART
5V
3.3V
JukeBlox Networked Media Module – CR Series
Reset Out
1.2V
Stereo Out
Video Out
Audio I/O
4/8bit MMC
3x6bit RGB
2 x UART
SPI Ctrl.
max. 20 GPIOs
3.3V (RTC)
SuperCap
IR sensor
reset signals
analog mute
I2C bus
shift register
IC control
serial control
A/D, D/A
S/PDIF
CCIR-656
LP 2
HP out
Display
SD-Card
AV
Ports
LCD
SSM
DAC
PIFA
Antenna
Switcher
1.9V
AV
Ports DAB
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 3 of 15

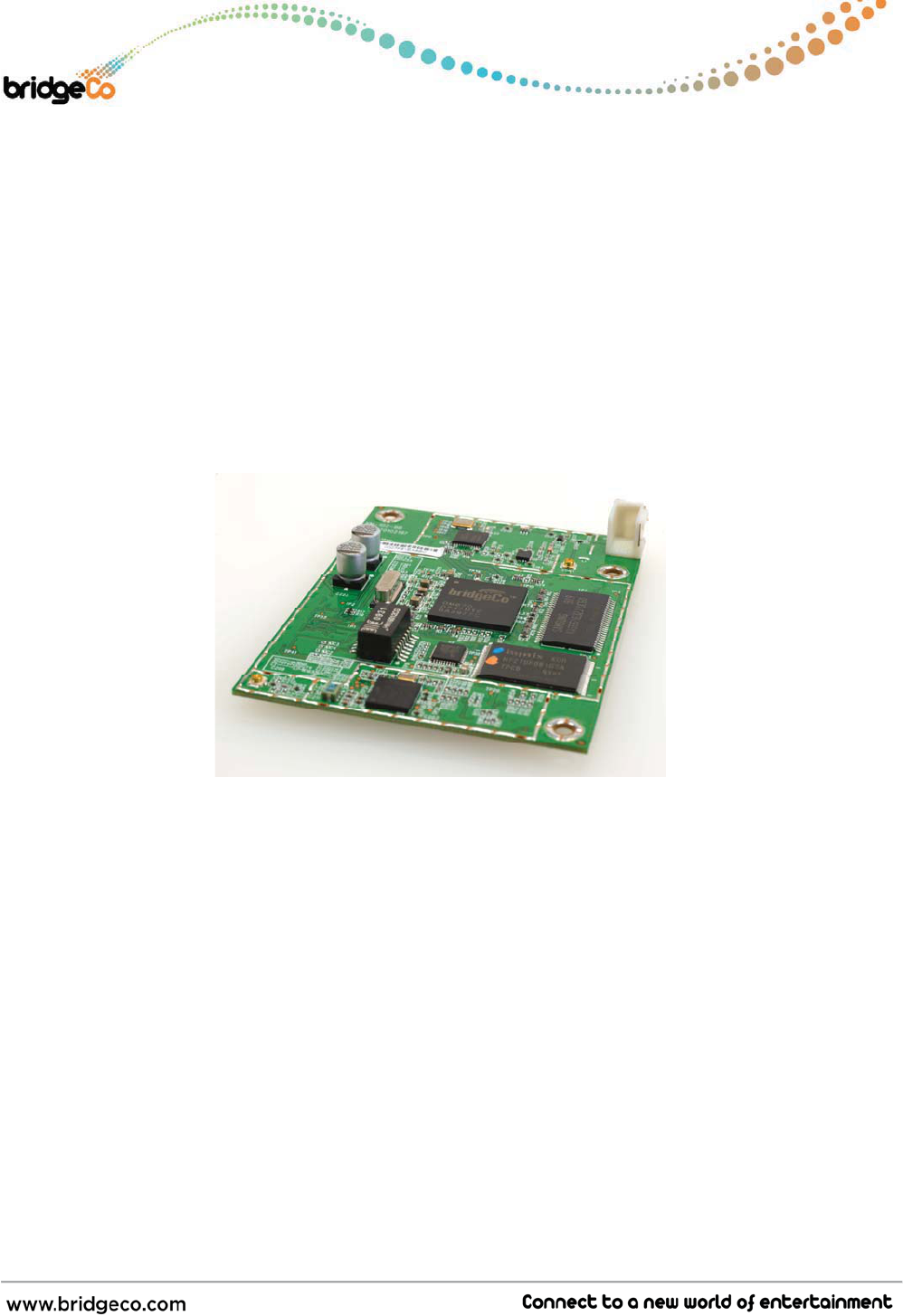

Overview

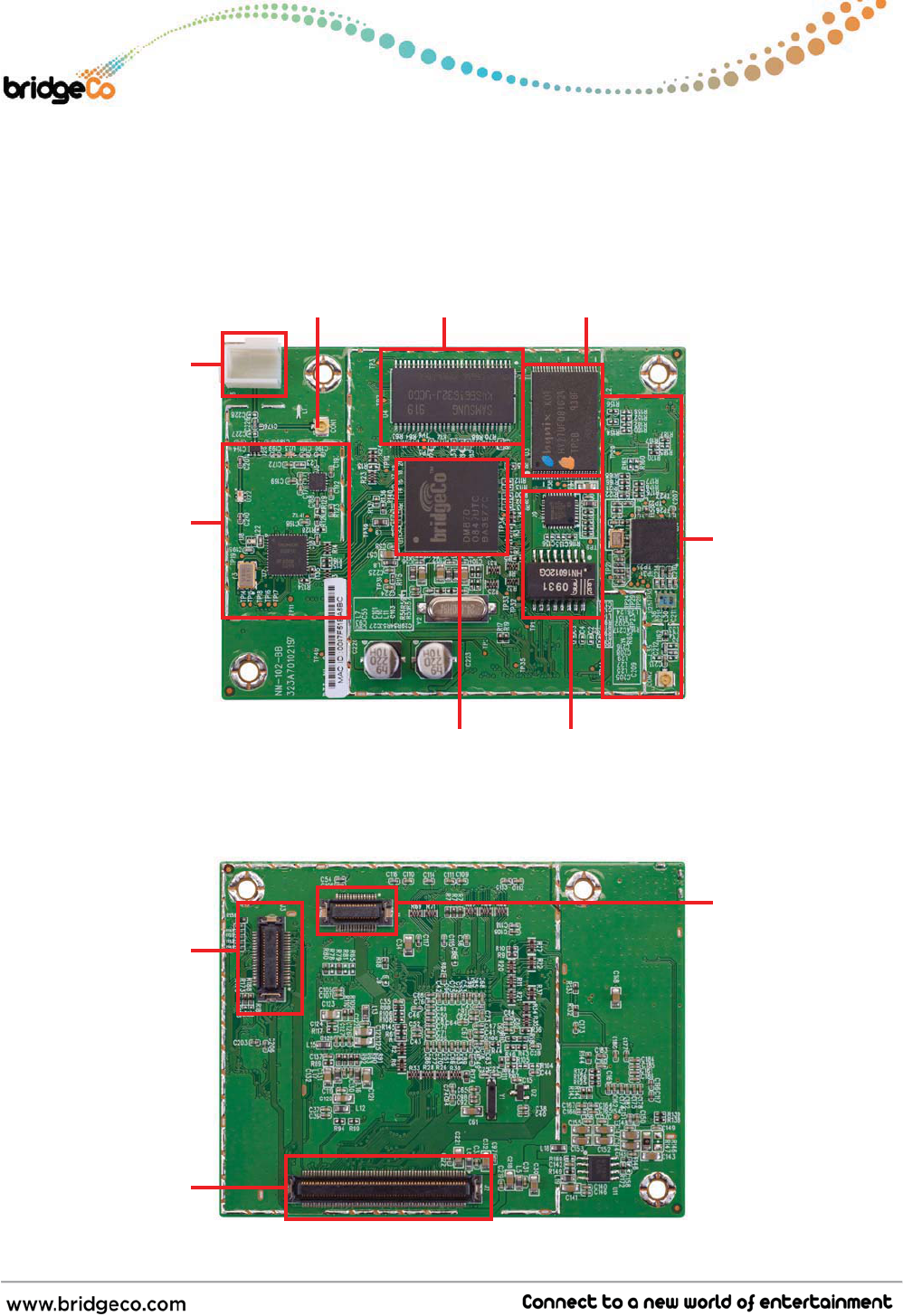

Top View of CR870-2A version
Bottom View of CR870-2A version
PIFA
antenna
802.11b/g
front-end
BridgeCo
p
rocessor
Ethernet
DAB
FLASH
(optional socket)
SDRAM
antenna
connector
Media
connector
DAB
connector
LCD
connector
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 4 of 15

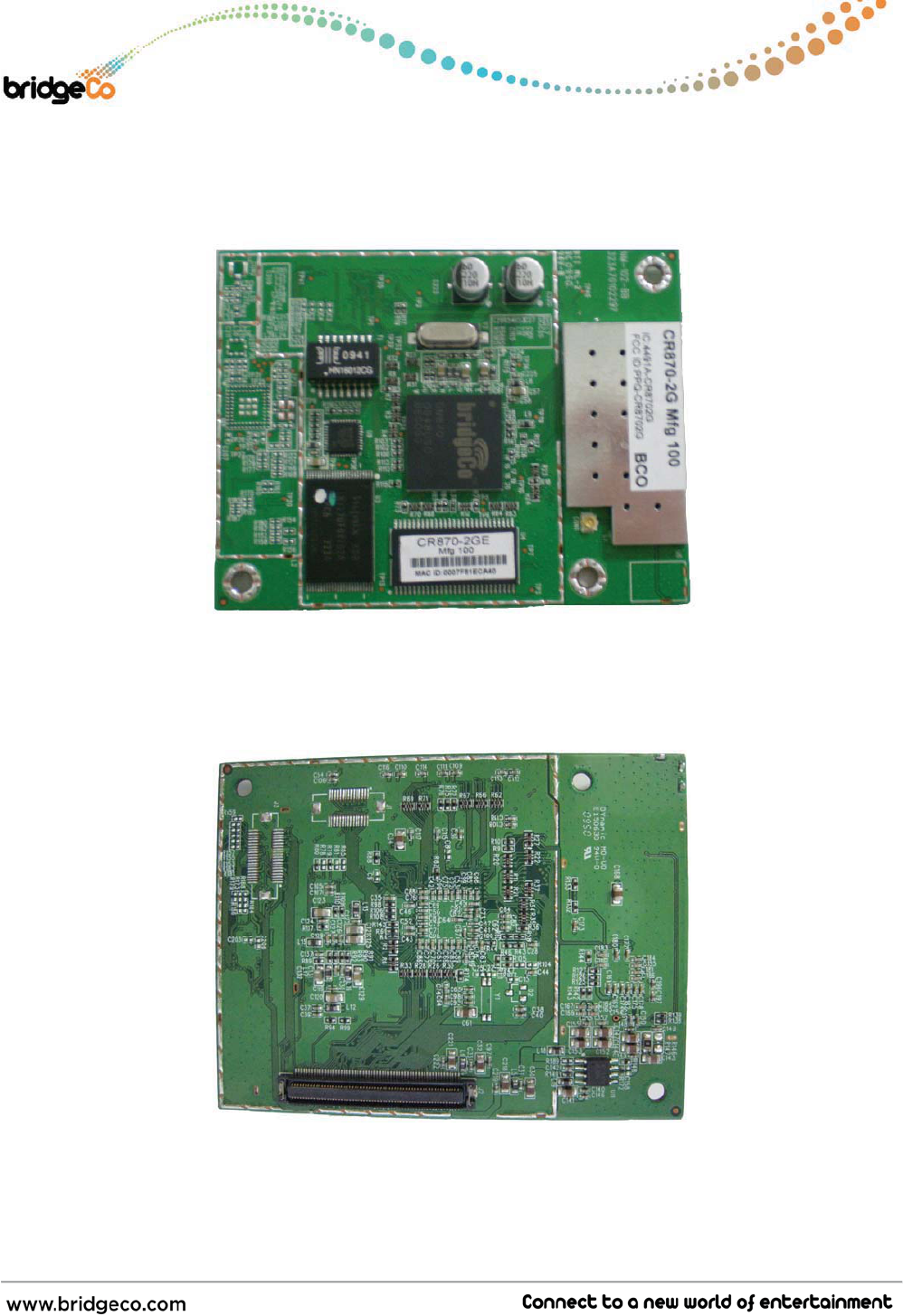

Top View of CR870-2G version
Bottom View of CR870-2B, CR870-2C, CR870-2G versions
Please note that
production version does
not have exposed solder
on the underside of the
mounting holes.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 5 of 15
Ordering Guide
Part
Number BridgeCo ICs
WiFi Ethernet USB
Real-
Time
Clock
DAB /
DAB+ /
DMB Audio
LCD PIFA
Antenna
Ext.
Antenna
UFL
Conn.
SDRAM No on-board
1.9V
Contains
shield
Incl.
connector
Incl.
connector
CR870-2A DM870+T6201 X X X X X X X (X)* 32MB
CR870-2B DM870+T6201 X X X X 32MB
CR870-2C DM870+T6201 X X X 32MB
CR870-2D DM870+T6201 X X X X X 32MB
CR870-2F DM870+T6201 X X X X X X (X)* 32MB
CR870-2G DM870+T6201 X X X X 32MB
CR870-2H DM870+T6201 X X X X (X)* 16MB
CR870-2I DM870+T6201 X X X 16MB
CR870-2J DM870+T6201 X X X 16MB
CR870-2K DM870+T6201 X X X 16MB X
CR860-2A DM860 n/a X X n/a 32MB
CR860-2B DM860 n/a X X X X n/a 32MB
* Connector on board, but not enabled
Electrical Specifications
Parameter State Model Component Voltage Symbol min. typ. max. Units
Main VIN +2.97
+1.08
+3.3
+1.2
+3.63
+1.32
V
V
Input Voltage
DAB VIN
+1.62
+2.97
+1.35
+1.8
+3.3
+1.5
+1.98
+3.63
+1.65
V
V
V
3.3V PIN3.3 - 230 300 mW CR870
int 1.9V 1.2V PIN1.2 - 45 60 mW
3.3V PIN3.3 - 165 215 mW
1.2V PIN1.2 - 45 60 mW
CR870
ext 1.9V 1.9V PIN1.9 - 35 50 mW
3.3V PIN3.3 - 145 190 mW
Reset
State
CR860 1.2V PIN1.2 - 45 60 mW
3.3V PIN3.3 - 1750 2275 mW CR870
int 1.9V 1.2V PIN1.2 - 600 800 mW
3.3V PIN3.3 - 825 1075 mW
1.2V PIN1.2 - 600 800 mW
WLAN
Operating
CR870
ext 1.9V 1.9V PIN1.9 - 535 700 mW
3.3V PIN3.3 - 760 990 mW
Power
Consumption
Operating CR860
Main
1.2V PIN1.2 - 600 800 mW
Note: The maximum power consumption values are 30% larger than the typical values.
The maximum values are intended to be used for power supply sizing calculations.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 6 of 15
Absolute Maximum Ratings
Parameter Component Min Max Units
3.3V Supply Voltage -0.5 4.6 V
1.2V Supply Voltage -0.5 1.8 V
Logic Input Voltage -0.5 6 V
Logic Output Voltage
Main
-0.5 4.6 V
Operating Conditions
Parameter Min Max Units
Operating Temperature 0 +70 °C
Operating Humidity 10 90 (non condensing) %RH
Storage Temperature -10 +75 °C
Storage Humidity 10 95 (non condensing) %RH
Storage Temperature Cycle Test 24 hrs -10 +75 °C
WiFi Specification (CR870 only)
Feature Description
WLAN Standards IEEE 802.11b
IEEE 802.11g
Frequency Band 2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)
Channel 1 - Channel 13
North America, Japan Telec, Europe ETSI
Modulation 802.11b mode (DS-SS: IEEE 802.11b)
802.11g mode (OFDM: IEEE 802.11g)
Transmission Speed 802.11b mode
11Mbps, 5.5Mbps, 1Mbps
802.11g mode
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps
Tx Power 802.11b mode (16.5dBm, +/-1dBm)
802.11g mode (21dBm, +/-1dBm)
Power-on Ramp < 2us
RF Carrier Suppression < 15dBc
TX EVM < -5dB @ 6Mbps
< -25dB @ 54Mbps
Rx Sensitivity
(incl. CE2 Mother board)
802.11b mode
=<-88dBm @ 1Mbps, =<-85dBm @ 5.5Mbps, =<-83dBm @ 11Mbps
802.11g mode
=<-86dBm @ 6Mbps, =<-75dBm @ 36Mbps, =<-69dBm @ 54Mbps
Throughput Rate
(measured for each
module)
See factory test specification
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 7 of 15
Regulatory compliance
Description Country Compliance
Electromagnetic Compatibility
(Prescan)
USA
Europe
FCC CFR47 Part15B
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
Radio Regulations (CM870
only)
TBD TBD
RoHS
Uses only RoHS compliant components
Environmental Test
Withstands 4 hours at 70°C, 90% RH
ESD and Transient Test (Applies to LAN and USB external
connections only)
ESD: +/- 2kV operation, +/- 4kV no destruction (part of CE test)
Fast electrical transients: +/- 500V operation, +/- 1000V no destruction (part of CE test)
Magnetic Field Test
Passes EN55022 and EN55024 (part of CE test)
MTBF
>10000 hours
Mechanical Specifications
Passes drop test according to I.E.C. 68-2-32, height 100 cm, 1 corner, 6 faces.
Passes vibration test with sine, vertical, 60 minutes, 600 to 18000 cpm, 1G
Module Quality
Defect Rate: 7 months <0.5% failures, 14 months <1% failures
AQL CR=0, MA=0.4, MI=0.4
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 8 of 15

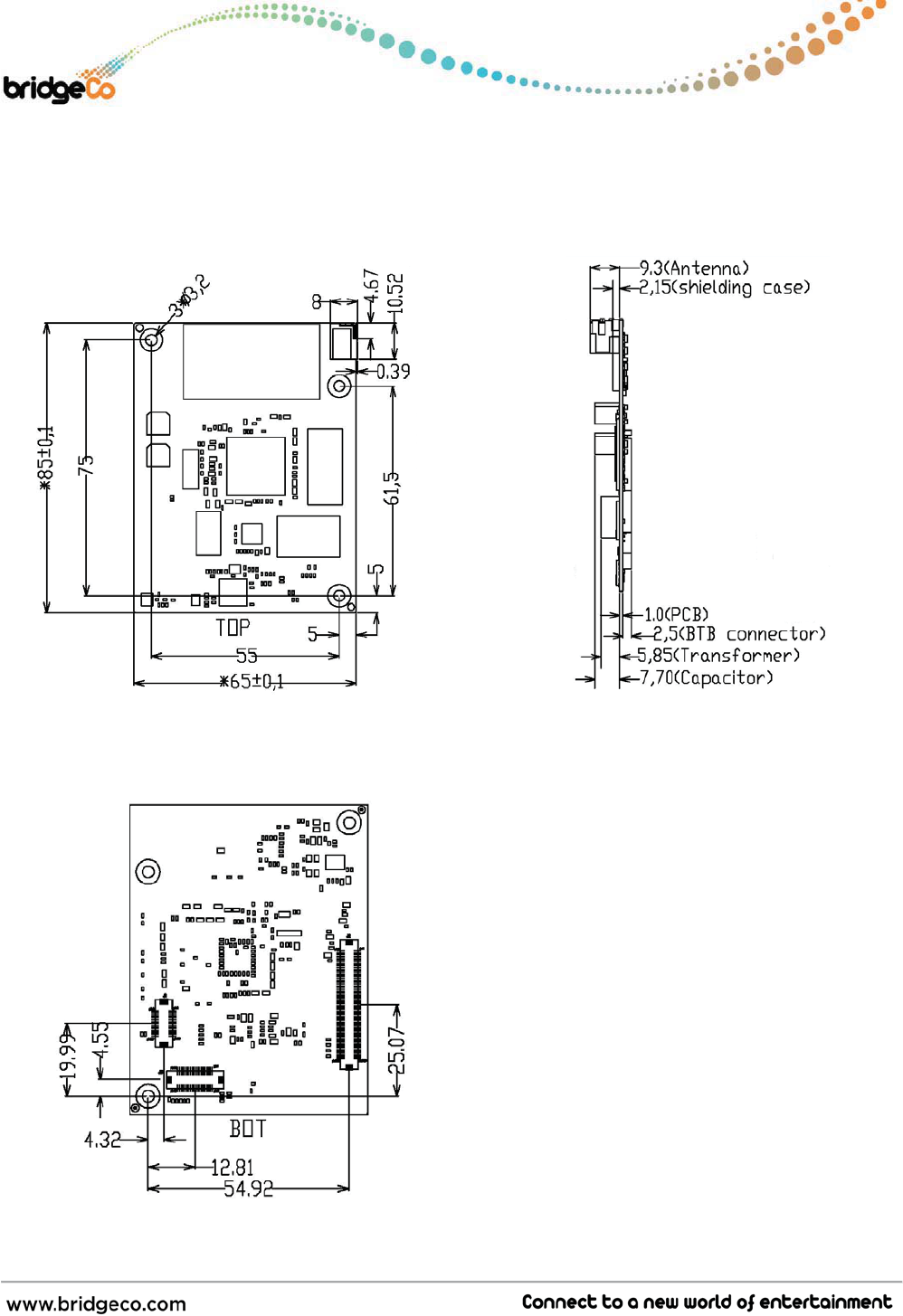

Board Dimensions
Top View and Side View
Bottom View (showing connector locations)
Note:
1. All dimensions are measured in millimetres (mm).
2. PCB’s thickness: 1.00 +/- 0.10mm
3. Tolerance: +/-0.10mm
4. Outline Tolerance: +/-0.10mm
5. NPTH Hole: +/-0.05mm
6. PTH Hole: +/-0.075mm
7. Connector positions, board dimensions, mounting
hole positions and sizes are the same for all module
variants.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 9 of 15

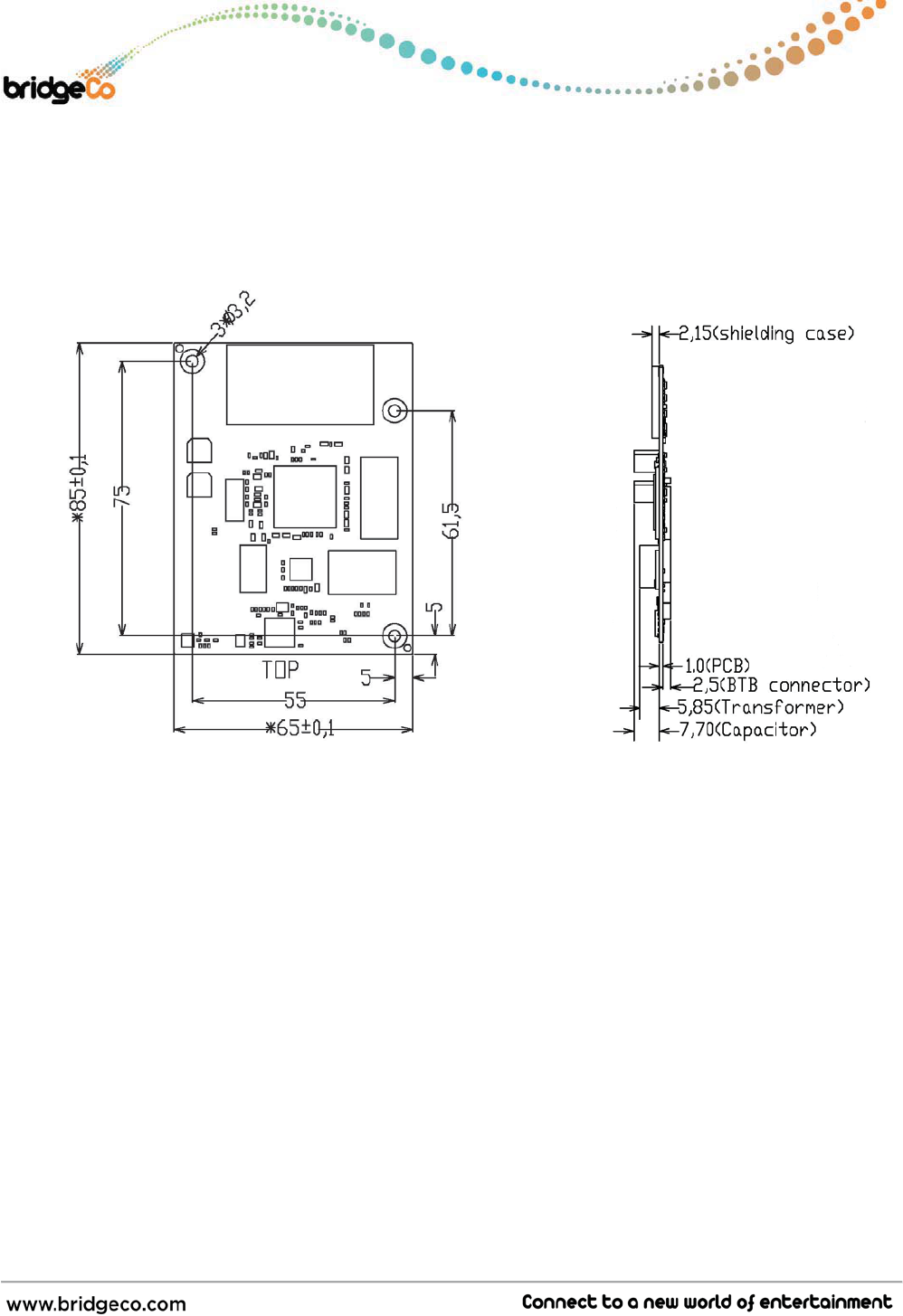

Top and Side View of CR870-2G (no PIFA antenna)
Module weight
CR860: 25g
CR870: 25g
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 10 of 15
Connectors
WLAN UFL Antenna Connector (optional)
One coaxial antenna connector is provided as an alternative to the built-in PIFA antenna. The choice
between using the PIFA antenna or using the coaxial socket is a build option, determined by the
position of a surface mount capacitor on the module PCB. Please see ordering guide for build option
details.
The surface-mount receptacle parts:
Hirose
U.FL-R-SMT (CL No. 331-0471-0)

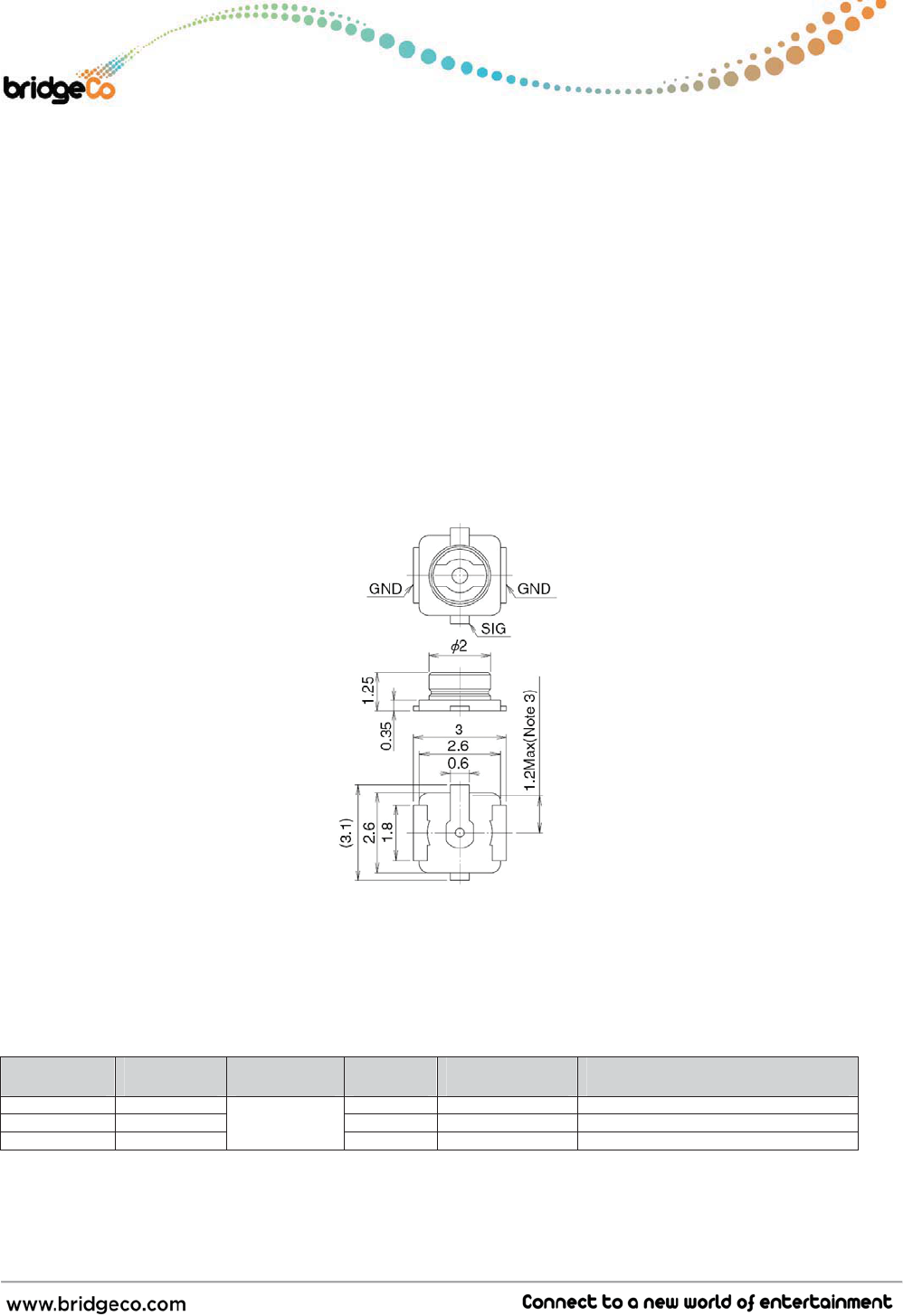

Coaxial antenna connector dimensions
Module Connectors
The CR860/870 module uses 3 female board-to-board connectors as interfaces to the product main
board. The connectors needed on the product main board are male type, with the part numbers as
shown in the table below.
Connector
Number
Connector
Purpose
Connector
Type
Number
of Pins
Pin
Configuration
Male Mating Connector Part
Numbers
J1 LCD 30 2 x 15 x 0.5mm 14-5046-030-145-829+ (Kyocera)
J2 Media 120 2 x 60 x 0.5mm 14-5046-120-145-829+ (Kyocera)
J3 DAB
B2B
Connector 40 2 x 20 x 0.5mm 14-5046-040-145-829+ (Kyocera)
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 11 of 15
The pinout and signal names are shown on the next page. The following table provides an overview
for the most important control and interface signals.
Key Connections
Signal(s) Connector ID Pin
Number(s)
Description
J2 3, 4, 5, 6 Input voltage; +3.3V
J2 9, 10, 11, 12 Input voltage; +1.2V
J3 4, 6 Input voltage; +1.8V
J3 10 Input voltage; +3.3V
VIN
J3 12 Input voltage; +1.5V
SPI_DOUT
SPI_DIN
SPI_CLK
SPI_NCS0, 1
J2
J2
J2
J2
25
27
29
30, 32
SPI bus from DM870’s SPI controller.
SPI_REQ J2 64 PDOUT1 signal used as SPI_REQ for eDMP applications
RXD1, TXD1 J2 35, 37 3.3V logic level UART I/Os for the debug UART.
Provide external RS-232 transceiver to connect to a PC’s
COM port.
NRESET_MOD J2 34 Low-active input to reset the module;
internal 10K pull-up
NPD_RF J2 119 Low-active input to shut down the power for the
802.11 Rf part;
internal 10K pull-up
AOUTLP/AOUTLN J2 63, 65
AOUTRP/AOUTRN J2 60, 58 Differential stereo output from PWM-DAC.
BIST activate J2 48 Low-active input to invoke the production BIST;
DM870-internal pull-up
Factory Reset J2 68 High-active input to reset the configuration;
DM870-internal pull-down
IR input J2 70 Infrared sensor input. This is a Schmitt-Trigger input
and can handle interrupt inputs with slow slopes.
ETH_NRESET J2 72 Low-active reset for the on-board Ethernet phy. This
output is driven by the DM870 and is not suited for
other purpose.
SDA, SCL J2 73, 75 I2C bus created by GPIO-14 and GPIO-13.
No internal pull-ups; if I2C is to be used, please add the
proper external pull-up resistors.
ETH_LED_ACT
ETH_LED_SPEED
J2
J2
100
102
3.3V push-pull outputs (max. ±12mA) to drive the
Ethernet LEDs.
A low-level indicates 100Mbps mode and activity
respectively.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 12 of 15
Detailed Connector PIN Descriptions
J2 – Media Connector
Function GPIO Signal IC PIN Power Power IC PIN Signal GPIO Function
GND 1 2 GND
VIN (+3.3V) 3 4 VIN (+3.3V)
VIN (+3.3V) 5 6 VIN (+3.3V)
GND 7 8 GND
VIN (+1.2V) 9 10 VIN (+1.2V)
VIN (+1.2V) 11 12 VIN (+1.2V)
GND 13 14 GND
VIN_OUTSIDE (+1.9V) 15 16 VIN_OUTSIDE (+1.9V)
GND 17 18 GND
F4 3V3RTC 19 20 GND
GND 21 22 B20 TMS
GND 23 24 A20 TCK
SPI_DOUT E17 25 26 B19 TDI
SPI_DIN F17 27 28 A19 TDO
SPI_CLK D17 29 30 D16 SPI_NCS0
TXD0 C17 31 32 D15 SPI_NCS1
RXD0 A18 33 34 NRESET_MOD
RXD1 B17 35 36 B16 SSMD6 GPIO-10 SPI_E_CLK
TXD1 A17 37 38 C15 SSMD4 GPIO-08 SPI_E_SDO
GND 39 40 A15 SSMD2
SPI_E_NCS GPIO-11 SSMD7 C16 41 42 C14 SSMD1
SPI_E_SDI GPIO-09 SSMD5 A16 43 44 A14 SSMCMD
SSMD3 B15 45 46 C11 SSMWP
SSMD0 B14 47 48 M18 NCS3 GPIO-17 BIST activa te
SSMCLK C13 49 50 L18 NCS2 GPIO-19
SSMCP C12 51 52 GND
GND 53 54 USB_VBUS
USB_DN A1 55 56 GND
USB_DP B1 57 58 K2 AOUTRN
USBVBUSDRV 59 60 J2 AOUTRP
GND 61 62 GND
AOUTLP H3 63 64 L1 PDOUT1 GPIO-06 SPI_REQ
AOUTLN J3 65 66 L2 VCO1 GPIO-07
GND 67 68 M1 PDOUT0 GPIO-04 Factory reset
GPIO-16 A23 K20 69 70 M2 VCO0 GPIO-05 IR input
IRQ input GPIO-18 A22 K19 71 72 U3 AV3CLK GPIO-12 ETH NRESET
I2C SDA GPIO-14 AV3CTRL1 V1 73 74 M3 AV0CTRL0
I2C SCL GPIO-13 AV3CTRL0 V2 75 76 P3 AV1DATA3
AV0CTRL2 K3 77 78 R1 AV1DATA2
AV0CTRL1 L3 79 80 R2 AV1DATA1
AV0CLK N1 81 82 R3 AV1DATA0
AV0DATA3 N2 83 84 GND
AV0DATA2 N3 85 86 T1 AV2CTRL1 MCLK
AV0DATA1 P1 87 88 GND
AV0DATA0 P2 89 90 R4 AV2CLK SCLK
GND 91 92 GND
LRCK AV2CTRL0 T2 93 94 W2 AV4DATA1 SPDIF output
A/D data 1 AV2DATA3 T3 95 96 Y1 AV4DATA0 SPDIF input
A/D data 0 AV2DATA2 T4 97 98 GND
D/A data 1 AV2DATA1 U1 99 100 ETH_LED_ACT
D/A data 0 AV2DATA0 U2 101 102 ETH_LED_SPEED
GND 103 104 Y14 MIICRS GPIO-00
ETH_RX- 105 106 W14 MIICOL GPIO-01
ETH_RX+ 107 108 V10 MIITXER GPIO-02
ETH_CT 109 110 V11 MIITXCLK GPIO-03
ETH_TX- 111 112 W10 MIITXD0
ETH_TX+ 113 114 Y10 MIITXD1
GND 115 116 W12 MIIRXD0
GPIO-15 NWAIT N18 117 118 Y12 MIIRXD1
NPD_RF 119 120 GND
PIN Number
SPI
Debug UART
JTAG
SPI
USB
Video Output
Ethe rnet
USB
Video Output
Eth e rn et
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 13 of 15
J1 – LCD Connector
Function GPIO Signal IC PIN Power Power IC PIN Signal GPIO Function
GND 12
GND
LCDD0 Y7 34 W7 LCDD1
LCDD2 V7 56 Y6 LCDD3
LCDD4 W6 78 V6 LCDD5
LCDD6 U6 910 Y5 LCDD7
LCDD8 W5 11 12 V5 LCDD9
LCDD10 U5 13 14 Y4 LCDD11
LCDD12 W4 15 16 V4 LCDD13
LCDD14 U4 17 18 Y3 LCDD15
LCDD16 W3 19 20 Y2 LCDD17
GND 21 22 GND
LCDCLK Y9 23 24 W9 LCDCTRL0
LCDCTRL1 Y8 25 26 W8 LCDCTRL2
LCDCTRL3 V8 27 28 GND
GND 29 30 GND
PIN Number
LCD Interface
LCD Interface
LCD Interface
LCD Interface
J3 – DAB Connector
Function GPIO Signal PNM3030E PIN Power Power PNM3030E PIN Signal GPIO Function
GND 12
GND
RESETB 30 34VIN (+1.8V)
RF_I2C_CK 39 56VIN (+1.8V)
I2C_SDA_DAB 378 40 RF_I2C_DT
I2C_SCL_DAB 46 910VIN (+3.3V)
GND 11 12 VIN (+1.5V)
TEST_1 79 13 14 80 TEST_2
DAB_SPI_MOSI 19 15 16 78 TEST_0
DAB_SPI_CSB 17 17 18 18 DAB_SPI_CLK
GND 19 20 16 DAB_SPI_MISO
GND 21 22 GND
GND 23 24 14 INT_0
GND 25 26 15 INT_1
MPEG_ERR 427 28 47 MPEG_CLK
MPEG_SYNC 529 30 48 MPEG_VAL
MPEG_DAT7 631 32 7MPEG_DAT6
MPEG_DAT5 51 33 34 8MPEG_DAT4
MPEG_DAT3 52 35 36 9MPEG_DAT2
MPEG_DAT1 10 37 38 53 MPEG_DAT0
GND 39 40 GND
PIN Number
SPI
SPI
Application Notes
There are strict power sequencing and reset timing requirements. Please see DM870 IC data sheet,
Sections 3.1 and 3.2, filename: dat_DM870_16_datasheet.pdf, or later version.
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 14 of 15
Revision Control
Revision Date / Author Remarks
V2.14 June 10, 2010 / SHs •Updated Frequency Band entry in “WiFi Specification” table
V2.13 June 6, 2010 / SHs •Updated “Ordering Guide” table
V2.12 May 27, 2010 / SHs •Updated TX EVM entry in “WiFi Specifications” table
•Updated Power Consumption entries in “Electrical Specifications”
table
•Added Note to “Electrical Specifications” table
•Removed box from “Bottom View of CR870-2C version” photo
•Updated “Bottom View of CR870-2C version” title to “Bottom
View of CR870-2B, CR870-2C, CR870-2G versions”
•Added “Top View of CR870-2G version” photo
•Updated “Top View” title to “Top View of CR870-2A version”
•Updated “Bottom View” to “Bottom View of CR870-2A version”
•Updated Notes in Board Dimensions section
•Added “Top and Side View of CR870-2G” drawings
•Updated Module Weight titles
V2.11 April 25, 2010 / SHs •Updated Power Consumption/WLAN Operating entry in
“Electrical Specifications” table
V2.10 April 10, 2010 / SHs •Corrected “Module Connectors” section text to say “female
board-to-board connectors”
•Updated Module Connectors table with correct “Male” Mating
Connector Part Numbers
V2.9 March 22, 2010 / SHs •Renamed “WLAN Antenna Connectors” section to “WLAN UFL
Antenna Connector”
•In the “WLAN Antenna Connectors” table, “receptible” became
“receptacle”
•CR870-2G option and External Antenna UFL connector column
added to Ordering Guide
•Power Consumption values added to Electrical Specifications
table
•Added Absolute Maximum Ratings table
•Added Application Notes section
•NREST became NRESET_MOD for Pin 34 in Key Connections
table
•SPI_REQ row added to Key Connections table
•SPI_REQ added to Function column of Pin 64 in J2-Media
Connector table
V2.8 Feb. 24, 2010 / SHs •Added “Bottom View of CR870-2C version” image to “Overview”
section
V2.7 Feb. 16, 2010 / SHs •Updated “Module Connectors” table
V2.6 Feb. 15, 2010 / SHs •Updated “Ordering Guide” table
V2.5 Feb. 10, 2010 / SHs •Updated “Ordering Guide” table
•Added new coaxial text in “WLAN Antenna Connectors” section
•Added manufacturer name to “Module Connectors” table
V2.4 Feb. 08, 2010 / SHs •Updated Rx Sensitivity description in “WiFi Specification” table
V2.3 Feb. 03, 2010 / SHs •“Key Connectors” table title changed to “Key Connections”
•Updated entries in “Key Connections” table
•Updated pins 1, 2, 25, 27, 58 & 60 in “J2 – Media Connector”
table
Data Sheet: CR Series
JukeBlox Networked Media Modules
dat_CR860_CR870_2_14_datasheet.doc CONFIDENTIAL Version 2.14 – June 10th 2010 - Page 15 of 15
V2.2 Feb. 02, 2010 / SHs •Added new items to “WiFi Specification” table
•Amended Block Diagram to show input of 1.2V instead of 1.8V
V2.1 Jan. 04, 2010 / SHs •Updated header layout
•Removed “CR860/CR870” from data sheet title
•Left justified Key Features list on front page
•New Ordering Guide table
•Updated Module Weights
V2.0 Jan. 02, 2010 / JWs and
SHs
•New header and footer layout
•Fit front and back Overview images onto one page
•Bulletise Revision Control table
V1.1 Dec. 18, 2009 / SHs •Changed Core Module name to “JukeBlox Networked Media
Module(CR Series)”
•Front page revisions: removed front and back images of board;
inserted angled image of board; moved Key Features list to
front page
•Moved Disclaimers page to end of document
•Replaced previous board images (front and back) in Overview
section with better quality images
•Added box and label to BridgeCo processor in Overview images
•Revised Ordering Guide
•Reduced Board Dimension drawings to fit on one page
•Added mating connector part numbers to Module Connectors
section.
V1.0 Dec. 9, 2009 / SHs Initial version
© 2010 by BridgeCo Inc
All rights reserved. This document is the sole property of BridgeCo. It contains information
proprietary to BridgeCo. Reproduction or duplication by any means of any portion of this document
without the prior written consent of BridgeCo is expressly forbidden.
Trademarks
The names of products of BridgeCo or other vendors and suppliers appearing in this document may
be trademarks or service marks of their respective owners which may be registered in some
jurisdictions.
Warranty Limitations
BridgeCo assumes no responsibility for inaccuracies, errors, or omissions in this document. BridgeCo
assumes no responsibility for the use of this information, and all use of such information shall be
entirely at the user’s own risk. Prices and specifications are subject to change without notice.
Module Revision History
To be determined.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning
"Industry Canada regulatory information Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device. ""The user is
cautioned that this device should be used only as specified within this manual to meet RF
exposure requirements. Use of this device in a manner inconsistent with this manual could
lead to excessive RF exposure conditions."
IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body. This
device is intended only for OEM integrators under the following conditions:
- The antenna must be installed such that 20 cm is maintained between the antenna and users.
Information To Be Supplied to the End User by the OEM or Integrator
The following regulatory and safety notices must be published in documentation supplied to
the end user of the product or system incorporating an adapter in compliance with local
regulations. Host system
must be labeled with "Contains FCCID:PPQ-CR8702K“, FCC ID displayed on label.
