MW0100R Product Specification Page 1/9

LTC Network Access Confidential



PRODUCTSPECIFICATION



MW0100R

LowPowerWi‐FiModule

Version1.1



Author:RockyCCChenEditor:

ProjectLeader:Approvedby:



ChangeHistory

RevisionDateAuthorChangeList

1.0May5th,2015RockyCCChenDraft

1.1May25th,2015RockyCCChenUpdateTx,Rxandpowerconsumption

  

*ThisdocumentcontainsconfidentialproprietaryinformationandispropertyofLTC.Thecontentsof

thisdocumentshouldnotbedisclosedtounauthorizedpersonswithoutthewrittenconsentofLTC.

MW0100R Product Specification Page 2/9

LTC Network Access Confidential

CONTENT

1.PRODUCTOVERVIEW ...................................................................................................................... 3

1.1DESCRIPTION .............................................................................................................................. 3

1.2FEATURES ................................................................................................................................... 3

1.3GENERALSPECIFICATIONS ...................................................................................................... 3

1.4BLOCKDIAGRAM ....................................................................................................................... 5

2.PINASSIGNMENTANDDESCRIPTION ............................................................................................. 5

3.RECOMMENDEDFOOTPRINT ..................................................................... 錯誤! 尚未定義書籤。



MW0100R Product Specification Page 3/9

LTC Network Access Confidential

1. ProductOverview

1.1 Description

MW0100RisLowPowerWi‐FiModuleusesIEEE802.11b/g/nstandardtonetworkthe

low‐powermobileapplicationonAppleHomeKitplatform.Italsointegrates

ARM‐CortexM3MCU,WLANMAC,1T1RcapableWLANbaseband,internalmemories

andPCBAntenna.Developerscanbebenefitfromthequick‐installedmodulewithout

RFexpertisetoenterHomeKitapplicationmarket.



1.2 Features

 AppleHomeKitCompatible

 IEEE802.11b/g/n(1x1)forupto150Mbps

 SoCwithMCUandWLANIC

 Lowerpowerconsumption

 On‐boardprintedantenna

 RFfeedpoint,optionalexternalantenna

 u.flconnector,optionalexternalantenna

 Operatingtemp:0~70oC

 Total33‐pinStampHoles,SMT

 TypeAformfactor:24x17mm



1.3 GeneralSpecifications



WLANSoCRealtekRTL8711AM

CPUARMCortexM3(166MHz)

RAM/Flash64KB+448KB/1MB(external)

FrequencyRange2.412GHz~2.4835GHz,ISMband

FrequencyBandIEEE802.11b/g/n,Wi‐Ficompliant

11forNorthAmerica,13forCE,14forJapan

DataRate

802.11b:1,2,5.5,11Mbps

802.11g:6,9,12,18,24,36,48,54Mbps

802.11n(20MHz,normalGI,800ns):6.5,13,19.5,26,39,52,58.5,

65MHz

802.11n(20MHz,shortGI,400ns):7.2,14.4,21.7,28.9,43.3,57.8,

65,72.2MHz

PowerAmplifyInternal

TransmitPower

802.11b/11Mbps:17dBm±1dB

802.11g/54Mbps:15dBm±1dB

802.11n/65Mbps:14dBm±1dB

ReceiverSensitivity802.11n

MW0100R Product Specification Page 4/9

LTC Network Access Confidential

 MCS=7PER@‐85dBm±1dB

802.11g

 54MbpsPER@‐75dBm±1dB

802.11b

 11MbpsPER@‐70dBm±1dB

PowerConsumption

DeepSleep:0.04mW

Idle:8.2mW

RninActiveClock:56mW

11nRXMode:237mW

11nTXMode:690mW

NetworkfeaturesTCP,UDP,DHCP,ARP,HTTP,SSL,andDNS

EncryptionSupportsIEEE802.11WEP,WPA,WPA2Security

SerialDataInterfaceI2C,UART,SPI

AntennaPrintingANTorEXTANT

OperatingTemperature0oC~70oC

Dimensions24mmx17mm

PowerRequirements3.3V

Certification&

Environmental

Requirements

HomeKit

FCC/IC/CE

Wi‐Fi

RoHS



MW0100R Product Specification Page 5/9

LTC Network Access Confidential

1.4 BlockDiagram



2. PinAssignmentandDescription



PinNumberPinNamePinDescriptionI/O

1GNDGroundP

2GNDGroundP

3PIO_8_MISOSPI_MISOwhenpin25isH.

GPIO8whenpin25isL.

I/O



4PIO_5_CLKSPI_CLKwhenpin25isH.

GPIO5whenpin25isL.

I/O



5NCNC ‐‐

6NCNC ‐‐

7PIO_4GPIO4I/O

8NCNC ‐‐

9NCNC ‐‐

10PIO_10GPIO10I/O

11PIO_11GPIO11I/O

12GNDGroundP

13VDDPowerSourceforModuleP

14PIO_9GPIO9I/O

MW0100R Product Specification Page 6/9

LTC Network Access Confidential

15

PIO_8_MISO

SPI_MISOwhenpin25isH.

GPIO8whenpin25isL.

I/O



16NCNC ‐‐

17NCNC ‐‐

18PIO_3GPIO3I/O

19PIO_0/UART_TXGPIO0orUART_TxI/O

20PIO_1/UART_RXGPIO1orUART_RxI/O

21PIO_6_CSSPI_CSwhenpin25isH.

GPIO6whenpin25isL.

I/O



22NCNC ‐‐

23NCNC ‐‐

24PIO_7_MOSISPI_MOSIwhenpin25isH.

GPIO7whenpin25isL.

I/O



25SPI_PIO#_SELHtoselectGPIO5~8forSPI(Debuguse)L

toselectprogrammableGPIO

I/O



26WAKEUPLtowakemodulefromhibernateor

dormant

I/O



27NCNC ‐‐

28AIO_2AIO_2(Voltagenotexceedto1.35V)I/O

29AIO_1AIO_1(Voltagenotexceedto1.35V)I/O

30AIO_0AIO_0(Voltagenotexceedto1.35V)I/O

31GNDGroundP

32RFRFfeedpoint.ConnecttoAntennaO

33GND GroundP



LiteonTypeAmodule



MW0100R Product Specification Page 7/9

LTC Network Access Confidential

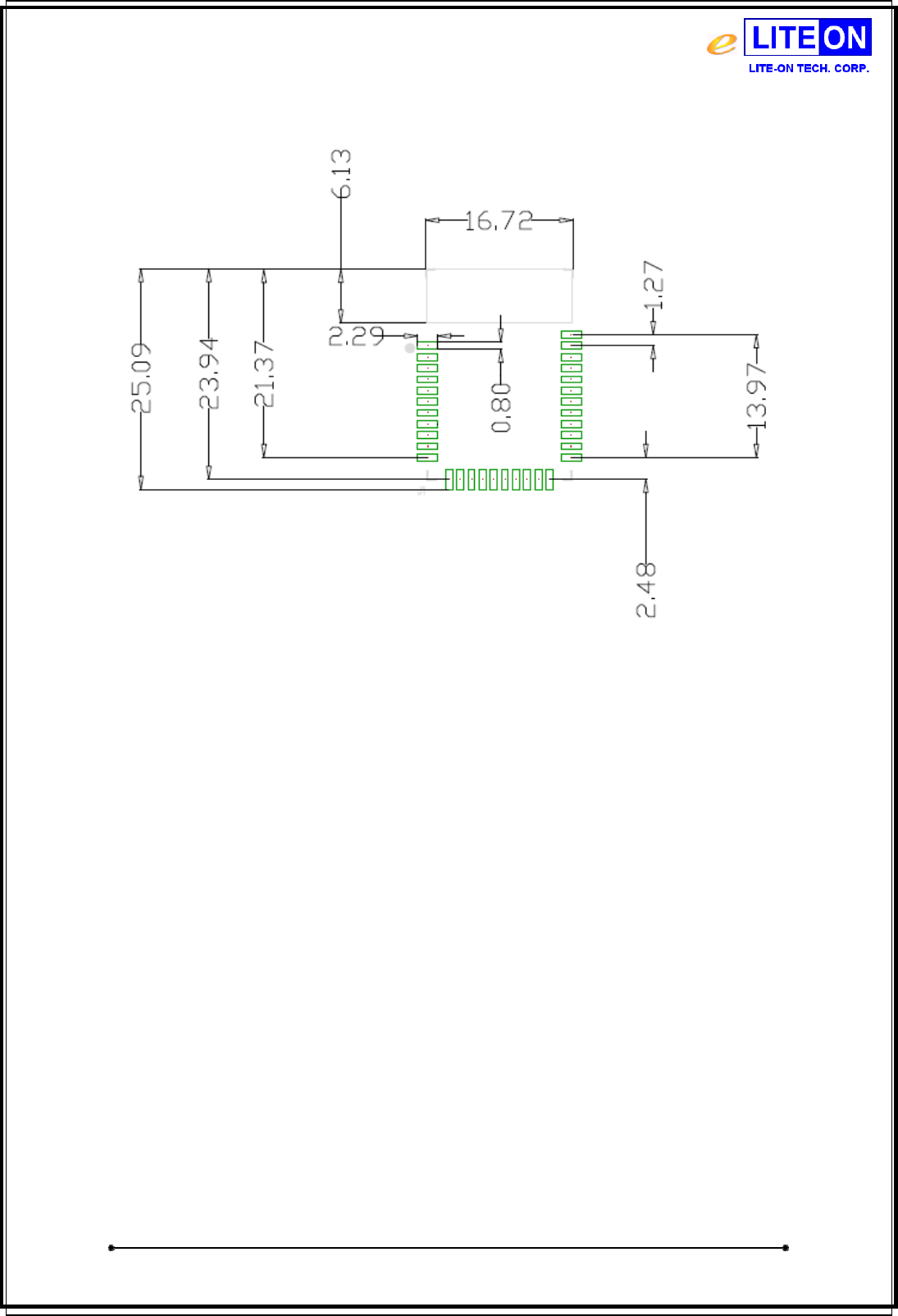

3. RecommendedFootPrint







FCC

FEDERAL COMMUNICATIONS COMMISION (FCC) STATEMENT

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible

for compliance could void the user’s authority to operate the equipment.

15.105(b)

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

MW0100R Product Specification Page 8/9

LTC Network Access Confidential

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference and

2) This device must accept any interference received, including interference that may cause

undesired operation of the device.

FCC RF Radiation Exposure Statement:

1. This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20

centimeters between the radiator and your body.

End Product Labeling:

The final end product must be labeled in a visible area with the following: “Contains FCC

ID:PPQ-MW0100R”



Canada, Industrie Canada (IC)

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numérique de classe B est conforme à la norme NMB-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation

is subject

to the following two conditions: (1) this device may not cause interference, and (2) this device

must accept any interference, including interference that may cause undesired operation of the

Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio

exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

End Product Labeling:

The final end product must be labeled in a visible area with the following: “Contains IC

ID:4491A-MW0100R”

Note:

MW0100R Product Specification Page 9/9

LTC Network Access Confidential

This radio transmitter has been approved by Industry Canada to operate with the antenna

types listed below with the maximum permissible gain indicated. Antenna types not

included in this list, having a gain greater than the maximum gain indicated for that type,

are strictly prohibited for use with this device.

Antenna Type: PCB PIFA Antenna

Peak Gain: 2.55dBi
