WB116A User Manual HTML Version

User Manual

WB116A Page 1/10 2015/10/15



USERMANUAL

BluetoothModule



ModelName:WB116A



Version1.0



Author:KaysaLee



ChangeHistory

RevisionDateAuthorChangeList

Version1.02015/09/11KaysaLeePreliminary

Version1.012015/09/11KaysaLeeAddPCBinformation

Version1.022015/09/17KaysaLeeAddSilkscreenInformation



*ThisdocumentcontainsconfidentialproprietaryinformationandispropertyofLTC.Thecontentsofthis

documentshouldnotbedisclosedtounauthorizedpersonswithoutthewrittenconsentofLTC.



WB116A Page 2/10 2015/10/15



1PRODUCTOVERVIEW

1.1DESCRIPTION

WB116A(Xtype/Ytype)isaBluetoothmodulewhichusingAirohaChipsetAB1520H

1.2FEATURES

FullyqualifiedBluetooth®v3.0system

ClassI(Max+5dBm)

Codec:SBC/AAC

ContentProtection:SCMS‐T

RoHScompliance

LowHalogencompliance

1.3GENERALSPECIFICATIONS

MainChipsetAB1520H

StandardBluetoothV3.0

ProfilesA2DPSink/AVRCP/SPP/DID

BusInterfaceDigitalAudioOutput(I2S/SPDIF)

DigitalAudioInput(I2S)+UART

FormFactor37mmx18mmx3.2mm

Weight2g(typ.)

DataRate1Mbps,2MbpsandUpto3Mbps

FrequencyRange2.400~2.4835GHz

TransmitOutputPower+1~+5dBmClass1Device

ReceiveSensitivityBDR<0.1%BERat‐70dBm

EDR<0.007%BERat‐70dBm

Temperature&

Humidity

NormalTestCondition:25+/‐2deg.C,65+/‐2%RH

Operating:‐10to70deg.C

Storage:‐40to85deg.C

OperatingVoltage3.3V±10%I/Osupplyvoltage

PowerConsumption165mW.max

AntennaTypePrintedAntenna(0.24dBi)



WB116A Page 3/10 2015/10/15

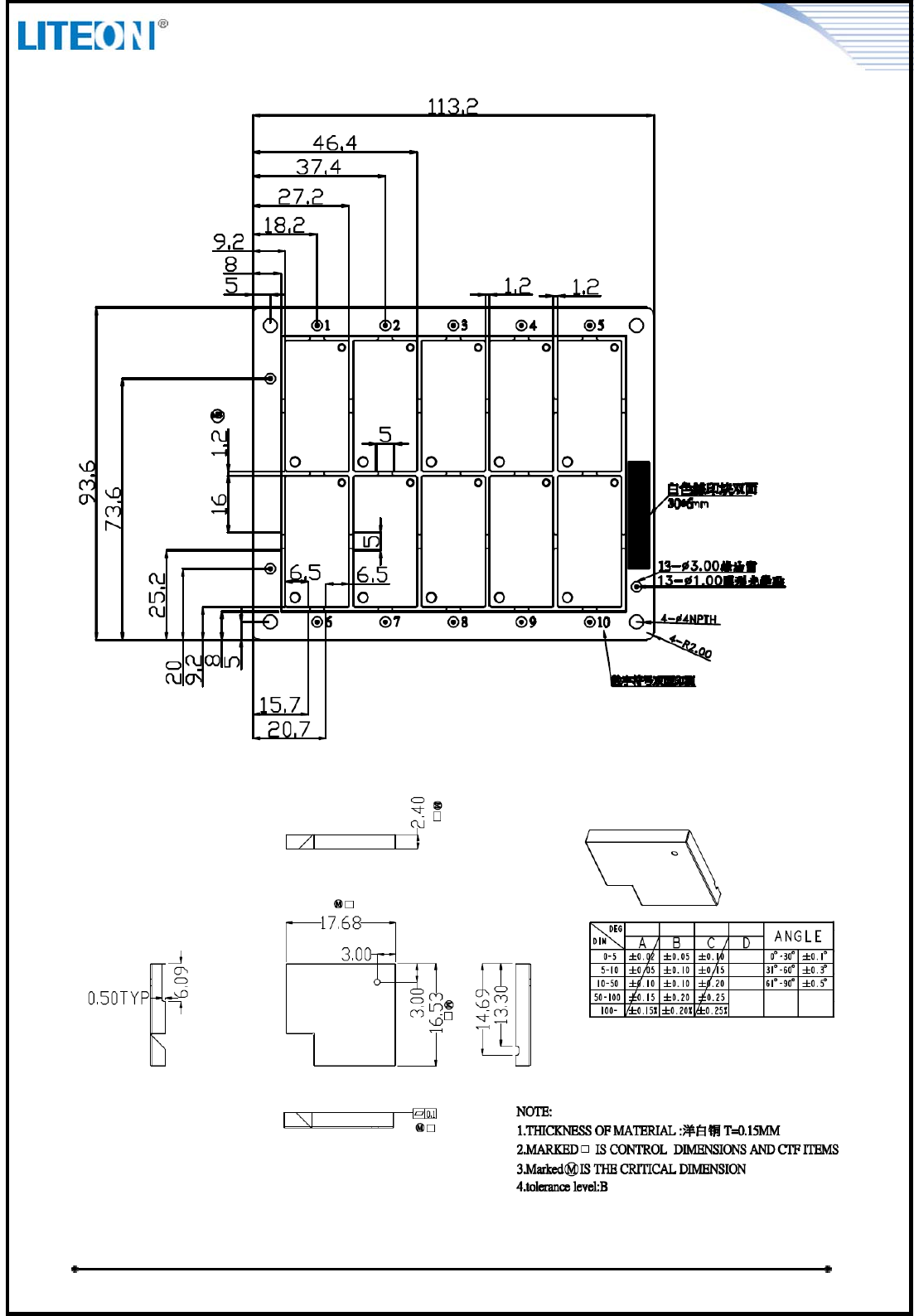

PANELDRAWING



1.4SHIELDINGCOVER



WB116A Page 4/10 2015/10/15

1.5CERTIFICATION

CountryRegulatoryApprovalIDRemarks

UnitedStatesFCCPart15CPPQ‐WB116AFCCID:PPQ‐WB116A

CanadaRSS‐2474491A‐WB116AIC:4491A‐WB116A

Europe

EN300328v1.9.1

EN301489‐1/ ‐17

EN60950

EN62311

CElogo+NBnumber



JapanTELEC 

TaiwanNCC 

RussiaFAC 

ChinaSRRC 

UAETRA 

ArgentinaCNC 

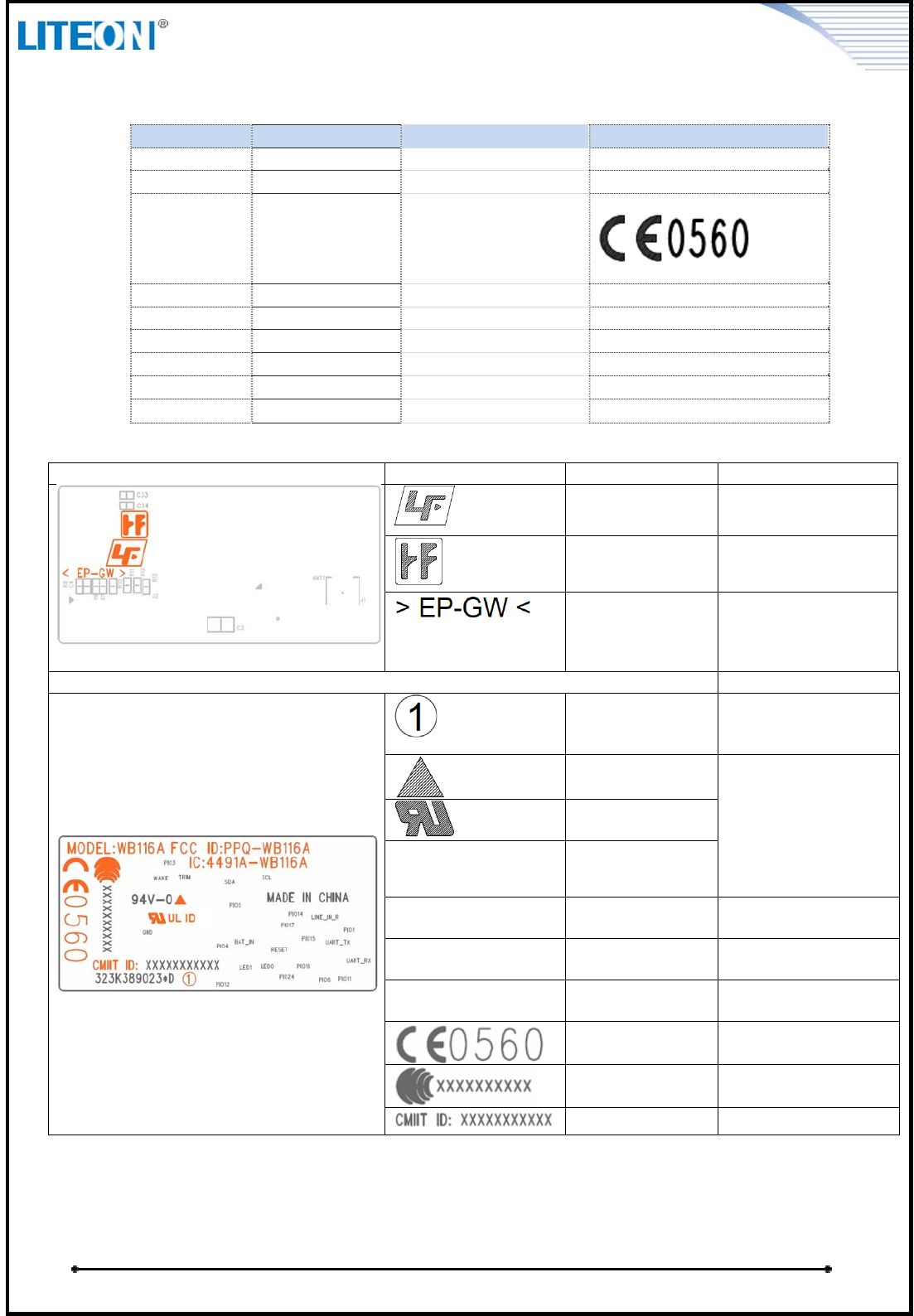

1.6SILKSCREENINFORMATION

TOPSideDesignMarkingDescription



Lead‐FreeMinHeight3mm



Halogen‐FreeMinHeight3mm



PWBMaterialFR‐4

BottomSide 



BoardNumberSpecifythePWB

Boardpositionofthe

workarea.



ULDirectSupport



ULRecognized

Component

E220370(PIOTEK)

E85792(APCB)

ULIdentification

Thesethreemarks

shouldbelocatedin

thesamearea.

MinimumMarkHeight

is1.8mm.

MinimumTextHeight

is1.2mm.

WB116AModelnameMinimumTextHeightis

1.2mm.

PPQ‐WB116AFCCIDMinimumTextHeightis

1.2mm.

4491A‐WB116AICNumberMinimumTextHeightis

1.2mm.



CEMarkandNB

Number

MinimumTextHeightis

3mm.



NCCIDandLogo



ChinaCMIITID



WB116A Page 5/10 2015/10/15

REGULATORY STATEMENTS

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located with any other transmitters except in

accordance with FCC multi-transmitter product procedures.

Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be

operated simultaneously without C2P.

WB116A Page 6/10 2015/10/15

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20 cm

between the radiator & your body.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is responsible for the

compliance to all the rules that apply to the product into which this certified RF module is

integrated.

Additional testing and certification may be necessary when multiple modules are used.

20cm minimum distance has to be able to be maintained between the antenna and the users

for the host this module is integrated into. Under such configuration, the FCC radiation

exposure limits set forth for an population/uncontrolled environment can be satisfied.

Any changes or modifications not expressly approved by the manufacturer could void the

user's authority to operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm

separation with the antenna while this end product is installed and operated. The end user has

to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled

environment can be satisfied. The end user has to also be informed that any changes or

modifications not expressly approved by the manufacturer could void the user's authority to

operate this equipment. If the size of the end product is smaller than 8x10cm, then additional

FCC part 15.19 statement is required to be available in the users manual: This device

complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

WB116A Page 7/10 2015/10/15

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains TX FCC

ID: PPQ-WB116A ". If the size of the end product is larger than 8x10cm, then the following

FCC part 15.19 statement has to also be available on the label: This device complies with

Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

WB116A Page 8/10 2015/10/15

IC Statement:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil

ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

This device and its antenna(s) must not be co-located with any other transmitters except in

accordance with IC multi-transmitter product procedures.

Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be

operated simultaneously without reassessment permissive change.

Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association

avec une autre antenne ou transmetteur.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with minimum

distance 20cm between the radiator & your body.

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de

20 cm de distance entre la source de rayonnement et votre corps.

WB116A Page 9/10 2015/10/15

This module is intended for OEM integrator. The OEM integrator is still responsible for the

IC compliance requirement of the end product, which integrates this module.

Any changes or modifications not expressly approved by the manufacturer could void the

user's authority to operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm

separation with the antenna while this end product is installed and operated. The end user has

to be informed that the IC radio-frequency exposure guidelines for an uncontrolled

environment can be satisfied. The end user has to also be informed that any changes or

modifications not expressly approved by the manufacturer could void the user's authority to

operate this equipment. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains TX IC :

4491A-WB116A ".

Antenna list:

Ant. Brand

Holder Model Name Antenna Type Connector Gain (dBi)

1 SONY

Corporation WB116A Printed Antenna N/A 0.24

Note: The EUT has one antenna.

WB116A Page 10/10 2015/10/15

INTRODUCTION

The Bluetooth Module is a device that allows you connect your computer to a wireless local

area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency

(RF) technology to transmit and receive data without physically attaching to the network. The

Wireless protocols that come with this product ensure data security and isolation from

interference generated by other radio frequencies.

This card also allows you to take full advantage of your computer’s mobility with

access to real-time information and online services anytime and anywhere. In addition, this

device eliminates the bother of pulling cable through walls and under furniture. It even allows

you to place your system in locations where cabling is impossible. Modifying and augmenting

networks has never been so easy.

OEM integrators are instructed to ensure that the end user has no manual instructions

to remove or install the device.
