LPS Device LPS-190M LCD MONITOR User Manual USERS MANUAL

LPS Device Co., Ltd. LCD MONITOR USERS MANUAL

USERS MANUAL

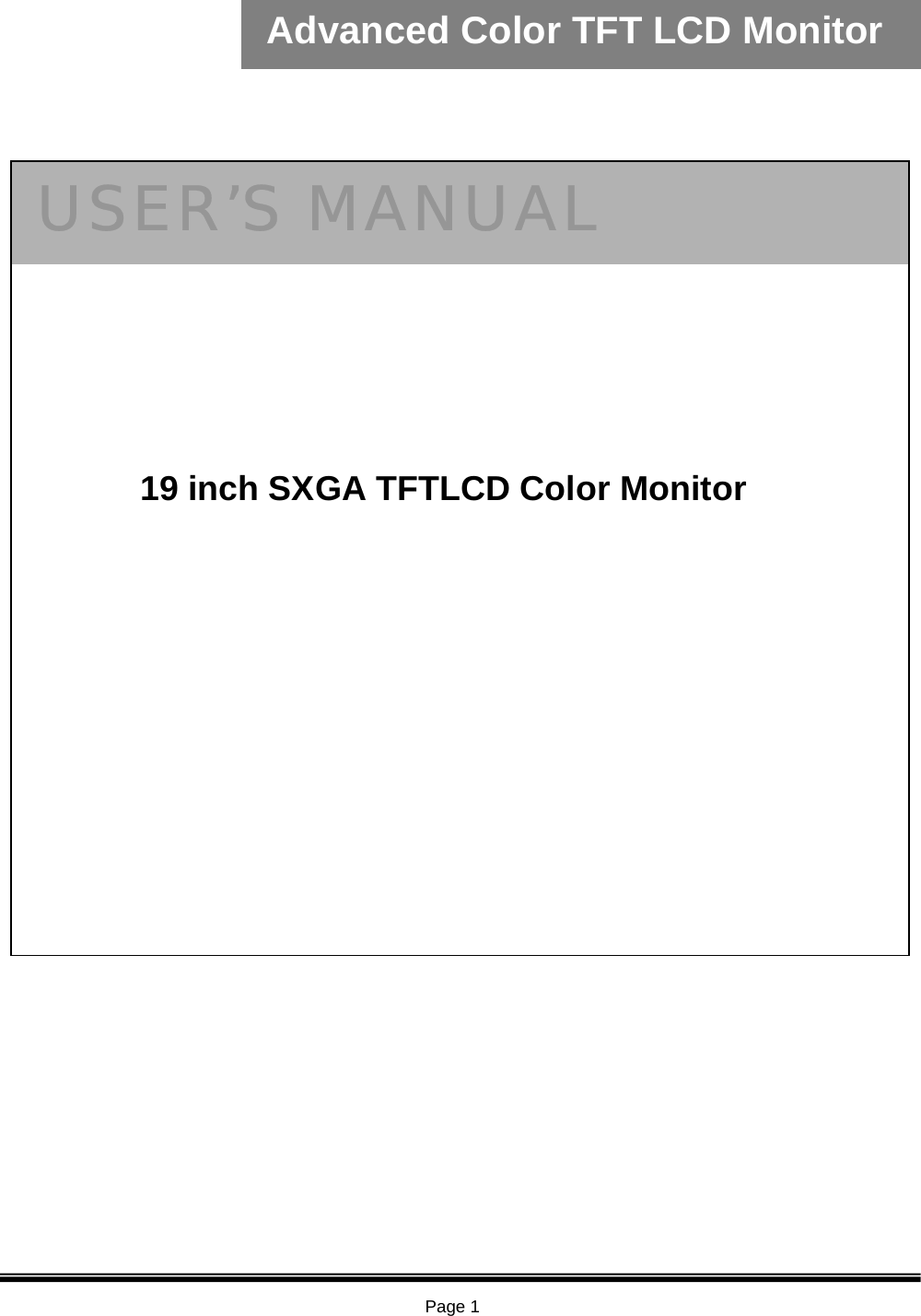

Page 119 inch SXGA TFT LCD Color MonitorAdvanced Color TFT LCD MonitorUSER’S MANUAL19 inch SXGA TFTLCD Color Monitor

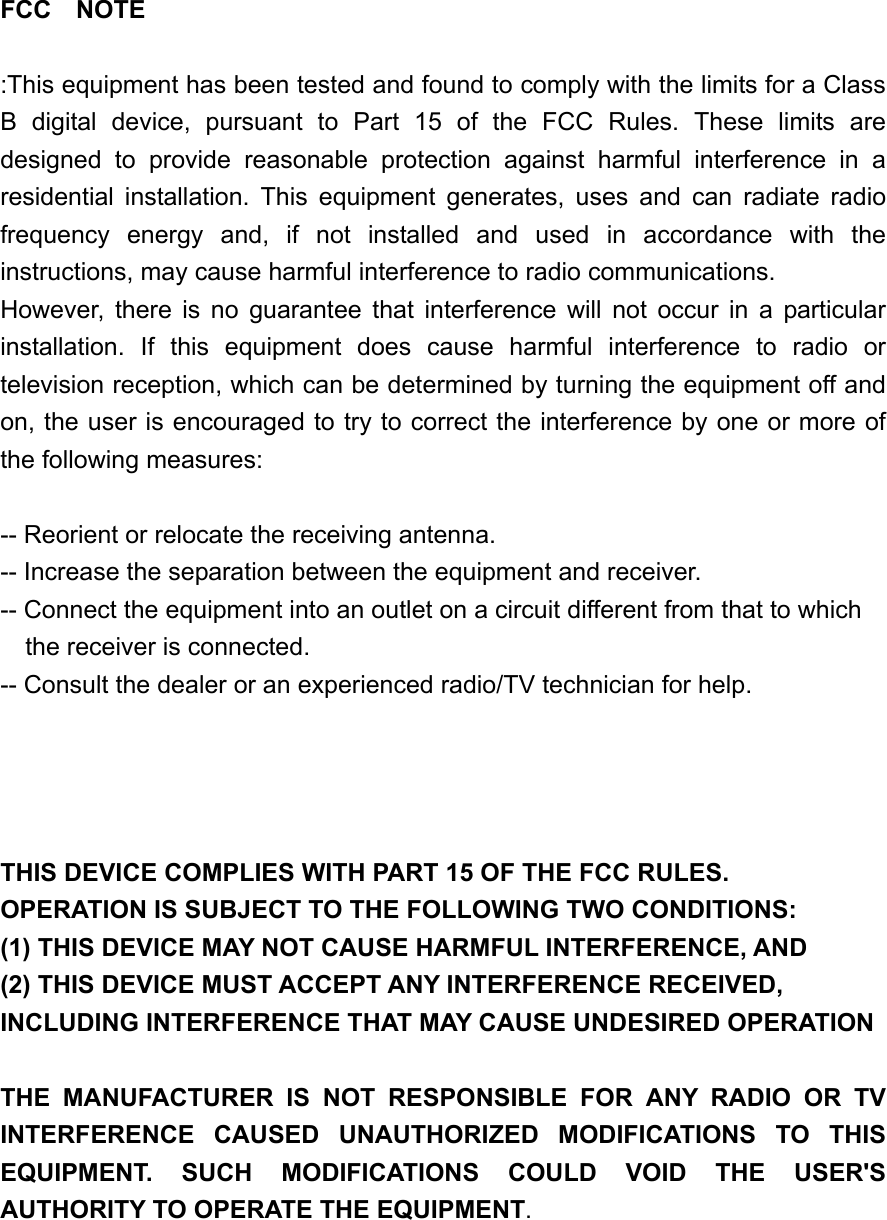

FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

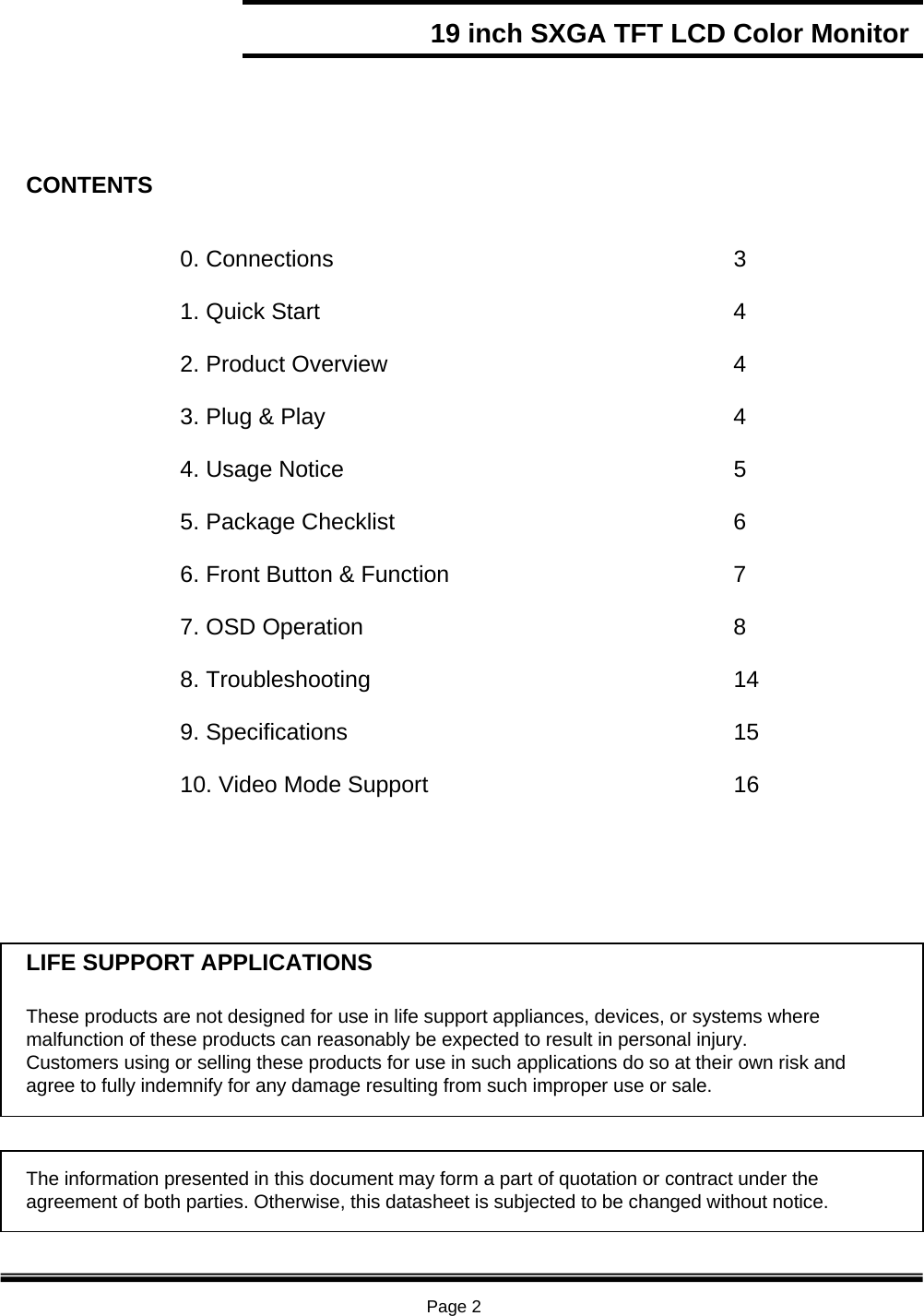

Page 219 inch SXGA TFT LCD Color MonitorCONTENTS0. Connections 31. Quick Start 42. Product Overview 43. Plug & Play 44. Usage Notice 55. Package Checklist 66. Front Button & Function 77. OSD Operation 88. Troubleshooting 149. Specifications 1510. Video Mode Support 16LIFE SUPPORT APPLICATIONSThese products are not designed for use in life support appliances, devices, or systems wheremalfunction of these products can reasonably be expected to result in personal injury. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify for any damage resulting from such improper use or sale.The information presented in this document may form a part of quotation or contract under theagreement of both parties. Otherwise, this datasheet is subjected to be changed without notice.

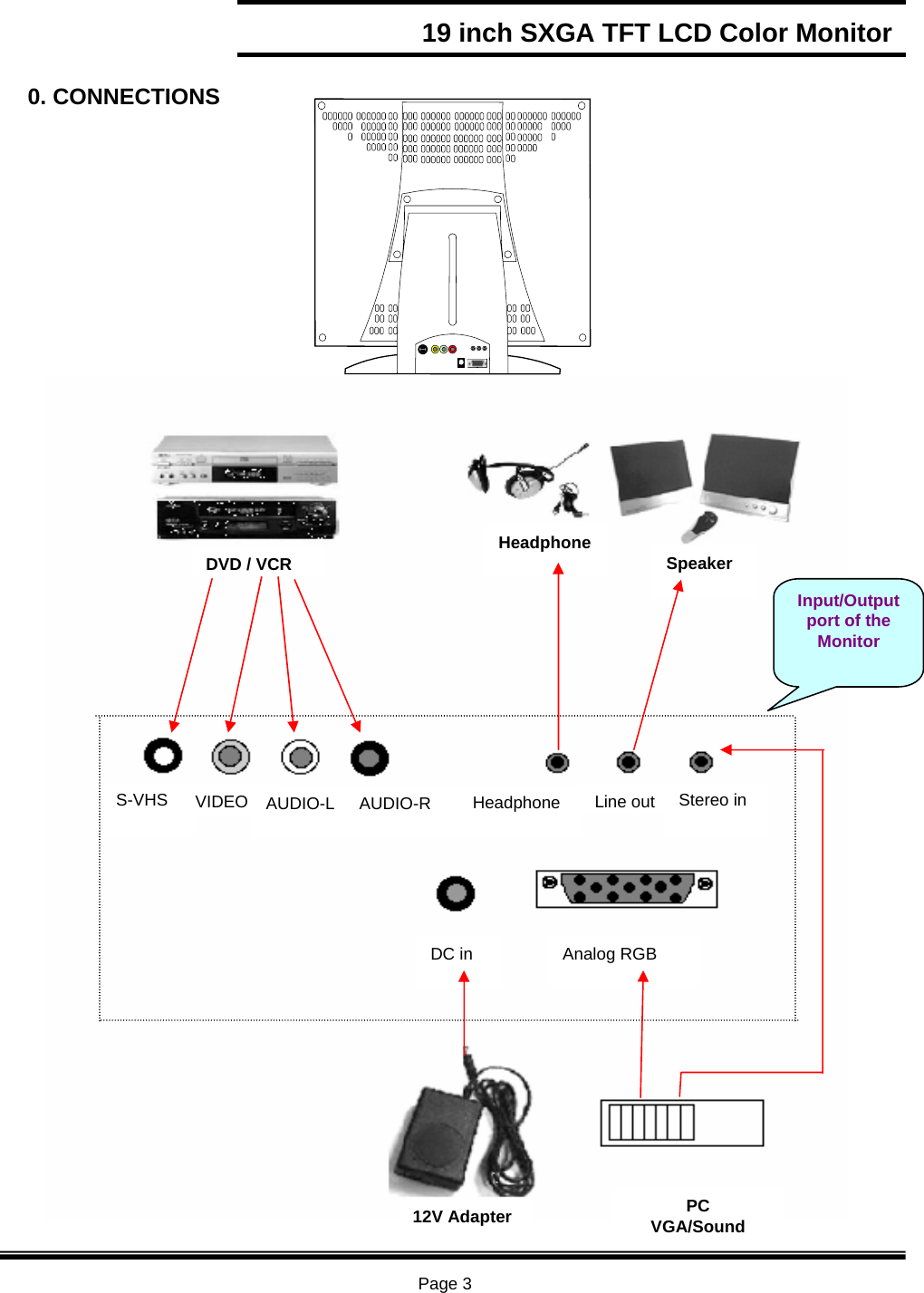

Page 319 inch SXGA TFT LCD Color Monitor0. CONNECTIONSDVD / VCR Headphone SpeakerS-VHS VIDEO AUDIO-L AUDIO-R Headphone Line out Stereo inDC in Analog RGB12V Adapter PCVGA/SoundInput/Outputport of theMonitor

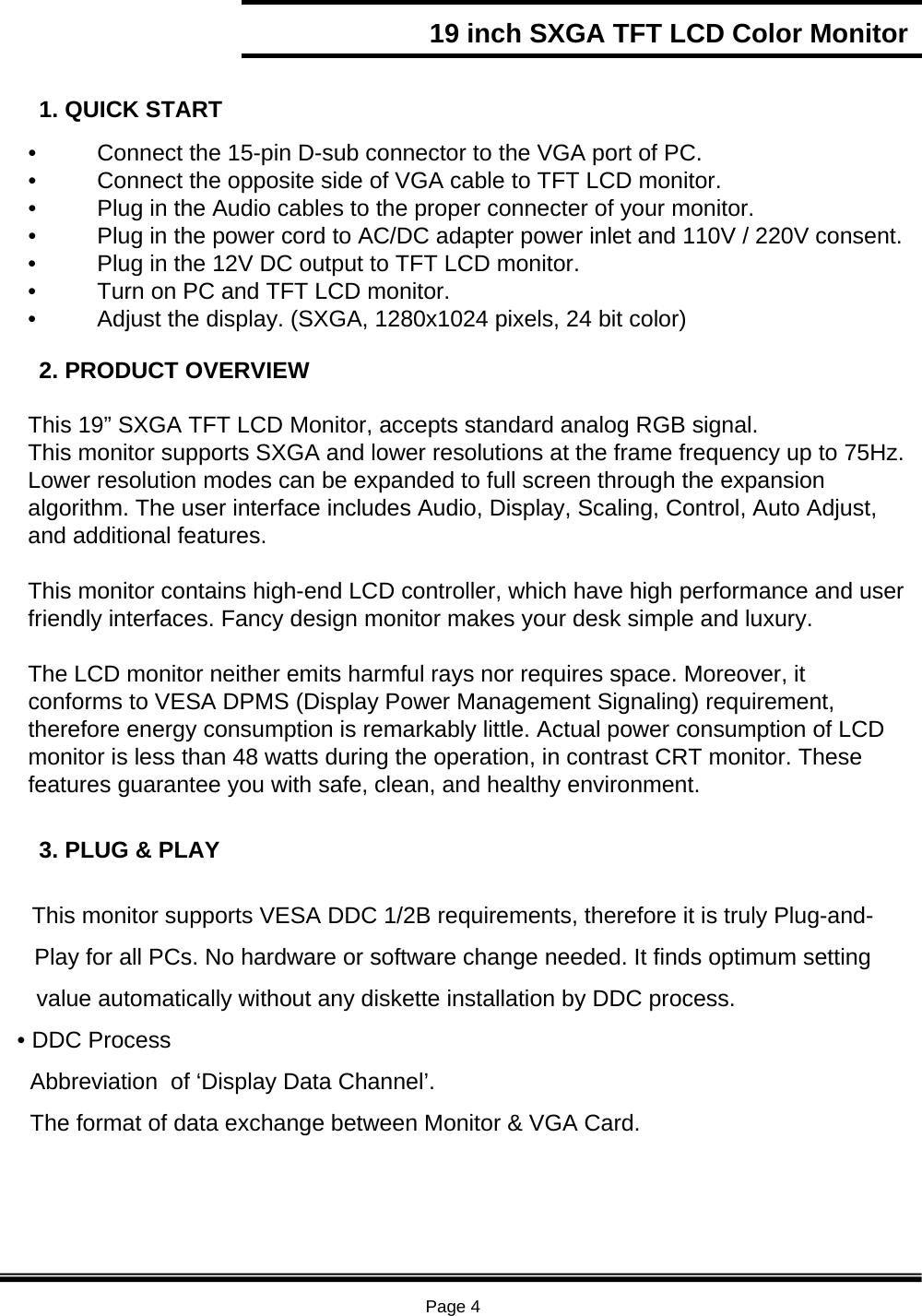

Page 419 inch SXGA TFT LCD Color Monitor1. QUICK START• Connect the 15-pin D-sub connector to the VGA port of PC.• Connect the opposite side of VGA cable to TFT LCD monitor.• Plug in the Audio cables to the proper connecter of your monitor.• Plug in the power cord to AC/DC adapter power inlet and 110V / 220V consent.• Plug in the 12V DC output to TFT LCD monitor.• Turn on PC and TFT LCD monitor.• Adjust the display. (SXGA, 1280x1024 pixels, 24 bit color)2. PRODUCT OVERVIEWThis 19” SXGA TFT LCD Monitor, accepts standard analog RGB signal.This monitor supports SXGA and lower resolutions at the frame frequency up to 75Hz.Lower resolution modes can be expanded to full screen through the expansionalgorithm. The user interface includes Audio, Display, Scaling, Control, Auto Adjust,and additional features.This monitor contains high-end LCD controller, which have high performance and userfriendly interfaces. Fancy design monitor makes your desk simple and luxury.The LCD monitor neither emits harmful rays nor requires space. Moreover, itconforms to VESA DPMS (Display Power Management Signaling) requirement,therefore energy consumption is remarkably little. Actual power consumption of LCDmonitor is less than 48 watts during the operation, in contrast CRT monitor. Thesefeatures guarantee you with safe, clean, and healthy environment.3. PLUG & PLAYThis monitor supports VESA DDC 1/2B requirements, therefore it is truly Plug-and-Play for all PCs. No hardware or software change needed. It finds optimum settingvalue automatically without any diskette installation by DDC process.• DDC ProcessAbbreviation of ‘Display Data Channel’.The format of data exchange between Monitor & VGA Card.

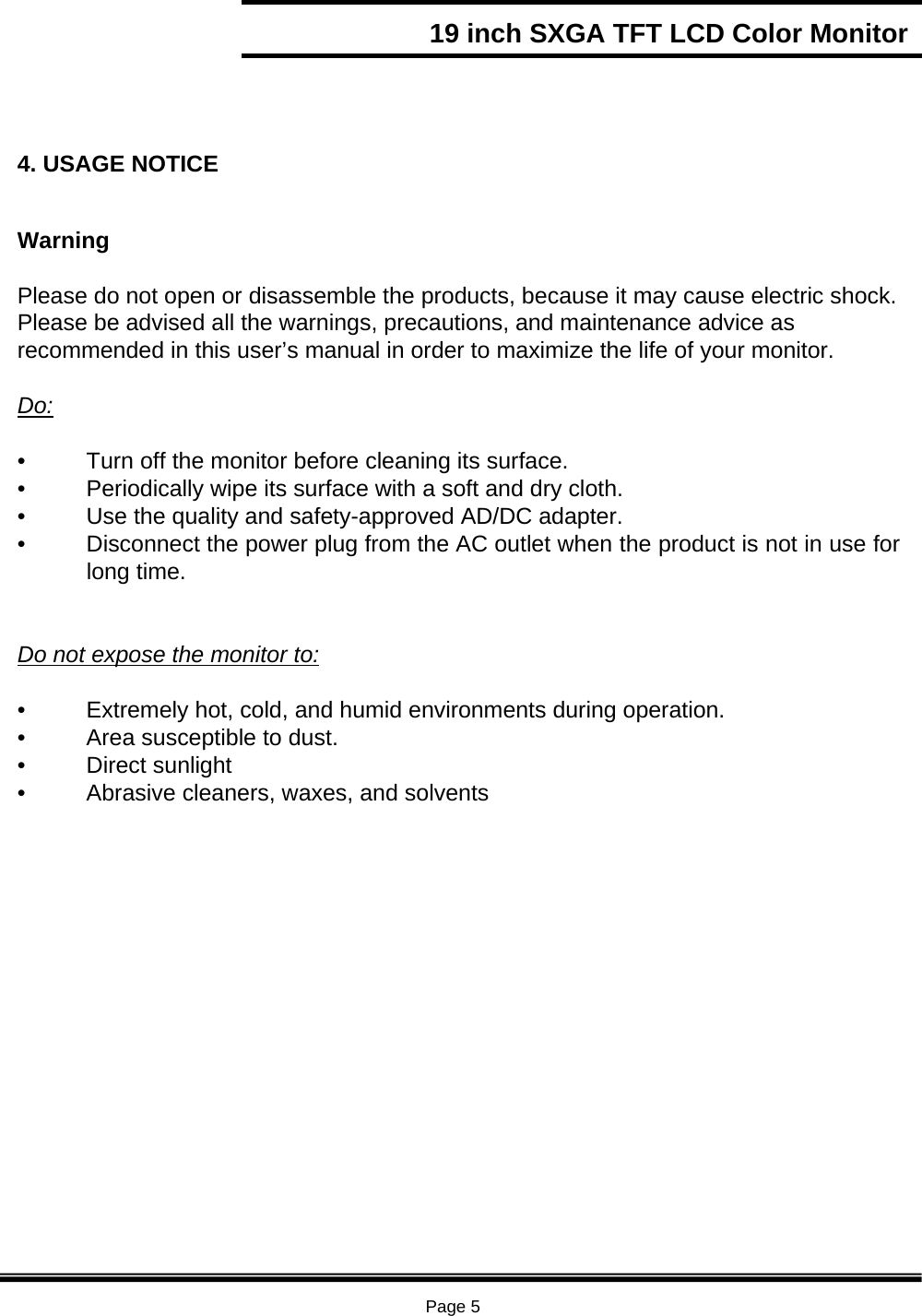

Page 519 inch SXGA TFT LCD Color Monitor4. USAGE NOTICEWarningPlease do not open or disassemble the products, because it may cause electric shock.Please be advised all the warnings, precautions, and maintenance advice asrecommended in this user’s manual in order to maximize the life of your monitor.Do:• Turn off the monitor before cleaning its surface.• Periodically wipe its surface with a soft and dry cloth.• Use the quality and safety-approved AD/DC adapter.• Disconnect the power plug from the AC outlet when the product is not in use for long time.Do not expose the monitor to:• Extremely hot, cold, and humid environments during operation.• Area susceptible to dust.• Direct sunlight• Abrasive cleaners, waxes, and solvents

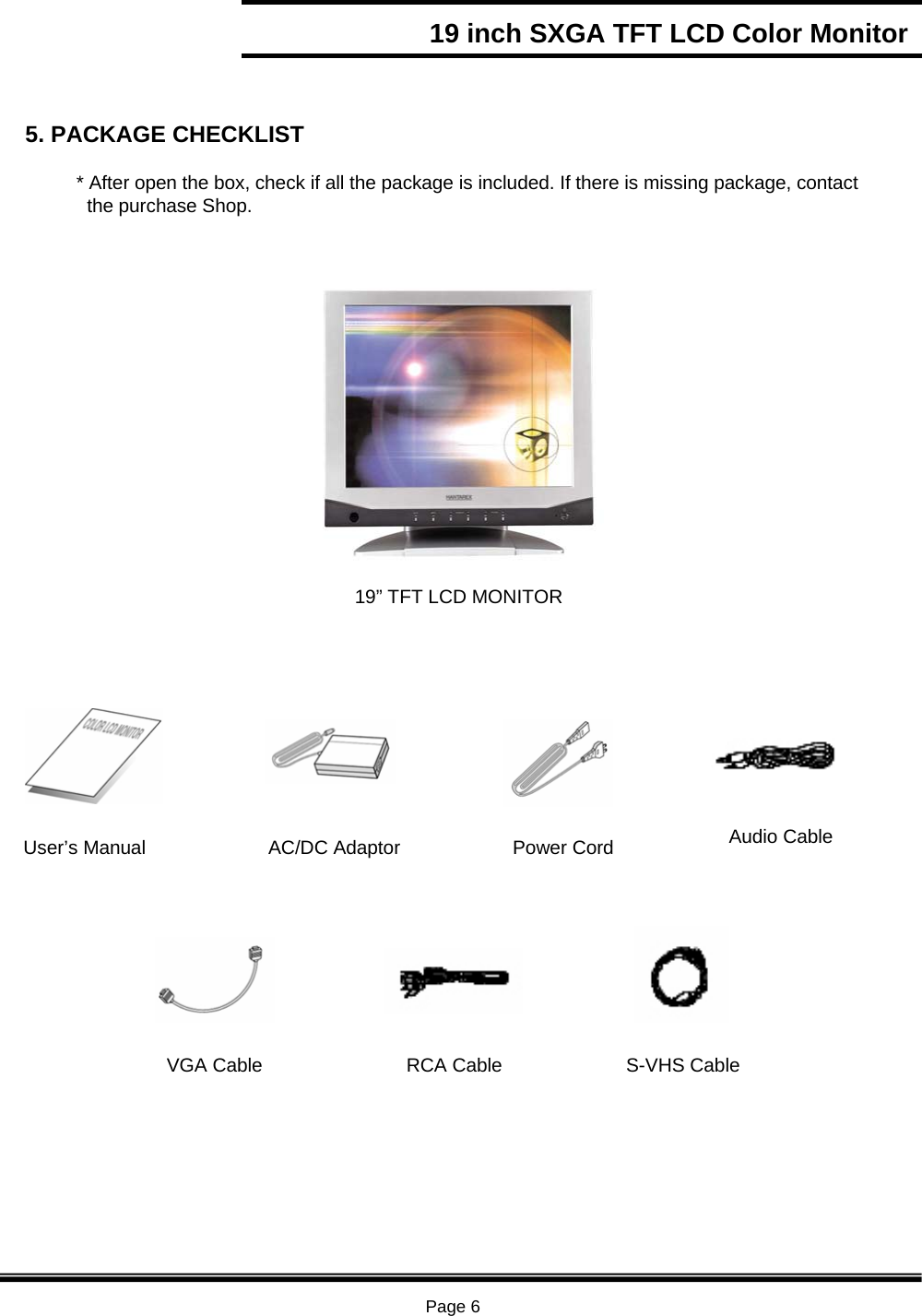

Page 619 inch SXGA TFT LCD Color Monitor5. PACKAGE CHECKLIST* After open the box, check if all the package is included. If there is missing package, contact the purchase Shop.19” TFT LCD MONITORAC/DC Adaptor Power CordVGA CableAudio CableRCA Cable S-VHS CableUser’s Manual

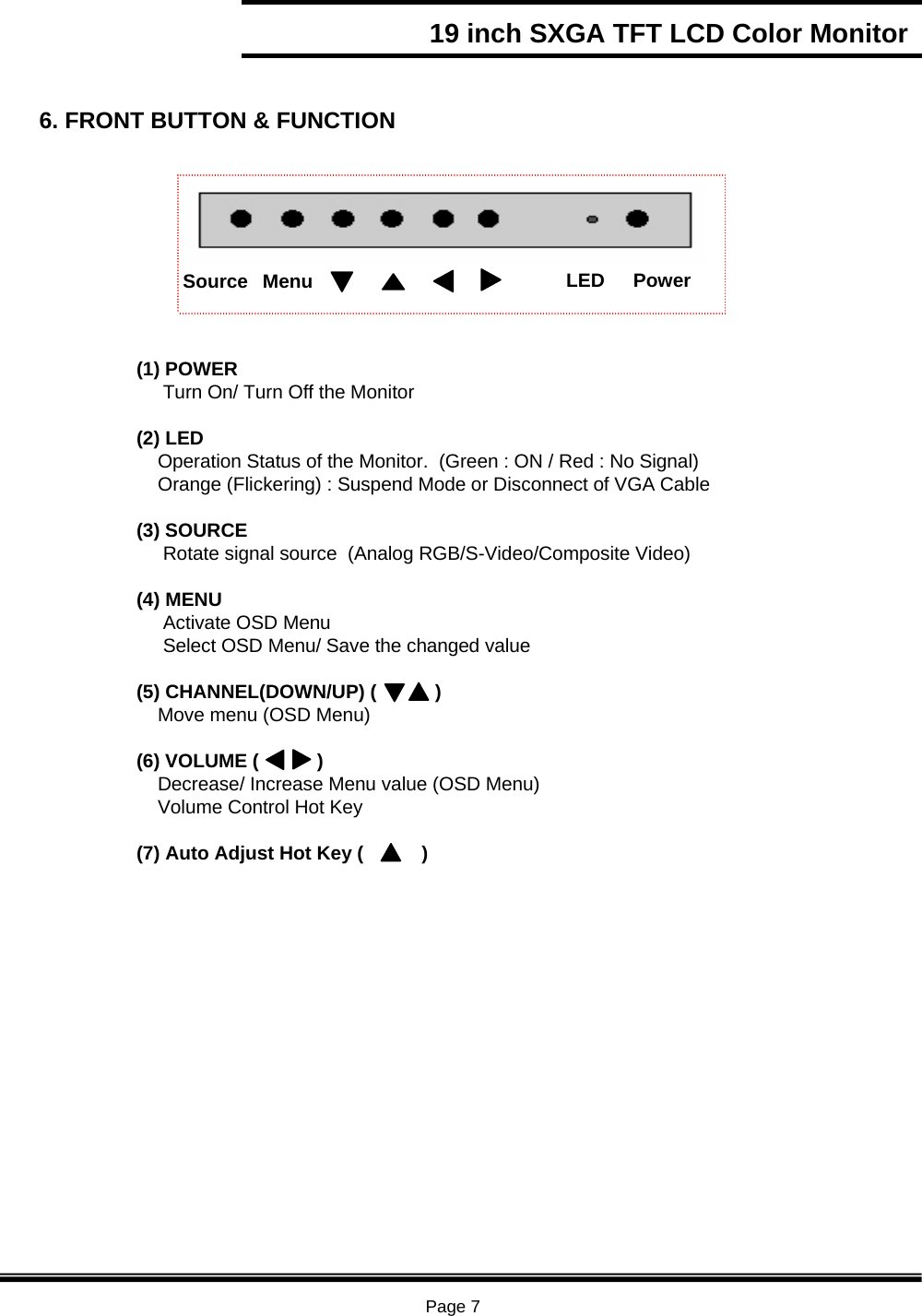

Page 719 inch SXGA TFT LCD Color Monitor6. FRONT BUTTON & FUNCTIONSource Menu LED Power Menu(1) POWERTurn On/ Turn Off the Monitor(2) LEDOperation Status of the Monitor. (Green : ON / Red : No Signal)Orange (Flickering) : Suspend Mode or Disconnect of VGA Cable(3) SOURCERotate signal source (Analog RGB/S-Video/Composite Video)(4) MENU Activate OSD MenuSelect OSD Menu/ Save the changed value(5) CHANNEL(DOWN/UP) ( )Move menu (OSD Menu)(6) VOLUME ( )Decrease/ Increase Menu value (OSD Menu)Volume Control Hot Key(7) Auto Adjust Hot Key ( )

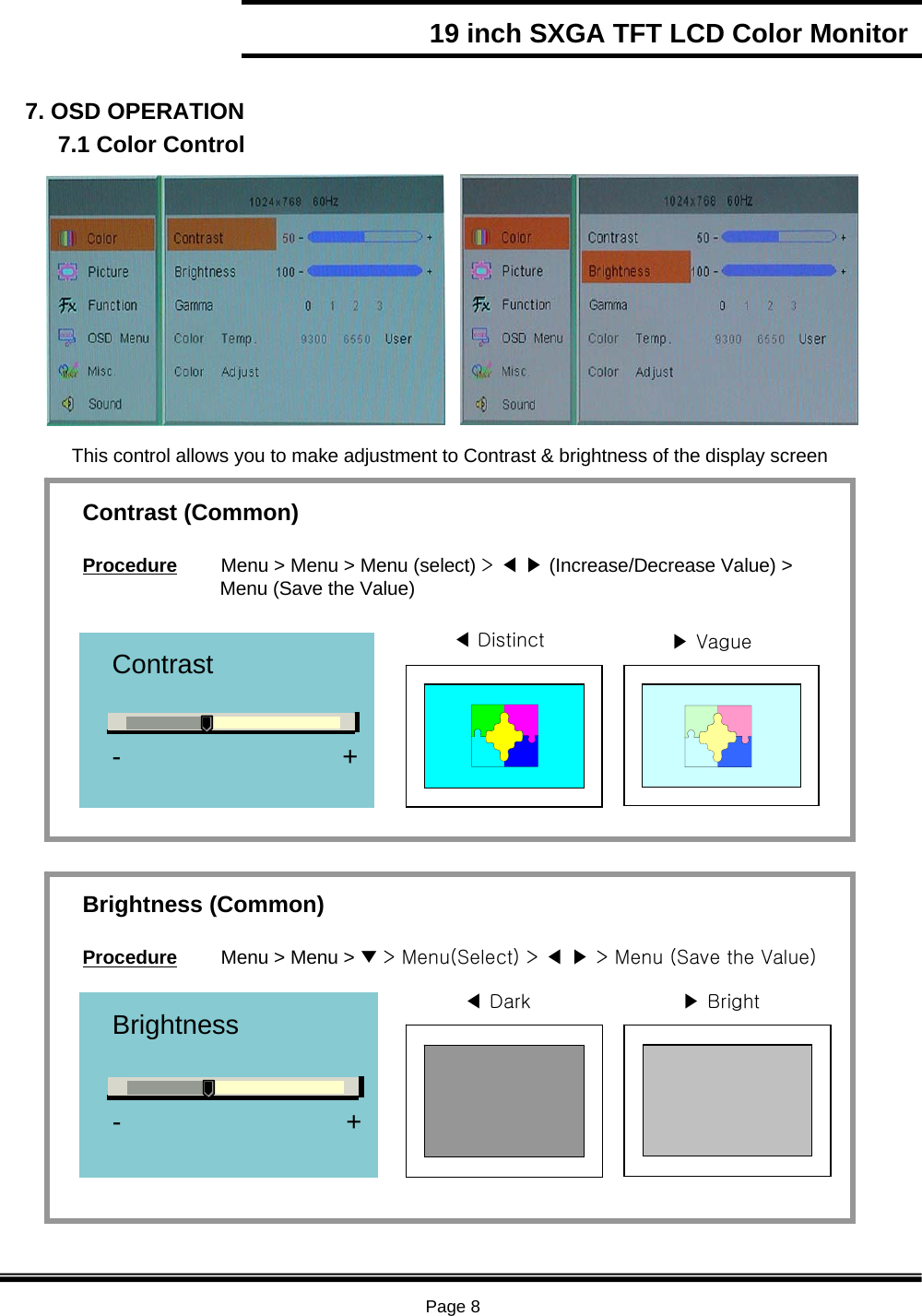

Page 819 inch SXGA TFT LCD Color Monitor7. OSD OPERATION7.1 Color Control This control allows you to make adjustment to Contrast & brightness of the display screen Contrast (Common)Procedure Menu > Menu > Menu (select) > ◀ ▶ (Increase/Decrease Value) > Menu (Save the Value)◀Distinct ▶VagueContrast+-Brightness (Common)Procedure Menu > Menu > ▼ > Menu(Select) > ◀ ▶ > Menu (Save the Value)◀Dark ▶BrightBrightness+-

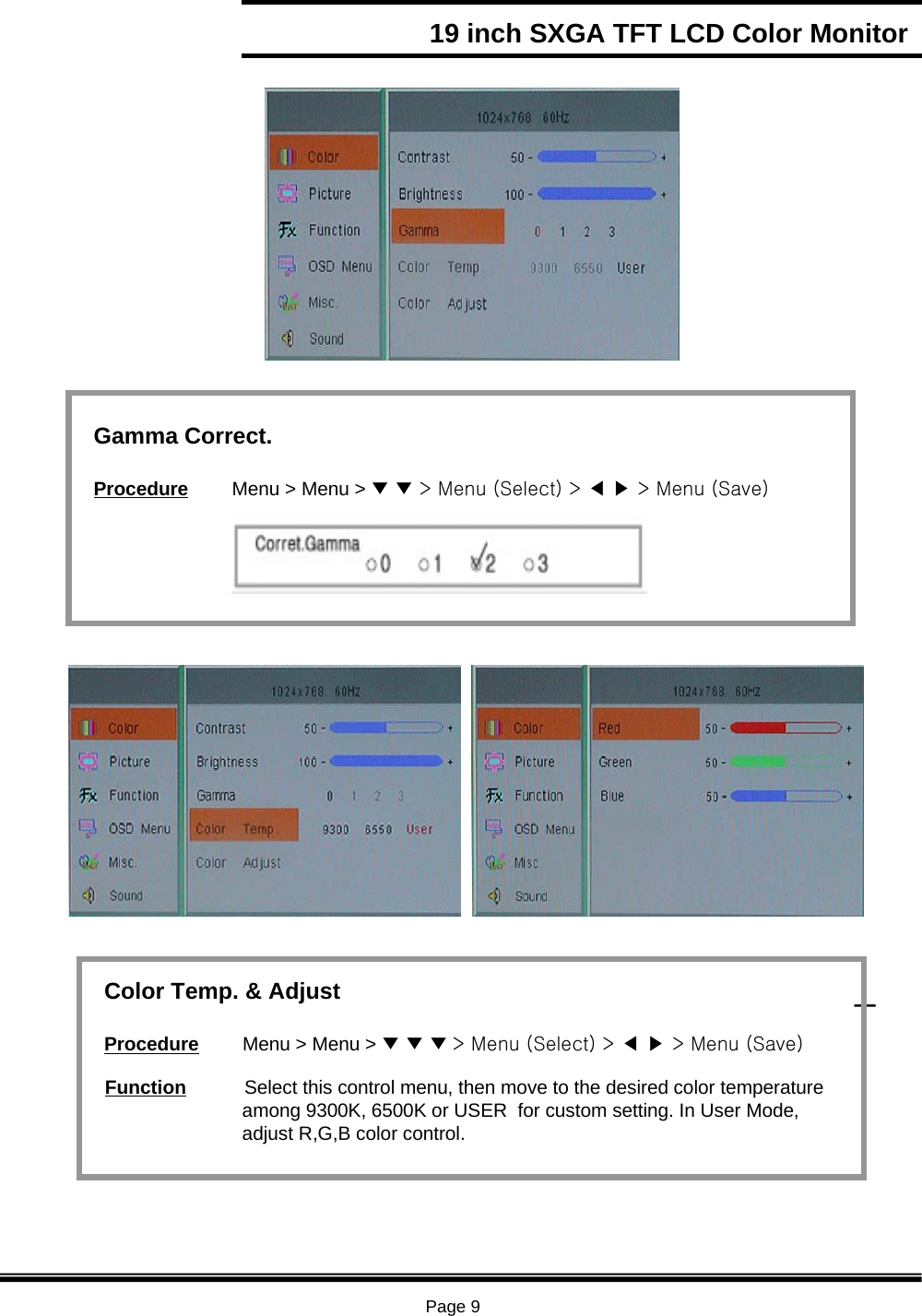

Page 919 inch SXGA TFT LCD Color MonitorGamma Correct.Procedure Menu > Menu > ▼ ▼ > Menu (Select) > ◀ ▶ > Menu (Save)+Color Temp. & AdjustProcedure Menu > Menu > ▼ ▼ ▼ > Menu (Select) > ◀ ▶ > Menu (Save)Function Select this control menu, then move to the desired color temperature among 9300K, 6500K or USER for custom setting. In User Mode, adjust R,G,B color control.

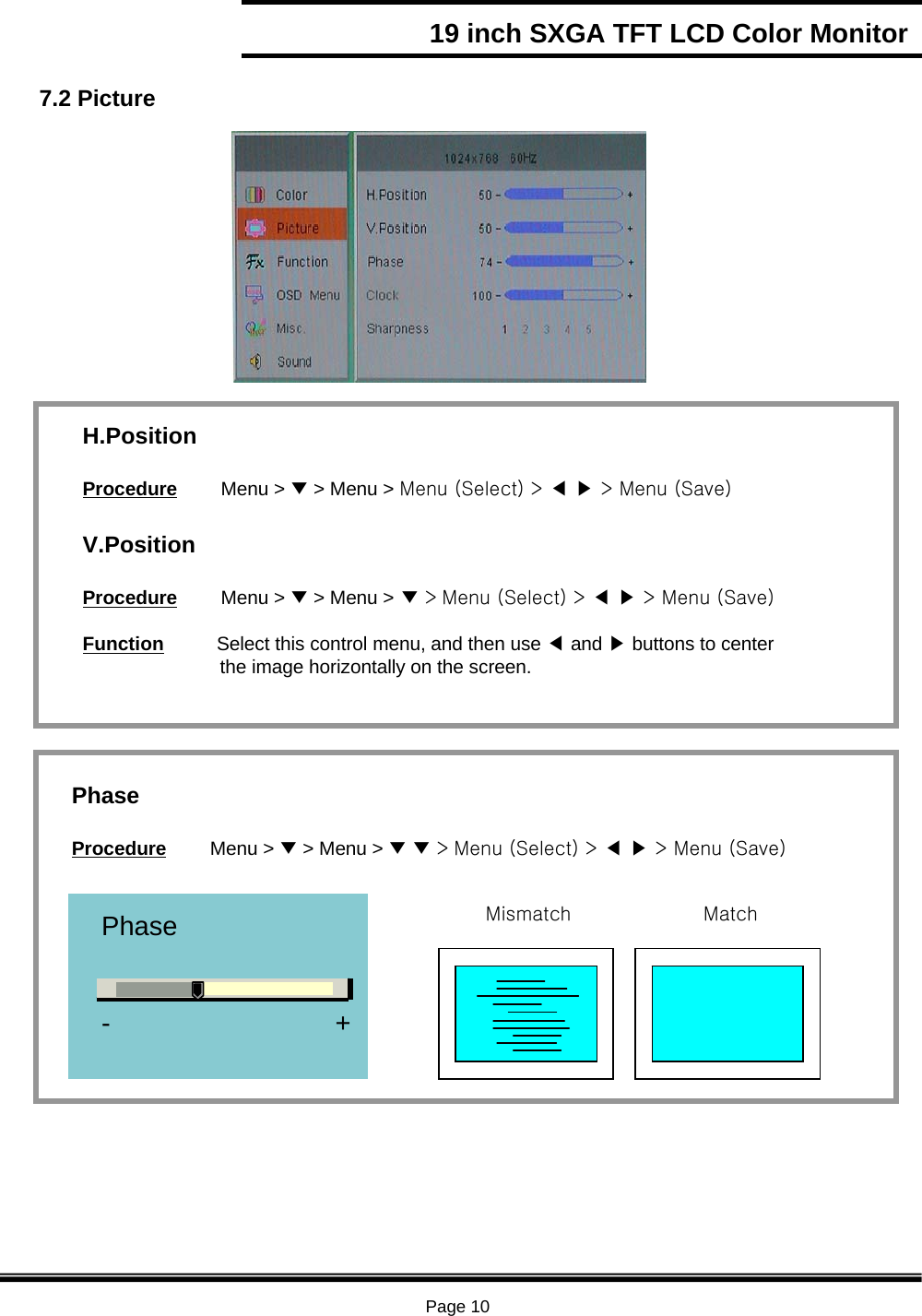

Page 1019 inch SXGA TFT LCD Color Monitor7.2 Picture H.PositionProcedure Menu > ▼> Menu > Menu (Select) > ◀ ▶ > Menu (Save)V.PositionProcedure Menu > ▼> Menu > ▼ > Menu (Select) > ◀ ▶ > Menu (Save)Function Select this control menu, and then use ◀and ▶buttons to center the image horizontally on the screen.Phase+-Mismatch MatchPhaseProcedure Menu > ▼> Menu > ▼ ▼ > Menu (Select) > ◀ ▶ > Menu (Save)

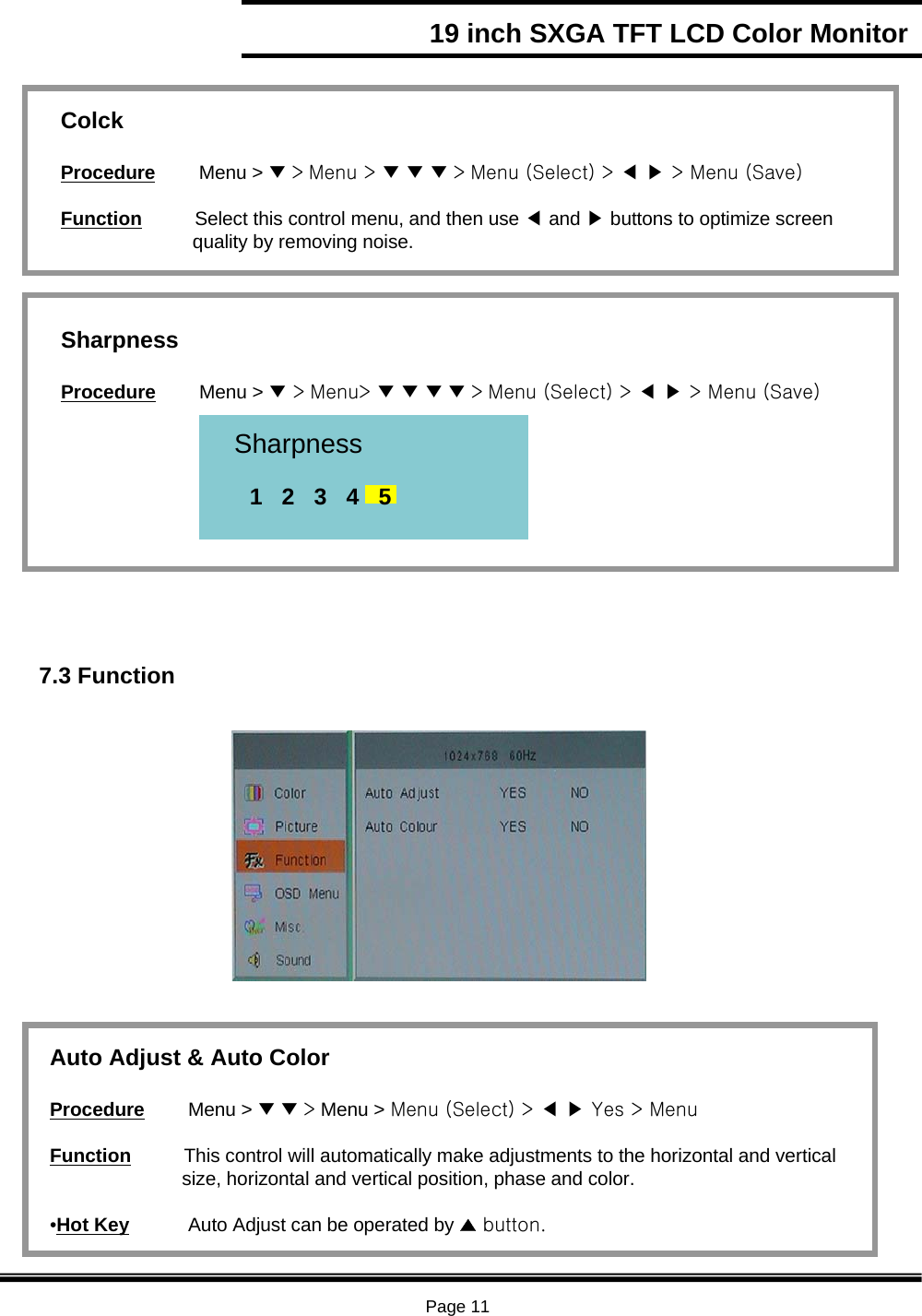

Page 1119 inch SXGA TFT LCD Color MonitorColckProcedure Menu > ▼ > Menu > ▼ ▼ ▼ > Menu (Select) > ◀ ▶ > Menu (Save)Function Select this control menu, and then use ◀and ▶buttons to optimize screen quality by removing noise.SharpnessProcedure Menu > ▼ > Menu> ▼ ▼ ▼ ▼ > Menu (Select) > ◀ ▶ > Menu (Save)Sharpness1 2 3 4 5 7.3 Function Auto Adjust & Auto ColorProcedure Menu > ▼▼>Menu > Menu (Select) > ◀ ▶ Yes > MenuFunction This control will automatically make adjustments to the horizontal and vertical size, horizontal and vertical position, phase and color.•Hot Key Auto Adjust can be operated by ▲button.

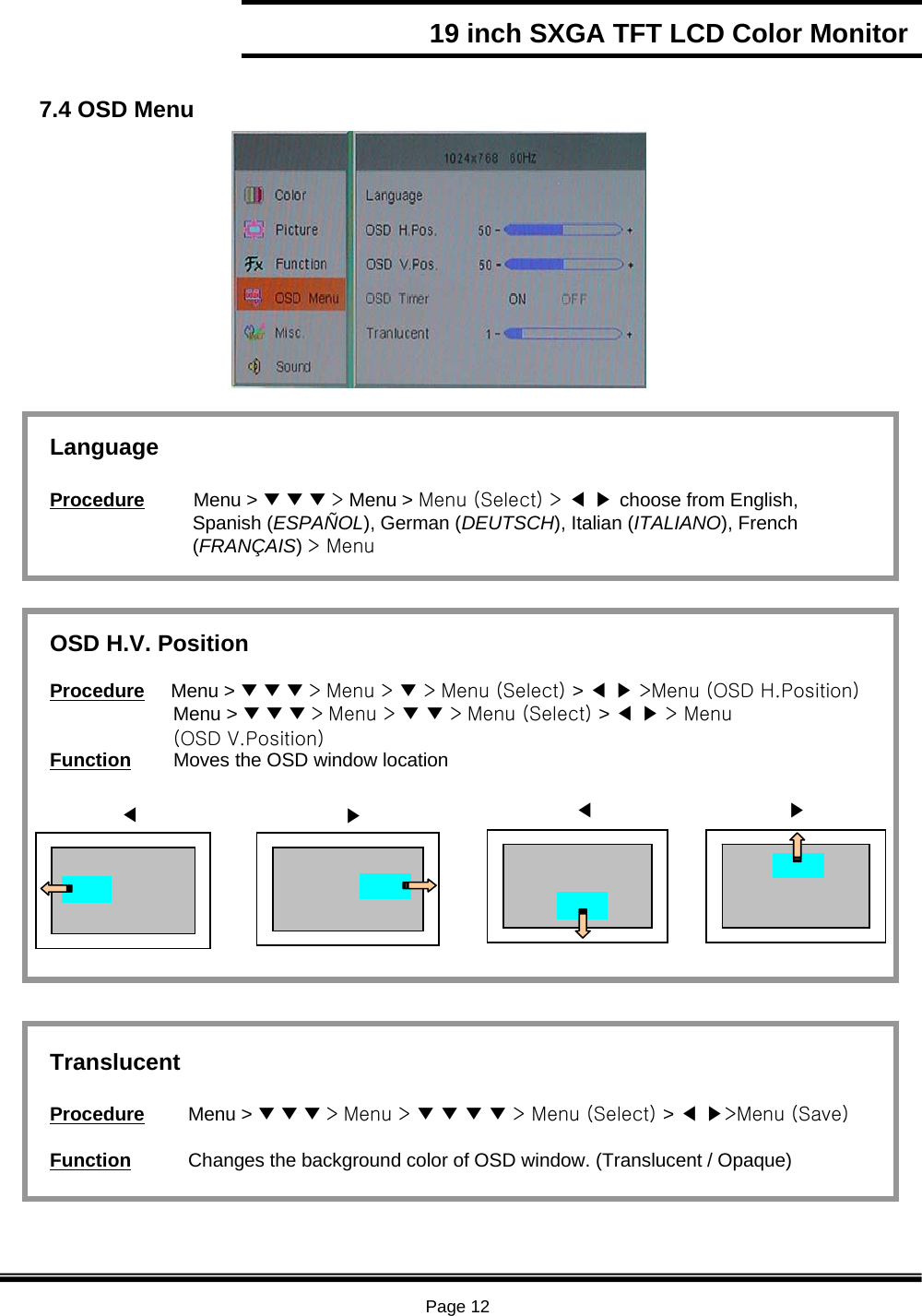

Page 1219 inch SXGA TFT LCD Color Monitor7.4 OSD MenuLanguageProcedure Menu > ▼▼▼>Menu > Menu (Select) > ◀ ▶ choose from English,Spanish (ESPAÑOL), German (DEUTSCH), Italian (ITALIANO), French (FRANÇAIS) > MenuOSD H.V. PositionProcedure Menu > ▼▼▼>Menu > ▼>Menu (Select) > ◀ ▶ >Menu (OSD H.Position)Menu > ▼ ▼ ▼ > Menu > ▼ ▼ > Menu (Select) > ◀▶> Menu (OSD V.Position)Function Moves the OSD window location◀▶◀▶TranslucentProcedure Menu > ▼▼▼>Menu > ▼▼▼▼> Menu (Select) > ◀▶>Menu (Save)Function Changes the background color of OSD window. (Translucent / Opaque)

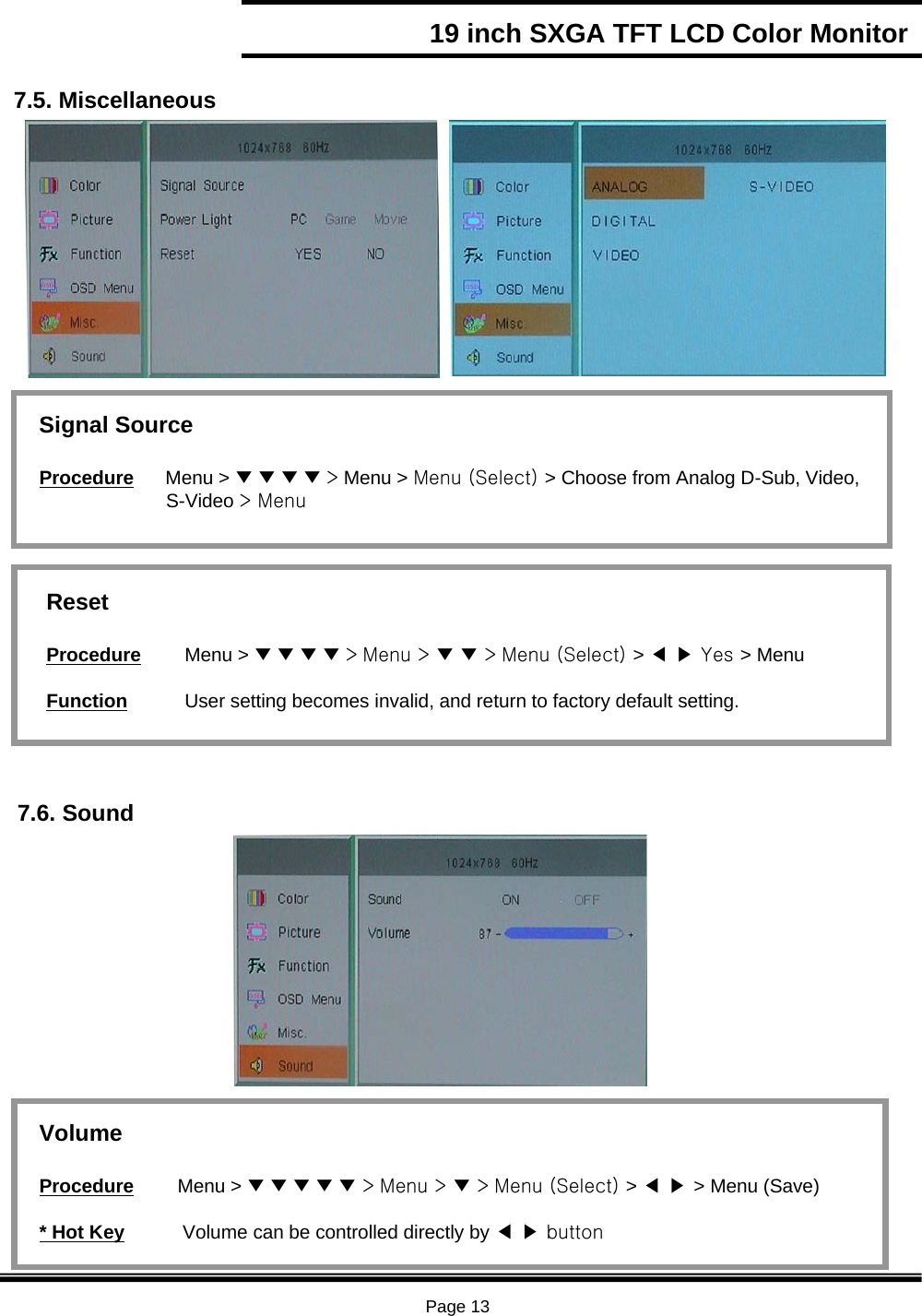

Page 1319 inch SXGA TFT LCD Color Monitor7.5. MiscellaneousSignal SourceProcedure Menu > ▼▼▼▼>Menu > Menu (Select) > Choose from Analog D-Sub, Video, S-Video > MenuResetProcedure Menu > ▼▼▼▼>Menu > ▼▼>Menu (Select) > ◀▶Yes > Menu Function User setting becomes invalid, and return to factory default setting.7.6. SoundVolumeProcedure Menu > ▼▼▼▼▼>Menu > ▼>Menu (Select) > ◀▶> Menu (Save)* Hot Key Volume can be controlled directly by ◀▶button

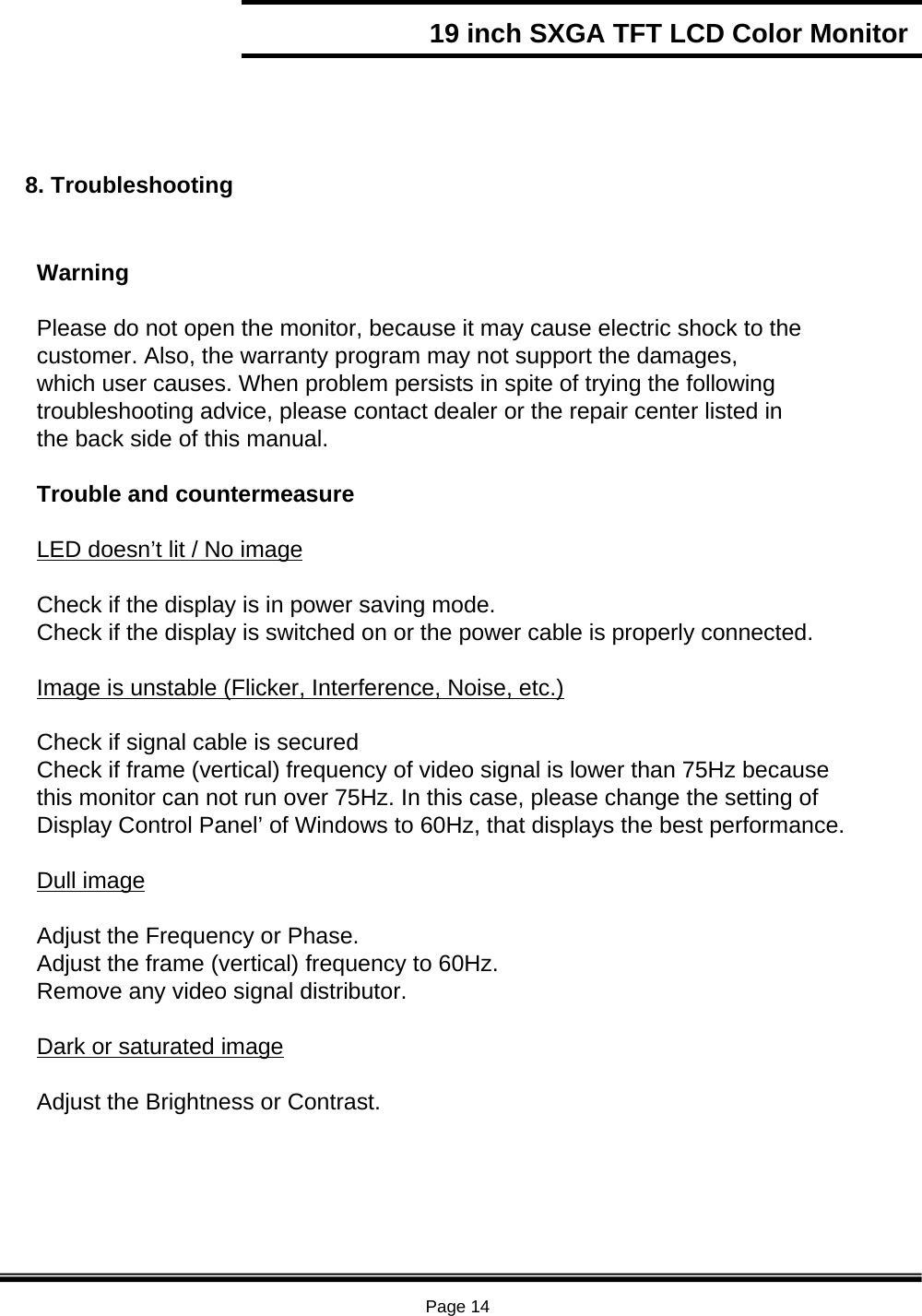

Page 1419 inch SXGA TFT LCD Color Monitor8. TroubleshootingWarningPlease do not open the monitor, because it may cause electric shock to thecustomer. Also, the warranty program may not support the damages,which user causes. When problem persists in spite of trying the followingtroubleshooting advice, please contact dealer or the repair center listed inthe back side of this manual.Trouble and countermeasureLED doesn’t lit / No imageCheck if the display is in power saving mode.Check if the display is switched on or the power cable is properly connected.Image is unstable (Flicker, Interference, Noise, etc.)Check if signal cable is securedCheck if frame (vertical) frequency of video signal is lower than 75Hz becausethis monitor can not run over 75Hz. In this case, please change the setting ofDisplay Control Panel’ of Windows to 60Hz, that displays the best performance.Dull imageAdjust the Frequency or Phase.Adjust the frame (vertical) frequency to 60Hz.Remove any video signal distributor.Dark or saturated imageAdjust the Brightness or Contrast.

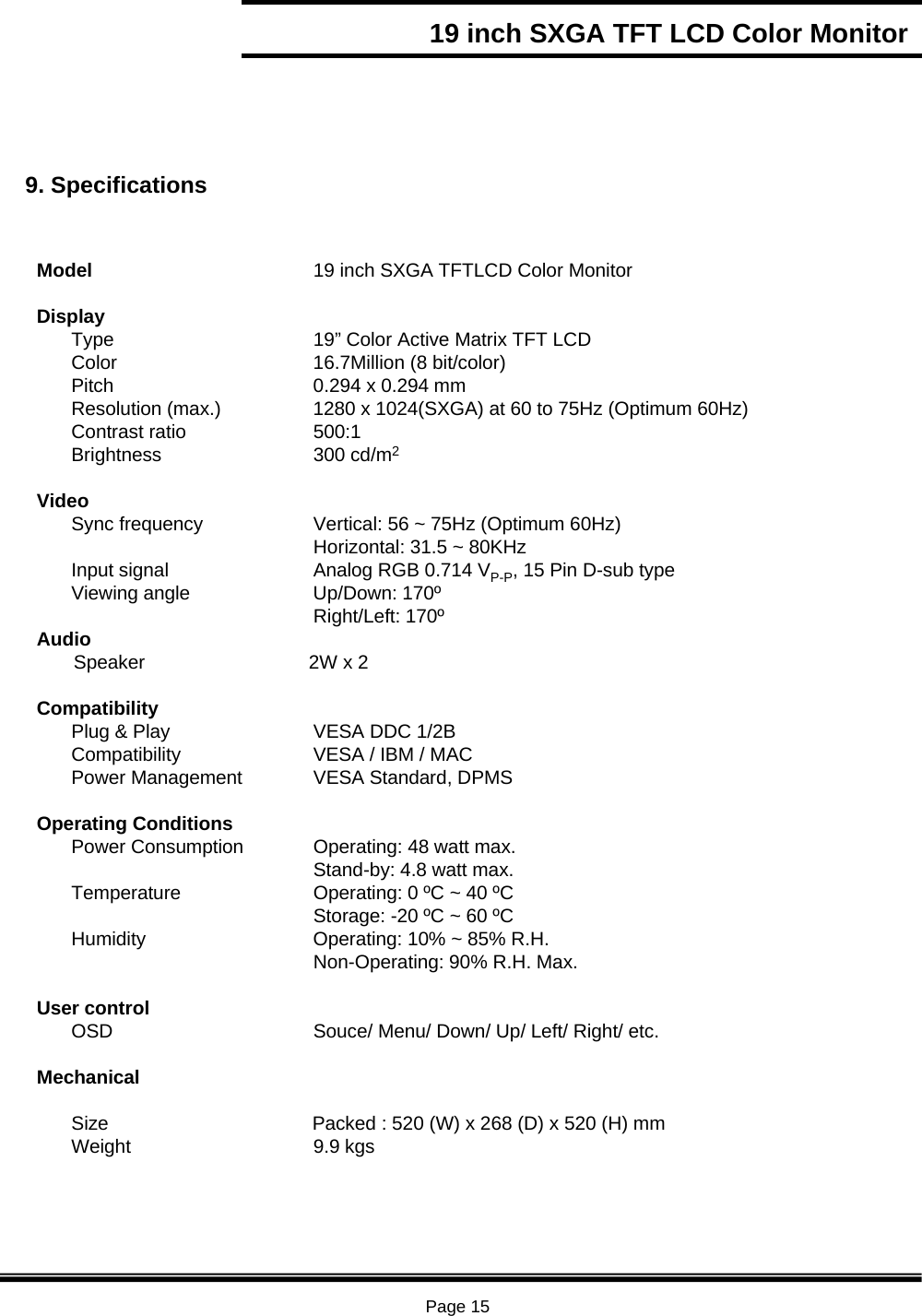

Page 1519 inch SXGA TFT LCD Color Monitor9. SpecificationsModel 19 inch SXGA TFTLCD Color MonitorDisplayType 19” Color Active Matrix TFT LCDColor 16.7Million (8 bit/color)Pitch 0.294 x 0.294 mmResolution (max.) 1280 x 1024(SXGA) at 60 to 75Hz (Optimum 60Hz)Contrast ratio 500:1Brightness 300 cd/m2VideoSync frequency Vertical: 56 ~ 75Hz (Optimum 60Hz)Horizontal: 31.5 ~ 80KHzInput signal Analog RGB 0.714 VP-P, 15 Pin D-sub typeViewing angle Up/Down: 170ºRight/Left: 170ºAudioSpeaker 2W x 2CompatibilityPlug & Play VESA DDC 1/2BCompatibility VESA / IBM / MACPower Management VESA Standard, DPMSOperating ConditionsPower Consumption Operating: 48 watt max.Stand-by: 4.8 watt max.Temperature Operating: 0 ºC ~ 40 ºCStorage: -20 ºC ~ 60 ºC Humidity Operating: 10% ~ 85% R.H.Non-Operating: 90% R.H. Max.User controlOSD Souce/ Menu/ Down/ Up/ Left/ Right/ etc.MechanicalSize Packed : 520 (W) x 268 (D) x 520 (H) mmWeight 9.9 kgs

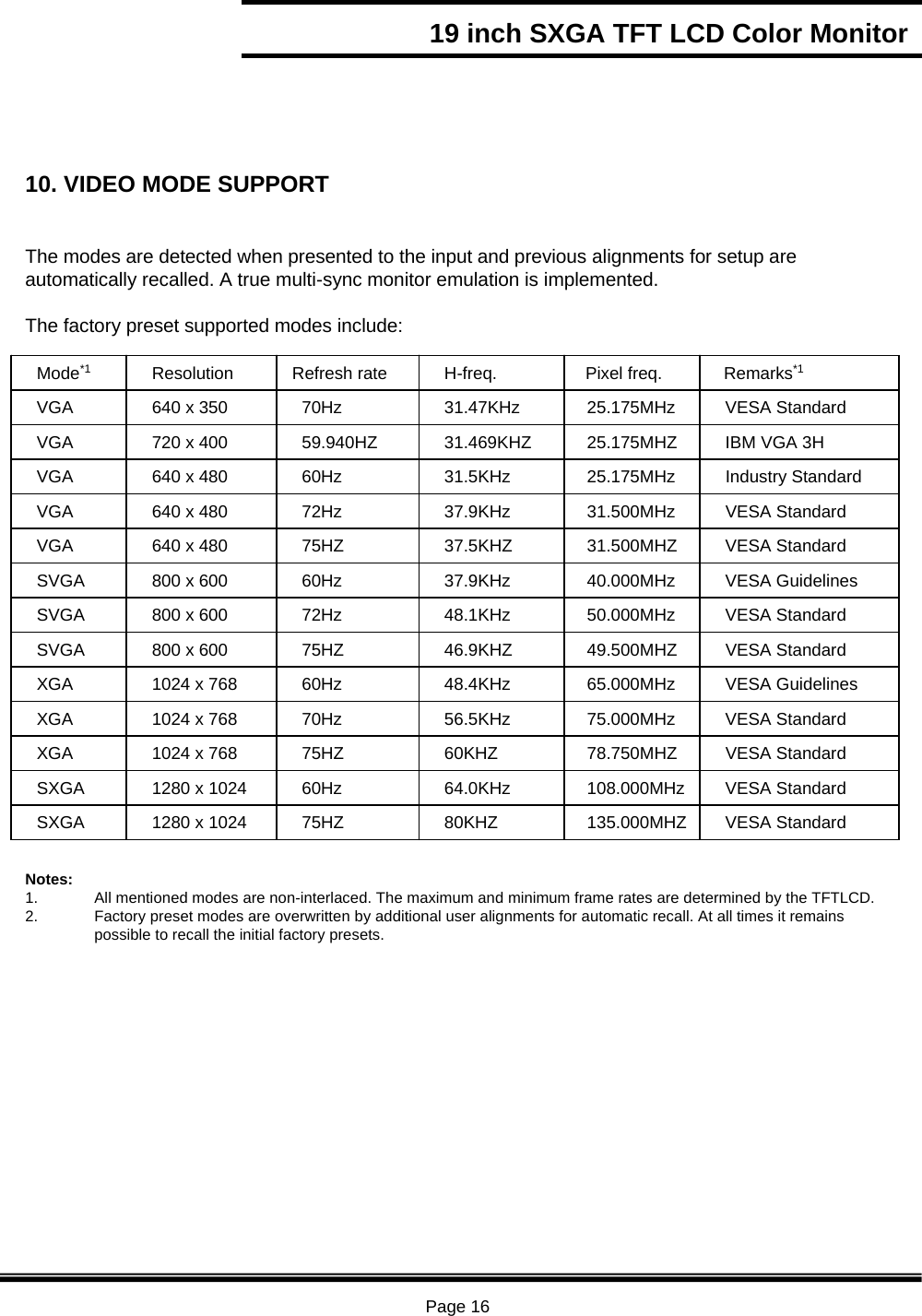

Page 1619 inch SXGA TFT LCD Color Monitor10. VIDEO MODE SUPPORTThe modes are detected when presented to the input and previous alignments for setup areautomatically recalled. A true multi-sync monitor emulation is implemented.The factory preset supported modes include:VESA StandardMode*1 Pixel freq.Resolution640 x 350Industry StandardVESA StandardIBM VGA 3H720 x 400640 x 480640 x 480VESA StandardVESA Guidelines640 x 480800 x 600VESA StandardVESA Standard800 x 600800 x 600Refresh rate H-freq.VESA Guidelines1024 x 768VESA StandardVESA Standard1024 x 7681024 x 768 60KHZ56.5KHzVGAVGAVGAVGAVGASVGASVGASVGAXGAXGAXGA48.4KHz46.9KHZ48.1KHz37.9KHz37.5KHZ37.9KHz31.5KHz31.469KHZ31.47KHz75HZ70Hz60Hz75HZ72Hz60Hz75HZ72Hz60Hz59.940HZ70Hz78.750MHZ75.000MHz65.000MHz49.500MHZ50.000MHz40.000MHz31.500MHZ31.500MHz25.175MHz25.175MHZ25.175MHzRemarks*1VESA StandardVESA Standard1280 x 10241280 x 1024 80KHZ64.0KHzSXGASXGA75HZ60Hz135.000MHZ108.000MHzNotes:1. All mentioned modes are non-interlaced. The maximum and minimum frame rates are determined by the TFTLCD.2. Factory preset modes are overwritten by additional user alignments for automatic recall. At all times it remains possible to recall the initial factory presets.
