LUMI LEGEND ELECTRICAL SW5231 This product is a WiFi socket for 2.4GHz User Manual SW5231 manual 20170921

LUMI LEGEND ELECTRICAL CO.,LTD This product is a WiFi socket for 2.4GHz SW5231 manual 20170921

SW5231 SW5232 manual 20180125

Scan the QR code to download REC App. You can also search keyword “ANKUOO” at App Store or Google Play to download REC App. Then register your account and log in.Press the on/o button for more than 5 sec-onds until the Wi-Fi indicator starts to ash quickly. Wi-Fi Switch is now ready for syn-chronization.Connect your smart phone to Wi-Fi net-work and launch REC App. Click on the device menu to " Add Device".Make sure your smart phone and Wi-Fi switch are in the same Wi-Fi network. The connecting process takes about 30-120 sec-onds, depending on your network condi-tion and the length of Wi-Fi password.If congure failed, please click AP at the right corner. Connect REC_AP_xxxxxx rst, then connect the wi router. Please visit www.ankuoo.com/support for more details.When conguration is done,the Wi-Fi switch will be shown on the REC App. You can change the ON/OFF state at the homep-age.Select the edit icon in the upper right corner. Then you can rename the device and choose an icon, or you can take a photo for your device icon.Guard your house by randomly turning on/o the lamp plugged into Wi-Fi Switch. You choose the time frame and number of slots in certain time period.Anti-theft Timer15 6 72 3 4Scan the QR Devices Add Device Devices Add DeviceSocket3Add Devices APWiFi SSID:Password:Not FoundSearch devide and connect it to WiFi Search devide and connect it to WiFi.(Note:Only 2.4G WiFi is supported) WiFi Device REC LampEvg REC Switch REC Switch ScheduleCountDown Anti- theftTimer EditREC Switch Name Icon RECSwitch Sche duleCountDown A nti-the ftTimer RECSwitch 定时 倒计时 防盗 REC Switch ScheduleCountDown Anti- theftTimer Anti-theft Timer From To ： 09 1610 1711 18 ： 09 1610 1711 18RepeatTo ： 10 1611 1712 18ON/OFF

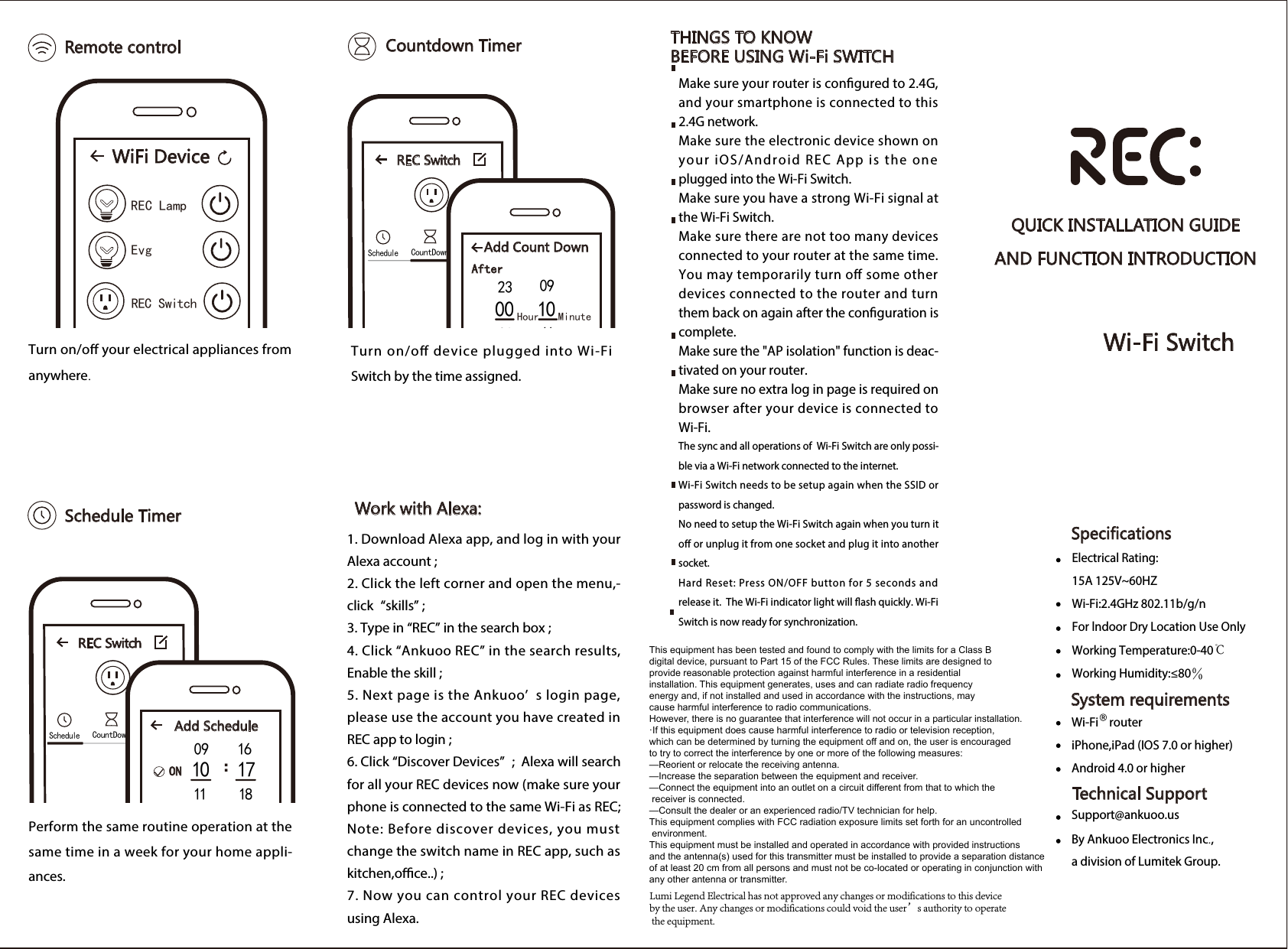

Remote control Countdown Timer THINGS TO KNOW BEFORE USING Wi-Fi SWITCH Work with Alexa:QUICK INSTALLATION GUIDEAND FUNCTION INTRODUCTIONWi-Fi Switch Schedule TimerTurn on/o your electrical appliances from anywhere.Turn on/o device plugged into Wi-Fi Switch by the time assigned.Perform the same routine operation at the same time in a week for your home appli-ances.1. Download Alexa app, and log in with your Alexa account ;2. Click the left corner and open the menu,-click “skills” ;3. Type in “REC” in the search box ;4. Click “Ankuoo REC” in the search results, Enable the skill ;5. Next page is the Ankuoo’ s login page, please use the account you have created in REC app to login ; 6. Click “Discover Devices” ; Alexa will search for all your REC devices now (make sure your phone is connected to the same Wi-Fi as REC; Note: Before discover devices, you must change the switch name in REC app, such as kitchen,oce..) ;7. Now you can control your REC devices using Alexa.WiFi Device REC LampEvg REC Switch REC Switch ScheduleCountDown Anti- theftTimer Add Count Down PowerAfter Hour Minute 23 0901 115min 10min 15min30min 1h 2h00 10 REC Switch ScheduleCountDown Anti- theftTimer Add Schedule OFFON ： 09 1610 1711 18 ： 10 1611 1712 18Make sure your router is congured to 2.4G, and your smartphone is connected to this 2.4G network.Make sure the electronic device shown on your iOS/Android REC App is the one plugged into the Wi-Fi Switch.Make sure you have a strong Wi-Fi signal at the Wi-Fi Switch.Make sure there are not too many devices connected to your router at the same time. You may temporarily turn o some other devices connected to the router and turn them back on again after the conguration is complete.Make sure the "AP isolation" function is deac-tivated on your router.Make sure no extra log in page is required on browser after your device is connected to Wi-Fi.The sync and all operations of Wi-Fi Switch are only possi-ble via a Wi-Fi network connected to the internet. Wi-Fi Switch needs to be setup again when the SSID or password is changed.No need to setup the Wi-Fi Switch again when you turn it o or unplug it from one socket and plug it into another socket.Hard Reset: Press ON/OFF button for 5 seconds and release it. The Wi-Fi indicator light will ash quickly. Wi-Fi Switch is now ready for synchronization. Specifications System requirementsTechnical SupportElectrical Rating:15A 125V~60HZ Wi-Fi:2.4GHz 802.11b/g/nFor lndoor Dry Location Use OnlyWorking Temperature:0-40℃Working Humidity:≤80％Wi-Fi routeriPhone,iPad (IOS 7.0 or higher)Android 4.0 or higher Support@ankuoo.usBy Ankuoo Electronics Inc., a division of Lumitek Group.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.·If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.Lumi Legend Electrical has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment.
