User's Manual
1
TX
TXTX
TX62
6262
62UTH
UTHUTH
UTH-
--
-IT
IT IT
IT
Wireless
Wireless Wireless
Wireless 915
915915
915
MHz
MHz MHz
MHz
Thermo
ThermoThermo
Thermo-
--
-Hygro Sensor
Hygro SensorHygro Sensor
Hygro Sensor
The TX62UTH-IT Solar Thermo-Hygro Transmitter measures the outdoor
temperature and humidity and then transfers the data to the Temperature Station.
INVENTORY OF CONTENTS
INVENTORY OF CONTENTS INVENTORY OF CONTENTS
INVENTORY OF CONTENTS
1. One TX62UTH-IT Solar Thermo-Hygro Sensor.
2. A plastic reset rod.
3. Mounting hardware.
4. Instruction manual.
IMPORTANT NOTES ON SETUP AND OPERATION
• The Thermo-Hygro Sensor should be placed in a dry area.
• The Thermo-Hygro Sensor consumes solar power and internal
rechargeable batteries.
• Fog and mist will not harm the device but direct rain must be avoided.
• The Thermo-Hygro Sensor has a range of 330 feet (100 m). Keep in mind
that the 330 feet is in open air with no obstructions and that radio waves
DO NOT curve around objects. Actual transmission range will vary
depending on what is in the path of the signal. Each obstruction (roof,
walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in
half.
Example: A wireless Weather/ Temperature Station with a 330 feet (100
m) range is mounted on an interior wall, so that the signal has to pass
through one interior wall, one exterior wall, and across the 10 feet (3 m)
width of the room between the 2 walls. The first wall will reduce the range
to 165 feet (50 m), and the second wall will reduce the range to 87 feet
(26.5 m). Factoring in the 10 foot room, this leaves a maximum of 77 feet
(23.5 m) of remaining signal range.
This allowance is typically enough for a frame wall with non-metallic siding;
however certain materials can reduce range even further. Metal siding,
stucco, and some types of glass can reduce signal range by as much as ¾
or more, compared to the ½ reduction typical of most obstructions. It is
possible to receive a signal through these materials, however maximum
range will be much less due to their tendency to absorb or reflect a much
larger portion of the sensor’s signal.
• The Thermo-Hygro Sensor measures and transmits signal about every 8
seconds when its battery voltage is 2.8V or higher.
Note: If the sensor is placed in a dark environment or the battery voltage is
dropped lower than 2.8V, the signal is transmitted every 16 seconds.
• After the batteries of Temperature Station have been installed, the
Temperature Station will search for the signal of Thermo-Hygro Sensor for
duration of few minutes. If the connection process is failed, user shall make
sure the units are within range of each other, or restart the transmitter
starts up procedure again.
IDLE MODE
IDLE MODEIDLE MODE
IDLE MODE
This mode aims to reduce power consumption of the sensor. Under this mode,
the sensor turns off LCD, stops the transmission of signal, checks the battery
voltage and detects the solar cell condition. The IDLE mode happens:
• if the battery voltage is lower than 2.4V, “LO” will be displayed on the LCD
for a short while (around 2 seconds) before the sensor enters into IDLE
mode.
Note: The sensor will check and charge up the internal rechargeable battery
automatically, when it detects the battery voltage rises up to 2.5V, the LCD turns
on and the transmission of signal starts again.
STOP MODE
STOP MODE STOP MODE
STOP MODE
It is the most energy saving mode. Under this mode, the sensor turns off LCD, no
transmission of signal and no checking battery voltage. The sensor shows “StP”
on the LCD for a short while before it enters STOP mode. The STOP mode
happens:
• if the user covers the solar cell for 10 seconds and presses the reset
button.
• if the sensor is placed in the dark environment for 72 hours.
Note: To wake up the Thermo-Hygro Sensor, user has to press the reset button
on the sensor to wake it up again. If the battery voltage is higher than 2.4V, the
LCD turns on and the transmission of signal starts again. However, if the battery
voltage is lower than 2.4V, “LO” will be displayed and then the sensor enters into
IDLE mode. User should place the sensor under a bright environment to charge
up the internal rechargeable batteries.
SETTING UP
SETTING UPSETTING UP
SETTING UP
1. To start the operation, remove the transparent label covered on the Solar
Thermo-Hygro Transmitter and gently press the RESET button once by the
provided plastic reset rod.
Note: It is important to allow sufficient light to reach the solar panel while
activating the transmitter. Place the unit in a bright environment to charge
up the internal rechargeable batteries and do not cover the solar panel with
hands or other objects.
2. All segments of the LCD will light up briefly, the version number, security
code and battery voltage will be displayed sequentially. After a short while,
the instant temperature and humidity display alternatively on the
transmitter, and the transmission of signal to Temperature Station begins.
Note: The displayed battery voltage should be higher than 2.4V to maintain
the normal operation.
3. Insert batteries to the Temperature Station.
IMPORTANT! Make sure the correct polarity when inserting batteries.
4. Once the Temperature Station is powered up, all LCD segments will light
up briefly. The indoor data will be displayed first, and then the outdoor data.
In order to make sure better reception and transmission, the distance
between Solar Thermo-Hygro Transmitter and Temperature Station should
no more than 330 feet (100 meters)
Note: Avoid placing the transmitter onto or in the immediate proximity of
metal window frames. Using other electrical products such as headphones
or speakers operating on the 915MHz frequency may prevent reception of
the transmitted data.
5. If the Temperature Station does not receive signal of the Solar Thermo-
Hygro Transmitter after 5 minutes. Remove all batteries of the Temperature
Station and restart from step 1.
MOUNTING
MOUNTINGMOUNTING
MOUNTING
THE SOLAR THERMO-HYGRO TRANSMITTER
The Thermo-Hygro Sensor can be mounted onto a wall with the use of screws
MOUNTING WITH SCREWS
1. Remove the mounting bracket from the Thermo-Hygro
Sensor.
2. Place the mounting bracket over the desired location.
3. Through the two screw holes of the bracket, mark the
mounting surface with a pencil.
4. Screw mounting bracket onto the mounting surface.
Ensure that the screws are tight against the bracket.
5. Insert the Thermo-Hygro Sensor into the bracket.
TABLE STANDING OR OTHERS
With the mounting bracket installed at the bottom or the top of the sensor, user
can place it on any flat surface.
Note: Before permanently fixing the remote thermo-hygro sensor, place all units
in the desired locations to check that the outdoor temperature readings are
receivable. In event that the signal is not received, relocate the remote thermo-
hygro sensor or move them slightly as this may help the signal reception.
MAINTENANCE AND CARE
MAINTENANCE AND CAREMAINTENANCE AND CARE
MAINTENANCE AND CARE
• Extreme temperatures, vibration, and shock should be avoided to prevent
damage to the units.
• Clean displays and units with a soft, damp cloth. Do not use solvents or
scouring agents; they may mark the displays and casings.
• Do not submerge in water.
• Immediately remove all low powered batteries to avoid leakage and
damage.
• Opening the casings invalidates the warranty. Do not try to repair the unit.
Contact La Crosse Technology for repairs.
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
Note: Detailed set-up procedures of the Temperature Station and the Thermo-
Hygro Sensor refer to the main operation manual of Temperature Station.
D
ata measuring range:
Outdoor temperature: -39.2°F to 139.8°F with 0.2°F resolution
“--.-” displayed if outside this range
Outdoor humidity: 1% to 99% with 1% resolution.
“1%” will be displayed if the value ≤1%, and
“99%” will be displayed if the value ≥ 99%.
Transmission range: 330 feet (100 m) in open space
Operating voltage: 2.4V or higher
Dimensions (L x W x H):
36 x 16 x 102.6mm
Power source : Solar power cell and internal rechargeable
alkaline batteries
WARRANTY INFORMATION
WARRANTY INFORMATIONWARRANTY INFORMATION
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product
against manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on
products purchased and used in North America and only to the original purchaser
of this product. To receive warranty service, the purchaser must contact La
Crosse Technology, Ltd for problem determination and service procedures.
Warranty service can only be performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of sale must be presented upon

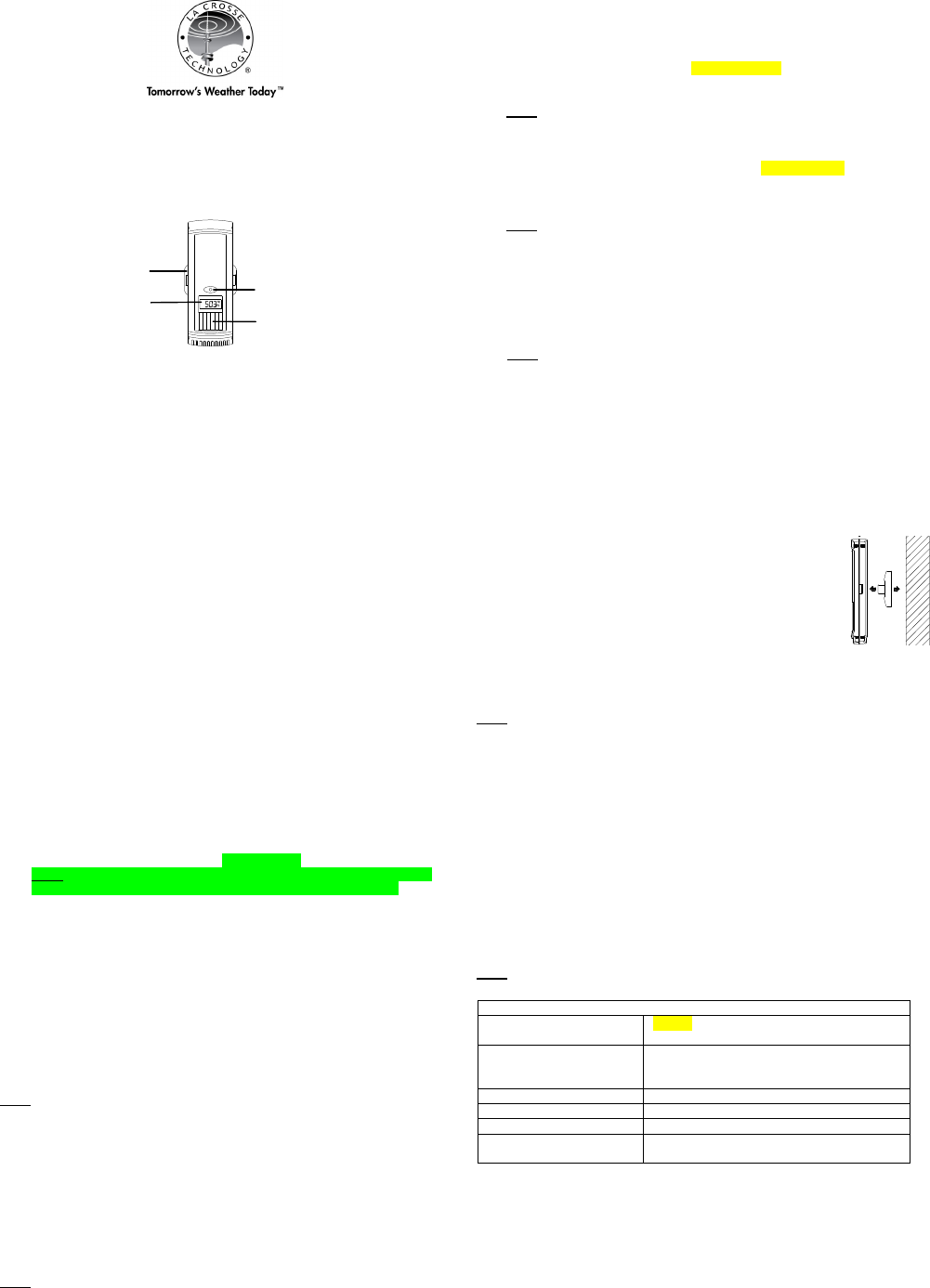

Solar cell
LCD shows outdoor
temperature and
humidity alternatively
Reset button
Mounting bracket
2
request as proof of purchase to La Crosse Technology, Ltd or La Crosse
Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at
no charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above. All
replaced parts and products become the property of La Crosse Technology, Ltd
and must be returned to La Crosse Technology, Ltd. Replacement parts and
products assume the remaining original warranty, or ninety (90) days, whichever
is longer. La Crosse Technology, Ltd will pay all expenses for labor and
materials for all repairs covered by this warranty. If necessary repairs are not
covered by this warranty, or if a product is examined which is not in need or
repair, you will be charged for the repairs or examination. The owner must pay
any shipping charges incurred in getting your La Crosse Technology, Ltd product
to a La Crosse Technology, Ltd authorized service center. La Crosse
Technology, Ltd will pay ground return shipping charges to the owner of the
product to a USA address only.
Your La Crosse Technology, Ltd warranty covers all defects in material and
workmanship with the following specified exceptions: (1) damage caused by
accident, unreasonable use or neglect (including the lack of reasonable and
necessary maintenance); (2) damage occurring during shipment (claims must be
presented to the carrier); (3) damage to, or deterioration of, any accessory or
decorative surface; (4) damage resulting from failure to follow instructions
contained in your owner’s manual; (5) damage resulting from the performance of
repairs or alterations by someone other than an authorized La Crosse
Technology, Ltd authorized service center; (6) units used for other than home
use (7) applications and uses that this product was not intended or (8) the
products inability to receive a signal due to any source of interference.. This
warranty covers only actual defects within the product itself, and does not cover
the cost of installation or removal from a fixed installation, normal set-up or
adjustments, claims based on misrepresentation by the seller or performance
variations resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS
PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL
PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A
TOY. KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights
specific to your State. Some States do no allow the exclusion of consequential
or incidental damages therefore the above exclusion of limitation may not apply
to you.
For warranty work, technical support, or information contact:
La Crosse Technology
2817 Losey Blvd. South
La Crosse, WI 54601
The complete instruction manual is available at:
www.lacrossetechnology.com/support
Le manuel d’instruction complet est disponible sur:
www.lacrossetechnology.com/support
El manual de instrucciones completo está disponible en:
www.lacrossetechnology.com/support
FCC D
FCC DFCC D
FCC DISCLAIMER
ISCLAIMERISCLAIMER
ISCLAIMER
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
All rights reserved. This handbook must not be reproduced in any form, even in
excerpts, or duplicated or processed using electronic, mechanical or chemical
procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We
accept no liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
EJMATX62L220
Printed in China
