La Crosse Technology TX141W Wind Speed Weather Station User Manual
La Crosse Technology Ltd. Wind Speed Weather Station Users Manual
Users Manual
![](/img.php?id=2762284&img=bg1.png)
Model: 327-1414W
Instructional Manual
DC: 091115
Table Of Contents
Wind Speed Weather Station
Button Location .....................................
Initial Setup and Assembly ................
Button Functions ...................................
LCD Layout ..............................................
Settings .....................................................
Color Wind Speed Graph ....................
Top Wind Speed Number ...................
Wind History ...........................................
Current Wind Speed .............................
Wind, Temperature, Humidity Alert ..
Arm and Disarm Alerts ........................
Heat Index and Dew Point .................
Backlight ...................................................
Forecast Information ............................
Forecast Indicator ..................................
1
2
5
6
7
9
9
9
10
10
11
11
11
12
12
24 Hour MAX/MIN Temp/Humidity ..
Additional Temp/Humidity Sensors ..
Channel Indicators ................................
Channel Auto Scroll ..............................
Replace Wind Cups ................................
Position Wind Sensor ............................
Position Add On Sensors .....................
Position Weather Station .....................
Restart ........................................................
Change Batteries ....................................
Care and Maintenance .........................
Warranty and Support Information ..
FCC Statement ........................................
Canada Statement .................................
Atomic Time Signal ............................... 12
12
13
13
13
14
14
15
16
16
17
17
18
19
15
19
![](/img.php?id=2762284&img=bg2.png)
Page | 1 www.lacrossetechnology.com/support Model: 327-1414W

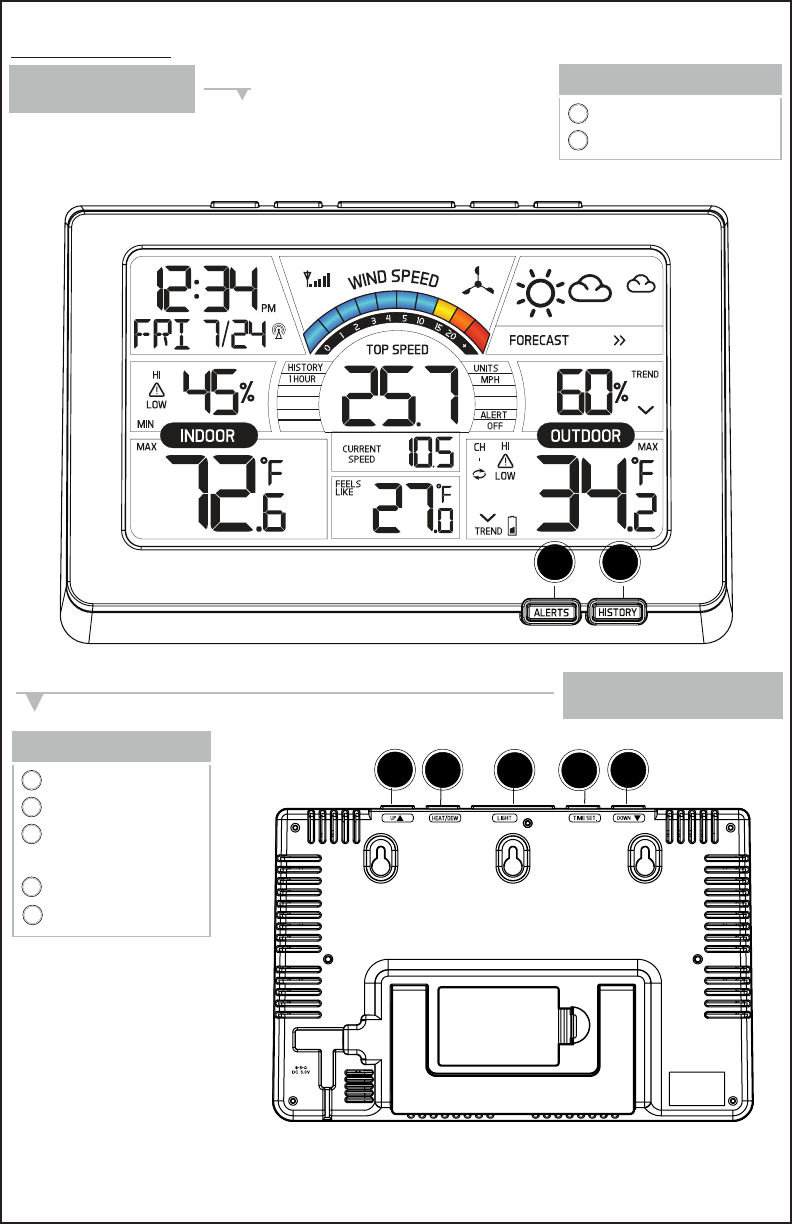

Back View
Front View
1
History
Front Buttons
1
2
Alerts
Button Location
2
1
Heat/Dew
Top Buttons
2
Up
Light
(HI/LOW-OFF)
3
Time Set
4
Down
5
51 234
![](/img.php?id=2762284&img=bg3.png)

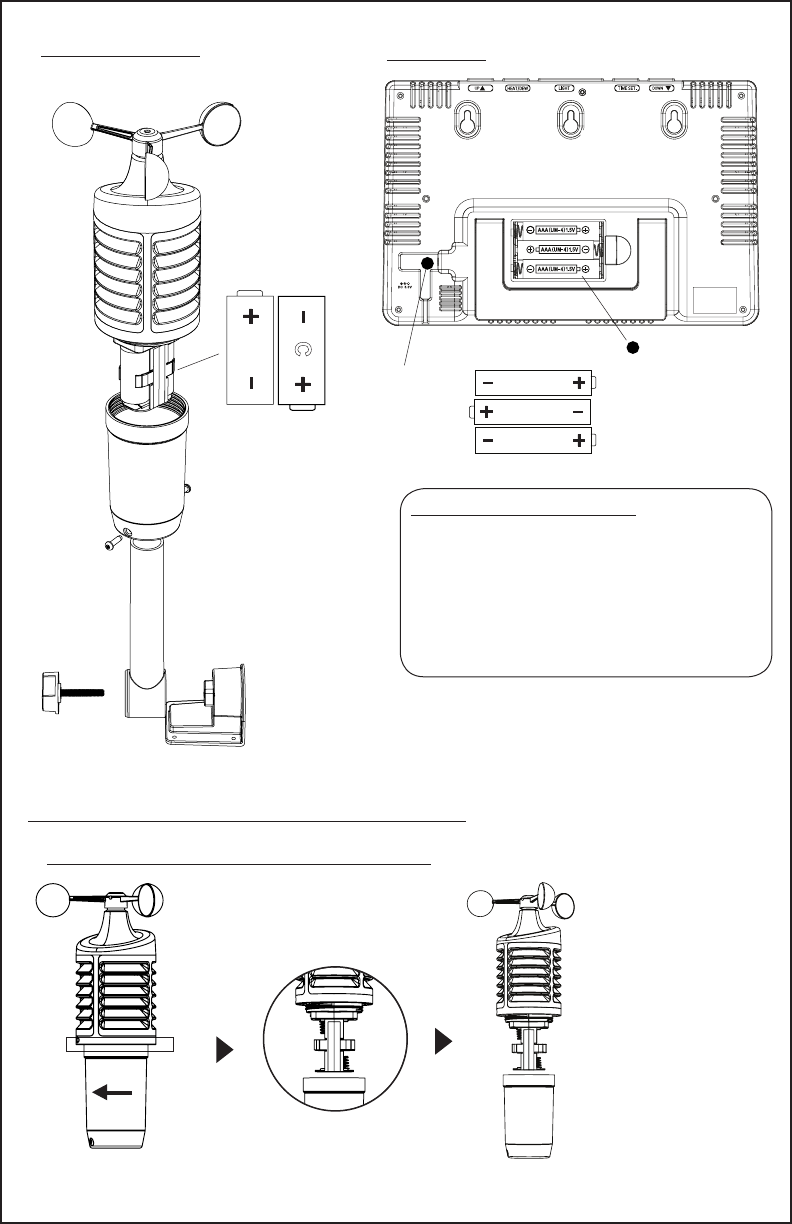

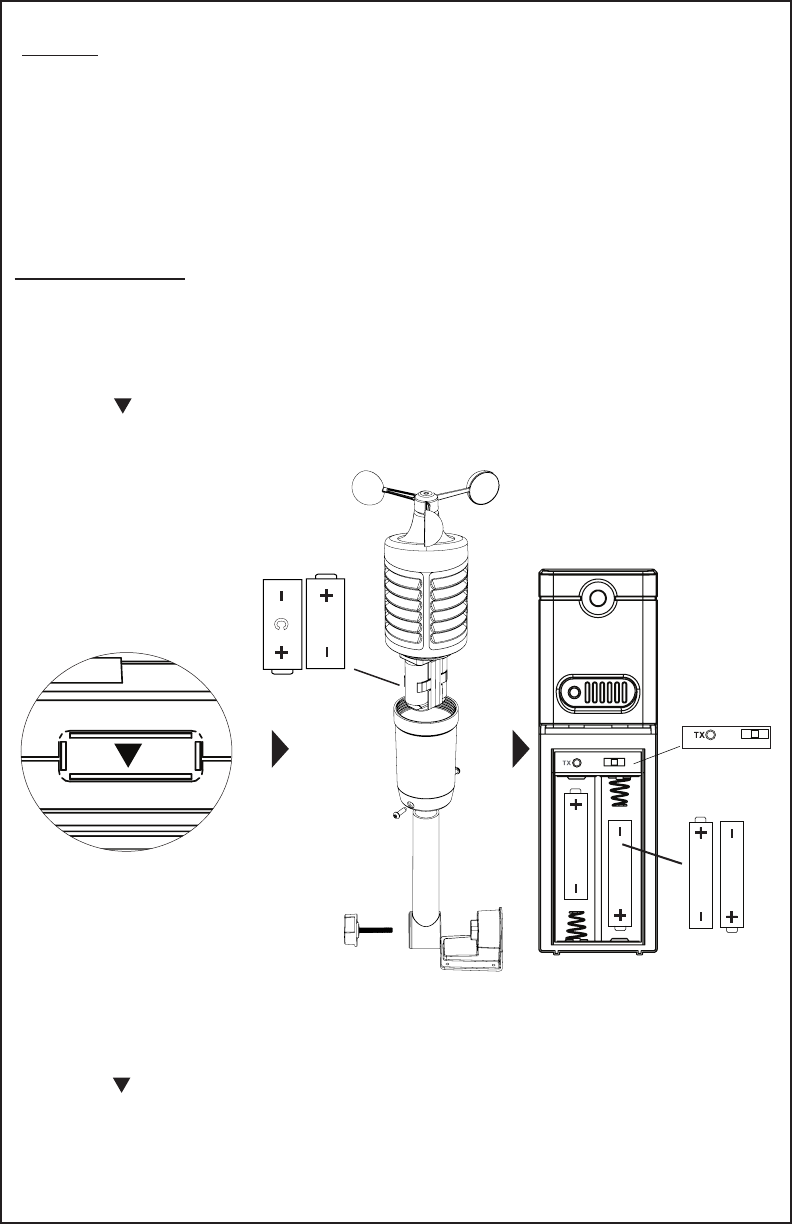

Initial Setup and Assembly - TX141W Sensor
Outdoor Sensor
TX141W
Battery
Compartment
3 “AAA” Batteries
Back View
AAA
AAA
Model: 327-1414W www.lacrossetechnology.com/support Page | 2
AAA
C
C
1. Twist battery cover left to remove from sensor.
Twist
Left
Power the Weather Station:
1. Insert AC adapter into the outlet
and into the weather station
2. Insert three AAA batteries into
the weather station (optional).
3. After 15 minutes, mount the sensor
outside (position Wind Sensor).
AC/DC
Adapter
![](/img.php?id=2762284&img=bg4.png)
C
C
Page | 3 www.lacrossetechnology.com/support Model: 327-1414W

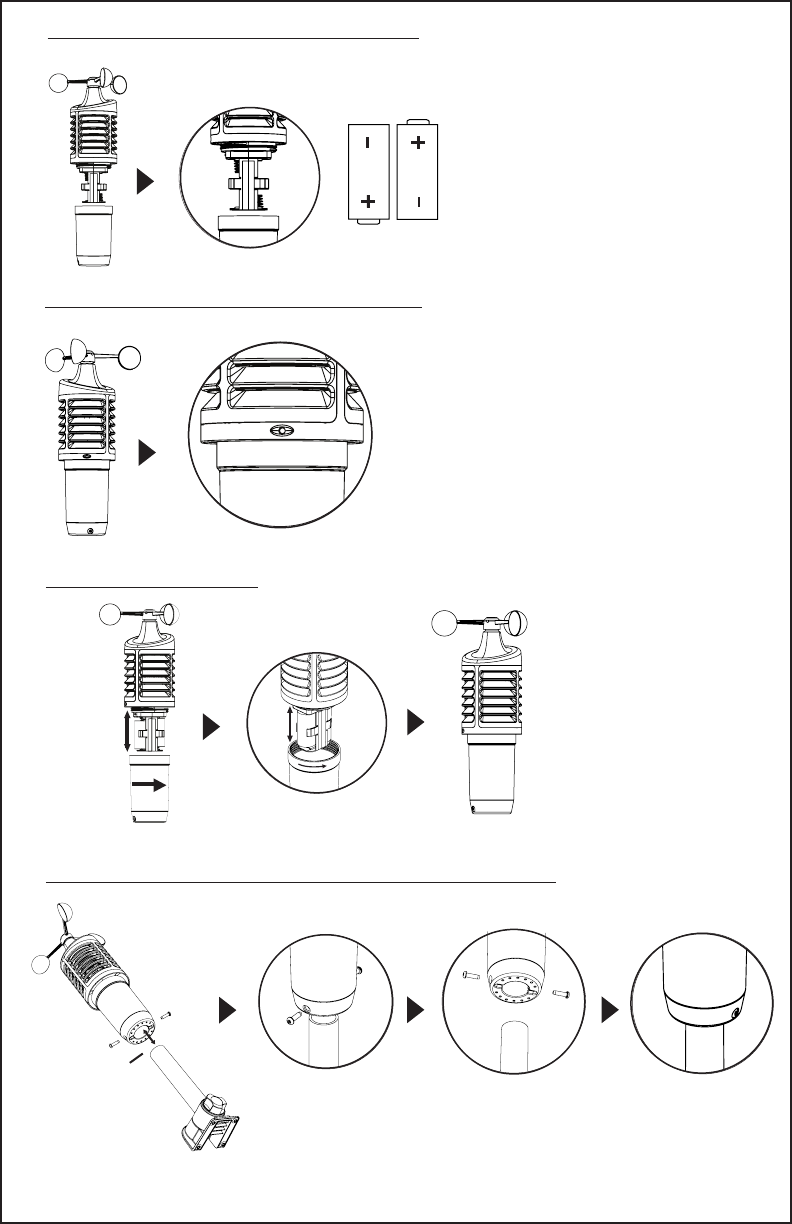

2. Install two “C” batteries according to polarity.
3. The red LED light will ash when transmitting.
4. Replace the battery cover
5. Insert pole into bottom of sensor and secure with two screws.
Do not
overtighten
screws
Turn
right to
tighten
Connect
Connect
the sensor
to the base
Screws into
designated
holes
Insert screws
on each side
of the sensor
![](/img.php?id=2762284&img=bg5.png)
Model: 327-1414W www.lacrossetechnology.com/support Page | 4

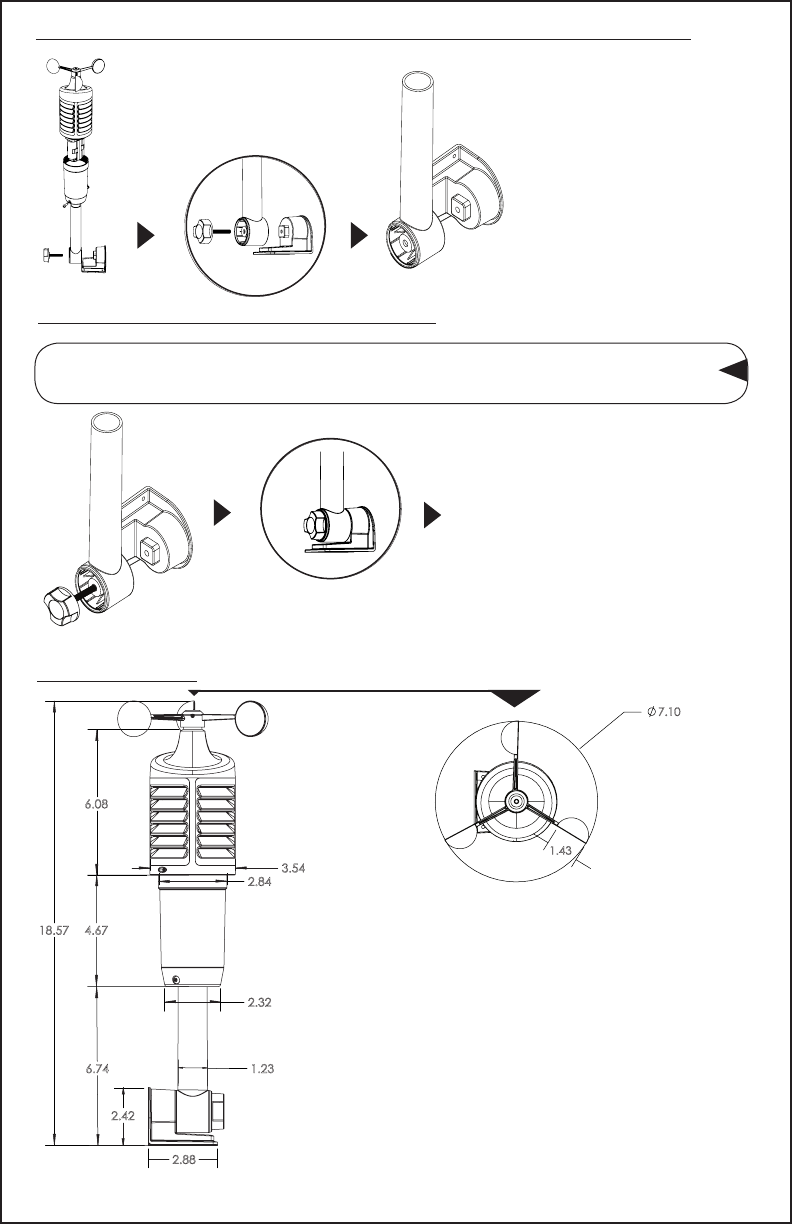

6. Align the square opening on the pole over the square of the mounting bracket.
7. Turn the knob to tighten the bracket to the pole.
Note: You can attach to a dierent pole (1.2 inches, 3.1 cm diameter) into the
sensor, instead of using the mounting bracket.
Screw until tight.
Do not overtighten.
Sensor Dimensions
(Top View)
Full Sensor and Bracket (with cup) Dimensions:
18.57” T x 7.10” W x 7.10” D (inch dimensions)
4.67
6.74 1.23
2.84
3.54
6.08
2.88
2.42
2.32
18.57
1.43
7.10
![](/img.php?id=2762284&img=bg6.png)
ALERTS
• Hold ALERTS button to enter
alerts settings
• or to adjust value
• Press ALERTS to conrm
ALERT ACTIVATION
• Press ALERTS button to toggle
between alerts
• Press to arm alerts
• Press to disarm alerts
• Press ALERTS to conrm
Page | 5 www.lacrossetechnology.com/support Model: 327-1414W

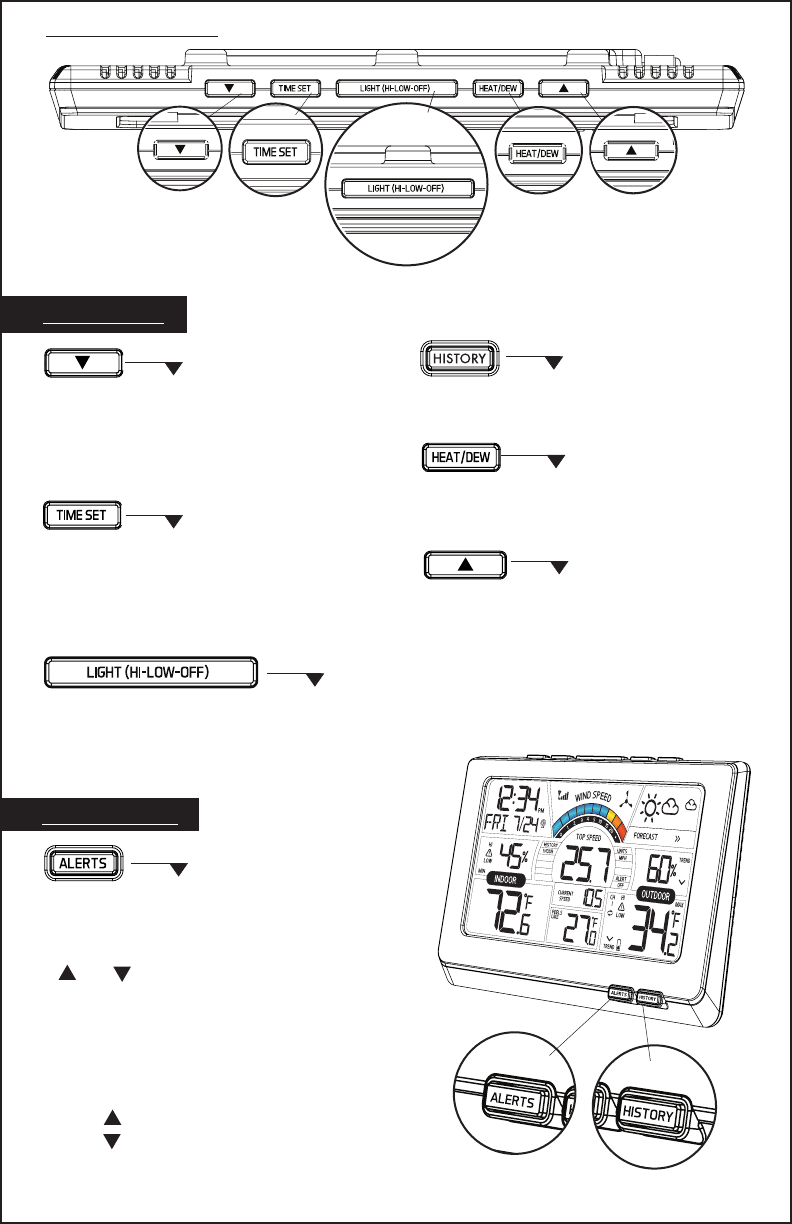

Button Functions
LIGHT
HI-LOW-OFF
(Down)
• Press to view channels
• Hold to search for sensors
• Will disarm alert
TIME SET
• Press to search for WWVB
Atomic time signal
• Hold to enter setting mode
LIGHT (HI-LOW-OFF):
• Press to adjust backlight
• Press to exit setting mode
HEAT/DEW
• Press to view Heat Index/Dew Point
(UP)
• Press to view MAX/MIN values
• Hold to reset MAX/MIN values
• Will arm alert
HISTORY
• Press to view top wind speed history
Top Buttons
Front Buttons
TIME SET HEAT/DEW UP
DOWN
![](/img.php?id=2762284&img=bg7.png)
Model: 327-1414W www.lacrossetechnology.com/support Page | 6

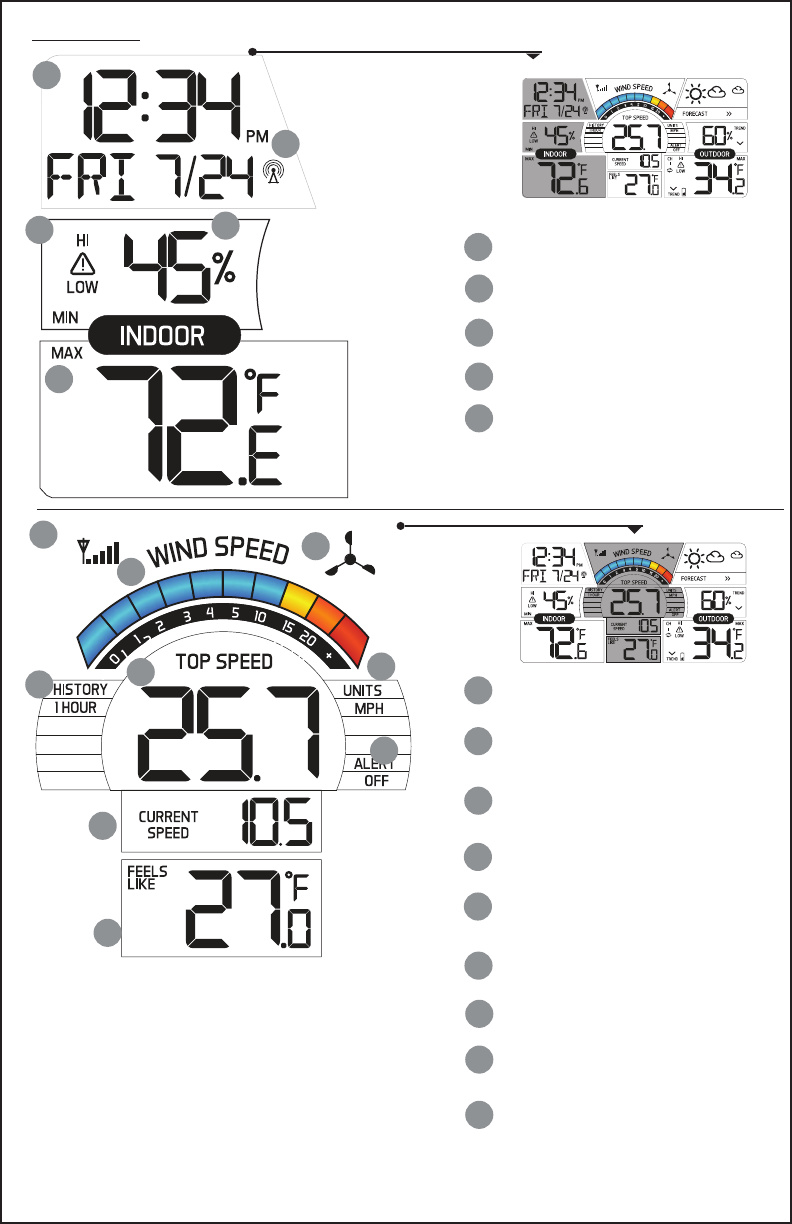

A
B
C
D
E
F
G
H
Sensor Reception Icon
-
Feels Like (Channel 1 only)
Heat Index and Dew Point
-
Current Speed
(30 second average)
-
Top Speed Reading
(past 60 minutes)
-
Color Wind Speed Graph
(based on current speed)
-
Wind Cup Icon
(spins with wind speed)
-
Wind Speed Unit
(MPH or KMH)
Wind Speed Alert
-
-
A
B
C
DE
G
H
A
B
C
D
E
Atomic Time/Date
Atomic Signal Icon
-
-
Indoor Humidity Alert Icon
HI and LOW
-
Indoor Humidity
-
Indoor Temperature
-
I
I
Wind Speed History
LCD layout
A
B
CD
E
-
F
![](/img.php?id=2762284&img=bg8.png)

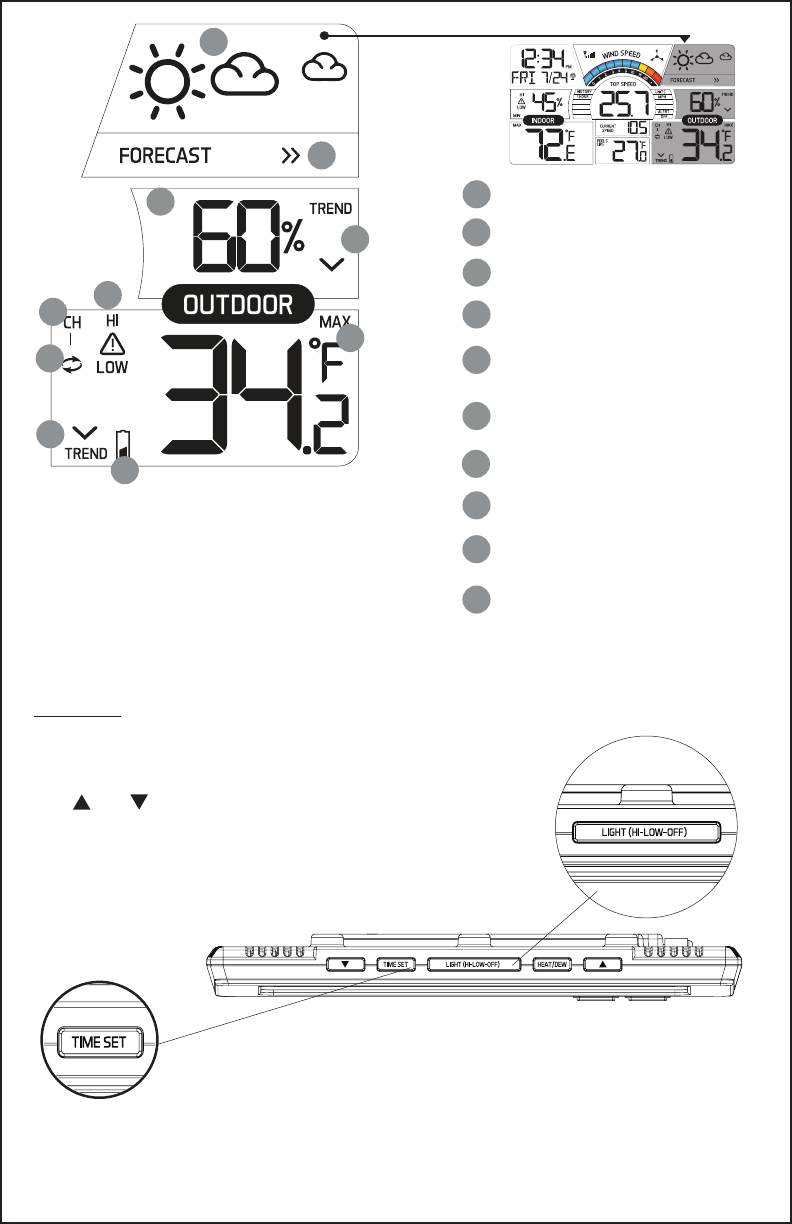

• Hold the TIME SET button to enter settings menu.
• Move through settings with the TIME SET button.
• The and buttons will adjust settings.
• Exit at anytime with the LIGHT button.
Settings:
I
A
B
D
E
F
G
H
C
J
Forecast Icon
Forecast Trend Indicator
-
-
-
-
Outdoor Humidity
Humidity Trend Icon
-
-
Outdoor Temperature
Channel Indicator
Outdoor Temperature
HI/LO Alert Icon
-Channel Scroll Indicator
-
-Outdoor Temperature
Trend Indicator
-Low Battery Indicator
Page | 7 www.lacrossetechnology.com/support Model: 327-1414W
A
B
C
D
EF
G
H
I
JOutdoor Temperature
![](/img.php?id=2762284&img=bg9.png)
Page | 7 www.lacrossetechnology.com/support Model: 327-1414W Model: 327-1414W www.lacrossetechnology.com/support Page | 8

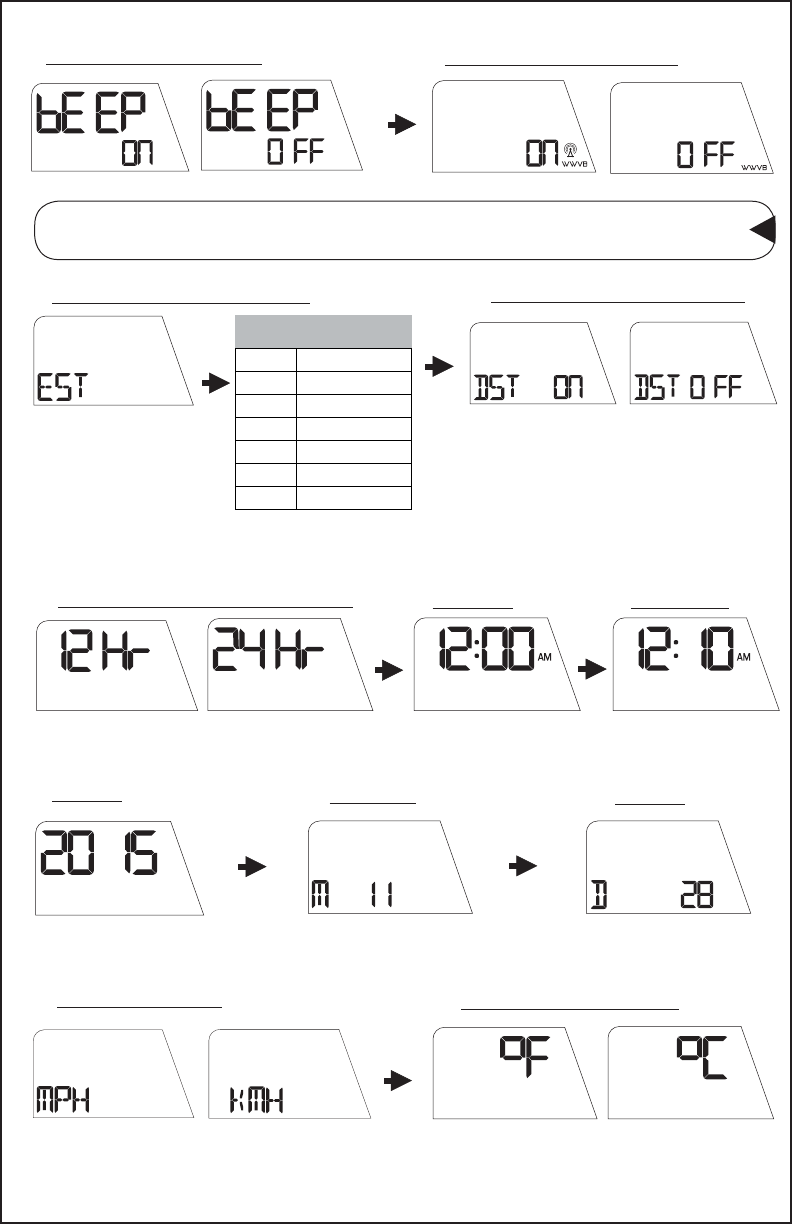

1. Beep ON (default) or OFF 2. Atomic ON (default) or OFF
3. Select Time Zone (EST Default)
CST
MST
Time Zone
Atlantic
Eastern
Central
Mountain
Pacic
Alaska
Hawaiian
AST
EST
PST
AKT
HAT
4. Select DST ON (default) or OFF
5. Choose 12 (default) or 24 hour time 6. Set Hours 7. Set Minutes
8. Set Year 9. Set Month 10. Set Date
12. Select Fahrenheit / Celsius
11 Select MPH or KMH
Note: When Atomic OFF is selected, steps 3 & 4 will not show and you
will automatically move to step 5.
![](/img.php?id=2762284&img=bga.png)
Color Wind Speed Graph
The wind speed graph with color sections is based on current wind speed. One
segment will ash indicating current wind speed.
Orange
Red
Color
0 - 14
15 - 19
20 - 24
over 25
Blue
Yellow
Speed
The wind cup icon will spin at varying speeds according to the current speed.
Top Wind Speed Number
Wind Cup Icon
Page | 9 www.lacrossetechnology.com/support Model: 327- 1414W
Press and release the HISTORY button to view the past top wind speeds with time
and date of occurrence. The 1 hour top speed is the default reading shown on
the display.
Wind History
COLOR WIND
SPEED ICON
• Highest instantaneous wind speed recorded in the past 60 minutes.
• Updates when a higher wind speed has occurred.
• Last number will remain if there is no wind for 60 minutes.
• 24-hour: Past 24 hour period, from last record.
• Week: Past 7-day period, from last record.
• Month: Dened by Calendar Month
i.e. January 1 - January 31.
• Year: Dened by Calendar Year
i.e. January 1 - December 31.
![](/img.php?id=2762284&img=bgb.png)
Setting alert value and arming individual alerts are separate functions.
Set alert value:
1. Hold the ALERTS button for 3 seconds to enter alert set mode.
2. The high wind speed alert value will blink in set mode.
3. Press the or buttons to adjust the values.
4. Press the ALERTS button to conrm and move to the next alert.
The alert setting order:
• High Wind Speed (channel 1 only)
• Outdoor Humidity HI
• Outdoor Humidity LOW
• Outdoor Temperature HI
• Outdoor Temperature LOW
• Indoor Humidity HI
• Indoor Humidity LOW
• Indoor Temperature HI
• Indoor Temperature LOW
Note: When using multiple temperature/humidity sensors, press the button
to select the channel (1, 2, or 3) before setting alerts for a sensor.
Model: 327-1414W www.lacrossetechnology.com/support Page | 10
Wind, Temperature & Humidity Alerts
Outdoor HI Temperature
Indoor LOW Humidity
Wind Speed High Alert Outdoor HI Humidity
Outdoor LOW Temperature
Indoor HI Temperature
Outdoor LOW Humidity
Indoor LOW Temperature
Indoor HI Humidity
Current Wind Speed
The current wind speed which represents a 30 second average of wind speed
samples taken. This should correspond to the wind graph above.
![](/img.php?id=2762284&img=bgc.png)

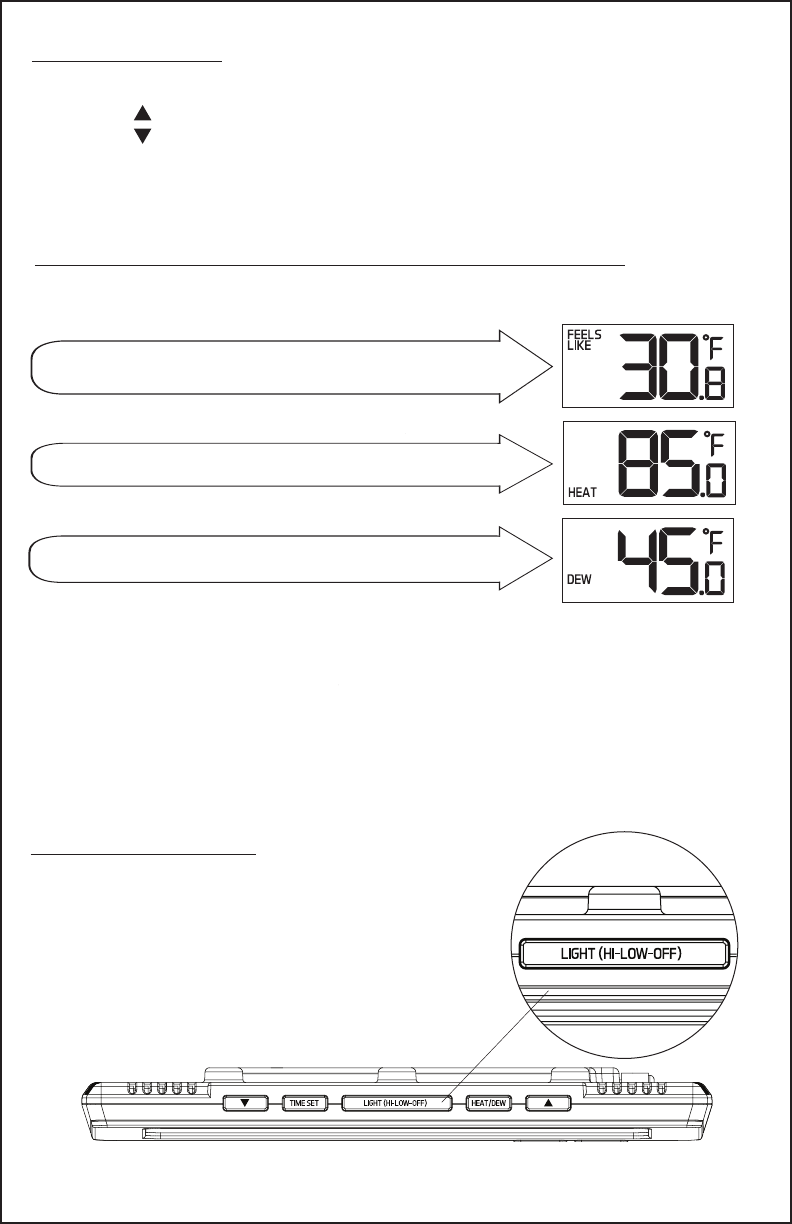

Press the HEAT/DEW button repeatedly to toggle between:
Page | 11 www.lacrossetechnology.com/support Model: 327-1414W
Arm/Disarm Alerts:
1. Press and release the ALERTS button to select an alert. HI and LO will ash.
2. Press the button to arm the alert.
3. Press the button to disarm the alert.
4. The HI or LO alert icon appears when armed.
Active Alert: Beeps once per minute with ashing alert icon.
Feels Like Temperature, Heat Index, Dew Point Temperature
Heat Index (outdoor)
Note: Feels Like Temperature is the perceived outdoor temperature.
• Temperatures below 50°F, will measure the eect of wind speed on cooling
of the human body.
• Temperatures above 70°F, will measure the eect of humidity on the
perception of temperature.
• Between 51 °F and 69°F, the feels like temperature will be the same as the
outdoor temperature on channel 1.
Feels Like Temperature (Channel 1 only)
Default (always displayed)
Dew Point (outdoor)
Backlight Adjustments
Use AC power for constant backlight:
• Press the LIGHT button on the top of the
weather station to adjust the backlight
(HI-LOW-OFF) when using AC power.
When using battery power only:
• Press the LIGHT button for a 10 second
backlight (It will not stay on).
![](/img.php?id=2762284&img=bgd.png)
Model: 327-1414W www.lacrossetechnology.com/support Page | 12

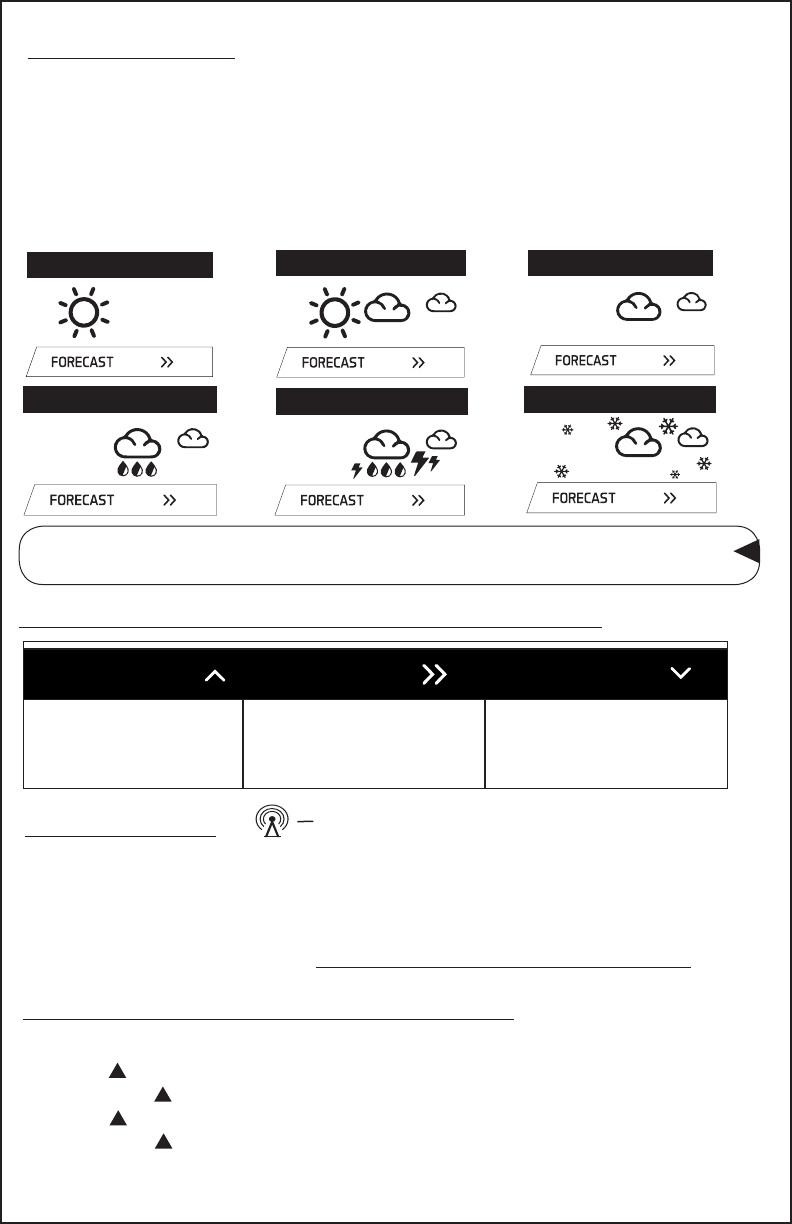

Forecast Information
Intelligent Weather Forecast:
Note: Snowy icon will appear in place of rainy and stormy icons when the
outdoor temperature (Channel 1) is below 32°F.
Sunny Partly Sunny Cloudy
Rainy Stormy Snowy
The station automatically resets MAX and MIN values daily at midnight (12:00 AM).
• Press the button once to view MAX indoor/outdoor temperatures.
• Then, hold the button to manually reset MAX temperatures to current values.
• Press the button again to view the MIN indoor/outdoor temperatures.
• Then, hold the button to manually reset MIN temperatures to current values.
Forecast Tendency Indicators (Up, Right and Down Arrows)
24 hour MAX/MIN Temperature/Humidity records
Rising
Pressure
Steady
Pressure
Falling
Pressure
Weather is
expected to
improve
Weather is
expected to stay
the same
Weather is
expected to
worsen
Atomic Icon
• When WWVB is on, press and release the TIME SET button to start or stop a WWVB signal
search.
• WWVB Icon will ash when searching.
For information about WWVB, visit: www.nist.gov/pml/div688/grp40/wwvb.cfm
Atomic Time Signal
This station learns: Please allow 7-10 days for barometric calibration. This
will ensure an accurate personal forecast for your location.
Six animated forecast icons use changing atmospheric pressure to predict
weather conditions for the next 12-hours with 70-75% accuracy.
![](/img.php?id=2762284&img=bge.png)

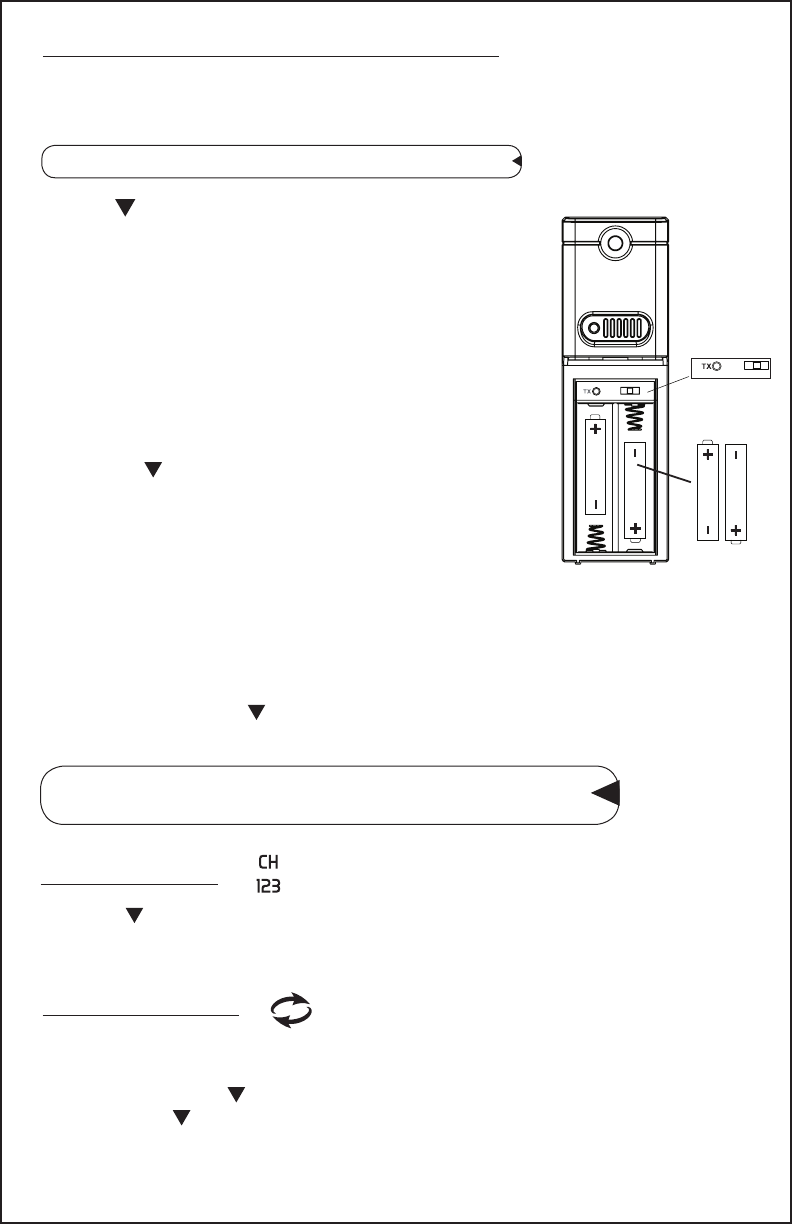

The wind station will accommodate up to two additional
thermohygro sensors (TX141TH-BCH ) on channels 2 and 3.
Note: The TX141W sensor must be on channel 1.
Press the button to view sensors on other channels.
Setup additional sensors to the wind station:
1. Remove the battery cover from all the sensors
(leave battery covers o until all sensors are received
by the wind station).
2. Set the rst additional sensor to Channel 2 and insert
2 AA batteries.
3. Set the second additional sensor to Channel 3 and insert
2 AA batteries.
4. Hold the button on the wind station for 5 seconds to
search for sensors.
5. Press the TX button on each sensor.
6. When connection is established, the temperature &
humidity for each of the selected channels will appear.
7. Install the battery covers on each sensor.
8. Keep sensors and the wind station 5-10 feet apart for 15
minutes to establish a solid connection.
9. After 15 minutes, place the remote sensors in appropriate
shaded locations.
10. Press and release the button to view channels 1, 2 or 3 on
the wind station when multiple sensors are used.
Note: If only one sensor is connected, the other channels will
show dashes for temperature and humidity.
Page | 13 www.lacrossetechnology.com/support Model: 327-1414W
Setup Add On Temperature/Humidity Sensors
Channel Indicator
• Press the button to toggle between remote sensor channels when multiple
sensors are used.
Channel Auto Scroll
• The wind station will automatically rotate through the channels for all
connected sensors.
• Press and release the button to lock the wind station into one channel.
• Then press the button to view channels individually.
AA
1 2 3
AA
AA
AA
![](/img.php?id=2762284&img=bgf.png)

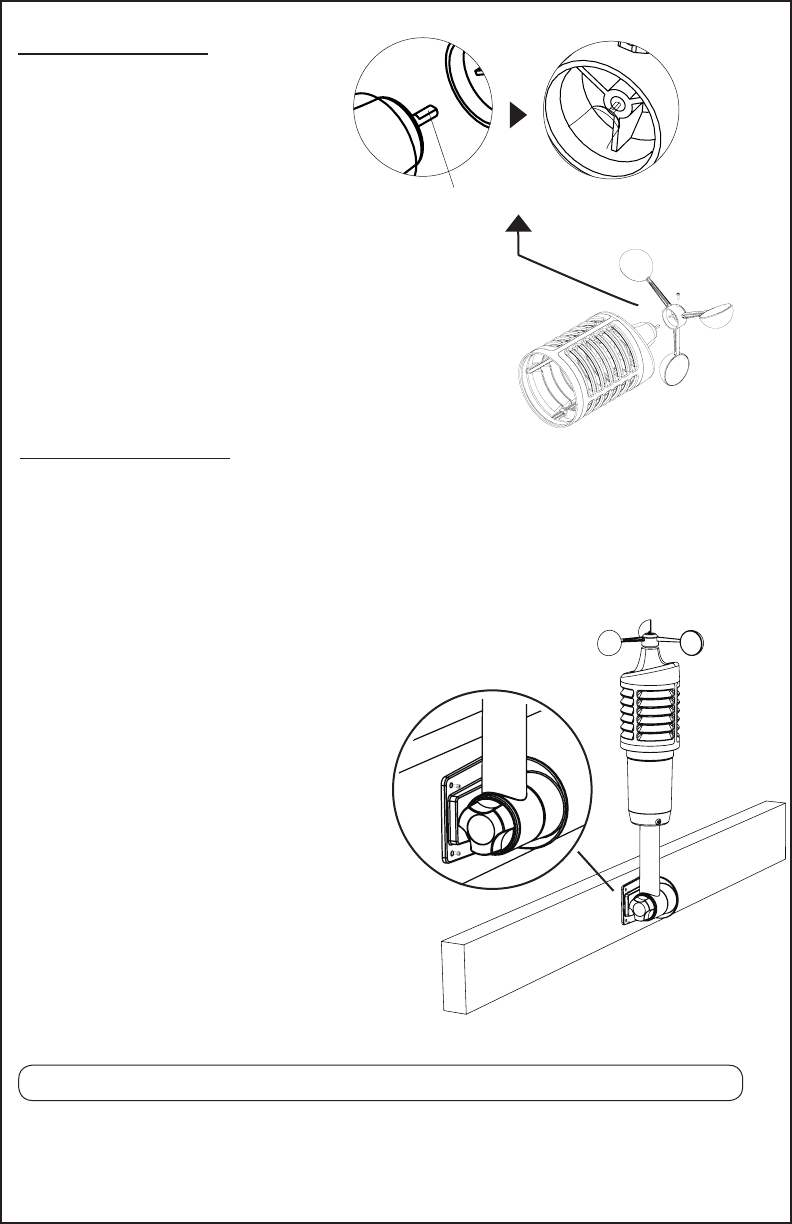

• For the most accurate wind speed readings, mount the TX141W sensor as the
highest object for 50 feet in all directions.
• Cups should be on the top of the sensor. Mount vertically.
• The maximum wireless transmission range to the wind station is over 300 feet
(91 meters) in open air, not including walls or trees.
1. Insert mounting pole into sensor.
2. Tighten screws
3. Insert bottom of pole into mounting bracket
4. Tighten knob to secure
5. Use screws through the bottom of the
mounting bracket to attach.
6. The sensor can be mounted from
the bottom or side. (the picture is
of the sensor mounted from the side)
Alternatively:
1. Insert your own mounting pole into
the sensor.
2. Tighten screws
3. Mounting bracket would not be used.
Note: Do not attempt to insert a pole into the hollow back of the mounting bracket.
Model: 327-1414W www.lacrossetechnology.com/support Page | 14
Replace Wind Cups
1. Loosen the screw
2. Remove cups
3. Install new cups
4. Tighten screw
Note: The screw in the wind cups
will t on the at side of the metal
stem on the sensor.
Position Wind Sensor
Flat Side Of
Stem Up
Insert and Attatch
Flat End up
![](/img.php?id=2762284&img=bg10.png)
Page | 15 www.lacrossetechnology.com/support Model: 327-1414W

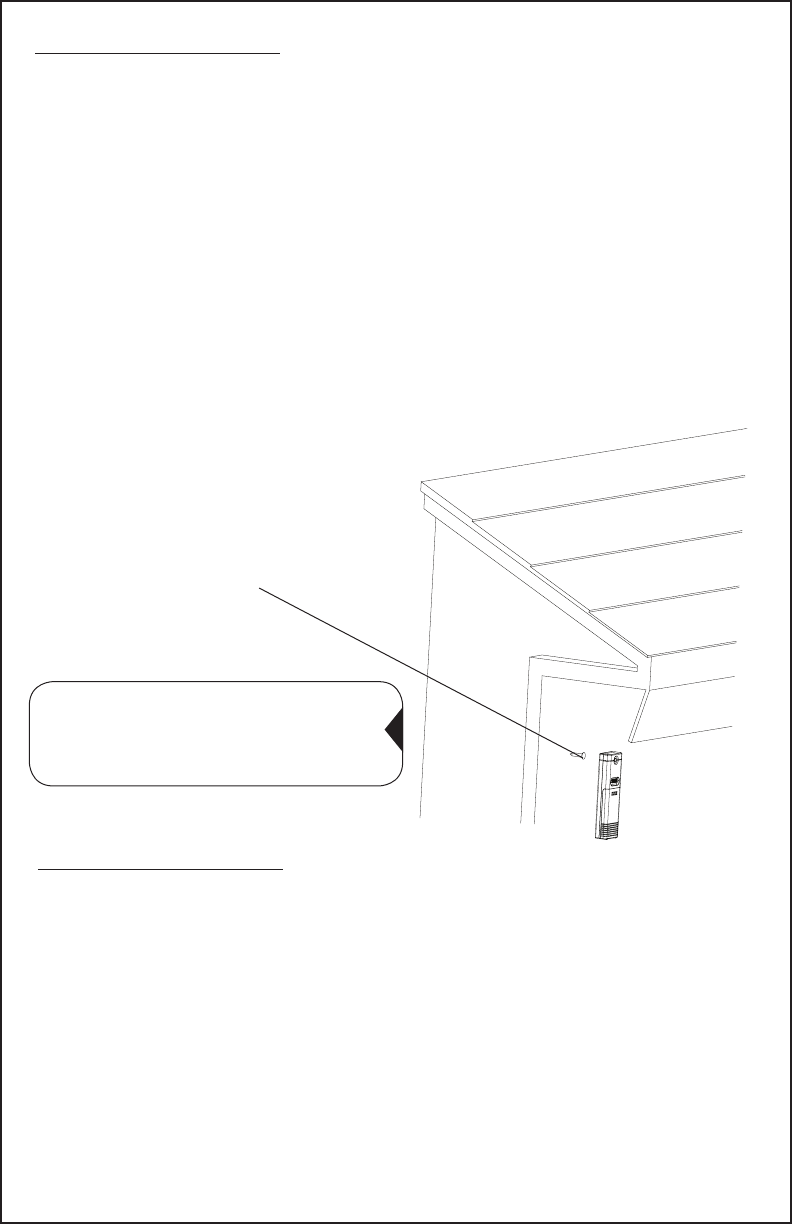

Position Add On Sensors
• Mount the outdoor sensor on a north-facing wall or in any well shaded area.
Under an eave or deck rail is preferred.
• The maximum wireless transmission range to the weather station is over 300
feet (91 meters) in open air, not including walls or oors.
• Be sure the outdoor sensor is mounted vertically
Option 1:
• Install one mounting screw into a wall leaving some extended.
• Place the transmitter onto the screw.
• Gently pull the transmitter down to lock the screw into place.
Option 2:
• Insert the mounting screw through the front of the transmitter and into the wall.
• Tighten the screw to snug (do not over tighten).
Position Weather Station
• Pull out the stand and place on a at surface.
• Use the three hanging holes on the back to mount on the wall.
1. Choose a location 6 feet or more away from electronics such as cordless
phones, gaming systems, televisions, microwaves, routers, etc.
2. Place within range of the outdoor sensors (300 ft, 91 meters open air).
3. Obstacles such as walls, windows, stucco, concrete, and large metal objects
can reduce the range.
4. For best WWVB reception, orientate the weather station with the front or back
of the station facing Ft. Collins, Colorado.
Mount sensor on a
north-facing wall
(under an eave or
deck rail is preferred)
ROOF
WALL
Note: Mount 18’ below the eave
to avoid venting from your attic
causing inaccurate readings.
![](/img.php?id=2762284&img=bg11.png)
Add on Sensor(s):
1. Slide battery cover down and lift o sensor.
2. Remove old batteries and install fresh “AA” batteries.
3. Hold the button on the weather station for 5 seconds to search for the sensor.
TX141W Sensor mounted:
1. Grab the vented portion of the sensor and turn counter clockwise.
2. Remove old batteries and install fresh “C” batteries.
3. Carefully align and turn clockwise to tighten.
4. Hold the button on the weather station for 5 seconds to search for
the sensor.
Restart
1. Remove batteries from the sensor and batteries and AC adapter from the
weather station.
2. Press any button 20 times.
3. After 15 minutes insert batteries into the sensor, then insert batteries (optional
in the weather station) and plug AC adapter into the weather station.
4. Wait 15 minutes to establish a strong connection. Place sensor outside.
Change Batteries
Model: 327-1414W www.lacrossetechnology.com/support Page | 16
C
C
Press the Down Button
on the wind station to
search for sensors
TX141W Sensor Add-On Sensor
AA
1 2 3
AA
AA
AA
![](/img.php?id=2762284&img=bg12.png)
Care and Maintenance
• Do not mix old and new batteries
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Always purchase the correct size and grade of battery most suitable for
the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to
battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment which is not to be used for an
extended period of time.
• Remove expired batteries promptly.
• Do not expose to extreme temperature, vibration or shock.
• Clean with a soft damp cloth. Do not use solvents or scouring agents.
• The product is not a toy. Keep it out of reach of children.
• The product is not to be used for medical purpose or for public information.
It is intended for home use only.
• The specs of this product may change without prior notice.
• Improper use or unauthorized opening of housing voids warranty.
• If the product is not working properly, change the batteries and/or check
the AC adapter connection.
La Crosse Technology, Ltd. provides a 1-year limited time warranty
(from date of purchase) on this product relating to manufacturing
defects in materials & workmanship.
Before returning a product, please contact our friendly customer support with
questions or visit our online help (FAQS):
Phone: 1-608-782-1610
Online Product Support: www.lacrossetechnology.com/support
Product Registration: www.lacrossetechnology.com/support/register
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
Warranty Address: Protected under U.S. Patents:
La Crosse Technology, Ltd 5,978,738 | 6,076,044 | RE43903
2830 S. 26th St.
La Crosse, WI 54601
Warranty and Support Information
Page | 17 www.lacrossetechnology.com/support Model: 327-1414W
![](/img.php?id=2762284&img=bg13.png)
Indoor
• Temperature Range: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% - 99% (RH)
Outdoor
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Humidity Range: 10% - 99% (RH)
• Wind Speed Range: 0 - 99 mph (0-159 kMh)
Power
• Wind Station Primary AC Power:
5-volt AC power adapter (included in lower panel)
• AC Adapter NO.:
GPU280500150WD00 5VDC 150mA
• Optional/Battery Backup:
3-AAA, IEC, LR3 batteries (not included)
Battery
Life
• Wind/TH Sensor:
2-C, IEC, LR14 batteries (not included)
• Wind Station Battery Backup:
Battery life is over 12 months when using the AC adapter
for primary power
Dimensions
• Wind Station: 5.48” H x 8.34” L x 1.03” W
(139.19 x 211.84 x 26.12 mm)
• TX141W Sensor: 18.57” H x 7.10” W x 7.10” D
( 471.68 x 180.34 x 180.34 mm)
Specications
Model: 327-1414W www.lacrossetechnology.com/support Page | 18
• Wind/TH Sensor:
Battery life is over 24 months when using reputable
battery brands
• Interval: about every 30 seconds
• Distance: Over 300ft. (91 meters) RF 433MHz (open air)
![](/img.php?id=2762284&img=bg14.png)
FCC Statement
Caution!
Page | 19 www.lacrossetechnology.com/support Model: 327-1414W
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The FCC statement is found inside the battery compartment.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or
modications to this equipment. Such changes or
modications could void the user authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or pro-
cessed using electronic, mechanical or chemical process without the written permission of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and
corrections are included in subsequent editions. We disclaim any responsibility for any technical error or
printing error, or their consequences.
All trademarks and patents are recognized.
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
