La Crosse Technology TX144W Wind Speed Weather Station User Manual 7717 00 A
La Crosse Technology Ltd. Wind Speed Weather Station 7717 00 A
Users Manual
7717-00-A说明书,80克双胶纸,黑色印刷
尺寸:532x145mm
正面 背面

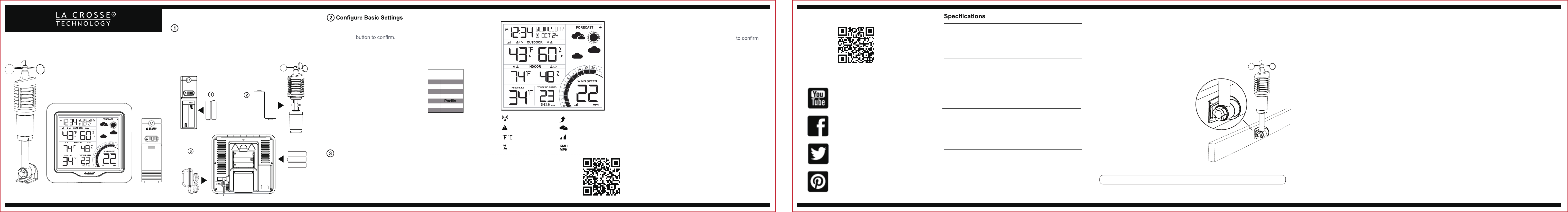

QUICK SETUP GUIDE
Color Professional Wind Station
RX model：327-1417 TX model：TX144W DC 011117
Protected Under U.S. Patents: 5,978,738 | 6,076,044 | RE43903
Get Started
Power Up
1. Thermo-Hygro Sensor: 2-AA batteries
2. Wind Sensor: 2-C batteries
3. Weather Station: 5.0 volt power cable and 3-AA
batteries (optional battery backup)
Hold the SET button to enter set mode. Press and
release the -/CH and + buttons to make adjustments and
the SET
Settings Order:
1. Beep ON | OFF
2. Atomic time ON | OFF
3. Time zone
4. Daylight Saving Time ON | OFF
5. 12/24 hour format
6. Hour
7. Minutes
8. Year
9. Month
10. Date
11. Temperature (ºF/ºC)
12. Wind speed MPH | KMH
Place Outdoor Sensors
• Thermo-Hygro Sensor: Position in a shaded location to
protect from sun.
• Wind Sensor: Position in an high open area, clear from
obstructions for 50 feet in all directions. The higher the
mounting position, the more accurate the wind
readings will be.
Optional
Display Icons
More Detailed Instructions
Trend/Tendency
Sensor Strength
Alerts
Temp. Setting
Forecast Icon
Percent RH
North America
Time Zones
Atlantic
Eastern
Central
Mountain
Alaska
Hawaii
AST
EST
CST
MST
PST
AKT
HAT
Power
Cable
AA
AA
+
-
AA
+
-
+
-
AA
AA +
-
+
-
Follow this link for more detailed instructions:
www.lacrossetechnology.com/327-1417
+ C -
+ C -
Wind Setting
Atomic Time
CH 1
CH 1
Functions
Set Alerts
• Hold ALERTS for 2 seconds to enter alert set mode
• Press +/- to adjust values and ALERTS
View Wind History
• Press WIND to view top wind speed history.
View Temperature Details
• Press TEMP to view temperature records, feels like
records, and dew point.
Search for Sensors
• Hold TEMP 3 seconds to search for TH sensor
• Hold WIND 3 seconds to search for Wind sensor
Change Channels (with multiple TH sensors)
• Press -/CH to toggle channels (1, 2, 3)
Adjust Display Brightness
• Press LIGHT to adjust display brightness (HI/LO/OFF)
when using the provided power adapter.
Exit Menu
• Press LIGHT to exit any menu
Factory Reset
• Hold ALERTS and LIGHT for 5 seconds to reset
TX144W
Care and Maintenance
• Do not mix old and new batteries
• Do not mix Alkaline, standard, Lithium, or rechargeable batteries
• Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of time.
• Promptly remove expired batteries.
Indoor
TH Sensor
Wind Sensor
Power
Battery Life
Dimensions
• Temperature Range: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% to 99% RH
• Update Interval: About every 60 seconds
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Humidity Range: 10% to 99% RH
• Update Interval: About every 58 seconds
• Transmission Range: 330 ft (100 m) RF 433MHz open air
• Wind Speed Range: 0-111.8 mph (0-180 kmh)
• Update Interval: About every 30 seconds
• Transmission Range: 330 ft (100 m) RF 433MHz open air
• Weather Station: 5.0 Volt 150mA adapter included (Primary)
• AC6: GPU280500150WAOO
• Optional Battery: 3-AA, IEC, LR6 batteries (not included)
• TX144W: 2-C, IEC, LR14 batteries (not included)
• TX141TH-BCH: 2-AA, IEC, LR6 batteries (not included)
• Weather Station: over 12 months when using adapter.
• Wind sensor | TH sensor: over 24 months with reputable batteries
• Weather Station: 6.88” W x 6.37” H x 1.33” D in
(17.5cm W x 16.2cm H x 3.4cm D)
• TX144W Wind sensor: 18.57” H x 7.10” W x 7.10” D
( 47.2cm H x 18.0cm W x 18.0cm D)
• TX141TH-BCH Sensor: 1.57” W x 5.12” H x 0.79” D
(4.0cm W x 13.0cm H x 2.0cm D)
Warranty
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this
product relating to manufacturing defects in materials & workmanship.
Before returning a product, please visit the product web page for more information or contact our friendly
customer support: Online: www.lacrossetechnology.com/support Phone: 1-608-782-1610
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
Latest Video Content
http://bit.ly/LaxTech_YouTube
www.lacrossetechnology.com/socialmedia
Follow Us on Social Media!
For Personal Interaction
http://bit.ly/LaxTech_Facebook
Join the Conversation
http://bit.ly/LaxTech__Twitter
Pin and Share
http://bit.ly/LaxTech_Pinterest
FCC Statement
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following
two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
• For the most accurate wind speed readings, mount the TX141W sensor as the
highest object for 50 feet in all directions.
• Cups should be on the top of the sensor. Mount vertically.
• The maximum wireless transmission range to the wind station is over 300 feet
(91 meters) in open air, not including walls or trees.
1. Insert mounting pole into sensor.
2. Tighten screws.
3. Insert bottom of pole into mounting bracket.
4. Tighten knob to secure.
5. Use screws through the bottom of the
mounting bracket to attach.
6. The sensor can be mounted from
the bottom or side. (the picture is
of the sensor mounted from the side)
Alternatively:
1. Insert your own mounting pole into
the sensor.
2. T
not be used).
ighten screws(mounting bracket would
Note: Do not attempt to insert a pole into the hollow back of the mounting bracket.
Position Wind Sensor
