USER’S

MANUAL

TTP-245 Plus / TTP-343 Plus

TTP-247 / TTP-345

THERMAL TRANSFER / DIRECT

THERMAL BAR CODE PRINTER

i

COPYRIGHT DECLARATION ....................................................................................................... 1

COMPLIANCES ......................................................................................................................... 1

1. Introduction ................................................................................................................. 1

2. Getting Started ............................................................................................................ 1

2.1 Unpacking and Inspection ................................................................................... 1

2.2 Equipment Checklist ............................................................................................ 1

2.3 Printer Parts .......................................................................................................... 3

3. Setup ............................................................................................................................ 4

3.1 Setting Up the Printer ........................................................................................... 4

3.2 Loading the Ribbon .............................................................................................. 5

3.3 Loading Label Stock ............................................................................................ 7

3.4 External Label Roll Mount Installation (Option) ................................................ 9

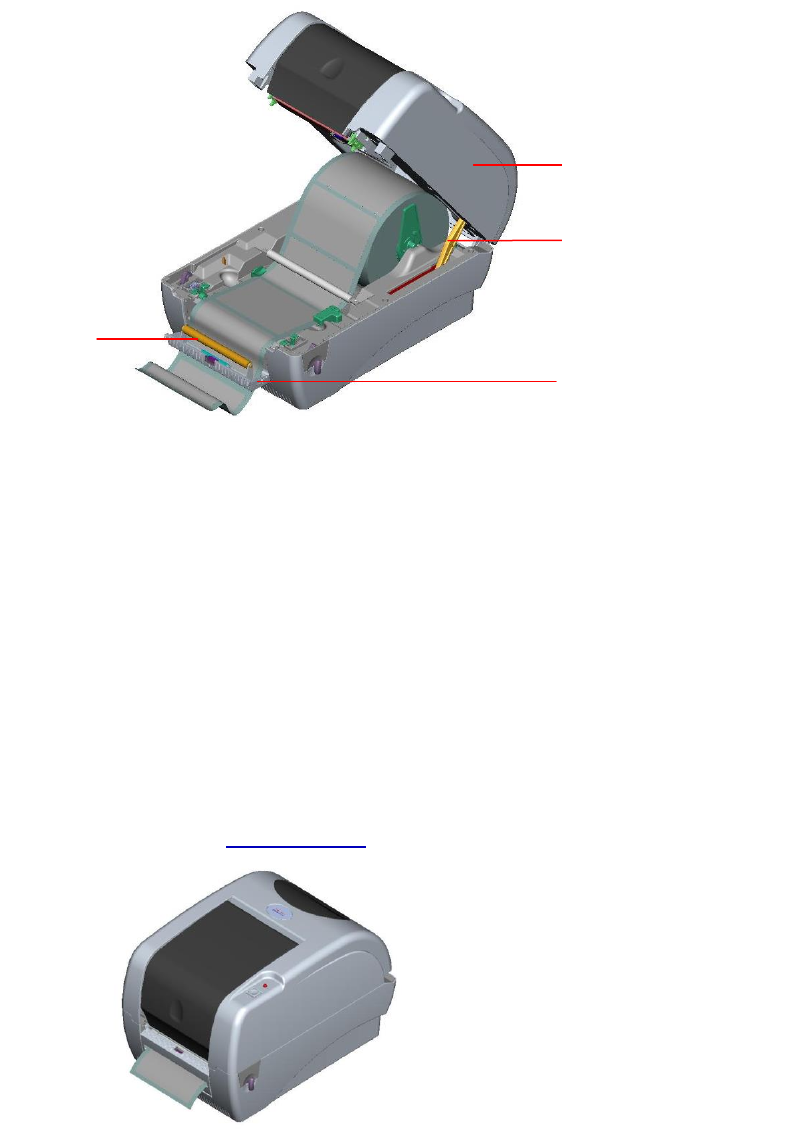

3.5 Peel-off Module Installation (Option) ................................................................ 11

3.5.1 Loading the Paper in Peel-off Mode .......................................................... 14

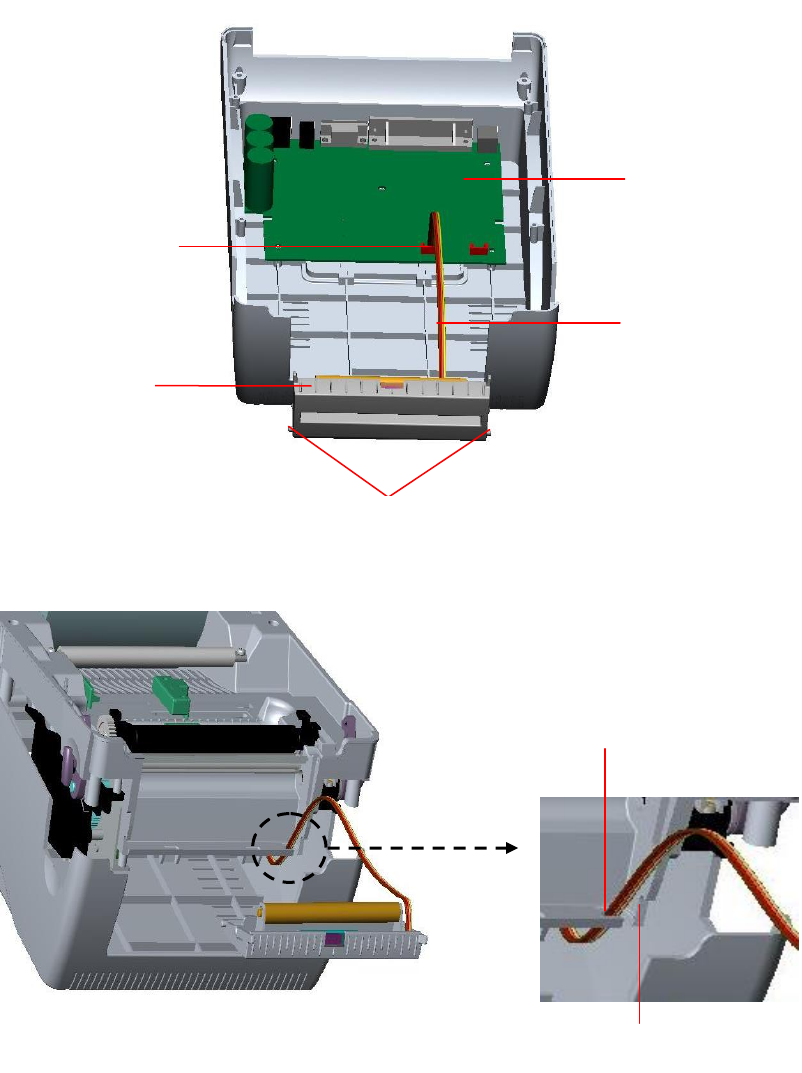

3.6 Cutter Module Installation (Option) .................................................................. 16

3.6.1 Loading Label in Cutter Mode.................................................................... 19

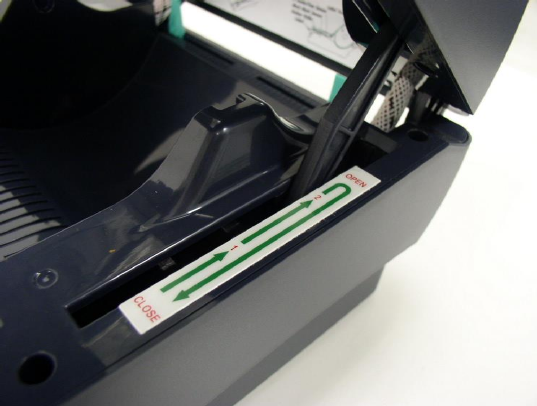

3.7 Instructions to Top Cover Operation ................................................................ 20

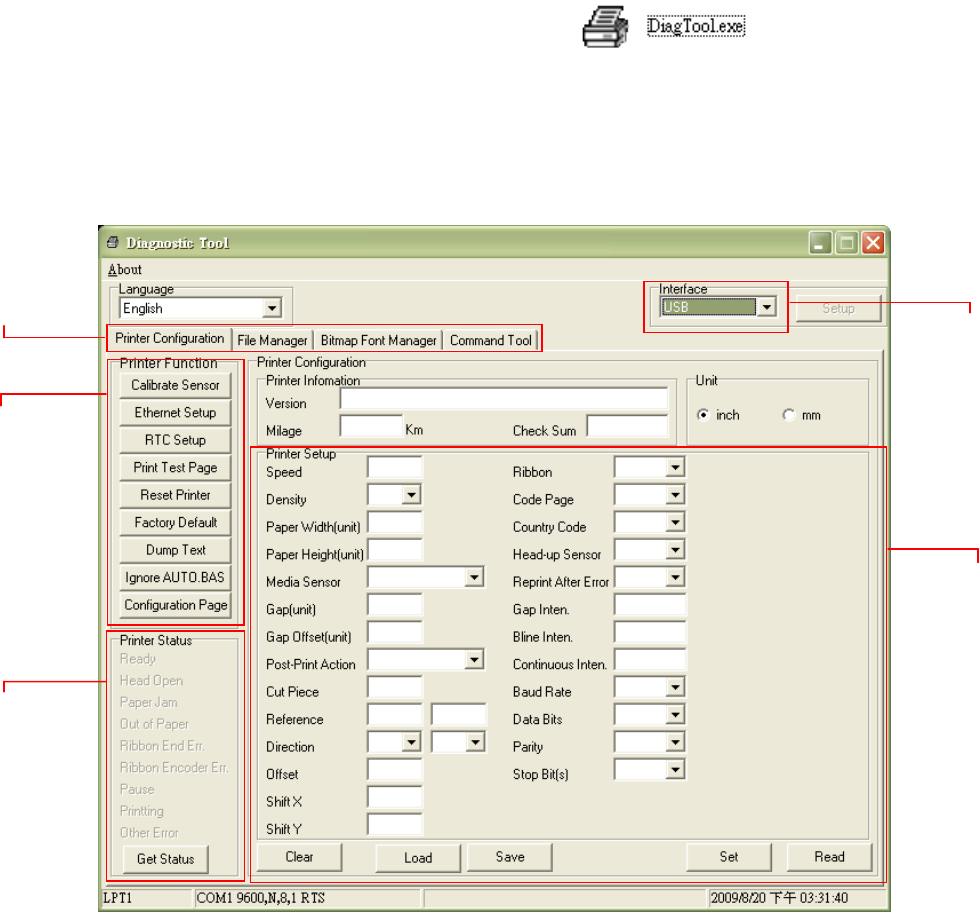

3.8 Diagnostic Tool ................................................................................................... 22

3.8.1 Start the Diagnostic Tool ............................................................................ 22

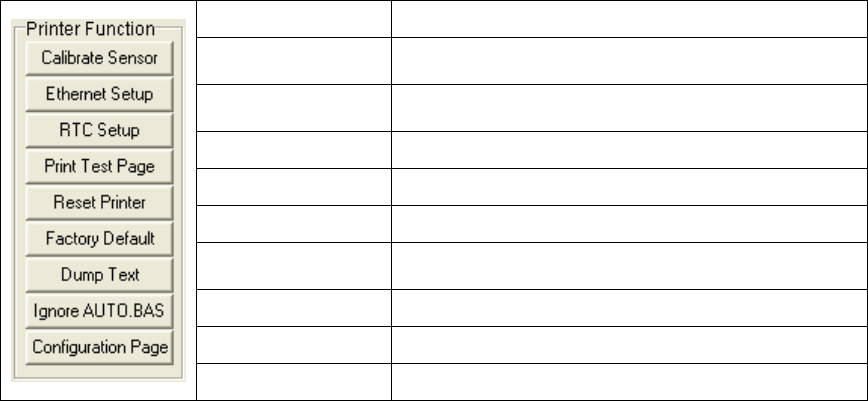

3.8.2 Printer Function (Calibrate sensor, Ethernet setup, RTC setup………) 23

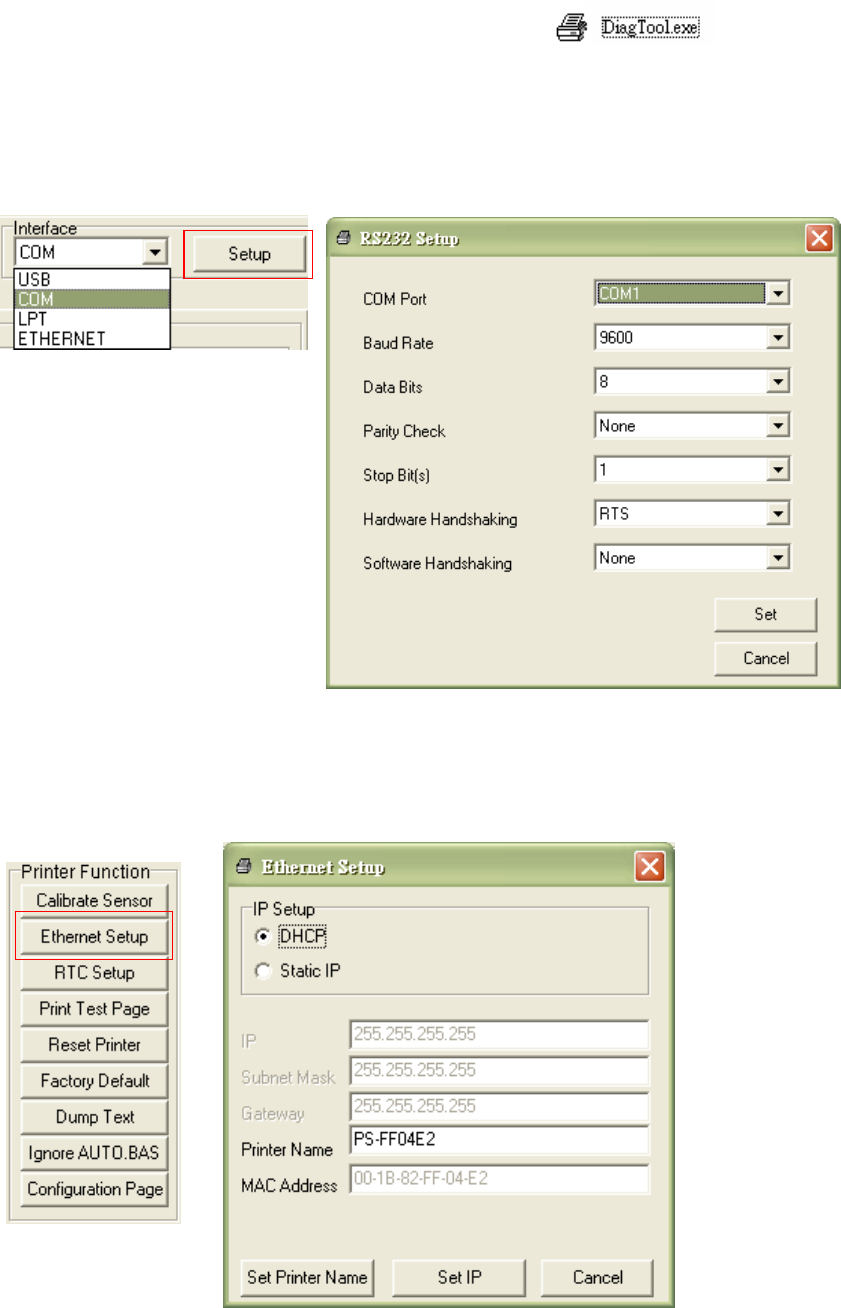

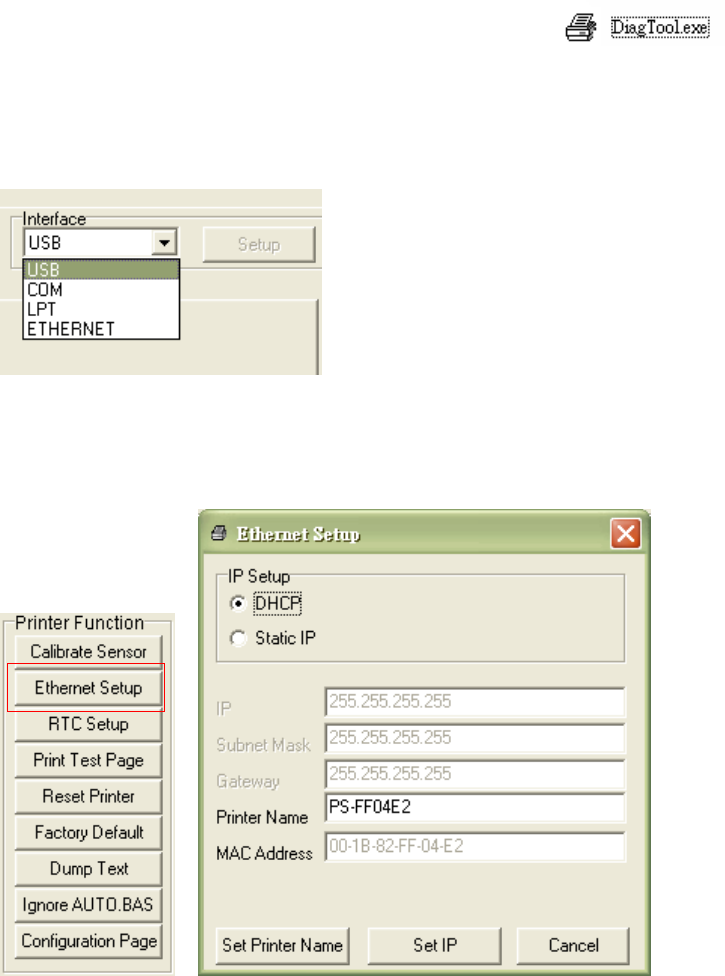

3.9 Setting Ethernet by Diagnostic Utility (Option) ............................................... 24

3.9.1 Using USB interface to setup Ethernet interface ..................................... 24

3.9.2 Using RS-232 interface to setup Ethernet interface ................................ 25

3.9.3 Using Ethernet interface to setup Ethernet interface .............................. 26

3.10 Install Memory Card ......................................................................................... 28

4. Power on Utilities ...................................................................................................... 30

4.1 Ribbon and Gap/Black Mark Sensor Calibration ............................................ 30

4.2 Gap/Black Mark Calibration, Self-test and Dump Mode ................................. 31

4.3 Printer Initialization ............................................................................................ 35

4.4 Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor

36

4.5 Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor.................. 36

4.6 Skip AUTO.BAS .................................................................................................. 36

5. Maintenance .............................................................................................................. 38

5.1 Cleaning............................................................................................................... 38

6. Troubleshooting ........................................................................................................ 40

Contents

ii

6.1 LED Status .......................................................................................................... 40

6.2 Print Quality ........................................................................................................ 41

7. LED and Button Operation ....................................................................................... 43

7.1 LED ....................................................................................................................... 43

8.2 Button Operation ................................................................................................ 43

Revise History ............................................................................................................... 46

1

Copyright Declaration

Information in this subject to change without notice and does not represent a

commitment on the part of TSC Auto ID Technology Co., Ltd.. No part of this

manual may be reproduced or transmitted in any form by any means, for any

purpose other than the purchaser’s personal use, without the expressed

written permission of TSC Auto ID Technology Co., Ltd..

Compliances

CE Class B:

EN55022: 1998+A1: 2000+A2: 2003

EN55024: 1998+A1: 2001+A2: 2003 IEC 61000-4 Series

EN61000-3-2: 2006 & EN61000-3-3: 1995+A1: 2001

FCC Part 15, Class B

UL, CUL

C-Tick:

CFR 47, Part 15/CISPR 22 3rd Edition: 1997, Class B

ANSI C63.4: 2003

Canadian ICES-003

TÜ V/Safety: EN60950: 2000

Wichtige Sicherheits-Hinweise

1. Bitte lesen Sie diese Hinweis sorgfältig durch.

2. Heben Sie diese Anleitung fűr den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen.

Verwenden Sie keine Flüssig-oder Aerosolreiniger. Am besten eignet

sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschluß-Steckdose soll nahe dem Gerät angebracht und

leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schűtzen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein

Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Beachten Sie beim Anschluß ans Stromnetz die Anschlußwerte.

8. Dieses Gerät kann bis zu einer Außentemperatur von maximal 40℃

betrieben werden.

2

CAUTION

1. HAZARDOUS MOVING PARTS IN CUTTER MODULE. KEEP FINGER AND

OTHER BODY PARTS AWAY.

2. THE MAIN BOARD INCLUDES REAL TIME CLOCK FEATURE HAS LITHIUM

BATTERY CR2032 INSTALLED. RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT TYPE.

3. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER

INSTRUCTIONS.

B급기기

(가정용 정보통신기기)

이 기기는 가정용으로 전자파 적합등록을 한 기기로서

주거지역에서는 물론 모든 지역에서 사용할 수 있습니다.

1. Introduction

Thank you for purchasing the TSC TTP-245/343 Plus series, TTP-247/345 series

Thermal Transfer and Direct Thermal Bar Code Printers. Although the printer takes

only a small amount of space, it delivers reliable, superior performance.

This printer provides both thermal transfer and direct thermal printing at user

selectable speed of: 2.0, 3.0, 4.0 or 5.0 ips, for TTP-245/345 series; 2.0 or 3.0 ips

for TTP-343 series, .2.0, 3.0, 4.0, 5.0, 6.0 or 7.0 ips It accepts roll feed, die-cut, and

fan-fold labels for both thermal transfer and direct thermal printing. All common bar

codes formats are available. Fonts and bar codes can be printed in 4 directions, 8

different alphanumeric bitmap fonts and a build-in true type font capability. You will

enjoy high throughput for printing labels with this printer.

2. Getting Started

2.1 Unpacking and Inspection

This printer has been specially packaged to withstand damage during shipping.

Please carefully inspect the packaging and printer upon receiving the bar code

printer. Please retain the packaging materials in case you need to reship the printer.

2.2 Equipment Checklist

 Printer

 BarTender UltraLite CD disk

 Quick start guide

 USB port cable

 External universal switching power supply

 Power Cord

 Label Spindle, fixing tab x2, 1.5” core adapter x2

 Ribbon spindle x2

 Ribbon rewind spindle paper core

If any parts are missing, please contact the Customer Service Department of

your purchased reseller or distributor.

2

Dealer option

 Peel off module assembly

Support paper: Art paper (Plain paper)

Support label length: 1”~6”

Support speed: 2~3 ips

 Guillotine cutter

Full cut:

Paper thickness: 0.06~ 0.19mm, 500,000 cuts

Paper thickness: 0.19mm 200,000 cuts

Partial cut:

Paper thickness: 0.06~0.12mm, 500,000 cuts

Note: Except for the linerless cutter, all regular/heavy duty/care label cutters DO

NOT cut on media with glue.

 Main board integrated with internal Ethernet

 Internal Ethernet print server module

User option

 KP-200

 KU-007 plus

 External Ethernet print server

 External wireless (802.11b/g) print server

 External roll mount, media OD. 214 mm (8.4”) with 3” core label spindle

 Contact CCD contact scanner

 Long range linear image bar code scanner

3

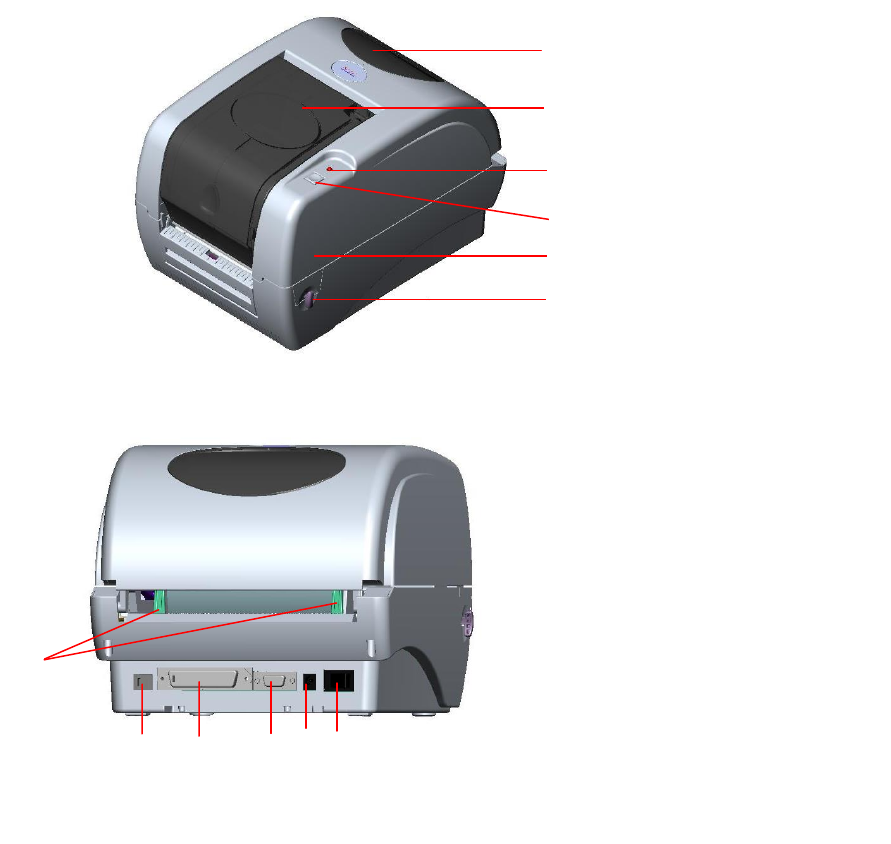

2.3 Printer Parts

Fig. 1 Top front view

Note:

The interface picture here is for reference only. Please refer to the product specification for

the interfaces availability.

Top Cover Open Lever

LED Indicator

Feed Button

Printer Top Cover

Ribbon Access Cover

Clear Window

1

2

3

4

5

6

1. USB Interface

2. Centronics Interface

3. RS-232C DB-9 Interface

4. Power Jack

5. Power Switch

6. Rear Paper Guide

Fig. 2 Rear view

4

3. Setup

3.1 Setting Up the Printer

1. Place the printer on a flat, secure surface.

2. Make sure the power switch is off.

3. Connect the printer to the computer with the Centronics or USB cable.

4. Plug the power cord into the power supply connector at the rear of the printer,

and then plug the power cord into a properly grounded receptacle.

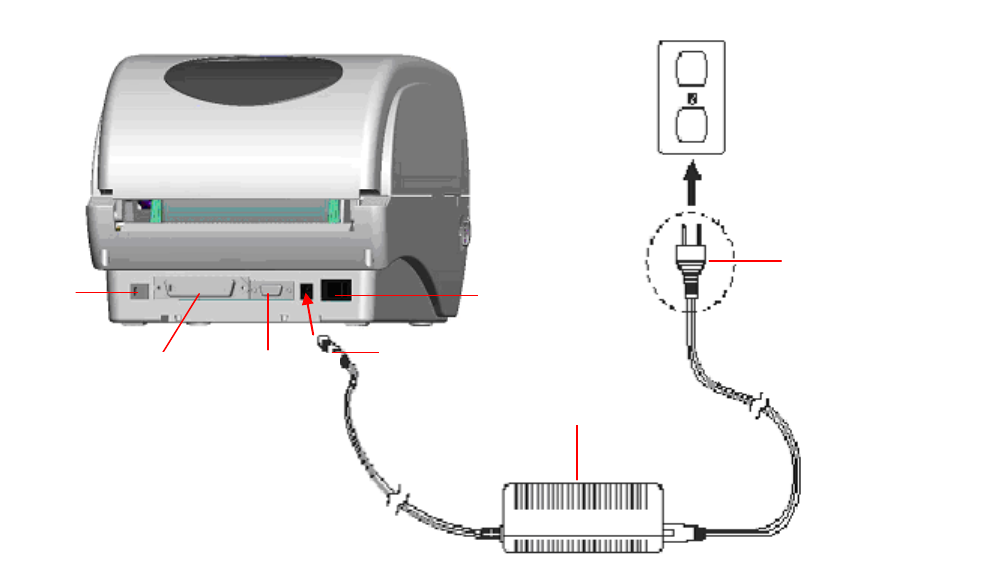

Fig. 3 Attach power supply to printer

Note:

Please switch OFF printer power switch prior to plug in the power cord to printer power jack.

Power Supply

Plug

Power Cable

Power Switch

USB

RS-232C

Centronics

5

3.2 Loading the Ribbon

The printer will detect if the ribbon is installed after turning on power on and it will

set printing mode to thermal transfer or direct thermal printing mode automatically. If

printer does not detect the ribbon, the ribbon take up motor will be turned off.

Make sure the printer top cover is engaged properly at both sides prior to powering

up the printer.

Please follow the steps below to install the ribbon into printer.

1. Push down on the ribbon access window to unlatch and open the cover.

2. Place a paper core onto the ribbon rewind spindle.

3. Mount the ribbon rewind paper core on the front hubs.

4. Install a ribbon on the ribbon supply spindle.

5. Mount the ribbon supply spindle on the rear hubs.

6. Thread the ribbon leading tape downward pass the print head.

7. Attach the ribbon leader to the ribbon rewind paper core.

8. Rotate the ribbon rewind paper core until the ribbon leader is thoroughly, firmly

encompassed by the black section of the ribbon.

9. Close the ribbon access window.

Note:

Please refer to videos on TSC YouTube or driver CD.

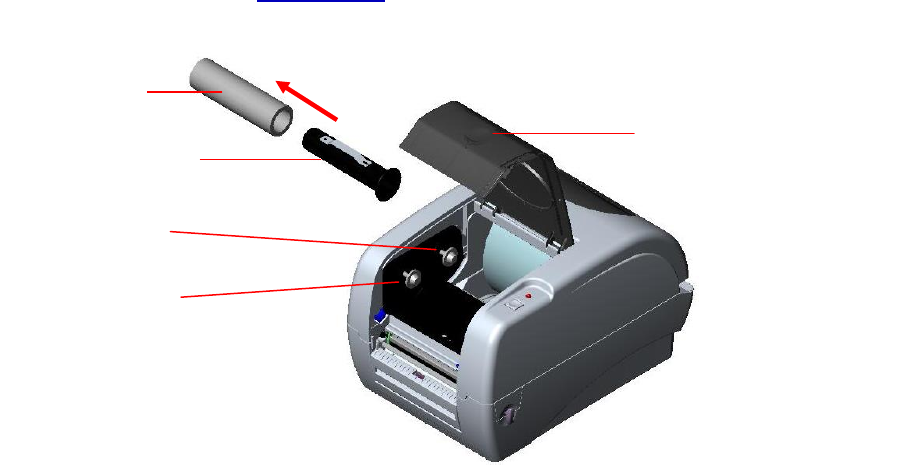

Fig. 4 Ribbon installation (I)

Ribbon Spindle

Front Hub

Paper Core

Back Hub

Ribbon Access Cover

6

Fig. 5 Ribbon installation (II)

Rear Hub

Ribbon

Lead Tape

Ribbon supply spindle

Ribbon Rewind Spindle with Paper Core

7

3.3 Loading Label Stock

1. Insert a 1” label spindle into a paper roll ( * If your paper core is 1 inch, remove

the 1.5” core adapter from the fixed tab. If label width is 4 inch wide, two fixing

tabs are not required. ).

Fig. 6 Label roll installation (I)

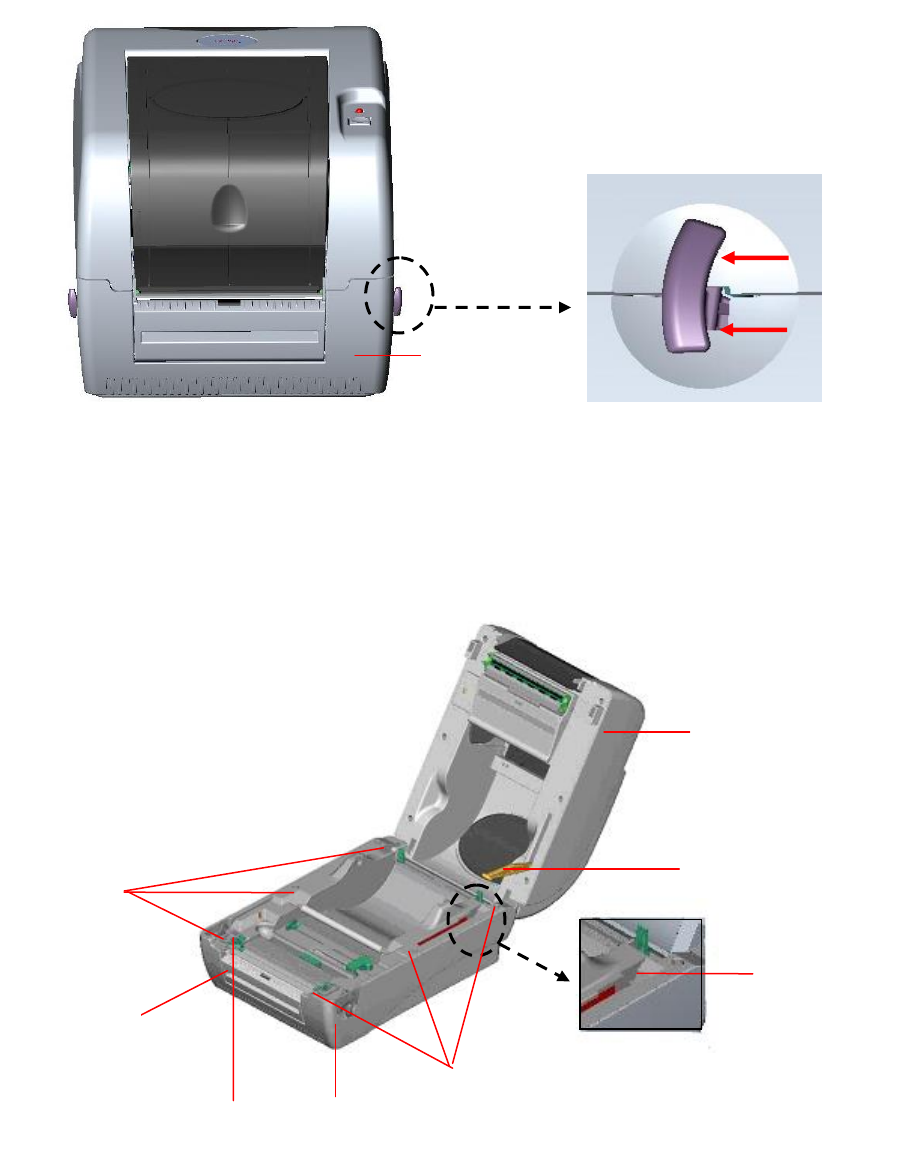

2. Open the printer’s top cover by releasing the green top cover open levers

located on each side of the printer and lifting the top cover. A top cover support

at the rear of the printer will hold the printer top cover open.

Fig. 7 Pull the lever to open the cover

3. Place a roll of paper onto the center of the paper roll mount.

4. Feed the paper, printing side face up, through the Teflon bar and the paper

guide and pass over the platen.

5. Adjust the green center-biased paper guides to slightly touch the edges of the

label backing.

6. To close the printer top cover, lift the cover to the ultimate open angle then use

Paper Roll

1” Label Spindle

Printing Side

Face Up

1.5” Core

Adapter*

Fixed Tab

Lower Cover

8

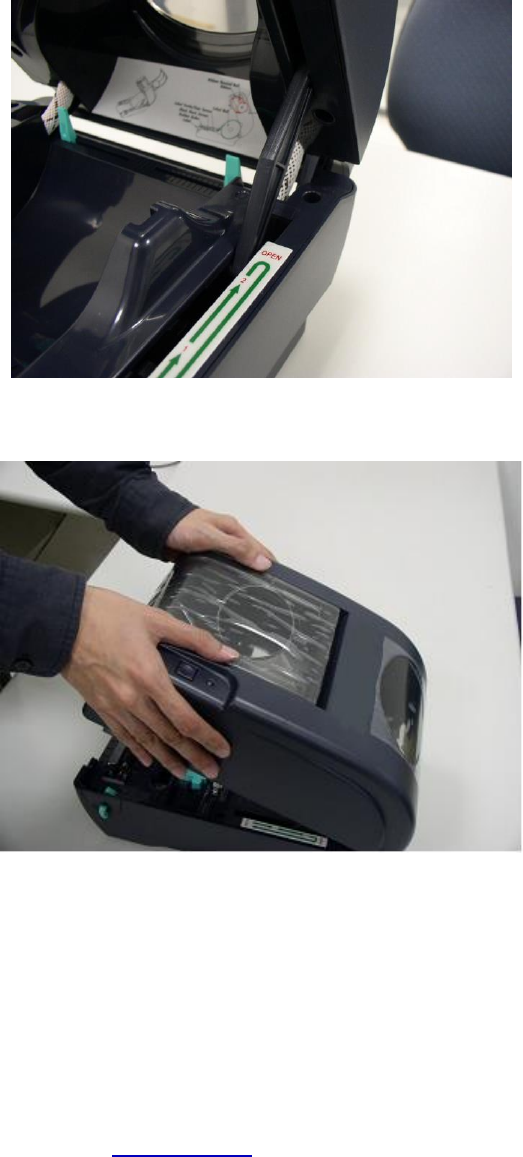

both hands to close the cover gently. Close the printer top cover slowly and

make sure the cover latches securely.

Note:

Make sure hands are not placed between printer top cover and lower cover when

close the top cover.

1. Do not free fall the top cover.

2. Failure to securely close and lock the cover will result in poor print quality.

3. Please refer to videos on TSC YouTube or driver CD.

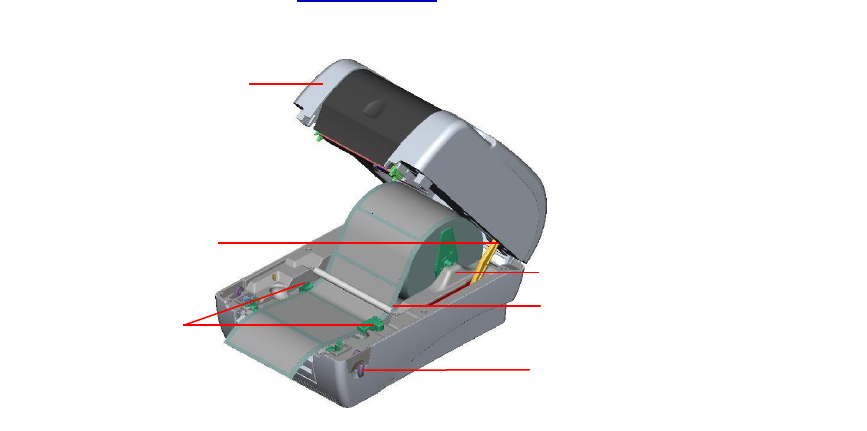

Fig. 8 Label installation (II)

Printer Top Cover

Top Cover Support

Paper Guide

Teflon Bar

Top Cover Open Lever

Paper Roll Mount

9

3.4 External Label Roll Mount Installation (Option)

1. Attach an external paper roll mount on the bottom of the printer.

Fig. 9 Attach the external roll mount to the printer

4. Open the printer top cover by releasing the top cover open levers. The top

cover support will hold the printer top cover.

Install a roll of paper on the external paper roll mount.

5. Feed the paper to the external paper feed opening through the rear paper

guide.

Fig. 10 External roll mount label installation (I)

4. Feed the paper, printing side face up, through the paper guide and pass over the

platen.

5. Adjust the paper guides to fit the paper width.

External Paper Feed Opening

External Paper Roll

Mount

10

6. Close the printer top cover by lifting the top cover to the maximum opening angle

then push down the top cover gently.

Fig. 11 External roll mount label installation (II)

Paper Guide

Platen

Rear Paper Guide

Top Cover Support

11

3.5 Peel-off Module Installation (Option)

1. Open the top cover and remove the front panel from the printer.

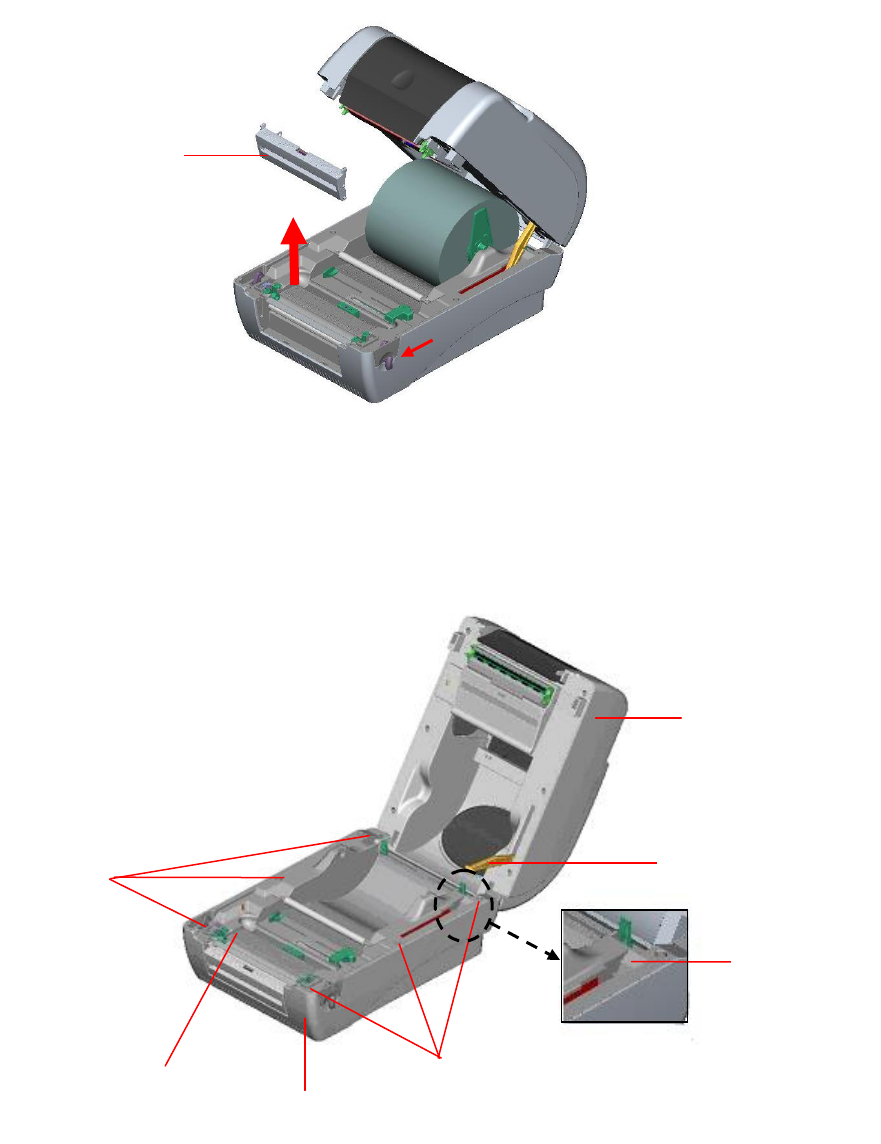

Fig. 12 Remove the front panel

2. Open the top cover and hold it and push down and push backward the top cover

support then push backward the top cover.

3. Use a screwdriver to screw off 6 screws on the lower inner cover.

Fig. 13 Remove 6 screws from lower inner cover

4. Upside down the printer. Remove two screws at the hinge and remove one

screw at memory card cover.

Front Panel

Lower Cover

Screws

Lower Inner

Cover

Top Cover

Screws

Top Cover Support

Flute

12

5. Hold the lower cover to lift up the top cover open levers to separate the lower

inner cover and the lower cover.

6. Arrange the cable through the bezel. Connect the peel-off panel cable to the

5-pin socket on printer PCB.

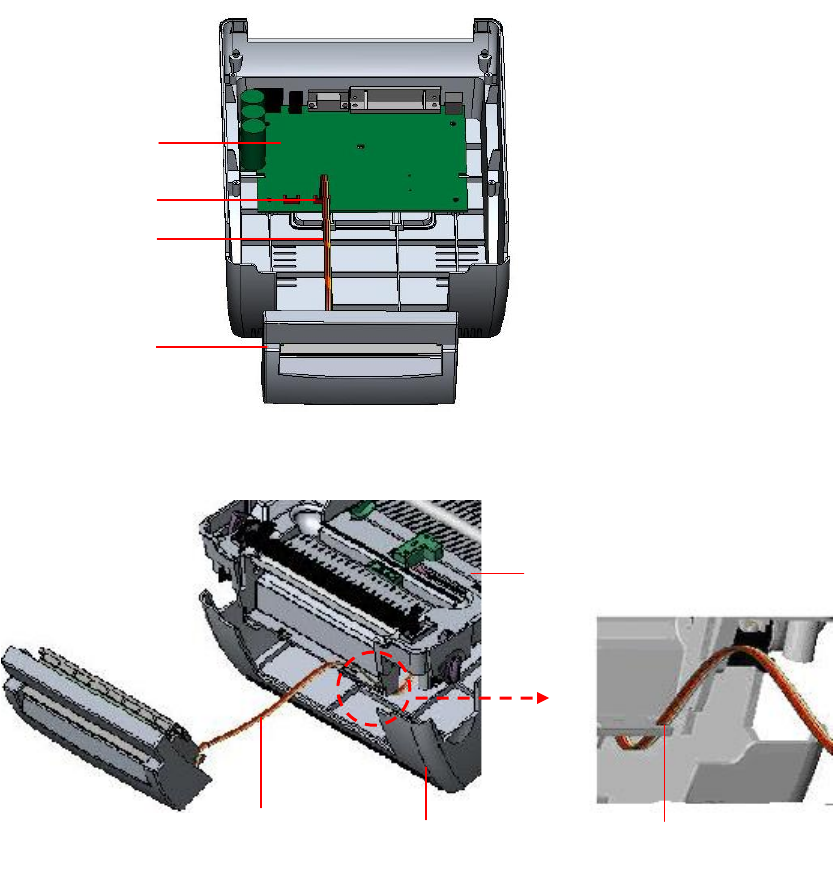

Fig. 14 Connect peel-off sensor cable to main board

Fig. 15 Peel-off sensor cable installation

7. Insert the peel-off tenons into the lower inner cover mortises until tenons snap

Peel-off

panel

Peel-off panel

Cable

5-pin Socket

PCB

Tenon

Bezel

Mortise

13

into places.

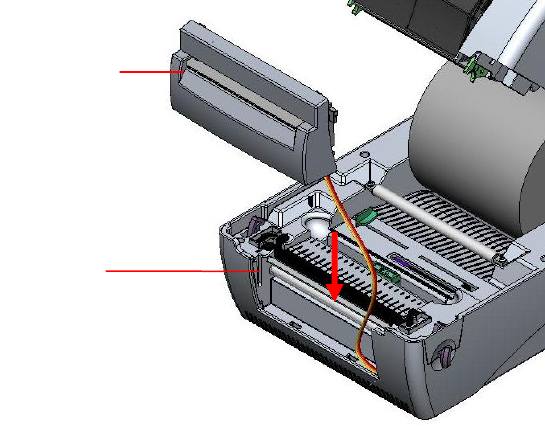

Fig. 16 Peel-off panel installation (I)

8. Arrange the lower inner cover back to the lower cover.

Fig. 17 Peel-off panel installation (II)

9. Lift up the peel-off panel to the lower cover to close it.

10. Use a screwdriver to screw down whole screws on the lower inner cover and

the lower cover.

11. Close the top cover by arranging the top cover support back to the flute

and push it forward then close the top cover slowly.

Roller

Tenon

Mortise

Lower Inner Cover

Lower Cover

Peel-off

panel

Roller

14

3.5.1 Loading the Paper in Peel-off Mode

1. Insert a 1” label spindle into a paper roll.

2. Open the printer top cover by pulling the top cover open levers. The top cover

support will hold the printer top cover.

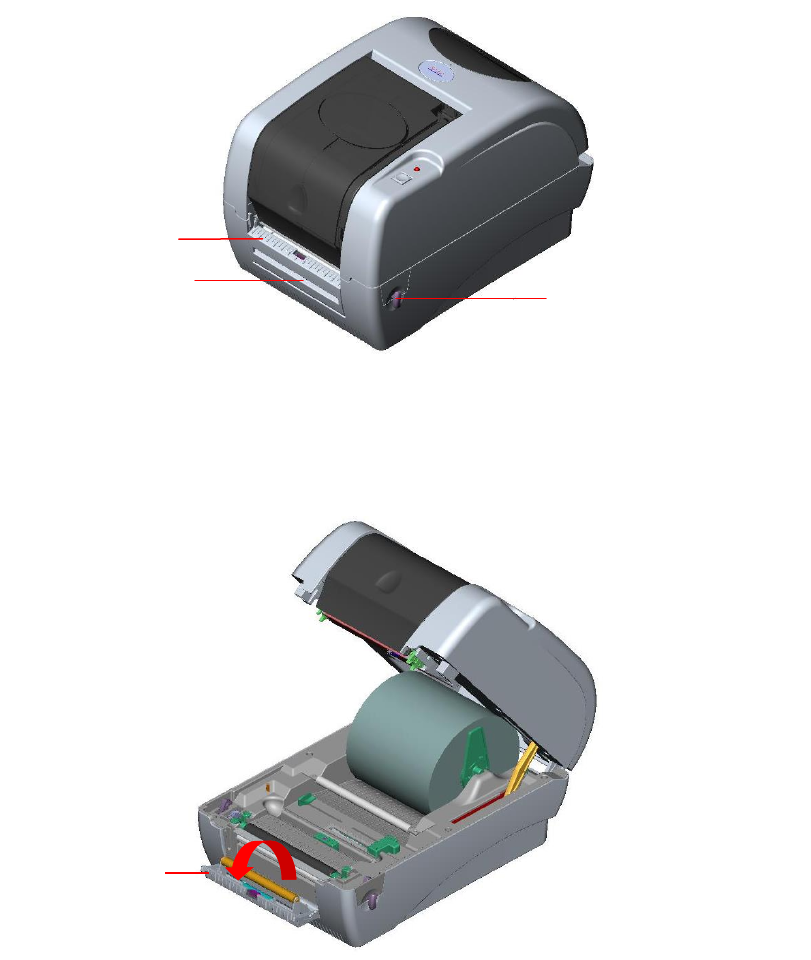

Fig. 18 Open the top cover

3. Install the paper roll on the paper roll mount.

4. Open the peel-off panel by pulling it out.

Fig. 19 Open the peel-off panel

5. Feed the paper, printing side facing up, through the paper guide and pass over

the platen.

6. Lead the paper through the backing paper opening, beneath the roller, and tear

off one piece of the label.

Peel-off

panel

Top Cover Open Lever

Peel-off panel

Backing paper

Opening

15

7. Adjust the paper guide by removing left or right to fit the paper width.

Fig. 20 Lead the paper through the backing paper opening, beneath the

roller

8. Push the peel-off panel back to the printer.

9. Close the top cover by lifting up the top cover support and close the top cover

slowly.

Note:

1. Pull the label outward tightly after closing the top cover.

2. Both thermal paper and plain paper apply for peel-off function but neither PVC

nor vynle work at peel-off function.

3. Please refer to videos on TSC YouTube or driver CD.

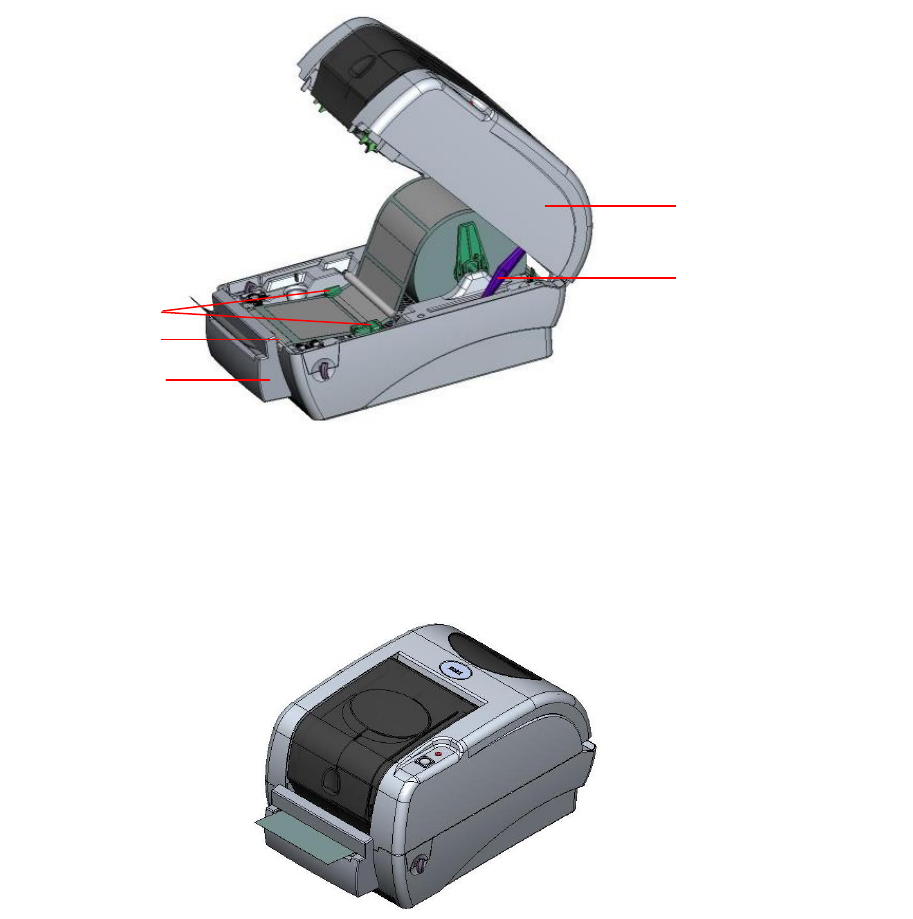

Fig. 21 Complete label installation for peel-off mode

Roller

Top Cover

Top Cover Support

Peel-off panel

16

3.6 Cutter Module Installation (Option)

1. Pull the top cover open levers to open the top cover.

2. Remove the front panel from the lower cover.

Fig. 22 Pull the lever to open the cover

3. Open the top cover and hold it and push down and push backward the top cover

support then push backward the top cover.

4. Use a screwdriver to screw off 6 screws on the lower inner cover.

Fig. 23 Remove 6 screws from lower inner cover

Lower Cover

Screws

Top Cover

Screws

Top Cover Support

Flute

Lower Cover

Lower Inner Cover

Front Panel

17

5. Place the printer upside down and unscrew the two screws of the hinge holder

on the lower cover.

6. Unscrew the screw of the memory card cover and remove the memory card

cover. Plug in the cutter driver IC at U14(TTP-245/343) / U30(TTP-245 Plus/343

Plus/247/345) socket on the main board.

7. Use both thumbs to hold the lower cover and index fingers to lift up the top cover

open levers to separate the lower inner cover and the lower cover.

8. Arrange the cable through the bezel. Connect the cutter module cable to the

4-pin socket on printer PCB.

Fig. 24 Cutter module installation

Fig. 25 Cutter module cable arrangement

9. Arrange the lower inner cover back to the lower cover.

10. Install the cutter into the niches of the printer.

PCB

4-pin Socket

Cutter Cable

Cutter

Lower Inner Cover

Lower Cover

Cutter Cable

Bezel

18

Fig. 26 Cutter module installation

11. Use a screwdriver to screw whole screws on the lower inner cover and the

lower cover.

12. Close the top cover by arranging the top cover support back to the flute

and push it forward then close the top cover slowly.

Niche

Cutter

19

3.6.1 Loading Label in Cutter Mode

1. Insert a 1” label spindle into a paper roll.

2. Open the printer top.

3. Install a paper roll on the paper roll mount.

4. Feed the paper, printing side face up, through the paper guide and pass over the

platen.

5. Lead the paper through the cutter paper opening.

6. Adjust the paper guide by removing left or right to fit the paper width.

Fig. 27 Label installation in cutter mode

7. Close the top cover by lifting up the top cover support and close the top cover

slowly.

Fig. 28 Complete label installation in cutter mode

Top Cover

Top Cover Support

Paper Guide

Platen

Cutter

20

3.7 Instructions to Top Cover Operation

Please take care when opening or closing the printer’s top cover by carefully

following these instructions.

To Open:

1. When facing the front of the printer pull the cover release levers on both sides of

printer towards you.

2. Lift up the top gradually.

There are two stop positions for the top cover. Position 1 and 2 are indicated on

the label below.

Note: To hold the cover open at position 1, you must lift the cover higher

than the stopping point at position 1 and gently lower the cover to stop

position 1. DO NOT free fall the top cover!

3. Fully open the top cover and gently lower it to stop position 2.

Fig. 1 Top cover support is fixed at position 2

4. To close the cover, lift up the top cover to the ultimate angle then close the top

cover gently and it will be kept at a stop position between 1 and 2 for a while.

Use both hands to gently push down the top cover to close it and make sure the

cover is latched on both sides.

Note: DO NOT place your hands between top cover and lower cover

while close the top cover!

21

Fig. 2 Top cover is fully open and ready to close

Fig. 3 Use both hands to close the top cover

5. Do not force the cover! If you are not sure if top cover is fixed at stop position,

please do not push top cover to close it or the top cover will be damaged.

Please open the top cover to the ultimate angle to close the top cover again.

Use both hands to push top cover to close it.

Note:

Please refer to videos on TSC YouTube or driver CD.

22

3.8 Diagnostic Tool

The Diagnostic Utility is a toolbox that allows users to explore the printer’s

settings and status; change printer settings; download graphics, fonts, and

firmware; create printer bitmap fonts; and to send additional commands to the

printer. Using this convenient tool, you can explore the printer status and

settings and troubleshoot the printer.

Note: This utility works with printer firmware V6.00 and later versions.

3.8.1 Start the Diagnostic Tool

1. Double click on the Diagnostic tool icon to start the

software.

2. There are four features (Printer Configuration, File Manager, Bitmap Font

Manager, Command Tool) included in the Diagnostic utility.

Features tab

Printer functions

Interface

Printer Status

Printer setup

23

3.8.2 Printer Function (Calibrate sensor, Ethernet setup, RTC

setup………)

1. Select the PC interface connected with bar code printer.

2. Click the “Function” button to setting.

3. The detail functions in the Printer Function Group are listed as below.

Function

Description

Calibrate Sensor

Calibrate the sensor specified in the Printer Setup

group media sensor field

Ethernet Setup

Setup the IP address, subnet mask, gateway for

the on board Ethernet (Please refer to next section)

RTC Time

Synchronize printer Real Time Clock with PC

Print Test Page

Print a test page

Reset Printer

Reboot printer

Factory Default

Initialize the printer and restore the settings to

factory default.

Dump Text

To activate the printer dump mode.

Ignore AUTO.BAS

Ignore the downloaded AUTO.BAS program

Configuration Page

Print printer configuration

Note:

For more information about Diagnostic Tool, please refer to the diagnostic utility quick

start guide in the CD disk \ Utilities directory.

24

3.9 Setting Ethernet by Diagnostic Utility (Option)

The Diagnostic Utility is enclosed in the CD disk \Utilities directory. Users can use

Diagnostic Tool to setup the Ethernet by RS-232, USB and Ethernet interfaces. The

following contents will instruct users how to configure the Ethernet by these three

interfaces.

3.9.1 Using USB interface to setup Ethernet interface

1. Connect the USB cable between the computer and the printer.

2. Turn on the printer power.

3. Start the Diagnostic Utility by double clicking on the icon.

Note: This utility works with printer firmware V6.00 and later versions.

4. The Diagnostic Utility default interface setting is USB interface. If USB

interface is connected with printer, no other settings need to be changed in

the interface field.

5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer

Configuration tab to setup the IP address, subnet mask and gateway for the

on board Ethernet.

25

3.9.2 Using RS-232 interface to setup Ethernet interface

1. Connect the computer and the printer with a RS-232 cable.

2. Turn on the printer power.

3. Start the Diagnostic Utility by double clicks on the icon.

Note: This utility works with printer firmware V6.00 and later versions.

4. Select “COM” as interface then click on the “Setup” button to setup the

serial port baud rate, parity check, data bits, stop bit and flow control

parameters.

5. Click on the “Ethernet Setup” button from printer function of Printer

Configuration tab to setup the IP address, subnet mask and the gateway for

the on board Ethernet.

26

3.9.3 Using Ethernet interface to setup Ethernet interface

1. Connect the computer and the printer to the LAN.

2. Turn on the printer power.

3. Start the Diagnostic Utility by double clicks on the icon.

Note: This utility works with printer firmware V6.00 and later versions.

4. Select “Ethernet” as the interface then click on the “Setup” button to setup

the IP address, subnet mask and gateway for the on board Ethernet.

5. Click the “Discover Device” button to explore the printers that exist on the

network.

6. Select the printer in the left side of listed printers, the correspondent IP

address will be shown in the right side “IP address/Printer Name” field.

7. Click “Change IP Address” to configure the IP address obtained by DHCP

or static.

27

The default IP address is obtained by DHCP. To change the setting to static

IP address, click “Static IP” radio button then enter the IP address, subnet

mask and gateway. Click “Set IP” to take effect the settings.

Users can also change the “Printer Name” by another model name in this

fields then click “Set Printer Name” to take effect this change.

Note: After clicking the “Set Printer Name” or “Set IP” button, printer

will reset to take effect the settings.

8. Click “Exit” button to exit the Ethernet interface setup and go back to

Diagnostic Tool main screen.

Factory Default button

This function will reset the IP, subnet mask, gateway parameters obtained

by DHCP and reset the printer name.

Web setup button

Except to use the Diagnostic Utility to setup the printer, you can also

explore and configure the printer settings and status or update the firmware

with the IE or Firefox web browser. This feature provides a user friendly

setup interface and the capability to manage the printer remotely over a

network.

28

3.10 Install Memory Card

1. Turn the printer upside down.

2. Remove the screw that fixes the memory card cover.

3. Plug in the memory card on main board.

TTP-245/343 Model (Option)

TTP-245 Plus/343 Plus/247/345

Model (SD Card)

4. Close the memory card cover.

* Recommended SD card specification.

SD card spec

SD card capacity

Approved SD card manufacturer

V1.0, V1.1

128 MB

SanDisk, Transcend

V1.0, V1.1

256 MB

SanDisk, Transcend, Panasonic

V1.0, V1.1

512 MB

SanDisk, Transcend, Panasonic

V1.0, V1.1

1 GB

SanDisk, Transcend, Panasonic

V2.0 SDHC CLASS 4

4 GB

V2.0 SDHC CLASS 6

4 GB

SanDisk, Transcend, Panasonic

V1.0, V1.1

microSD 128 MB

Transcend, Panasonic

V1.0, V1.1

microSD 256 MB

Transcend, Panasonic

Memory Card Cover

Screw

29

V1.0, V1.1

microSD 512 MB

Panasonic

V1.0, V1.1

microSD 1 GB

Transcend, Panasonic

V2.0 SDHC CLASS 4

microSD 4 GB

Panasonic

V2.0 SDHC CLASS 6

microSD 4 GB

Transcend

V1.0, V1.1

miniSD 128 MB

Transcend, Panasonic

V1.0, V1.1

miniSD 256 MB

Transcend, Panasonic

V1.0, V1.1

miniSD 512 MB

Transcend, Panasonic

V1.0, V1.1

miniSD 1 GB

Transcend, Panasonic

V2.0 SDHC CLASS 4

miniSD 4 GB

Transcend

V2.0 SDHC CLASS 6

miniSD 4 GB

- The DOS FAT file system is supported for the SD card.

- Folders/files stored in the SD card should be in the 8.3 filename format

- The miniSD/microSD card to SD card slot adapter is required.

30

4. Power on Utilities

There are six power-on utilities to set up and test printer hardware. These utilities

are activated by pressing FEED button and by turning on the printer power

simultaneously. The utilities are listed as below:

1. Ribbon sensor calibration and Gap or black mark sensor calibration

2. Gap/black mark sensor calibration；Self-test and dump mode

3. Printer initialization

4. Set black mark sensor as media sensor and calibrate the black mark sensor

5. Set gap sensor as media sensor and calibrate the gap sensor

6. Skip AUTO.BAS

Note:

Please refer to videos on TSC YouTube or driver CD.

4.1 Ribbon and Gap/Black Mark Sensor Calibration

Gap/black mark sensor sensitivity should be calibrated at the following conditions:

1. A brand new printer

2. Change label stock.

3. Printer initialization.

Please follow the steps below to calibrate the ribbon and gap/black mark sensor.

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3 Release the button when LED becomes red and blinking. (Any red will do during

the 5 blinks).

 It will calibrate the ribbon sensor and gap/black mark sensor sensitivity.

 The LED color will be changed as following order：

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

Note:

Please select gap or black mark sensor by sending GAP or BLINE command

to printer prior to calibrate the sensor.

For more information about GAP and BLINE command, please refer to TSPL2

programming manual.

31

4.2 Gap/Black Mark Calibration, Self-test and Dump Mode

While calibrate the gap/black mark sensor, printer will measure the label length,

print the internal configuration (self-test) on label and then enter the dump mode. To

calibrate gap or black mark sensor, depends on the sensor setting in the last print

job.

Please follow the steps below to calibrate the sensor.

1.Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED becomes amber and blinking. (Any amber will do

during the 5 blinks).

 The LED color will be changed as following order.

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

2. It calibrates the sensor and measures the label length and prints internal

settings then enter the dump mode.

Note:

Please select gap or black mark sensor by Diagnostic tool or by GAP or

BLINE command prior to calibrate the sensor.

For more information about GAP and BLINE command, please refer to TSPL2

programming manual.

32

Self-test

Printer will print the printer configuration after gap/black mark sensor calibration.

Self-test printout can be used to check if there is any dot damage on the heater

element, printer configurations and available memory space.

Self-test printout

Print head check pattern

Model name and F/W version

Printed mileage (meter)

Firmware checksum

Serial port configuration

Code page

Country code

Print speed (inch/sec)

Print darkness

Label size (inch)

Gap distance (inch)

Gap/black mark sensor sensitivity

Numbers of download files

Total & available memory space

Self-test printout (with printer firmware V7.0 and later version)

Model name

F/W version

Firmware checksum

Printer S/N

TSC configuration file

System date

System time

Printed mileage (meter)

Cutting counter

33

Print speed (inch/sec)

Print darkness

Label size (inch)

Gap distance (inch)

Gap/black mark sensor intension

Code page

Country code

ZPL setting information

Print darkness

Print speed (inch/sec)

Label size

Control prefix

Format prefix

Delimiter prefix

Printer power up motion

Printer head close motion

Note:

ZPL is emulating for Zebra® language.

RS232 serial port configuration

Numbers of download files

Total & available memory space

Print head check pattern

34

Dump mode

Printer will enter dump mode after printing printer configuration. In the dump mode,

all characters will be printed in 2 columns as following. The left side characters are

received from your system and right side data are the corresponding hexadecimal

value of the characters. It allows users or engineers to verify and debug the

program.

Fig. 30 Dump mode printout

Note:

Turn off / on the power to resume printer for normal printing.

ASCII Data

Hex decimal data

related to left

column of ASCII

data

35

4.3 Printer Initialization

Printer initialization is used to clear DRAM and restore printer settings to defaults.

The only one exception is ribbon sensitivity, which will note be restored to default.

Printer initialization is activated by the following procedures.

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns green after 5 amber blinks. (Any green will

do during the 5 blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

Printer configuration will be restore to defaults as below after initialization.

Parameter

Default setting

Speed

203DPI :127 mm/sec (5 ips)

300DPI: 76 mm/sec (3 ips)

Density

8

Label Width

4” (101.6 mm)

Label Height

4” (101.6 mm)

Sensor Type

Gap sensor

Gap Setting

0.12” (3.0 mm)

Print Direction

0

Reference Point

0,0 (upper left corner)

Offset

0

Tear Mode

On

Peel off Mode

Off

Cutter Mode

Off

Serial Port Settings

9600 bps, none parity, 8 data bits, 1 stop bit

Code Page

850

Country Code

001

Clear Flash Memory

No

IP Address

DHCP

Note：

Always do gap/black mark sensor calibration after printer initialization.

36

4.4 Set Black Mark Sensor as Media Sensor and Calibrate

the Black Mark Sensor

Please follow the steps as below.

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns green/amber after 5 green blinks. (Any

green/amber will do during the 5 blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

4.5 Set Gap Sensor as Media Sensor and Calibrate the

Gap Sensor

Please follow the steps as below.

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns red/amber after 5 green/amber blinks. (Any

red/amber will do during the 5 blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

4.6 Skip AUTO.BAS

TSPL2 programming language allows user to download an auto execution file to

flash memory. Printer will run the AUTO.BAS program immediately when turning on

printer power. The AUTO.BAS program can be interrupted without running the

program by the power-on utility.

Please follow the procedures below to skip an AUTO.BAS program.

37

1. Turn off printer power.

2. Press the FEED button and then turn on power.

3. Release the FEED button when LED becomes solid green.

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green (5 blinks) 

green/amber (5 blinks)  red/amber (5 blinks)  solid green

4. Printer will be interrupted to run the AUTO.BAS program.

38

5. Maintenance

5.1 Cleaning

This session presents the clean tools and methods to maintain your printer.

3. Please use one of following material to clean the printer.

 Cotton swab (Head cleaner pen)

 Lint-free cloth

 Vacuum / Blower brush

 100% ethanol

4. The cleaning process is described as following

Printer Part

Method

Interval

Print Head

1. Always turn off the printer

before cleaning the print head.

2. Allow the print head to cool for

a minimum of one minute.

3. Use a cotton swab (Head

cleaner pen) and 100% ethanol

to clean the print head surface.

Clean the print head when

changing a new label roll

Platen Roller

1. Turn the power off.

2. Rotate the platen roller and

wipe it thoroughly with 100%

ethanol and a cotton swab, or

lint-free cloth.

Clean the platen roller when

changing a new label roll

Tear Bar/Peel

Bar

Use the lint-free cloth with 100%

ethanol to wipe it.

As needed

Sensor

Compressed air or vacuum

Monthly

Exterior

Wipe it with water-dampened

As needed

39

cloth

Interior

Brush or vacuum

As needed

Note:

- Do not touch printer head by hand. If you touch it careless, please use ethanol

to clean it.

- Please use 100% Ethenol. DO NOT use medical alcohol, which may damage

the printer head.

- Regularly clean the print head and supply sensors once change a new ribbon

to keep printer performance and extend printer life.

40

6. Troubleshooting

The following guide lists the most common problems that may be encountered

when operating this bar code printer. If the printer still does not function after all

suggested solutions have been invoked, please contact the Customer Service

Department of your purchased reseller or distributor for assistance.

6.1 LED Status

This section lists the common problems that according to the LED status and other

problems you may encounter when operating the printer. Also, it provides solutions.

LED

Status /

Color

Printer

Status

Possible

Cause

Recovery Procedure

OFF

No response

No power

* Turn on the power switch.

* Check if the green LED is lit on power

supply. If it is not lit on, power supply

is broken.

* Check both power connections from

the power cord to the power supply

and from the power supply to the

printer power jack if they are

connected securely.

Solid Green

ON

The printer is

ready to use

* No action necessary.

Green with

blinking

Pause

The printer is

paused

* Press the FEED button to resume for

printing.

Red with

blinking

Error

The out of label or

ribbon or the

printer setting is

not correct

1. Out of label or ribbon

* Load a roll of label and follow the

instructions in loading the media then

press the FEED button to resume for

printing.

* Load a roll of ribbon and follow the

instructions in loading the ribbon then

press the FEED button to resume for

printing.

2. Printer setting is not correct

* Initialize the printer by instructions in

“Power on Utility” or “Diagnostic Tool”.

41

Note:

Printer status can be easily shown on the Diagnostic Tool. For more information about

the Diagnostic Tool, please refer to the instruction in the software CD disk.

6.2 Print Quality

Problem

Possible Cause

Recovery Procedure

Not Printing

Check if interface cable is well

connected to the interface

connector.

Re-connect cable to interface.

The serial port cable pin

configuration is not pin to pin

connected.

Please replace the cable with pin

to pin connected.

The serial port setting is not

consistent between host and

printer.

Please reset the serial port

setting.

The port specified in the Windows

driver is not correct.

Select the correct printer port in

the driver.

The Ethernet IP, subnet mask,

gateway is not configured

properly.

Configure the IP, subnet mask

and gateway.

No print on the

label

Label or ribbon loaded not

correctly.

Follow the instructions in loading

the media or loading the ribbon.

Ribbon run out.

Loading the ribbon.

Continuous

feeding labels

The printer setting may go wrong.

Please do the initialization and

gap/black mark calibration.

Paper Jam

Gap/black mark sensor sensitivity

is not set properly (sensor

sensitivity is not enough)

Calibrate the gap/black mark

sensor.

Make sure label size is set

properly.

Set label size exactly as installed

paper in the labeling software or

program.

Labels may be stuck inside the

printer mechanism near the

sensor area.

Remove the stuck label.

Poor Print Quality

Top cover is not closed properly.

Close the top cover completely

and make sure the right side and

left side levers are latched

properly

42

Check if supply is loaded

correctly.

Reload the supply.

Ribbon and media are

incompatible.

Change the ribbon or label

combination.

Check if dust or adhesives are

accumulated on the print head.

Clean the print head.

Check if print density is set

properly.

Adjust the print density and print

speed.

Check print head test pattern if

head element is damaged.

Run printer self-test and check

the print head test pattern if

there is dot missing in the

pattern.

43

7. LED and Button Operation

7.1 LED

LED Color

Description

Green/ Solid

This illuminates that the power is on and the device is

ready to use.

Green/ Flash

This illuminates that the system is downloading data

from PC to memory and the printer is paused.

Amber

This illuminates that the system is clearing data from

printer.

Red / Solid

This illuminates printer head open, cutter error.

Red / Flash

This illuminates a printing error, such as head open,

paper empty, paper jam, ribbon empty, or memory error

etc.

8.2 Button Operation

Feed

- Press the button when the LED is green.

 It feeds the label to the beginning of the next label.

Pause

- Press the feed button during printing

 The printing job is suspended.

Ribbon Sensor and

Gap/Black Mark

Sensor Calibration

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3 Release the button when LED becomes red and blinking.

(Any red will do during the 5 blinks).

 It will calibrate the ribbon sensor and gap/black mark

sensor sensitivity.

 The LED color will be changed as following order：

Amber  red (5 blinks)  amber (5 blinks)  green

(5 blinks)  green/amber (5 blinks)  red/amber (5

blinks)  solid green

Note:

Please select gap or black mark sensor by GAP or BLINE

command prior to calibrate the sensor.

For more information about GAP and BLINE command,

please refer to TSPL2 programming manual.

44

Gap/Black Mark

Sensor Calibratio,

Label Length

Measurement,

Self Test and enter

Dump Mode

1.Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED becomes amber and

blinking. (Any amber will do during the 5 blinks).

 The LED color will be changed as following order.

Amber  red (5 blinks)  amber (5 blinks) 

green (5 blinks)  green/amber (5 blinks) 

red/amber (5 blinks)  solid green

 It calibrates the sensor and measures the label

length and prints internal settings then enter the

dump mode.

Note:

Please select gap or black mark sensor by GAP or BLINE

command prior to calibrate the sensor.

For more information about GAP and BLINE command,

please refer to TSPL2 programming manual.

Printer

Initialization

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns green after 5 amber

blinks. (Any green will do during the 5 blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green

(5 blinks)  green/amber (5 blinks)  red/amber (5

blinks)  solid green

Note:

Always do gap/black mark sensor calibration after printer

initialization.

Set Black Mark

Sensor as Media

Sensor and

Calibrate the Black

Mark Sensor

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns green/amber after 5

green blinks. (Any green/amber will do during the 5 blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green

(5 blinks)  green/amber (5 blinks)  red/amber

(5 blinks)  solid green

45

Set Gap Sensor as

Media Sensor and

Calibrate the Gap

Sensor

1. Turn off the power switch.

2. Hold on the button then turn on the power switch.

3. Release the button when LED turns red/amber after 5

green/amber blinks. (Any red/amber will do during the 5

blinks).

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green

(5 blinks)  green/amber (5 blinks)  red/amber (5

blinks)  solid green

Skip AUTO.BAS

1. Turn off printer power.

2. Press the FEED button and then turn on power.

3. Release the FEED button when LED becomes solid

green.

 The LED color will be changed as following:

Amber  red (5 blinks)  amber (5 blinks)  green

(5 blinks)  green/amber (5 blinks)  red/amber (5

blinks)  solid green

4. Printer will be interrupted to run the AUTO.BAS program.

46

Revise History

Date

Content

Editor

2008/2/29

*Add section 3.8: Diagnostic Tool

*Add the IP Address default setting

Camille

2008/3/6

*Revise section 2.2

*Add section 3.9: Install memory card

Camille

2008/3/7

*Revise the printer default setting

*Revise section 3.6, 4.2 and 5.1

Camille

2008/3/10

Revise the section 6

Camille

2009/3/11

Revise section 3.9 (Recommended SD card specification)

Camille

2009/6/16

*Add TTP-247/345 model name

*Revise section 4.2

*Add caution to compliances section

Camille

2009/10/14

*Revise section 3.8

*Add section 3.9

Camille

2010/11/23

* Revise compliances section

* Revise section 2.3 and 3.1

Camille

2011/1/25

Modify TSC address

Camille

2013/4/2

Modify section 2.2(cutter spec) and 4.2(V7.0 F/W self test)

Add TSC YouTube web address

Camille

2014/11/11

Modify section 2.2 (Add peel-off module spec)

Camille

47

Corporate Headquarters Li Ze Plant

9F., No.95, Minquan Rd., Xindian Dist., No.35, Sec. 2, Ligong 1st Rd., Wujie Township,

New Taipei City 23141, Taiwan (R.O.C.) Yilan County 26841, Taiwan (R.O.C.)

TEL: +886-2-2218-6789 TEL: +886-3-990-6677

FAX: +886-2-2218-5678 FAX: +886-3-990-5577

Web site: www.tscprinters.com

E-mail: printer_sales@tscprinters.com

tech_support@tscprinters.com

TSC Auto ID Technology Co., Ltd.
