AeroComm’s new ZB2430 module, based on Texas Instruments’ leading edge
802.15.4 SoC & Z-Stack™ technology, is one of the most powerful ZigBee-
compliant solutions on the market today. The ZB2430 provides OEMs with industry-
leading 2.4GHz module performance in low power consumption, integration, long
range, features and functionality.
ZB2430 is ideal for power-restricted or battery-powered applications. Its receive
and power-down mode performance offers OEMs the lowest power consumption of
any comparable transceiver module. Since the ZB2430 works in the ISM band, the
module can be used globally—allowing OEMs to standardize on one platform for
their end products. Although the IEEE 802.15.4 (PHY & MAC) and ZigBee stack
are industry standards, AeroComm’s flexible “ZigBee Your Way” approach allows
OEMs to customize a solution that best meets their application needs.
With the embedded Z-stack firmware, ZB2430 is aimed squarely at secure, low-
power, mesh network applications. Modules are offered as Coordinators, Routers
or End Devices. Network scan, auto-configuration, dynamic routing, discovery,
security... all enable the Mesh network. Additionally, the 128kB of embedded Flash
provides room for larger, more complex application profiles. The GUI based utility
and test software allow an OEM to easily configure and optimize.
•Market’s first SoC ZigBee compliant module.
•Best-in-class power-draw performance.
•Reliable ZigBee mesh architecture.
•2.4 GHz ISM band for global applications.
•Long range performance.
•128 bit AES.
•128 kB Flash memory.
•Battery monitor, temperature sensor, timer.
•GPIO, ADC, DAC
•“ZigBee Your Way” customizable solutions!
•
Building controls
•
Sensors & data
•
HVAC
•
Lighting systems
•
Home automation
•
Meter reading
•
Energy management
•
Security & access
•
Agriculture & irrigation
•
Asset management
•
Medical equipment
•
Light industrial
PARAMETER ZB2430-D ZB2430-Q
Interface Surface-mount Surface-mount or pluggable
Frequency 2400-2483.5 MHz 2400-2483.5 MHz
RF Data Rate 250 Kbps 250 Kbps
Serial Interface Options 3V TTL 3V TTL
Serial Interface Data Rate Up to 115.2 Kbps Up to 115.2 Kbps
Variable Output Power -20 to +2 dBm +10 to +20 dBm
Power Consumption
Tx 25 mA @ 3.3 V, 0 dBm (conducted) 140 mA @ 3.3 V, +18 dBm (conducted)
Rx 27 mA @ 3.3 V 27 mA @ 3.3 V
Standby ≤300uA ≤300 uA
Sleep ≤1 uA ≤1 uA
Hibernate ≤0.7 uA ≤0.7 uA
Security 128 bit AES & SSP 128 bit AES & SSP
Sensitivity (BER 105)-94 dB typical -99 dB typical
Voltage 3.0 - 3.5V 3.0 - 3.5V
Indoor Range 40 meters 200 meters
Outdoor Range 135 meters 4.8 kilometers
Temperature -40oto +85oC-40oto +85oC
Dimensions 25.4 x 34.3 x 5.5 mm 25.4 x 34.3 x 5.5 mm
Antenna Chip antenna U.FL connector or chip antenna
Easy Integration for Any Application
3IEEE 802.15.4 & ZigBee compliant
3Modular solution
3Serial interface
3Utility & test software
3Development kits & technical support
3ATCommands
3FCC Part 15 & ETS 300-328 compliant

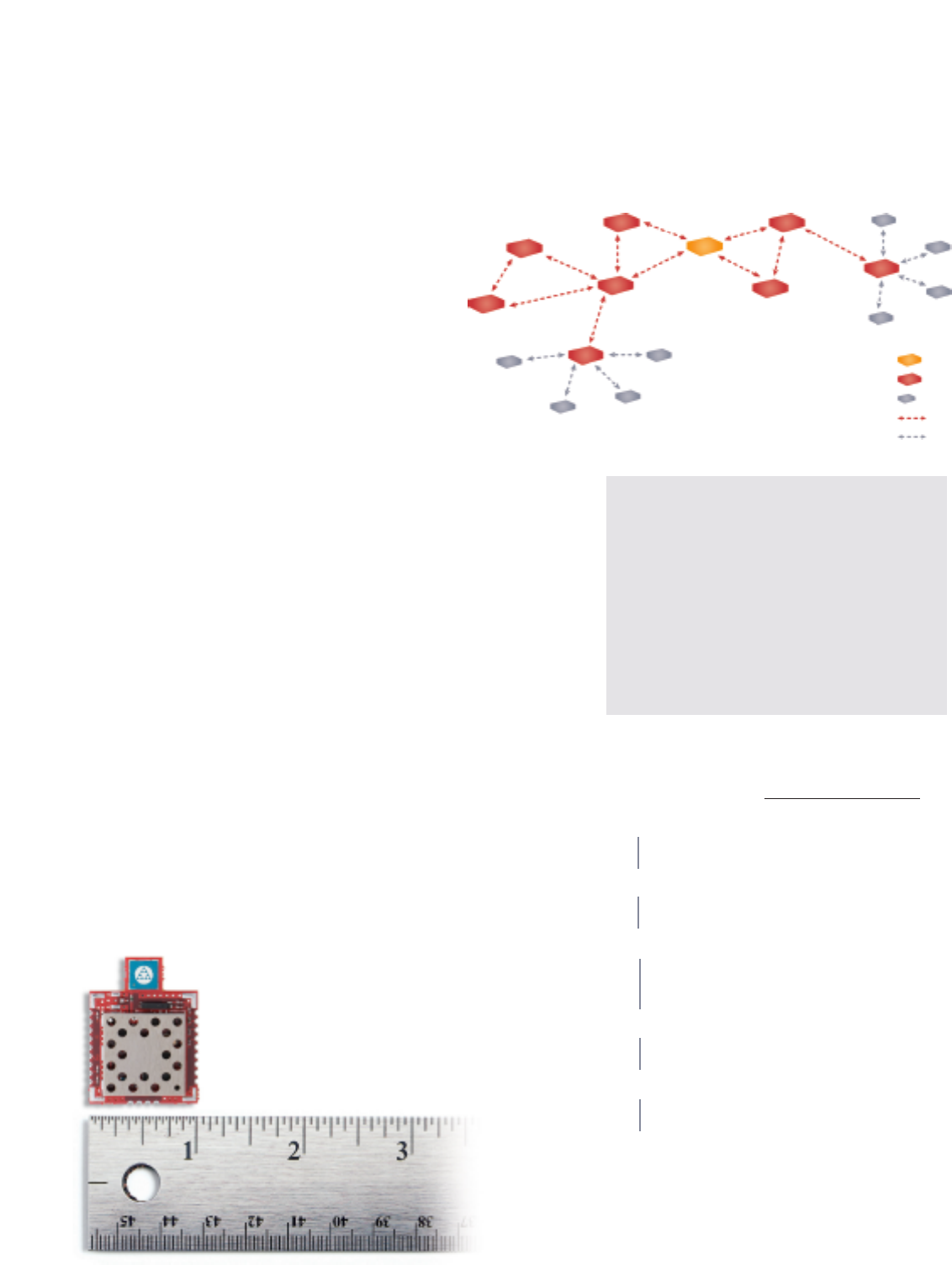

ZB2430 supports mesh architecture. Each system consists of a Coordinator, Router, and optional Reduced-function End Devices.
Coordinator
• One coordinator per network
• Scans to find available channel
• Establishes a network
• Maintains routing tables
• Communicates with any device type
ZigBee Communication
Select features from the list (right) to identify the appropriate part number (left). More product lines are available for industrial &
commercial applications. Contact AeroComm’s Sales Team for details: toll-free 1-800-492-2320, email sales@aerocomm.com.
Placing Orders
ZB2430, Actual Size
ZigBee Coordinator ___
ZigBee Router _______
ZigBee End Device____
Mesh Connection _____
Star Connection ______
Router
• Multiple routers possible
• Communicates with Coordinator, Router and RFEDs
• Scans and joins active channel; allows another device to join
End Device
• Communicates with Coordinator & Routers only
• Can be powered down
• Dedicated to parent (Router or Coordinator)
Common Capabilities
• Service and device discovery
• Unicast and/or broadcast
• Binding
ZigBee™ Your Way™ Defined...
Custom features are available to qualified OEMs.
Please contact the AeroComm factory for details.
• Optional LNA/PA
• Chip or external antenna
• Serial (232/485/422) or USB
• Location engine
• H/W only (create your own profile)
• Over the air download (future option)
• Miniature SMT or pluggable
“D” Version ZB243__ –D–__ –S–__
part (a) (b) (c) (d) (e)
“Q” Version ZB243__ –Q–__ –__ –__
part (a) (b) (c) (d) (e)
0= Standard
1= Location Engine
D= Low power (2mW)
Q= High power (100mW)
C= Coordinator
R= Router
E = End Device
S= Surface mount
X= Pluggable
A= Chip antenna
U= U.FL antenna
(a)
(b)
(c)
(d)
(e)
