Gridstream RF
Enhanced Integrated
FOCUS AX
Quick Start Guide
Publication: 98-1033 Rev AB
Limitation on Warranties and Liability
Information in this document is subject to change without notice. This manual or any part of it thereof may not be
reproduced in any form unless permitted by contract or by written permission of Landis+Gyr.
In no event will Landis+Gyr be liable for any incidental, indirect, special, or consequential damages (including lost
profits) arising out of or relating to this publication or the information contained in it, even if Landis+Gyr has been
advised, knew, or should have known of the possibility of such damages.
© 2010 Landis+Gyr, Inc. All Rights Reserved
Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide
98-1033 Rev AA
Revision History
Modification Date Revision Description Author
09/15/2010 AA Released Internally Kim Utesch
04/21/2011 AB Pending Kim Utesch
Landis+Gyr
6436 County Road 11
Pequot Lakes, MN 56472
Website: www.landisgyr.com
E-mail: solutionsupport.na@landisgyr.com
Technical Support: 1-888-390-5733
Copyright© 2010 Landis+Gyr, Inc.
All rights reserved.
Data Sheet 98-1033 Rev AB 3
Gridstream RF Enhanced
Integrated FOCUS AX
Quick Start Guide
Overview
The Gridstream RF Enhanced Integrated FOCUS AX module is an integrated solution with FOCUS
AX advanced metering electronics the Gridstream AMR communication electronics combined
together on a single PCB. It uses field-proven Digital Multiplication Measurement Technique to
ensure a highly accurate load performance and dependability during the entire life of the product. It
also offers a Service Disconnect option and ZigBee connectivity for HAN applications.

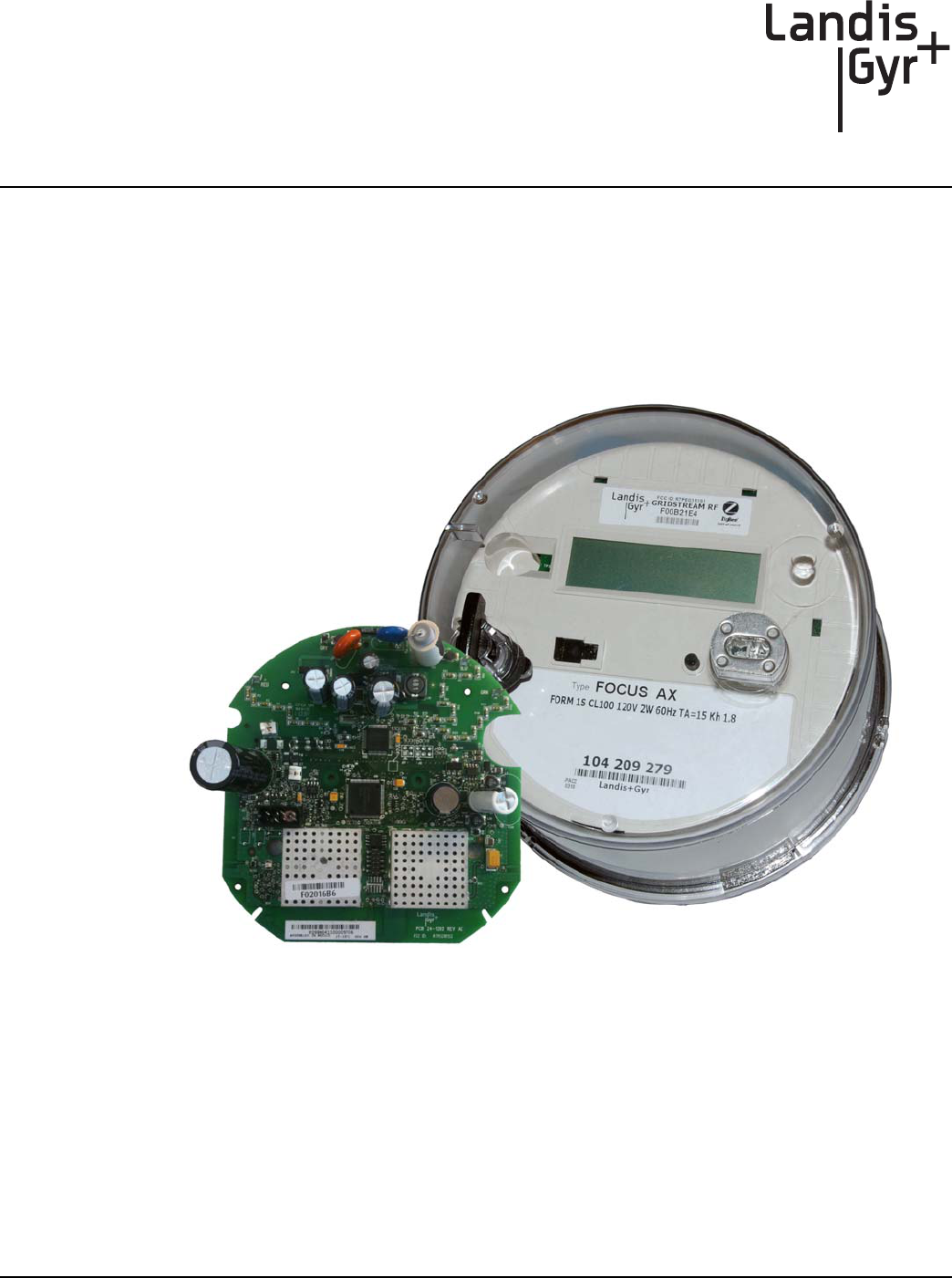

Figure 1. Gridstream RF Enhanced Integrated FOCUS AX module
and the Landis+Gyr FOCUS AX meter
This communication module is not available as a stand alone product. To order a Gridstream RF
Enhanced Integrated FOCUS AX endpoint, the Landis+Gyr kit number is 40-1284 (with ZigBee).
Required Software
To work with the endpoint, you need one of the following software tools:
•Command Center version 5.0 or later
•RadioShop version 5.0 or later
•Endpoint Testing Manager version 4.0 or later
Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide Landis+Gyr
4 98-1033 Rev AB Data Sheet
About the LAN ID
The LAN ID is a unique identifier for each Gridstream RF endpoint. It is always displayed in hex.
Landis+Gyr provides the LAN address. You cannot change the LAN ID of a radio.
HAN Support
The Gridstream RF Enhanced Integrated FOCUS AX communication module supports an integrated
ZigBee system on the chip. This enables the endpoint to communicate via Smart Energy Profile 1.0
with other ZigBee enabled devices.
Endpoint Registration with Command Center
Communication module firmware version 6.x or later and module Device Control Word (DCW)
1A01.06.05 or later is required for auto-registration. After the endpoint is installed in the field it will
automatically register with the Head End System. No special tools are needed during installation as
the normal Utility meter swap process can be utilized.
The meter automatically sends in the registration information containing items on how the meter/
endpoint is configured so the host can properly interpret the incoming data. Some of the items
contained in this are as follows:
•Default collector/destination
•Reporting interval for Register Data
•Reporting interval for Interval Data
•Meter's AMR-level security password
•Time Synchronization parameters
•GMT offset
•Periodic Register Data reporting
•Periodic LP Data reporting
•Meter configuration information
Once this information has been sent the endpoint starts collecting and sending based on the default
configuration loaded during manufacturing.
Retrieving Data
The endpoint is capable of delivering data via an On Request Read (ORR) or autonomously
(periodically reported).
Availability of the following features depends on meter configuration. On Request Reads (ORR)
available with this endpoint are:
•Register Data (Standard Table 23) which includes consumption, demand and TOU values
•Load Profile or Interval Data (Standard Table 64)
•Revenue Integrity Services which includes instantaneous measurements related to line
voltage, current and phase angle
Landis+Gyr Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide
Data Sheet 98-1033 Rev AB 5
Availability of the following features depends on meter configuration. Options for periodic reported
data with this module include:
•Register Data & Status Flags (Standard Tables 23 & 3) which includes consumption,
demand, TOU values and meter status
•Load Profile or Interval Data & Status Flags (Standard Tables 64 & 3) which includes
interval data and meter status
Demand Reset
When the Command Center Host delivers a Demand Reset command, the communication module
passes the command to the meter, which performs the Demand Reset on the meter. The endpoint
then passes the previous demand data captured by the meter (Standard Table 25) to the Host for
processing.
Time Synchronization
Time synchronization is the process of keeping the meter time synchronized with the Gridsteam RF
network time within a configurable limit. The communication module automatically keeps its time
synchronized with the Gridstream RF network via periodic background process. The communication
module reads the meter date/clock table (Standard Table 52) at 1:23 AM. If the time drift between
meter and communication module exceeds the minimum time threshold, X, it sends a time
synchronization alert message to the Host so it knows that an adjustment was made automatically for
XX seconds. If the time is off by more than Y seconds, an alert is sent saying the time off exceeds
allowed seconds and that further manual action will be required to correct.
Power Outage/Restoration
When an outage occurs, the meter uses an early power failure signal to alert the communication
module to disconnect from the meter's power immediately. The communication module saves
critical module data to non-volatile memory and creates and sends a power outage message. This
message includes the following information:
•LAN ID
•Outage time
•Reboot count.
The communication module sends the message, then assists with routing other packets until the
back-up energy source can no longer keep the radio alive.
When power is restored, the communication module connects with the network. With network
communications restored, the communication module sends a power restoration message that
includes details such as:
•LAN ID
•Outage time
•Restoration time
•Reboot count.
Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide Landis+Gyr
6 98-1033 Rev AB Data Sheet
The communication module stores a history of up to the last five power outage and restoration event
pairs in the event log. The Host can request this data.
Supporting Passwords
The endpoint supports passwords provided by the utility. See two way Endpoint Testing Manager for
loading password into the communication module.
Downloading Firmware
The metrology, communication module and ZigBee firmware can be upgraded remotely over the
network. Both the communication module and ZigBee firmware can remotely initiate a self-restart
with communications enabled, if the downloaded firmware causes a catastrophic functional failure.
Once the endpoint completely receives the new code, it operates with the new code. The metrology
and communication module firmware are integrated and must be updated simultaneously.
Encrypting Data
The Gridstream RF network currently supports use of one encryption key per network. If you enable
the FOCUS AX with encryption, the host must have a matching encryption key.
Configuration Tables
The Gridstream RF Communication Module Configuration structure passes the data to configure the
endpoint. It is used for both C&I and Residential applications.
This table is currently 55 bytes long. It contains information necessary to configure several services
on the endpoint, such as firmware reads, autonomous data return configuration.
The endpoint receives the packet, and using the data, configures its own operation. The host
maintains a record of the endpoint’s configuration.
Item General Description
Packet Contents Identifies which elements in this packet are set. Elements that are not set are
ignored. There still must be a place in the packet for it, though.
Config Byte 1 Not used.
Config Byte 2 Not used.
Config Byte 3 Not used.
Config Byte 4 Not used.
Config Byte 5 Not used.
Reporting Interval LP In Minutes.
Pump Period
Register In Minutes.
Pump Period RIS Not used.
Pump Period Status Not used.
Landis+Gyr Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide
Data Sheet 98-1033 Rev AB 7
Troubleshooting
Contact Landis+Gyr Customer Support at solutionsupport.na@landisgyr.com or call 888-390-5733
with any questions or problems, and they will guide you through the troubleshooting process.
Shock Hazard
Beware of hazardous electrical voltages. Do not touch the board or any external connections, such as
the antenna, when the meter board is powered up.
Compliance
FCC Class B
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the Instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
Pump Period Snap
Read Not used.
User ID 2 byte User ID used while running ANSI Logon Service
Logon User 10 byte User Name that is used while running the ANSI Logon Service
Security Password The full 20 bytes are required for the FOCUS AX.
Sustained Outage
Duration
Defines the number of seconds after which an outage will be classified as
sustained. If less than this amount, the outage is momentary. A value of zero will
cause all outages to be considered "sustained".
Max Meter Time Drift The number of seconds that the meter clock can drift from the radio clock, after
which an alarm is triggered.
Meter Time Read
Period The period at which the module checks the time in the meter. In Seconds
GMT Offset
The GMT Offset in 15 minute increments. Signed.
Valid values are -128 (0x80), corresponding to GMT-32hours to +127 (0x7F),
corresponding to GMT+ 31hours
Item General Description
Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide Landis+Gyr
8 98-1033 Rev AB Data Sheet
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult Landis+Gyr or an experienced radio technician for help
UWARNING: Changes or modifications to this device not expressly approved by Landis+Gyr
could void the user's authority to operate the equipment.
RF Exposure
In accordance with FCC requirements of human exposure to radio frequency fields, the radiating
element shall be installed such that a minimum separation distance of 20 centimeters will be
maintained.
Specifications
Category Specification Value or Range
Compatible
Meters
Landis+Gyr FOCUS Supported
Meter Forms
Form Class Voltage Units
1S&SD CL100 120 Vac
2S&SD CL200 240 Vac
2SE CL320 240 Vac
3S CL20 120 Vac
3S CL20 240 Vac
4S CL20 240 Vac
Only 1S and 2S are available with Service Disconnect
Gridstream
Radio General
RF Frequency Range 902.2 MHz Min, 927.9 MHz Max
RF Baud Rate 9.6 kbps Min, 115.2 kbps Max, Programmable
Output Power 25.25 kBm Min, 26.25 dBm Typ, 27.25 dBm Max. Over
temperature range, <2:1 VSWR load
Receive Sensitivity -112 dBm Min, -102 dBm Max, At 10% PER, depends
on baud rate
Antenna Type Inverted F, Printed
Antenna Gain +3 dbi, Peak Gain
Landis+Gyr Gridstream RF Enhanced Integrated FOCUS AX Quick Start Guide
Data Sheet 98-1033 Rev AB 9
ZigBee Radio
General
RF Frequency Range 2.405 GHz Min, 2.475 GHz Max
RF Baud Rate 250 kbps Typ
Output Power 17 dBm Min, 20 dBm Typ, 21 dBm Max, <2:1 VSWR
load, approx.
Receive Sensitivity -106 dBm Min, -104.5 dBm Typ, -102 dBm Max. At
1% PER
Antenna type Inverted F, Printed
Angenna Gain +5 dBi, Peak Gain
Standards
Compliance
FCC Title 47 CFR Part 15 Radiated and Conducted Emissions (incl. intentional
radiators)
IEC 61000 4-2,3,4,5, 6, 8, 9, 11 Electromagnetic Compatibility
ANSI C12.20 National Standard for Electricity Meters - 0.2 and 0.5
Accuracy Classes
ANSI C12.1 Code for Electricity Metering
ANSI C37.90.1 (1989) Standard Surge Withstand Capability (SWC) Tests
Mechanical
Size 5.5” L x 5.0” W x 1.5” H
Weight 48.2 g
Environmental
Storage Temperature -40 to +85 C
Operating Temperature -40 to +85 C (under meter cover)
Relative Humidity 5 to 95% relative humidity, non-condensing
Category Specification Value or Range
