Landis+Gyr
Network Bridge
N2200/N2250
Data Sheet
Publication: 98-1822 Rev AA
Draft
Limitation on Warranties and Liability
Information in this document is subject to change without notice. This manual or any part of it thereof may not
be reproduced in any form unless permitted by contract or by written permission of Landis+Gyr.
In no event will Landis+Gyr be liable for any incidental, indirect, special, or consequential damages (including
lost profits) arising out of or relating to this publication or the information contained in it, even if Landis+Gyr
has been advised, knew, or should have known of the possibility of such damages.
© 2019 Landis+Gyr, Inc. All Rights Reserved
Covered by both issued and pending patents.
For further patent information see: https://www.landisgyr.com/about/patent-notices/
Contact Us:
Landis+Gyr technical support:
1-888-390-5733
solutionsupport.na@landisgyr.com
To provide feedback about this documentation, contact the Technical Documentation team at:
ustechnicaldocumentation@landisgyr.com.
Landis+Gyr Network Bridge N2200/N2250 Data Sheet
Publication: 98-1822 Rev AA
Revision History
Modification Date Revision Description Author
AA Draft - Work in Progress Vicky Costello
© 2019 Landis+Gyr • All rights reserved
Draft
Data Sheet 98-1822 Rev AA 3
Network Bridge
N2200 (RF Mesh)/N2250 (RF Mesh IP)
Data Sheet
Product Overview
The Landis+Gyr Network Bridge provides the basis for a powerful RF wireless mesh
network for remote data collection and end-device monitoring and control. The Network
Bridge supports full two-way peer-to-peer communication to all devices within the network.
The Network Bridge offers advanced functionality, such as individual message
prioritization, additional memory for localized intelligence, and it is based on the Linux
operating system. The N2200 (RF Mesh)/N2250 (RF Mesh IP) provides interface and
control to distribution equipment and critical devices that require low latency.

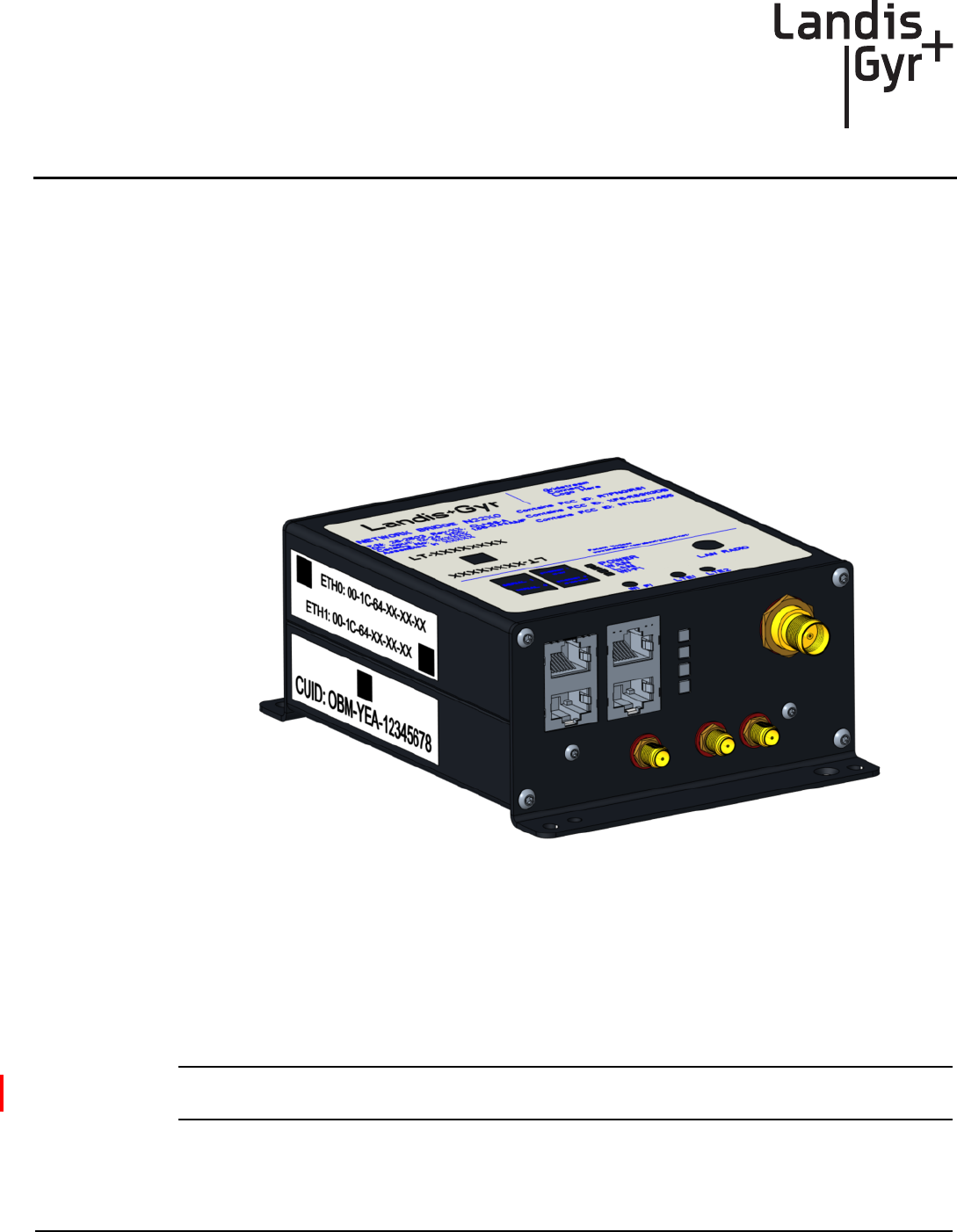

Figure 1 - 1. N2200/N2250 Network Bridge
In addition to the standard RF Mesh and RF Mesh IP radios, the N2200/N2250 has one
internal slot that can be fitted with LTE wireless or other future WAN technologies. The
N2200/N2250 comes equipped with two serial and two Ethernet ports, and WiFi for
configuration. Landis+Gyr's Network Bridge/Network Gateway Platform offers a family of
Field Area Network Devices that can be configured and deployed to build a robust
communication network infrastructure, enabling communication to edge devices in the field.
NOTE: Network Bridge, N2250 (RF Mesh IP), can support the Wi-SUN Field Area Network (FAN)
profile through over-the-air (OTA) firmware upgrades.
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
4 98-1822 Rev AA Data Sheet
FCC ID Labels
FCC ID Label content is shown in Figure 2 and is required for RF Mesh (2200) and RF
Mesh IP (2250). If the X in N22X0, is 0, then this label would be for RF Mesh. If X is 5, then
it would be for RF Mesh IP.

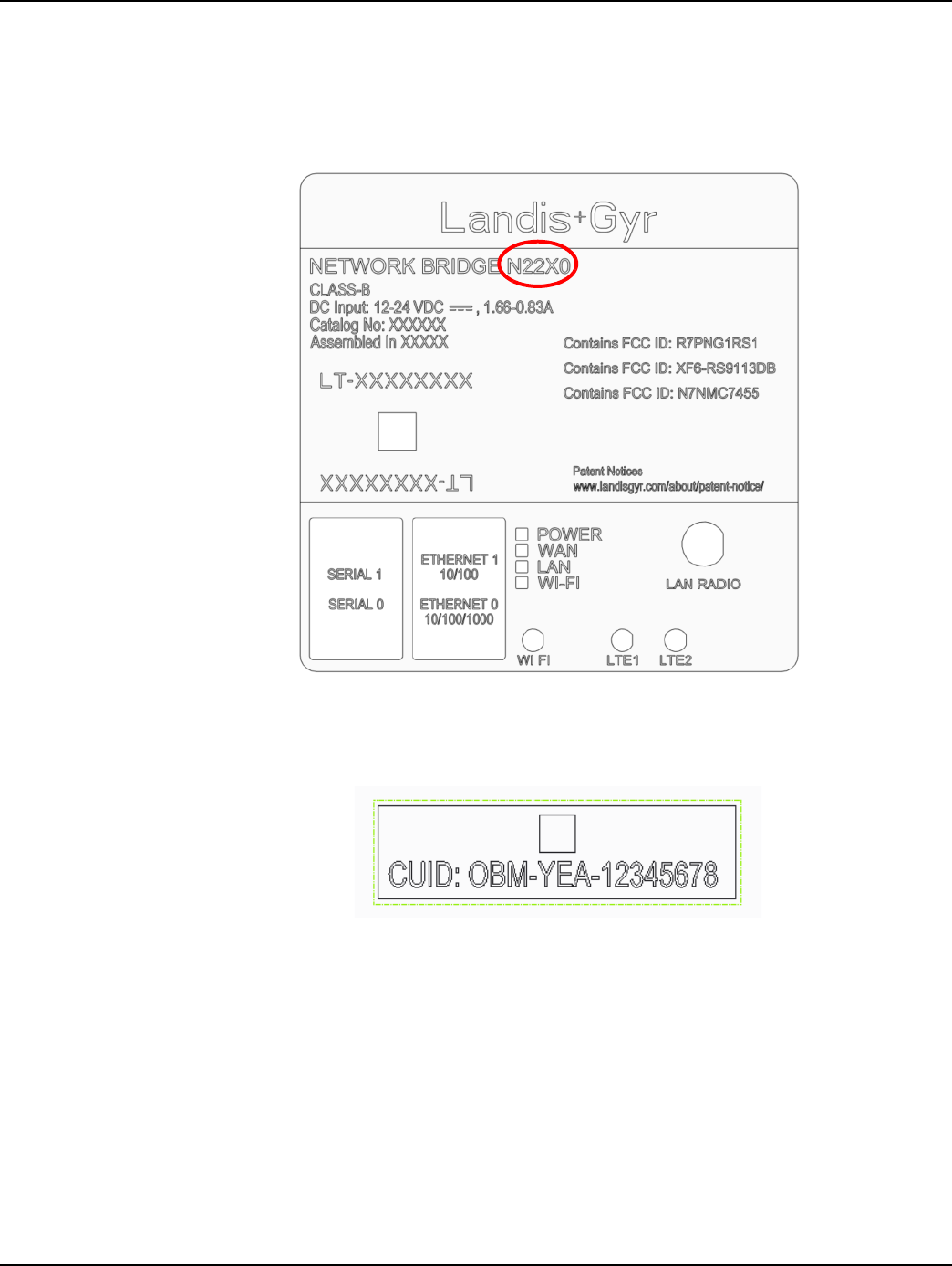

Figure 2. FCC ID Label
CUID Details
Figure 3. CUID Details
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 5
Dimensions

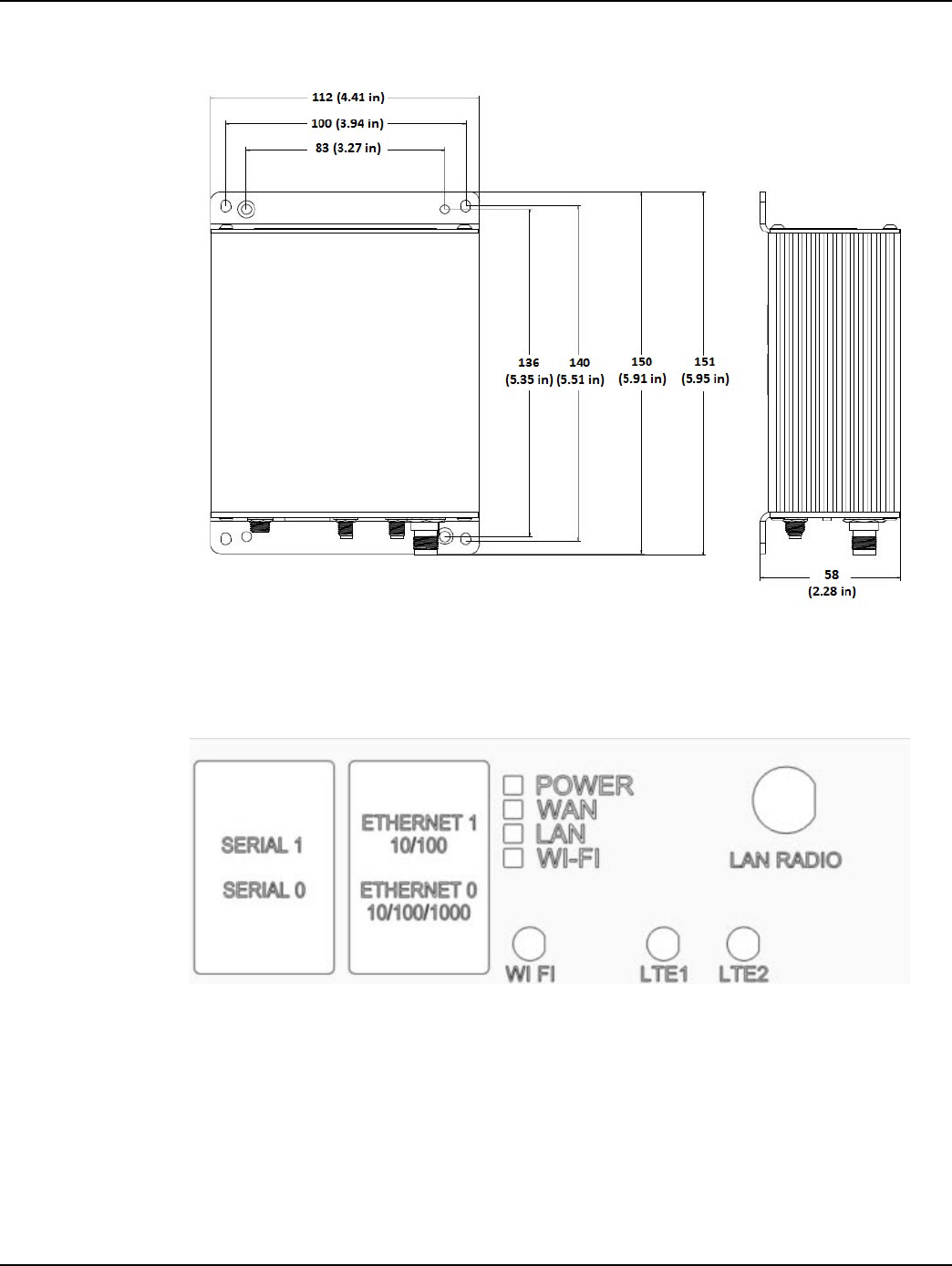

Figure 4. Network Bridge Physical Dimensions (mm)
Data Ports Pin-Out
Figure 5. Data Ports Pin-Out
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
6 98-1822 Rev AA Data Sheet
N2200/N2250 Specifications
Product Specifications
Table 1 lists the general product specifications for the N2200 (RF Mesh)/N2250 (RF Mesh
IP) Network Bridge Series.
Table 1. Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP)
Product Specifications
Element Description
Electrical (General)
Input Voltage Range 12-24 VDC +/- 20% (9.6-28.8 VDC)
Current 1.66A-0.83A
Processing Unit
CPU Cortex A5
Clock Speed 536 MHz
RAM Memory 512 MB DDR2 RAM
FLASH Memory 2 GB NAND + 4 GB External
Ethernet
ETH 0 10/100/1000 Ethernet
ETH 1 10/100 Ethernet
WIFI Yes
LTE Cat6 (US Only-ATT and Verizon) Yes
Mechanical
Enclosure
Black Anodized Aluminum, IP41 (ingress
protection from dripping condensation and
solid material larger than 1mm)
Dimensions 55.20mm W X 120.00mm D X 112.10mm H
(2.17" W x 4.72" D x 4.41" H
Weight 1.10 lbs (0.50 kg)
Operating Temperature Range -40°C to 60°C (-40 to 140°F)
Storage Temperature Range -40°C to 85°C (-40 to 185°F)
Limited Lifetime
Life 20 years
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 7
Radio Specifications Americas
Table 2 lists the radio specifications for the N2200 (RF Mesh)/N2250 (RF Mesh IP) Network
Bridge Series for Americas.
Table 2. Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP)
Radio Specifications Americas
Element Description
Radio (General)
Radio Model Model: NIC AM
Communication Protocol (PHY) IEEE 802.15.4g - SUN FSK PHY
RF Frequency Range
North America: 902-928 MHz
Brazil: 902-907.5, 915-928 MHz
Channel Spacing
N2250 (RF Mesh IP): 400 KHz
N2200 (RF Mesh): 100, 300 KHz
RF Data Rate
N2250 (RF Mesh IP): 50, 150, 200 Kbps
N2200 (RF Mesh): 9.6, 19.2, 38.4, 115.2 Kbps
Bridge Radio Processing Unit
CPU Dual-core Cortex M4
Clock Speed 120 MHz
RAM Memory 304 Kbytes
FLASH Memory 2 MB + 4MB External
ROM Memory 8 Kbytes
Receiver
RF Mesh IP:
Sensitivity (at 90% packet success rate,
conducted, typical)
-107 dBm(50 Kbps)
-100 dBm(150 Kbps)
-98 dBm(200 Kbps)
Adjacent Channel Rejection 30 dB Typical
Alternate Channel Rejection 35 dB Typical
RF Mesh:
Sensitivity (at 90% packet success rate,
conducted, typical)
-113 dBm(9.6 Kbps)
-110 dBm(19.2 Kbps)
-107 dBm(38.4 Kbps)
-101 dBm (115.2 Kbps)
Adjacent Channel Rejection 30 dB
Alternate Channel Rejection 35 dB
Transmitter
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
8 98-1822 Rev AA Data Sheet
Output Power (at Antenna Connector) 50 mW to 820 mW
Modulation Type 2FSK, 2GFSK
Out-of-band Spurious Emissions < -50 dBc
Antennas Approved
Type Vertically-Oriented Whip
Peak Gain 5.5dBi
Whip, Skywave MMG-11, Rev B 5.5dBi Gain, 902-928 MHz, 50 ohms
Type Vertically-Oriented Dipole
Peak Gain 5.15dBi
Dipole, Laird FG9023 5.15dBi Gain, 902-928 MHz, 50 ohms
Type Vertically-Oriented Monopole
Peak Gain 5.15dBi
Monopole, Skywave 11-1106E 5.15dBi Gain, 902-928 MHz, 50 ohms
Table 2. Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP)
Radio Specifications Americas (Continued)
Element Description
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 9
Radio Specifications India
Table 3 lists the radio specifications for the N2200 (RF Mesh)/N2250 (RF Mesh IP) Network
Bridge Series for India.
Table 3. Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP)
Radio Specifications India
Element Description
Radio (General)
Radio Model Model: NIC IN
Communication Protocol (PHY) IEEE 802.15.4-2015 - SUN FSK PHY
RF Frequency Range 865-867 MHz
Channel Spacing
N2250 (RF Mesh IP): 200 KHz
N2200 (RF Mesh): 100 KHz
RF Data Rate
N2250 (RF Mesh IP): 50, 150 Kbps
N2200 (RF Mesh): 9.6, 19.2, 38.4 Kbps
Bridge Radio Processing Unit
CPU Dual-core Cortex M4
Clock Speed 120 MHz
RAM Memory 304 Kbytes
FLASH Memory 2 MB + 4MB External
ROM Memory 8 Kbytes
Receiver
RF Mesh IP:
Sensitivity (at 90% packet success rate,
conducted, typical)
-107 dBm(50 Kbps)
-100 dBm(150 Kbps)
Adjacent Channel Rejection 30 dB
Alternate Channel Rejection 35 dB
RF Mesh:
Sensitivity (at 90% packet success rate,
conducted, typical)
-113 dBM(9.6 Kbps)
-110 dBm(19.2 Kbps)
-107 dBm(38.4 Kbps)
Adjacent Channel Rejection 30 dB
Alternate Channel Rejection 35 dB
Transmitter
Output Power (at Antenna Connector) 50 mW to 1W
Modulation Type 2FSK, 2GFSK
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
10 98-1822 Rev AA Data Sheet
Out-of-band Spurious Emissions <-50 dBc
Antenna Requirements
Type Vertically-oriented whip
Peak Gain <5.5 dBi
Table 3. Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP)
Radio Specifications India(Continued)
Element Description
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 11
Radio Specifications Hong Kong
Table 4 lists the radio specifications for the N2250 (RF Mesh IP) Network Bridge Series for
Hong Kong.
Table 4. Network Bridge N2250 (RF Mesh IP)
Radio Specifications Hong Kong
Element Description
Radio (General)
Radio Model Model: NIC HK
Communication Protocol (PHY) IEEE 802.15.4g
RF Frequency Range 920-925 MHz
Channel Spacing 400 KHz
RF Data Rate 50, 150, 200 Kbps
Bridge Radio Processing Unit
CPU Dual-core Cortex M4
Clock Speed 120 MHz
RAM Memory 304 Kbytes
FLASH Memory 2 MB + 4MB External
ROM Memory 8 Kbytes
Receiver
RF Mesh IP:
Sensitivity (at 90% packet success rate,
conducted, typical)
-107 dBM(50 Kbps)
-100 dBm(150 Kbps)
-98 dBm(200 Kbps)
Adjacent Channel Rejection 30 dB
Alternate Channel Rejection 35 dB
Transmitter
Output Power (at Antenna Connector) 50 mW to 1W
Modulation Type 2FSK, 2GFSK
Out-of-band Spurious Emissions <-20 dBm ERP
Antenna Requirements
Type Vertically-oriented whip
Peak Gain < 2 dBi
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
12 98-1822 Rev AA Data Sheet
Regulatory Compliance
Safety and EMC
Table 5. Regulatory Standards Compliance: Safety and EMC
Specification Description
Safety - Certification pending to: IEC 60950-1:2005Ed.2+A2012;C2012
UL 60950-1:2007Ed.2+R:14Oct2014
CSA C22.2#60950-1:2007 Ed.2+A1;A2
Information Technology Equipment - Safety, as
an Over-voltage Class 0 device. Certification
Pending.
EMC - Certification pending to: CENELEC-EN 55032 2012.01.30 Ed. 1.0
(CISPR 32) EMC of Multimedia Equipment -
Emission Requirements
CENELEC-EN 55024 2010/08/24 Ed:2 (CISPR
24) IT Equipment- Immunity characteristics
FCC 47CFR PT 15B, Unintentional Radiators
IC ICES-003:2016Ed.6
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 13
FCC Compliance
FCC Class A
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the Instruc-
tions, may cause harmful interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult Landis+Gyr or an experienced radio technician for help
UWARNING: Changes or modifications to this device not expressly approved by
Landis+Gyr could void the user’s authority to operate the equipment.
RF Exposure
This equipment complies with FCC and ISED radiation exposure limits. This equipment
should be installed and operated with a minimum distance of 30 cm between the radiator
and your body. This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
Cet équipement est conforme aux limites FCC/ISED d'exposition aux radiations définies
pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé à une distance minimale de 30cm entre le
radia-teur et votre corps.
Cet émetteur ne doit pas être co-implantés ou exploités en conjonction avec une autre
antenne ou émetteur.
Draft
Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet Landis+Gyr
14 98-1822 Rev AA Data Sheet
EIRP Limit
The equipment meets the required FCC specifications with any customer-selectable RF
power setting of the radio, using the antennas indicated in this document. FCC testing was
conducted using the antennas specified in this document. Antennas with higher gain may
result in EIRP levels in excess of the FCC limit.
Antennas of a type other than whip, dipole, and monopole are not FCC approved for this
device.
NOTE: If you increase the power from the factory settings, this can cause communication problems
for other radios in the network.
Requirement for Hosting Certified Radios
The following radio modules are approved for use in the Bridge.
•NIC
•Cell Modems
•WiFi
Transmitters that are added to the Bridge require testing to be approved.
•If the transmitters are added by the customer, the customer is responsible for this
testing.
•If Landis+Gyr adds these modules, the testing will be performed, and they will be
added to the list of approved modules.
Industry Canada
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device. Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain approved for the trans-
mitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (5294A-NG1R1S1) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included
in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Approved Antenna: Whip, 5.5 dBi gain, 902-928 MHz, 50 ohms.
Approved Antenna: Dipole, 5.15 dBi gain, 902-928 MHZ, 50 ohms.
Approved Antenna: Monopole 2.15 dBi gain, 902-928 MHz, 50 ohms.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
Draft
Landis+Gyr Network Bridge N2200 (RF Mesh)/N2250 (RF Mesh IP) Data Sheet
Data Sheet 98-1822 Rev AA 15
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio (5294A-NG1R1S1) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non
inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont stricte-
ment interdits pour l'exploitation de l'émetteur.
Brazil
Anatel
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar
interferência a sistemas operando em caráter primário.
Regulatory Compliance India
WPC Guidelines
This device complies with WPC guidelines. This device complies with Part 15 of the FCC
rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Safety Information
California Hazard Identification
UWARNING: This product can expose you to chemicals including lead, which is
known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Draft

Navigation menu
