Users Manual
DSW System
DR Receiver/DB Transmitter
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com
Fill in for your records:
Serial Number:
Purchase Date:
Essential Setup Steps
1) Install receiver modules, antennas and connect to a power supply (see page 6)

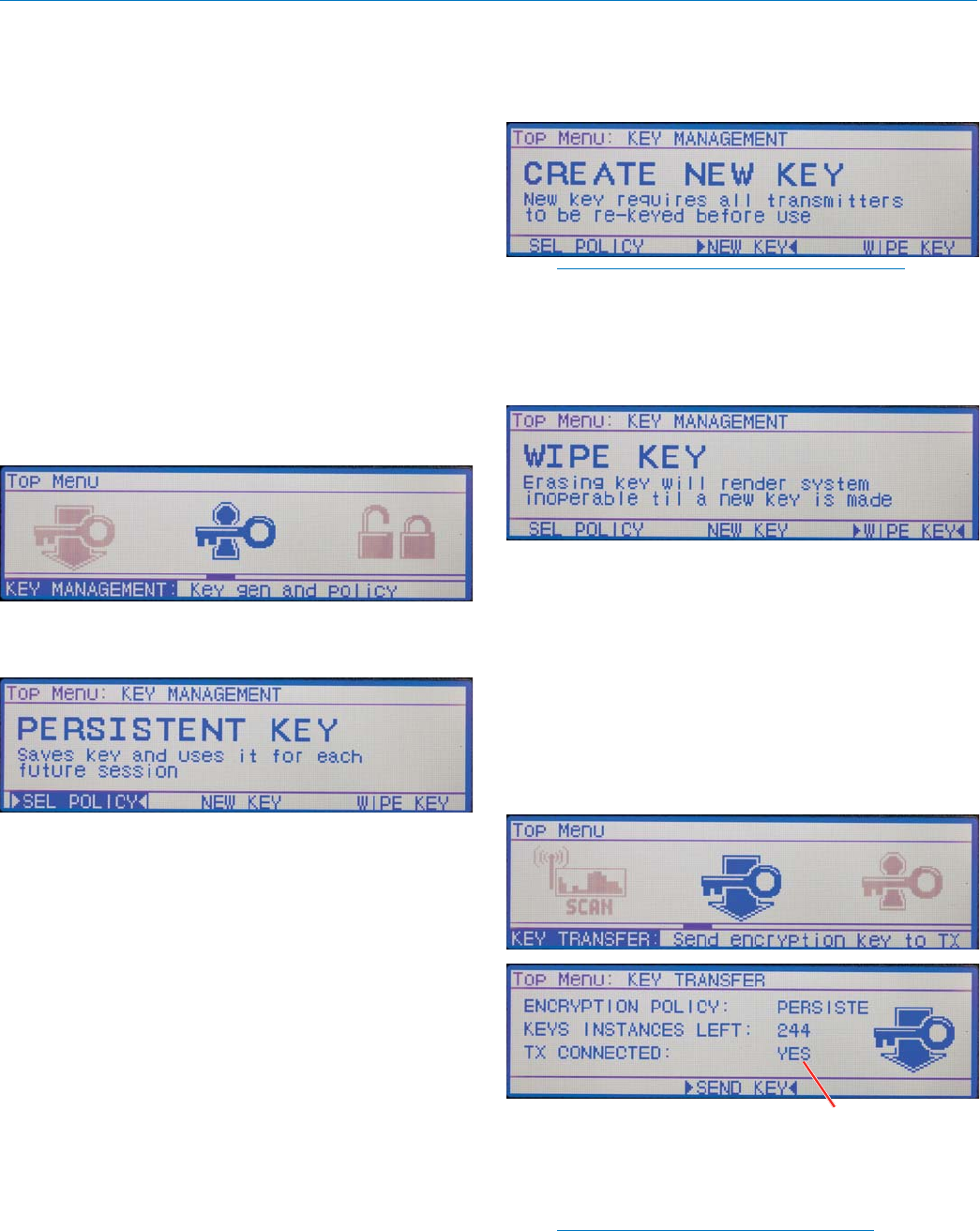

2) Generate an encryption key (see page 20)
3) Install transmitter batteries and antennas (see page 15)
4) Transfer encryption key to transmitters (see page 20)

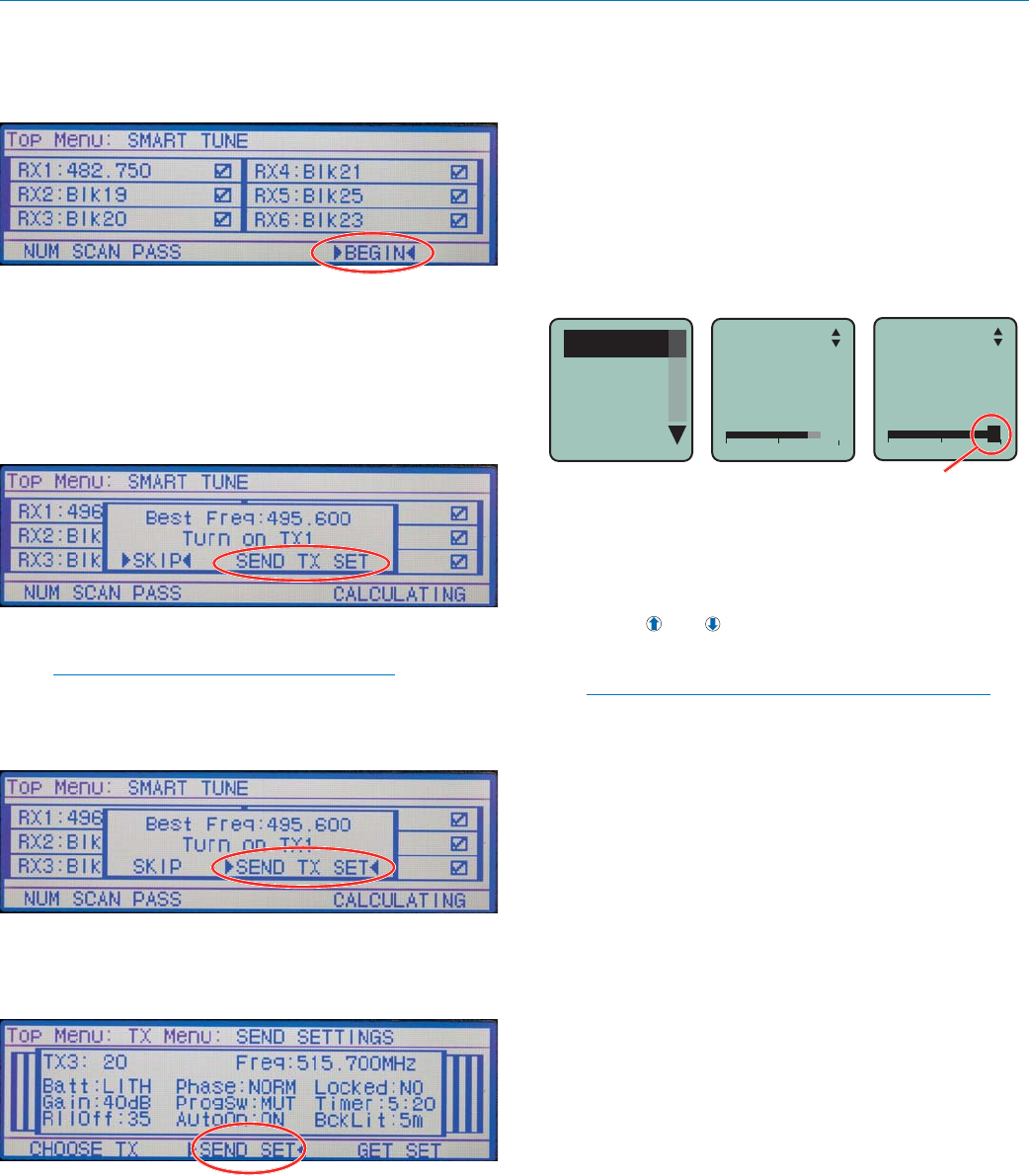

5) Identify and set operating frequencies on the receiver using Smart TuneTM (see page 21)
(the procedure includes transferring frequency settings to the transmitters)
6) Attach microphones and adjust transmitter input gain (see page 22)
7) Verify operation with a walk test through the area where the system will be used
DSW Digital Wireless System
LECTROSONICS, INC.
2
DSW Digital Wireless System
Rio Rancho, NM 3
Introduction
DSW (Digital Secure Wireless) is designed for no-com-
promise applications where performance and security
are the highest priority.
A completely new digital architecture was developed
for the DSW wireless system. Extended operating
range rivals the best analog and Digital Hybrid Wire-
less® systems, with remarkable audio quality and only
2.5 ms of latency. The system operates on standard
UHF FCC Part 74 frequencies (TV channel band).
256-bit encryption is applied to the transmitted signal
stream for security against eavesdropping. The algo-
rithm conforms to the AES 256-CTR standard.
DR Modular Receiver
The DR receiver is a 1RU modular, six-channel design
with a host mainframe that contains the DSP, micro-
processor, antenna multicoupler and control interface.
Receiver modules are installed on either side of the
mainframe. No tools are required to remove and install
the receiver modules. Each module will tune across a
25.6 MHz range.
Antenna ports on the rear panel accept input from
remote antennas, with a “loop-thru” output to another
mainframe. A high quality internal multicoupler distrib-
utes the RF signal to the receiver modules.
For rack mount installations, a kit is available to mount
antenna inputs (BNC connectors) on the receiver front
panel using a coaxial cable routed through the receiver
chassis to the rear panel connections.

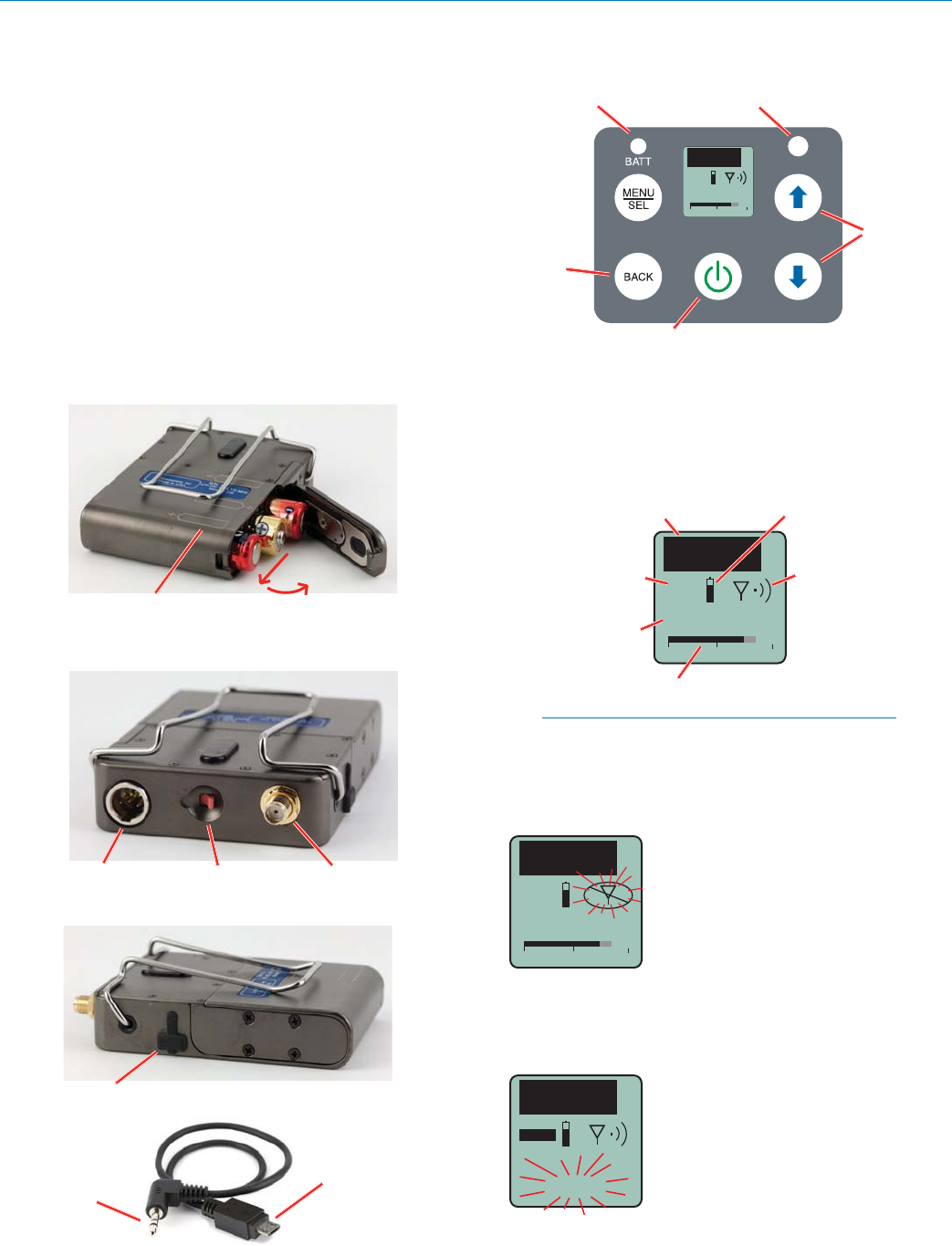

DB Belt Pack Transmitter
The DB belt pack transmitter is encased in a solid
machined aluminum housing with a membrane switch
panel and backlit LCD interface. The servo bias input
circuitry will work with a wide variety of microphones
and line level sources, Input gain is adjustable over
a wide range in 1 dB steps to optimize the signal to
noise ratio and dynamics of the audio.
The transmitter tunes across the entire frequency
range of the DSW system, from 470 MHz to 691 MHz.
Table of Contents
Essential Setup Steps ..........................................................1
Introduction ............................................................................3
Receiver Front Panel .............................................................4
Headphone output ...............................................................4
LCD and control Interface ....................................................4
Encryption key and settings transfer port .............................4
USB Port ..............................................................................4
Comm LED ..........................................................................4
Alert LED .............................................................................4
Power LED ...........................................................................4
Receiver Rear Panel ..............................................................5
Antenna connections ...........................................................5
Audio Outputs ......................................................................5
Ethernet Port ........................................................................5
AES Word Clock ..................................................................5
RS-232 Port .........................................................................5
Antenna Cable Front Panel Pass-thru ..................................5
Power Supply .......................................................................5
Hardware Installation ............................................................6
Receiver Modules ................................................................6
Antenna Connections ...........................................................6
Audio Output Wiring - Analog ...............................................6
Audio Output Wiring - AES3 Digital ......................................7

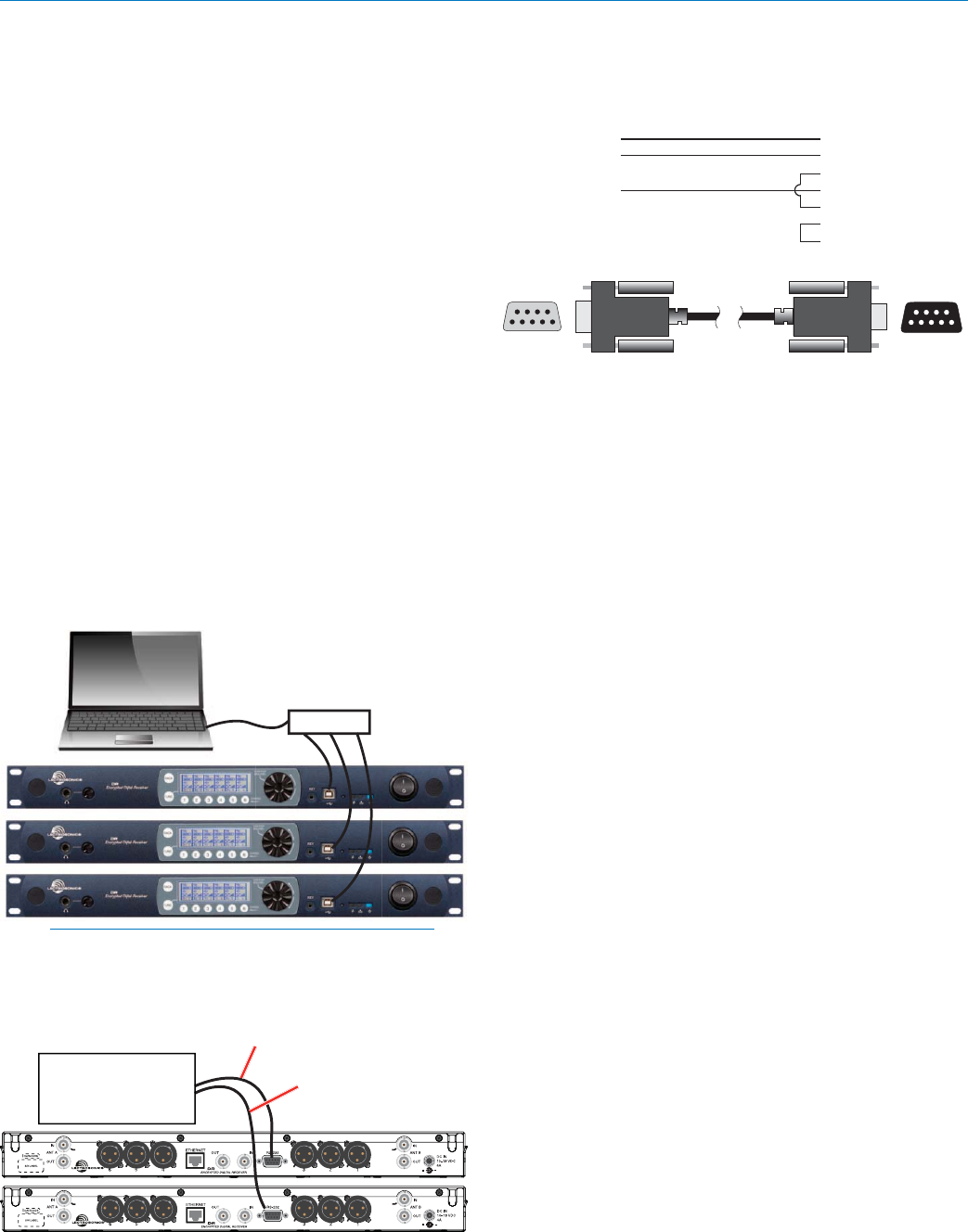

Connections for Computer Interface ....................................7
RS-232 Port Pinouts ............................................................7
Ethernet Port ........................................................................7

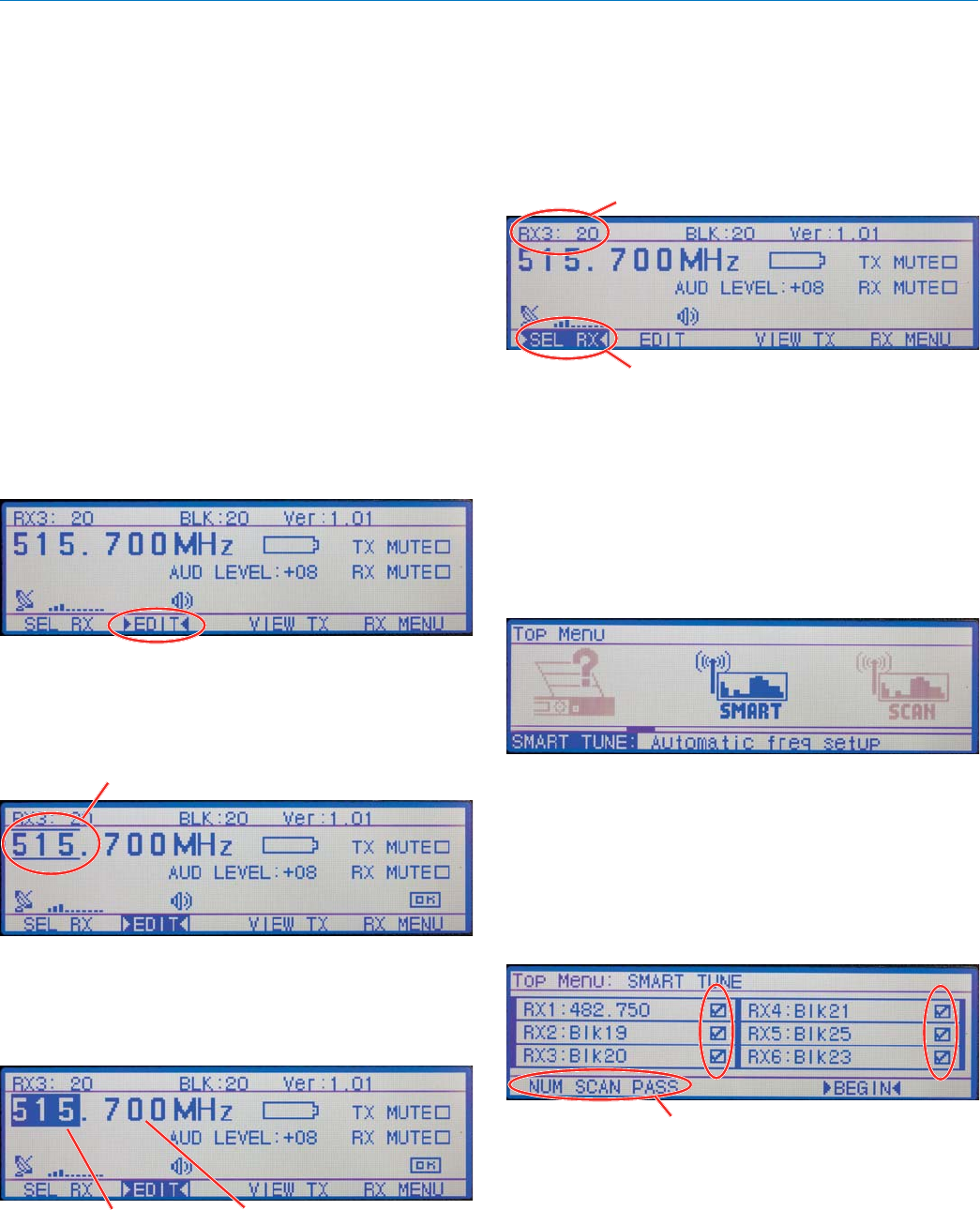

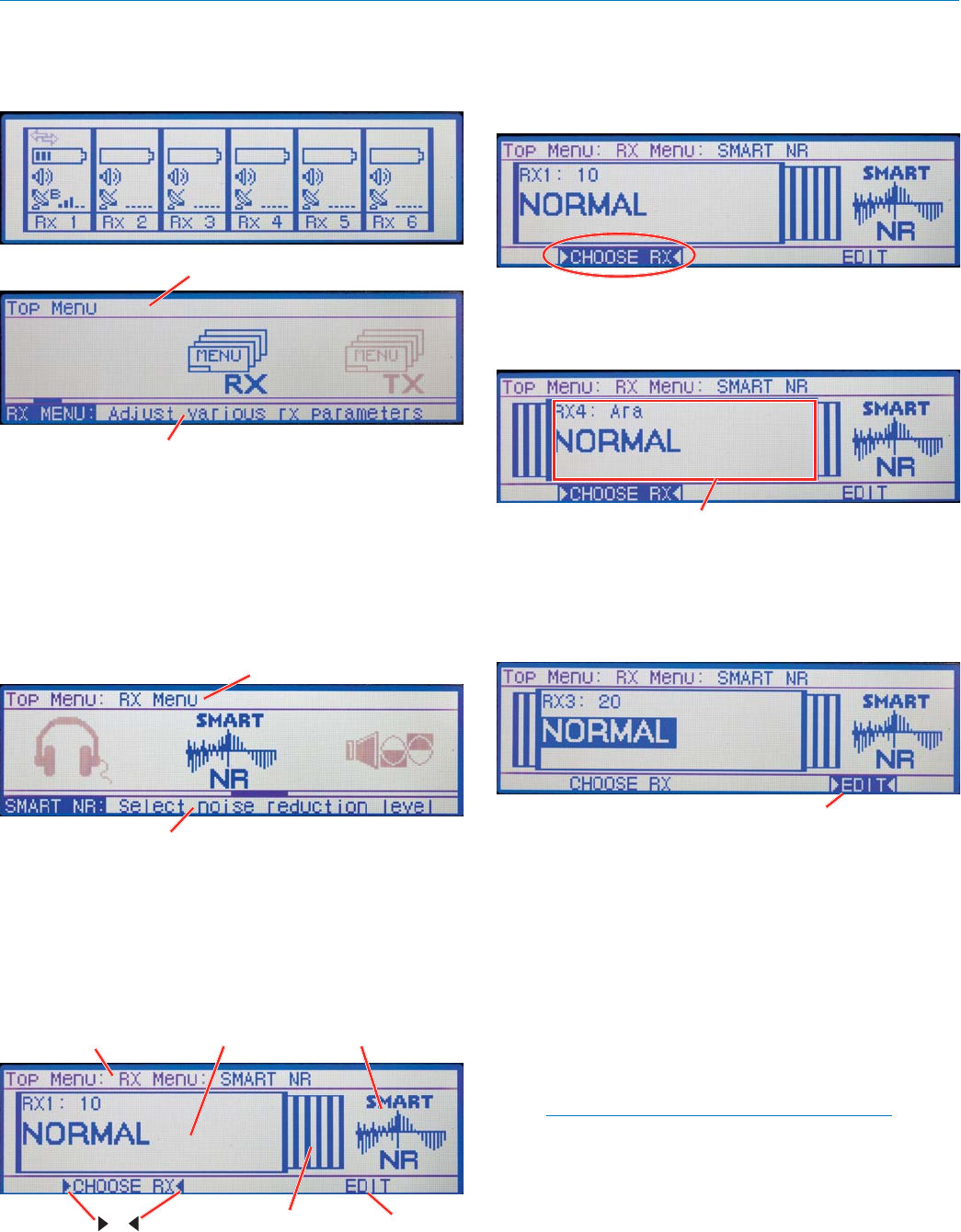

Receiver LCD Interface .........................................................8
Navigating the Menus ..........................................................9

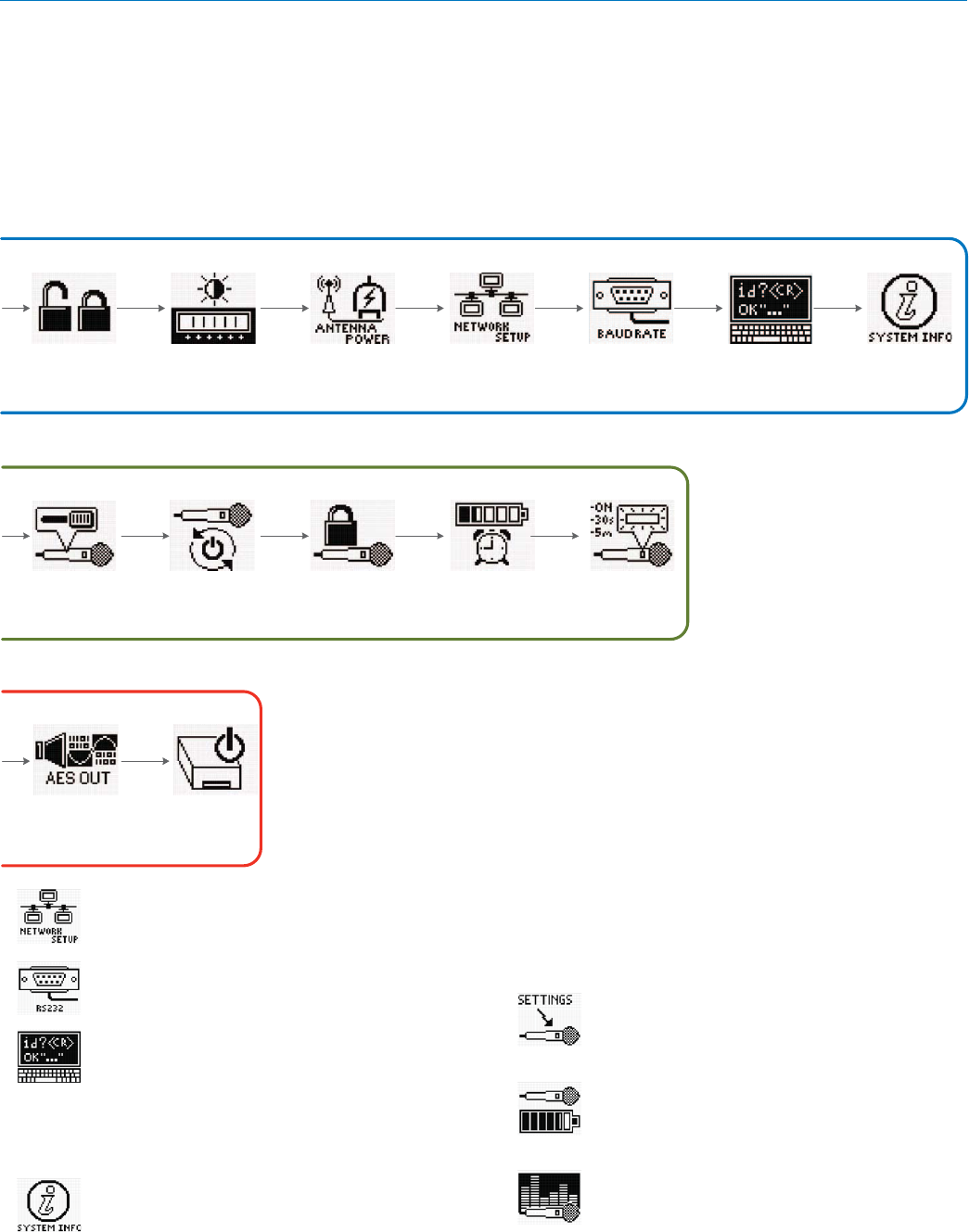

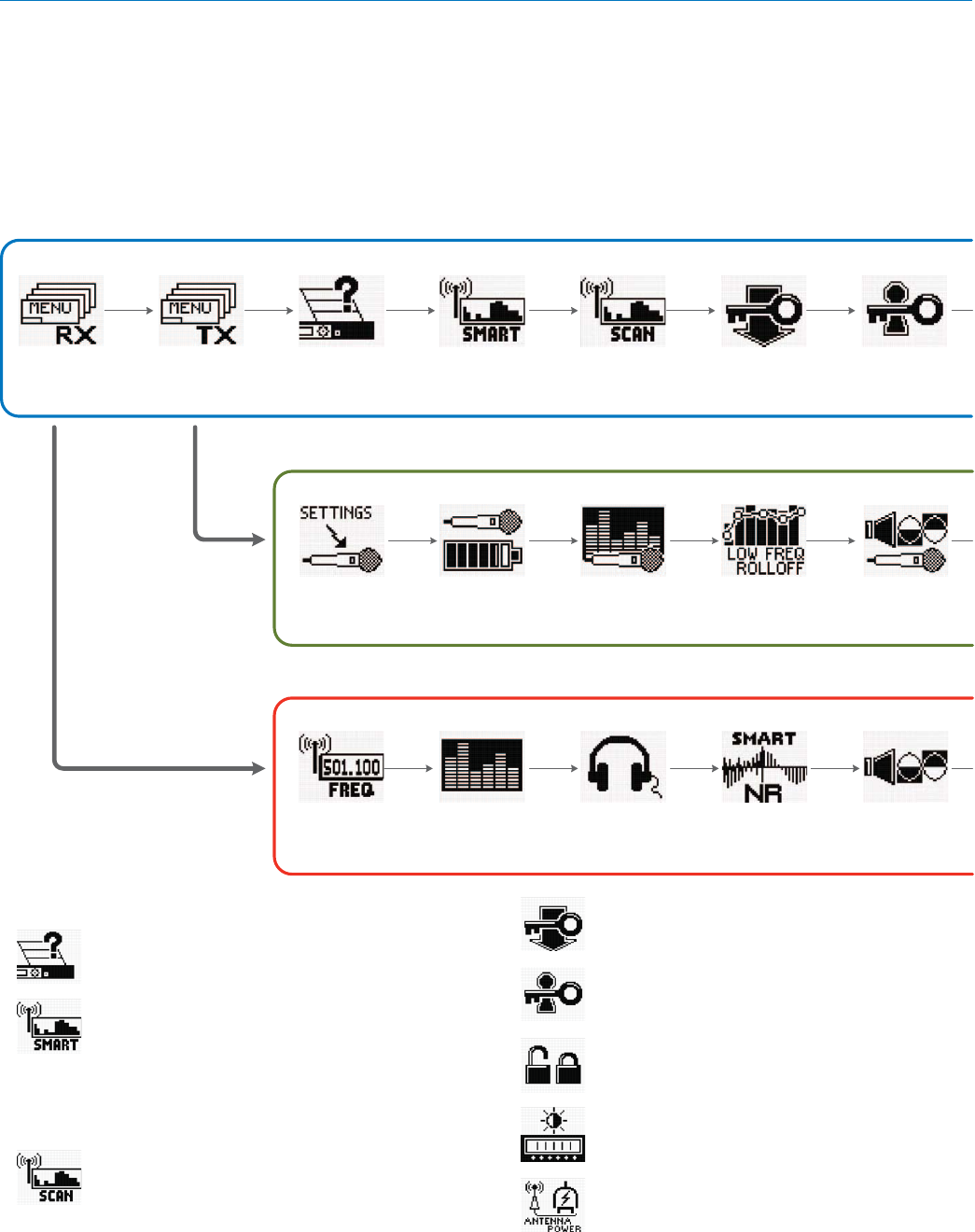

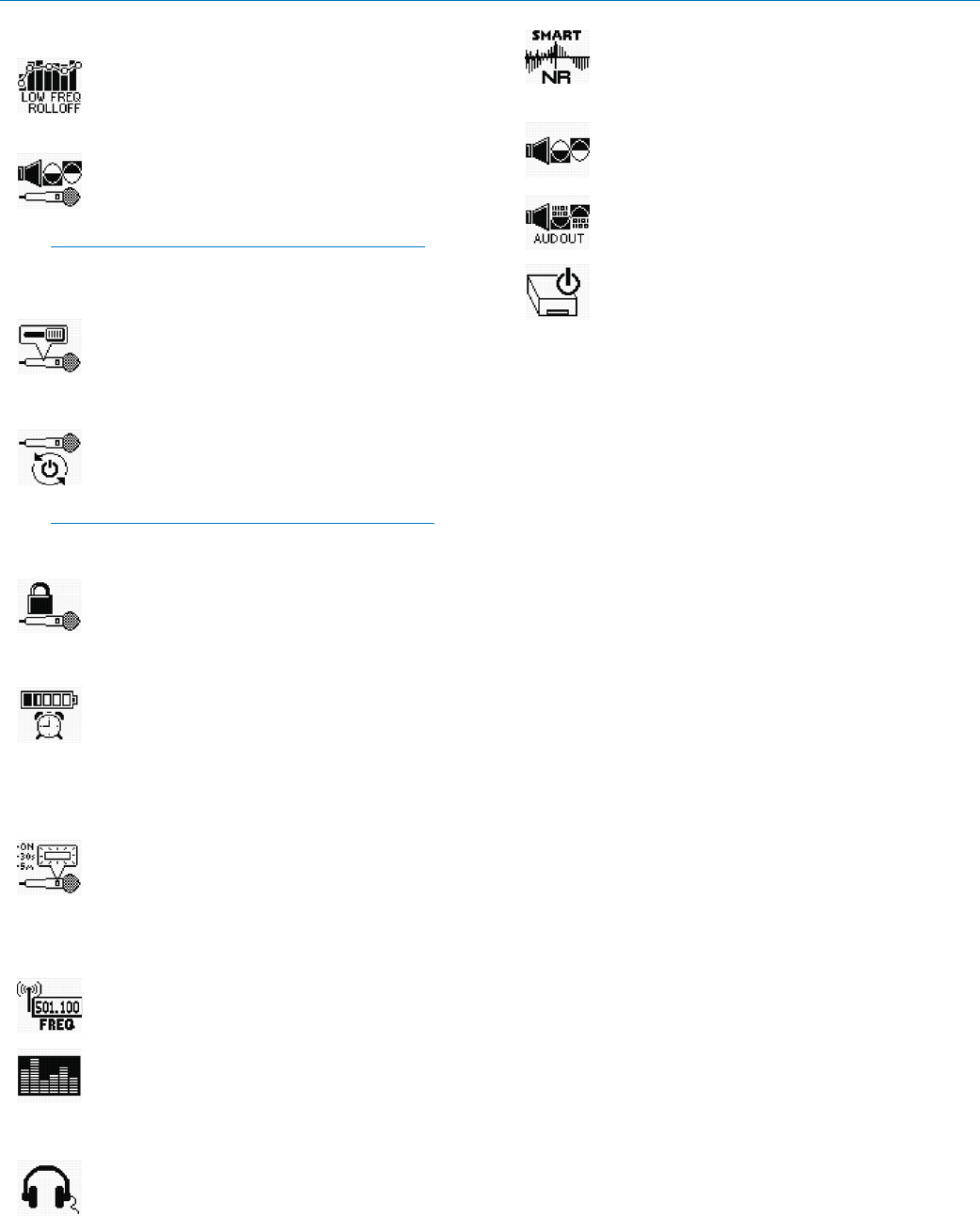

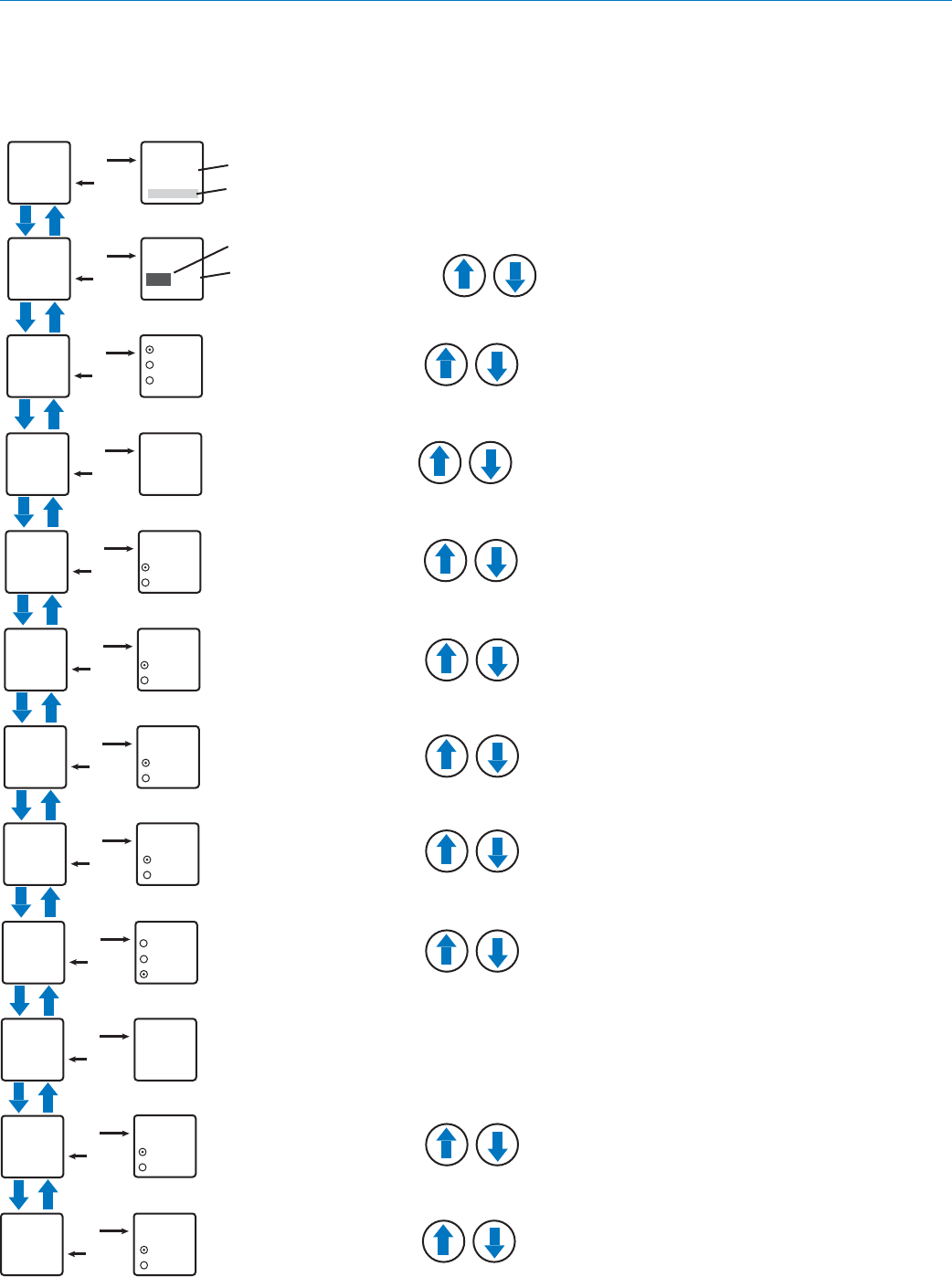

Menu Map and Icons .........................................................10

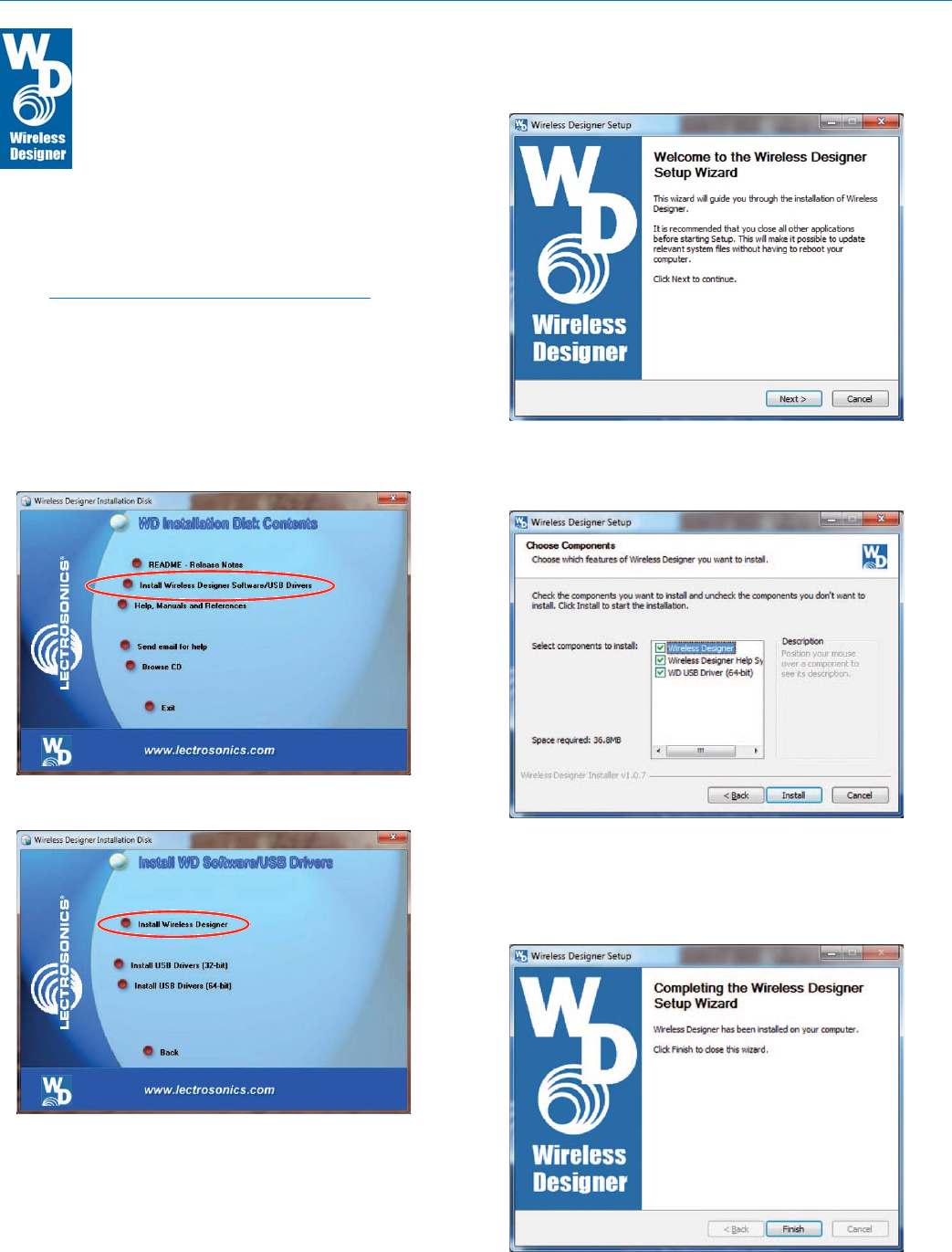

Software Installation ...........................................................13
Windows Installation ..........................................................13
Mac Installation ..................................................................14
Connecting to a Network ....................................................14
Using DHCP for IP Address Assignment ...........................14
DB Transmitter .....................................................................15
Features and Functions .....................................................15
DB Transmitter LCD Interface ............................................15
Powering On in Operating Mode ........................................16
Powering On in Standby Mode ..........................................16
Powering Off ......................................................................16
Power Menu .......................................................................16

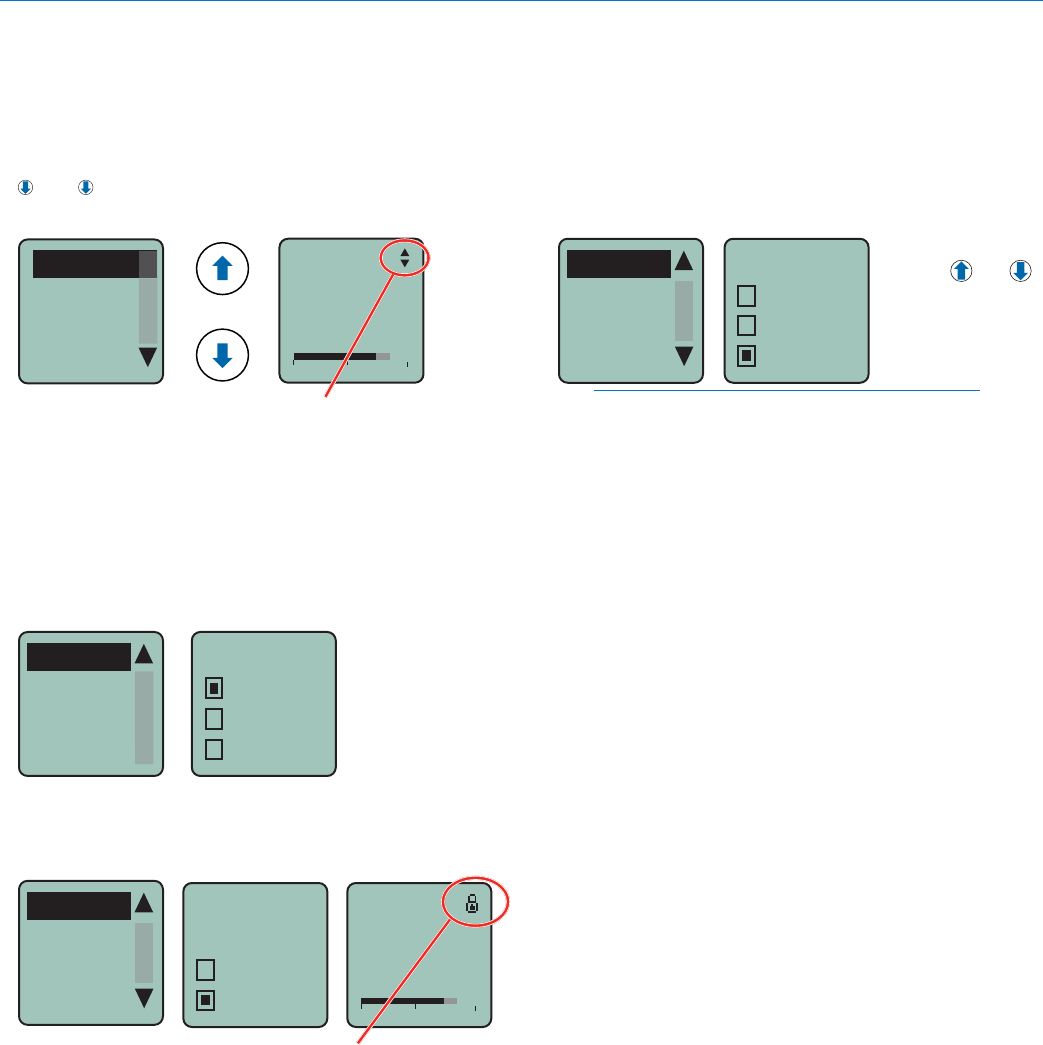

Navigating Menus ..............................................................17
Adjusting LCD Backlight ....................................................17
Locking/Unlocking Changes to Settings.............................17
Selecting Programmable Switch Functions........................17
Other Menu Items ..............................................................17
DB Transmitter Menu Map .................................................18

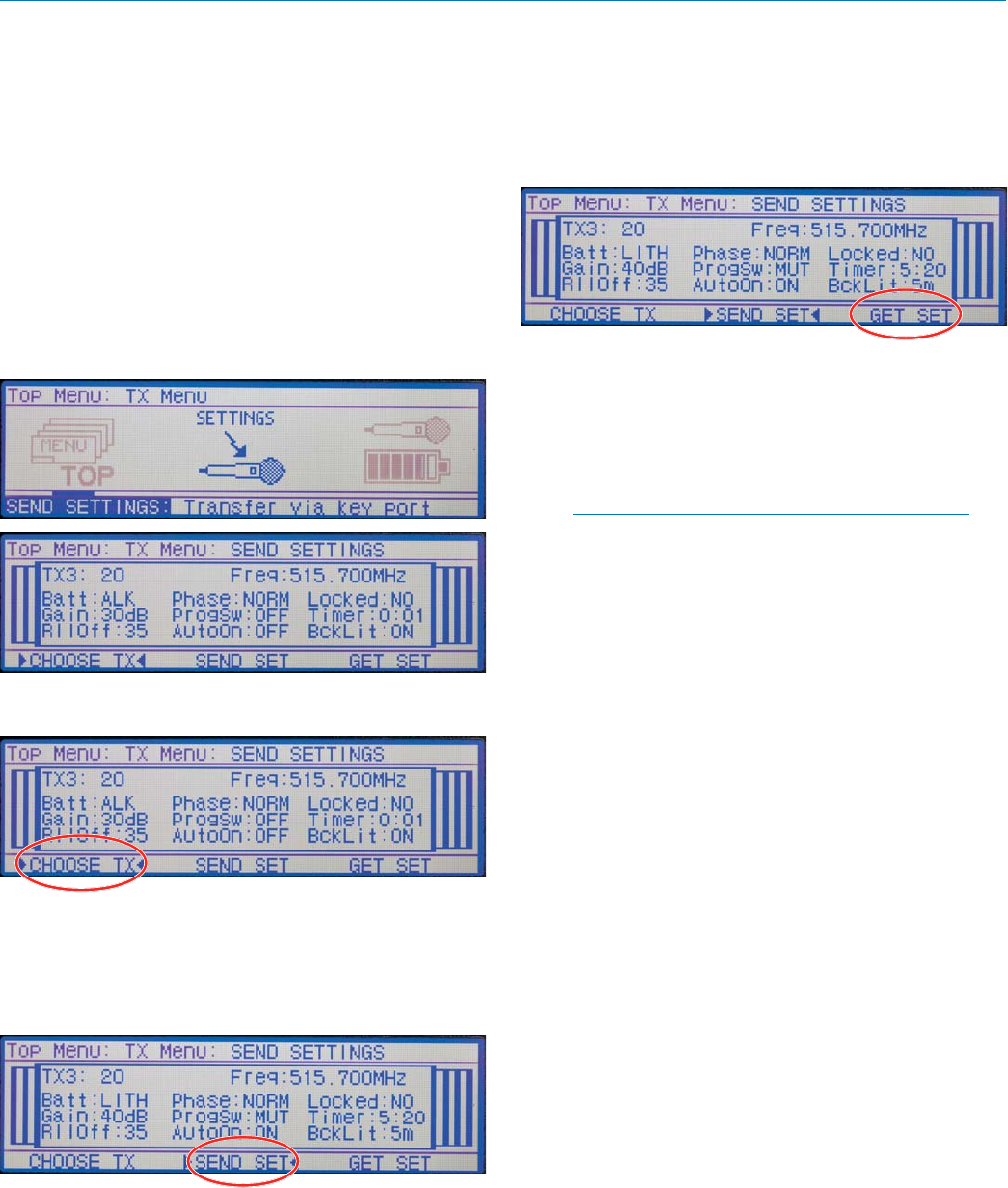

Copying Transmitter Settings To and From the Receiver ...19
System Setup .......................................................................20
Specifications ......................................................................24
Service and Repair ..............................................................25
Returning Units for Repair .................................................25
FCC Notice ...........................................................................26
DSW Digital Wireless System
LECTROSONICS, INC.
4

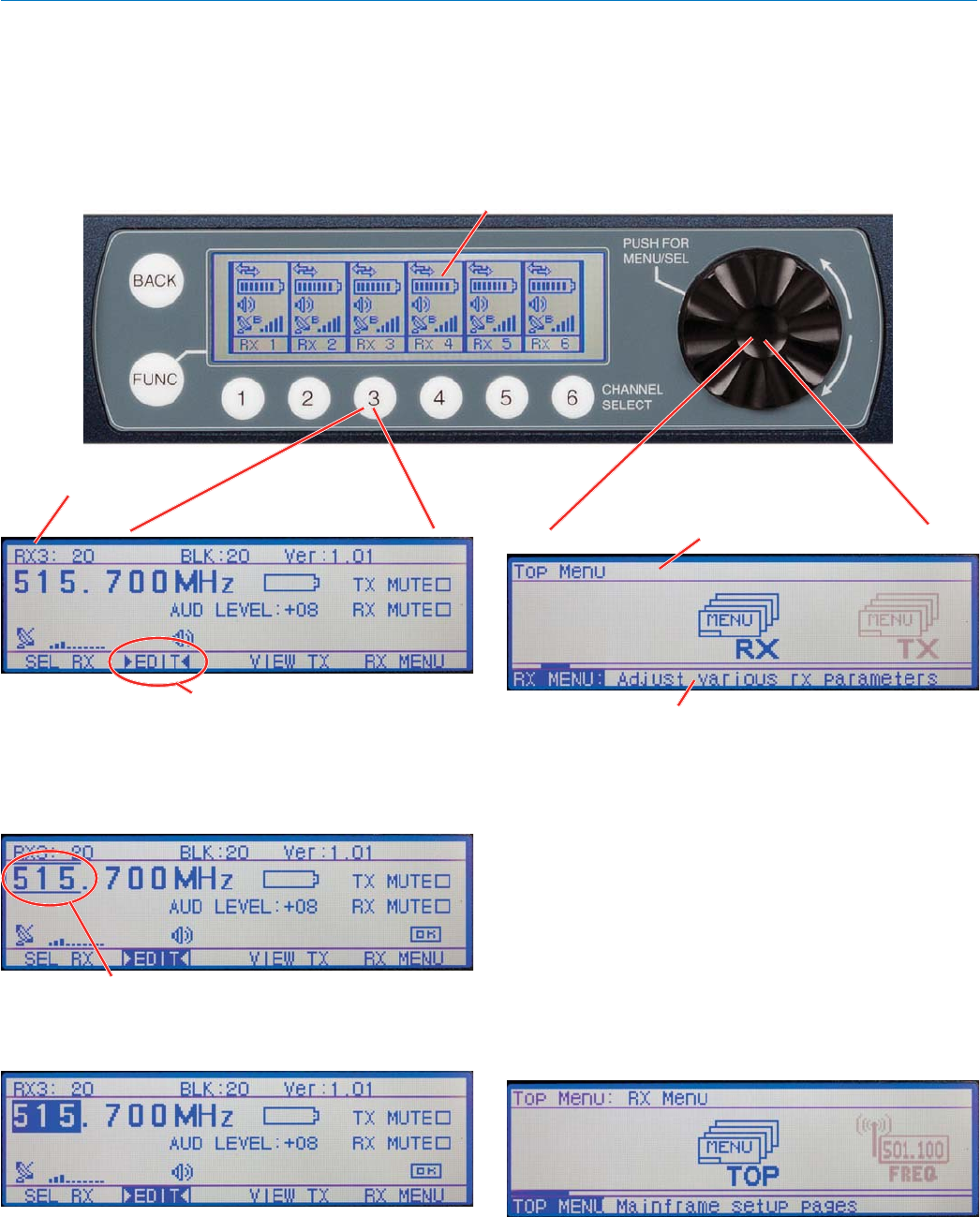

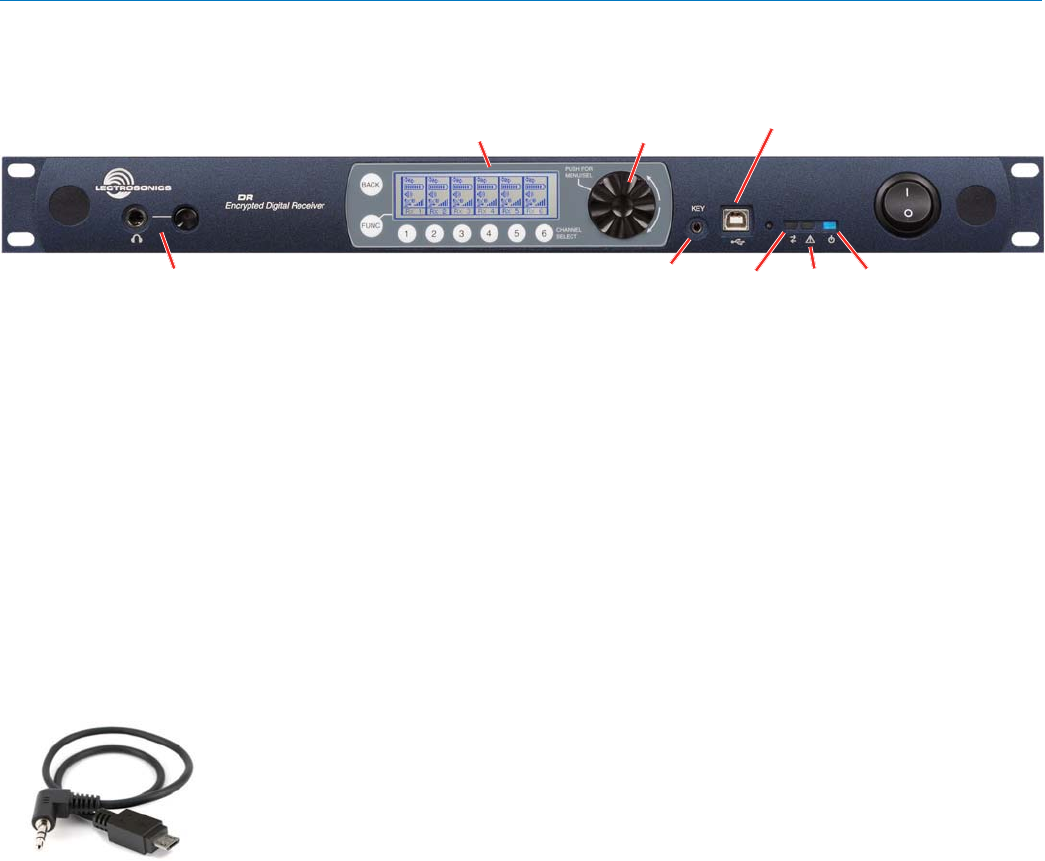

Receiver Front Panel
Headphone output
A standard 1/4 inch jack and volume control knob
LCD and control Interface
All settings for the receiver and transmitter can be
adjusted from the receiver front panel.
Encryption key and settings transfer port
A cable between the transmitter and this port on the
receiver is used to transfer the encryption key from the
receiver to the transmitter. This connection can also
be used to send the transmitter settings stored in the
receiver to the transmitter.
The interface cable, P/N DRKEYCABLE, is used to
make this connection.
USB Port
A standard USB port is used to connect to a computer
for system setup and monitoring.
Comm LED
The LED blinks blue to indicate USB, RS-232 and
ethernet communication.
Alert LED
This LED blinks to indicate fault or error, and glows
white during firmware updates.
Power LED
The LED glows blue to indicate power is turned on.
Headphone output
LCD and control inferface
for system setup
Encryption key and
settings transfer port
USB port
Comm
LED
Alert LED Power
LED
Rotary
encoder
DSW Digital Wireless System
Rio Rancho, NM 5

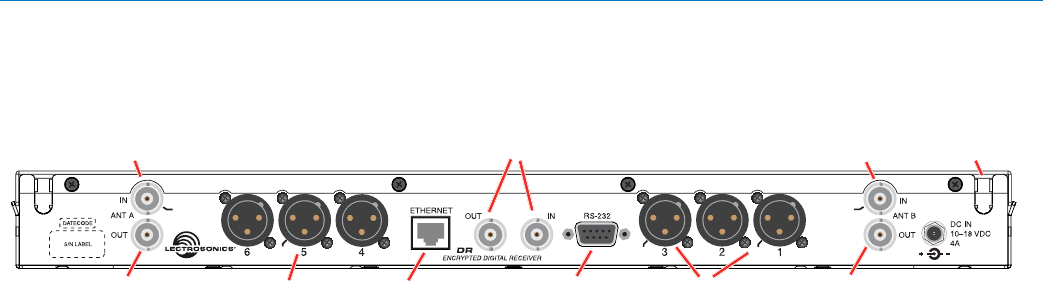

Receiver Rear Panel
Antenna connections
Standard 50 ohm BNC jacks accept input from the an-
tennas. A built-in multi-coupler distributes the antenna
signal to the six receiver modules, and also to the OUT
jack to deliver the signal to an additional receiver.
Audio Outputs
Each XLR connector provides a balanced analog
output. AES-EBU digital audio is provided on jacks 1, 3
and 5 as marked on the rear panel.
Ethernet Port
Network connection is provided on a standard RJ-45
connector.
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
Antenna
input A Antenna
input B
Antenna loop-thru
output
Antenna loop-thru
output
RS-232
serial port
Digital audio word
clock ports
Ethernet
port
Balanced audio outputs
channels 1 - 3
Audio outputs
channels 4 - 6
AES output
channels
AES output
channels
Antenna cable
front panel
pass-thru
AES Word Clock
The receiver can sync to an external clock signal or
generate a clock signal and function as the master.
RS-232 Port
For use with third party control systems or a direct
connection to a PC.
Antenna Cable Front Panel Pass-thru
A coaxial cable can be routed from the rear panel BNC
connectors to BNC connectors on the left and right
side of the front panel. The coaxial cable is routed
through the inside of the receiver chassis.
Power Supply
The receiver is powered from an external power sup-
ply, 10 –18 VDC, 4A.
DSW Digital Wireless System
LECTROSONICS, INC.
6

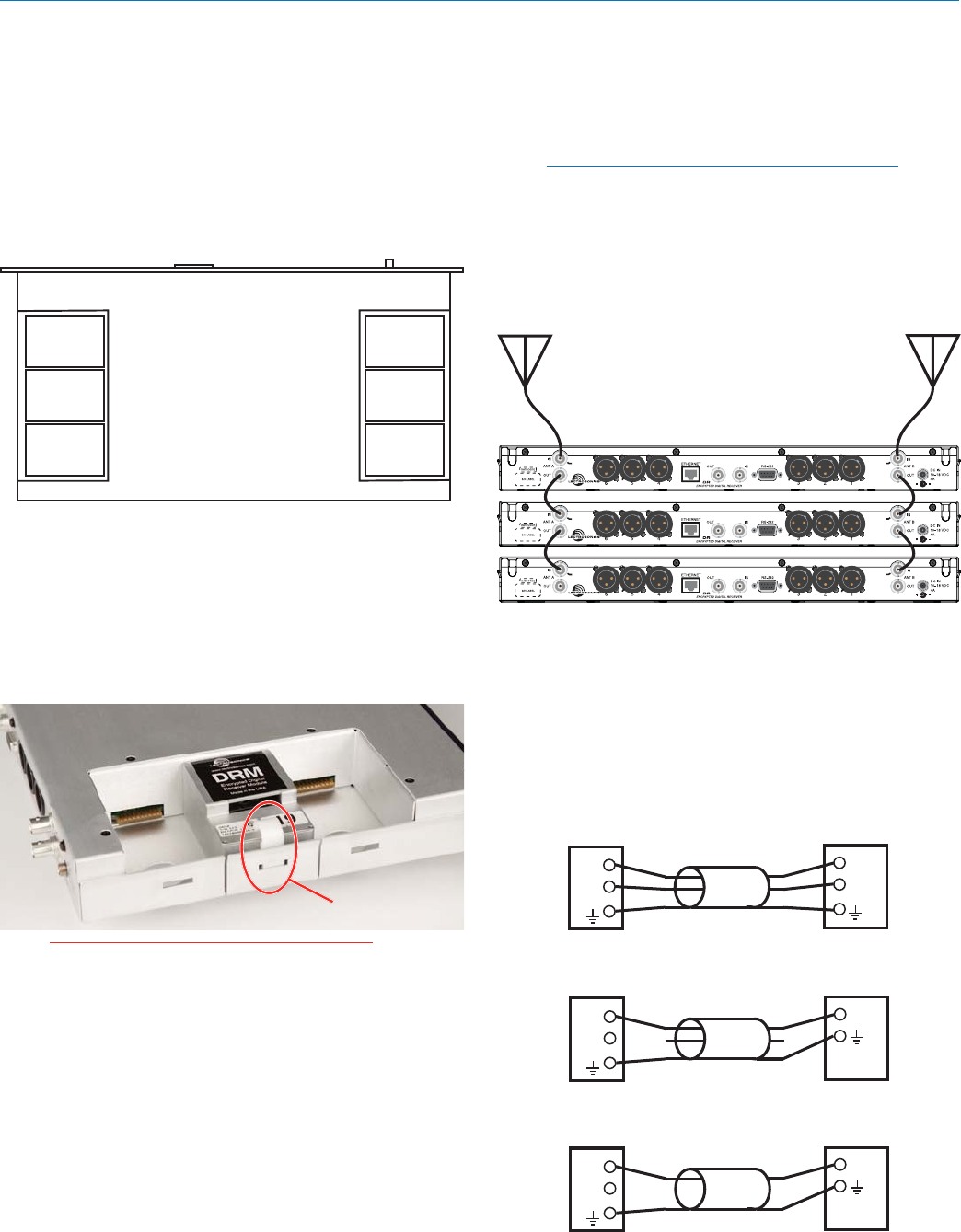

Antenna Connections
Connect the antennas or coaxial cables to the antenna
input connectors labeled IN on the rear panel.
Note: The frequency bandwidth of the antennas
must cover the range of the modules in use.
For multiple unit installations, a “loop thru” is available
to feed two or three receivers from a single antenna
pair. Connect coaxial cables from the multicoupler out-
puts on the first receiver to the antenna inputs on the
next receiver in the stack.
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
The upper connectors are the inputs connected to
the antennas on the first unit in the stack. The lower
connectors are the outputs that feed the next as-
sembly lower in the rack.
Audio Output Wiring - Analog
The analog audio output wiring is as follows:
(+)
1
(-)
SHIELD SHIELD
(+)
(-)
2
3
(+)
1
(-)
SHIELD SHIELD
(+)
2
3
(+)
1
(-)
SHIELD SHIELD
(+)
2
3
DR
Output
Audio
Input
Balanced with 3-wire cable
Unbalanced with 3-wire cable
Unbalanced with 2-wire cable
Hardware Installation
Receiver Modules
The DR mainframe/host assembly is a wideband
design that coves the entire available frequency range.
Individual receiver modules are available in 25.6 MHz
frequency “blocks.” Any module can be installed in any
of the six mainframe positions without regard to the
frequency tuning range. Module positions correspond
to the rear panel audio outputs as shown here.
Front panel
1
2
3
4
5
6
Installing Receiver Modules
1. Turn the mainframe power off.
The receiver modules interface with the main as-
sembly through multi-pin connectors on either side
of the chassis. Insert the module straight down and
then slide it toward the main housing to insert the
connector pins. The module should sit flush against
the side of the housing.
Retaining clip
Caution: Make sure the connectors align
correctly. Do not apply excessive force to seat
the module onto the tab.
2. Align the ridge on the retaining clip with the slot in
the chassis and press the clip downward until the
ridge snaps into the slot in the side panel.
Removing Receiver Modules
1. Turn the mainframe power off.
2. Remove the retaining clip by pressing the top side-
ways to release it from the slot in the side panel.
Then pull upward to remove it.
3. Pull outward on the module to release the connec-
tor and then lift it upward out of the chassis. Holes
in the underside of the chassis allow you to grip the
module on the top and bottom.
DSW Digital Wireless System
Rio Rancho, NM 7
Audio Output Wiring - AES3 Digital
XLR output connectors deliver digital audio that con-
forms to the AES standard. The wiring is the same as
a balanced analog output.
Pin 1 Ground/Shield
Pin 2 Data (+)
Pin 3 Data (–)
Pins 2 and 3 carry the digital audio. Although polarity
is not an issue, it is good practice to maintain a “pin
to pin” connection - pin 1 to pin 1, pin 2 to pin 2, pin 3
to pin 3 in cables that terminate in XLR connectors at
both ends. It is best to use 110 ohm cable designed to
carry digital signals. Conventional microphone cables
may cause problems, especially with distances over 30
or 40 feet.
For pinout details of wiring to a DB-25 connector, refer
to the documentation for the device you are using.
Channel assignments per connector are marked on
the rear panel of the receiver.
Connections for Computer Interface
Connection to a computer for set up is easiest with a
single or multiple USB connection.
USB Hub
NOTE: Audio is not passed through the USB port. It
is used only for control and monitoring settings.
Receivers can also be connected via RS-232 ports on
PCMCIA cards and remote control systems.
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
( ) ( )
AES
WORD
CLOCK
ANT
PWR
AES
5 & 6 AES
3 & 4 AES
1 & 2
ANT
PWR
Control System
Com 1
Com 2
RS-232 Port Pinouts
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
TX
RX
GND
Host
Serial
Port
(PC)
DR
RS-232
Port
DTE pin
functions
Female
connector
Male
connector
DCE pin
functions
Female
jack
Male jack
Ethernet Port
A standard RJ-45 connector is provided for network
interfacing. This port is used for setup, monitoring and
control with Wireless Designer software and third party
control devices.
DSW Digital Wireless System
LECTROSONICS, INC.
8
Receiver LCD Interface
All settings can be made from the front panel keypad
and LCD interface, including transmitter settings if it is
connected to the receiver with the key cable. The con-
trol interface consists of membrane switches, a rotary
encoder with push switch and a graphical LCD.
Press a channel
select button to open
a setup screen
Press the center of the
rotary encoder to open the
menu select screen
Selected receiver
Selected item is enclosed in markers
Turn the rotary encoder to select the option at the
bottom of the screen. Press the center of the rotary
encoder to open the setup screen or menu for the se-
lected item. In the example below, the setup screen for
channel 3 is open, with the frequency in MHz selected.
Selected item is highlighted with
ruled lines above and below
Press the center of the rotary encoder and then turn it
to adjust the value of the selected item.
When the desired value is set, press the center of the
rotary encoder to deselect the item. Rotate the encod-
er to select the next item.
Press one of the numbered switches under the display
to open a setup screen for the corresponding chan-
nel. Press the BACK button to return to the previous
screen. Press the center of the rotary encoder to open
the menu selector screen.
There are three levels in the menu structure:
s Top Menu includes links to the RX and TX menus
and setup screens for system parameters such as
frequency scanning, encryption key generation and
configuring hardware connections.
s RX Menu includes setup screens for the receiver
parameters and a link back to the Top Menu.
s TX Menu includes setups screens for the transmitter
and a link back to the Top Menu.
Rotate the encoder to scroll through the menu items.
Select the desired item and press the encoder to enter
the next menu or setup screen.
In the RX and TX menus, a link is included in the left-
most position to return to the Top Menu.
You can also press the BACK button on the control
panel to return to the previous screen or menu.
Lower bar describes the highlighted menu
Top bar lists active menu
Main Window displays a summary of all channels
DSW Digital Wireless System
Rio Rancho, NM 9
Navigating the Menus
From the Main Window, press the encoder to open the
menu select screen.
Lower bar describes the highlighted menu
Top bar lists active menu
The menu selections includes links to the RX and TX
menus and system level choices. Rotate the encoder
to select the desired item.
The example shown below is for the SMART NR menu
item. The navigation is the same for all menu items.
The icon in the center of the LCD, highlighted in blue,
is the active (selected) menu item.
Press the encoder to enter the setup screen.
Top bar shows currently selected menu
Lower bar describes the selected menu item
Since there are up to six channels in the receiver, the
channel must be selected before entering the setup
screen. After the menu item is selected, as shown
above, press the encoder to move to the the next
screen, which allows you to navigate to the desired
channel. The selected channel appears on top of the
graphical “stack” in the display.
Active menu
Selected
channel Menu title
Enter setup
screen
markers
indicate selected
function
The “stack”
of available
channels
Rotate the encoder to select the “CHOOSE” item in the
lower bar (markers indicate active selection). Press the
encoder to highlight the item.
Once the icon is highlighted, rotate the encoder to
scroll through the available channels. The rectangular
icon will move to indicate the selected channel.
Rectangular icon will indicate the selected channel
After the desired channel is selected, press the en-
coder to remove the highlight, then rotate it to select
EDIT (markers indicate the selected item) and press
the encoder to highlight the item and enter the setup
screen to make changes.
EDIT item highlighted when
setup screen is active
When the EDIT item is highlighted, the setup screen
for the selected channel will be active. Rotate the
encoder to the desired setting that appears inside the
rectangular area (NORMAL in this illustration), then
press the BACK button on the panel to store the set-
ting and leave the setup screen.
Press the BACK button again to return to the menu.
Press it once or twice again to return the previous
menu or the main window that displays a summary of
all channels.
NOTE: Refer to the menu map on the following
pages for an overview of the menus.
DSW Digital Wireless System
LECTROSONICS, INC.
10
Menu Map and Icons
Receiver and transmitter setup or adjustments to
settings can be completed using the receiver LCD
interface. The menus are organized into three groups,
as shown here.
The TOP MENU includes system setup and connec-
tions, frequency scanning and selection, and encryp-
tion key generation and transfer to transmitters for
overall system setup. Links to the TX and RX menus
are located at the leftmost position.
TOP MENU
DETECT identifies the installed receiver
modules.
SMART TUNE launches a spectrum scan of
any one or more of the installed receiver
modules and identifies prospective operating
frequencies. A frequency is selected and a screen
prompt appears on the LCD allowing you to connect a
transmitter and load the frequency settings or skip to
the next scan.
SPECTRUM SCAN is useful for manually
examining the RF activity within the tuning
range of the installed modules. The scanned
results appear in a histogram that can be browsed with
coarse or fine detail.
KEY TRANSFER loads the encryption key
into the transmitter via the key cable.
KEY MANAGEMENT is used to generate or
delete an encryption key, and to configure the
nature of the key as Persistent or One-time.
LOCK PANEL is used to lock out the front
panel controls, create a password or leave the
controls unlocked.
BACK LIGHT adjusts the appearance of the
LCD.
ANTENNA POWER inserts DC voltage on
the rear panel BNC jacks to power remote RF
amplifiers such as the one in the Lectrosonics
ALP650 model LPDA “shark fin” antenna. The BNC
jacks can be configured independently.
DETECT SMART
TUNE
SPECTRUM
SCAN
KEY
TRANSFER
KEY
MANAGEMENT
SEND
SETTINGS
TX BATTERY TX AUDIO
GAIN
LF ROLLOFF TX PHASE
FREQ ADJUST AUDIO LEVEL MONITOR
AUDIO
SMART NR PHASE
TOP MENU
TX MENU
RX MENU
DSW Digital Wireless System
Rio Rancho, NM 11
The TX MENU (transmitter menu) is used to config-
ure and store the settings for all transmitters that will
be used in the system. These settings, stored in the
receiver memory, can be transferred from the receiver
to the transmitter during setup with the key cable. A
link back to the Top Menu is located at the leftmost
position.
RX MENU (receiver menu) includes menu items for
each receiver module to set up operating parameters
and options. A link back to the Top Menu is located at
the leftmost position.
NETWORK SETUP configures the IP address
and other credentials for network connections
through the ethernet port.
RS232 SETUP sets the baud rate of the
RS232 port.
COMMAND VIEW is used to send hand typed
commands from a computer directly to a
connected receiver, and display the response
that comes back on the computer screen. It is helpful
for testing commands during development of programs
for 3rd party controllers, and to send a batch of
commands from a file to configure or test the receiver.
SYSTEM INFO displays the receiver serial
number, firmware version and hardware
version. Active Alerts will also appear on the
list, if there are any.
TX MENU
Transmitters can be configured in the receiver and
the settings can then be sent to the transmitter via the
USB cable.
SEND SETTINGS transfers the settings for
the transmitter configuration that are stored in
the receiver to the attached transmitter. The
transfer is made via the key cable.
TX BATTERY is used to make the battery
status monitor more accurate, since the
behavior of alkaline and lithium batteries is
different across their life during use.
TX AUDIO GAIN adjusts the transmitter input
gain to optimize the signal to noise ratio and
dynamic range of the system with voices or
signal sources, different microphones and microphone
positions.
LOCK PANEL BACK LIGHT ANTENNA
POWER
NETWORK
SETUP
RS232 SETUP COMMAND
VIEW
SYSTEM INFO
PROG SWITCH AUTO ON TX PANEL
LOCK
BATT TIMER TX BACKLIGHT
AUDIO
OUTPUT
MODULE
POWER
DSW Digital Wireless System
LECTROSONICS, INC.
12
(TX MENU cont’d)
LF ROLLOFF adjusts the point at which the
low frequency audio in the transmitter begins
to roll off. This “knee” can be set at 35, 50, 70,
100, 120 or 150 Hz.
TX PHASE reverses the polarity of the audio
signal in the transmitter to match other
microphones in the system that vary with
different microphone types and connector wiring.
NOTE: The audio polarity on each output channel
on the receiver can also be reversed in the RX
MENU.
PROG SWITCH configures the function of the
switch located on the outside of the housing
on the transmitter. The switch can be config-
ured to be an audio mute switch, a power on/off switch
or to be disabled.
AUTO ON sets the transmitter to either turn
back on and resume operation after a battery
change, or to require being manually turned
back on again.
NOTE: The AUTO ON feature works only when the
RF output carrier is turned on.
TX PANEL LOCK prevents inadvertent
changes to be made on the transmitter
keypad. The menus can still be browsed to
view the settings, but changes cannot be
made.
BATT TIMER is used to determine the
remaining battery life based upon a test of the
batteries in use. This is especially useful when
rechargeable batteries are being used. Reset the time
with the setup screen. Charge the batteries fully, then
run them down in the transmitter with the timer running
to determine the available runtime.
TX BACKLIGHT adjusts the length of time
that the backlight remains lit on the transmit-
ter LCD. Options are 30 seconds, 5 minutes
or to remain on.
RXMENU
FREQ ADJUST allows manual selection of
the operating frequency.

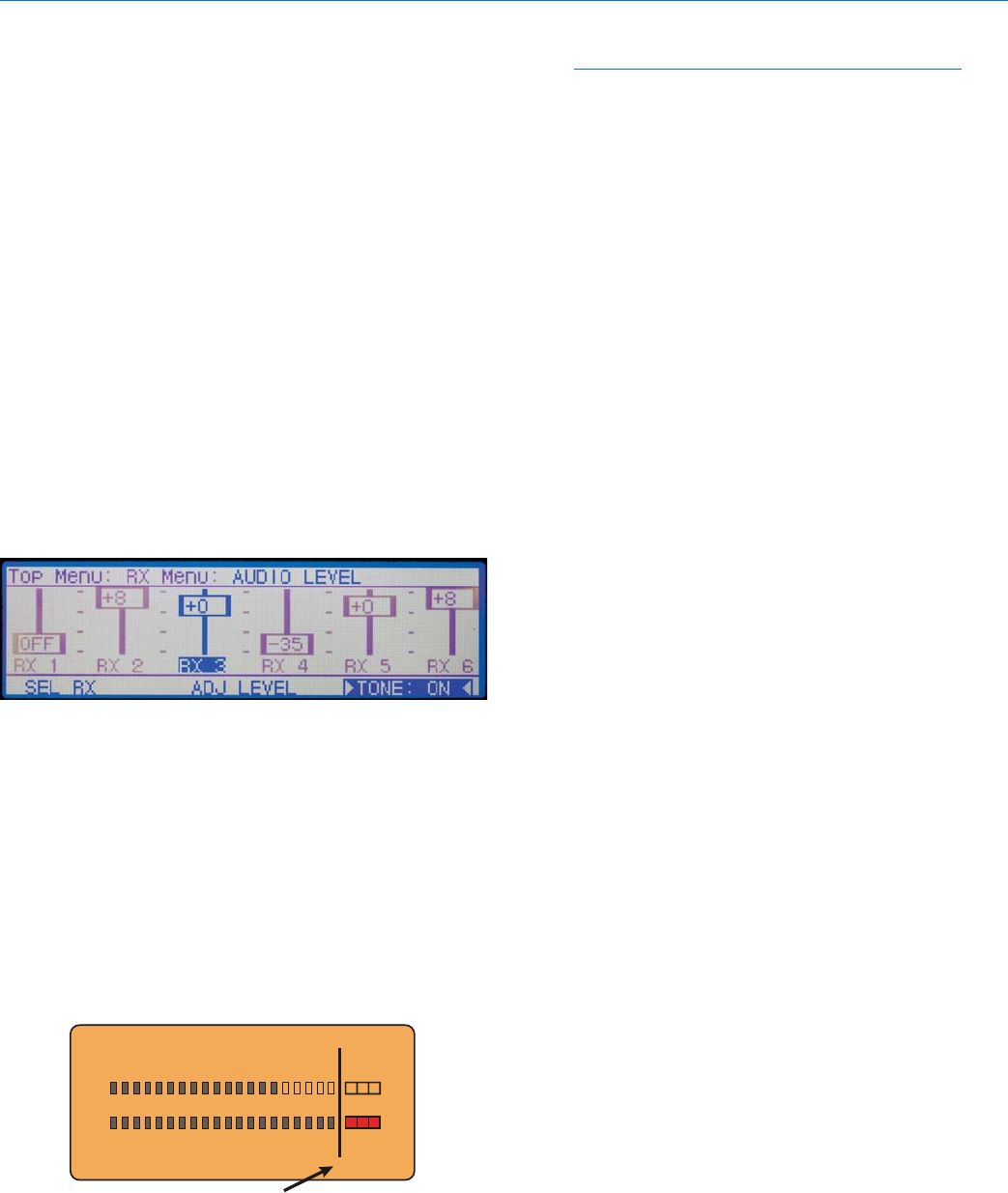

AUDIO LEVEL provides a setup screen with
adjustments of the analog audio output level
for each channel, plus a tone output on each
channel for use in adjusting the input level of a con-
nected device or sound system.
MONITOR AUDIO adjusts the level of each
channel that appears at the headphone jack
on the front panel. Options include individual
output level, program audio, or tone and either isolated
channel monitoring or a mix of all channels.
SMART NR (smart noise reduction) allows
the selection of the noise reduction mode on
each channel. Options include NORMAL,
FULL and OFF.
PHASE inverts the polarity of the analog
audio outputs on the receiver.
AUDIO OUTPUT selects analog or AES
digital modes for the receiver outputs. Adja-
cent modules are paired in the selection.
MODULE POWER turns each receiver
module on or off.
DSW Digital Wireless System
Rio Rancho, NM 13
Software Installation
The supplied software for the DSW system is
available on disk or downloaded from the web
site at:
www.lectrosonics.com/wdsupport
The software will run on Windows or Mac computers.
The procedure for installing it varies between down-
loaded and disk versions.
Windows Installation
NOTE: Uninstall any previous version before
installing this software.
Disk Installation:
The installation procedure is straightforward following
the on-screen instructions. Insert the disk into a local
drive. If the installer does not launch automatically,
When the first screen appears, click on Install Wire-
less Designer Software/USB Driver.
Click on Install Wireless Designer to launch the
installer.
After a few moments, the Setup Wizard will appear.
Click on Next to continue.
Installation with downloaded file:
A screen listing the components to be installed will ap-
pear. All three boxes should be checked, then click on
Install to continue.
When the License Agreement screen appears, click
on I agree and the installation will proceed. When the
installation is complete, a confirmation screen will ap-
pear. Click on Finish, wait a moment and then remove
the disk from the drive.
DSW Digital Wireless System
LECTROSONICS, INC.
14
Mac Installation
Launch your browser and go to:
http://lectrosonics.com/wdsupport/xap/WirelessDe-
signer.html

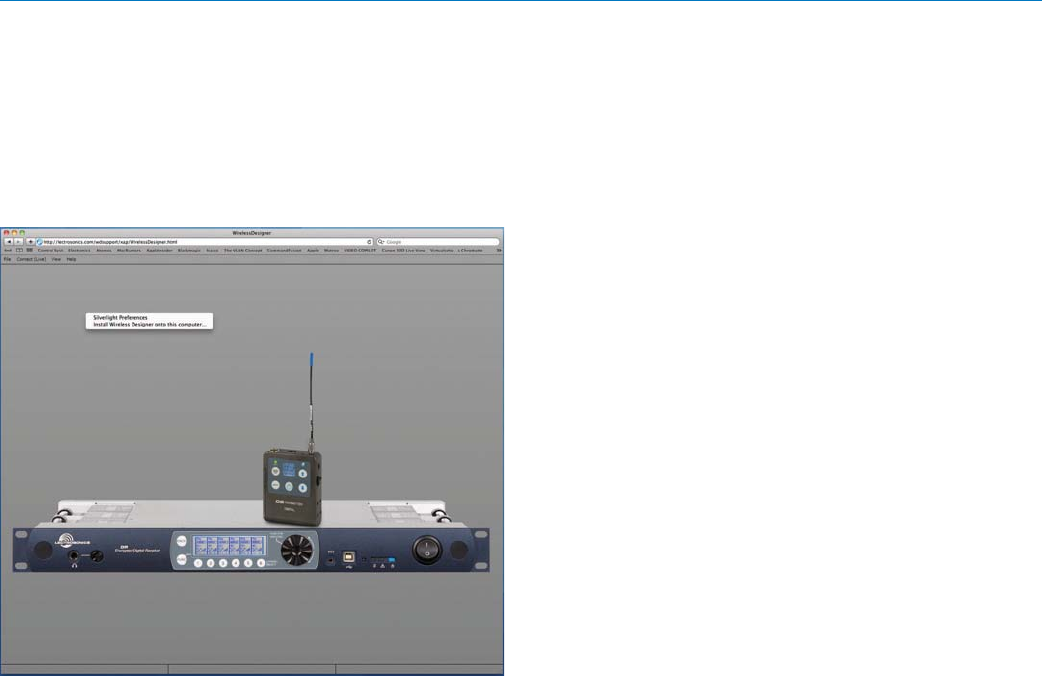

When the Wireless Designer intro screen appears,
right click and choose Install Wireless Designer onto
this computer...
You may need to install an updated version of Silver-
light before completing the installation.
Connecting to a Network
Using DHCP for IP Address Assignment
Follow these steps to make a network connection for
the receiver:
1) Open Wireless Designer and connect to the
receiver via USB.
2) Click on Settings in the left pane. Then click on
the Network tab in the lower part of the screen.
Inside the dialog box labeled Network Settings,
click on the check box labeled DHCP Enable.
3) Close Wireless Designer.
4) Connect the network cable to the Ethernet port
on the rear panel.
5) Turn the receiver power off then back on.
6) Launch Wireless Designer again and navigate
to Network Settings as described above. The
IP address and port number will appear in the
dialog box.
7) Close the USB connection and re-connect via
network. When the dialog box opens, enter the IP
address and the port number noted, then click on
Refresh. Click on OK to connect.
DSW Digital Wireless System
Rio Rancho, NM 15
DB Transmitter
Steve
494.500
-40 -20 0
MUTE
Battery status
LED
Key verification
LED
Power button
Menu
navigation
buttons
Return to
previous
screen
USB port for firmware updates
Programmable
function switch
Antenna
port
Microphone/Line
input jack
DB Transmitter LCD Interface
The Main Window displays the transmitter name, block
number, Standby or Operating mode, transmitting fre-
quency, audio level, battery status and programmable
switch function.
Steve
494.500
-40 -20 0
MUTE
Frequency (MHz)
RF indicator
Battery status
Programmable
switch function
Audio level
Transmitter name
NOTE: The transmitter name that appears on the
LCD is created with the software and downloaded
to the transmitter with the USB cable connected.
In the Standby Mode the RF indicator icon will blink to
indicate that the RF output is turned off.
Steve
494.500
-40 -20 0
MUTE
When the programmable switch is set to Mute and is
turned on, the mute icon appearance will change and
the word MUTE will blink at the bottom of the display,
and the power/function LED will blink blue.
Steve
494.500
MUTE
<–MUTE–>
Features and Functions
The keypad and LCD interface provides access to
settings and adjustments. A toggle switch on the top
panel is programmable to operate as an audio mute
switch, a power switch or be inoperative. This allows
the transmitter to be configured with full access to all
settings, or as a simple one-button device with settings
locked.
The transmitter is powered by three AA batteries in
series. To open the battery compartment, slide the
door outward in the direction indicated by the engraved
arrows on the door, and swing it open. The correct ori-
entation of the batteries is illustrated on the rear panel
of the transmitter.
Battery
orientation
engraved on
back panel
Slide door out
and swing open
3.5mm
TRS plug Micro USB
connector
P/N: DRKEYCABLE
DSW Digital Wireless System
LECTROSONICS, INC.
16
Powering On in Operating Mode
Press and hold the Power Button until a counter on
the LCD progresses from 1 to 3. When you release the
button, the unit will be operational with the RF output
turned on and the Main Window displayed.
Hold
for
Rf On
...3
Steve
494.500
-40 -20 0
MUTE
RF
indicator
Powering On in Standby Mode
Pressing the Power Button and releasing it before
the counter has reached 3 will turn the unit on with
the RF output turned off. In this Standby Mode the
menus can be browsed to make settings and adjust-
ments without the risk of interfering with other wireless
systems nearby.
Steve
494.500
-40 -20 0
MUTE
Hold
for
Rf On
...1
Release Power
Button before
the counter
reaches 3 to
enter standby
mode
RF indicator blinks
After settings and adjustments are made, turn the unit
off by pressing and holding the power button until a
countdown on the LCD is completed.
NOTE: Also see the topic entitled Power Menu for
other options.
Powering Off
Powering
O . . .
1
From any screen, power can be
turned off by holding the Power
Button in and waiting for the
countdown, selecting Pwr Off in the
power menu, or with the program-
mable switch (if it is configured for
this function).
If the power button is released, or the top panel switch
is turned back on again before the countdown is com-
pleted, the unit will remain turned on and the LCD will
return to the same screen or menu that was displayed
previously.
NOTE: If the programmable switch is in the OFF
position, power can still be turned on with the power
button.
Power Menu
Pressing the power button when the unit is turned
on will display a menu with several options:
s Resume returns to the previous screen and operat-
ing state.
s Rf On? opens a dialogue screen with options to turn
the RF output on or off.
s AutoOn? opens a dialogue screen with options to
either automatically restore power after batteries
have been replaced, or leave the unit turned off after
batteries have been replaced.
s Pwr Off starts the power off sequence countdown.
Resume
Rf On?
AutoOn?
Pwr Off
Resume and Pwr Off
will execute
the command
immediately
Resume
Rf On?
AutoOn?
Pwr Off
The other two menu items will open a screen asking
for a Yes or No answer.
Rf On?
No
Ye s
Resume
Rf On?
AutoOn?
Pwr Off
AutoOn?
No
Ye s
Resume
Rf On?
AutoOn?
Pwr Off
DSW Digital Wireless System
Rio Rancho, NM 17
Navigating Menus
The LCD/keypad interface makes it easy to browse
the menus and make the selections for the setup you
need. When the unit is powered up in either the operat-
ing or the standby mode, press MENU/SEL on the
keypad to enter a menu structure on the LCD. Use the
and arrow buttons to select the menu item. Then
press the MENU/SEL button to enter the menu.
-40 -20 0
Gain
25
The prompt in the upper right corner may
display one or both arrows, depending upon
what adjustment can be made. If the changes
are locked, a small padlock symbol will appear.
Gain
Freq.
ProgSw
Rolloff
Adjusting LCD Backlight
For viewing the LCD in dimly lit conditions, the back-
light can be turned on continuously or set to turn off
automatically after either 30 seconds or 5 minutes.
Backlit
About
Default
WipeKey
y
Backlit
On
30 sec
5 min
Locking/Unlocking Changes to Settings
Changes to the settings can be locked.
Locked?
Backlit
About
Default
Locked?
No
Ye s -40 -20 0
Gain
25
A small padlock symbol will appear on adjustment
screens when changes have been locked.
When changes are locked, several controls and ac-
tions can still be used:
s 3ETTINGSCANSTILLBEUNLOCKED
s -ENUSCANSTILLBEBROWSED
s 0ROGRAMMABLESWITCHSTILLWORKS
s 0OWERCANSTILLBETURNEDOFFBYUSINGTHEPOWER
menu or removing the batteries.
Selecting Programmable Switch Functions
The programmable switch on the top panel can be
configured using the menu to provide several func-
tions:
s (none) - disables the switch
s Mute - mutes the audio when switched on
s Power - turns the power on and off
ProgSw
Rolloff
Phase
BatType
ProgSw
(none)
Mute
Power
Use the and
arrow buttons to
select the desired
function or disable
the switch
NOTE: The programmable switch will continue to
operate whether or not keypad changes are locked.
Other Menu Items
Refer to the table and descriptions on the following
page for an explanation of the menu items.
DSW Digital Wireless System
LECTROSONICS, INC.
18
DB Transmitter Menu Map
From the main window, navigate with the arrow buttons
to the desired menu item and press MENU/SEL to
enter the setup screen.
SEL
BACK
Freq.
Select option with arrow buttons
Use arrow buttons
to select value
22
Gain SEL
BACK
Gain
Level meter at bottom of screen
Freq.
470.675
Press MENU/SEL to highlight MHz or kHz
SEL
BACK
ProgSw
(none)
Mute
Power
SEL
BACK
Rolloff
Rolloff
50 Hz Select value with arrow buttons
SEL
BACK
Phase Normal
Invert
Phase
SEL
BACK
BatType Alk.
Lith.
BatType
SEL
BACK
BatTime
SEL
BACK
Locked?
Yes
No
Locked?
SEL
BACK
Backlit
Backlit
On
30 sec
5 min
Displays model number and firmware revision
SEL
BACK
About
DB
V1.01
About
Bat 5:41
Reset?
Yes
No
SEL
BACK
Default
Default
Settings
No
Yes
Select value with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
SEL
BACK
WipeKey
No
Yes
WipeKey?
Select option with arrow buttons
After the desired selection if made, press BACK to
return to the menu.
Gain - This setting determines the signal to
noise ratio and dynamic range that the system
will deliver. Review the setup procedure care-
fully for optimal performance.
Freq. - Frequency can be set manually.
ProgSw - The programmable switch on the
top panel of the transmitter can be configured
for different functions with this setup menu.
Rolloff - The low frequency audio rolloff is
adjustable to optimize performance for envi-
ronmental conditions or personal preference.
Phase - The polarity of the audio signal can
be reversed to match other microphones in
the system. Differences in polarity are due to
microphone designs and connector wiring.
BatType - This setting makes the battery sta-
tus display more accurate, since alkaline and
lithium batteries behave differently as they are
discharged.
BatTime - A built-in timer can be used with
any battery type, but it is especially valuable
with rechargeable batteries such as NiMH
types. The voltage remains fairly constant
across the discharge time of a rechargeable
battery, then drops quickly near the end of
the operating time. The most accurate way to
determine runtime status is by testing the time
provided by a particular battery brand and
type, then using a timer to determine remain-
ing runtim.
Locked? - The keypad can be locked out to
prevent inadvertent changes to be made.
Backlit - The brightness and appearance of
the LCD can be adjusted for better viewing in
different lighting conditions.
About - Displays the firmware revision.
Default - The factory default settings can be
restored with this single setup screen.
WipeKey - The encryption key can be erased
with this setup screen.
DSW Digital Wireless System
Rio Rancho, NM 19
Copying Transmitter Settings To and From
the Receiver
Connect the key cable from the jack labeled KEY on
the front of the receiver to the micro USB port on the
side of the transmitter.
If transmitter settings are defined in the receiver, they
can be transferred to a connected transmitter, or cop-
ied from a transmitter to a receiver channel using the
key cable.
Transmitter Settings Screen
Press MENU/SEL and navigate to the TX MENU, then
to the SEND SETTINGS (microphone) icon. Press the
encoder to enter the transmitter settings screen.
Select the desired channel with the CHOOSE TX op-
tion at the bottom of the screen.
Send Settings to Transmitter
After the channel is selected, highlight the SEND
SET option at the bottom of the screen. Connect the
transmitter with the USB cable and press the encoder
to start the transfer.
The transmitter LCD will display RECEIVED when the
settings have successfully transferred.
If the transfer cannot be completed, an error message
will appear.
Get Settings from Transmitter
The settings in the transmitter can be transferred to the
receiver for storage or editing with the GET SET option
in the setup screen.
The transmitter must be turned fully on and tuned to
the selected channel on the receiver.
Select the desired channel and then the GET SET
option. Turn the transmitter fully on with the RF output
enabled and press the encoder to start the transfer.
An error message will appear if no RF signal is being
received.
NOTE: Settings will be displayed on the Transmitter
Settings screen, but changes are not made here.
Settings are adjusted in the TX MENU as described
on previous pages, on the transmitter itself, or with
the Wireless Designer software.
DSW Digital Wireless System
LECTROSONICS, INC.
20
System Setup
These instructions apply to setup using the front panel
LCD. If you will be using Wireless Designer for setup,
instructions are in the help files supplied with the soft-
ware.
Install Receiver Modules
Turn power off on the DR mainframe. Install the mod-
ules as needed. Any module can be installed in any
position in the mainframe assembly. When the power
is turned on, the modules will be detected during the
bootup sequence and an icon for each one will appear
on the LCD.
Generate Encryption Key
On the receiver LCD, navigate to the KEY MANAGE-
MENT item in the Top Menu and press the encoder to
enter the setup screen.
In this setup screen, the type of encryption key policy
can be set, a new key generated or the existing key
can be deleted.
The encryption key policy can be configured as:
s 0%23)34%.4
s /.%4)-%+%9
A PERSISTENT key will remain in receiver and trans-
mitter memory until it is replaced with a new key or
manually deleted using WIPE KEY in the menus.
A ONE-TIME ONLY key is used for maximum secu-
rity. The key exists only as long as the power on both
receiver and transmitter remains on during a single
session. If a transmitter is powered off, but the receiver
has remained turned on, the key must be sent to the
transmitter again. If the power is turned off on the
receiver, the entire session concludes and a new key
must be generated and sent to all transmitters.
In either key policy, there are 256 “instances” available
each time a new key is generated. “Instance” refers to
a transfer of the key from receiver to transmitter. Each
instance contains a unique key. The number of instanc-
es is reduced each time a key is transferred. When
the number of instances reaches 10, a warning will be
displayed on the LCD.
Select the NEW KEY option and press the encoder to
enter the setup screen.
NOTE: It is generally more convenient to use a
PERSISTENT key during setup, since power may
be need to be cycled on and off on the transmitters
or receiver until the system is completely set up.
The stored key can be deleted manually with the WIPE
KEY option.
Initial Transmitter Setup
Attach the antenna and install the batteries into the
transmitters that will be used. Turn the power on and
observe the BATT LED on the transmitter. Verify that
the batteries are fresh or fully charged (the LED will
glow green with good batteries).
Transfer Encryption Key to Transmitters
On the receiver LCD, navigate to the KEY TRANSFER
item in the Top Menu and press the encoder to enter
the setup screen.
YES indicates the transmitter is connected
Connect the transmitter with the key cable and press
the encoder to start the transfer. The LED on the top
right corner of the keypad will glow blue when the key
has been transferred successfully.
NOTE: The key can be transferred with the
transmitter either fully powered up or in the standby
mode with the RF output turned off.
DSW Digital Wireless System
Rio Rancho, NM 21
Frequency Selection
Manual selection may be necessary if frequencies are
mandated by an authority, such as a major sporting
event. You can manually set the frequencies and set-
tings for the transmitters in the receiver, then connect
a transmitter and transfer settings. Or, of course, just
manually set the frequency in each receiver channel
and transmitter.
Using Smart TuneTM is the easiest way to find and
set good operating frequencies. The process scans
the tuning range of designated channels, identifies a
good operating frequency and prompts the operator
to connect a transmitter and transfer the settings. The
transfer can be completed or skipped, and scanning
will then continue with the next receiver.
Manual Frequency Selection
From the Main Window, press the numbered channel
select button under the LCD on the front panel to open
the receiver setup screen. Rotate the encoder to select
the EDIT option.
Press the encoder to highlight the EDIT option and
then rotate the encoder to select the left or right hand
frequency item. The left hand item adjusts frequency in
1 MHz steps, and the right hand item adjusts frequen-
cy in 25 kHz steps.
Selected item is indicated with
ruled lines above and below
Press the encoder to highlight the selected item and
then rotate it to set the frequency. Then press the
encoder to de-highlight it, rotate the encoder to select
the other frequency item and press the encoder to
highlight it.
Adjust in 1 MHz steps Adjust in 25 kHz steps
After adjusting the frequency, press the BACK but-
ton on the front panel or the encoder to de-highlight
the item. Then press the BACK button to leave the
EDIT option. Use the SEL RX option or return to the
Main Window to move to another receiver to adjust its
frequency.
Selected receiver
Select the SEL RX option
and press the encoder
Press the encoder to de-highlight SEL RX. Select the
EDIT option and repeat the above procedure.
Using Smart TuneTM for Frequency Selection
When new frequencies must be discovered, this auto-
matic frequency scanning and setup function is by far
the easiest and quickest way to get up and running.
Select the SMART TUNE item in the Top Menu and
press the encoder to open the setup screen.
A check box next to each receiver indicates whether
or not the channel will be included in the scanning and
setup process. Press the channel select buttons on
the keypad below the LCD to check or uncheck each
channel. Normally, a single scan on each channel is
adequate to identify good operating frequencies. If
you prefer, up to 10 scans can be performed on each
frequency. Select the number of scans with the NUM
SCAN PASS option.
Selects the number of scans on each channel
DSW Digital Wireless System
LECTROSONICS, INC.
22
Select BEGIN in the setup screen and press the en-
coder to start the process. Scanning will proceed one
at a time on each receiver, from the lowest numbered
one to the next higher numbered one.
Each scan pass takes about 20 seconds. After the
scan on the first receiver is completed, the receiver
will be set to the newly identified frequency. A mes-
sage will appear on the LCD, prompting to connect a
transmitter and transfer the settings from the receiver.
To set up the transmitter, turn its power on, connect it
with the USB cable, select SEND TX SET and press
the encoder to start the transfer.
Transmitter setup can also be skipped at this time and
set up later.
NOTE: It is best to set up transmitters when
prompted, and leave them turned on for subsequent
scans, so their signals will be included in finding
clear spectrum for new frequencies.
Navigate to the TX MENU on the receiver and select
the desired channel. Connect a transmitter to the
receiver with the USB cable. Select the SEND SET op-
tion at the bottom of the screen and press the encoder.
After all frequencies have been selected and settings
have been transferred to the transmitters, finish the
transmitter setup by adjusting the input gain on each
one to match the user’s voice with the microphone in
the position it will be used.
Attach Microphone and Adjust Transmitter Gain
This adjustment is very important to optimize the sig-
nal to noise ratio and dynamic range that the system is
capable of delivering.
It is best to go through the following procedure with the
transmitter in the standby mode so that no audio will
enter the sound system or recorder during adjustment.
1) With fresh batteries in the transmitter, power the unit
on in the standby mode (see previous section Pow-
ering On in Standby Mode).
2) Navigate to the Gain setup screen.
Gain
Freq.
ProgSw
Rolloff -40 -20 0
Gain
25
-40 -20 0
Gain
25
Peak audio level indication
3) Position a microphone the way it will be used in
actual operation and have the user speak or sing at
the loudest level that will occur during use, or set the
output level of the instrument or audio device to the
maximum level that will be used.
4) Use the and arrow buttons to adjust the gain
until the peak indicator on the audio level display
flickers during loud audio passages.
NOTE: The peak indicator does not mean the audio
is distorted. It simply means full modulation has
been achieved. The input limit will cleanly handle
increased levels up to 30 dB above this point.
5) Once the audio gain has been set, the signal can
be sent through the sound system for overall level
adjustments, monitor settings, etc.
6) Always leave the transmitter gain adjustment set
according to these instructions. Adjustment only
needs to be made if a different person, microphone,
microphone placement, or a different instrument is
used. Do not change it to adjust the audio output
level of the receiver. If the audio output level of the
receiver is too high or low, use only the controls on
the receiver to make that adjustment.
DSW Digital Wireless System
Rio Rancho, NM 23
Adjust Receiver Analog Audio Output Level
The analog audio output of the receiver is set at maxi-
mum, and lower levels are achieved with an attenuator
to reduce the signal level to match the level require-
ments of other equipment. This means that there is no
difference in signal to noise ratio regardless of where
the receiver output level control is set.
Any time gain is applied to the audio signal, noise
is also added. The best approach is to use as much
output on the receiver as possible with the least
amount of gain on the connected device. Following this
principle, it is generally best to use a line input on the
connected device to avoid additional gain that might be
applied to a microphone input.
A tone generator is provided in the receiver to al-
low accurate input level adjustment of the connected
device. This steady tone is the same as the maximum
level that will appear at the outputs. The outputs can
be set between -35 dBu and +8 dBu, in 1 dB steps.
For example, if a channel is set at +0, the maximum
output that will appear at that output is +0 dBu when
the transmitter is driven to full modulation (the onset of
limiting).
The simple and accurate way to match the receiver
output with the input of the connected device is using
the following procedure.
1) Turn the output of the DR receiver all the down (-35
but not OFF).
2) Turn the input of the connected device all the way
down, but not OFF.
3) Turn the tone on and gradually increase the output
level of the receiver while observing the input level
meter on the connected device. Increase the level
until the input level meter indicates full scale.
OVR
OVR
-20
0
-10
-20
0
-10
Input Level Meter on
Connected Device
Nominal level
If the receiver output is turned all the way up and the
nominal level on the input meter is not achieved, turn
the gain on the connected device input up gradually
until a full scale reading is indicated.
NOTE: If the transmitter is driven hard into limiting,
up to 30 dB, the output level of the receiver will be a
few dB above this nominal level.
Once the input level on the connected device is set,
turn the tone generator off in the menu. The generator
will turn off automatically when you return to the Main
Window.
When the receiver output and connected device input
are set up in this manner, there is no need to change
these settings from one event to another. As micro-
phones and microphone placement change, and with
different voices, the only adjustment needed is the
input gain on the transmitter.
DSW Digital Wireless System
LECTROSONICS, INC.
24
Specifications
System
Operating Frequencies: 470.100 - 691.175 MHz in 25 kHz steps
Sampling Size and Rate: 24-bit, 48 kHz
Digital Modulation: 8PSK
Symbol rate: 128 k
Data Compression: Proprietary ADPCM
Encryption: AES 256-CTR
(per FIPS 197 and FIPS 140-2)
System Latency: 2.5 ms
Audio Frequency Response: 20 - 20 kHz, +/- 1 dB
Distortion: 0.05% THD+N, 1 kHz @ -10dBFS
Dynamic Range: 108 dB A-wtd, NR=NORMAL
DR Receiver
Sensitivity: -98 dBm for 10-5 BER
Diversity Technique: Noiseless antenna switching
Antenna Inputs: Dual BNC female, 50 ohm impedance
Audio Outputs:
XLR: Balanced, -35 to +8 dBu analog
or AES3 digital
Headphone: 1/4 inch phone jack
External DC Power: 10 to 18 VDC; 40 Watts max.
Weight: 6.58 lbs.; 2984 grams
Dimensions: 19 x 1.75 x 10.6 in.
483 x 44 x 269 mm.
DB Transmitter
RF Output Power: 50 mW
Spurious Emissions: >90 dB below carrier
Audio Input Jack: TA5F 5-pin locking
Equivalent Input Noise: -128 dBV
Input Impedance: Mic: 300 ohms
Line: 2k ohms
Input Limiter: Dual envelope type; 30 dB range
Gain Control Range: 44 dB in 1 dB steps; digital control
LF rolloff: -3 dB @ 35, 50, 70, 100, 120, 150 Hz
Antenna Connection: SMA; 50 ohms
Battery: Three AA Duracell Quantum recommended
Battery Life: TBA
Weight: 7.4 ozs. (211 grams)
with 3 alkaline AA batteries
Dimensions: 3.4 x 2.5 x .74 in. (86 x 62 x 19 mm)
DSW Digital Wireless System
Rio Rancho, NM 25
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equip-
ment needs repair. Make sure you have followed the setup procedure and operating instructions. Check the inter-
connecting cables and then go through the Troubleshooting section in this manual.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop
attempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose con-
nection, send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units. Once
set at the factory, the various controls and trimmers do not drift with age or vibration and never require readjustment.
There are no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs
are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod-
est flat rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it
does to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by
phone for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment to the factory for repair without first contacting us by email or by phone. We need
to know the nature of the problem, the model number and the serial number of the equipment. We also need a
phone number where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help speed
your repair through our receiving and repair departments. The return authorization number must be clearly shown
on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with the
proper packing materials. UPS is usually the best way to ship the units. Heavy units should be “double-boxed” for
safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Lectrosonics USA:
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. (505) 892-4501
PO Box 15900 561 Laser Rd. Ste. 102 (800) 821-1121 Toll-free
Rio Rancho, NM 87174 Rio Rancho, NM 87124 (505) 892-6243 Fax
USA USA
Web: E-mail:
www.lectrosonics.com sales@lectrosonics.com
DSW Digital Wireless System
LECTROSONICS, INC.
26
FCC Notice
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. The
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
s 2EORIENTORRELOCATETHERECEIVINGANTENNA
s )NCREASETHESEPARATIONBETWEENTHEEQUIPMENTAND
receiver
s #ONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUIT
different from that which the receiver is connected
s #ONSULTTHEDEALERORANEXPERIENCEDRADIO46TECH-
nician for help
Changes or modifications to this equipment not ex-
pressly approved by Lectrosonics, Inc. could void the
user’s authority to operate it.
DSW Digital Wireless System
Rio Rancho, NM 27
31 October 2014
&%$* $#o,*(((!'%$&$# &$"
**)*&!&!'%$&$# &$"
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in
materials or workmanship provided it was purchased from an authorized dealer. This
warranty does not cover equipment which has been abused or damaged by careless
handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any
defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot
correct the defect in your equipment, it will be replaced at no charge with a similar new
item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized
dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the
entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT
SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which
vary from state to state.
