Lee’sHi‐techEnterprise.Co.,Ltd

1. WARRANTY

1‐1Warranty

Lee’sHi‐TechEnterprisesCo.,Ltd.guaranteesthatthisproductmeetsits

publishedspecificationsatthetimeofshipmentfromthefactory.Under

properinstallationitshouldworkasexpected.

1‐2Warrantyperiod

Thisequipmentiswarrantedagainstdefectsinmaterialandmanufacturing

foraperiodofoneyearfromthedateofshipment.Duringthewarranty

period,TELECRANEisresponsiblefornecessaryrepairsaslongastheproduct

canbeprovedtobedefective.

Forwarrantyserviceorrepairthisproductmustbereturnedtoaservice

facilitydesignatedbyTELECRANE.Buyerwillpayshippingchargesto

TELECRANEwhileTELECRANEwillpayreturnshippingcharges.

1‐3ExcludedItems

Thiswarrantydoesnotincludeconsumptivepartssuchasbatteries,fuses,

buttons,andrelays.Alsothiswarrantydoesnotcoverdefectscausedby

improperinstallation,improperorinsufficientmaintenance,unauthorized

modification,andimproperoperation,ignoranceofenvironmental

specifications,orimpropersoftwareorinterfacing.

1‐4Remarks

●Nootherwarrantyisexpressedorimplied,exceptfortheabovementioned.

●Theremediesprovidedhereinarethebuyer’ssoleandexclusiveremedies.

TELECRANEshallnotbeliableforanydirect,indirect,special,incidentalor

consequentialdamages.



2. AT T E N T I ON 

2‐1Attention

●Pleasecarefullyreadthemanualbeforeinstallingandoperatingthisdevice.

●Duetothecomplexnatureofthisequipmentitisnecessarytoreadthe

entiremanualbeforeinstallation.

●Neverdismantletheequipmentbyanyunauthorizedpersonnel,or

equipmentmaybedamaged.

●Thismanualisforreferenceonly.Pleasesconsultyourdistributorfor

furtherassistance.



Usermanual

F21‐E2Remotecontroller



2



●Theequipmenthasbeenstrictlytestedforqualitybeforedeliveryfromour

plant.However,thisequipmentmustnotbeusedindangeroussituations

orwheredamagemayresult.

●Aftertheoperationfinished,pleaseclosethecranemainpowersource,the

receiverpowersupply.

●Transmitterwhennotinuse,shouldbeplacedinasafeplacetoavoidthe

accidentaltouchingthebuttonsbymistake.

●Thecraneshouldbeequippedwithmainpowerrelay,limitswitchand

othersafetydevices.

●Don’tuseequipmentduringlighteningorhighelectricalinterference

conditions.

●Makesurethatthebatteriesareingoodconditionandpowerforreceiveris

correct.

●Maintenanceshouldonlybedonewhilethecrane’smainpowerisoffto

preventelectricalshock.

●Thecontentsofthismanualmaybeamendedbythemanufacturerwithout

notice.

●Themanufacturermayintroducenewfunctionstotheequipmentas

necessary;therefore,thedescriptionsmaychange.

2‐2Precautions

●Operatinginanindustrialfacilityisrelativelydangerous;therefore,

operatormusthavetakentheadequatetrainingsinusingF21‐E2system.

●Thosewhooperatethemachineshouldbehealthyandhavegood

judgmentinregardtosafety.

●AlthoughtheF21‐E2transmitterissodurableandresistantforthe

fluctuatingtemperature,itstillneedstotakecaretopreventitfromthe

severeimpactorpressure.

●Duringoperation,ifthepowersupplyofthetransmitter’sbatteriesis

insufficient,thetransmitterwillsendoutEMSsignalfirsttode‐energizeall

ofmotionrelaysinsidethereceivertostopcrane’smoving,andthenthe

LEDindicatorontransmitterwillflashinredconstantly.Atthismoment,

thebatteriesneedtobereplacedandalloftwobatteriesshouldbe

replacedatthesametime.

●Ifthesevereinterferenceoccurredtheequipmentshouldbestoppedat

once.

●Pleasetakethebatteriesoutwhentheequipmentwillnotbeusedfora

longtime.

●Makesure"ProceduresofEmergency"isfullyknownasfollowing.



3



3. PROCEDURESOFEMERGENCY

IncaseofanEmergency,pleasefollowthestepsbelowandaskthedistributor

forserviceimmediately.

1.Press"EMS"button.

2.Turnthekeyto"OFF"positionandremoveit.

3.Switchoffthemainpowerofcrane.

4.Advisethedistributortofindoutthereason.



4. HOWTOSTART

4‐1F21‐E2feature







4‐2Operation

4‐2‐1Procedure

1.PuttwoAAbatteriesonthereleaseribbon.Andlockthebatterycover.

Note:Beforeplacingthebatteries,makesuretheRotaryKEYisonthe

"OFF"position.

2.TurntheRotaryKEYintoSTARTposition.(Ordependonthesettingmode

ofpoweron.)

3.Inaccordancewiththefunctionsettingofpushbuttontooperate

correctly.

4.Aftertheoperation,pleasedothefollowingstepstoturnoff.

a)PressEMSbutton.

b)Turntherotarykeyto"OFF"position.

c)Removethebatterieswhentheremoteisnotgoingtobeusedfora

longperiodoftime.

EMSbutton

LEDIndicator

Motionbutton

RotaryKEYswitch

Receiver

Wiringdiagram



4



4‐2‐2TransmitterLEDindicator

Thereisa3‐stagepowerindicatingfunctionwithLEDdisplay.

1."Greencolor":Sufficientpowertooperatetransmitter.

2."Yellowcolor":Powerisdepleting.Operationmustbestopped

immediately(forexample:downtheloadstoground)toreplace

batteries.

3."Redcolor":Insufficientpower.Transmitterwillsendoutanemergency

stopsignaltothereceiverduetoinsufficientpower.Operatorshould

avoidthissituationinordertomaintainthesafetyofoperation.



5. RECEIVERPOWERSELECTION

5‐1Receiverpowertransformervoltageselection

F21‐E2receiverprovideswith5kindsofTransformer(24V/48VAC、48/110

VAC、48/220VAC、110V/220VAC、220V/380VAC)thatallowsuserto

choosebasedonthepowerinputonsiteandthedesignatedvoltagewillbe

setwhenthereceiverismadeinfactory.



5‐2Changepowersupplyvoltage

1.Disconnectthepowerofreceiver.

2.Removetheconnectorplugofthetransformerfromitsoriginalposition.

3.Inserttheconnectorplugintothenewposition.

4.Completetheprocedure.

Transformer

Jumper

24/48

VAC

48/110

VAC

48/220

VAC

110/220

VAC

220/380

VAC

LOposition24VAC48VAC48VAC110VAC220VAC

HIposition48VAC110VAC220VAC220VAC380VAC

Note:Usersareallowedtoselectthedifferentpowersourceaccordingtothe

respectiverequirement.However,thetransformermustbechanged.

Pleasecheckwithyourlocaldistributorforreplacementofthe

transformerifnecessary.

www.telecrane.com.tw



5



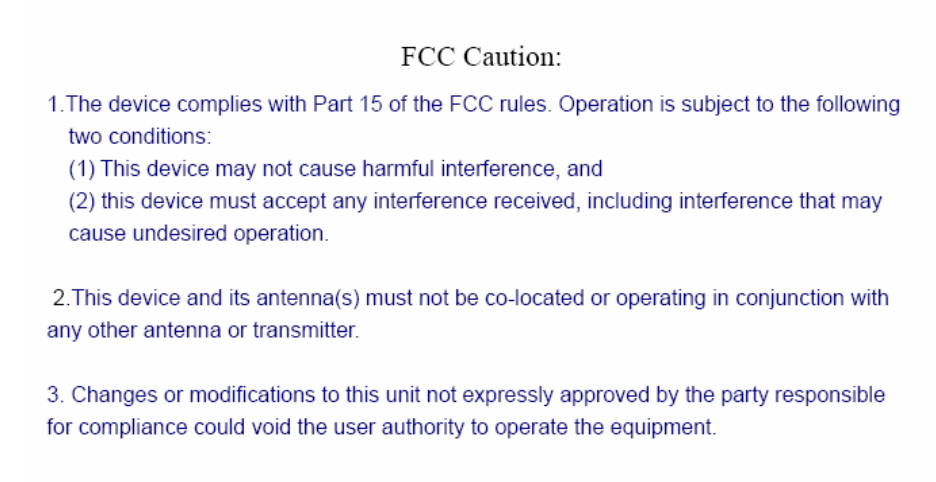

Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseharmfulinterferenceand

(2)thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.



Industry Canada Notice

Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynot

causeinterferenceand(2)thisdevicemustacceptanyinterference,

includinginterferencethatmaycauseundesiredoperationofthedevice.



IndustryCanadaCaution

ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).

Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseinterference,and

(2)thisdevicemustacceptanyinterference,includinginterferencethat

maycauseundesiredoperationofthedevice.



LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux

appareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeux

conditionssuivantes:

(1)l'appareilnedoitpasproduiredebrouillage,et

(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectrique

subi,mêmesile

brouillageestsusceptibled'encompromettrelefonctionnement.


