Leedarson Lighting 5AA-SS-ZE-H0 Contact Sensor User Manual v1

LEEDARSON LIGHTING CO., LTD. Contact Sensor v1

UserManual.wiki >

Leedarson Lighting >

5AA SS ZE H0 User Manual HTML Version

User Manual_v1







ContactSensor

QuickStartGuide



We build your success in IoT.

2



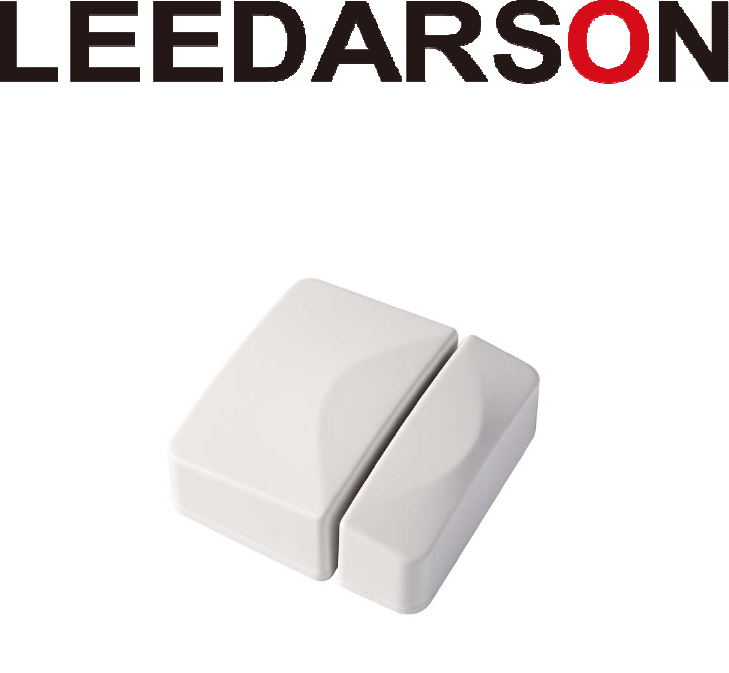

MeetYourLEEDARSONContactSensor



TheContactSensorletsyouknowwhendoororwindowsisopenedandcantriggerdifferentactionsin

responsetothatopenaction(orcloseaction).



Capabilities:



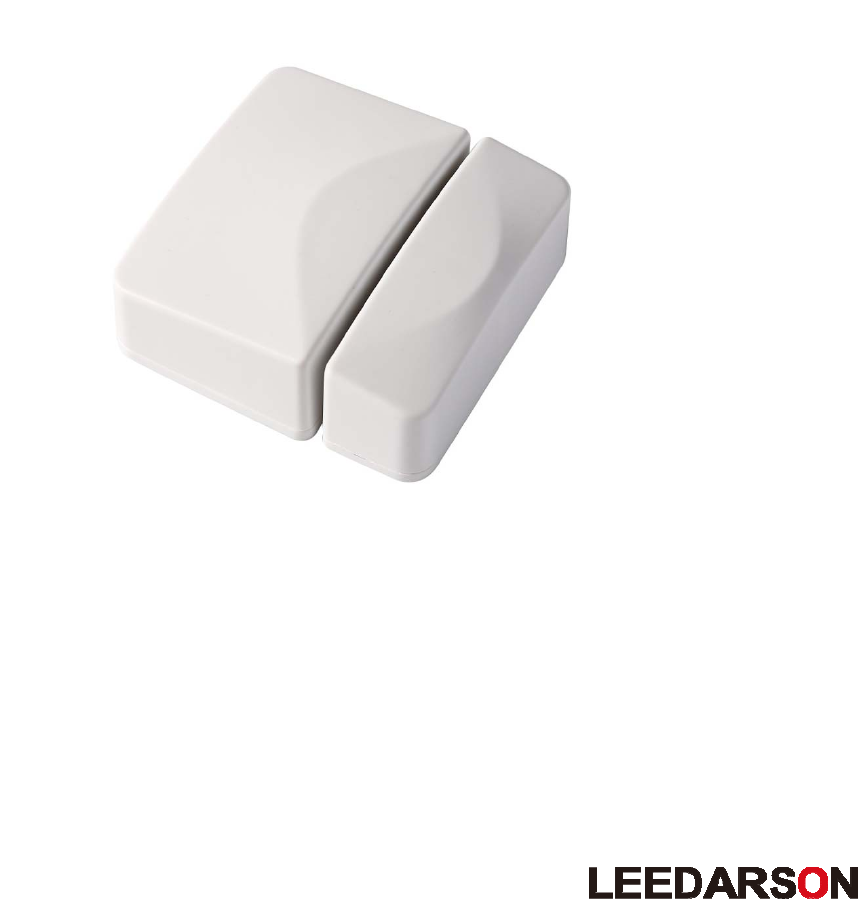

 TheLEEDARSONContactSensorisauniversalZigBeeContactSensor.



 TheLEEDARSONContactSensordetectsstatusofdoororwindows.



 TheLEEDARSONContactSensorispoweredbyCR2032batterywith3yearsbatterylife.



 TheLEEDARSONContactSensorisdesignedtobemountedonthedoororwindows.



3





Specification



PowerSupply:Battery

OperationalVoltage:3V

BatteryType:CR2032

BatteryLife:3years

RadioProtocol:ZigBee

RadioFrequency:2.4GHz

Range:100ftLOS

OperationalTemperature:‐10Ԩ~+50Ԩ

StandardsCompliance:FCC,CE

Dimensions(mm):

45.3(L)*31.1(W)*19.1(H)forMainBody

45.3(L)*15.2(W)*18.4(H)forMagneticPart



4



HowtoconnectaContactSensor

UseapintopressthebuttoninthemainbodyofthesensortoincludetheContactSensorintotheZigBee

network.

ContactSensor’sInclusionProcedure:

1. Makesurethesensorispowered.

2. Pressandholdthe

buttonfor3second.ThiswillcauseaLEDindicatortoflashoncepersecond.

3. Tap“Adddevice”intheLEEDARSONLDSApp.TheLDSAppwillsearchforthedevice.

4. TheLEDindicatorwillturnofftoconfirmasuccessfulinclusion.



Tip

WheninitiallysettinguptheLEEDARSONContactSensor,itisrecommendedtoperformthesetuptask

within15feet(4.5meters)oftheZigBeeHub.

Button



5



HowtoresetaContactSensor

Resetproceduredeletesmemory,includingallinformationontheZigBeenetworkandthehub.

ContactSensor’sResetProcedure:

1. Makesurethesensorispowered.

2. Pressandholdthebuttonfor3seconds.

3. Releasethebutton.

4. LEDindicatorflashesoncepersecondtoconfirmasuccessfulreset.



Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.



To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained

between the antenna of this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended.



NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin

accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto

radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.


