1
MODEL: ITVS-750B(E-696B)

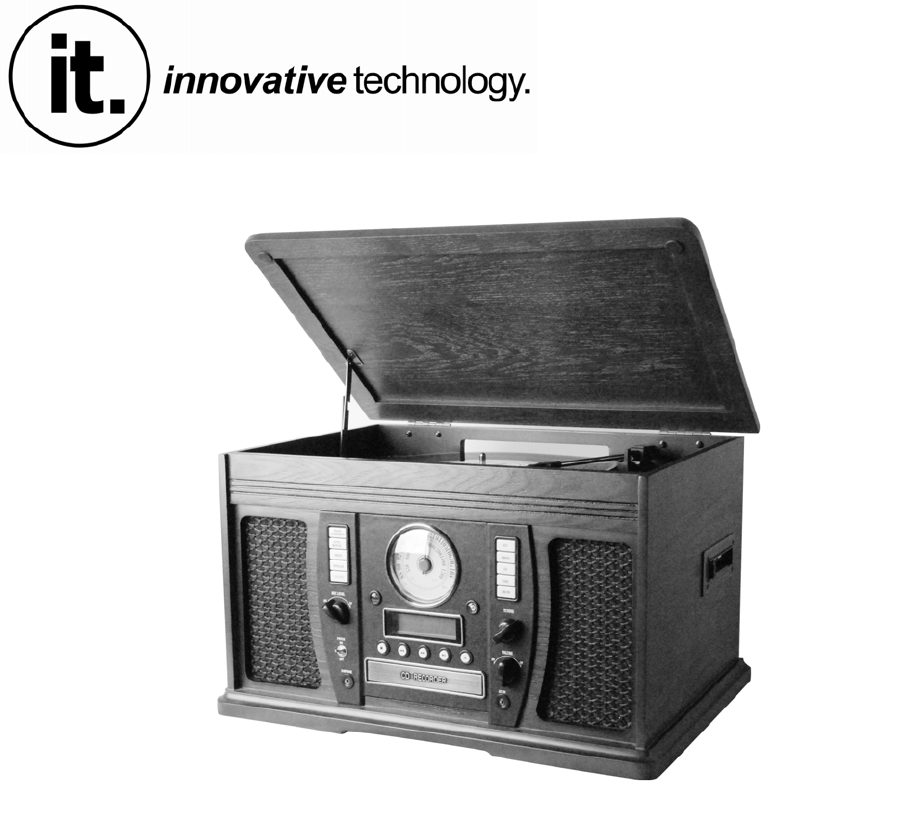

WOODEN MUSIC CENTER
WITH RECORDABLE CD PLAYER
IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2
PRODUCT OVERVIEW ................................................................................................................................ 3
SETUP / BASIC OPERATION ....................................................................................................................... 7
REMOTE CONTROL .................................................................................................................................... 7
LISTENING TO A VINYL RECORD ............................................................................................................... 8
LISTENING TO A CD .................................................................................................................................... 9
LISTENING TO THE RADIO ....................................................................................................................... 11
LISTENING TO AN EXTERNAL AUDIO DEVICE (AUX MODE) ................................................................. 11
LISTENING TO A CASSETTE TAPE........................................................................................................... 12
RECORDING TO A CD-R / CD-RW ............................................................................................................ 12
MAINTENANCE / PROPER HANDLING..................................................................................................... 16
SPECIFICATIONS....................................................................................................................................... 18
TROUBLESHOOTING GUIDE .................................................................................................................... 19
![](/img.php?id=2307554&img=bg2.png)
2
CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle
or other outlet unless the blades can be fully inserted to prevent blade exposure
WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to laser beam.
PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE
OF MANUFACTURE
Important Safety Instructions
1. Read these instructions – All the safety and operating instructions should be read before this product
is operated.
2. Keep these instructions- The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered
to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug the apparatus during lighting storms or when unused for long
periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15.
![](/img.php?id=2307554&img=bg3.png)
3
-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no
user-serviceable parts inside. Refer servicing to qualified personnel.
-The exclamation point within and equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the appliance.
16.
This equipment is a Class Ⅱ or double insulated electrical appliance. It has been designed in such a way
that it does not require a safety connection to electrical earth.
17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
18. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall not be placed on apparatus.
19. The use of the equipment in moderate climate.
20. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
ACCESSORIES INCLUDED
• REMOTE CONTROL
• 3.5MM TO 3.5MM AUX CABLE
• RCA TO 3.5MM AUX CABLE
• INSTRUCTION MANUAL
• WARRANTY (BACK OF MANUAL)
• 45 RPM ADAPTER
Product Overview

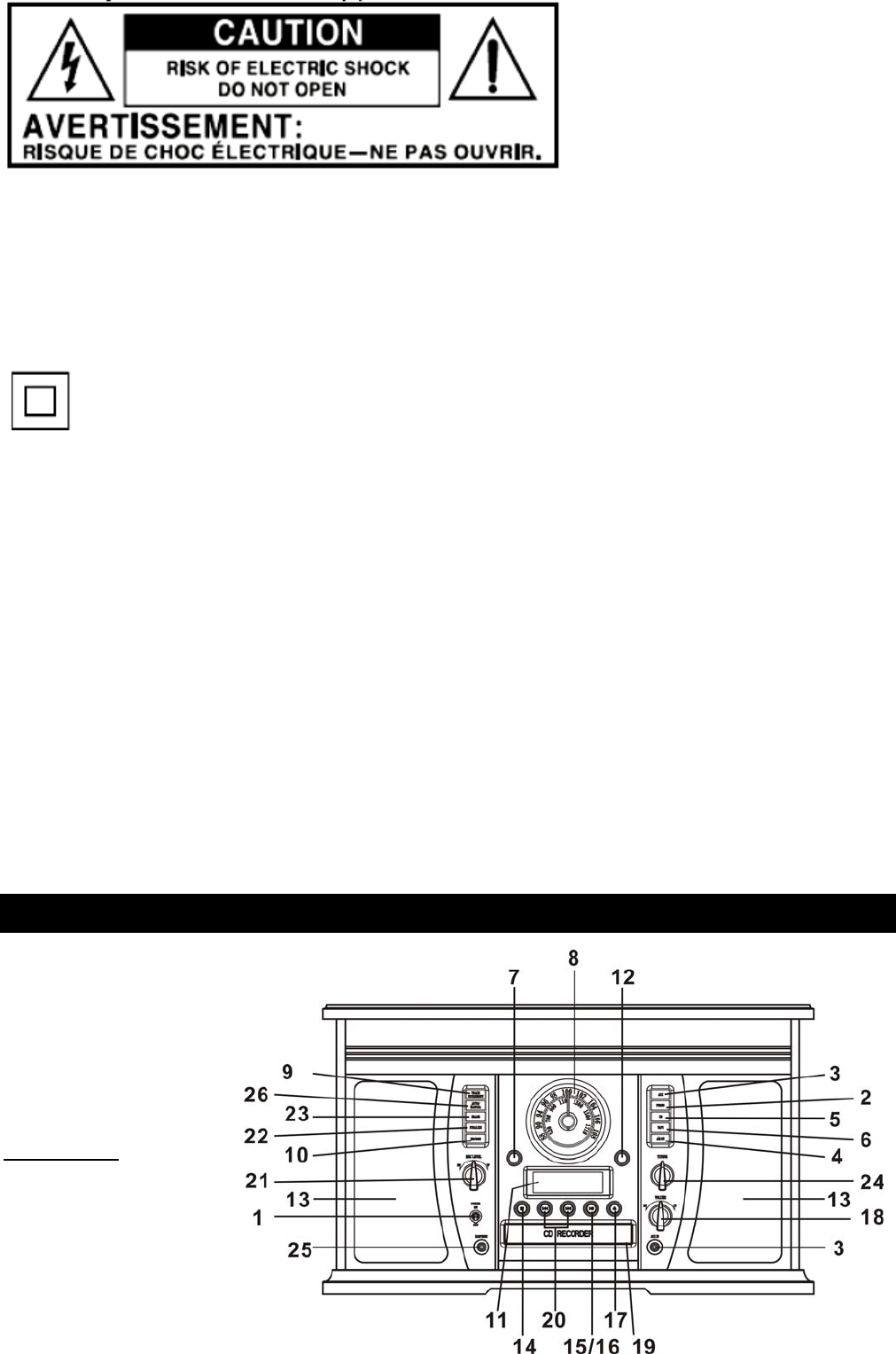

Front View
4
![](/img.php?id=2307554&img=bg5.png)
5
1. “POWER ON/OFF” Switch to turn the unit
on or off.
2. “PHONO” Press to play a vinyl record.
3. “AUX”, “BT” & AUX IN Jack Press
“AUX/BT” to listen to an external source
connected to the AUX IN jack or Bluetooth.
4. “AM/FM” Press to listen to the radio. Press
again to switch between AM and FM mode.
5. “CD” Press to play a CD.
6. “TAPE” Press to play a cassette.
7. REMOTE SENSOR. When using the
remote control, point it towards this sensor.
8. RADIO TUNER DISPLAY
9. “TRACK INCREMENT” During recording,
press to separate tracks.
10. “RECORD” Press to enter record pause
mode.
11. LCD DISPLAY
12. “TUNED ST” INDICATOR. Illuminates
when a station is correctly tuned in.
13. STEREO SPEAKERS
14. STOP Press to stop playback or
recording.
15/16. PLAY/PAUSE Press to start
playback, recording, finalizing or erasing.
During playback, press again to pause.
17. OPEN/CLOSE In CD, PHONO or AUX
mode, use to open and close the disc tray.
(Note: This button will not work in AM/FM
mode.)
18. “VOLUME” KNOB Turn to adjust volume.
(Note: volume ranges from 00 to 32.)
19. DISC TRAY
20. NEXT/PREVIOUS TRACK
& FF/REWIND
In CD Mode, press once to skip to the
next/previous track. Press and hold to fast
forward/rewind.
21. “REC LEVEL” KNOB In record pause
mode, turn to adjust the recording level.
22. “FINALIZE” Press to finalize a
CD-R/CD-RW disc.
23. “ERASE” Press to erase or unfinalize a
CD-RW disc.
24. RADIO TUNER KNOB In AM/FM mode,
turn to tune in a station.
25. EARPHONE JACK
Accepts headphone/earphone plugs.
26. AUTO /MANUAL Press to select mode of
track number assignment for recording.

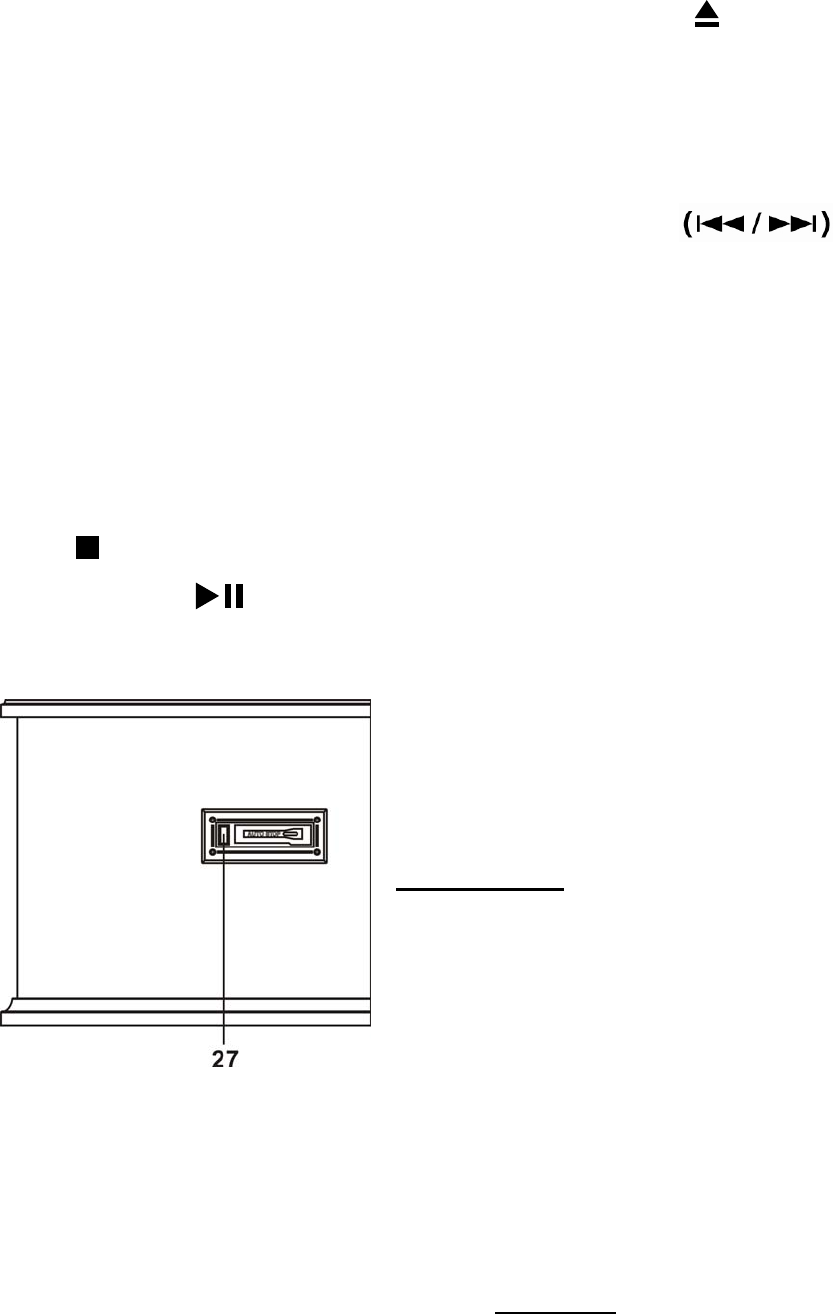

Left side View
27. CASSETTE FF&EJECT Press halfway to fast forward, press all the way to end and eject the
tape.
Rear View
![](/img.php?id=2307554&img=bg6.png)
6
A. FM wire antenna
While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.
B. AUX IN jacks
For audio sources with RCA jacks, use plug on end of the RCA cable into these jacks and the
other into the audio source. Be sure to connect the white plug to the white jack (Left) and the red
plug to the red jack (Right).
C. AC Power Cord
Plugs into a wall outlet.

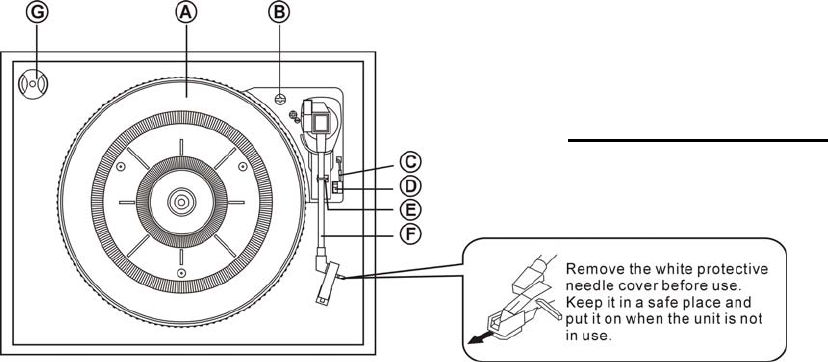

Parts of the Turntable
A. Turntable.
B. Safety Screw (for transport) Before using the unit, turn the screw
clockwise using a coin or screwdriver.
Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.
The silver screw on the back of the turntable is a balancer for both the turntable as well as for
the tone arm.
Please turn this screw with a coin to either left or right and test by moving your tone arm to the
middle of the spindle. Please note that this screw is a balancer and will have to be adjusted until
the tone arm moves freely to the end of the record (middle of the spindle) without any resistance
before using the turntable phonograph.

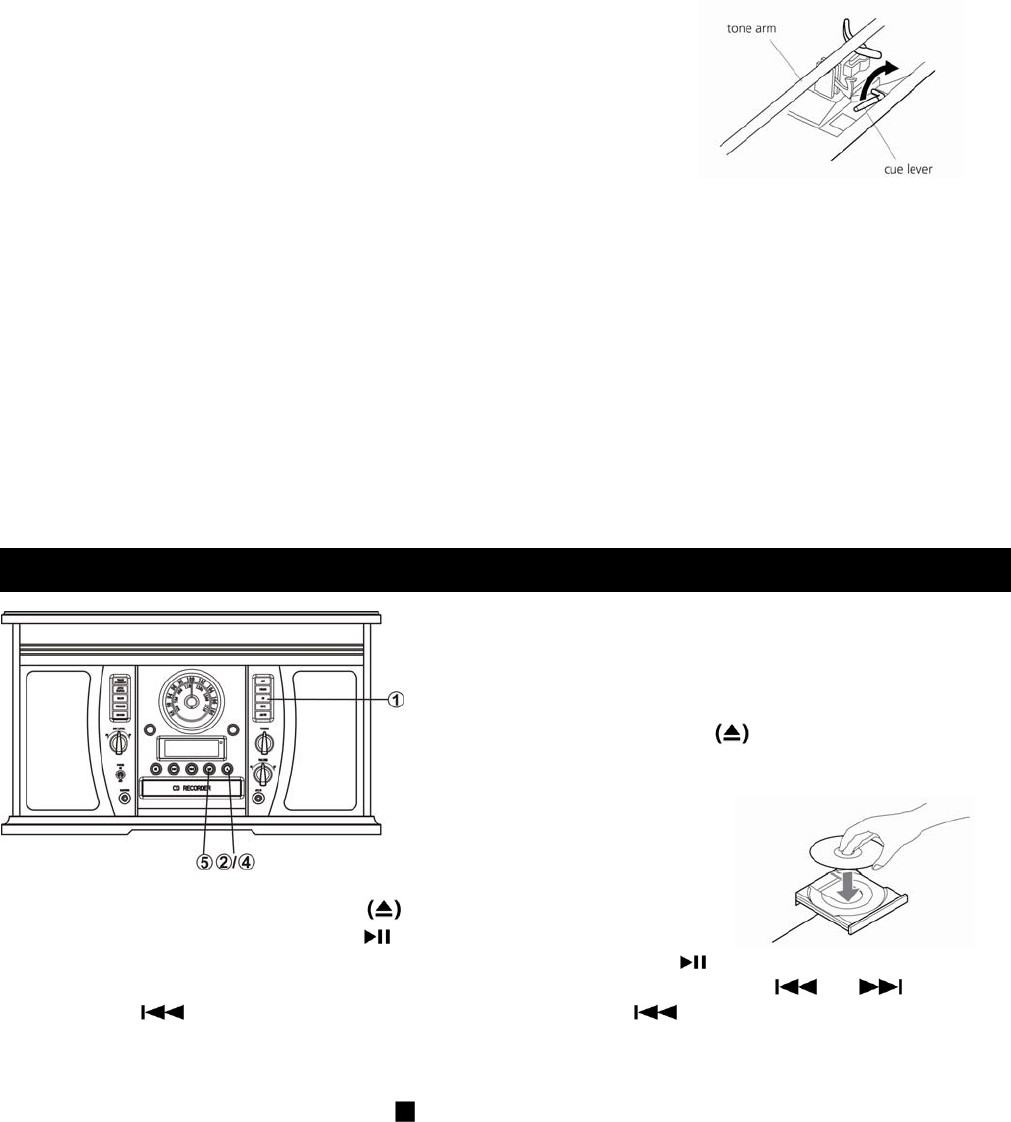

C. Cue-lever. Use this lever to lift the tone arm.
D. Speed Selector.
E. Tone Arm holder.
F. Tone Arm. Before use, completely loosen the fixed rope on the tone arm and uplift tone
arm.
G. 45 RPM adaptor.
![](/img.php?id=2307554&img=bg7.png)
7

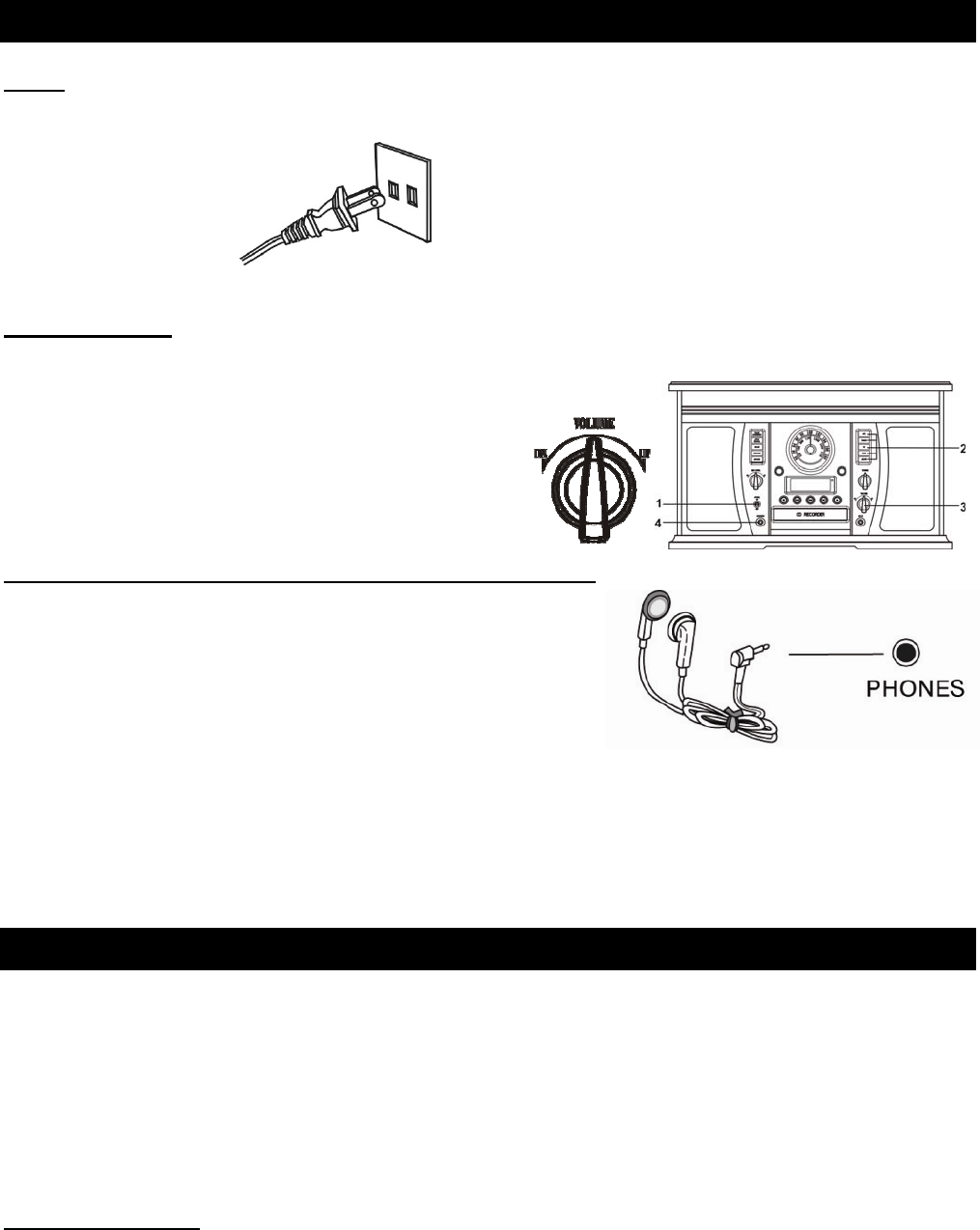

Setup / Basic Operation
Setup
1. Remove white protective needle cover by gently pulling towards front of unit.
2. Remove any packaging materials from the unit.
3. Connect the AC power cord
to a wall outlet.
Note: To prevent interference, avoid bundling audio signal cables together with the AC power cord.

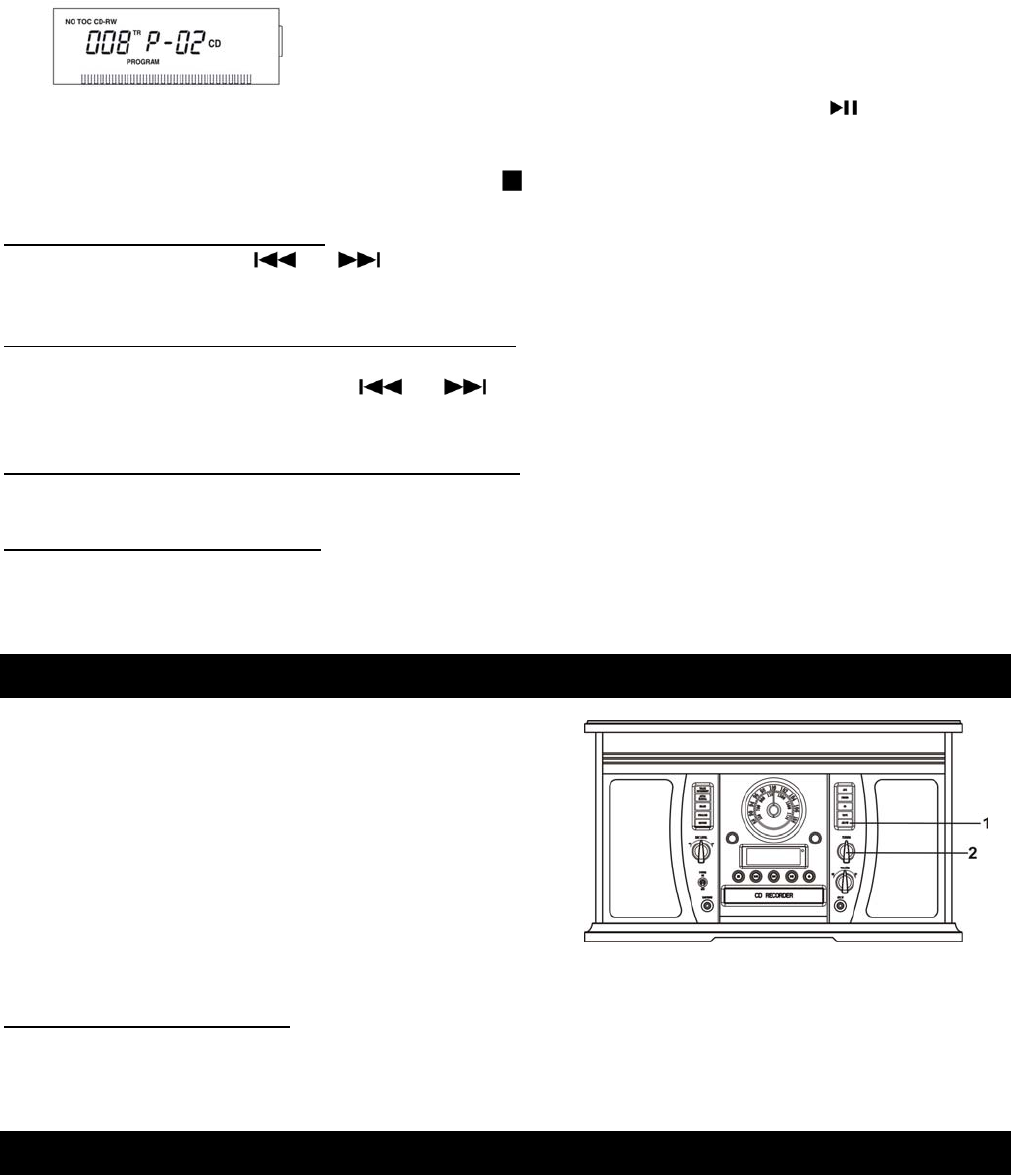

Basic Operation
1. Switch the POWER toggle switch (1) to turn the unit on.
2. Select the source by pressing the corresponding mode
button (AUX / BT / PHONO / AM/FM / CD / TAPE) (2).
3. Rotate the VOLUME knob (3) to adjust to the
desired sound level.
Listening through Earphones/Headphones (not included)
For private listening, first reduce the volume level to minimum.
Insert your headphones’ plug into the PHONES jack, then
adjust the volume up by turning the VOLUME knob.
Note: The speakers will automatically be deactivated while
headphones are plugged in.
CONDENSATION WARNING:
When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the
danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave
the unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.
Remote Control
When using the remote control, point it towards the remote sensor on the front panel of the unit.
Notes:
- Even if the remote control is operated within the effective range, remote control operation may be
impossible if there are any obstacles between the unit and the remote control.
- If the remote control unit is operated near other devices which generate infrared rays, it may not
function properly. Conversely, the other devices may not function incorrectly.
Battery Installation
1. Remove the battery compartment cover.
2. Insert 2x “AAA” batteries.
Note: Make sure that they are oriented so their polarity
markings, “+” and “-” match the remote’s markings.
3. Replace the battery compartment cover.
![](/img.php?id=2307554&img=bg8.png)
8
Battery Replacement
When the distance required between the remote control unit and main unit decreases, it is necessary
to replace the battery with new ones.
Battery Precautions
Be sure to insert the batteries with correct positive “+” and negative “-” orientation.
ALWAYS use batteries of the same type. Never mix different types of batteries together.
When using rechargeable batteries, refer to the precautions on their labels.
When the remote control unit is not to be used for a long time (more than a month), remove the
batteries to prevent them from leaking.
Do not heat or disassemble batteries, and NEVER dispose of old batteries by throwing them in a fire.
Remote Control Button Functions
A. “Remote Sensor”
B. “OPEN/CLOSE” Press to open/close the disc tray.
(Note: This button will not work in AM/FM mode)
C. “CD” Press to play a CD.
D. “REPEAT” In CD mode, press to select a repeat mode
E. “PROGRAM” In CD mode, press to program tracks.
F. “SHUFFLE” In CD mode, press for shuffle playback.
G. “DISPLAY” In CD mode, press to change the display.
H. “TRACK INCREMENT” During recording, Press to divide tracks.
I. “MANUAL/AUTO INCREMENT”
Press to select the mode of track number assignment.
J. “RECORD” Press to enter record pause mode.
K. “REC VOL+”/ “REC VOL –” In record mode, turn to adjust the
recording volume.
L. “FINALIZE” Press to finalize a CD-R/CD-RW disc.
M. “ERASE”. Press to erase or unfinalize a CD-RW disc.
N. “CLEAR” In CD mode, Press to clear programmed tracks.
O. “PHONO” Press to play a vinyl record.
P. “AUX” Press “AUX” to listen to an external source connected to
the AUX IN jack.
Q. “RADIO” Press to listen to the radio. Press again to switch between AM and FM modes.
R. “TAPE” Press to listen to an audio cassette tape.
S. Next/Previous Track
& FF/Rewind
In CD Mode, press once to skip to the next/previous track. Press and hold to fast forward/rewind.
T. “VOL+” / “VOL-” Press to adjust the volume.
U. PLAY/PAUSE Press to play/pause recording, finalizing and erasing.
V. STOP Press to stop playback or recording.
W. “BT” Press “ ” to listen to an external source connected with Bluetooth.
Listening to a Vinyl Record
1. Press the “PHONO” selector button.
2. Gently open the top cover.
Note: Be carefully not to pinch your finger when
opening/closing the top cover.
3. Place a vinyl record on the turntable. When playing a
45 RPM record, use the included adaptor.
4. Select the appropriate speed (4).
![](/img.php?id=2307554&img=bg9.png)
9
5. Gently push tone arm clip (5)
to the right to release the tone arm.
6. Raise the cue lever (6) to lift the tone arm off the tone arm support.
7. Move the tone arm gently to the edge of the record (or the starting point of a track).
The turntable will begin to turn.
8. Gently lower the tone arm by slowly releasing the cue lever.
9. When playback is finished, the tone arm will automatically return to its holder, and indicator light
will light up, Then the turntable will stop. To stop playback manually, slightly lift the tone arm using
the cue lever and return it to the tone arm holder.
Note: It will take approximately 20 seconds for tone arm to return to its holder when playing a 78
rpm record.
Important:
- Closing the top cover will help prevent dust from settling on the turntable.
- Always relock the tone arm clip before transporting the unit.
- Do not place anything on top of the turntable cover, especially while playing a record.
Listening to a CD
1. Press the “CD” selector button (1).
“--- BUSY CD” will blink for a few seconds.
Note: When no disc is set, “NO DISC” will appear on
the display.
2. Press the OPEN/CLOSE button
(Note: This button will not work in AM/FM mode)
3. Place a disc on the tray with the printed label face up.
4. Press the OPEN/CLOSE button to close the tray.
5. Press the PLAY/PAUSE button ( ) to begin playback.
6. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume.
7. To skip tracks forward or backward, press the corresponding skip button ( or ).
Pressing one will restart the current track. Pressing twice in succession will return to
the beginning of the previous track.
8. To fast forward / rewind within a track, press and hold down the corresponding skip button until
the desired position is reached.
9. To stop playback, press the STOP button
Important:
- Never place more than one disc on the tray.
- The disc must be placed in the center of the disc tray. An incorrectly loaded disc can
permanently damage the tray door mechanism.
- Do not push the CD tray – always use the OPEN/CLOSE button.
- It takes a moment for the unit to load a disc, during which all buttons will be temporarily
deactivated.
![](/img.php?id=2307554&img=bga.png)
10

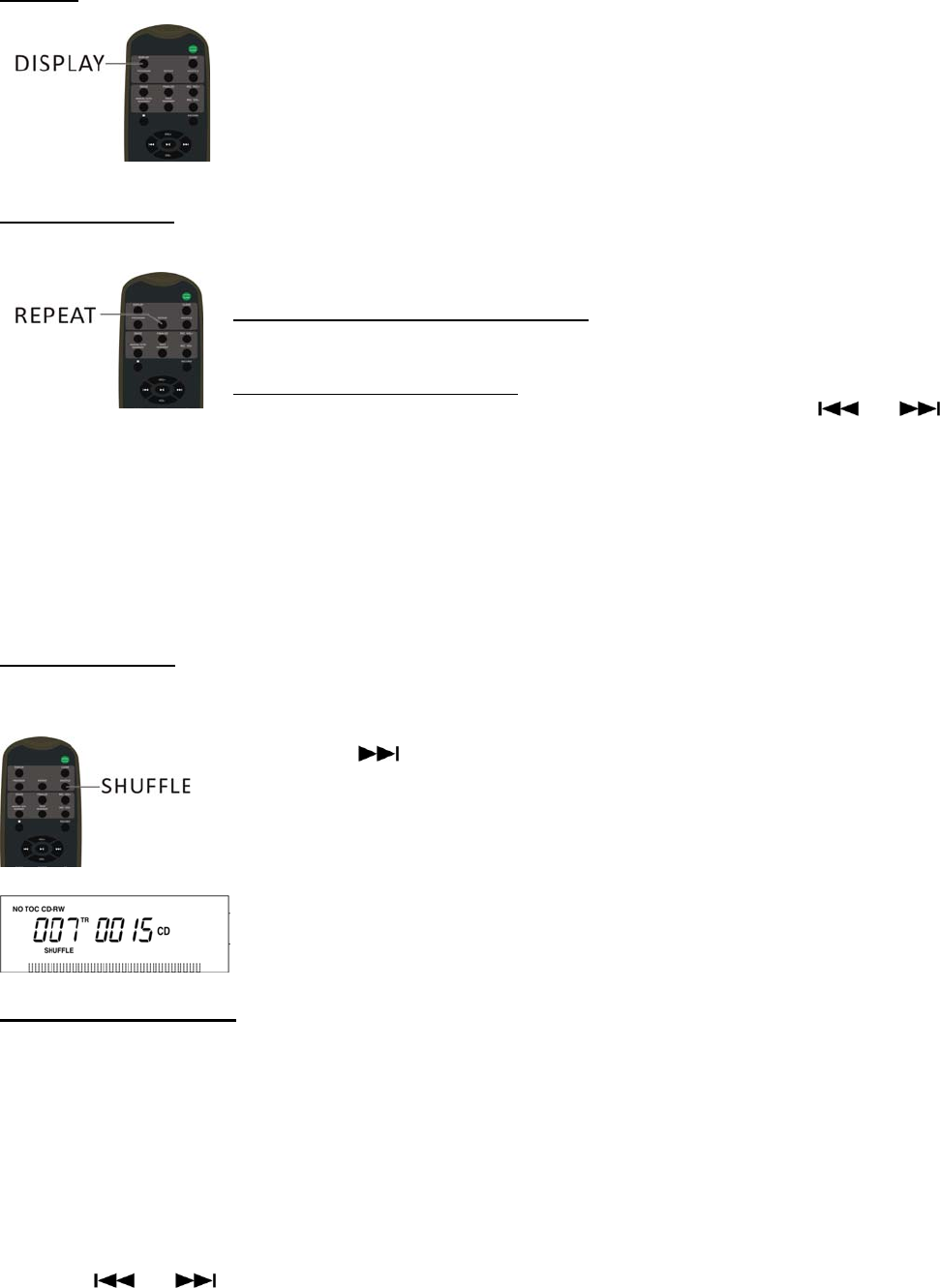

Display
Each time the DISPLAY button is pressed, the display mode will cycle
between the following options:
- Track Number + Track Play Time (Default Display Mode)
- Track Play Time Countdown
- Track Play Time
- CD Play Time Countdown
Repeat Playback
Each time the REPEAT button is pressed, the repeat mode will cycle through
the following options:
REPEAT ALL (Repeat the entire CD)
The entire CD will be played repeatedly.
REPEAT 1(Repeat one track)
The current track will be played repeatedly. If you press the ( or )
button to
select another track, the track you select will be played repeatedly.
Notes:
- If one of the following buttons is pressed, the repeat mode will be cancelled.
OPEN/CLOSE, POWER, AM/FM, PHONO, AUX, TAPE
- Repeat playback works with finalized discs only.
Shuffle Playback
To play the tracks on a CD in a random sequence, press the SHUFFLE button during playback.
Notes:
- Pressing () during shuffle playback will randomly select the next track.
- If one of the following buttons is pressed, shuffle mode will be cancelled.
OPEN/CLOSE, POWER, AM/FM, PHONO, AUX, TAPE
- When the SHUFFLE playback of all the tracks has been finished, the unit
stops and the shuffle mode is cancelled.
- A track cannot be repeated during shuffle playback.
- Shuffle playback doesn’t work during programmed playback.
- Shuffle playback works with finalized discs only.
Programmed Playback
Up to 32 tracks can be programmed to play in the desired order.
Notes:
- Shuffle playback does not work during programmed playback.
- Programmed playback works with finalized disc only.
1. Press “CD” to enter CD mode, then load a CD.
2. While the CD is stopped, press the PROGRAM button.
3. “PROGRAM” indicator blinks, and “P-01” appears on the display.
4. Press ( or )
to select a track number.
![](/img.php?id=2307554&img=bgb.png)
11
5. Press the PROGRAM button again to set the current track.
6. “P-02” is displayed. Repeat steps 4 thru 5 to program the additional tracks.
7. When the selection of track numbers has been finished, press the PLAY button ( ) to start
program playback.
8. To cancel the program mode, press the STOP ( ).
To check the programmed order
In the stop mode, press ( or ) repeatedly to show the track numbers that have
been programmed.
To add a track to the end of the programmed order:
In the stop mode, press the PROGRAM button.
Select a track number by pressing ( or ), then press the PROGRAM button.
The current track will be added to the end of the program.
To delete the last track from the programmed order:
In the stop mode, press the CLEAR button to delete the last track from the program.
To clear the programmed order:
Press STOP when the CD is already stopped, or press OPEN/CLOSE, POWER, AM/FM,
PHONO, or AUX
Listening to the Radio
1. Press the “AM/FM” button (1).
Press again to switch between AM and FM
2. Tune to the desired station
using the Radio Tuner Knob (2).
Note: In FM Mode,The “TUNED/ST” indicator
lights up green when tuning the Radio Tuner Knob;
The “TUNED/ST” indicator lights up orange when
a station is correctly tuned in.
Adjusting for Best Reception
AM broadcast: Rotate the unit to find the best position.
FM broadcast: Extend and reposition the FM antenna.
Listening to an External Audio Device (AUX Mode)
In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player,
Portable CD Player, etc.)
There are two AUX INs(front and rear). When connecting a device that has a headphone jack, use
the cable with 3.5mm plugs on either end with the front AUX IN jack.
The rear set of AUX IN jacks (red and white) can be used with devices that use RCA connections
(DVD players, etc.).
1. Plug one end of the AUX IN cable (included) into the AUX IN (on the front or back of the unit).
2. Plug the other end of the cable into the headphone jack (or RCA jacks) of the external audio
![](/img.php?id=2307554&img=bgc.png)
12
source.
Important: If both the front and rear AUX INs are connected to AUX IN cables at the same time, only
the front one will be active.
AUX OPERATION
Please use this function to record from other sources such as CDs, karaokes and radio.
We also recommend using this function to make the cassette tape to CD recording much easier.
Please use the included AUX cable and connect one end to the AUX jack on the front. Connect the
other side end to a portable boom box or any other stereo, CD player, MP3 players, Karaoke, etc…
to its headphone jack.
Please leave the function as AUX and follow the recording instructions.
Listening to an External Audio Device (BT Mode)
In BT (Bluetooth) mode, this unit can enjoy music from external devices which have a built
‐
in
Bluetooth feature.
GETTING CONNECTED USING BLUETOOTH
1. Press “AUX/BT” selection button and the display will show “bLUE”.
2. Set the Bluetooth function of your external device when the apparatus is on.
3. Set to search Bluetooth device on your external device.
NOTE: The effective distance between your external device and this apparatus is 5 meters.
4. Wait for a while then find the “E-696B” on the paired devices list on your external device and press
“E-696B”.
If sometimes A window will ask you a password. Fill in “0000” then press “OK” on your external
device.
5. A few seconds later your Bluetooth connection is success.
NOTE: Fast forward / rewind is only available on your external device.
Listening to a Cassette Tape
1. Load an audio cassette tape into the unit (located on the
left side of the unit). Playback will automatically begin.
2. Press button halfway to Fast Forward the tape.
Press button lightly and playback will resume.
3. Press button completely down to end playback and eject Tape.
Recording to a CD-R / CD-RW
About CD-R and CD-RW discs
- CD-R discs can be recorded once only, and cannot be erased or re-recorded. However, if space is
available on the disc (and the disc has not been finalized), additional material can be recorded.
- CD-RW discs allow you unfinalize the disc, and erase the last track or the entire CD. They may be
reused for new recordings.
Note: CD-RW discs may not play correctly on every CD-player. CD-R, by contrast, are playable on
most CD players.
Important: Never turn the power off or unplug the power cord while “--- Busy” is displayed.
Whenever “--- Busy” is displayed, all buttons will be temporarily deactivated.
Please read through all the steps below before beginning your recording.
![](/img.php?id=2307554&img=bgd.png)
13
BEFORE RECORDING
Audio from the PHONO, TAPE or AUX sources can be recorded on the CD recorder.
Prepare the audio source for recording
1. Select the desired audio recording source by pressing the corresponding selector button.
(“PHONO,” “TAPE,” or “AUX”)
2. Prepare the appropriate audio source for normal play (external audio device / vinyl record /
cassette tape).
3. Load a CD-R / CD-RW and close the CD tray.
4. Make sure “NO TOC” and “CD-R”(or “CD-RW’) appear on the top left of the display. If they do not
appear, recording functions will not work.
Note: “NO TOC” is an abbreviation of “No table of contents,”
indicating a blank CD.
Select Auto Track Increment Selection Mode
Tracks can be set to assign automatically when the input sound level drops below a certain limit
(-20db/-30db/-40db ) for more than 2 seconds.
Press the AUTO/MANUAL button repeatedly ( or MANUAL/AUTO INCREMENT on the remote) to
cycle between the following modes:
“AUTO TRACK -20db”
A new track will be assigned automatically when the sound level
drops below -20db
“AUTO TRACK -30db”
A new track will be assigned automatically when the sound level
drops below -30db
“AUTO TRACK -40db”
A new track will be assigned automatically when the sound level
drops below -40db
Manual Track Selection
Tracks will not be assigned automatically. A new track will be
assigned whenever “TRACK INCREMENT” is pressed during
recording.
AUTO TRACKING function is to cut the separation for each music/song you are recording to CD by
recognizing the silence that is in between the songs on your records or cassette tapes. The decibels
(lowest 20-30-40highest) allow you to choose the level of minimal sound that may still exist between
the songs to be recognized as the separation before the next song to cut a track. If your source of the
recording quality is not of best quality it is recommended to use the “MANUAL TRACKING” function
for best result in recording.
RECORDING
1) First put the blank CD-R or CD-RW on the CD tray and close the tray.
2) Make sure that the display shows “NO TOC CD-R (or CD-RW).
3) Pick the source of music and press the button (phono or tape or aux).
4) If using a record, put the vinyl on the turntable.
5) Press RECORD button.
![](/img.php?id=2307554&img=bge.png)
14
6) Adjust your recording volume to about middle (you can adjust on your next recording if too loud or
too low).
7) Place the needle on the record and then press “play/pause” button (it looks like this ).
8) Now you are recording.
9) When the last song is recorded from the one side of vinyl, press the “play/pause” button ( ) to
pause.
10) When paused, flip the record to the other side and place the needle back to play.
11) Press the “play/pause” button again to resume recording.
12) When all recording is done, wait for about 10 seconds and then press the stop button.
Entering Recording (Paused) Mode
1. Press the “RECORD” button to enter Recording
(Paused) Mode. ( ) will appear on the left of the screen)
If an AUTO TRACK mode is selected, “AUTO TRACK” will
appear on the lower middle of the screen.
![](/img.php?id=2307554&img=bgf.png)
15
2. Test play the audio source to be recorded and adjust “REC LEVEL” Knob to set
the recording volume so that its loudest output does not exceed the “OVER”
indicator on the meter on the lower right of the display.
Note: Be sure not to set the recording volume too low – doing so will result in
very low playback volume levels.
3. Once the recording volume level is set, reset the audio source so it is ready for recording.
Entering Recording (Play) Mode
1. Press the PLAY/PAUSE ( ) button to begin recording.
( ) will appear on the left of the screen, indicating that recording is in progress.
2. Begin playing the audio source as normal.*
*Manual Track Increment Assignment
Note: “The TRACK INCREMENT” button works regardless of the MANUAL/AUTO REC setting.
During recording, press the TRACK INCREMENT to end the current track and begin a new one.
The current track number will be indicated on the display.
To Pause Recording Temporarily (Recording Paused Mode).
Press the PAUSE button ( ). The recording process will be temporarily paused.
To resume recording, press the PLAY/PAUSE button ( ) again.
Important: Every time recording is paused or stopped, a new track number will always be
assigned. It is not possible to record in two “stages” within one track.
3. Press the STOP button ( ) to stop recording.
Note: When the rotation of the turntable stops, the recording will stop automatically. However, to
avoid unwanted noise from the tone arm, stop the recording manually by using the STOP button.
FINALIZING A CD
1) After pressing stop, press the “CD” function button.
2) After pressing the “CD” button, “BUSY” will show on the display.
3) After the “busy” display is gone and shows the number of tracks and duration of the recorded time
on your CD.
4) Press the “FINALIZE” button and “FiN-d” will show on the display.
5) Then press the “PLAY/PAUSE” button.
6) The CD will turn and you will have “BUSY” again showing on the display.
7) When the CD is completely finalized, the CD tray will come out automatically and the recorded and
finalized CD can be played in other players.
Before a CD-R or CD-RW can be played in a standard CD Player, it must be finalized. During
finalization, a Table of Contents (TOC) is written to the CD.
Once a CD-R disc is finalized, no more tracks can be recorded on it.
By contrast, a finalized CD-RW disc can be “unfinalized” to allow
additional recording.
1. Press the “FINALIZE” button when in stopped mode. If you are not in
stopped mode, press STOP ( ). “FIN—d” will appear on the display.
Note: To cancel the finalizing process at this point, press STOP ( ).
2. Press the “PLAY” ( ) button to start finalizing. "--- BUSY" will appear
on the display. Wait until this message disappears. When finalization of the disc is complete, the
CD tray will open automatically.
Note: The finalization time is dependent on the contents that have been recorded, and may take a
![](/img.php?id=2307554&img=bg10.png)
16
few minutes in some cases.
ERASING A CD-RW (CD-RW ONLY)
Erasing processes will only work on an unfinalized CD-RW disc.
If a CD-RW disc has been finalized, you will need to unfinalize it prior to erasure.
With a CD-RW, it is possible to erase either the last recorded track, or the entire disc.
All erasing processes are permanent – they cannot be undone.
Unfinalizing a Finalized CD
Note: Skip this process if the CD-RW has not been finalized.
1. With a finalized CD-RW loaded, press the “ERASE” button while in stopped mode. “UNF IN—d”
will appear on the display.
Note: To cancel the unfinalizing process at this point, press STOP ( ).
2. Press the PLAY ( ) button to start unfinalizing. "--- BUSY" will appear
on the display. When this message disappears, the disc is unfinalized.
Note: The unfinalization time is dependent on the contents that have been recorded, and may take a
few minutes in some cases.
Erasing the Last Recorded Track.
1. With an unfinalized CD-RW inserted, press the “CD” selector button.
2. In stop mode, press the “ERASE” button. “ErA” and the last recorded track number will appear on
the display.
3. Press the ( ) button to begin erase the last track. “--- Busy” will appear on the display. It will
disappear, indicating that the track has been erased permanently from the CD-RW.
4. Repeat steps 2 and 3 to continue erasing tracks one at a time.
Note: If there are no tracks on the CD-RW, the “ERASE” button will have no effect.
Note: You will not be able to erase the last recorded track from CD-RW discs copied from another
device.
Erasing All Tracks
1. With an unfinalized CD-RW inserted, press the “CD” select button.
Note: To cancel the finalizing process at this point, press STOP ( ).
2. Press and hold the “Erase” button until “ErA ALL” appears on the display.
3. Press the ( ) button to begin erasing all the tracks on the CD. “--- Busy” will appear on the
display. It will disappear, and 000 00:00” will appear to confirm that the disc is clear.
Maintenance / Proper Handling
Compact Disc Handling
• Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded
only on one side)
• To remove a disc from its storage case, press down on the center of the case and lift the disc
upward, holding it carefully by its edges.
• To clean a disc, wipe the surface from the center hole outward towards the outer edge with a soft, dry cloth.
• Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to clean discs; they will
irreparably damage the disc’s plastic surface.
• Discs should be returned to their cases after use to protect from dust and scratches.
• Do not expose discs to direct sunlight, high humidity, or high temperature for extend periods of time.
• Printable CD-R and CD-RW discs are not recommended, as the label side may become sticky and damage the
unit.
• Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a ball-point or
hard-tipped pen, as doing so may damage the recorded side.
• Do not use irregularly-shaped CDs (octagonal, heart shaped, business card size, etc),
as they will damage the unit.
• Read all precautions supplied with any CD-R or CD-RW disc
• Never handle a disc with dirty fingers.
• Never insert a disc that has a crack on the surface.
![](/img.php?id=2307554&img=bg11.png)
17
Handling Vinyl Records
• Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. Touching
the record surface will cause your record’s quality to deteriorate.
• To clean a record, use a soft anti-static cloth to gently wipe the record surface.
• Keep records in their protective sleeves when not in use.
• Always store records upright on their edges
• Avoid placing records in direct sunlight, close to a heat source (radiators, stoves, etc.), or in a location subject
to vibration, excessive dust, heat, cold or moisture.
General Care
• When removing the power plug from the wall outlet, always pull directly on the plug.
Never pull the cord.
• To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish.
• For cleaning, only use a clean, dry cloth.
• In order to shut off the power to this product completely, unplug the power cord from the
wall outlet. Be sure to unplug the unit if you will not intend to use it for an extended period
of time.
How to Replace the Turntable Stylus
The stylus should last about 50 hours under normal use. However, it is recommenced that the stylus
be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus
may damage the record. The highest speed of 78 RPM records would wear out the stylus more
quickly.
Removing the old stylus:
1. Set a screwdriver at the tip of the stylus and push downward (A).
2. Remove the stylus by pulling it simultaneously downward and
forward.
Installing a new stylus:
1. Hold the front tip of the stylus and insert its rear edge (B) first.
2. Push the stylus upwards (C) until the tip locks into place.
Caution:
z Do not remove or bend the stylus.
z Do not touch the needle to avoid injury your hand.
z Turn off the unit’s power before you replace the stylus.
z Keep out of reach of children.
![](/img.php?id=2307554&img=bg12.png)
18
Specifications
GENERAL
Power Requirements AC 120 V~ 60 Hz
Power Consumption 42W
Dimensions (W x H x D) 510x300x340mm (approx.)
Weight 12 kg. (approx.)
AMPLIFIER
Output Power 5 W + 5 W
Frequency Response 60 to 20, 000 Hz
SPEAKER SYSTEM
Type 1-way
Impedance 4 ohms
Input Power Max. 10W
FM Radio
Range 88 to 108 MHz
AM Radio
Range 530 to 1710 KHz
CD PLAYER
Frequency Response 60 to 20, 000 Hz +/-4 dB
Signal-to-Noise Ratio 55 dB (IEC-A)
CASSETTE PLAYER
Track System 4 Track, 2 channel stereo
Tape Speed 4.8 cm/sec
Wow and Flutter 0.4% (WRMS)
Frequency Response 125 to 6300 Hz +/-6 dB
RECORD PLAYER
Motor DC servo motor
Drive System Belt Drive
Speeds 33-1/3 rpm, 45 rpm and 78 rpm
S/N Ratio More than 50 dB
Cartridge Type Ceramic Stereo Cartridge
Stylus 402-M208-165
![](/img.php?id=2307554&img=bg13.png)
19
Troubleshooting Guide
For further assistance with your product, call Innovative Technology at
TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).
GENERAL
Symptom Possible Cause Solution
• Unit will not power on. • Unit is unplugged. • Connect the unit to the AC
power supply.
• No sound output
speakers.
• The volume level is set too low.
• The input selector does not
match the playback source.
• Adjust the volume.
• Select the correct input
source.
• Noise/Distortion in
sound output.
• The unit is too close to a TV set
or another interfering device.
• Turn off the TV or other
appliance, and relocate
the unit.
• It fails to respond. • It might result from external
factors such as ESD
(Electro-static discharge).
• Disconnect the power cord
and external audio device.
Re-plug the power cord
after one minute.
TAPE
• The tape does not play. • The cassette tape is not
inserted properly.
• The tape has reached the end.
• Insert the cassette tape
correctly.
• Flip the cassette.
AM/FM RADIO
• Cannot listen to any
station, or signal
appears weak.
• The station is not tuned-in
properly.
• A TV set is being used nearby
and is interfering with the radio
reception.
• Properly tune-in the
desired station.
• Turn-off the interfering TV
set.
• The sound is distorted.
• The antenna is not oriented
properly.
• Re-orient the antenna until
reception improves.
• CD stops immediately
after starting, or unit
pauses or stops during
play.
• The CD is inserted upside
down.
• The CD is dusty or dirty or there
is condensation on the CD.
• Insert the CD with the
printed side right-side up.
• Carefully clean and dry the
CD.
• No sound. • The CD player is paused. • Press the PLAY/PAUSE
button.
CD PLAYER
• CD playback is noisy, or
playback stops or skips.
• The CD is scratched, damaged
or warped.
• The disc is very dirty.
• Replace CD with an
undamaged one.
• Carefully clean the CD.
• CD tray will not open • AM/FM mode is selected. • Select AUX, PHONO, CD,
or TAPE mode.
• Buttons are not
functioning correctly.
• The unit is processing
information (“--- Busy” is
displayed)
• The unit needs to be restarted
• Wait until the unit finished
processing.
• Turn the unit off, then on
again.
PHONO
• Decline in turntable
audio performance
• The turntable stylus is worn out • Replace the stylus
AUX
• No sound output with
external audio device
plugged into rear AUX
in jack.
• Both AUX in jacks (front and
rear) are plugged.
• Unplug the front AUX in
Jack.
![](/img.php?id=2307554&img=bg14.png)
20
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CALIFORNIA PROP 65 WARNING
"WARNING" This product contains chemicals known to the State of California to cause birth defects or other
reproductive harm. For more information on these regulations and a list of chemicals, log on the following
website address :
http://www.oehha.ca.gov/prop65.html
21
INDUSTRY CANADA
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
22
Innovative Technology Electronics Corp.
Limited Warranty: 90 Days Labor, One Year Parts
Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in
materials under normal use for a period of “One Year” from the date of the original purchase. The
Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the
product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost
to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original
purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets, headbands,
ear-pads, or damage due to line power surges, connection to improper voltage supply or settings,
misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service agent.
To obtain service, the purchaser MUST present an original sales receipt / proof of purchase.
Please contact us at www.ithomeproducts.com to request an RMA (Return Material
Authorization) number to return products for service or replacement. Returns without an
RMA number on the package will be refused and returned to sender. Upon receipt of the returning
item and our full inspection (IT) may issue a replacement to customer for the same item or of one that
has equivalent value and features. To return an item, supply full name, return address, phone
number, item purchased, receipt of purchase and reason for return to obtain RMA number.
All returns must be in the original packaging or reasonable substitute to prevent damage.
Customer “Must” include full name, shipping address and telephone number inside of package. No
return will be shipped back to a PO Box or APO address.
Please include your check or money order in the amount of
• USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit)
• USD$10.00 for items $40.00 to $99.99. (Price Paid Per Unit)
• USD$16.00, for items $100.00 and up. (Price Paid Per Unit)
• Shipping fees are non-refundable
to be payable to Innovative Technology Electronics Corp.(for handling and return
shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting
from a purchaser’s failure to provide any / all of the necessary information.
Send all inquiries or RMA request via our website www.ithomeproducts.com/support.
Innovative Technology Electronics Corp.
1 Channel Drive
Port Washington, NY 11050
Toll free: 1-877-483-2497
Website for support: www.ithomeproducts.com/support
There are no express warranties except as listed above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CUSTOMER, (IT) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other rights, which
vary from state to state.
23
750120505E
