7050 Installation and Communication Manual Vol2
© 1999 Navia Aviation AS 21466-3.0
NORMARC 7000
INSTRUMENT LANDING SYSTEM
Installation & Commissioning Handbook Vol. 2
NORMARC 7000 INSTALLATION & COMMISSIONING HANDBOOK
INSTRUMENT LANDING SYSTEM
1999 NAVIA AVIATION AS 21466-3.0 1-1
TABLE OF CONTENTS
Installation and Commissioning Handbook Vol. 2
NM 7000 Series

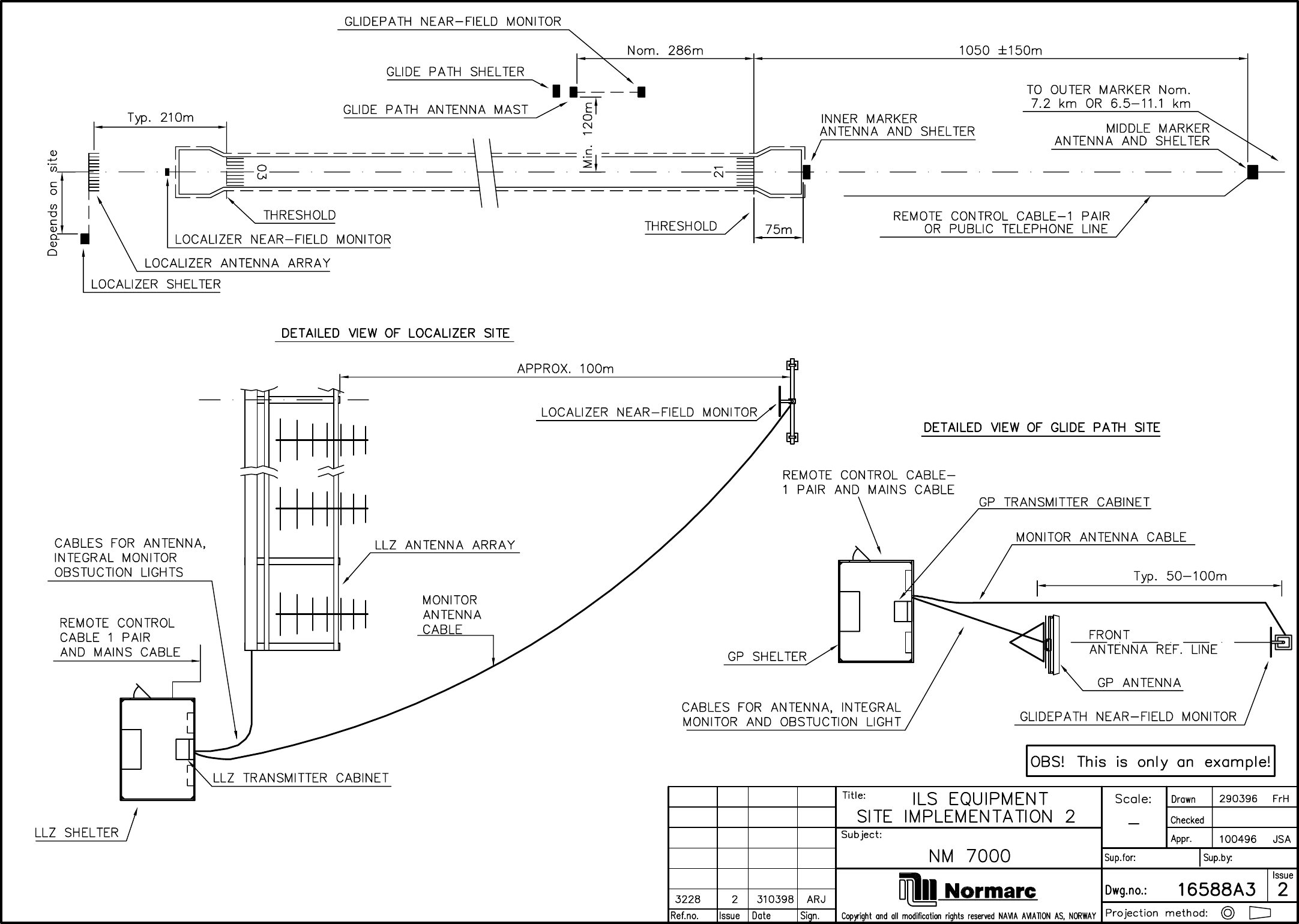

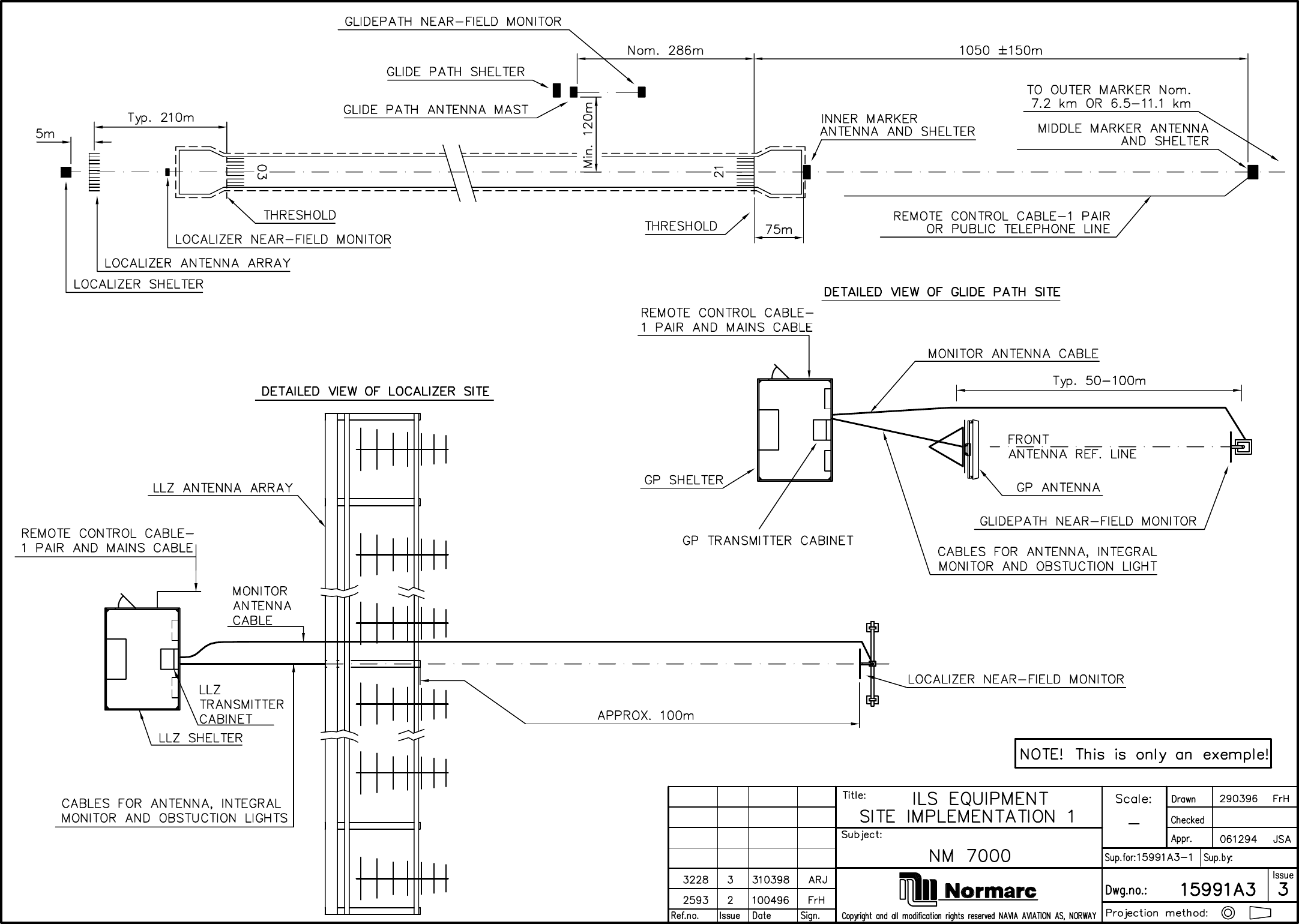

SECTION 1 SITE IMPLEMENTATIONS
SECTION 2 LOCALIZER
SECTION 3 GLIDE PATH
SECTION 4 MARKER BEACON
For further information, please look up Installation & Commissioning Handbook Volume 1.
NORMARC 7000 INSTALLATION & COMMISSIONING HANDBOOK
INSTRUMENT LANDING SYSTEM
1999 NAVIA AVIATION AS 21466-3.0 TABLE OF CONTENTS
SECTION 2
LOCALIZER
Chapter 1. CONFIGURATIONS

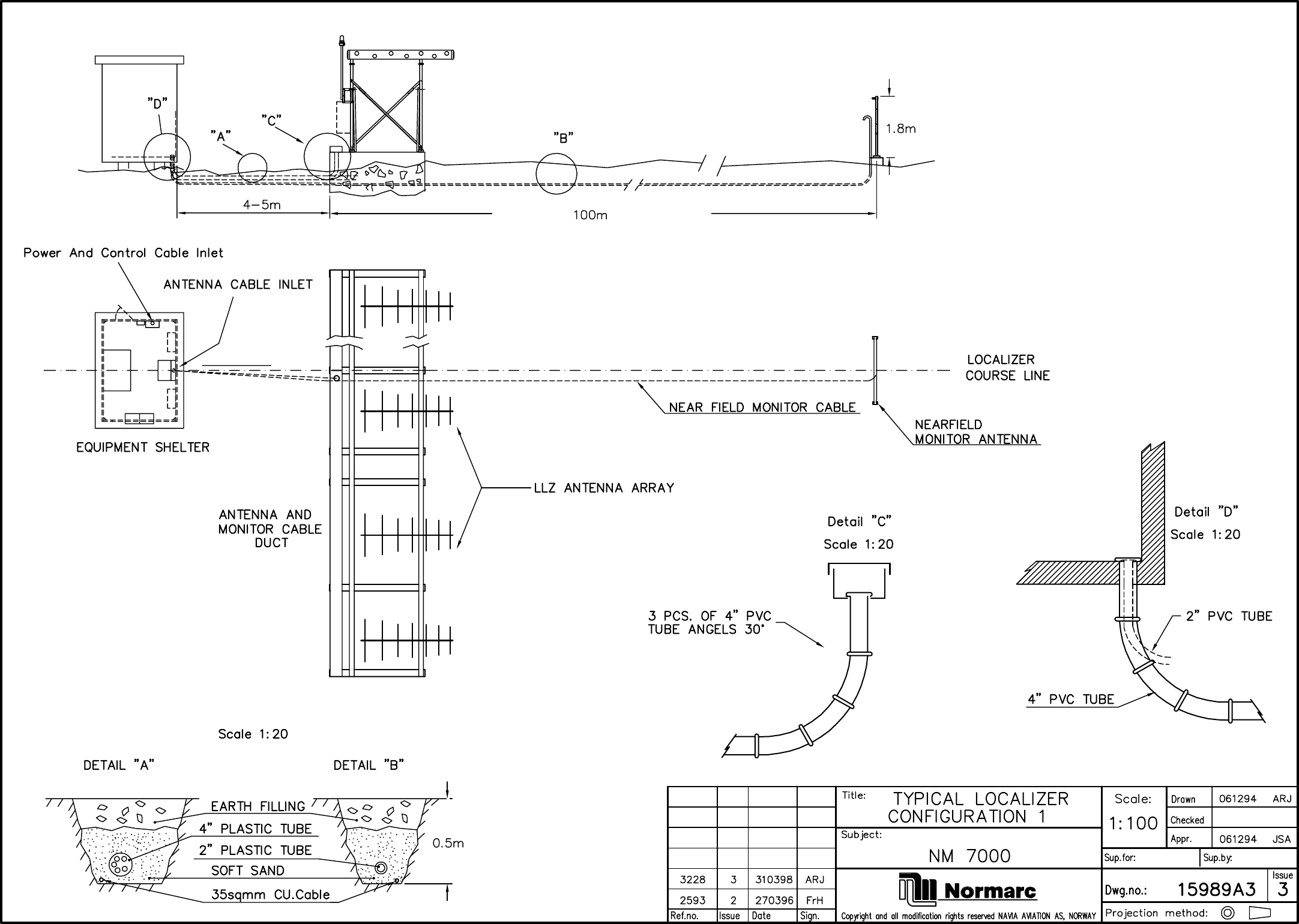

Typical configuration 1 LLZ on course line 15989A3

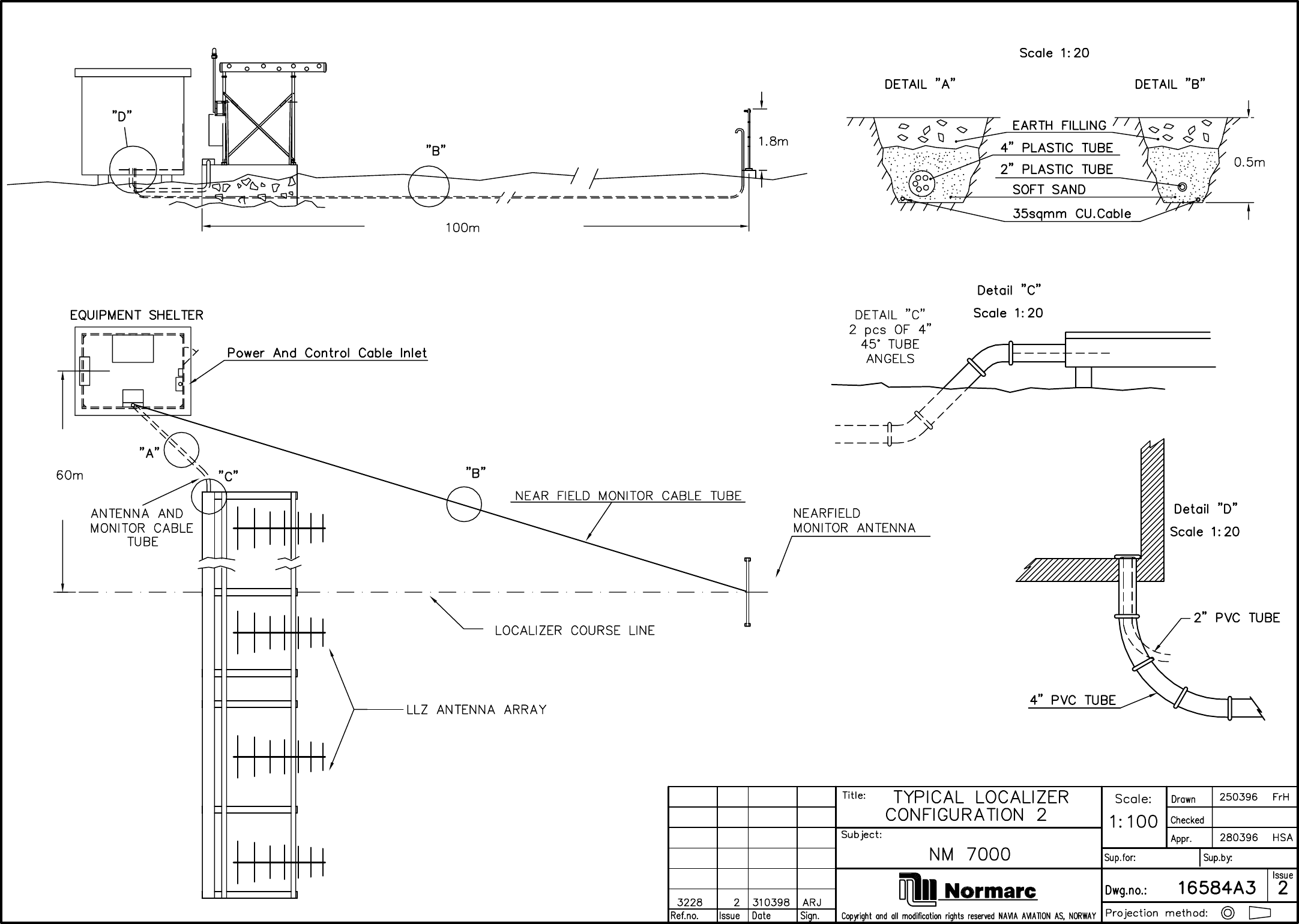

Typical configuration 2 LLZ off set 16584A3
Chapter 2. SHELTER INSTALLATION MECHANICAL

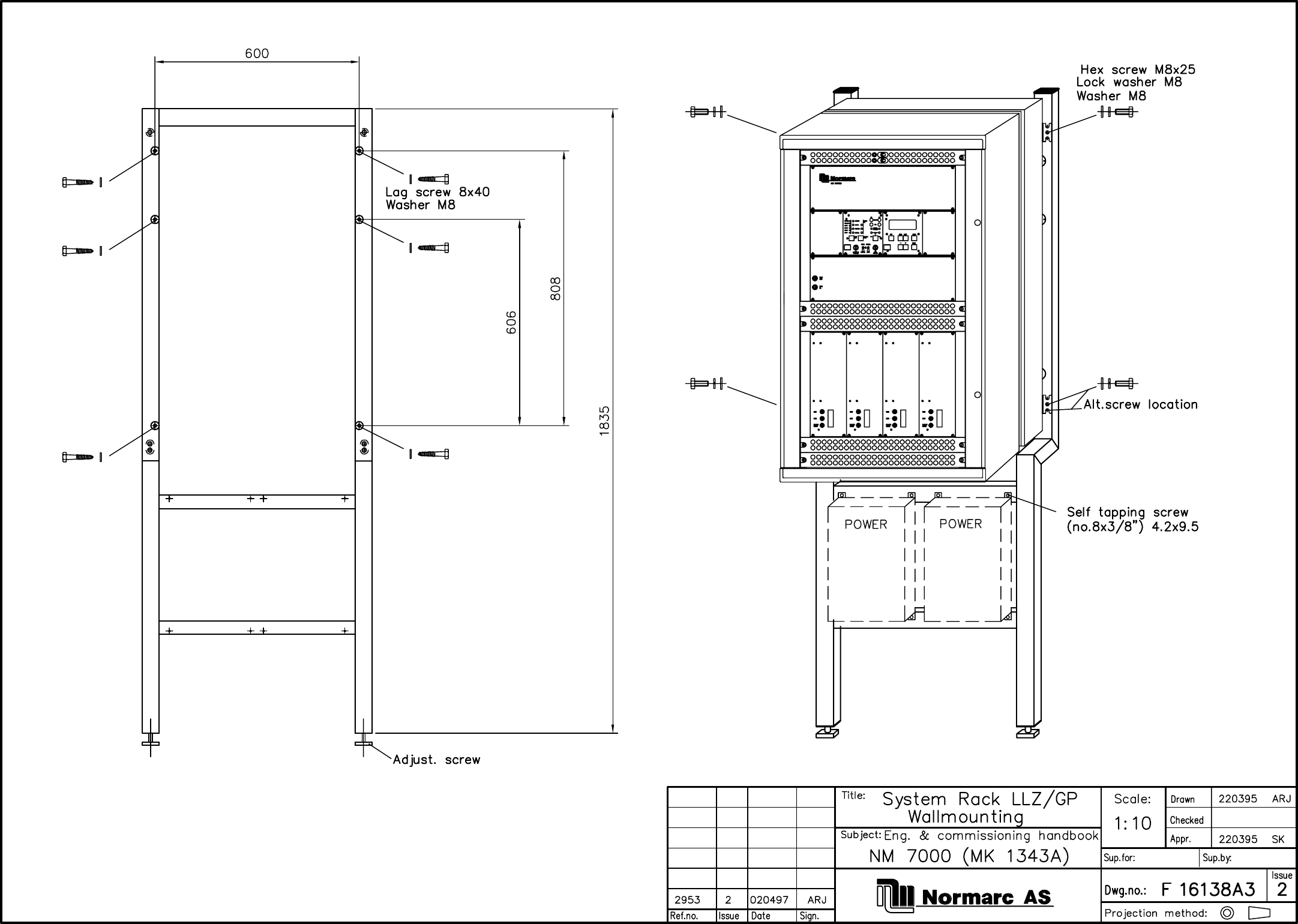

System rack 16138A3

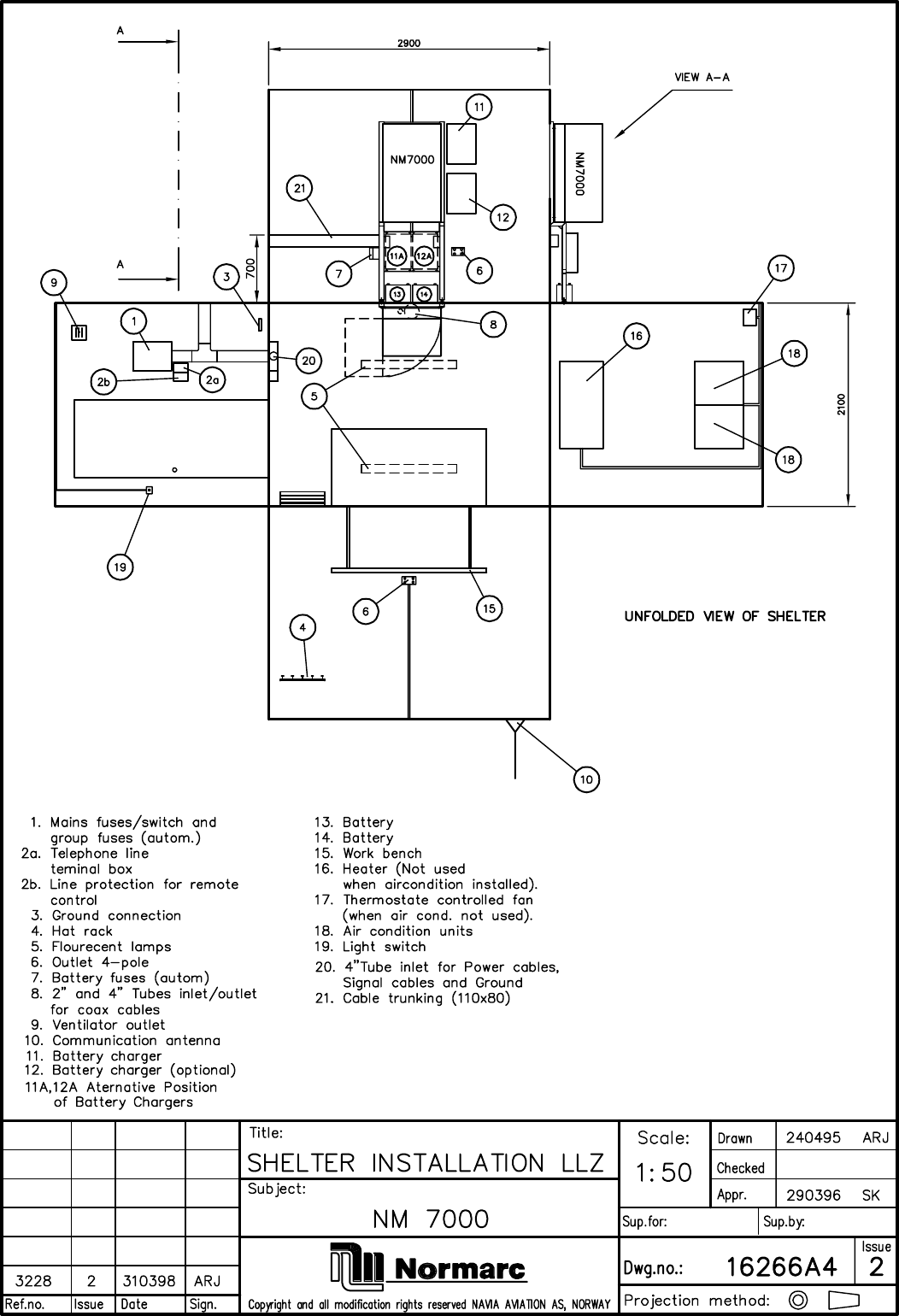

Shelter installation 16266A4
Chapter 3. SHELTER INSTALLATION ELECTRICAL

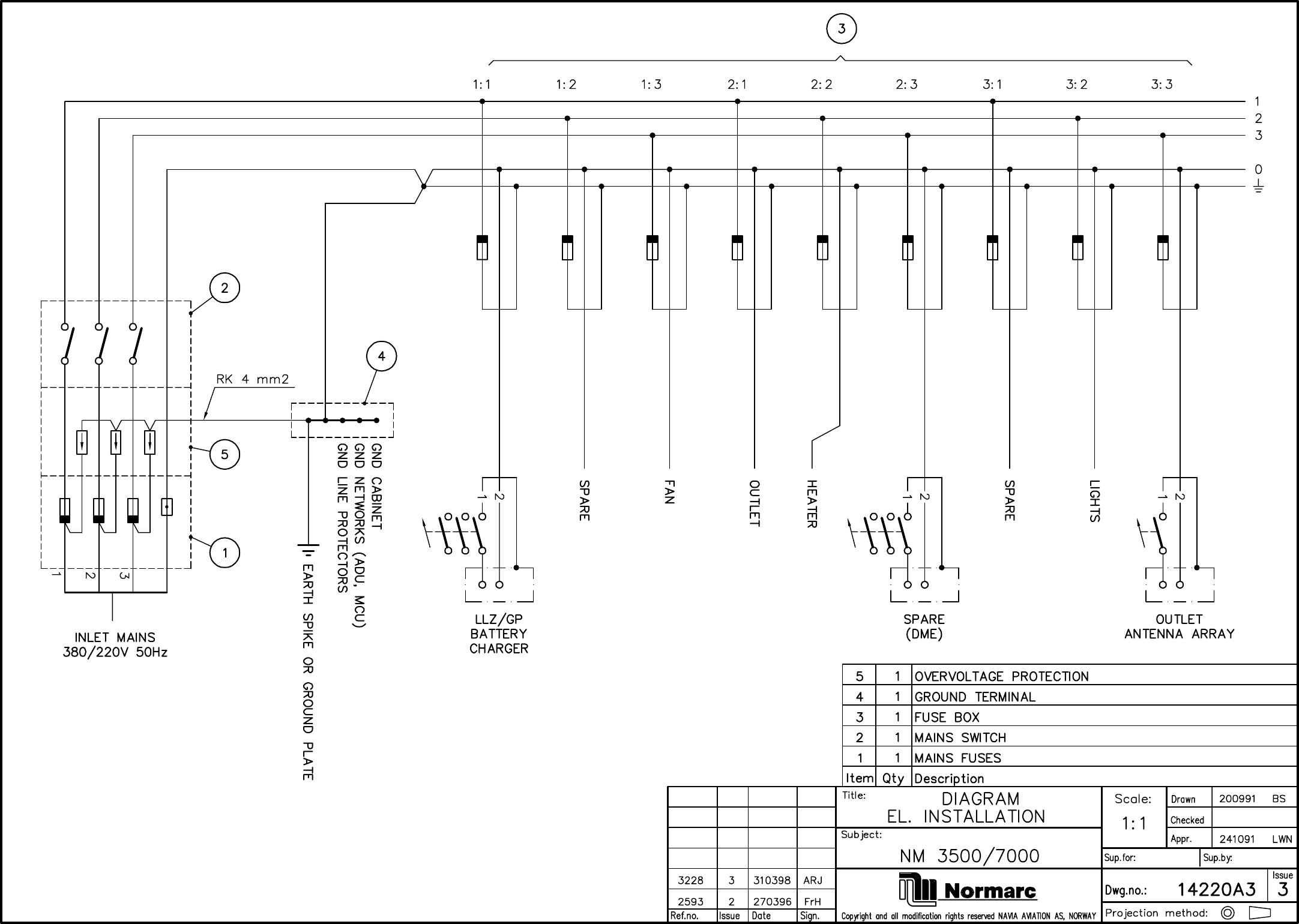

Diagram el. installation 14220A3

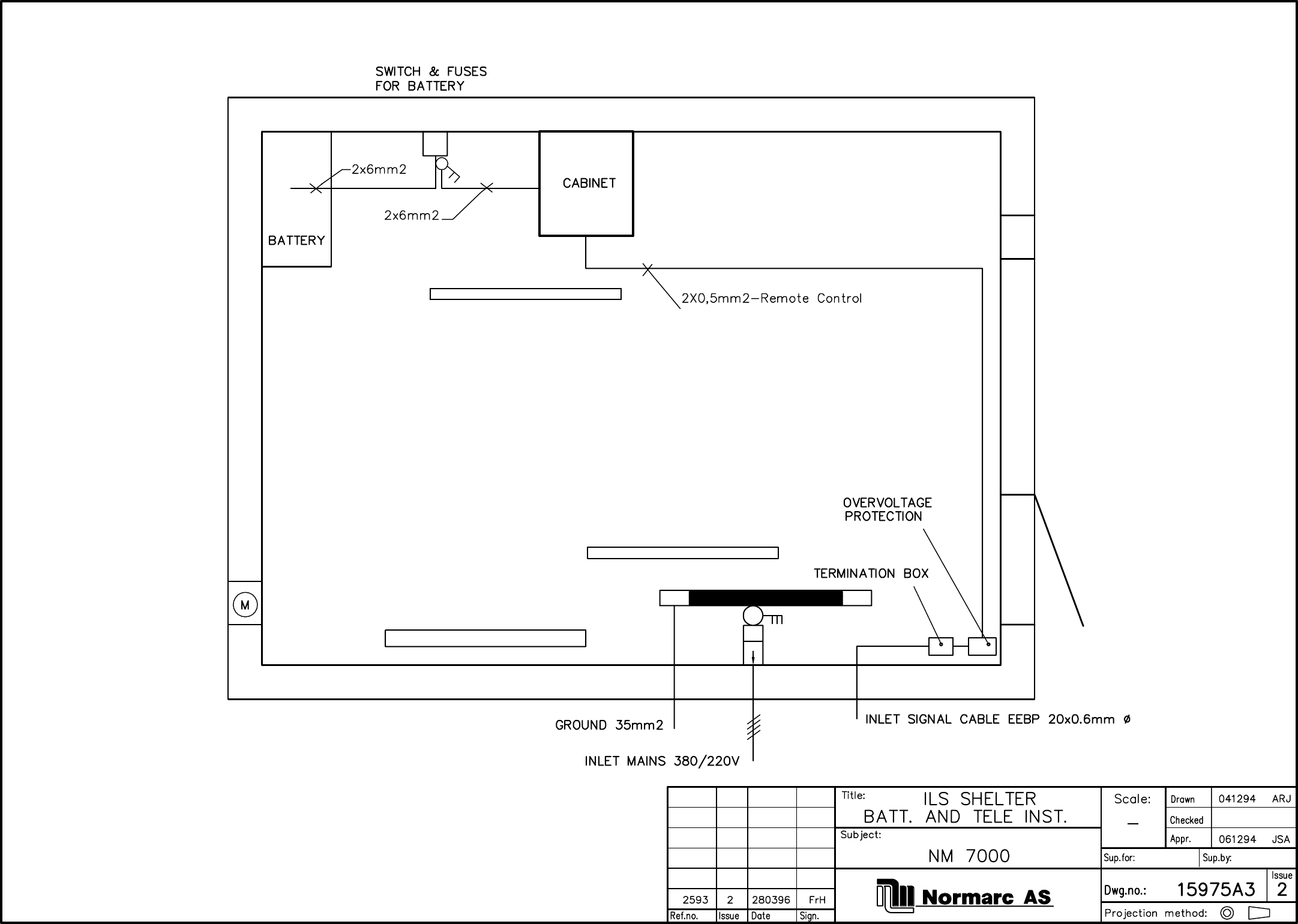

Battery and tele installation 15975A3

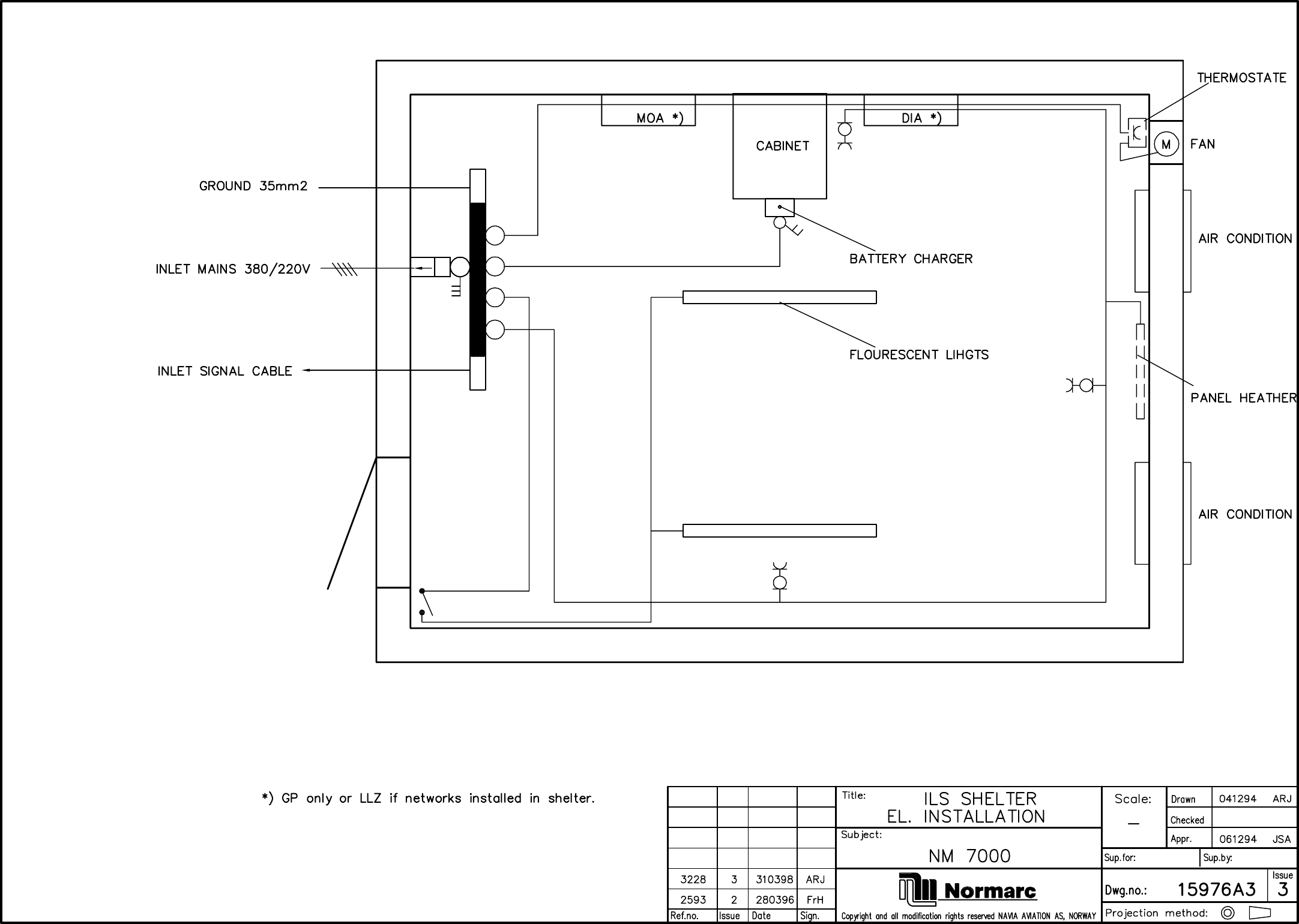

El. installation 15976A3

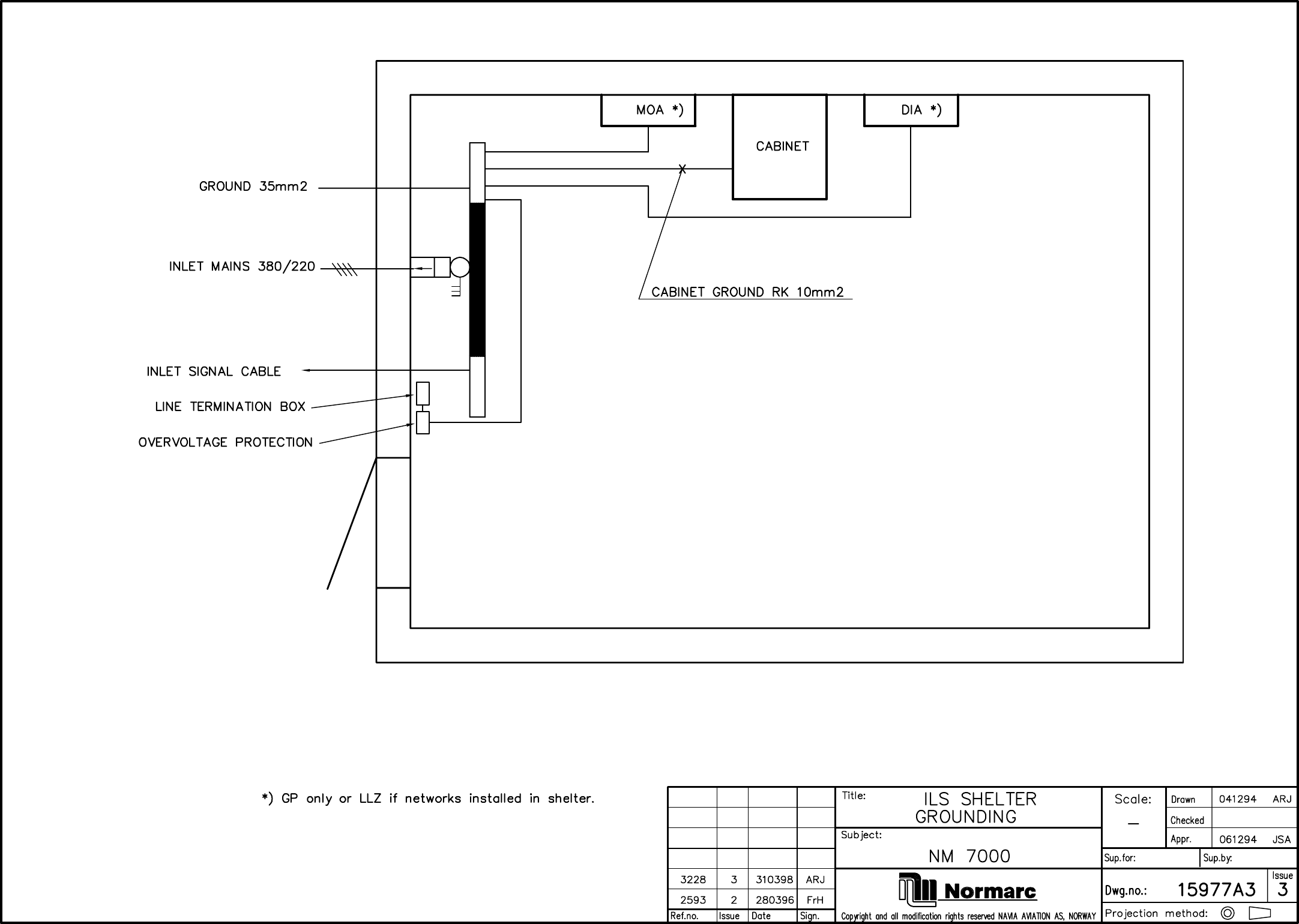

Grounding 15977A3
Chapter 4. EQUIPMENT INST. DIAGRAMS

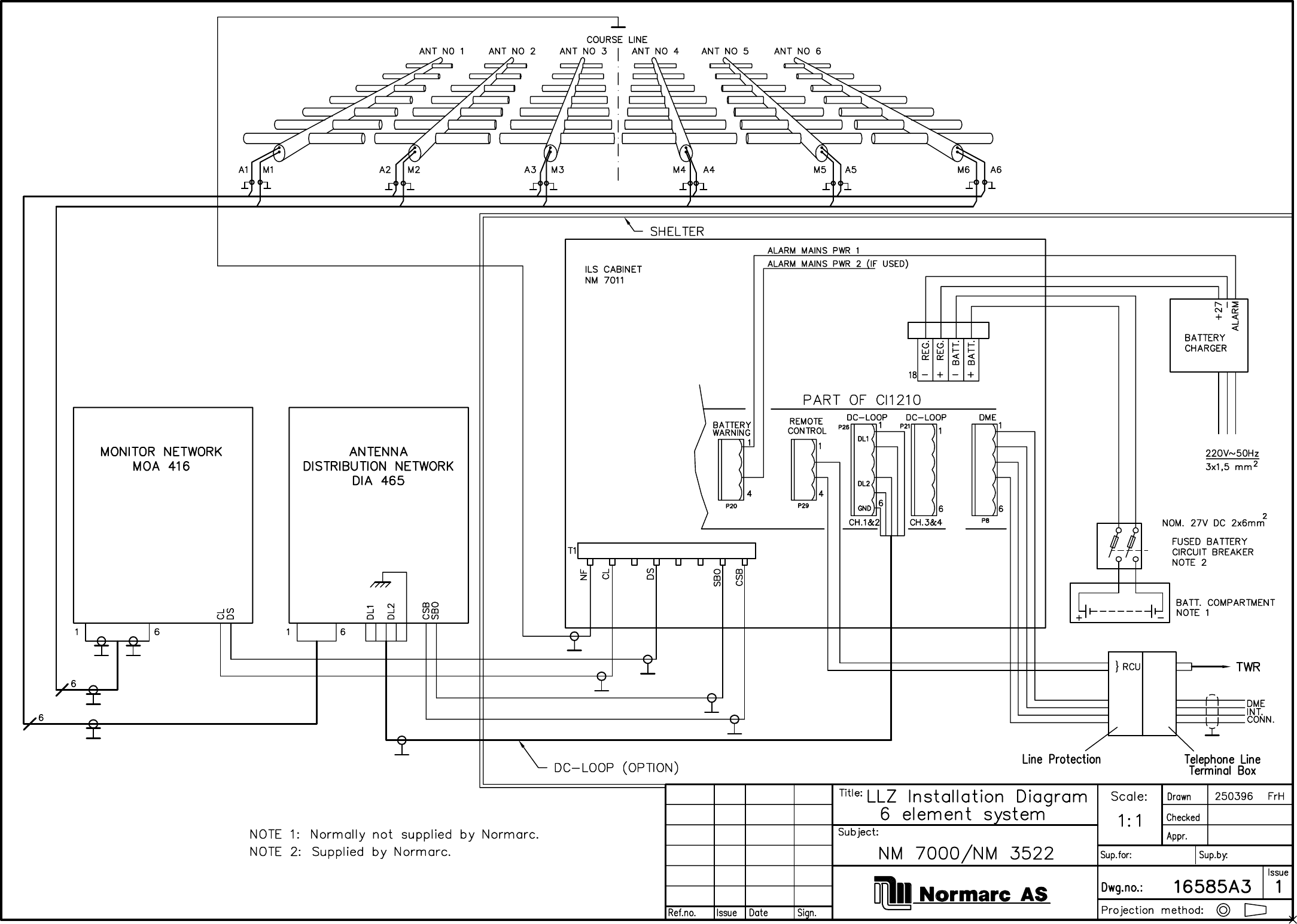

NM 3522 1-frekv 6-element 16585A3

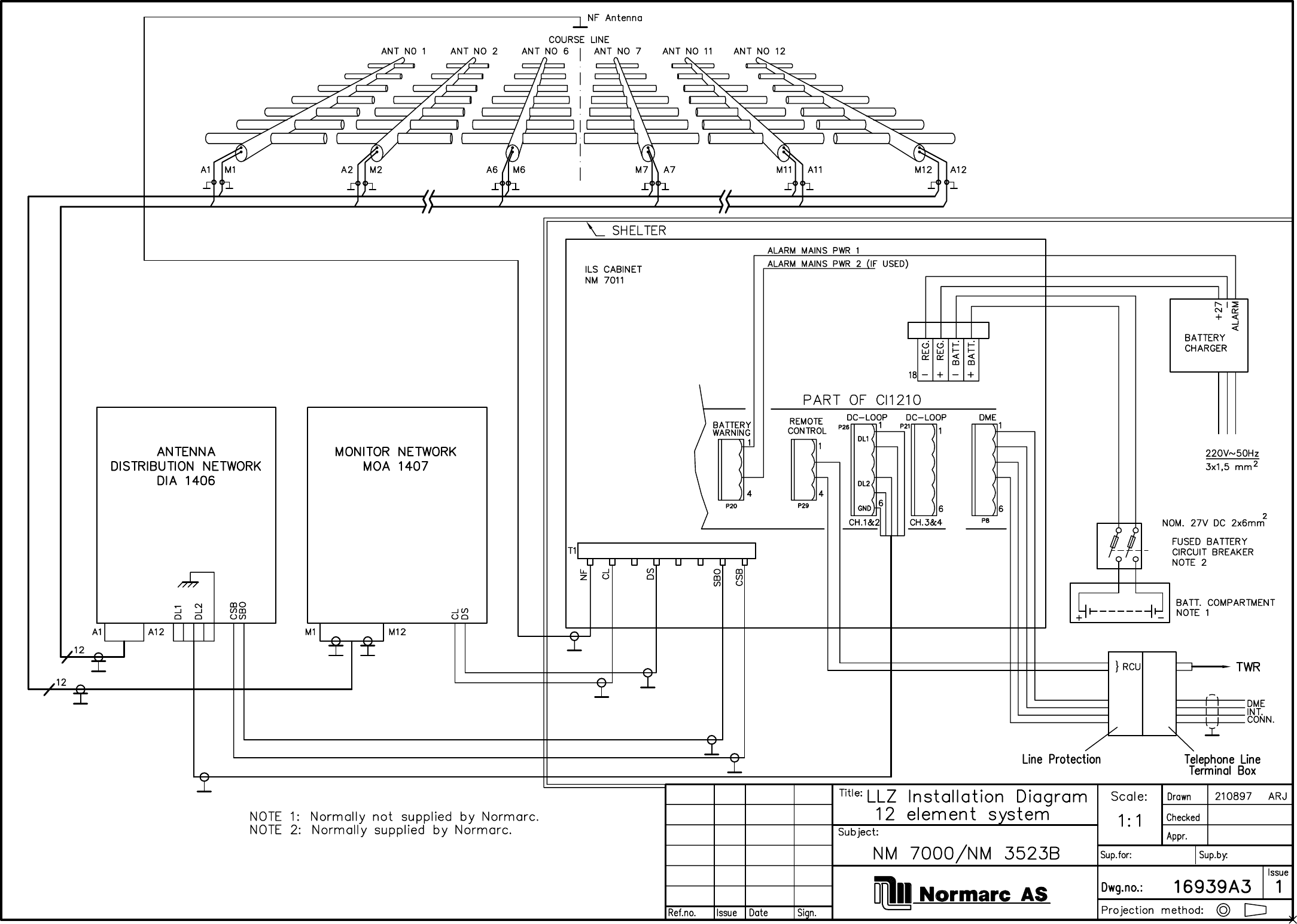

NM 3523B 1-frekv 12-element 16939A3
NM 3524 2-frekv 12-element 15986A3

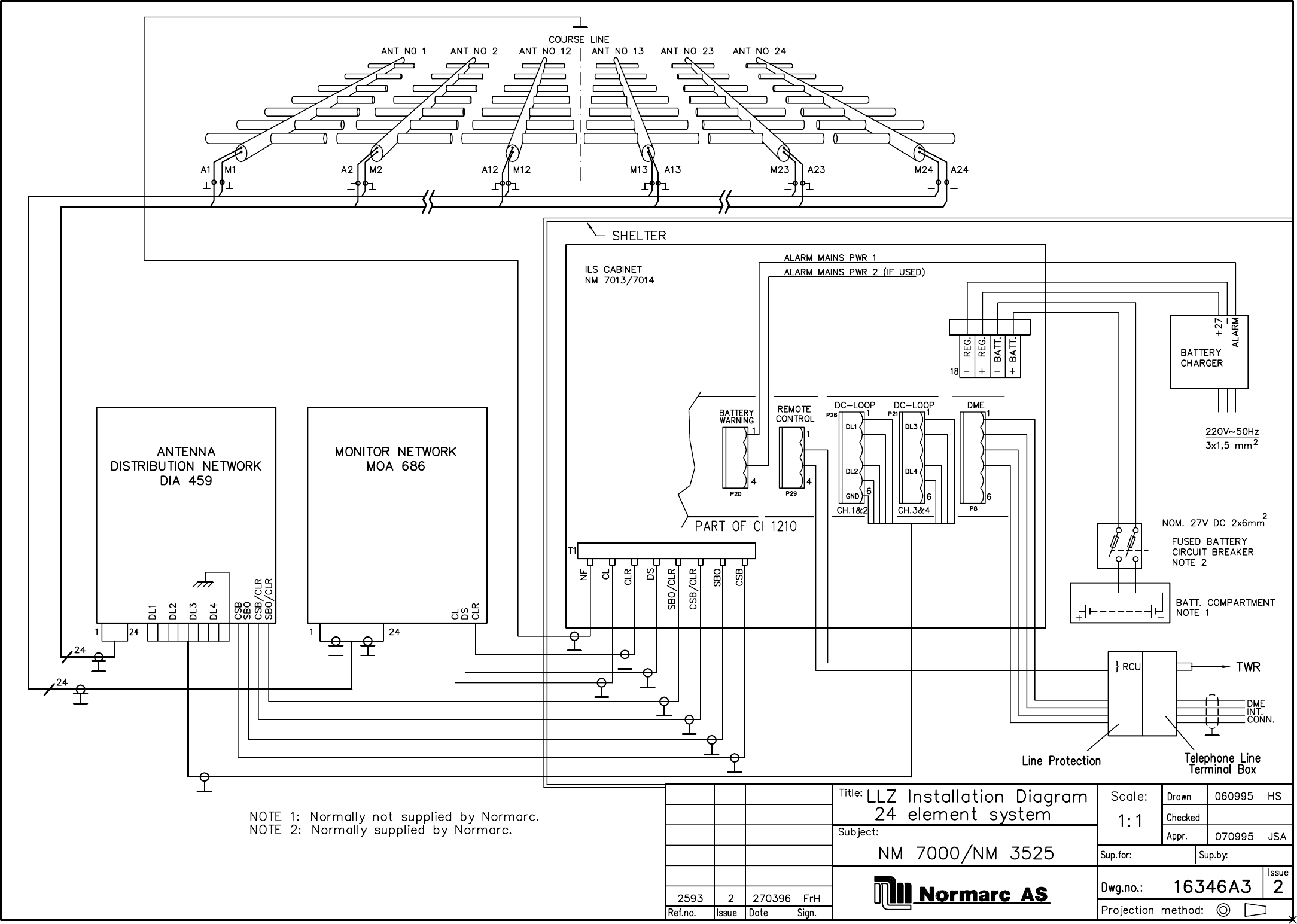

NM 3525 2-frekv 24-element 16346A3

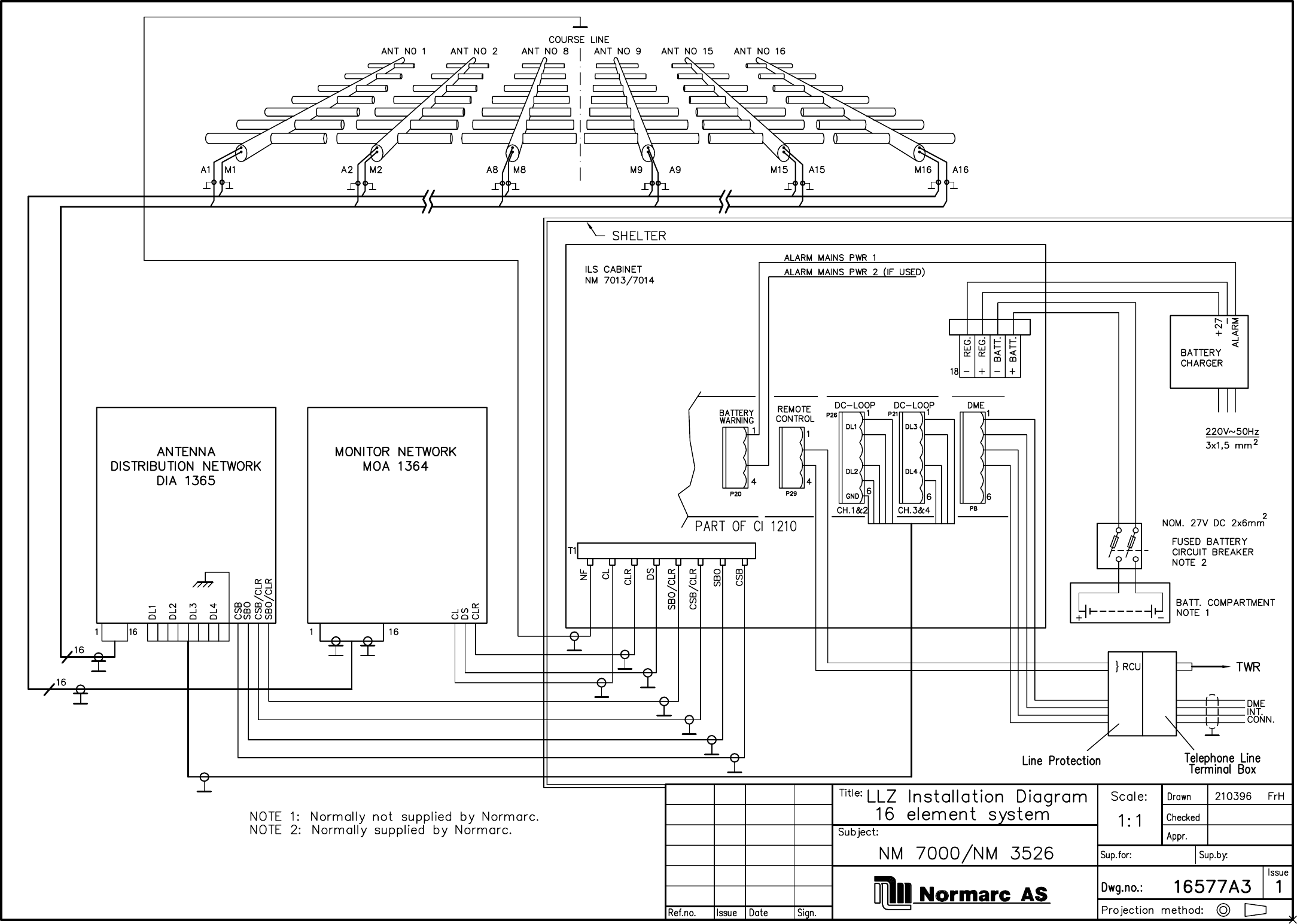

NM 3526 2-frekv 16-element 16577A3
Chapter 5. ANTENNA FOUNDATION

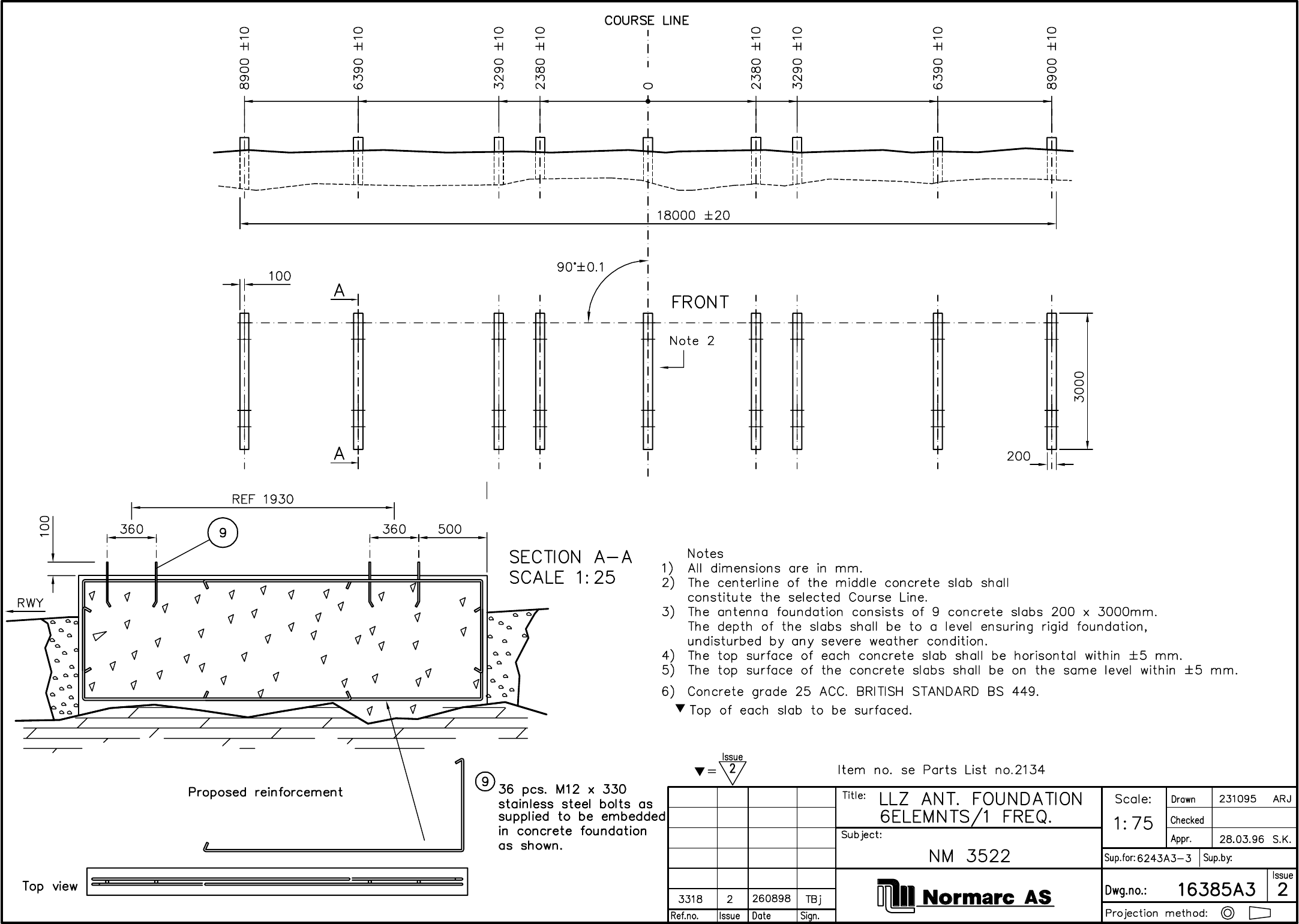

NM 3522 1-frekv 6-element 16385A3

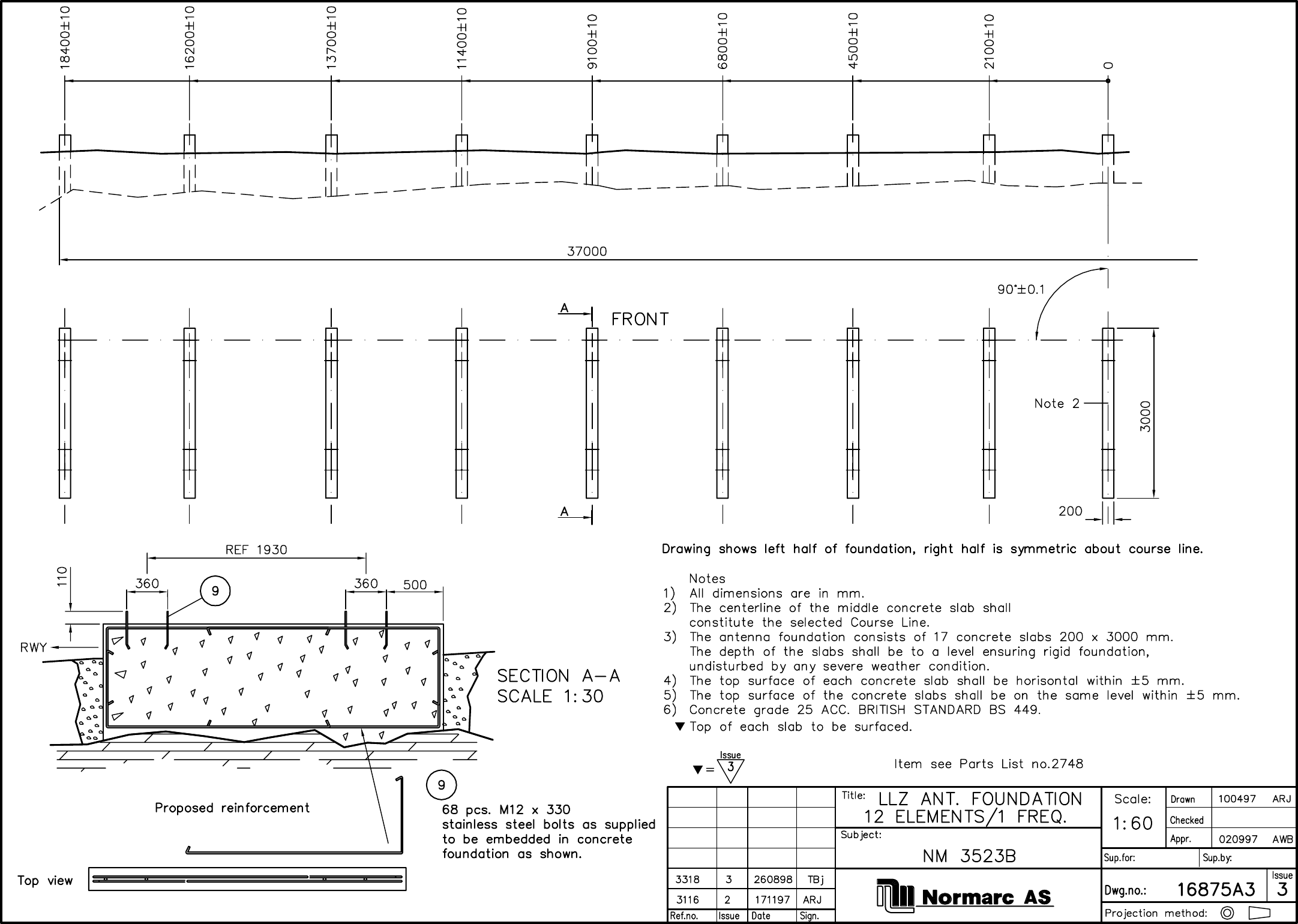

NM 3523B 1-frekv 12-element 16875A3

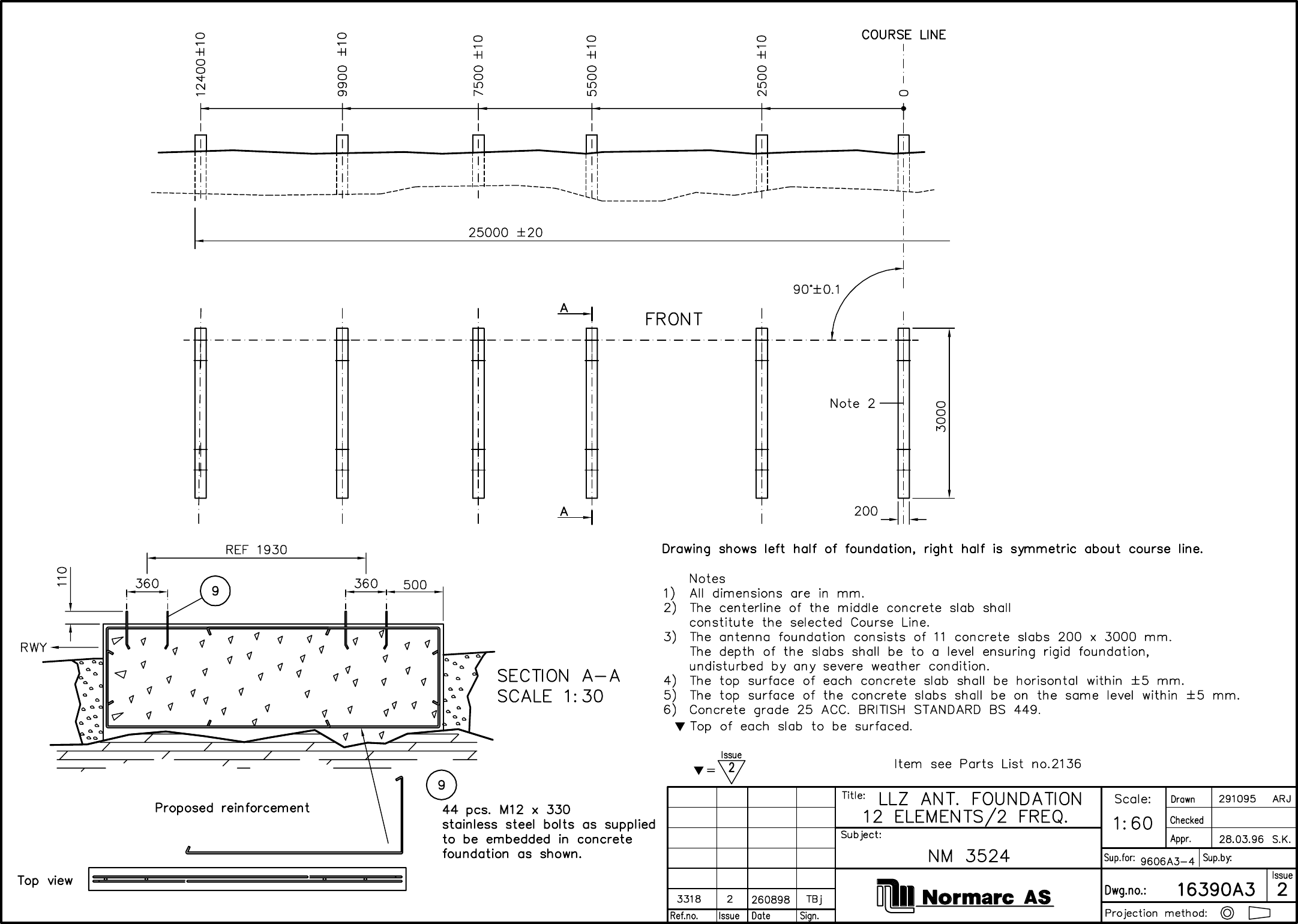

NM 3524 2-frekv 12-element 16390A3

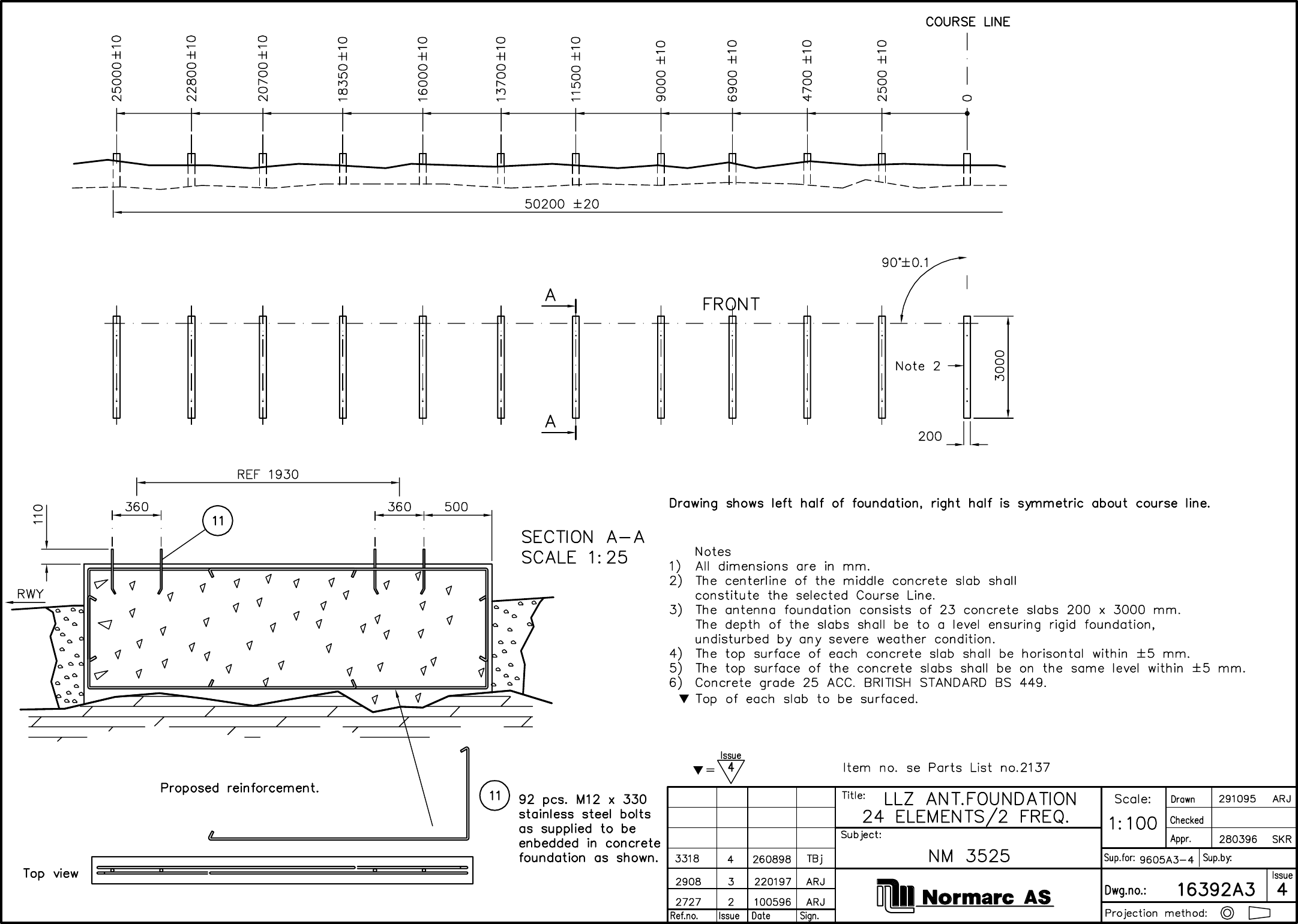

NM 3525 2-frekv 24-element 16392A3

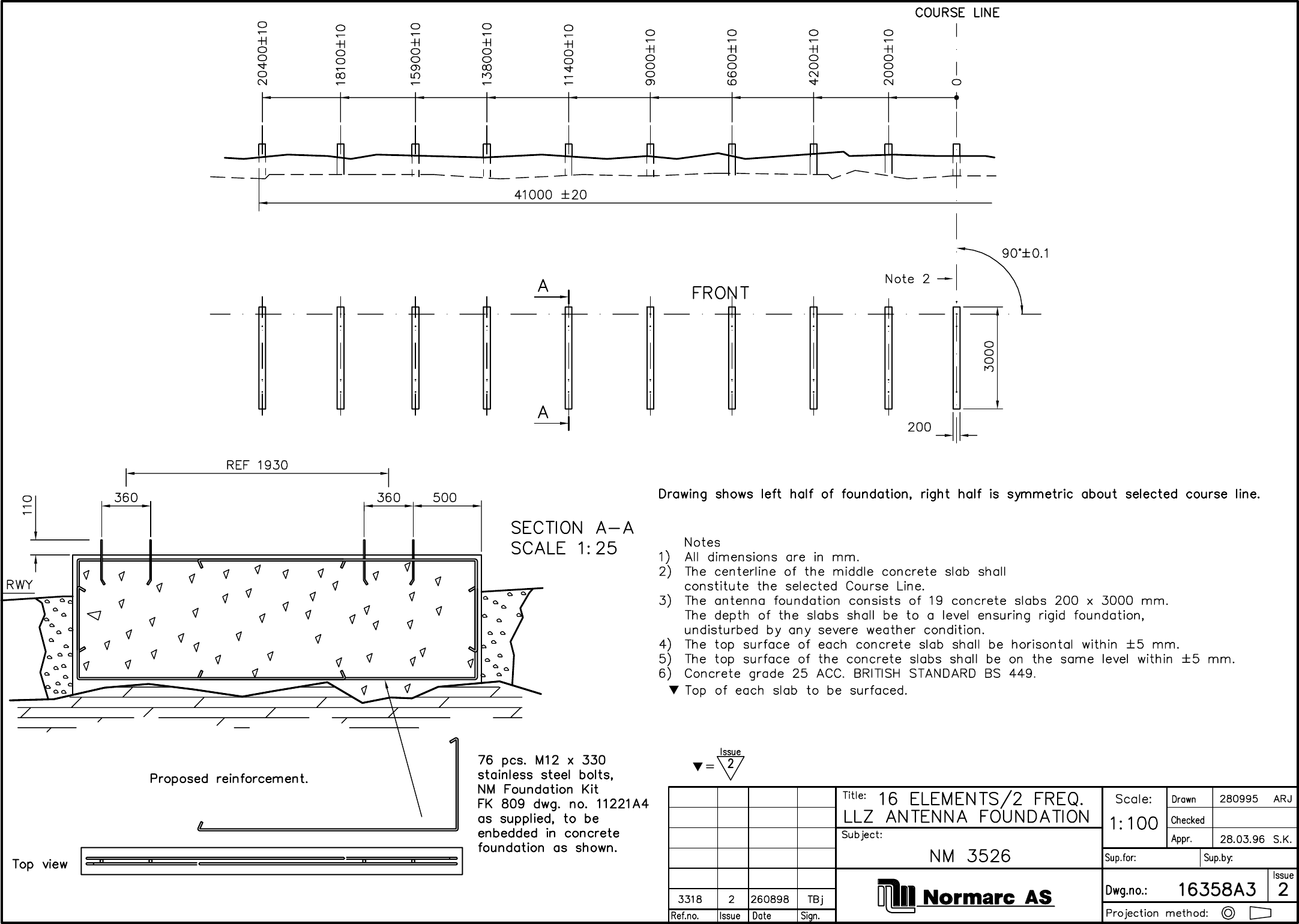

NM 3526 2-frekv 16-element 16358A3
Chapter 6. ANTENNA ASSEMBLY

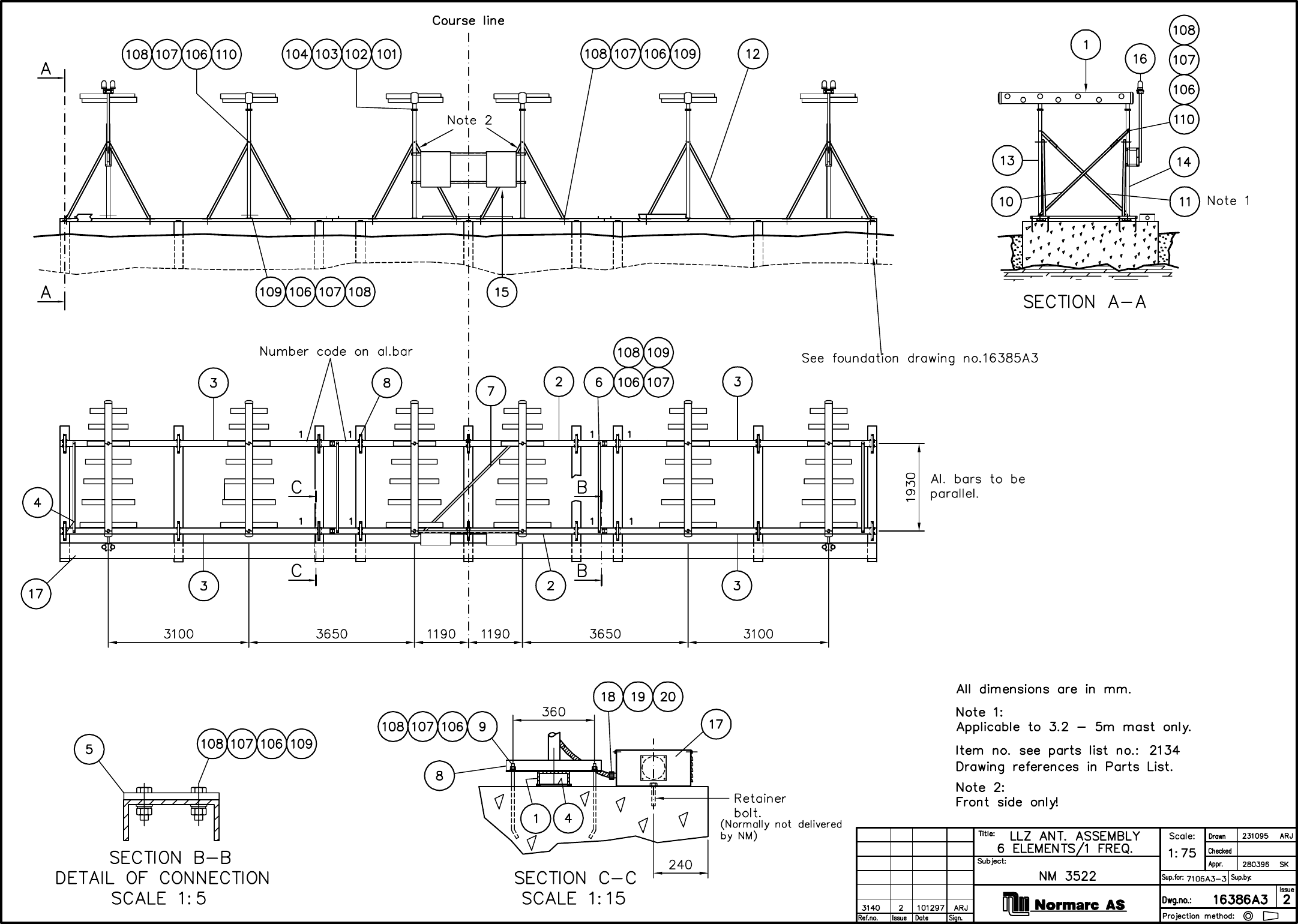

NM 3522 Antenna assembly 16386A3
NM 3522 Parts List 2134

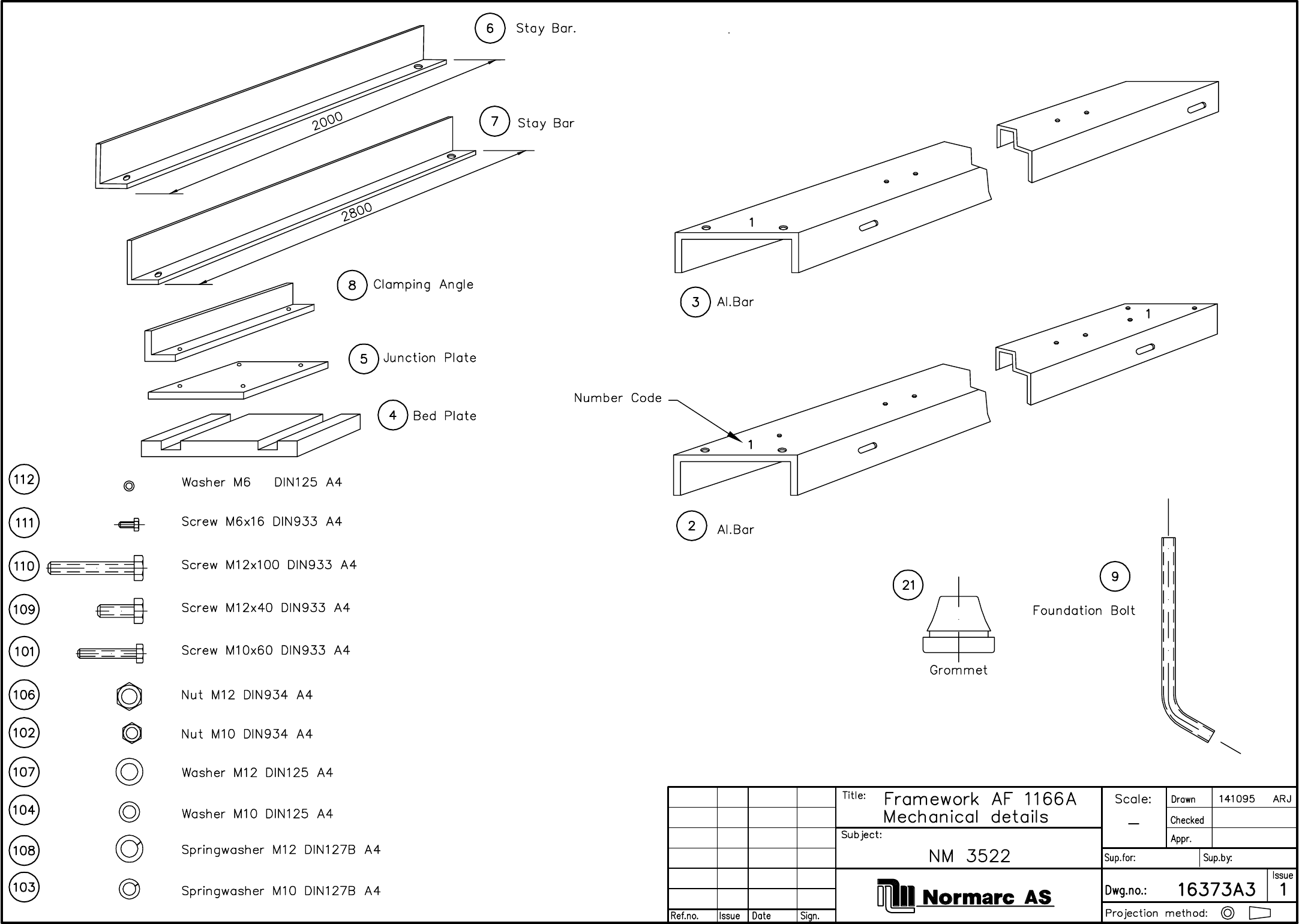

NM 3522 Mechanical details 16373A3

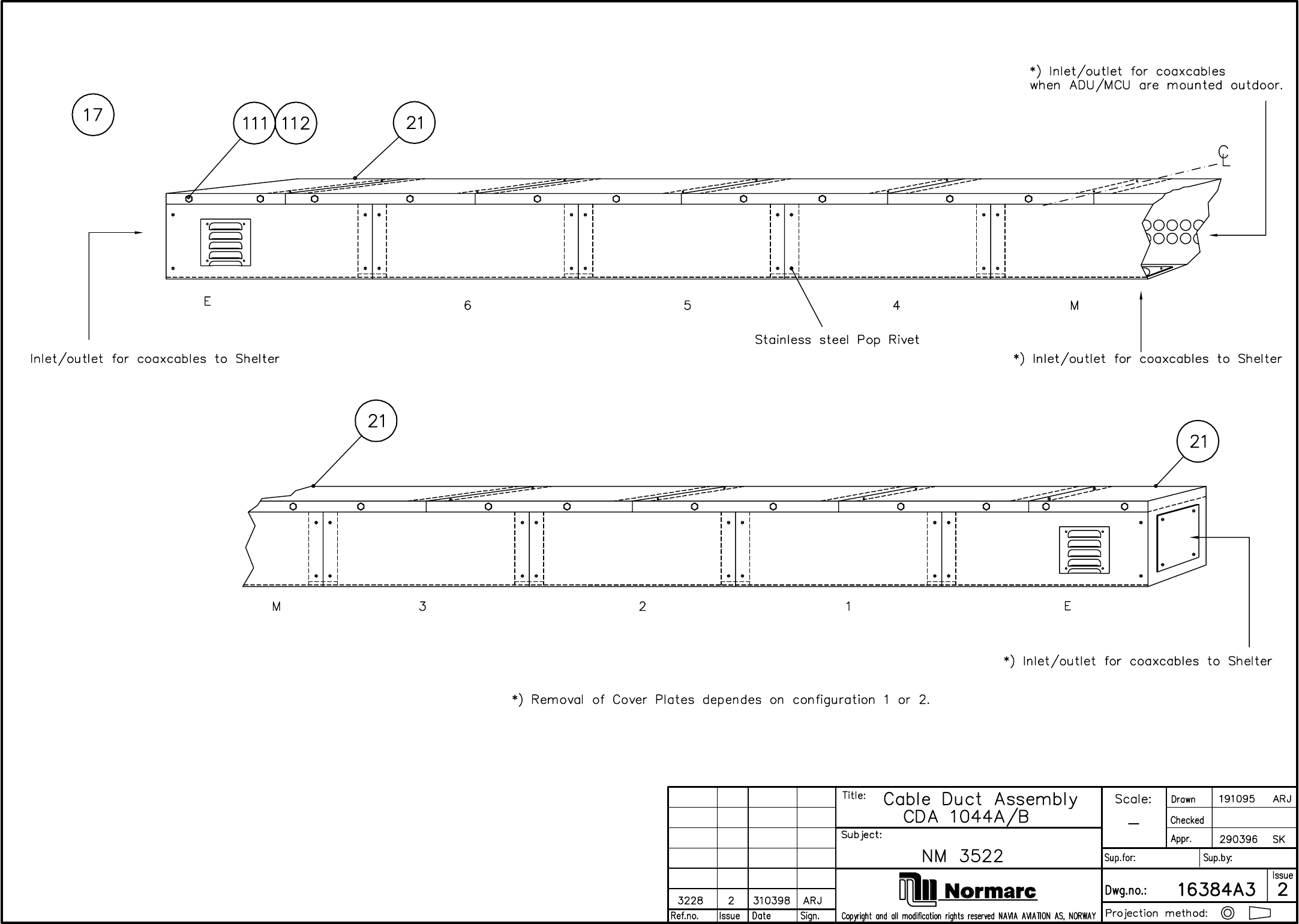

NM 3522 Cable duct 16384A3

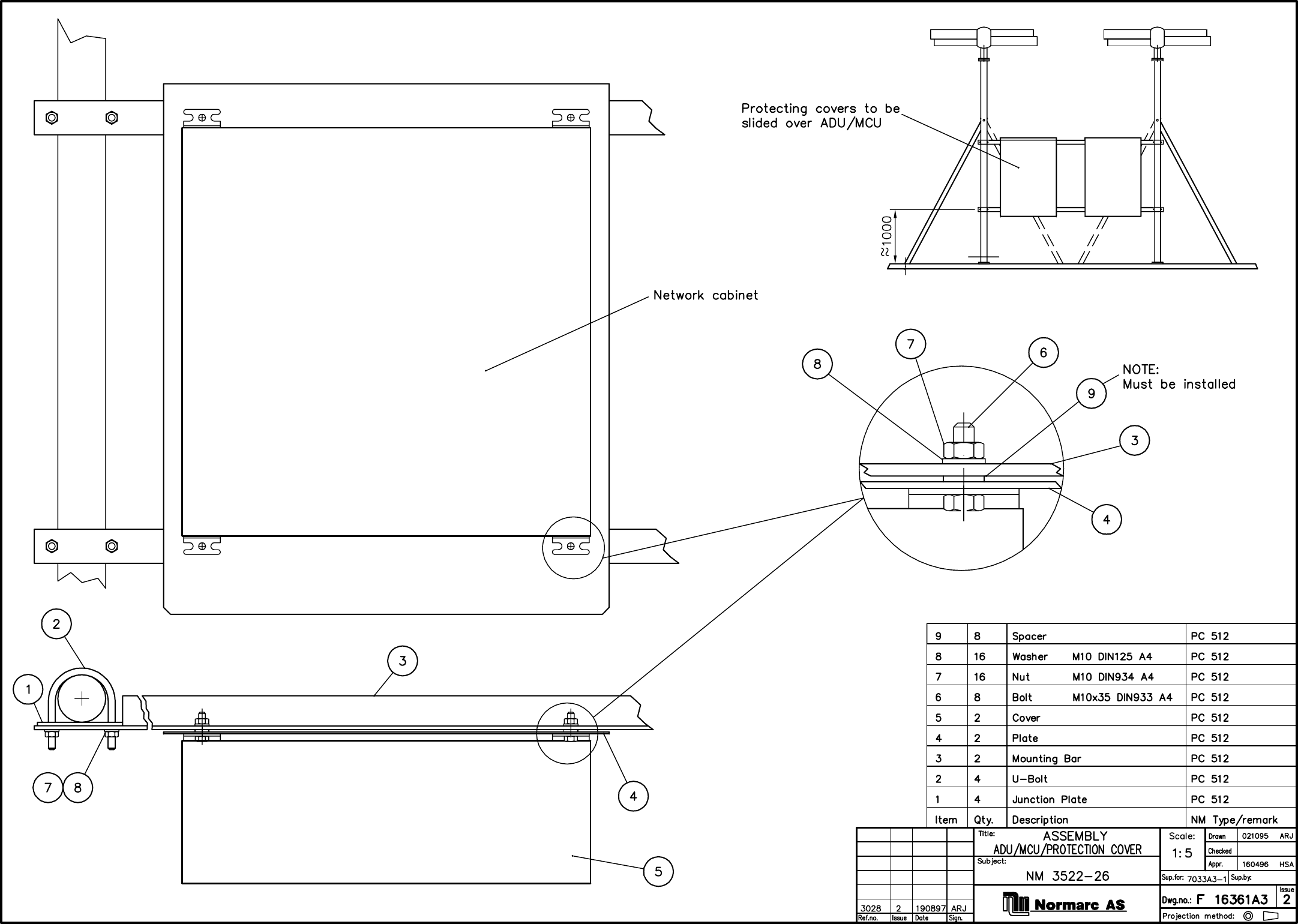

NM 3522 ADU/MCU assembly 16361A3

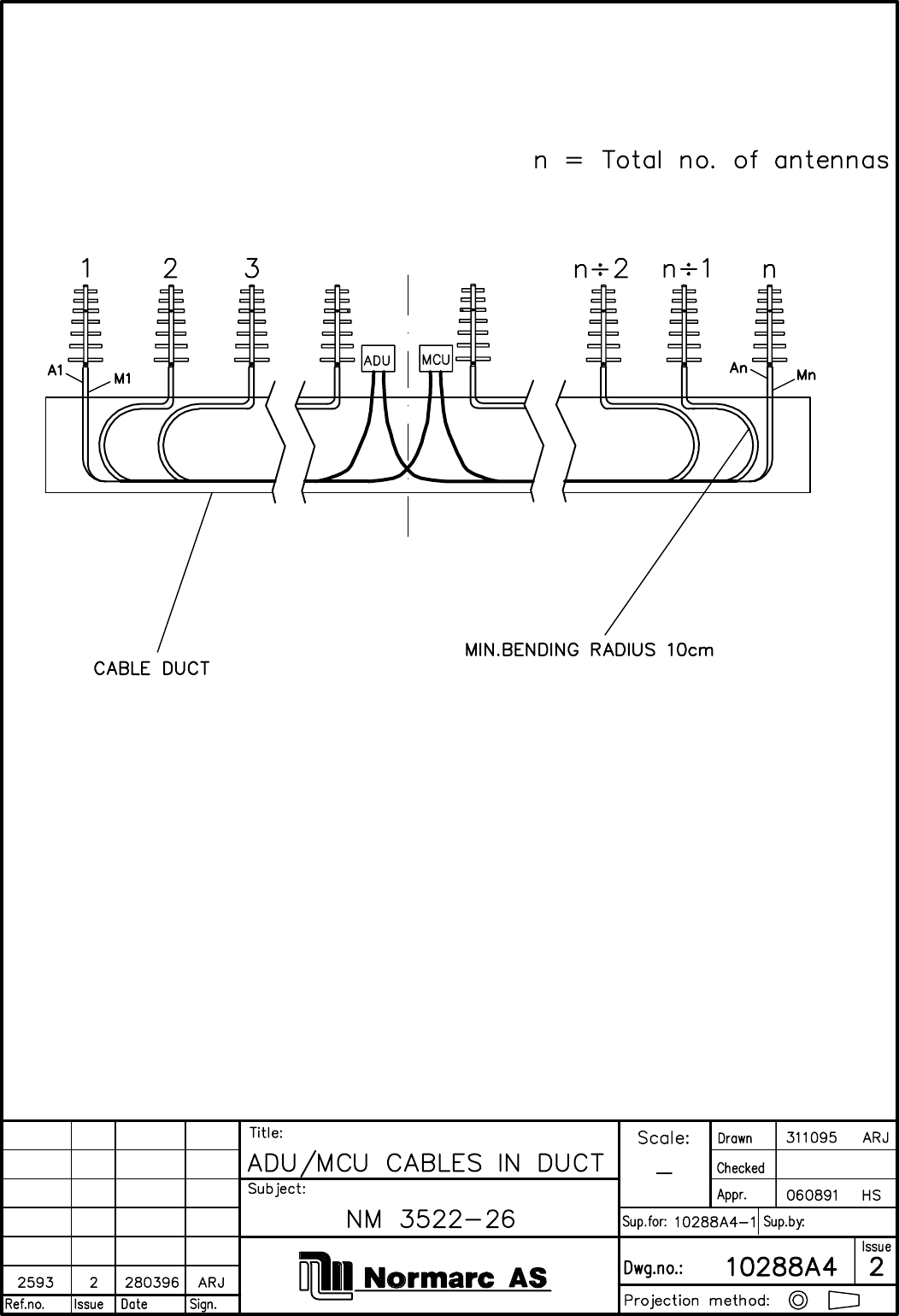

NM 3522 ADU/MCU cables in duct 10288A4
NORMARC 7000 INSTALLATION & COMMISSIONING HANDBOOK
INSTRUMENT LANDING SYSTEM
1999 NAVIA AVIATION AS 21466-3.0 TABLE OF CONTENTS
Chapter 6. ANTENNA ASSEMBLY (Continued)

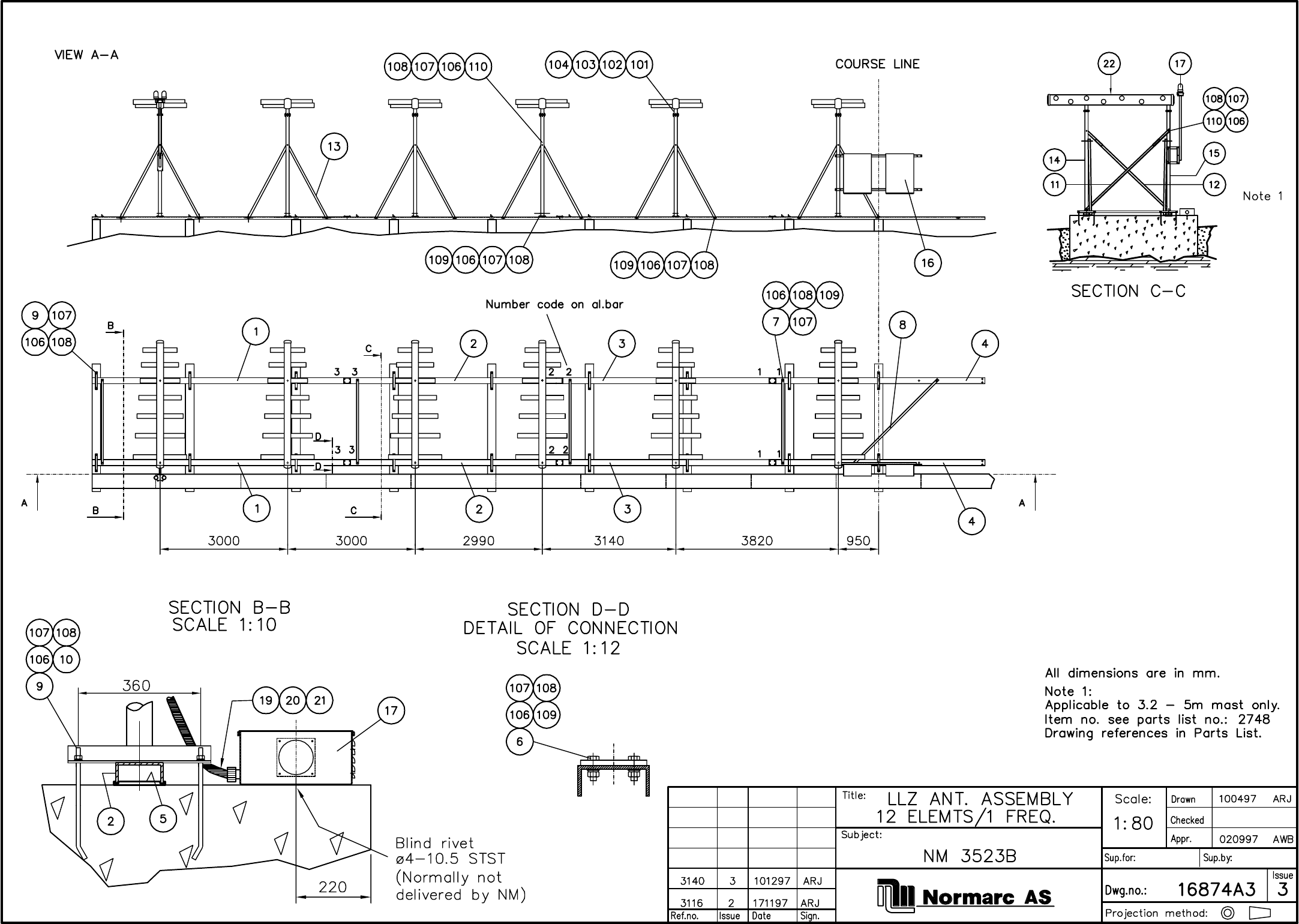

NM 3523B Antenna assembly 16874A3
NM 3523B Parts List 2748

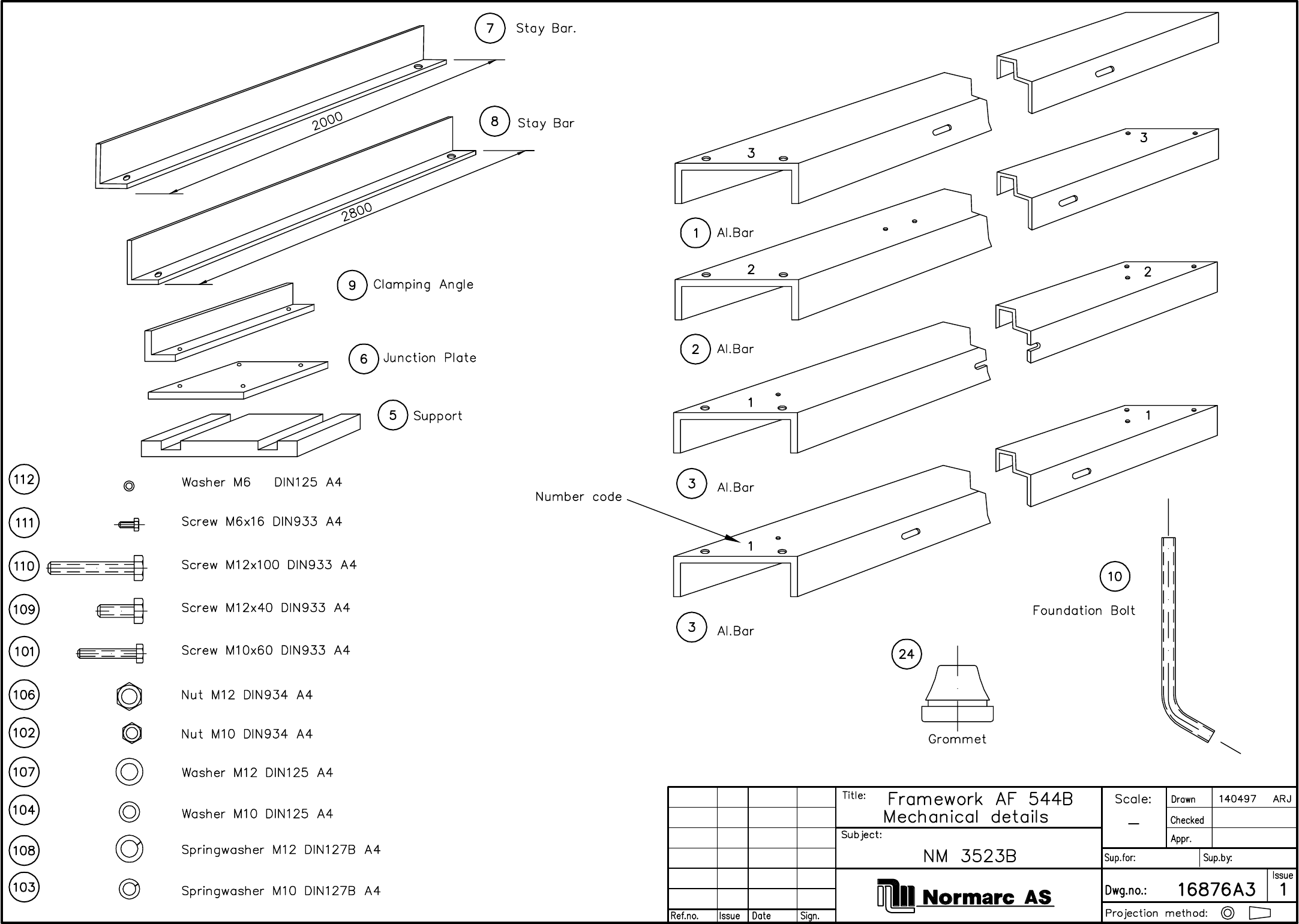

NM 3523B Mechanical details 16876A3

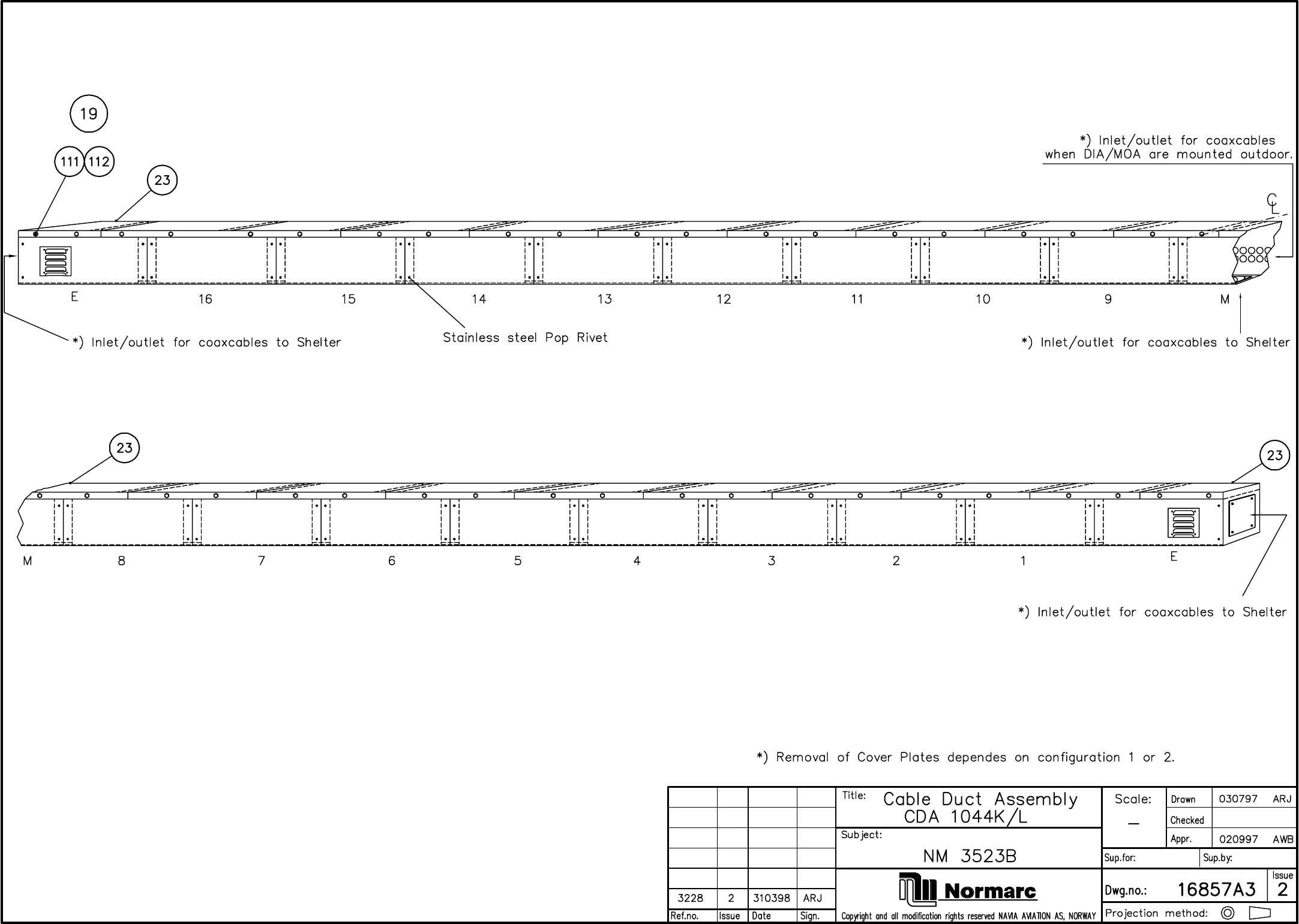

NM 3523B Cable duct 16857A3
NM 3523B ADU/MCU assembly 16361A3
NM 3523B ADU/MCU cables in duct 10288A4

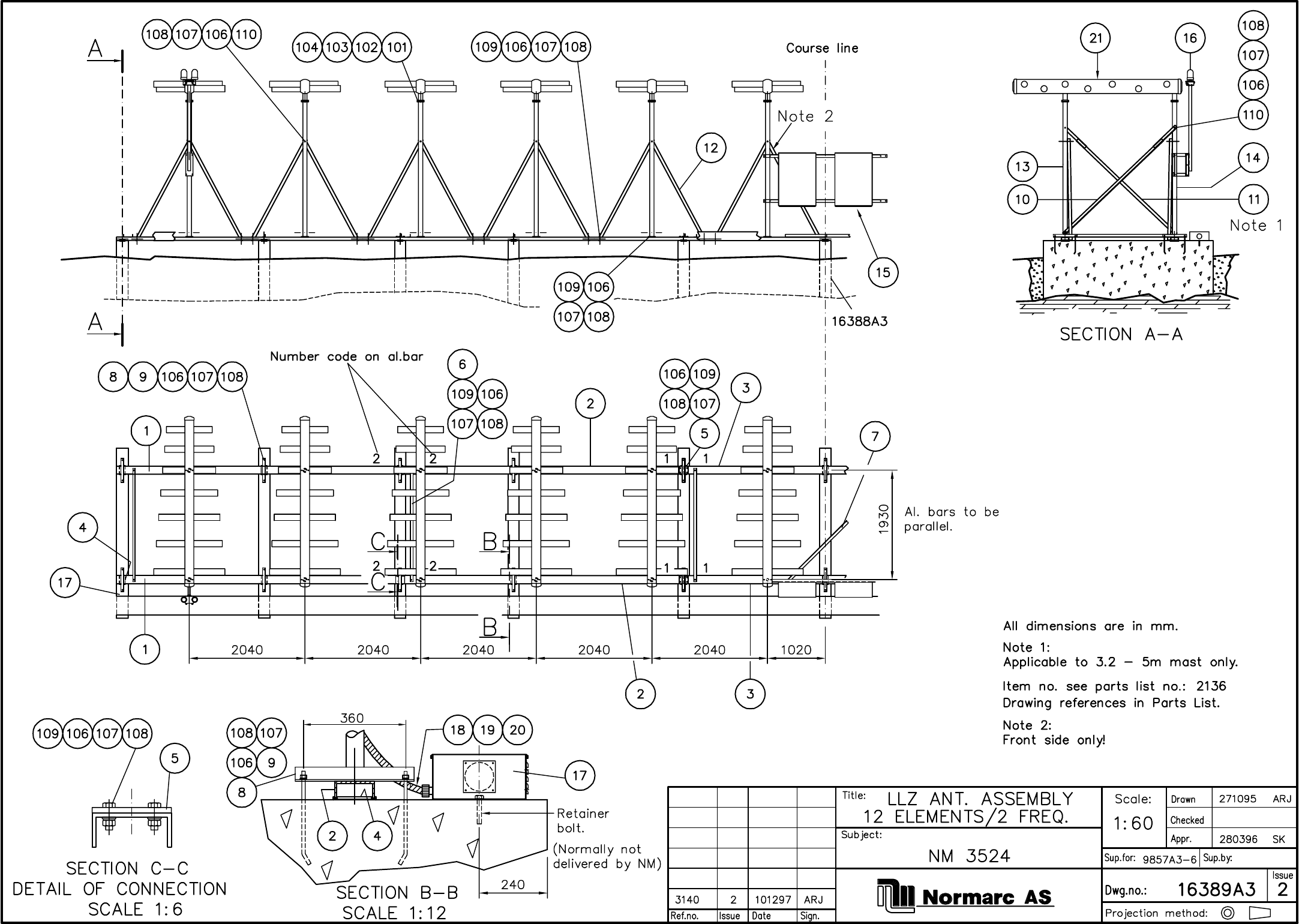

NM 3524 Antenna assembly 16389A3
NM 3524 Parts List 2136

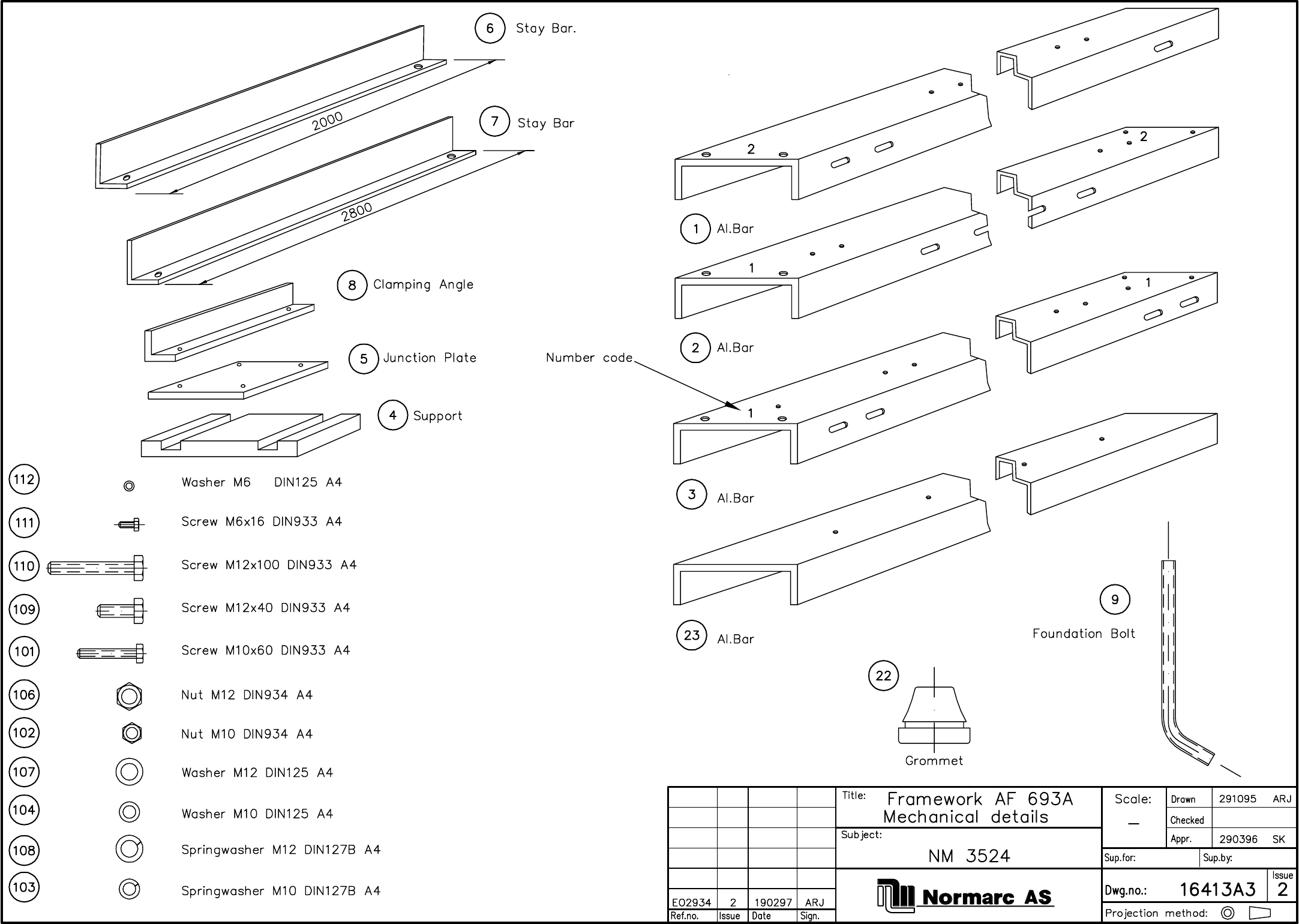

NM 3524 Mechanical details 16413A3

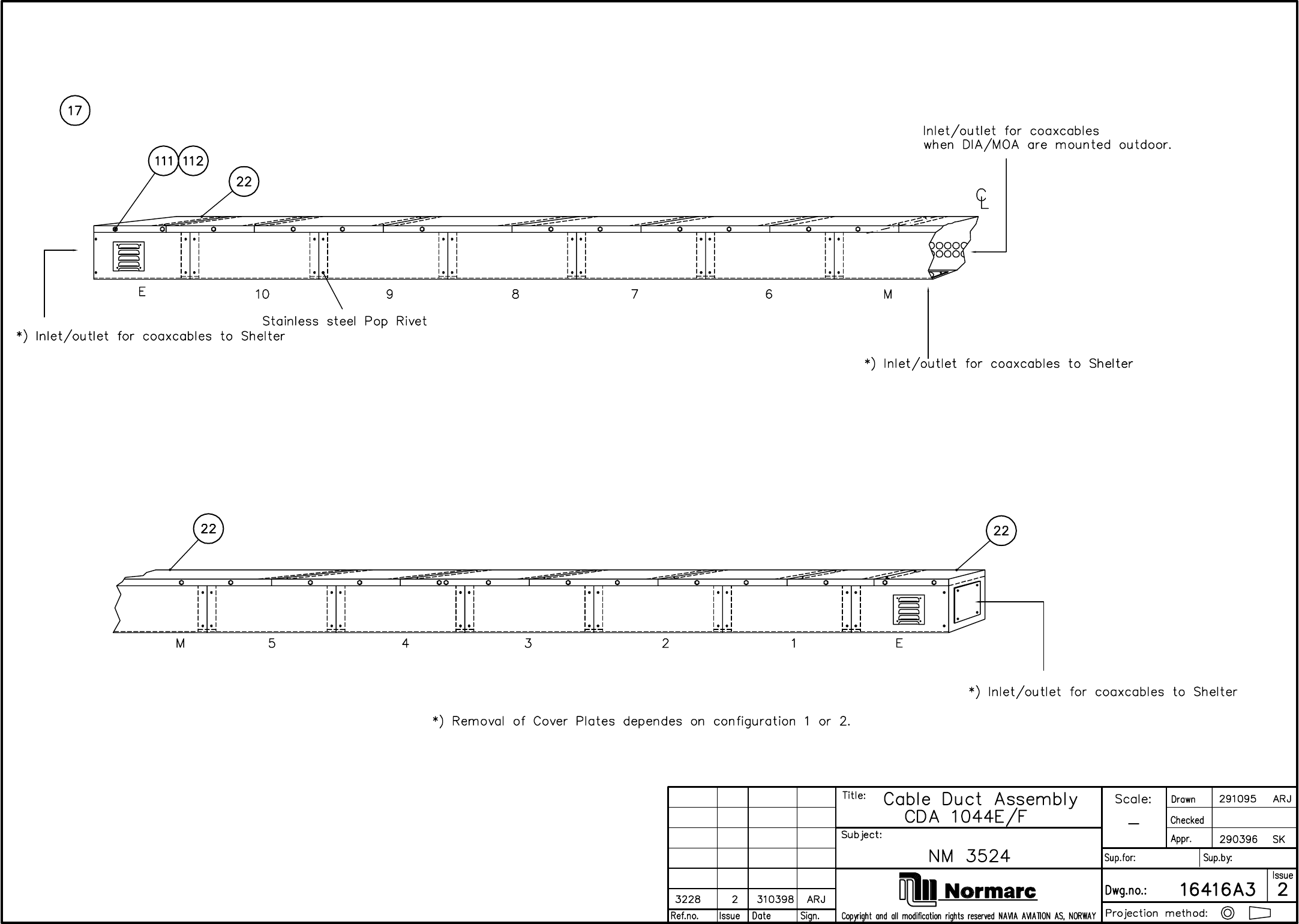

NM 3524 Cable duct 16416A3
NM 3424 ADU/MCU assembly 16361A3
NM 3524 ADU/MCU cables in duct 10288A4

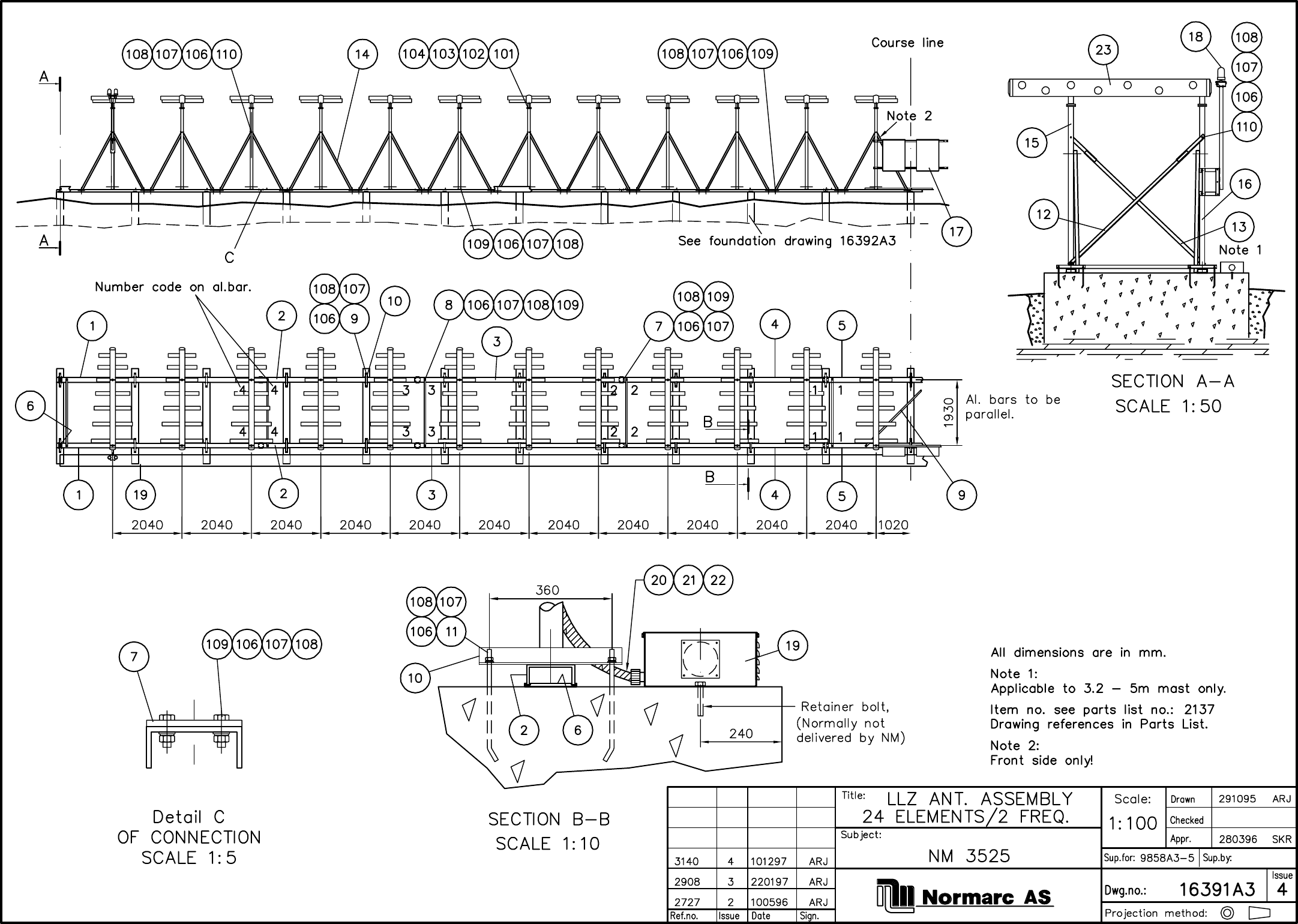

NM 3525 Antenna assembly 16391A3
NM 3525 Parts List 2137

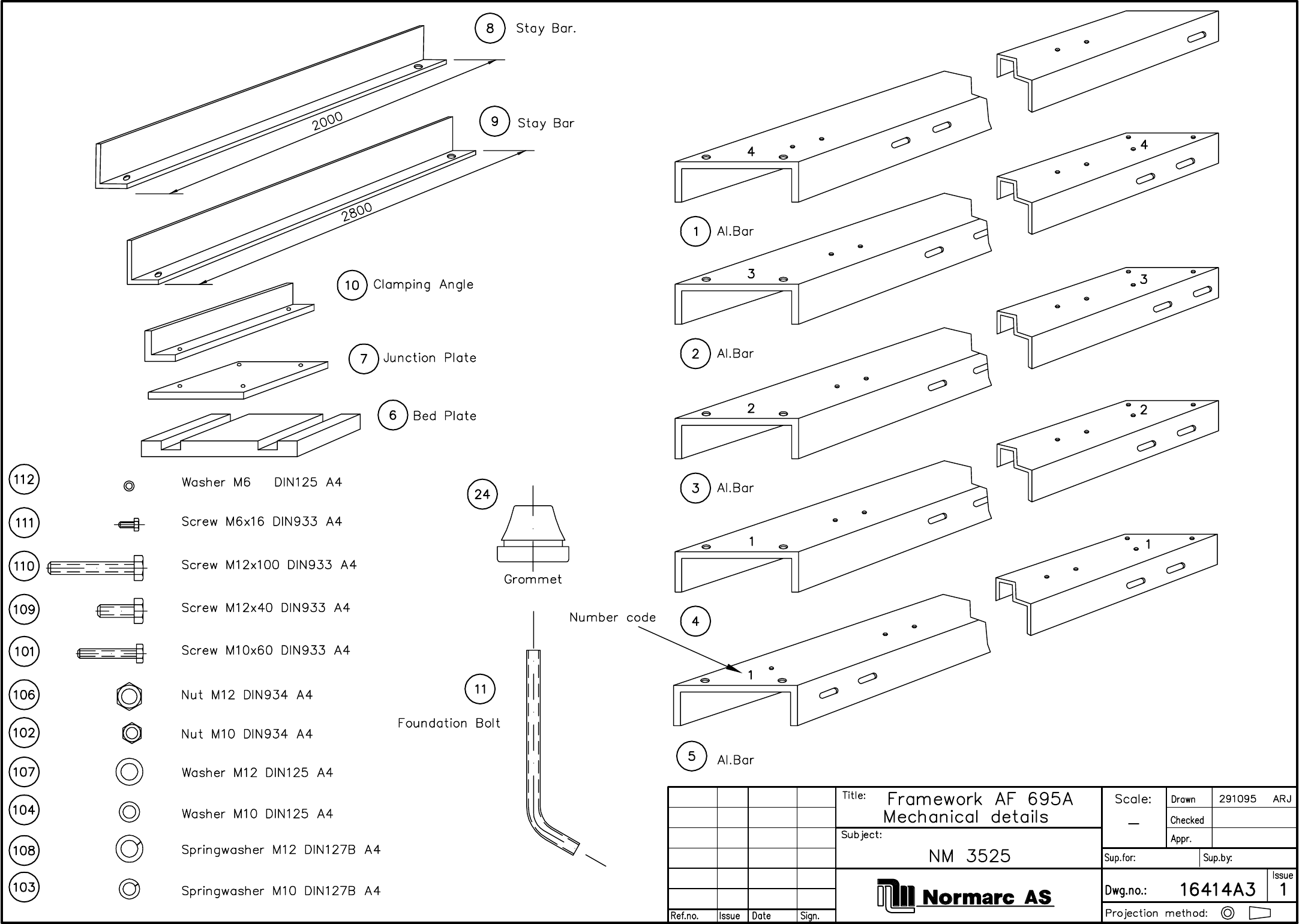

NM 3525 Mechanical details 16414A3
NM 3525 Cable duct 16417A3
NM 3525 ADU/MCU assembly 16361A3
NM 3525 ADU/MCU cables in duct 10288A4

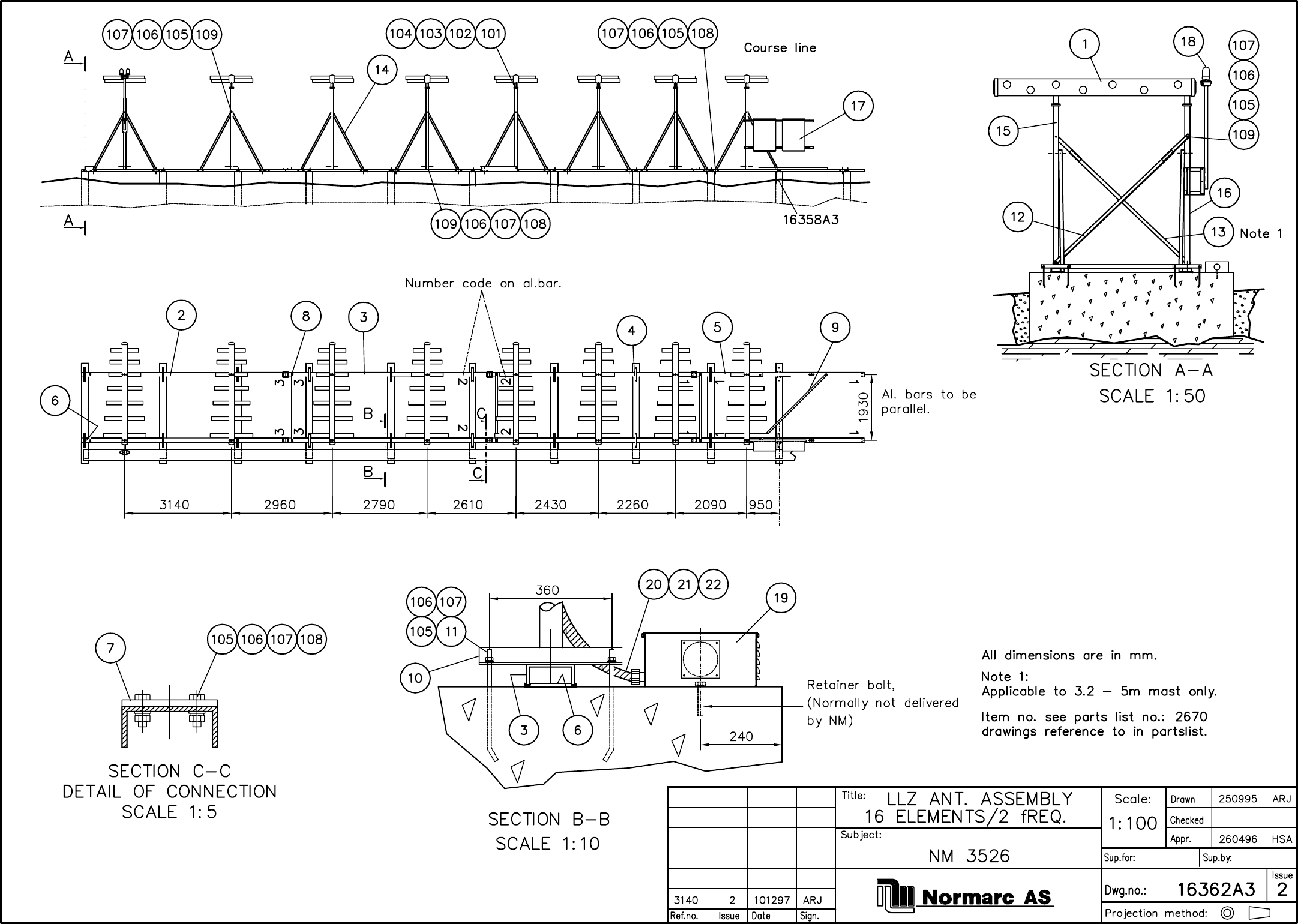

NM 3526 Antenna assembly 16362A3
NM 3526 Parts List 2670

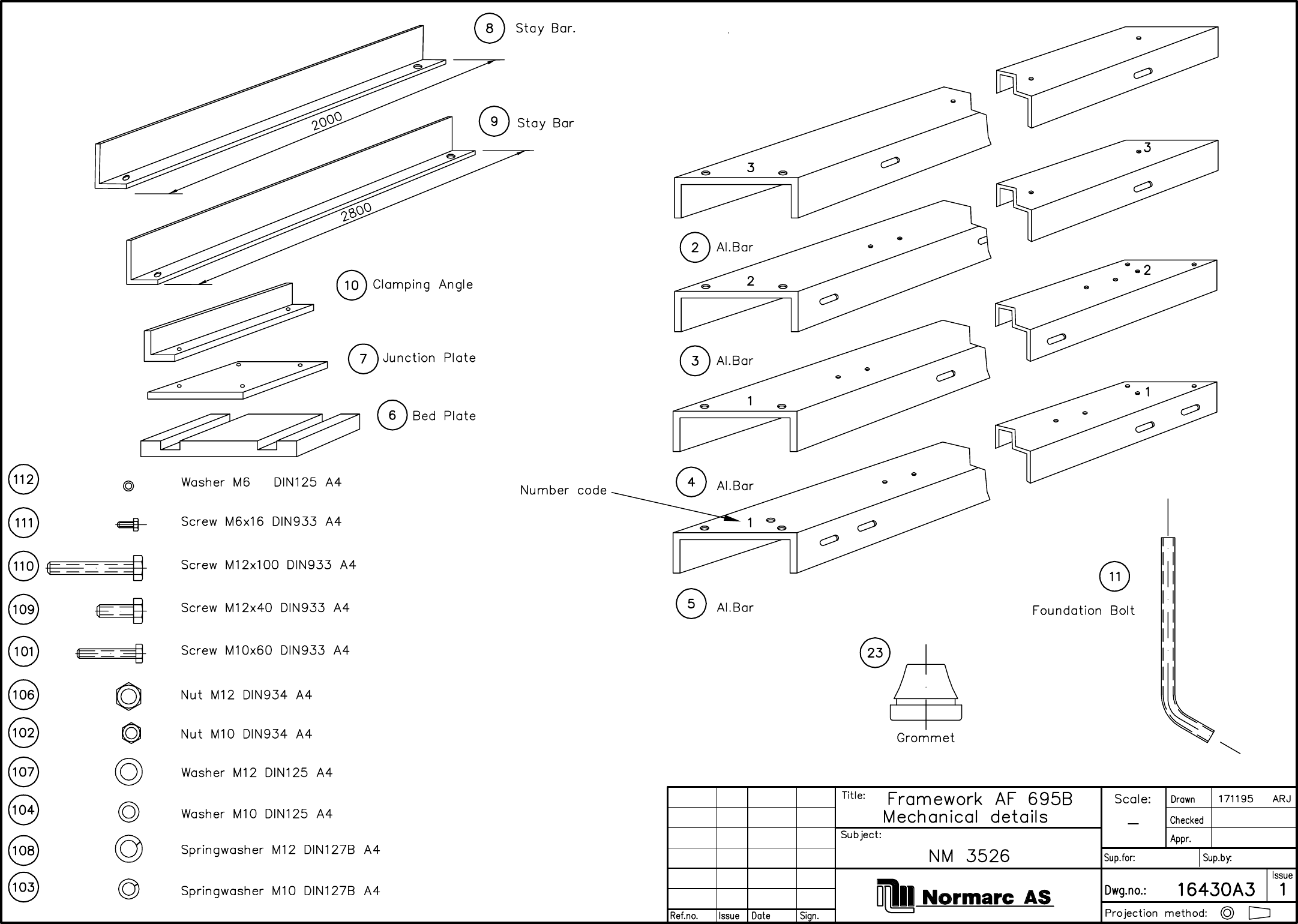

NM 3526 Mechanical details 16430A3

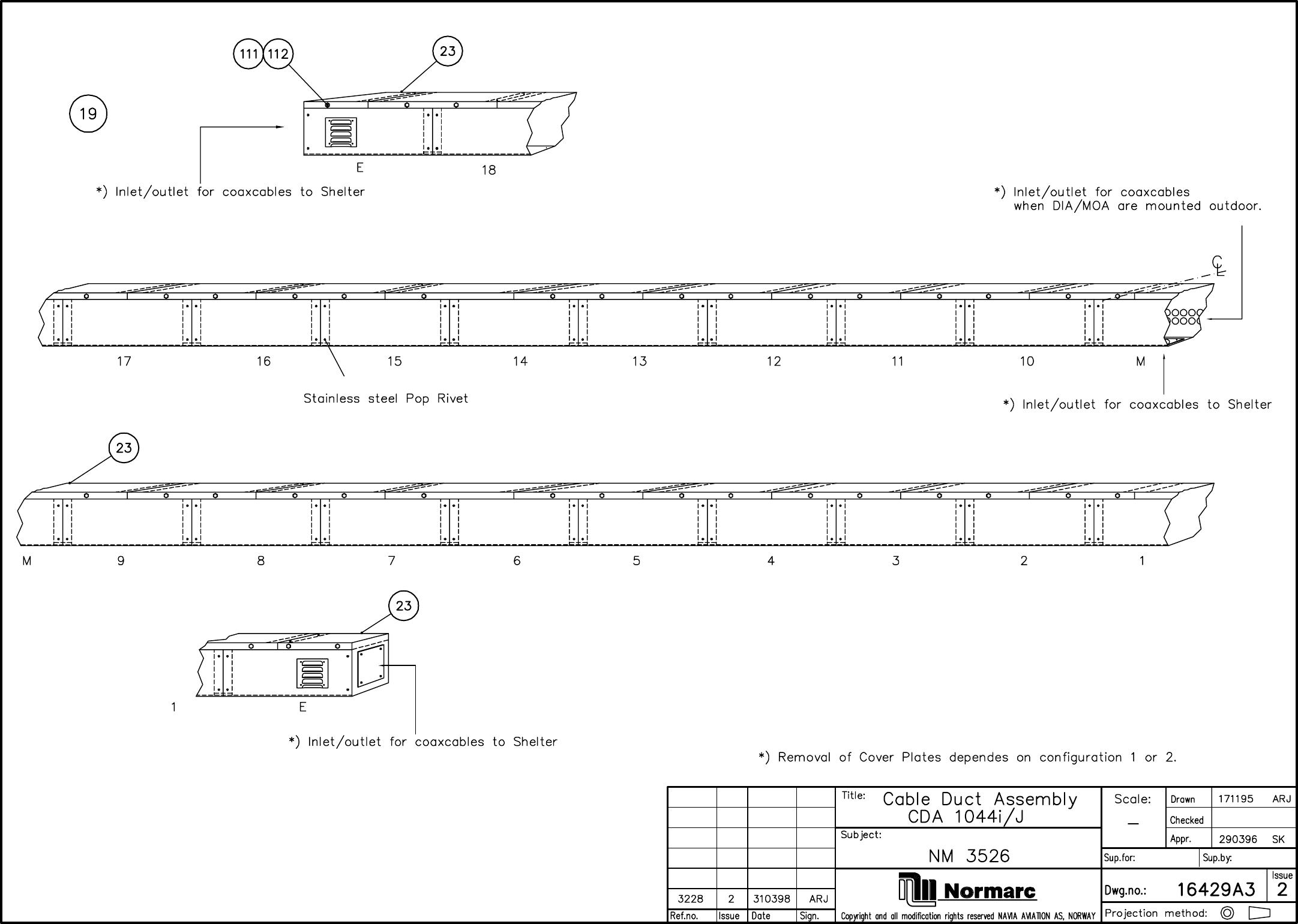

NM 3526 Cable duct 16429A3
NM 3526 ADU/MCU assembly 16361A3
NM 3526 ADU/MCU cables in duct 10288A4
Chapter 7. OBSTRUCTION LIGHT

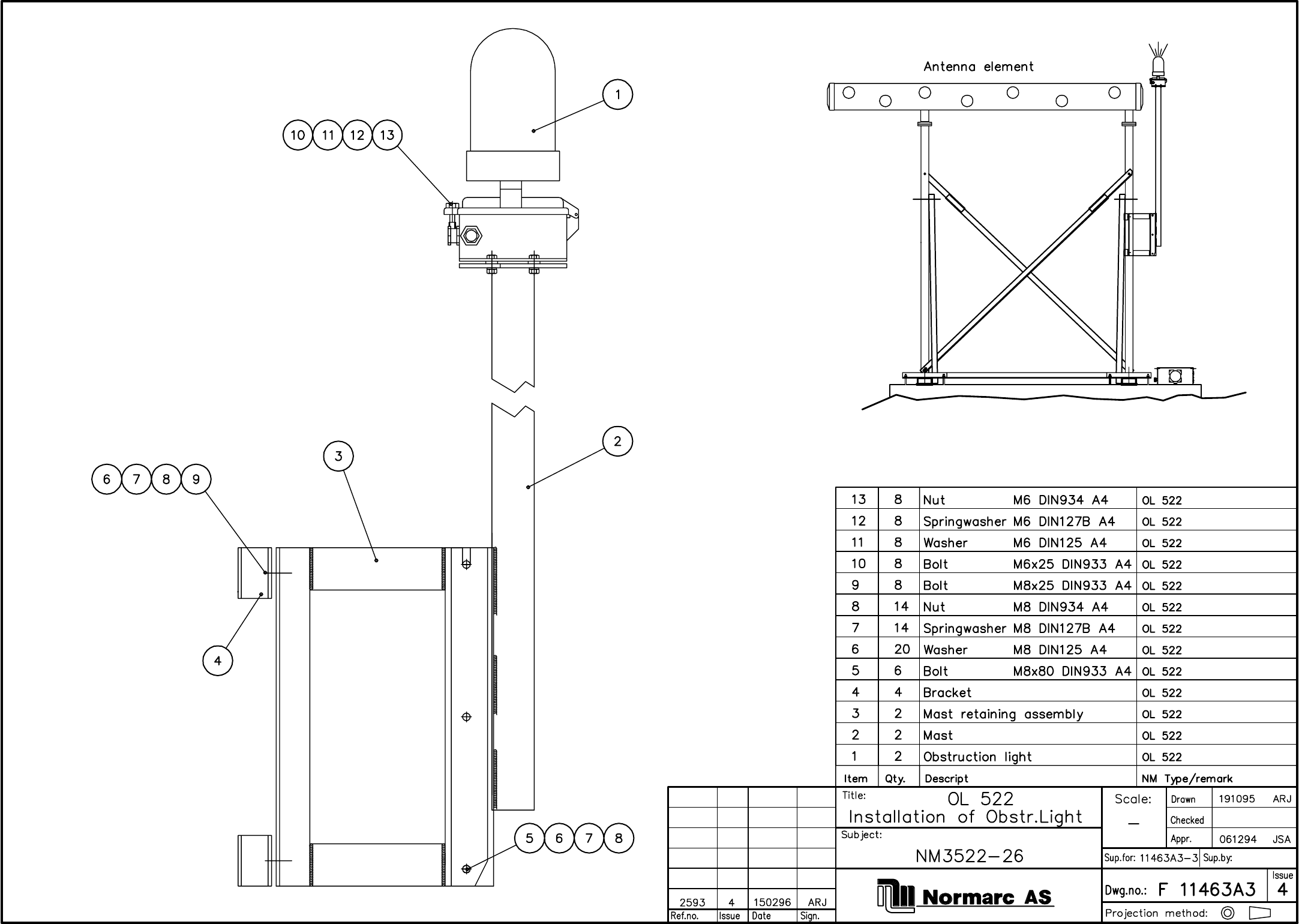

OL 522 Installation 11463A3

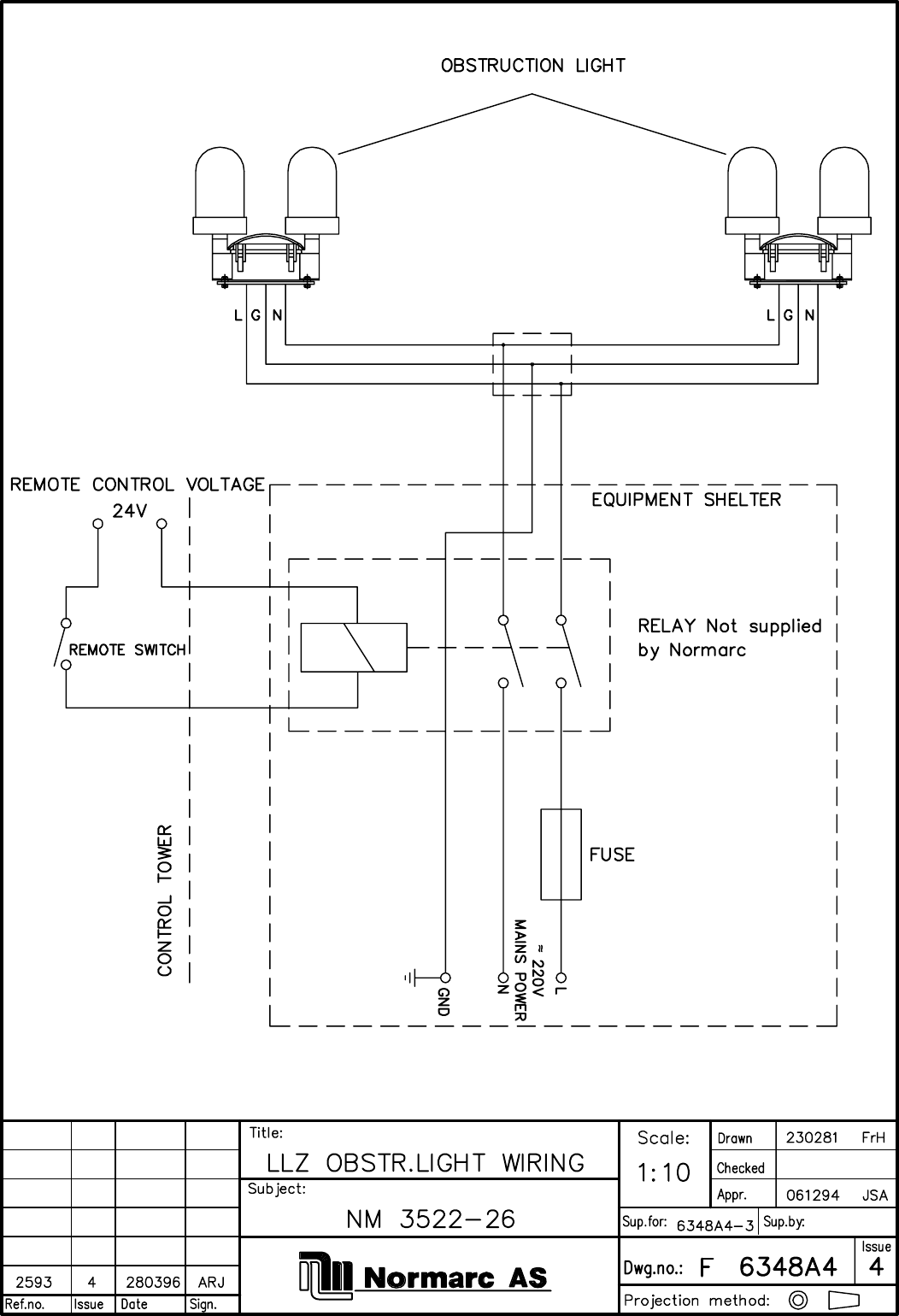

OL 522 Wiring 6348A4
Chapter 8. NEAR FIELD MONITOR LLZ

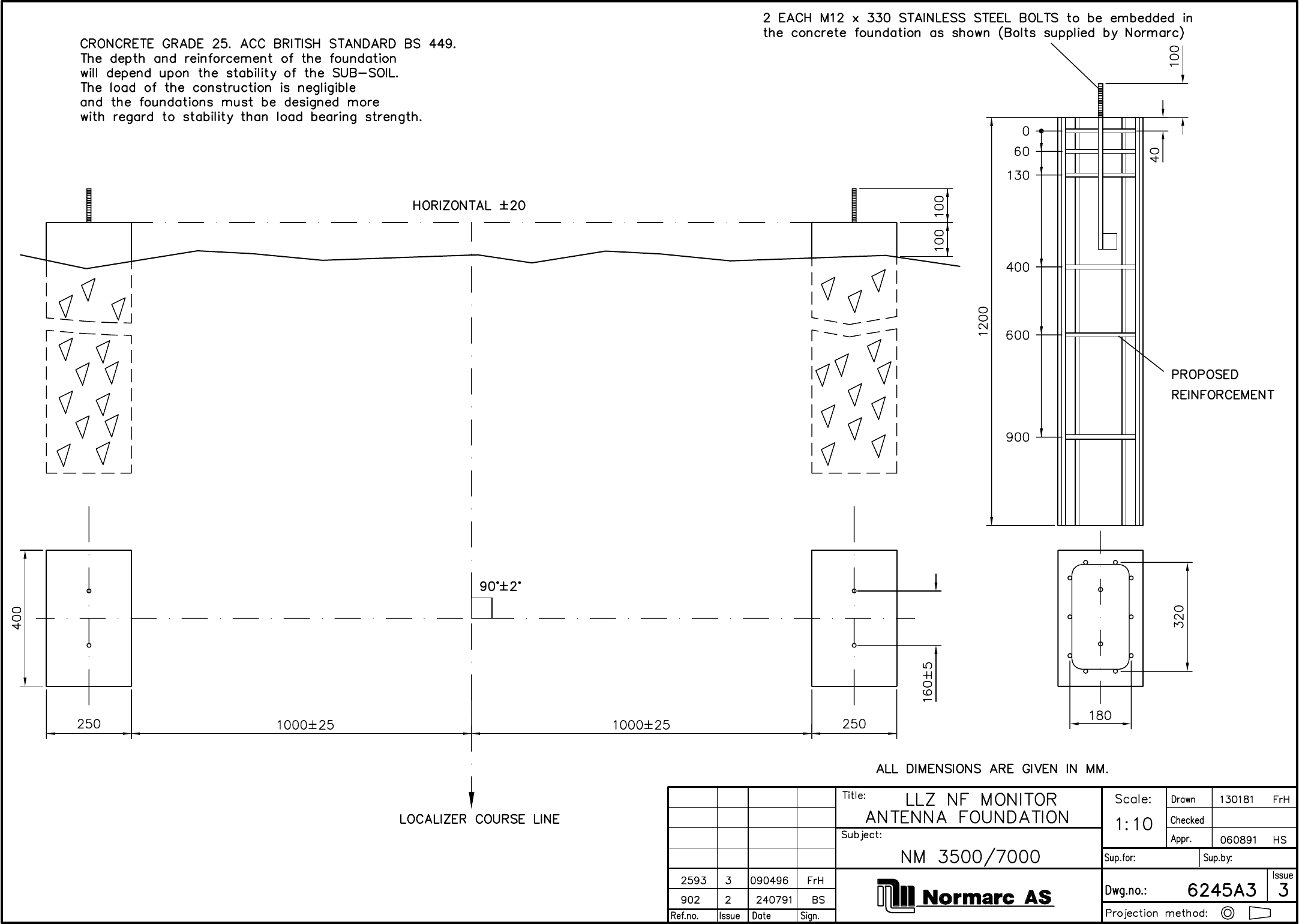

NF-Antenna foundation 6245A3

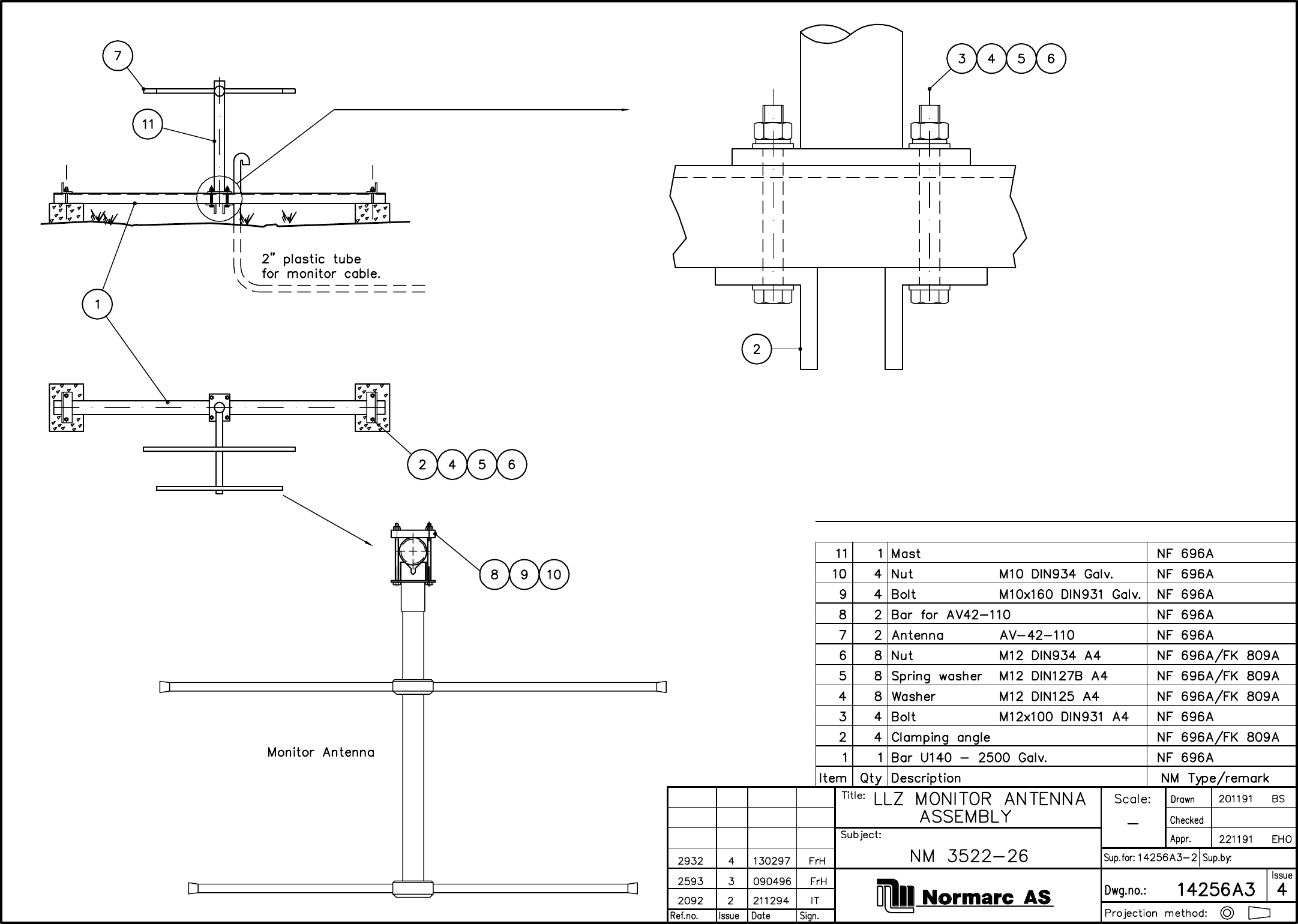

NF-Assembly 14256A3
NF-Assembly w/Obstruction Light 16806A3
Chapter 9. GROUNDING

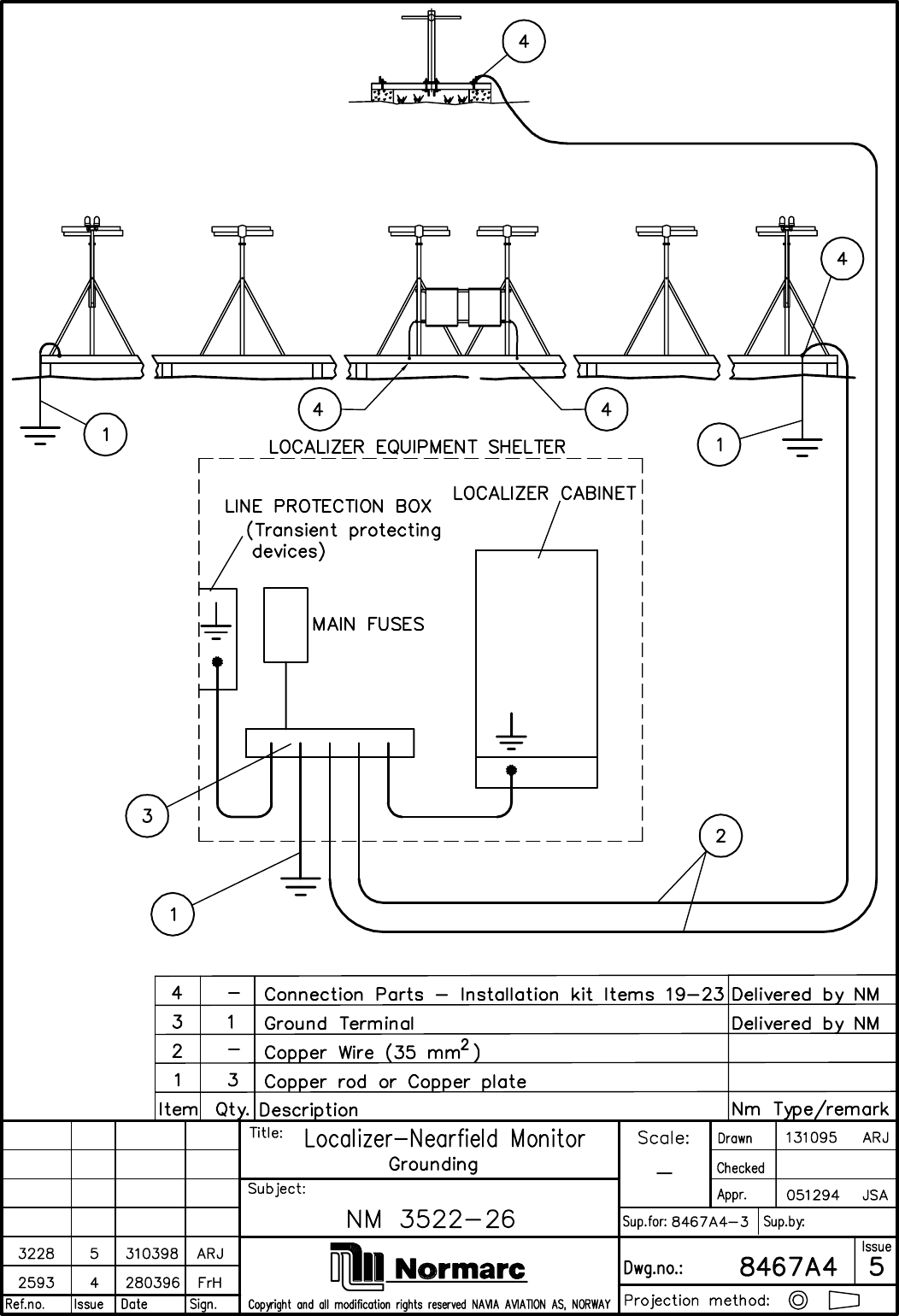

LLZ-NF Grounding 8467A4

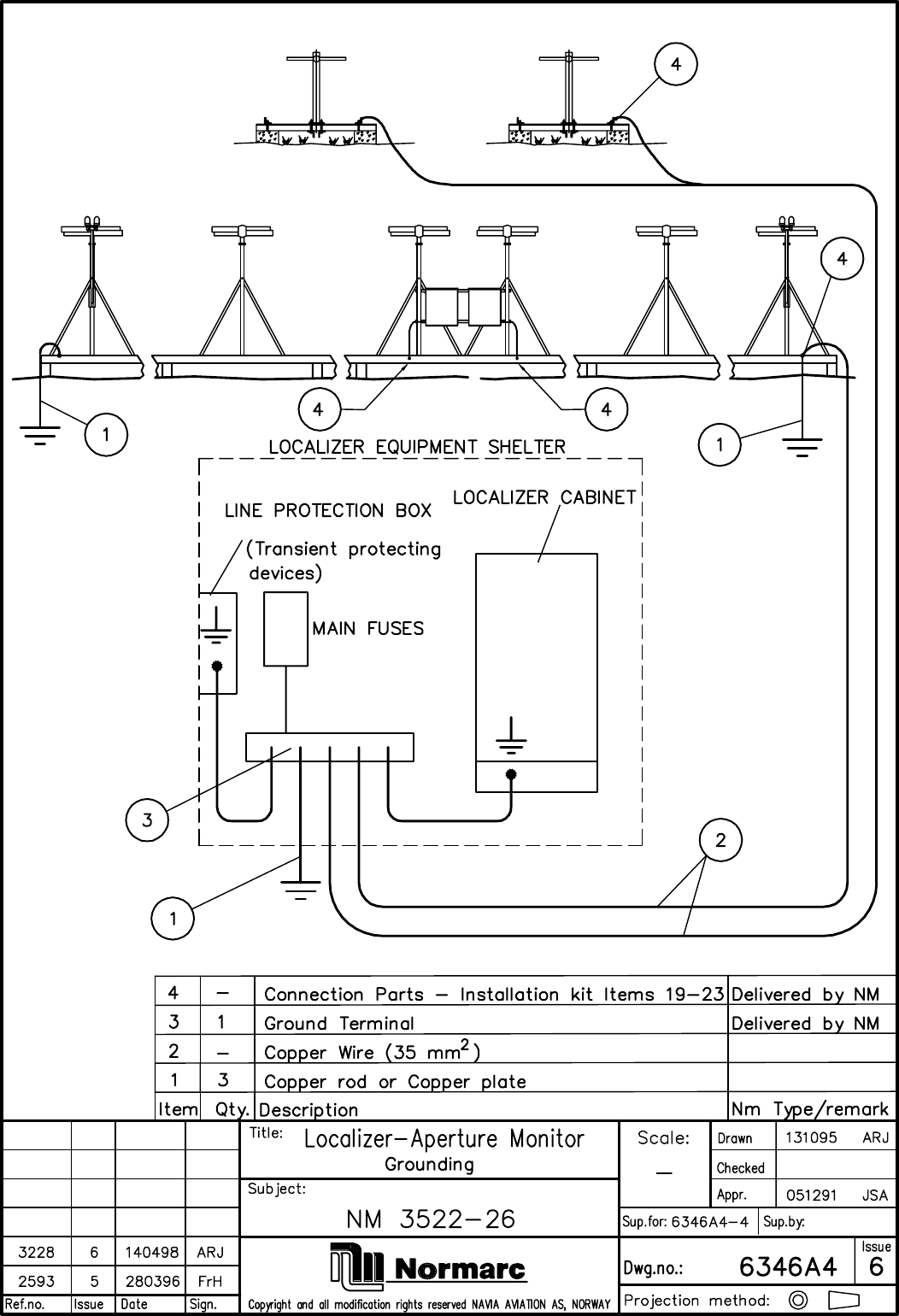

LLZ-NF Aperture grounding 6346A4
NORMARC 7000 INSTALLATION & COMMISSIONING HANDBOOK
INSTRUMENT LANDING SYSTEM
1999 NAVIA AVIATION AS 21466-3.0 TABLE OF CONTENTS

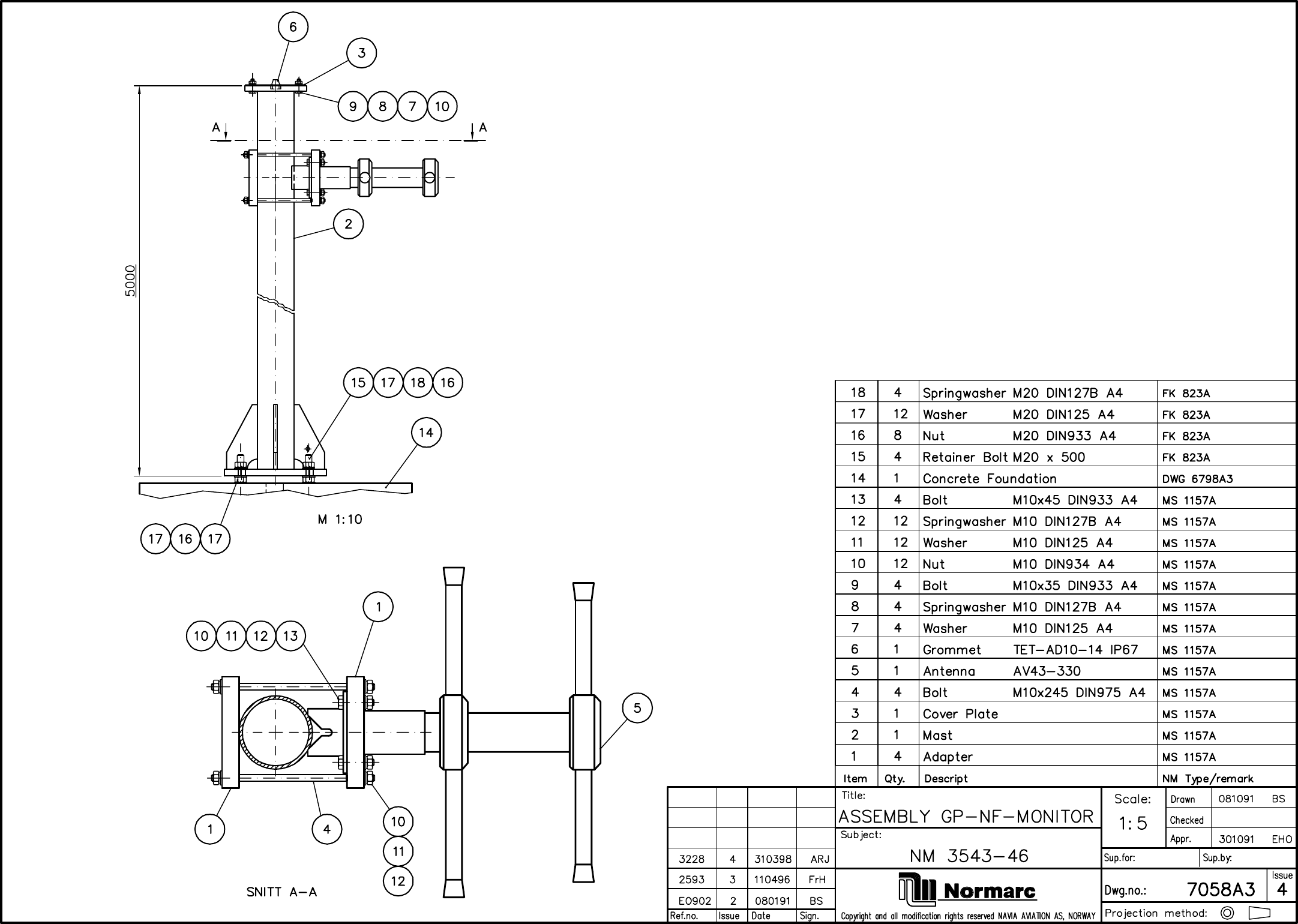

SECTION 3
GLIDE PATH
Chapter 1. CONFIGURATIONS

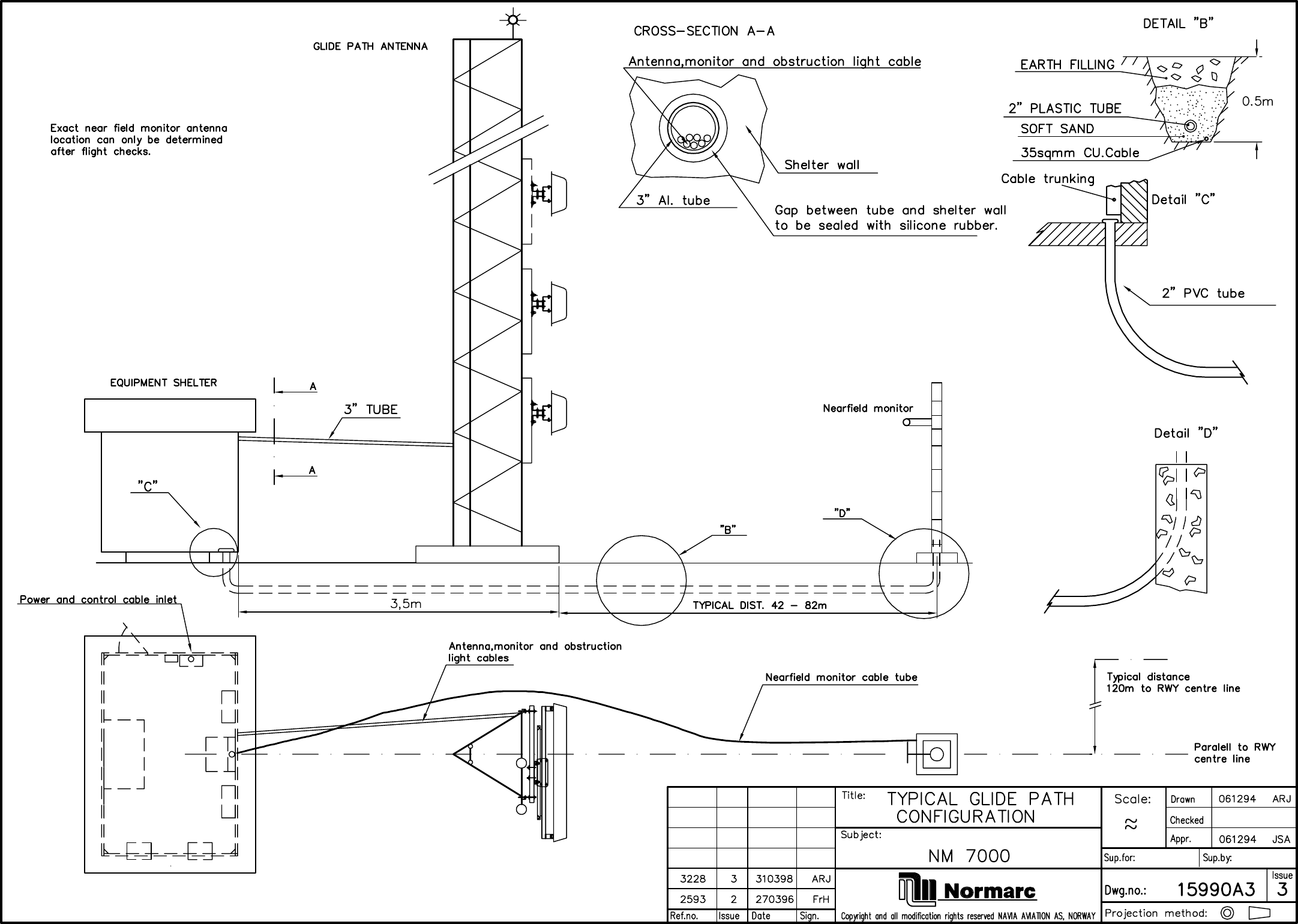

Typical configuration 15990A3
Chapter 2. SHELTER INSTALLATION MECHANICAL
System rack 16138A3

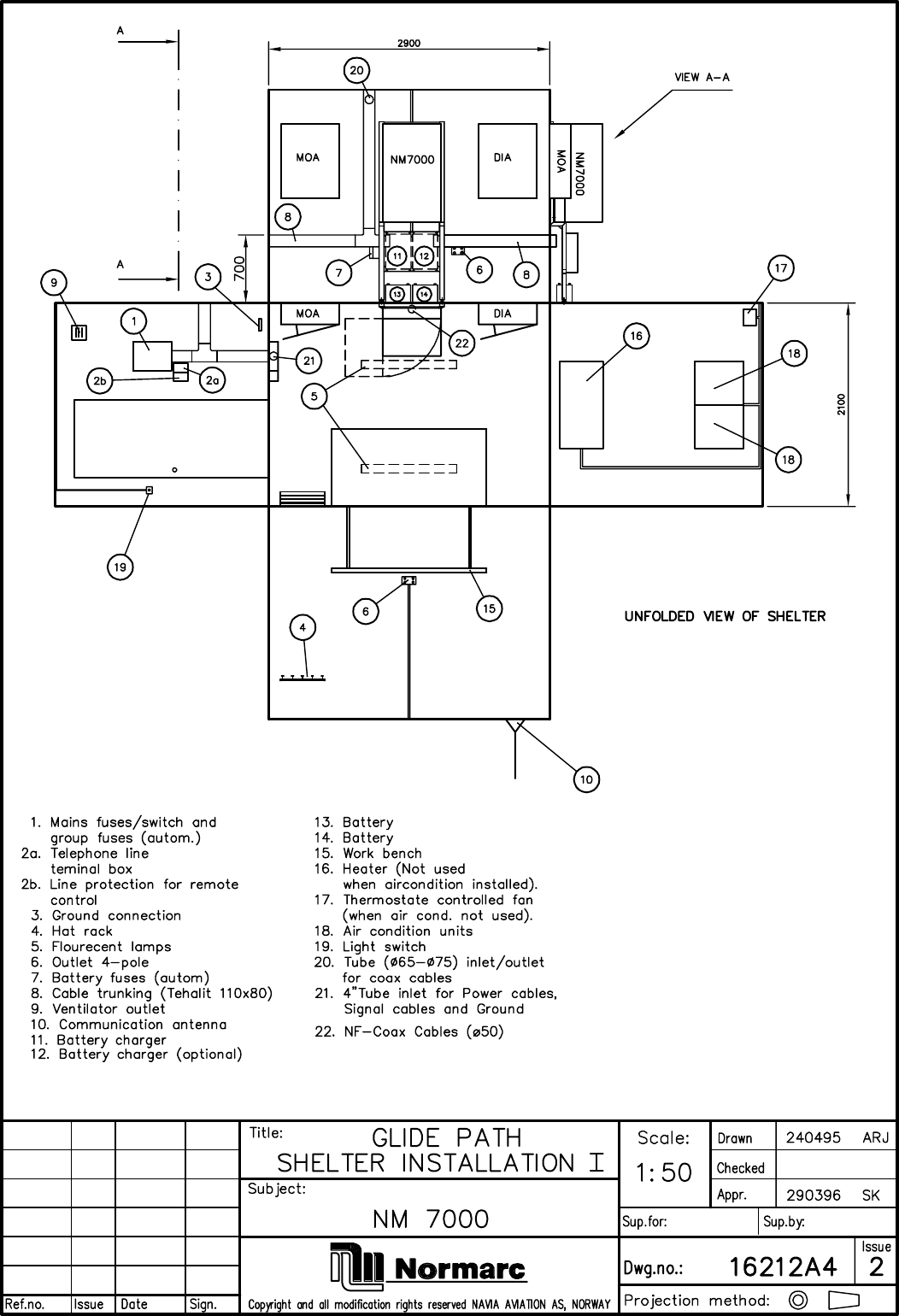

Shelter installation I RWY to the right 16212A4
Shelter installation II RWY to the left 16265A4
Chapter 3. SHELTER INSTALLATION ELECTRICAL
Diagram el. Installation 14220A3
Battery and tele installation 15975A3
El. Installation 15976A3

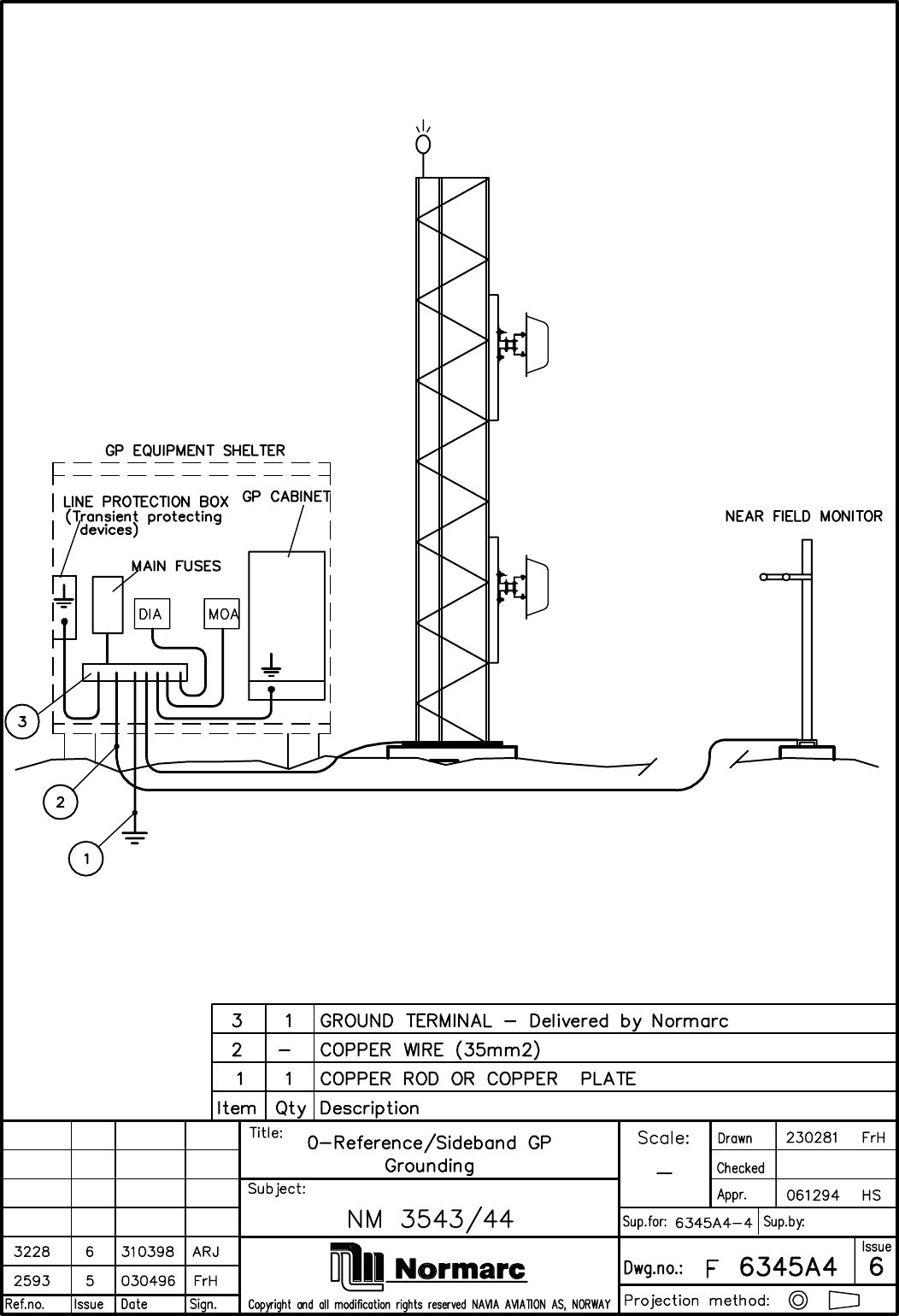

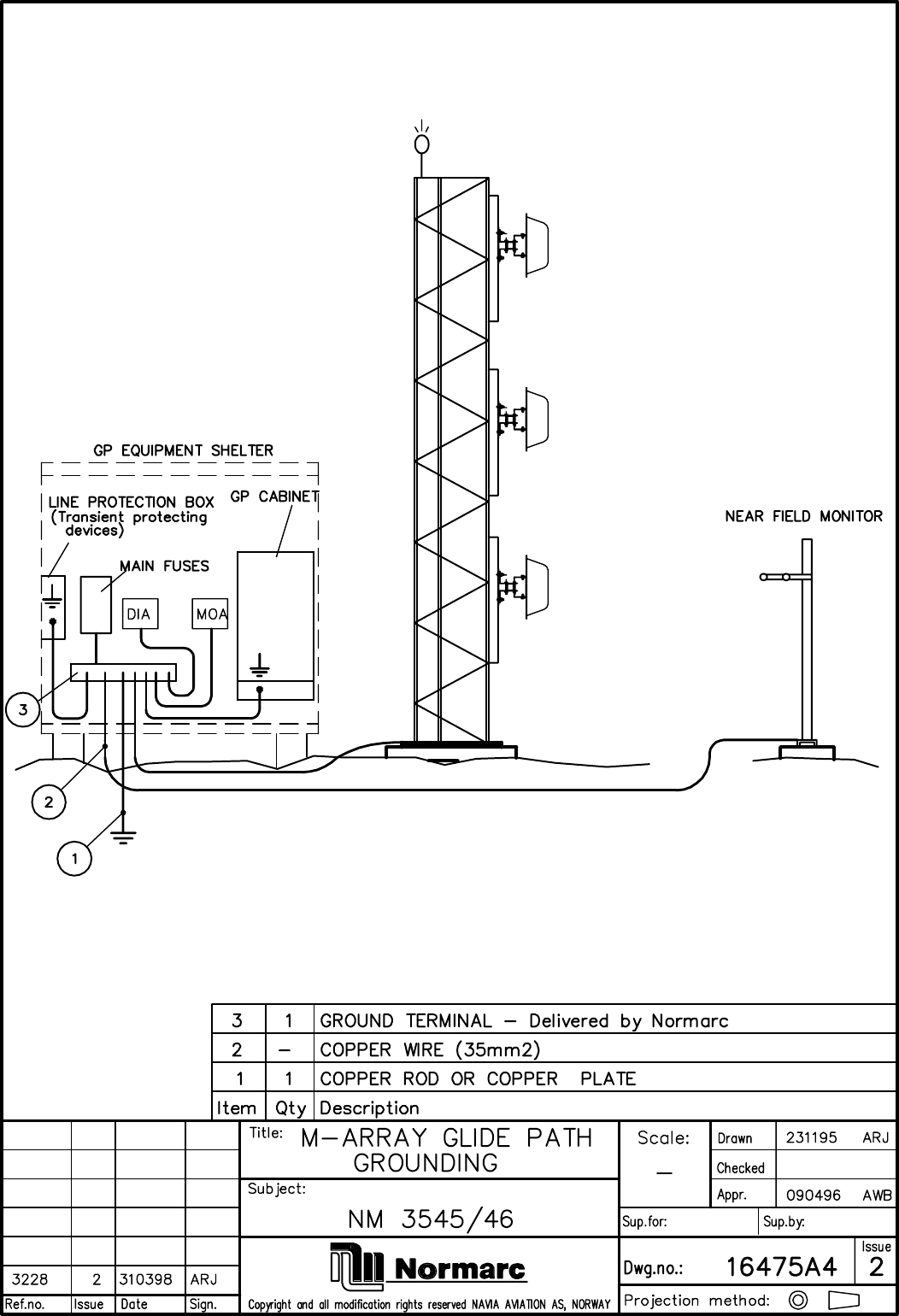

Grounding 15977A3
Chapter 4. EQUIPMENT INST. DIAGRAM
NM 3543 Null reference 16587A3

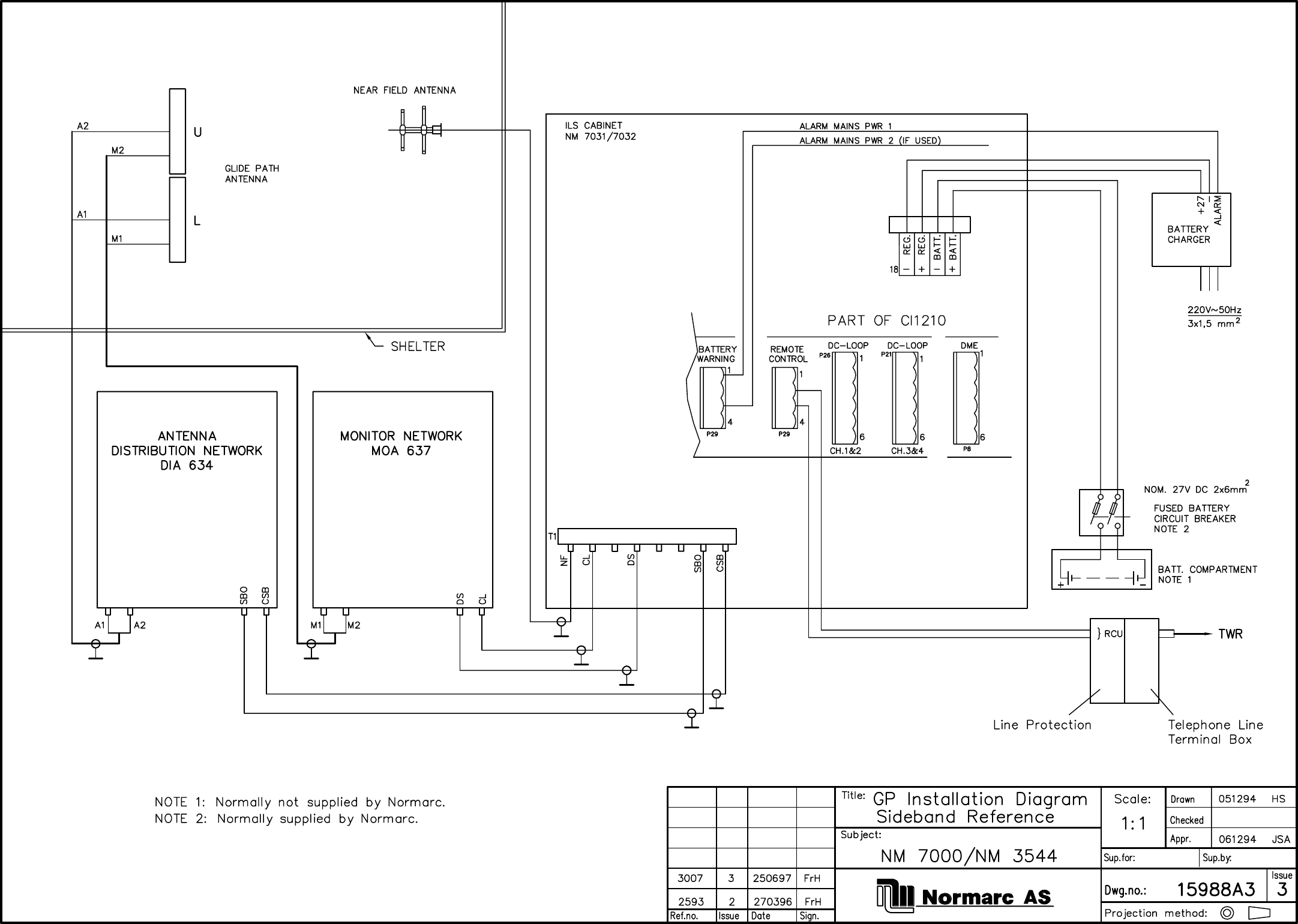

NM 3544 Sideband reference 15988A3

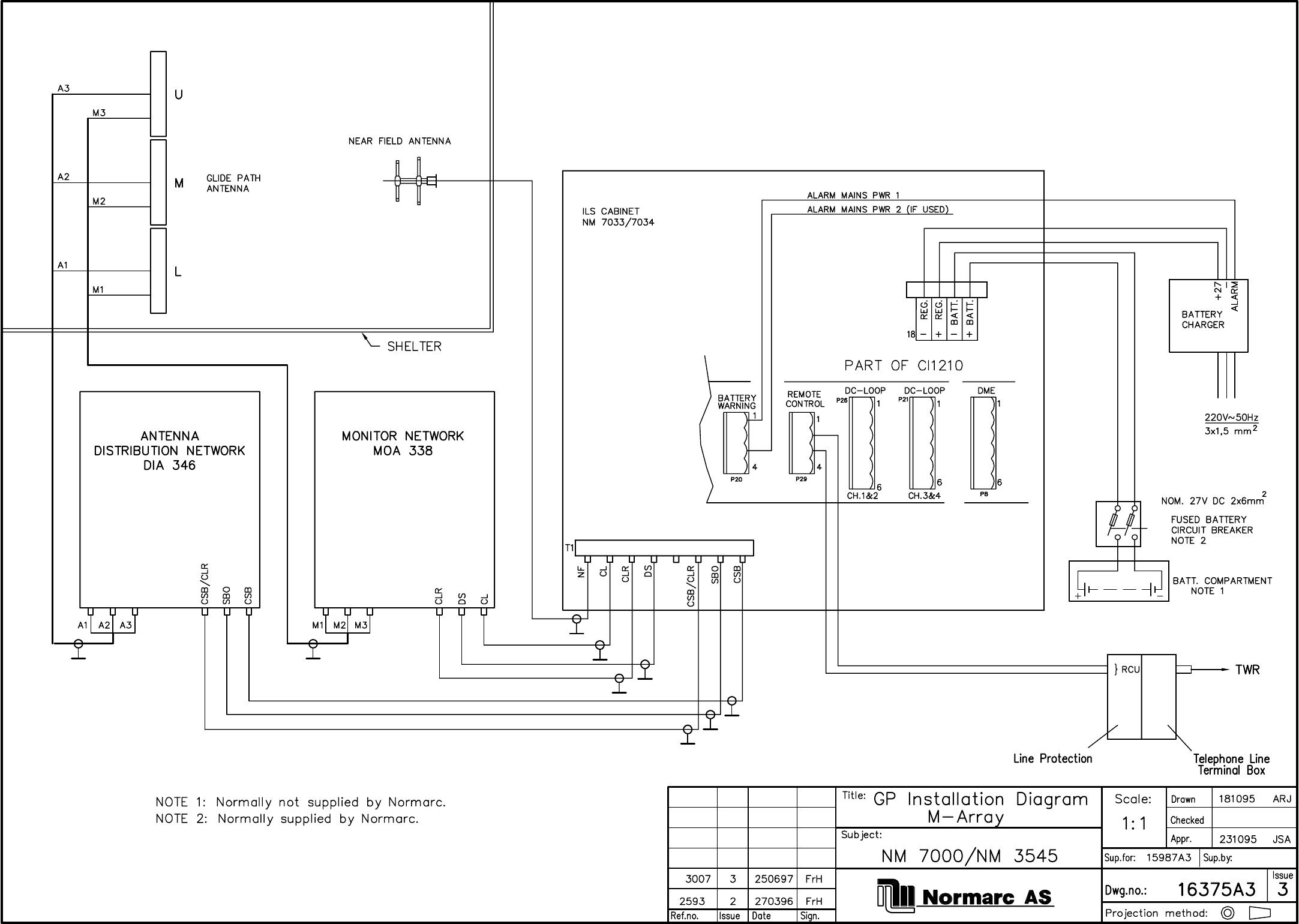

NM 3545 M-array 16375A3

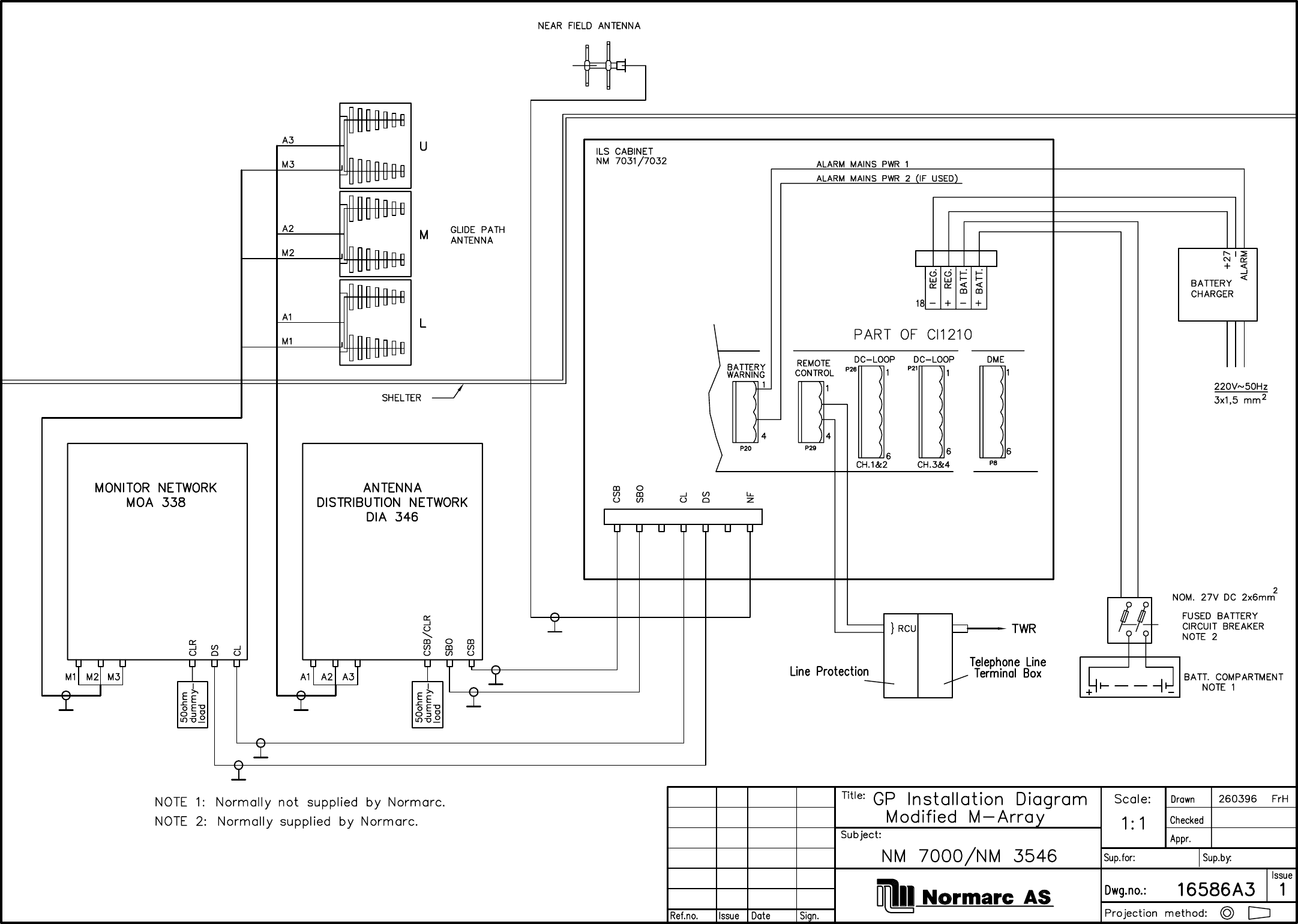

NM 3546 Modified M-array 16586A3
Chapter 5. ANTENNA FOUNDATION

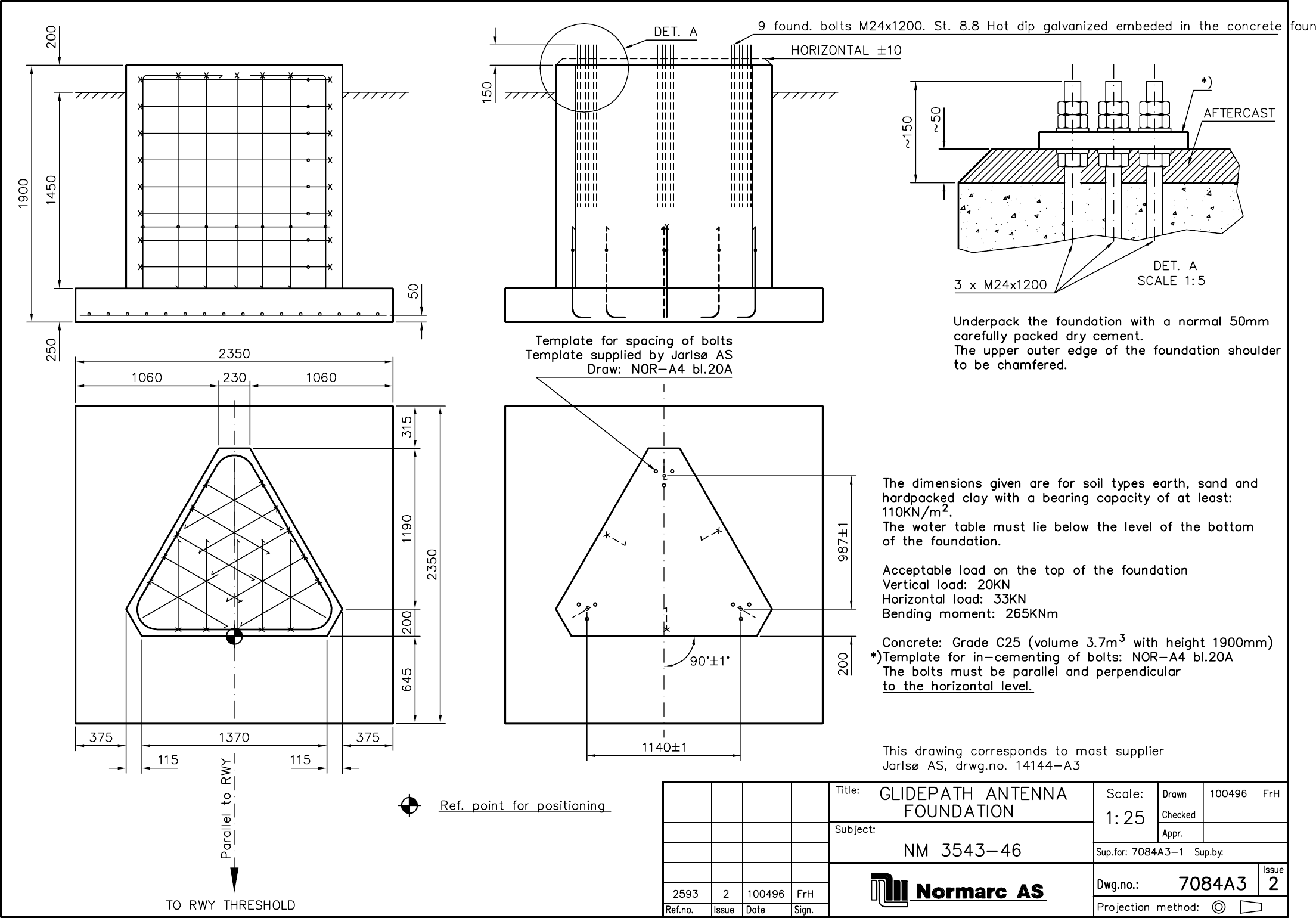

NM 3543 - 46 Antenna Foundation 7084A3

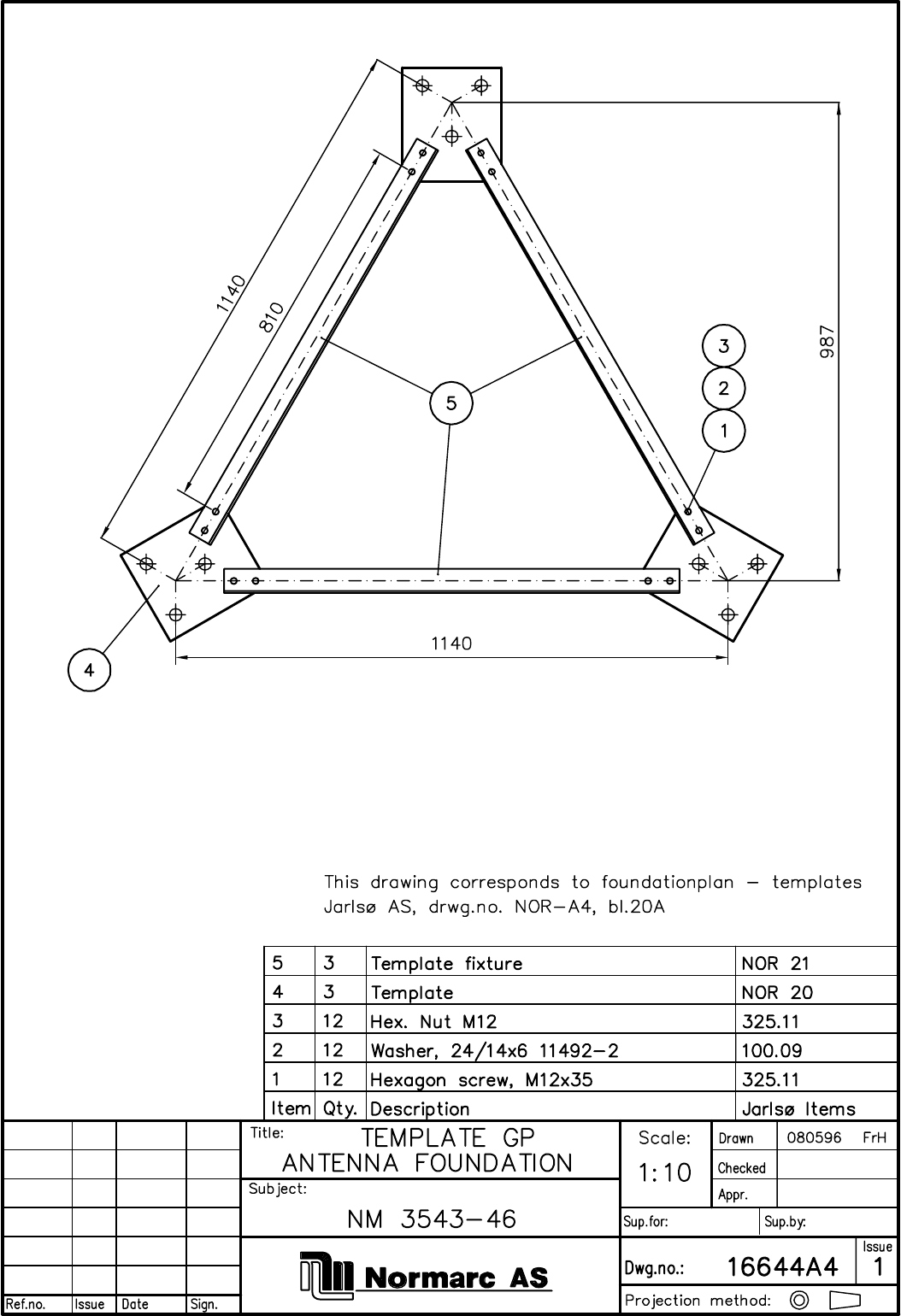

Template Foundation bolts 16644A4
Chapter 6. ANTENNA MAST ASSEMBLY

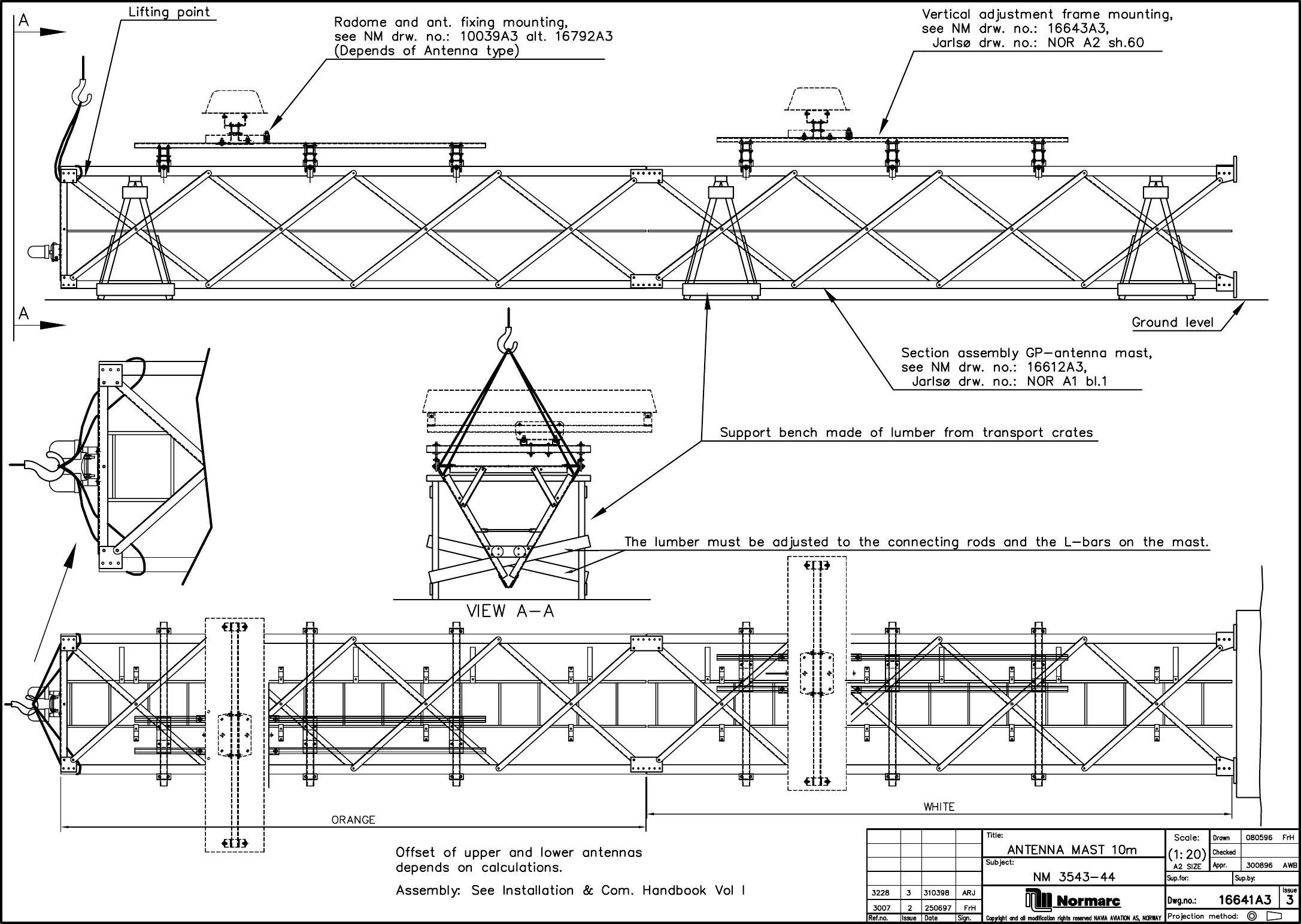

NM 3543 - 44 10 m 16641A3

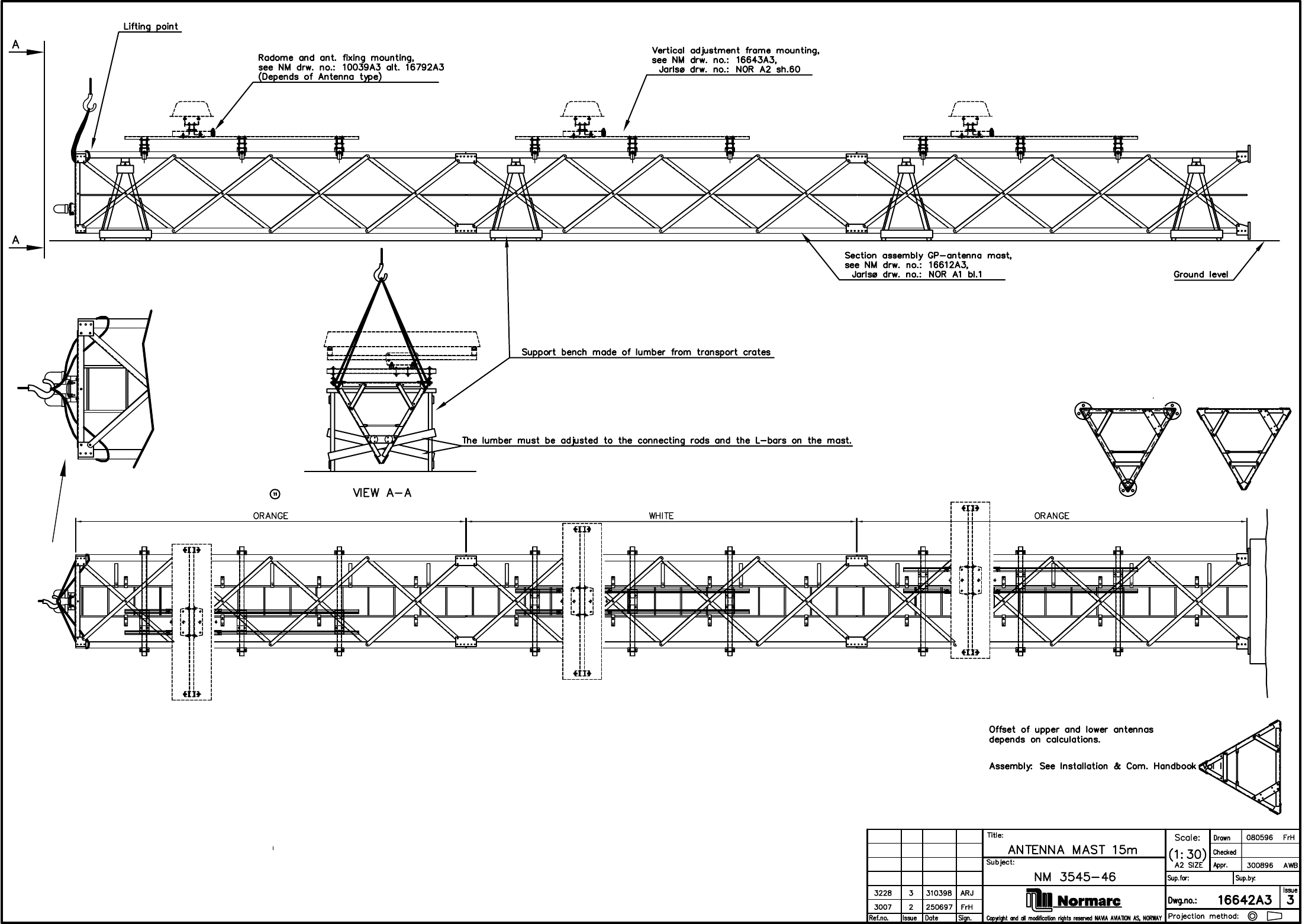

NM 3545 - 46 15 m 16642A3

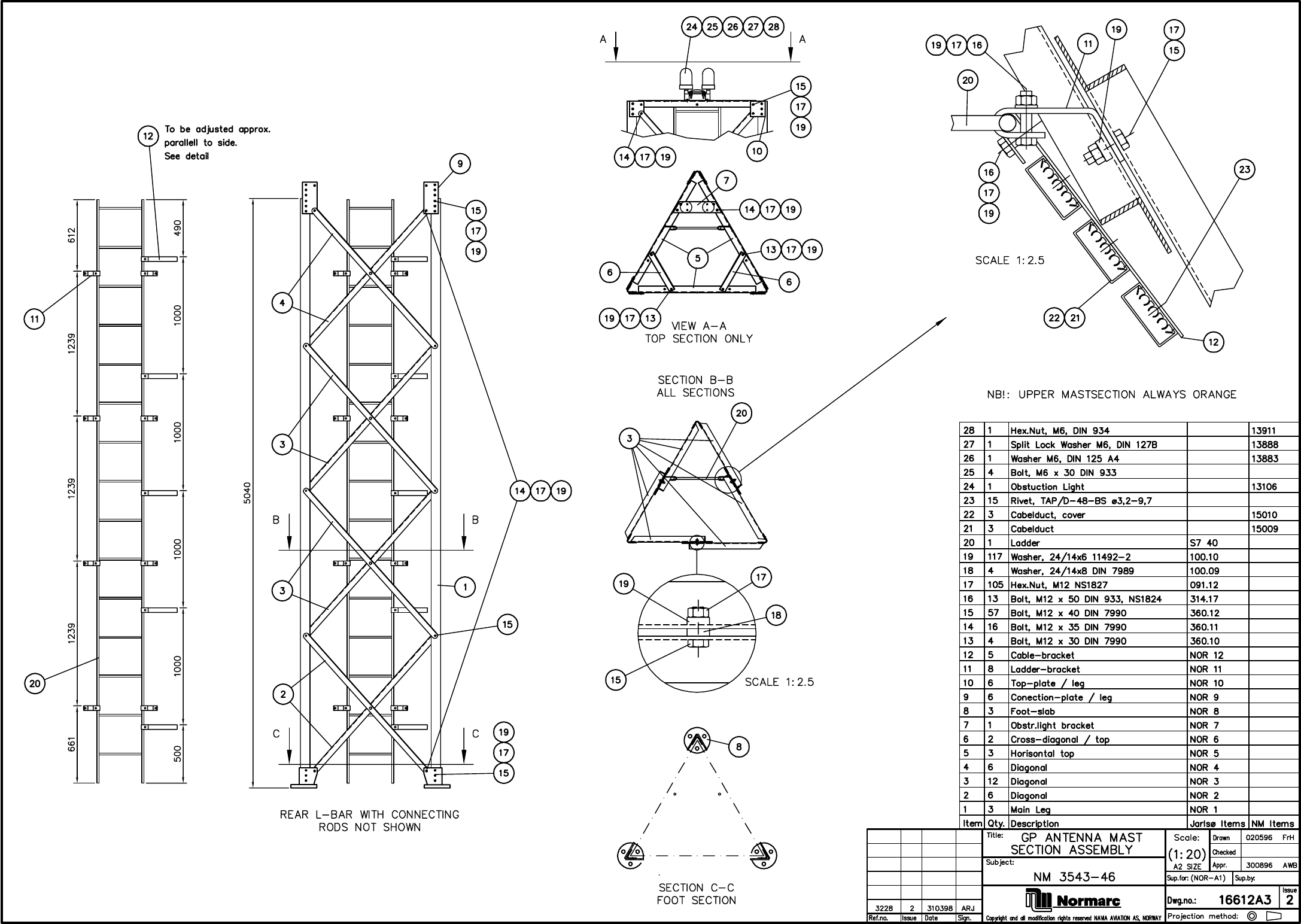

Mast Section Assembly 16612A3

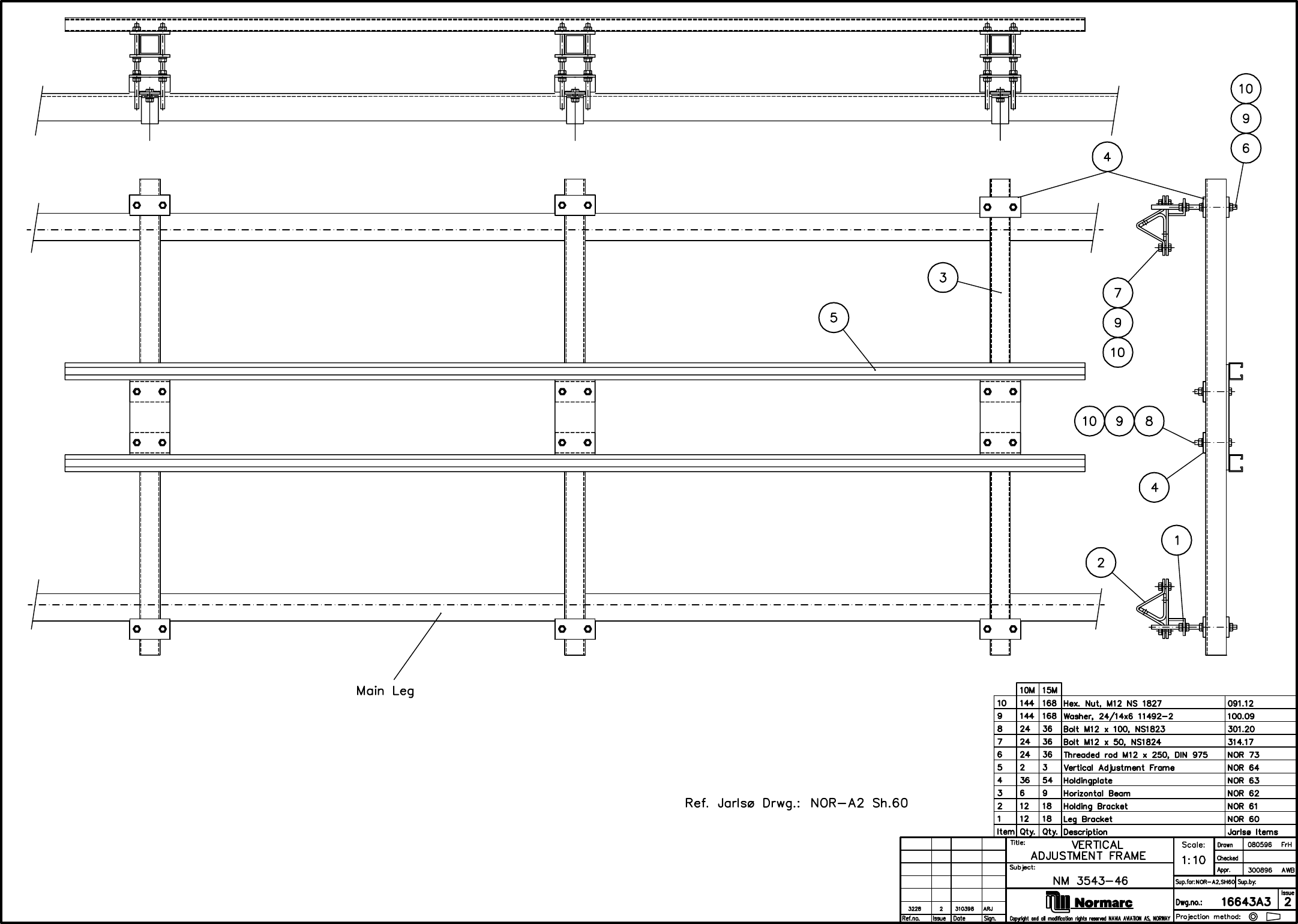

Vertical Adjustment Frame 16643A3

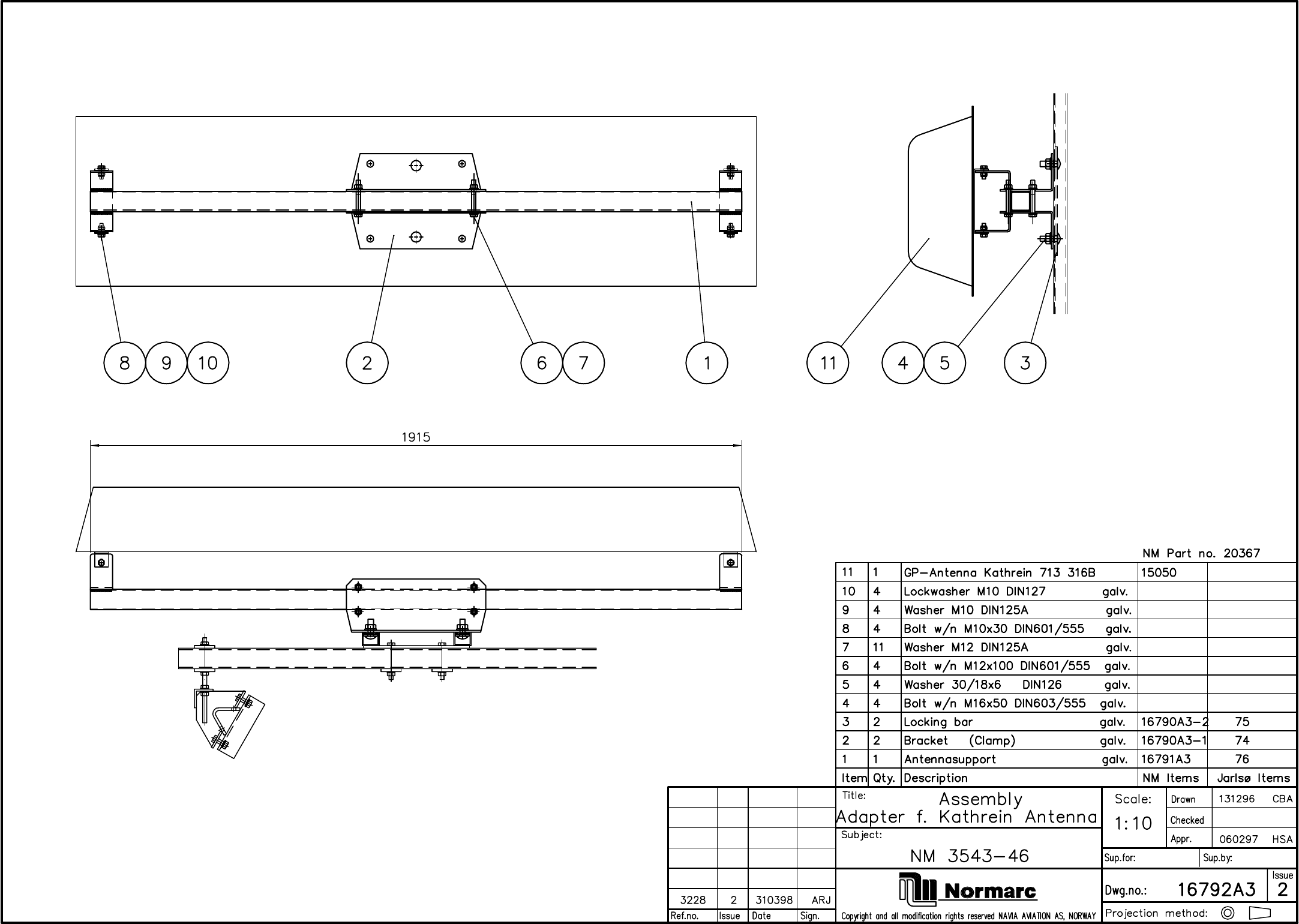

Assembly Adapter Kathrein antenna 16792A3
Suppliers drawings supplied with mast.
Chapter 7. OBSTRUCTION LIGHTS

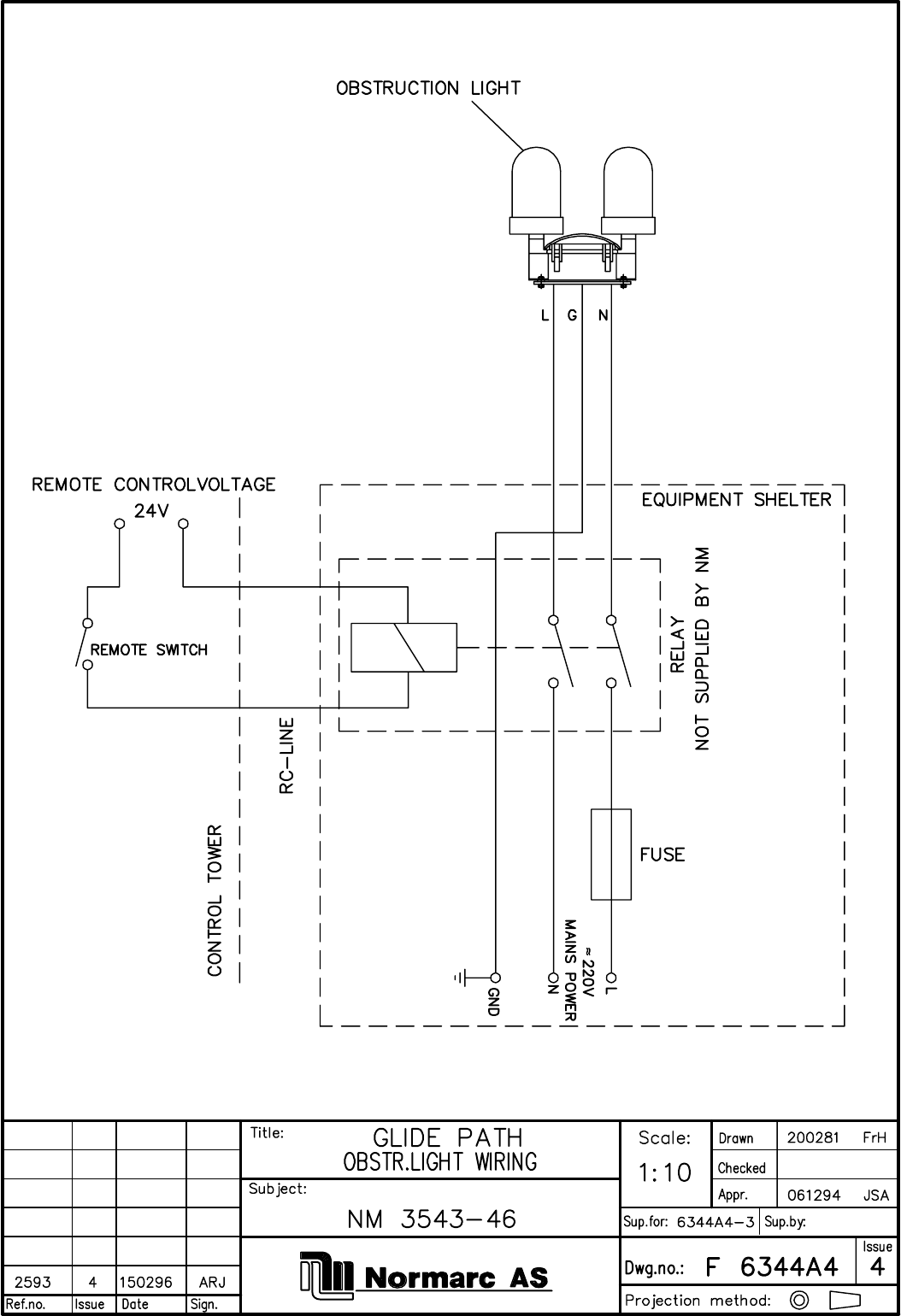

Obstruction Light wiring 6344A4
NORMARC 7000 INSTALLATION & COMMISSIONING HANDBOOK
INSTRUMENT LANDING SYSTEM
1999 NAVIA AVIATION AS 21466-3.0 TABLE OF CONTENTS
SECTION 4
MARKER BEACON
Chapter 1. CONFIGURATIONS
NM 3561 1- Element Marker Beacon 7059A3

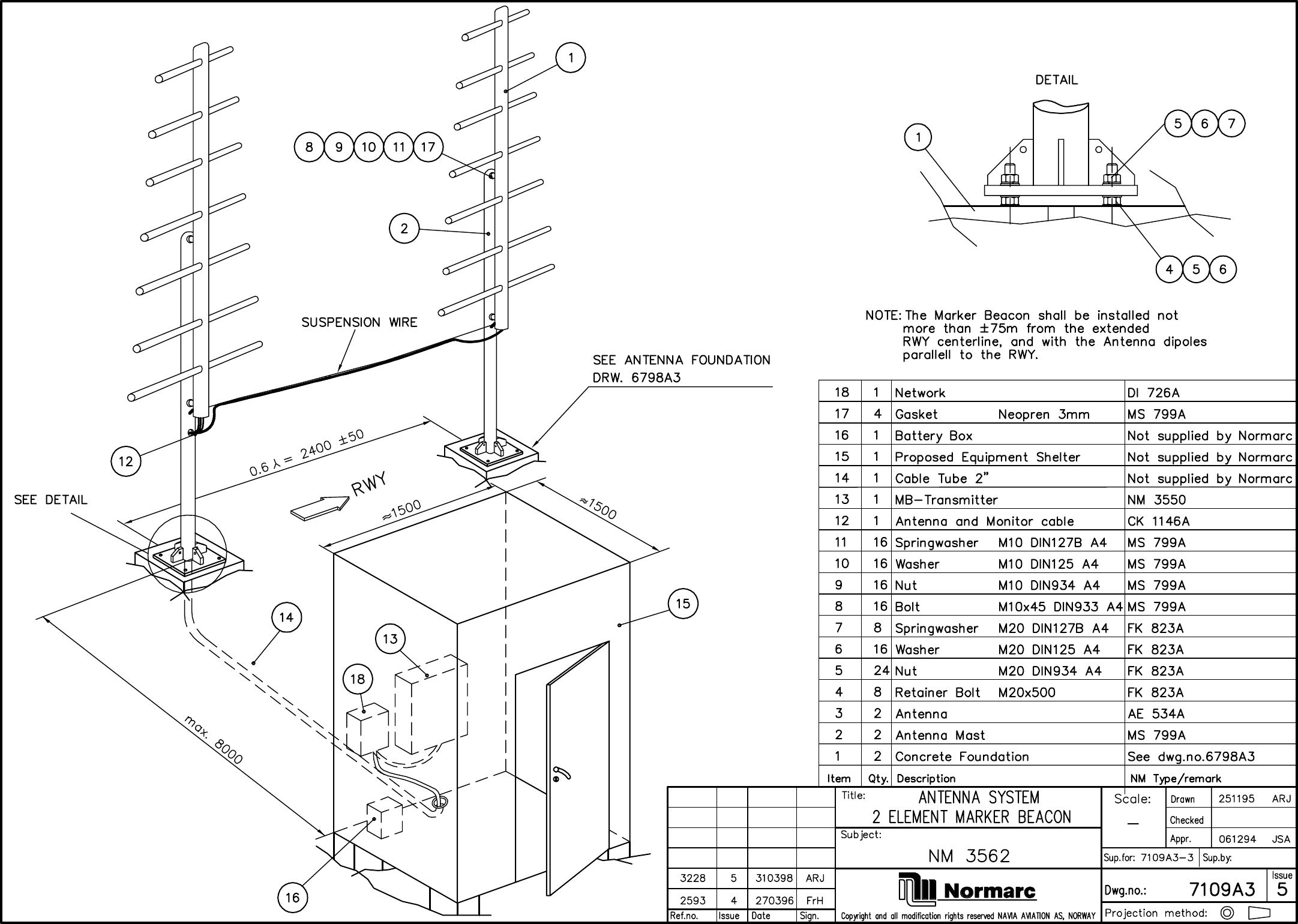

NM 3562 2- Element Marker Beacon (Distr. Netw. inside) 7109A3

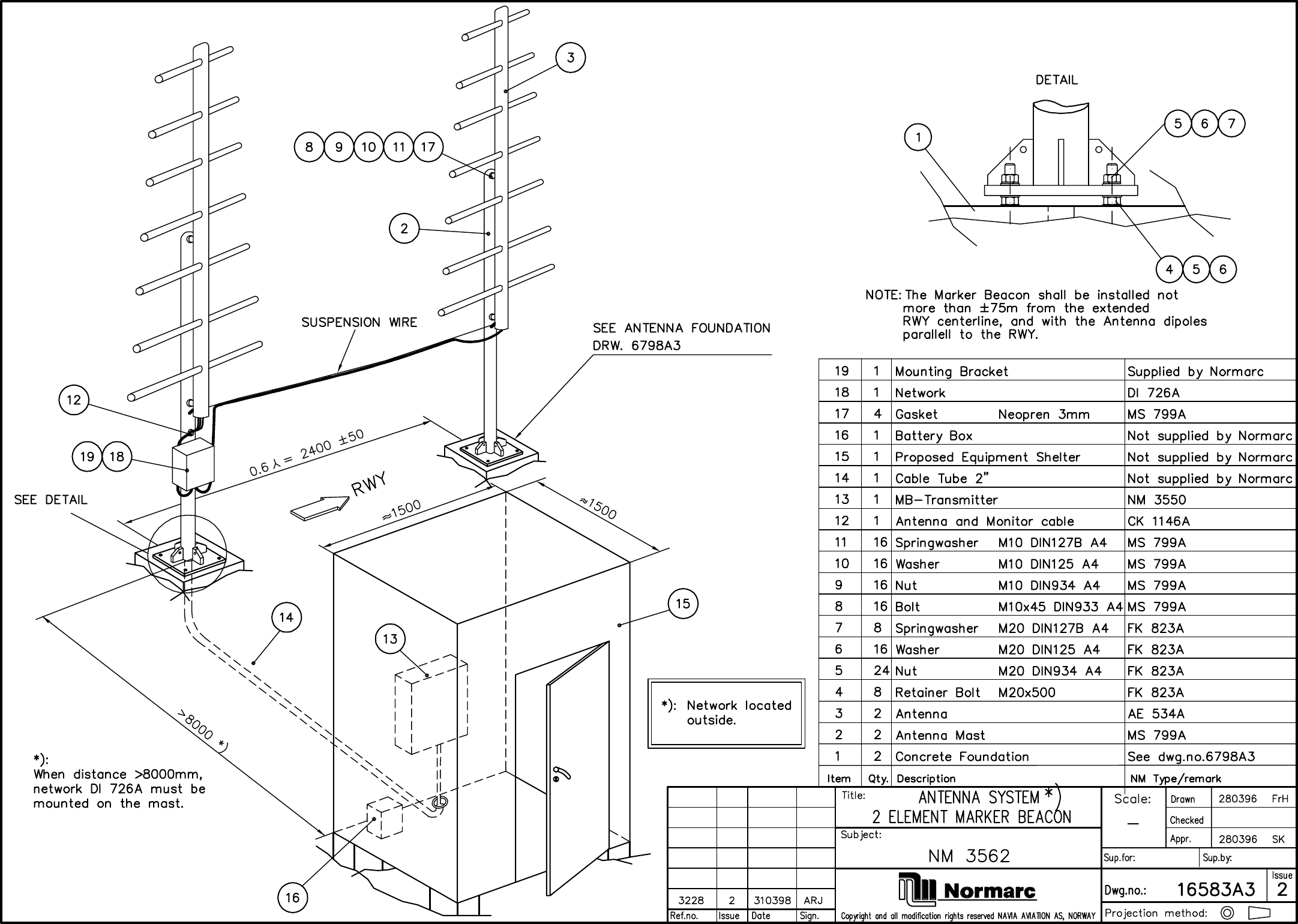

NM 3562 2- Element Marker Beacon (Distr. Netw. outside) 16583A3

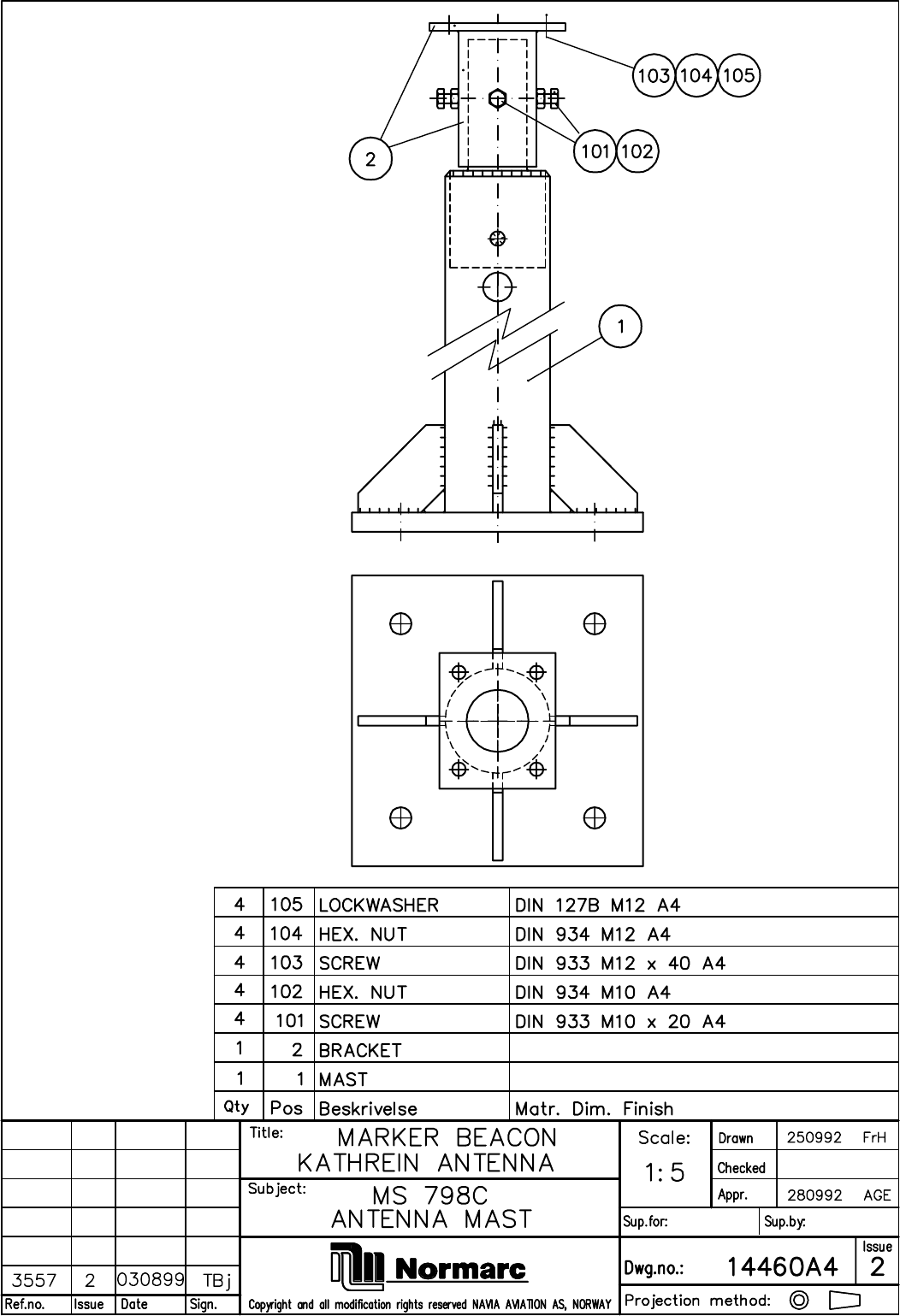

Marker Beacon Mast w/Kathrein Antenna Adapter 14460A4
Chapter 2. SHELTER INSTALLATION MECHANICAL

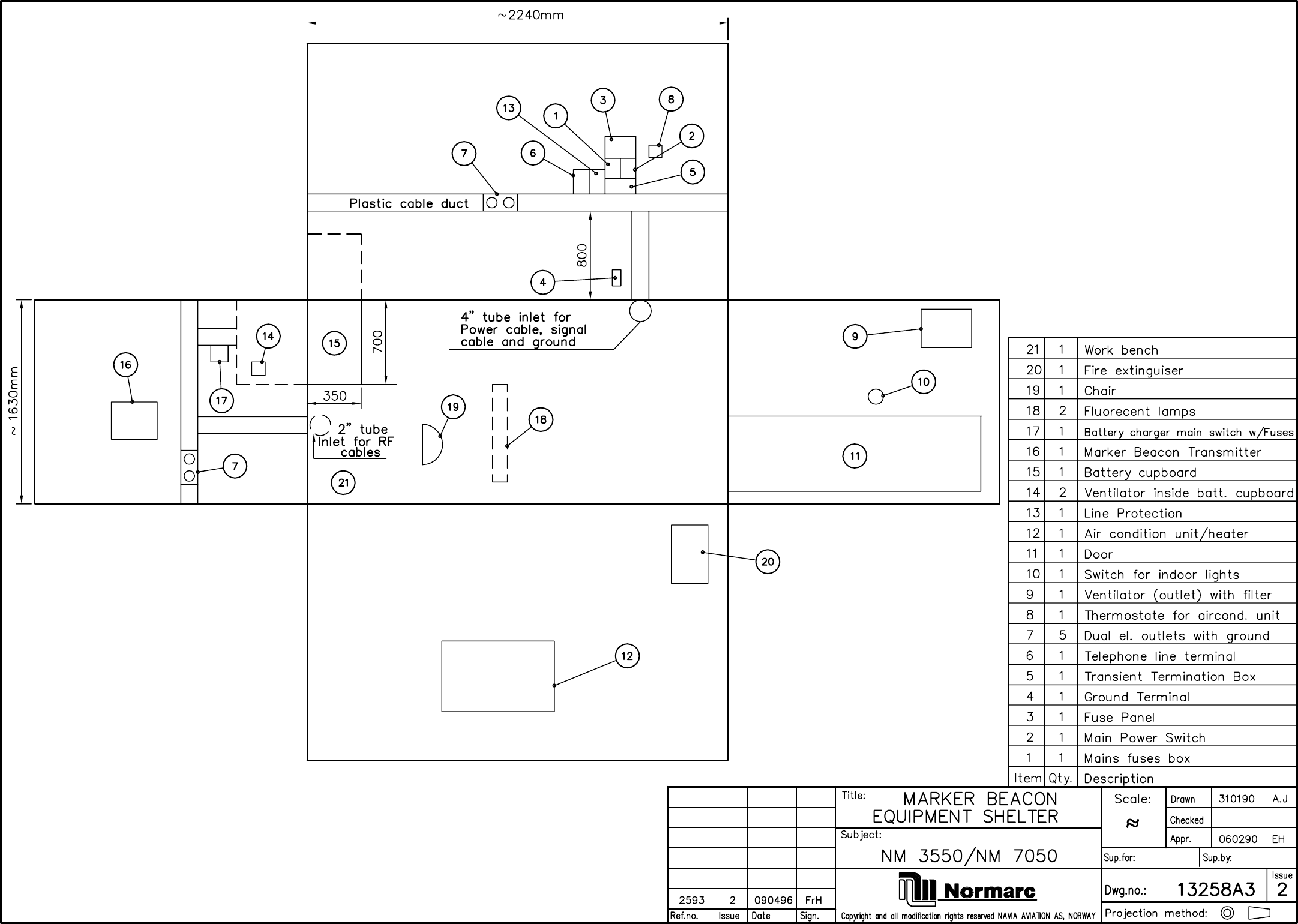

MB Equipment Shelter 13258A3
Chapter 3. EQUIPMENT INST. DIAGRAM

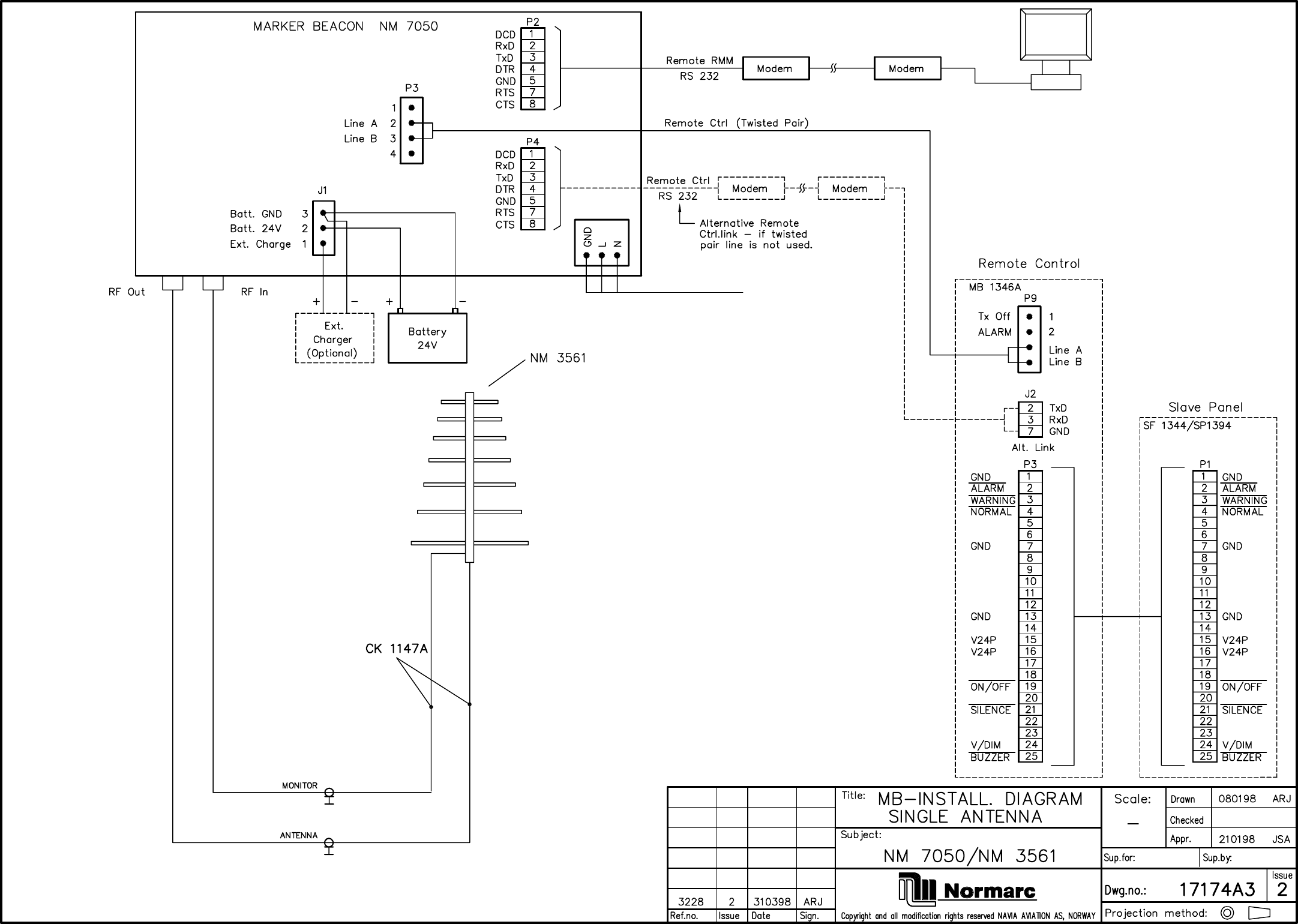

Marker Beacon Single Antenna 17174A3

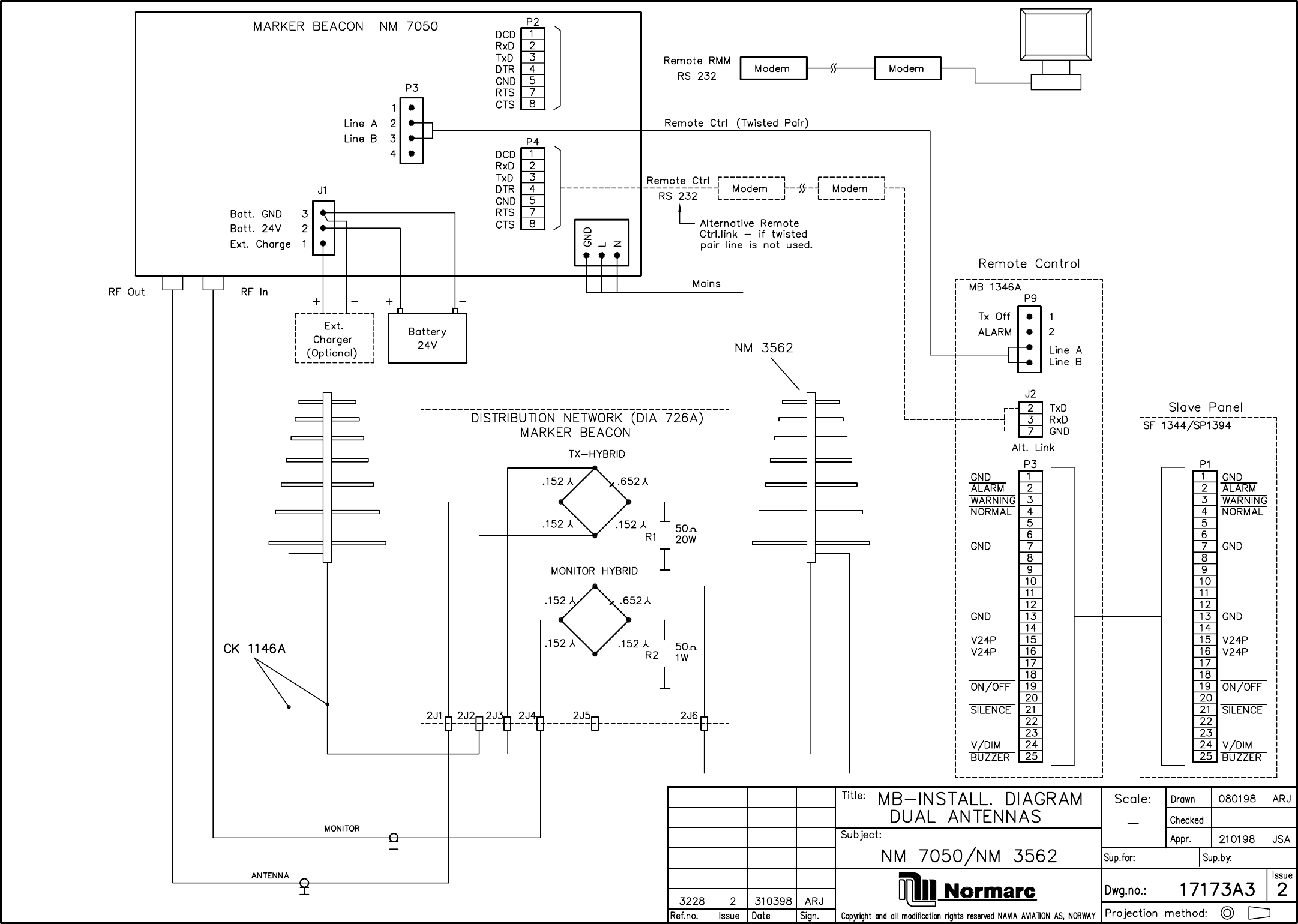

Marker Beacon Dual Antenna 17173A3
Chapter 4. MARKER BEACON FOUNDATION

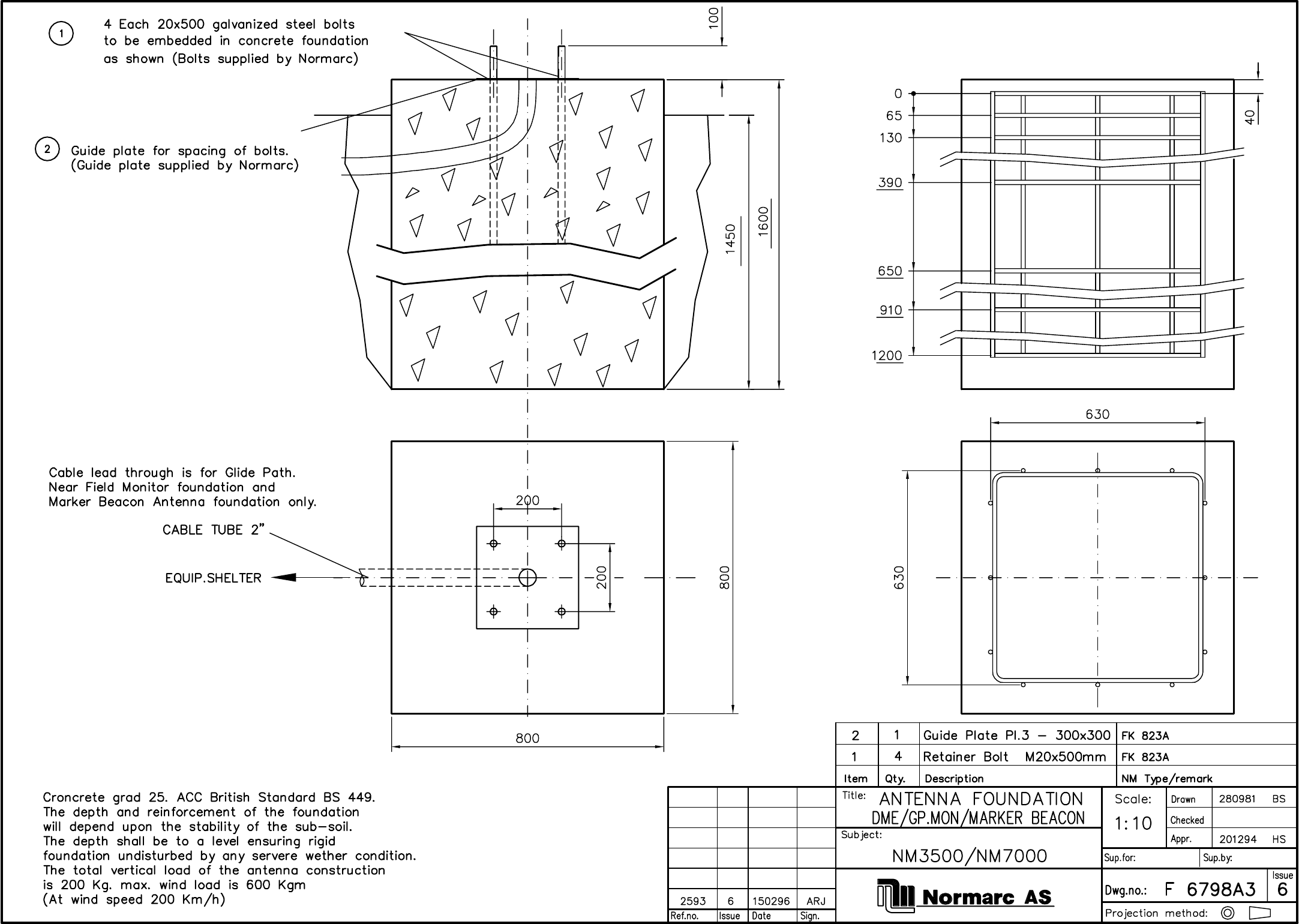

Antenna Foundation 6798A3
Chapter 5. GROUNDING

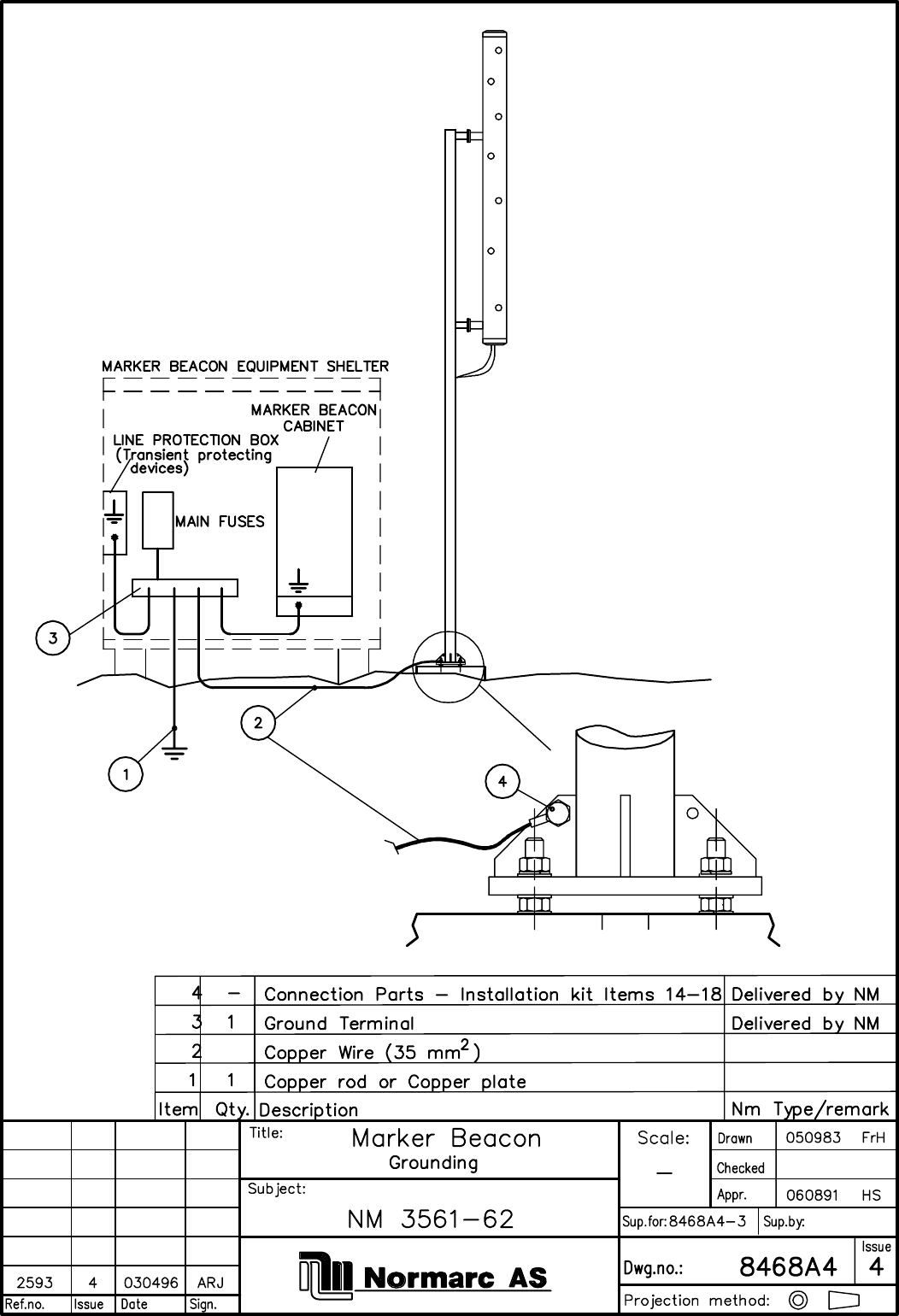

MB Grounding 8468A4
Parts List Page 1 of 1
F162C
Product
NM 3522 Title
6 Elements /1 Freq.LLZ Ant. System Doc.no.
2134 Issue
6
Prepared / Date
ARJ /171095 Approved / Date Assembly dwg.no.
16386A3 Issue
2Reference
2134M06.DOC/PE3140
Item Qty. Description Dwg.no. NM Type/remark
1 6 Antenna element AE 493H
2 2 Al.bar 16373A3 AF 1166A
3 4 Al.bar 16373A3 AF 1166A
4 18 Bed plate 16373A3 AF 1166A
5 4 Junction plate 16373A3 AF 1166A
6 4 Stay bar 16373A3 AF 1166A
7 1 Stay bar 16373A3 AF 1166A
8 18 Clamping angle 16373A3 FK 809B
9 36 Foundation bolts 16373A3 FK 809B
10 6 Stays w/safe.joint 16376A3 MS 692 *1*
11 6 Stays w/safe joint *2* 16376A3 MS 692 *1*
12 24 Al.Stays 16376A3 MS 692 *1*
13 6 Mast front 16376A3 MS 692 *1*
14 6 Mast rear 16376A3 MS 692 *1*
15 1 Protection cover Assembly *5* 16361A3 PC 512A/E
16 2 Obstruction light Assembly 11463A3 OL 522D
17 1 Cable duct Assembly 16384A3 CDA 1044A/B *4*
18 1 Flexible conduit à 25 m CDA 1044A/B
19 23 Conduit nippel CDA 1044A/B *4* 6 pcs.
20 23 Nut CDA 1044A/B *4* 6 pcs.
21 3 Grommet CDA 1044A/B
101 48 Bolt M10x60 DIN 933 A4 16373A3
102 48 Nut M10 DIN 934 A4 16373A3
103 48 Springwasher M10 DIN 127B A4 16373A3
104 48 Washer M10 DIN 125 A4 16373A3
106 134 Nut M12 DIN 934 A4 16373A3 146 pcs. *3*
107 134 Washer M12 DIN 125 A4 16373A3 146 pcs. *3*
108 134 Spring washer M12 DIN 127B A4 16373A3 146 pcs. *3*
109 72 Bolt M12x40 DIN 933 A4 16373A3
110 24 Bolt M12x100 DIN 933 A4 16373A3 36 pcs. *3*
111 40 Bolt M6x16 DIN 933 A4 16373A3
112 40 Washer M6 DIN 125 A4 16373A3
*1*: Type depends on mast height, to be agreed
with customer.
*2*: Applicable to 3,2-5M masts only.
*3*: Quantity when 3,2-5M masts are used.
*4*: Quantity and type depends of installation, to
be agreed with customer.
*5* Type with bottomplate, to be agreed with
customer (dwg.no.14744A3)
Parts List Page 1 of 1
F162C
Product
NM 3524 Title
12 Elements /2 Freq.LLZ Ant. System Doc.no.
2136 Issue
6
Prepared / Date
ARJ /291095 Approved / Date Assembly dwg.no.
16389A3 Issue
2Reference
2136M06.DOC/PE3140
Item Qty. Description Dwg.no. NM Type/remark
1 4 Al.bar 16413A3 AF 693A
2 4 Al.bar 16413A3 AF 693A
3 2 Al.bar 16413A3 AF 693A
4 22 Support 16413A3 AF 693A
5 8 Junction plate 16413A3 AF 693A
6 6 Stay bar 16413A3 AF 693A
7 1 Stay bar 16413A3 AF 693A
8 22 Clamping angle 16413A3 FK 809A
9 44 Foundation bolts 16413A3 FK 809A
10 12 Stays w/safe.joint 16376A3 MS 692 *1*
11 12 Stays w/safe joint *2* 16376A3 MS 692 *1*
12 48 Al.Stays 16376A3 MS 692 *1*
13 12 Mast front 16376A3 MS 692 *1*
14 12 Mast rear 16376A3 MS 692 *1*
15 1 Protection cover Assembly *5* 16361A3 PC 512C/G
16 2 Obstruction light Assembly 11463A3 OL 522C
17 1 Cable duct Assembly 16416A3 CDA 1044E/F *4*
18 1 Flexible conduit a 25m CDA 1044E/F
19 44 Conduit nippel CDA 1044E/F *4* 12 pcs.
20 44 Nut CDA 1044E/F *4* 12 pcs.
21 12 Antenna Element AE 493H
22 3 Grommet CDA 1044E/F
23 11 Al.Bars for bedplate (option) 20373
101 96 Bolt M10x60 DIN 933 A4 16413A3
102 96 Nut M10 DIN 934 A4 16413A3
103 96 Springwasher M10 DIN 127B A4 16413A3
104 96 Washer M10 DIN 125 A4 16413A3
106 232 Nut M12 DIN 934 A4 16413A3 256 pcs. *3*
107 232 Washer M12 DIN 125 A4 16413A3 256 pcs. *3*
108 232 Spring washer M12 DIN 127B A4 16413A3 256 pcs. *3*
109 142 Bolt M12x40 DIN 933 A4 16413A3
110 48 Bolt M12x100 DIN 933 A4 16413A3 72 pcs. *3*
111 64 Bolt M6x16 DIN 933 A4 16413A3
112 64 Washer M6 DIN 125 A4 16413A3
*1*: Type depends on mast height, to be agreed
with customer.
*2*: Applicable to 3.2-5M masts only.
*3*: Quantity when 3.2-5M masts are used.
*4*: Quantity and type depends of installation, to
be agreed with customer.
*5* Type with bottomplate, to be agreed with
customer (dwg.no. 14757A3)
Parts List Page 1 of 1
F162C
Product
NM 3525 Title
24 Elements /2 Freq.LLZ Ant. System Doc.no.
2137 Issue
7
Prepared / Date
ARJ /291095 Approved / Date Assembly dwg.no.
16391A3 Issue
4Reference
2137M07.DOC/PE3140
Item Qty. Description Dwg.no. NM Type/remark
1 4 Al.bar 16414A3 AF 695A
2 4 Al.bar 16414A3 AF 695A
3 4 Al.bar 16414A3 AF 695A
4 4 Al.bar 16414A3 AF 695A
5 2 Al.bar 16414A3 AF 695A
6 46 Bed plate 16414A3 AF 695A
7 16 Junction plate 16414A3 AF 695A
8 10 Stay bar 16414A3 AF 695A
9 1 Stay bar 16414A3 AF 695A
10 46 Clamping angle 16414A3 FK 809E
11 92 Foundation bolts 16414A3 FK 809E
12 24 Stays w/safe.joint 16376A3 MS 692 *1*
13 24 Stays w/safe joint *2* 16376A3 MS 692 *1*
14 96 Al.Stays 16376A3 MS 692 *1*
15 24 Mast front 16376A3 MS 692 *1*
16 24 Mast rear 16376A3 MS 692 *1*
17 1 Protection cover Assembly *5* 16361A3 PC 512C/G
18 2 Obstruction light Assembly 11463A3 OL 522D
19 1 Cable duct Assembly 16417A3 CDA 1044G/H *4*
20 3 Flexible conduit à 25 m CDA 1044G/H
21 80 Conduit nippel CDA 1044G/H *4* 24 pcs.
22 80 Nut CDA 1044G/H *4* 24 pcs.
23 24 Antenna Element AE 493H
24 3 Grommet CDA 1044G/H
101 192 Bolt M10x60 DIN 933 A4 16414A3
102 192 Nut M10 DIN 934 A4 16414A3
103 192 Springwasher M10 DIN 127B A4 16414A3
104 192 Washer M10 DIN 125 A4 16414A3
106 466 Nut M12 DIN 934 A4 16414A3 498 pcs. *3*
107 466 Washer M12 DIN 125 A4 16414A3 498 pcs. *3*
108 466 Spring washer M12 DIN 127B A4 16414A3 498 pcs. *3*
109 278 Bolt M12x40 DIN 933 A4 16414A3
110 96 Bolt M12x100 DIN 933 A4 16414A3 144 pcs. *3*
111 104 Bolt M6x16 DIN 933 A4 16414A3
112 104 Washer M6 DIN 125 A4 16414A3
*1*: Type depends on mast height, to be agreed
with customer.
*2*: Applicable to 3.2-5M masts only.
*3*: Quantity when 3.2-5M masts are used.
*4*: Quantity and type depends of installation, to
be agreed wiyh customer.
*5* Type with bottomplate, to be agreed with
customer (dwg.no. 14757A3)
Parts List Page 1 of 1
F162C
Product
NM 3526 Title
16 Elements /2 Freq.LLZ Ant. System Doc.no.
2670 Issue
4
Prepared / Date
ARJ /291095 Approved / Date Assembly dwg.no.
16362A3 Issue
2Reference
2670M04.DOC/PE3164
Item Qty. Description Dwg.no. NM Type/remark
1 16 Antenna AE 493H
2 4 Al.bar 16430A3 AF 695B
3 4 Al.bar 16430A3 AF 695B
4 4 Al.bar 16430A3 AF 695B
5 2 Al.bar 16430A3 AF 695B
6 38 Bed plate 16430A3 AF 695B
7 12 Junction plate 16430A3 AF 695B
8 8 Stay bar 16430A3 AF 695B
9 1 Stay bar 16430A3 AF 695B
10 38 Clamping angle 16430A3 FK 809F
11 76 Foundation bolts 16430A3 FK 809F
12 16 Stays w/safe.joint 16376A3 MS 692 *1*
13 16 Stays w/safe joint *2* 16376A3 MS 692 *1*
14 64 Al.Stays 16376A3 MS 692 *1*
15 16 Mast front 16376A3 MS 692 *1*
16 16 Mast rear 16376A3 MS 692 *1*
17 1 Protection cover Assembly *5* 16361A3 PC 512H/i
18 2 Obstruction light Assembly 11463A3 OL 522D
19 1 Cable duct Assembly 16429A3 CDA 1044i/J *4*
20 3 Flexible conduit à 25 m CDA 1044i/J
21 58 Conduit nippel CDA 1044i/J *4* 12 psc.
22 58 Nut CDA 1044i/J *4* 12 psc.
23 3 Grommet CDA 1044i/J
101 128 Bolt M10x60 DIN 933 A4 16430A3
102 128 Nut M10 DIN 934 A4 16430A3
103 128 Springwasher M10 DIN 127B A4 16430A3
104 128 Washer M10 DIN 125 A4 16430A3
16430A3
105 324 Nut M12 DIN 934 A4 16430A3 328 psc. *3*
106 324 Washer M12 DIN 125 A4 16430A3 328 psc. *3*
107 324 Spring washer M12 DIN 127B A4 16430A3 328 psc. *3*
108 192 Bolt M12x40 DIN 933 A4 16430A3
109 64 Bolt M12x100 DIN 933 A4 16430A3 96 psc. *3*
110 88 Bolt M6x16 DIN 933 A4 16430A3
111 88 Washer M6 DIN 125 A4 16430A3
*1*: Type depends on mast height, to be agreed
with customer.
*2*: Applicable to 3.2-5M masts only.
*3*: Quantity when 3.2-5M masts are used.
*4*: Quantity and type depends of installation, to
be agreed with customer.
*5* Type with bottomplate, to be agreed with
customer (dwg.no.17168A3)
Parts List Page 1 of 1
F162C
Product
NM 3523B Title
12 Elements /1 Freq.LLZ Ant. System Doc.no.
2748 Issue
2
Prepared / Date
ARJ /140497 Approved / Date Assembly dwg.no.
16874A3 Issue
3Reference
2748M02.DOC/PE3140
Item Qty. Description Dwg.no. NM Type/remark
1 4 Al.bar 16876A3 AF 544B
2 4 Al.bar 16876A3 AF 544B
3 4 Al.bar 16876A3 AF 544B
4 2 Al.bar 16876A3 AF 544B
5 34 Support 16876A3 AF 544B
6 12 Junction plate 16876A3 AF 544B
7 8 Stay bar 16876A3 AF 544B
8 1 Stay bar 16876A3 AF 544B
9 34 Clamping angle 16876A3 FK 809G
10 68 Foundation bolts 16876A3 FK 809G
11 12 Stays w/safe.joint 16376A3 MS 692 *1*
12 12 Stays w/safe joint *2* 16376A3 MS 692 *1*
13 48 Al.Stays 16376A3 MS 692 *1*
14 12 Mast front 16376A3 MS 692 *1*
15 12 Mast rear 16376A3 MS 692 *1*
16 1 Protection cover Assembly *5* 16361A3 PC 512J/K
17 2 Obstruction light Assembly 11463A3 OL 522D
18 1 Cable duct Assembly 16417A3 CDA 1044K/L *4*
19 3 Flexible conduit à 25 m CDA 1044K/L
20 41 Conduit nippel CDA 1044K/L *4* 12 pcs.
21 41 Nut CDA 1044K/L *4* 12 pcs.
22 12 Antenna Element AE 493H
23 3 Grommet CDA 1044K/L
101 96 Bolt M10x60 DIN 933 A4 16876A3
102 96 Nut M10 DIN 934 A4 16876A3
103 96 Springwasher M10 DIN 127B A4 16876A3
104 96 Washer M10 DIN 125 A4 16876A3
106 238 Nut M12 DIN 934 A4 16876A3 262 pcs. *3*
107 238 Washer M12 DIN 125 A4 16876A3 262 pcs. *3*
108 238 Spring washer M12 DIN 127B A4 16876A3 262 pcs. *3*
109 142 Bolt M12x40 DIN 933 A4 16876A3
110 48 Bolt M12x100 DIN 933 A4 16876A3 72 pcs. *3*
111 80 Bolt M6x16 DIN 933 A4 16876A3
112 80 Washer M6 DIN 125 A4 16876A3
*1*: Type depends on mast height, to be agreed
with customer.
*2*: Applicable to 3.2-5M masts only.
*3*: Quantity when 3.2-5M masts are used.
*4*: Quantity and type depends of installation, to
be agreed with customer.
*5* Type with bottom plate, to be agreed with
customer. (Dwg.no.16871A3)
