Lelux Electronics 502R WIRELESS REMOTE CONTROL User Manual 500R homesafe blister

Lelux Electronics Ltd WIRELESS REMOTE CONTROL 500R homesafe blister

Users Manual

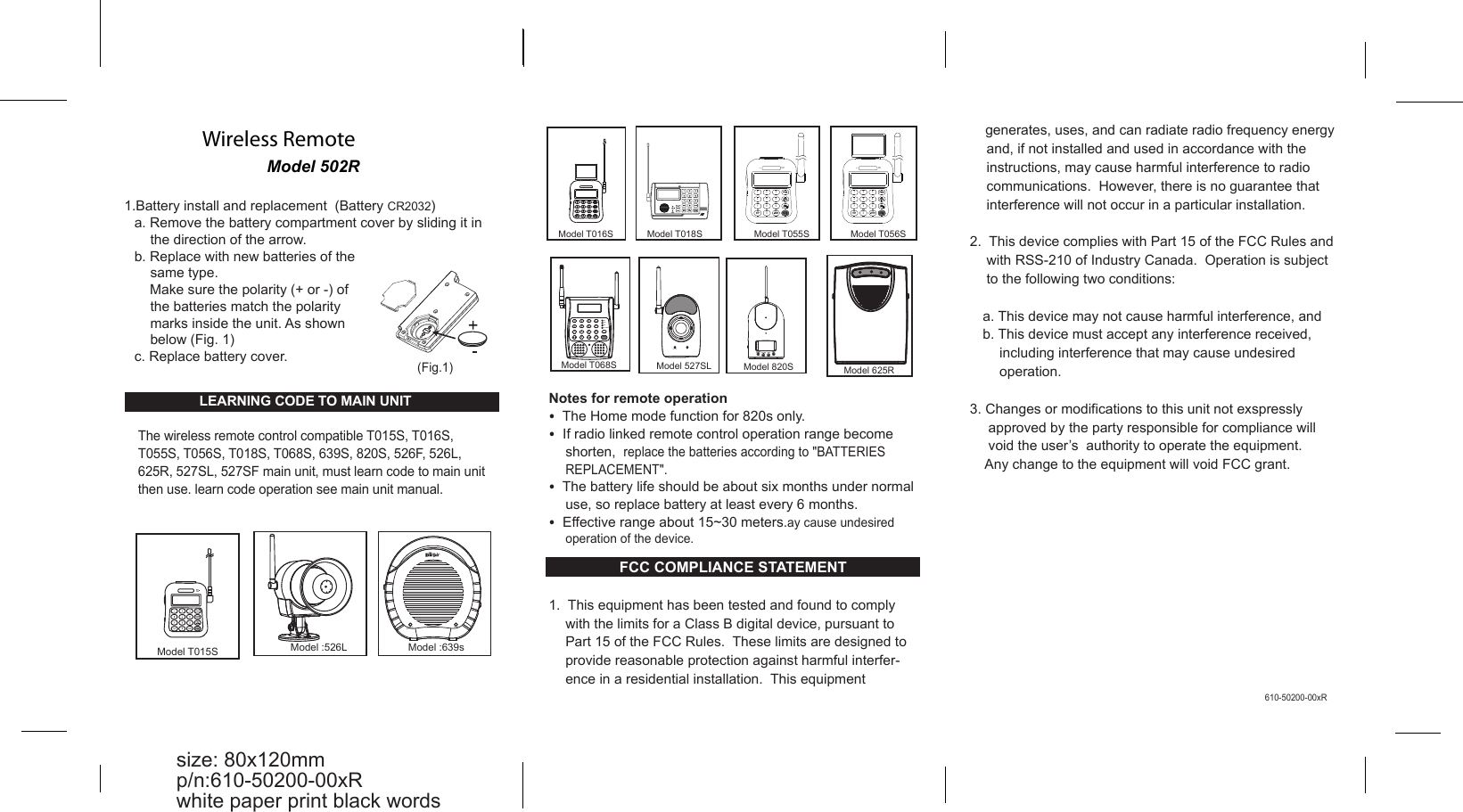

Model 502R Wireless Remote Notes for remote operation • The Home mode function for 820s only. • If radio linked remote control operation range become shorten, replace the batteries according to "BATTERIES REPLACEMENT". • The battery life should be about six months under normal use, so replace battery at least every 6 months. • Effective range about 15~30 meters.ay cause undesired operation of the device. FCC COMPLIANCE STATEMENT 1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-ence in a residential installation. This equipment 1.Battery install and replacement (Battery CR2032) a. Remove the battery compartment cover by sliding it in the direction of the arrow. b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below (Fig. 1) c. Replace battery cover. (Fig.1) size: 80x120mm p/n:610-50200-00xR white paper print black words 610-50200-00xR Model T015S Model T018S Model T016S 1 4 7 */ UP 2 5 8 0 3 6 9 PROG PAUSE ARM/ DISARM PANIC /DOWN Model T068S AC.POWER GSM PSTN REC. 1 2 3 4 5 6 7 8 9 HOME REC./ PLAY DEL./ PAUSE ARM/ DISARM 0 PROG PANIC Model 820S Model 625R Model T056S BATT. LOW 1 4 7 / UP 2 5 8 0 3 6 9 PROG DEL./ PAUSE /DOWN PANIC ARM/ DISARM AC BAT.LOW ACModel 527SL Model T055S BATT. LOW 1 4 7 / UP 2 5 8 0 3 6 9 PROG DEL./ PAUSE /DOWN PANIC ARM/ DISARM AC The wireless remote control compatible T015S, T016S, T055S, T056S, T018S, T068S, 639S, 820S, 526F, 526L, 625R, 527SL, 527SF main unit, must learn code to main unit then use. learn code operation see main unit manual. Model :526L Model :639s ARM POWER/ B A T T . LOW LEARNING CODE TO MAIN UNIT generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 2. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: a. This device may not cause harmful interference, and b. This device must accept any interference received, including interference that may cause undesired operation. 3. Changes or modifications to this unit not exspressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant.
