Lelux Electronics S615 Wireless Security Alert System User Manual 615 homesafe Alarm manual

Lelux Electronics Ltd Wireless Security Alert System 615 homesafe Alarm manual

User Manual

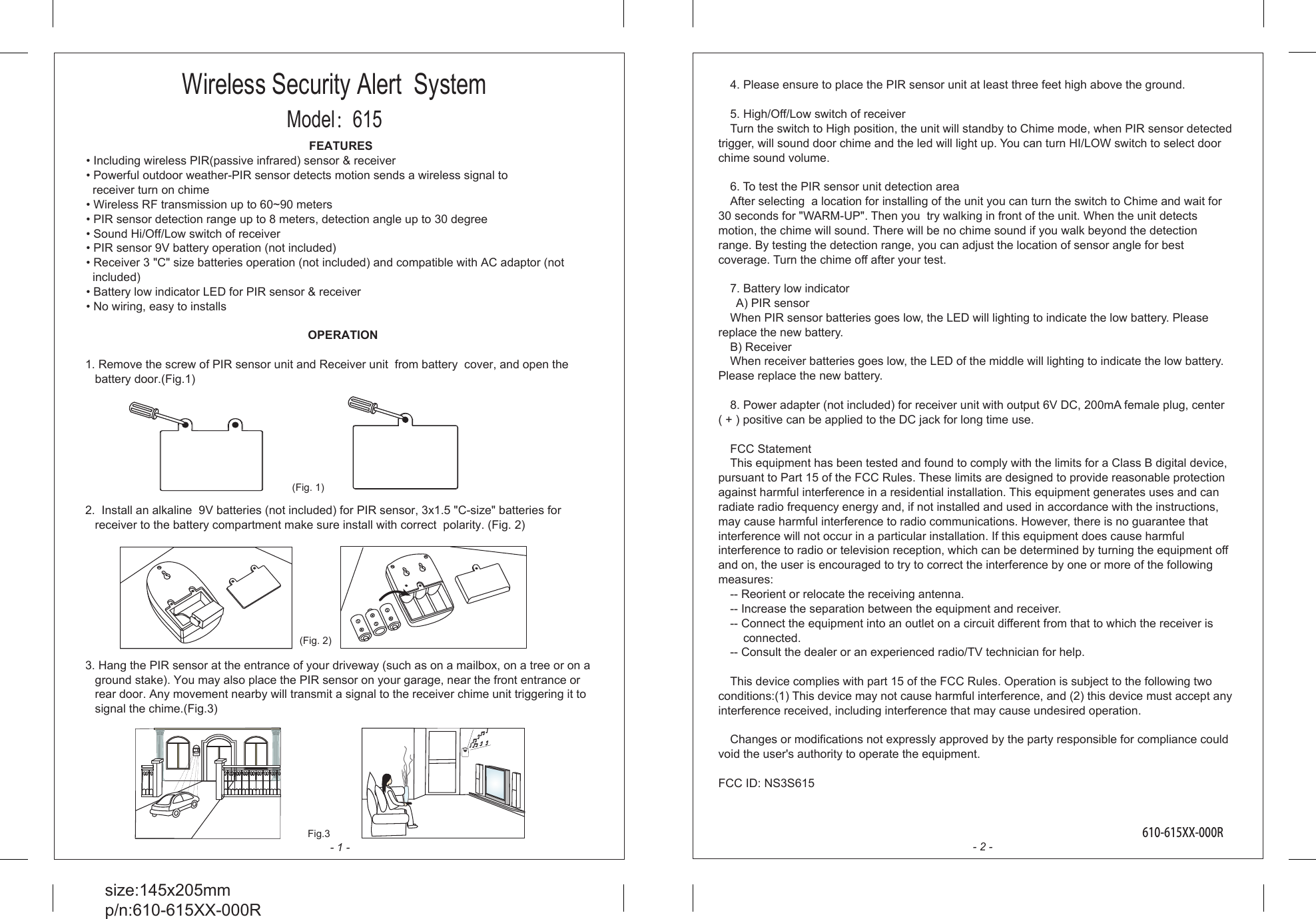

FEATURES• Including wireless PIR(passive infrared) sensor & receiver• Powerful outdoor weather-PIR sensor detects motion sends a wireless signal to   receiver turn on chime• Wireless RF transmission up to 60~90 meters• PIR sensor detection range up to 8 meters, detection angle up to 30 degree• Sound Hi/Off/Low switch of receiver• PIR sensor 9V battery operation (not included)• Receiver 3 "C" size batteries operation (not included) and compatible with AC adaptor (not   included)• Battery low indicator LED for PIR sensor & receiver• No wiring, easy to installs OPERATION1. Remove the screw of PIR sensor unit and Receiver unit  from battery  cover, and open the battery door.(Fig.1)2.  Install an alkaline  9V batteries (not included) for PIR sensor, 3x1.5 "C-size" batteries for receiver to the battery compartment make sure install with correct  polarity. (Fig. 2)3. Hang the PIR sensor at the entrance of your driveway (such as on a mailbox, on a tree or on a ground stake). You may also place the PIR sensor on your garage, near the front entrance or rear door. Any movement nearby will transmit a signal to the receiver chime unit triggering it to signal the chime.(Fig.3)size:145x205mmp/n:610-615XX-000R4. Please ensure to place the PIR sensor unit at least three feet high above the ground.5. High/Off/Low switch of receiverTurn the switch to High position, the unit will standby to Chime mode, when PIR sensor detected trigger, will sound door chime and the led will light up. You can turn HI/LOW switch to select door chime sound volume.6. To test the PIR sensor unit detection areaAfter selecting  a location for installing of the unit you can turn the switch to Chime and wait for 30 seconds for "WARM-UP". Then you  try walking in front of the unit. When the unit detects motion, the chime will sound. There will be no chime sound if you walk beyond the detection range. By testing the detection range, you can adjust the location of sensor angle for best coverage. Turn the chime off after your test.7. Battery low indicator  A) PIR sensorWhen PIR sensor batteries goes low, the LED will lighting to indicate the low battery. Please replace the new battery.B) ReceiverWhen receiver batteries goes low, the LED of the middle will lighting to indicate the low battery. Please replace the new battery.8. Power adapter (not included) for receiver unit with output 6V DC, 200mA female plug, center      ( + ) positive can be applied to the DC jack for long time use.FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.   -- Connect the equipment into an outlet on a circuit different from that to which the receiver is     connected.  -- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC ID: NS3S615- 1 - - 2 -(Fig. 1)Fig.3610-615XX-000R(Fig. 2)Wireless Security Alert  SystemModel:615
