Lenovo Mobile Communication Technology Ltd. Lenovo Mobile Phone
User manual
Quick Start Guide
Read this guide carefully before using your smartphone.
Lenovo A7010
Lenovo A7010a48
Reading before using your smartphone
For your safety
Before assembling, charging or using your mobile device for the first
time, please read the important product safety and legal information
provided with your product. If your mobile device becomes
unresponsive, try a reboot—press and hold the On/Off button until the
screen goes dark and your device restarts.
Usage
This phone supports apps and services that may use a lot of data, so
make sure your data plan meets your needs. Contact your service
provider for details. Certain apps and features may not be available in
all countries.
Electronic label
Your mobile device may use an electronic label that provides some
regulatory information about the device. To see the electronic label, go
to Settings > About phone > Regulatory information on your
device.
First glance
Light/Proximity sensor
3
Receiver/Speaker
1Front-facing camera
2
On/Off button
6
Fill Light
4Volume buttons
5
Back button
9
Touch screen
7Speaker
8
Rear-facing camera
12
Home button
10 Multitask button
11
Fingerprint
13 14 Microphone
15
Flash
16 Micro USB connector
16 15
1 2 3
5
6
7
8
4
9
11 10
12
13
14

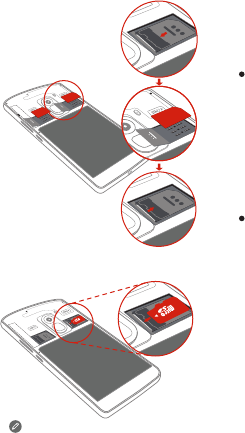

Step 1. Insert the Micro SIM
cards into SIM1 slot
and SIM2 slot.
Tips:
Both of the card slots
support 2G, 3G and
4G data services.
When two cards are
inserted at the same
time, the system
supports only one of
them to register for 3G
or 4G data service.
If you want to change
the data service type of
the card, go to
Settings > SIM
management > Data
connection.
Step2 . Insert the microSD card.
Installing the Micro SIM and microSD cards
Only Micro SIM cards work with your smartphone.
Always turn off your smartphone first before you insert or remove a
Micro SIM card. Insert or remove a Micro SIM card with your
smartphone on may damage your Micro SIM card or smartphone
permanently.
Micro SIM Micro SIM
Micro SIM Micro SIM
Micro SIM
Micro SIM
Micro SIM
Micro SIM
Micro SIM
A Micro SIM card provided by your carrier is required in order to use
cellular services. Install the Micro SIM and microSD cards as shown.
Micro SIM
Micro SIM
Micro SIM
Micro SIM
Micro SIM
Micro SIM
2
1
Charging the battery
Low battery power Fully charged Charging
Charge the battery as shown.
Turning on or turning off your smartphone
Tur n on: Press and hold the On/Off button until
the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a
few seconds, then tap Power off.
Restart: Press and hold the On/Off button for
about 10 seconds.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Copyright and trademarks
Certain features, services and applications are network dependent
and may not be available in all areas; additional terms, conditions
and/or charges may apply. Contact your service provider for details.
All features, functionality, and other product specifications, as well as
the information contained in this guide, are based upon the latest
available information and believed to be accurate at the time of
printing. Lenovo reserves the right to change or modify any
information or specifications without notice or obligation.
Note: The images in this guide are examples only.
Lenovo and the Lenovo logo are trademarks of Lenovo in the United
States, other countries, or both.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Atmos, and the double-D symbol are trademarks of Dolby
Laboratories.
Android, Google and other trademarks are owned by Google Inc. The
Android robot is reproduced or modified from work created and
shared by Google and used according to terms described in the
Creative Commons 3.0 Attribution License. All other product or
service names are the property of their respective owners.
© Copyright Lenovo 2015.
Product ID: Lenovo A7010 (Model A7010a48)
Manual Number: 68XXXXXXXX-X
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head with no
separation, and near the body with the separation of 10 mm. Although
the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the
maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1992 and had been tested in
accordance with the measurement methods and procedures specified
in IEEE1528.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
YCNA7010A48.
For this device, the highest reported SAR value for usage against the
head is 1.12 W/kg, for usage near the body is 1.06 W/kg.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirements.
SAR compliance for body-worn operation is based on a separation
distance of 10 mm between the unit and the human body. Carry this
device at least 10 mm away from your body to ensure RF exposure
level compliant or lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such body-worn
accessory should be avoided.
FCC Regulations
This mobile phone complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s authority to
operate the equipment.
Learning more
Getting support
To get support on network service and billing, contact your wireless
network operator. To learn how to use your smartphone and view its
technical specifications, go to http://support.lenovo.com/.
Downloading publications
To obtain the latest smartphone manuals, go to:
http://support.lenovo.com/
Accessing your User Guide
Your User Guide contains detailed information about your
smartphone. To access your User Guide, go to http://support.leno-
vo.com and follow the instructions on the screen.
