Lenovo BKC800 Bluetooth Keyboard User Manual 1419 US WIN MANUAL Front X12

Lenovo (Shanghai) Electronics Technology Co., Ltd Bluetooth Keyboard 1419 US WIN MANUAL Front X12

User Manual (Win).pdf

* For reference only, please refer to our actual product.
* The BKC800 keyboard is only for the YOGA Tablet 2-10xx and
the BKC900 is for the YOGA Tablet 2-13xx. The “xx” represents
the tablet module number, such as: 51F
Lenovo BKC800/BKC900
Quick Start Guide
(WINDOWS)
Printed in China
Learn more
Legal notices
First Edition (August 2014)
© Copyright Lenovo 2014.
For more information about tablet functions and useful manuals, go to
http://support.lenovo.com/.
To read this manual on your tablet, please access “User
Guide” from the Browser favorites in your tablet.
Getting support
For support on network service and billing, please contact your wireless network operator.
For instructions on how to use your tablet, go to
http://support.lenovo.com/
.
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries,
or both.
Other company, product, or service names may be trademarks or service marks of others.
252-01401L-A01US
Special function keys
Application & Access
Bluetooth version
Battery capacity
Charging voltage
Battery life
Charging current
Wireless range
4.0
450 mAh
5 V
BKC800 BKC900
Mute Turn volume down Turn volume up
Display start screen
Save screen image
Save screen image
Browser homeBrowser home
Browser back
Browser forward
Volume
Play/Pause
Next
Previous
STOP
Media controls
Display start screen
Application key
Calculated by 2 hours in normal daily use.
prtsc
prtsc
250 mA
10 m
75 days
time, or after the battery has been fully depleted. To charge the Bluetooth Keyboard Cover,
connect the USB connector to the USB port of a computer or to the charger,
and correctly attach the other end of the charging cable to the Keyboard's charging port.
When the status indicator glows red continuously, this indicates that the Bluetooth
Keyboard Cover is charging. Use the dedicated USB charging cable to avoid damaging
the Bluetooth Keyboard Cover.
Charging the Bluetooth Keyboard Cover
Introduction*
Status indicator Charging port
Pairing switch Power switch
Charging port
Status indicator
BKC800
BKC900
Bluetooth Pairing
Turn on the keyboard's power switch to power up the keyboard. The keyboard will
attempt to connect to the last connected device. The indicator will be blue.
If the keyboard has been turned on, and no indicator is ashing after the pairing switch
has been set to Bluetooth for more than one second, the keyboard will enter into pairing
mode to pair with the tablet, and the keyboard can be discovered by other devices.
If the pairing is successful, the indicator wil turn off.
The Bluetooth Keyboard Cover can be used to control a tablet using distinctive orange
combination keys (for details, see special function keys) . The keyboard and the tablet
can be combined for easy carrying.
Combining with a tablet
When not in use, carefully place the tablet screen face down onto the Bluetooth
Keyboard Cover. The magnetic clip will hold the tablet in position.
When using the tablet, ip open the tablet cover to the standing position.
Status indicator
Flashing red
Constant red The Bluetooth Keyboard Cover is charging. When
charging is complete, the indicator will turn off.
Flashing blue slowly
Attempting to connect to last connected device. If it
connects successfully, the indicator turn off after being
on for two seconds.
Flashing blue
quickly
The keyboard is in pairing mode and can be discovered by
other devices. If the pairing is successful, the indicator will
turn off after being on for two seconds.
BKC800
BKC900

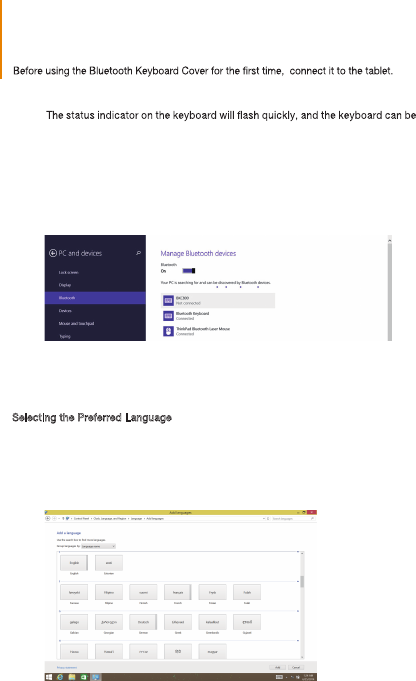

Connecting to a tablet setup
If the Bluetooth Keyboard Cover has previously connected to the tablet successfully, it
will automatically connect to the tablet via Bluetooth when it is turned on. If the
connection fails, check the tablet to see if Bluetooth is set to ON and then reconnect
using the previous four steps.
Step1:
discovered by other devices.
Step 2: On the tablet, choose PC and device
PC settings > > Bluetooth and set Bluetooth to “On”.
Step 3: A prompt indicating that the keyboard is searching is displayed in the center of
the tablet screen.
Step 4: Select BKC800 or BKC900 from the list of available devices on the tablet screen.
When the prompt indicating that the has been connected is
displayed, the keyboard has successfully connected to the tablet.
Selecting the Preferred Language
After paring with the tablet, please follow the steps and the image below to select your
preferred language.
2. Choose add a language in Change your language preferences.
1. On the tablet, choose Setting Control Panel, and then choose Add a language
3. Select the language your want to use then press Add button in the menu.
4. If multi-language layouts selected, user can use "ctrl+space" to switch the layout.
Turn the keyboard's power switch on. Wait for LED to stop ashing and then
set the pairing switch to the Bluetooth logo for one second or longer.
BKC800 or BKC900
>
