Wide Touch Monitor

User's Guide

LT1423pwCA

Product numbers

60AC-UAR2-WW

First Edition (October 2013)

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as deﬁned by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are

delivered pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is

subject to restrictions set forth in Contract No. GS-35F-05925.

Contents

Safty information iii

Chapter 1. Getting started 1-1

.............................................................................................

...........................................................................

Shipping contents ................................................................................................ 1-1

Product overview ................................................................................................. 1-2

Types of adjustments ....................................................................................... 1-2

User controls.................................................................................................... 1-2

LED indicator ................................................................................................... 1-4

Monitor Stylus Pen storage .............................................................................. 1-5

Cable lock slot ................................................................................................. 1-6

Setting up your monitor ........................................................................................ 1-6

Connecting and turning on your monitor .......................................................... 1-6

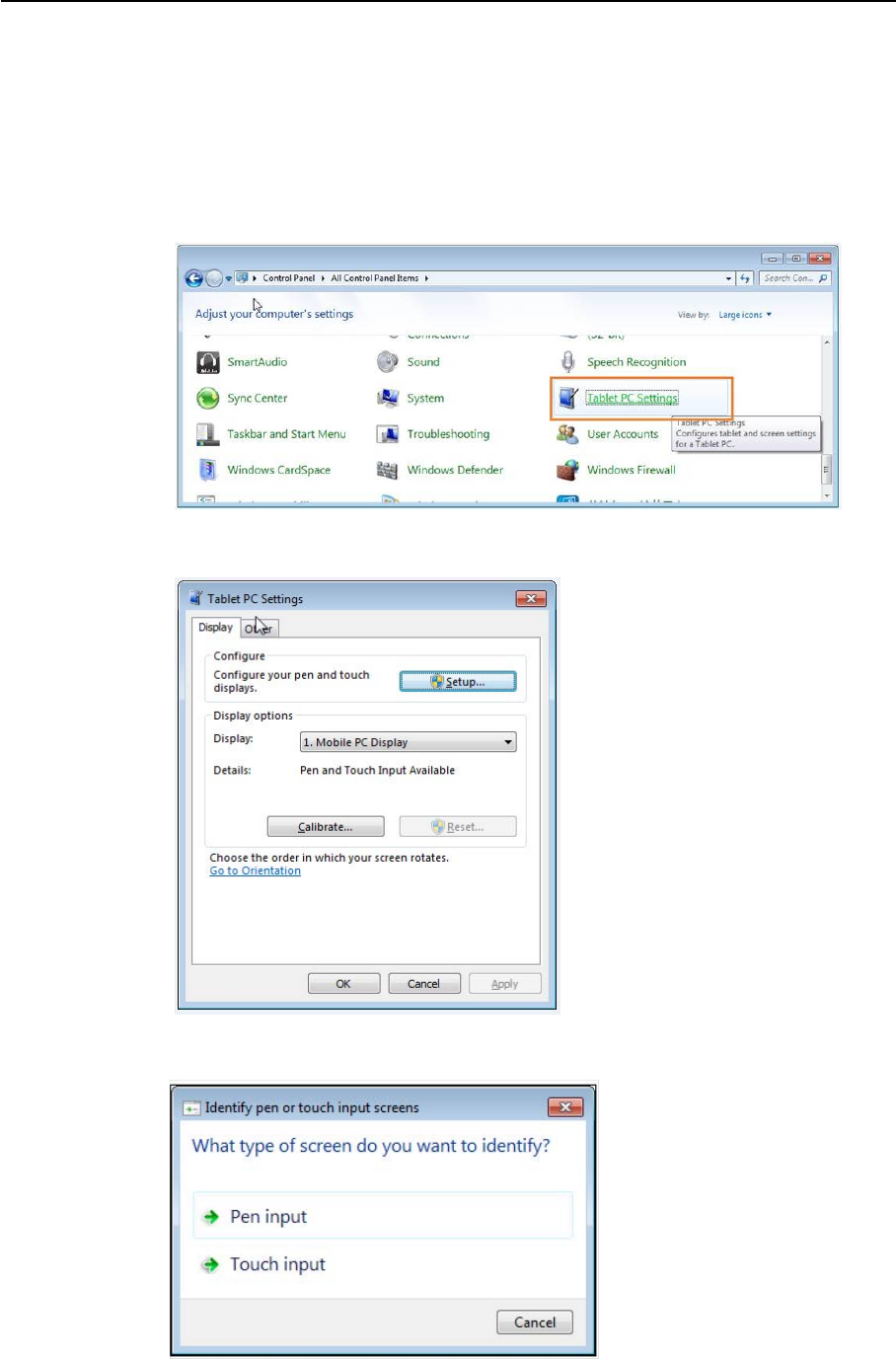

Using the Multi-touch screen .............................................................................. 1-10

Using the Monitor Stylus Pen ............................................................................. 1-10

Chapter 2. Adjusting and using your monitor .............................................2-1

.....................................................................................Comfort and accessibility 2-1

Arranging your work area ................................................................................. 2-1

Quick tips for healthy work habits ..................................................................... 2-2

Accessibility information ................................................................................... 2-2

Adjusting your monitor image ........................................................................... 2-3

Using the On-Screen Display (OSD) controls .................................................... 2-3

Understanding power management ..................................................................... 2-4

Caring for your monitor ......................................................................................... 2-4

Selecting a supported display mode ..................................................................... 2-5

Chapter 3. Reference information ...............................................................3-1

Monitor specifications ........................................................................................... 3-1

Troubleshooting .................................................................................................... 3-2

Getting further help .......................................................................................... 3-4

Service information ............................................................................................... 3-4

Chapter 4. Working with LT1423pwCA Wide WIFI monitor ........................ 4-1

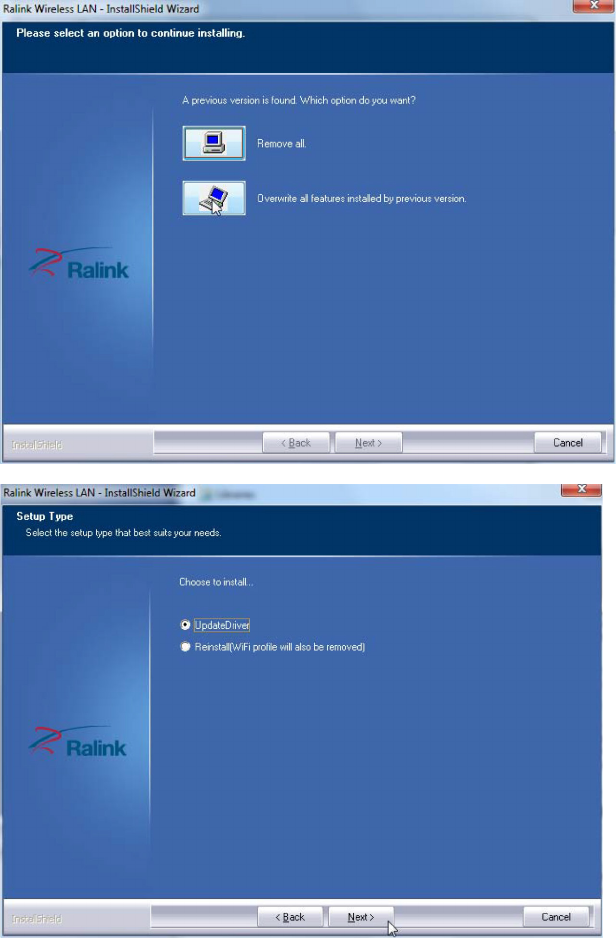

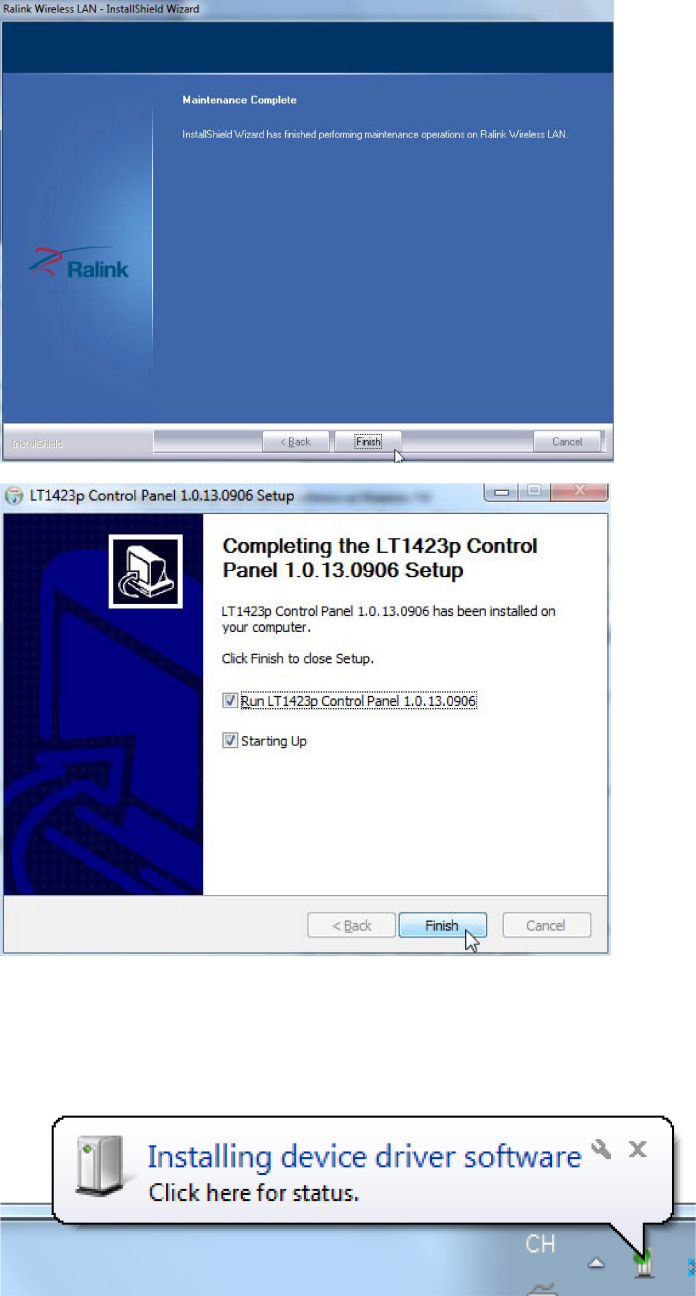

Driver Installation .................................................................................................. 4-1

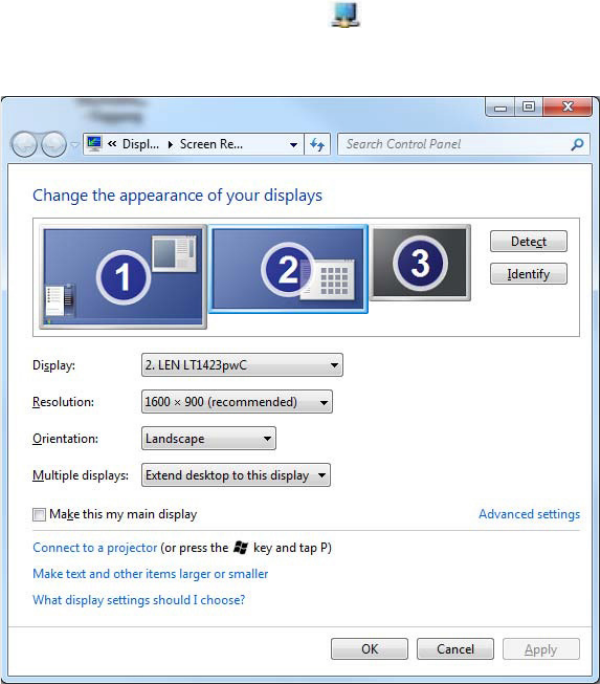

USB Monitor Display Information settings ........................................................... 4-10

Additional Information ......................................................................................... 4-14

Appendix A. Service and Support .............................................................. A-1

Telephone technical support ................................................................................. A-1

Appendix B. Notices ................................................................................... B-1

Recycling information ...........................................................................................B-1

Trademarks ..........................................................................................................B-2

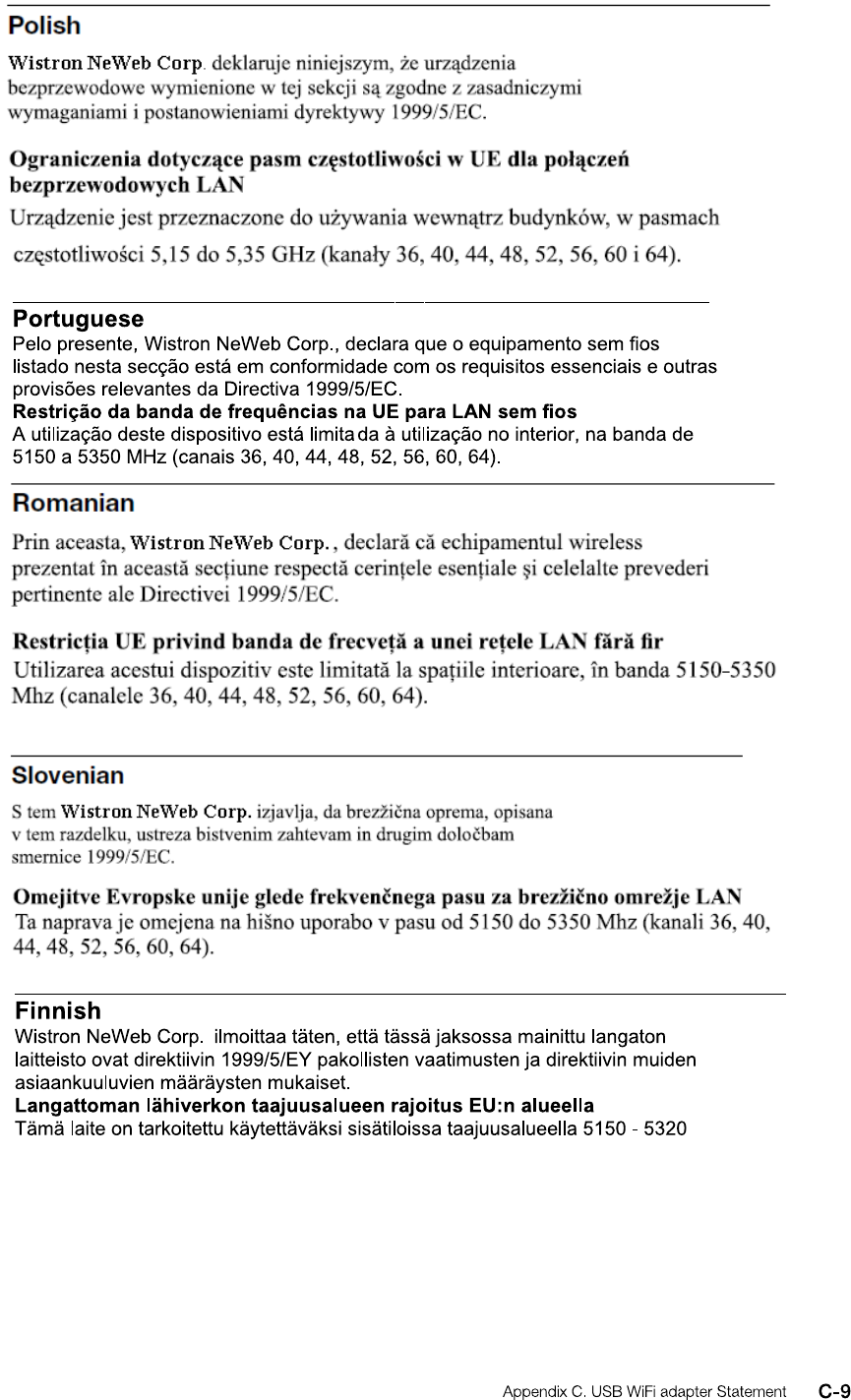

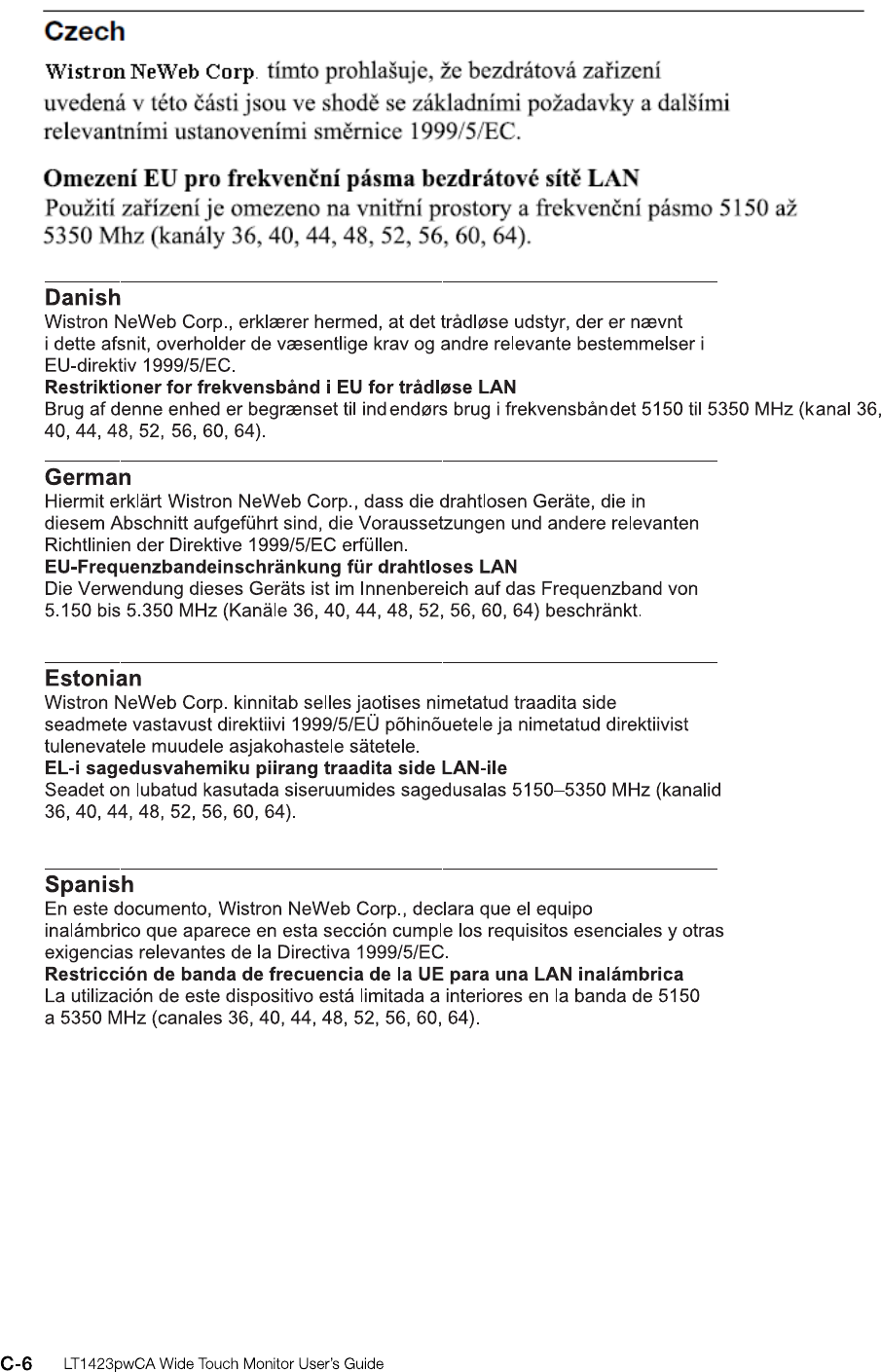

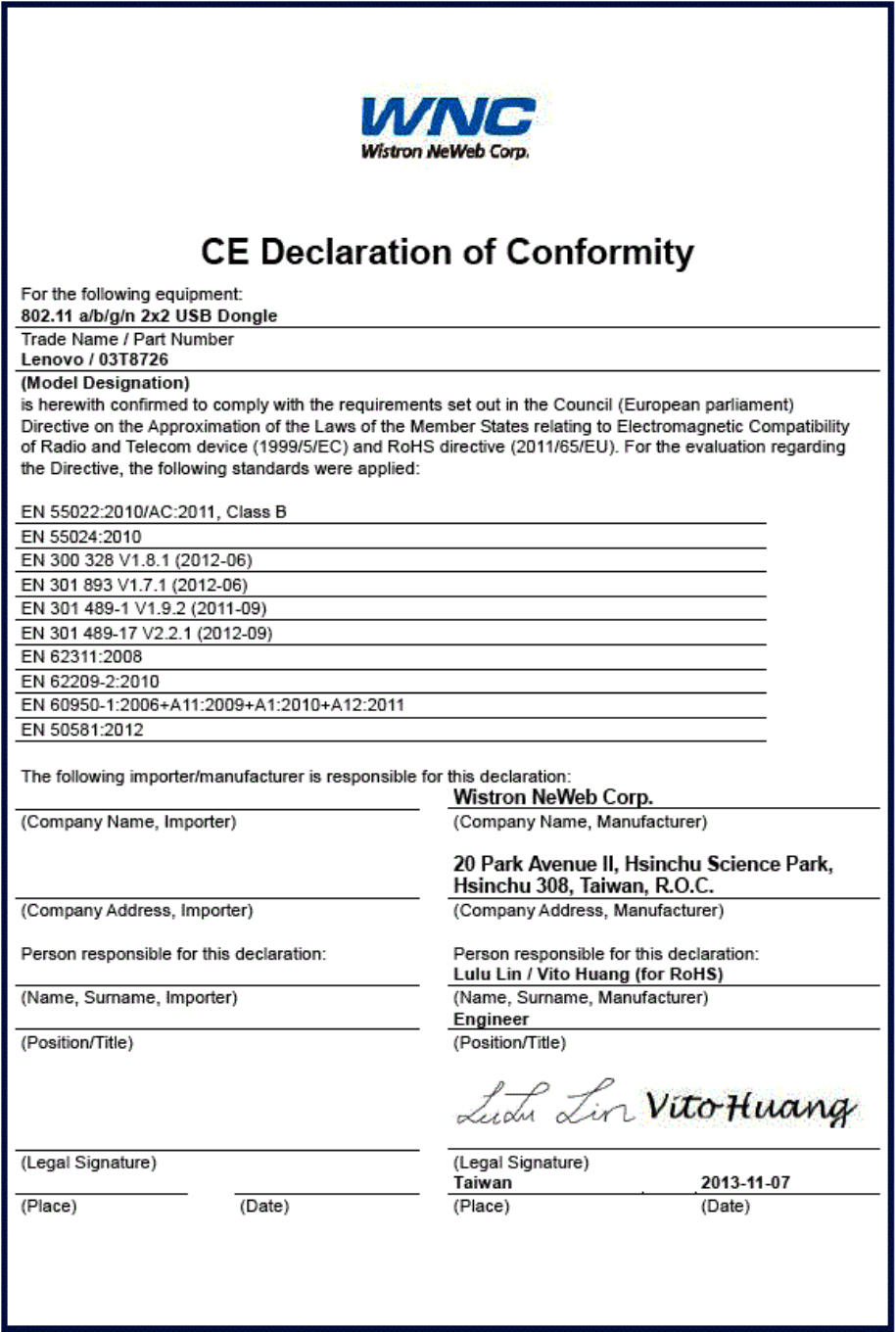

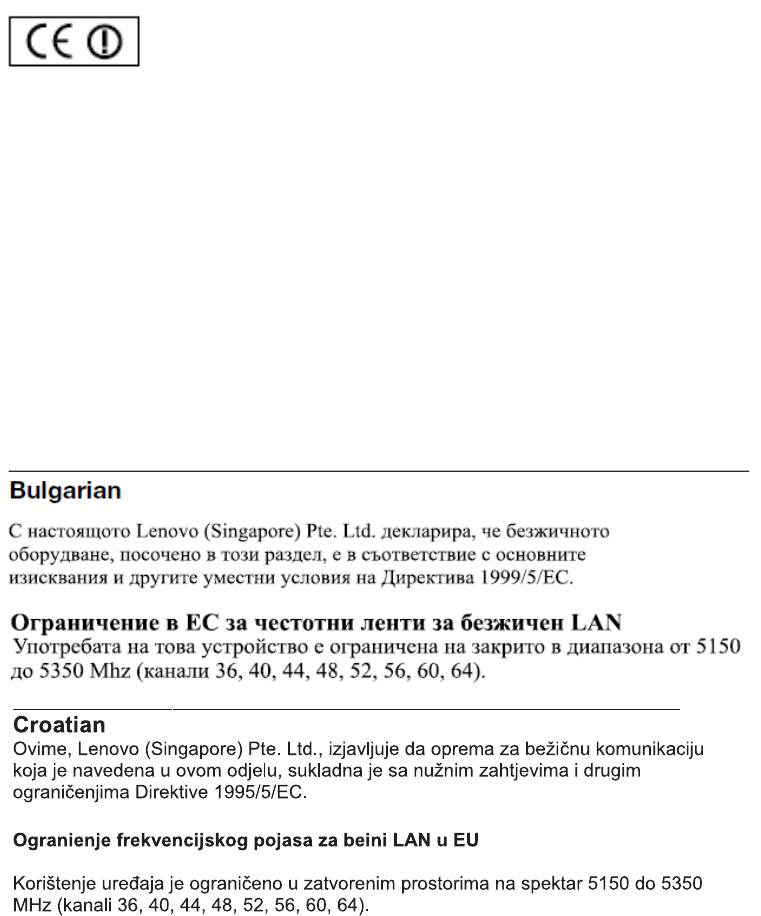

Appendix C. USB WiFi adapter Statement ................................................ C-1

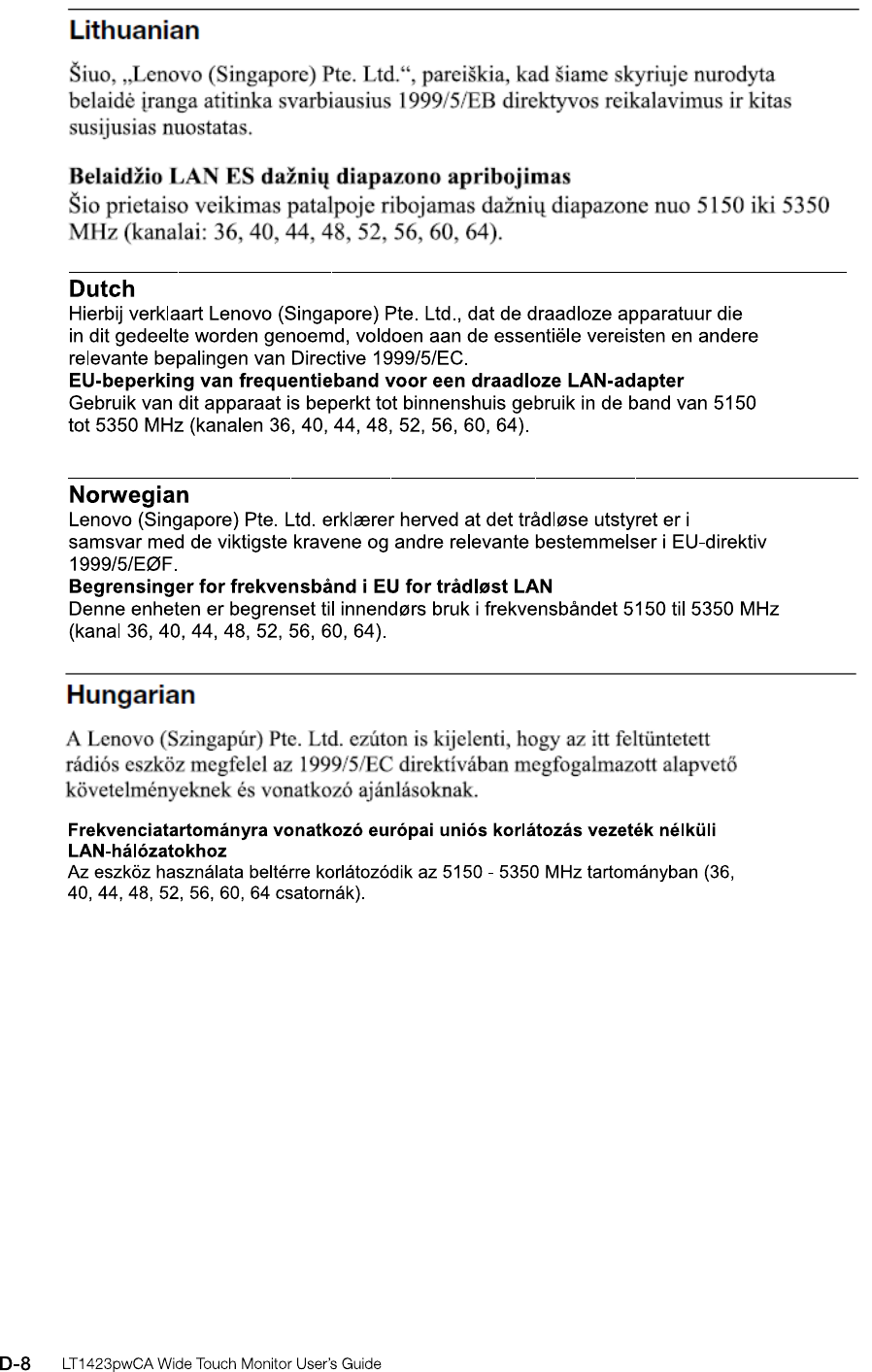

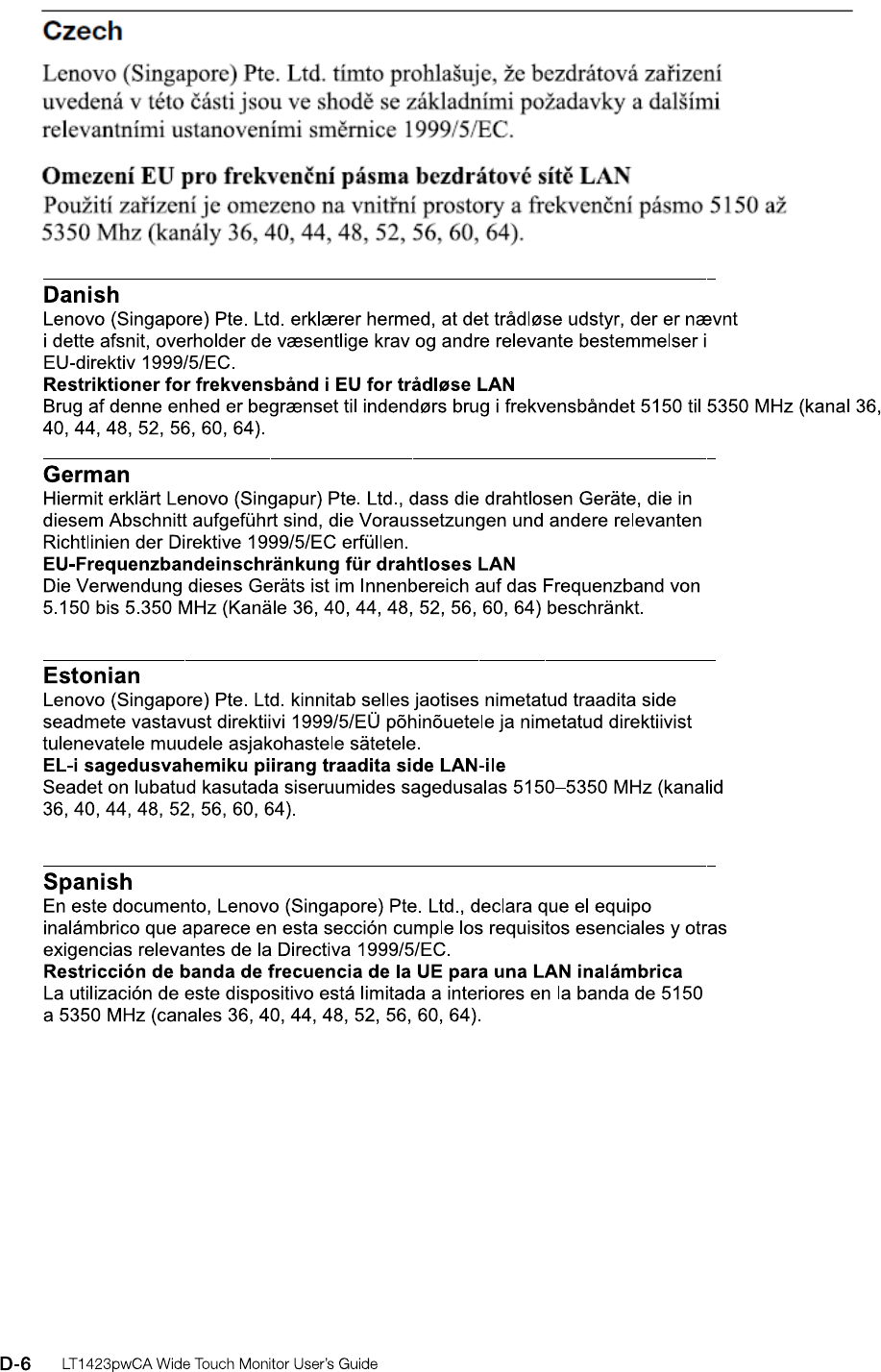

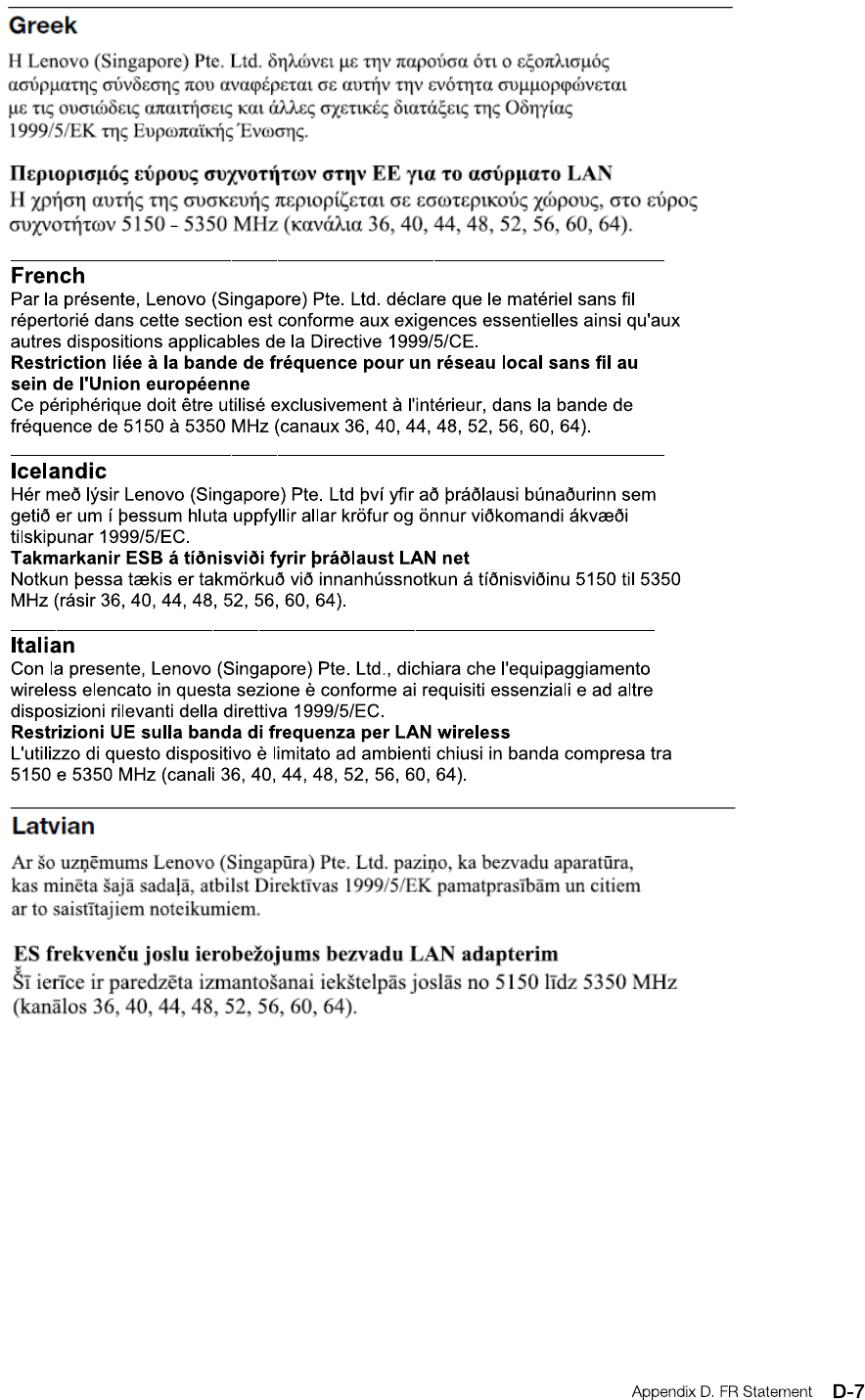

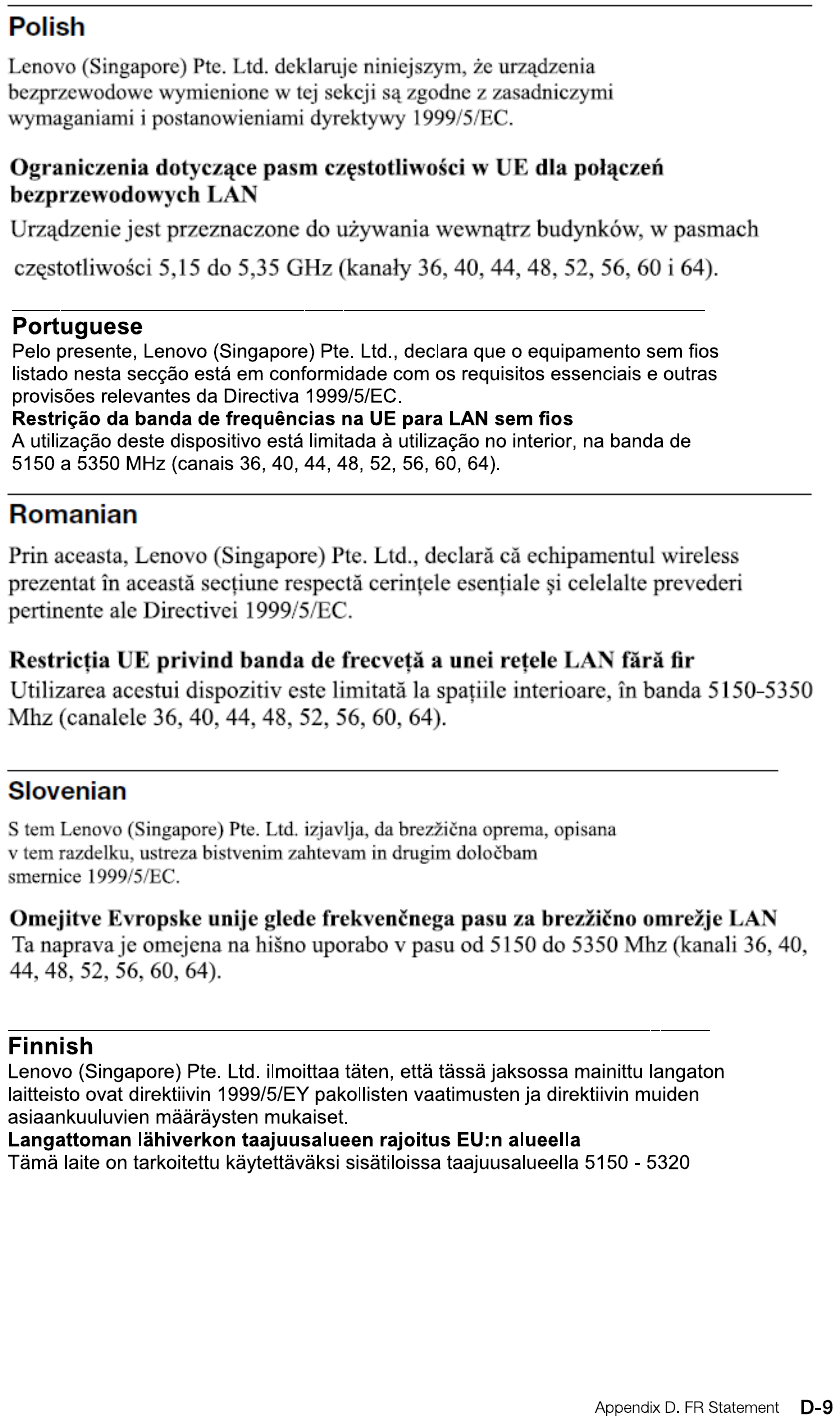

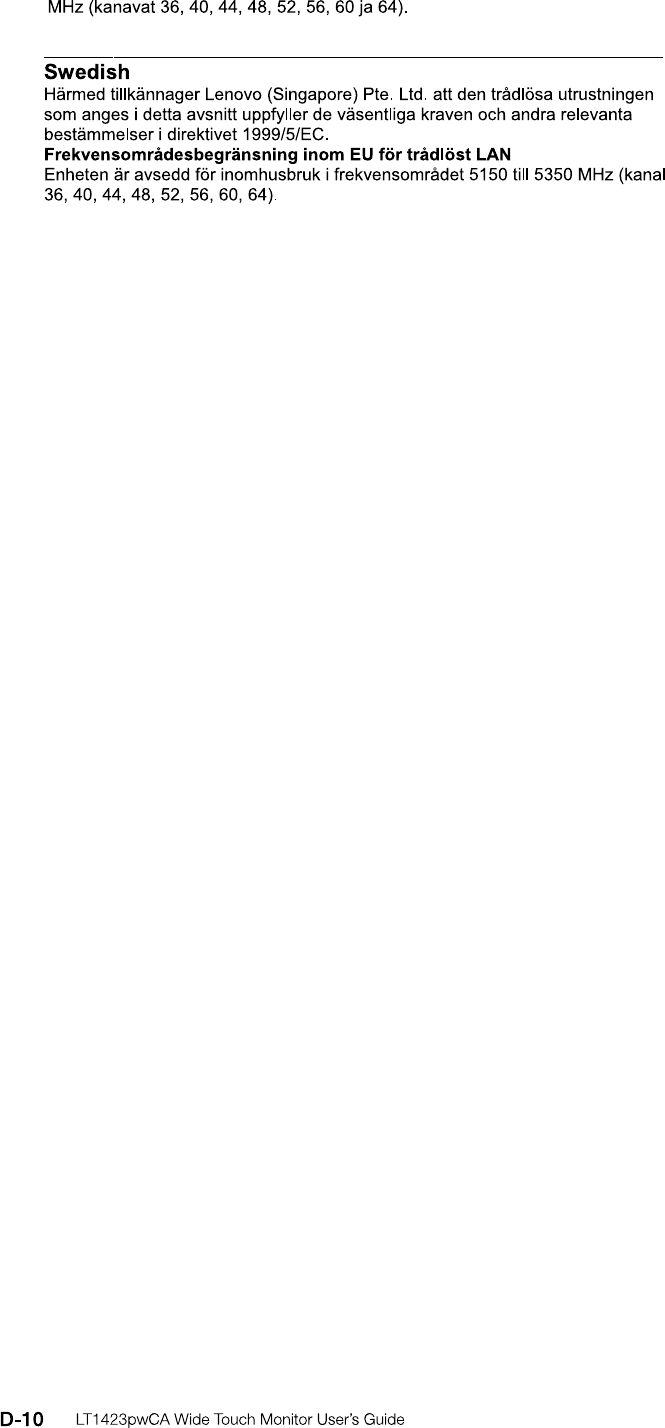

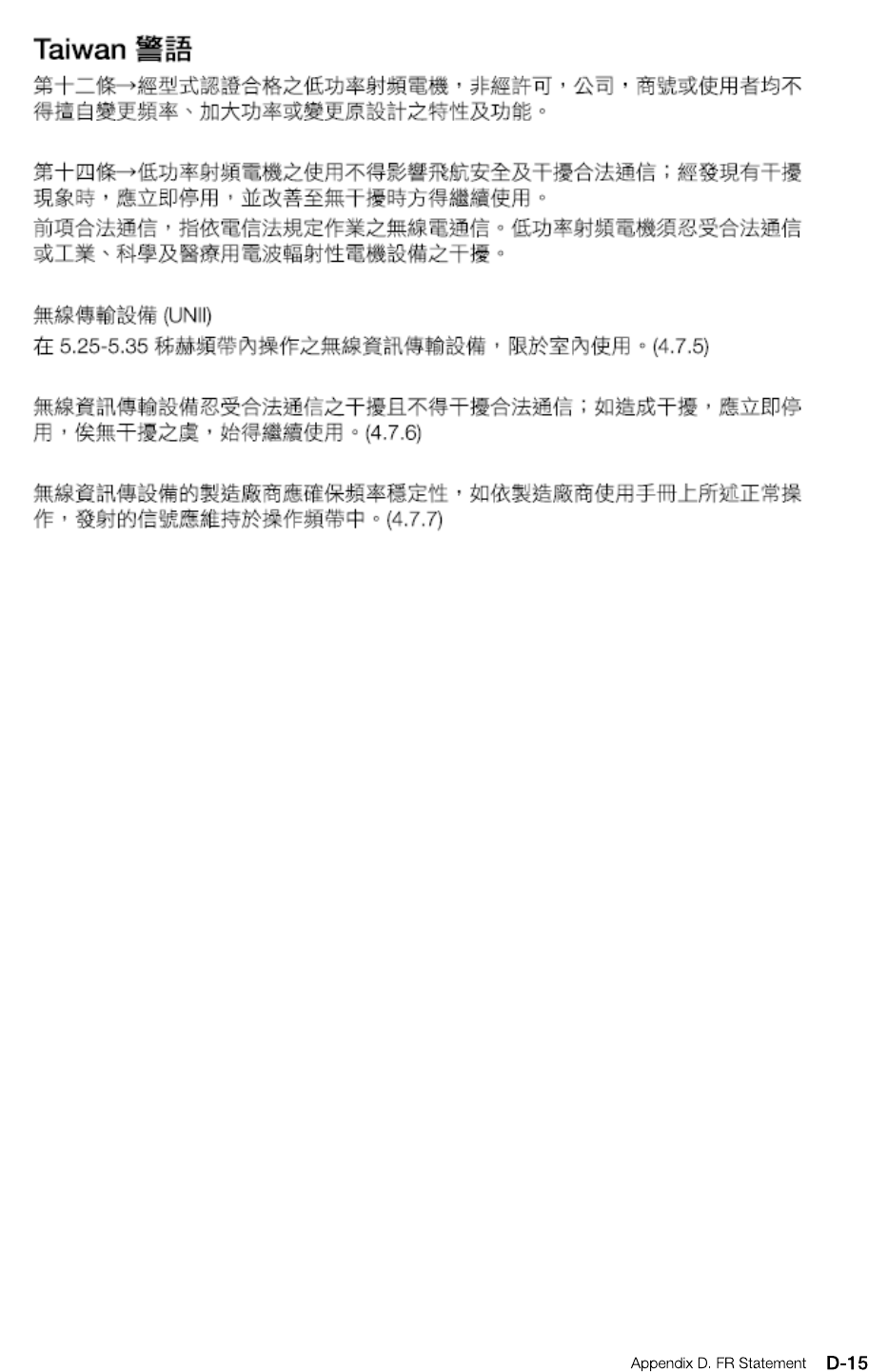

Appendix D. FR Statement ......................................................................... D-1

Safty information

General Safety guidelines

Safety and Maintenance Guidelines

Important Safety Information

The power cord is designed for use with your monitor. To use a different cord, use only a power source and

connection compatible with this monitor.

CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer and

its peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power strip

with surge protection or uninterruptible power supply (UPS).

Not all power strips provide surge protection; the power strips must be specifically labeled as having this

ability. Use a power strip whose manufacturer offers a damage replacement policy, so you can replace your

equipment if surge protection fails.

CAUTION: A certified power supply cord has to be used with this equipment. The relevant national

installation and/or equipment regulations shall be considered. A certified power supply cord not lighter

than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm²

or H05VVH2-F2 3G 0.75mm²) shall be used. Alternative a flexible cord be of synthetic rubber.

CAUTION: To prevent the monitor sliding out of the cover always carry as shown below.

Safety Precautions

 To prevent electric shock, do not remove enclosure, no user-serviceable parts inside.

 To protect your monitor, please do use this power adapter: PI Electronics (H.K) Ltd./ 51J0249.

Maintenance Guidelines

To enhance the performance and extend the life of your monitor:

 Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not

operating properly or has been dropped or damaged, contact your Lenovo authorized dealer, reseller, or

service provider.

 Adjust only those controls that are described in the operating instructions.

 Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by

using a screen saver program and turning off the monitor when not in use.

 Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.

 Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or

covered. Never push objects of any kind into cabinet slots or other openings.

 Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

 Do not drop the monitor or place it on an unstable surface.

 When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from

getting scratched, defaced, or broken.

The monitor is intended to be powered by the PC/Laptop USB3.0 output, and the PC/Laptop will be

IEC60950-1 approved, where the USB3.0 outputs comply with LPS requirement.

Cleaning the Monitor

The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor,

follow these steps:

1. Turn off the computer and the monitor.

2. Unplug your monitor from the power outlet before cleaning.

CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or

cabinet. These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never user water to

clean an LCD screen.

3. Wipe the screen with a dry, soft, clean cloth.

If the screen requires additional cleaning, use an antistatic screen cleaner.

4. Dust the monitor housing. Use a damp cloth to clean the cabinet.

If the cabinet requires additional cleaning, use a clean cloth dampened with isopropyl alcohol.

5. Plug in the monitor.

6. Turn on the monitor and the computer.

1-1

Chapter 1. Getting started

This User’s Guide contains detailed information on the ThinkVision® LT1423pwCA Wide

Touch Monitor. For a quick overview, please see the Setup Poster that was shipped with

your monitor.

Shipping contents

The product package should include the following items:

• Information Flyer

• Stylus Pen

• USB Wifi adapter

• USB Cable

• Power Adaptor

• Touch Monitor

• Simple Cover

Product overview

This section will provide information on adjusting monitor positions, setting user

controls, and using the cable lock slot.

Types of adjustments

Tilt

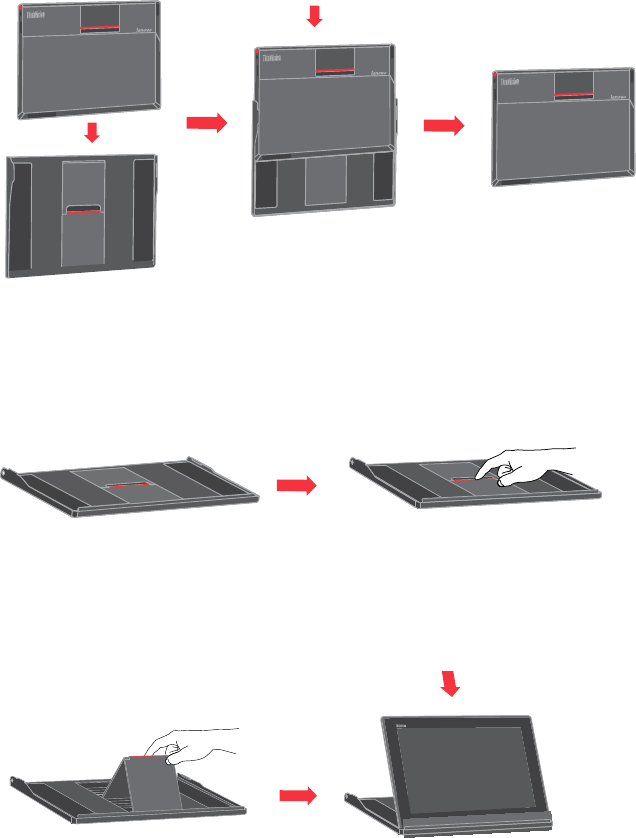

Please see the illustration below for an example of the tilt range.

70°

12°

30°

By Kick-Stand By Simple Cover

User controls

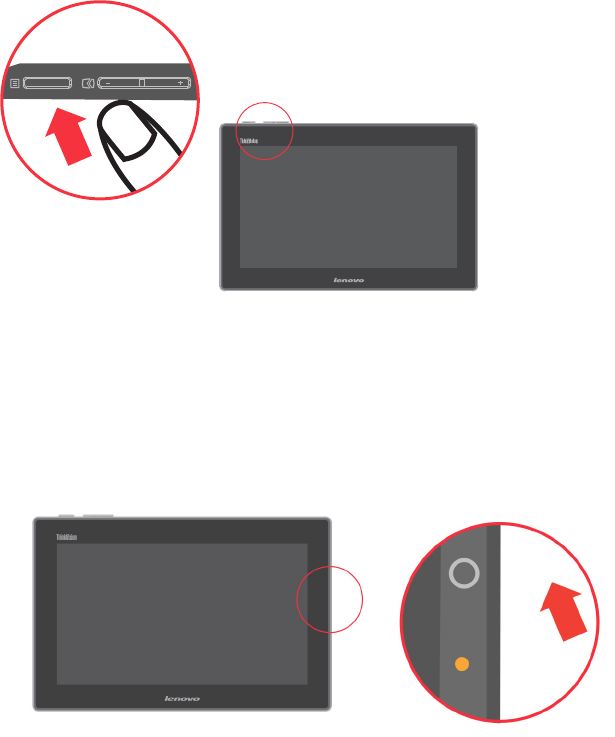

How to use the power button

(If you connect the monitor with PC by USB cable, it will switch toUSB model

automatically, and the wireless module in the monitor will be shut down accordingly.)

1. Power on/off the wireless module.

1-2 LT1423pwCA Wide Touch Monitor User’s Guide

a) Hold the power button for 3 seconds to power on the monitor. After the completion

of the progress bar, the home page will display on screen. Then the monitor is ready

to be connected by WiFi.

b) Hold the power button for 3 seconds to power off the monitor when the monitor is

powered on, but not be connected.

c) Hold the power button for 5 seconds to active LT1423pwCA Control panel Options

page as below page, and the desired action can be selected.

d) If the power button is held for 10 seconds the LT1423pwCA will shut down even

when connected to the host system.

2. Power on/off the LCD panel’s backlight by clicking the power button when the

monitor is connected.

Chapter 1. Getting started 1-3

3. Your monitor has OSD control on the top of which is used to adjust the display.

With USB cable connection:

Menu Key: 1. To display the OSD menu on the screen.

2. To select the OSD sub-Menu.

Minus Key: 1. Back-Forward selection of the OSD menu.

2. Decease the value of sub-menu selection.

3. Auto config hot key.

Plus Key: 1. Forward selection of the OSD menu.

2. Increase the value of sub-menu selection.

After being prompted with successful Wi-Fi connection message:

Menu Key: Press to display the main menu of LT1423pwCA’s control panel.

Minus Key: Without any function assigned to it.

Plus Key: Press to rotate display screen.

LED indicator

1. Battery charge LED

When charging, the LED will be orange, and if the battery full-charged, the LED will

be green.

1-4 LT1423pwCA Wide Touch Monitor User’s Guide

2. Wifi LED

When connect by 2.4G, the LED will be blue, when 5G, LED will be amber.

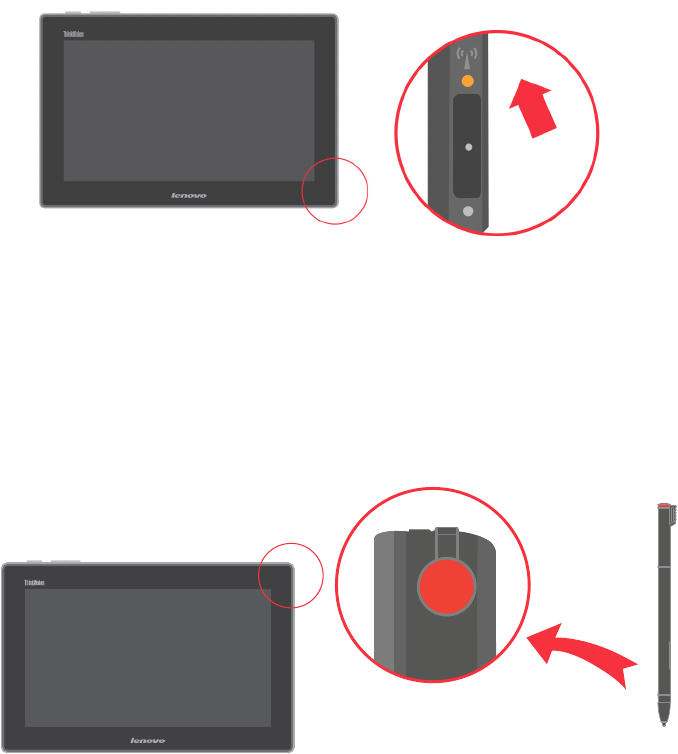

Monitor Stylus Pen storage

A storage slot is available on the monitor to store the Stylus Pen.

Chapter 1. Getting started 1-5

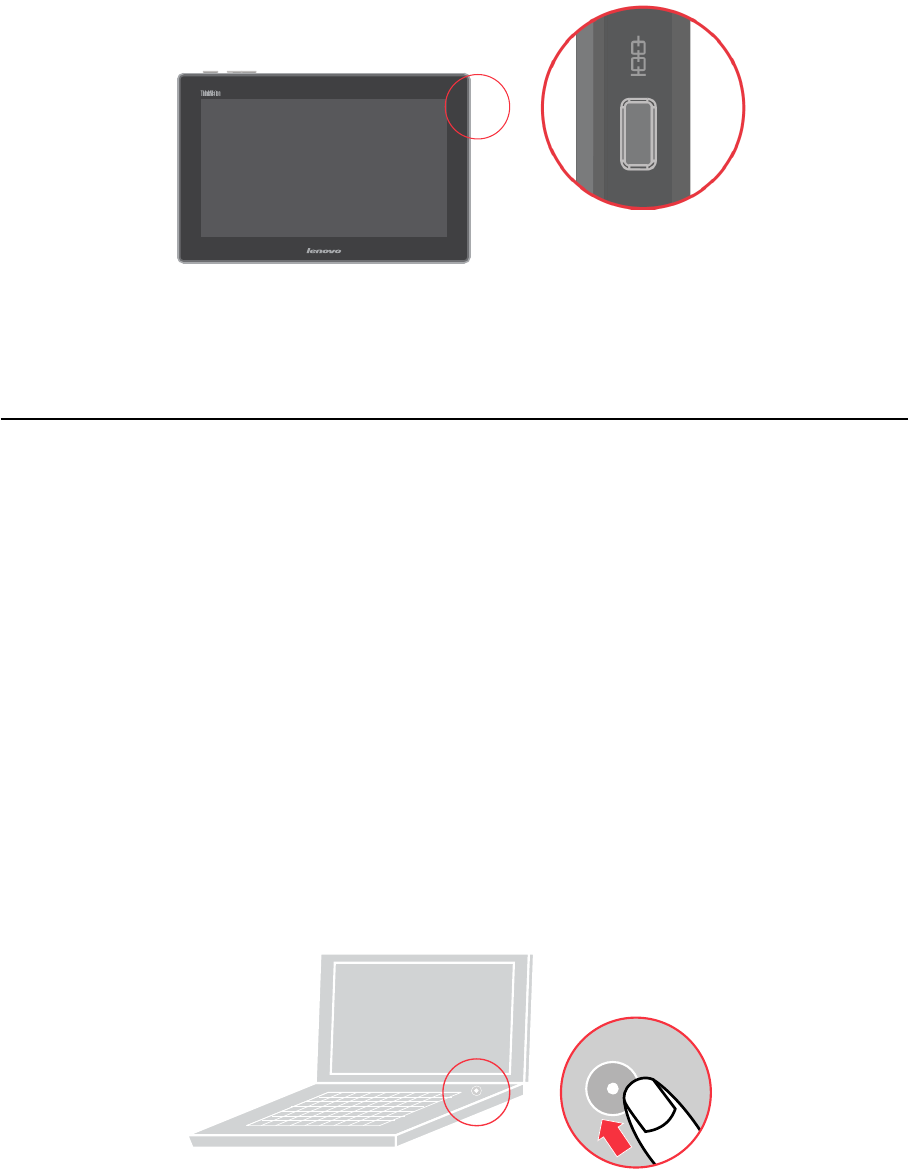

Cable lock slot

Your monitor is equipped with a cable lock slot located on the side of your monitor

Setting up your monitor

This section provides information to help you set up your monitor.

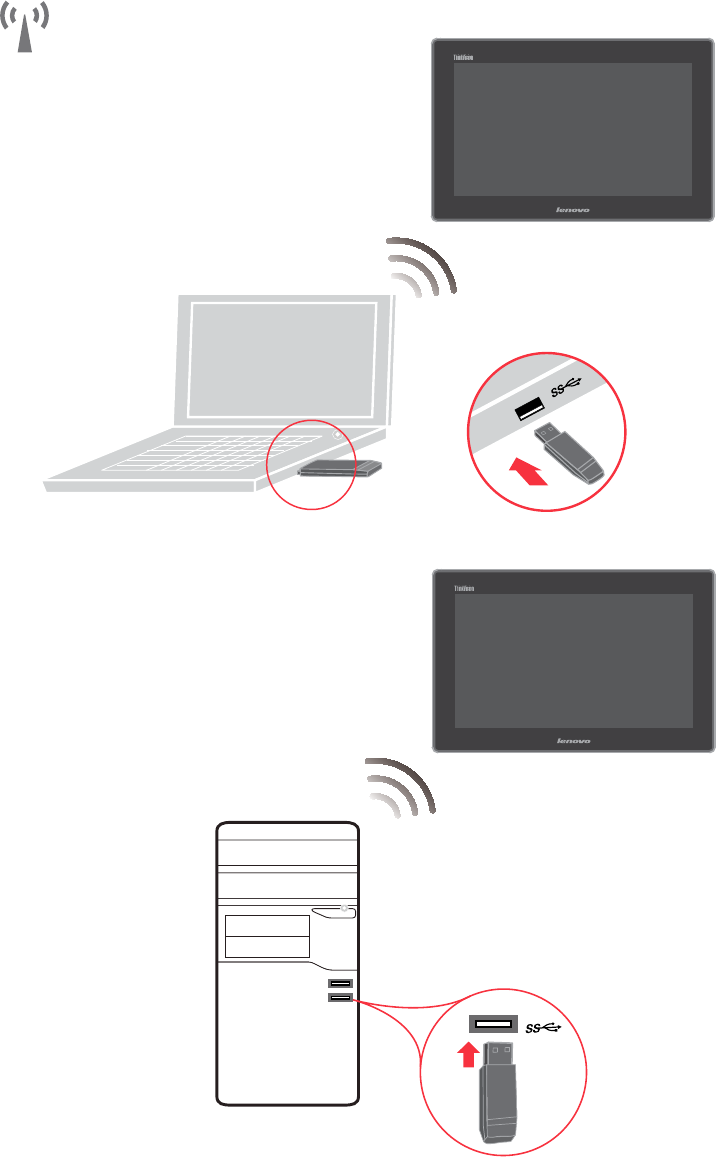

Connecting and turning on your monitor

Note: The wireless interface to the monitor can be affected by the environment of the

location where it is being used, large objects, walls, etc can affect performance.

The wireless interface from the host PC to the LT1423pwCA monitor is fully

utilized and cannot be used for any other function like internet access.

If the host system uses wireless to connect to the internet, a separate wireless

interface device is required for the wireless monitor connection.

Depending on the configuration the integrated wireless adapter on the system

may give better performance with the LT1423pwCA monitor than the supplied

USB WiFi adapter.

To ensure the best wirele ss experience with LT1423pwCA the maximum

distance between the monitor and the host PC should be 8 metres.

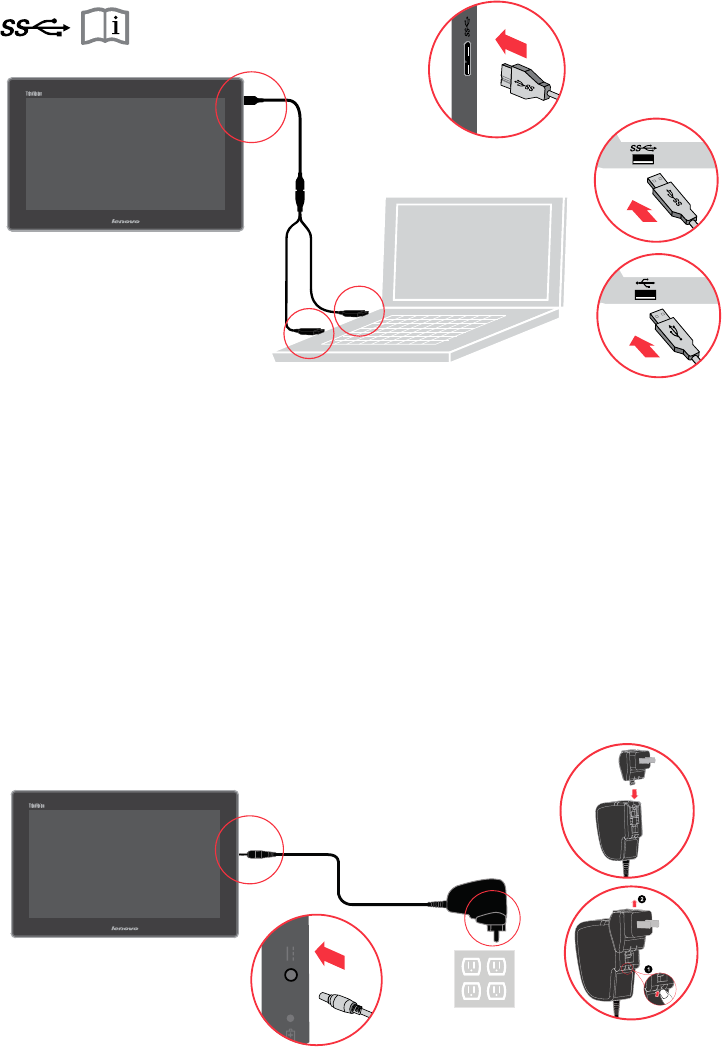

1. Power on the computer.

1-6 LT1423pwCA Wide Touch Monitor User’s Guide

2. To install the monitor driver, follow the on-screen instructions.

a. Connect the USB cable to the USB port of the side of the monitor and the other

two ends to the appropriate USB ports on your computer.

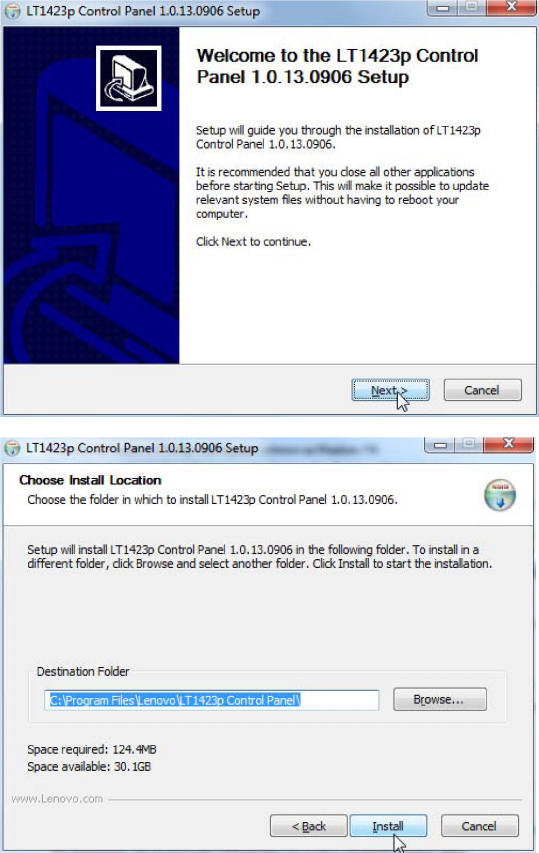

b. To install the monitor driver, you can find the driver setup file in the monitor mass

storage USB disk. For detailed Setup steps, please see “Chapter 4”.

Remark:

a. To ensure optimal display performance, connect the monitor to your PC using a

USB3.0 and a USB 2.0 port at the same time. Using only one USB 2.0 port may

decrease the brightness level of the display.

b. At wireless display mode: If you connect the device to computer with USB cable,

the wireless display mode disabled automatically and switched to wired mode.

Disable the USB connection to enable the wireless display mode again.

3. Charging the battery

Your monitor is shipped with an AC adapter to charge your monitor from any

standard AC power outlet.

Note: The battery is not fully charged when shipped.

If a message is displayed indicating that the battery is less than 10% it is

recommended the monitor be shut down and the battery charged to maximize

battery life. your monitor’s battery need charge, please take the following actions:

a. Plug the AC adapter into a plug adaptor, then plug the plug adaptor into a

standard AC power outlet.

b. Disconnect the AC adapter from your monitor when the battery power is full, or

leave the AC adapter connected to operate from AC power.

Note: To remove connector, please refer to the picture (Part 2) for spliting

instructions.

Chapter 1. Getting started 1-7

Part 2

Part 1

4. How to use your USB Wifi adapter:

The attached USB WiFi adapter is an independent WiFi device for video connection

or network. Depending on the configuration, the integrated wireless adapter on

the system may give better performance with the LT1423pwCA monitor than the

supplied USB WiFi adapter.

1-8 LT1423pwCA Wide Touch Monitor User’s Guide

5. Using the cover

A cover is included with the monitor which provides protection when the monitor is

being carried or stored. The cover can also be used as a monitor stand as illustrated

below:

1) Attaching the cover

2) Using the cover as a monitor stand

a. Remove the monitor from the cover and lift the support feature.

b. Put monitor in front of stand leg.

Chapter 1. Getting started

1-9

Using the Multi-touch screen

Your Monitor support multi-touch function on Win7/Win8 32/64bits OS, can support

maximum ten point muti-touch function on Win 8 32/64bits OS.

Tap the screen to use the controls on the screen including icons, menu items, and the

on-screen keyboard.

Following provides instructions on how to use the multi-touch screen.

Tap

Tap gently on the screen with your fingertip to launch an application, select an item,

open a menu, orinput text using the onscreen keyboard.

Press and hold

Press and hold an object or a blank area on the screen until an action occurs.

Drag

To move an item such as an image and an icon on the screen, tap and hold your finger

on the item, moveyour finger to the desired location, and then take your finger off the

screen.

Swipe or slide

Move your finger in a vertical or horizontal direction on the screen to scroll through the

Start screen, Webpages, lists, picture thumbnails, and so on.

Zoom

•Zoomout:Movetwofingersclosetogetheronthescreenasifyouarepicking

something up to reducethe view of an image or a Web page.

•Zoomin:Movetwofingersapartonthescreentoenlargetheviewofanimageora

Web page.

Double-tap

For some applications, quickly tap twice on the screen to zoom in. Double-tap again to

zoom out.

Using the Monitor Stylus Pen

The LT1423pwCA supports touch pen functions on Win7 and Win8 (32 bit / 64 bit)

operating systems.

The Touch Stylus pen is linked to your monitor and you can use it to input text or draw

grahics as well as perform other operations without tapping the screen. It allows the

user to take notes on the screen, draw graphics when used with applications that

support editing and sketching.

The Monitor Stylus Pen consists of a tip A and a click button B. Hold the pen and point

the tip on the display to move the cursor .To make a selection (single click), tap the

display once with the pen. To double-click, tap twice withoutpausing. To do a right-

click, tap the display once and then hold the tip of the pen on the display; the right-click

icon appears. Pressing the click button to take a screen capture and snip the captured

image.

1-10 LT1423pwCA Wide Touch Monitor User’s Guide

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer

and to avoid discomfort. Arrange your workplace and the equipment you use to suit

your individual needs and the kind of work that you perform. In addition, use healthy

work habits to maximize your performance and comfort while using your computer.

For more detailed information on any of these topics, visit the Healthy Computing Web

site at: http://www.lenovo.com/healthycomputing

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to

work in comfort.

Organize you work area to match the way you use materials and equipment. Keep your

work area clean and clear for the materials that you typically use and place the items

that you use most frequently, such as the computer mouse or telephone, within the

easiest reach.

Equipment layout and setup play a large role in your working posture. The following

topics describe how to optimize equipment setup to achieve and maintain good

working posture.

Positioning and viewing your monitor

Position and adjust your computer monitor for comfortable viewing by considering the

following items:

• Viewing distance: Optimal viewing distances for monitors range from approximately

510mm to 760mm (20 in to 30 in) and can vary depending on ambient light and time

of day. You can achieve different viewing distances by repositioning your monitor

or by modifying your posture or chair position. Use a viewing distance that is most

comfortable for you.

• Monitor height: Position the monitor so your head and neck are in a comfortable

and neutral (vertical, or upright) position. If your monitor does not have height

adjustments, you have to place books or other sturdy objects under the base of

the monitor to achieve the desired height. A general guideline is to position the

monitor such that the top of the screen is lightly below your eye-height when you are

comfortably seated. However, be sure to optimize your monitor height so the line of

site between your eyes and the center the monitor suits your preferences for visual

distance and comfortable viewing when your eye muscles are in a relaxed stated.

• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen content

and to accommodate your preferred head and neck posture.

• General location: Position your monitor to avoid glare or reflections on the screen

from overhead lighting or nearby windows.

2-1

The following are some other tips for comfortable viewing of your monitor:

• Use adequate lighting for the type of work you are performing.

• Use the monitor brightness, contrast, and image adjustment controls, if equipped, to

optimize the image on your screen to meet your visual preferences.

• Keep your monitor screen clean so you can focus on the screen’s contents.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to

periodically look away from your monitor screen and focus on a far object to allow your

eye muscles to relax. If you have questions on eye fatigue or visual discomfort, consult

a vision care specialist for advice.

Quick tips for healthy work habits

The following information is the summary of some important factors to consider to help

you remain comfortable and productive when you use computer.

• Good posture starts with equipment setup: The layout of your work area and the

setup of your computer equipment have a large effect on your posture when using

your computer. Be sure to optimize the position and orientation of your equipment

by following the tips outlined in “Arranging your work area” on page 2-1 so you can

maintain a comfortable and productive posture. Also, be sure to use the adjustment

capabilities of your computer components and office furniture to best suit your

preferences now and as your preferences change over time.

• Minor changes in posture can help avoid discomfort: The longer you sit and

work in front of your computer, the more important it is to observe your working

posture. Avoid as summing any one posture for an extended period of time.

Periodically make minor modifications in your posture to help deter any discomforts

that might arise. Make use of any adjustments that your office furniture or equipment

provide to accommodate changes in posture

• Short, periodic breaks help ensure healthy computing: Because computing is

primarily a static activity, it is particularly important to take short breaks from your

work. Periodically, stand up from your work area, stretch, walk for a drink of water,

or otherwise take a short break from using your computer. A short break from work

gives your body a welcome change in posture and helps to ensure you remain

comfortable and productive while you do work.

Accessibility information

Lenovo is committed to provide greater access to information and technology to people

with disabilities. With assistive technologies, users can access information in the way

most appropriate to their disability. Some of these technologies are already provided

in your operating system; others can be purchased through vendors or accessed at:

https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php

2-2 LT1423pwCA Wide Touch Monitor User’s Guide

Adjusting your monitor image

This section describes the user control features used to adjust your monitor image.

Using the On-Screen Display (OSD) controls

The display settings can be viewed through the on-screen-display (OSD), as shown

below

USB video connection When WIFI is ready

To use the controls:

1. Press to open the main OSD menu. If wireless connection is made via the

LT1423pwCA control panel, and the display is normal, you can press the “ ”

button to turn on the OSD of LT1423pwCA control panel on the computer, and you

need to use the mouse to operate it. Please refer to Point 4 of “Wireless Using” in 4-9.

2. Use or to move across the icons. Select an icon and press to access that

function. Then use or to make adjustments, when you’re satisfied with the

settings, press to exit the current adjustment.

3. Press to exit from the OSD.

4. “” is hot key for adjust the image.

Table 2-1. OSD functions

OSD Icon on

Main Menu

Description

Brightness

Adjusts overall brightness.

Note: In the wireless mode, if the LT1423pwCA device is not

connected through the LT1423pwCA control panel, and

the current brightness is 100, you can long press the +

key for ten seconds to enter the brightness enhancement

mode, to get 10-order brightness. The maximum brightness

is 110. This mode will be released when the USB cable is

connected or the brightness is adjusted to 100 or below.

Contrast Adjusts difference between light and dark areas.

Automatic

Automatically optimizes the image.

Note: The function is activated during image displayed through

USB connection.

Option Go to the options menu.

Channel

Adjust the monitor’s WIFI channel to match your WIFI adapter.

Note: This function is only available when the monitor’s WIFI is

Ready to connect.

Exit Exit from the OSD.

Chapter 2. Adjusting and using your monitor 2-3

OSD Icon on Option Menu Description

Language

This section lists the languages supported by your monitor.

Note: The language chosen only affects the language of the OSD.

It has no effect on any software running on the computer.

When LT1423pwCA control panel is connected via WIFI,

the language setting of the monitor will be consistent with

the language of the computer system (which must be the

language supported by the monitor).

Button Repeat Rate Change button repeat rate.

Menu time out Change menu time out setting.

Reset OSD setting reset.

Return Return to the main menu.

Understanding power management

Power management is invoked when the computer goes to stand-by mode. The

monitor states are described below.

For optimal performance, unplug the USB cable and switch off your monitor by

monitor’s power key at the end of each working day, or whenever you expect to leave it

unused for long periods during the day.

Table 2-2. Power indicator of USB mode

State Power Indicator WIFI Indicator Screen

On Green Off Normal

Sleep Green Off Black

Off Off Off Black

Table 2-3. Power indicator of WIFI mode

State Power Indicator WIFI Indicator Screen

On Green Blue/Amber Normal

Sleep Green Blue/Amber Black

Off Off Off Black

2-4 LT1423pwCA Wide Touch Monitor User’s Guide

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

• Apply water or liquid directly to your monitor.

• Use solvents or abrasives.

• Use flammable cleaning materials to clean your monitor or any other electrical

equipment.

• Touch the screen area of your monitor with sharp or abrasive items. This type of

contact may cause permanent damage to your screen.

• Use any cleaner which contains an anti-static solution or similar additives. This may

harm the coating of the screen area.

Do:

• Lightly dampen a soft cloth with water and use this to gently wipe the covers and

the screen.

• Remove grease or finger marks with a damp cloth and a little mild detergent.

Selecting a supported display mode

The display mode the monitor uses is controlled by the computer. Therefore, refer to

your computer documentation for details on how to change display modes.

The image size, position and shape might change when the display mode changes.

This is normal and the image can be readjusted using automatic image setup and the

image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat

Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently

configured to a display mode outside the range of this monitor, you may need to

re-attach the CRT monitor temporarily until you have re-configured the system;

preferably to 1600 x 900 at 60 Hz, which is the Native Resolution Display mode.

The display modes shown below have been optimized at the factory.

Table 2-4. Factory set display modes

Addressability Refresh rate

800 x 600 60 Hz

1280 x 720 60 Hz

1280 x 800 60 Hz

1024 x768 60 Hz

1366 x 768 60 Hz

1440 x 900 60 Hz

1600 x 900 60 Hz

Chapter 2. Adjusting and using your monitor 2-5

Chapter 3. Reference information

This section contains monitor specifications, troubleshooting information, and service

information.

Monitor specifications

Table 3-1. Monitor specifications

Dimensions

Height 225.44 mm (8.87 in)

Depth 12.70 mm (0.50 in)

Width 347.96 mm (13.70 in)

Stand Tilt range Range: 0°~95°


Viewable image size 337.82 mm (13.3 in)

Maximum height 165.24 mm (6.51 in)

Maximum width 293.76mm (11.57 in)

Pixel pitch 0.1836 mm (0.0072 in) (V)

Power input Supply voltage 5V DC

Max supply current 1.4 A

Adapter power input Supply voltage 5V DC

Max supply current 4A

Power consumption

Note: Power consumption

figures are for

the monitor and

the power supply

combined.

Max Consumption 20 W

Typical Consumption 16 W

Sleep Consumption 20 W

Video input Input signal USB 3.0

Data rates 5G bps(max)

Supported Display Modes Native Resolution 1600 x 900 at 60 Hz

Temperature

Operating 0° to 40°C (32° to 104° F)

Storage -20° to 60°C (-4° to 140° F)

Shipping -20° to 60°C (-4° to 140° F)

Humidity

Operating 10% to 80%

Storage 5%° to 95%

Shipping 5% to 95%

Troubleshooting

If you have a problem with setting up or using your monitor, you might be able to solve

it yourself. Before calling your dealer or Lenovo, try the suggested actions that are

appropriate to your problem.

If touch / Stylus function not working on LT1423p when in extended mode, please set

your notebook via following steps:

1. Open “Control panel”, then find the “Tablet PC Setting”.

2. Click “Tablet PC Setting” and Windows will shows below picture.

3. Please click “Setting” button, you will find below window on your notebook screen.

3-2 LT1423pwCA Wide Touch Monitor User’s Guide

4. 2 options to set up the stylus pen and the touch function. Click “stylus pen input”,

your notebook screen will show below picture.Then click “Enter” button of your

keyboard, the picture will also be displayed on your monitor screen.

5. Touch function setting is similar with the previous one.>.Finally, the stylus pen and

the touch function will be effective both on your monitor and your notebook screen.

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference

The LED indicator

is greenbut the

screen has no

display.

The driver is

not installed

correctly.

Please uninstall the

driverthen restart PC and

install the driver again.

“Driver

Installation”

on page 4-1

The image quality

is unacceptable.

The USB cable is

not connected

with the monitor

or system

completely.

Be sure the USB cable

is firmly plugged into the

system and monitor.

“Connecting

and turning

on your

monitor” on

page 1-6

The power

indicator is not lit

and there is no

image.

The USB cable

is loose or

disconnected

with the monitor

or system.

Be sure the USB cable is

connected properly.

“Connecting

and turning

on your

monitor” on

page 1-6

Monitor is not

power up

Have the battery charged

for a while, and then power

up the monitor by press

power button on the right

of the monitor.

“Charging the

battery” on

page 1-7

One or more of

the pixels appear

discolored.

This is a

characteristic

of the LCD

technology and

is not an LCD

defect.

If there are more than five

pixels missing, contact the

Customer Support Center.

Appendix A,

“Service and

Support,” on

page A-1

Screen skewing,

picture not in the

middle.

The desktop

background

have no clearly

boundary when

monitor do auto

adjust.

Make sure the desktop

have clear boundary or

open a file and maximize

it, then press left button or

select Automatic item in

the OSD, monitor will do

adjust again.

“Using the

On-Screen

(OSD)

controls” on

Page 2-3

Chapter 3. Reference information 3-3

Table 3-2. Troubleshooting (continued)

Problem Possible cause Suggested action Reference

Name of

required display

is not shown in

LT1423pwCA’s

control panel:

The display

does not

enable wireless

network mode

successfully.

Make sure the USB cable

is not connected. Press

ON/OFF key to enable

monitor.

“Setting up

your monitor”

on Page 1-6

The computer

does not use

wireless network

card.

Please insert the included

USB network card and

make sure that the

LT1423pwCA software has

been installed successfully.

The device is running

successfully in system

device manager.

The Windows

system does not

refresh the list of

wireless devices.

The Windows system

does not refresh name

of wireless devices. Click

Refresh to refresh the list

of wireless devices of your

Windows system.

Getting further help

If you still can’t solve your problem, please contact the Customer Support Center. For

more information on contacting the Customer Support Center, please see Appendix A,

“Service and Support,” on page A-1.

Service information

Product numbers

The product number for your monitor is located on the back of the Keyboard tilt foot as

shown below.

Customer responsibilities

The warranty does not apply to a product which has been damaged due to a

ccident, misuse, abuse, improper installation, usage not in accordance with p roduct

specifications and instructions, natural or personal disaster, or u nautho rized alterations,

repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

• Images burned on to the screen of a CRT monitor. Burned image is preventable by

utilizing a moving screen saver or power management.

• Physical damage to covers, bezel, base and cables.

• Scratches or punctures on monitor screens.

3-4 LT1423pwCA Wide Touch Monitor User’s Guide

Service parts

The following parts are for use by Lenovo service, or Lenovo authorized dealers, to

support the customer warranty. Parts are for service use only. The table below shows

information for model 60AC-UAR2-WW

Table 3-3. List of service parts

FRU (Field

Replaceable

Unit) Part

number

Description Color Machine Type

Model (MTM)

03T8733 LT1423p -FRU Monitor_

Simple cover (Wireless)

Raven Black 60AC-UAR2-WW

03T8474 USB3.0 cable Raven Black 60AC-UAR2-WW

03T8476 LT1423p -FRU Simple

Cover (Wired&Wireless)

Raven Black 60AC-UAR2-WW

04Y1470 Stylus Pen (Same with

Tablet 2)

Raven Black 60AC-UAR2-WW

03T8726 USB WiFi adapter Raven Black 60AC-UAR2-WW

03T8738 AC adapter-US Raven Black 60AC-UAR2-WW

03T8739 AC adapter-JP Raven Black 60AC-UAR2-WW

03T8740 AC adapter-ANZ Raven Black 60AC-UAR2-WW

03T8741 AC adapter-EU Raven Black 60AC-UAR2-WW

03T8742 AC adapter-CHN Raven Black 60AC-UAR2-WW

03T8743 AC adapter-ASEAN Raven Black 60AC-UAR2-WW

03T8493 AC adapter-Indonesia Raven Black 60AC-UAR2-WW

03T8494 AC adapter-Phillipines/

Signapore

Raven Black 60AC-UAR2-WW



Chapter 3. Reference information 3-5

Chapter 4. Working with LT1423pwCA Wide WIFI monitor

This section contains instructions to install the monitor driver and display information

settings.

Driver Installation

PC Requirements

Lenovo LT1423pwCA control panel software can be used on PCs, from Netbooks,

Notebooks/Laptops to Desktops. The driver will run on processors ranging from Atom

N270 based PCs, basic single Core CPUs, and of course the latest Dual, Quad Core

and Core i3/i5/i7 CPUs.

The performance of the software is dependent upon the processing power available, as

well as the operating system in use. More capable systems offer higher performance.

Lenovo LT1423pwCA control panel software is available for PCs running one of the

following Windows operating systems:

Windows 7 (32-bit or 64-bit)

Windows 8 Home or Professional (including monitor edition) with Service Pack 2

or 3

Note: No Windows Server editions are supported.

Recommended typical system requirements are:

Windows 7

For Windows 7, the Windows Experience Index (WEI) is a useful measure of hardware

level. The WEI is accessible from Computer > Properties, or from Control Panel >

System.

The recommended typical hardware requirements for the PC are:

WEI score of at least 3 in the ‘Graphics; Desktop performance for Windows Aero’

category.

Overall WEI score of at least 3 as recommended by Microsoft.

At least one USB 3.0 port.

150 megabytes (MB) of free disk space.

Computer screen for use with the Lenovo USB Monitor device, if it is not

integrated.

Windows 8

For 1-2 monitors, business usage, productivity target. This may not provide full

frame rate DVD playback at full screen.

1.2GHz Single Core CPU

512MB memory

For 3 monitors where 1 could run DVD video while also targeting productivity and

business apps. Will support only 1 video of DVD resolution at full screen:

1.6GHz CPU

1GB memory

For 6 screens where 1 screen can run full screen DVD video:

1.8GHz Core Duo

1GB memory

At least one USB 3.0 port.

150 megabytes (MB) of free disk space.

Computer screen for use with the Lenovo LT1423pwCA wireless monitor device, if

it is not integrated.

Network access for software downloads, or access to a CD-ROM drive.

Graphics Card Support (Windows 7)

On Windows 7, Lenovo LT1423pwCA control panel software interacts closely with the

primary graphics card. Lenovo LT1423pwCA control panel supports and tests a single

graphics card (GPU) installed in a PC from all major GPU vendors (Intel, ATI, NVidia and

Via)

The following GPU configurations may exhibit compatibility issues on Windows 7 in

certainly circumstances:

Switchable Graphics (ATI/Intel)

Switchable Graphics (ATI/ATI)

Switchable Graphics (NVIDIA/Intel)

NVIDIA SLI in SLI mode

Other GPU configurations, including the following, are currently unsupported and will

not function on Windows 7:

Hybrid Graphics

Hybrid SLI

Hybrid Crossfire

Crossfire

SLI not in SLI mode

Multiple WDDM 1.1 graphics drivers active at once

Graphics Card Support (Windows 8)

All graphics cards are supported on Windows 8.

4-2 LT1423pwCA Wide Touch Monitor User’s Guide

Installing the Lenovo LT1423pwCA Control Panel Software

The following section shows you how to install the LT1423pwCA control panel software

on different operating systems.

Note: If you have v3.x, R4.1 or R4.2 DisplayLink software installed you must uninstall it,

using the Windows Add/Remove Programs feature, before installing this release.

Devices will continue working after this release is installed.

To Install the Lenovo LT1423pwCA control panel software on

Windows 7/8

The preferred method of installation is using Window 7’s Windows Update facility.

1. Connect your Lenovo LT1423pwCA monitor via the USB cable to your PC.

Windows Detects the new hardware and automatically install the Mass storage USB

disk. LT1423pwCA control panel setup file and user manual is in the root directory.

2. You’ll be prompted to install and upgrade existing older software, if any,

when installing the LT1423pwCA control panel software. Please click Next,

Install, Override older software, Upgrade software, and Finish when being

prompted.

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-3

4-4 LT1423pwCA Wide Touch Monitor User’s Guide

3. After successful installation of drivers included with your LT1423pwCA

control panel, please wait for your Windows OS to set up new driving

devices and display screens. If normal display screen failed to show after

new device drivers have been installed, please restart your computer

manually.

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-5

Set up network card operation mode

Please follow steps below to ensure good effects of your wireless display: Get into your

Windows system’s control panel and then click System >> Device manager >> Network

adapter, search for and select desired wireless networking device (usually contains

letters WIFI),double click to enter the Property page, check to open the 802.11n work

mode, click OK to accept your settings.

Please note that your wireless network card will switch work mode and restart.

In case it is connected to a networked device, a temporary networking failure may

occur.

Note: The screen may flash or go black during the install.

On some machines you may reboot before you can use your DisplayLink enabled

device.

Wireless monitor using

1. After Lenovo LT1423pwCA control panel software installation, the software will be

auto-started with Windows® system. Or you can find the LT1423pwCA control

panel in start menu of Windows® 7 or search LT1423pwCA control panel in

Windows® 8’s programs.

4-6 LT1423pwCA Wide Touch Monitor User’s Guide

2. You can change settings by favor and click into the Connection Management to

found the SSID of LT1423pwCA monitor. You can power up the LT1423pwCA

monitor without USB cable, the SSID name and password shows on the screen of

the monitor, or you can press menu key to resume the information.The DisplayLink

software end user licence agreement window opens.

Click connect button under the monitor SSID name you want to connect.

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-7

Windows system will install device driver to finish the connection for a few minutes.

The status will changed and monitor is ready for using.

The options item is working after connection, you may need to change the Turn off

display after … item for energy saving.

Disconnect button under the SSID name is for disable wireless monitor from current

connection, and the monitor will not power off.

4-8 LT1423pwCA Wide Touch Monitor User’s Guide

3. Press power key shortly within one second will bring monitor into energy saving

mode, display and touch function are off but monitor still powered on to recall normal

usings. To power off the wireless monitor you can press power button and hold 3

seconds at least to pop up the host and monitor control OSD, and select shut down

monitor. Or you can hold the power key 8 seconds to power off the monitor without

OSD operations.

4. Pressing menu key can activate LT1423pwCA control panel OSD control menu

during wireless using; you can change the set tings by favor.

5. For detailed description on the use of LT1423pwCA control panel, please click the

Help button “ ”

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-9

USB Monitor Display Information settings

The language shown in pictures below is decided by your operating system:

(Unsupported languages default to English)

Using the DisplayLink Software

This section describes how to use USB Monitor’s Software. The section is divided into

sub-sections relating to your operating system.

Note: The terminology for mirror mode, can vary between operating systems and

the DisplayLink GUI. The terms “Clone”, “Mirror” and “Duplicate” essentially all

provide the same function of cloning the pixels from one display to another.

Windows 7 - Controlling the Display

On Windows 7, you can configure a DisplayLink device through the use of Windows

Display Properties (WDP). WDP provides a simple method to attach, rotate, duplicate or

extend screens as well as modify screen resolution.

To open WDP

1. Right click on the DisplayLink icon .

2. Click Advanced Configuration.

3. WDP opens.

4-10 LT1423pwCA Wide Touch Monitor User’s Guide

Setting the Display

Follow these procedure to set the display.

To set the display

1. Open Screen Resolution.

2. Set the display options. Refer to the table below for details on each option.

Table 4-1. WDP Options

Menu Sub-Menu Description

Display Use the drop down list to select a display

to be configured.

Resolution Use the drop down list and user the slider

to choose a resolution.

Orientation Landscape Sets the display to landscape view.

Portrait Sets the display to portrait mode.

Landscape (flipped) Sets the display to upside down

landscape mode.

Portrait (flipped) Sets the display to upside down portrait

mode.

Multiple

displays

Duplicates these displays Reproduces the main display on the

second display.

Extend these displays Extends the main display onto the

secondary display.

Show Desktop only on 1 The desktop appears on the display

marked 1. The display marked 2 becomes

blank.

Shows Desktop only on 2 The desktop appears on the display

marked 2. The display marked 1 becomes

blank.

To control the behaviour of an attached DisplayLink display, it is also possible to use

Windows Key+P to display a menu (and cycle through it) to switch mode.

To control the Display

1. Select the Windows Key+P.

The following menu appears.

2. Click on one of the options.

The display updates to reflect your choice.

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-11

The DisplayLink Icon Application

You can configure the behaviour of the DisplayLink Graphics through the DisplayLink

icon applications on the taskbar, where present.

To show the DisplayLink Manager menu

1. From the taskbar, click the Show hidden icons arrow to show all available icons.

2. Click the DisplayLink icon .

A menu appears with several options, as described in the following table.

Table 4-2 DisplayLink menu

Menu Description

Check for updates Connects to the Windows Update and checks for newer

versions and downloads them, if available.

Optimize for Video Select this option for better movie playback performance on

the DisplayLink enabled displays. Only select this option when

playing back video content.

Note: Texts may appear less clear when enabled.

Advanced Configuration

Opens the Windows Display Properties (WDP)

Windows 8 – Controlling the Display

When devices are attached, an icon appears in the taskbar. This gives you access to

the DisplayLink manager menu.

To use the DisplayLink Manager Menu

1. Click the DisplayLink icon on the taskbar.

The menu appears as shown below.

4-12 LT1423pwCA Wide Touch Monitor User’s Guide

2. Select an option from the menu, using the following table for the options available.

Table 4-3 UDisplayLink menu

Menu Option Sub-menu

Option

Description

Screen Resolution Displays a list of available resolutions. Some

resolutions may be enclosed by [ ]. Please see,

Inferred Modes.

Screen Rotation Normal No rotation is applied to the USB Monitor

display

Rotated Left Rotates the extended or mirrored display by

270 degrees.

Rotated Right Rotates the extended or mirrored display by

90 degrees.

Upside-Down Rotates the extended or mirrored display by

180 degrees.

Extend To Right Extends the display to the right of the main

display.

Left Extends the display to the left of the main

display.

Above Extends the display above of the main display.

Below Extends the display below the main display.

Extend Extends your desktop onto the secondary

display.

Set as Main

Monitor

Sets the secondary display as the main display.

Notebook Monitor

Off

Switches off the display of an attached

notebook and makes the USB Monitor display

primary.

Mirror Copies what is on the main display and

reproduces it on the secondary display.

Off Switches off the secondary display.

Optimize for Video

(Windows 7 Only)

Configures the secondary display for optimum

full screen video performance output.

Note: Text may appear less clear.

Advanced

Configuration

Opens the Display Settings window.

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-13

Additional Information

The following section provides additional information on the use of the DisplayLink

Graphics software.

Monitor Calibration

DDC/CI is not supported on displays with integrated DisplayLink technology, for

example mini monitors.

Media Playback

On Windows 7, Windows 8 (in extend modes), the DisplayLink USB Graphics device

can display media files and DVDs using the following media players:

Windows Media Player 11 (http://www.microsoft.com/windows/windowsmedia/

default.mspx)

WinDVD 8 (www.intervideo.com)

PowerDVD 7 (www.cyberlink.com)

RealPlayer 11 (www.real.com)

The DisplayLink USB Graphics device can display media files and DVDs using

most media players. Media playback in mirror mode (Windows8) or in Basic mode

(Windows7) is not recommended.

Using Multiple LT1423pwCA devices

The software supports up to six simultaneously USB/WIFI attached screens. It is also

possible that different sets of screens are being used at different times, for example

two in the office and two at home. The software saves each screen’s display profile

separately. This allows for different physical positioning, or different resolutions, of

connected monitors in the office and the home.

Standby and Hibernate, Shut down and Restart

If the PC that the LT1423pwCA monitor device is connected to is placed into standby

or hibernate mode, the display goes blank. When the PC is again powered up (and

unlocked if necessary) the connected monitor returns to the same mode as it was

before stand by or hibernation.

If the PC is shut down, restarted and logged in, again the connected display returns to

the same mode as it was before shutdown.

If you are using the LT1423pwCA monitor through WIFI connection, you may need

Windows system to refresh the WIFI device and then connect to the SSID you need in

the LT1423pwCA control panel.

LT1423pwCA monitor with Multiple Users

WTM monitor work with multiple users on the PC. The mode settings are saved for

each user so each can use their own desktop configuration.

Disconnecting the LT1423pwCA monitor

If the LT1423pwCA monitor device is powered off or the USB cable is removed from the

computer, the display blanks. All windows and icons move to the primary screen.

On reconnection or powering up of the LT1423pwCA monitor device, the display

returns to the same mode as it was before disconnection. However, windows and icons

that were previously on the screen will not be moved back.

4-14 LT1423pwCA Wide Touch Monitor User’s Guide

Error Messages

DisplayLink Graphics software occasionally displays user messages in a bubble in the

notification area. The table below lists the user messages and their descriptions.

Table 4-4 DisplayLink menu

Message Description

Insufficient system This can occur when entering extend mode with low system

resources exist resources. The PC does not have enough memory to start

to complete the an extend display. Close down any unused applications. The

requested service situation may also be improved by rebooting the PC.

The requested

allocation size was too

large

This can occur if trying to mirror a primary display with a

resolution above 1600x900 (16:9).

Incompatible Display

Driver

This message will appear if the primary graphics card drivers

installed are not WDDM compatible. Windows7 is not

designed to operate without WDDM drivers. Download and

install the latest Windows7 (WDDM) drivers for your primary

graphics card.

The system cannot

write to the specified

devices

This warning may be displayed in Windows8 after changing

the display mode several times (e.g. Extend/Dock mode) from

the DisplayLink GUI. If this happens, detach and reattach the

device to restore normal operation.

Troubleshooting

This section provides tips for correcting problems, should any occur. It also describes

how to contact Lenovo should you encounter problems that you cannot resolve.

Before you call Lenovo, please read the troubleshooting advice in this manual and

in your computer User’s Manual. You may also want to consult with your system

administrator or company technical support staff.

Precautions for Microsoft® Windows®

This product does not support 3D programs or Blue-Ray Disk.

Due to the configurations of computers and Windows® operating systems

available, functionality may differ slightly than stated in the user manual. This may

be due to the computer manufacture’s BIOS and other custom configurations

of the hardware, pre-installed software or operating system installed at time of

production. If you have specific problems, you may need to contact the computer

manufacturer to inquire about BIOS, hardware driver or operating system updates.

The Fn + F5 functionality detailed in the electronic User’s Guide for your Lenovo

computer only controls the internal video controller of your computer.

The Lenovo LT1423pwCA Wide USB monitor utilizes an advanced video

graphics controller to display the video. However, due to USB 3.0 transfer

speed limitations and WIFI bandwidth (also affected by environment), some or all

portions of DVD playback may appear slow or choppy. This is not a malfunction

of the Lenovo LT1423pwCA Wide monitor. Move the video playback from the

Lenovo LT1423pwCA Wide monitor to your computer display for optimal video

performance when viewing DVDs.

On Windows® 8 systems, DVDs may not display correctly on the Lenovo

LT1423pwCA Wide monitor. Use your computer’s built-in monitor to view DVDs.

In some software application programs that utilize certain direct draw commands

such as some 2D-Games, the display on the Lenovo LT1423pwCA Wide USB

Chapter 4. Working with LT1423pwCA Wide WIFI monitor 4-15

monitor will not be supported. If you want to play these games in full screen, we

suggest you disconnect the Lenovo LT1423pwCA Wide USB monitor.

This product is unable to enter full screen DOS mode when using the Lenovo

LT1423pwCA Wide USB monitor.

Problem show

Problem Solution(s)

The monitor does not

turn on

USB connection using: Check the connections. Make

sure the USB cable is firmly connected to the monitor.

Disconnect and reconnect the USB cable.

Check the condition of the USB cable. If the cable is

frayed or damaged, replace the cable. If the connectors

are soiled, wipe them with a clean cloth.

Using through WIFI connection: Make sure the monitor

is no connect to a USB cable.Connect the AC adaptor

Recharge the monitor for 10 minutes then power up the

monitor.

The screen is blank,

although the power is

USB connection using: Make sure the USB cable is

properly connected to the computer.

Make sure the computer is on and working. The computer

may be in sleep or power-saving mode, or displaying a

blank screen saver. Move the mouse to “wake up” the

computer.

Using through WIFI connection: Press power key within

1 second to wake up the monitor from energy saving

mode.Make sure the computer is connect to the monitor

correctly in WCP (LT1423pwCA control panel). Or you

need to press connect under the SSID of the monitor in

the WCP connection management.Reboot the monitor

and connect with LT1423pwCA control panel

The picture

“bounces” or moves

in a wave-like pattern

Move electrical devices that may cause electrical

interference away from the monitor.

Minor issues can generally be resolved by:

Unplugging and re-plugging the LT1423pwCA monitor, or

Reboot LT1423pwCA monitor and connect again in connect management of

LT1423pwCA control panel

changing the display mode via the DisplayLink GUI, or

changing the display mode via Windows Display Properties.

On Windows 7 WDDM (Aero and Basic)

DisplayLink software works closely with the graphics card and there may be

interoperability issues with some graphics cards. If this happen:

1. Try to upgrade to the latest graphics drivers.

2. Try to upgrade to latest LT1423pwCA control panel software.

3. Report the issue via your support channel.

4. If necessary, boot into Safe Mode and use Windows’ Backup and Restore Center

to recover.

4-16 LT1423pwCA Wide Touch Monitor User’s Guide

Appendix A. Service and Support

The following information describes the technical support that is available for your

product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

Registering your option

computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at:

http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is

available during the warranty period. In addition, if your option is installed in a Lenovo

computer, you might be entitled to service at your location. A Lenovo technical support

representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be

available until 90 days after the option has been withdrawn from marketing. After that

time, the support is cancelled, or made available for a fee, at Lenovo’s discretion.

Additional support is also available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the

following information available: option name and number, proof of purchase, computer

manufacturer, model, serial number and manual, the exact wording of any error

message, description of the problem, and the hardware and software configuration

information for your system.

Your technical support representative might want to walk you through the problem

while you are at your computer during the call. Telephone numbers are subject to

change without notice. The most up-to-date telephone list for Lenovo Support is always

available at: http://www.lenovo.com/support/phone

Date and time Update to be

Visible on the Website

Country or

Regions Language Old Telephone Number (s) New Telephone Number (s) Hours of Operation Applicable

to IWS

17-May-2012 1000 GMT

+4:00 RUSSIA Russian, 8 800 100 7888 8-800-555-0317 10 am - 7 pm Monday - Saturday

Yes

30-Jul-2012 0900 GMT +9:00 JAPAN Japanese,

English

0120-20-5550, 0570-064-600

For International: +81-46-266-

4716

0120-000-817

9AM - 6PM Monday - Sunday

(Exception : Third Sunday of

the month (due to maintenance

activities) and December 30th

and 31st and January 1st, 2nd,

and 3rd)

12-Sep-12 0900 GMT +9:00 SOUTH

KOREA

Korean,

English 1588-6782

080-513-0880 (Toll Free)

0234834817 (Standard

Charges Apply)

9AM - 6PM Monday - Friday 9AM

- 1PM Saturday

30-Nov-12 0700 GMT -6:00 Costa Rica

Spanish,

English

0-800-011-1029 Dial 0-800-011-4114, then dial

877-404-9661 7 am - 9 pm Monday - Sunday

30-Nov-12 0900 GMT -4:00 Dominican

Republic 1-866-434-2080 877-396-6150 9 am - 11 pm Monday - Sunday

30-Nov-12 0700 GMT -6:00 El Salvador 800-6264 800-6037 7 am - 9 pm Monday - Sunday

30-Nov-12 0700 GMT -6:00 Guatemala 1800-624-0051 Dial 999-9190, then dial 7 am - 9 pm Monday - Sunday

30-Nov-12 0700 GMT -6:00 Honduras Tegucigalpa: 232-4222 San

Pedro Sula: 552-2234

Dial 800-0123, then dial 877-

404-9661 7 am - 9 pm Monday - Sunday

30-Nov-12 0800 GMT -5:00 Panama

206-6047

001-866-434-2080 (Lenovo

Customer Support Center- toll

free)

001-800-507-2694 8 AM - 10 PM Monday - Sunday

3-Dec-12 0800 GMT -5:00 ECUADOR 1-800-426911 OPCION 4

(Andinatel) Dial 1-999-

119; then dial 877-404-

9661 (Pacifictel) 1-800-225-

528; then dial 877-404-9661

(Pacifictel Spanish) 1-800-999-

119; then dial 877-404-9661

8 AM - 10 PM Monday - Sunday

3-Dec-12 0800 GMT -6:00 MEXICO 001-866-434-2080 01800 0834916 8 AM - 10 PM Monday - Sunday

3-Dec-12 0900 GMT -3:00 PARAGUAY 009-800-52-10026 0098004410084 or 009-800- 9 am - 11 pm Monday - Sunday

3-Dec-12 1000 GMT -2:00 URUGUAY 000-411-005-6649 000 411 0026332 10 am - 12 pm Monday - Sunday

A-2 LT1423pwCA Wide Touch Monitor User’s Guide

Date and time Update to be

Visible on the Website

Country or

Regions Language Old Telephone Number (s) New Telephone Number (s) Hours of Operation Applicable

to IWS

5-Dec-12 0900 GMT +8:00 HONG KONG

Cantonese,

Mandarin,

English

(852) 3071-3561 9 AM - 8 PM Monday - Friday

9AM - 1 PM Saturday

Yes

5-Dec-12 0900 GMT +8:00 Macau

ThinkPad (Technical

enquiry hotline): 0800-839

(Macau) ThinkPad Service

Center: 2871-5399 (Macau)

ThinkCentre, ThinkStation

and ThinkServer: 0800-336

(Macau)

0800 807 9 AM - 8 PM Monday - Friday

9AM - 1 PM Saturday

5-Dec-12 0800 GMT -3:00 CHILE 800-361-213 1230 020 0173 or 800530008 8 AM - 10 PM Monday - Sunday

5-Dec-12 0800 GMT -5:00 PERU

Spanish,

English

0-800-50-866 OPCION 2 0800-77-503 8 AM - 10 PM Monday - Sunday

5-Dec-12 0830 GMT -4:30 VENEZUELA 0-800-100-2011 08001101111 8:30 am - 10:30 pm Monday -

Sunday

10-Dec-12 0900 GMT -4:00 BOLIVIA 0800-10-0189 800-10-0982 9 am - 11 pm Monday - Sunday

10-Dec-12 0800 GMT -5:00 COLOMBIA 1-800-912-3021

01800 5182433 (Toll Free)

3207635 (Standard Charges

Apply)

8 AM - 10 PM Monday - Sunday

12-Dec-12 1000 GMT -3:00 ARGENTINA 0800-666-0011 0800 2660570 10 am - 12 pm Monday - Sunday

01-Sep-12 0000 GMT +10:00 Australia English

131-426 Think Branded

Products

1300-880-917 ThinkServer

1800041267 24 hours/day 7 days/week

01-Sep-12 0000 GMT +10:00 New Zealand 0800-733-222 Think Branded 0508 770 506 24 hours/day 7 days/week

14-Sep-12 0830 GMT +7:00 VIETNAM Vietnamese,

English

For Northern Area and Hanoi

City: +84-4-3 7367625/+84-

4-3 7367626

For Southern Area and Ho Chi

Minh City: +84 8 3 8243504/

+84 8 3 8243503

12011072 8:30 AM - 5:30 PM Monday -

Friday

Appendix A. Service and Support A-3



Date and time Update to be

Visible on the Website

Country or

Regions Language Old Telephone Number (s) New Telephone Number (s) Hours of Operation Applicable

to IWS

28-Sep-12 0830 GMT +8:00 PHILIPPINES Tagalog,

English

1800-1601-0033 (Local

number only)

+603 8315 6858 (DID)

180089086454 (Domestic

Toll Free) 180014410719

(International Toll Free)

8:30 AM - 5 PM Monday - Friday

Yes

12-Oct-12 0800 GMT +8:00 SINGAPORE

English,

Mandarin,

Bahasa

Malaysia

800 6011 343 (Local number

only)

+603 8315 6856 (DID)

18004155529 8AM - 6:30PM Monday - Friday

26-Oct-12 0900 GMT +7:00 THAILAND Thai,

English

1-800-060-066 (Local number

only)

66 2273 4088+603 8315

6857 (DID)

0018004415734 9 AM -6 PM Monday - Friday

9-Nov-12 0900 GMT +7:00 INDONESIA

Bahasa

Indonesia,

English

+6221 2992 5823 001-803-

606-282

(Local number only) +603

8315 6859 (DID)

001803442425 9 AM -6 PM Monday - Friday

14-Nov-12 0900 GMT +8:00 BRUNEI

Bahasa

Malaysian,

English

801-1041 Dial 800-1111, then dial

8662735446 9 AM -6 PM Monday - Friday

14-Nov-12 0900 GMT +8:00 MALAYSIA

Bahasa

Malaysia,

English

1800-88-1889 (Local number

only)

+603 8315 6855 (DID)

1800880013 9 AM -6 PM Monday - Friday

30-Nov-12 0000 GMT -4:00 Antigua

English

New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Aruba New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -5:00 Bahamas New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Barbados New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Bermuda 1-800 426 7378 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 British Virgin

Islands New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -5:00 Cayman

Islands New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Curacao New 855-882-4402 24 hours a day 7 days a week

A-4 LT1423pwCA Wide Touch Monitor User’s Guide

Date and time Update to be

Visible on the Website

Country or

Regions Language Old Telephone Number (s) New Telephone Number (s) Hours of Operation Applicable

to IWS

30-Nov-12 0000 GMT -4:00 Grenada

English

New 855-882-4402 24 hours a day 7 days a week

Yes

30-Nov-12 0000 GMT -4:00 Guyana New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -5:00 Jamaica 1-800 426 7378 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Montserrat New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0700 GMT -6:00 Nicaragua Spanish,

English 001-800-220-1830 001-800226-0334 7 am - 9 pm Monday - Sunday

30-Nov-12 0000 GMT -4:00 Puerto Rico

English

New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 St Kitts New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 St Lucia New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 ST

MAARTEN New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 St Vincent New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -3:00 Suriname New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 Trinidad and

Tobago New 1-8666269587 24 hours a day 7 days a week

30-Nov-12 0000 GMT -4:00 US Virgin

Islands New 855-882-4402 24 hours a day 7 days a week

30-Nov-12 0000 GMT -5:00 CANADA English,

French 1-800-565-3344 8882523099 24 hours a day 7 days a week

30-Nov-12 0000 GMT -5:00 UNITED

STATES English 1-800-426-7378 855-882-4402 24 hours a day 7 days a week

17-Dec-12 0800 GMT -2:00 BRAZIL Portuguese

Calls made from within the

Sao Paulo region (11) 3889-

8986

Calls made from outside the

Sao Paulo region 0800-701-

4815

0800 885 0500 (Toll Free) (11)

3140-0500 (Standard Charges

Apply)

8 AM - 8 PM Monday - Friday

8 AM - 5 PM Saturday

Appendix A. Service and Support A-5

Appendix B. Notices

Any reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product,program, or service may be used. Any functionally

equivalent product,program, or service that does not infringe any Lenovo intellectual

property right may be used instead. However, it is the user’s responsibility to evaluate

and verify the operation of any other product, program, or service.

This information could include technical inaccuracies or typographical errors. Changes

are periodically made to the information herein; these changes will be incorporated in

new editions of the publication. Lenovo may make improvements and/or changes in the

product(s) and/or the program(s) described in this publication at any time without notice.

Lenovo may use or distribute any of the information you supply in any way it believes

appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience

only and do not in any manner serve as an endorsement of those Web sites. The

materials at those Web sites are not part of the materials for this Lenovo product, and

use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment.

Therefore, the result obtained in other operating environments may vary significantly.

Some measurements may have been made on development-level systems and there is

no guarantee that these measurements will be the same on generally available systems.

Furthermore, some measurements may have been estimated through extrapolation.

Actual results may vary. Users of this document should verify the applicable data for

their specific environment.

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly

recycle their equipment when it is no longer needed. Lenovo offers a variety of programs

and services to assist equipment owners in recycling their IT products. For information

on recycling Lenovo products, go to: http://www.lenovo.com/lenovo/environment/

recycling

Collecting and recycling a disused Lenovo computer or monitor

If you are a company employee and need to dispose of a Lenovo computer or monitor

that is the property of the company, you must do so in accordance with the Law for Pr

omotion of Ef fective Utilization of Resources. Computers and monitors are categorized

as industrial waste and should be properly disposed of by an industrial waste disposal

contractor certified by a local government. In accordance with the Law for Promotion of

Effective Utilization of Resources, Lenovo Japan provides, through its PC Collecting and

Recycling Services, for the collecting, reuse, and recycling of disused computers and

monitors. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/

pcrecycle/. Pursuant to the Law for Promotion of Effective Utilization of Resources, the

collecting and recycling of home-used computers and monitors by the manufacturer

was begun on October 1, 2003. This service is provided free of charge for home-used

computers sold after October 1, 2003. For details, visit the Lenovo Web site at www.

ibm.com/jp/pc/service/recycle/personal/.

Disposing of Lenovo computer components

Some Lenovo computer products sold in Japan may have components that contain

heavy metals or other environmental sensitive substances. To properly dispose of

disused components, such as a printed circuit board or drive, use the methods

described above for collecting and recycling a disused computer or monitor.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries, or

both:

Lenovo

Lenovo logo

ThinkCentre

ThinkPad

ThinkVision

Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of

companies.

Other company, product, or service names may be trademarks or service marks of

others.

B-2 LT1423pwCA Wide Touch Monitor User’s Guide

Turkish statement of compliance

The Lenovo product meets the requirements of the Republic of Turkey Directive on the

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

(EEE).

Türkiye EEE Yönetmeliğine Uygunluk Beyanı

Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlığı’nın “Elektrik ve Elektronik Eşyalarda Bazı Zarar

lıMaddelerin Kullanımının Sınırlandırılmasına Dair Yönetmelik (EEE)” direktiflerine uygundur.

EEEYönetmeliğineUygundur.

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or

both.

Ukraine RoHS

Цим підтверджуємо, що продукція Леново відповідає вимогам нормативних актів України,

які обмежують вміст небезпечних речовин

Appendix B. Notices B-3

Appendix C. -

Electronic emission notices – USB WiFi Adapter

Federal Communications Commission Declaration of Conformity

USB WiFi Adapter - 03T8726 (FCC ID: NKR03T8726)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult an authorized dealer or service representative for help.

Lenovo is not responsible for any radio or television interference caused by using other than specified or

recommended cables and connectors or by unauthorized changes or modifications to this equipment.

Unauthorized changes or modifications could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Responsible Party:

Lenovo (United States) Incorporated

1009 Think Place - Building One

Morrisville, NC 27560

Phone Number: 919-294-5900

RF Exposure Statement:

The radiated RF energy from the USB WiFi Adapter conforms to the FCC limit of the SAR (Specific

Absorption Rate) requirement set forth in 47 CFR Part 2 section 1093.

Radio Frequency Interference Requirements:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter

Operation in the 5.15-5.25GHz band are restricted to indoor usage only.

Canada - Industry Canada (IC)

USB WiFi Adapter - 03T8726 (IC ID: 4441A-03T8726)

Industry Canada Class B emission compliance statement

This Class B digital apparatus complies with Canadian ICES-003.

Low Power License-Exempt Radio Communication Devices (RSS-210)

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired operation of

the device.

Exposure of humans to RF fields (RSS-102)

This USB WiFi Adapter employs a low gain integral antenna that does not emit RF

field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from

Health Canada’s Web site at http://www.hc-sc.gc.ca/

The radiated energy from this USB WiFi Adapter antenna conforms to the IC limit of the RF exposure

requirement regarding IC RSS-102, Issue 4 clause 4.1.

EU-EMC Directive (2004/108/EC) EN 55022 class B Statement of Compliance

LT1423pwCA Wide Touch Monitor User’s Guide

C-2

Deutschland:

Einhaltung des Gesetzes über die elektromagnetische Verträglichkeit von Betriebsmitteln

Dieses Produkt entspricht dem „Gesetz über die elektromagnetische Verträglichkeit von

Betriebsmitteln“EMVG (früher „Gesetz über die elektromagnetische Verträglichkeit von Geräten“). Dies ist

die Umsetzung der EU-Richtlinie 2004/108/EG (früher 89/336/EWG) in der Bundesrepublik Deutschland.

Zulassungsbescheinigung laut dem Deutschen Gesetz über die elektromagnetische

Verträglichkeit von Betriebsmitteln, EMVG vom 20. Juli 2007 (früher Gesetz über die

elektromagnetische Verträglichkeit von Geräten), bzw. der EMV EG Richtlinie 2004/108/EC (früher

89/336/EWG), für Geräte der Klasse B.

Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen

- CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo

(Deutschland) GmbH, Gropiusplatz 10, D-70563 Stuttgart.

Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4:

Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse B.

European Union - Compliance to the Electromagnetic Compatibility Directive

This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the

approximation of the laws of the Member States relating to electromagnetic compatibility. Lenovo cannot

accept responsibility for any failure to satisfy the protection requirements resulting from a non-

recommended modification of the product, including the installation of option cards from other

manufacturers.

This product has been tested and found to comply with the limits for Class B Information Technology

Equipment according to European Standard EN 55022. The limits for Class B equipment were derived for

typical residential environments to provide reasonable protection against interference with licensed

communication devices.

Avis de conformité à la directive de l’Union Européenne

Le présent produit satisfait aux exigences de protection énoncées dans la directive 2004/108/EC du

Conseil concernant le rapprochement des législations des Etats membres relatives à la compatibilité

électromagnétique.Lenovo décline toute responsabilité en cas de non-respect de cette directive résultant

d’une modification non recommandée du produit, y compris l’ajout de cartes en option non Lenovo.

Ce produit respecte les limites des caractéristiques d’immunité des appareils de traitement de

l’information définies par la classe B de la norme européenne EN 55022 (CISPR 22). La conformité aux

spécifications de la classe B offre une garantie acceptable contre les perturbations avec les appareils de

communication agréés, dans les zones résidentielles.

Unión Europea - Normativa EMC

Este producto satisface los requisitos de protección del Consejo de la UE, Directiva 2004/108/EC en lo

que a la legislatura de los Estados Miembros sobre compatibilidad electromagnética se refiere.

Lenovo no puede aceptar responsabilidad alguna si este producto deja de satisfacer dichos requisitos de

protección como resultado de una modificación no recomendada del producto, incluyendo el ajuste de

tarjetas de opción que no sean Lenovo.

Este producto ha sido probado y satisface los límites para Equipos Informáticos Clase B de conformidad

con el Estándar Europeo EN 55022. Los límites para los equipos de Clase B se han establecido para

Appendix C. USB WiFi adapter Statement C-3

C-4 LT1423pwCA Wide Touch Monitor User’s Guide

Europe - EU Declaration of Conformity

Model: USB WiFi Adapter - 03T8726

Products intended for sale within the European Union are marked with the

Conformité Européenne (CE) Marking, which indicates compliance with the

applicable Directives and European Norms, and amendments, identified below.

European Contact for regulatory topics only:

Lenovo, Digital Park, Einsteinova 21, 851 01 Bratislava, Slovakia

Telephone: +421 2 6868 3018

Fax: +421 2 6868 8031

_______________________________________________________________________

English

Hereby, Wistron NeWeb Corp., declares that the wireless equipment listed

in this section are in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

Usage of this device is limited to indoor in the band 5150 to 5350 MHz (channels

36, 40, 44, 48, 52, 56, 60, 64).

_______________________________________________________________________

Appendix C. USB WiFi adapter Statement C-5

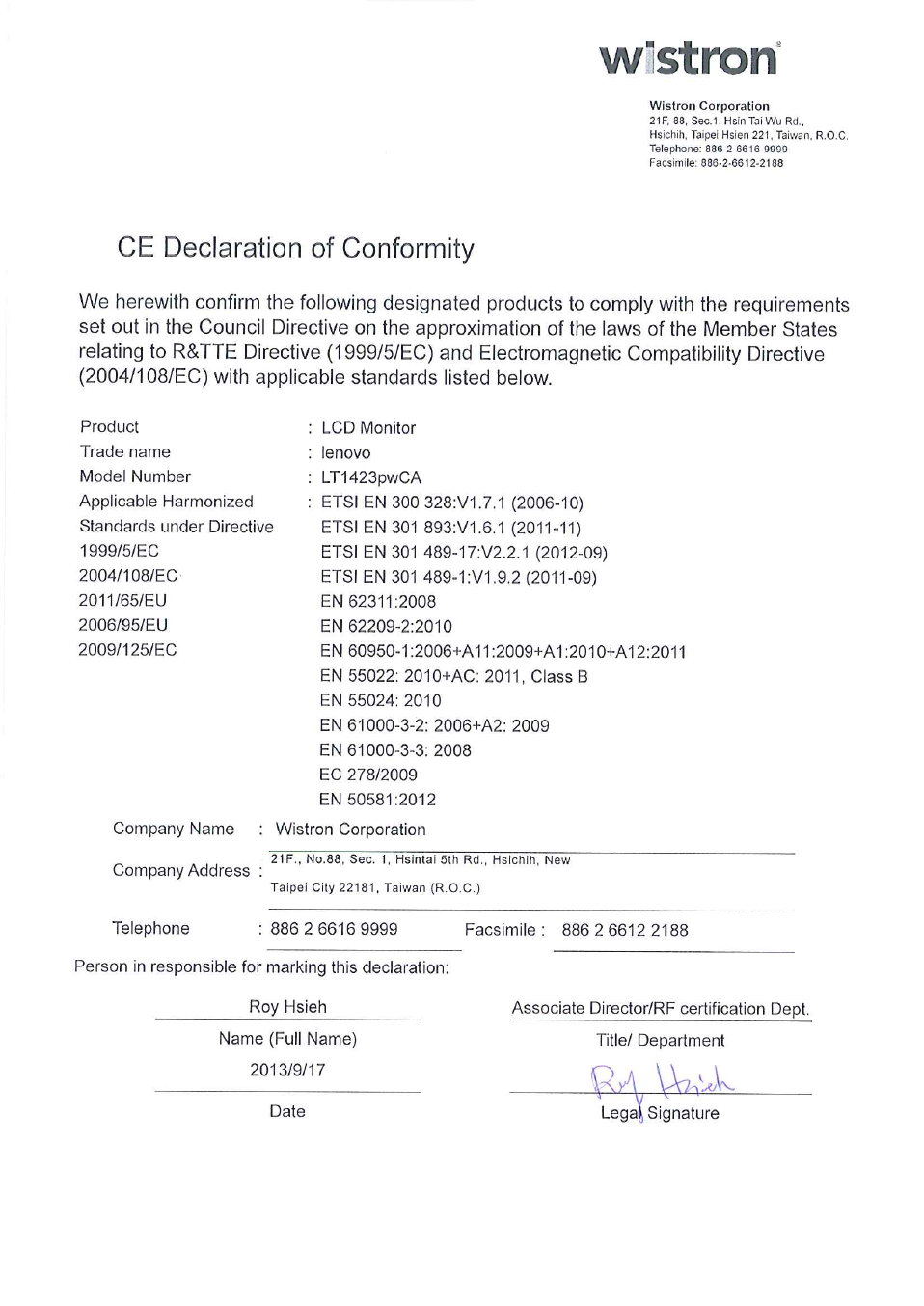

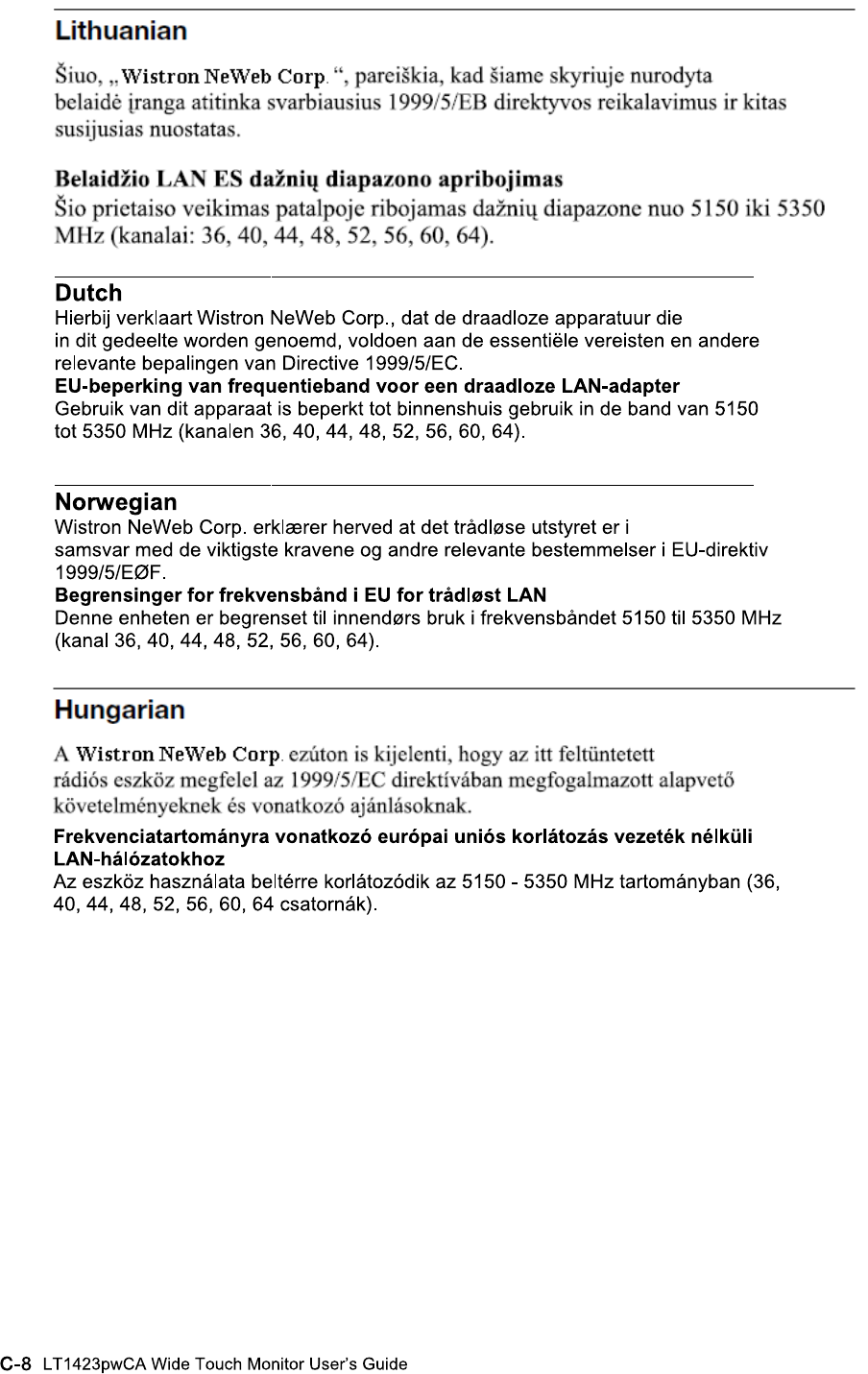

EU Declaration of Conformity – USB WiFi Adapter

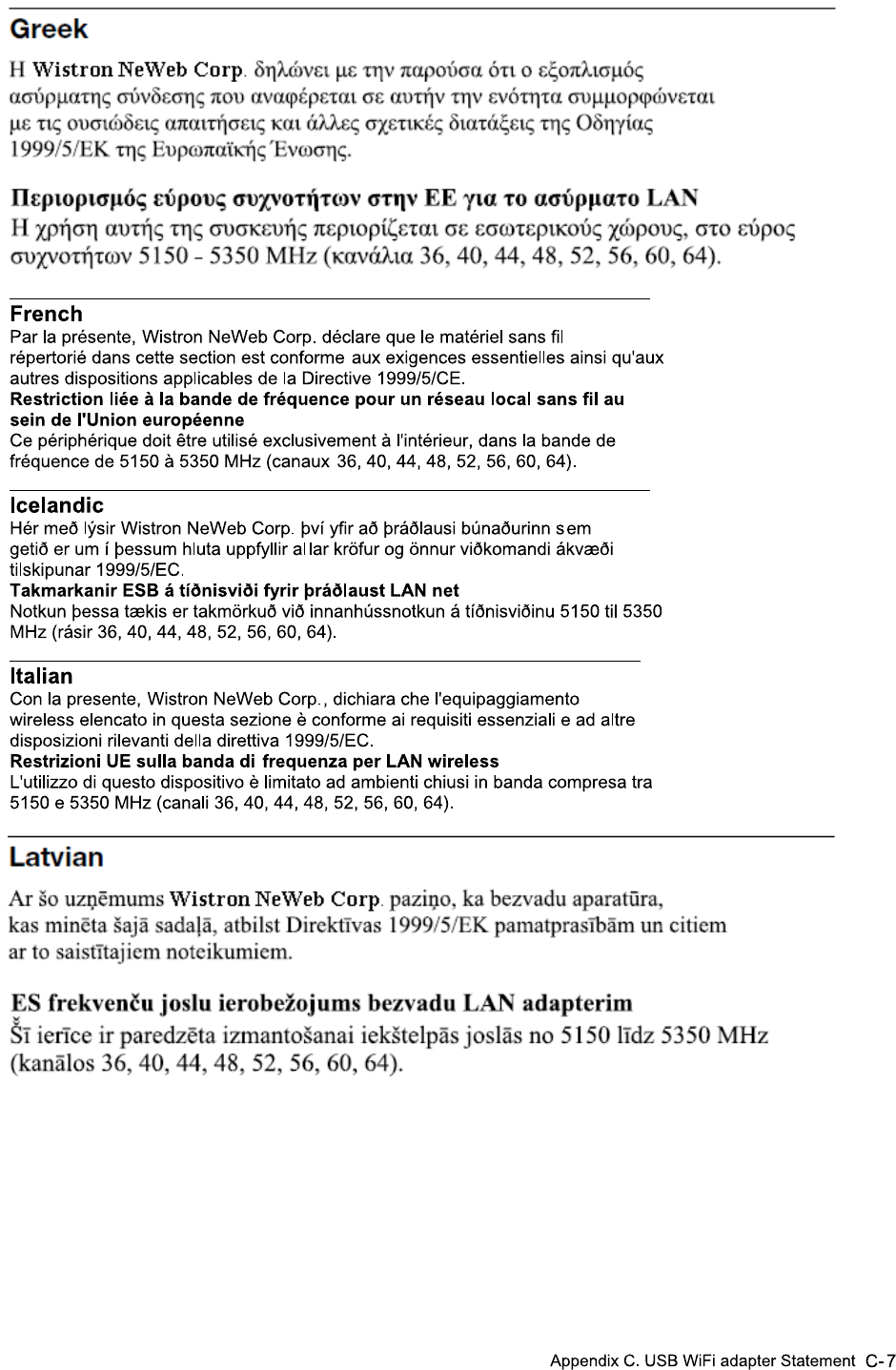

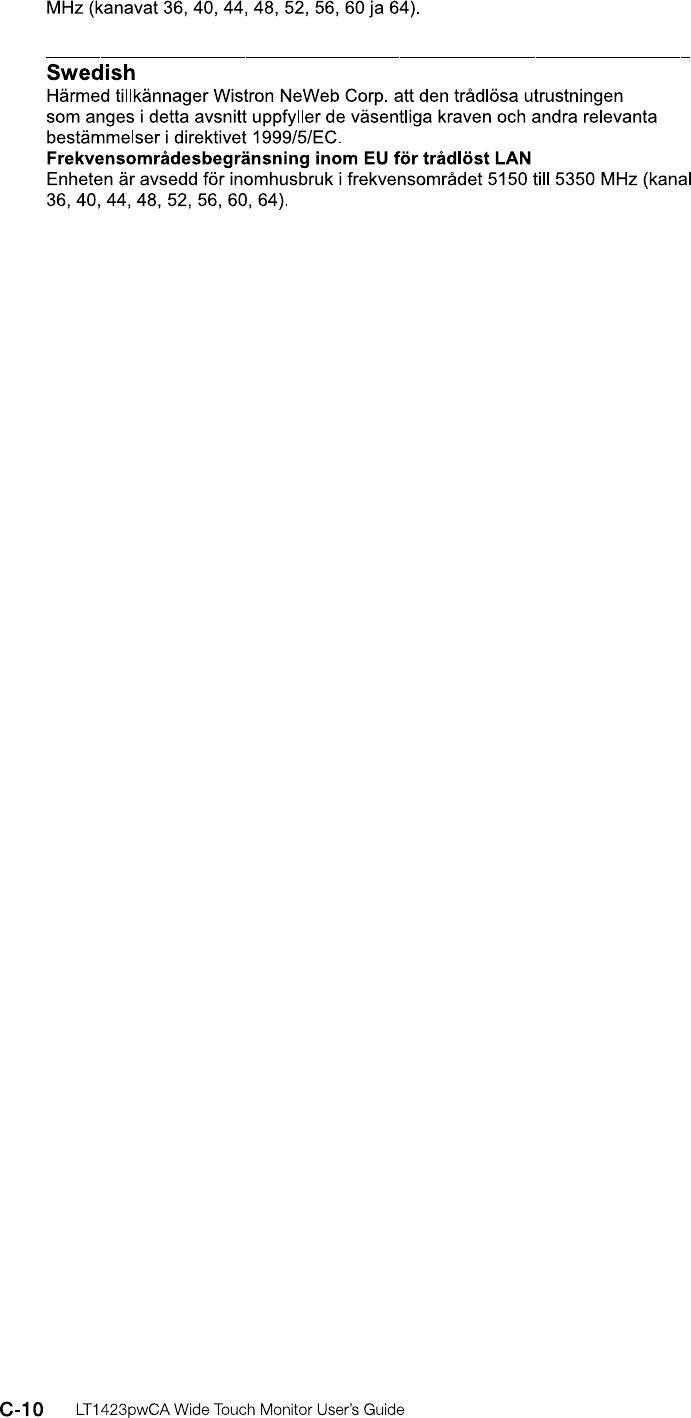

Appendix C. USB WiFi adapter Statement C-11

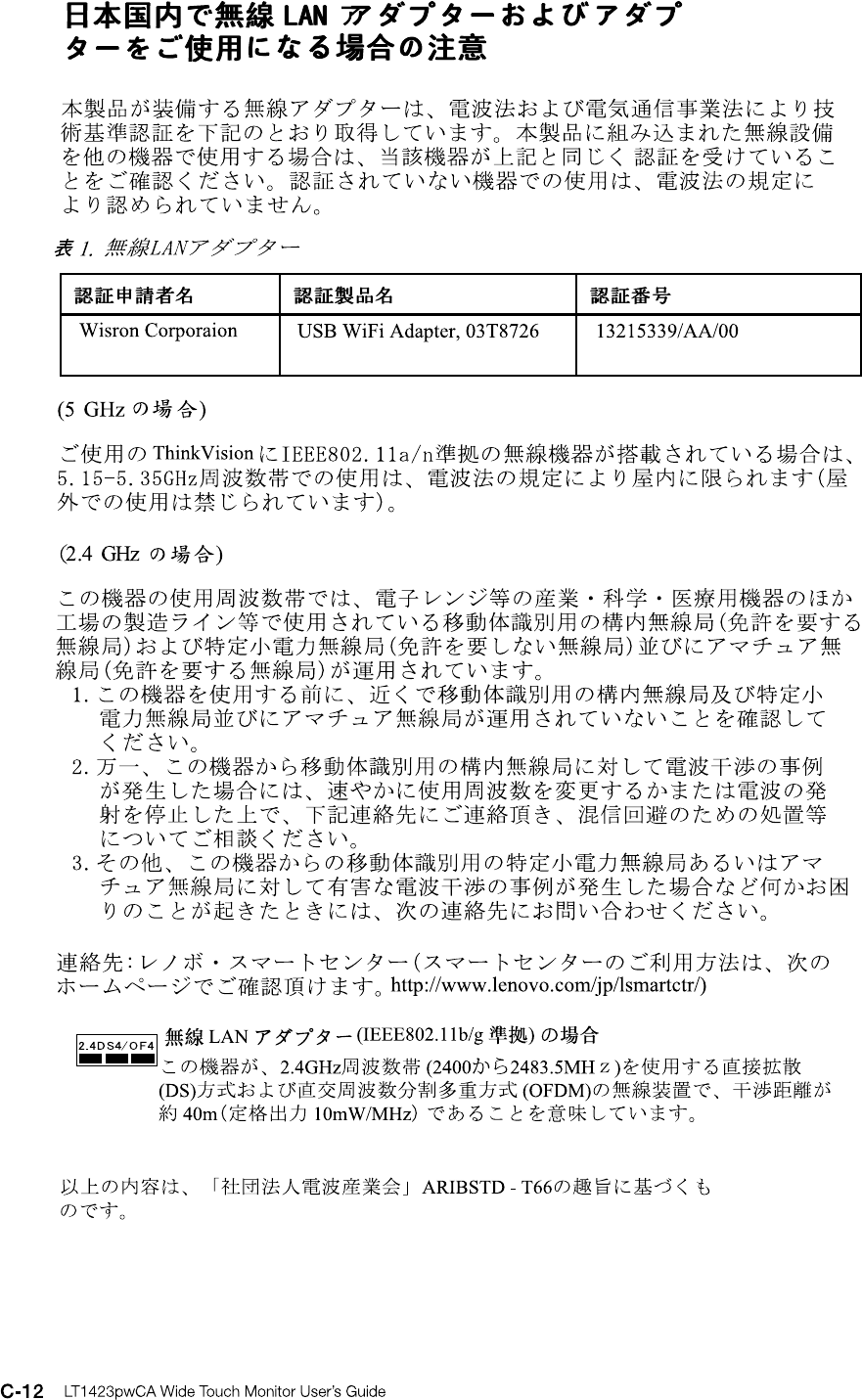

Appendix C. USB WiFi adapter Statement C-15

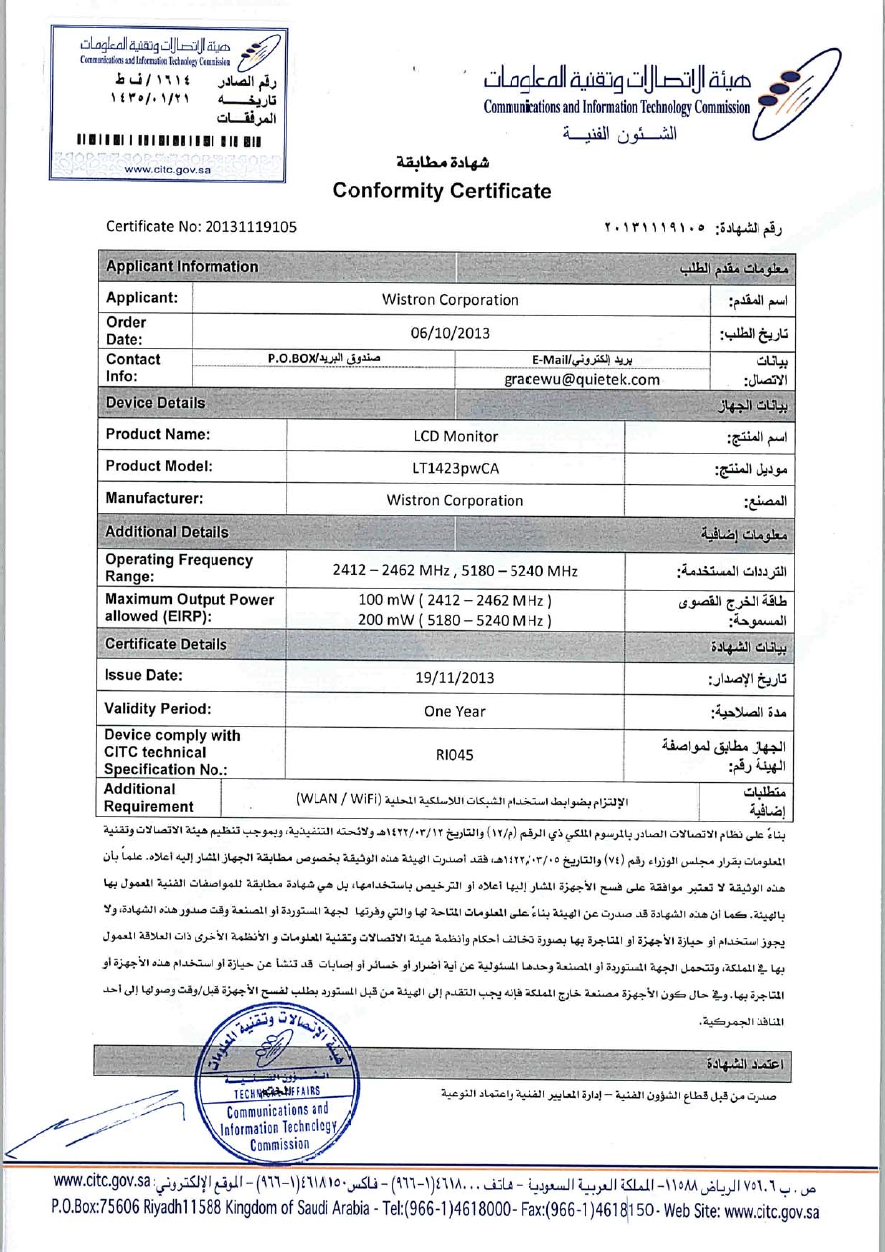

Saudi Arabia

C-16LT1423pwCA Wide Touch Monitor User’s Guide

■Notice for users in Thailand

For model: 03T8726

This wireless communication equipment has the electromagnetic field strength

in compliance with the Safety Standard for the Use of Wireless Communication

Devices on Human Health announced by the National Telecommunications Commission.

Notice for users in the UAE

■Notice for users in Morocco

For Models: 03T8726

The operation of this product in the radio channel 2 (2417 MHz) is not

authorized in the following cities: Agadir, Assa-Zag, Cabo Negro, Chaouen, Goulmima,

Oujda, Tan Tan, Taourirt, Taroudant and Taza.

The operation of this product in the radio channels 4, 5, 6 and 7 (2425 - 2442 MHz) is not

authorized in the following cities: Aéroport Mohamed V, Agadir, Aguelmous, Anza,

Benslimane, Béni Hafida, Cabo Negro, Casablanca, Fès, Lakbab, Marrakech, Merchich,

Mohammédia, Rabat, Salé, Tanger, Tan Tan, Taounate, Tit Mellil, Zag.

Due to the channel restrictions above, the operation of this product using the fat channel

mode (40MHz of channel bandwidth) is not allowed at the 2.4GHz frequency band.

■

■Notice for users in Pakistan

The following are Pakistan Telecommunication Authority (PTA)

approved: 03T8726

For model: 03T8726

DA0105422/13

TRA

REGISTERED No:

ER0118014/13

DEALER No:

Appendix C. USB WiFi adapter Statement C-17

■Notice for users in South Africa

For models: 03T8726

TA-2013/1514

C-18LT1423pwCA Wide Touch Monitor User’s Guide

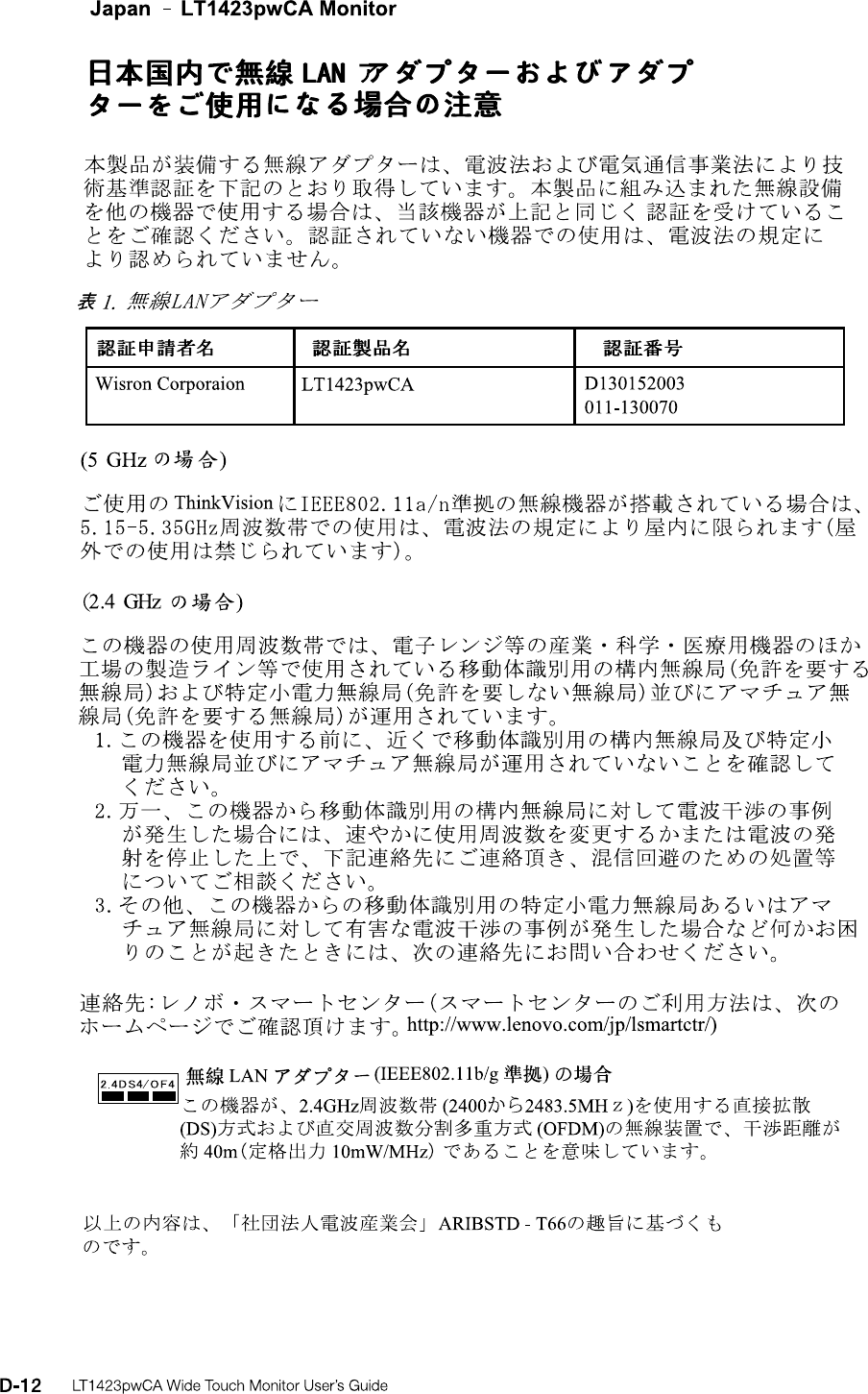

Appendix D. -

RF Electronic emission notices – LT1423pwCA Monitor

Federal Communications Commission Declaration of Conformity

LT1423pwCA Monitor - (FCC ID: PU5LT1423PWCA)
