HardwareMaintenanceManual

MachineTypes:20JD,20JE,20JF,and20JG

Note:Beforeusingthisinformationandtheproductitsupports,besuretoreadthegeneralinformation

underAppendixA“Notices”onpage91.

ThirdEdition(June2017)

©CopyrightLenovo2017.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneralServicesAdministration

“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.GS-35F-05925.

Contents

Aboutthismanual...........iii

Chapter1.Safetyinformation......1

Generalsafety................1

Electricalsafety...............1

Safetyinspectionguide............2

Handlingdevicesthataresensitivetoelectrostatic

discharge..................3

Groundingrequirements............4

Safetynotices(multilingualtranslations)......4

Chapter2.Importantservice

information..............19

StrategyforreplacingFRUs.........19

StrategyforreplacinganM.2solid-state

drive.................19

Importantnoticeforreplacingasystem

board................20

Howtouseerrormessage........20

StrategyforreplacingFRUsforCTO,special-bid,

andstandardmodels............20

Productdefinition............20

FRUidentification............20

Chapter3.Generalcheckout.....23

Whattodofirst..............23

Checkoutguide..............24

LenovoCompanion...........24

Quicktestprograms...........24

UEFIdiagnosticprogram.........25

Bootablediagnosticprograms.......25

Powersystemcheckout...........26

Checkingtheacpoweradapter......26

Checkingthebatteryandoperational

charging...............26

Checkingthecoin-cellbattery.......27

Chapter4.Relatedservice

information..............29

Recoveryinformation............29

Resettingyourcomputer.........29

Usingadvancedstartupoptions......29

RecoveringyouroperatingsystemifWindows

10failstostart.............29

CreatingandusingarecoveryUSBdrive..30

Passwords................31

Power-onpassword...........31

Harddiskpassword...........31

Supervisorpassword..........31

Howtoremovethepower-onpassword...32

Howtoremovetheharddiskpassword...32

Powermanagement............33

Sleepmode..............33

Hibernationmode...........33

Symptom-to-FRUindex...........34

Numericerrorcodes..........34

Errormessages............35

Beepsymptoms............35

No-beepsymptoms...........37

LCD-relatedsymptoms.........37

Intermittentproblems..........37

Undeterminedproblems.........38

Chapter5.YOGAModes.......39

Chapter6.Locations.........41

Locatingcomputercontrols,connectors,and

indicators.................41

Frontview...............41

Left-sideview.............42

Right-sideview.............42

Rearview...............42

Bottomview..............43

Statusindicators............43

LocatingFRUsandCRUs..........44

MajorFRUs..............46

LCDFRUs..............48

MiscellaneouspartsandotherFRUs....49

Connectorandcableguide........50

LookingupFRUinformation.........53

Chapter7.FRUreplacement

notices................55

Commonservicetools...........55

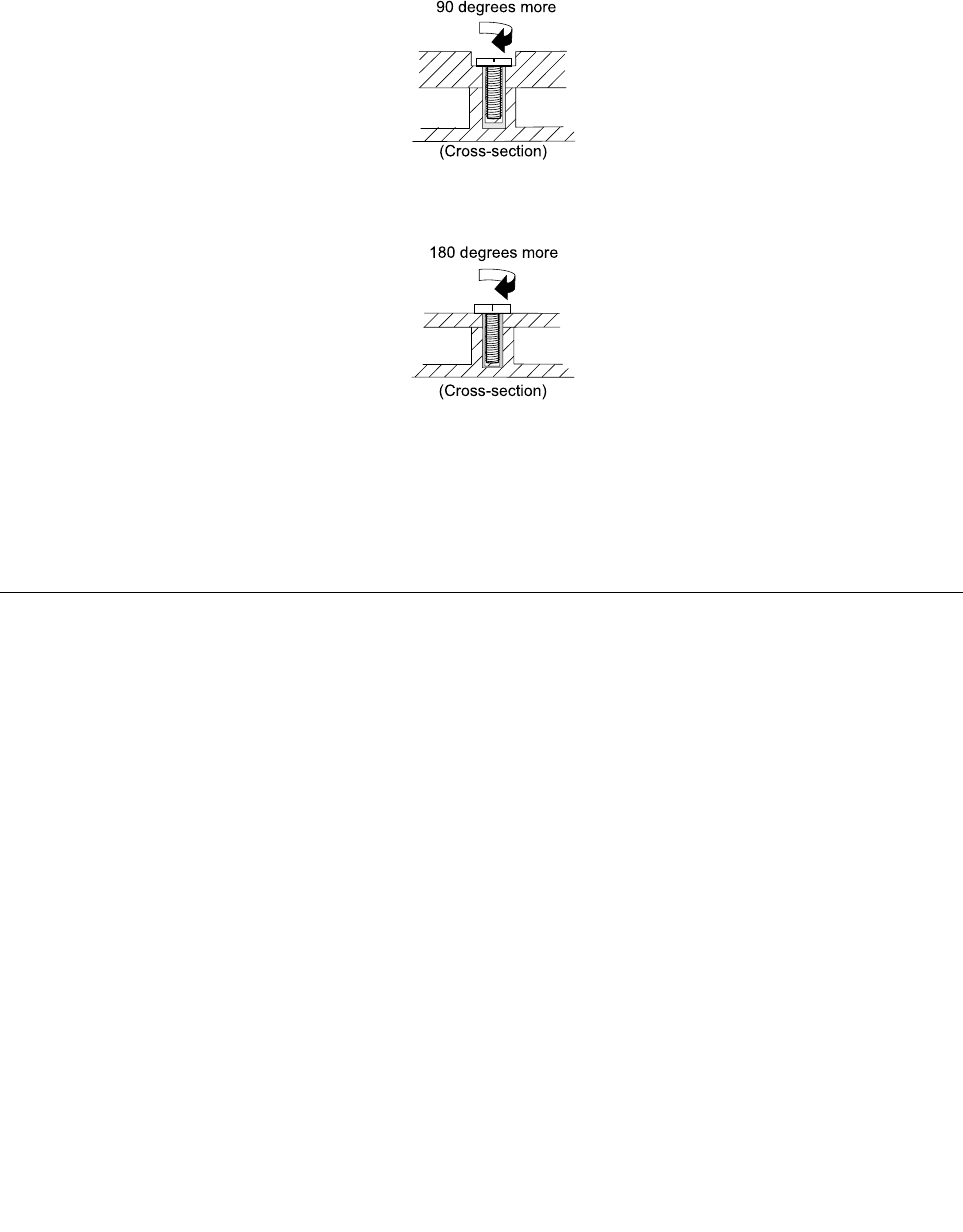

Screwnotices...............55

Retainingserialnumbers...........56

Restoringtheserialnumberofthesystem

unit.................56

RetainingtheUUID...........57

ReadingorwritingtheECAinformation...58

Chapter8.Removingorreplacinga

FRU..................59

Generalguidelines.............59

Beforeservicingthecomputer........60

©CopyrightLenovo2017i

Removingexternaldevices........60

Disablingthebuilt-inbattery.......60

RemovingthemicroSIMcard......60

RemovingThinkPadPenPro.......60

RemovingamajorFRU...........61

1010Basecoverassembly........61

1020M.2SSD.............62

1030WLANcard............63

1040WWANcard............64

1050Coin-cellbattery..........65

1060Thermalfanassembly........66

1070Speakerassembly.........67

1080Battery..............68

1090Powerbuttoncardand

power-button-cardcable.........69

1100Fingerprintreaderassemblyand

fingerprintreadercable.........70

1110Trackpadcable,trackpadsupport

bracket,andtrackpadassembly......72

1120NFCmodule,NFCcable,andNFC

antenna...............73

1130Pencharger............73

1140Systemboardassembly.......74

1150LCDunit.............77

RemovinganLCDFRU...........78

2010Stripecover............78

2020LCDpanelassemblyandLCDcable..79

2030Camera/microphonecardandsensor

card.................82

2040Hinges..............84

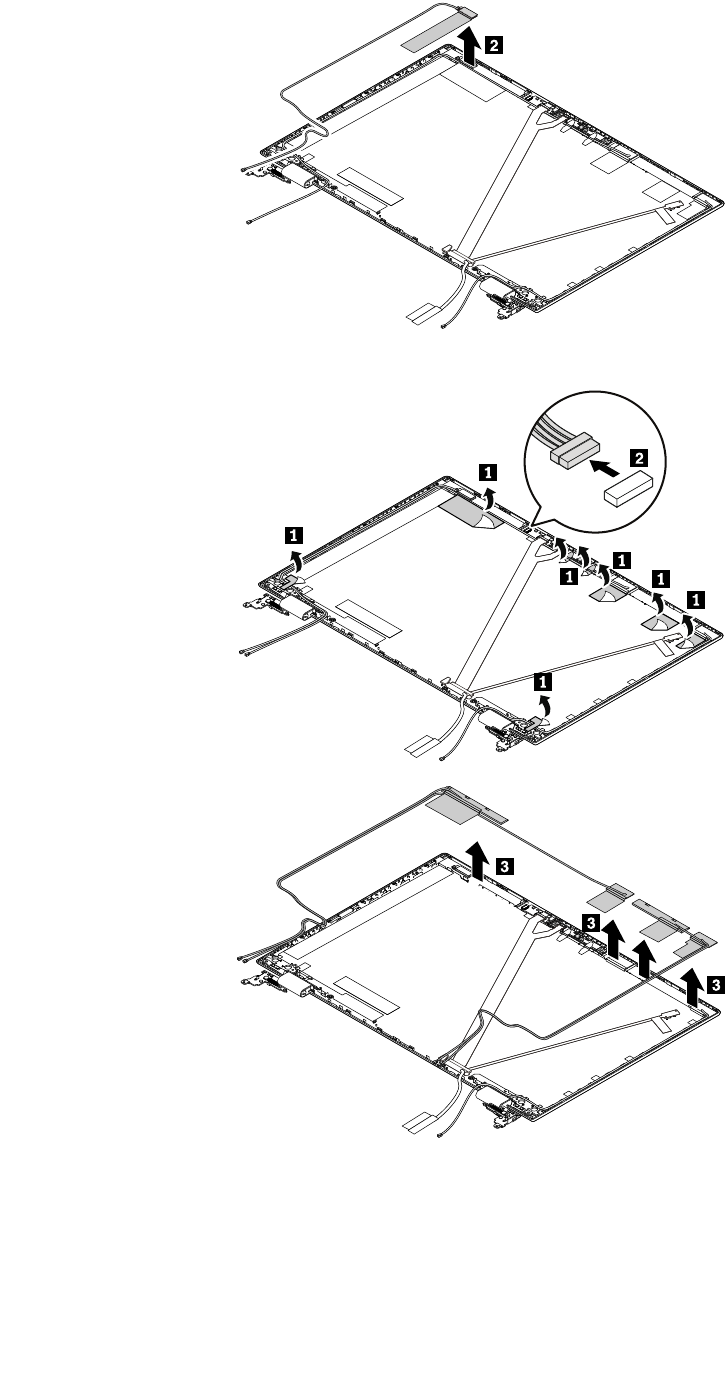

2050WiGigcableandantennakit.....85

2060LEDcableassembly........88

AppendixA.Notices..........91

Electronicemissionsnotices.........92

Trademarks................92

iiHardwareMaintenanceManual

Aboutthismanual

ThismanualcontainsserviceandreferenceinformationforthefollowingThinkPad®products.

ThinkPadX1YogaMachinetypes(MT):20JD,20JE,20JF,and20JG

Usethismanualalongwiththeadvanceddiagnosticteststotroubleshootproblems.

Important:ThismanualisintendedonlyfortrainedservicetechnicianswhoarefamiliarwithThinkPad

products.Usethismanualalongwiththeadvanceddiagnosticteststotroubleshootproblemseffectively.

BeforeservicingaThinkPadproduct,besuretoreadalltheinformationunderChapter1“Safetyinformation”

onpage1andChapter2“Importantserviceinformation”onpage19.

©CopyrightLenovo2017iii

ivHardwareMaintenanceManual

Chapter1.Safetyinformation

Thischapterpresentsfollowingsafetyinformationthatyoumustbefamiliarwithbeforeyouservicea

ThinkPadnotebookcomputer.

•“Generalsafety”onpage1

•“Electricalsafety”onpage1

•“Safetyinspectionguide”onpage2

•“Handlingdevicesthataresensitivetoelectrostaticdischarge”onpage3

•“Groundingrequirements”onpage4

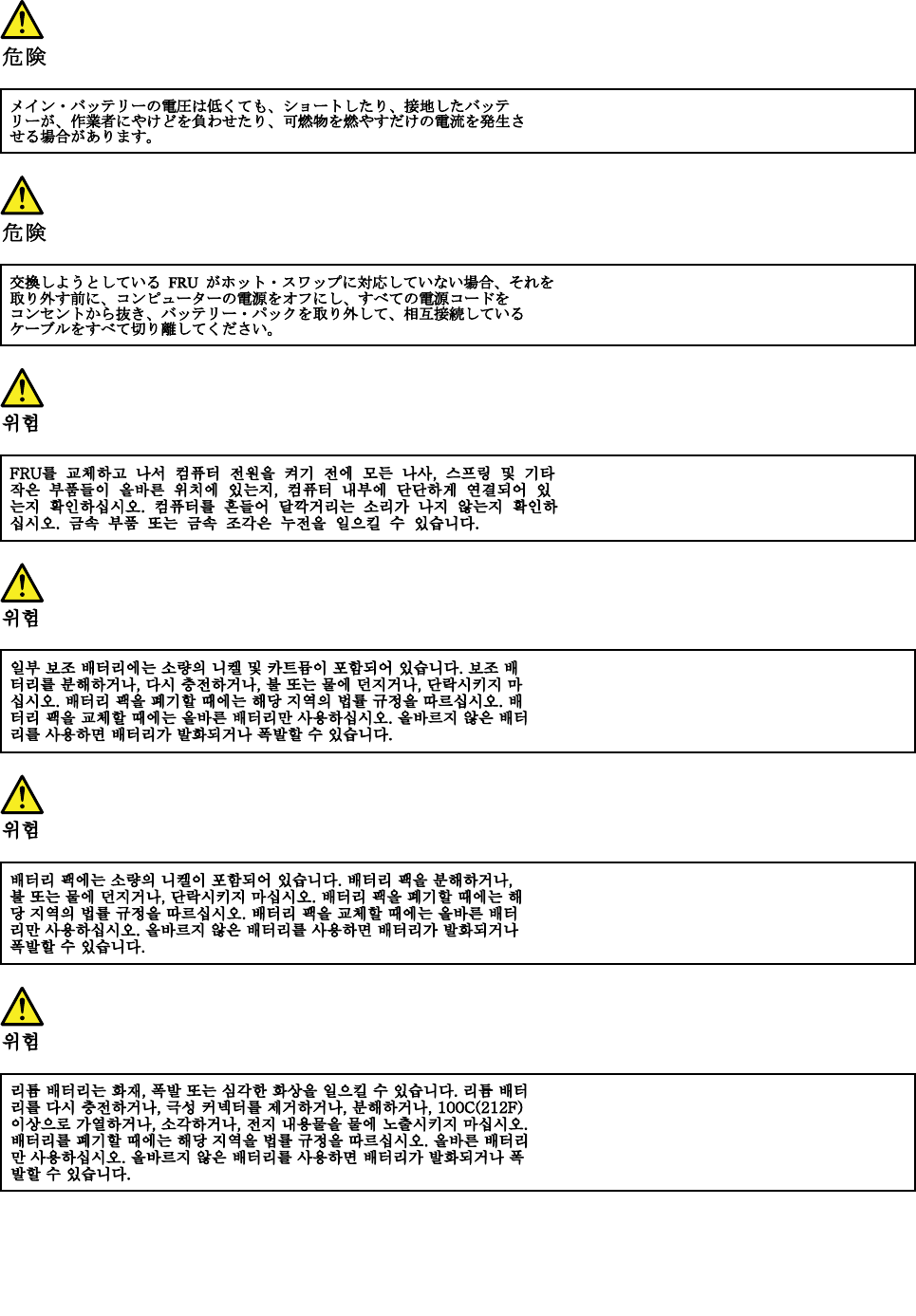

•“Safetynotices(multilingualtranslations)”onpage4

Generalsafety

Followtheserulestoensuregeneralsafety:

•Observegoodhousekeepingintheareaofthemachinesduringandaftermaintenance.

•Whenliftinganyheavyobject:

1.Makesurethatyoucanstandsafelywithoutslipping.

2.Distributetheweightoftheobjectequallybetweenyourfeet.

3.Useaslowliftingforce.Nevermovesuddenlyortwistwhenyouattempttolift.

4.Liftbystandingorbypushingupwithyourlegmuscles;thisactionremovesthestrainfromthe

musclesinyourback.Donotattempttoliftanyobjectthatweighsmorethan16kg(35lb)orthat

youthinkistooheavyforyou.

•Donotperformanyactionthatcauseshazardstothecustomer,orthatmakestheequipmentunsafe.

•Beforeyoustartthemachine,makesurethatotherservicetechniciansandthecustomer'spersonnelare

notinahazardousposition.

•Placeremovedcoversandotherpartsinasafeplace,awayfromallpersonnel,whileyouareservicing

themachine.

•Keepyourtoolcaseawayfromwalkareassothatotherpeoplewillnottripoverit.

•Donotwearlooseclothingthatcanbetrappedinthemovingpartsofamachine.Makesurethatyour

sleevesarefastenedorrolledupaboveyourelbows.Ifyourhairislong,fastenit.

•Inserttheendsofyournecktieorscarfinsideclothingorfastenitwithanonconductiveclip,about8

centimeters(3inches)fromtheend.

•Donotwearjewelry,chains,metal-frameeyeglasses,ormetalfastenersforyourclothing.

Attention:Metalobjectsaregoodelectricalconductors.

•Wearsafetyglasseswhenyouarehammering,drilling,soldering,cuttingwire,attachingsprings,using

solvents,orworkinginanyotherconditionsthatmightbehazardoustoyoureyes.

•Afterservice,reinstallallsafetyshields,guards,labels,andgroundwires.Replaceanysafetydevice

thatiswornordefective.

•Reinstallallcoverscorrectlybeforereturningthemachinetothecustomer.

•Fanlouversonthemachinehelptopreventoverheatingofinternalcomponents.Donotobstructfan

louversorcoverthemwithlabelsorstickers.

Electricalsafety

Observethefollowingruleswhenworkingonelectricalequipment.

Important:Useonlyapprovedtoolsandtestequipment.Somehandtoolshavehandlescoveredwithasoft

materialthatdoesnotinsulateyouwhenworkingwithliveelectricalcurrents.Manycustomershave,near

theirequipment,rubberfloormatsthatcontainsmallconductivefiberstodecreaseelectrostaticdischarges.

Donotusethistypeofmattoprotectyourselffromelectricalshock.

©CopyrightLenovo20171

•Findtheroomemergencypower-off(EPO)switch,disconnectingswitch,orelectricaloutlet.Ifanelectrical

accidentoccurs,youcanthenoperatetheswitchorunplugthepowercordquickly.

•Donotworkaloneunderhazardousconditionsornearequipmentthathashazardousvoltages.

•Disconnectallpowerbefore:

–Performingamechanicalinspection

–Workingnearpowersupplies

–Removingorinstallingmainunits

•Beforeyoustarttoworkonthemachine,unplugthepowercord.Ifyoucannotunplugit,askthecustomer

topower-offthewallboxthatsuppliespowertothemachine,andtolockthewallboxintheoffposition.

•Ifyouhavetoworkonamachinethathasexposedelectricalcircuits,observethefollowingprecautions:

–Ensurethatanotherperson,familiarwiththepower-offcontrols,isnearyou.

Attention:Anotherpersonmustbetheretoswitchoffthepower,ifnecessary.

–Useonlyonehandwhenworkingwithpowered-onelectricalequipment;keeptheotherhandinyour

pocketorbehindyourback.

Attention:Anelectricalshockcanoccuronlywhenthereisacompletecircuit.Byobservingtheabove

rule,youmaypreventacurrentfrompassingthroughyourbody.

–Whenusingtesters,setthecontrolscorrectlyandusetheapprovedprobeleadsandaccessoriesfor

thattester.

–Standonsuitablerubbermats(obtainedlocally,ifnecessary)toinsulateyoufromgroundssuchas

metalfloorstripsandmachineframes.

Observethespecialsafetyprecautionswhenyouworkwithveryhighvoltages;Instructionsforthese

precautionsareinthesafetysectionsofmaintenanceinformation.Useextremecarewhenmeasuring

highvoltages.

•Regularlyinspectandmaintainyourelectricalhandtoolsforsafeoperationalcondition.

•Donotusewornorbrokentoolsandtesters.

•Neverassumethatpowerhasbeendisconnectedfromacircuit.First,checkthatithasbeenpoweredoff.

•Alwayslookcarefullyforpossiblehazardsinyourworkarea.Examplesofthesehazardsaremoistfloors,

nongroundedpowerextensioncables,powersurges,andmissingsafetygrounds.

•Donottouchliveelectricalcircuitswiththereflectivesurfaceofaplasticdentalmirror.Thesurfaceis

conductive;suchtouchingcancausepersonalinjuryandmachinedamage.

•Donotservicethefollowingpartswiththepoweronwhentheyareremovedfromtheirnormaloperating

placesinamachine:

–Powersupplyunits

–Pumps

–Blowersandfans

–Motorgenerators

–Similarunitsaslistedabove

Thispracticeensurescorrectgroundingoftheunits.

•Ifanelectricalaccidentoccurs:

–Usecaution;donotbecomeavictimyourself.

–Switchoffpower.

–Sendanotherpersontogetmedicalaid.

Safetyinspectionguide

Thepurposeofthisinspectionguideistoassistyouinidentifyingpotentiallyunsafeconditions.Aseach

machinewasdesignedandbuilt,requiredsafetyitemswereinstalledtoprotectusersandservicetechnicians

frominjury.Thisguideaddressesonlythoseitems.Youshouldusegoodjudgmenttoidentifypotential

safetyhazardsduetoattachmentofnon-ThinkPadfeaturesoroptionsnotcoveredbythisinspectionguide.

Ifanyunsafeconditionsarepresent,youmustdeterminehowserioustheapparenthazardcouldbeand

whetheryoucancontinuewithoutfirstcorrectingtheproblem.

2HardwareMaintenanceManual

Considertheseconditionsandthesafetyhazardstheypresent:

•Electricalhazards,especiallyprimarypower(primaryvoltageontheframecancauseseriousorfatal

electricalshock)

•Explosivehazards,suchasadamagedCRTfaceorabulgingcapacitor

•Mechanicalhazards,suchaslooseormissinghardware

Todeterminewhetherthereareanypotentiallyunsafeconditions,usethefollowingchecklistatthebeginning

ofeveryservicetask.Beginthecheckswiththepoweroff,andthepowercorddisconnected.

Checklist:

1.Checkexteriorcoversfordamage(loose,broken,orsharpedges).

2.Poweroffthecomputer.Disconnectthepowercord.

3.Checkthepowercordfor:

a.Athird-wiregroundconnectoringoodcondition.Useametertomeasurethird-wireground

continuityfor0.1ohmorlessbetweentheexternalgroundpinandtheframeground.

b.Thepowercordshouldbetheauthorizedtypespecifiedforyourcomputer.Goto:

http://www.lenovo.com/serviceparts-lookup

c.Insulationmustnotbefrayedorworn.

4.Checkforcrackedorbulgingbatteries.

5.Removethecover.

6.Checkforanyobviousnon-ThinkPadalterations.Usegoodjudgmentastothesafetyofany

non-ThinkPadalterations.

7.Checkinsidetheunitforanyobviousunsafeconditions,suchasmetalfilings,contamination,wateror

otherliquids,orsignsoffireorsmokedamage.

8.Checkforworn,frayed,orpinchedcables.

9.Checkthatthepower-supplycoverfasteners(screwsorrivets)havenotbeenremovedortamperedwith.

Handlingdevicesthataresensitivetoelectrostaticdischarge

Anycomputerpartcontainingtransistorsorintegratedcircuits(ICs)shouldbeconsideredsensitiveto

electrostaticdischarge(ESD.)ESDdamagecanoccurwhenthereisadifferenceinchargebetweenobjects.

ProtectagainstESDdamagebyequalizingthechargesothatthemachine,thepart,theworkmat,andthe

personhandlingthepartareallatthesamecharge.

Notes:

1.Useproduct-specificESDprocedureswhentheyexceedtherequirementsnotedhere.

2.MakesurethattheESDprotectivedevicesyouusehavebeencertified(ISO9000)asfullyeffective.

WhenhandlingESD-sensitiveparts:

•Keepthepartsinprotectivepackagesuntiltheyareinsertedintotheproduct.

•Avoidcontactwithotherpeople.

•Wearagroundedwriststrapagainstyourskintoeliminatestaticonyourbody.

•Preventthepartfromtouchingyourclothing.Mostclothingisinsulativeandretainsachargeeven

whenyouarewearingawriststrap.

•Useagroundedworkmattoprovideastatic-freeworksurface.Thematisespeciallyusefulwhen

handlingESD-sensitivedevices.

•Selectagroundingsystem,suchasthoselistedbelow,toprovideprotectionthatmeetsthespecific

servicerequirement.

Note:TheuseofagroundingsystemtoguardagainstESDdamageisdesirablebutnotnecessary.

–AttachtheESDgroundcliptoanyframeground,groundbraid,orgreen-wireground.

Chapter1.Safetyinformation3

–Whenworkingonadouble-insulatedorbattery-operatedsystem,useanESDcommongroundor

referencepoint.Y oucanusecoaxorconnector-outsideshellsonthesesystems.

–Usetheroundgroundprongoftheacplugonac-operatedcomputers.

Groundingrequirements

Electricalgroundingofthecomputerisrequiredforoperatorsafetyandcorrectsystemfunction.Proper

groundingoftheelectricaloutletcanbeverifiedbyacertifiedelectrician.

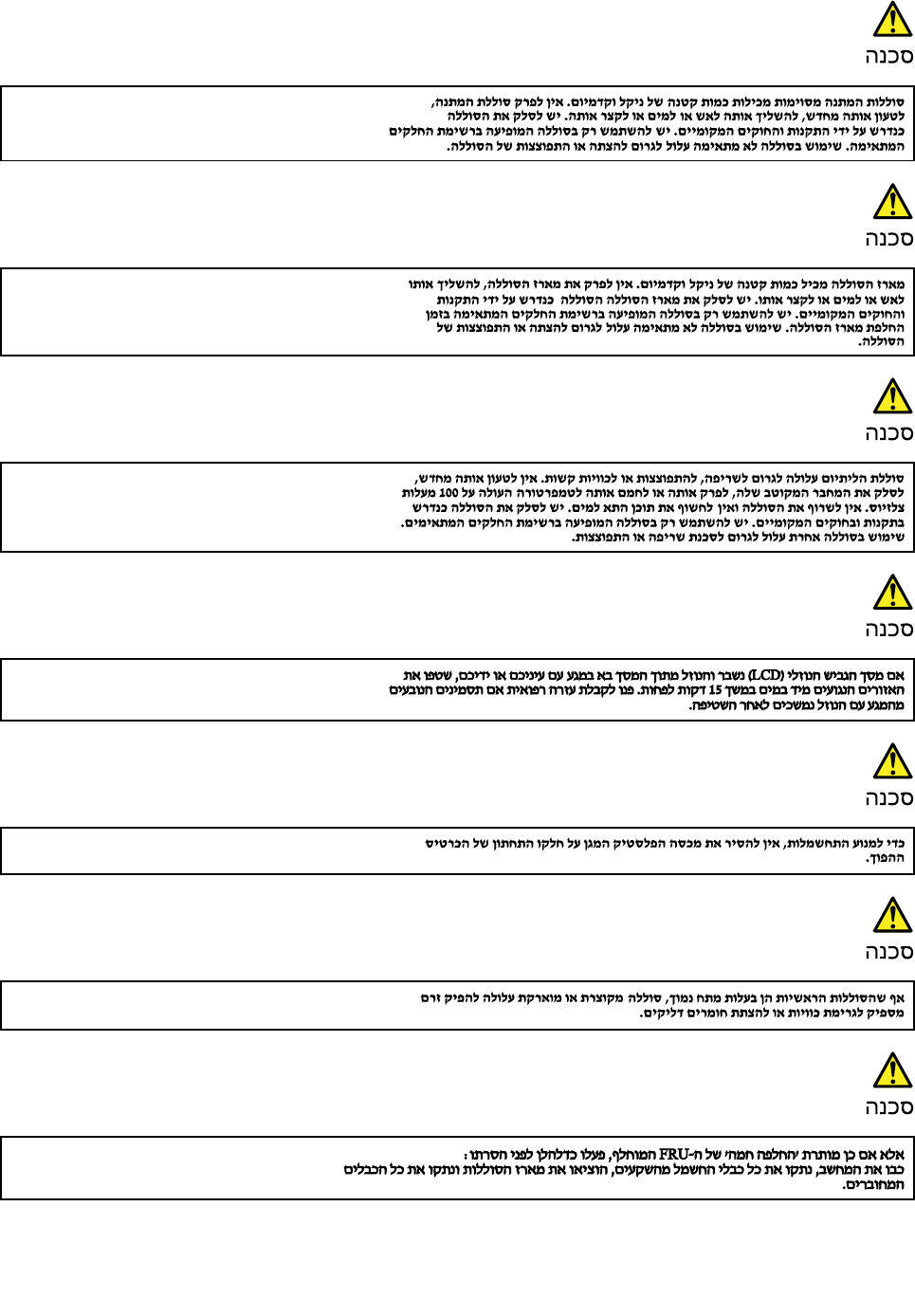

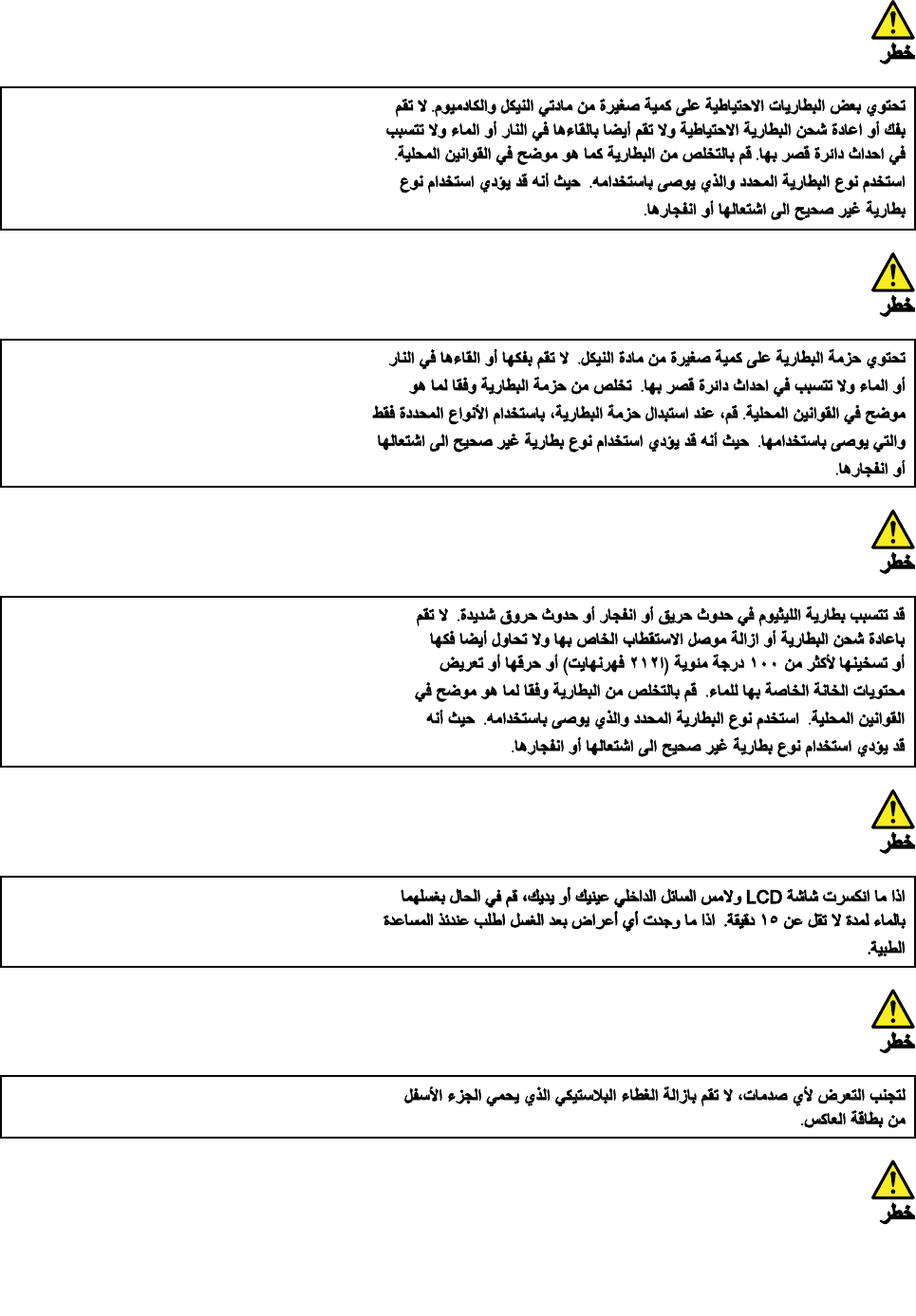

Safetynotices(multilingualtranslations)

Thesafetynoticesinthissectionareprovidedinthefollowinglanguages:

•English

•Arabic

•BrazilianPortuguese

•French

•German

•Hebrew

•Japanese

•Korean

•Spanish

•TraditionalChinese

DANGER

DANGER

DANGER

4HardwareMaintenanceManual

DANGER

DANGER

DANGER

DANGER

DANGER

Chapter1.Safetyinformation5

6HardwareMaintenanceManual

PERIGO

PERIGO

PERIGO

PERIGO

Chapter1.Safetyinformation7

PERIGO

PERIGO

PERIGO

PERIGO

DANGER

8HardwareMaintenanceManual

DANGER

DANGER

DANGER

DANGER

DANGER

DANGER

Chapter1.Safetyinformation9

DANGER

VORSICHT

VORSICHT

VORSICHT

VORSICHT

10HardwareMaintenanceManual

VORSICHT

VORSICHT

VORSICHT

VORSICHT

Chapter1.Safetyinformation11

12HardwareMaintenanceManual

Chapter1.Safetyinformation13

14HardwareMaintenanceManual

Chapter1.Safetyinformation15

16HardwareMaintenanceManual

Chapter1.Safetyinformation17

18HardwareMaintenanceManual

Chapter2.Importantserviceinformation

Thischapterintroducesfollowingimportantserviceinformationthatappliestoallmachinetypessupported

bythismanual:

•“StrategyforreplacingFRUs”onpage19

–“StrategyforreplacinganM.2solid-statedrive”onpage19

–“Importantnoticeforreplacingasystemboard”onpage20

–“Howtouseerrormessage”onpage20

•“StrategyforreplacingFRUsforCTO,special-bid,andstandardmodels”onpage20

–“Productdefinition”onpage20

–“FRUidentification”onpage20

Important:

•AdvisecustomerstocontacttheLenovo®SupportWebsiteathttp://www.lenovo.com/supporttoview

thesoftwarefixes,downloadthedrivers,andfollowtheon-screeninstructionstoinstallthedrivers.For

additionalassistance,customersmightcalltheLenovoCustomerSupportCenter.Telephonenumbersfor

theLenovoSupportCenterareavailableat:

http://www.lenovo.com/support/phone

•ServicetrainingdocumentsforLenovoauthorizedservicetechniciansareavailableatthefollowingWeb

site.ThedisassemblyandreassemblyvideosthatshowtheFRUremovalandreplacementprocedures

arecontainedinthedocuments.

http://www.lenovoservicetraining.com

StrategyforreplacingFRUs

Beforereplacingparts:

Ensurethatallsoftwarefixes,drivers,andUEFIBIOSdownloadsareinstalledbeforereplacinganyFRUs

listedinthismanual.

Afterasystemboardisreplaced,ensurethatthelatestUEFIBIOSisloadedtothesystemboardbefore

completingtheserviceaction.

Todownloadsoftwarefixes,drivers,andUEFIBIOS,gotohttp://www.lenovo.com/ThinkPadDriversand

followtheinstructionsonthescreen.

UsethefollowingstrategytopreventunnecessaryexpenseforreplacingandservicingFRUs:

•IfyouareinstructedtoreplaceaFRUbutthereplacementdoesnotcorrecttheproblem,reinstallthe

originalFRUbeforeyoucontinue.

•Somecomputershavebothaprocessorboardandasystemboard.Ifyouareinstructedtoreplaceeither

theprocessorboardorthesystemboard,andreplacingoneofthemdoesnotcorrecttheproblem,

reinstallthatboard,andthenreplacetheotherone.

•IfanadapteroradeviceconsistsofmorethanoneFRU,anyoftheFRUsmaybethecauseoftheerror.

Beforereplacingtheadapterordevice,removetheFRUs,onebyone,toseeifthesymptomschange.

ReplaceonlytheFRUthatchangedthesymptoms.

StrategyforreplacinganM.2solid-statedrive

Alwaystrytorunalow-levelformatbeforereplacinganM.2solid-statedrive(SSD).Thiswillcauseall

customerdataontheM.2SSDtobelost.Besurethatthecustomerhasacurrentbackupofthedata

beforedoingthistask.

©CopyrightLenovo201719

Attention:Thedrivestartupsequenceinthecomputeryouareservicingmayhavebeenchanged.Be

extremelycarefulduringwriteoperationssuchascopying,saving,orformatting.Ifyouselectanincorrect

drive,dataorprogramscanbeoverwritten.

Importantnoticeforreplacingasystemboard

Somecomponentsmountedonasystemboardareverysensitive.Improperhandlingofasystemboardcan

causedamagetothosecomponents,andmaycauseasystemmalfunction.

Attention:Whenhandlingasystemboard:

•Donotdropasystemboardorapplyanyexcessiveforcetoit.

•Avoidroughhandlingofanykind.

•AvoidbendingasystemboardandhardpushingtopreventcrackingateachBGA(BallGridArray)chipset.

Howtouseerrormessage

Usetheerrorcodesdisplayedonthescreentodiagnosefailures.Ifmorethanoneerrorcodeisdisplayed,

beginthediagnosiswiththefirsterrorcode.Whatevercausesthefirsterrorcodemayalsocausefalseerror

codes.Ifnoerrorcodeisdisplayed,seewhethertheerrorsymptomislistedintheSymptom-to-FRU

Indexforthecomputeryouareservicing.

StrategyforreplacingFRUsforCTO,special-bid,andstandardmodels

ThistopicprovidesinformationaboutthemodeltypesandFRUidentification.

Productdefinition

Thistopicintroducesdifferentmodeltypesandhowtoidentifyeachtype.

Dynamicconfigure-to-order(CTO)model

ThismodelprovidestheabilityforacustomertoconfigureaLenovosolutionfromaWebSite,andhavethis

configurationsenttofulfillment,whereitisbuiltandshippeddirectlytothecustomer.Themachinelabeland

eSupportwillloadtheseproductsasthe4-characterMT,4-charactermodel,and2-charactercountrycode.

Themodelis“CTO1”andthedefaultcountrycodeis“WW”(example:20A7CTO1WW).

Special-bidmodel

ThisisauniqueconfigurationthathasbeennegotiatedbetweenLenovoandthecustomer.Auniquemachine

typemodel(MTM)consistsofa4-characterMT,a4-charactermodel,andanumeric2-charactercountry

codeisprovidedtothecustomertoplaceorders(example:20A7000955).Thecountrycodeassignedis

numericanddoesnotdesignateaspecificcountryorregion.ThecustommodelfactsheetfortheMTM

indicateswhichcountrythespecialbidMTMissetupfor.Special-bidofferingisnotgenerallyannounced.

Standardmodel

Standardmodels(fixedconfiguration)areannouncedandofferedtoallcustomers.TheMTMportionofthe

machinelabelconsistsofa4-characterMT,a4-charactermodel,andanalphabetic2-charactercountry

code.Thecountrycodeassignedisalphabeticandrepresentsadesignatedcountryorregion(example:

20A70009UK).

FRUidentification

UseLenovoeSupporttoidentifymajorFRUs,FRUpartnumbers,andFRUdescriptionsforaproductat

anMT-serialnumberlevel.ExamplesofmajorFRUsareharddiskdrive,systemboard,andliquidcrystal

display(LCD).

ToidentifythemajorFRUsforaproduct,dothefollowing:

20HardwareMaintenanceManual

1.Gotohttp://support.lenovo.com/ibasepartslookup.

2.TypetheMachineTypeandSerialNumberinthecorrespondingfields.

3.ClickSubmit.

eSupportalsocanbeusedtoviewthegeneralFRUlistforaproduct.TheFRUlistisagenerallistof

componentsanddoesnotcontainspecificmodelinformation.

TogetthegeneralFRUlistforaproduct,dothefollowing:

1.Gotohttp://www.lenovo.com/support.

2.Followtheinstructionsonthescreentoselectaproduct.

3.ClicktheProduct&Partstab.

4.SelectSystemServicePartstoviewageneralFRUlist.

Chapter2.Importantserviceinformation21

22HardwareMaintenanceManual

Chapter3.Generalcheckout

Thischapterintroducesfollowinginformation:

•“Whattodofirst”onpage23

•“Checkoutguide”onpage24

–“LenovoCompanion”onpage24

–“Quicktestprograms”onpage24

–“UEFIdiagnosticprogram”onpage25

–“Bootablediagnosticprograms”onpage25

•“Powersystemcheckout”onpage26

Beforeyougotothecheckoutguide,besuretoreadthefollowingimportantnotes.

Importantnotes:

•Onlycertifiedtrainedpersonnelshouldservicethecomputer.

•BeforereplacinganyFRU,readtheentirepageonremovingandreplacingFRUs.

•WhenyoureplaceFRUs,itisrecommendedusenewnylon-coatedscrews.

•Beextremelycarefulduringsuchwriteoperationsascopying,saving,orformatting.Thesequence

ofthedrivesinthecomputerthatyouareservicingmighthavebeenaltered.Ifyouselectanincorrect

drive,dataorprogramsmightbeoverwritten.

•ReplaceaFRUonlywithanotherFRUofthecorrectmodel.WhenyoureplaceaFRU,ensure

thatthemodelofthemachineandtheFRUpartnumberarecorrectbyreferringtotheWebsite:

http://www.lenovo.com/serviceparts-lookup

•AFRUshouldnotbereplacedbecauseofasingle,unreproduciblefailure.Singlefailurescan

occurforvariousreasonsthathavenothingtodowithahardwaredefect,suchascosmicradiation,

electrostaticdischarge,orsoftwareerrors.ConsiderreplacingaFRUonlywhenaproblemrecurs.Ifyou

suspectthataFRUisdefective,cleartheerrorlogandrunthetestagain.Iftheerrordoesnotrecur,do

notreplacetheFRU.

•BecarefulnottoreplaceanondefectiveFRU.

Whattodofirst

WhenyoureturnaFRU,youmustincludethefollowinginformationinthepartsexchangeformorparts

returnformthatyouattachtoit:

1.Nameandphonenumberofservicetechnician

2.Dateofservice

3.Dateonwhichthemachinefailed

4.Dateofpurchase

5.Failuresymptoms,errorcodesappearingonthedisplay,andbeepsymptoms

6.ProcedureindexandpagenumberinwhichthefailingFRUwasdetected

7.FailingFRUnameandpartnumber

8.Machinetype,modelnumber,andserialnumber

9.Customer'snameandaddress

Note:Duringthewarrantyperiod,thecustomermayberesponsibleforrepaircostsifthecomputerdamage

wascausedbymisuse,accident,modification,unsuitablephysicaloroperatingenvironment,orimproper

maintenancebythecustomer.Followingisalistofsomecommonitemsthatarenotcoveredunderwarranty

andsomesymptomsthatmightindicatethatthesystemwassubjectedtostressbeyondnormaluse.

©CopyrightLenovo201723

Beforecheckingproblemswiththecomputer,determinewhetherthedamageiscoveredunderthewarranty

byreferringtothefollowinglist:

Thefollowingarenotcoveredunderwarranty:

•LCDpanelcrackedfromtheapplicationofexcessiveforceorfrombeingdropped

•Scratched(cosmetic)parts

•Distortion,deformation,ordiscolorationofthecosmeticparts

•Plasticparts,latches,pins,orconnectorsthathavebeencrackedorbrokenbyexcessiveforce

•Damagecausedbyliquidspilledintothesystem

•DamagecausedbytheimproperinsertionofaPCcardortheinstallationofanincompatiblecard

•Improperdiscinsertionoruseofanopticaldrive

•Fusesblownbyattachmentofanonsupporteddevice

•Forgottencomputerpassword(makingthecomputerunusable)

•Stickykeyscausedbyspillingaliquidontothekeyboard

•Useofanincorrectacpoweradapteronlaptopproducts

Thefollowingsymptomsmightindicatedamagecausedbynonwarrantedactivities:

•Missingpartsmightbeasymptomofunauthorizedserviceormodification.

•Checkforobviousdamagetoaharddiskdrive.Ifthespindleofaharddiskdrivebecomesnoisy,thehard

diskdrivemighthavebeendroppedorsubjecttoexcessiveforce.

Checkoutguide

UsethefollowingproceduresasaguideinidentifyingandcorrectingproblemswiththeThinkPadnotebook

computers.

Note:ThediagnostictestsareintendedtotestonlyThinkPadproducts.Theuseofnon-ThinkPadproducts,

prototypecards,ormodifiedoptionscanleadtofalseindicationsoferrorsandinvalidsystemresponses.

1.Identifythefailingsymptomsinasmuchdetailaspossible.

2.Verifythesymptoms.Trytore-createthefailurebyrunningthediagnostictestorbyrepeatingthe

operation.

LenovoCompanion

LenovoCompanionsupportsthehardwarescanfunction.Itcombinesdiagnostictests,systeminformation

collection,securitystatus,andsupportinformation,alongwithhintsandtipsforoptimalsystemperformance.

TheLenovoCompanionprogramisavailablefordownloadat

https://shop.lenovo.com/us/en/accessories/software/apps/lenovo-apps/companion/.

ToruntheLenovoCompanionprogram,opentheStartmenuandclickLenovoCompanion,andthen

followtheinstructionsonthescreen.

Quicktestprograms

Lenovoprovidesquicktestprogramstotroubleshootandresolvecomputerproblems.

Todownloadandinstallaquicktestprogram,gotohttp://www.lenovo.com/diags,andfollowtheinstructions

ontheWebsite.

Torunatestusingquicktestprogram,dothefollowing:

1.GototheC:\SWTOOLS\ldiagdirectory.

2.Double-clickthegui_lsc_lite.exefile.

3.WhentheUserAccountControlwindowopens,clickYes.

24HardwareMaintenanceManual

4.Selectthedeviceclasstobetested.

5.Selectthedevicestobetested.

6.Selectthetesttobeperformed.

7.Followtheinstructionsonthescreentostartthetest.Whenaproblemisdetected,information

messagesaredisplayed.Refertothemessagestotroubleshoottheproblem.

UEFIdiagnosticprogram

AUEFIdiagnosticprogramispreinstalledonthecomputer.Itenablesyoutotestinternalstoragedevices,

viewsysteminformation,andcheckandrecoverbadsectorsoninternalstoragedevices.

ToruntheUEFIdiagnosticprogram,dothefollowing:

1.Turnonthecomputer.Ifthecomputercannotbeturnedon,goto“Powersystemcheckout”onpage26,

andcheckthepowersources.Ifanerrorcodeisdisplayed,goto“Symptom-to-FRUindex”onpage34

forerrorcodedescriptionsandtroubleshootinghints.

2.WhentheThinkPadlogoisdisplayed,repeatedlypressandreleasetheF10key.Themainscreenofthe

UEFIdiagnosticprogramisdisplayed.

3.Followtheinstructionsonthescreentousethediagnosticprogram.

Bootablediagnosticprograms

IfthecomputeryouareservicingisnotinstalledwiththeUEFIdiagnosticprogram,youcandownloada

bootablediagnosticprogramfromtheLenovoSupportWebsite.Thebootablediagnosticprogramsenable

youtotestcomputermemoryandinternalstoragedevices,viewsysteminformation,andcheckandrecover

theinternalstoragedevices.Tousethebootablediagnosticprograms,youcancreateabootablediagnostic

mediumonaUSBdeviceorCD.

Tocreateabootablediagnosticmedium,dothefollowing:

1.Gotohttp://www.lenovo.com/diags.

2.ClickLenovoBootableDiagnostics.

3.FollowtheinstructionsontheWebsitetocreateabootablediagnosticmediumonaUSBdeviceorCD.

Tousethediagnosticmediumyouhavecreated,dooneofthefollowing:

•IfyouhavecreatedthebootablediagnosticmediumonaUSBdevice,dothefollowing:

1.AttachtheUSBdevicetothecomputer.

2.Turnonthecomputer.Ifthecomputercannotbeturnedon,goto“Powersystemcheckout”onpage

26,andcheckthepowersources.Ifanerrorcodeisdisplayed,goto“Symptom-to-FRUindex”on

page34forerrorcodedescriptionsandtroubleshootinghints.

3.WhentheThinkPadlogoisdisplayed,repeatedlypressandreleasetheF12key.WhentheBoot

Menuwindowopens,releasetheF12key.

4.UsethearrowkeystoselectUSBHDDandthenpressEnter.Thediagnosticprogramwillbe

launchedautomatically.

5.Followtheinstructionsonthescreentousethediagnosticprogram.

•IfyouhavecreatedthebootablediagnosticmediumonaCD,dothefollowing:

1.Turnonthecomputer.Ifthecomputercannotbeturnedon,goto“Powersystemcheckout”onpage

26,andcheckthepowersources.Ifanerrorcodeisdisplayed,goto“Symptom-to-FRUindex”on

page34forerrorcodedescriptionsandtroubleshootinghints.

2.InserttheCDintotheexternalopticaldrive.

3.Restartthecomputer.

Chapter3.Generalcheckout25

4.WhentheThinkPadlogoisdisplayed,repeatedlypressandreleasetheF12key.WhentheBoot

Menuwindowopens,releasetheF12key.

5.UsethearrowkeystoselectATAPICDx(x:0,1,...)andthenpressEnter.Thediagnosticprogram

willbelaunchedautomatically.

6.Followtheinstructionsonthescreentousethediagnosticprogram.

Powersystemcheckout

Toverifyifabatteryandanacpoweradapterarefunctional,dothefollowing:

1.Turnoffthecomputer.

2.Connecttheacpoweradapter.

3.Turnonthecomputer.Ifthecomputercanbeturnedon,itmeansthateitherthebatteryortheac

poweradapterisfunctional.

4.Insertastraightenedpaperclipintotheemergencyresetholetoresetthecomputer.Ifthecomputeris

stillpoweredon,itmeansthattheacpoweradapterisfunctional.

5.Turnoffthecomputer.

6.Disconnecttheacpoweradapterandturnonthecomputer.Ifthecomputercanbeturnedon,it

meansthebatteryisfunctional.

Ifyoususpectapowerproblem,seetheappropriateoneofthefollowingpowersupplycheckouts:

•“Checkingtheacpoweradapter”onpage26

•“Checkingthebatteryandoperationalcharging”onpage26

•“Checkingthecoin-cellbattery”onpage27

Checkingtheacpoweradapter

Ensurethatyouusetheacpoweradapterthatisshippedwiththecomputertoprovideenoughpower

tothecomputer.

Note:Noisefromtheacpoweradapterdoesnotalwaysindicateadefect.

Tochecktheacpoweradapter,dothefollowing:

1.Connectthecomputertoapoweroutletandturnonthecomputer.

2.OpentheLenovoSettingsprogramandclickPowertochecktheadapterstatus

Iftheacpoweradapterisworkingwell,adapterinformationwillbedisplayedonthescreen.Ifa

messageisdisplayedwarningthatthepowersupplyisnotenough,replacetheadapterwithaproper

onethatissupportedbythecomputer.Ifyoudonotseeanyinformationabouttheadapter,replace

theadapterwithanewone.

Iftheacpoweradapterisworkingbutthecomputerdoesnotchargeduringoperation,goto“Checking

thebatteryandoperationalcharging”onpage26.

Checkingthebatteryandoperationalcharging

Checkingthebattery

ThissystemsupportsonlybatteriesspeciallydesignedforthisspecificsystemandmanufacturedbyLenovo

oranauthorizedbuilder.Thesystemdoesnotsupportunauthorizedbatteriesorbatteriesdesignedforother

systems.Ifanunauthorizedbatteryorabatterydesignedforanothersystemsisinstalled,thesystemwill

notcharge.

Attention:Lenovohasnoresponsibilityfortheperformanceorsafetyofunauthorizedbatteries,and

providesnowarrantiesforfailuresordamagearisingoutoftheiruse.

26HardwareMaintenanceManual

Moveyourpointertothebattery-statusiconintheWindows®notificationareatocheckthebatterystatus.

Thebattery-statusicondisplaysthepercentageofbatterypowerremainingandhowlongyoucanuse

yourcomputerbeforeyoumustchargethebattery.

Checkingtheoperationalcharging

Tocheckwhetherthebatterychargesproperlyduringoperation,dothefollowing:

1.Dischargethebatteryuntiltheremainedbatterypowerislessthan50%.

2.Performoperationalcharging.ClickthebatterystatusiconintheWindowsnotificationareatodisplay

detailedbatteryinformation.Ifitindicatesthatthebatteryisnotcharging,replacethebattery.

3.Checkthebatterystatusagain.Ifthesameerrorstillexists,replacethesystemboard.

Checkingthecoin-cellbattery

Tocheckthecoin-cellbattery,dothefollowing:

1.Disablethebuilt-inbattery.See“Disablingthebuilt-inbattery”onpage60.

2.Removethecoin-cellbattery.See“1140Systemboardassembly”onpage74.

3.Measurethevoltageofthecoin-cellbattery.Seethefollowingillustration.

WireVoltage(Vdc)

Red+2.5to+3.2

BlackGround

•Ifthevoltageiscorrect,replacethesystemboard.

•Ifthevoltageisnotcorrect,replacethecoin-cellbattery.

•Ifthecoin-cellbatterydischargesquicklyafterreplacement,replacethesystemboard.

Chapter3.Generalcheckout27

28HardwareMaintenanceManual

Chapter4.Relatedserviceinformation

Thischapterpresentsfollowinginformation:

•“Recoveryinformation”onpage29

•“Passwords”onpage31

•“Powermanagement”onpage33

•“Symptom-to-FRUindex”onpage34

ServiceWebsite:Whenthelatestmaintenancedisketteandthesystemprogramservicediskettebecome

available,theywillbepostedonhttp://www.lenovo.com/support

Recoveryinformation

ThischapterprovidesinformationabouttheWindowsrecoverysolutionsontheWindows10operating

system.

Resettingyourcomputer

Ifyourcomputerdoesnotperformwell,youmightconsiderresettingyourcomputer.Intheresettingprocess,

youcanchoosetokeepyourfilesorremovethem,andthenreinstalltheWindowsoperatingsystem.

Toresetyourcomputer,dothefollowing:

Note:Theitemsinthegraphicaluserinterface(GUI)mightchangewithoutnotice.

1.OpentheStartmenu,andthenclickSettings➙Update&security➙Recovery.

2.IntheResetthisPCsection,clickGetstarted.

3.Followtheinstructionsonthescreentoresetyourcomputer.

Usingadvancedstartupoptions

Theadvancedstartupoptionsenableyoutodothefollowing:

•Changethefirmwaresettingsofthecomputer

•ChangethestartupsettingsoftheWindowsoperatingsystem

•Startthecomputerfromanexternaldevice

•RestoretheWindowsoperatingsystemfromasystemimage

Touseadvancedstartupoptions,dothefollowing:

Note:Theitemsinthegraphicaluserinterface(GUI)mightchangewithoutnotice.

1.OpentheStartmenu,andthenclickSettings➙Update&security➙Recovery.

2.IntheAdvancedstartupsection,clickRestartnow➙Troubleshoot➙Advancedoptions.

3.Selectastartupoptionyouwant,andthenfollowtheinstructionsonthescreen.

RecoveringyouroperatingsystemifWindows10failstostart

TheWindowsrecoveryenvironmentonyourcomputeroperatesindependentlyfromtheWindows10

operatingsystem.ItenablesyoutorecoverorrepairtheoperatingsystemeveniftheWindows10operating

systemfailstostart.

©CopyrightLenovo201729

Aftertwoconsecutivefailedbootattempts,theWindowsrecoveryenvironmentstartsautomatically.Then

youcanchooserepairandrecoveryoptionsbyfollowingtheon-screeninstructions.

Note:Ensurethatyourcomputerisconnectedtoacpowerduringtherecoveryprocess.

CreatingandusingarecoveryUSBdrive

YoucancreatearecoveryUSBdriveasabackupfortheWindowsrecoveryprograms.Withtherecovery

USBdrive,youcantroubleshootandfixtheproblemsevenifthepreinstalledWindowsrecoveryprograms

aredamaged.

ItisrecommendedthatyoucreatearecoveryUSBdriveasearlyaspossible.Ifyoudidnotcreatearecovery

USBdriveasaprecautionarymeasure,youcancontactLenovoCustomerSupportCenterandpurchase

onefromLenovo.ForalistoftheLenovoSupportphonenumbersforyourcountryorregion,goto:

http://www.lenovo.com/support/phone

CreatingarecoveryUSBdrive

TocreatearecoveryUSBdrive,youneedaUSBdrivewithatleast16GBofstoragecapacity.Theactual

USBcapacitythatisrequireddependsonthesizeoftherecoveryimage.

Attention:ThecreationprocesswilldeleteanythingstoredontheUSBdrive.Toavoiddataloss,makea

backupcopyofallthedatathatyouwanttokeep.

TocreatearecoveryUSBdrive,dothefollowing:

Note:Ensurethatyourcomputerisconnectedtoacpowerduringthefollowingprocess.

1.ConnectaproperUSBdrive(atleast16GBofstorage)tothecomputer.

2.Typerecoveryinthesearchboxonthetaskbar.ThenclickCreatearecoverydrive.

3.ClickYesintheUserAccountControlwindowtoallowtheRecoveryMediaCreatorprogramtostart.

4.IntheRecoveryDrivewindow,followtheinstructionsonthescreentocreatearecoveryUSBdrive.

UsingtherecoveryUSBdrive

Ifyoucannotstartyourcomputer,resetthecomputerbyinsertingastraightenedpaperclipintothe

emergency-resethole.Ifyoustillcannotstartyourcomputer,usetherecoveryUSBdrivetorecoveryour

computer.

TousearecoveryUSBdrive,dothefollowing:

Note:Ensurethatyourcomputerisconnectedtoacpowerduringthefollowingprocess.

1.ConnecttherecoveryUSBdrivetothecomputer.

2.Turnonorrestartthecomputer.BeforetheWindowsoperatingsystemstarts,repeatedlypressF12.The

BootMenuwindowopens.

3.SelecttherecoveryUSBdriveasthebootdevice.

4.Selectapreferredkeyboardlayout.

5.ClickTroubleshoottodisplayoptionalrecoverysolutions.

6.Selectacorrespondingrecoverysolutionaccordingtoyoursituation.Thenfollowtheinstructionson

thescreentocompletetheprocess.

30HardwareMaintenanceManual

Passwords

AsmanyasthreepasswordsmaybeneededforanyThinkPadnotebookcomputer:thepower-onpassword,

theharddiskpassword,andthesupervisorpassword.

Ifanyofthesepasswordshasbeenset,apromptforitwillbedisplayedonthescreenwheneverthe

computeristurnedon.Thecomputerdoesnotstartuntilthepasswordisentered.

Note:Ifonlyasupervisorpasswordisset,thepasswordpromptwillnotbedisplayedwhentheoperating

systemisstarted.

Power-onpassword

Apower-onpasswordprotectsthesystemfrombeingpoweredonbyanunauthorizedperson.The

passwordmustbeenteredbeforeanoperatingsystemcanbestarted.Forinstructionsonhowtoremove

thepower-onpassword,see“Howtoremovethepower-onpassword”onpage32.

Harddiskpassword

Therearetwokindsofharddiskpasswords:

•Userharddiskpassword-fortheuser

•Masterharddiskpassword-forthesystemadministrator,whocanuseittogetaccesstotheharddisk

eveniftheuserhaschangedtheuserharddiskpassword

Note:Therearetwomodesfortheharddiskpassword:UseronlyandMaster+User.TheMaster+User

moderequirestwoharddiskpasswords;thesystemadministratorentersbothinthesameoperation.The

systemadministratorthenprovidestheuserharddiskpasswordtothesystemuser.

Attention:Iftheuserharddiskpasswordhasbeenforgotten,checkwhetheramasterharddiskpassword

hasbeenset.Ifithas,itcanbeusedforaccesstotheharddiskdrive.Ifnomasterharddiskpasswordis

available,neitherLenovonorLenovoauthorizedservicetechniciansprovideanyservicestoreseteither

theuserorthemasterharddiskpassword,ortorecoverdatafromtheharddiskdrive.Theharddiskdrive

canbereplacedforascheduledfee.

Forhowtoremovetheharddiskpassword,see“Howtoremovetheharddiskpassword”onpage32.

Supervisorpassword

ThesupervisorpasswordprotectsthesysteminformationstoredintheThinkPadSetupprogram.Itprovides

thefollowingsecurityfeatures:

•Ifonlyasupervisorpasswordisset,apasswordpromptisdisplayedwhenyoutrytostarttheThinkPad

Setupprogram.Unauthorizeduserscannotchangemostofthesystemconfigurationoptionsinthe

ThinkPadSetupprogramwithoutthepassword.

•Thesystemadministratorcanusethesupervisorpasswordtoaccessacomputereveniftheuserofthat

computerhassetapower-onpassword.Thesupervisorpasswordoverridesthepower-onpassword.

•ThesystemadministratorcansetthesamesupervisorpasswordonmanyThinkPadnotebookcomputers

tomakeadministrationeasier.

Attention:Ifthesupervisorpasswordhasbeenforgottenandcannotbemadeavailabletotheservice

technician,thereisnoserviceproceduretoresetthepassword.Thesystemboardmustbereplacedfor

ascheduledfee.

Chapter4.Relatedserviceinformation31

Howtoremovethepower-onpassword

Toremoveapower-onpassword,dothefollowing:

Ifnosupervisorpasswordhasbeenset,dothefollowingtoremovethepower-onpassword:

1.Turnoffthecomputeranddisconnectacpower.

2.Disablethebuilt-inbattery.See“Disablingthebuilt-inbattery”onpage60.

3.Removethebasecoverassembly.See“1010Basecoverassembly”onpage61.

4.Removetheinternalbatterypack.See“1080Battery”onpage68.

5.Removethecoin-cellbattery.See“1050Coin-cellbattery”onpage65.

6.Reinstallthecoin-cellbattery.

7.Reinstalltheinternalbatterypack.

8.Reinstallthebasecoverassembly.

9.Reconnectacpower.

10.TurnonthecomputerandwaituntilthePOSTends.AfterthePOSTends,thepasswordpromptdoes

notappear.Thepower-onpasswordhasbeenremoved.

Ifasupervisorpasswordhasbeensetandisknowntotheservicetechnician,dothefollowingtoremove

thepower-onpassword:

1.Turnonthecomputer.

2.WhentheThinkPadlogoisdisplayed,immediatelypressF1.

3.TypethesupervisorpasswordtoentertheThinkPadSetupprogram.

4.SelectSecurity.

5.SelectPassword.

6.SelectPower-OnPassword.

7.TypethecurrentsupervisorpasswordintheEnterCurrentPasswordfield.ThenleavetheEnter

NewPasswordfieldblank,andpressEntertwice.

8.IntheChangeshavebeensavedwindow,pressEnter.

9.PressF10tosavechangesandexittheThinkPadSetupprogram.Thepower-onpasswordhas

beenremoved.

Howtoremovetheharddiskpassword

Attention:IfUseronlymodeisselectedandtheuserharddiskpasswordhasbeenforgottenandcannotbe

madeavailabletotheservicetechnician,neitherLenovonorLenovoauthorizedservicetechniciansprovide

anyservicestoresettheuserharddiskpasswords,ortorecoverdatafromtheharddiskdrive.Toputthe

systembacktooperationalstatus,theonlyLenovoandLenovo-authorizedservicesolutionwouldbeto

replacetheharddiskdrive(HDD)orSSDwithascheduledfee.

Toremoveauserharddiskpasswordthathasbeenforgotten,whenthesupervisorpasswordandmaster

harddiskpasswordareknown,dothefollowing:

1.Turnonthecomputer.

2.WhentheThinkPadlogocomesup,immediatelypressF1toentertheThinkPadSetupprogram.When

thepower-onpasswordiconisdisplayedonthescreen,entereitherthepower-onpasswordorthe

supervisorpassword.

3.Whentheuserharddiskpasswordiconisdisplayedonthescreen,pressF1.Themasterharddisk

passwordiconisdisplayed.

4.EnterthemasterharddiskpasswordtoentertheThinkPadSetupprogram.

5.SelectSecurity.

6.SelectPassword.

32HardwareMaintenanceManual

7.SelectHard-diskxpassword,wherexistheletteroftheharddiskdrive.Apop-upwindowopens.

8.SelectMasterharddiskpassword.

9.TypethecurrentmasterharddiskpasswordintheEnterCurrentPasswordfield.ThenleavetheEnter

NewPasswordfieldblank,andpressEntertwice.

10.PressF10tosavechangesandexittheThinkPadSetupprogram.Theuserharddiskpasswordandthe

masterharddiskpasswordhavebeenremoved.

Powermanagement

Sleepmode

Whenthecomputerenterssleepmode,thefollowingeventsoccurinadditiontowhatoccursinscreen

blankmode:

•TheLCDispoweredoff.

•Thestoragedriveispoweredoff.

•Themicroprocessorstops.

Toentersleepmode,pressFn+4oropentheStartmenuandclickPower,andthenclickSleep.

Incertaincircumstances,thecomputergoesintosleepmodeautomatically:

•Afteraperiodofinactivityspecifiedinpowerplansettings

•Whenthebatterypowerislow

Toresumethecomputerfromsleepmode,pressthepowerbutton.

Also,ineitherofthefollowingevents,thecomputerautomaticallyreturnsfromsleepmodeandresumes

operation:

•Theringindicator(RI)issignaledbyaserialdeviceoraPCCarddevice.

•Thetimesetontheresumetimerelapses.

Note:Thecomputerdoesnotacceptanyinputimmediatelyafteritenterssleepmode.Waitafew

secondsbeforetakinganyactiontoreenteroperationmode.

Hibernationmode

Inhibernationmode,thefollowingoccurs:

•Thesystemstatus,RAM,VRAM,andsetupdataarestoredontheharddisk.

•Thesystemispoweredoff.

Note:Ifthecomputerentersthehibernationmodewhileitisdockedtothedockingstation,donotundockit

beforeresumingnormaloperation.Ifyoudoundockitandthentrytoresumenormaloperation,youwillget

anerrormessage,andyouwillhavetorestartthesystem.

Ifyouhavedefinedoneofthefollowingactionsastheeventthatcausesthesystemtogointohibernation

mode,performthataction.

•Closingthelid.

•Pressingthepowerbutton.

Also,thecomputergoesintohibernationmodeautomaticallyafteraperiodofinactivityspecifiedinpower

plansettings.

Chapter4.Relatedserviceinformation33

Whenthepoweristurnedon,thecomputerreturnsfromhibernationmodeandresumesoperation.The

hibernationfileinthebootrecordontheharddiskdriveisread,andsystemstatusisrestoredfromthe

harddiskdrive.

Symptom-to-FRUindex

Thissectioncontainsfollowinginformation:

•“Numericerrorcodes”onpage34

•“Errormessages”onpage35

•“Beepsymptoms”onpage35

•“No-beepsymptoms”onpage37

•“LCD-relatedsymptoms”onpage37

•“Intermittentproblems”onpage37

•“Undeterminedproblems”onpage38

Thesymptom-to-FRUindexinthissectionlistssymptomsanderrorsandtheirpossiblecauses.Themost

likelycauseislistedfirst,inboldfacetype.

Note:DotheFRUreplacementorotheractionsinthesequenceshowninthecolumnheaded“FRUor

action,insequence.”IfreplacingaFRUdoesnotsolvetheproblem,puttheoriginalpartbackinthe

computer.DonotreplaceanondefectiveFRU.

Thisindexcanalsohelpyoudetermine,duringregularservicing,whatFRUsarelikelytoneedtobe

replacednext.

AnumericerrorisdisplayedforeacherrordetectedinPOSTorsystemoperation.Inthedisplays,ncan

beanynumber.

Ifnonumericcodeisdisplayed,checkthenarrativedescriptionsofsymptoms.Ifthesymptomisnot

describedthere,goto“Intermittentproblems”onpage37.

Note:ForadevicenotsupportedbydiagnosticcodesintheThinkPadnotebookcomputers,seethe

manualforthatdevice.

Numericerrorcodes

Table1.Numericerrorcodes

SymptomorerrorFRUoraction,insequence

0177

BadSVPdata,stopPOSTtask—Thechecksumofthe

supervisorpasswordintheEEPROMisnotcorrect.

Systemboard

0183

BadCRCofSecuritySettingsinEFIVariable.Enterthe

ThinkPadSetupprogram.

1.RuntheThinkPadSetupprogram,andthensave

currentsettingbypressingF10.

2.Systemboard

0187

EAIAdataaccesserror—TheaccesstoEEPROMisfailed.

Systemboard

0188

InvalidRFIDSerializationInformationArea.

Systemboard

0189

InvalidRFIDconfigurationinformationarea—The

EEPROMchecksumisnotcorrect.

Systemboard

0190

Criticallow-batteryerror

1.Chargethebattery.

2.Battery

34HardwareMaintenanceManual

Table1.Numericerrorcodes(continued)

SymptomorerrorFRUoraction,insequence

0191

SystemSecurity—InvalidRemoteChangerequested.

1.RuntheThinkPadSetupprogram,andthensave

currentsettingbypressingF10.

2.Systemboard

0199

SystemSecurity—Securitypasswordretrycount

exceeded.

1.RuntheThinkPadSetupprogram,andthensave

thecurrentsettingbypressingF10.

2.Systemboard

0270

RealTimeClockError—SystemRealTimeClockisnot

functional.

1.RunThinkPadSetuptoresetthetimeanddate

2.Replacethecoin-cellbatteryandrunThinkPadSetup

toresetthetimeanddate.

0271

CheckDateandTimesettings—Neitherthedatenorthe

timeissetinthecomputer.

1.RunThinkPadSetuptoresetthetimeanddate

2.Replacethecoin-cellbatteryandrunThinkPadSetup

toresetthetimeanddate.

1802

Unauthorizednetworkcardispluggedin—Turnoffand

removethenetworkcard.

1.Removewirelessnetworkcard.

2.Systemboard

1820

Morethanoneexternalfingerprintreaderisattached.

Poweroffandremoveallbutthereaderthatyousetup

withinyourmainoperatingsystem.

Removeallbutthereaderthatyousetupforthe

authentication.

2100/2101/2102

Detectionerroronstoragedevice(M.2)

1.ReseattheM.2solid-statedrive.

2.MainM.2solid-statedrive

3.Systemboard

2111

ReaderroronSSD1(M.2)

1.ReseattheM.2solid-statedrive.

2.MainM.2solid-statedrive

3.Systemboard

2112

ReaderroronSSD2(M.2)

1.ReseattheM.2solid-statedrive.

2.MainM.2solid-statedrive

3.Systemboard

2200

MachineTypeandSerialNumberareinvalid.

Systemboard

2201

MachineUUIDisinvalid

Systemboard

Errormessages

Table2.Errormessages

SymptomorerrorFRUoraction,insequence

Fanerror1.Fan

2.Thermalgrease

3.Systemboard

ThermalsensingerrorSystemboard

Beepsymptoms

LenovoSmartBeeptechnologyenablesyoutodecodebeeperrorswithyoursmartphonewhenablack

screenoccurswithbeepsfromyourcomputer.TodecodethebeeperrorwithLenovoSmartBeep

technology,dothefollowing:

1.Gotohttps://support.lenovo.com/smartbeeporscanthefollowingQRCode.

Chapter4.Relatedserviceinformation35

2.Downloadtheproperdiagnosticappandinstallitonyoursmartphone.

3.Runthediagnosticappandplacethesmartphonenearthecomputer.

4.PresstheFnkeyonyourcomputertoemitthebeepagain.Thediagnosticappdecodesthebeeperror

andshowspossiblesolutionsonthesmartphone.

Thefollowingsectiondescribessomebeeperrorsandthecorrespondingsolutions.

Note:DonotattempttoserviceaproductyourselfunlessinstructedtodosobytheCustomerSupport

Centerorproductdocumentation.OnlyuseaLenovo-authorizedserviceprovidertorepairyourproduct.

ErrorcodesSolutions

0001:Reseterror(platformresetnotde-asserted)1.Removeallpowerresources(theacpoweradapter,

removablebattery,andcoin-cellbattery).Ifyour

computerhasabuilt-inbattery,resetthecomputer

byinsertingastraightenedpaperclipintothe

emergency-resethole.Waitforoneminute.Then

reconnectallpowerresources.

2.Replacethesystemboard(serviceprovideronly).

0002:InternalbuserrorReplacethesystemboard(serviceprovideronly).

0281:GeneralembeddedcontrollererrorReplacethesystemboard(serviceprovideronly).

0282:Memorymoduleerror1.Reinstallorreplacethememorymodule.

2.Replacethesystemboard(serviceprovideronly).

0283:PCIresourceerror1.RemovePCIedevices(theM.2card,PCIecard,

andsoon)(serviceprovideronly).

2.Replacethesystemboard(serviceprovideronly).

0284:TCG-compliantfunctionality-relatederror(mightbe

theBIOScodevalidationfailure)

Replacethesystemboard(serviceprovideronly).

0285:TCG-compliantfunctionality-relatederror(mightbe

theTPMinitializationfailure)

Replacethesystemboard(serviceprovideronly).

0286:IntegratedgraphicserrorReplacethesystemboard(serviceprovideronly).

0287:Discretegraphicserror1.Reinstallorreplacethediscretegraphicscard

(serviceprovideronly).

2.Replacethesystemboard(serviceprovideronly).

0288:Computerdisplayerror1.Reconnectthedisplaycableonboththesystem

boardsideandthecomputerdisplayside(service

provideronly).

2.Replacethesystemboard(serviceprovideronly).

36HardwareMaintenanceManual

No-beepsymptoms

Table3.No-beepsymptoms

SymptomorerrorFRUoraction,insequence

Nobeep,system-statusindicatoron,LCDblank,andno

POST.

1.Ensurethateveryconnectorisconnectedtightly

andcorrectly.

2.Reseatthememorymodule.

3.Replacethesystemboard.

Nobeep,system-statusindicatoron,andLCDblank

duringPOST.

Reseatthememorymodule.

Replacethesystemboard.

Thepower-onpasswordpromptappears.Apower-onpasswordorasupervisorpasswordis

set.TypethepasswordandpressEnter.

Thehard-diskpasswordpromptappears.Ahard-diskpasswordisset.Typethepasswordand

pressEnter.

LCD-relatedsymptoms

Important:TheTFTLCDforthenotebookcomputercontainsmanythin-filmtransistors(TFTs).The

presenceofasmallnumberofdotsthataremissing,discolored,oralwayslightedischaracteristicofTFT

LCDtechnology,butexcessivepixelproblemscancauseviewingconcerns.IftheLCDyouareservicinghas

twoorlessvisibledefectivepixels,itshouldnotbeconsideredfaulty.However,iftheLCDhasthreeormore

visibledefectivepixels,itwillbedeemedasdefectivebyLenovoanditshouldbereplaced.

Notes:

•ThispolicyappliestoallThinkPadnotebookspurchasedon1January,2008orlater.

•LenovowillnotprovidewarrantyreplacementiftheLCDiswithinspecificationsbecausewecannot

guaranteethatanyreplacementLCDwillhavezeropixeldefects.

•OnepixelconsistsofR,G,Bsub-pixels.

Table4.LCD-relatedsymptoms

SymptomorerrorFRUoraction,insequence

Nobeep,power-onindicatoron,andablankLCDduring

POST.

Replacethesystemboard.

•LCDbacklightnotworking.

•LCDtoodark.

•LCDbrightnesscannotbeadjusted.

•LCDcontrastcannotbeadjusted.

1.ReseattheLCDconnectors.

2.ReplacetheLCDassembly.

3.Replacethesystemboard.

•LCDscreenunreadable.

•Charactersmissingpixels.

•Screenabnormal.

•Wrongcolordisplayed.

1.Seeimportantnotefor“LCD-relatedsymptoms. ”

2.ReseattheLCDconnectors.

3.ReplacetheLCDassembly.

4.Replacethesystemboard.

HorizontalorverticallinesdisplayedonLCD.ReplacetheLCDassembly.

Intermittentproblems

Intermittentsystemhangproblemscanbeduetoavarietyofcausesthathavenothingtodowithahardware

defect,suchascosmicradiation,electrostaticdischarge,orsoftwareerrors.FRUreplacementshouldbe

consideredonlywhenaproblemrecurs.

Whenanalyzinganintermittentproblem,dothefollowing:

1.Runthediagnostictestforthesystemboardinloopmodeatleast10times.

Chapter4.Relatedserviceinformation37

2.Ifnoerrorisdetected,donotreplaceanyFRUs.

3.Ifanyerrorisdetected,replacetheFRUshownbytheFRUcode.Rerunthetesttoverifythatno

moreerrorsexist.

Undeterminedproblems

Ifthediagnostictestsdidnotidentifytheadapterordevicethathasfailed,ifwrongdevicesareinstalled,

orifthesystemsimplyisnotoperating,followtheseprocedurestoisolatethefailingFRU(donotisolate

FRUsthathavenodefects).

Verifythatallattacheddevicesaresupportedbythecomputer.

Verifythatthepowersupplybeingusedatthetimeofthefailureisoperatingcorrectly.See“Powersystem

checkout”onpage26.

1.Turnoffthecomputer.

2.VisuallycheckeachFRUfordamage.ReplaceanydamagedFRU.

3.Removeordisconnectallofthefollowingdevices:

a.Non-ThinkPaddevices

b.Printer,mouse,andotherexternaldevices

c.Externaldiskettedriveoropticaldrive

d.Wirelesscards

4.Turnonthecomputer.

5.Determinewhethertheproblemhasbeensolved.

6.Iftheproblemdoesnotrecur,reconnecttheremoveddevicesoneatatimeuntilyoufindthefailingFRU.

7.Iftheproblemremains,replacethefollowingFRUsoneatatime(donotreplaceanondefectiveFRU):

a.Systemboard

b.LCDassembly

38HardwareMaintenanceManual

Chapter5.YOGAModes

Thecomputerdisplaycanbeopenedtoanyanglewithinarangeofupto360degreesasshownin

thefollowingillustration.

Byrotatingthedisplaytodifferentangle,yourcomputerfeaturesthefollowingfourYOGAModes.Youcan

switchbetweendifferentmodesaccordingtoyourpreferenceandworkingconvenience.

NotebookmodeStandmode

©CopyrightLenovo201739

TentmodeTabletmode

TheX1Yogahasanimprovedrise-and-fallkeyboardmechanismthatworkswiththefourYOGAModes.

•AsyouopenthedisplayintotheNotebookmode,thekeysaredeployed,risingintothetypingposition.

•AsyourotatethedisplayfurtherbackintotheTent,Tablet,andStandmodes,thekeysretractintothe

bodyofthecomputer,providingaflatsurfacetoholdandprotectthekeyboardwhennotinuse.

Becauseofthisrise-and-fallmechanism,youmightnoticesomeadditionalresistanceasyourotatethe

displayamongthesefourmodes.Youmayalsohearasoundasthekeysaremovingintoandoutofthe

typingposition.Boththeresistanceandthesoundarenormalandreflecttherise-and-fallmechanism

duringthedisplayrotation.

40HardwareMaintenanceManual

Chapter6.Locations

Thischapterintroducesthelocationsofthehardwarecomponentsonyourcomputer.

Locatingcomputercontrols,connectors,andindicators

Thistopicintroducesthelocationsofthecomputercontrols,connectors,andindicators.

Frontview

1Ambientlightsensor2Microphones

3Conventionalcamera4Infraredcamera(availableonsomemodels)

5Multi-touchscreen6Windowsbuttons(availableonsomemodels)

7TrackPoint®pointingstick8TrackPointbuttons

9Trackpad10Fingerprintreader

11NFClabel(availableonsomemodels)

©CopyrightLenovo201741

Left-sideview

1USB-C™connectors(Thunderbolt™3compatible)/

powerconnectors

2USB3.0connector

3AlwaysOnUSB3.0connector

Right-sideview

1ThinkPadPenPro2Powerbutton

3Audioconnector4MiniEthernetconnector

5USB3.0connector6HDMI™connector

7Security-lockslot

Rearview

1Fanlouvers2MicroSDcardslot

3Micro-SIM-cardslot

42HardwareMaintenanceManual

Bottomview

1Fanlouvers2Speakers

3Emergency-resethole

Statusindicators

Chapter6.Locations43

Table5.Statusindicators

IndicatorMeaning

1Camera-statusindicatorOn:Thecameraisinuse.

2FnLockindicatorOff:TheFnLockfunctionisdisabled.Toinitiatethespecialfunctionofeachkey,

pressthecorrespondingfunctionkeydirectly.ToinputF1-F12,presstheFnkey

andthecorrespondingfunctionkey.

On:TheFnLockfunctionisenabled.ToinputF1-F12,pressthecorresponding

functionkeydirectly.Toinitiatethespecialfunctionofeachkey,presstheFnkey

andthecorrespondingfunctionkey.

3Speaker-muteindicatorOn:Thespeakersaremuted.

4Microphone-muteindicatorOn:Themicrophonesaremuted.

5CapsLockindicatorOn:TheCapsLockmodeisenabled.Y oucantypeallalphabeticcharacters

(A-Z)inuppercasedirectly.

6acpower-statusindicatorThisindicatorshowstheacpowerandchargingstatusofthecomputer.

•Green:connectedtoacpower(charging90%–100%)

•Amber:connectedtoacpower(charging1%–90%)

•Off:notconnectedtoacpower(nocharging)

78System-statusindicator•Blinksforthreetimes:Thecomputerisinitiallyconnectedtopower.

•On:Thecomputerison(innormalmode).

•Off:Thecomputerisofforinhibernationmode.

•Blinksquickly:Thecomputerisenteringsleeporhibernationmode.

•Blinksslowly:Thecomputerisinsleepmode.

LocatingFRUsandCRUs

Thistopicintroducesthefollowingserviceparts:

•“MajorFRUs”onpage46

•“LCDFRUs”onpage48

•“MiscellaneouspartsandotherFRUs”onpage49

•“Connectorandcableguide”onpage50

44HardwareMaintenanceManual

Notes:

•CRUstatementforcustomers:

Youcanresolvesomeproblemswithyourproductwithareplacementpartyoucaninstallyourself,called

a“CustomerReplaceableUnit”or“CRU.”SomeCRUsaredesignatedasself-serviceCRUsandothers

aredesignatedasoptional-serviceCRUs.Installationofself-serviceCRUsisyourresponsibility.For

optional-serviceCRUs,youcaneitherinstalltheCRUyourselforyoucanrequestthataServiceProvider

installtheCRUaccordingtothewarrantyserviceforyourproduct.IfyouintendoninstallingtheCRU,

LenovowillshiptheCRUtoyou.CRUinformationandreplacementinstructionsareshippedwithyour

productandareavailablefromLenovoatanytimeuponrequest.Y oucanfindalistofCRUsforyour

productinthisHardwareMaintenanceManual.Anelectronicversionofthismanualcanbefoundat

http://www.lenovo.com/support.ClickGuides&Manualsandthenfollowtheon-screeninstructions

tofindthemanualforyourproduct.Youmightberequiredtoreturnthedefectivepartthatisreplaced

bytheCRU.Whenreturnisrequired:(1)returninstructions,aprepaidshippinglabel,andacontainer

willbeincludedwiththereplacementCRU;and(2)youmightbechargedforthereplacementCRUif

LenovodoesnotreceivethedefectiveCRUwithinthirty(30)daysofyourreceiptofthereplacementCRU.

SeeyourLenovoLimitedWarrantydocumentationforfulldetails.

ThinkPadcomputerscontainthefollowingtypesofCRUs:

–Self-serviceCRUs:Refertopartsthatcanbeinstalledorreplacedeasilybycustomerthemselvesor

bytrainedservicetechniciansatanadditionalcost.

–Optional-serviceCRUs:Refertopartsthatcanbeinstalledorreplacedbycustomerswithagreater

skilllevel.Trainedservicetechnicianscanalsoprovideservicetoinstallorreplacethepartsunderthe

typeofwarrantydesignatedforthecustomer’smachine.

•FRUs:Refertopartsthatmustbeinstalledorreplacedonlybytrainedservicetechnicians.Ifcustomers

choosetoreplacetheFRUsbythemselves,theproductwarrantymightbeaffected.

•EachFRU/CRUisavailableforalltypesormodels,unlessotherwisespecified.

•ASelf-serviceCRUisidentifiedbyasingleasterisk(*)intheCRUIDcolumn.AnOptional-serviceCRUis

identifiedbytwoasterisks(**).AnNintheCRUIDcolumnmeansthatthepartisnotaCRU.

•FRUsmarkedwithOPareavailableasoptions.

Chapter6.Locations45

MajorFRUs

No.FRUdescriptionsCRUID

1LCDunit(See“LCDFRUs”onpage48.)N

2TrackpadN

46HardwareMaintenanceManual

No.FRUdescriptionsCRUID

3Trackpadcable(See“MiscellaneouspartsandotherFRUs”onpage49.)N

4KeyboardbezelassemblywithkeyboardN

5ThinkPadPenPro*

6Micro-SIMcarddoor*

7FingerprintreaderbracketN

8FingerprintreadercardN

9Fingerprintreadercable(See“MiscellaneouspartsandotherFRUs”onpage49.)N

aPencharger(See“MiscellaneouspartsandotherFRUs”onpage49.)N

10Powerbuttoncard**

11SystemboardN

12ThermalfanassemblyN

13WirelessLAN(WLAN)card**

14M.2SSD*

15Basecoverassembly*

16Coin-cellbattery*

17WirelessWAN(WWAN)card(availableonsomemodels)**

18Speakerassembly**

19Built-inbatteryN

bUSB-Cconnectorsupportbracket(See“MiscellaneouspartsandotherFRUs”on

page49.)

N

20NFCantenna(availableonsomemodels)N

21NFCmodule(availableonsomemodels)N

22NFCcable(See“MiscellaneouspartsandotherFRUs”onpage49.)N

23Miscellaneousparts(See“MiscellaneouspartsandotherFRUs”onpage49.)N

24RecoveryUSBN

25PowercordN

26acpoweradapterN

Chapter6.Locations47

LCDFRUs

No.FRUdescriptionsCRUID

1LCDstripebezelN

2LCDpanelassemblyN

3SensorcardN

4WiGigcable(availableonsomemodels)N

48HardwareMaintenanceManual

No.FRUdescriptionsCRUID

5AntennakitN

6LEDcableassemblyN

7LCDrearcoverassemblyN

aRubbercableholders(See“MiscellaneouspartsandotherFRUs”onpage49.)N

8HingesN

9Camera/microphonecardN

10LCDcableN

MiscellaneouspartsandotherFRUs

FRUdescriptionsSelf-serviceCRU

Screwkit

•M2.0xL1.8,thickhead,black(12)

•M2.0xL1.8,bigflathead,black,forrisingfoot(6)

•M2.0xL2.0,hugeflathead,black,forhinge(12)

•M2.0xL2.0,thinkflathead,silver,fortrackpad(12)

•M1.2xL2.4,forbasecoverhook(24)

•M2.0xL2.5,smallflathead,black(45)

•M2.0xL2.5,mediumflathead,black,forsystemboard(9)

•M2.0xL4.0,smallflathead,black,forhinge(6)

•M2.5xL4.5,silver(6)

•M2.0xL5.0,flathead,black(30)

N

Basecovermiscellaneouskit

•Hookonthebasecoverassembly(6)

•NFCcable(1)

•Fingerprintreadercable(1)

•Trackpadcable(1)

•Powerbutton,black(1)

•Powerbutton,silver(1)

•aPencharger(1)

•Risingrubberfoot,black(2)

•Risingrubberfoot,silver(2)

•Risingrubberfootforspring(2)

N

Systemboardmiscellaneouskit

•Theremalfansupportbracket(1)

•CPUsupportbracket(1)

•Memorymodulesheildcover(1)

•Memorymodulesheildcoverfor2133MHzRAM(1)

•M.2SSDsheildcover(1)

•bUSB-Cconnectorsupportbracket(1)

•AppearancesheetforWLANcardandM.2SSD(1)

•BlacktaptofixLCDcable(1)

N

Chapter6.Locations49

FRUdescriptionsSelf-serviceCRU

LCDmiscellaneouskit

•Magnet(1)

•Microphonerubber(2)

•cHingeinnerrubber(2)

•Conductivetapeforcamera(2)

•Conductivetapeforsensorcard(1)

•Conductivetapeforhinge(2)

•GraphitesheetforWiGig(1)

•CusheetforWiGig(1)

•Cmeracap(1)

•MylaradhesivetapeforWiGig(1)

•Conductivetapforthesensorcard,narrow(1)

N

OLEDLCDmiscellaneouskit

•Magnet(1)

•Microphonerubber(2)

•cHingeinnerrubber(2)

•GasketonOLEDrearcover(7)

•GasketonDC-DCcard(1)

•SpongeonOLEDrearcover(top)(1)

•SpongeonOLEDrearcover(center)(1)

•SpongeonOLEDrearcover(bottom)(1)

•SpongeonOLEDcameracard(1)

•Conductivetapeforcamera(2)

•Conductivetapeforsensorcard(1)

•Conductivetapeforhinge(2)

•Cameracap(1)

N

LabelkitN

Connectorandcableguide

ThissectionprovidesinformationforLenovoauthorizedservicetechnicianstohelpidentifyconnectorsand

cablesforreplacementpurpose.TovieweachFRUandtheexplodedillustrationofthecomputer,see“Major

FRUs”onpage46and“LCDFRUs”onpage48.

Note:Dependingonyourmodel,someconnectorsorcablesmightnotbeavailable.

Systemboardconnectorsandcables

50HardwareMaintenanceManual

ItemConnector(location)InternalcablerequiredCableconnection

1WLANcardslot(internal)NoInserttheWLANcardintothisslot.

2Camera/LEDconnector

(internal)

Camera/LEDcableassemblyConnectoneendtothesensorcard,oneend

tothecameracard,andtheotherendtothis

connector.

3Thermalfanconnector

(internal)

Thermalfanassemblywith

cable

Thethermalfanassemblycomeswithcable.

Connectthecabletothisconnector.

4MicroSDcardslot(external)NoInsertaMicroSDcardintothisslot.

5Micro-SIM-cardslot

(external)

NoInsertamicroSIMcardintothisslot.

6LCDconnector(internal)LCDcableConnectoneendtotheLCDpanelassemblyand

theotherendtothisconnector.

7WWANcardconnector

(internal)

NoInsertaWWANcardintothisslot.

8USB-Cconnectors

(external)

NoConnectUSB-CdevicesorThunderbolt3

devices.

9USB3.0connectors

(external)

NoConnectUSB-compatibledevices.

10Keyboardconnector

(internal)

Keyboardbezelassemblywith

cables

Thekeyboardassemblycomeswithcables.

Connectthekeyboardcabletothisconnector.

11NFCconnector(internal)NFCcableConnectoneendtotheNFCcardandtheother

endtothisconnector.

12TrackPointconnector

(internal)

Keyboardbezelassemblywith

cables

Thekeyboardassemblycomeswithcables.

ConnecttheTrackPointcabletothisconnector.

13Coin-cellbatteryconnector

(internal)

Coin-cellbatterywithcableThecoin-cellbatterycomeswithacable.

Connectthecabletothisconnector.

14Trackpadconnector

(internal)

TrackpadcableConnectoneendtothetrackpadassemblyand

theotherendtothisconnector.

15Batteryconnector(internal)BatterywithcableThebuilt-inbatterycomeswithacable.Connect

thecabletothisconnector.

16M.2SSDslot(internal)NoInsertanM.2SSDintothisslot.

17Fingerprintreader

connector(internal)

FingerprintreadercableThefingerprintreadercablehasthreeends.

Connectthefingerprintreaderendtothe

fingerprintreadercard,thepowerendtothe

powerbuttoncard,andtheotherendtothis

connector.

18Speakerconnectors

(internal)

SpeakerassemblywithcableThespeakerassemblycomeswithacable.

Connectthecabletothisconnector.

19Audioconnector(external)NoConnectheadphonesoraheadsettothis

connector.

20MiniEthernetconnector

(external)

NoConnecttheEthernetextensionadaptertothis

connector.

21USB3.0connector

(external)

NoConnectUSB-compatibledevices.

22HDMIconnector(external)NoConnectacompatibledigitalaudiodeviceor

videomonitortothisconnector.

Chapter6.Locations51

Camera/microphonecardconnectorandcable

1

ItemConnector(location)InternalcablerequiredCableconnection

1Camera/LEDconnectorCamera/LEDcableassemblyConnectoneendtothesystemboard,oneend

tothesensorcard,andtheotherendtothis

connector.

NFCmoduleconnectorandcable

12

ItemConnector(location)InternalcablerequiredCableconnection

1NFCantennaconnectorNFCantennaConnecttheNFCantennatothisconnector.

2NFCconnectorNFCcableConnectoneendtothesystemboardandthe

otherendtothisconnector.

Powerbuttoncardconnectorandcable

12

ItemConnector(location)InternalcablerequiredCableconnection

1PenchargerconnectorPenchargerwithcableThepenchargercomeswithcable.Connectthe

cabletothisconnector.

1Power-button-card

connector

FingerprintreadercableThefingerprintreadercablehasthreeends.

Connectthefingerprintreaderendtothe

fingerprintreadercard,theMBendtothesystem

board,andtheotherendtothisconnector.

Fingerprintreadercardconnectorandcable

1

ItemConnector(location)InternalcablerequiredCableconnection

1Fingerprintreader

connector

FingerprintreadercableThefingerprintreadercablehasthreeends.

ConnecttheMBendtothesystemboard,the

powerendtothepowerbuttoncard,andtheother

endtothisconnector.

52HardwareMaintenanceManual

Sensorcardconnectorandcable

12

ItemConnector(location)InternalcablerequiredCableconnection

1P-sensorconnectorWWANantennakitConnectoneendoftotheWWANcardandthe

otherendtothisconnector.

2SensorcardconnectorCamera/LEDcableassemblyConnectoneendtothesystemboard,oneend

tothecameracard,andtheotherendtothis

connector.

LookingupFRUinformation

FordetailedFRUinformation,includingpartnumbers,descriptions,andsubstitutionpartnumbers,goto

http://www.lenovo.com/serviceparts-lookup.

Chapter6.Locations53

54HardwareMaintenanceManual

Chapter7.FRUreplacementnotices

Thischapterpresentsnoticesrelatedtoremovingandreplacingparts.Readthischaptercarefullybefore

replacinganyFRU.

CRUstatementforcustomers:

Youcanresolvesomeproblemswithyourproductwithareplacementpartyoucaninstallyourself,called

a“CustomerReplaceableUnit”or“CRU.”SomeCRUsaredesignatedasself-serviceCRUsandothers

aredesignatedasoptional-serviceCRUs.Installationofself-serviceCRUsisyourresponsibility.For

optional-serviceCRUs,youcaneitherinstalltheCRUyourselforyoucanrequestthataServiceProvider

installtheCRUaccordingtothewarrantyserviceforyourproduct.IfyouintendoninstallingtheCRU,

LenovowillshiptheCRUtoyou.CRUinformationandreplacementinstructionsareshippedwithyour

productandareavailablefromLenovoatanytimeuponrequest.Y oucanfindalistofCRUsforyour

productinthisHardwareMaintenanceManual.Anelectronicversionofthismanualcanbefoundat

http://www.lenovo.com/support.ClickGuides&Manualsandthenfollowtheon-screeninstructionstofind

themanualforyourproduct.YoumightberequiredtoreturnthedefectivepartthatisreplacedbytheCRU.

Whenreturnisrequired:(1)returninstructions,aprepaidshippinglabel,andacontainerwillbeincluded

withthereplacementCRU;and(2)youmightbechargedforthereplacementCRUifLenovodoesnot

receivethedefectiveCRUwithinthirty(30)daysofyourreceiptofthereplacementCRU.SeeyourLenovo

LimitedWarrantydocumentationforfulldetails.

Commonservicetools

Belowisthelistofcommonservicetoolsthatyoumightneedwhileservicingthecomputer.

•Screwdriverkit

•1/4"drivespinnerhandle

•1/4"Sq.to1/4"hextorxadapter

•TR7-TR-10tamperresistanttorxbits

•RemovaltoolantennaRFconnector

•USB2.0CD-RW/DVD-ROMcombodriveII

•USBcable

•USBMaintenanceKey

•USBfloppydiskettedriveformaintenancediskette

•USBfloppydiskettedrivetoolkit

•TestcardforintegratedSmartCard

•LENOVOThinkPadHardwareMaintenanceDisketteVersion1.76orlater

Note:DownloadthefilefromthefollowingWebsite:

http://www.lenovo.com/support

Screwnotices

Loosescrewscancauseareliabilityproblem.IntheThinkPadnotebookcomputer,thisproblemisaddressed

withspecialnylon-coatedscrewsthathavethefollowingcharacteristics:

•Theymaintaintightconnections.

•Theydonoteasilycomeloose,evenwithshockorvibration.

•Theyarehardertotighten.

Dothefollowingwhenyouservicethismachine:

•Keepthescrewkitinyourtoolbag.Forthepartnumberofthescrewkit,goto

http://www.lenovo.com/serviceparts-lookup.

•Itisrecommendedtousenewscrews.

©CopyrightLenovo201755

•Itisrecommendedtouseeachscrewonlyonce.

Tightenscrewsasfollows:

•Plastictoplastic

Turnanadditional90degreesafterthescrewheadtouchesthesurfaceoftheplasticpart.

90degreesmore

(Cross-section)

•Logiccardtoplastic

Turnanadditional180degreesafterthescrewheadtouchesthesurfaceofthelogiccard.

180degreesmore

(Cross-section)

Notes:

•Ensurethatyouusethecorrectscrew.Itisrecommendedtousenewscrewsforreplacements.Ifyou

haveatorquescrewdriver,tightenallscrewsfirmlytothetorquespecifiedinthescrewinformation

tableforeachstep.

•Ensurethattorquescrewdriversarecalibratedcorrectlyfollowingcountryspecifications.

Retainingserialnumbers

Thissectionincludesthefollowingdescriptions:

•“Restoringtheserialnumberofthesystemunit”onpage56

•“RetainingtheUUID”onpage57

•“ReadingorwritingtheECAinformation”onpage58

Restoringtheserialnumberofthesystemunit

Whenthecomputerwasmanufactured,theEEPROMonthesystemboardwasloadedwiththeserial

numbersofthesystemandallmajorcomponents.Thesenumbersneedtoremainthesamethroughout

thelifeofthecomputer.

Ifyoureplacethesystemboard,youmustrestoretheserialnumberofthesystemunittoitsoriginalvalue.

Theserialnumberofthesystemunitiswrittenonthelabelattachedtothebottomofthecomputer.

Ifyoucannotfindtheserialnumberofthesystemunitonthebottomofthecomputer,trythefollowing

methodtogetthenumber:

Note:Beforeyouperformtheoperation,ensurethattheUEFI/LegacysettingwithintheStartupmenuin

theThinkPadSetupprogramissettoUEFIOnly.

1.ConnectaUSBmemorykeytothecomputer.

56HardwareMaintenanceManual

2.Gotohttp://www.lenovo.com/maintenanceutilitiesandfollowtheinstructionsonthescreentocreatea

MaintenanceKey.

Note:OnlyanauthorizedLenovoservicetechniciancanaccesstheaboveWebsite.

3.Restartthecomputer.

4.Whenthelogoisdisplayed,pressEsc.TheThinkPadConfigInformationUpdateUtilityinterfaceis

displayed.

5.Type1underEntertheactiondesired,thenpressEnter.TheThinkPadSerialNumberUpdateUtilityfor

AssetIDscreenisdisplayed.

6.Type2underEntertheactiondesired,thenpressEnter.Theserialnumberofeachdeviceinyour

computerisdisplayed;theserialnumberofthesystemunitislistedasfollows:

20-Serialnumber

7.Recordtheserialnumberofthesystemunit.

Afteryoureplacethesystemboard,dothefollowingtorestoretheserialnumberofthesystemunit:

1.ConnecttheMaintenanceKeytothecomputer.

2.Whenthelogoisdisplayed,pressEsc.TheThinkPadConfigInformationUpdateUtilityinterfaceis

displayed.

3.Type1underEntertheactiondesired,thenpressEnter.TheThinkPadSerialNumberUpdateUtilityfor

AssetIDscreenisdisplayed.

4.Type1underEntertheactiondesired,thenpressEnter.Thenfollowtheinstructionsonthescreen

torestoretheserialnumberofthesystemunit.

RetainingtheUUID

TheUniversallyUniqueIdentifier(UUID)isa128-bitnumberuniquelyassignedtoyourcomputerat

productionandstoredintheEEPROMofyoursystemboard.

ThealgorithmthatgeneratesthenumberisdesignedtoprovideuniqueIDsuntiltheyearA.D.3400.Notwo

computersintheworldhavethesamenumber.

Whenyoureplacethesystemboard,performthefollowingstepstocreateanewUUIDforthesystem

boardifthesystemboarddoesnothaveaUUID:

Note:Beforeyouperformtheoperation,ensurethattheUEFI/LegacysettingwithintheStartupmenuin

theThinkPadSetupprogramissettoUEFIOnly.

1.ConnectaUSBmemorykeytothecomputer.

2.Gotohttp://www.lenovo.com/maintenanceutilitiesandfollowtheinstructionsonthescreentocreatea

MaintenanceKey.

Note:OnlyanauthorizedLenovoservicetechniciancanaccesstheaboveWebsite.

3.Restartthecomputer.

4.Whenthelogoscreenisdisplayed,pressEsc.TheThinkPadConfigInformationUpdateUtilityinterface

isdisplayed.

5.Type2underEntertheactiondesired,thenpressEnter.TheAutoUUIDgenerationutilityinterfaceis

displayed.

6.TypeyunderChangeUUID.OK?[Y/N],thenpressEnter.AnewUUIDiscreatedandwritten.Ifa

validUUIDalreadyexists,itisnotoverwritten.

Chapter7.FRUreplacementnotices57

ReadingorwritingtheECAinformation

InformationonEngineeringChangeAnnouncements(ECA)isstoredintheEEPROMofthesystemboard.

TheelectronicstorageofthisinformationsimplifiestheproceduretocheckiftheECAhasbeenpreviously

appliedtoamachine.ThemachinedoesnotneedtobedisassembledtocheckfortheECAapplication.

TocheckwhatECAshavebeenpreviouslyappliedtothemachine,usetheECAInformationRead/Write

functionontheUSBMaintenanceKey.

1.InserttheMaintenanceKeyandrestartthecomputer.

2.Fromthemainmenu,select6.SetECAInformation.

3.ToreadtheECAinformation,select2.ReadECA/reworknumberfromEEPROMandfollowthe

instructionsonthescreen.

4.Toreadtheboxbuilddate,select5.ReadboxbuilddatefromEEPROM,andfollowtheinstructionon

thescreen.

AfteranECAhasbeenappliedtothemachine,theEEPROMmustbeupdatedtoreflecttheECA's

application.UsetheMaintenanceKeytoupdatetheEEPROM.

Note:OnlytheECAnumberisstoredintheEEPROM.ThemachinetypeoftheECAisassumedtobethe

sameasthemachinetypeofthemachinethathadtheECAappliedtoit.

1.InserttheMaintenanceKeyandrestartthecomputer.

2.Fromthemainmenu,select6.SetECAInformation.

3.TowritetheECAinformation,select1.WriteECA/reworknumberfromEEPROM,andfollowthe

instructionsonthescreen.

4.Towritetheboxbuilddate,select4.WriteboxbuilddatefromEEPROM,andfollowtheinstructionon

thescreen.

Ifthesystemboardisbeingreplaced,trytoreadtheECAinformationfromtheoldsystemboardandtransfer

theinformationtothenewsystem.Ifthesystemboardisinoperable,thiswillnotbepossible.

58HardwareMaintenanceManual

Chapter8.RemovingorreplacingaFRU

ThischapterprovidesinstructionsonhowtoremoveorreplaceaFRU.

CRUstatementforcustomers:

Youcanresolvesomeproblemswithyourproductwithareplacementpartyoucaninstallyourself,called

a“CustomerReplaceableUnit”or“CRU.”SomeCRUsaredesignatedasself-serviceCRUsandothers

aredesignatedasoptional-serviceCRUs.Installationofself-serviceCRUsisyourresponsibility.For

optional-serviceCRUs,youcaneitherinstalltheCRUyourselforyoucanrequestthataServiceProvider

installtheCRUaccordingtothewarrantyserviceforyourproduct.IfyouintendoninstallingtheCRU,

LenovowillshiptheCRUtoyou.CRUinformationandreplacementinstructionsareshippedwithyour

productandareavailablefromLenovoatanytimeuponrequest.Y oucanfindalistofCRUsforyourproduct

inthisHardwareMaintenanceManual.Anelectronicversionofthismanualisavailablefordownloadingat

http://www.lenovo.com/support.YoumightberequiredtoreturnthedefectiveCRU.Whenreturnisrequired:

(1)returninstructions,aprepaidshippinglabel,andacontainerwillbeincludedwiththereplacement

CRU;and(2)youmightbechargedforthereplacementCRUifLenovodoesnotreceivethedefective

partwithinthirty(30)daysofyourreceiptofthereplacementCRU.SeeyourLenovoLimitedWarranty

documentationforfulldetails.

Generalguidelines

WhenremovingorreplacingaFRU,besuretoobservethefollowinggeneralguidelines:

1.Donottrytoserviceanycomputerunlessyouhavebeentrainedandcertified.Anuntrainedpersonruns

theriskofdamagingparts.

2.BeforereplacinganyFRU,reviewChapter7“FRUreplacementnotices”onpage55.

3.BeginbyremovinganyFRUsthathavetoberemovedbeforereplacingthefailingFRU.AnysuchFRUs

arelistedatthebeginningofeachFRUreplacementsection.Removethemintheorderinwhichthey

arelisted.

4.FollowthecorrectsequenceinthestepsforremovingaFRU,asgiveninthedrawingsbythenumbers

insquarecallouts.

5.Whenturningascrew,turnitinthedirectionasgivenbythearrowinthedrawing.

6.WhenremovingaFRU,moveitinthedirectionasgivenbythearrowinthedrawing.

7.ToputthenewFRUinplace,reversetheremovalprocedureandfollowanynotesthatpertainto

replacement.

8.WhenreplacingaFRU,usethecorrectscrewsasshowninthereplacementprocedures.

DANGER

BeforeremovinganyFRU,turnoffthecomputer,unplugallpowercordsfromelectricaloutlets,

disconnectanyinterconnectingcables,andthendisablethebuilt-inbattery.

Attention:AfterreplacingaFRU,donotturnonthecomputeruntilyouhavemadesurethatallscrews,

springs,andothersmallpartsareinplaceandnonearelooseinsidethecomputer.Verifythisbyshaking

thecomputergentlyandlisteningforrattlingsounds.Metallicpartsormetalflakescancauseelectrical

shortcircuits.

Attention:Thesystemboardissensitiveto,andcanbedamagedby,electrostaticdischarge(ESD).Before

touchingit,establishpersonalgroundingbytouchingagroundpointwithonehandorbyusinganESDstrap.

©CopyrightLenovo201759

Beforeservicingthecomputer

Carefullyreadthistopicbeforeservicingthecomputer.

Removingexternaldevices

Beforeyoustartservicing,ensurethatyouremoveallexternaldevicesinstalledbythecustomer,suchas

MicroSDcard,dock,andexternaldisplay.

Disablingthebuilt-inbattery

BeforereplacinganyFRU/CRU,ensurethatyoudisableFastStartupfirstandthendisablethebuilt-inbattery.

TodisableFastStartup,dothefollowing:

1.Fromthedesktop,typepoweroptioninthesearchboxonthetaskbar,andselectPowerOptions.

2.ClickChoosewhatthepowerbuttonsdoontheleftpane.

3.ClickChangesettingsthatarecurrentlyunavailableatthetop.

4.IfpromptedbyUserAccountControl(UAC),clickYes.

5.CleartheTurnonfaststartupcheckbox,andthenclickSavechanges.

Todisablethebuilt-inbattery,dothefollowing:

1.Turnoffyourcomputeranddisconnecttheacpoweradapterandallcablesfromthecomputer.

2.Turnonyourcomputer.Whenthelogoscreenisdisplayed,immediatelypressF1toenterThinkPad

Setup.

3.SelectConfig➙Power.ThePowersubmenuisdisplayed.

4.SelectDisablebuilt-inbatteryandpressEnter.

5.SelectYesintheSetupConfirmationwindow.Thebuilt-inbatteryisdisabledandthecomputerturnsoff

automatically.Waitthreetofiveminutestoletthecomputercool.

RemovingthemicroSIMcard

IfthecomputerhasamicroSIMcardinstalled,removethemicroSIMcardbeforeyoustarttheservicing.

12

4

3

Afteryoufinishtheservicing,ensurethatyouinstallthemicroSIMcard(ifavailable)backintothecomputer.

RemovingThinkPadPenPro

IfthecomputerhasaThinkPadPenProinstalled,removethepenbeforeyoustartservicing.

60HardwareMaintenanceManual

RemovingamajorFRU

ThissectionprovidesinstructionsonhowtoremoveamajorFRU.

1010Basecoverassembly

Removalstepsofthebasecoverassembly

Chapter8.RemovingorreplacingaFRU61

Labellocationsonthebasecoverassembly

Thefollowingillustrationshowsthelocationofeachlabel.

1CertificateofAuthenticitylabel2GenuineMicrosoftlabel

3IMEIlabel4CECPlabel

5S/Nlabel6FCCID/IClabel

7Assettag8Countrylabel

1020M.2SSD

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

Attention:

•Donotdropthedriveorapplyanyphysicalshocktoit.Thedriveissensitivetophysicalshock.Improper

handlingcancausedamageandpermanentlossofdata.

•Beforeremovingthedrive,havetheusermakeabackupcopyofalltheinformationonitifpossible.

•Neverremovethedrivewhilethesystemisoperatingorinsuspendmode.

62HardwareMaintenanceManual

RemovalstepsoftheM.2SSD

StepScrew(quantity)ColorTorque

2M2×L2.5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

3

4

1030WLANcard

Note:Thisinformationisonlyfortheuser-replaceablemodules.

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

Chapter8.RemovingorreplacingaFRU63

RemovalstepsoftheWLANcard

Note:TheillustrationisforWLANcardwithWiGigfunction.ForWLANcardwithoutWiGigfunction,the

cardhasonlytwoantennaconnectors.

StepScrew(quantity)ColorTorque

3M2×L2.5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

Wheninstalling:Plugthegraycableintothemainconnectorandtheblackcableintotheauxiliary

connector.ForWLANcardwithWiGigfunction,alsoplugtheWiGigcableintothe3rdconnectoronthecard.

1040WWANcard

Note:Thisinformationisonlyfortheuser-replaceablemodules.

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

64HardwareMaintenanceManual

RemovalstepsoftheWWANcard

StepScrew(quantity)ColorTorque

3M2×L2.5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

Wheninstalling:Plugtheredcableintothemainconnectorandthebluecableintotheauxiliaryconnector.

1050Coin-cellbattery

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

Removalstepsofthecoin-cellbattery

Chapter8.RemovingorreplacingaFRU65

1060Thermalfanassembly

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

Removalstepsofthethermalfanassembly

4a

4b

4c

4d

Wheninstalling:

•Donottouchthetopandbottomareasmarkedainthefollowingillustration.

66HardwareMaintenanceManual

a

a

•Tightenthescrewsinascendingorderbyfollowingthenumbermarkedbesideeachscrew.Otherwise,

thesystemboardmightgetdamaged.

1070Speakerassembly

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

Removalstepsofthespeakerassembly

StepScrew(quantity)ColorTorque

2M2×L5mm,flat-headshoulder,nylon-coated(4)Black0.181Nm

(1.85kgf-cm)

Chapter8.RemovingorreplacingaFRU67

1080Battery

Importantnoticesforreplacingabattery

Attention:Lenovohasnoresponsibilityfortheperformanceorsafetyofunauthorizedbatteries,and

providesnowarrantiesforfailuresordamagearisingoutoftheiruse.

TheLenovoSolutionCenterprogramprovidesanautomaticbatterydiagnostictestthatdeterminesifthe

batteryisdefective.AbatteryFRUshouldnotbereplacedunlessthisdiagnostictestshowsthatthebattery

isdefective.Theonlyexceptiontothisisifthebatteryisphysicallydamagedoracustomerisreportinga

possiblesafetyissue.

IftheLenovoSolutionCenterprogramisnotinstalledonthecomputer,thecustomershoulddownloadand

installtheprogramtodiagnosethebattery,beforegettinganon-physicallydamagedbatteryreplaced.Note

thatthereplacementofaphysicallydamagedbatteryisnotcoveredbythewarranty.

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

Removalstepsofthebattery

DANGER

Useonlytheauthorizedbatteryspecifiedforyourcomputer.Anyotherbatterycouldigniteor

explode.

1

StepScrew(quantity)ColorTorque

3M2×L5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

68HardwareMaintenanceManual

Installingthebattery

Note:Ensurethatthetwobatterytabsareinsertedunderneaththesystemboard.

1

1090Powerbuttoncardandpower-button-cardcable

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1020M.2SSD”onpage62

Chapter8.RemovingorreplacingaFRU69

•“1030WLANcard”onpage63

•“1040WWANcard”onpage64

•“1050Coin-cellbattery”onpage65

•“1060Thermalfanassembly”onpage66

•“1070Speakerassembly”onpage67“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

Removalstepsofthepowerbuttoncardandthepower-button-cardcable

StepScrew(quantity)ColorTorque

4M2×L2.5mm,flat-head,nylon-coated(2)Black0.181Nm

(1.85kgf-cm)

1100Fingerprintreaderassemblyandfingerprintreadercable

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

70HardwareMaintenanceManual

Removalstepsofthefingerprintreaderassemblyandthefingerprintreadercable

StepScrew(quantity)ColorTorque

8M2×L2.5mm,flat-head,nylon-coated(2)Black0.181Nm

(1.85kgf-cm)

Chapter8.RemovingorreplacingaFRU71

1110Trackpadcable,trackpadsupportbracket,andtrackpadassembly

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

Removalstepsofthetrackpadcable,trackpadsupportbracket,andtrackpadassembly

0

StepScrew(quantity)ColorTorque

6M2×L2mm,flat-head,nylon-coated(4)Silver0.181Nm

(1.85kgf-cm)

72HardwareMaintenanceManual

1120NFCmodule,NFCcable,andNFCantenna

Foraccess,removethisFRU:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

RemovalstepsoftheNFCmodule,theNFCcable,andtheNFCantenna

1130Pencharger

Foraccess,removethisFRU:

Chapter8.RemovingorreplacingaFRU73

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

Removalstepsofthepencharger

StepScrew(quantity)ColorTorque

2M2×L5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

1140Systemboardassembly

Importantnoticesforhandlingthesystemboard

Whenhandlingthesystemboard,readthefollowing:

•Thesystemboardhasanaccelerometer,whichcanbebrokenwhenseveralthousandsofG-forces

areapplied.

Note:Droppingasystemboardfromaheightofaslittleassixinchessothatitfallsflatonahardbench

cansubjecttheaccelerometertoasmuchas6000G'sofshock.

•Becarefulnottodropthesystemboardonabenchtopthathasahardsurface,suchasmetal,wood,or

composite.

•Avoidroughhandlingofanykind.

•Ateverypointintheprocess,besurenottodroporstackthesystemboard.

•Ifyouputasystemboarddown,besuretoputitonlyonapaddedsurfacesuchasanESDmatora

corrugatedconductivematerial.

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1020M.2SSD”onpage62

•“1030WLANcard”onpage63

•“1040WWANcard”onpage64

•“1050Coin-cellbattery”onpage65

•“1060Thermalfanassembly”onpage66

•“1070Speakerassembly”onpage67“1080Battery”onpage68

74HardwareMaintenanceManual

Removalstepsofthesystemboardassembly

StepScrew(quantity)ColorTorque

1M2×L5mm,flat-head,nylon-coated(2)Black0.181Nm

(1.85kgf-cm)

Chapter8.RemovingorreplacingaFRU75

StepScrew(quantity)ColorTorque

20M2×L2.5mm,flat-head,nylon-coated(9)Black0.181Nm

(1.85kgf-cm)

21M2×L5mm,flat-head,nylon-coated(1)Black0.181Nm

(1.85kgf-cm)

76HardwareMaintenanceManual

1150LCDunit

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

RemovalstepsoftheLCDunit

StepScrew(quantity)ColorTorque

2M2.5×L4.5mm,flat-head,nylon-coated(2)Silver0.392Nm

(4.0kgf-cm)

Chapter8.RemovingorreplacingaFRU77

RemovinganLCDFRU

ThissectionprovidesinstructionsonhowtoremoveanLCDFRU.

2010Stripecover

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

78HardwareMaintenanceManual

Removalstepsofthestripecover

2020LCDpanelassemblyandLCDcable

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

•“2010Stripecover”onpage78

RemovalstepsoftheLCDpanelassembly

Chapter8.RemovingorreplacingaFRU79

StepScrew(quantity)ColorTorque

4M2×L3mm,flat-head,nylon-coated(2)Black0.181Nm

(1.85kgf-cm)

80HardwareMaintenanceManual

Wheninstalling:EnsurethattheLCDpanelassemblyishookedintoplaceasshowninthefollowing

illustrations.

Chapter8.RemovingorreplacingaFRU81

RemovalstepsoftheLCDcable

2

1

2030Camera/microphonecardandsensorcard

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

•“2010Stripecover”onpage78

•“2020LCDpanelassemblyandLCDcable”onpage79

Removalstepsofthecamera/microphonecard

82HardwareMaintenanceManual

Removalstepsofthesensorcard

Chapter8.RemovingorreplacingaFRU83

2040Hinges

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

•“2010Stripecover”onpage78

•“2020LCDpanelassemblyandLCDcable”onpage79

Removalstepsofthehinges

84HardwareMaintenanceManual

StepScrew(quantity)ColorTorque

3M2×L2mm,big-head,nylon-coated(4)Black0.181Nm

(1.85kgf-cm)

2050WiGigcableandantennakit

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

•“2010Stripecover”onpage78

•“2020LCDpanelassemblyandLCDcable”onpage79

RemovalstepsoftheWiGigcable

Chapter8.RemovingorreplacingaFRU85

RemovalstepsoftheantennakitformodelswithouttheWiGigfunction

86HardwareMaintenanceManual

RemovalstepsoftheantennakitformodelswiththeWiGigfunction

AntennalocationsformodelswithouttheWiGigfunction

d

Chapter8.RemovingorreplacingaFRU87

aWWANmainantenna(red)

bWLANmainantenna(gray)

cWWANauxiliaryantenna(blue)

dWLANauxiliaryantenna(black)

AntennalocationsformodelswiththeWiGigfunction

aWiGigantenna(black)

bWLANmainantenna(gray)

cWLANauxiliaryantenna(black)

2060LEDcableassembly

Foraccess,removetheseFRUsinorder:

•“1010Basecoverassembly”onpage61

•“1070Speakerassembly”onpage67

•“1080Battery”onpage68

•“1140Systemboardassembly”onpage74

•“1150LCDunit”onpage77

•“2010Stripecover”onpage78

•“2020LCDpanelassemblyandLCDcable”onpage79

•“2050WiGigcableandantennakit”onpage85

88HardwareMaintenanceManual

RemovalstepoftheLEDcableassembly

Chapter8.RemovingorreplacingaFRU89

90HardwareMaintenanceManual

AppendixA.Notices

Lenovomaynotoffertheproducts,services,orfeaturesdiscussedinthisdocumentinallcountries.Consult

yourlocalLenovorepresentativeforinformationontheproductsandservicescurrentlyavailableinyour

area.AnyreferencetoaLenovoproduct,program,orserviceisnotintendedtostateorimplythatonlythat

Lenovoproduct,program,orservicemaybeused.Anyfunctionallyequivalentproduct,program,orservice

thatdoesnotinfringeanyLenovointellectualpropertyrightmaybeusedinstead.However,itistheuser’s

responsibilitytoevaluateandverifytheoperationofanyotherproduct,program,orservice.

Lenovomayhavepatentsorpendingpatentapplicationscoveringsubjectmatterdescribedinthis

document.Thefurnishingofthisdocumentdoesnotgiveyouanylicensetothesepatents.Y oucansend

licenseinquiries,inwriting,to:

Lenovo(UnitedStates),Inc.

1009ThinkPlace-BuildingOne

Morrisville,NC27560

U.S.A.

Attention:LenovoDirectorofLicensing

LENOVOPROVIDESTHISPUBLICATION“ASIS”WITHOUTWARRANTYOFANYKIND,EITHEREXPRESS

ORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFNON-INFRINGEMENT,

MERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE.Somejurisdictionsdonotallow

disclaimerofexpressorimpliedwarrantiesincertaintransactions,therefore,thisstatementmaynotapply

toyou.

Thisinformationcouldincludetechnicalinaccuraciesortypographicalerrors.Changesareperiodically

madetotheinformationherein;thesechangeswillbeincorporatedinneweditionsofthepublication.

Lenovomaymakeimprovementsand/orchangesintheproduct(s)and/ortheprogram(s)describedinthis

publicationatanytimewithoutnotice.

Theproductsdescribedinthisdocumentarenotintendedforuseinimplantationorotherlifesupport

applicationswheremalfunctionmayresultininjuryordeathtopersons.Theinformationcontainedinthis

documentdoesnotaffectorchangeLenovoproductspecificationsorwarranties.Nothinginthisdocument

shalloperateasanexpressorimpliedlicenseorindemnityundertheintellectualpropertyrightsofLenovo

orthirdparties.Allinformationcontainedinthisdocumentwasobtainedinspecificenvironmentsandis

presentedasanillustration.Theresultobtainedinotheroperatingenvironmentsmayvary.

Lenovomayuseordistributeanyoftheinformationyousupplyinanywayitbelievesappropriatewithout

incurringanyobligationtoyou.

Anyreferencesinthispublicationtonon-LenovoWebsitesareprovidedforconvenienceonlyanddonotin

anymannerserveasanendorsementofthoseWebsites.ThematerialsatthoseWebsitesarenotpartof

thematerialsforthisLenovoproduct,anduseofthoseWebsitesisatyourownrisk.

Anyperformancedatacontainedhereinwasdeterminedinacontrolledenvironment.Therefore,theresult

obtainedinotheroperatingenvironmentsmayvarysignificantly.Somemeasurementsmayhavebeen

madeondevelopment-levelsystemsandthereisnoguaranteethatthesemeasurementswillbethesame

ongenerallyavailablesystems.Furthermore,somemeasurementsmayhavebeenestimatedthrough

extrapolation.Actualresultsmayvary.Usersofthisdocumentshouldverifytheapplicabledatafortheir

specificenvironment.

©CopyrightLenovo201791

Electronicemissionsnotices

ForelectronicemissioninformationonClassBdigitaldevices,refertothecorrespondinginformationin

theUserGuide.

Trademarks

ThefollowingtermsaretrademarksofLenovointheUnitedStates,othercountriesorboth:

Lenovo

ThinkPad

TrackPoint

Microsoft,Windows,andWindowsServeraretrademarksoftheMicrosoftgroupofcompanies.

IntelisatrademarkofIntelCorporationintheU.S.and/orothercountries.

MiniDisplayPort(mDP)andDisplayPortaretrademarksoftheVideoElectronicsStandardsAssociation.

ThetermsHDMIandHDMIHigh-DefinitionMultimediaInterfacearetrademarksorregisteredtrademarksof

HDMILicensingLLCintheUnitedStatesandothercountries.

Othercompany,product,orservicenamesmaybethetrademarksorservicemarksofothers.

92HardwareMaintenanceManual

PartNumber:SP40K88722_02

Printedin

(1P)P/N:SP40K88722_02

*1PSP40K88722_02*
