User Manual Part 2
User Manual of 47611-WG4
-56-
Figure 5-3-22
User Manual of 47611-WG4
-57-
5.4 Advanced Settings
“Advanced Settings” includes the following 6 submenus. Clicking any of them enters corresponding interface for
configuration. Below explains, in details, each such feature.
5.4.1 Virtual Server
The Virtual Server feature grants Internet users access to services on your LAN. It is useful for hosting online
services such as FTP, Web, or game servers. For each Virtual Server, you define a WAN port on your router for
redirection to an internal LAN IP Address and LAN port.
Figure 5-4-1
Click “Add” to display below page.
User Manual of 47611-WG4
-58-

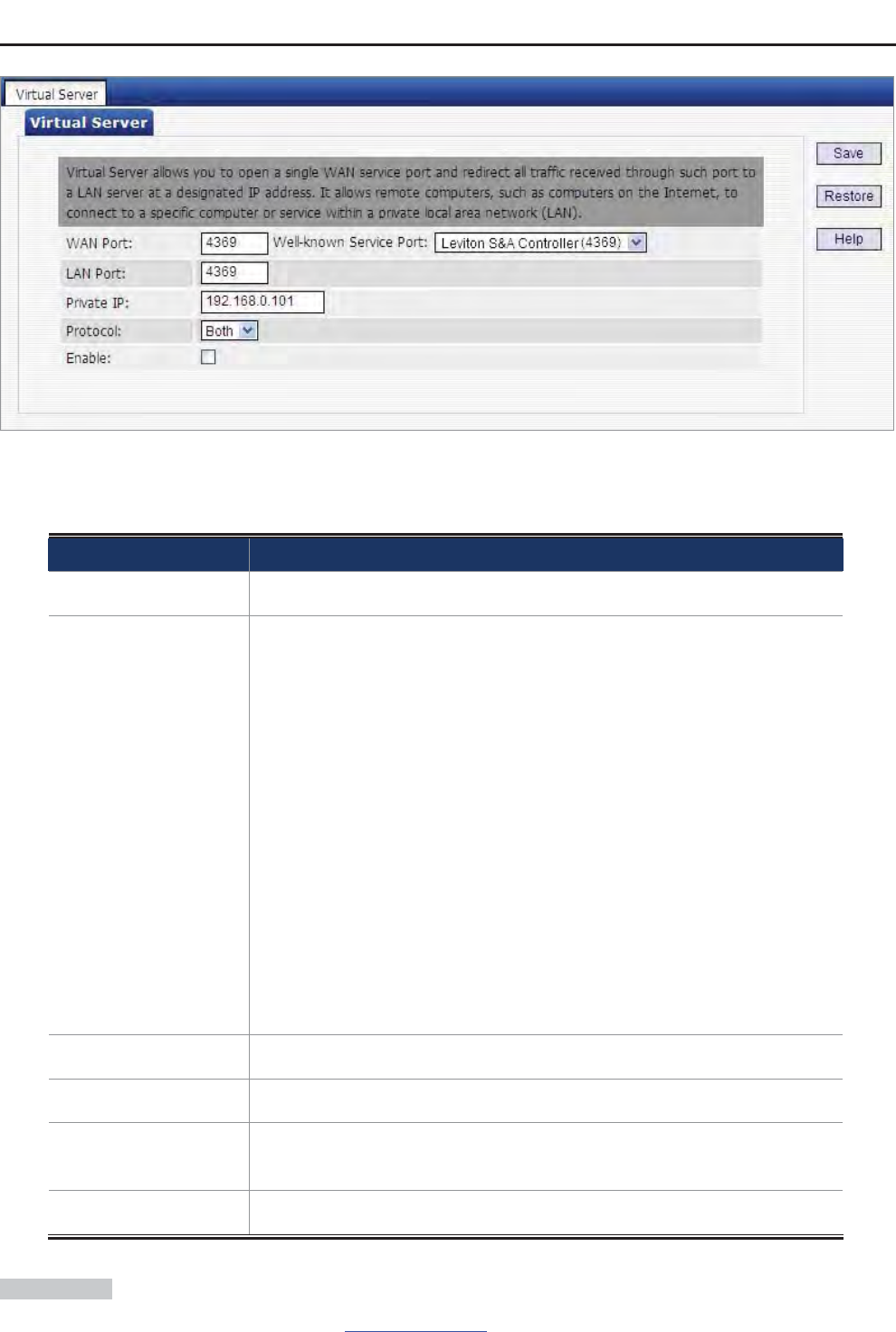

Figure 5-4-2
The page includes the following fields:
Object Description
xWAN Port: Enter the WAN service port.
xWell-Known
Service Ports:
The “Well-Known Service Port” lists commonly used protocol ports such
as:
Leviton S&A Controller (4369)
DNS (53α
FTP (21)
GOPHER (70)
HTTP (80)
NNTP (1190)
POP3 (110)
PPTP (1723)
SMTP (25)
SOCK (1080)
TELNET(23)
In case that you don’t find the port ID you need, add it manually.
xLAN Port: Enter LAN service port.
xLAN IP: The IP address of a computer used as a server in LAN.
xProtocol: Includes TCP,UDP and Both.
Select “Both” if you are not sure about which protocol to use.
xEnable: Check the “Enable” option to activate corresponding entry.

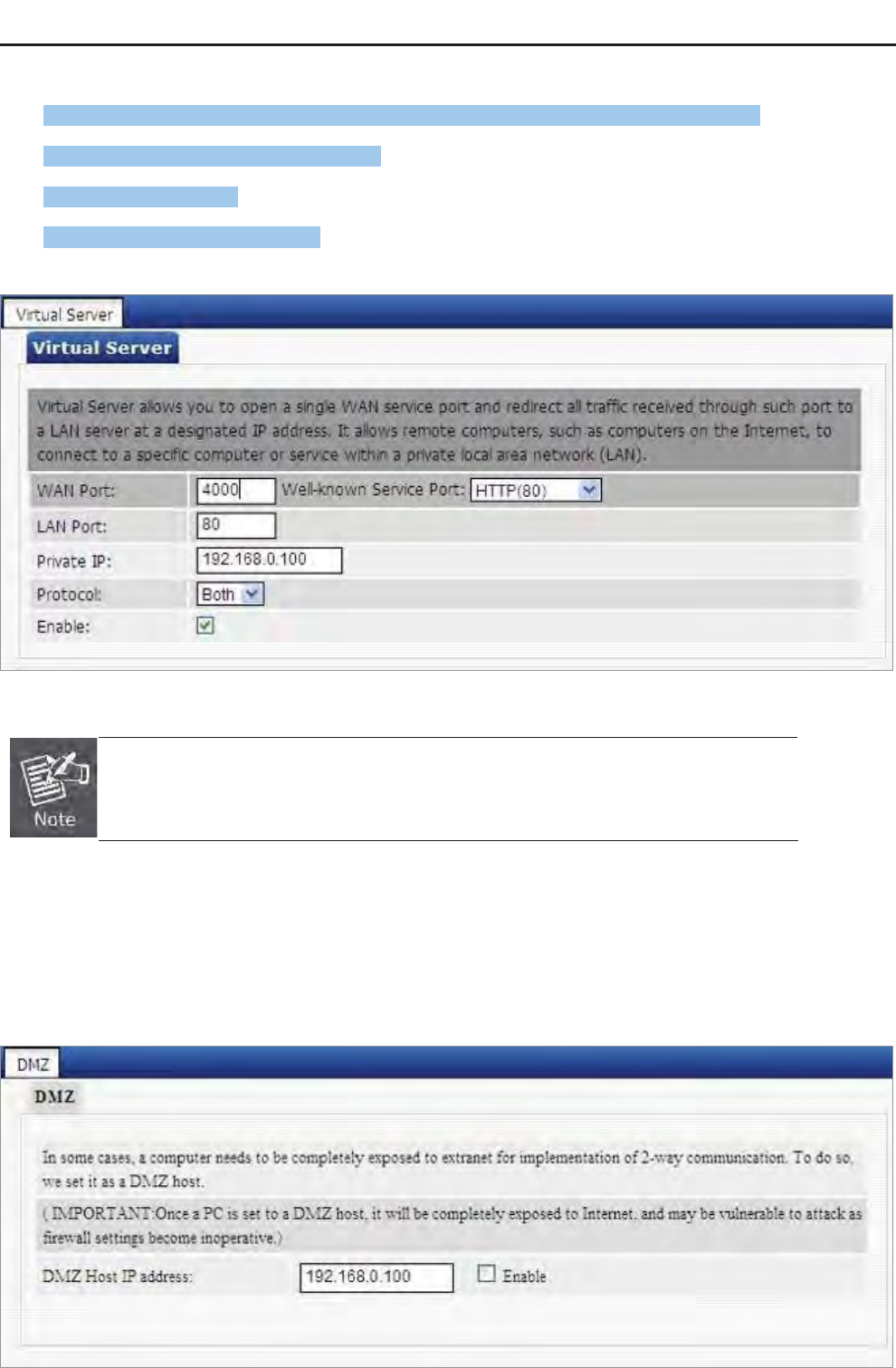

For example: If you create a web server using port 80 on a LAN PC at the IP address of 192.168.0.100, and you
want WAN users to access such server via http://x.x.x.x:4000 (x.x.x.x represents router’s WAN IP address), then
do as follows:
User Manual of 47611-WG4
-59-
1) Enter “4000” in WAN Port field, 80 in LAN port field and 192.168.0.100 in Private IP field,
2) Select “Both” from protocol drop-down list.
3) Check the “Enable” box.
4) Click “Save” to save such settings.
Figure 5-4-3

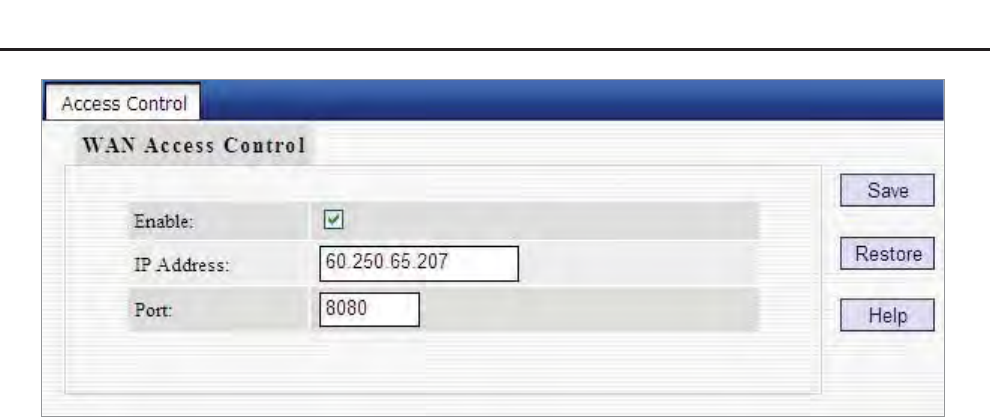

Setting WAN port hereon to the same value as that on WAN access control section
will deactivate the virtual server feature.
5.4.2 DMZ Settings
to set a computer to be completely exposed to extranet for implementation of a In some cases, we need
bidirectional communication. To do so, we set it as a DMZ host.
User Manual of 47611-WG4
-60-
Figure 5-4-4
The page includes the following fields:
Object Description
xDMZ Host IP
Address:
Enter the IP address of a LAN computer which you want to set to a DMZ
host.
xEnable: Check/uncheck to enable/disable the DMZ host.
1. If you set a PC to a DMZ host, it will be completely exposed to extranet and gains
no more protection from the device firewall.
2. 2. A WAN user accesses the D corresponding WAN IP address. MZ host through a
5.4.3
and Pl s that
eature.

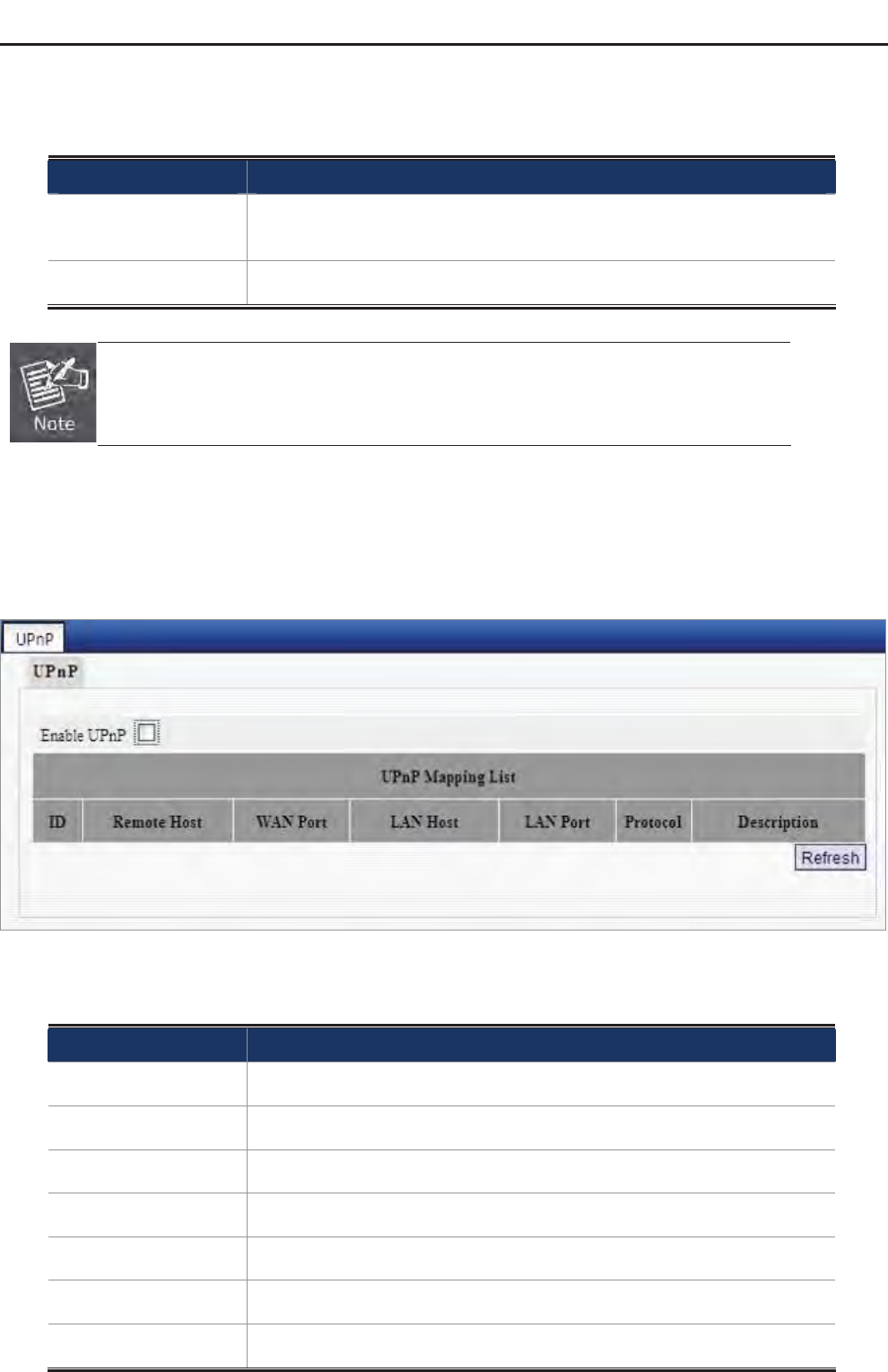

UPnP Settings
UPnP (Universal Plug
support such UPnP f
ay) requires Windows ME/Windows XP or later or application software
Figure 5-4-5
The page includes the following fields:
Object Description
xID: Entry ID.
xRemote Host: Description of a remote host that receives/sends responses.
xWAN Port: Port on router side.
xLAN Host: Description of an internal host that receives/sends responses.
xLAN Port: Port on host side.
xProtocol: Indicates whethe or UDP port forwarding r to perform TCP
xDescription: Software info of a mapped port.
User Manual of 47611-WG4
-61-
5.4.4 g
lks about Routing dStatic Routing features.
Routin
This section ta Table an
Routing Table
This p uter’s core rou ch lists destination IP, subnet mask, gateway, hop count age displays the ro ting table whi
and interface.
Figure 5-4-6
Static Routing
You can use this section to set up router’s static routing feature.
Figure 5-4-7
Click “Add” to add static routing entries.
Figure 5-4-8
The page includes the following fields:
User Manual of 47611-WG4
-62-
Object Description
xDestination
Network: Enter a destination IP address.
xSubnet Mask: Enter a Subnet Mask that corresponds to the destination IP address you
entered.
xGateway: Next-hop IP address.
5.4.5 Bandwidth Control
To better manage bandwidth allocation and optimize network performance, use the Custom Bandwidth
Allocation feature.
Figure 5-4-9
e following fields: The page includes th
Object Description
xCustom
Bandwidth
Allocation:
Select this option to customize a bandwidth allocation policy that best
fits your network. You can set specific limits on uplink and downlink
bandwidth of PCs within a specified IP range.
lick “Add” to display the page below:
Figure 5-4-10
C
User Manual of 47611-WG4
-63-
Figure 5-4-11
The page includes the following fields:
Object Description
xEnable: Check/uncheck to enable/disable current bandwidth entry
xIP Range: Enter a single IP or an IP range.
xUpstream
Bandwidth Limit: Max total upload bandwidth for a specified PC or a range of PCs.
xDownstream
Bandwidth Limit: Max total download bandwidth for a specified PC or a range of PCs
xP2P Download
Control:
Regulates P2P dow re each user a guaranteed share
of bandwidth.
nload rate to ensu
xn Mode:
er-
al (Each member of the IP range shall utilize the allocated
bandwidth individually)"
he allocated
Select eith
Allocatio
"Individu
"Collective (All members of the IP range shall share t
bandwidth collectively)"
xAllocation Policy: Select either "Utilize only the allocated bandwidth" or "Utilize more
bandwidth if available"
xDescription: Brief description of current entry.
User Manual of 47611-WG4
-64-
1. Please n
2. If you enable ol feature, it will limit P2P download rate
(sm
browsi re of bandwidth.
3. If you sele
w n to ensure defined and additional bandwidth if
available o
ote the bandwidth unit.
the P2P Download Contr
aller than the specified value) to ensure other applications such as web
ng a reserved and guaranteed sha
ct "Utilize more bandwidth if available", router will dynamically adjust
nlink bandwidth allocatiouplink/do
r only defined bandwidth.

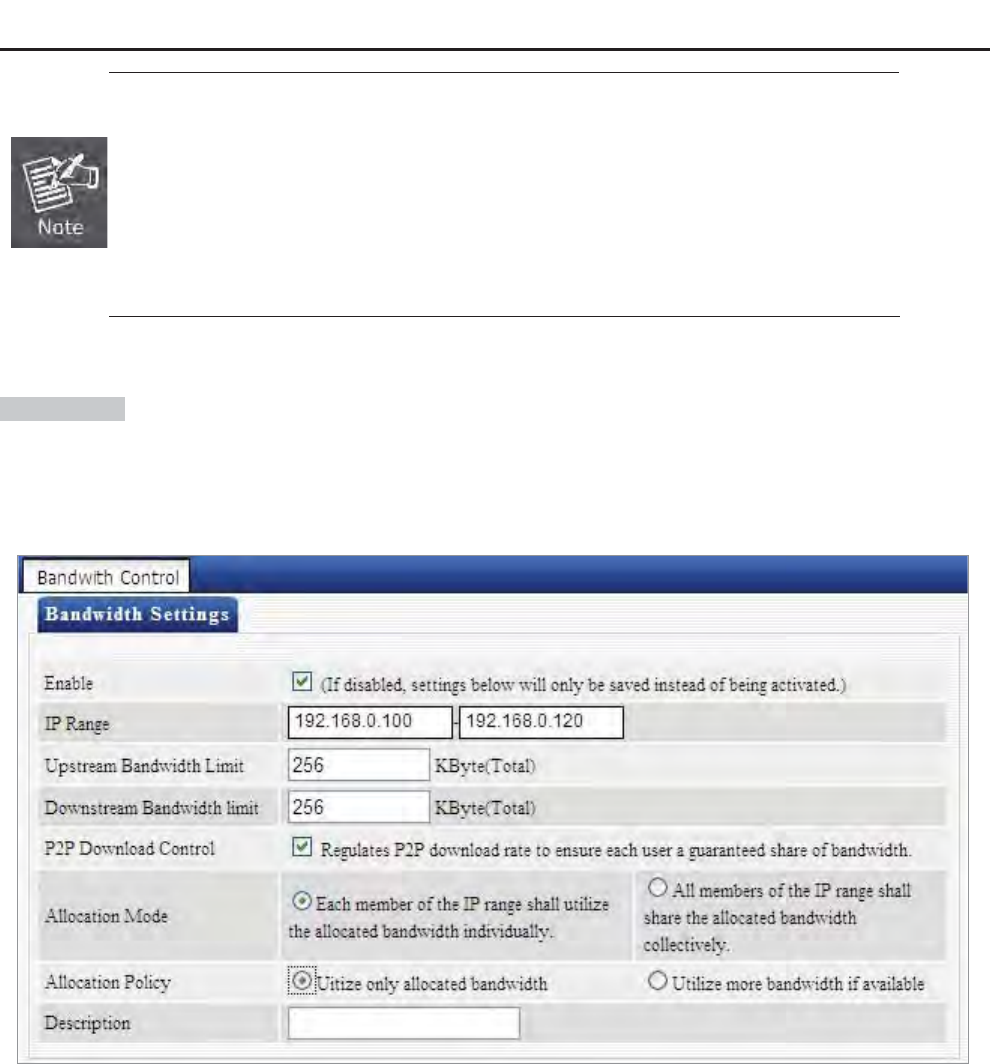

For
If you want and 2M
downlink ban own on
the scree
example:
each PC within the IP range of 192.168.0.100-192.168.0.120 to have up to 2M uplink
dwidth, and want to control P2P download bandwidth, then configure same settings as sh
n below on your router:
Figure 5-4-12
User Manual of 47611-WG4
-65-
5.5 Wireless Settings

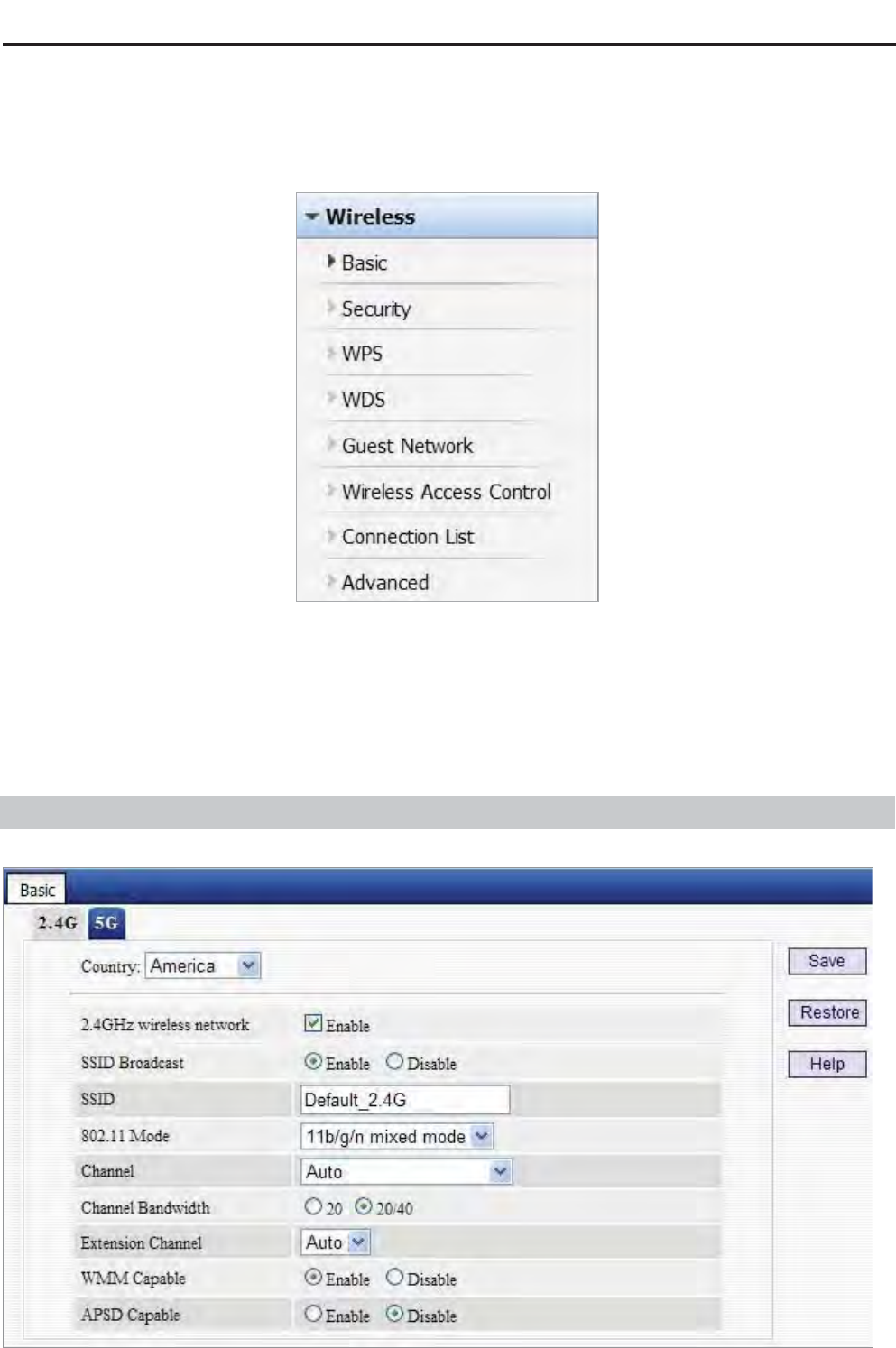

Wireless Settings includes 8 submenus as shown in the screenshot below. Clicking any tab enters
corresponding interface for configuration.
5.5.1 Basic Settings
This section allows you to manage your wireless network (2.4G or 5G). You can config country code, wireless
network name (SSID), network mode and channel settings, etc the way you want.
Basic Settings-- 2.4G
Figure 5-5-1
User Manual of 47611-WG4
-66-
The page includes the following fields:
Object Description
xCountry: Select your country code from the drop-down list. There are 11 options
available.
x2.4GHz Wireless
Network:
Check/uncheck to enable/disable the 2.4GHz wireless feature. If
disabled, all 2.4GHz-based features will be disabled accordingly.
xSSID Broadcast:
Select “Enable”/“Disable” to make your wireless network visible/
invisible to any wireless clients within coverage when they perform a
scan they perform a scan to see what’s available.
When disabled, such wireless clients will have to first know this SSID
and manually enter it on their devices if they want to connect to the
SSID.
By default, it is enabled.
xSSID: A SSID (Service Set Identifier) is the unique name of a wireless network.
x802.11 Mode: Select a right mode according to your wireless client.
The default mode is 11b/g/n mixed.
xChannel:
For an optimal wireless performance, you may select the least
interferential channel. It is advisable that you select an unused channel
or “Auto” to let device detect and select the best possible channel for
your wireless network to operate on from the drop-down list.
xChannel
Bandwidth:
Select a proper channel bandwidth to enhance wireless performance.
When there are 11b/g and 11n wireless clients, please select the
802.11n mode of 20/40M frequency band.
xExtension
Channel: Working network frequency range for 11n mode
xWMM-Capable: Enabling this option may boost transmission capacity of wireless
multimedia data (such as online video play).
xASPD Capable: Select to enable/disable the auto power saving mode.
When there are only non-11n wireless clients, select 20M frequency band mode;
when the wireless network mode is 11n mode, please select 20/40M frequency band
to boost its throughput.
User Manual of 47611-WG4
-67-

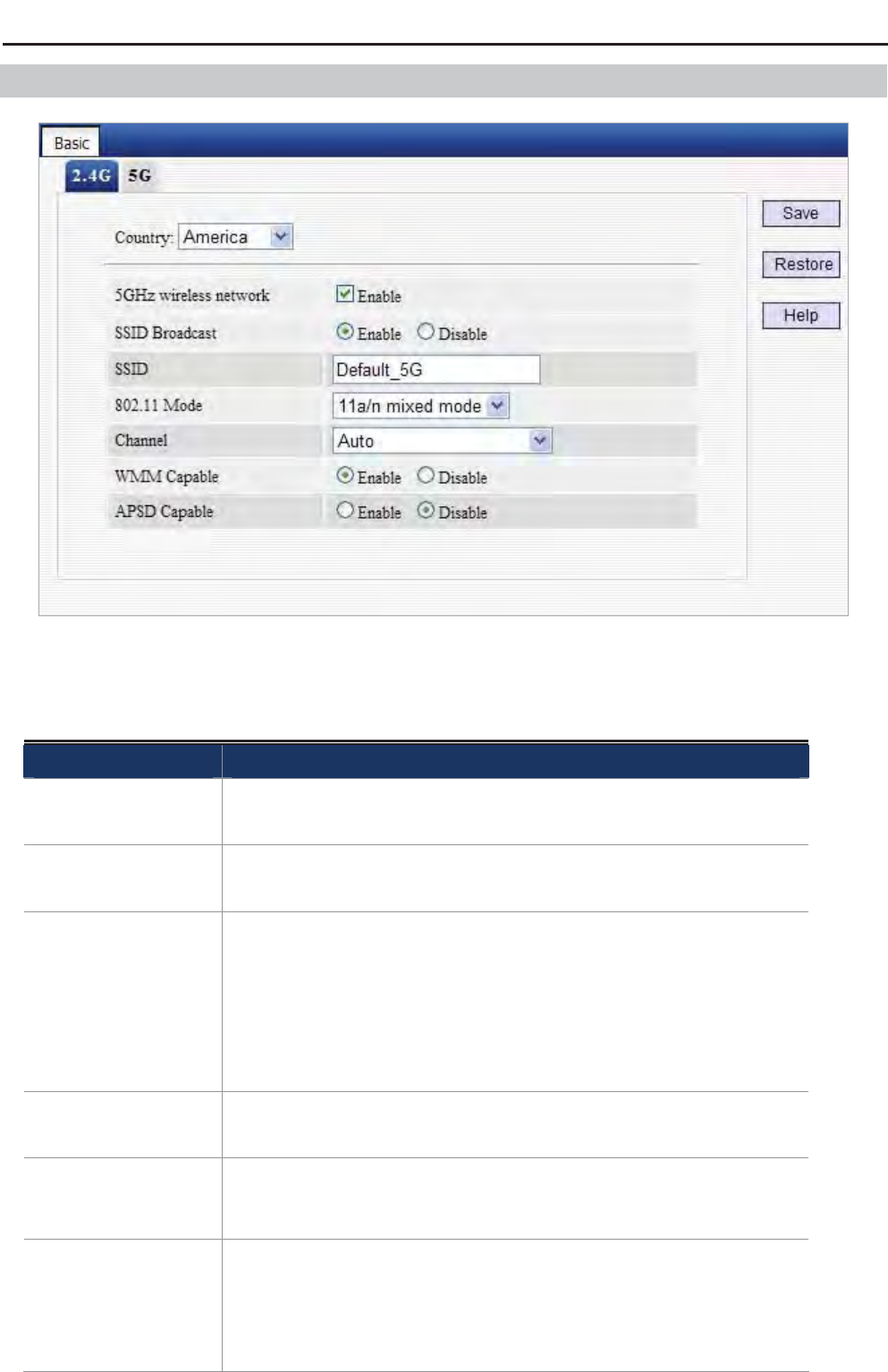

Basic Settings-- 5G
Figure 5-5-2
The page includes the following fields:
Object Description
xCountry: Select your country code from the drop-down list.
There are 10 options available.
x5GHz Wireless
Network:
Check/uncheck to enable/disable the 5GHz wireless feature. If disabled,
all 5GHz-based features will be disabled accordingly.
xSSID Broadcast:
Select “Disable” to hide your SSID. When disabled, no wireless clients
will be able to see your wireless network when they perform a scan to
see what’s available. If they want to connect to your router, they will
have to first know this SSID and then manually enter it on their devices.
By default, this option is enabled.
xSSID: A SSID (Service Set Identifier) is the unique name of a wireless network
(changeable).
x802.11 Mode:
Select a right mode according to your wireless client.
The default mode is 11a/n.
xChannel:
The Channel can be changed to fit the channel setting for an existing
wireless network or to customize the wireless network. From the
drop-down list, you can select a most effective channel. You can also
select “Auto Select” to let system detect and choose one that best fits
User Manual of 47611-WG4
-68-
your network.
xWMM-Capable: Enabling this option may boost transmission capacity of wireless
multimedia data (such as online video play).
xASPD Capable: Select to enable/disable the auto power saving mode.
5.5.2 Wireless Security
This section allows you to encrypt both 2.4GHz wireless and 5GHz wireless networks to block unauthorized
accesses and malicious packet sniffing.

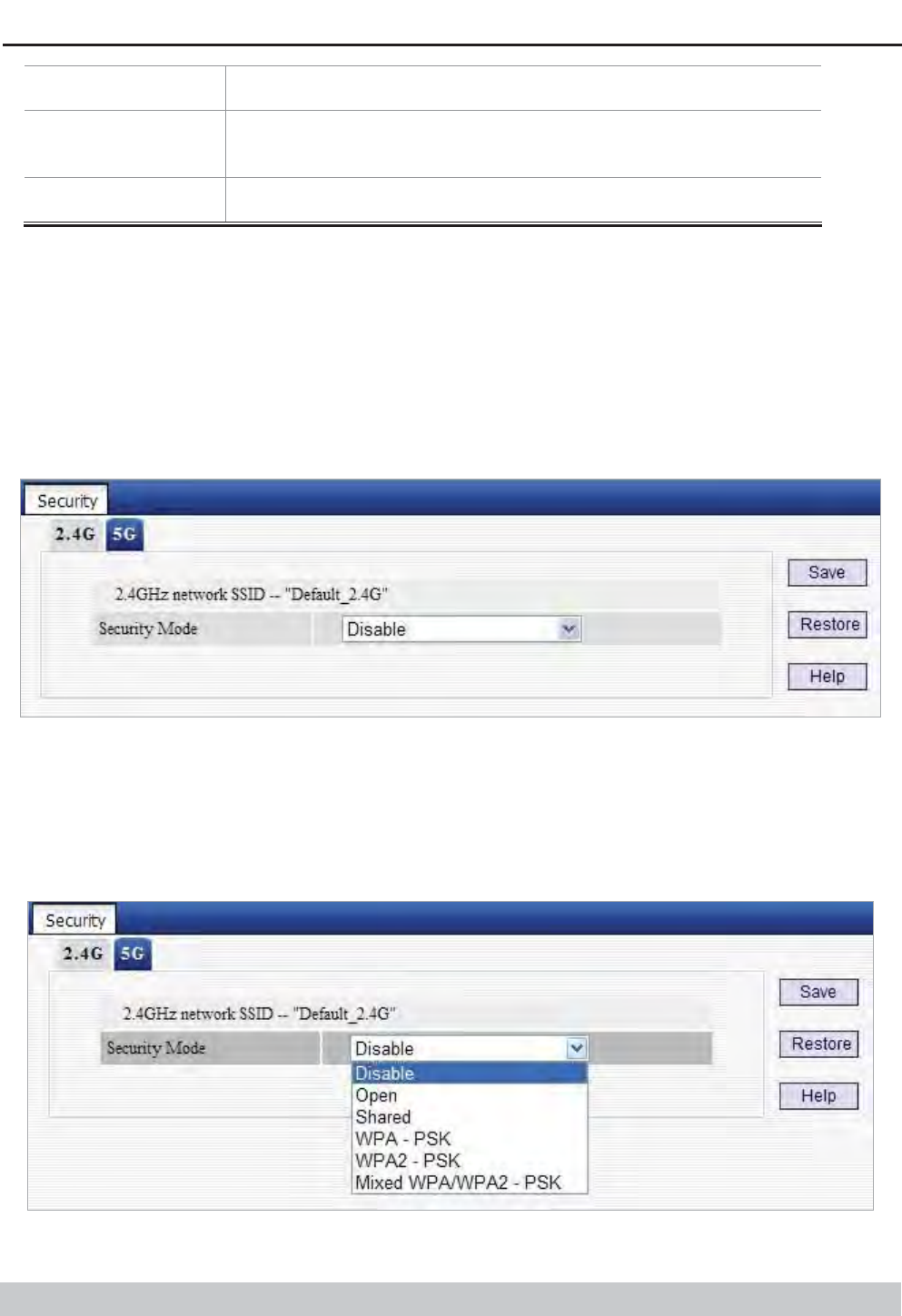

To configure wireless security settings for 2.4GHz network, enter page below:
Figure 5-5-3

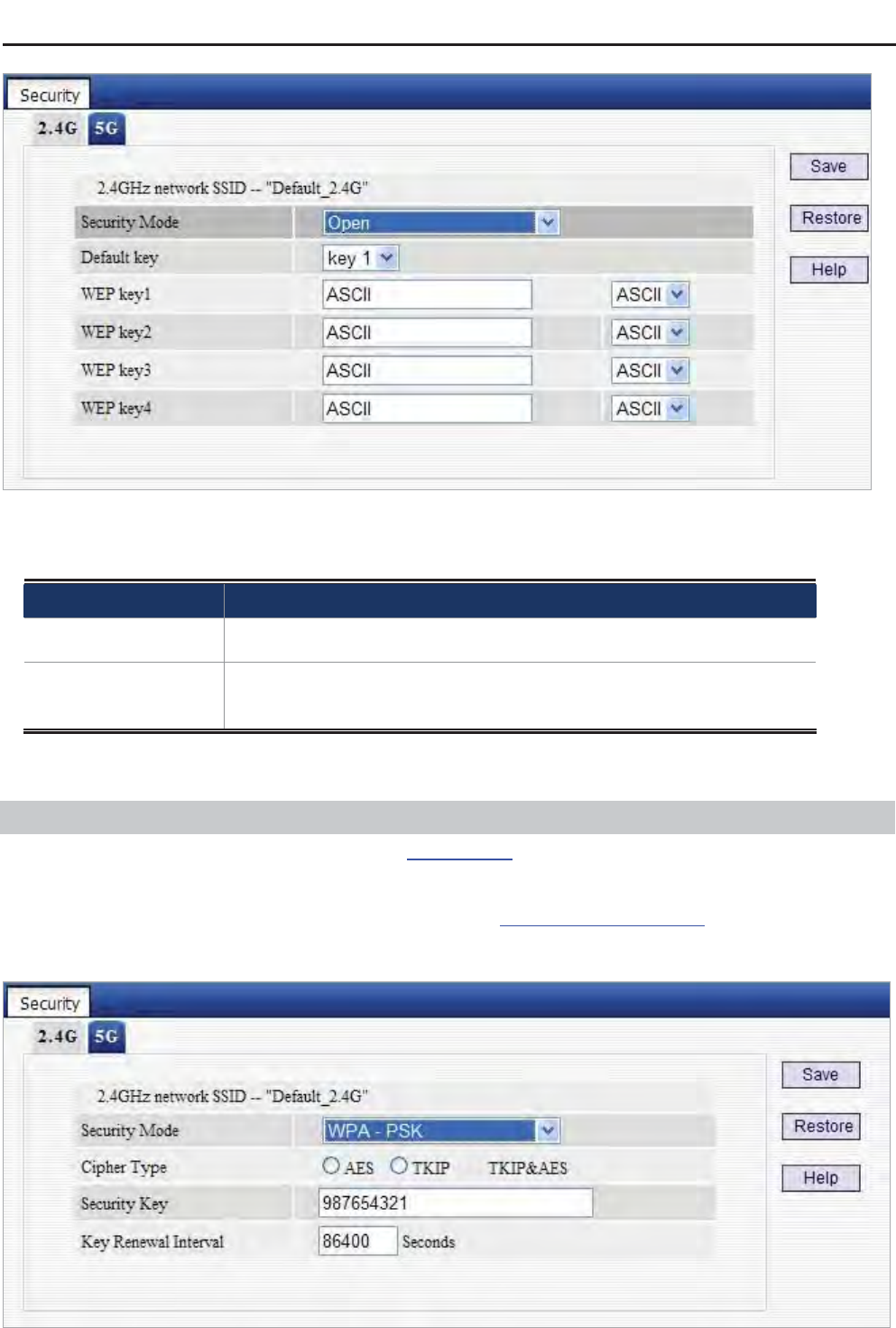

Available options for security mode include “Open”, “Shared”, “WPA-PSK”, “WPA2-PSK”, “Mixed
WPA/WPA2-PSK”. See below for details.
Figure 5-5-4
OPEN/SHARED
WEP is intended to provide data confidentiality comparable to that of a traditional wired network. Two methods of
authentication can be used with WEP: Open System authentication and Shared Key authentication.
User Manual of 47611-WG4
-69-
Figure 5-5-5
The page includes the following fields:
Object Description
xSecurity Mode: Select a proper security mode from the drop-down menu.
xDefault Key: Select one key from the 4 preset keys to encrypt wireless data on the
network.
WPA-PSK
The WPA protocol implements the majority of the IEEE 802.11i standard. It enhances data encryption through
the Temporal Key Integrity Protocol (TKIP) which is a 128-bit per-packet key, meaning that it dynamically
generates a new key for each packet. WPA also includes a message integrity check feature to prevent data
packets from being hampered with. Only authorized network users can access the wireless network.
Figure 5-5-6
User Manual of 47611-WG4
-70-
The udes the follow page incl ing fields:
Object Description
xCipher Type:
Select one cipher type from:
AES (Advanced Encryption Standard)
TKIP (Temporary Key Integrity Protocol)
xSecurity Key: Enter a security key, which must be between 8-63 ASCII characters.
xKey Renewal
Interval: Enter a valid time period for the key.
WPA2-PSK
The later WPA2 protocol features compliance with the full IEEE 802.11i standard and uses Advanced
Encryption Standard (AES) in addition to TKIP encryption protocol to guarantee better security than that
d by WEP or WPA. provide
Figure 5-5-7
The udes the follow page incl ing fields:
Object Description
xCipher Type: rary Key Integrity Protocol)
Select one cipher type from:
AES (Advanced Encryption Standard)
TKIP (Tempo
TKIP&AES.
xSecurity Key: Enter a security key, which must be between 8-63 ASCII characters.
xKey Renewal
Interval: Enter a valid time period for the key.
User Manual of 47611-WG4
-71-
5.5.3 WPS Settings
Wi-Fi Protected Setup makes it easy for home users who know little of wireless security to establish a secure
wireless home network, as well as to add new devices to an existing network without entering long passphrases
or configuring complicated settings.
Figure 5-5-8
Simply enter a PIN code or press the software PBC button or hardware WPS button (if any) and a secure
wireless connection is established.
Figure 5-5-9
The page includes the following fields:
Object Description
xEnable WPS: Select to enable/disable the WPS encryption.
xWPS Mode:
Select PBC (Push-Button Configuration) or PIN.
Operation Instructions
PBC: If you find the WPS LED blinking for 2 minutes after you
press the hardware WPS button on the device, it means that PBC
encryption method is successfully enabled. And an authentication
will be performed between your router and the WPS/PBC-enabled
User Manual of 47611-WG4
-72-
wireless client device during this time; if it succeeds, the wireless
client device connects to your device, and the WPS LED turns off.
Repeat steps mentioned above if you want to connect more
wireless client devices to the device.
PIN
Κ
To use this option, you must know the PIN code from the
wireless client and enter it in corresponding field on your device
while using the same PIN code on client side for such connection.
xReset OOB:
When clicked, the WPS LED turns off; WPS function will be disabled
automatically; WPS server on the Router enters idle mode and will not
respond to client’s WPS connection request
The WPS encryption can be implemented only between your Router and another
WPS-capable device.
User Manual of 47611-WG4
-73-
47611-WG4
Clients
WDS Bridge-PtMP Mode
AP Switch
001101010
Clients
AP Switch
Cable/xDSL
Modem
Internet
N
N
N
N
LAN
N
N
N
N
N
Internet
WDS Repeater
Laptop
Laptop
Tablet
N

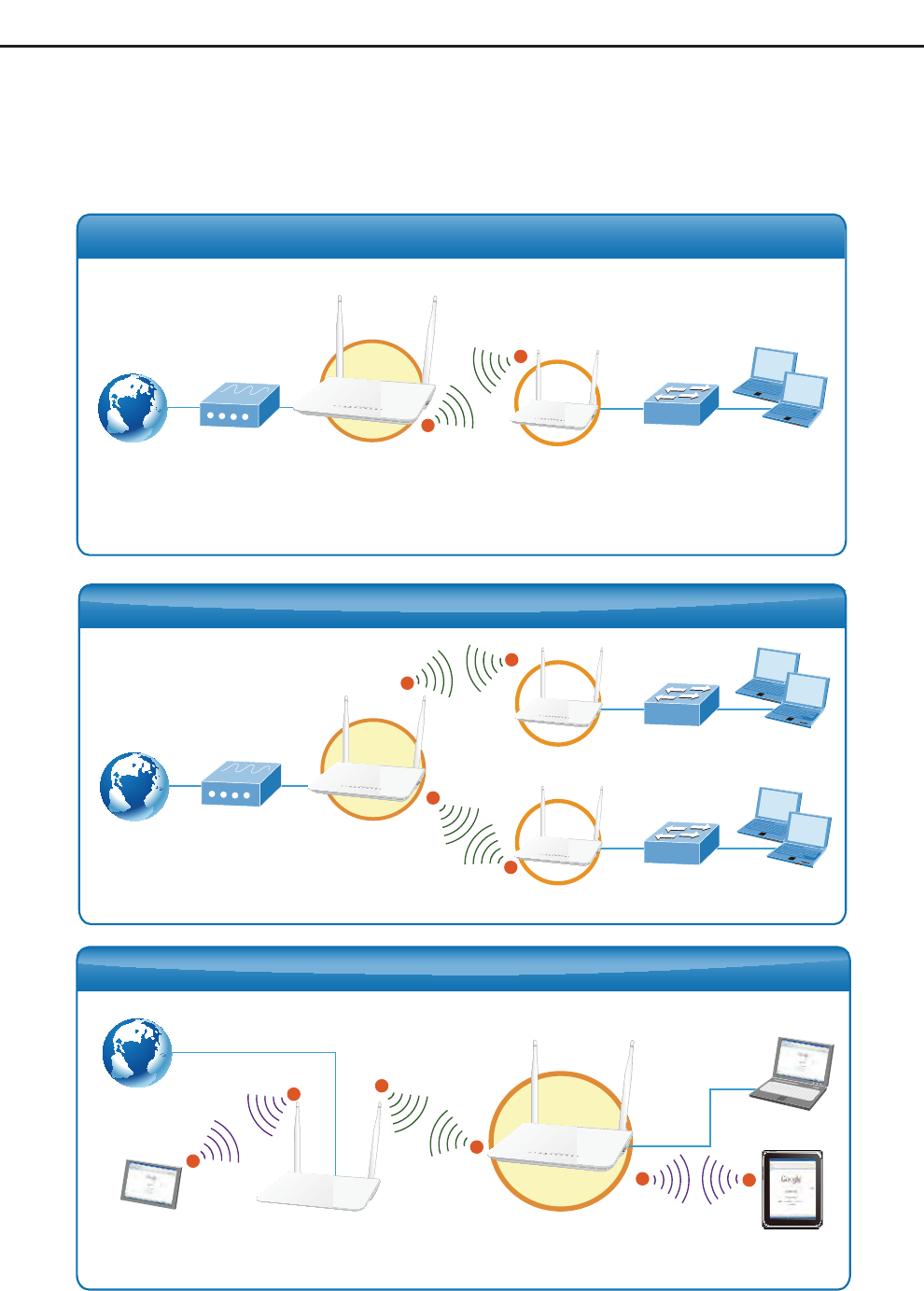

5.5.4 WDS Settings
WDS (Wireless Distribution System) feature can be used to extend your existing 2.4G or 5G wireless network
coverage. Here we present you how to configure such feature in 2.4GHz, which also apply to 5GHz.
47611-WG4 Clients
WDS Bridge-PtP Mode
AP Switch
001101010
Cable/xDSL
Modem
Internet N
N
User Manual of 47611-WG4
-74-

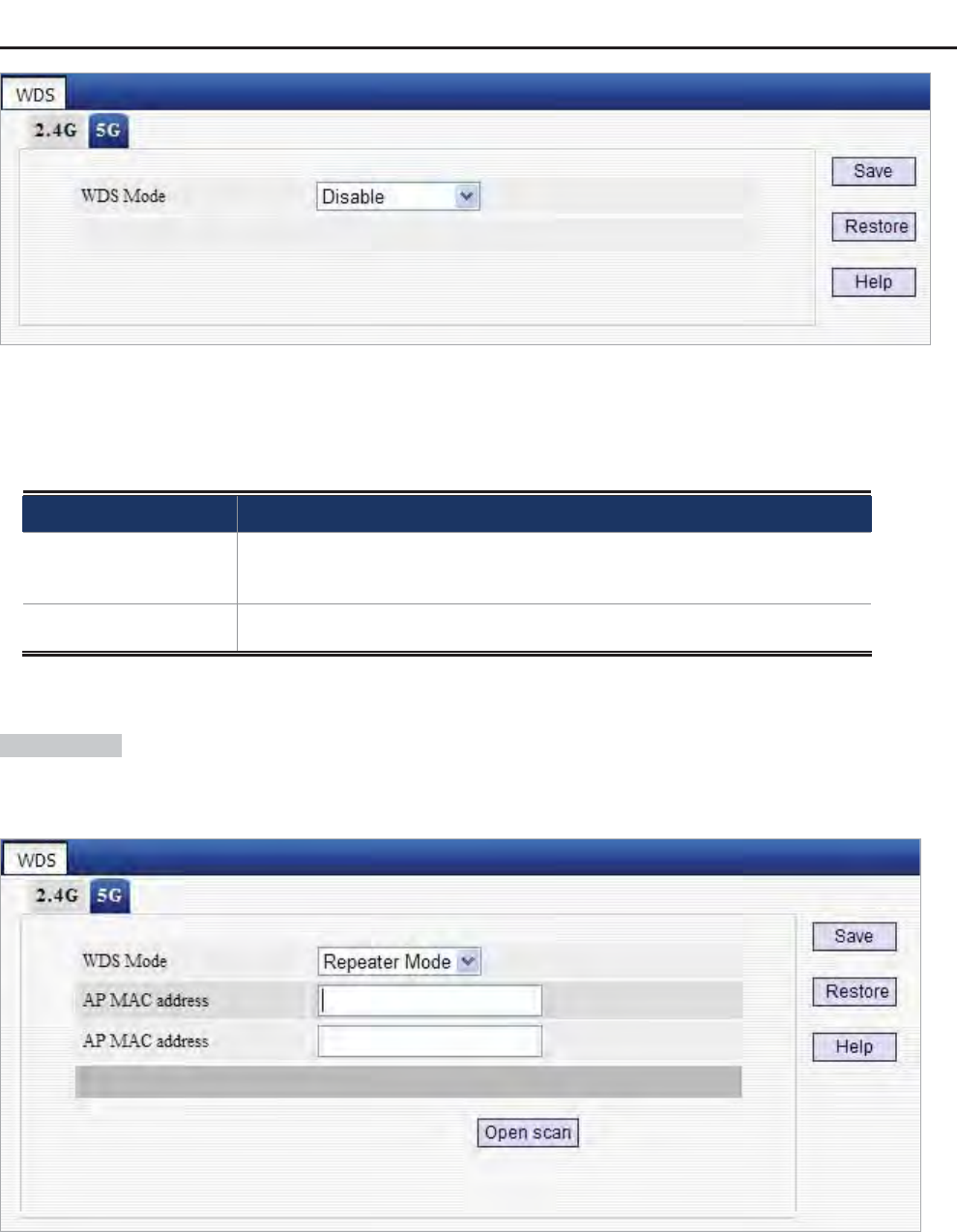

Figure 5-5-10
Select Repeater Mode to display below page:
Object Description
xAP MAC Address: Enter the MAC address of a wireless link partner or populate this field
using the Open Scan option.
xWDS Mode: Select Disable or Repeater Mode
For example: If you want to implement the WDS feature on 2 47611-WG4 routers labeled 47611-WG4-1 and
47611-WG4-2 respectively, then first select “Repeater Mode” and follow steps below:
Figure 5-5-11
1. If you already know 47611-WG4-2’s MAC address, then you can manually enter it on 47611-WG4-1 and click
“Save”.

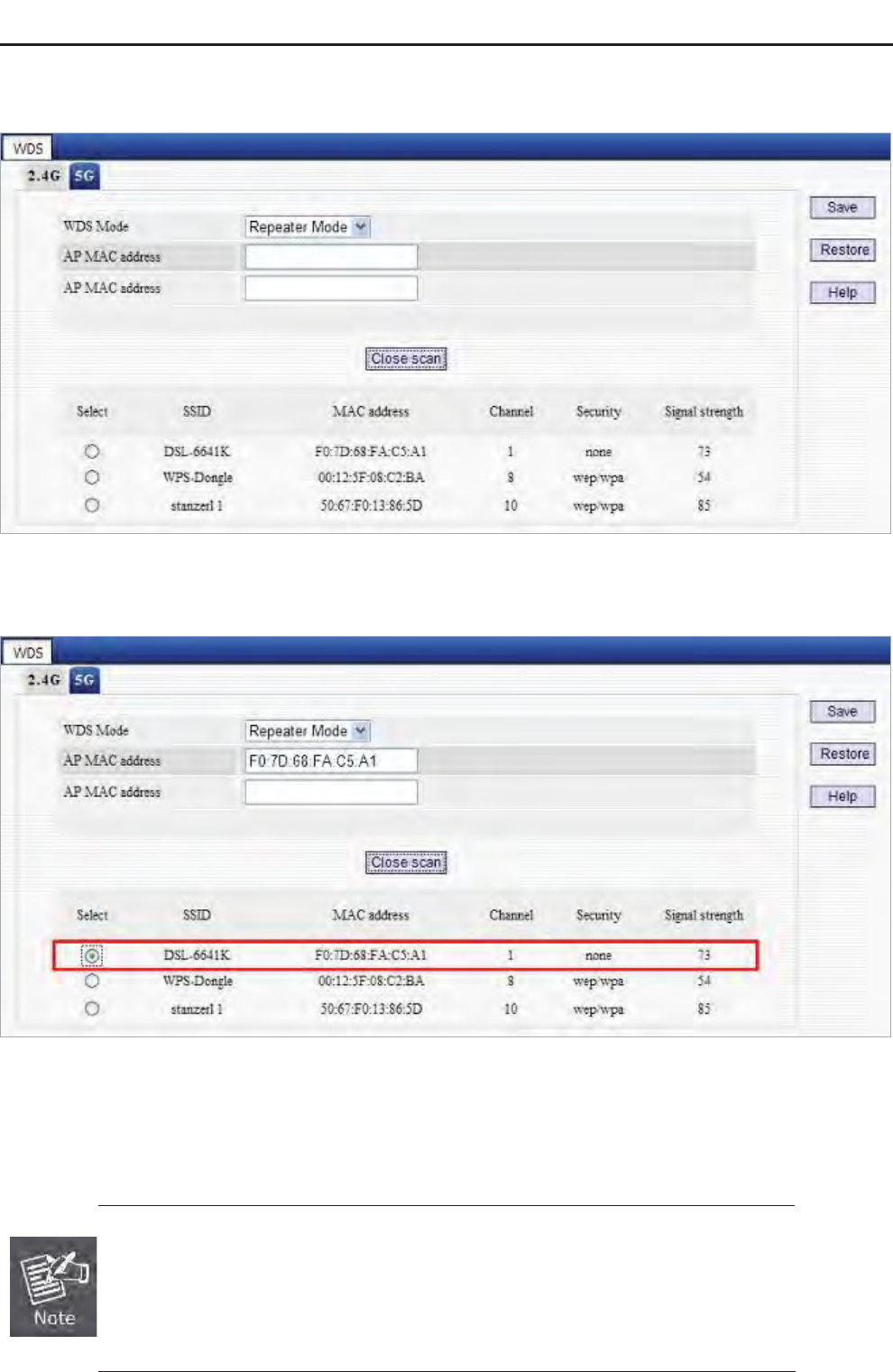

2. Or you can use the Open Scan option.
1) Click the “Open Scan” button to search and select 47611-WG4-2’s SSID, confirm on the appearing dialogue
User Manual of 47611-WG4
-75-
box and then click “Save”. 47611-WG4-2’s MAC address will be added automatically.
Figure 5-5-12
2) Save your settings.
Figure 5-5-13
3. Repeat steps 1-2 on 47611-WG4-2. After the 2 devices have added each other’s MAC address the WDS
feature can be implemented.
1. WDS feature can only be implemented between 2 wireless devices that both
support the WDS feature. Plus, SSID, channel, security settings and security key
must be the same on both such devices.
2. To encrypt your wireless network, see sections 5.5.2-5.5.3. Do remember to
reboot the device after you saved your wireless security settings, otherwise the
User Manual of 47611-WG4
-76-
WDS feature may not function.
5.5.5 Guest Network
The Guest Network feature allows guests to access Internet and other users on the guest network while
disallowing them to access device web manager, users on primary network and clients behind the LAN ports.
You can find it available in both 2.4G and 5G network. Here we present you how to configure such feature in
2.4GHz, which also apply to 5GHz.
Figure 5-5-14
The page includes the following fields:
Object Description
xGuest Network: Check/uncheck to enable/disable the guest network feature.
xSSID Broadcast:
Select “Disable” to hide your SSID. When disabled, no wireless clients
will be able to see your wireless network when they perform a scan to
see what’s available. If they want to connect to your router, they will
have to first know this SSID and then manually enter it on their devices.
By default, it is enabled.
xAP Isolation: If enabled, clients connecting to the guest network will be mutually
inaccessible.
xSSID: A SSID (Service Set Identifier) is the unique name of a wireless network.
xSecurity Mode: Determine whether to require authentication on wireless clients. Select
a proper mode from the drop-down menu.
User Manual of 47611-WG4
-77-

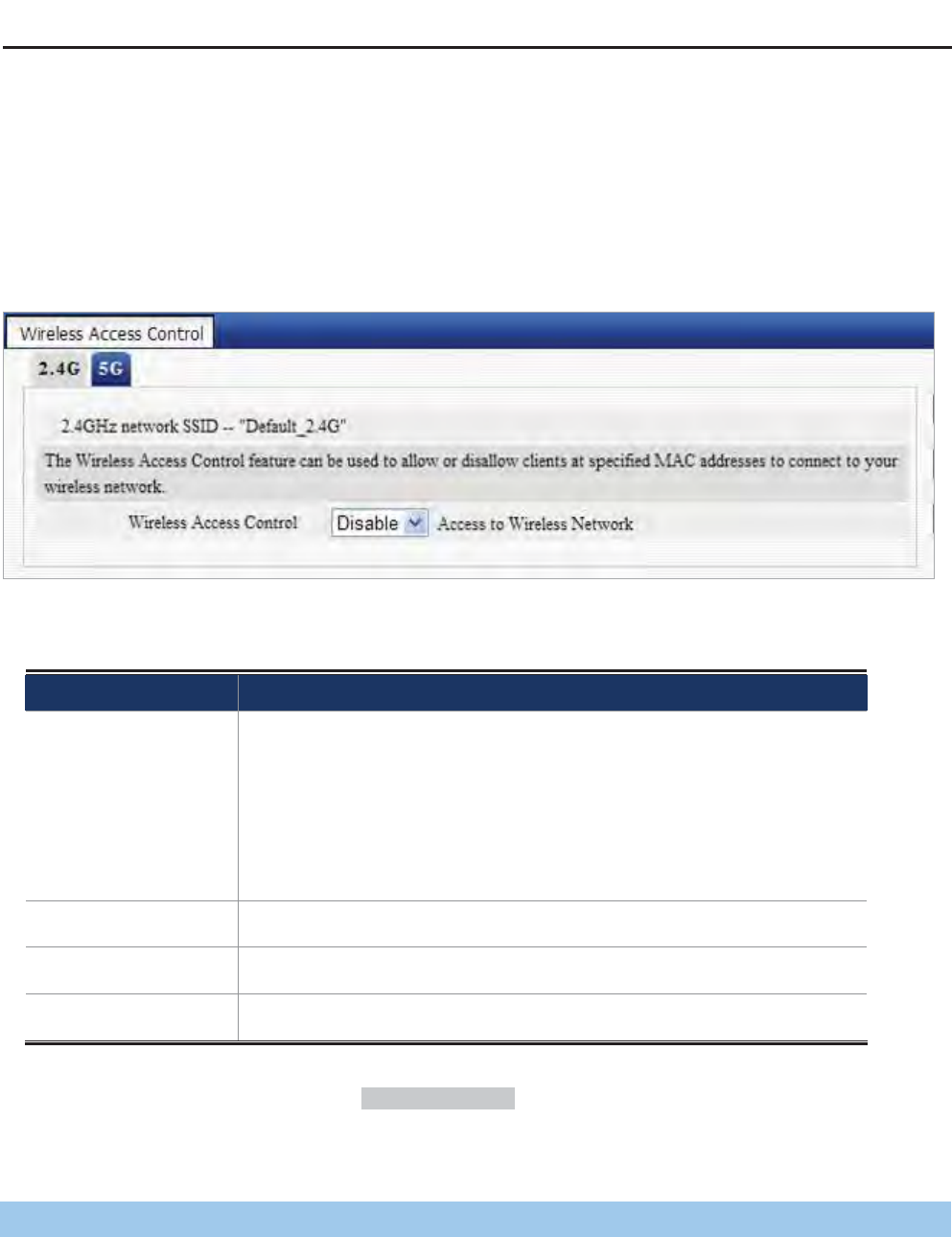

5.5.6 Wireless Access Control
The MAC-based Wireless Access Control feature can be used to allow or disallow clients to connect to your
2.4G or 5G wireless network. Here we present you how to config such feature in 2.4GHz, which also apply to
5GHz.
Figure 5-5-15
The page includes the following fields:
Object Description
xMAC Address
Filter:
Selecting “Disable” means to deactivate the MAC address filter feature.
“Allow” means to only allow PCs at specified MAC addresses to
connect to your wireless network while
“Deny” means to only block PCs at specified MAC addresses from
connecting to your wireless network.
xMAC Address: Enter the MAC addresses of a wireless client.
xAdd: Click it to add a new MAC to the MAC address list.
xDelete: Click it to remove an existing entry.
To allow only a PC at the MAC address of 00:aa:bb:11:22:33 to connect to your wireless network, do as follows:
Step 1. Select “Allow” from MAC Address Filter drop-down menu.
User Manual of 47611-WG4
-78-
Figure 5-5-16
Step 2. Enter 00:aa:bb:11:22:33 in the MAC address box and click “Add”.
Step 3. Click the “Save” button to save your settings and you can add more MAC addresses, if you like,
simply repeating the above steps.
Figure 5-5-17
User Manual of 47611-WG4
-79-

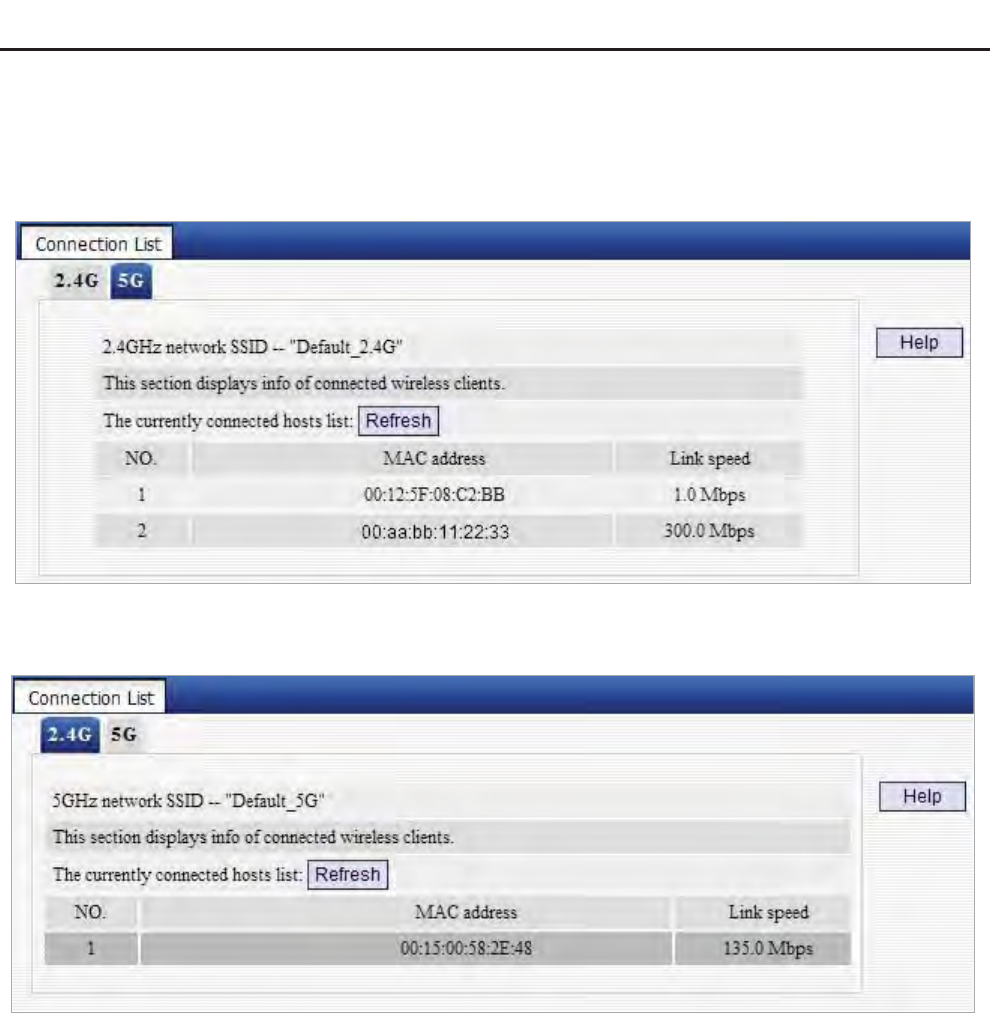

5.5.7 Connection Status
This interface displays the information of currently connected 2.4G and 5G wireless clients (if any).
Figure 5-5-18
Figure 5-5-19

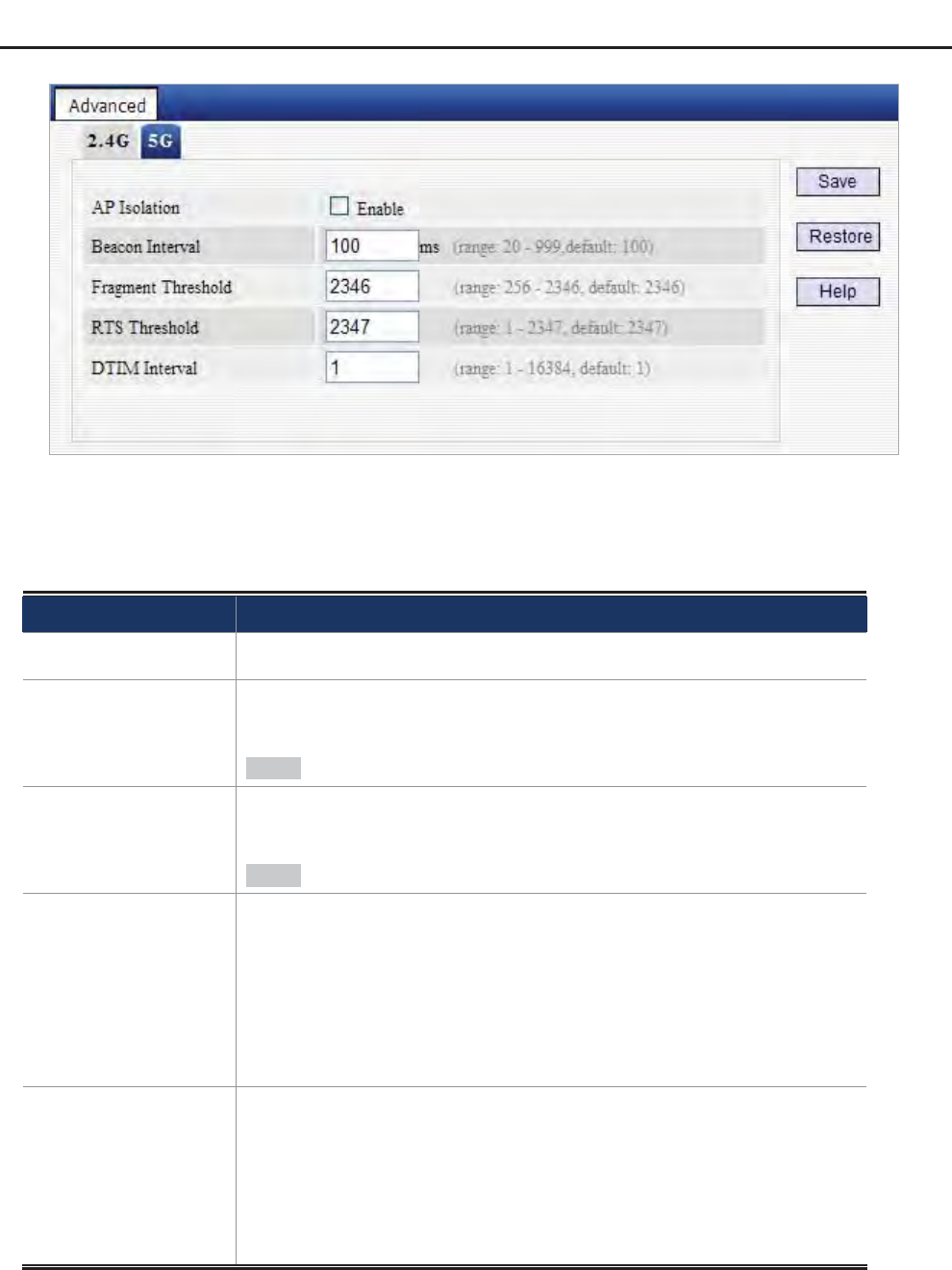

5.5.8 Wireless –Advance Settings
This section allows you to configure advanced settings, including Beacon interval, Fragment threshold, RTS
threshold and DTIM interval, etc, for both 2.4G and 5G wireless networks.
User Manual of 47611-WG4
-80-
Figure 5-5-20
The page includes the following fields:
Object Description
xAP Isolation: Isolates clients connecting to the private SSID.
xBeacon Interval:
A time interval between any 2 consecutive Beacon packets sent by
device.
Note: Do NOT change the default value of 100 unless necessary.
xFragment
Threshold:
Enter a Fragment Threshold (256-2346). Any wireless packet exceeding
such set value will be divided into several fragments.
Note: DO NOT change the default value of 2346 unless necessary
xRTS Threshold:
If a packet exceeds such set value, RTS/CTS scheme will be used to
reduce collisions. Set it to a smaller value provided that there are distant
clients and interference.
For normal SOHO, it is recommended to keep the default value
unchanged; otherwise, device performance may be degraded
xDTIM Interval:
A time interval between any two consecutive broadcast and multicast
packet messages sent by the device to clients.
When such packets arrive at device’s buffer, the device will send DTIM
(delivery traffic indication message) and DTIM interval to wake
clients up for receiving these packets.
User Manual of 47611-WG4
-81-
5.6 USB Applications
47611-WG4 built-in with one USB 2.0 port can be connected to a USB printer or storage for file sharing.
It can auto recognized the USB printer or storage automatically without user experience. Thus all clients on the
network can share printer or mass storage on 47611-WG4 without complicated network configuration. The USB
port also output 5V DC power can charge any USB compliant devices.

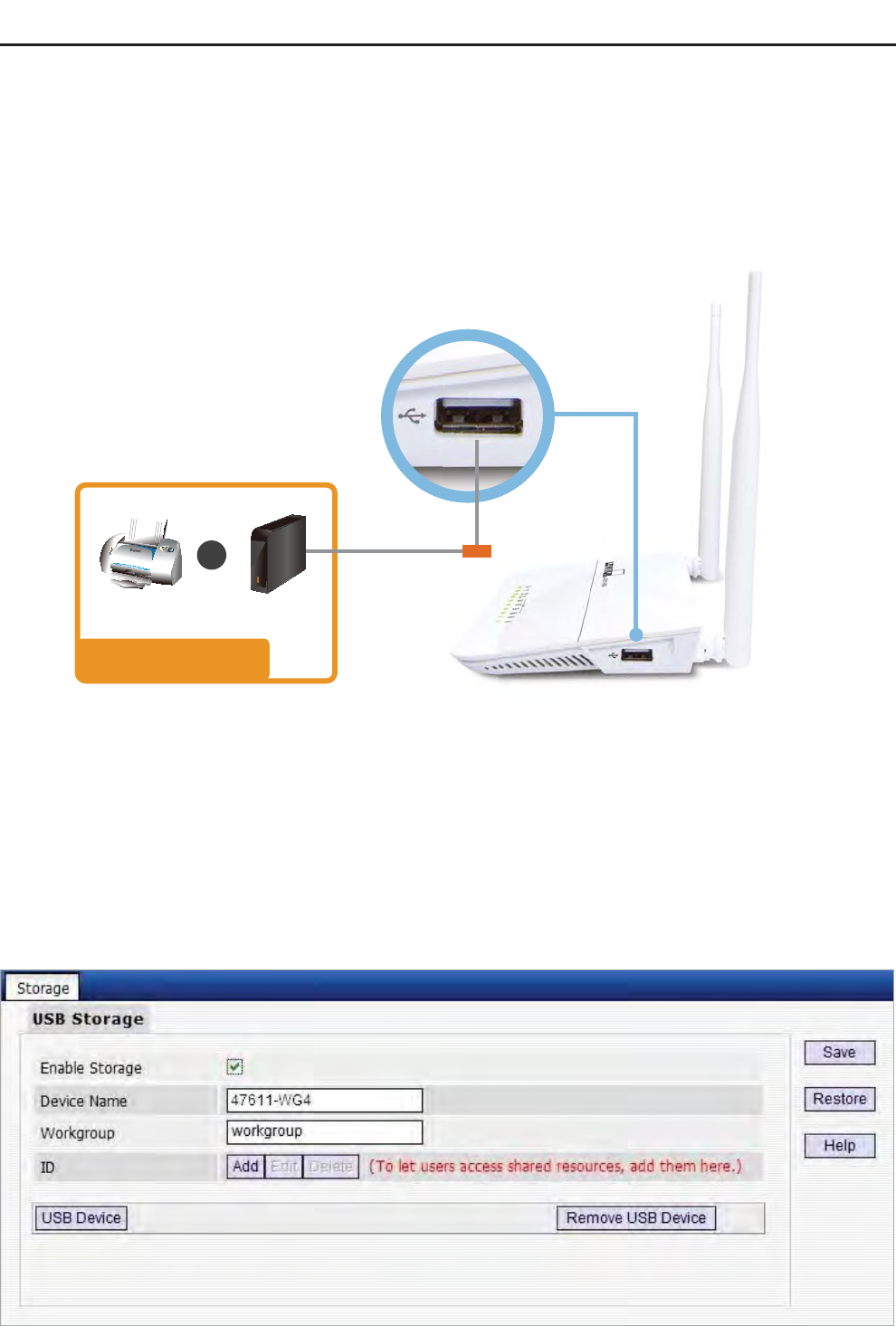

5.6.1 USB Storage
Share a USB storage device with PC/Laptop on the local network of the 47611-WG4.
Insert a USB storage device, such as a flash drive or external hard drive, to the USB port on the right side of the
47611-WG4. The 47611-WG4 can automatically identify attached storage and load its root directory folder.
Follow the directions below for your operating system.

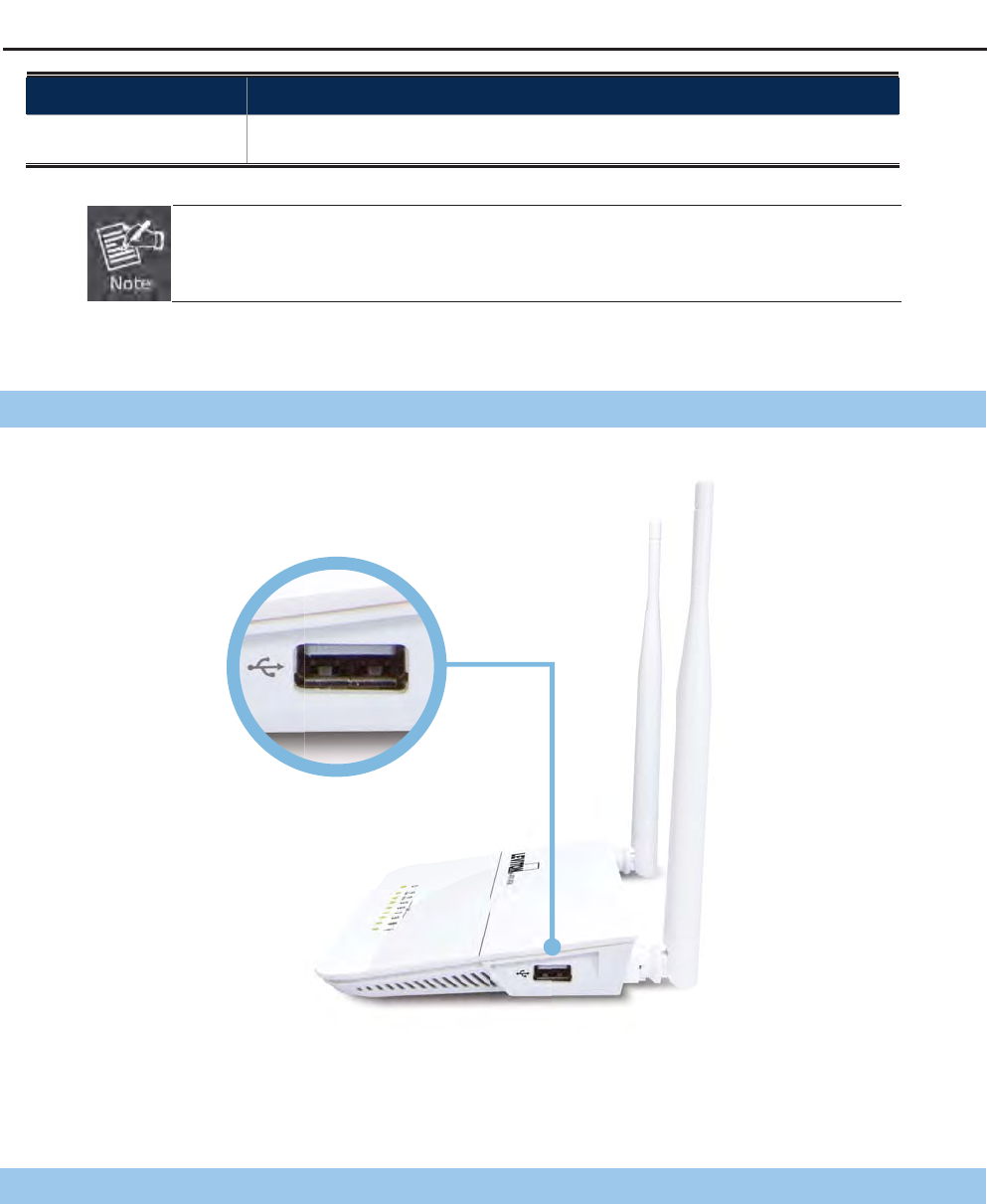

Figure 5-6-1
USB Port
* Sharing Printer and Mass Storage
Printer
USB
USB HDD
USB
or
User Manual of 47611-WG4
-82-
The page includes the following fields:
Object Description
xEnable: Check/uncheck to enable/disable file sharing feature.
xDevice Name: Define a meaningful name to you for the device.
xWork Group: Define a work group name for the device.
xAdd: Click to add an account. Up to 5 accounts can be added.
xEdit: Click to edit an existing account.
xDelete: Click to delete an existing account.
Up to 5 users are allowed for server sharing.
Operation Instructions:

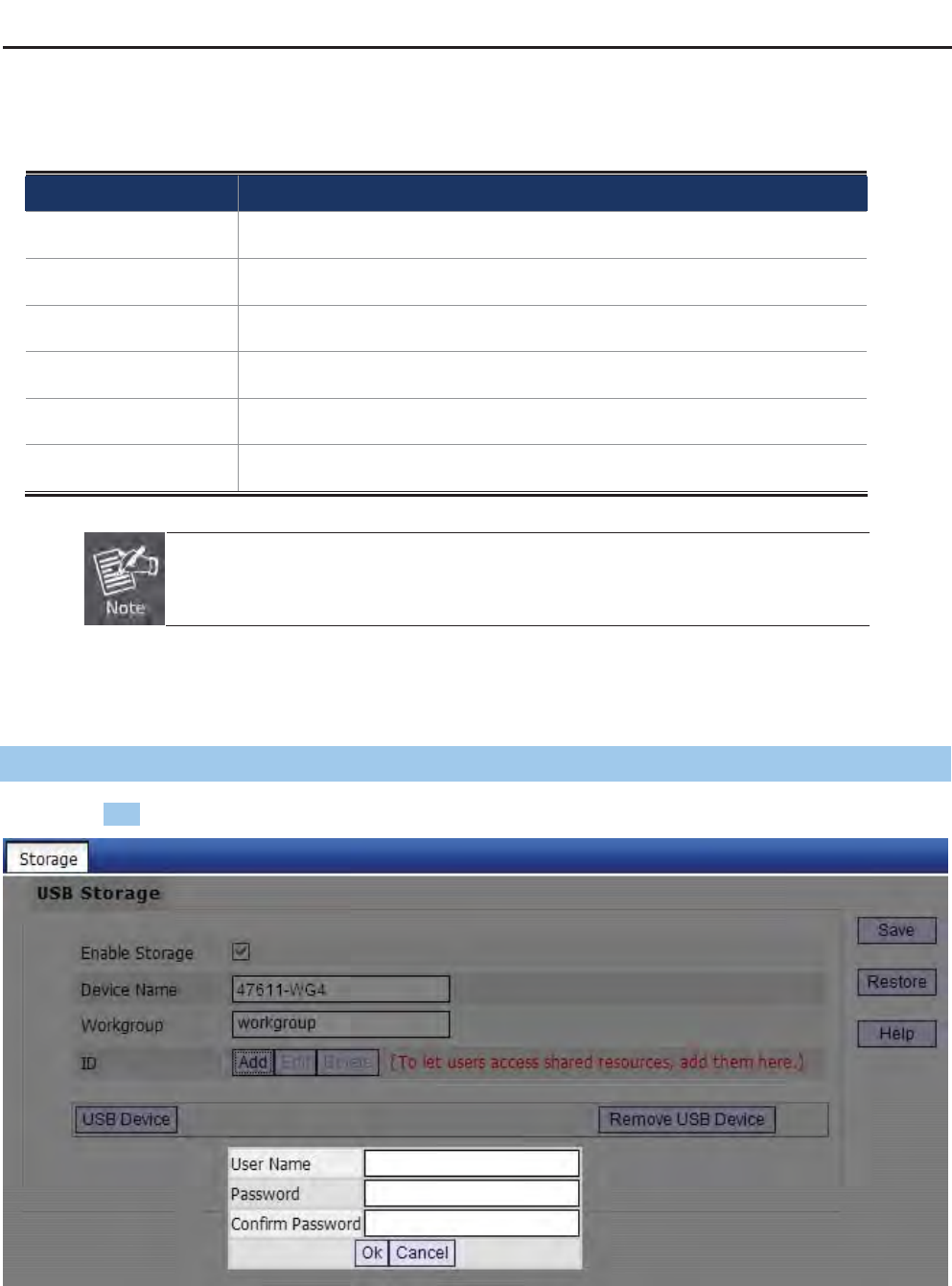

Step 1. Create an account.
1). Click “Add” to display a dialogue box below:
Figure 5-6-2
2) Enter a user name and a password, which will be used by clients when accessing the USB storage device
for sharing files thereon.
3) Re-type to confirm password and then click the “OK” button.
User Manual of 47611-WG4
-83-

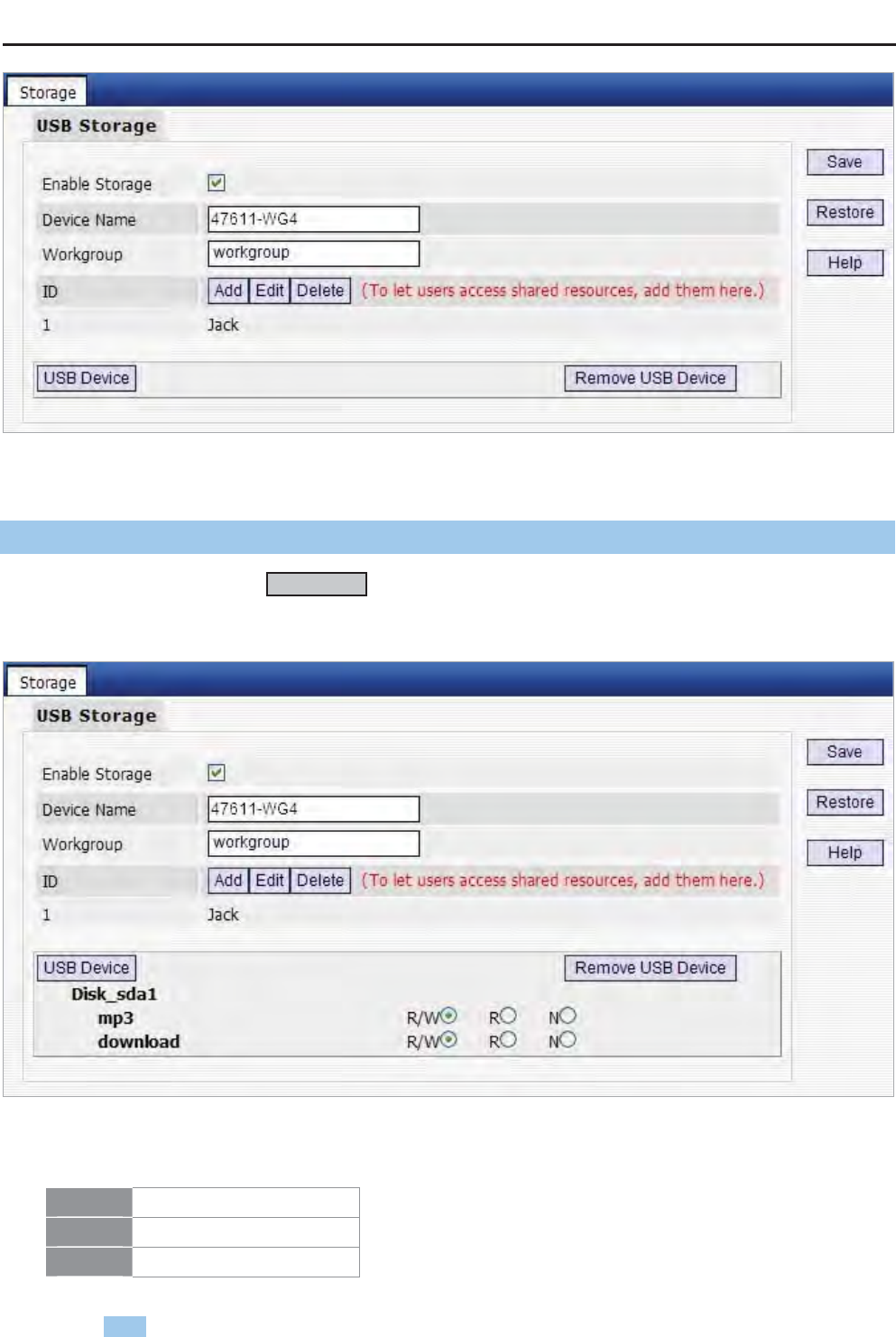

Figure 5-6-3
Step 2. Set Access Right
First select an account and click USB Device. And then select a proper access right from below for each entry.
Access authority is classified into three levels: R/W, R, and N.
Figure 5-6-4
R/W: Read and Write right.
R: Read right.
N: No right.
At last click “Save” to apply your settings.
User Manual of 47611-WG4
-84-

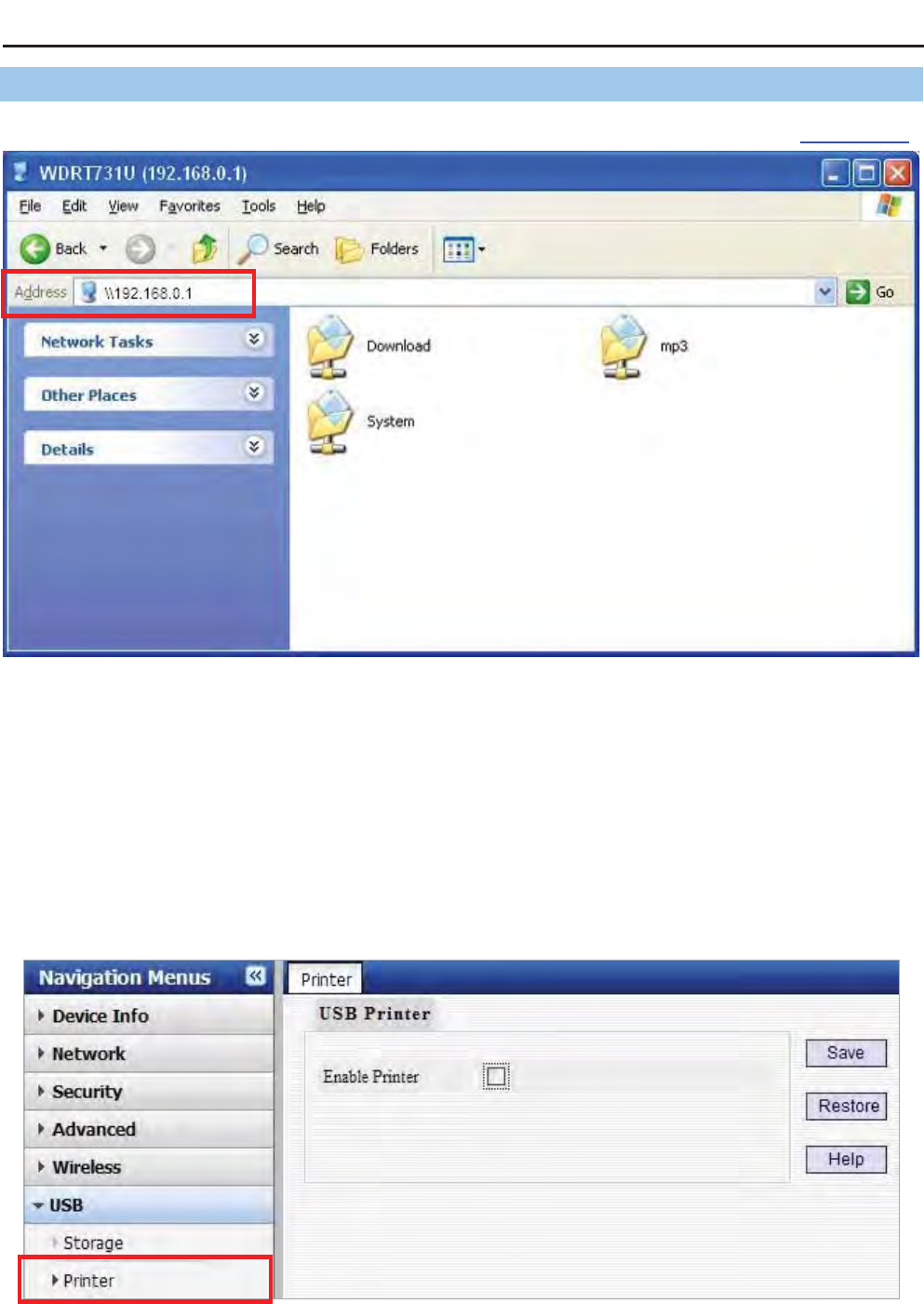

Step 3. Access shared file
To access resources on such storage device, double click “My Computer” on your PC and enter \\192.168.0.1.
Figure 5-6-5
5.6.2 Printing Service
The USB printer service allows you to connect a USB printer to the device and thus all clients on your network
can print anything they want on their PCs. The device can identify a printer automatically as long as it is
successfully connected.
Figure 5-6-6
The page includes the following fields:
User Manual of 47611-WG4
-85-
Object Description
xEnable Printer: Check/uncheck to enable/disable USB printer service.
1. GDI interface printers are not supported.
2. Multifunction printers are not supported.
Operation Instructions
Step 1. Correctly connect your USB printer to the USB port on the device.
Figure 5-6-7
Step 2. Enable printer service.
The printer will be detected automatically and the printer's information will be shown.
USB Port
* Sharing Printer and Mass Storage
User Manual of 47611-WG4
-86-
Figure 5-6-8
Figure 5-6-9
Windows XP Users
The following steps apply to Windows XP.

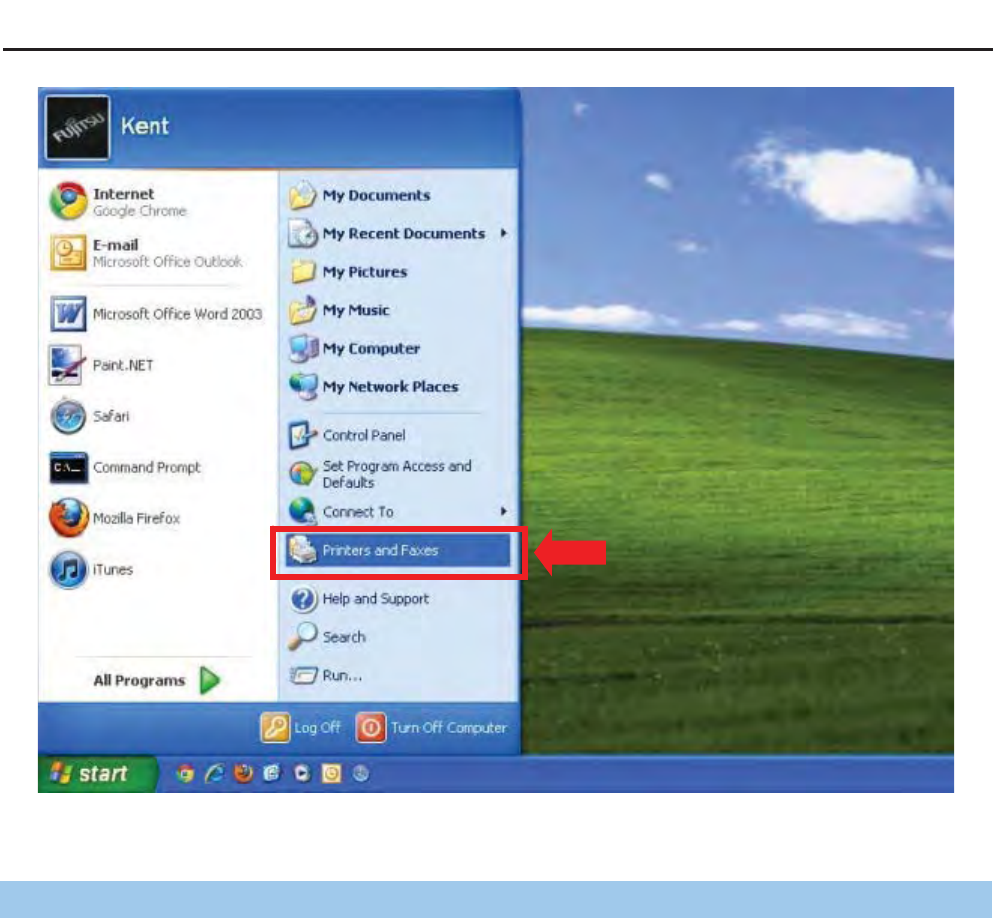

Step 3. On your PC (connected to the device), click “Start”——“Settings”——“Printers and Faxes”
User Manual of 47611-WG4
-87-
Figure 5-6-10
User Manual of 47611-WG4
-88-
Step 4. Select “Add a printer” on appearing window.
Figure 5-6-11
Step 5. Click “Next”.
Figure 5-6-12
User Manual of 47611-WG4
-89-

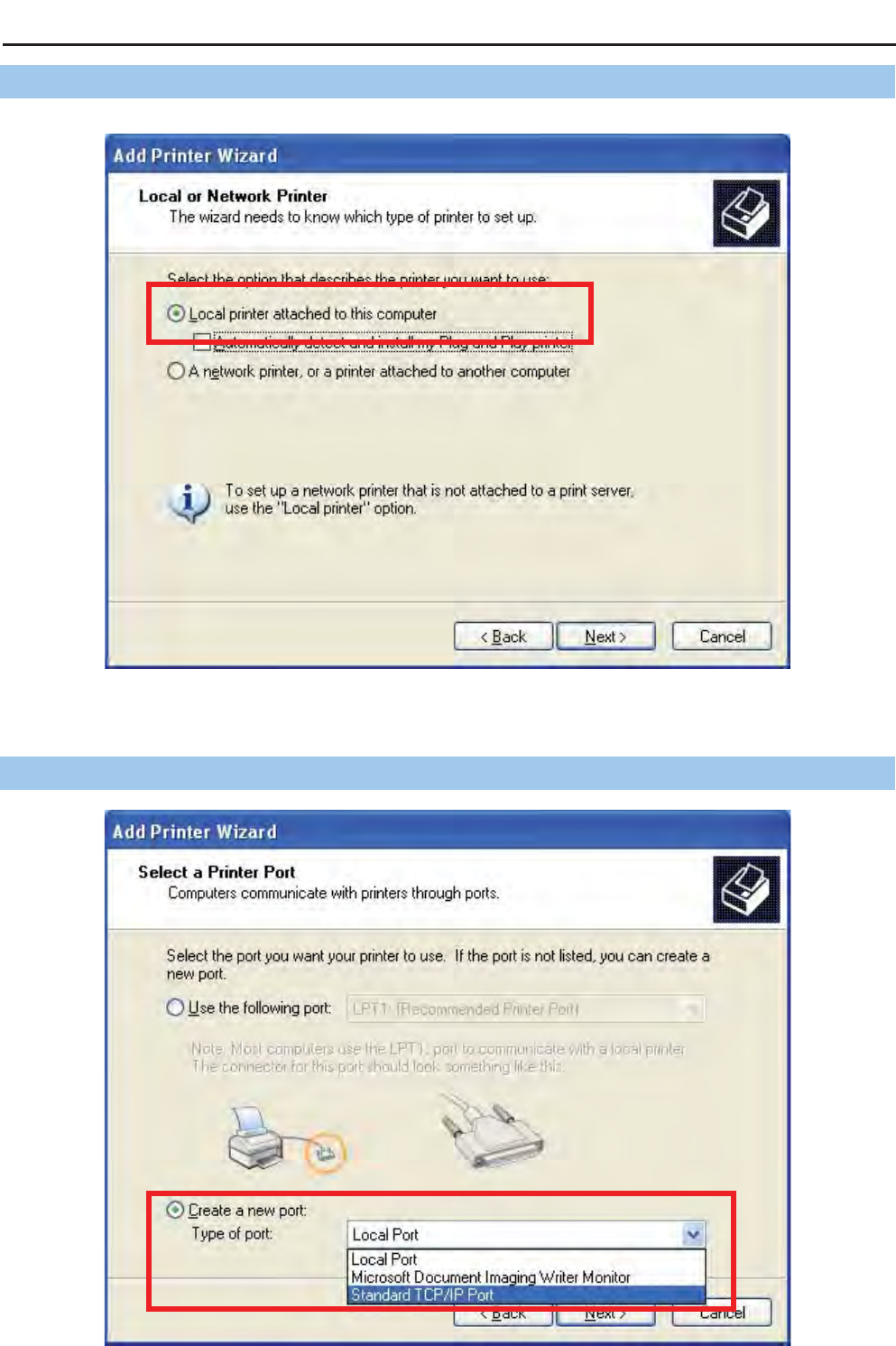

Step 6. Select “Local printer attached to this computer” and click “”Next.
Figure 5-6-13
Step 7. Select “Create a new port”, Type of port: “Standard TCP/IP Port” and click “Next”.
Figure 5-6-14
User Manual of 47611-WG4
-90-
Step 8. Click “Next”.
Figure 5-6-15
Step 9. Enter device’s LAN IP address and click “Next”. (The default IP address of 47611-WG4 is
192.168.0.1)
Figure 5-6-16
User Manual of 47611-WG4
-91-

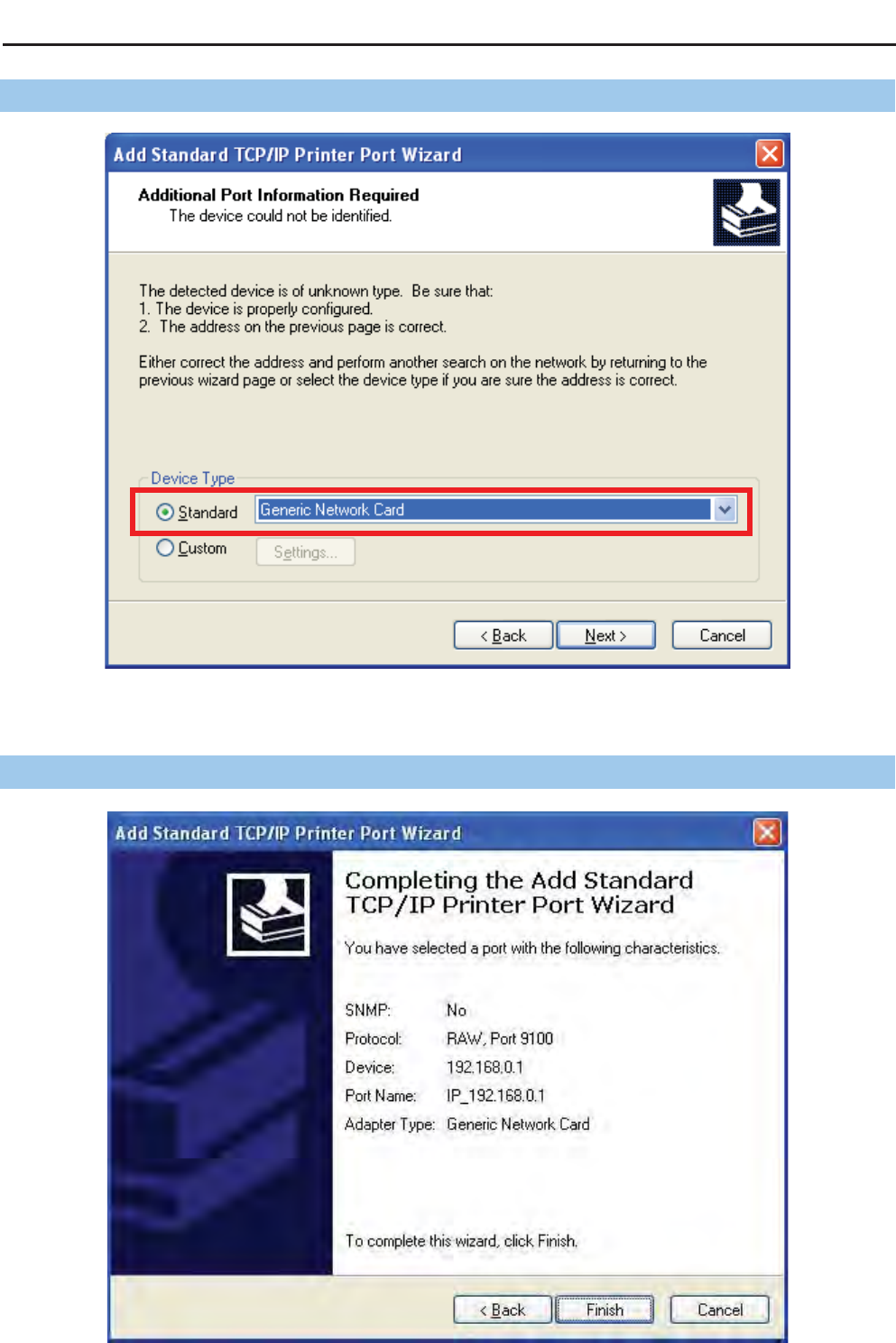

Step 10. Click “Standard” under Device Type and select “Generic Network Card”, then click “Next”.
Figure 5-6-17
Step 11. Click “Finish”.
Figure 5-6-18
User Manual of 47611-WG4
-92-

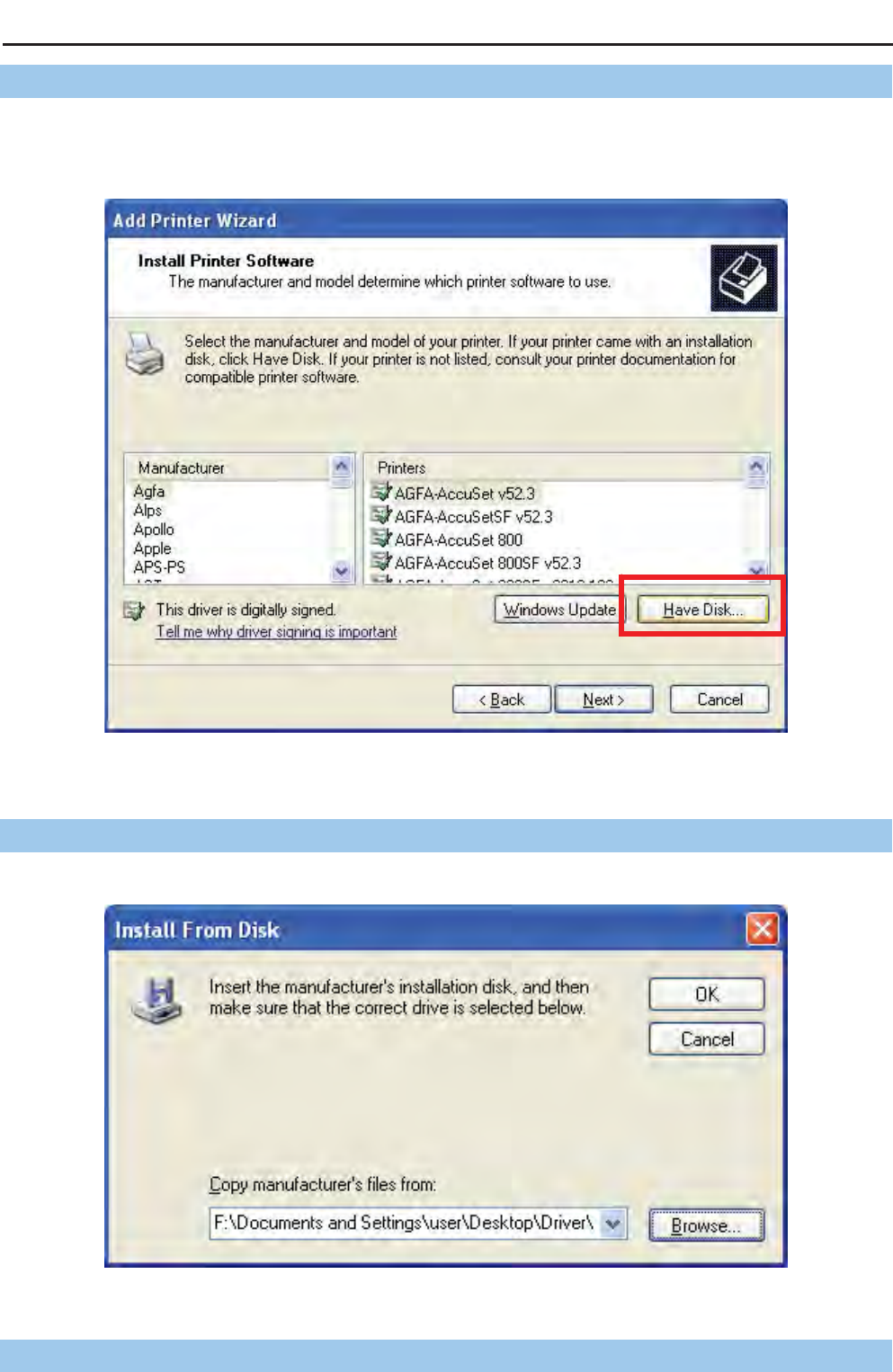

Step 12. Select “Have Disk”.
Select a suitable printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click
“Have Disk…” to install the driver of the printer.
Figure 5-6-19
Step 13. Click “Browse”, select corresponding drive file and click “Open”. At last click “OK”.
Figure 5-6-20
User Manual of 47611-WG4
-93-

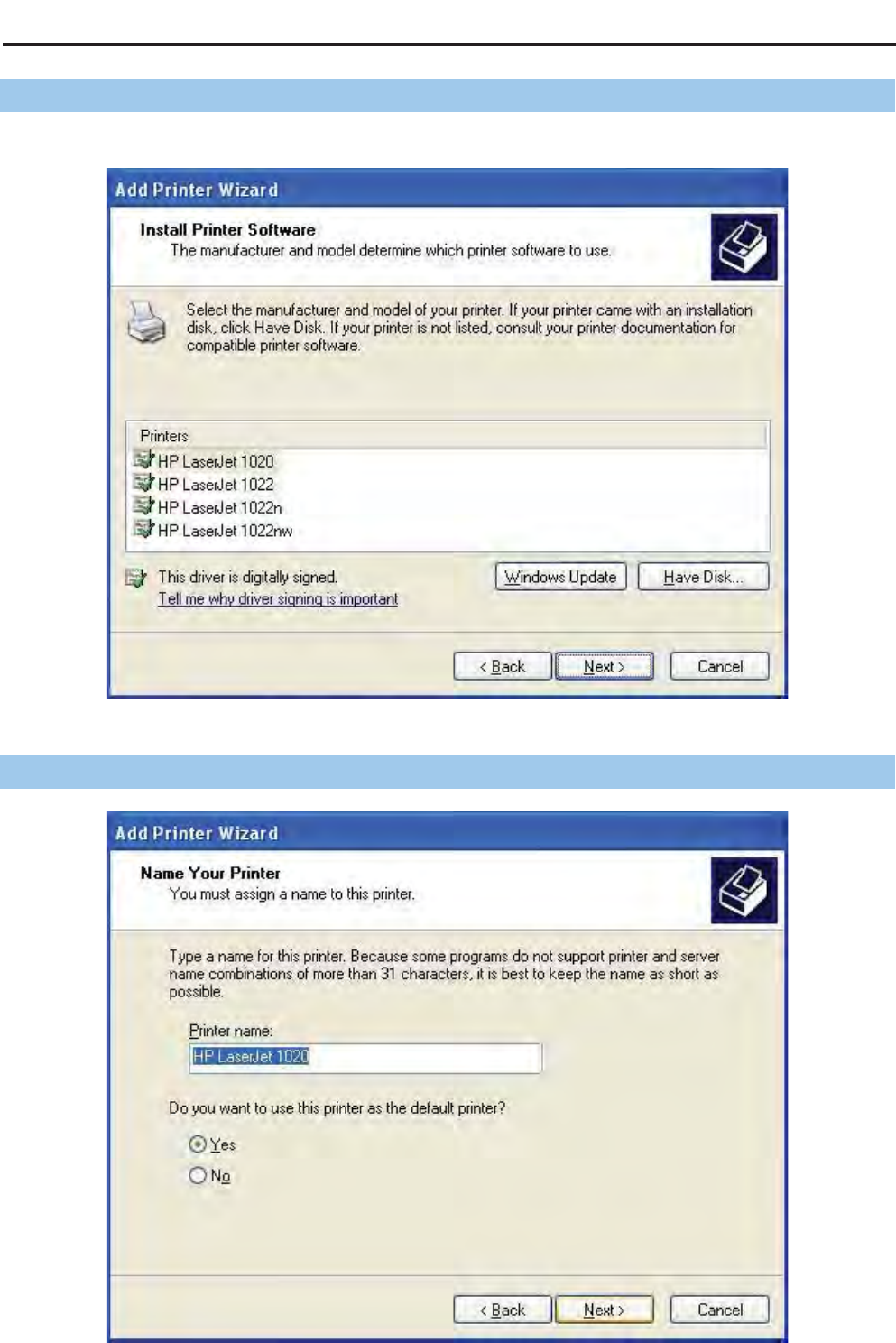

Step 14. Click “Next”.
After installation, the printer model will be added to the list.
Figure 5-6-21
Step 15. Define a name for the printer and click “Next”.
Figure 5-6-22
User Manual of 47611-WG4
-94-
Step 16. Click “Finish".
Now you have added the network printer to the Windows XP PC successfully. The information of the printer is
displayed in the following windows.
Figure 5-6-23
Figure 5-6-24
User Manual of 47611-WG4
-95-
Windows 7 Users
The following steps apply to Windows 7.

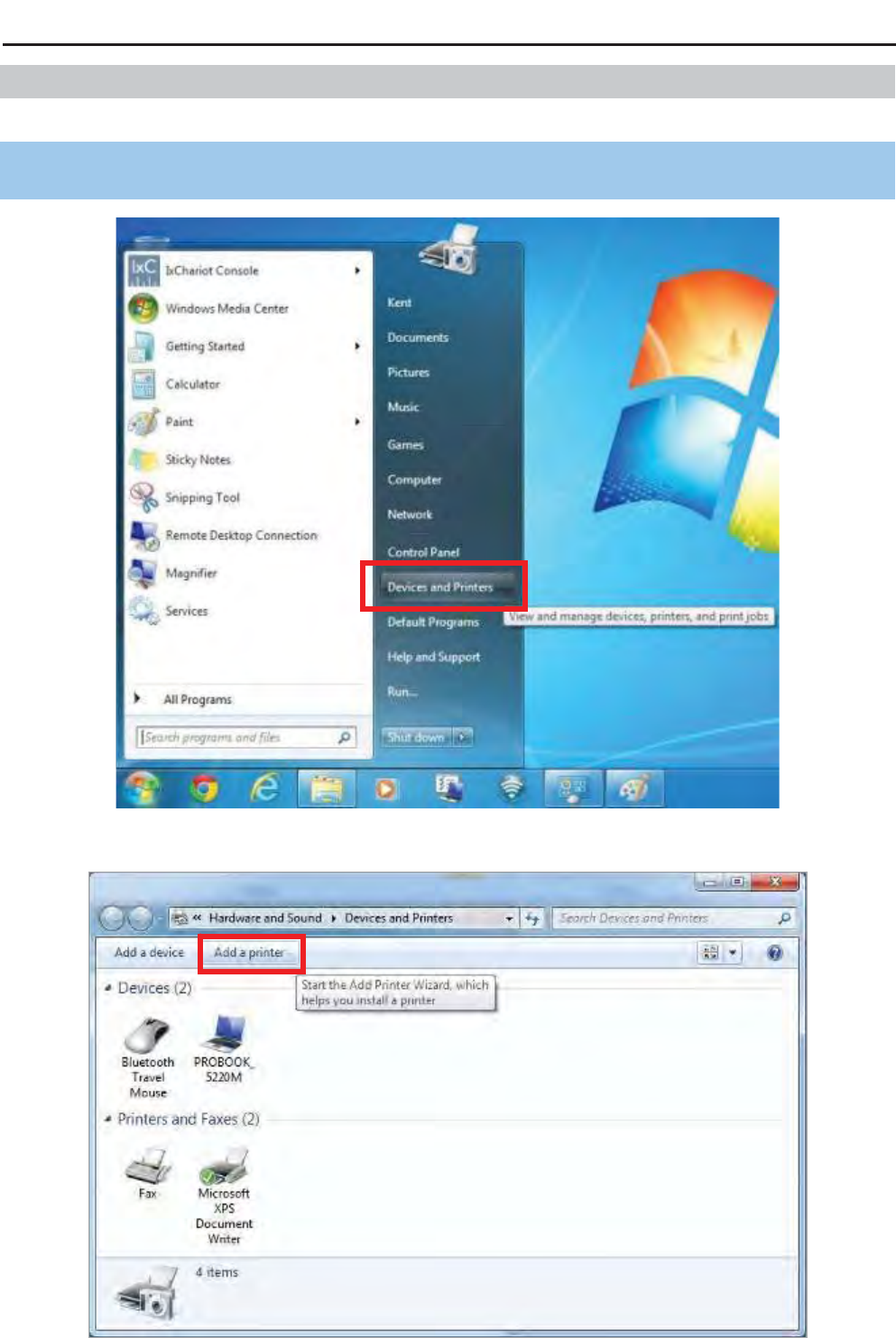

Step 3. On your Windows 7 PC (connected to the device), click “Start”——“Device and Printer” and select
“Add a printer” on appearing window.
Figure 5-6-25
Figure 5-6-26
User Manual of 47611-WG4
-96-
Step 4. Click “Next”.
Step 5. Select “Add a Local Printer” and click “”Next.
Figure 5-6-27
Step 6. Select “Create a new port”, Type of port: “Standard TCP/IP Port” and click “Next”.
Figure 5-6-28
User Manual of 47611-WG4
-97-
Step 7. Enter your 47611-WG4’s LAN IP address and click “Next”.
Figure 5-6-29
Figure 5-6-30
Step 8. Click “Standard” under Device Type and select “Generic Network Card”, then click “Next”.
User Manual of 47611-WG4
-98-
Figure 5-6-31
Step 9. Select “Have Disk”.
Figure 5-6-32
User Manual of 47611-WG4
-99-
Step 10. Click “Browse”, select corresponding drive file and click “Open”. At last click “OK”.
Figure 5-6-33
Step 11. Click “Next”.
After installation, the printer model will be added to the list. Choose the right printer and click “Next”.
Figure 5-6-34
User Manual of 47611-WG4
-100-
Step 12. Define a name for the printer and click “Next”.
Figure 5-6-35
Step 13. You can choose to share the printer or not. Then click “Next".
Figure 5-6-36
User Manual of 47611-WG4
-101-

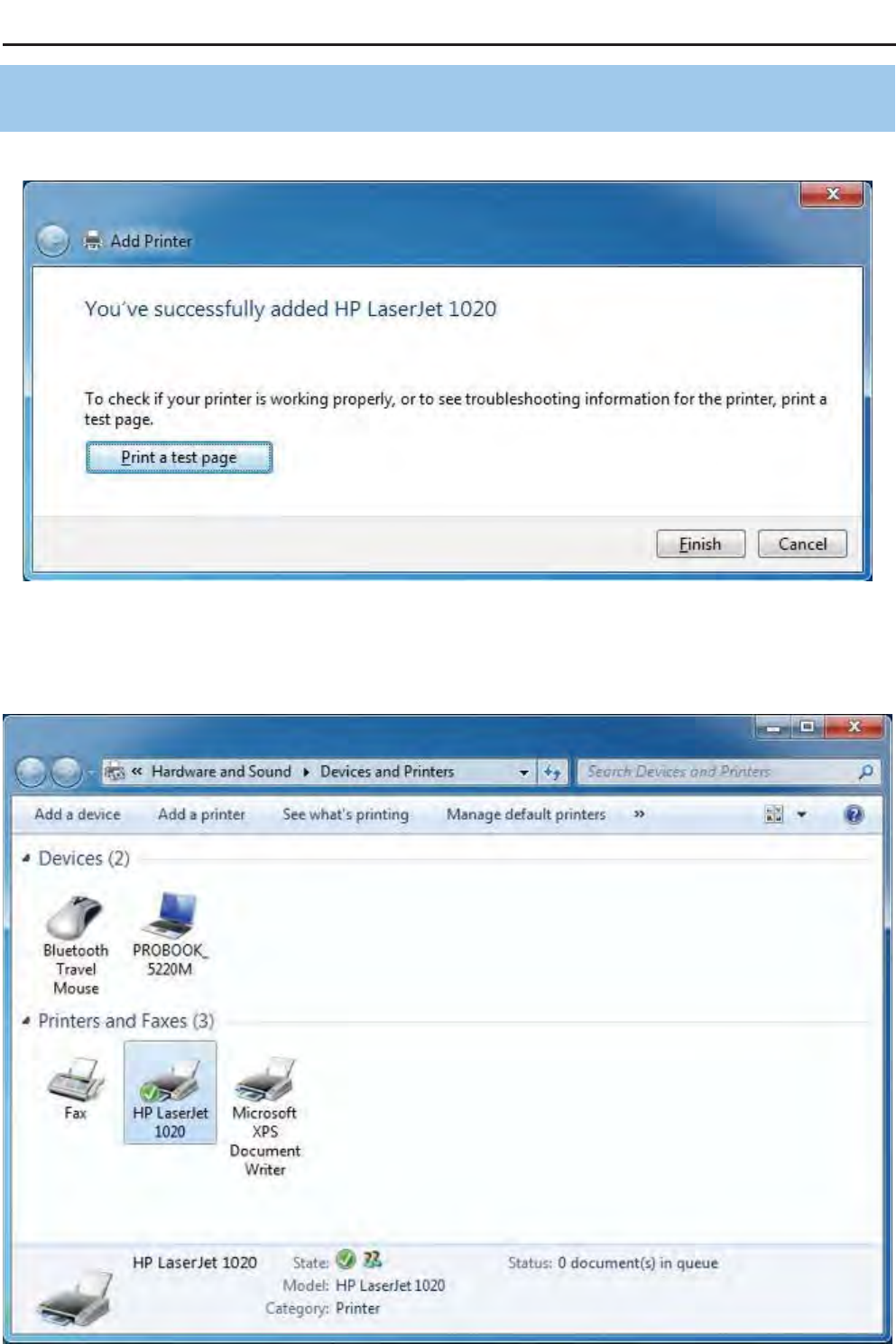

Step 14. After installing the correct printer driver, the windows wizard shows the model name of the new
network printer. You can choose to print a test page or click “Finish” to exit the wizard.
Figure 5-6-37
The new network printer that attached to the 47611-WG4 is now available for printing.
Figure 5-6-39
User Manual of 47611-WG4
-102-

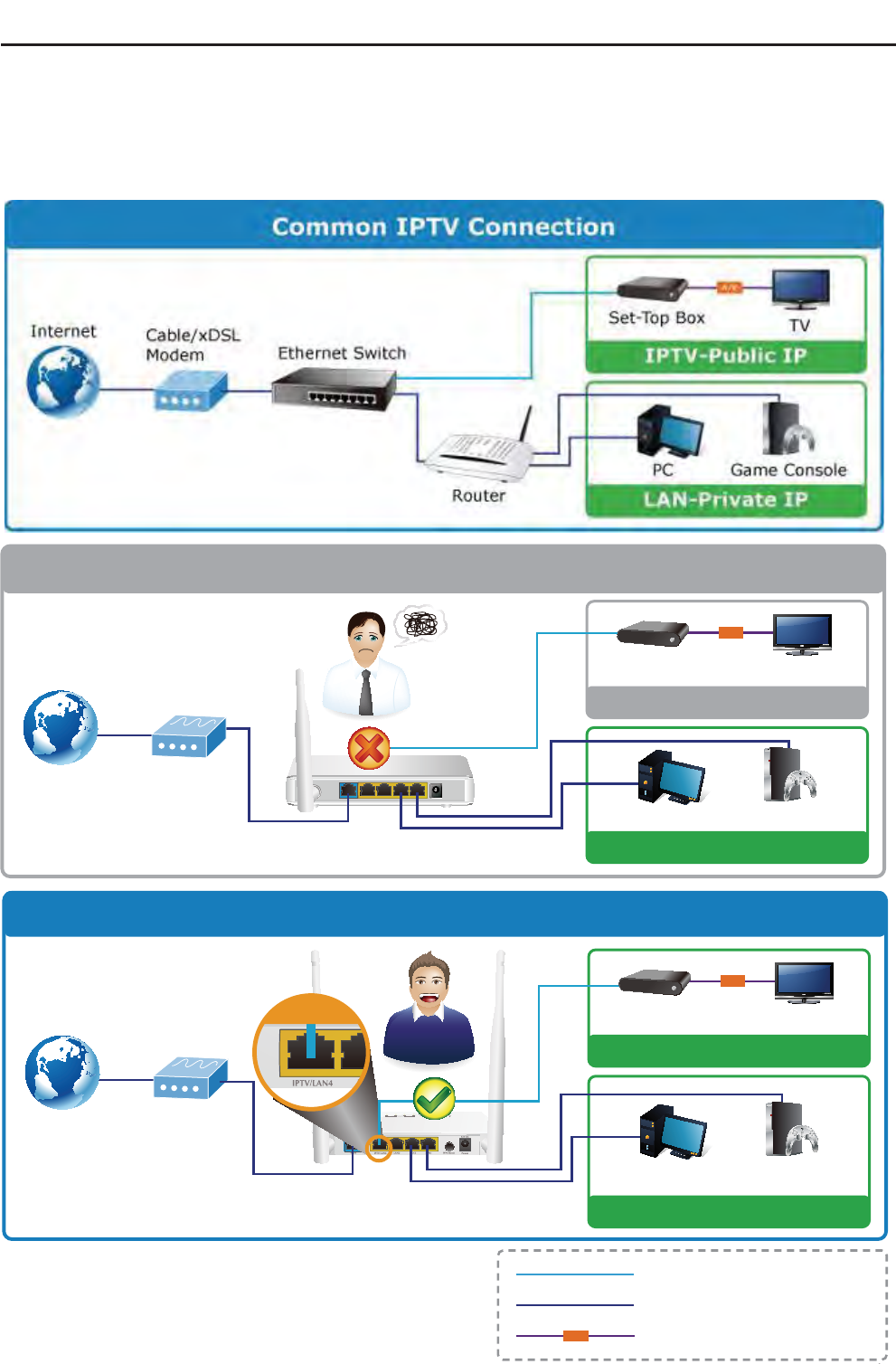

5.7 IPTV Settings
The IPTV feature makes it possible to enjoy online videos on your TV set via a set-top box while surfing Internet.
See below for the topology:
Common Router Connection without IPTV Pass-though
IPTV-Public IP
LAN-Private IP
PWR
PWR
PWR PC Game Console
Router
Internet Cable/xDSL
Modem
001101010
TV
Set-Top Box
A/V
47611-WG4 IPTV Connection with IPTV Pass-though
100Base-TX UTP
1000Base-T UTP
Audio Line / Video Line
A/V
Internet
PC Game Console
Cable/xDSL
Modem
001101010
IPTV-Public IP
TV
Set-Top Box
A/V
LAN-Private IP
47611-WG4
Broadband Router
IPTV Port
User Manual of 47611-WG4
-103-

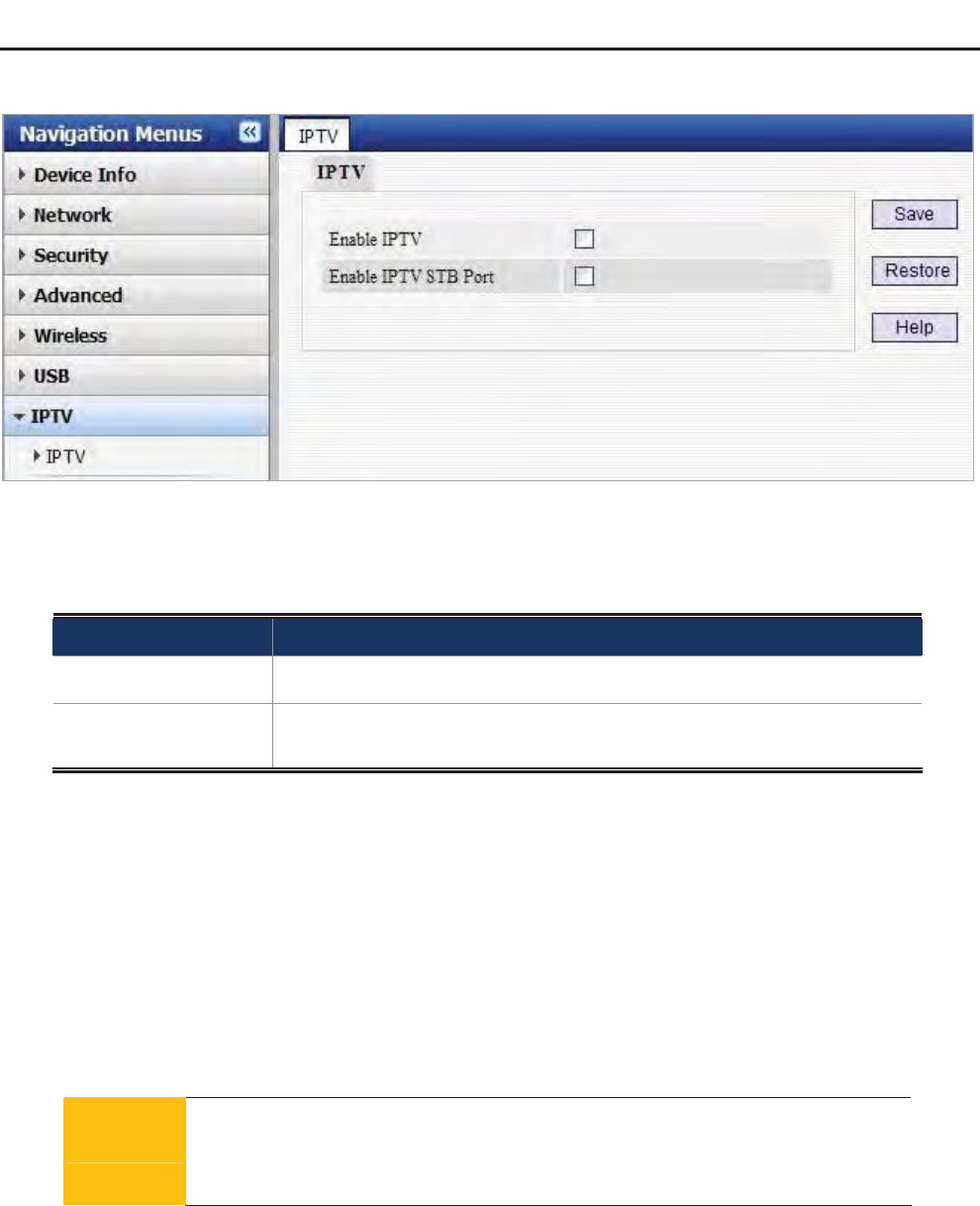

Figure 5-7-1
The page includes the following fields:
Object Description
xEnable IPTV: Check/uncheck to enable/disable the IPTV feature.
xEnable IPTV STB
Port: Check/uncheck to enable/disable the IPTV-specific port.
Note:
1. If you enabled both options mentioned above, then note below:
(a). Set IPTV connection type to DHCP/dynamic IP or static IP if the set-top box is connected to any LAN
port from 1-3.
(b). Select the dial mode provided by your ISP if the set-top box is connected to the IPTV-specific port.
IMPORTANT Note that the IP address of the set-top-box or smart TV should be on the same IP
net segment as router’s WAN IP.
2. After the IPTV port is set for IPTV purpose, PC that connects to such port will not be able to obtain an IP
address or access Internet. So think twice before you start. Plus, LAN ports1-3 can only be used to connect
PCs instead of an IPTV set-top box.
3. The IPTV feature does not support wireless access.
User Manual of 47611-WG4
-104-

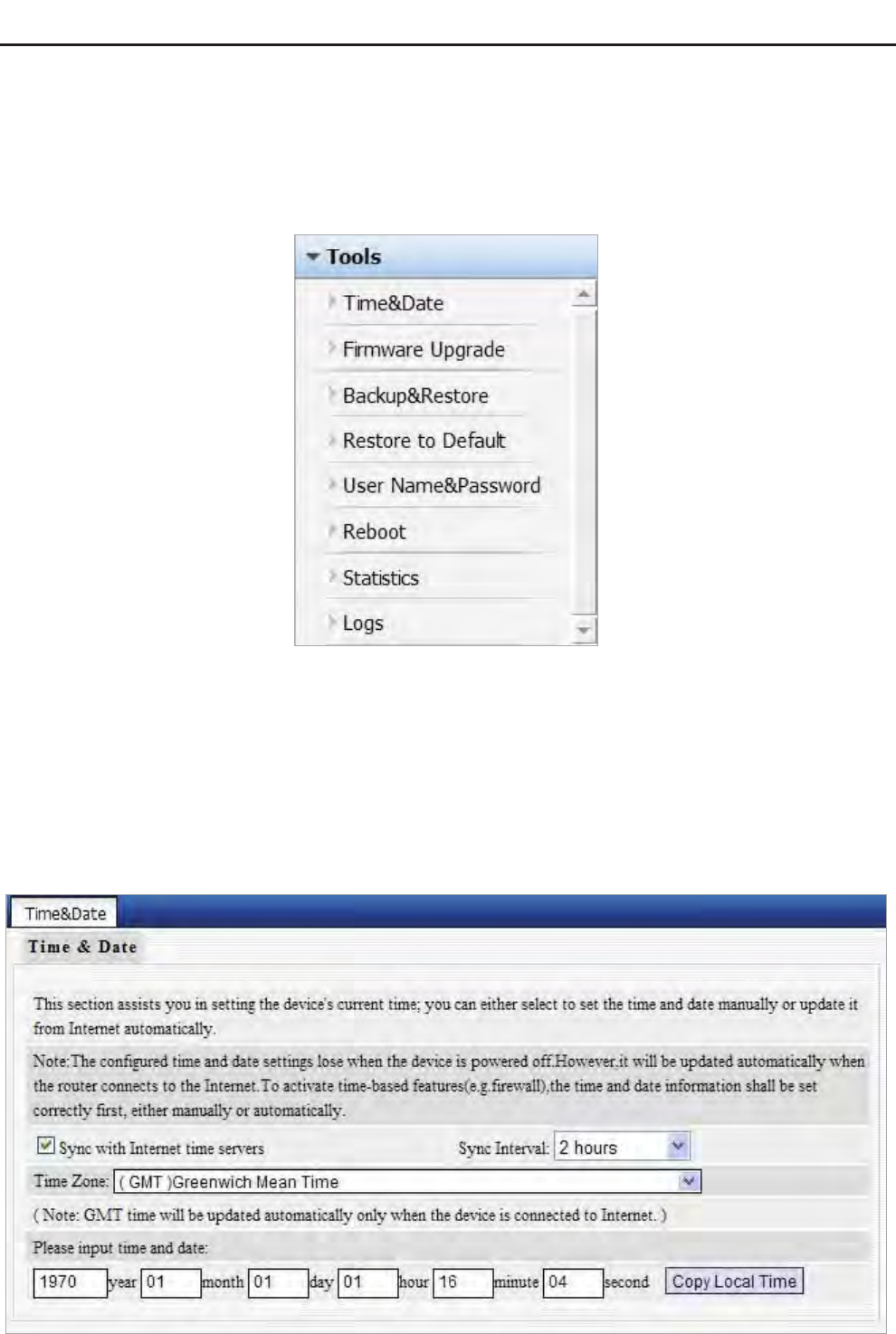

5.8 Tools
System tools include the following 8 submenus. Clicking any of them enters corresponding interface for
configuration. Below explains, in details, each such feature.
5.8.1 Time Settings
This section assists you in setting the device’s system time; you can either select to set the time and date
manually or automatically obtain the GMT time from Internet.
Figure 5-8-1
User Manual of 47611-WG4
-105-
The page includes the following fields:
Object Description
xSync with Internet
time servers: Time and date will be updated automatically from Internet.
xSync Interval: Determines a time length when device periodically updates its time and
date info from Internet. The default is 2 hours.
xTime Zone: Select your current time zone.
xCopy Local Time: Click it to copy your PC’s time to the device.

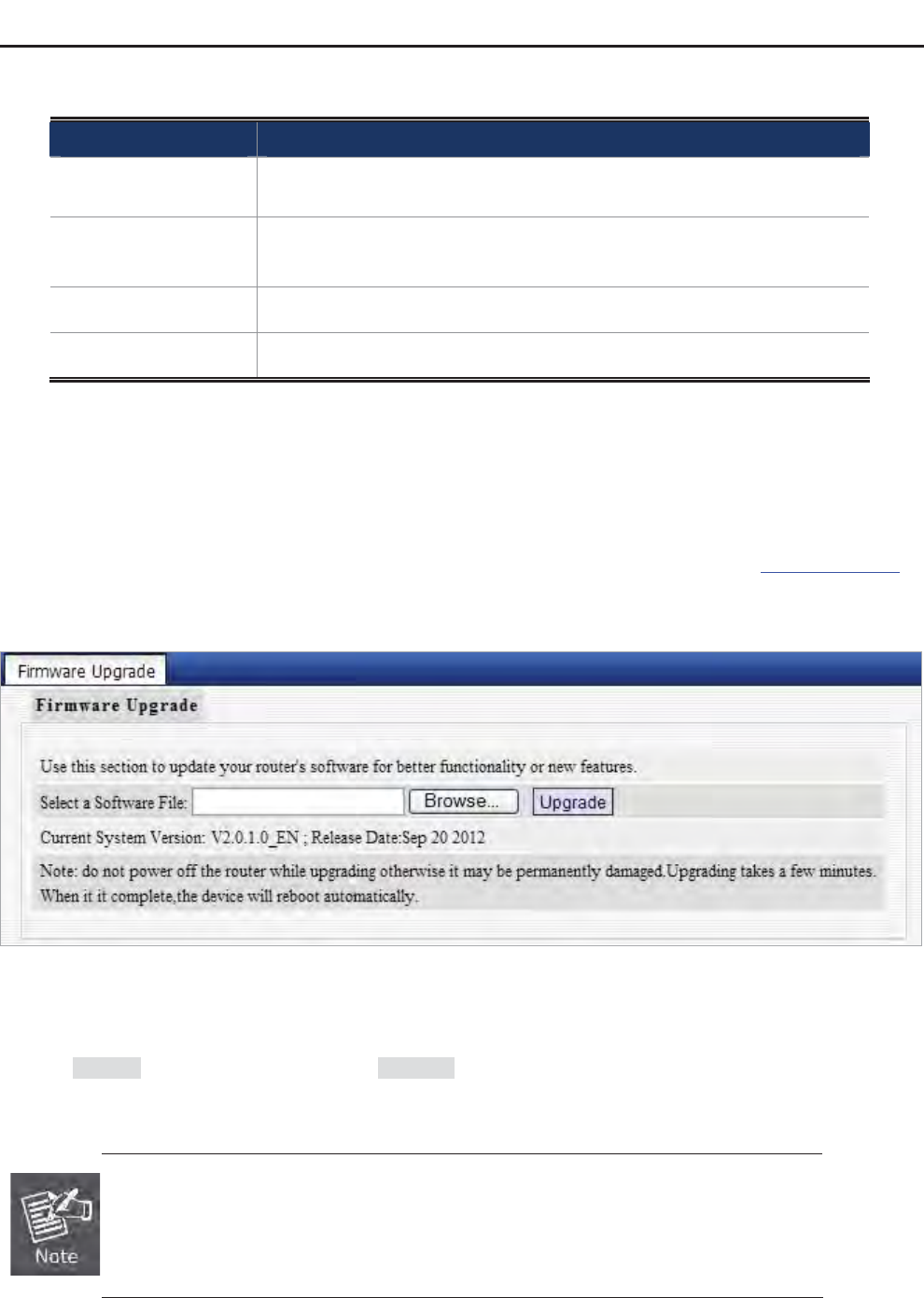

5.8.2 Firmware Upgrade
Firmware upgrade is released periodically to improve the functionality of your device and also to add new
features. If you run into a problem with a specific feature of the device, log on to our website www.leviton.com to
download the latest firmware to update your device.
Figure 5-8-2
To update firmware, do as follows:
1. Click "Browse” to locate the firmware and "Upgrade” to update.
2. Router will reboot automatically when upgrade completes.
Do not disconnect the device from your management PC (the PC you use to
configure the device) or power off it during the upgrade process; otherwise, it may be
permanently damaged. The device will restart automatically when the upgrade
process, which takes several minutes, completes.
User Manual of 47611-WG4
-106-
5.8.3 Backup/Restore Settings
This section allows you to backup current settings or to restore the previous settings configured on the device.
Figure 5-8-3
The page includes the following fields:
Object Description
xBackup Settings:
Once you have configured the device the way you want it, you can save
these settings to a configuration file on your local hard drive that can
later be imported to your device in case that the device is restored to
factory default settings.
To do this, click the “Backup” button and specify a directory to save
settings on your local hardware.
xRestore Settings:
Click the "Browse" button to locate and select a configuration file that is
saved previously to your local hard drive. And then click the "Restore"
button to reset your device to previous settings.
5.8.4 Restore to Factory Default Settings
To restore all settings to the device's factory default values, click the "Restore to Factory Default” button:
Figure 5-8-4
User Manual of 47611-WG4
-107-
Factory Default Settings:
User Name: admin
Password: admin
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
To activate your settings, you need to reboot the device after you reset it.

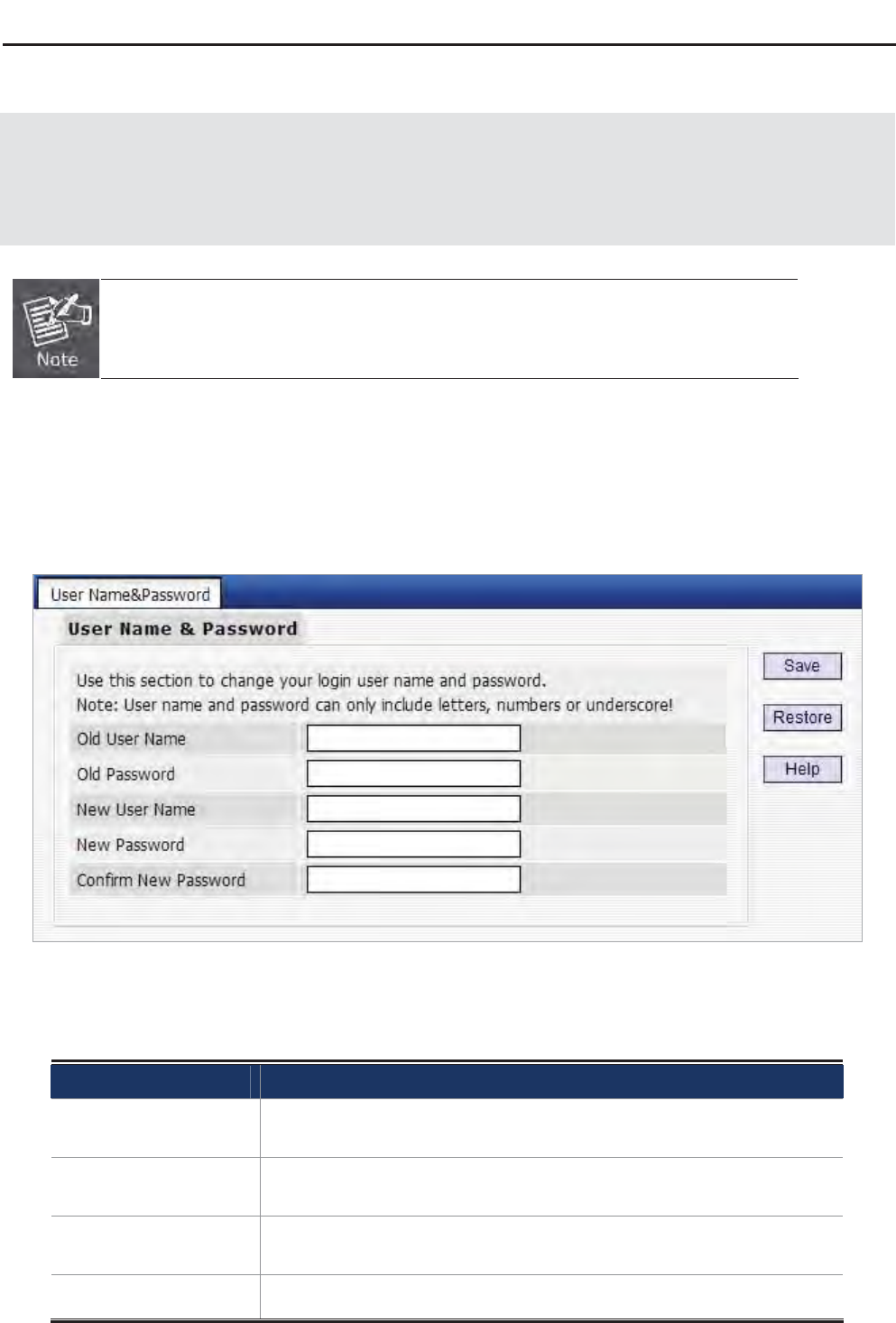

5.8.5 Change Password/User Name
This section allows you to change login password and user name for accessing device’s Web-based interface.
Figure 5-8-5
The page includes the following fields:
Object Description
xOld Password /
User Name: Enter the old password/user name.
xNew Password /
User Name: Enter a new password/user name.
xConfirm New
Password: Re-enter the new password for confirmation.
xSave: Click it to save new settings.
User Manual of 47611-WG4
-108-
For the sake of security, it is highly recommended that you change default login
password and user name.
5.8.6 Reboot
This section allows you to reboot the device.
Figure 5-8-6
To restart your device, click the “Reboot” button.
Figure 5-8-7
Figure 5-8-8
User Manual of 47611-WG4
-109-

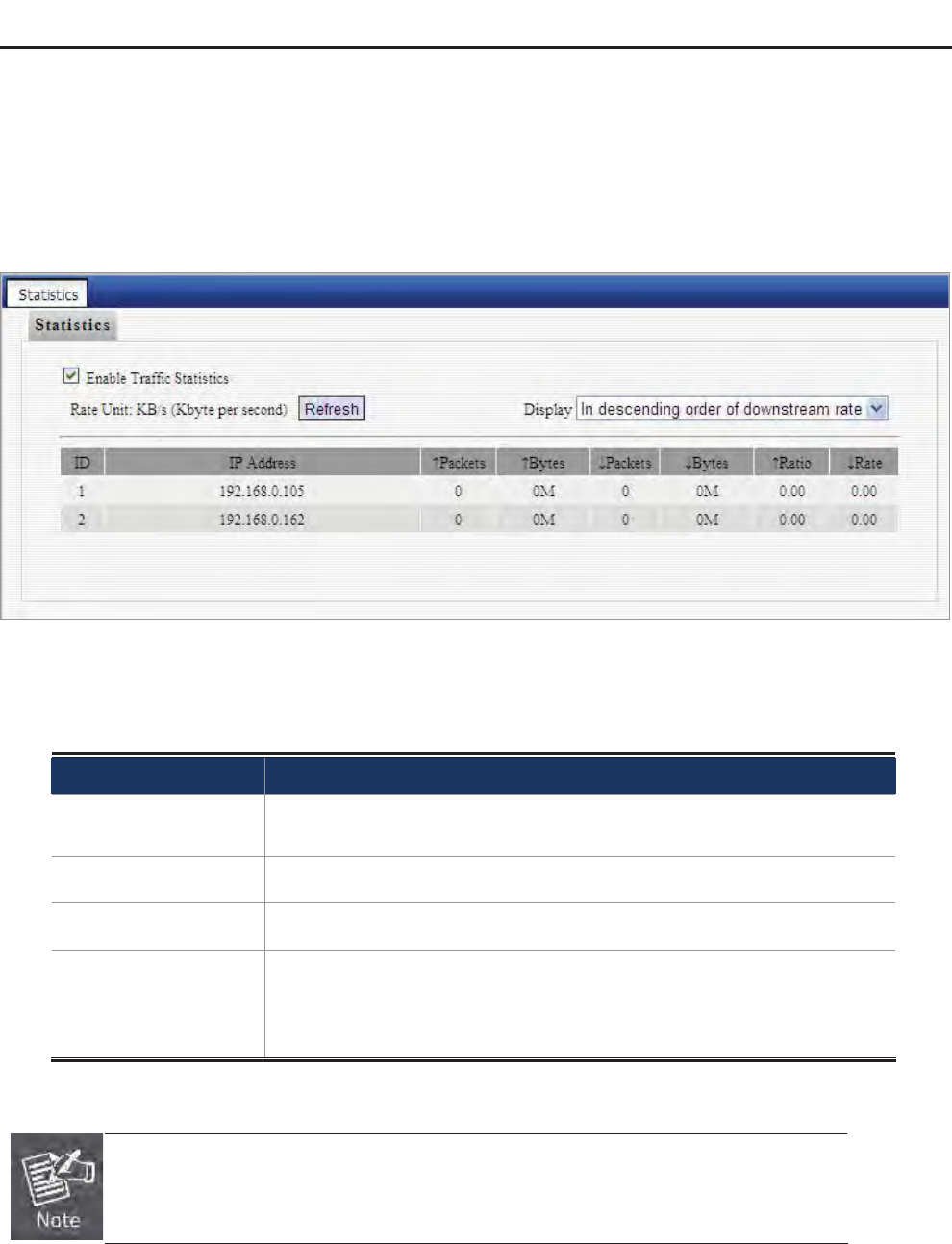

5.8.7 Statistics
Statistics displays current traffic of PCs on your LAN.
You can view the bandwidth usage on your LAN using the statistics feature, for better management of network
resources.
Figure 5-8-9
The page includes the following fields:
Object Description
xEnable Traffic
Statistics: Check/uncheck the box to enable/disable the Traffic Statistics feature.
xRefresh: Click to update statistic data.
xClear: Click to remove statistic data.
xRatio:
The quantitative relation between broadcast packets and the forwarded
packets. Normally, if this value exceeds 10%, there may be problems
present in some PC on the network.
Enabling the Traffic Statistics feature may degrade router’s packet processing
capacity. So, do not enable it unless necessary.
5.8.8 Syslog
The Syslog option allows you to view all events that occur upon system startup and check whether there is
attack present in your network.
The logs are classified into 3 types: “All”, “System “and “WAN”.
User Manual of 47611-WG4
-110-

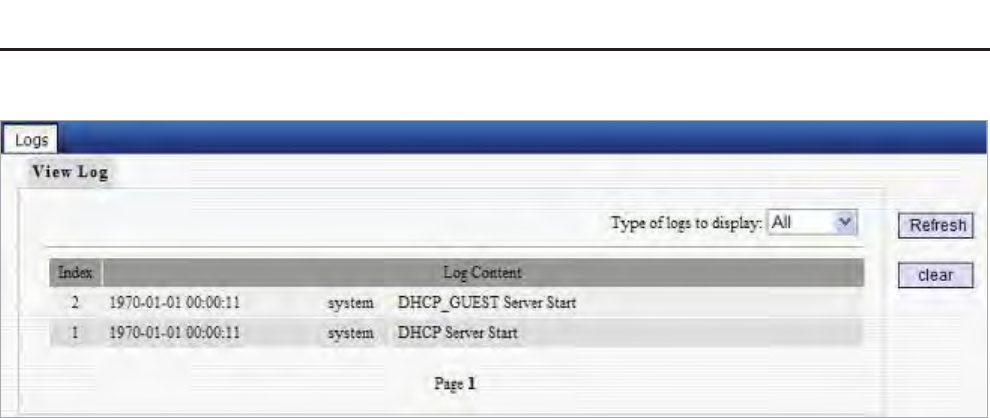

Figure 5-8-10
User Manual of 47611-WG4
-111-
Chapter 6. Quick Connection to a Wireless Network
6.1 Windows XP (Wireless Zero Configuration)

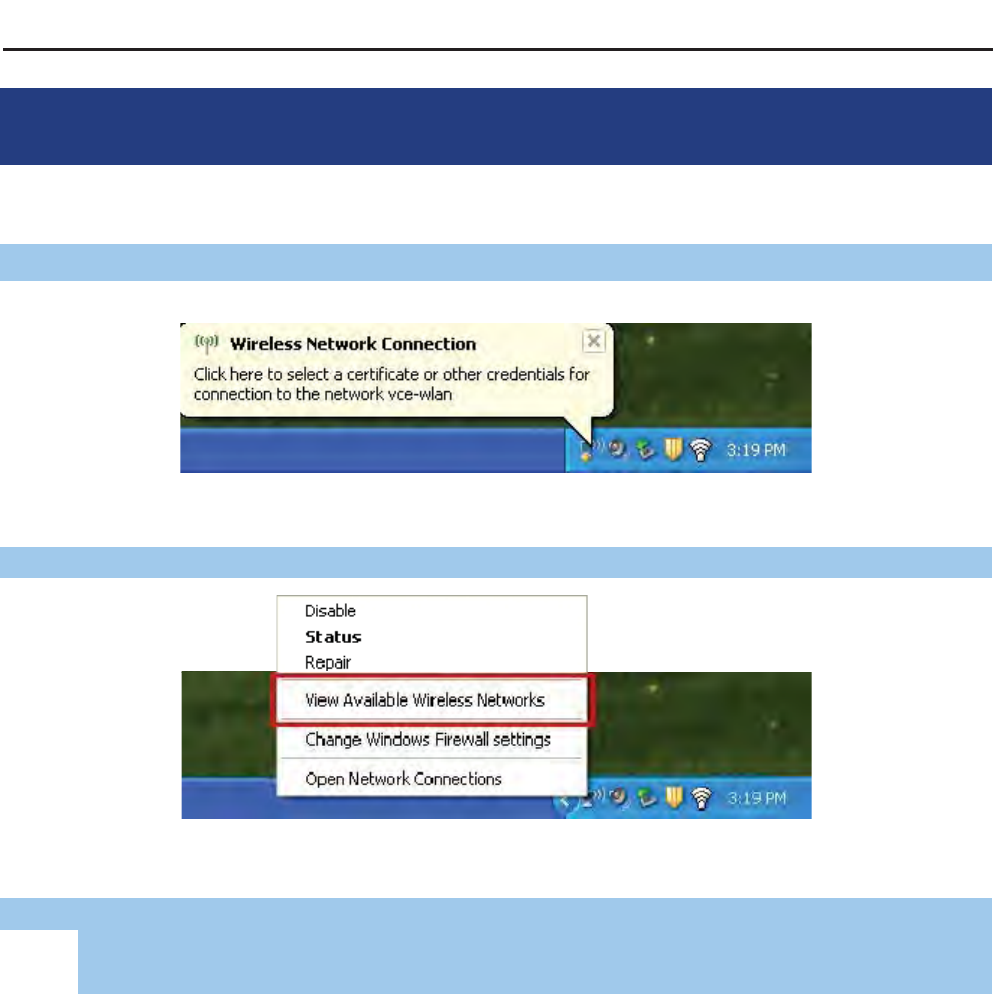

Step 1: Right-Click on the wireless network icon displayed in the system tray
Figure 6-1
Step 2: Select [View Available Wireless Networks]
Figure 6-2
Step 3: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [LEVITON]
(2) Click the [Connect] button
User Manual of 47611-WG4
-112-
Figure 6-3
Step 4: Enter the encryption key of the Wireless Router
(1) The Wireless Network Connection box will appear
(2) Enter the encryption key that configured in section 5.6.2
(3) Click the [Connect] button
Figure 6-4
Step 5: Check if “Connected” is displayed
User Manual of 47611-WG4
-113-

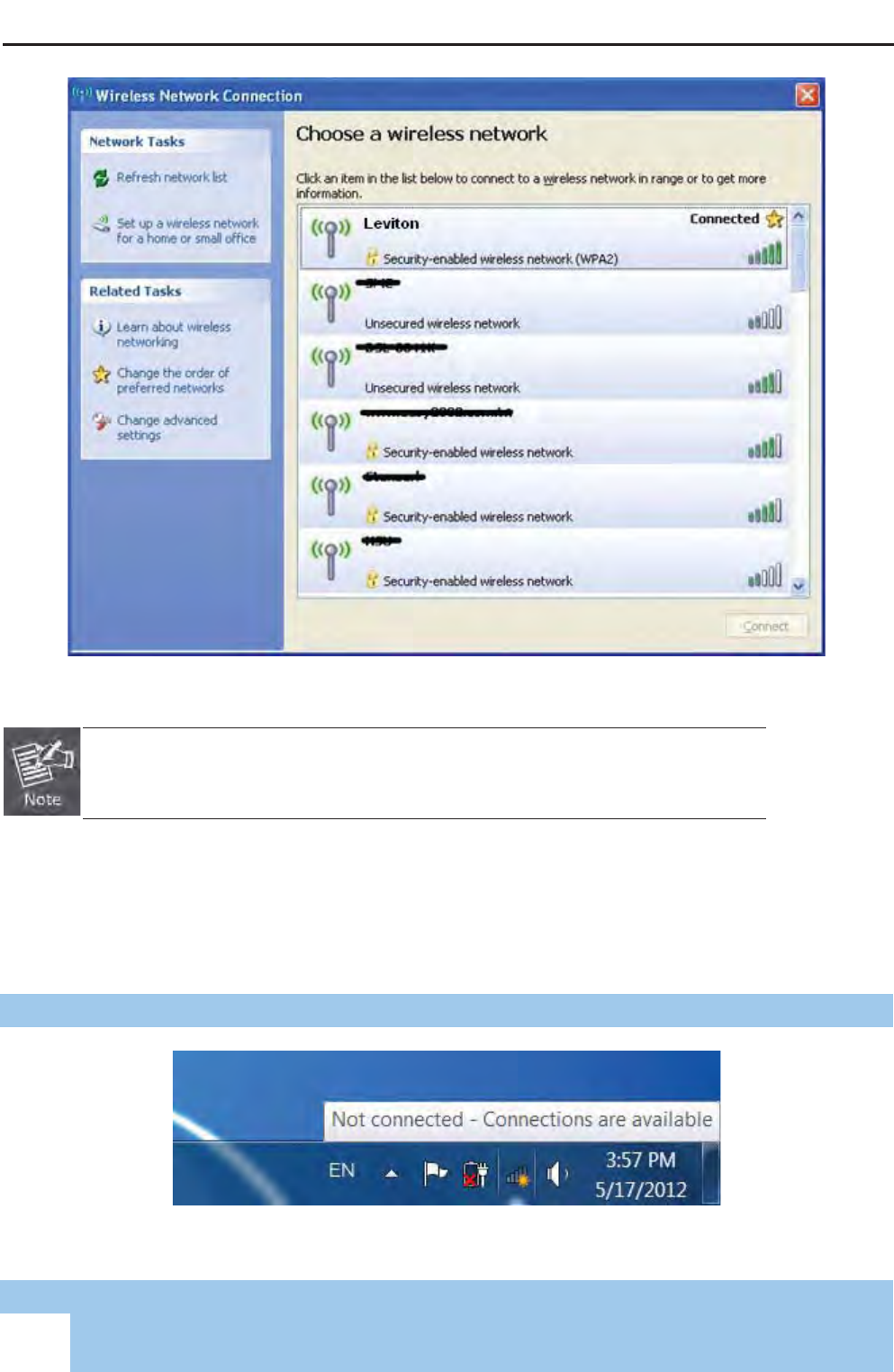

Figure 6-5
Some laptops are equipped with an “Wireless ON/OFF” switch for the internal
wireless LAN, make sure the hardware wireless switch is switch to “ON” position.
6.2 Windows 7 (WLAN AutoConfig)
WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network.
This built-in wireless network connection tool is similar to wireless zero configuration tool in Windows XP.
Step 1: Right-Click on the network icon displayed in the system tray
Figure 6-6

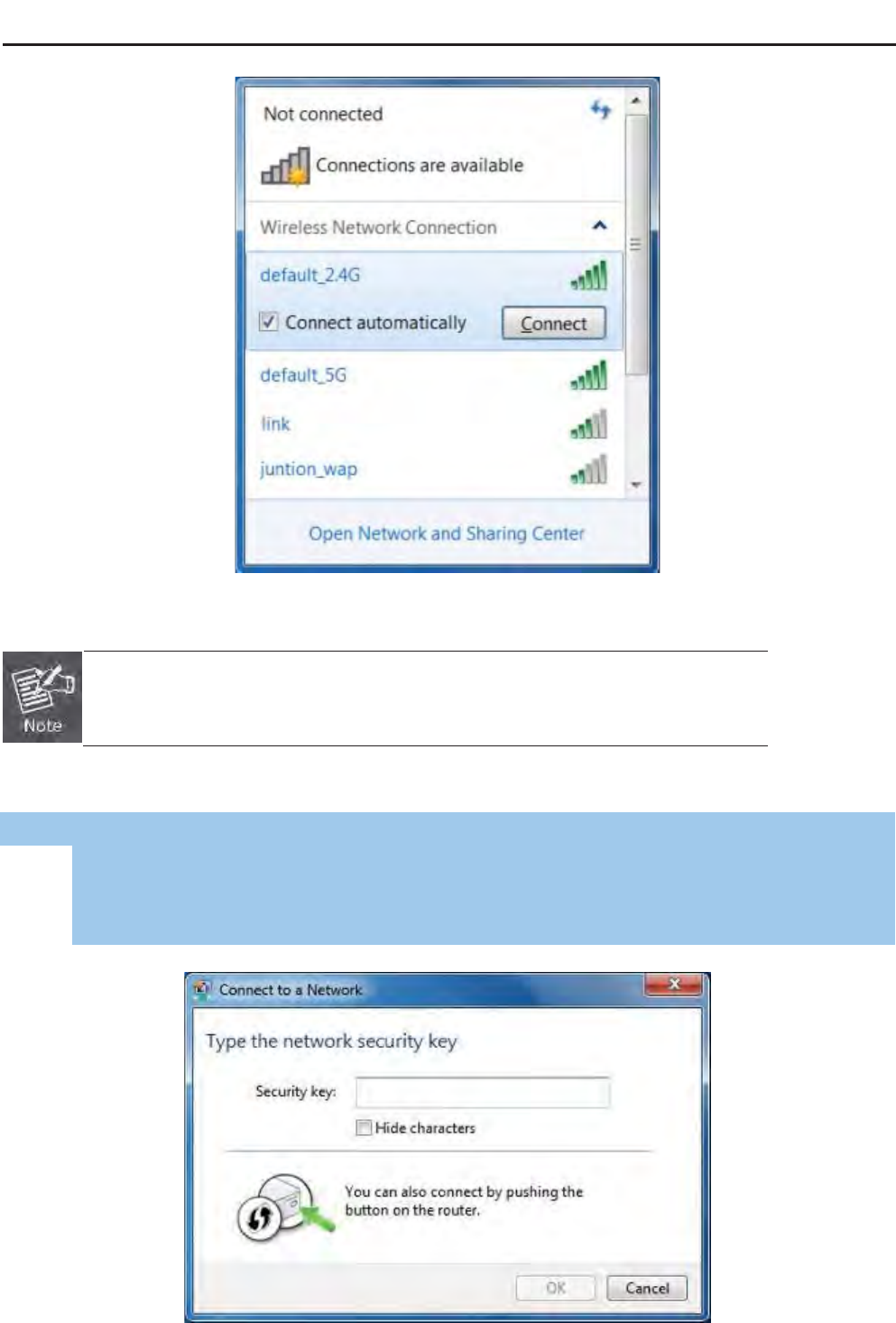

Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [defauld_2.4G]
(2) Click the [Connect] button
User Manual of 47611-WG4
-114-
Figure 6-7
If you will be connecting to this Wireless Router in the future, checking [Connect
automatically].
Step 4: Enter the encryption key of the Wireless Router
(1) The Connect to a Network box will appear
(2) Enter the encryption key that configured in section 5.6.2
(3) Click the [OK] button
Figure 6-8
User Manual of 47611-WG4
-115-

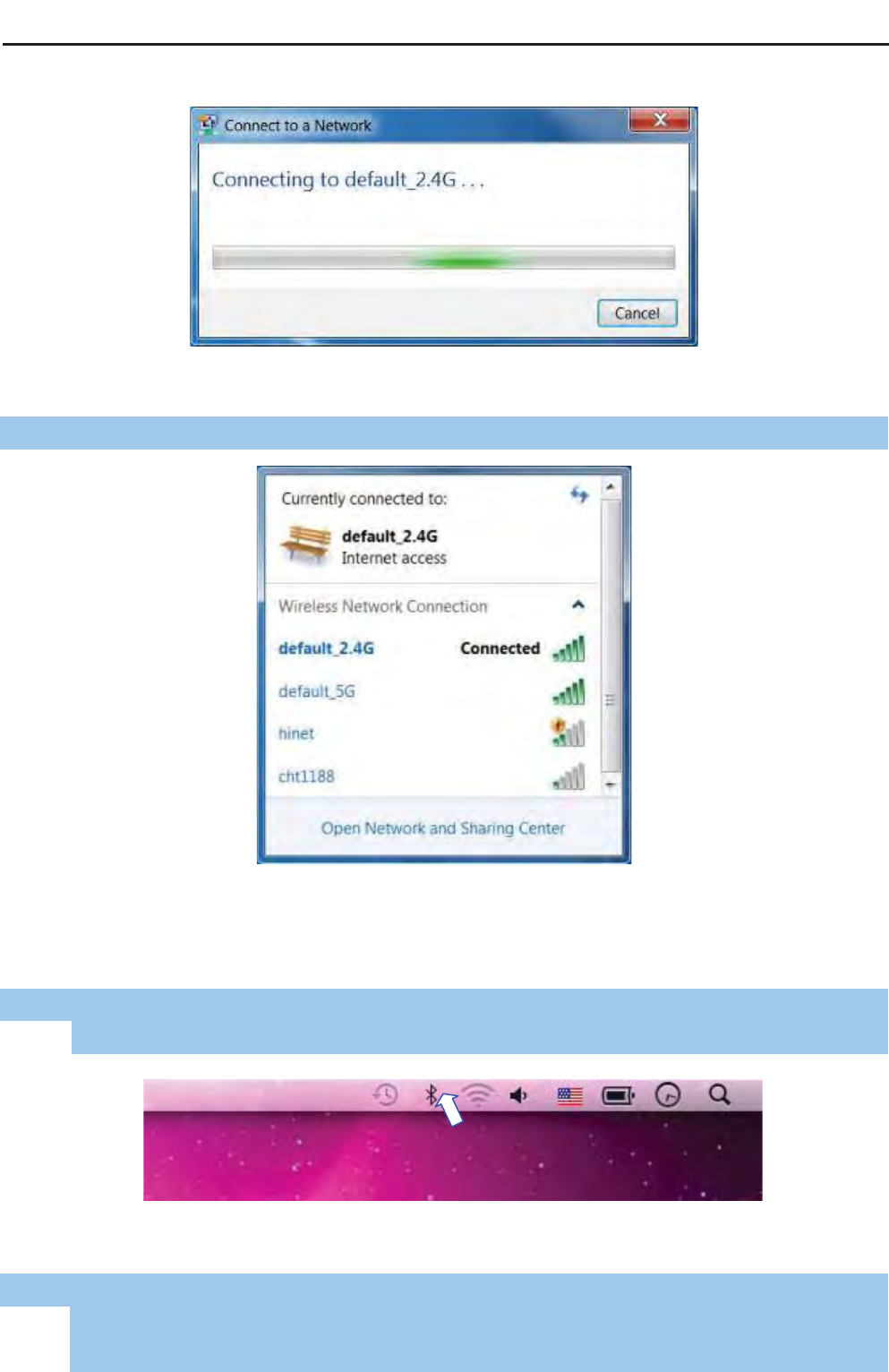

Figure 6-9
Step 5: Check if “Connected” is displayed
Figure 6-10
6.3 Mac OS X 10.x
Step 1: Right-Click on the network icon displayed in the system tray
The AirPort Network Connection menu will appear
Figure 6-11
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select and SSID [LEVITON]
(2) Double-click on the selected SSID
User Manual of 47611-WG4
-116-

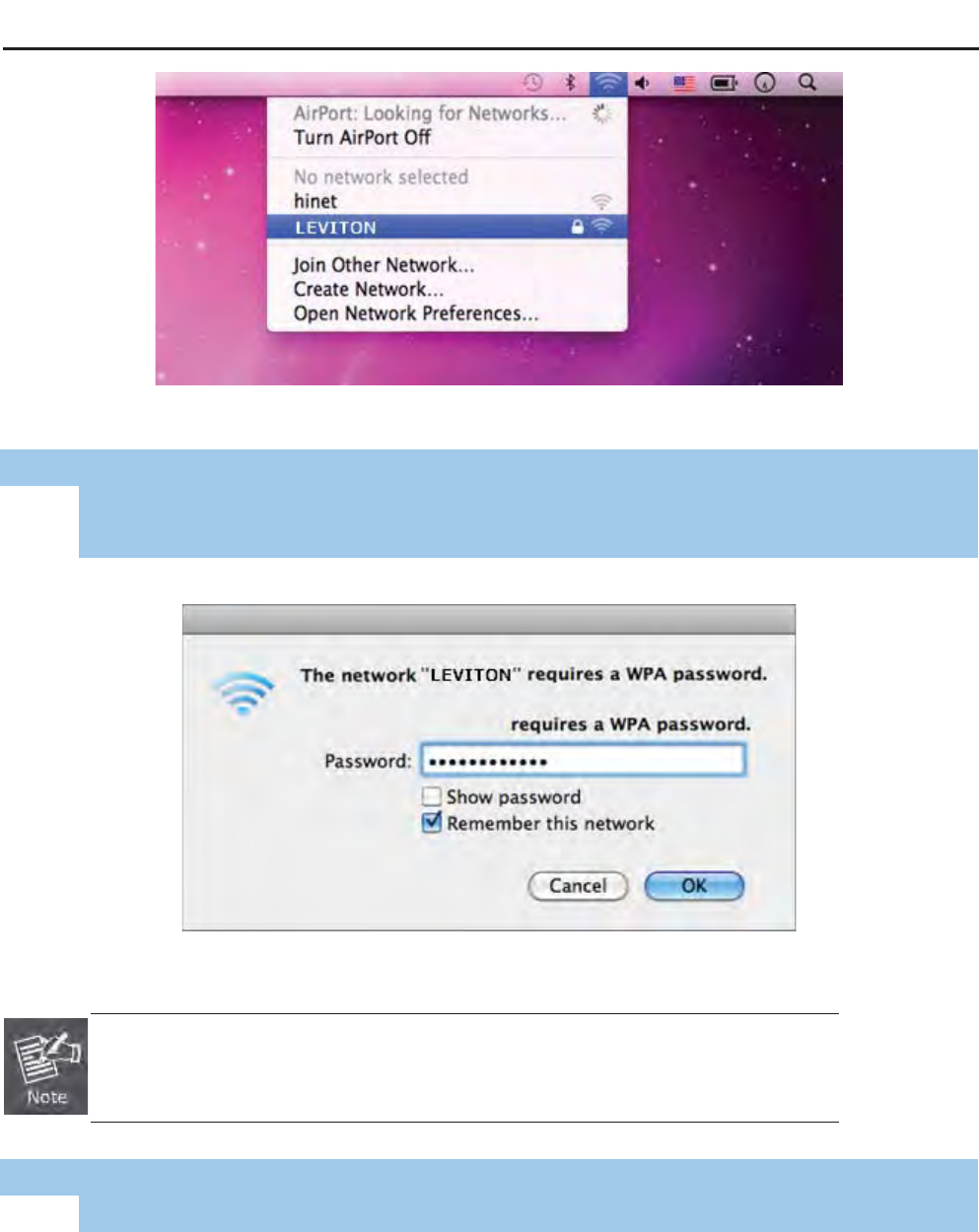

Figure 6-12
Step 4: Enter the encryption key of the Wireless Router
(1) Enter the encryption key that configured in section 5.6.2
(2) Click the [OK] button
Figure 6-13
If you will connect this Wireless Router in the future, check [Remember this
network].
Step 5: Check if the AirPort is connect to the selected wireless network.
If “Yes”, then there will be a “check” symbol in the front of the SSID.
User Manual of 47611-WG4
-117-

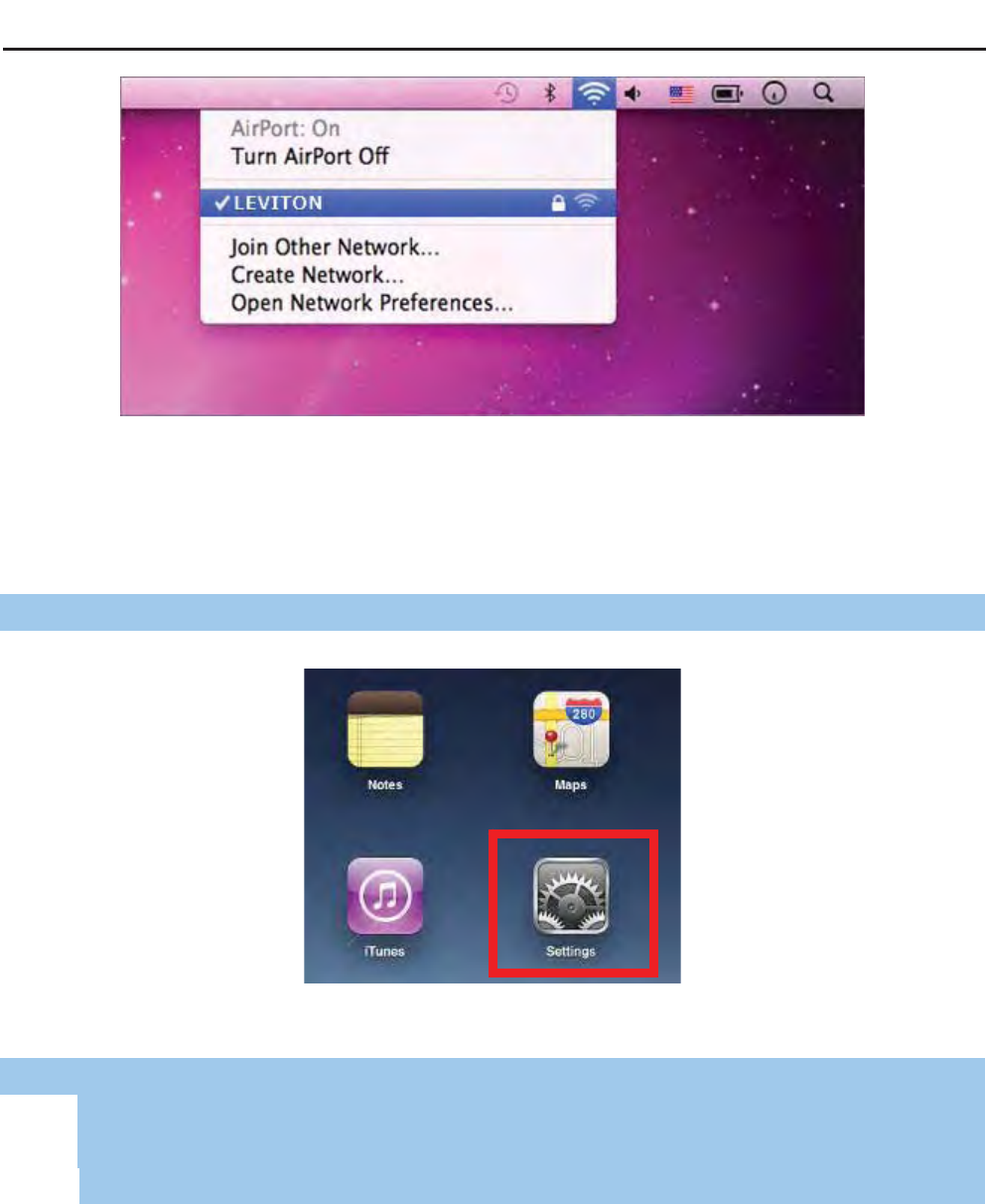

Figure 6-14
6.4 iPhone / iPod Touch / iPad
Step 1: Tap the [Settings] icon displayed in the home screen
Figure 6-15

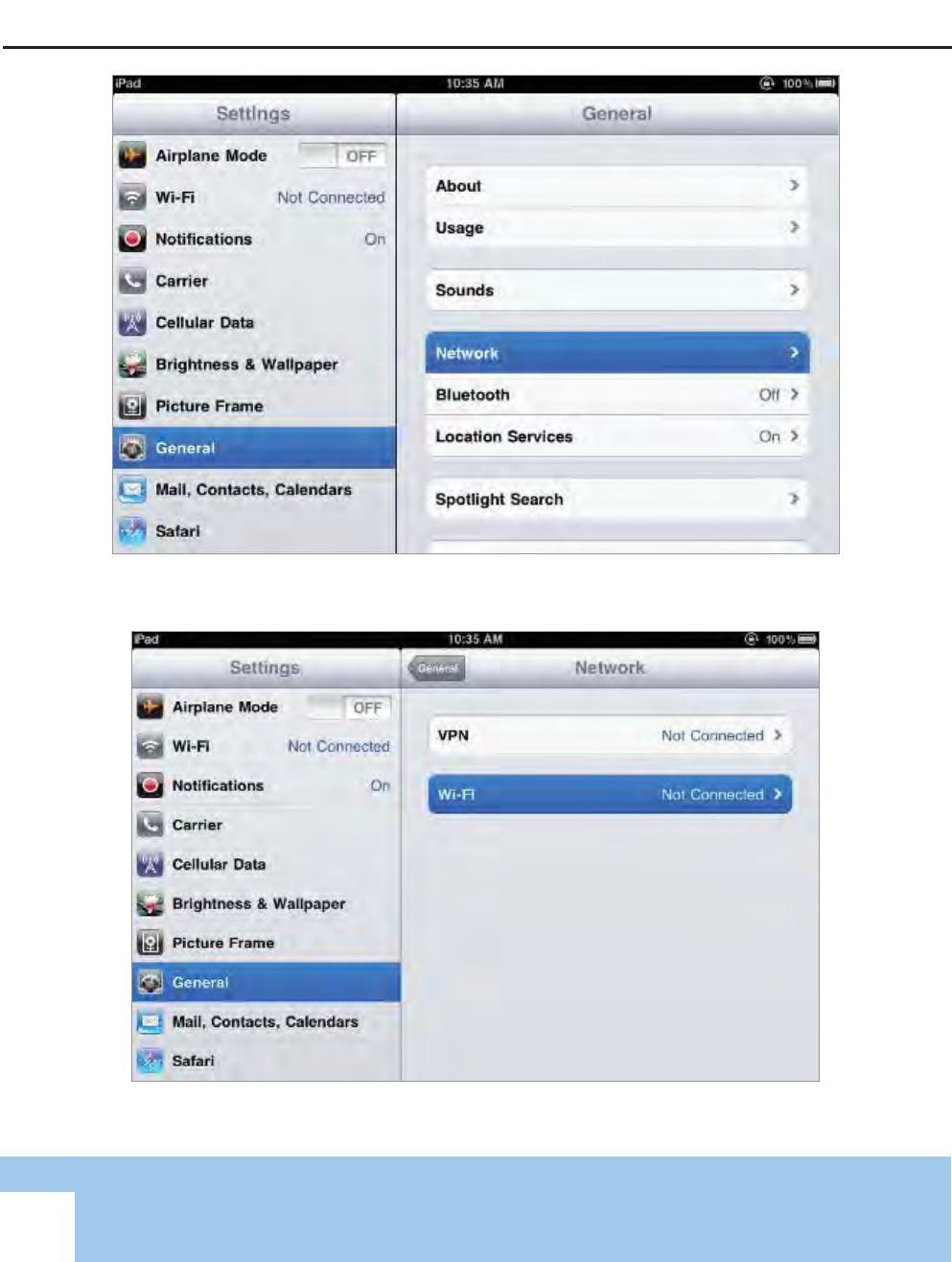

Step 2: Check Wi-Fi setting and select the available wireless network
(1) Tap [General] \ [Network]
(2) Tap [Wi-Fi]
If this is the first time to connect to the Wireless Router, it should shows “Not Connected”.
User Manual of 47611-WG4
-118-
Figure 6-16
Figure 6-17
Step 3: Tap the target wireless network (SSID) in “Choose a Network…”
(1) Turn on Wi-Fi by tapping “Wi-Fi”
(2) Select SSID [LEVITON]
User Manual of 47611-WG4
-119-

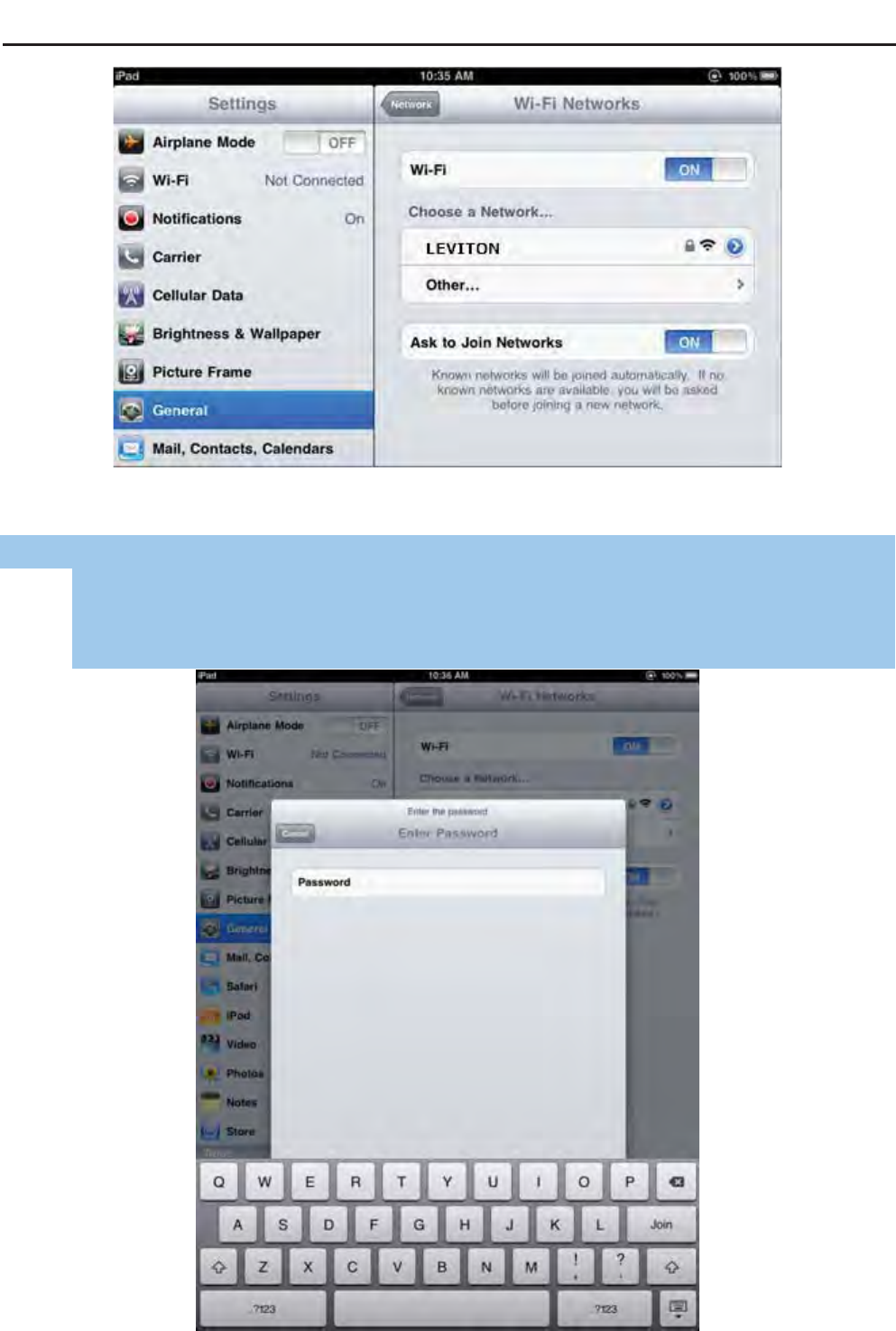

Figure 6-18
Step 4: Enter the encryption key of the Wireless Router
(1) The password input screen will be displayed
(2) Enter the encryption key that configured in section 5.6.2
(3) Tap the [Join] button
Figure 6-19
User Manual of 47611-WG4
-120-

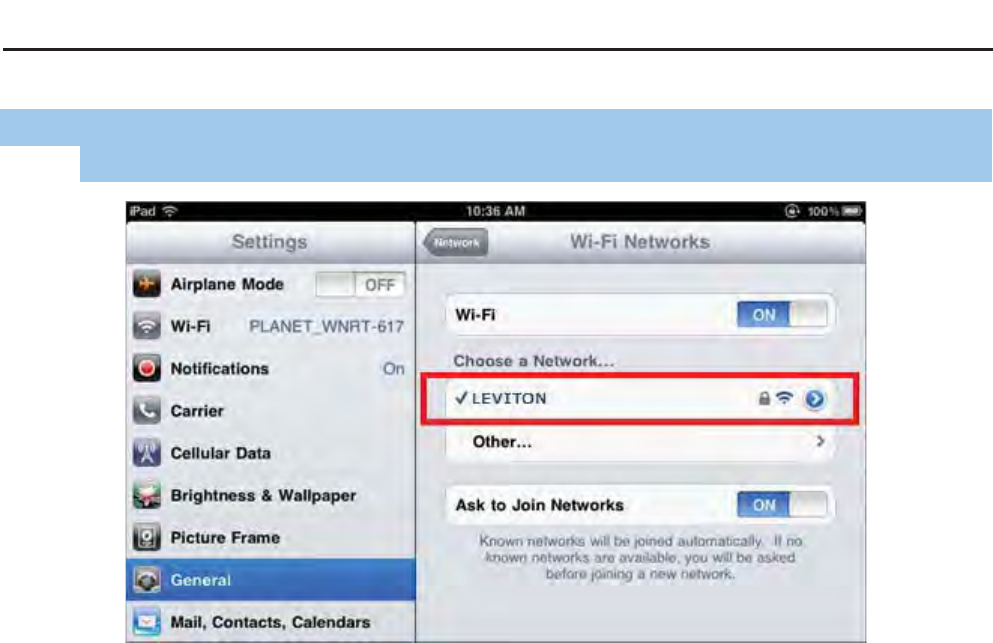

Step 5: Check if the iDevice is connect to the selected wireless network.
If “Yes”, then there will be a “check” symbol in the front of the SSID.
Figure 6-20
User Manual of 47611-WG4
-121-
Appendix A: Leviton Smart Discovery Utility
To easily list the device in your Ethernet environment, the Smart Discovery Utility from user’s manual CD-ROM
is an ideal solution.
The following installation instructions guide you to running the Smart Discovery Utility.
Step 1: Deposit the Leviton Smart Discovery Utility in administrator PC.
Step 2: Run this utility and the following screen appears.
Step 3: Press “Refresh” button for current connected devices in the discovery list as shown in the following
screen:
Step 4: Press “Connect to Device” button and then the Web login screen appears.
The fields in white background can be modified directly, and then you can apply the new setting by
clicking the “Update Device” button.
User Manual of 47611-WG4
-122-
Appendix B: Troubleshooting
If you found the router is working improperly or stop responding to you, please read this troubleshooting first
before contacting the Leviton Tech Support for help,. Some problems can be solved by yourself within very short
time.
Scenario Solution
The router is not responding
to me when I want to access
it by web browser.
a. Please check the connection of the power cord and the
Ethernet cable of this router. All cords and cables should
be correctly and firmly inserted to the router.
b. If all LEDs on this router are off, please check the status
of power adapter, and make sure it is correctly powered.
c. You must use the same IP address section which router
uses.
d. Are you using MAC or IP address filter? Try to connect
the router by another computer and see if it works; if not,
please reset the router to the factory default settings
(pressing ‘reset’ button for over 10 seconds).
e. Set your computer to obtain an IP address automatically
(DHCP), and see if your computer can get an IP
address.
f. If you did a firmware upgrade and this happens, contact
the Leviton Tech Support for help.
g. If all the solutions above don’t work, contact the Leviton
Tech Support for help.
I can’t get connected to the
Internet.
a. Go to ‘Status’ -> ‘Internet Connection’ menu, and check
Internet connection status.
b. Please be patient, sometime Internet is just that slow.
c. If you connect a computer to Internet directly before, try
to do that again, and check if you can get connected to
Internet with your computer directly attached to the
device provided by your Internet service provider.
d. Check PPPoE / L2TP / PPTP user ID and password
again.
e. Call your Internet service provide and check if there’s
something wrong with their service.
f. If you just can’t connect to one or more website, but you
can still use other internet services, please check
URL/Keyword filter.
g. Try to reset the router and try again later.
h. Reset the device provided by your Internet service
provider too.
i. Try to use IP address instead of hostname. If you can
use IP address to communicate with a remote server,
User Manual of 47611-WG4
-123-
but can’t use hostname, please check DNS setting.
I can’t locate my router by my
wireless device.
a. ‘Broadcast ESSID’ set to off?
b. All two antennas are properly secured.
c. Are you too far from your router? Try to get closer.
d. Please remember that you have to input ESSID on your
wireless client manually, if ESSID broadcast is disabled.
File download is very slow or
breaks frequently.
a. Are you using QoS function? Try to disable it and try
again.
b. Internet is slow sometimes, being patient.
c. Try to reset the router and see if it’s better after that.
d. Try to know what computers do on your local network. If
someone’s transferring big files, other people will think
Internet is really slow.
e. If this never happens before, call you Internet service
provider to know if there is something wrong with their
network.
I can’t log into the web
management interface; The
password is wrong.
a. Make sure you’re connecting to the correct IP address of
the router!
b. Password is case-sensitive. Make sure the ‘Caps Lock’
light is not illuminated.
c. If you really forget the password, do a hard reset.
The router becomes hot a. This is not a malfunction, if you can keep your hand on
the router’s case.
b. If you smell something wrong or see the smoke coming
out from router or A/C power adapter, please disconnect
the router and A/C power adapter from utility power
(make sure it’s safe before you’re doing this!), and call
your dealer of purchase for help.
User Manual of 47611-WG4
-124-
Appendix C: Configuring the PC in Windows 7
In this section, we’ll introduce how to configure the TCP/IP correctly in Windows 7. First make sure your Network
Adapter is working, refer to the adapter’s manual if needed.
1) On the Windows taskbar, click the Start button, and then click Control Panel.

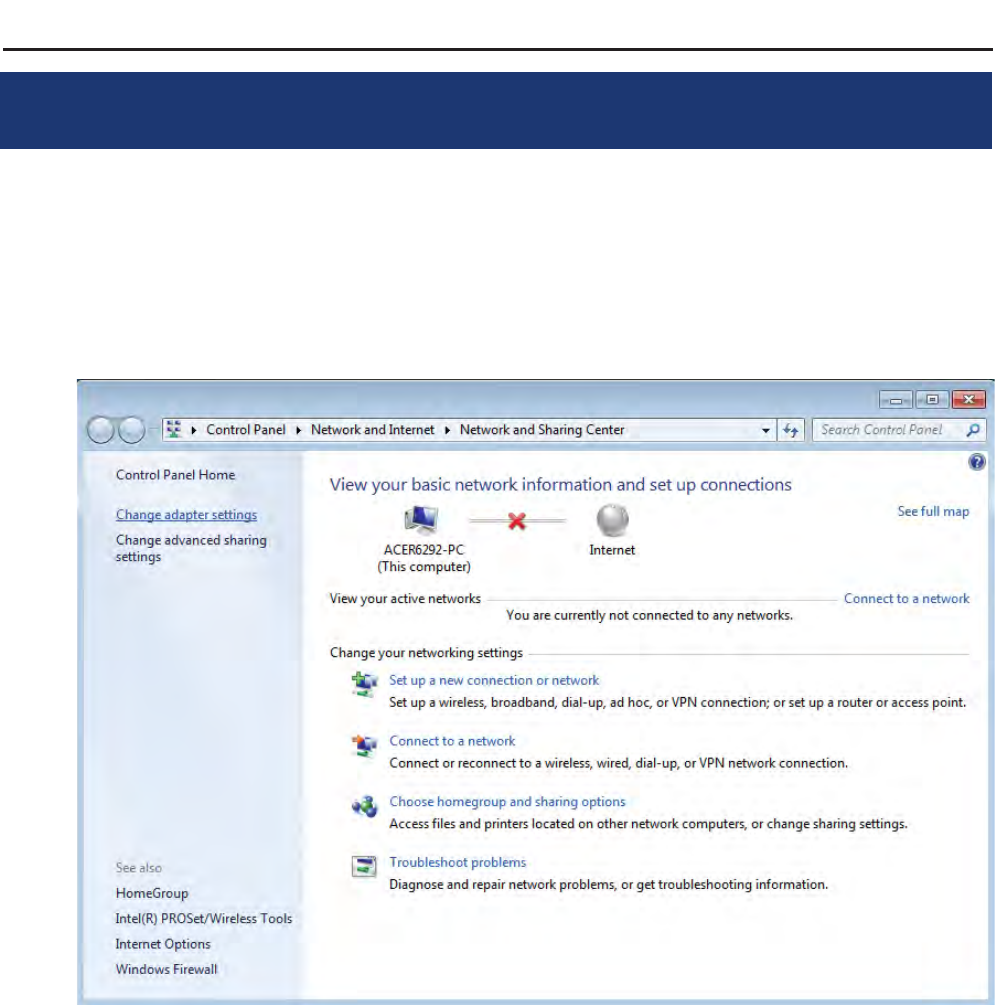

2) Click the Network and Sharing Center icon, and then click the Change adapter settings on the left
side of the screen.
Figure B-1

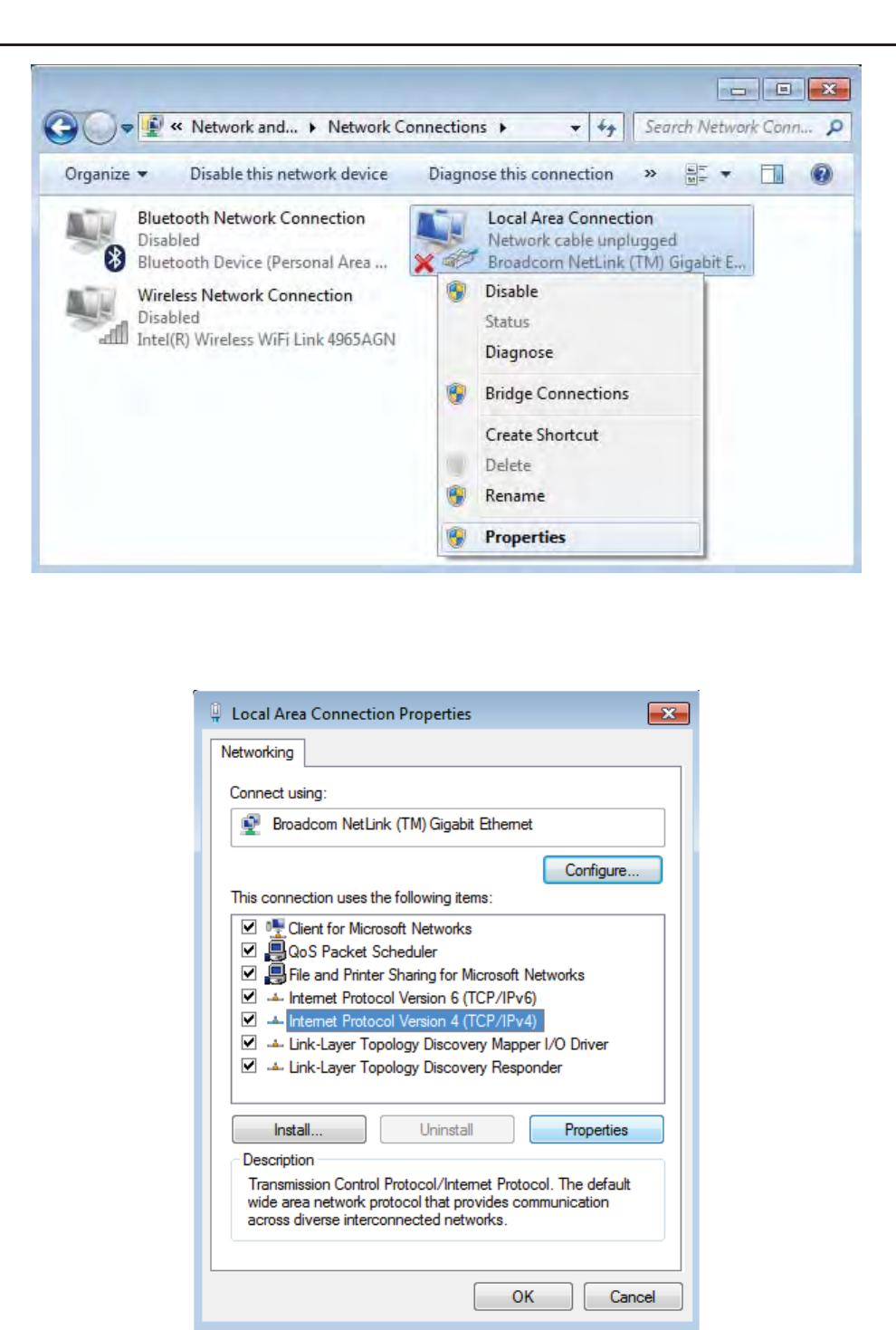

3) Right click the icon of the network adapter shown in the figure below, and select Properties on the
prompt window.
User Manual of 47611-WG4
-125-
Figure B-2
4) In the prompt page shown below, double click on the Internet Protocol Version 4 (TCP/IPv4).
Figure B-3
User Manual of 47611-WG4
-126-
5) The following TCP/IP Properties window will display and the IP Address tab is open on this window
by default.
Now you have two ways to configure the TCP/IP protocol below:

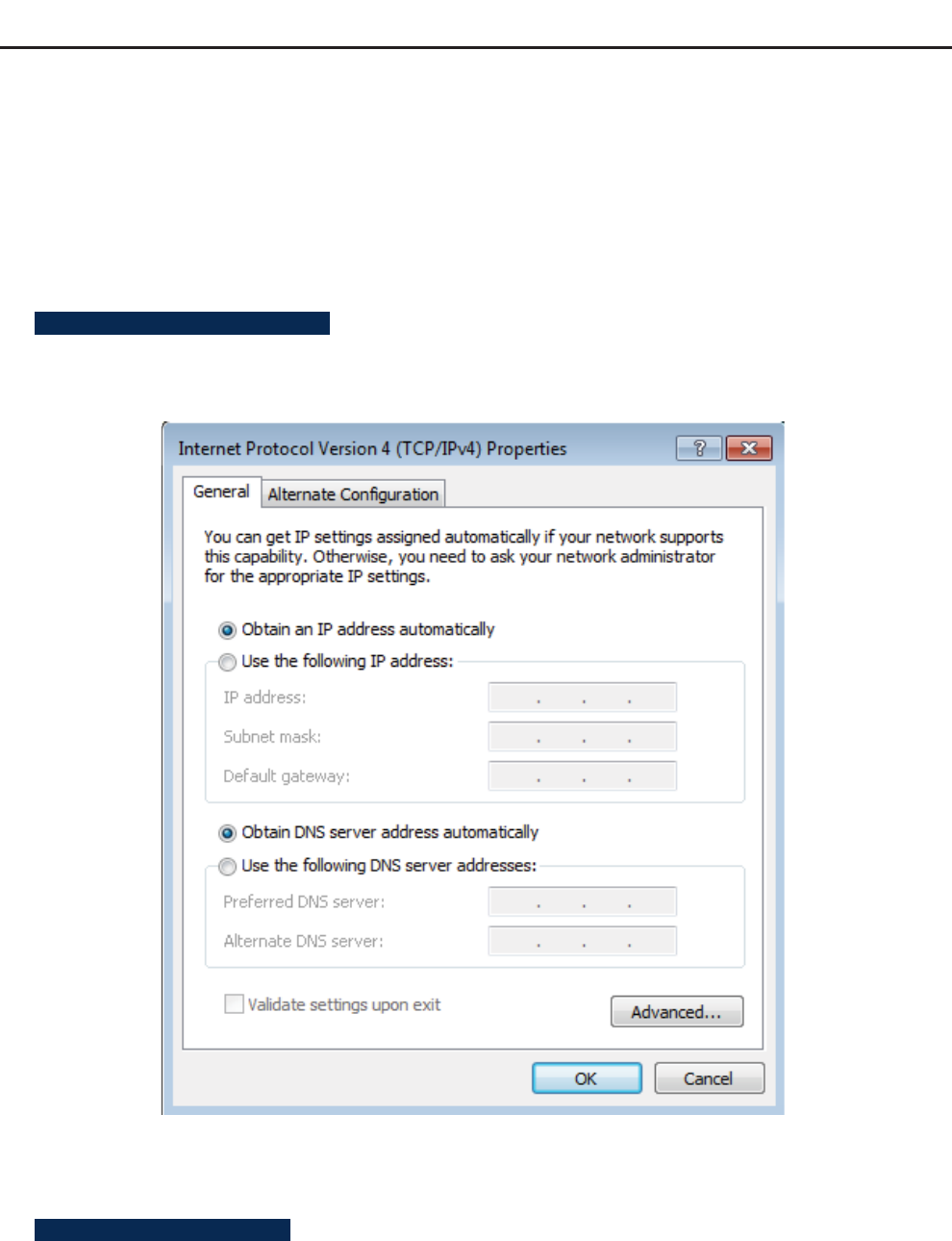

¾Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server address automatically, as shown in
the Figure below:
Figure B-4

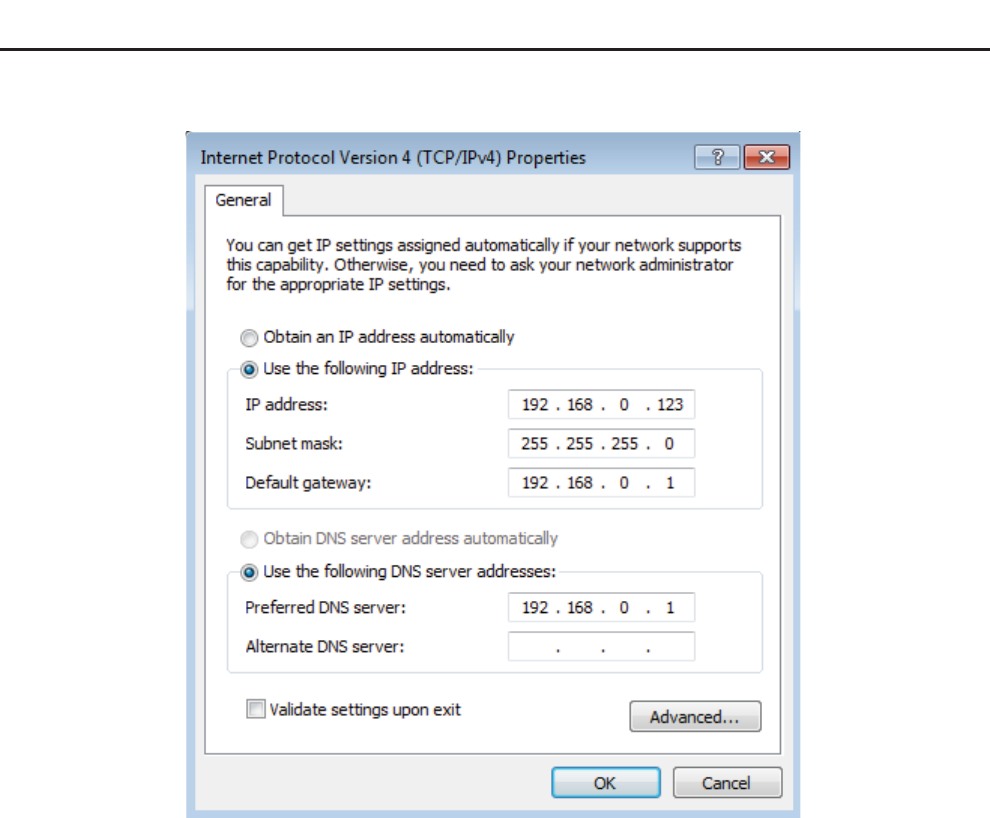

¾Setting IP address manually
1Select Use the following IP address radio button.
2If the Router's LAN IP address is 192.168.0.1, type in IP address 192.168.0.x (x is from 2 to 254), and
Subnet mask 255.255.255.0.
3Type the Router’s LAN IP address (the default IP is 192.168.0.1) into the Default gateway field.
4Select Use the following DNS server addresses radio button. In the Preferred DNS Server field you can
User Manual of 47611-WG4
-127-
type the DNS server IP address which has been provided by your ISP
Figure B-5
Now click OK to keep your settings.
User Manual of 47611-WG4
-128-
Appendix D: Specifications
Product 47611-WG4
300Mbps Dual-Band 802.11n Wireless Gigabit Router
Hardware Specification
WAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port
LAN Port: 3 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 ports (LAN1~3)
IPTV Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port (LAN4)
Interface
USB Port : USB 2.0, Type-A, 5V DC/0.5A Output
Gain: 2 x 5dBi fixed antenna
Antenna Orientation: Omni-directional
Reset / WPS Button
Reset / WPS button at rear panel
Press for about 7 seconds to reset the device to factory default.
Press for 1 second to activate WPS function.
LED Indicators
PWR/SYS, WLAN (2.4G & 5G) x 2
WAN (Link & 1000Mbps) x 1
LAN (Link & 1000Mbps) x 3
IPTV (Link & 1000Mbps) x 1
USB, WPS
Material Plastic
Dimension (WxDxH) 171.61 x 111.16 x 25.47 mm (W x D x H)
Weight 8.81oz
Power Requirement 12V DC, 1A
Wireless interface Specification
Standard Compliance with IEEE 802.11a/b/g/n
Frequency Band
Simultaneous 2.4 GHz and 5 GHz
2.4GHz: 2.412~2.484GHz
5GHz: 5.180~5.825GHz
Transmission
Distance Indoor up to 100m
RF Power
(Intentional Radiator)
2.4GHz:
11b: 17±1dBm
11g: 14.5±1.5dBm
11n: 12.5±1.5dBm
5GHz:
11a: 12±1.5dBm
11n: 12±1.5dBm
Wireless Management Features
Wireless Modes
AP
WDS PtP
WDS PtMP
Encryption Security
WEP (64/128-bit)
WPA-PSK (TKIP) / WPA2-PSK (AES)
WPA (TKIP) / WPA2 (AES)
Provide Wireless LAN ACL (Access Control List) filtering
Wireless Security
Wireless MAC address filtering
User Manual of 47611-WG4
-129-
Support WPS (WIFI Protected Setup )
Support Dual-SSID (2.4G & 5G)
AP Isolation: Enable it to isolate each connected wireless client.
Wireless Advanced
Support 802.11e WMM (Wi-Fi Multimedia)
Max. Supported
Clients
Wire: 15
Wireless: 10
Router Features
Internet Connection
Type
Shares data and Internet access for users, supporting following internet
access:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
PPPoE Dual Access
NAT firewall
Built-in NAT server which supports Virtual Server, and DMZ
Firewall Built-in firewall with IP address filtering, Port filtering, URL filtering, and MAC
address filtering
Routing Protocol Static Routing
Built-in DHCP server supporting static IP address distributing
Support UPnP, Dynamic DNS
Support Packets Statistics
IP-based Bandwidth Control
LAN
Session Number: Max. 8000
Web-based (HTTP) management interface
Remote management (WAN Access Control)
SNTP time synchronize
System Management
System Log
OS Compatibility
Windows 7
Windows Vista
Windows XP
Mac OS X 10.4 and higher
User Manual of 47611-WG4
-130-
Appendix E: Glossary
¾802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) [3] was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
¾802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as
Wi-Fi networks.
¾802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed
radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP
encryption for security.
¾DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain name to
a dynamic Internet IP Address.
¾DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the TCP/IP
parameters for the all the PC(s) that are connected to a DHCP server.
¾DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the Internet
for a special-purpose service such as Internet gaming or videoconferencing.
¾DNS (Domain Name System) - An Internet Service that translates the names of websites into IP
addresses.
¾Domain Name - A descriptive name for an address or group of addresses on the Internet.
¾DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing
traditional phone lines.
¾ISP (Internet Service Provider) - A company that provides access to the Internet.
¾MTU (Maximum Transmission Unit)- The size in bytes of the largest packet that can be transmitted.
¾NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network
to a different IP address for the Internet.
¾PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote hosts to
the Internet over an always-on connection by simulating a dial-up connection.
User Manual of 47611-WG4
-131-
¾SSID - AService Set Identification is a thirty-two character (maximum) alphanumeric key identifying a
wireless local area network. For the wireless devices in a network to communicate with each other, all
devices must be configured with the same SSID. This is typically the configuration parameter for a
wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network
name.
¾WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit
shared key algorithm, as described in the IEEE 802.11 standard.
¾Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet
Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting
interoperability among 802.11b devices.
¾WLAN (Wireless Local Area Network) - A group of computers and associated devices communicate
with each other wirelessly, which network serving users are limited in a local area.
