Introduction
About your printer
Your printer is available in three models:
To customize your Lexmark C912 printer,
you can purchase a variety of input
options, including a high capacity feeder.
If you purchased a finisher to go with your
printer, refer to the documentation that
came with the finisher for information
about setting it up with the printer.
High capacity
feeder
(see page 10)
Printer base
(see page 5)
Printer
(see page 6)
550-sheet
drawers
(see page 5)
Duplex unit
(see page 8)
•Lexmark C912 (base model)
•
•
– 2400 IQ resolution
– 128MB of standard memory
– One 550-sheet tray,
multipurpose feeder
– USB and parallel connectors
Lexmark C912n (network model)
– 256MB of standard memory
– One additional 550-sheet drawer
– Ethernet 10BaseT/100BaseTX
print server installed
– USB and Ethernet connectors
Lexmark C912dn (duplex network)
– Duplex unit
– All features of the network model
Introduction
viii
Other sources of information
Publications CD
Quick Reference and Clearing Jams sheets
Drivers CD
Lexmark’s Web site
The publications CD provides
information about loading paper, clearing
error messages, ordering and replacing
supplies, installing maintenance kits, and
troubleshooting. It also provides general
information for administrators.
The information on the CD is also
available on the Lexmark Web site at
www.lexmark.com/publications.
The Quick Reference and Clearing Jams
sheets provide easy access to
information about loading print media,
understanding common printer
messages, and clearing paper jams.
The drivers CD contains all the
necessary files to get your printer up and
running. It may also contain printer
utilities, screen fonts, and additional
documentation.
Visit our Web site at www.lexmark.com
for updated printer drivers, utilities, and
other printer documentation.
Introduction
ix
Step 1: Unpack your printer

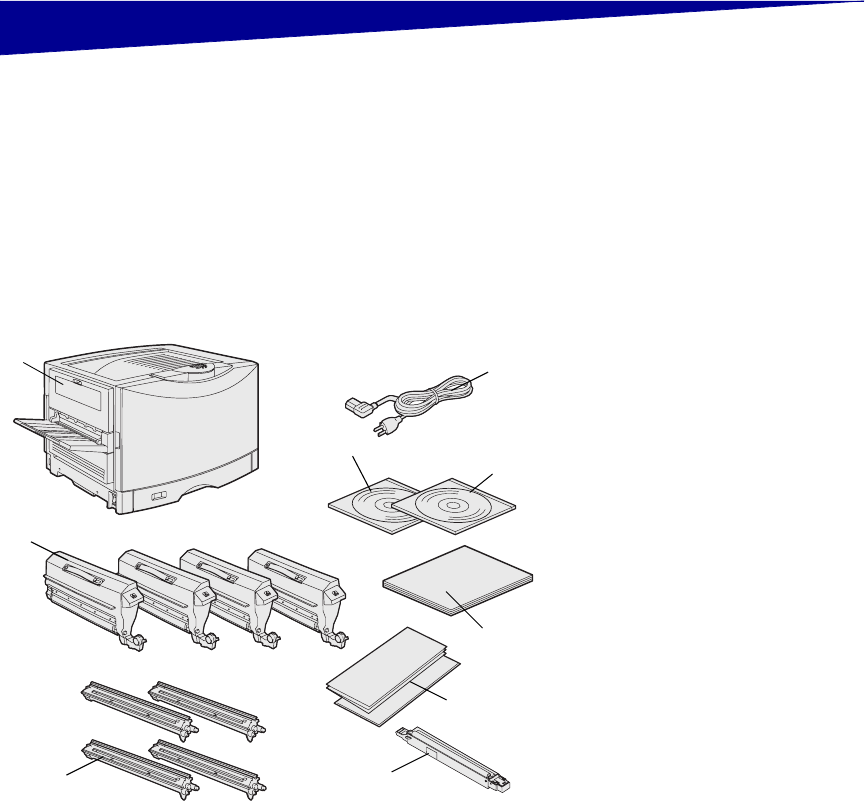

CAUTION: The base printer weighs 80.5 kg (177 Ib) and Remove all items from the box except the
requires at least four people to lift it safely. Anytime you printer. Make sure you have the following
move or lift the printer make sure you have enough people items:
to help you. Use the handholds on the side of the printer (1) Printer
when lifting. (2) Four toner cartridges
Note: Leave the printer in the box until you are ready to (3) Four photodevelopers
8 7
1
place it into position. (4) Fuser oil coating roll
(5) Quick Reference and
9 Clearing Jams sheets
(6) Setup Guide
(7) Publications CD
(8) Drivers CD
(9) Power cord
If any items are missing or damaged,
2 refer to the publications CD for
information about contacting Lexmark
Customer Support.
Save the carton and packing materials in
case you need to repack the printer.
6
5
4
3
Unpack your printer
1
Step 2: Select a location for your
printer
Considering
environmental
issues
Note: Adequate ventilation
is important if you expect to
print high volumes of
materials or print
continuously.
Allowing enough
space
Choosing the correct location for your new Lexmark C912 printer is
vital to ensuring the printer provides you with the quality of service you
expect.
When choosing a place to set up the printer, look for:
• A firm, level surface
• An area that is:
– Well ventilated
– Clean, dry, and free of dust
– Away from direct sunlight
– Free of temperature or humidity extremes or fluctuations
– Away from the direct airflow of heaters, air conditioners, or
ventilators
When choosing a place to set up your printer, allow enough space for
the printer and any options you may have purchased. Allow space for
proper ventilation around the printer.
Select a location for your printer
2
When selecting a location for the base model, make sure you have at
least the amount of space indicated in the figure.
660.4 mm
(26 in.)
1498.6 mm
(59 in.) 1181.1 mm
(46.5 in.)
740.6 mm
(29.1 in.)
127 mm
(5 in.) 152.1 mm
(6 in.)
330.2 mm
(13 in.)
Space and clearance requirements change depending on the printer
model. See the table below for the requirements for your model.
Space and clearance requirements
Model Left side Right side Total height* Total width* Total depth*
Lexmark C912 (base) 330.2 mm
(13 in.) 152.4 mm
(6 in.) 740.6 mm
(29.1 in.) 1181.1 mm
(46.5 in.) 1498.6 mm
(59 in.)
Lexmark C912n (network) 152.4 mm
(6 in.) 869.6 mm
(34.2 in.) 1181.1 mm
(46.5 in.)
Lexmark C912dn (duplex network) 330.2 mm
(13 in.) 869.6 mm
(34.2 in.) 1355.4 mm
(53.4 in.)
Lexmark C912 with a high
capacity feeder 762 mm
(30 in.) 1384.3 mm
(54.5 in.) 1787.2 mm
(70.4 in.)
* Includes the printer and any standard options for that model.
Select a location for your printer
3
Step 3: Set up the printer and
paper handling options
If you only purchased a base printer with
no options, follow the directions under
“Positioning the printer” on page 6.
Note: Be sure to set up the items in the order listed in the Use the following table to locate the setup
table. instructions for your printer and any
paper handling options you may have
purchased.
Topic Go to page...
Installing the printer base or cabinet 5
Installing a 550-sheet drawer 5
Positioning the printer 6
Installing an optional duplex unit 8
Installing an optional high capacity feeder 10
Set up the printer and paper handling options
4
Installing the printer base or cabinet
Installing a 550-sheet drawer
You can purchase an optional printer
cabinet or printer base.
To install the printer cabinet or printer
base:
1 Remove the cabinet or base from
the box.
2 Remove all packing material.
3 Follow the instructions that came
with the option to assemble or
prepare the cabinet or base for
installation.
4 Place the cabinet or base in the
location you have chosen for your
printer.
Your printer supports up to three optional
550-sheet drawers.
1 Unpack the 550-sheet drawer and
remove any packing material.
2 Place the 550-sheet drawer in the
location you have chosen, on the
optional printer cabinet, or on the
optional printer base.
Carefully align the positioning
posts on the cabinet or base to the
holes in the 550-sheet drawer.
Set up the printer and paper handling options
5
3 If you have additional 550-sheet
drawers:
Positioning the printer
CAUTION: The base printer weighs 80.5 kg (177 Ib) and
requires at least four people to lift it safely.
a
b
c
Align the positioning posts on
the lower drawer with the holes
in the 550-sheet drawer.
Lower the 550-sheet drawer
into place. Seat it securely on
the other drawer.
Repeat steps a and b for each
additional drawer.

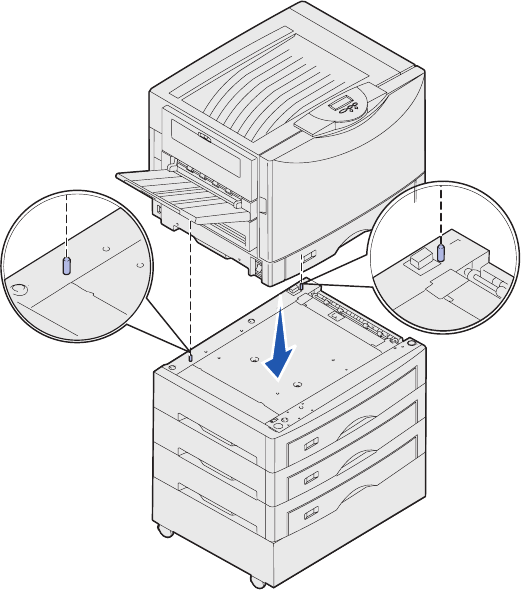

You are ready to position the printer.
1 Have three other people help you
lift the printer.
Use the handholds on the sides of
the printer.
Set up the printer and paper handling options
6
Installing an optional heavy media
tray
2 Have three other people help you
place the printer in the chosen
location.
If you are installing the printer on a
550-sheet drawer, align the
positioning posts on the drawer
with the holes in the printer. Seat
the printer securely on the drawer.
3 Remove any tape or packing
material.
Your printer supports an optional heavy
media tray. To use this tray, simply
remove the standard tray that came with
the printer (Tray 1) and replace it with the
heavy media tray. Store the standard tray
in the box the optional tray came in.
Set up the printer and paper handling options
7
Installing an optional duplex unit
Note: Refer to the publications CD for information about
the types and sizes of paper the duplex unit supports.
Your printer supports an optional duplex
unit that provides two-sided printing.
1 Remove the duplex unit from its
packing material.
2 Remove any shipping tape and
additional packing material.

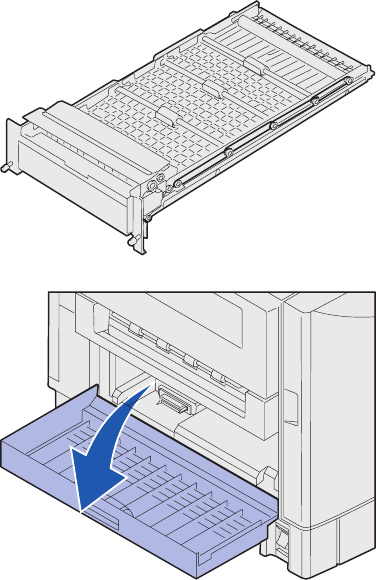

3 Open the duplex unit access door
on the left side of the printer.
Set up the printer and paper handling options
8
4 Align the duplex unit with the slots
in the printer.
5 Slide in the duplex unit.
6 Align the thumbscrews on the
duplex unit with the holes in the
printer.
7 Tighten the thumbscrews.
8 Close the duplex unit door.
Set up the printer and paper handling options
9
Installing an optional high capacity
feeder
Note: You must have an optional printer cabinet with one
optional drawer or an optional printer stand with three
optional drawers in order to install a high capacity feeder.
1 2 3
4 5 6
7 8 9
Your printer supports an optional high
capacity feeder. You can load up to 3,000
sheets of letter or A4 size paper in the
high capacity feeder.
Remove and unpack all items from the
box. Make sure you have the following
items:
(1) High capacity feeder
(2) Docking frame
(3) Guide rail
(4) Interface cable
(5) Power cord
(6) Four docking frame screws
(7) Cable holder
(8) Eight height adjustment spacers
(9) Wrench
If any items are missing or damaged,
refer to the publications CD for
information about contacting Lexmark
Customer Support.
Make sure the printer power switch is Off.
Set up the printer and paper handling options
10

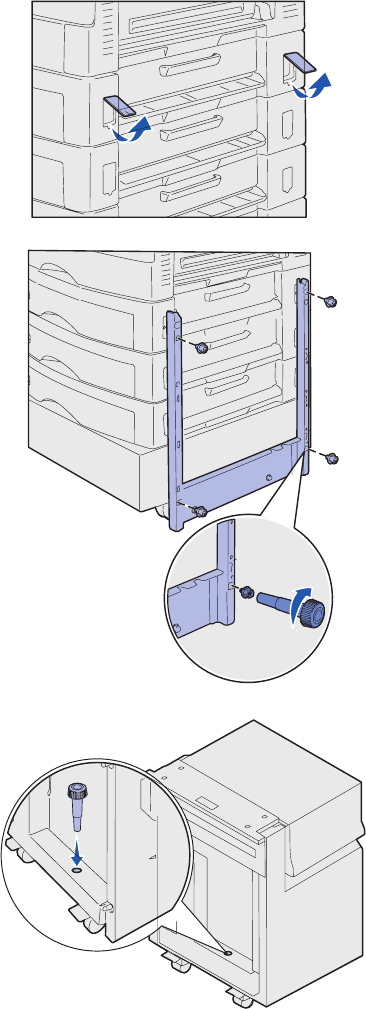

Attaching the docking frame
1 Remove the two side covers from
the top 550-sheet drawer.
You may need to use a small
flathead screwdriver to pry the
covers up and outward.
2 Insert two screws through the top
screw holes of the docking frame
as shown.
3 Use the wrench to tighten the
screws.
4 Insert two screws through the
bottom screw holes of the docking
frame as shown.
5 Tighten the screws.
6 Place the wrench in the holder on
the high capacity feeder.
Set up the printer and paper handling options
11
Attaching the guide rail and feeder
Note: Make sure all four casters are on the guide rail.
1 Align the two holes on guide rail
with the studs on the docking
frame.
2 Slide the guide rail down until it is
fully seated on the docking rail and
flat against the floor.
3 Place the high capacity feeder on
the guide rail.
Set up the printer and paper handling options
12
4 Roll the high capacity feeder
toward the printer and check the
alignment of the pins with the
holes in the docking frame.
If the pins do not align with the
holes in the docking frame, see
“Installing height adjustment
spacers” on page 15.
5 Roll the high capacity feeder
toward the printer until the feeder
locks to the docking frame.
You hear a click when the feeder
locks into the correct position.
6 Attach the interface cable to the
back of the printer and tighten the
thumbscrews.
Do not install the high capacity
feeder power cord at this time.
Set up the printer and paper handling options
13
7 Attach the interface cable to the
rear of the high capacity feeder
and tighten the thumbscrews.
8 Insert the point on the cable holder
into the hole on the back of the top
optional drawer.
9 Place the high capacity feeder
cable into the holder.
10 Close the cable holder.
Set up the printer and paper handling options
14
Installing height adjustment spacers If the pins on the high capacity feeder do
not align with the holes in the docking
frame, adjust the height of the feeder.
You can either remove the factory
installed spacer or add two spacers
between each caster and the bottom of
the high capacity feeder.
Use the following steps to add or remove
spacers.
1 Determine the height difference
between high capacity feeder
alignment pins and the docking
frame.
2 Place the high capacity feeder on
the floor or adequate work surface.
3 Remove the four screws securing
one of the casters to the high
capacity feeder.
4 Add or remove spacers.
To add spacers:
a Insert the four screws through
the caster.
b Place the spacers on the
screws.
c Align and insert the screws into
the screw holes on the high
capacity feeder.
Set up the printer and paper handling options
15

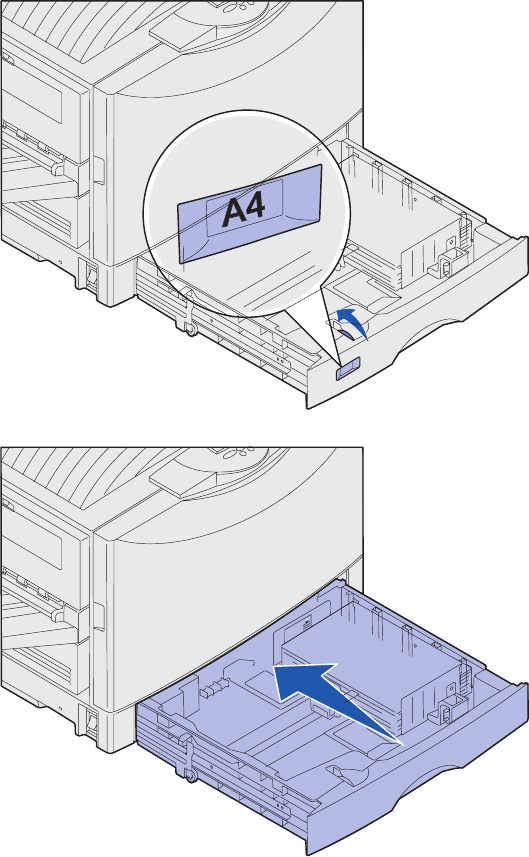

Attaching the paper tray labels
1
2
3
4
5
3
or
depending on
configuration
To remove the factory installed
spacer:
a Remove the spacer from the
top of the caster.
b Insert the four screws through
the caster.
c Align and insert the screws into
the screw holes on the high
capacity feeder.
5 Tighten the four screws to secure
the caster.
6 Repeat steps 3 through 5 to add or
remove spacers on the remaining
three casters.
7 Return to step 5 on page 13.
Paper tray labels are included with each
paper tray option. Use the labels to
indicate the tray number and to help
identify paper jams and change paper
tray menu options.
Number the trays in sequential order,
according to the illustration. The actual
number for the trays may differ depending
on your printer configuration.
Set up the printer and paper handling options
16
Step 4: Install printer supplies

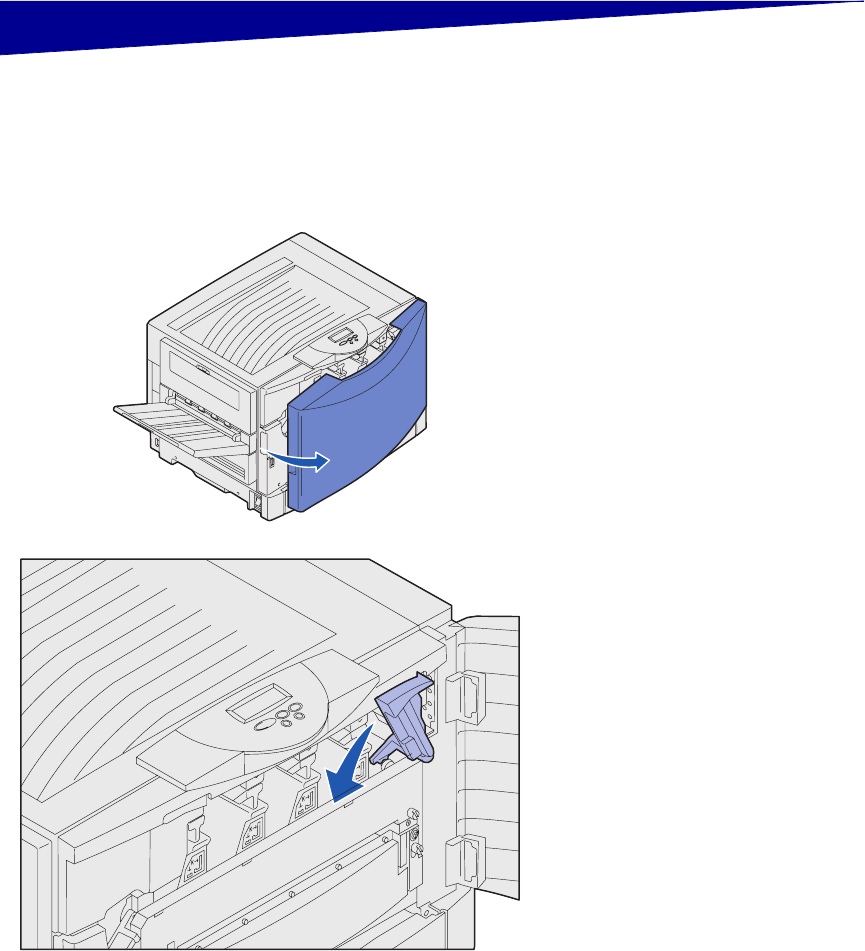

Opening the top cover To access the Lexmark C912 printer
supplies:
1 Remove any shipping tape and
packing material.
2 Open the front door.
3 Rotate the top cover locking lever
to the left.
Install printer supplies
17
Note: The top cover opens very quickly; keep both hands
on the top cover when opening.

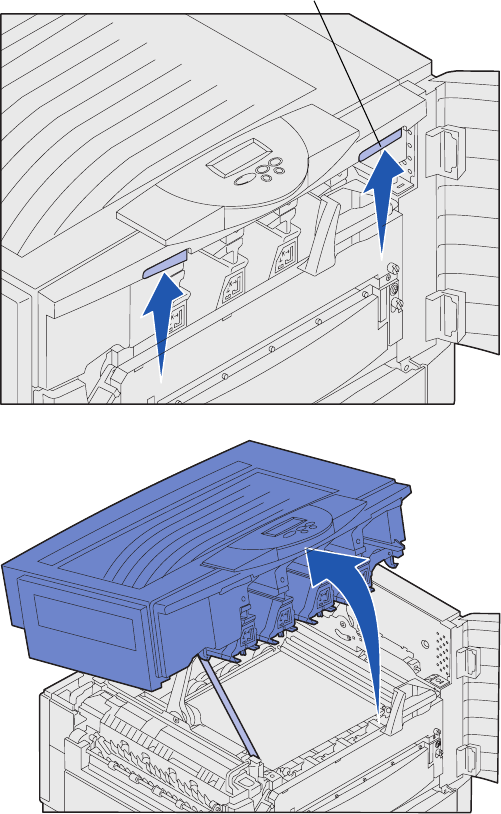

4 Place both hands on the lifting
Right top cover latch points and squeeze the right top
cover latch.
5 Lift the top cover until it stops.
Install printer supplies
18

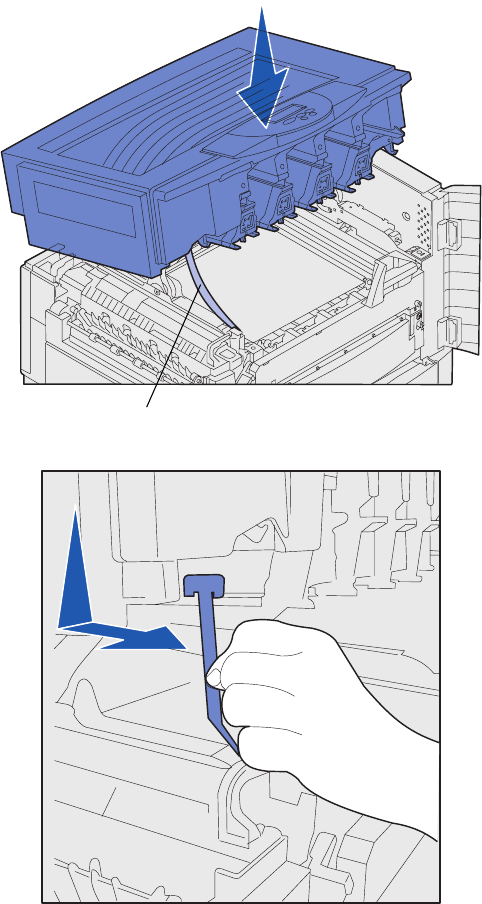

6 Remove the shipping strap that
holds the cover:
a Push down slightly on the
cover.
Shipping strap
b Twist the top part of the strap
slightly to pull it down and
toward the front of the printer
until it is free of the cover.
Install printer supplies
19
c Remove the bottom part of the
strap from the printer.
7 Remove any shipping tape and
yellow packing material from
inside the printer.
Installing the fuser oil coating roll
1 Remove the coating roll from its
packaging.
CAUTION: Do not touch the coating roll. Only touch the
coating roll’s outside housing.
Install printer supplies
20
2 Slide the coating roll into the fuser
by pushing it firmly all the way back
until it clicks into place.
Make sure the coating roll drops
down into position. It clicks into
place with no gap between it and
the fuser.
Install printer supplies
21

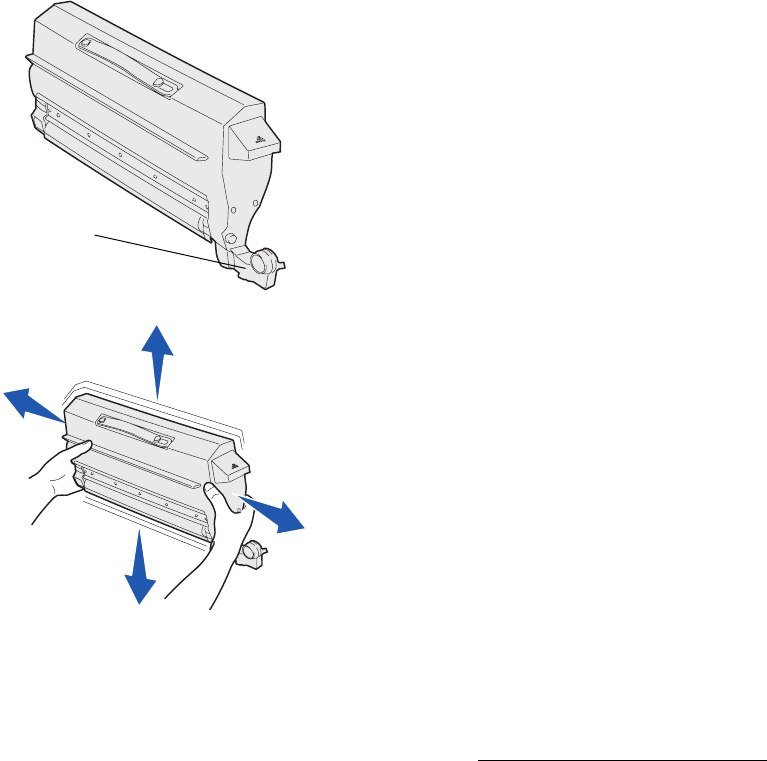

Installing the photodevelopers
Warning: Do not touch, drop, or place anything on the
transfer belt. Touching the surface of the transfer belt or
placing items on it may damage it.
Transfer belt
Warning: The photodeveloper has a cover over the
green glass tube. Do not touch the glass. Touching the
glass may damage it and reduce print quality. Do not
remove the cover until you begin installing the
photodeveloper.
Your printer ships with four color-coded
photodevelopers which you must place
inside the top cover. Each
photodeveloper has its own color-coded
position.
1 Lift and remove the four shipping
spacers from the transfer belt.
2 Remove any shipping tape and
packing material.
3 Remove one of the
photodevelopers from its packing
material.
You can install the
photodevelopers in any order.
However, it may be easier to install
them from left to right: black,
yellow, cyan, and magenta.
4 Remove the tape from the
photodeveloper.
Install printer supplies
22

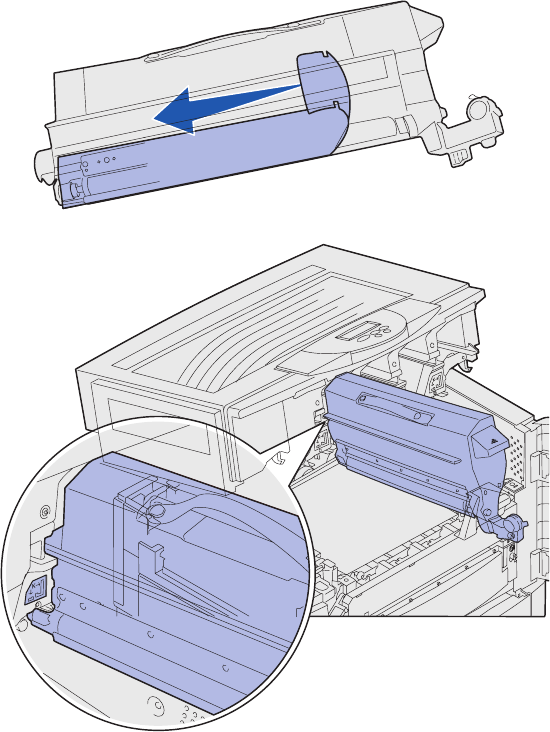

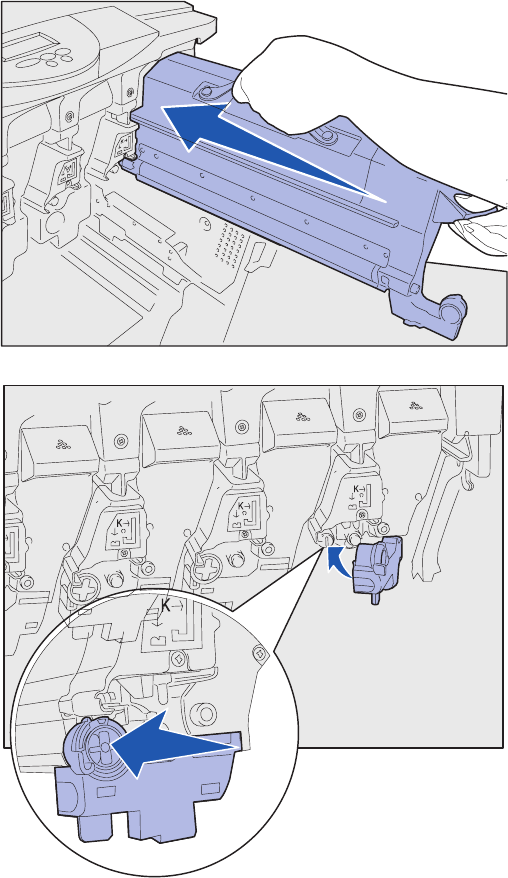

5 Align the photodeveloper with the
slot in the printer. A label above
each slot indicates which color
photodeveloper should be
installed.
6 While holding the photodeveloper
with your left hand and the
photodeveloper cover with your
right hand, slide the
photodeveloper in until the unit is
fully seated.
As the photodeveloper slides in,
remove its cover.
7 Repeat steps 3 through 6 to install
the remaining photodevelopers.
Install printer supplies
23
Installing the toner cartridges
Note: Use a brush or cold water to remove any toner that
has soiled clothing.
Waste toner arm
Your printer ships with four color-coded
starter toner cartridges. Starter toner
cartridges have a yield of up to 8,0001
pages.
Install the toner cartridges inside the top
cover of the printer. Each cartridge has its
own color-coded position as indicated by
a label to the left of each slot.
1 Remove one of the toner
cartridges from its packing
material.
You can install the cartridges in
any order. However, it may be
easier to install them from left to
right: black, yellow, cyan, and
magenta.
2 Gently rotate the toner cartridge to
distribute the toner evenly.
1 Yield based on approximately 5% coverage
of pages per color (toner darkness set to 4).
Install printer supplies
24
3 Remove the shipping tape and any
additional packing material.
4 Align the toner cartridge with its
slot in the printer.
The toner cartridge is placed to the
right of the corresponding colored
label.
Install printer supplies
25
Attaching an adhesive operator
panel overlay
Closing the top cover
CAUTION: Before closing the top cover, make sure the
area under the cover is free of hands, clothing, and other
items.
If English is not your preferred language,
attach the overlay that has the
appropriately translated button names:
1 Locate the adhesive overlay
packaged with your printer.
2 Peel the backing off the overlay.
3 Align the holes in the overlay with
the buttons on the operator panel,
and then press it into place.
4 Peel the covering away from the
overlay.
Refer to the publications CD for
instructions on changing the language of
the text displayed on the operator panel.
1 Place both hands on the top cover.
2 Press down firmly until the top
cover clicks into place.
Install printer supplies
27

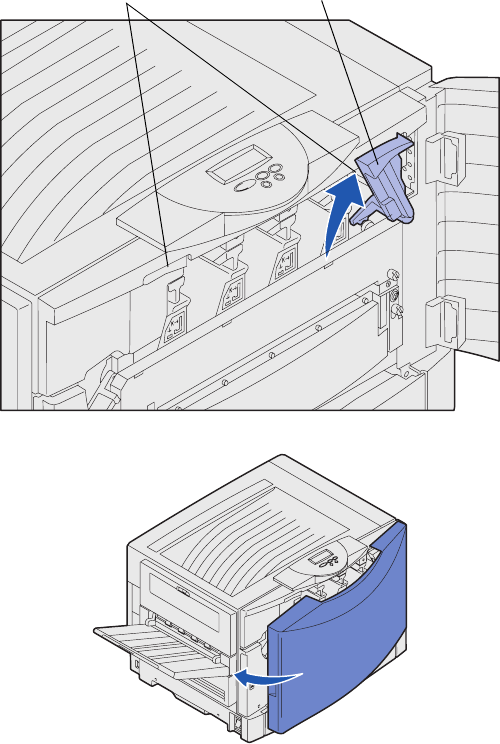

3 Rotate the top cover locking lever
Lifting points Top cover lever to the right.
If you cannot rotate the locking
lever, the cover is not fully closed.
a Place both hands on the lifting
points and squeeze the right
top cover latch.
b Lift the top cover.
c Press down firmly until the top
cover clicks into place.
4 Close the front door.
Install printer supplies
28
Step 5: Install memory and
option cards
CAUTION: If you are installing memory or option cards
after initial printer setup, turn the printer off and unplug the
power cord. If you have any other devices connected to
the printer, turn them off as well and unplug any cables
going to the printer.
Removing the system board access
cover
Rear cover
If you did not purchase any memory,
firmware, or option cards, skip this step
and go to “Step 6: Load paper” on
page 38.
You can customize your printer memory
capacity and connectivity by adding
option cards or a hard disk.
You must remove the system board cover
to install memory cards, a firmware card,
a hard disk, or an option card.
You need a number 2 Phillips screwdriver
to remove the system board cover.
Install memory and option cards
29
1 Loosen the eight screws on the
system board cover. Do not
remove the screws completely.
Screws
Screws
2 Slide the cover up and away from
the printer.
Install memory and option cards
30

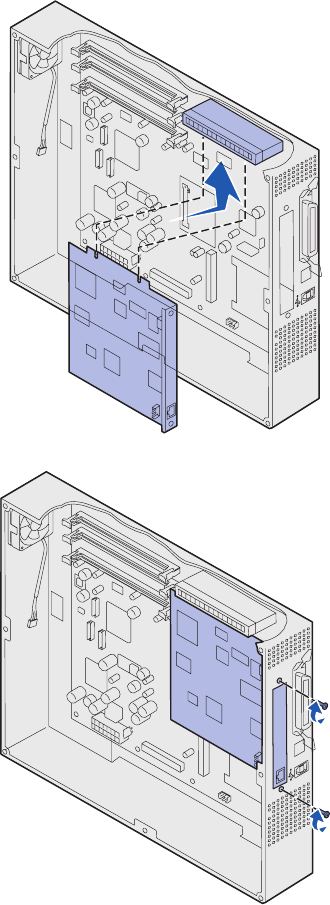

3 Use the illustration to locate the
connector for the card you want to
install.
Optional hard disk
Optional ImageQuick firmware card
Option card connector
Memory and flash memory card connectors
Parallel connector
Ethernet connector
USB connector
Option card cover
4 Use the following table to locate
the instructions you need.
To install a... Go to page...
Memory card 32
Firmware card 33
Hard disk 34
Option card 35
Install memory and option cards
31
Installing a memory card
Note: Memory options designed for other Lexmark
printers may not work with your printer.
Warning: Memory and flash memory cards are easily
damaged by static electricity. Touch something metal,
such as the printer frame, before you touch a memory
card.
Complete the following instructions to
install either a printer memory card or a
flash memory card. Memory cards must
have 168-pin connectors.
The system board has three connectors
for optional memory cards. You can
install any combination of printer memory
and flash memory cards in the
connectors. However, the printer only
recognizes one flash memory card at a
time.
1 Remove the system board access
cover (see page 29).
2 Push open the latches on both
ends of the memory connector you
want to use.
3 Unpack the memory card.
Avoid touching the connection
points along the edge of the card.
Save the packaging.

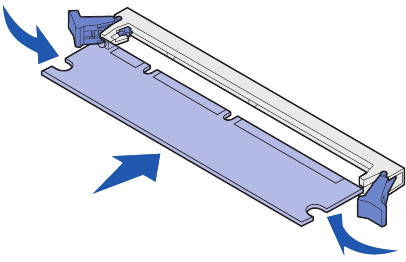

4 Align the notches on the bottom of
the card with the notches on the
connector.
5 Push the memory card firmly into
the connector until the latches on
either end of the connector snap
into place.
It may require some force to fully
seat the card.
6 Make sure each latch fits over the
notch on each end of the card.
Install memory and option cards
32

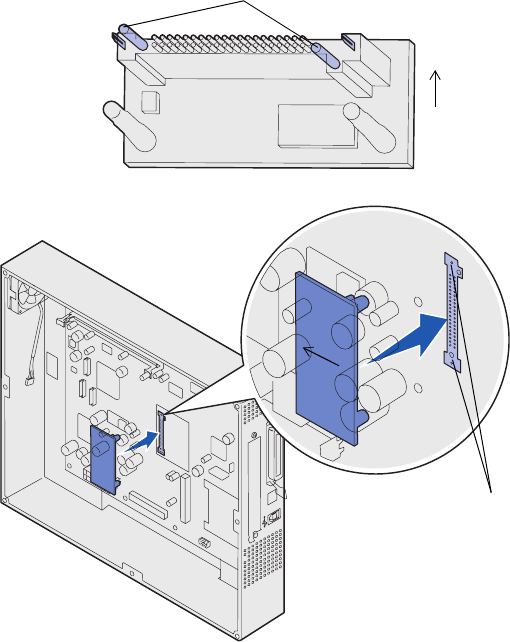

Installing a firmware card
Note: Firmware cards designed for other Lexmark
printers may not work with your printer.
Warning: Firmware cards are easily damaged by static
electricity. Touch something metal, such as the printer
frame, before you touch a card.
Alignment pins
System board holes
If an option card has been installed, you
need to remove the option card before
installing the firmware card.
1 Remove the system board access
cover (see page 29).
2 Unpack the firmware card.
Avoid touching the metal pins on
the bottom of the card. Save the
packaging.
3 Holding the card by its sides, align
the pins on the card with the holes
on the system board.
4 Push the firmware card firmly into
place.
The entire length of the connector
on the firmware card must touch
and be flush against the system
board.
Be careful not to damage the
connectors.
Install memory and option cards
33
Installing a hard disk
Warning: Hard disks are easily damaged by static
electricity and physical shock (such as dropping). Touch
something metal, such as the printer frame, before you
touch the hard disk.
If an option card has been installed, you
may have to remove the option card
before installing the hard disk.
1 Remove the system board access
cover (see page 29).
2 Align and press the ribbon cable
connector into the connector on
the system board.
3 Flip the hard disk over, and then
press the three posts on the
mounting plate into the holes on
the system board. The hard disk
snaps into place.
Install memory and option cards
34
Installing an option card Your printer has one expansion card slot
that supports a number of option cards.
The following table describes their
function.
Card Function
MarkNet™ internal print server Adds an Ethernet, Token-Ring, or Fiber port to connect your printer to a
network.
Install a MarkNet N2501e or N2401e internal print server if you received
either of these cards as part of a multifunction printer upgrade.
Serial/Parallel 1284-C Interface Card Adds an RS-232C serial and 1284-C parallel interface port.
Coax/Twinax Adapter Card for SCS Adds a coaxial/twinaxial network port.
802.11b Wireless Print Adapter Connects to a MarkNet internal print server to add US or international
802.11b wireless printing capability.
Note: The network models ship with an Ethernet print
server already installed.
Warning: Option cards are easily damaged by static
electricity. Touch something metal, such as the printer
frame, before you touch an option card.
You need a small Phillips screwdriver to
install these options.
1 Remove the system board access
cover (see page 29).
2 Remove the screw from the metal
plate that covers the connector
slot, and then lift the plate off.
Save the screw.
3 Unpack the option card.
Save the packing materials.
Install memory and option cards
35
4 Align the connector on the option
card with the connector on the
system board.
The cable connectors on the side
of the option card must fit through
the connector slot.
5 Push the option card firmly into the
option card connector.
6 Secure the card to the system
board with the screws.
Install memory and option cards
36
Reinstalling the system board
access cover
Screw slot
After you finish installing cards on the
printer system board, reinstall the system
board access cover.
1 Align the holes on the access
cover with the screws on the
printer.
2 Place the cover against the printer
and slide it down.
3 Tighten the eight screws.
Install memory and option cards
37
Step 6: Load paper
Note: Use recommended media (paper, envelopes, The following table lists page numbers
transparencies, card stock, and labels) for your where you can find loading instructions
printer to avoid printing problems. For detailed for the standard and optional trays, as
information about media characteristics, refer to the well as for the multipurpose feeder.
Card Stock & Label Guide located on our Lexmark
Web site at www.lexmark.com.
Source Paper sizes Paper types Capacity Go to page...
Tray 1 Letter, A4, Legal,
Tabloid 1, A3, JIS B4
Paper, glossy paper • 550 sheets of 20 lb paper
• 200 sheets of 24 lb legal,
tabloid, A3 or JIS B4 paper
• 130 sheets of glossy paper
40
Trays 2-4 Letter, A4, Legal,
Tabloid 1, A3, JIS B4
Paper • 550 sheets of 20 lb paper
• 200 sheets of 24 lb legal,
tabloid, A3 or JIS B4 paper
40
Heavy media
tray Letter, A4, A5, Legal,
Tabloid1, A3, JIS B4
Paper, glossy paper,
transparencies,
labels
• 300 sheets of 32 lb paper
• 150 transparencies
• 200 sheets of labels
• 360 sheets of glossy paper
40
Multipurpose
feeder Letter, A4, A5, Legal,
Tabloid 1, A3, Executive,
JIS B4, JIS B5, 12x18,
Banner 2, 3, Universal 4, 5
Paper, glossy paper,
transparencies,
labels, card stock
• 100 sheets of 20 lb paper
• 50 transparencies
• 55 sheets of labels
• 55 sheets card stock
• 80 sheets of 24 lb 12x18 paper
• 1 sheet of glossy paper
• 1 sheet of banner paper
45
7¾, 9, 10, DL, C4, C5, B5 Envelopes 10 envelopes
High capacity
feeder Letter, A4 Paper 3000 sheets of 20 lb paper 48
1 Tabloid paper is 278.8 x 430.8 mm
(11 x 17 in.)
2 Banner size is a Universal size:
297.2 x 914.4 mm (11.69 x 36 in.)
3 Banner paper is not supported on custom
Windows 9x PCL and Windows NT 4.0
system printer drivers.
4 Universal setting lets you select the following custom sizes:
– 70 x 127 mm to 229 x 356 mm (2.8 x 5 to 9 x 14 in.)
– 148 x 182 mm to 216 x 356 mm (5.8 x 7 to 8.5 x 14 in.)
– 304.8 x 457.2 mm (12 x 18 in.)
– 210 x 432 mm to 297 x 914 mm (8.3 x 17 to 11.69 x 36 in.)
5 Universal size paper must be fed from the multipurpose feeder; no other
input tray supports Universal.
Load paper
38
Your printer supports a wide variety of
paper types, sizes, and weights. The
standard tray (tray 1) and optional trays
2, 3, and 4 are marked with stack height
letters A, B, and C. The optional heavy
media tray is marked with stack height
letters D, E, and F.
The following table lists recommended
media, weights, and the stack height
guide to use when loading the paper
trays.
Stack height letter Recommended media
A Lexmark Glossy Paper
*
: Letter (P/N 12A5950), A4 (P/N 12A5951)
B 11x17, Legal, B4, A3 (90–105 g/m2, 24–28 lb bond)
C Letter, A4 (60–105 g/m2, 16–28 lb bond), 11x17, Legal, B4, A3 (60–90 g/m2
, 16–24 lb bond)
D Lexmark Transparency
**: Letter (P/N 12A5940), A4 (P/N 12A5941)
E Lexmark Glossy Paper
*
: Letter (P/N 12A5950), A4 (P/N 12A5951),
Paper Labels: Letter, A4 (up to 180 g/m2, 48 lb bond)
F Letter, A4 (105–128 g/m2, 28–34 lb bond)
*Lexmark Glossy Paper is 120 g/m2, 80 lb. book, 32 lb bond.
**Lexmark Transparency weight is 170 g/m2
.
Load paper
39
Loading the paper trays
Note: If you have an optional heavy media paper tray,
make sure you review the heavy media tray section in the
table on page 38 and follow the heavy media tray
instructions on page 44.
Each paper tray holds 550 sheets of
paper.
Follow these instructions to load paper in
all the paper trays.

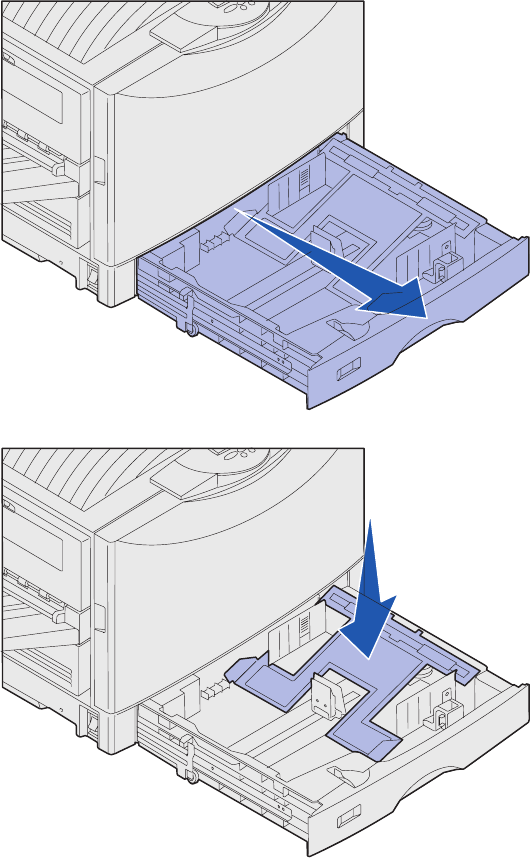

1 Pull the paper tray out until it stops.
2 Press the metal plate down until it
locks.
Load paper
40

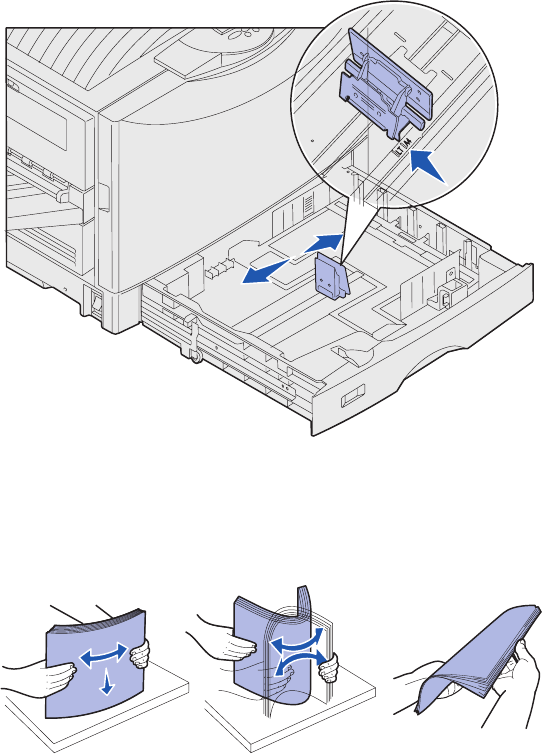

3 Squeeze the left guide and slide it
to the position for the size of paper
you are loading.
4 Release the paper guide.
Note: The position of the left paper guide tells the printer
the size of the paper in the tray. If the left paper guide is in
the wrong position, you may experience paper feeding
problems or incorrect page formatting.
5 Flex the sheets back and forth to
loosen them, and then fan them.
Do not fold or crease the paper.
Straighten the edges of the stack
on a level surface.
Load paper
41
6 Place the paper in the tray, print
side down.
Note: Do not exceed the maximum stack height for the
size and weight media you are using (see page 39).
Overfilling the tray may cause jams.
7 Squeeze the front paper guide
lever and slide the guide until it
lightly touches the stack of paper.
Load paper
42
8 Rotate the paper size dial until the
size of the paper in the tray is
indicated.
9 Push the tray completely in the
printer.
Load paper
43
Using the heavy media tray
Note: Using the heavy media tray with lighter weight
paper such as 16–26 lb plain paper may cause jams.
Note: For more information about using the operator
panel and changing menu settings, refer to the
publications CD.
PAPER MENU
PAPER SIZE
1 Menu 2 Select 3
Go 5
Return 4
Stop 6
PAPER MENU
PAPER TYPE
1 Menu 2 Select 3 Return 4
Go 5 Stop 6
The optional heavy media tray replaces
tray 1. The heavy media tray is specially
designed for use with heavier plain paper,
transparencies, and labels. For
instructions on installing the heavy media
tray, refer to your publications CD.
When the heavy media tray is installed, it
turns the auto size sensing off. You must
set the operator panel to the size and
type of media you have placed in the tray.
Set the paper size and type
1 Follow the instructions for
“Loading the paper trays” on
page 40 to place your print media
in the heavy media paper tray.
2 Press Menu until you see Paper
Menu, and then press Select.
3 Press Menu until you see Paper
Size, and then press Select.
4 Press Menu until you see Tray 1
Size, and then press Select.
5 Press Menu until the size of paper
you placed into the tray appears,
and then press Select.
6 Press Return.
7 Press Menu until you see Paper
Type, and then press Select.
Load paper
44
Tray 1 Type
Custom Type 1
1 Menu 2 Select 3 Return 4
Go 5 Stop 6
Loading the multipurpose feeder
Note: The multipurpose feeder can only feed one sheet
of glossy paper or banner paper at a time. Loading more
than one sheet may cause paper jams. See page 38 for
capacity limits for other types of print media.
8 Press Menu until you see Tray 1
Type, and then press Select.
9 Press Menu until you see Custom
Type 1, and then press Select.
10 Press Return once.
11 Press Menu until you see Custom
Types, and then press Select.
12 Press Menu until you see Custom
Type 1, and then press Select.
13 Press Menu until you see the type
of media you loaded in the heavy
media tray, and then press Select.
14 Press Go. Ready is displayed.
The multipurpose feeder provides an
additional input of 100 sheets of paper.
You can use the multipurpose feeder one
of two ways:
• Paper tray—Load plain paper,
glossy paper, labels, card stock,
or other print media in the feeder
with the intention of leaving the
media in the feeder.
• Manual bypass feeder—Send a
print job to the feeder while
specifying the type and size of
media from your computer. The
printer then prompts you to load
the appropriate print media before
it prints.
Load paper
45

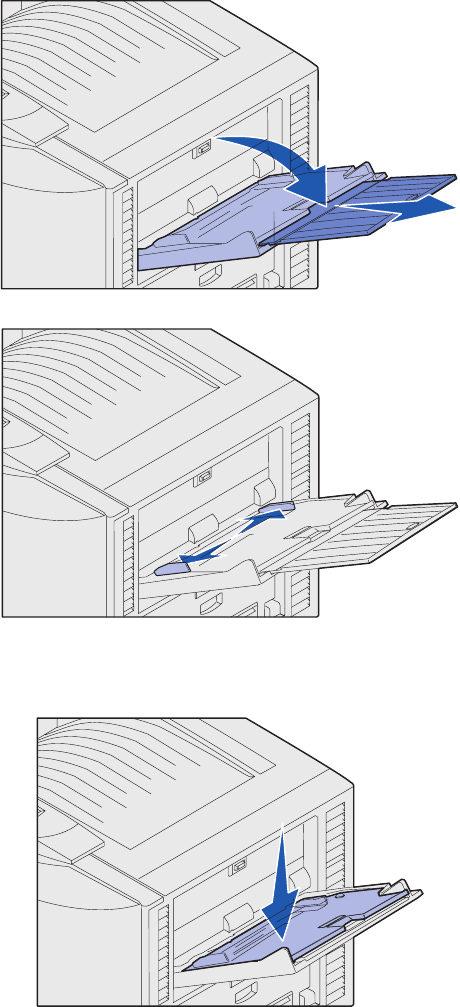

To load the multipurpose feeder:
1 Open the multipurpose feeder.
2 Slide the paper guides to the
correct position for the size of
paper you are loading.
Note: The guides are interconnected. When you move
one, they both move together.
3 Press the paper feed plate down
until it locks into place.
4 Flex the sheets back and forth to
loosen them, and then fan them.
Do not fold or crease the paper.
Straighten the edges of the stack
on a level surface.
Load paper
46
5 Place the paper print side up
between the paper guides.
Note: Do not exceed the maximum stack height.
Overfilling the feeder may cause jams.
6 Move the SET button to the left to
unlock the tray.
The multipurpose tray can be
closed by lifting it. However, it must
be locked down before closing.
Load paper
47
Loading the high capacity feeder
Note: Do not load any print media other than paper in the
high capacity feeder.
Note: The high capacity feeder must be properly
adjusted for A4 or Letter size paper. If the paper guides
are in the wrong position, you may experience paper
feeding problems.
The optional high capacity feeder
provides an additional input of 3,000
sheets of paper.
To load the high capacity feeder:
1 Open the top cover.
The paper guides are set at the
factory and may already be
configured for your paper size.
2 Inspect the position of the paper
guides.
If the paper guides are correctly
set for the size of paper you are
loading, go to step 6 on page 49. If
not, continue with step 3.
3 Loosen the left and right paper
guide thumbscrews.
Load paper
48
4 Slide the guides left or right to the
correct position for the paper size
you are loading (A4 or Letter).
5 Tighten the left and right paper
guide thumbscrews.
6 Flex the sheets back and forth to
loosen them, and then fan them.
Do not fold or crease the paper.
Straighten the edges of the stack
on a level surface.
7 Place the paper against the paper
guides with the print side up.
Note: Do not exceed the maximum stack height.
Overfilling the tray may cause paper jams.
Load paper
49
Note: If there is only a partial stack of paper in the tray,
the paper low sensor will not allow the tray to go down.
Add more paper to lower the tray.

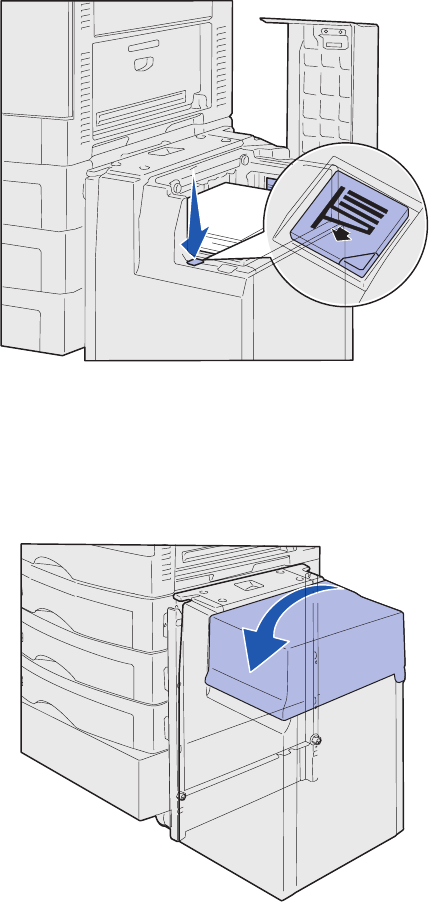

8 Press the paper tray button.
The paper tray lowers so you can
load another 500 sheets of paper.
9 Place the paper against the paper
guides, with the print side up.
10 Repeat step 8 and step 9 until you
have filled the tray or loaded the
desired quantity.
11 Close the top cover.
Make sure the high capacity
feeder is pushed completely
against the printer.
Load paper
50

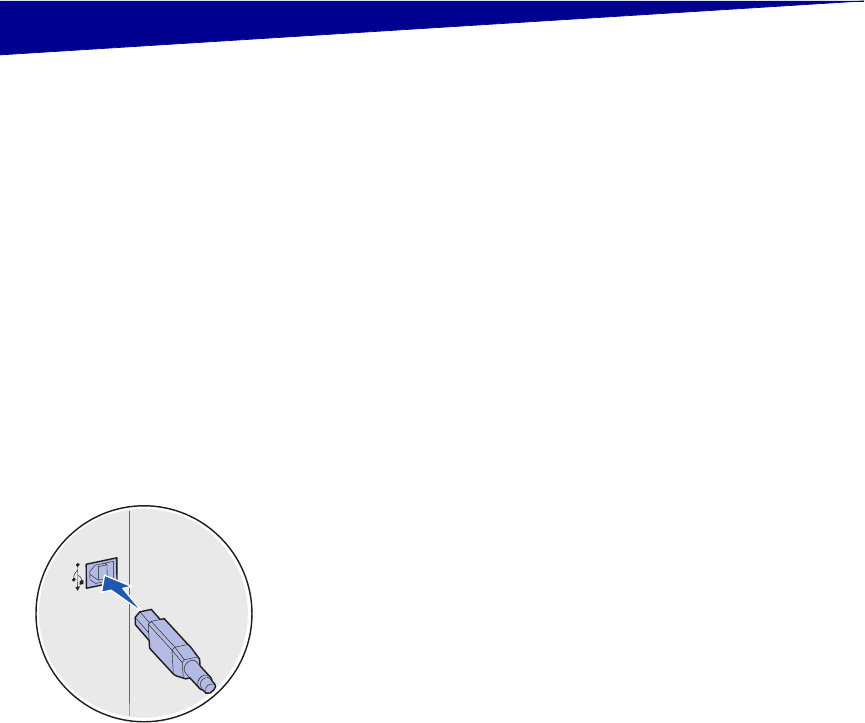

Step 7: Attach cables
CAUTION: Do not connect or
disconnect a communication
port, a teleport, or any other
connector during a lightning
storm.
Attaching a
local cable
USB
You can attach the printer to a network or directly to a computer to print
locally.
Attach your printer locally using either a USB port or a parallel port.
A USB port is standard on all Lexmark C912 printer models.
Windows 98 SE, Windows Me, Windows 2000, and Windows XP
operating systems support USB connections. Some UNIX, Linux, and
Macintosh computers also support USB connections. Refer to your
computer operating system documentation to see if your system
supports USB.
To attach the printer to a computer:
1 Connect the printer to the computer using a USB cable.
A USB port requires a USB cable such as Lexmark part number
12A2405 (2 m [6.5 ft]). Match the USB symbol on the cable to
the USB symbol on the printer.
2 Go to “Turning on the printer” on page 53.
Attach cables
51
Parallel A parallel port is standard on the base model.
To attach the printer to a computer:
1 Connect the printer to the computer using a parallel cable.
A base machine’s parallel port requires a 1284 A-B parallel
cable such as Lexmark part number 1329605 (3.05 m [10 ft]) or
part number 1427498 (6.1 m [20 ft]). A parallel port on an
RS-232C Serial/Parallel 1284-C Interface Card requires a
1284 A-C parallel cable, such as Lexmark part number
11K4078 (1.83 m [6 ft]).
2 Go to “Turning on the printer” on page 53.
Attaching a You can attach your printer to a network using standard network
network cable cables.
Ethernet A 10BaseT/100BaseTX Fast Ethernet port is standard on the network
model.
To attach the printer to a network:
1 Make sure the printer is turned off and unplugged.
2 Connect the printer to a LAN drop or hub using standard cabling
that is compatible with your network. The printer automatically
adjusts for the network speed.
3 Go to “Turning on the printer” on page 53.
Use a Category 5 cable with an RJ-45
connector for the standard network port.
Attach cables
52
Turning on the
printer
1 Plug one end of the power cord into the socket on the side of the
printer and the other end into a properly grounded outlet.
2 If you installed an optional high capacity feeder, plug one end of
the high capacity feeder power cord into the socket on the side
of the high capacity feeder and the other end into a properly
grounded outlet.
3 Turn on your printer.
• If the printer is attached locally, leave the computer and any
other attached devices turned off. You will turn these on in a
later step.
• If the printer is attached to a network, you can turn on any
other peripherals.
After the printer completes its internal tests, the Ready
message indicates that the printer is ready to receive jobs.
If you see a message other than Ready on the display, refer to
the publications CD for instructions on clearing the message.
Look for information about understanding printer messages.
4 If you attached your printer locally, continue with “Step 8: Install
drivers for local printing” on page 54.
If you attached your printer to a network, continue with “Step 9:
Verify printer setup” on page 64.
Attach cables
53
Step 8: Install drivers for local
printing
A local printer is a printer attached to your computer using a USB or
parallel cable. If your printer is attached to a network instead of your
computer, skip this step and go to “Step 9: Verify printer setup” on
page 64.
Note: For Windows A printer driver is software that lets your computer communicate with
operating systems, you can your printer. The procedure to install drivers depends on the operating
skip the hardware wizard system you are using.
and use the drivers CD to
install your printer drivers. Select your operating system and cable from the following table to find
Launch the CD and follow driver installation instructions.
the instructions to install
printer software. Operating system Cable Go to page...
Windows XP USB* or Parallel 55
Windows 2000 USB* or Parallel 56
Windows Me USB* or Parallel 56
Windows 98 USB* or Parallel 57
Windows NT 4.x Parallel only 58
Windows 95 Parallel only 58
Macintosh USB only 59
UNIX/Linux USB or Parallel 60
All serial printing Serial 61
* If you attach a USB printer cable while your printer and computer are
turned on, the Windows hardware wizard launches immediately. Find the
instructions for your operating system and use them to answer the plug and
play screens.
Install drivers for local printing
54
Windows
Before you install
Note: When you install a
custom driver, a separate
printer object is created and
appears in the Printers
folder.
Using Windows XP
with USB or
parallel cable
Note: Business versions of
Windows XP require that you
have administrative access
to install printer drivers on
your computer.
In addition to the following driver installation instructions, you may
need to refer to the documentation that shipped with your computer
and your Windows software.
Some versions of Windows software may already have a system
printer driver for this printer included. Installation may seem automatic
in later versions of Windows. System drivers work well for simple
printing, but they contain less functionality than our enhanced custom
driver.
To obtain all the features of the custom driver, you will need to install
the custom printer driver using the drivers CD that shipped with the
printer.
Drivers are also available in downloadable software packages on
Lexmark’s Web site at www.lexmark.com.
When the Found New Hardware Wizard screen appears:
1 Insert the drivers CD. If the CD auto launches, exit the CD. Click
Next.
2 Browse to the location of the printer driver on the drivers CD,
and then click Next.
D:\drivers\win_2000\
3 Disregard the next two messages and click Continue Anyway.
Your printer has been thoroughly tested and is compatible with
Windows XP. The wizard copies all of the necessary files and
installs the printer driver.
4 Click Finish when the software is installed.
5 Print a test page to verify printer setup.
a Click Start Settings Printers.
b Select the printer you just created.
c Click File Properties.
d Click Print Test Page. When a test page prints successfully,
printer setup is complete.
Install drivers for local printing
55
Using Windows 2000
with USB or
parallel cable
Note: You need
administrative access to
install printer drivers on your
computer.
Using Windows Me
with USB or
parallel cable
Note: Depending on the
software and printers
already installed on your
computer, your screens may
vary from those in the
instructions.
When the Found New Hardware Wizard screen appears:
1 Insert the drivers CD. If the CD auto launches, exit the CD. Click
Next.
2 Select Search for a suitable driver, and click Next.
3 Select only Specify a location, and click Next.
4 Browse to the location of the printer driver on the drivers CD.
D:\Drivers\Win_2000\
5 Click Open, and then click OK.
6 Click Next to install the driver that is displayed. It is okay to
disregard the message that the driver is not digitally signed.
7 Click Finish when the software is installed.
8 Print a test page to verify printer setup.
a Click Start Settings Printers.
b Select the printer you just created.
c Click File Properties.
d Click Print Test Page. When a test page prints successfully,
printer setup is complete.
You must install both a USB port driver and an enhanced custom print
driver.
When the Found New Hardware Wizard screen appears:
1 Insert the drivers CD. If the CD auto launches, exit the CD. Click
Next.
2 Select Automatic search for the best driver (recommended),
and then click Next. The wizard searches for a USB port driver.
The name of it will be similar to your printer name.
3 After the USB port driver is found, click Finish.
4 Select Automatic search for the best driver (recommended),
and then click Next. The wizard now searches for a printer
driver.
Install drivers for local printing
56
Using Windows 98
with a USB or
parallel cable
Note: Depending on the
software and printers
already installed on your
computer, your screens may
vary from those in the
instructions.
5 Select your printer and driver from the list, and then click OK.
Make sure you select the driver in the correct language you
want to use.
D:\Drivers\WIN_9X\<LANGUAGE>
6 After the printer driver is installed, click Finish.
7 Use the default printer name or type a unique name for your
printer, and then click Next.
8 Click Yes (recommended), and then click Finish to print a test
page.
9 After the test page prints, click Yes to close the window.
10 Click Finish to complete the installation and close the wizard.
You are now ready to print.
You must install both a USB port driver and an enhanced custom print
driver.
When the Add New Hardware Wizard screen appears:
1 Insert the drivers CD, and then click Next. If the CD auto
launches, exit the CD.
2 Select Search for the best driver for your device
(recommended), and then click Next.
3 Select only CD-ROM drive, and then click Next.
4 After the wizard finds the USB port driver, click Next.
5 After the USB port driver is installed, click Finish.
6 Select Search for the best driver (recommended), and then
click Next.
7 Select to Specify a location.
8 Browse to the location of the printer driver on the drivers CD,
and then click OK.
D:\Drivers\WIN_9X\<language>
9 After the printer driver is found, click Next.
10 Use the default printer name or type a unique name for your
printer, and then click Next.
Install drivers for local printing
57
Using Windows NT
with a parallel cable
Note: USB support is not
available for Windows NT
operating systems.
Note: You need
administrative access to
install printer drivers on your
computer.
Using Windows 95
with a parallel cable
Note: USB support is not
available for Windows 95
operating systems.
11 Select Yes to print a test page, and then click Finish. All the
necessary files are installed on your computer.
12 After the test page prints, click Yes to close the message
window.
13 Click Finish to complete the installation. You are now ready to
print.
The easiest way to install a driver is to use the drivers CD that shipped
with your printer.
1 Insert the drivers CD.
2 Click Printer Software.
3 Click Agree to accept the license agreement.
4 Select Local Printer and click Next.
5 Make sure the correct printer and port are listed, and click OK.
You are now ready to print.
When the Update Device Driver Wizard screen appears:
1 Insert the drivers CD. If the CD auto launches, exit the CD.
If a system-compatible driver is found on your operating system,
the Wizard installs it.
If no compatible system driver is found on your operating
system, click Other Locations.
2 Browse to the location of the printer driver on the drivers CD,
and click OK.
D:\drivers\win_9x\english
3 Click Finish. The Add Printer Wizard screen appears.
4 Use the default printer name or type a unique name for your
printer, and then click Next.
5 Click Yes to print a test page.
6 Click Finish. A test page is sent to the printer once the driver
files are copied to your computer. You are now ready to print.
Install drivers for local printing
58
Macintosh Macintosh OS 8.6 or later is required for USB printing. To print locally
to a USB-attached printer, you must create a desktop printer icon
(Macintosh 8.6–9.x) or create a queue in Print Center
(Macintosh OS X).
Creating a desktop
printer icon
(Macintosh 8.6–9.x)
Note: A PPD file provides
detailed information about
the capabilities of a printer to
your Macintosh computer.
Note: A PPD for your printer
is also available in a
downloadable software
package from our Lexmark
Web site at
www.lexmark.com.
1 Install a printer PostScript Printer Description (PPD) file on your
computer.
a Insert the drivers CD.
b Double-click Classic, and then double-click the installer
package for your printer.
c Choose the language you want to use, and click OK.
d Click Accept to accept the license agreement.
e Click Continue after you finish with the Readme file.
f On the Easy Install screen, click Install.
g Choose a default paper size and click OK. All the necessary
files are installed on your computer.
h Click Quit when installation is complete.
2 Do one of the following:
Macintosh 8.6 - 9.0: Open Apple LaserWriter.
Macintosh 9.1 - 9.x: Open Applications, and then Utilities.
3 Double-click Desktop Printer Utility.
4 Select Printer (USB), and then click OK.
5 In the USB Printer Selection section, click Change.
If your printer does not appear in the USB Printer Selection list,
make sure the USB cable is properly connected and the printer
is turned on.
6 Select the name of your printer, and then click OK. Your printer
appears in the original Printer (USB) window.
7 In the PostScript Printer Description (PPD) File section, click
Auto Setup. Make sure your printer PPD now matches your
printer.
8 Click Create, and then click Save.
Install drivers for local printing
59
Creating a queue in
Print Center
(Macintosh OS X)
Note: A PPD file provides
detailed information about
the capabilities of a printer to
your Macintosh computer.
Note: A PPD for your printer
is also available in a
downloadable software
package from our Lexmark
Web site at
www.lexmark.com.
9 Specify a printer name, and then click Save. Your printer is now
saved as a desktop printer.
1 Install a printer PostScript Printer Description (PPD) file on your
computer.
a Insert the drivers CD.
b Double-click Mac OS X, and then double-click the installer
package for your printer.
c On the Authorization screen, choose Click the lock to make
changes.
d Enter your password, and then click OK.
e Click Continue on the Welcome screen and again after you
view the Readme file.
f On the license agreement screen, click Continue, and then
click Agree to accept the license agreement.
g Select a Destination, and then click Continue.
h On the Easy Install screen, click Install. All the necessary
files are installed on your computer.
i Click Close when installation is complete.
2 Open Finder, click Applications, and then click Utilities.
3 Double-click Print Center.
4 Do one of the following:
If your USB-attached printer appears in the Printer List, you can
quit Print Center. A queue has been created for your printer.
If your USB-attached printer does not appear in the Printer List,
make sure the USB cable is properly connected and the printer
is turned on. After the printer appears in the Printer List, you can
quit Print Center.
UNIX/Linux Local printing is supported on many UNIX and Linux platforms, such
as Sun Solaris and Red Hat.
Install drivers for local printing
60
The Sun Solaris and Linux packages are available on the drivers CD
and on our Lexmark Web site at www.lexmark.com. The User’s Guide
in each package gives detailed instructions for installing and using
Lexmark printers in UNIX and Linux environments.
All the printer driver packages support local printing using a parallel
connection. The driver package for Sun Solaris supports USB
connections to Sun Ray appliances and Sun workstations.
Visit the Lexmark Web site at www.lexmark.com for a complete list of
supported UNIX and Linux platforms.
Serial connections With serial printing, data is transferred one bit at a time. Although serial
printing is usually slower than parallel printing, it is the preferred option
when there is a great deal of distance between your printer and
computer, or when a parallel interface is not available.
Before you can print, you must establish communication between your
printer and computer. To do this, you have to 1) set serial parameters
in the printer, 2) install a printer driver on the attached computer, and
3) match the serial settings in the Com port.
Setting parameters
in the printer
Note: For information about
serial menus and messages,
refer to the publications CD
that shipped with your
printer.
1 On the printer operator panel, press Menu until Print Menus
appears on the display, and then press Select.
2 Press Menu until you see Serial Menu, and then press
Select.
3 Press Menu until you see Serial Option 1 (for an installed
serial interface card), and then press Select.
4 Press Menu until you see the parameter you want to change,
and then press Select.
5 Press Menu until you see the correct setting, and then press
Select.
Note the following restrictions:
– Maximum baud rate supported is 115,200.
– Data Bits must be set to 7 or 8.
– Parity must be set to Even, Odd, or None.
– Stop Bits must be set to 2.
– Flow Control recommended protocol setting is Xon/Xoff.
Install drivers for local printing
61
6 Press Return to exit the menus when finished.
7 Print a Menu Settings page and verify that your serial
parameters are correct. Keep this page for later use.
a
b
c
Press Menu until you see Utilities, and then press
Select.
Press Menu until you see Print Menus, and then press
Select.
Look under the Standard Serial (or Serial Option X if
you installed a serial interface card) heading to find the serial
parameters.
Installing a printer driver You must install a printer driver on the computer that is connected to
the printer.
1 Insert the drivers CD. It launches automatically. If the CD does
not launch automatically, click Start Run, and then type the
following in the Run dialog box:
D:/Setup.exe.
2 Click Install Printer Software.
3 Click Agree to accept the Printer Software License Agreement.
4 Select Local printer install, and then click Next.
5 Check the box next to the printer you are installing, and then
select the communications port (COM1 or COM2) you want to
use.
6 Click Finish to complete the printer software installation.
Setting parameters After the printer driver is installed, you must set the serial parameters
in the communications in the communications port assigned to the printer driver.
(COM) port The serial parameters in the communications port must match exactly
to the serial parameters you set in the printer.
1 Click Start Settings Control Panel, and then double-click
System.
2 On the Device Manager tab, click + to expand the list of available
ports.
Install drivers for local printing
62
3 Select the communications port you assigned to the printer
(COM1 or COM2).
4 Click Properties.
5 On the Port Settings tab, set the serial parameters to the exact
same serial parameters in the printer.
Look for the printer settings under the Serial Standard (or
Serial Option X) heading on the Menu Settings page you
printed earlier.
6 Click OK, and then close all the windows.
7 Print a test page to verify printer installation.
a Click Start Settings Printers.
b Select the printer you just created.
c Click File Properties.
d Click Print Test Page. When a test page prints successfully,
printer setup is complete.
What do I do next?
Task Go to page…
After you have installed the printer driver on your
computer, you are set up to print to a local printer.
We recommend that you also complete “Verify printer
setup.”
64
Install drivers for local printing
63
Step 9: Verify printer setup
Printing a menu
settings page
Note: For more information
about using the printer
operator panel and changing
menu settings, refer to the
publications CD.
Printing a network
setup page
Note: If an optional
MarkNet print server is
installed, you see Print
Net1 Setup on the display.
UTILITIES MENU
1 Menu 2 Select 3 Return 4
Go 5 Stop 6
Print a menu settings page to review the default printer settings and to
verify that printer options are installed correctly.
1 Make sure the printer is on.
2 Press Menu until you see UTILITIES MENU, and then press
Select.
3 Press Menu until you see Print Menus, and then press
Select to print the page.
The message Printing Menus appears on the display.
4 Verify that the options you installed are correctly listed under
“Installed Features.”
If an option you installed is not listed, turn the printer off, unplug
the power cord, and reinstall the option.
5 Verify the amount of memory installed is correctly listed under
“Printer Information.”
6 Verify that the paper trays are configured for the sizes and types
of paper you loaded.
If the printer is attached to a network, print a network setup page to
verify the network connection. This page also provides important
information that helps you configure for network printing.
1 Make sure the printer is on.
2 Press Menu until you see UTILITIES MENU, and then press
Select.
Verify printer setup
64
UTILITIES MENU
1 Menu 2 Select 3 Return 4
Go 5 Stop 6
3 Press Menu until you see Print Net Setup, and then press
Select. The network setup page prints and the printer returns to
Ready status.
4 Check the first section on the network setup page and confirm
that Status is “Connected.”
If Status is “Not Connected,” your LAN drop may not be active
or your network cable may be malfunctioning. Consult your
network administrator for a solution, and then print another
network setup page to verify that you are connected to your
network.
Save the network setup page. You will use it in the other steps.
What do I do next?
Task Go to page…
Configure for TCP/IP 66
Install drivers for network printing 68
Verify printer setup
65
Step 10: Configure for TCP/IP
If you have TCP/IP available on your network, we recommend that you
assign an IP address to the printer.
Assigning a printer If your network is using DHCP, an IP address is automatically assigned
IP address
Note: Instructions for other
methods of setting the IP
address are in the online
documentation on the
drivers CD that shipped with
your printer. Launch the CD,
and then click View
Documentation Network
Printer Install.
after you connect the network cable to the printer.
1 Look for the address under the “TCP/IP” heading on the
network setup page you printed in “Printing a network setup
page” on page 64.
2 Go to “Verifying the IP settings” on page 67 and begin with
step 2.
If your network is not using DHCP, then you must manually assign an
IP address to the printer.
One of the easiest ways is to use the operator panel:
1 Press Menu until you see Network Menu, and then press
Select.
2 Press Menu until you see Standard Network, and then press
Select.
Standard Network appears if you purchased a printer with a
network port on the printer system board. If you have a MarkNet
print server installed in the option card, you see Network
Option 1.
3 Press Menu until you see Std Net Setup (or Network 1
Setup), and then press Select.
4 Press Menu until you see TCP/IP, and then press Select.
5 Press Menu until you see Set IP Address, and then press
Select.
Configure for TCP/IP
66
6 Change the address by pressing Menu to increase or decrease
each number. Press Select to move to the next segment. Press
Select when you are finished.
The message Saved appears briefly.
7 Press Menu until you see Set IP Netmask, and then press
Select.
8 Repeat step 6 to set the IP Netmask.
9 Press Menu until you see Set IP Gateway, and then press
Select.
10 Repeat step 6 to set the IP Gateway.
11 When you are finished, press Go to return the printer to the
Ready state.
Verifying the IP 1 Print another network setup page. Look under the “TCP/IP”
settings heading and make sure the IP address, netmask, and gateway
are what you expected. See “Printing a network setup page” on
page 64 if you need help.
Note: On Windows 2 Ping the printer and verify that it responds. For example, at a
computers, click Start command prompt on a network computer, type “ping” followed
Programs Command by the new printer IP address (for example, 192.168.0.11):
prompt (or Accessories
Command prompt if using ping 192.168.0.11
Windows 2000). If the printer is active on the network, you receive a reply.
Configuring for If your printer has an optional Lexmark ImageQuick™ firmware card
Pull Printing installed, you can configure for Pull Printing once an IP address is
assigned to the printer.
For detailed configuration instructions, refer to the CD that shipped
with the Lexmark ImageQuick card.
Configure for TCP/IP
67
Step 11: Install drivers for
network printing
After you have assigned and verified the TCP/IP settings, you are
ready to install the printer on each network computer.
Windows In Windows environments, network printers can be configured for
direct printing or shared printing.
• Direct printing means the printer is attached directly to the
network using an available LAN connection or open port on a
hub. In this type of network printing, printer drivers are typically
installed on each network computer.
• A shared printer is connected locally to one of the computers on
the network using a local printer cable such as USB. The printer
is installed on the network computer attached to the printer.
During the driver installation, the printer is set up to be “shared”
so that other network computers are allowed to print to it.
More information about each of these network printing methods is on
the drivers CD that shipped with your printer.
Creating ports and Read the detailed instructions on the drivers CD. Click View
installing drivers Documentation and look for information about network printer
installation for your specific Windows environment.
Note: Using a custom If you choose to install without using the instructions on the drivers CD,
printer driver and a custom you need a basic understanding of network printing on TCP/IP
network port provides networks, installing printer drivers, and the process involved in
enhanced functionality, such creating new network ports.
as printer status alerts.
Install drivers for network printing
68
Macintosh
Note: A PostScript Printer
Description (PPD) file
provides detailed
information about the
capabilities of a printer to
your UNIX or Macintosh
computers.
UNIX/Linux
Supported network printer ports
• Microsoft IP port—Windows NT 4.0, Windows 2000, and
Windows XP
• Lexmark network port—Windows 95/98/Me, Windows NT 4.0,
Windows 2000, and Windows XP
Supported printer drivers
• Windows system printer driver
• Lexmark custom printer driver
System drivers are built into Windows operating systems. Custom
drivers are available on the drivers CD.
Updated system and custom drivers are available on our Lexmark
Web site at www.lexmark.com.
To print to a network printer, each Macintosh network user must
perform both of the following tasks on his computer:
• Install a custom PostScript Printer Description (PPD) file
A custom PPD is on the drivers CD that shipped with your
printer.
A PPD for your printer is also available in a downloadable
software package from our Lexmark Web site at
www.lexmark.com.
• Create a desktop printer icon (Mac OS 8.6 to 9.x) or create a
queue in Print Center (Mac OS X)
Detailed instructions for these tasks are in the online documentation
included on the drivers CD.
Your printer supports many UNIX and Linux platforms, such as Sun
Solaris and Red Hat. Visit our Lexmark Web site at www.lexmark.com
for a complete list of supported UNIX and Linux platforms.
Install drivers for network printing
69
Note: The Sun Solaris and
Linux packages are available
on the drivers CD and on our
Lexmark Web site at
www.lexmark.com.
NetWare
Lexmark provides a printer driver package for each supported UNIX
and Linux platform. The User’s Guide in each package gives detailed
instructions for installing and using Lexmark printers in UNIX and
Linux environments.
You can download these packages from our Lexmark Web site. You
may also find the driver package you need on the drivers CD.
Your printer supports both Novell Distributed Print Services (NDPS)
and regular queue-based NetWare environments.
For the latest information about installing a network printer in a
NetWare environment, launch the drivers CD and click View
Documentation. Look for information about network printer
installation.
Install drivers for network printing
70
Step 12: Using the
publications CD
Viewing and using the CD
contents
The User’s Reference includes helpful information
about using your printer and solving common
printing problems. Copies of the Setup Guide, the
Quick Reference sheet, and the Clearing Jams
sheet are also on the CD.
The publications CD is shipped inside the Setup
Guide.
You can also give the publications CD to a system
administrator or the Help desk, or you can copy the
entire contents of the CD (or just specific topics) to
a shared network drive or intranet site.
Copies of the printer documentation are also
available on our Lexmark Web site at
www.lexmark.com.
Congratulations!
You are now ready to use your new printer. Save
this book if you anticipate purchasing printer
options in the future.
Using the publications CD
71
Statement of limited warranty
Lexmark International, Inc., Lexington, KY If you transfer this product to another user,
warranty service under the terms of this statement
This warranty applies to the United States and is available to that user for the remainder of the
Canada. For customers outside the U.S. and warranty period. You should transfer proof of
Canada, refer to the country-specific warranty original purchase and this statement to that user.
information that came with your printer.
Lexmark C912 Warranty service
The warranty period is 12 months and starts on the
This Statement of Limited Warranty applies to this date of original purchase as shown on the
product if it was originally purchased for your use, purchase receipt.
and not for resale, from Lexmark or a Lexmark
remarketer, referred to in this statement as To obtain warranty service you may be required to
“Remarketer.” present proof of original purchase. Warranty
service will be provided at your location.
Warranty When warranty service involves the exchange of a
product or part, the item replaced becomes the
Lexmark warrants that this product: property of the Remarketer or Lexmark. The
replacement may be a new or repaired item. The
• Is manufactured from new parts, or new and replacement item assumes the remaining warranty
serviceable used parts, which perform like period of the original product.
new parts
• Is free from defects in material and Replacement is not available to you if the product
workmanship you present for exchange is defaced, altered, in
• Conforms to Lexmark’s official published need of a repair not included in warranty service, or
specifications damaged beyond repair. Also, such product must
be free of any legal obligation or restrictions that
• Is in good working order prevent its exchange.
If this product does not function as warranted Before you present this product for warranty
during the warranty period, contact a Remarketer service, remove all programs, data, and removable
or Lexmark for repair without charge. storage media.
If this product is a feature or option, this statement For further explanation of your warranty
applies only when that feature or option is used alternatives and the nearest Lexmark authorized
with the product for which it was designed. To
obtain warranty service, you may be required to servicer in your area, please contact Lexmark at
present the feature or option with the product.
Statement of limited warranty
72
1-800-LEXMARK (1-800-539-6275), or on the
World Wide Web at www.lexmark.com.
Free remote technical support is provided for this
product throughout its warranty period. Lexmark
offers a variety of extended warranty programs that
include an extension of technical support. For
products no longer covered by a Lexmark warranty,
technical support may only be available for a fee.
Extent of warranty
We do not warrant uninterrupted or error-free
operation of a product.
Warranty service does not include repair of failures
caused by:
• Modification or attachments
• Accidents or misuse
• Unsuitable physical or operating
environment
• Maintenance by anyone other than Lexmark
or a Lexmark authorized servicer
• Operation of a product beyond the limit of its
duty cycle
• Failure to have installed a maintenance kit
as specified (if applicable)
• Use of printing media outside of Lexmark
specifications
• Use of other than Lexmark supplies (such as
toner cartridges, inkjet cartridges, and
ribbons)
• Use of other than Lexmark product or
component
ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES, EXPRESS OR IMPLIED, WILL
APPLY AFTER THIS PERIOD.
Limitation of liability
Your sole remedy under this Statement of Limited
Warranty is set forth in this section. For any claim
concerning performance or nonperformance of
Lexmark or a Remarketer for this product under
this Statement of Limited Warranty, you may
recover actual damages up to the limit set forth in
the following paragraph.
Lexmark's liability for actual damages from any
cause whatsoever will be limited to the greater of 1)
$5,000 or 2) the amount you paid for the product
that caused the damages. This limitation of liability
will not apply to claims by you for bodily injury or
damage to real property or tangible personal
property for which Lexmark is legally liable. In no
event will Lexmark be liable for any lost profits, lost
savings, incidental damage, or other economic
consequential damages. This is true even if you
advise Lexmark or a Remarketer of the possibility
of such damages. Lexmark is not liable for any
claim by you based on a third party claim.
This limitation of remedies also applies to any
developer of materials supplied to Lexmark.
Lexmark’s and the developer’s limitations of
remedies are not cumulative. Such developer is an
intended beneficiary of this limitation.
Additional rights
Some states do not allow limitations on how long
an implied warranty lasts, or do not allow the
exclusion or limitation of incidental or
consequential damages. If such laws apply, the
limitations or exclusions contained in this
statement may not apply to you.
This warranty gives you specific legal rights. You
may also have other rights which vary from state to
state.
Statement of limited warranty
73
