Libre Wireless Technologies LS5B-N11S Wireless Audio Module User Manual Copyright 2014 by Libre Wireless Technologies

Libre Wireless Technologies Inc. Wireless Audio Module Copyright 2014 by Libre Wireless Technologies

User Manual

Libre Wireless Technologies © 2015
Libre Confidential
User Manual
Module : LS5B
Rev: 1.0
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 2 of 89
Libre Confidential
Libre Wireless Technologies Private Limited
librewireless.com
Copyright © 2015 Libre Wireless Technologies. All rights reserved.
Circuit diagrams and other information relating to Libre Wireless Technologies products are included as a
means of illustrating typical applications. Consequently, complete information sufficient for construction
purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no
responsibility is assumed for inaccuracies. Libre Wireless Technologies reserves the right to make changes to
specifications and product descriptions at any time without notice. Contact your local Libre Wireless
Technologies sales office to obtain the latest specifications before placing your product order. The provision of
this information does not convey to the purchaser of the described semiconductor devices any licenses under
any patent rights or other intellectual property rights of Libre Wireless Technologies or others. All sales are
expressly conditional on your agreement to the terms and conditions of the most recently dated version of Libre
Wireless Technologies standard Terms of Sale Agreement dated before the date of your order (the "Terms of
Sale Agreement"). The product may contain design defects or errors known as anomalies which may cause the
product's functions to deviate from published specifications. Anomaly sheets are available upon request. Libre
Wireless Technologies products are not designed, intended, authorized or warranted for use in any life support
or other application where product failure could cause or contribute to personal injury or severe property
damage. Any and all such uses without prior written approval of an Officer of Libre Wireless Technologies and
further testing and/or modification will be fully at the risk of the customer. Copies of this document or other
Libre Wireless Technologies literature, as well as the Terms of Sale Agreement, may be obtained by visiting
Libre Wireless Technologies website.
LIBRE WIRELESS TECHNOLOGIES DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING
WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL
WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL LIBRE
WIRELESS TECHNOLOGIES BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR
CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND;
REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF LIBRE
WIRELESS TECHNOLOGIES OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE;
WHETHER OR NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND
WHETHER OR NOT LIBRE WIRELESS TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 3 of 89
Libre Confidential
FCC Statement：
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only. This modular
cannot be installed in any portable device, for example, USB dongle like transmitters is
forbidden.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 4 of 89
Libre Confidential
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. This modular must be installed and operated with a
minimum distance of 20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is installed inside another
device, then the outside of the device into which the module is installed must also display a
label referring to the enclosed module. This exterior label can use wording such as the
following: Contains Transmitter Module FCC ID: 2ADBM-LS5B-N11S.
when the module is installed inside another device, the user manual of this device must
contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's
instructions as described in the user documentation that comes with the product.
Any company of the host device which install this modular with limit modular approval
should perform the test of radiated emission a nd spurious emission according to FCC
part 15C:15.247 and 15.209 requirement, Only if the test result comply with FCC part
15C:15.247 and 15.209 requirement, then the host can be sold legally.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 5 of 89
Libre Confidential
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son
fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent
causer un mauvais fonctionnement de l'appareil.
This modular complies with IC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter
If the IC number is not visible when the module is installed inside another device, then the
outside of the device into which the module is installed must also display a label referring
to the enclosed module. This exterior label can use wording such as the following:
“Contains IC: 20276-LS5B-N11S”
when the module is installed inside another device, the user manual of this device must
contain below warning statements;
1. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following two conditions:
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 6 of 89
Libre Confidential
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
2. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son
fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent
causer un mauvais fonctionnement de l'appareil.
The devices must be installed and used in strict accordance with the manufacturer's
instructions as described in the user documentation that comes with the product
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 7 of 89
Libre Confidential
Table of Contents
1. Introduction ............................................................................................................................... 13
1.1. User Manual Insight ....................................................................................................................... 13
2. Libre Wireless Technologies’ EVK ...................................................................................... 14

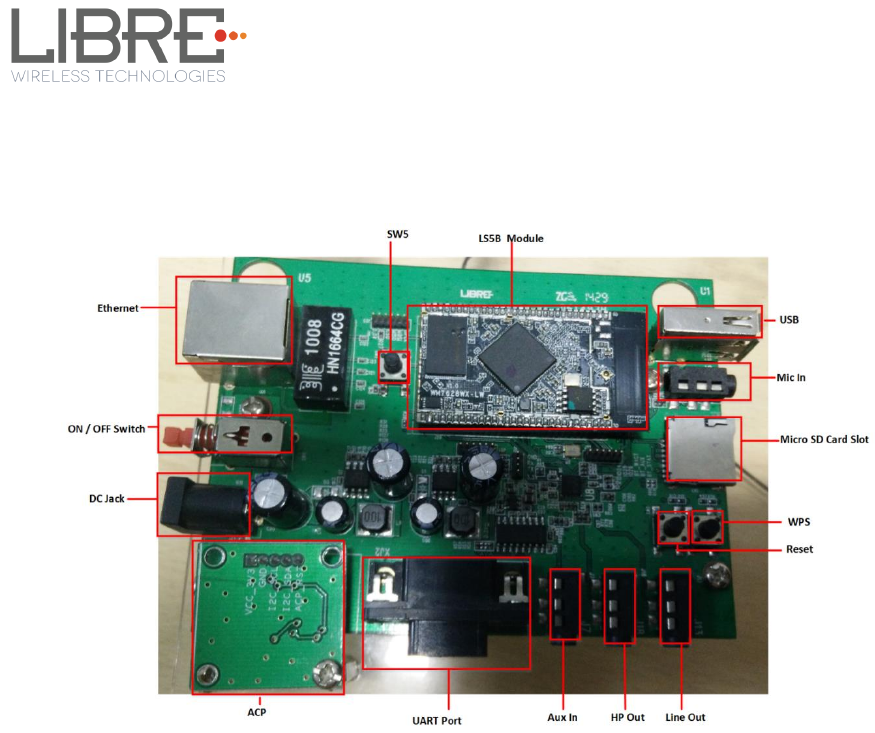

2.1. LS5B EVK Setup ............................................................................................................................... 14
3. Firmware Update ..................................................................................................................... 15
3.1. Single-Image Update ...................................................................................................................... 15
3.1.1. USB Method .................................................................................................................................. 15
3.2. Application Update ......................................................................................................................... 17
3.2.1. Network Method ......................................................................................................................... 17
3.2.2. USB Method .................................................................................................................................. 19
3.2.3. Internet Method .......................................................................................................................... 21
3.3. BSL Update ........................................................................................................................................ 23
3.3.1. TFTP Method ................................................................................................................................ 23

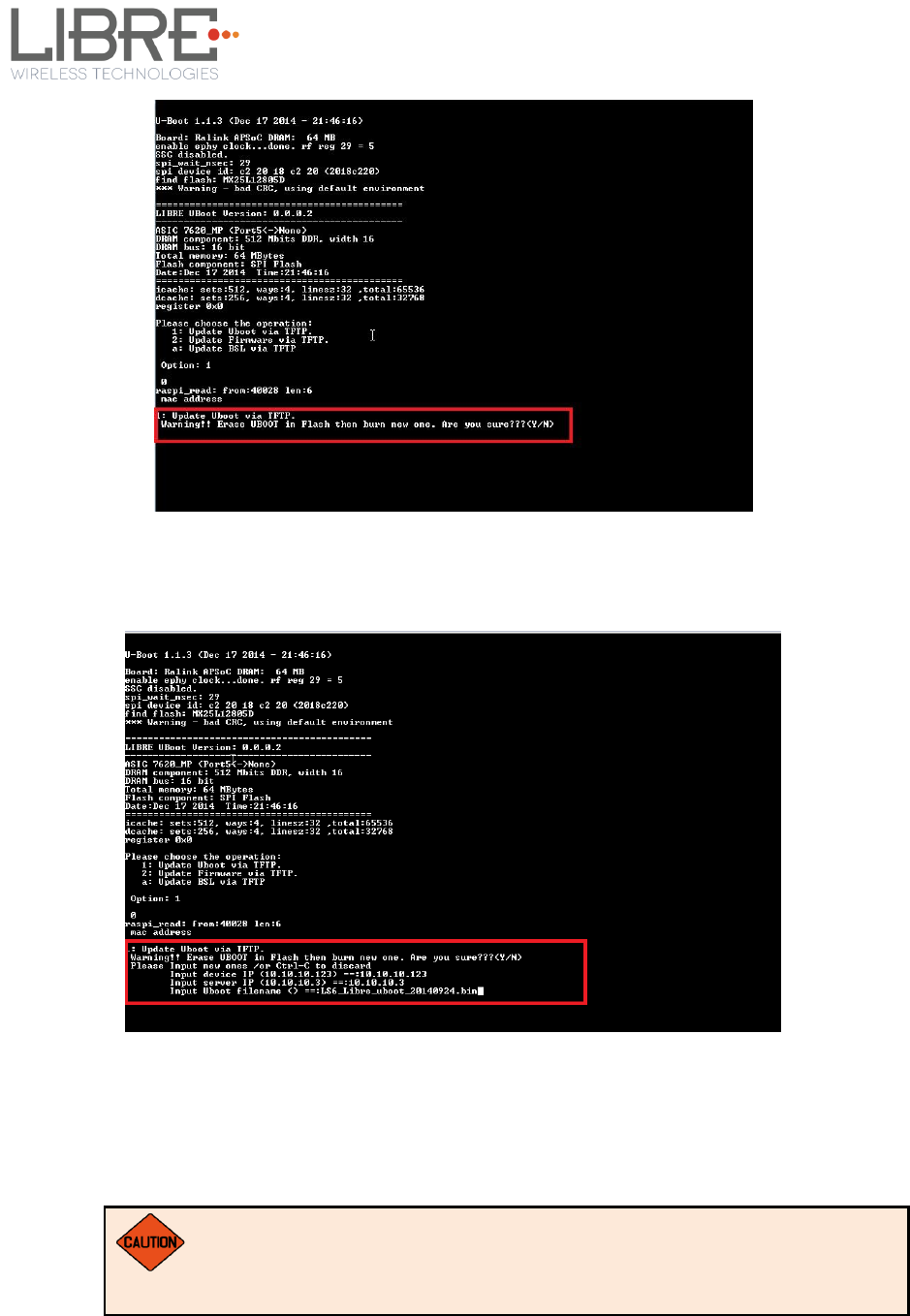

3.4. U-Boot Update .................................................................................................................................. 25
3.4.1. TFTP Method ................................................................................................................................ 25
4. Configuring Non-Volatile-Item ............................................................................................ 27
4.1. Host Communication Over UART ............................................................................................. 28
4.2. Network Interface ........................................................................................................................... 29
4.2.1. Ethernet ......................................................................................................................................... 29
4.2.2. Wi-Fi ................................................................................................................................................ 29
4.2.3. Auto ................................................................................................................................................. 29
4.3. SSID of DDMS-Zone in SA-Mode ................................................................................................ 29
4.4. DDMS-Zone Password ................................................................................................................... 30
4.5. I2S LR-Clock ...................................................................................................................................... 30
4.6. I2S M-Clock ........................................................................................................................................ 30
4.7. ACP ........................................................................................................................................................ 31
4.8. Model Name ...................................................................................................................................... 31
4.9. Manufacturer Name ....................................................................................................................... 31
4.10. Current Volume ............................................................................................................................... 32
4.11. WAC SSID ........................................................................................................................................... 32
4.12. X-MODEM Packet Size ................................................................................................................... 33
4.13. I2S Clock from Bluetooth Module ............................................................................................. 33
4.14. ACP Sharing ....................................................................................................................................... 33
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 8 of 89
Libre Confidential
4.15. HOST BAUDRATE ............................................................................................................................ 34
4.16. DLNA Connection Close ................................................................................................................ 34
4.17. Country ............................................................................................................................................... 35
4.18. Serial Number................................................................................................................................... 35
4.19. Model Number ................................................................................................................................. 36
4.20. Hardware Version ........................................................................................................................... 36
4.21. Firmware Version ........................................................................................................................... 36
4.22. Firmware Update Link .................................................................................................................. 37
4.23. Firmware Download XML ............................................................................................................ 37
4.24. Album Art Size .................................................................................................................................. 37

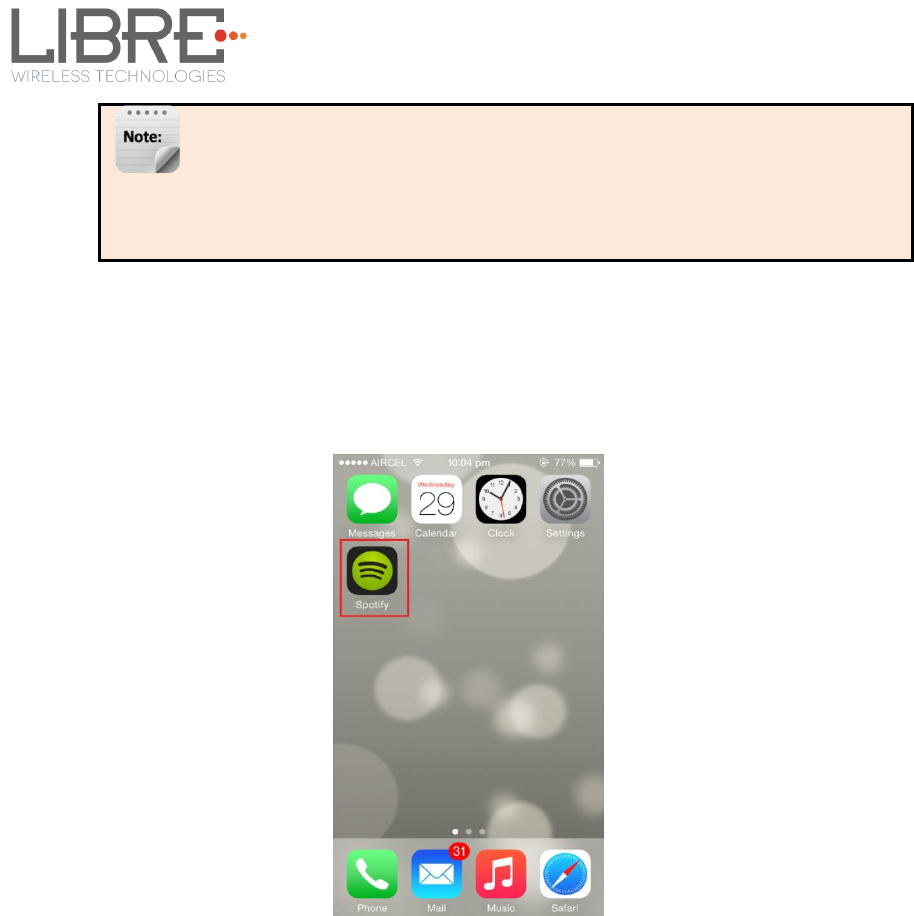

4.25. Spotify APP Key ............................................................................................................................... 38
5. Key Button Functionality ....................................................................................................... 39
5.1. Setup Button (WAC / SAC / DDMS) ......................................................................................... 39
5.2. WPS / Factory Reset Key Button .............................................................................................. 39
6. Network Configuration ........................................................................................................... 40
6.1. Wireless Network Setup Using WAC and SAC ..................................................................... 40
6.1.1. Wireless Network Setup Using WAC .................................................................................. 40
6.1.2. Wireless Network Setup Using SAC (Speaker Android Configuration) Method 41
6.1.3. WAC / SAC Trigger Behaviour in DDMS Mode and Non-DDMS Mode ................... 45
6.2. Wireless Network Setup Using Webserver ........................................................................... 47
6.2.1. Webpage Method........................................................................................................................ 47
6.2.2. LS-Connect Method ................................................................................................................... 49
6.2.3. Manual Configuration Method .............................................................................................. 50
6.3. Wireless Network Setup Using WPS Push-Button Method ............................................ 51
6.3.1. WPS Trigger from Command Line ....................................................................................... 51
6.3.2. WPS Trigger from LUCI ............................................................................................................ 51
6.3.3. WPS Trigger from Key Button ............................................................................................... 52
6.4. I-Device Wi-Fi Settings Sharing ................................................................................................. 52
7. Features ....................................................................................................................................... 53
7.1. Libre APP for Android ................................................................................................................... 53
7.2. DDMS ................................................................................................................................................... 53
7.3. Software Security ............................................................................................................................ 54
7.4. Source Switching ............................................................................................................................. 54
7.5. Autosense of Audio CODEC ......................................................................................................... 54
7.6. AUX-In Support ................................................................................................................................ 54
7.7. Airplay® .............................................................................................................................................. 54
7.7.1. Password for Airplay Playback ............................................................................................. 55
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 9 of 89
Libre Confidential
7.8. DLNA ® / DMR .................................................................................................................................. 58
7.9. i-Device playback over USB ........................................................................................................ 59
7.10. USB Playback .................................................................................................................................... 60
7.11. TCP / IP Tunneling ......................................................................................................................... 60
7.12. Device Name Configuration ........................................................................................................ 61
7.13. Wi-Fi Scan Result ............................................................................................................................ 62
7.14. Switch between Wired and wireless modes ......................................................................... 62
7.14.1. Switching to Wired Mode ........................................................................................................ 62
7.14.2. Switching to Wireless Mode ................................................................................................... 63
7.15. Music Services .................................................................................................................................. 64
7.15.1. vTuner ............................................................................................................................................ 64
7.15.2. TuneIn............................................................................................................................................. 64
7.15.3. QQ Music ........................................................................................................................................ 65
7.15.4. Spotify Connect ........................................................................................................................... 67
7.15.5. Deezer ............................................................................................................................................. 70
8. Data Sheet ................................................................................................................................... 71
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 10 of 89
Libre Confidential
Table of Figures
Figure 2-1: LS5B Module Peripherals .......................................................................................... 14
Figure 3-1: Firmware Upgrade Method Selection .................................................................... 18
Figure 3-2: Firmware Update Webpage ...................................................................................... 18
Figure 3-2: Firmware Update Confirmation webpage ........................................................... 19
Figure 3-3: Firmware Update Progress Page ............................................................................ 19
Figure 3-3: Firmware Update Status ............................................................................................ 19
Figure 3-4: Firmware Upgrade Method Selection .................................................................... 20

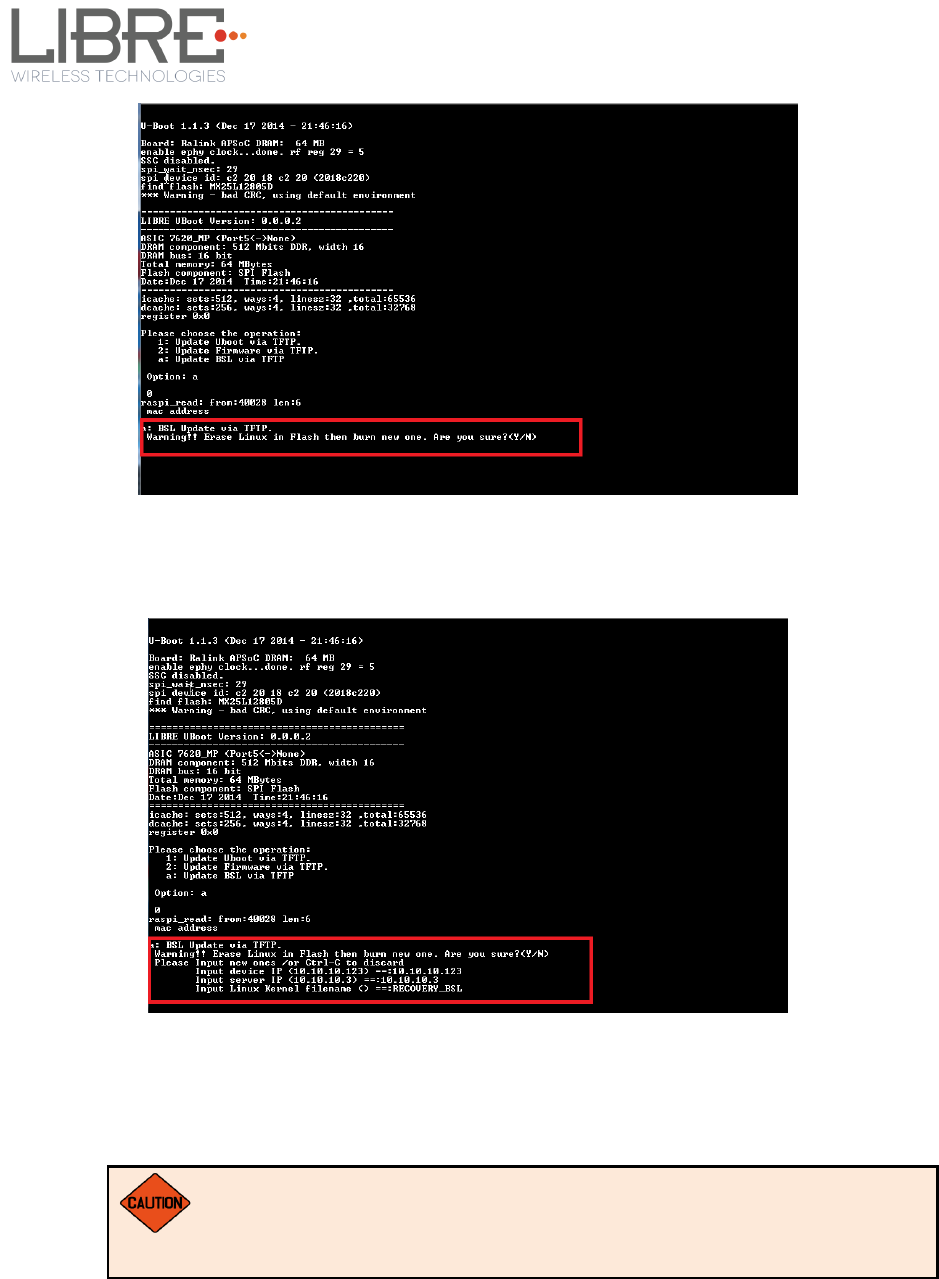

Figure 3-5: BSL Update Terminal Warning Message Prompt .............................................. 24
Figure 3-6: BSL Default IP Address ............................................................................................... 24
Figure 3-7: U-Boot Update Terminal Warning Message Prompt ....................................... 26
Figure 3-8: U-Boot Default IP address ......................................................................................... 26

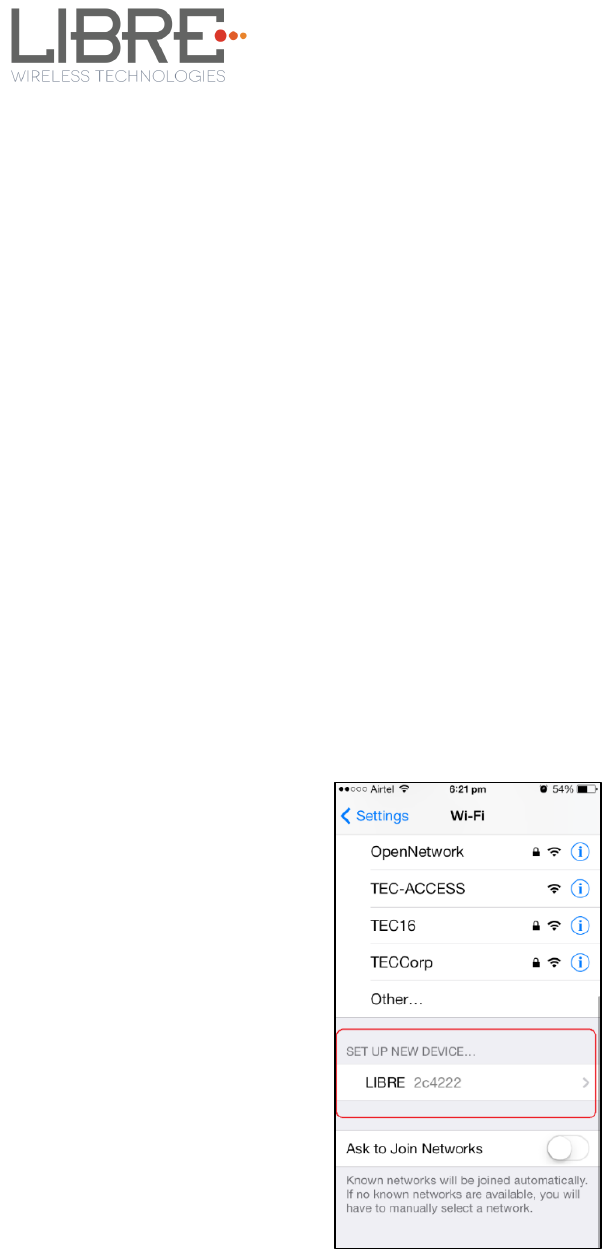

Figure 6-1: WAC Speaker Listed ..................................................................................................... 40

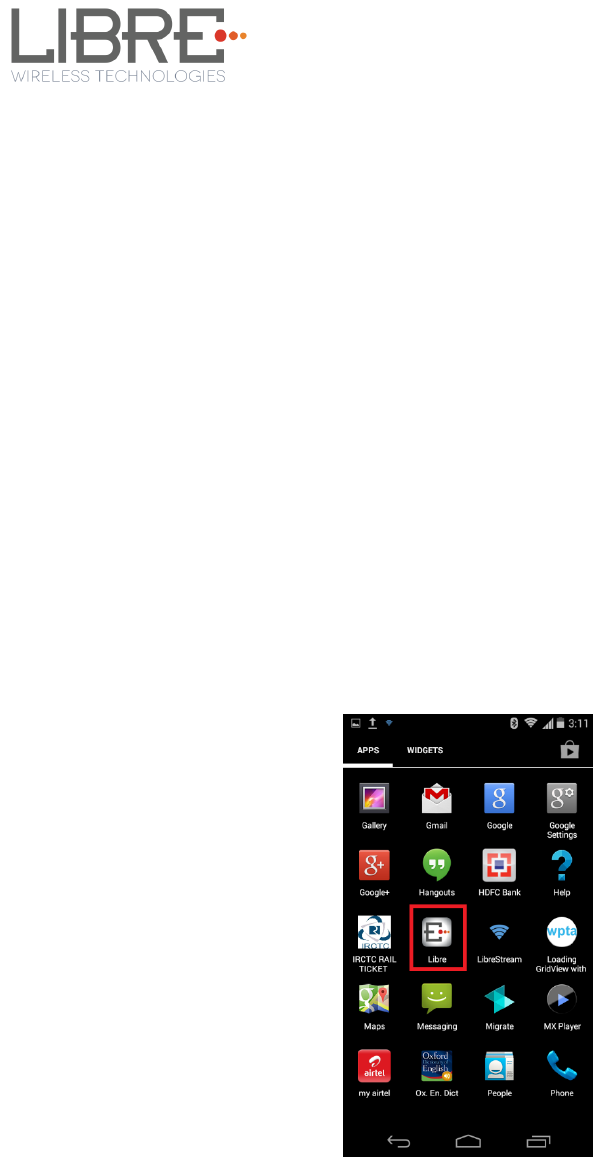

Figure 6-5: Libre App ......................................................................................................................... 41
Figure 6-6: Libre APP, Main view ................................................................................................... 42

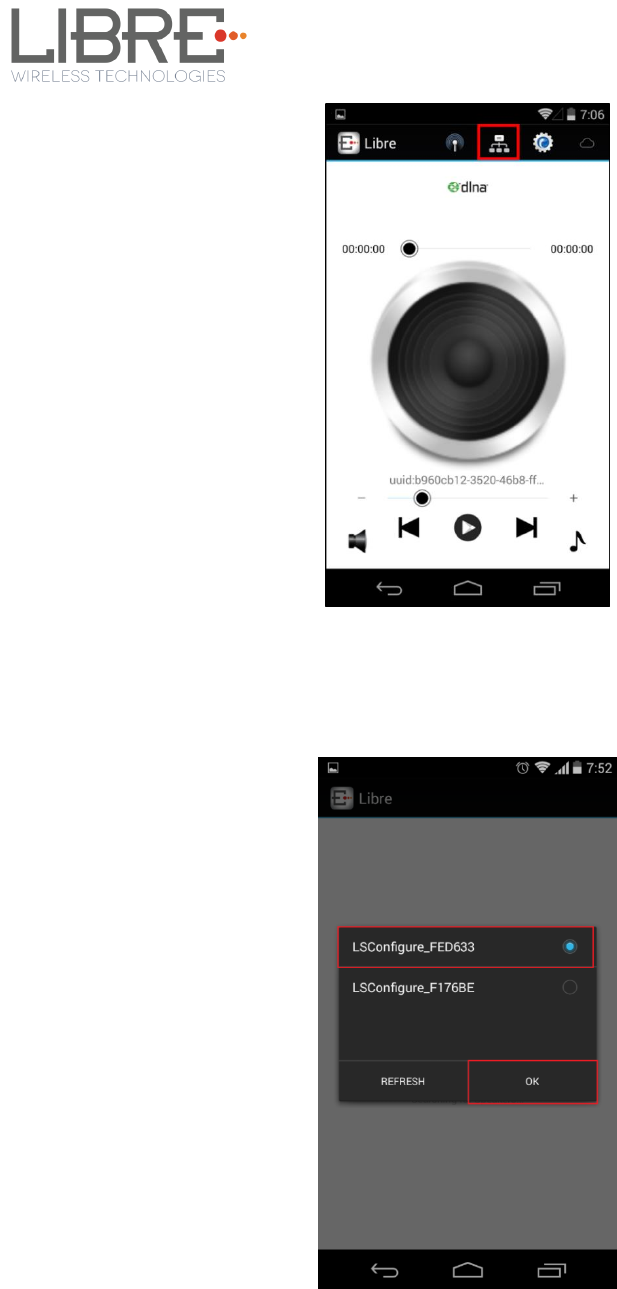

Figure 6-7: SAC Device List............................................................................................................... 42

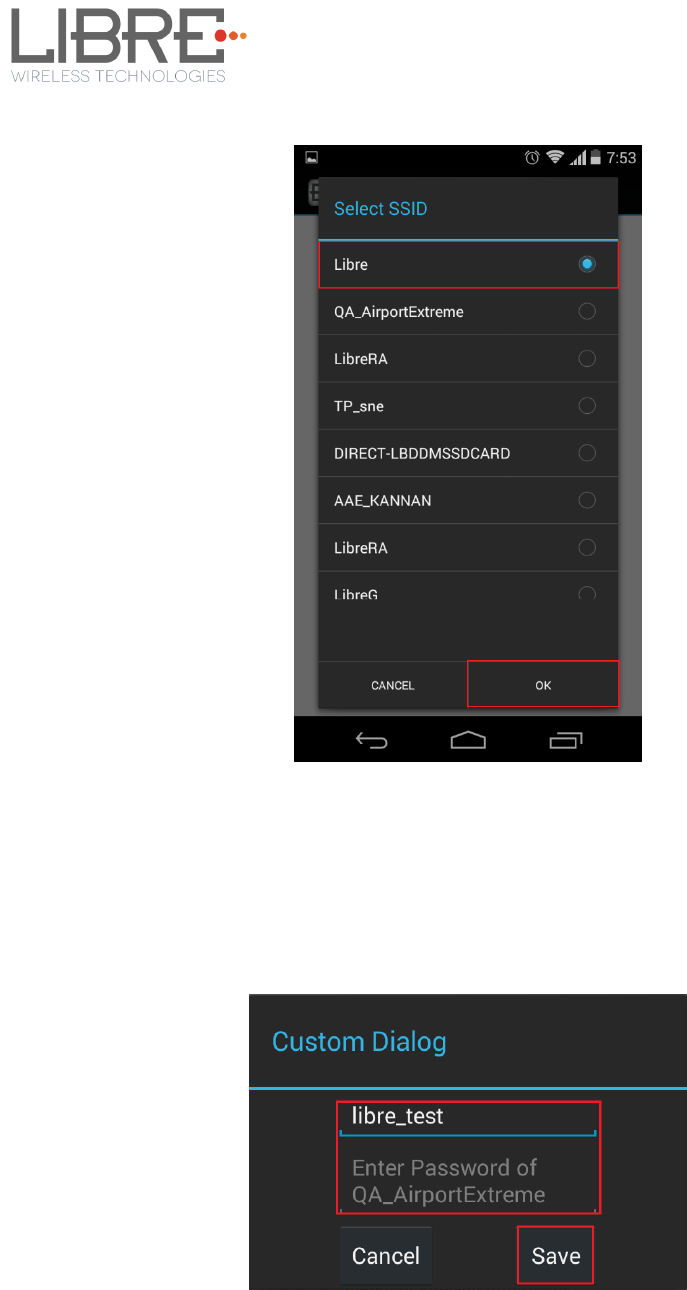

Figure 6-8: SSID List ........................................................................................................................... 43
Figure 6-9: Libre APP Custom Dialog ........................................................................................... 43

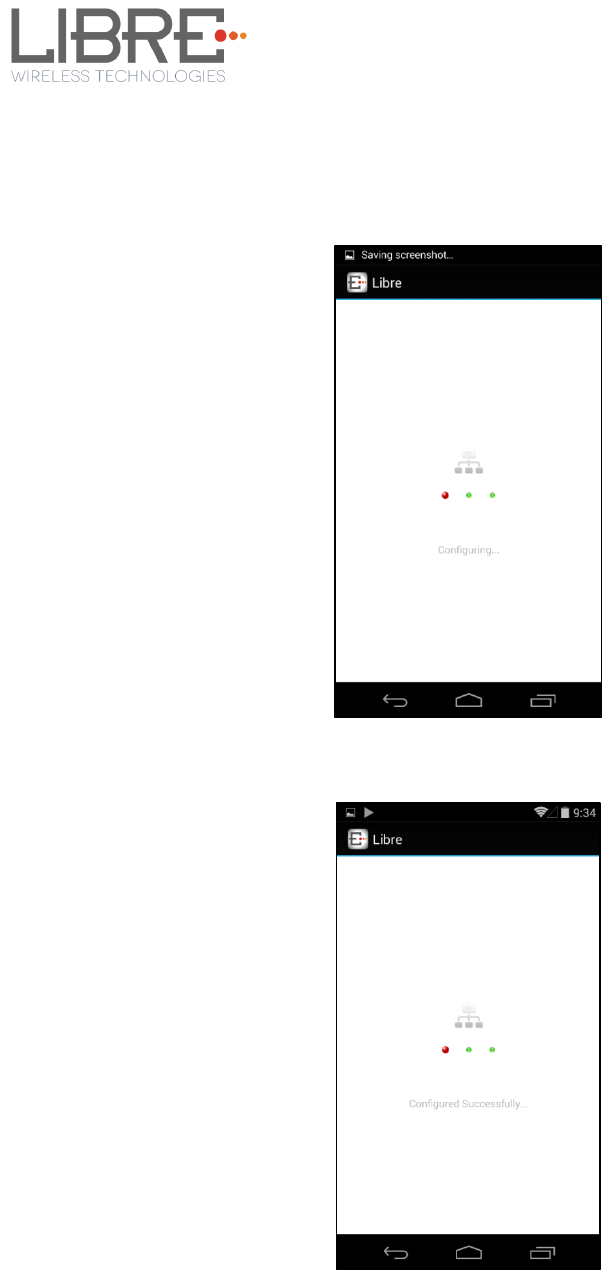

Figure 6-10: Configuring the Speaker .......................................................................................... 44
Figure 6-11: Successful Configuration ......................................................................................... 44
Figure 6-12: Network Status ........................................................................................................... 47
Figure 6-13: Network Configuration ............................................................................................ 48

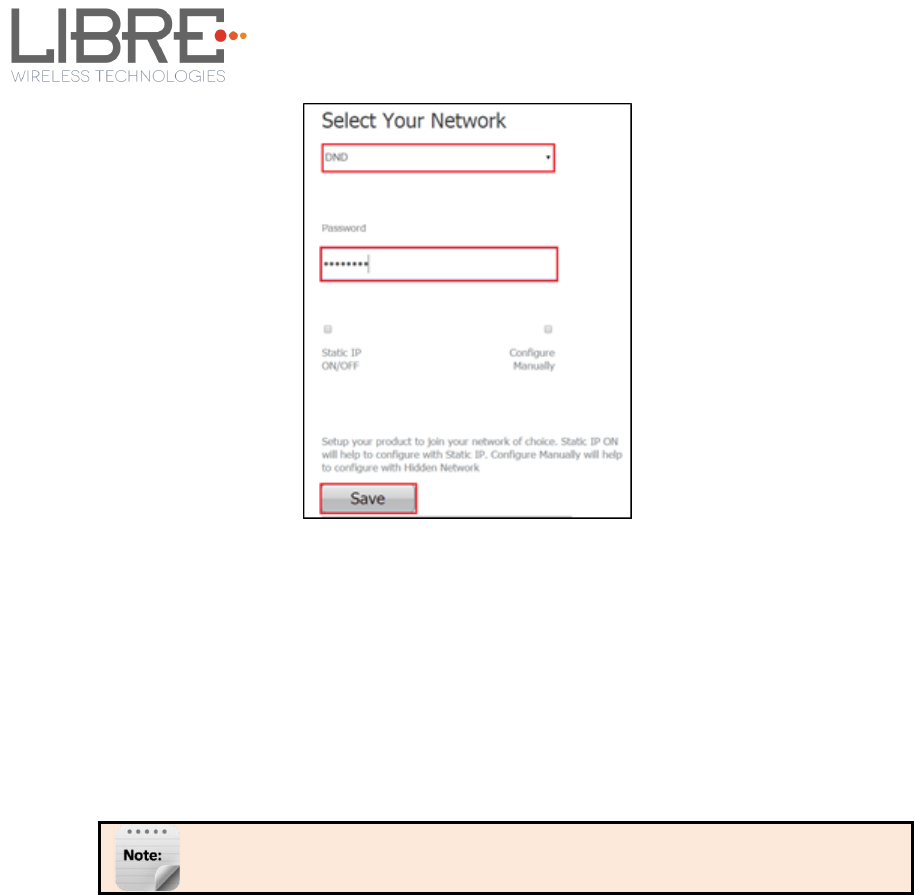

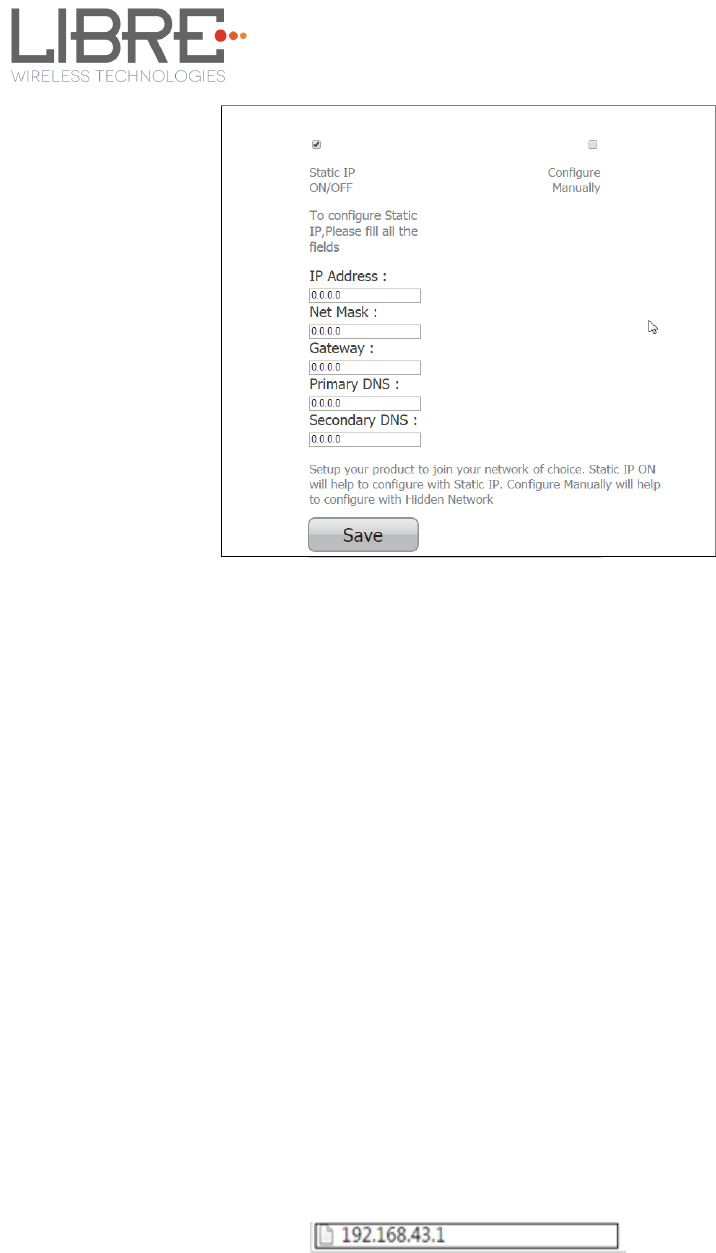

Figure 6-14: Network Configuration using Static IP ............................................................... 49

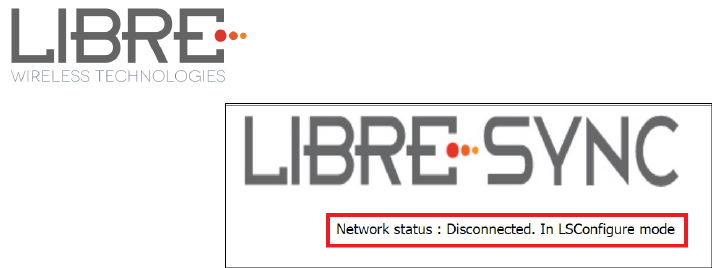

Figure 6-15: Network Status in Webpage .................................................................................. 50

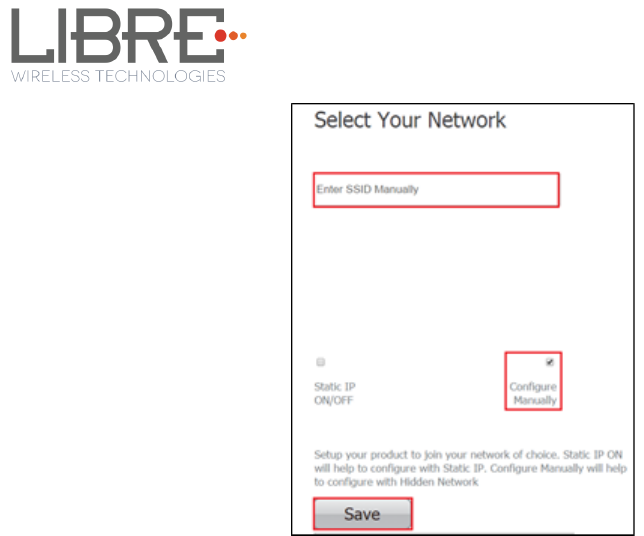

Figure 6-16: Configure Network Manually ................................................................................. 51

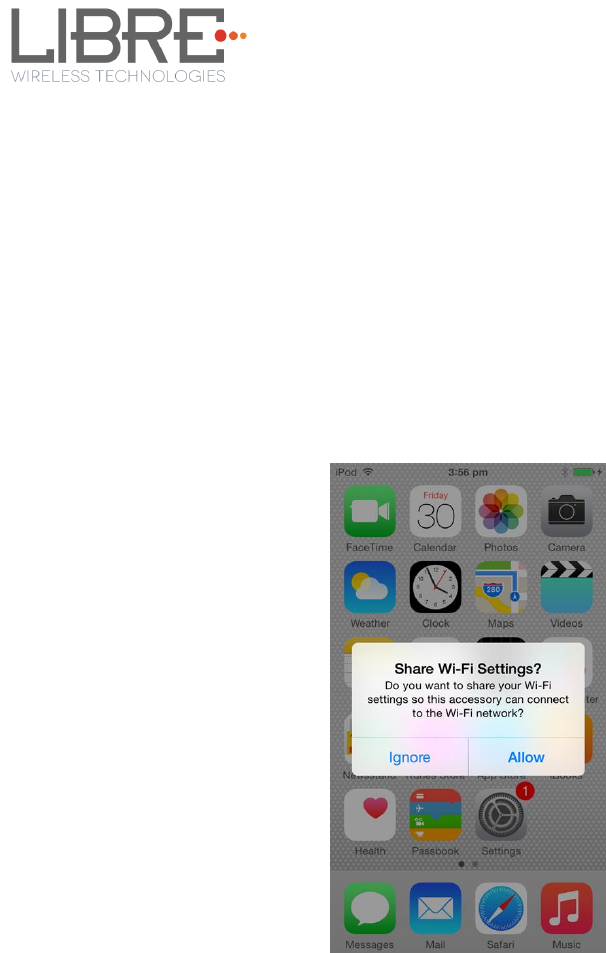

Figure 6-17: Wi-Fi settings sharing ............................................................................................... 52

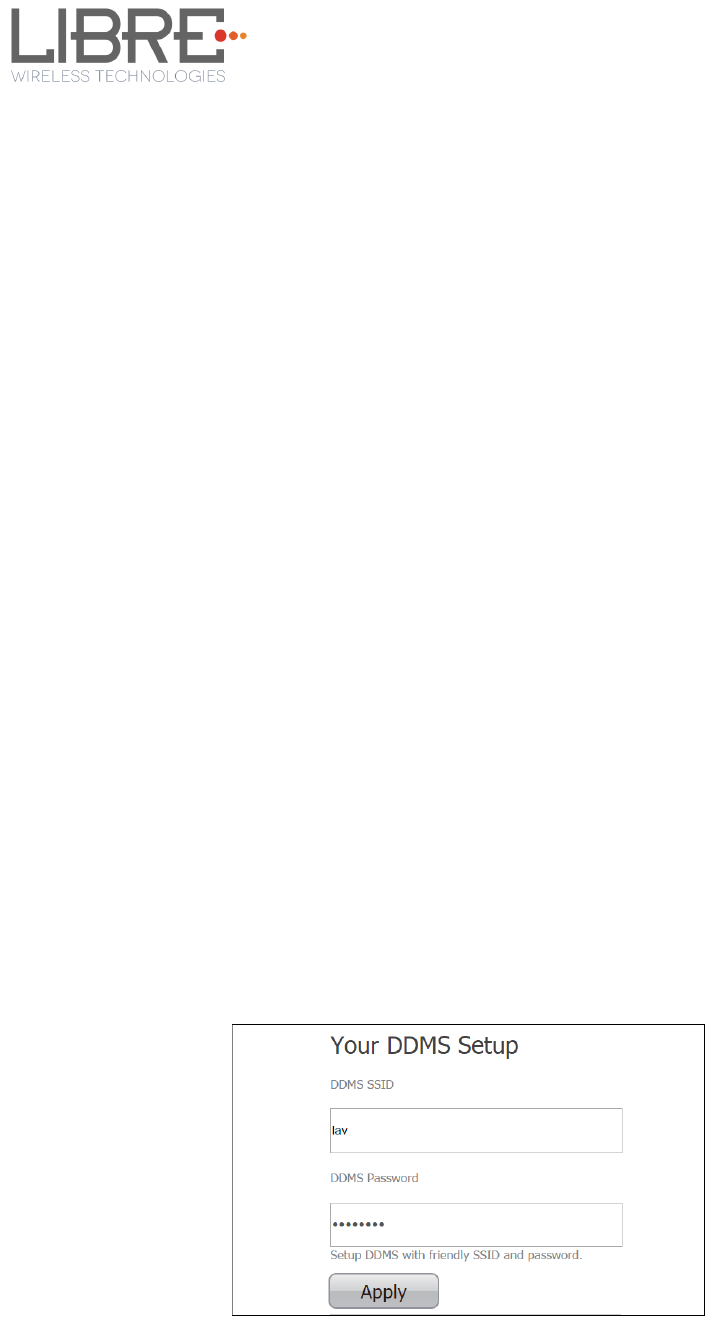

Figure 7-1: DDMS Setup in webpage ............................................................................................. 53

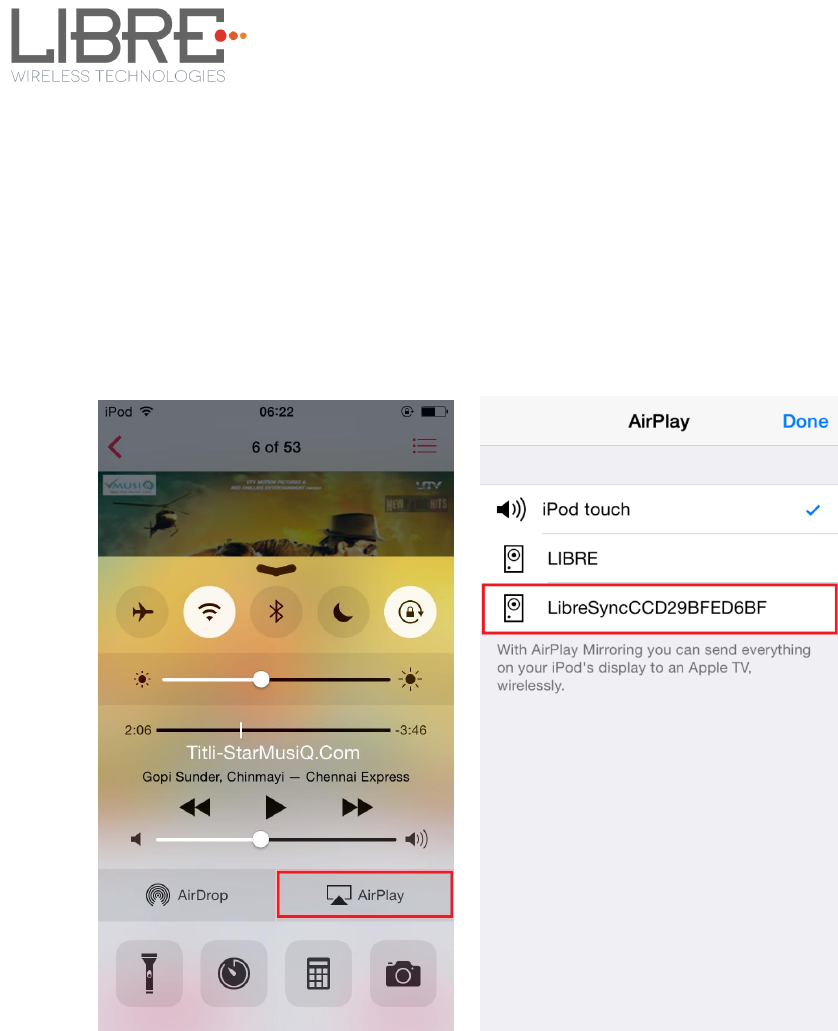

Figure 7-2: AirPlay Stream ............................................................................................................... 55
Figure 7-3: Password for Airplay ................................................................................................... 56
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 11 of 89
Libre Confidential

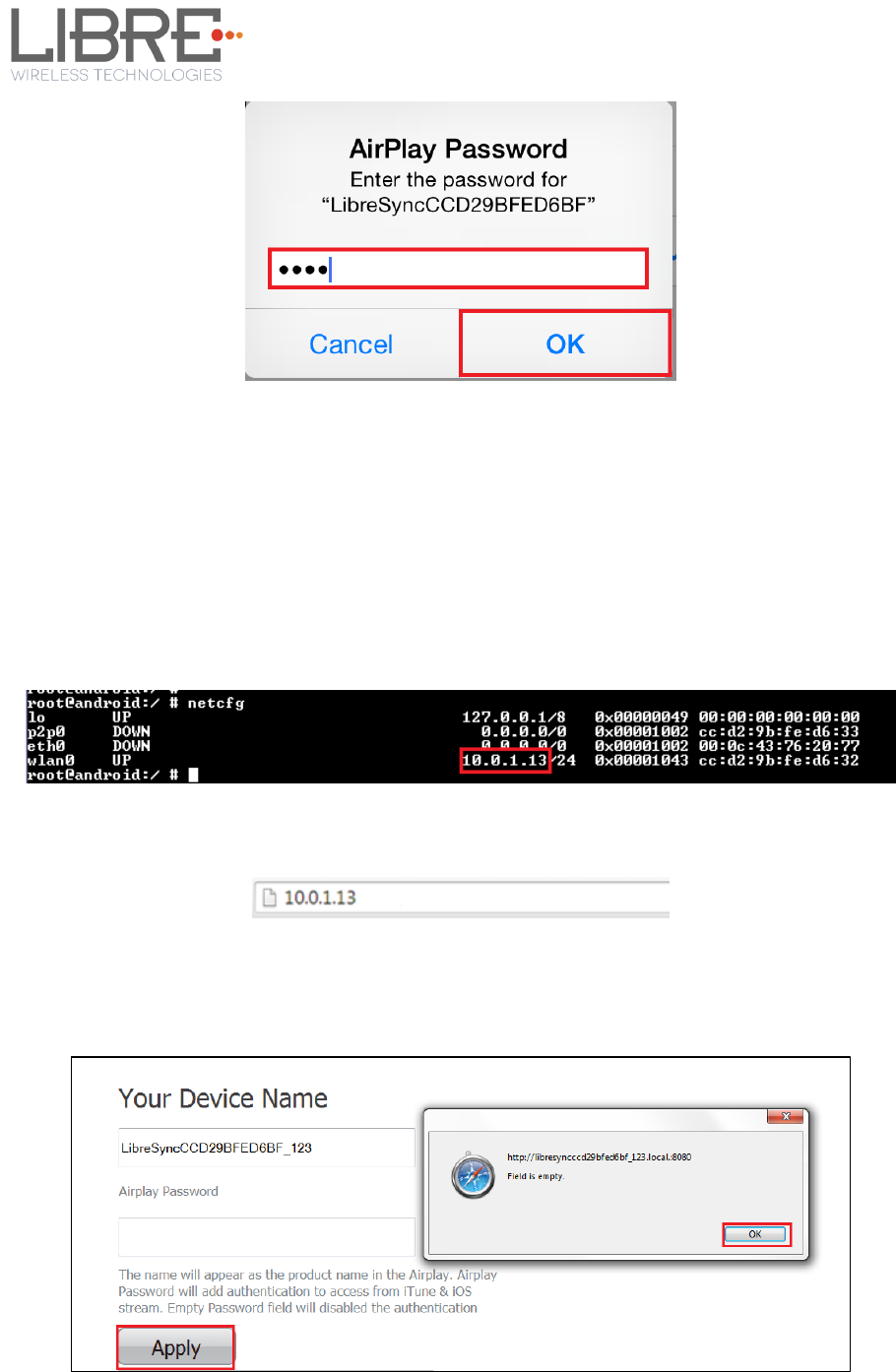

Figure 7-4: Enter Password for Streaming ................................................................................. 57
Figure 7-5: Disable Airplay Password.......................................................................................... 58
Figure 7-6: Media Player Stream Menu ....................................................................................... 58

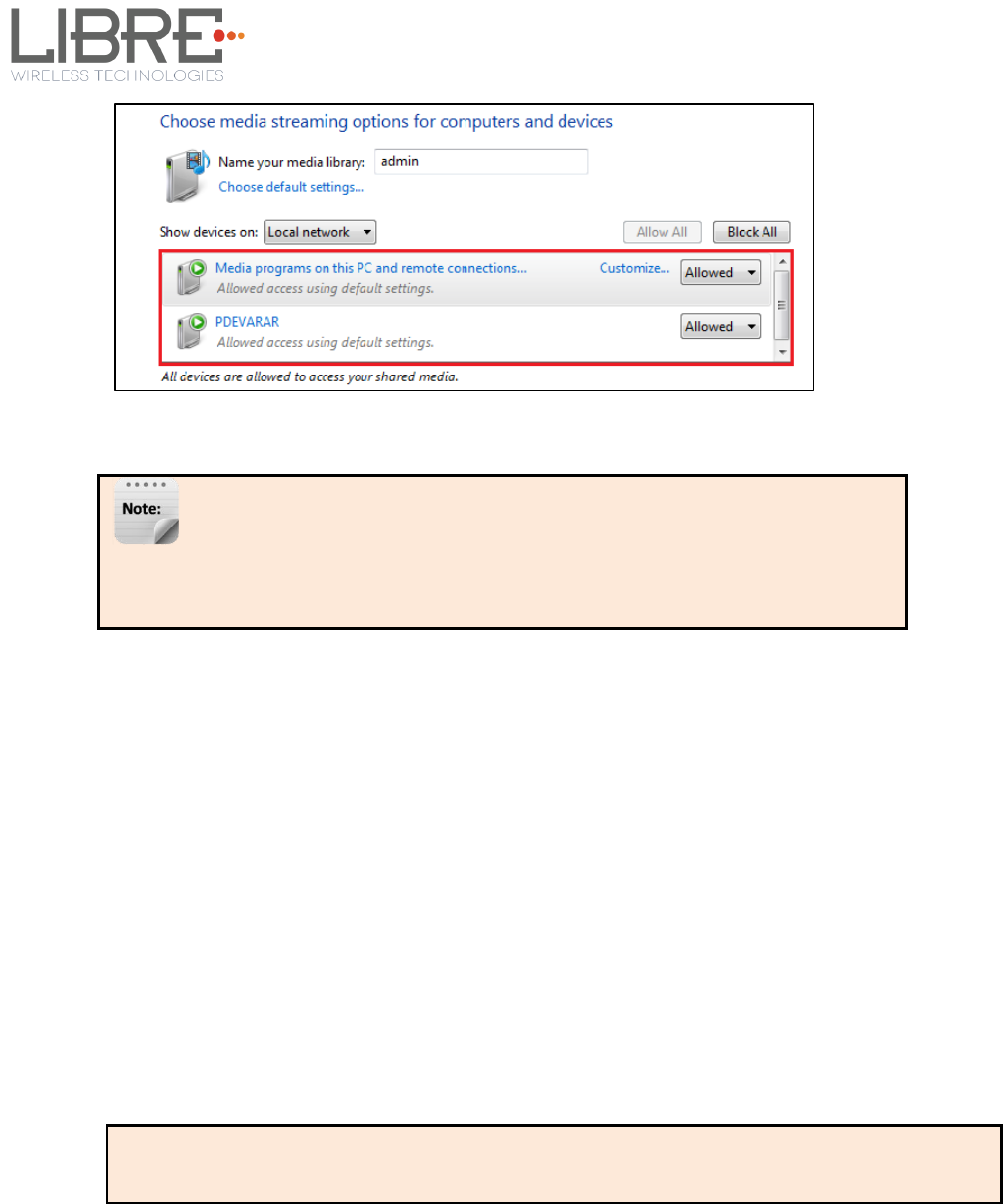

Figure 7-7: Media Streaming Options .......................................................................................... 59
Figure 7-9: Device Name Section ................................................................................................... 61
Figure 7-10: Switch to Wired Mode .............................................................................................. 63

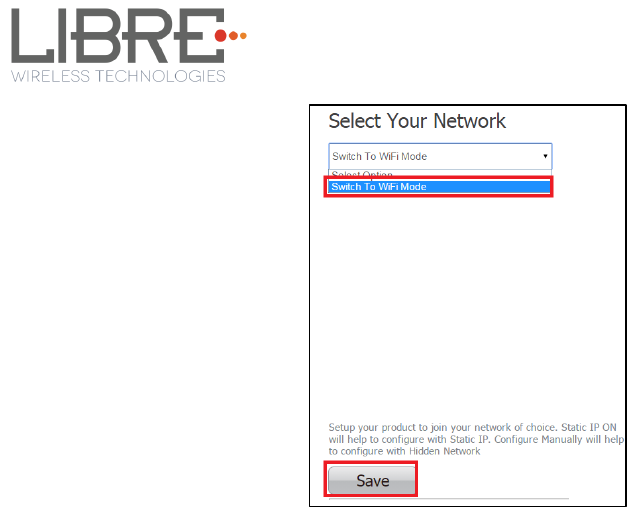

Figure 7-11: Switch to Wi-Fi Mode ................................................................................................ 64

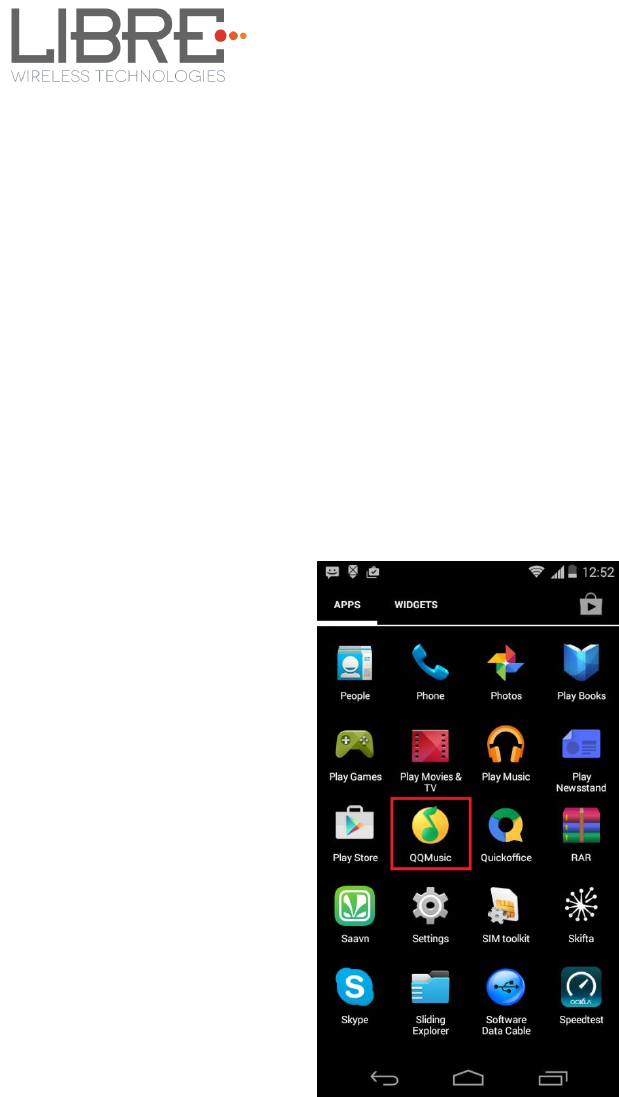

Figure 7-12: QQ Music APP .............................................................................................................. 65
Figure 7-13: Login Screen ................................................................................................................. 66
Figure 7-14: Device Selection Option ........................................................................................... 66
Figure 7-15: Device List .................................................................................................................... 67
Figure 7-16: Spotify APP ................................................................................................................... 68

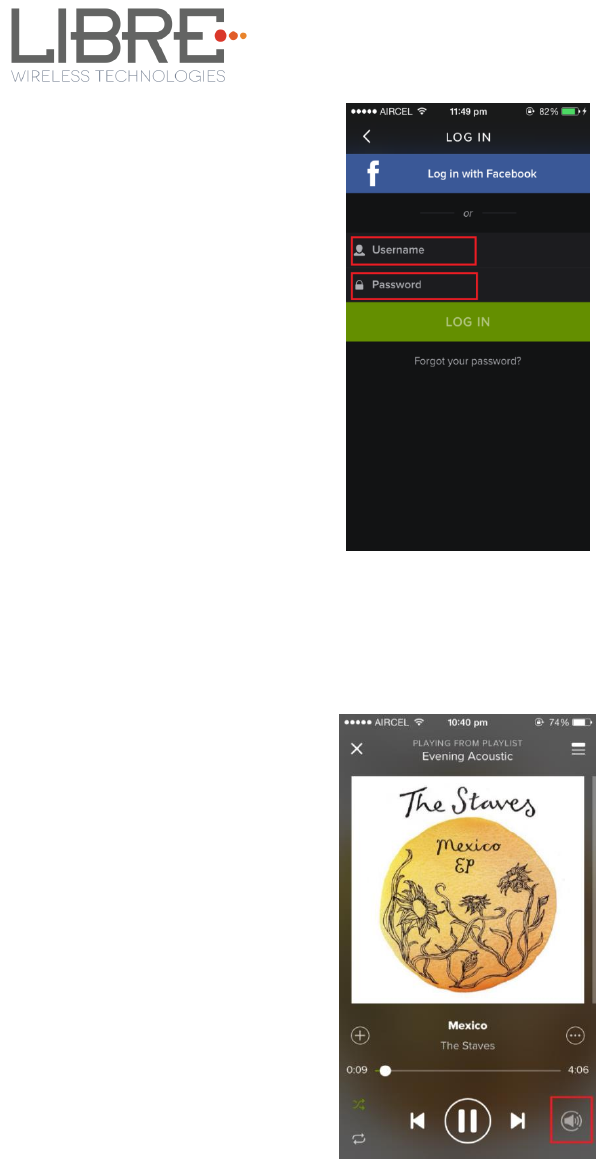

Figure 7-17: Spotify Login Screen .................................................................................................. 69
Figure 7-18: Device Selection .......................................................................................................... 69
Figure 7-19: Device List .................................................................................................................... 70
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 12 of 89
Libre Confidential
Document Revision History
Revision
Date
Description of change
1.0
September 21, 2015
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 13 of 89
Libre Confidential
1. Introduction
Libre Wireless provides evaluation kits (EVK) for users to gain familiarity with our
products and expedite their own design and development. User can connect to LS5B
module through RS232 UART, SD card, USB, or wireless interface to configure the module,
manage the on board device on the module, and perform functional test.
1.1. User Manual Insight
This document provides information on the procedures to be followed while using
LibreSync for various purpose such as
Firmware update
Configuring NV-item
Key Button Functionality
Network Configuration
Streaming Airplay® / DLNA® / DMR
Libre APP
DDMS
Source Switching
Aux-In Support
TCP / IP Tunneling
Device Name Configuration
Music Services (Spotify Connect, QQ Music, Vtuner, TuneIn, Melon, Deezer)
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 14 of 89
Libre Confidential
2. Libre Wireless Technologies’ EVK
Figure 2-1 Marks different components of the LS5B Module
Figure 2-1: LS5B Module Peripherals
2.1. LS5B EVK Setup
To setup the LS5B EVK and get started proceed as below
Step 1. Ensure the LS5B module is inserted in the EVK
Step 2. Connect the USB-to-Serial Cable from Serial port of EVK to USB port of
Laptop
Step 3. Connect the Power adaptor to DC Jack on EVK
Step 4. Power On the EVK, using ON/ OFF Switch
Step 5. Open the terminal tool (Hyper Terminal / Teraterm) on your laptop
Step 6. Configure the Serial settings, as below
- Baud Rate at 57600
- Data Bits at 8
- Parity at None
- Stop Bits at 1
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 15 of 89
Libre Confidential
3. Firmware Update
The Firmware Update process, facilitates update of U-Boot, BSL, and Application images
individually, or all of them together (Single-Image) to the LS-Module.
LSx Platform supports following Sources of Firmware-Image and Interfaces to trigger the
upgrade activity:
Image Source: USB, Internet, or Network
Trigger Interfaces: Shell-Command, or Webpage

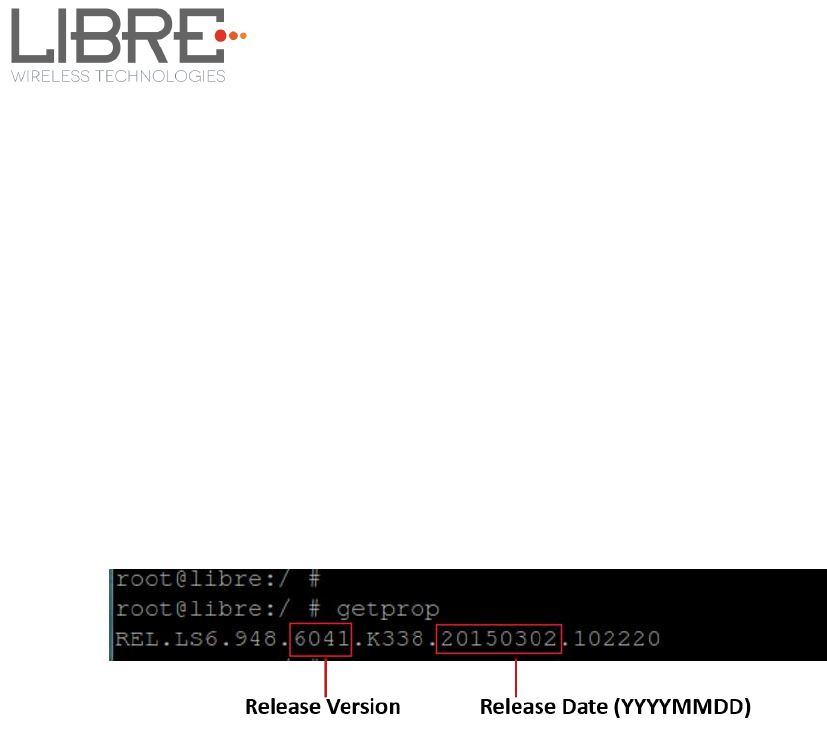

To know the firmware version and Release date, execute the following command
“#getprop” in the shell:
3.1. Single-Image Update
Single-Image binary file named, “lsimage” is released to customers on Libre Portal. The
“lsimage” contains U-Boot, Factory-ENV, BSL, and Application.
Customers can update the Single-Image via USB / Internet / Network method. USB Method
of update is the fastest method and is recommended.
3.1.1. USB Method
To update the Single-image binary file (File name: lsimage) on the LS5B module from USB
based on a trigger from Command-Shell, proceed as below:
Steps:
Step 1. Ensure the name of binary file as “lsimage” and place the firmware image in
root directory of USB drive.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 16 of 89
Libre Confidential

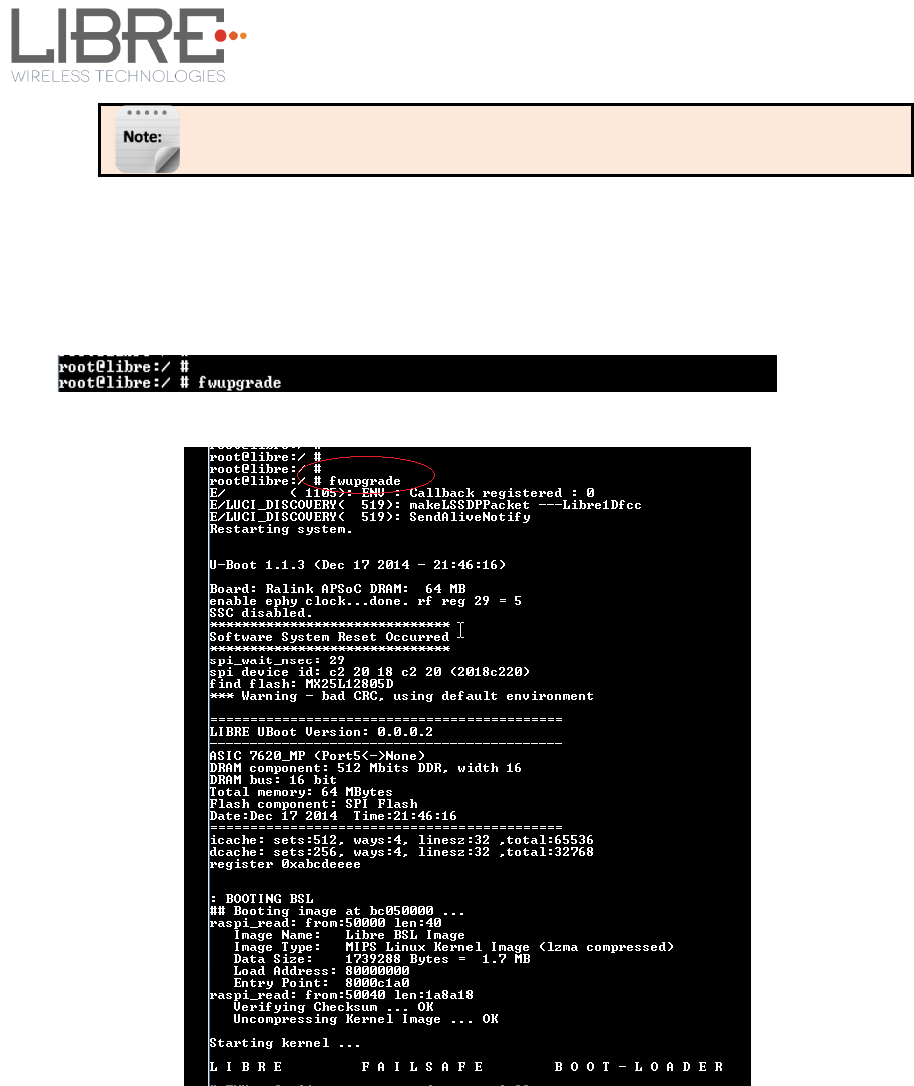

Step 2. Insert the USB to the LS5B EVK
Step 3. Execute command #fwupgrade in the device terminal (Shell Interface) to
initiate the firmware upgrade from USB

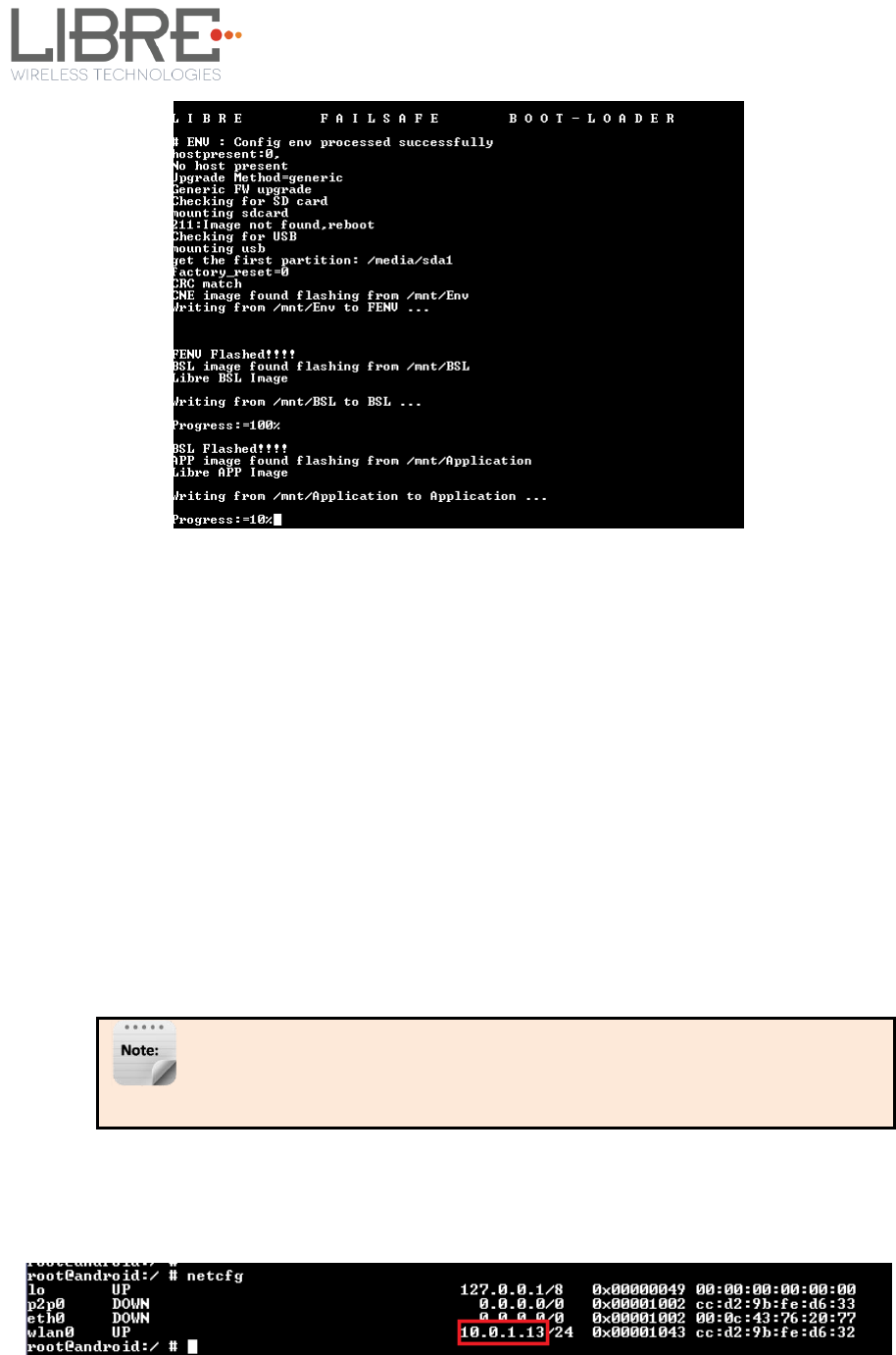

The firmware upgrade process proceeds as below:
The LS5B looks for valid firmware image in USB drive. Once the image is found, firmware
upgrade continues as shown in the image below with indication of the firmware upgrade
progress.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 17 of 89
Libre Confidential
3.2. Application Update
The Application-Image used to update the firmware is a binary file. Application on LS
module can be updated in the following ways
Network Method
USB Method
Internet Method
3.2.1. Network Method
To update the binary file (Application-Image or Single-Image) on the LS5B module over
network proceed as below
Steps

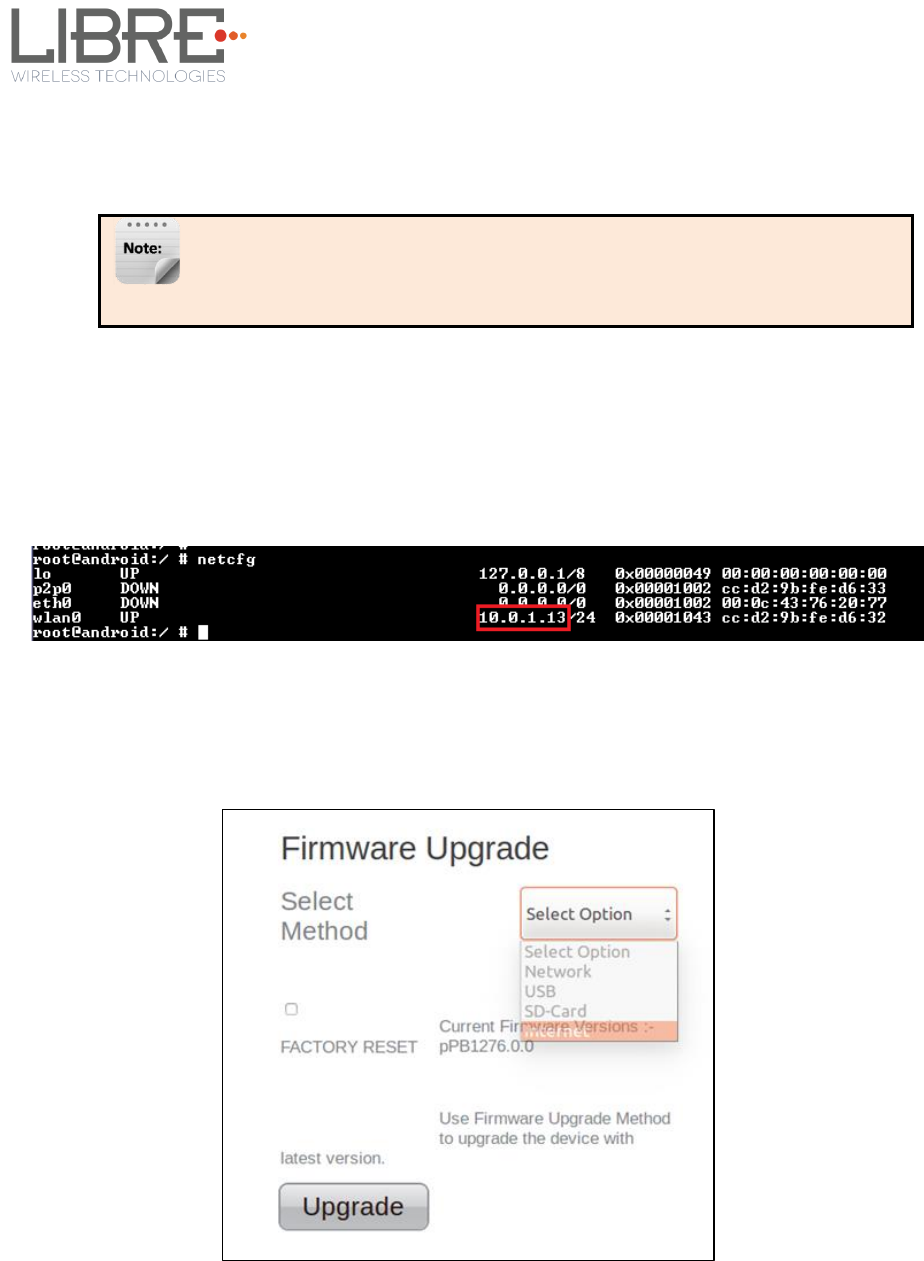

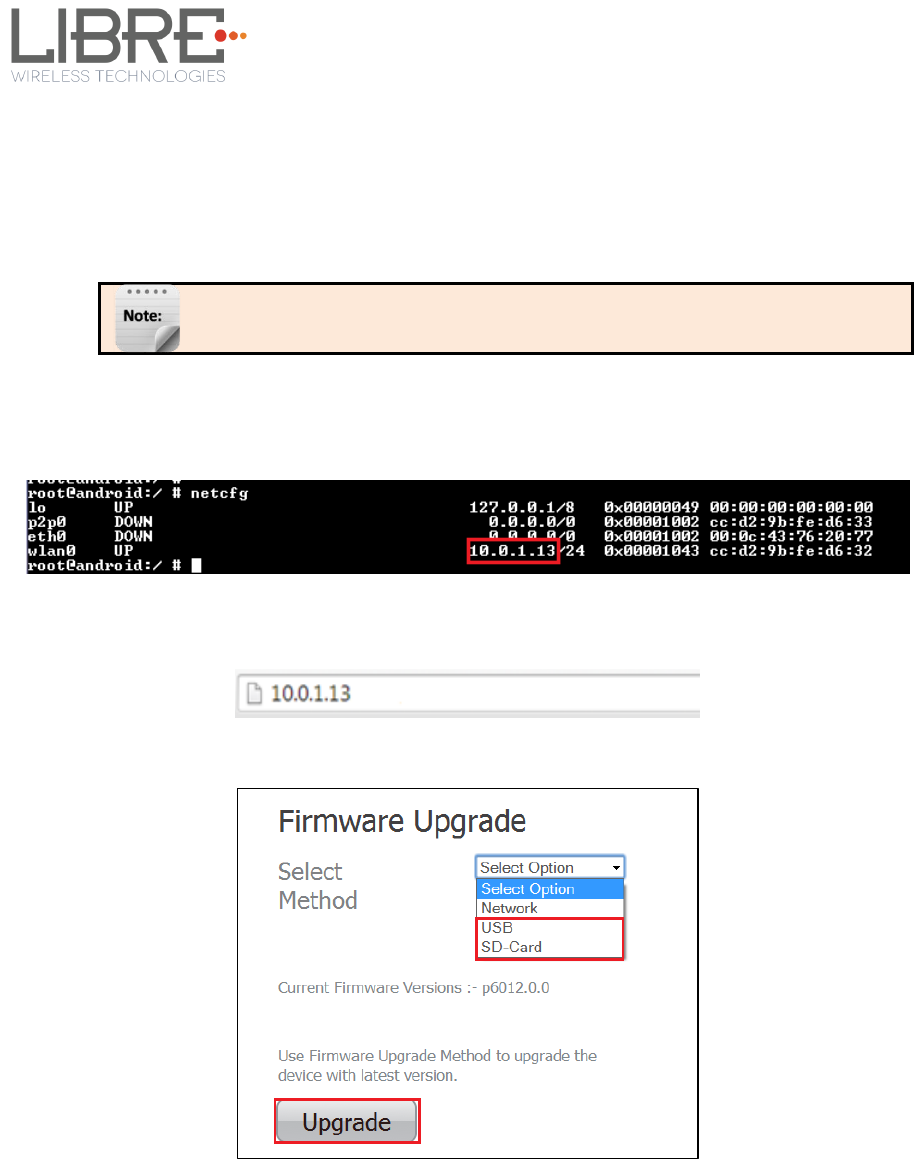

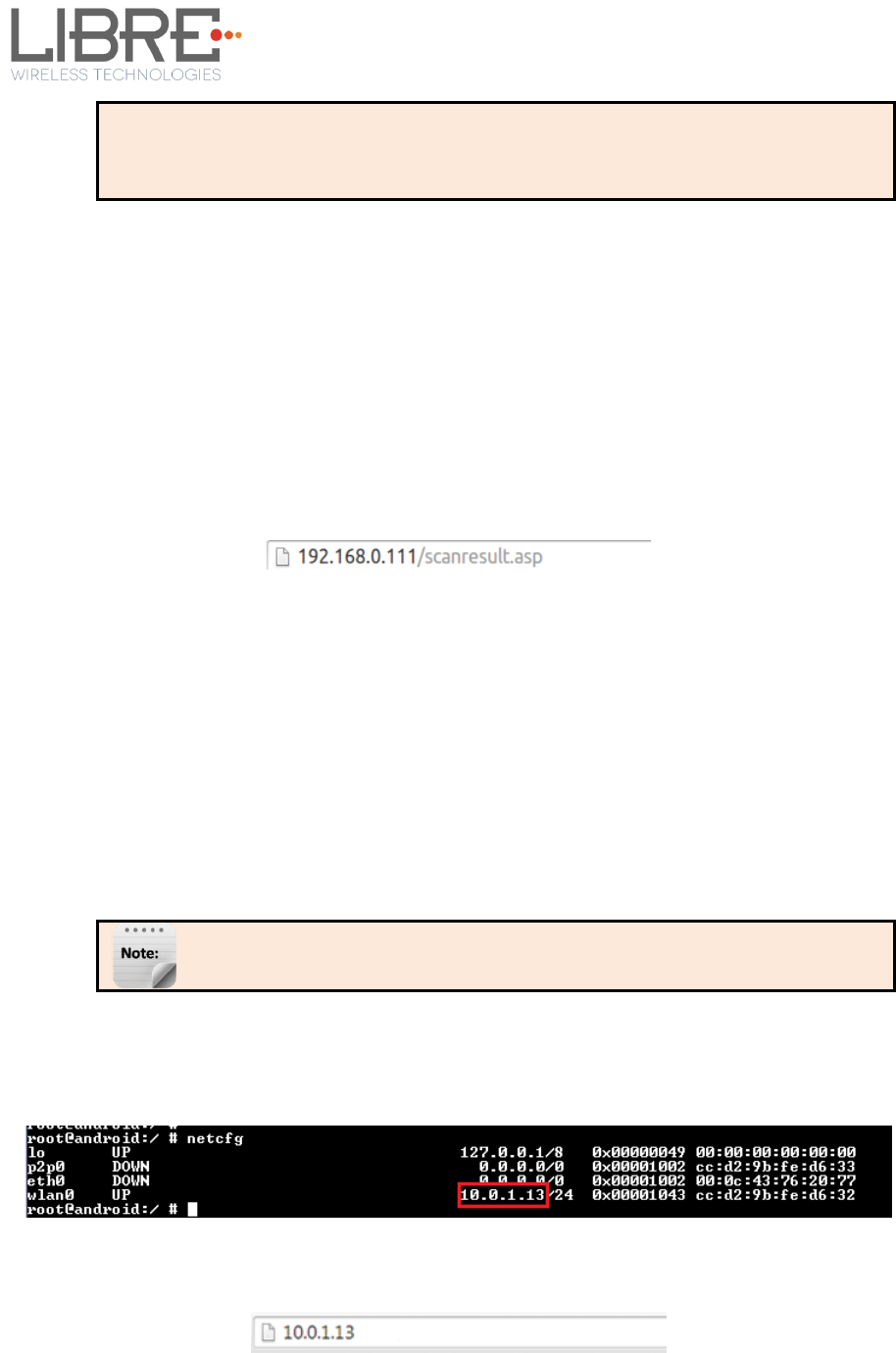

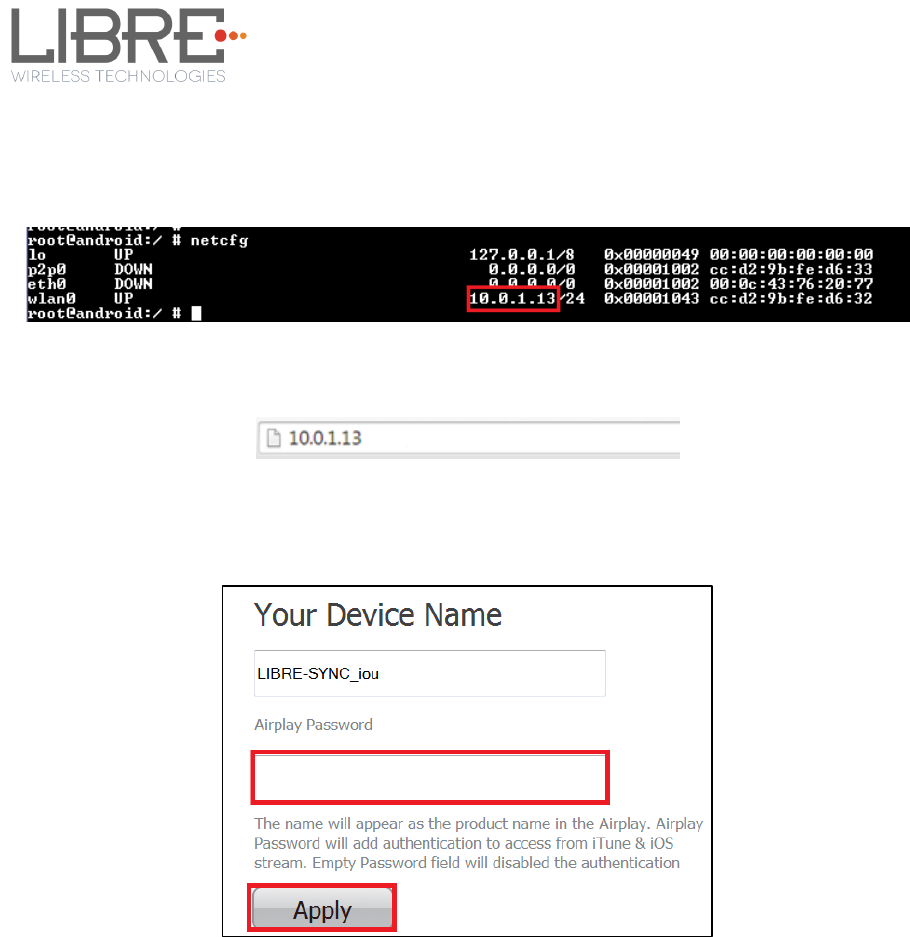

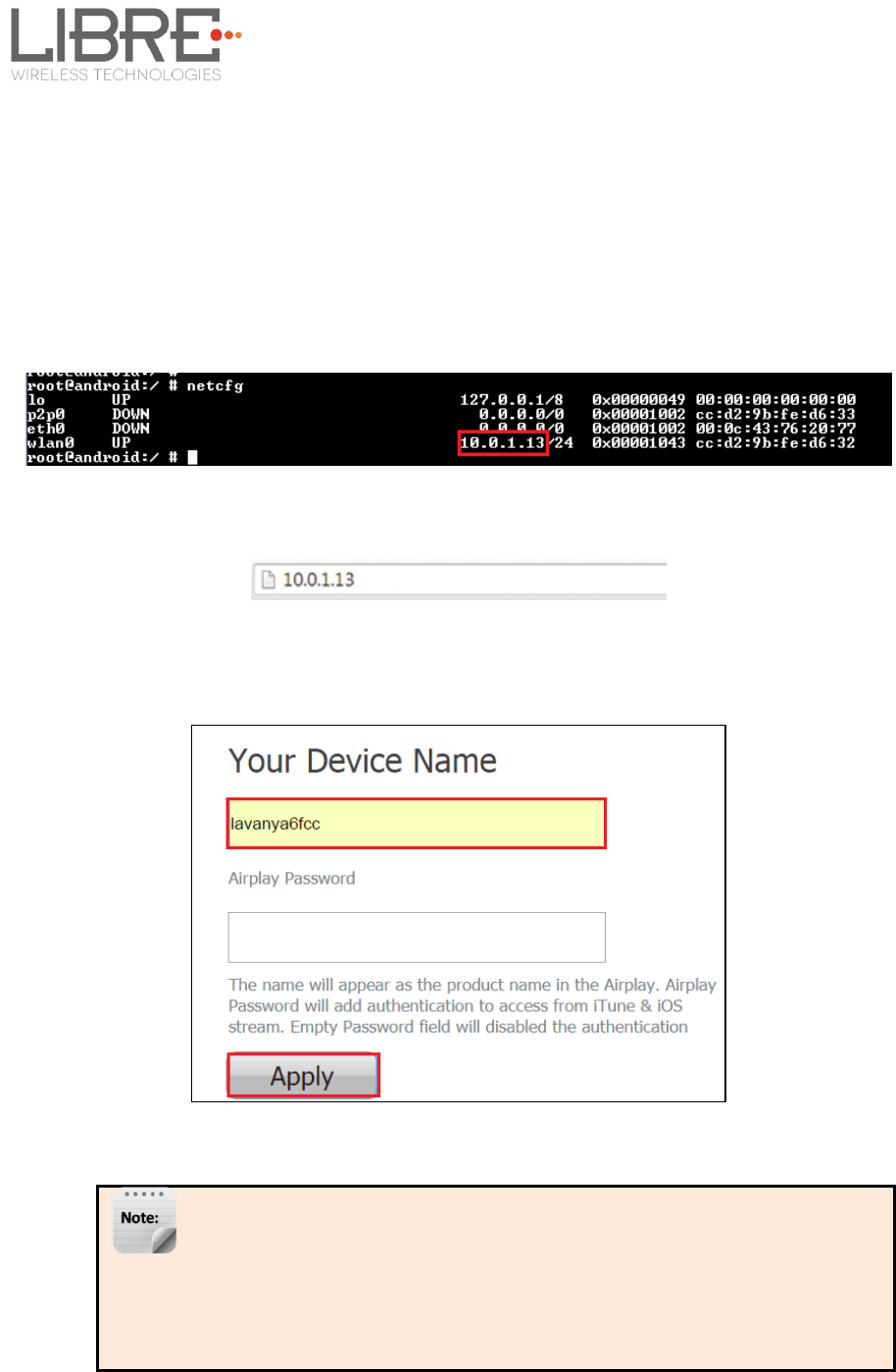

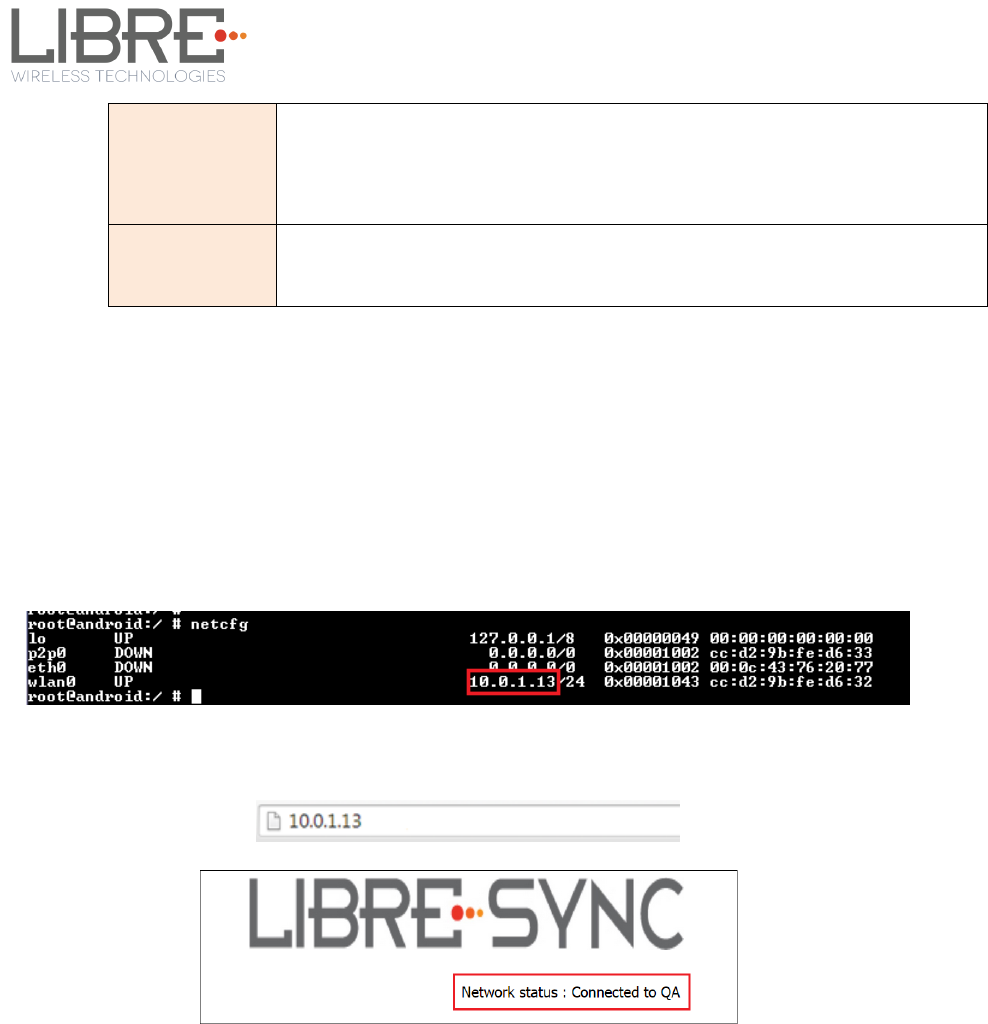

Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 18 of 89
Libre Confidential

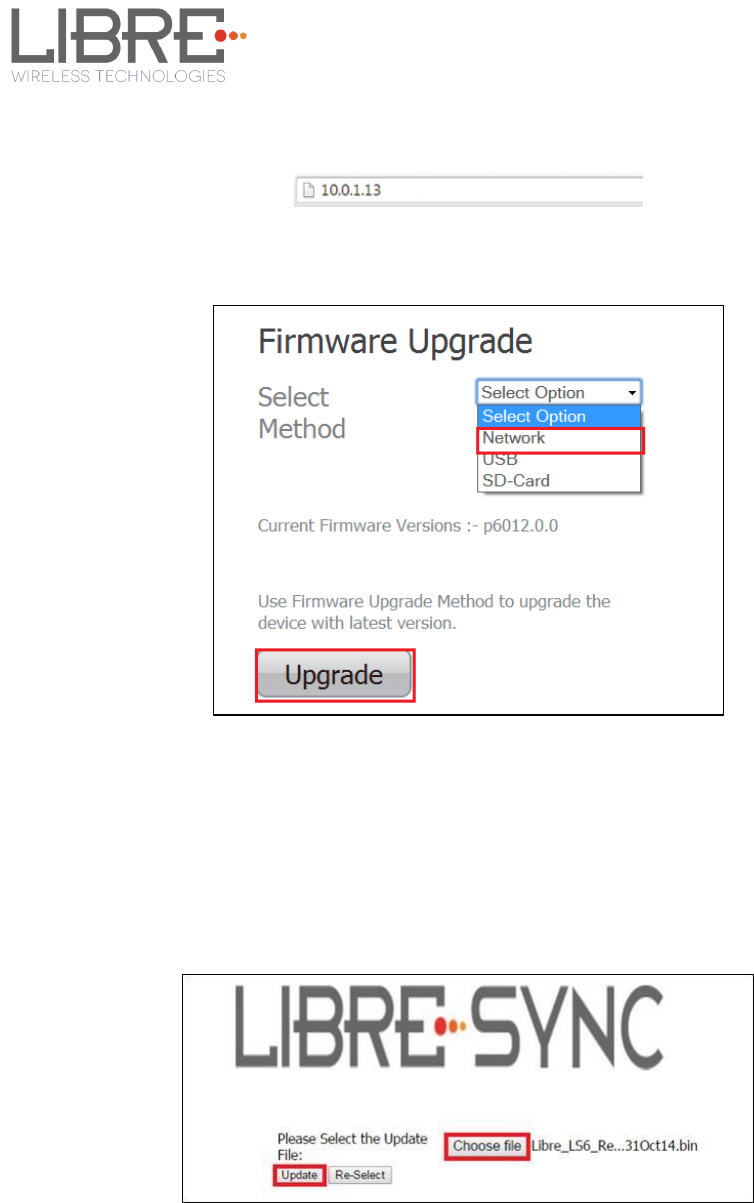

Step 2. Enter the IP in the address bar of your browser.
For Example, 10.0.1.13
Step 3. In the Firmware upgrade section, Select Method as Network and Click
Upgrade
Figure 3-1: Firmware Upgrade Method Selection
Step 4. Click Choose File to select the binary file for upgradation and Click Update
to upgrade the firmware.
- To refresh the binary file selected, Click Re-Select
Figure 3-2: Firmware Update Webpage
Step 5. LS5B Shows below shown confirmation page. User has to click on OK button
on the page.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 19 of 89
Libre Confidential

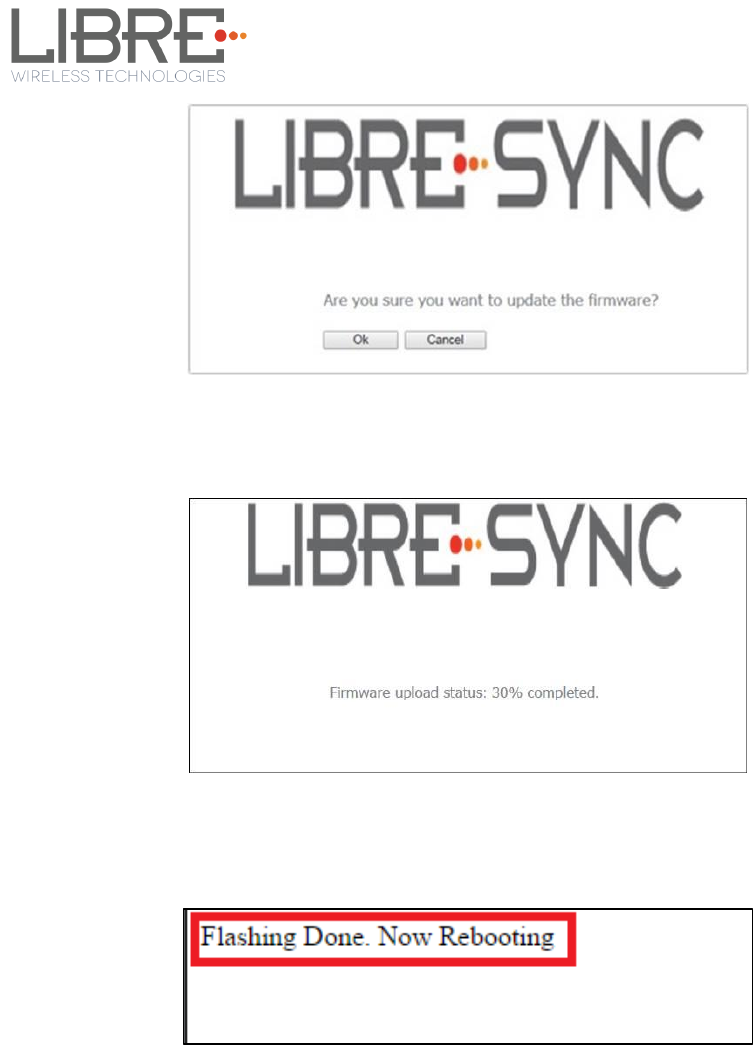

Figure 3-2: Firmware Update Confirmation webpage

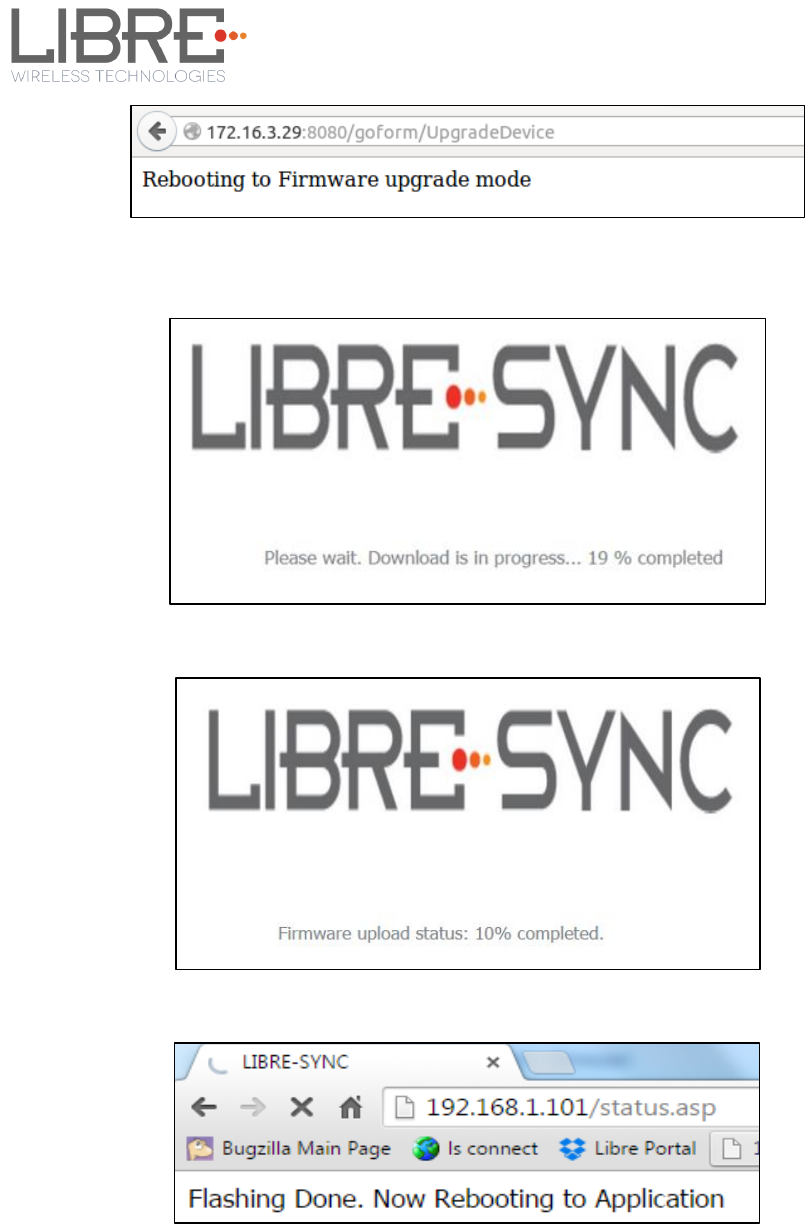

Step 6. LS5B-Module reboots to BSL, Firmware Update progress page is displayed.
Figure 3-3: Firmware Update Progress Page
On successful upload, web page displays the status of the update process
Figure 3-3: Firmware Update Status
End--
3.2.2. USB Method
To update the binary file (Application-Image or Single-Image) on the LS5B module from /
USB using the web server proceed as below
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 20 of 89
Libre Confidential
Steps
Step 1. Ensure the binary filename as “lsimage” and place the firmware image in
root directory of / USB.
Step 2. Insert the / USB in the LS5B EVK
Step 3. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 4. Enter the IP in the address bar of your browser
For Example, 10.0.1.13
Step 5. In the Firmware upgrade section, Select Method as / USB and Click Upgrade
Figure 3-4: Firmware Upgrade Method Selection
Step 6. LS5B-Module reboots to BSL, and Firmware Upgrade from / USB starts
automatically.
On successful upgrade, LS5B-Module reboots, with the updated application.
End - -
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 21 of 89
Libre Confidential
3.2.3. Internet Method
To update the Application Image on to the LSx module proceed as below.
Step 1. Update the NV-Item fwdownload_xml with the URL of the XML file.
See section 4.29

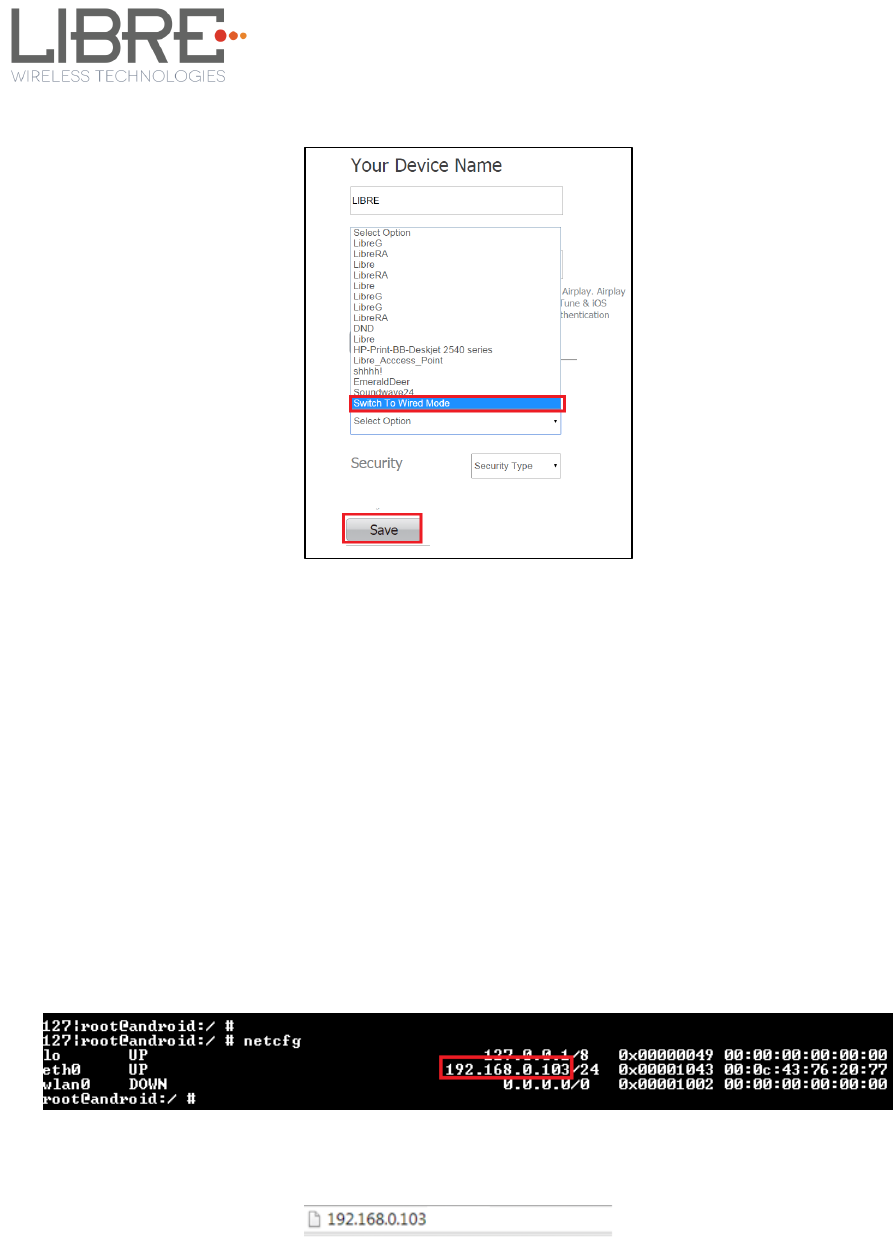

Step 2. Execute command #netcfg in the device terminal to know the device IP
Step 3. Enter the IP in the address bar of your browser
Step 4. In the Firmware upgrade section, Select Method as Internet and Click
Upgrade
Step 5. LS5B-Module reboots to BSL
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 22 of 89
Libre Confidential
Step 6. Once the DUT begins to download the Application-Image from internet,
Firmware Download progress is displayed.
Step 7. On Successful download, Firmware Upgrade progress is displayed.
Step 8. Module reboots on successful completion of upgrade process.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 23 of 89
Libre Confidential
3.3. BSL Update
The BSL is a one type of boot loader that facilitates upgrade of Application Image on to the
LSx module. Below section describes procedure to program the BSL on to LSx Module.
3.3.1. TFTP Method
To update the BSL for LS5B module using TFTP proceed as below
Step 1. Install TFTP server in Win 7 laptop / PC
You can download the TFTP server from web
Step 2. Store Image.bin file, in the same folder as TFTP is placed
Step 3. Connect the PC and module with Ethernet cable
Step 4. Set Static IP 10.10.10.3 for the Laptop/PC
go to Control Panel > Network Configuration > Local Area Connection > Properties
> TCP/IPv4 > Properties
Step 5. Power on the board and connect serial cable from Serial port of EVK to the
USB port of PC
Step 6. Open serial port terminal (57600-8-N-1) to access system Shell
Step 7. Start TFTP server in laptop / PC
Step 8. Restart the module by issuing the command #reboot in terminal
or
Restart the module using the Reset button in EVK
Step 9. In the U-Boot options, select Option a in the terminal within 1 second
Step 10. Answer 'Y' or 'N' for the warning message prompted to proceed with the
update
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 24 of 89
Libre Confidential
Figure 3-5: BSL Update Terminal Warning Message Prompt
Step 11. To set default Server and Device IP address, Press Enter key on Keyboard
Figure 3-6: BSL Default IP Address
Step 12. Provide the name of the binary for BSL, to be flashed on the U-Boot prompt.
For Example, Image.bin
Make Sure the Binary name provided, is as in the repository. Wrong
binary name might make the module unusable.
End--
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 25 of 89
Libre Confidential
3.4. U-Boot Update
3.4.1. TFTP Method
To update the U-Boot for LS5B module using TFTP proceed as below
Step 1. Install TFTP server in Win 7 laptop / PC
You can download the TFTP server from web
Step 2. Store Image.bin file, in the same folder as TFTP is placed
Step 3. Connect the PC and module with Ethernet cable
Step 4. Set Static IP 10.10.10.3 for the Laptop/PC
go to Control Panel > Network Configuration > Local Area Connection > Properties
> TCP/IPv4 > Properties
Step 5. Power on the board and connect the EVK to the USB port of PC
Step 6. Open serial port terminal (57600-8-N-1) to access system Shell
Step 7. Start TFTP server in laptop / PC
Step 8. Restart the module by issuing the command #reboot in terminal
or
Restart the module using the Reset button in EVK
Step 9. In the U-Boot options, select option 1 in the terminal within 1 second
Step 10. Answer 'Y' or 'N' for the warning message prompted to proceed with the
update
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 26 of 89
Libre Confidential
Figure 3-7: U-Boot Update Terminal Warning Message Prompt
Step 11. To set default Server and Device IP addres, Press Enter Key on Keyboard
Figure 3-8: U-Boot Default IP address
Step 12. Provide the name of the binary for U-Boot, to be flashed on the U-boot
prompt
For Example, Image.bin
Make Sure the Binary name provided, is as in the repository. Wrong
binary name might make the module unusable.
End--
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 27 of 89
Libre Confidential
4. Configuring Non-Volatile-Item
The latest LS-Images supports NV-Item from application
only and is accessible from Application Shell prompt. NV-item in
U-Boot is not supported anymore.
To configure all the NV-Item values at one shot as per customer
choice, customers can use the envitem.xml file. This xml file is used
to generate a final Golden-Image for production.
Non-Volatile (NV) item in LibreSync is configured through command line.
To configure the NV-Item, type the below command in the command line and
Reboot the LS-Module.
Syntax of the Command to set NV-Item
#setenv <NV_item_name> <value>
Syntax of the Command to Reboot
#reboot
To know the value of the NV-Item set, type the below command in the command
line.
Syntax of the Command to Know the Value of NV-Item
#getenv <NV_item_name>
To reset all the NV-Items to factory default values, type the below command in
the command line.
Syntax of the Command to Reset All NV-Items to Factory Default
#SetFacDefault
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 28 of 89
Libre Confidential
To know all the NV-items set, type the below command in the command line.
Syntax of the Command to Know All NV-Items set
#GetAllENV
For example,
To Configure NV-Item hostpresent
#setenv hostpresent <<1>>
To Know the value of the NV-item, hostpresent set
#getenv hostpresent
4.1. Host Communication Over UART
Host Communication NV-item avoids Junk data/false triggers, in case of EVK's where
UART1 communication is typically not required.
The Host communication NV-item should be set as 1, to enable the Host communication
over UART1.
The syntax below provides the commands to enable and disable the Host Communication
over UART1
Enable
#setenv hostpresent <<1>>
Disable
#setenv hostpresent <<0>>
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 29 of 89
Libre Confidential
4.2. Network Interface
Network Interface NV-item allows user to set the type of Network interface such as
Ethernet, Wi-Fi or Auto.
4.2.1. Ethernet
The syntax below provides the commands to enable Ethernet.
#setenv netif <<eth0>>
4.2.2. Wi-Fi
The syntax below provides the commands to enable Wi-Fi.
#setenv netif <<wlan0>>
4.2.3. Auto
The LS-Sync software detects the network interface automatically, based on the connection
available. Once the Auto detection is enabled Ethernet would get priority as network
interface on Boot-Up.
The syntax below provides the commands to enable auto detection of network interface.
#setenv netif <<auto>>
4.3. SSID of DDMS-Zone in SA-Mode
The default SSID for the DDMS-Zone in SA-Mode is “Direct-LBMyTestZone”. You can
change the SSID of the DDMS-Zone by editing the NV-Item “ddms_SSID”.
#setenv ddms_SSID <<NewName>>
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 30 of 89
Libre Confidential
Editing the NV-item changes the SA-Group SSID as “Direct-LBNewName”.
4.4. DDMS-Zone Password
The default password for DDMS-Zone is hello123. The password for DDMS-Zone can be
edited using the NV-item ddms_password.
Syntax below provides the commands to edit the password for DDMS-Zone.
#setenv ddms_password <<hello123>>
4.5. I2S LR-Clock
At present LR-Clock is supported at frequency of 44.1 KHz and 48KHz. LR-Clock by default
is set to 44.1 KHz.
NV-Item LRCK is used to edit the frequencies of the I2S LR-Clock. The syntax below
provides the commands to edit LRCK.
To set the LRCK at 44.1KHz
#setenv LRCK <<44100>>
To set the LRCK at 48KHz
# setenv LRCK <<48000>>
4.6. I2S M-Clock
M-Clock is supported at frequency of 12MHz and 12.288MHz. M-Clock by default is set to
12MHz.
NV-Item MCLK is used to edit the frequencies of the I2S M-Clock. The syntax below
provides the commands to edit MCLK.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 31 of 89
Libre Confidential
To set the MCLK at 12MHz
#setenv MCLK <<12000000>>
To set the MCLK at 12.288MHz
# setenv MCLK <<12288000>>
4.7. ACP
NV-Item ACPpresent enables detection of the Apple Co-processor for ACP certificate
validation. By default the NV-Item ACPpresent is set as 1.
The syntax below provides command to enable or disable ACP presence detection.
Enable
#setenv ACPpresent <<1>>
Disable
# setenv ACPpresent <<0>>
4.8. Model Name
The NV-Item Model is used to set the model name for the Speaker or the device. The model
name can be any name of the user choice. The Maximum length of the model name is 63
characters.
The default Model Name for LS-Enabled speakers is LibreSync. You can change the model
name by editing the NV-Item Model.
#setenv Model <<ModelNewName>>
Editing the NV-item changes the Model Name as “ModelNewName”.
4.9. Manufacturer Name
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 32 of 89
Libre Confidential
The NV-Item Manufacturer is used to set the Manufacturer name for the Speaker or the
device. The Manufacturer name can be any name of the user choice. The Maximum length
of the Manufacturer name is 63 characters.
The default Manufacturer Name for LS-Enabled speakers is Libre. You can change the
Manufacturer name by editing the NV-Item Manufacturer.
#setenv Manufacturer <<ManufacturerNewName>>
Editing the NV-item changes the Manufacturer Name as “ManufacturerNewName”.
4.10. Current Volume
The NV-item current_volume enables the user to set the volume levels for LS enabled
speakers. The possible Values for the NV-Item Current Volume is between 0-100. The
default value is 50.
The syntax below provides the commands to edit the NV-Item.
#setenv current_volume <<50>>
4.11. WAC SSID
The default SSID for WAC is “LSConfigure_xxxxxx”. Where, “xxxxxx” stands for the MAC id
of the LS-Enabled speaker or device.
You can change the SSID of the WAC by editing the NV-Item “WAC_SSID”.
#setenv WAC_SSID <<NewSSIDName>>
Editing the NV-item changes the WAC SSID as “NewSSIDName_xxxxxx”.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 33 of 89
Libre Confidential
4.12. X-MODEM Packet Size
X-Modem Packet Size for transferring the firmware to Host-MCU can be either 128 bytes or
1022 bytes. The X-MODEM Packet Size can be set using the NV-Item xmodem_pkt_size. By
default the X-MODEM Packet Size is set to be 1024 bytes.
The syntax below provides commands to edit xmodem_pkt_size.
To set the X-MODEM Packet Size at 128bytes
#setenv xmodem_pkt_size <<128>>
To set the X-MODEM Packet Size at 1024 bytes
# setenv xmodem_pkt_size <<1024>>
4.13. I2S Clock from Bluetooth Module
By default I2S Clock is supplied by any CODEC / DAC in I2S-Master mode. LS Module or any
other chip attached to I2S-Bus (Example- Bluetooth) functions in I2S-Slave mode.
By using this NV-Item the system can be configured to operate such that, external
Bluetooth module (I2S-Master) provides the I2S Clock and both CODEC / LS Module
operates in I2S-Slave mode.
To set CODEC / DAC as I2S-Master (Default State)
#setenv BCLK <<0>>
To set External Bluetooth as I2S-Master
#setenv BCLK <<1>>
4.14. ACP Sharing
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 34 of 89
Libre Confidential
ACP Sharing NV-Item is used to enable or disable ACP Sharing between LS-Module and
Host-MCU.
When ACP Sharing is disabled, there will be no reply on Message-Box #15 for the request
by Host-MCU on Message-Box #14.
Use the below syntax commands to enable ACP Sharing.
To enable ACP Sharing
#setenv AcpToLS <<1>>
To disable ACP Sharing (Default)
#setenv AcpToLS <<0>>
4.15. HOST BAUDRATE
HOST_BAUDRATE NV-Item is used to define different UART BAUDRATE. UART BAUDRATE
supported in LS5B is 9600, 19200, 38400, 57600 (default) and 115200
Use the below syntax to set the UART NAUDRATE.
To Set UART BAUDRATE
#setenv HOST_BAUDRATE 57600
4.16. DLNA Connection Close
DLNA_ConnClosed NV-Item is used to enable / disable the time gap between play-pause
trigger.
Setting DLNA_ConnClosed to ‘0’ will trigger Play-Pause instantaneously.
Setting DLNA_ConnClosed to ‘1’ will provide a time gap (negligible) between
Play-Pause trigger.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 35 of 89
Libre Confidential
Use the syntax below to enable / disable the time gap between play-pause trigger in DLNA.
To Enable Time Gap Between Play-Pause Trigger (Default)
#setenv DLNA_ConnClosed <<1>>
To Disable Time Gap Between Play-Pause Trigger
#setenv DLNA_ConnClosed <<0>>
4.17. Country
NV-Item Country is used to specify the Country Code of speaker device. Country code is
used to state the Speaker device region.
Speaker device region is required to abide by the channel regulations of the region in which
the device is present.
Countries Supported and Channel Limitations
Country
Country Code
Channels
United States (Default)
US
1-11
Europe
EU
1-13
Japan
JP
1-14
Use the syntax below to specify the country Code of the Speaker Device.
To Specify the Country Code
#setenv Country <<US>>
4.18. Serial Number
NV-Item Serial_num indicates the serial number of the speaker device. Serial number can
be of maximum length of 15 charatcers.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 36 of 89
Libre Confidential
Use the syntax below to define the serial number of the speaker device.
To Define The Serial Number of The Speaker Device
#setenv Serial_num <<1234>>
4.19. Model Number
NV-Item Model_num indicates the Model of the speaker device. Model Number can be of
maximum length of 15 charatcers.
Use the syntax below to define the model number of the speaker device.
To Define The Model Number of The Speaker Device
#setenv Model_num <<4567>>
4.20. Hardware Version
NV-Item Hardware_version indicates the hardware used in the speaker device. Hardware
version can be of maximum length of 15 charatcers.
Use the syntax below to define the Hardware Version of the speaker device.
To Define The Serial Number of The Speaker Device
#setenv Hardware_version <<bncm>>
4.21. Firmware Version
NV-Item Firmware_version indicates the firmware used in the speaker device. Firmware
version can be of maximum length of 15 charatcers.
Use the syntax below to define the Firmware version of the speaker device.
To Define The Firmware Version of The Speaker Device
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 37 of 89
Libre Confidential
#setenv Firmware_version <<tyio>>
4.22. Firmware Update Link
NV-Item fwupdate_link is used to provide the URL for the firmware update over internet.
Use the syntax below to provide the URL for firmware update.
To Provide the URL for Firmware Update over Internet
#setenv fwupdate_link << www.librewireless.com >>
4.23. Firmware Download XML
NV-Item fwdownload_xml is used to provide the URL for the XML file that contains the
information about Firmware version, HOST-MCU version and the link to download the
firmware.
Use the syntax below to provide the URL for firmware update.
To Provide the URL for Firmware Update over Internet
#setenv fwdownload_xml <<
http://172.16.2.103/share/firmware/LS5B/firmware_download.xml</value
>>
For information on Firmware Download XML file and its structure refer to
LibreWirelessTechNote_Failsafe-Firmware_Upgrade document available in Libre Portal.
4.24. Album Art Size
NV-Item AlbumArtMaxSizeKB defines the size of the album art. The maximum album art
size supported in LibreSync is 2048 KB.
Use the syntax below to provide the URL for firmware update.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 38 of 89
Libre Confidential
To Provide the URL for Firmware Update over Internet
#setenv AlbumArtMaxSizeKB << 2048 >>
4.25. Spotify APP Key
NV-Item SpotifyAppKey is used to store the unique application key to access the Spotify
Library. LS-enabled speaker device has the Libre’s application key as the default value.
Replace the Application key with your own application key provided by Spotify.
The maximum size of the application key is 1024 characters.
Use the syntax below to store the Spotify Application Key.
To Store The Spotify Application Key
#setenv SpotifyAppKey <<
0147A183DEFC792085C3D545471BEF4127D2F23F12619CFDA11DAB7E1E6A86C8.... >>
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 39 of 89
Libre Confidential
5. Key Button Functionality
5.1. Setup Button (WAC / SAC / DDMS)
The SW5 button in LS5B-EVK is configured to trigger WAC / SAC and DDMS after the LS
module boots up as below.
Single press, the setup button on the LS EVK, to configure the speaker as DDMS
Zone-Master in Stand-Alone mode.
- This state would be stored in non-volatile memory so that even
after boot-up, the state is retained.
Double press the setup button on the LS EVK, to put back the speaker to DDMS
Zone-Station in Stand-Alone mode.
- This state would be stored in non-volatile memory so that even after
boot-up, the state is retained.
- This state would be maintained until user changes to WAC mode or to
Zone-Master mode on this specific speaker.
Press and Hold the setup button on the LS EVK for 3 seconds, to come out of the
DDMS mode.
- LS EVK connects to the AP or the SSID configured earlier.
- To connect the LS EVK to different AP or SSID, Press and Hold the
setup button on the LS EVK for 3 seconds again, to trigger WAC.
- If the LS EVK was not configured to any AP, Press and Hold of
setup button triggers WAC.
- This state is stored in non-volatile memory and even after boot-up,
the state is retained.
For more information on DDMS Stand-Alone mode and Home-Network mode refer to
DDMS Usability guide (Android / iOS) available in LibreSync Document Portal.
5.2. WPS / Factory Reset Key Button
(TBG)
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 40 of 89
Libre Confidential
6. Network Configuration
The network configuration method supported in LS-Module is
Wireless Network Setup Using WAC Method
Wireless Network Setup Using SAC Method
Wireless Network Setup Using Webserver Method
Wireless Network Setup Using WPS Push Button Method
6.1. Wireless Network Setup Using WAC and SAC
6.1.1. Wireless Network Setup Using WAC
To setup a wireless network using Wireless Area Controller (WAC) proceed as below
Step 1. Press and hold the Setup button for 3 seconds on the EVK
Step 2. On an iOS device running iOS7, go to Settings > Wi-Fi > SET UP NEW DEVICE
The WAC speaker is listed. For example, LibreSync <MacID>
Figure 6-1: WAC Speaker Listed
Step 3. Select the speaker / EVK and tap NEXT
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 41 of 89
Libre Confidential
iOS device shares its Wi-Fi settings; that is SSID and Password with the WAC speaker and
configures the device.
On successful configuration the device is configured to the Wi-Fi network to which the iOS
device is connected.
End--
6.1.2. Wireless Network Setup Using SAC (Speaker Android
Configuration) Method
To setup a wireless network using Libre Android APP proceed as below
Step 1. Power on the Speaker (DUT) and press and hold the Setup button on LS5B
EVK for 3 seconds.
Speaker enters SAC mode
Step 2. Open the Libre App
Figure 6-5: Libre App
Step 3. Tap SAC option in the top menu
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 42 of 89
Libre Confidential
Figure 6-6: Libre APP, Main view
Step 4. APP searches for the available devices in the network, Select the device from
the SAC device list and Tap OK
Figure 6-7: SAC Device List
Step 5. Libre APP lists the all the available SSIDs (Network)
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 43 of 89
Libre Confidential
Step 6. Select the required SSID (Network) and Tap OK
Figure 6-8: SSID List
Step 7. Libre APP Connects to the SSID and pops a Custom Dialog Box.
The Custom Dialog Box displays the Speaker name and Space for the password to the
phone network.
Figure 6-9: Libre APP Custom Dialog
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 44 of 89
Libre Confidential
Step 8. You can edit the Speaker Name and Enter the Password of the SSID to which
the phone is connected and Tap Save.
Step 9. App configures the speaker to the Wi-Fi network. The Android Smart Phone
also connects to the network selected.
Figure 6-10: Configuring the Speaker
Figure 6-11: Successful Configuration
End--
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 45 of 89
Libre Confidential
6.1.3. WAC / SAC Trigger Behaviour in DDMS Mode and Non-DDMS
Mode
This sections explains different behaviours of the speaker for network configuration when
WAC / SAC is triggered.
For details on the network configuration using WAC / SAC refer Section 6.1 and Section 6.2.
Scenario 1
Precondition
LS-Enabled speaker is in Non-DDMS Mode and is not connected
to AP.
Action
WAC / SAC is triggered using the Setup Button (Press and Hold for
three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker enters WAC / SAC mode for Network
Configuration.
Scenario 2
Precondition
LS-Enabled speaker is in Non-DDMS Mode and is connected to
AP.
Action
WAC / SAC is triggered using the Setup Button (Press and Hold for
three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker enters WAC / SAC mode for Network
Configuration.
Scenario 3
Precondition
LS-Enabled speaker is in Non-DDMS Mode and is not connected
to AP.
Action
1. Reboot the Speaker. Currently the speaker is in Non-DDMS
Mode.
2. Configure the speakers to DDMS-Mode i.e. either in SA
Mode/HN Mode (refer to DDMS usability guide).
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 46 of 89
Libre Confidential
3. Trigger WAC / SAC using the Setup Button (Press and Hold
for three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker switches from DDMS Mode to Non-DDMS
Mode and enters WAC / SAC mode for Network Configuration.
Scenario 4
Precondition
LS-Enabled speaker is in Non-DDMS Mode and is connected to
AP.
Action
1. Reboot the Speaker. Currently the speaker is in Non-DDMS
Mode.
2. Configure the speakers to DDMS-Mode i.e. either in SA
Mode/HN Mode (refer to DDMS usability guide).
3. Trigger WAC / SAC using the Setup Button (Press and Hold
for three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker switches from DDMS Mode to Non-DDMS
Mode and connects to the AP configured earlier.
Scenario 5
Precondition
LS-Enabled speaker is in DDMS Mode and was not connected to
AP earlier.
Action
1. Reboot the Speaker and
2. Trigger WAC / SAC using the Setup Button (Press and Hold
for three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker switches from DDMS Mode to Non-DDMS
Mode and enters WAC / SAC mode for Network Configuration.
Scenario 6
Precondition
LS-Enabled speaker is in DDMS Mode and was connected to AP
earlier.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 47 of 89
Libre Confidential
Action
1. Reboot the Speaker and
2. Trigger WAC / SAC using the Setup Button (Press and Hold
for three seconds) in LS EVK or through Message-Box 142.
Result
LS-Enabled Speaker switches from DDMS Mode to Non-DDMS
Mode and connects to the AP configured earlier.
6.2. Wireless Network Setup Using Webserver
6.2.1. Webpage Method
This method is used if the device is already connected to a network.
To setup wireless network via Webpage proceed as below
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 2. Enter the IP in the address bar of your browser, For Example, 10.0.1.13.
The webpage shows the Network status of the currently connected Access Point.
Figure 6-12: Network Status
Step 3. In Select Your Network section, Select the Access Point (AP) to be connected,
from Select your Network drop-down list and Click Save
Device reboots and connects to the new network and acquires new IP
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 48 of 89
Libre Confidential
Figure 6-13: Network Configuration
End --
You can also connect the device to the network of your choice by setting the Static IP for the
device.
Step 1. Select the Access Point from Select Your Network drop-down list.
Step 2. Enable Static IP settings, Enter the Static IP address and Click Save
Device reboots and connects to the network and acquires the static IP as defined.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 49 of 89
Libre Confidential
Figure 6-14: Network Configuration using Static IP
Step 3. To know the IP address of the device execute command #netcfg in the device
terminal
End--
6.2.2. LS-Connect Method
To setup wireless network using LS-Connect proceed as below
Step 1. Enter Command #startwac & in device terminal to trigger LS-Connect
Or
Press and hold the Setup button for 3 seconds on the EVK
Device enters “AP” mode and is available in the Wi-Fi network list as LS-Configure_xxxxxx
Step 2. From the network list Select LSConfigure_xxxxxx and connect the laptop to
the network.
Step 3. Enter the following URL in the address bar of your browser 192.168.43.1
webpage shows Network status as shown in Figure 6-4.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 50 of 89
Libre Confidential
Figure 6-15: Network Status in Webpage
Step 4. Select the Access Point (AP) to be connected to from Select Your Network
drop-down list
Step 5. Select Security Type from Security drop-down list, Enter the valid login
credentials and Click OK
Device disconnects from laptop and connects to the network selected
Step 6. To know the newly acquired IP execute command #netcfg in the device
terminal
End--
6.2.3. Manual Configuration Method
To connect the device to the network manually proceed as below.
Optional: Device can be connected to the network using the hidden SSID.
Step 1. In Select Your Network section, enable Configure Manually
Step 2. Enter the Access Point SSID and Click Save.
Device reboots and connects to the network.
Step 3. To know the newly acquired IP execute command #netcfg in the device
terminal
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 51 of 89
Libre Confidential
Figure 6-16: Configure Network Manually
End--
6.3. Wireless Network Setup Using WPS Push-Button Method
6.3.1. WPS Trigger from Command Line
To setup a wireless network using WPS proceed as below
Step 1. On system boot, enter the command #wpa_cli wps_pbc in device terminal
Step 2. Trigger (Press Once) Setup button in the Access Point.
Device connects to the Network of the Access Point.
Step 3. To know the newly acquired IP execute command #netcfg in the device
terminal
End--
6.3.2. WPS Trigger from LUCI
You can setup a wireless network for the LS-Enabled speaker, using the LUCI Message-Box
#141. Message-Box #141 is used by Host to trigger WPS mode.
For more information see section 6 in LUCI Technical Note,
LibreWirelessTechNote - LS_Light_Weight_Universal_Control_Interface.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 52 of 89
Libre Confidential
6.3.3. WPS Trigger from Key Button
(TBG)
6.4. I-Device Wi-Fi Settings Sharing
Host-MCU requests the LS enabled device to share the Wi-Fi settings over Message-Box #
126. On request from HOST-MCU, iOS device shows a pop-up message to the user to
“Ignore” or “Allow” the settings sharing.
Figure 6-17: Wi-Fi settings sharing
To share Wi-Fi setting tap Allow
To cancel sharing Wi-Fi settings tap Ignore
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 53 of 89
Libre Confidential
7. Features
7.1. Libre APP for Android
LUCI enables user to remotely, control the LibreSync LS5B enabled product using the Libre
Application for android. The application can be used to browse DLNA-DMS in the network,
SD Card connected to device and other online radio stations such as vTuner and TuneIn ,
and stream music using the DMP feature supported by LS5B.
For more information on using Libre APP refer
LibreWireless-Usability_Guide_Dynamic_Direct_Multi-Node_Streaming
7.2. DDMS
A Wireless Dynamic Direct Multi-Node Streaming (DDMS) Zone is a group of nodes, (DDMS
enabled speakers) chosen dynamically by an end user to synchronously play audio from a
given content source.
This group of speakers can play music from any Audio Source synchronously without any
delay between the nodes. Each group can consists of two or more nodes.
For information on setting up devices for DDMS, and Using Libre App refer to
LibreWireless-Usability_Guide_Dynamic_Direct_Multi-Node_Streaming
The device webpage provides interface to update DDMS SSID and password.
Figure 7-1: DDMS Setup in webpage
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 54 of 89
Libre Confidential
7.3. Software Security
LibreSync software is secured using Crypto IC. Crypto IC is embedded either in the LS5B
module or the ACP. Crypto IC authenticates and allows only the valid LS5B software to boot
on the LS5B modules.
7.4. Source Switching
LibreSync enables user to switch the playback sources without any hitches. User can
choose to stream music either from AirPlay or UPnP server and the music streams on the
selected device from the source.
For example, A LS Device streaming AirPlay, starts streaming music from DLNA / DMR
when, the user selects music from Win 7 -Media Player to be played on the device.
7.5. Autosense of Audio CODEC
The new LS Firmware will automatically detect the presence of Audio CODEC in the
firmware.
If LS-SoC detects Wolfson CODEC (WN8904) on LS-I2C bus, then LS-Module takes care of
controlling the Audio CODEC and is applicable to LS5B EVK.
If Wolfson CODEC is not detected, LS-SoC does not control the Audio CODEC. Host MCU
must take care of handling AUDIO DAC / CODEC.
7.6. AUX-In Support
Users can connect Audio Source to AUX-In jack of EVK and select the source from Libre-
APP.
7.7. Airplay®
After the speaker or device is configured to the network, it is discovered by the iOS device
and iTunes, and is available for AirPlay streaming.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 55 of 89
Libre Confidential
To stream AirPlay proceed as below
Step 1. Open the Control Centre or Music App on iOS device
Or
Open iTunes installed on any machine
Step 2. Tap the AirPlay icon
AirPlay enabled LibreSync device is listed
Step 3. Select the device and select Play
AirPlay starts streaming
Figure 7-2: AirPlay Stream
End--
7.7.1. Password for Airplay Playback
You can either enable or disable a password, to start Airplay playback on the LS enabled
device through a webpage.
Enable
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 56 of 89
Libre Confidential
To enable a password for Airplay Playback proceed as below.
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 2. Enter the IP in the address bar of your browser with port number
For Example, 10.0.1.13
Step 1. In Your Device Name section, Enter the Airplay Password in the white box
below and Click Apply
Device reboots automatically.
Figure 7-3: Password for Airplay
Step 2. Open the Control Centre or Music App on iOS device
Or
Use iTunes installed on any machine
Step 3. Tap the AirPlay icon
AirPlay enabled LibreSync device is listed
Step 4. Select the device and Select Play
Step 5. In the pop screen enter the password entered in the webpage
AirPlay starts streaming.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 57 of 89
Libre Confidential
Figure 7-4: Enter Password for Streaming
End--
Disable
To disable a password for Airplay Playback proceed as below.
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 2. Enter the IP in the address bar of your browser with port number
For Example, 10.0.1.13
Step 3. In Your Device Name section, Clear the previous Password and leave the
white space blank and Click Apply
Step 4. A pop-up message appears Click OK Click Apply
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 58 of 89
Libre Confidential
Figure 7-5: Disable Airplay Password
Device reboots automatically.
End --
7.8. DLNA ® / DMR
After the device is configured to the network, device is discoverable over UPnP®. Any
Universal Plug and Play (UPnP) / Digital Living Network Alliance (DLNA) certified
controller can be used to stream music to the device.
To test Play To functionality proceed as below
Step 1. Open Media Player on Windows 7
Step 2. In the play list, Click Play To and select the LS enabled speaker or device
Or
Right click on the song and Click Play To
Music starts streaming.
If the speaker / device is not visible on the Windows 7 Media Player, go to Stream > More
streaming options, ensure speaker is in Allowed state.

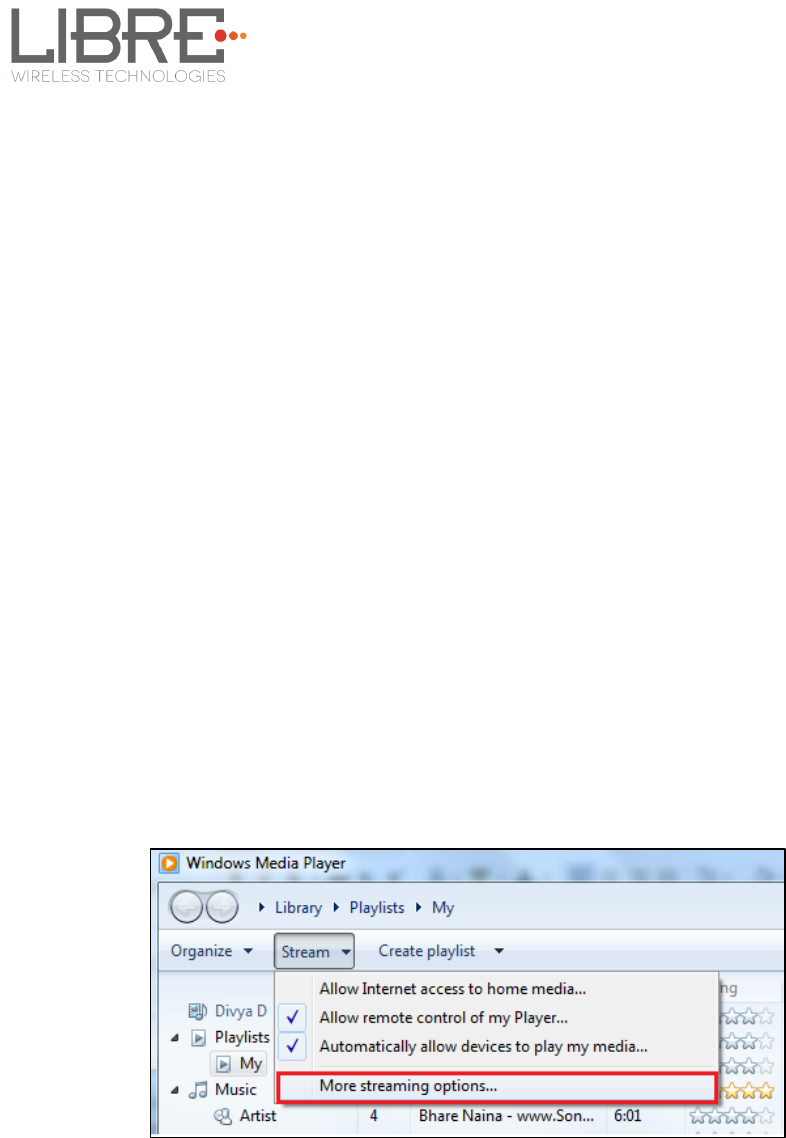

Figure 7-6: Media Player Stream Menu
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 59 of 89
Libre Confidential
Figure 7-7: Media Streaming Options
End--
7.9. i-Device playback over USB
LS supports audio playback from i-Devices over USB. User can select the content source
from an iOS device to stream music on LS-Enabled speaker.
Apple devices which support iAP2 protocol (Apple devices with lightning connector except
iPod nano 7g) can be connected to LS device and playback can be done.
When Host-MCU is Not-Present (in LS-EVK)
If the NV-Item hostpresent is set to '0' , connect the apple device and press PLAY icon on
the UI of the apple device to start the playback.
To Disable NV-Item hostpresent
#setenv hostpresent 0
When Host-MCU is Present (in Customer Product)
If the NV-Item hostpresent is set to '1' ,
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 60 of 89
Libre Confidential
To Enable NV-Item hostpresent
#setenv hostpresent 1
To start playback from Apple Device following sequence is to be followed.
Step 1. LS sends the new source to the Host MCU over Message-Box# 10
Step 2. Host MCU may send a command to LS (Command Type: GET) over Message-
Box#50 (Current Source – with value 16 that is Apple Device) to get to know the
current playback source, if any.
Step 3. Host MCU takes a decision whether it has to allow/disallow the new Audio
Source.
Step 4. Send a confirmation on Message-Box#11 with data field set to 1/0 for
Allowed/Not-allowed respectively.
Apple Device Connection Status
When Apple device is connected Message-Box # 38 is updated with the value '2'
When it is disconnected Message-Box # 39 is updated with the value '2'.
For more information refer to LUCI document
LibreWirelessTechNote - LS_Light_Weight_Universal_Control_Interface
7.10. USB Playback
LS supports audio playback from USB. User can select the content source from an USB drive
to stream music on LS-Enabled speaker.
7.11. TCP / IP Tunneling
TCP/IP Tunnelling is a unique feature supported by LS modules. Tunneling enables a Host
MCU to communicate with other network devices over UART. The Host MCU can build their
own proprietary protocol using LUCI tunneling.
For more information on TCP / IP tunneling refer LUCI document
LibreWirelessTechNote - LS_Light_Weight_Universal_Control_Interface
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 61 of 89
Libre Confidential
7.12. Device Name Configuration
You can define a friendly name to LS-Platform enabled device. To define the friendly name
proceed as below.
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 2. Enter the IP in the address bar of your browser with port number
For Example, 10.0.1.13
Step 1. In Your Device Name section, Enter the Device Name in the white box and
Click Apply
Device reboots automatically.
Figure 7-9: Device Name Section
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 62 of 89
Libre Confidential
End--
7.13. Wi-Fi Scan Result
Wi-Fi Scan result enables you to list the available access point. This feature is intended to
be used by the APP developers to list the available networks in the APP for configuration.
To use the feature, in the address bar of your browser enter the IP address followed by
/scanresult.asp.
7.14. Switch between Wired and wireless modes
You can switch between wired and wireless mode using the Webserver
7.14.1. Switching to Wired Mode
To switch to wired mode from Wi-Fi mode proceed as below
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 10.0.1.13
Step 2. Enter the IP in the address bar of your browser with port number
For Example, 10.0.1.13
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 63 of 89
Libre Confidential
Step 3. In Select Your Network drop-down list, select Switch to Wired mode
Figure 7-10: Switch to Wired Mode
Step 4. Connect the device with an Ethernet cable
Step 5. Click Save
LS module reboots automatically
End--
7.14.2. Switching to Wireless Mode
To switch to wired mode from Wi-Fi mode proceed as below
Step 1. Execute command #netcfg in the device terminal to know the device IP
For Example, 192.168.0.103
Step 2. Enter the IP in the address bar of your browser with port number
For Example, 192.168.0.103
Step 3. In Select Your Network drop-down list, select Switch to Wi-Fi mode and
Click Save
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 64 of 89
Libre Confidential
Figure 7-11: Switch to Wi-Fi Mode
LS module reboots automatically.
End--
7.15. Music Services
7.15.1. vTuner
vTuner is an internet radio device that receives and plays streamed media, either from
Internet radio or Home network.
vTuner on Libre platform can be used to stream music using the Libre APP’s Remote Play
option. For information on using the Libre APP for vTuner see section 3.3.2 in DDMS
Usability Guide, LibreWireless-Usability_Guide_Dynamic_Direct_Multi-Node_Streaming.
7.15.2. TuneIn
TuneIn is an internet radio station that enables streaming of music.
TuneIn on Libre platform can be used to stream music using the Libre APP’s Remote Play
option. For information on using the Libre APP for TuneIn, see section 3.3.2 in DDMS
Usability Guide, LibreWireless-Usability_Guide_Dynamic_Direct_Multi-Node_Streaming.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 65 of 89
Libre Confidential
7.15.3. QQ Music
LibreSync enable you to stream music via QQ music service.
To use the QQ music service
Step 1. Register for QQ Music account and get the Username and Password for the
account
Step 2. Download the QQ Music app from the Play Store.
To stream music from QQ Music proceed as below.
Step 1. Reboot the LS enabled device and connect to the network.
Step 2. Connect Smartphone to the same network.
Step 3. Open the QQ Music APP
Figure 7-12: QQ Music APP
Step 4. Login to QQ Music, using the Username and Password received, during
registration.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 66 of 89
Libre Confidential

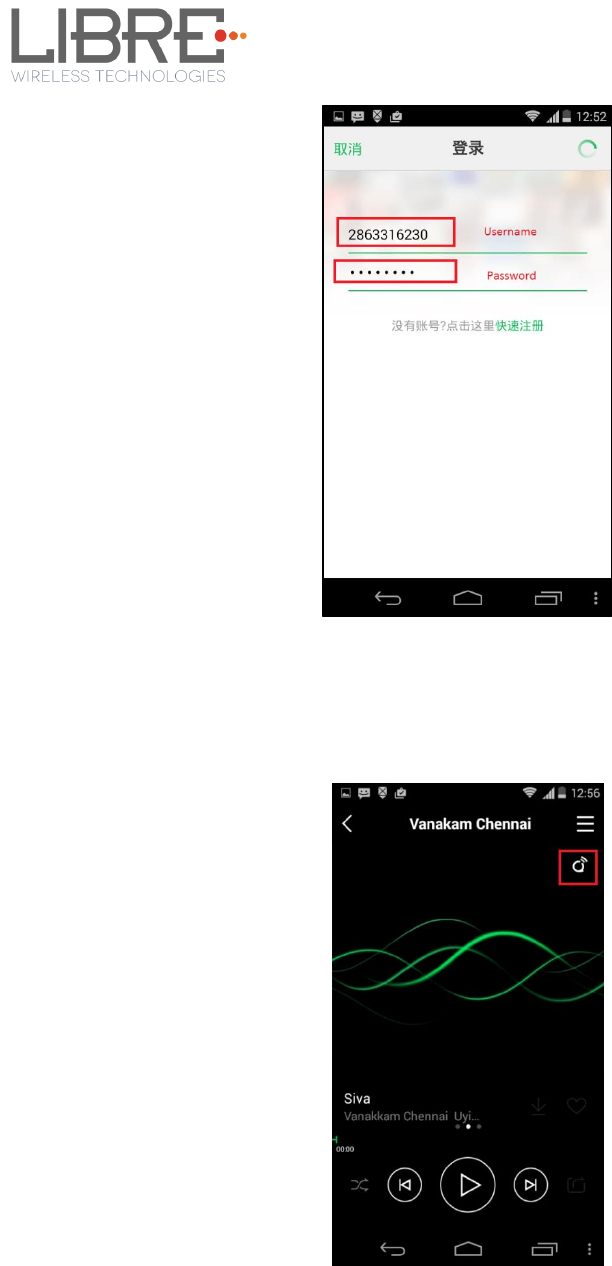

Figure 7-13: Login Screen
Step 5. Browse for songs in the QQ Music Server
Step 6. In Now playing screen, select ‘Q’ symbol

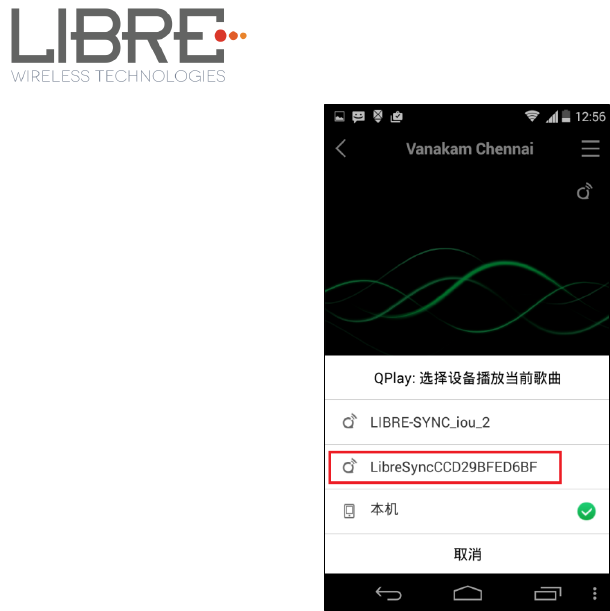

Figure 7-14: Device Selection Option
Step 7. Select the LS enabled device
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 67 of 89
Libre Confidential
Figure 7-15: Device List
Playback from QQ music on the LS enabled device starts.
End - -
7.15.4. Spotify Connect
LibreSync enables you to stream music via Spotify connect.
Spotify on LS-Enabled speakers supports to Save / Play/ Delete presets, for more
information on Spotify Preset Actions refer to Message-Box # 75 in LUCI Document
(LibreWirelessTechNote-LS_Light_Weight_Universal_Control_Interface) available in
LibreSync Document Portal.
To use the Spotify connect APP proceed as below.
Step 1. Register for Spotify premium account and get the Username and Password
for the account
Step 2. Download the Spotify app from the App store/Play Store.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 68 of 89
Libre Confidential
To stream music from Spotify connect proceed as below.
Step 1. Reboot the LS enabled device and connect to the network.
Step 2. Connect iOS device/Android phone to the same network.
Step 3. Open the Spotify APP
Figure 7-16: Spotify APP
Step 4. Login to Spotify, using the Username and Password received, during
registration.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 69 of 89
Libre Confidential
Figure 7-17: Spotify Login Screen
Step 5. Browse for songs in the Spotify Server
Step 6. In Now playing screen, select Speaker symbol in right bottom
Figure 7-18: Device Selection
Step 7. Select the LS enabled device
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 70 of 89
Libre Confidential

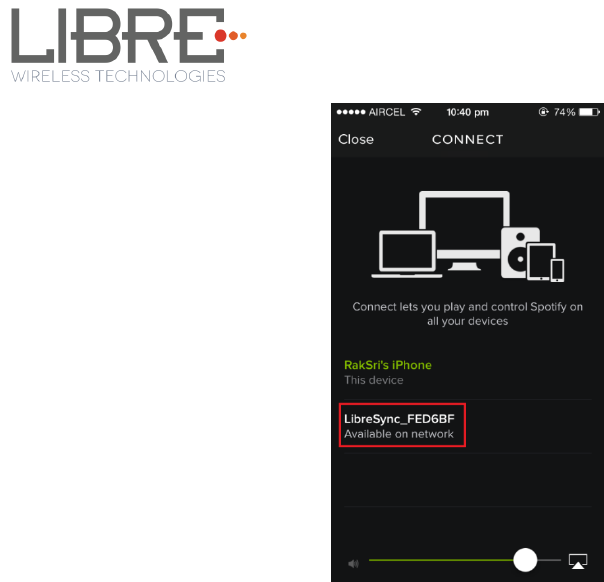

Figure 7-19: Device List
LS enabled device starts streaming music from Spotify Connect
End --
7.15.5. Deezer
Deezer on Libre platform can be used to stream music using the Libre APP’s Remote Play
option. For information on using the Libre APP for Deezer see section 3.3.2 in DDMS
Usability Guide, LibreWireless-Usability_Guide_Dynamic_Direct_Multi-Node_Streaming.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 71 of 89
Libre Confidential
8. Data Sheet
580MHz MIPS® Core
IEEE 802.11 b/g/n 1x1 Wi-Fi
20/40MHz, 150 Mbps
Network Media Module
Product Data Sheet
Module : LS5B-N11S
Rev: 1.2
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 72 of 89
Libre Confidential
9. Introduction
Libre Wireless, LS5B-N11S is a module which includes a 580 MHz MIPS24K CPU core,
64MB of DDR2 DRAM memory and 16MB of Serial Flash, an 802.11n draft compliant 1T1R
MAC/BBP/PA/RF, single port 10/100 Ethernet MDI interface, and a USB Host.
The LS5B-N11S, has very few external components required for 2.4GHz 11n wireless
products. The LS5B-N11S employs Libre Wireless’s 2nd generation 11n technologies
f
or
longer range and better throughput. The embedded high performance CPU can process
advanced applications effortlessly, such as WIFI data processing without overloading the
host processor.
I
n addition, the LS5B-N11S has rich hardware interfaces (SPI/ I2S/ I2C/
UART/ USB) to enable many possible applications
.
10. Module Feature Summary
Key Features
1. LS5B-N11S is the small size and low power module for IEEE 802.11b/g/n
wireless LAN.
2. Embedded 1T1R 2.4G CMOS RF
3. Embedded 802.11n 1T1R MAC/BBP w/MLD enhancement
4. Support for both PCB connector and Notched SMT pad option
5. 150Mbps PHY data rate
6. 20Mhz/40Mhz channel width
7. Legacy and high throughout modes
8. Compressed block ACK
9. WEP64/128, WPA, WPA2, WAPI engines
10. QOS - WMM, WMM Power Save
11. Hardware frame aggregation
12. Supports 802.11h TPC
13. MIPS 24KEc 580 MHz with 64 KB I-cache/32 KB D-cache
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 73 of 89
Libre Confidential
14. 16-bit DDR2 64Mbytes
15. Serial Flash 16Mbytes
16. 3x UART
17. 1x USB 2.0 HOST
18. SD-XC (Class 10)
19. Single port 10/100 Mbps Fast Ethernet MDI interface
20. Slow speed I/O : GPIO, SPI, I2C, I2S, UART, and JTAG
21. I2S interface supports 24-bit/192kHz (slave mode)
22. I/O: 3.3 V
11. LibreSync Features
LibreSync modules have extensive software features for connected media streaming and
control applications. These include system level control and interface features as well as
networking features.
Please refer to the full “LibreSync Feature List” for details of supported features.
Platform features can vary based on module configuration/derivatives and
commercial engagement details.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 74 of 89
Libre Confidential
12. Block Diagram

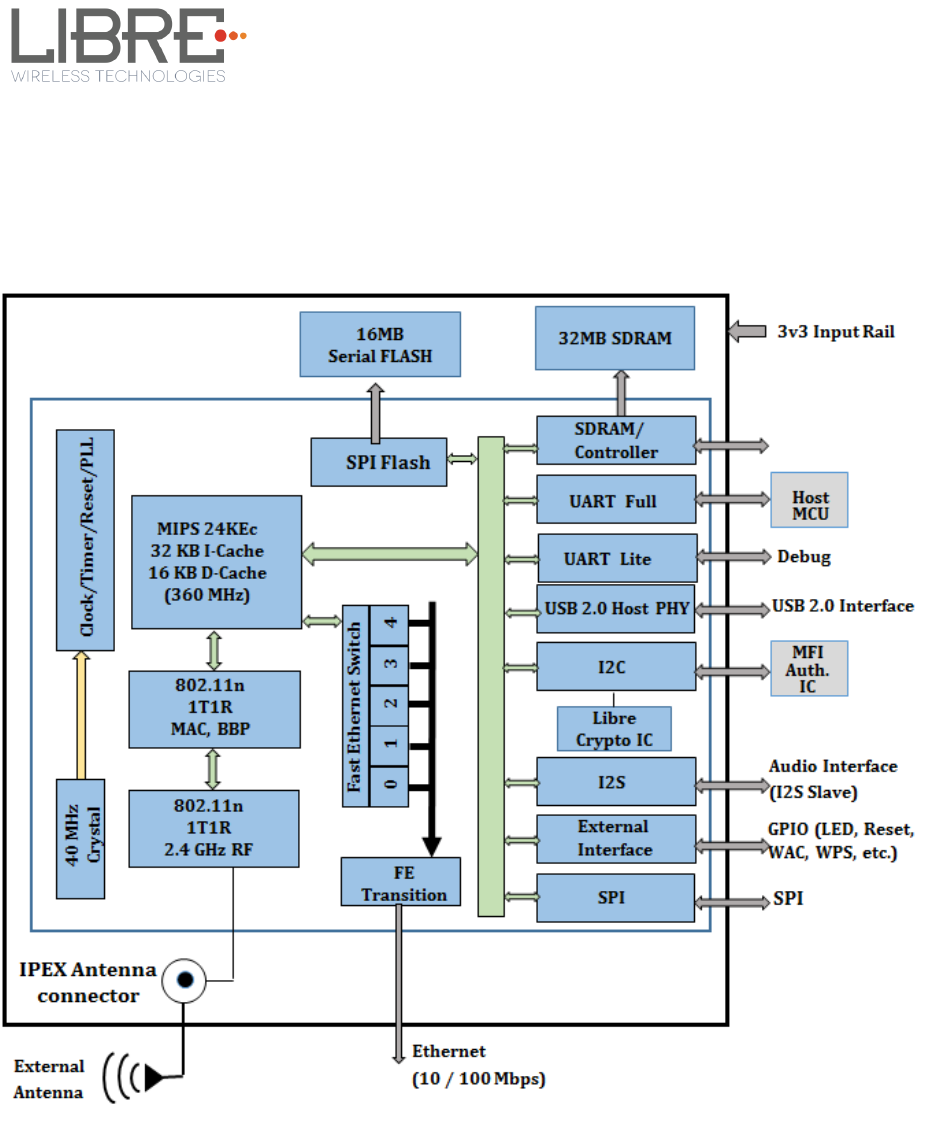

Figure 4-1: LS5B-N11S Block Diagram
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 75 of 89
Libre Confidential
13. Specifications
13.1. General Specification
Parameter
Description / Values
Model
LS5B-N11S-A
Product Name
LibreSync LS5B Network Media Module
Chipset
MT7688A
Standard
IEEE802.11b / g /n
Data Transfer Rate
1, 2, 5.5, 6, 11, 12, 18, 22, 24, 30, 48, 54, and maximum Physical
Layer rate of 150Mbps
Frequency Band
2412-2462 MHz
Power
3.3 V ± 5 % I/O supply voltage
Operating
Temperature
-20˚C to +55˚C
Dimensions

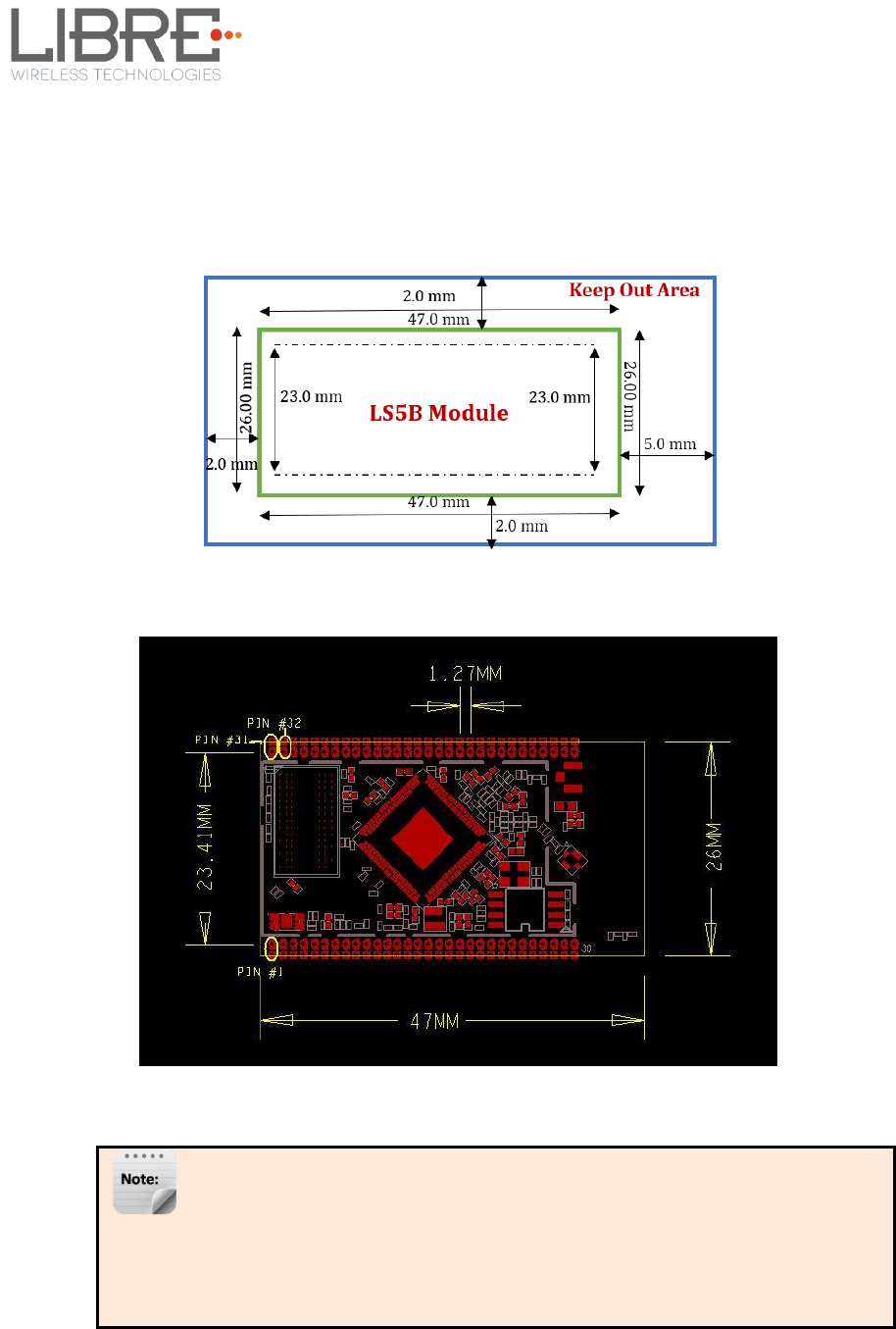

47mm X 26.00mm X 5.1mm (L x W x H) ± 0.2mm
13.2. Module Current Consumption
Description
Typical (mA)
Maximum (mA)
Idle
180
190
Network Standby
TBD
TBD
Deep Sleep
TBD
TBD
Normal Operating Mode(AirPlay)
200
240
Normal Operating Mode (DDMS)
340
360
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 76 of 89
Libre Confidential
13.3. RF Characteristics
Items
IEEE802.11b
(11 Mbps mode
unless otherwise
specified)
IEEE802.11g
(54 Mbps mode
unless otherwise
specified)
IEEE802.11n
(MCS7 mode unless
otherwise specified)
Mode
DSSS / CCK 11 Mbps
OFDM 54 Mbps
OFDM 135 Mbps
Channel
Frequency
2412 ~ 2462MHz
2412 ~ 2462MHz
2412 ~ 2462MHz
RX
-83dbm
-70dbm
-65dbm
TX Power
Level
17.5dbm
15.5dbm
14dbm
TX EVM
-27db
-30db
-31db
Normal
Conditions
Temperature: 25˚C
VDD: 3.3 V
Temperature: 25˚C
VDD: 3.3 V
Temperature: 25˚C
VDD: 3.3 V
13.4. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
unless otherwise specified.
Ambient Condition
Temperature: 25˚C, ± 5˚C
Humidity: 65 % ± 5% R.H
Power Supply Voltage
3.3V input power at the module.
Current consumption over recommended range of supply voltage and
operating conditions is as specified in the Table 5.2. When it is tested, it must
be supplied at more than 2 times of maximal current.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 77 of 89
Libre Confidential
14. Mechanical, Connectors and Interfaces
14.1. Physical Module
Module Dimension is 47mm x 26.0mm x 5.1mm
Figure 6-1: Physical Dimensions
Figure 6-2: Physical Dimensions
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 78 of 89
Libre Confidential
14.2. Connector Layout
TBG
Figure 6-5: LS5B-N11S, Connector Layout
14.3. Module Pin Descriptions
Description
Function
Module Pin
3.3VD
3.3VD
1
Ground
GND
2
I2C_Clock
I2C_SCK
3
I2C_Data
I2C_SDA
4
WPS
GPIO0
5
POWER ON RESET I/P
PORST_N
6
UART1_TXD
UART_TXD1
7
UART1_RXD
UART_RXD1
8
UART2_TXD/GPIO20
UART_TXD2
9
UART2_RXD/GPIO21
UART_RXD2
10
DEBUG-UART TXD
UART_TXD0
11
DEBUG-UART RXD
UART_RXD0
12
Ground
GND
13
REFCLK_OUT
REFLCK_OUT
14
I2S_RXD
I2SDI
15
I2S_TXD
I2SWDO
16
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 79 of 89
Libre Confidential
I2S_LRCLK
I2SWS
17
I2S BIT CLOCK
I2SCLK
18
Ground
GND
19
GPIO
GPIO42
20
WLAN ACTIVITY LED/GPIO
WLAN_LED
21
GPIO
GPIO41
22
GPIO
GPIO40
23
Ground
GND
24
USB_DM
USB_D-
25
USB_DP
USB_D+
26
Ground
GND
27
GPIO
GPIO6
28
GPIO
GPIO39
29
OPTIONAL GPIO/NC
GPIO36
30
3.3VD
3.3VD
31
3.3VD
3.3VD
32
Ground
GND
33
SPCK
SPIS_SPCK/GPIO15
34
MOSI
SPIS_MOSI/GPIO17
35
MISO
SPIS_MISO/GPIO16
36
SPI-CS (SLAVE
CHIPSELECT)
SPIS_CS/GPIO14
37
HOST_REQ/GPIO
GPIO18
38
Ground
GND
39
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 80 of 89
Libre Confidential
ETH PORT0 RX+
ETH_MDI_RP0
40
ETH PORT0 RX-
ETH_MDI_RN0
41
ETH PORT0 TX+
ETH_MDI_TP0
42
ETH PORT0 TX-
ETH_MDI_TN0
43
Ground
GND
44
SD_WP
SD_WP/GPIO22
45
SD_CD
SD_CD/GPIO23
46
SD_D3
SD_D3/GPIO28
47
SD_D2
SD_D2/GPIO29
48
SD_D1
SD_D1/GPIO24
49
SD_D0
SD_D0/GPIO25
50
SD_CMD
SD_CMD/GPIO27
51
SD_CLK
SD_CLK/GPIO26
52
Ground
GND
53
WAC/FACTORY RESTORE
GPIO38
54
ETHERNET ACTIVITY
LED/GPIO
ETH_ACT_LED
55
NO CONNECT
NC
56
IR INPUT
GPIO19
57
NO CONNECT
NC
58
Ground
GND
59
NO CONNECT
NC
60
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 81 of 89
Libre Confidential
15. Design Requirement
Boot strap signals as mentioned in the Table 7-1, should not be driven by external devices
until the module (SoC) comes out of reset.
This mandates implementation of appropriate power sequencing mechanism
on base-board. That is, there has to be 150ms delay between Supplying power
to LS module (SoC) and power to any other device on the base-board.
Table 7-1: Boot Strap Signal Requirement
Typically 150 ms is the time taken to come out of the reset after power on of the module
(SoC).
Boot Strap Signal
Description
UART_TXD0
Can be driven logic low but should not be driven logic high.
UART_TXD1
Can be driven logic high but should not be driven logic low.
GPIO36
Can be driven logic high but should not be driven logic low.
I2S_TXD
Can be driven logic low but should not be driven logic high.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 82 of 89
Libre Confidential

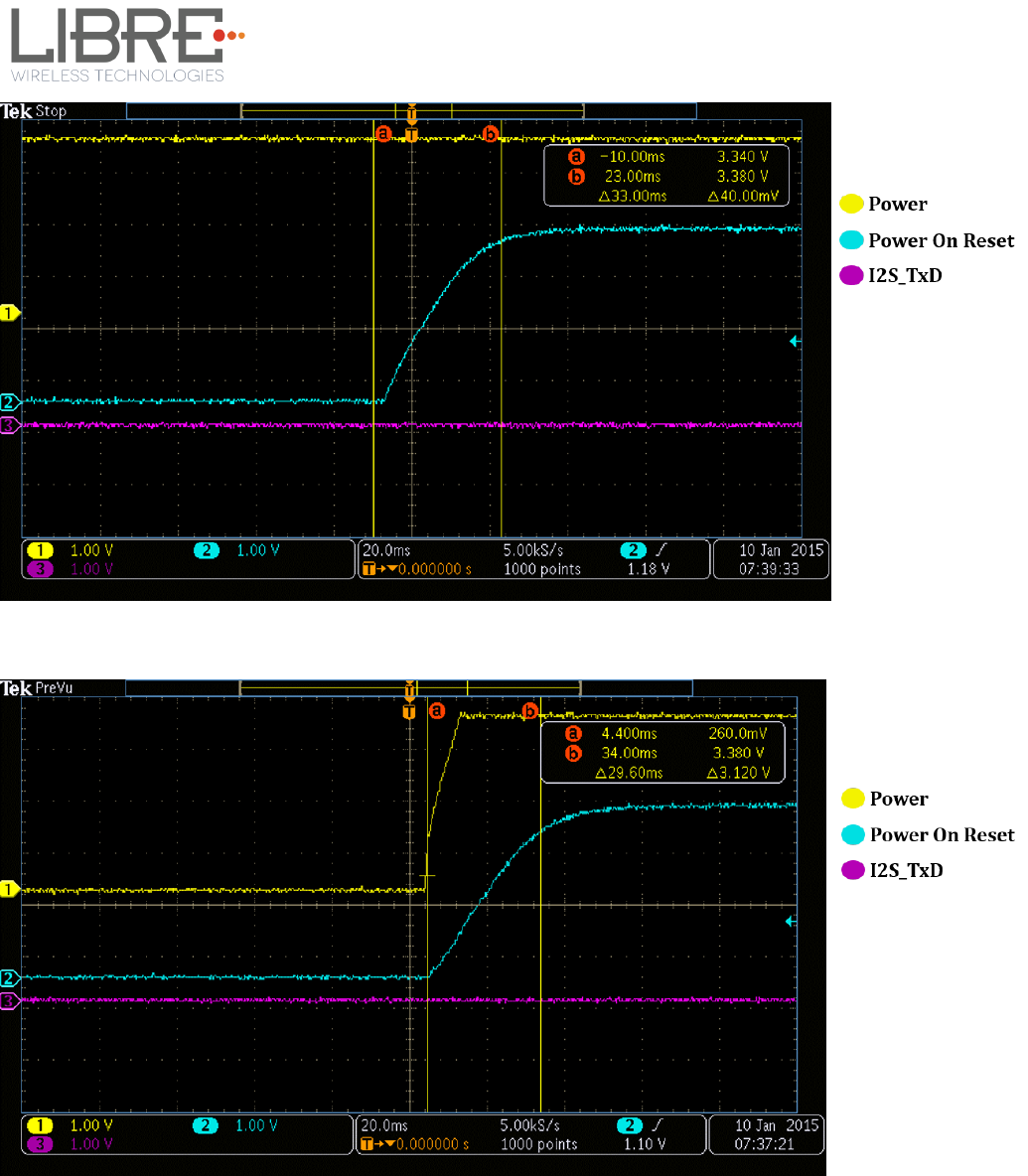

Figure 7-1: External Reset
Figure 7-2: Power ON Sequence.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 83 of 89
Libre Confidential
16. Ordering Guide
Product Number
Description
LS5B-N11S
External antenna, pin header
LS5B-N11S-A
PCB antenna, pin header
LS5B-N11S-S
External antenna, SMT
LS5B-N11S-AS
PCB antenna, SMT
17. Environmental
17.1. Operational Environment
23. Temperature Range
Operation: -20˚C to +55˚C
Storage: 0˚C to +40˚C
24. Humidity
Operation: 10% to 90% (Non Condensing)
Storage: 5% to 95% (Non Condensing)
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
17.2. Storage Conditions
25. Do not use or store modules in the corrosive atmosphere, especially where
chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid
exposure to moisture.
26. Assemble the modules within 6 months. Check the soldering ability in case of
longer than 6 months.
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 84 of 89
Libre Confidential
18. Reference Schematics

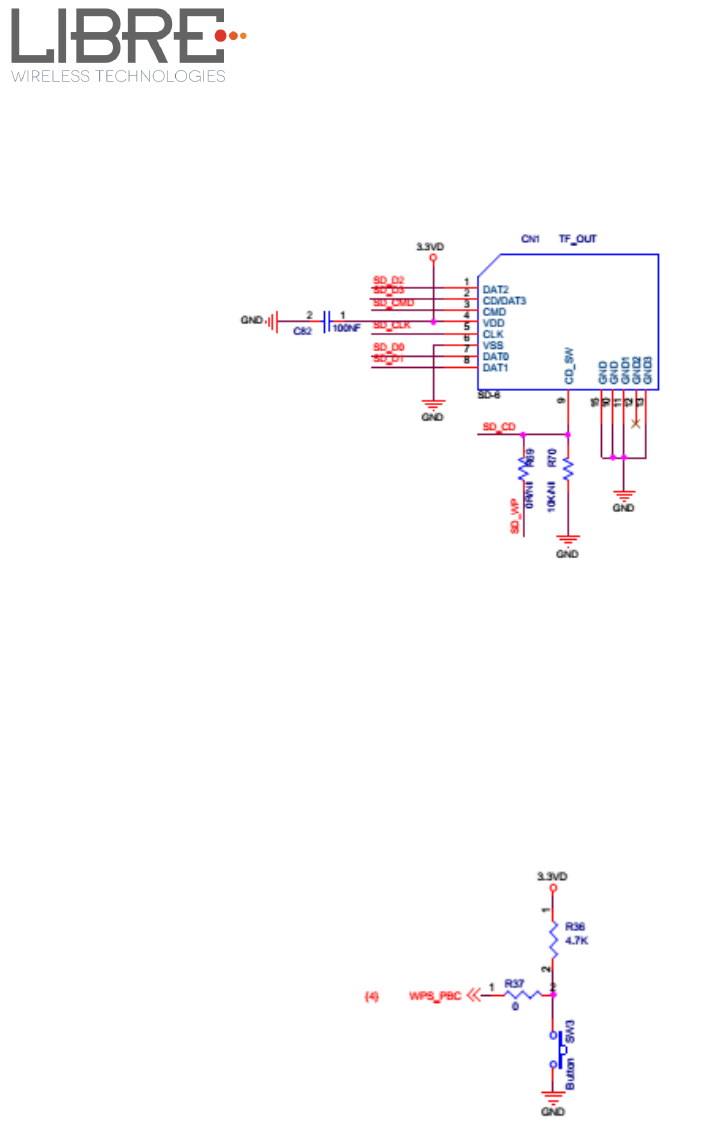

18.1. SD Interface
Figure9-1: SD Card
18.2. Reset and WPS
Figure 9-2: WPS
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 85 of 89
Libre Confidential

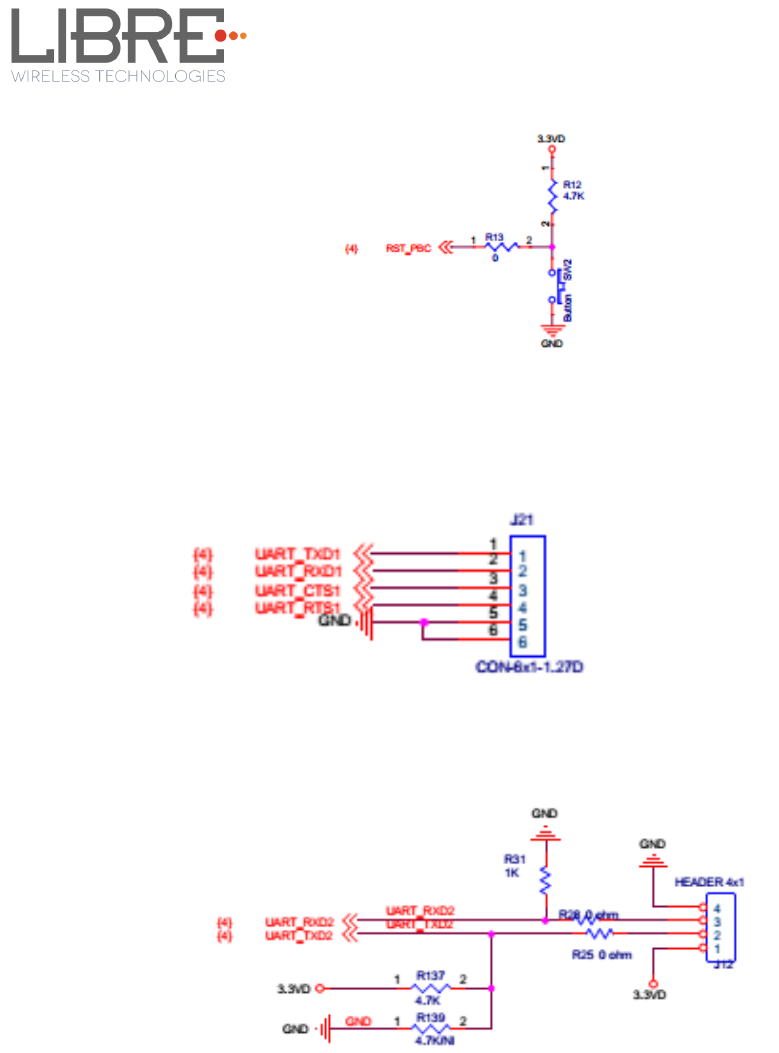

Figure 9-3: Reset
18.3. UART Interface
Figure 9-4: UART 1
Figure 9-5: UART 2
18.4. USB Interface
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 86 of 89
Libre Confidential

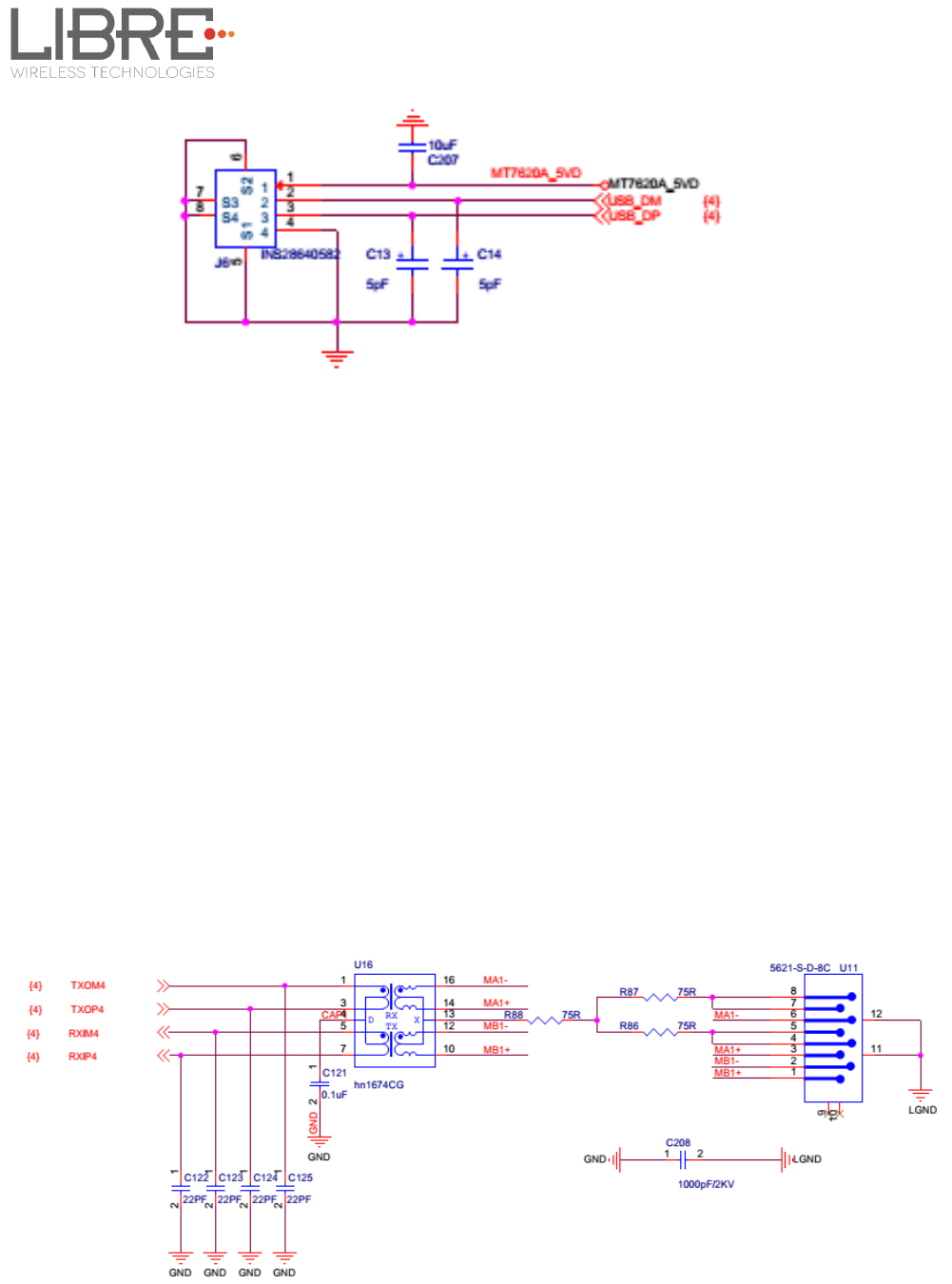

Figure 9-6: USB
18.5. Ethernet Interface
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 87 of 89
Libre Confidential
Figure 9-7: Ethernet

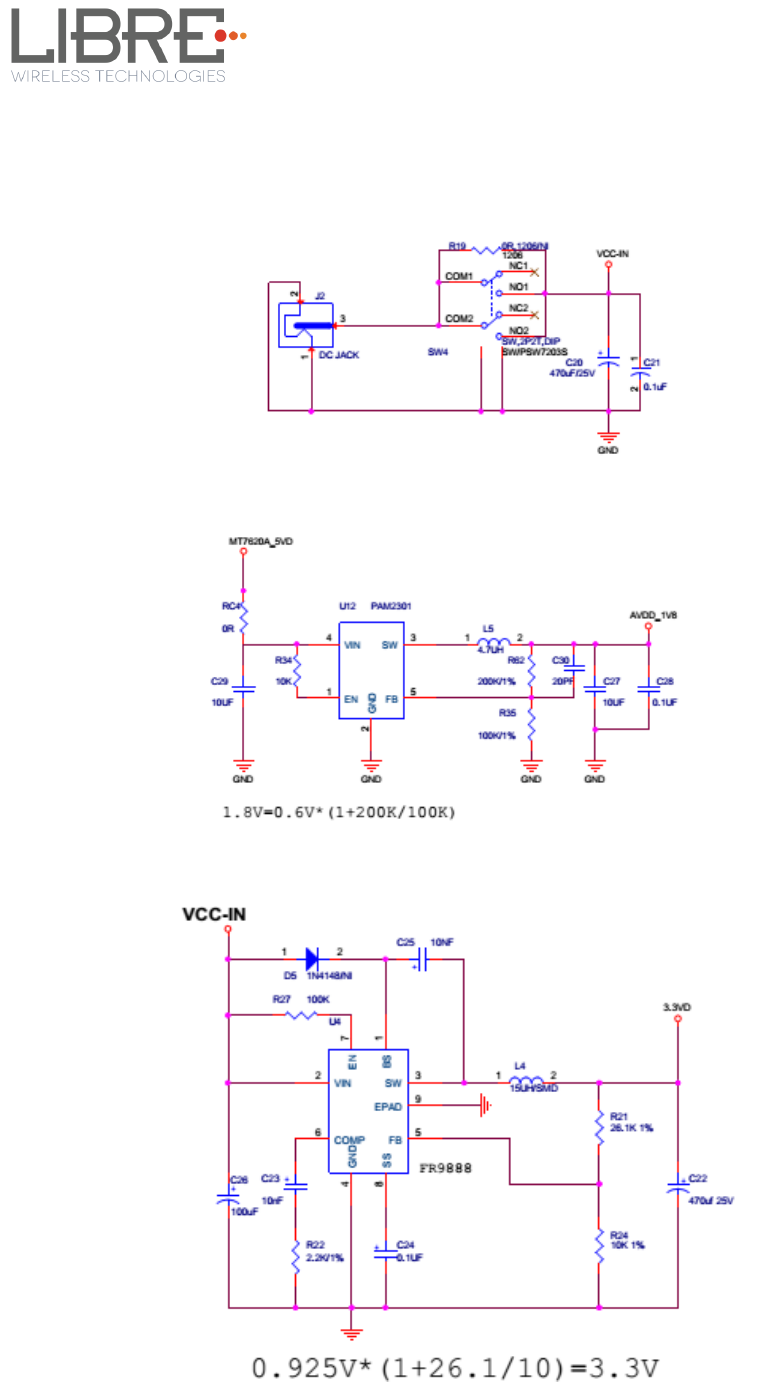

18.6. Power Supply
Figure 9-8: 9V DC Input
Figure 9-9: 1.8V DC Converter
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 88 of 89
Libre Confidential

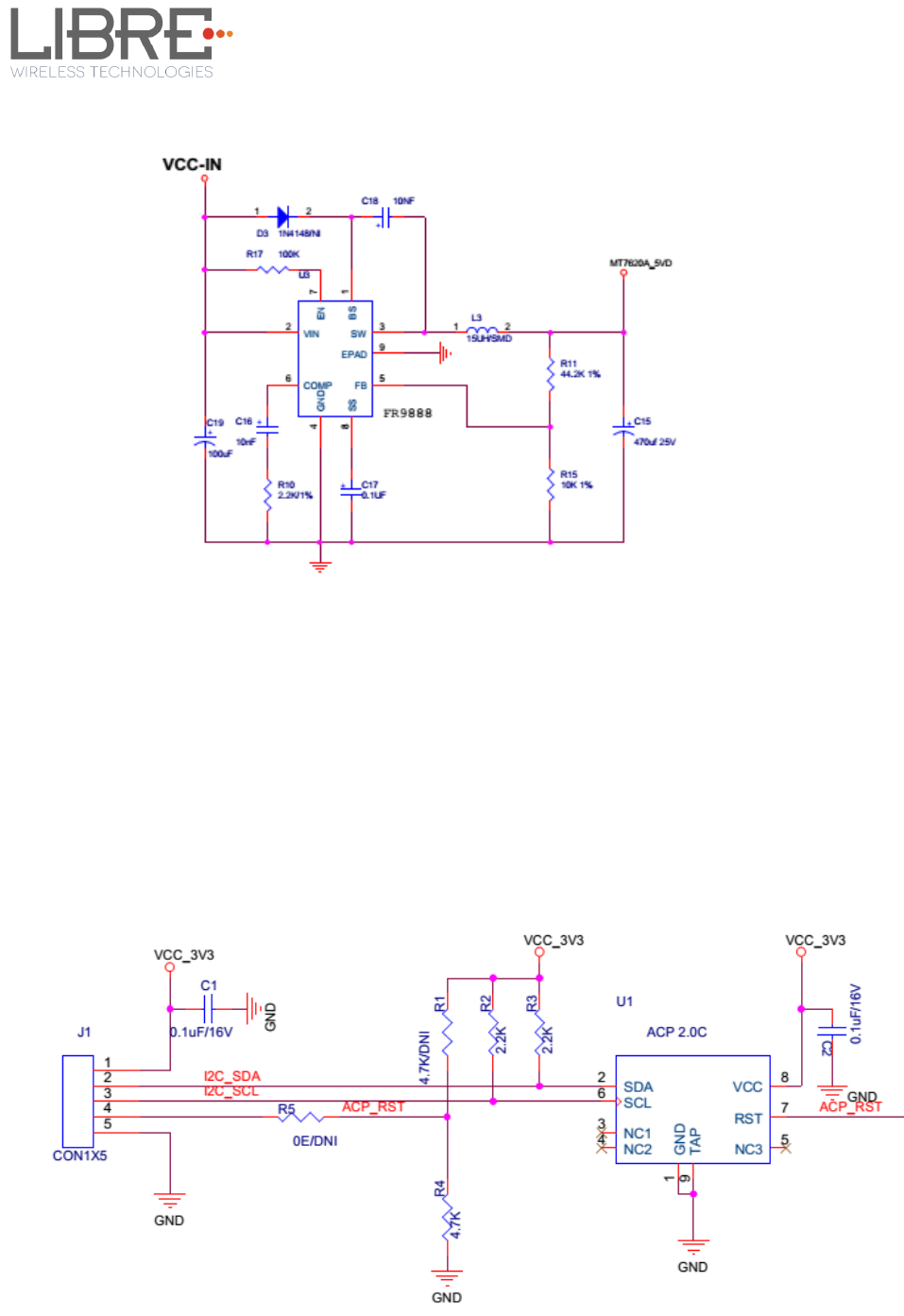

Figure 9-10: 3.3V DC Converter
Figure 9-11: 5V DC Converter
18.7. MFI 2.0C Authentication Circuit
LS5B User Manual
Libre Wireless Technologies User Manual: LS5B, Ver. 1.0 Page 89 of 89
Libre Confidential
Figure 9-12: MFI 2.0C Authentication
19. Disclaimer
THE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A Pas RTICULAR PURPOSE
OR NON-INFRINGEMENT.
We use reasonable efforts to include accurate and up-to-date information in this document.
It does not however, make any representations as its accuracy or completeness of
information. Use of this document is at your own risk. Libre Wireless Technologies, its
suppliers, and other parties involved in creating and delivering this document’s contents
shall not be liable for any special, indirect, incidental, or consequential damages, including
without limitation, lost revenues or lost profits.
