Lifeline Systems AT410 Smoke Detector Transmitter User Manual AT410 install

Lifeline Systems Inc Smoke Detector Transmitter AT410 install

User guide

1
User and Installation Guide
Lifeline
®
Systems AT410
2
Copyright and Disclaimer
Copyright © 2004 Lifeline Systems, Inc.
All rights reserved.
Proprietary Material
The information furnished in this document is proprietary to Lifeline Systems Inc. (Lifeline)
and is considered privileged and confidential.
Trademarks
Lifeline®, CarePartner® Communicator, and AutoLearn® are registered trademarks of
Lifeline Systems Inc. VoiceAssist, VoiceClock, TelAssure, Classic Pendant, and
Slimline™ Personal Help Button are trademarks of Lifeline Systems Inc. All brand names and
product names used in this manual are trademarks, registered trademarks or trade names of
their respective holders.
Limit of Liability
The publisher has used their best efforts in preparing this manual. Lifeline Systems Inc. makes
no representation or warranty with respect to the accuracy or completeness of the contents of
this manual and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose and shall in no event be liable for any loss of profit or any other
commercial damage including but not limited to special, incidental, consequential, or other
damages.
How to Contact Lifeline Systems:
111 Lawrence Street
Framingham, MA 01702-8156
(508) 988-1000 or (800) 380-3111
http://www.lifelinesystems.com
Changing the Battery in the AT410 3
Chapter 1:
AT
410
Installation Instructions
This document describes how to install the AT410 Adaptable Transmitter. The AT410 is
connected to a smoke detector in a Senior Living facility. It provides a secondary signal which
can help isolate the specific location of an emergency when the smoke detector goes off.

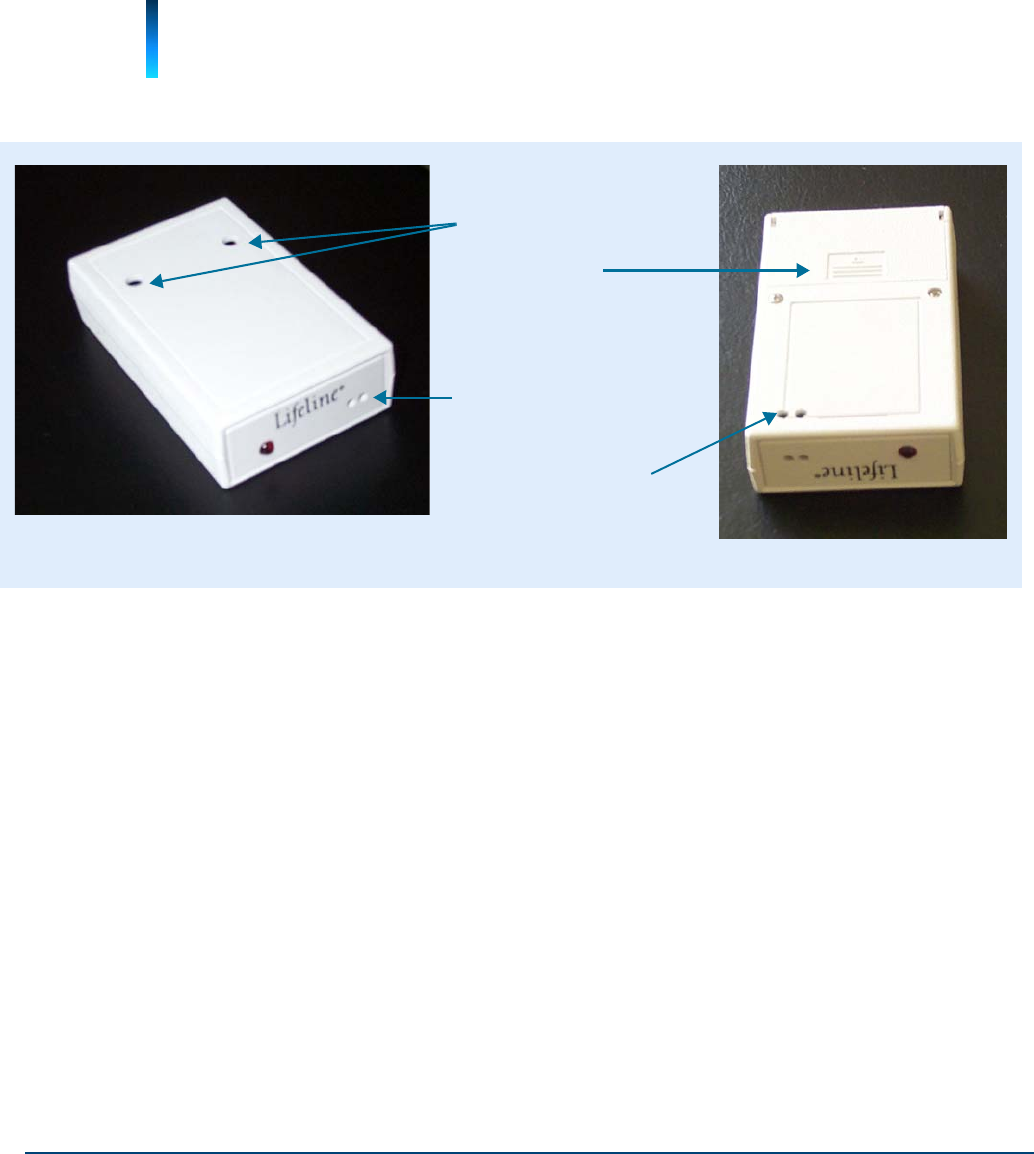

Figure 1 shows the top and bottom view of AT410 Adaptable Transmitter.
Figure 1: Top and Bottom View of AT410 Adaptable Transmitter
Changing the Battery in the AT410
The AT410 uses a single 9V alkaline battery. You can replace the battery when the unit is
installed on the ceiling or when it has been removed.
To change the battery:
1. Open the battery compartment door by applying light pressure to the door and pushing
it in the direction of the arrow (see Figure 1 for location of battery compartment door).
2. Remove the 9V battery from the battery compartment.
3. Disconnect the battery connectors from the battery and properly dispose of the used
battery.
4. Connect the battery connectors to a new 9V alkaline battery.
5. Insert the battery into the battery compartment.
6. Slide the battery compartment door back into place.
Note: This installation must be performed by a licensed electrician or a certified
maintenance technician authorized to access the primary smoke detectors in the facility.
Holes used to
attach AT410 to
ceiling
Battery
compartment
door
Holes for smoke
detector wires
Screws used to
tighten smoke
detector wires
Top View Bottom View
4 AT410 Installation Instructions
Installing the AT410
To install the AT410 Adaptable Transmitter:
1. Using the wiring diagrams in Figure 2, connect the AT410 to the smoke detector. You
must provide the two wires that connect the AT410 to the smoke detector.
Figure 2: Wiring Diagrams for AT410
2. To secure the wires, loosen the two screws on the bottom of the unit (see Figure 1), then
insert the wires into the holes on the front of the unit (see Figure 1), then tighten the
screws to hold the wires in place.
3. Attach the AT410 to the ceiling beside the smoke detector by opening the battery
compartment and removing the battery (you do not have to disconnect the battery).
Insert two screws into the holes in the battery compartment (see Figure 1) and tighten
them onto the ceiling.
4. Install the battery into the battery compartment and close the door.
AT410
NOTICE TO THE USER
Any changes or modifications not expressly approved by Lifeline Systems, Inc. for compliance could void your authority to operate the
equipment.
FCC AND INDUSTRY CANADA WARNING:
This device complies with Part 15 of the FCC rules and RSS210 of Industry Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FIELD STRENGTH Less than 5900 mV/m at 3m
OPERATING FREQUENCY 312 MHz
CHANNELING 1
MODE OF TRANSMISSION Pulse Width Modulation
DATA SOURCE Internal only
TYPE OF MODULATION OOK
OCCUPIED BANDWIDTH 310 MHz - 320 MHz
POWER OUTPUT 5 microwatts
In order to determine the range of the communicator and its associated AT410 follow
these instructions.
Press and hold the Reset bar to enter Test mode. The Reset bar must be pressed and held
until the communicator announces, “Start Test.” Continue holding the Reset bar down
and then press the test button of the smoke detector until the red LED on the AT410
illuminates ( a transmitting signal is sent when the red LED is illuminating), the Lifeline
Communicator will respond “Smoke Learned”.
In order to confirm performance after installation is complete, place the Lifeline
Communicator in Test Mode (as described above) and test the range by pressing the test
button of each smoke detector connected to an AT410 one at a time in all locations within
a unit/apartment. When the AT410 signal is received, the communicator will beep
confirming proper performance.
Your AT410 is designed to be used in and immediately around your home .next to the
hard wired smoke detector. The exact area of coverage will vary from one home to
another. It is important for you to know the effective range of your AT410. Contact your
Lifeline Service Provider for assistance.
For installation wiring diagram, see Figure 2 within this manual.
The AT410 is a supervised unit when used with Lifeline Communicator Models 6600,
6600S, 6700, or 9500.
NOTE
If the Response Center receives a Low Battery Button signal, Lifeline recommends that
the 9-volt battery be replaced as soon as possible. Lifeline complies with a UL standard
that requires the AT410 to operate for seven days after the Low Battery signal is sent.
Plan to replace this battery every 2 years.
Important Maintenance, Safety and Operating Information
*DO NOT USE THE AT410 WITH LIFELINE COMMUNICATOR
MODELS: 4500, 4000, 3500, 3000, 2500, 2000 AND HC/VC.
AT410 Safety Features: Lifeline recommends using the AT410 with “Supervision
COMPATABLE Lifeline Communicators. Features 1 and 2 are only enabled when the
AT410 is used with these communicators.
1. The AT410 will periodically test its battery and automatically send a signal to
the Response Center if the battery is low.
2. Provides a larger offering of ID codes to accommodate installations in
apartments and senior housing.
3. The AT410 provides protection against accidental disconnection. A “Help
Needed” signal will automatically be transmitted to the Response Center if the
wires are removed from the AT410.
Subscriber Testing: Monthly testing is important and recommended by Lifeline. When
interacting or corresponding with subscribers, reinforce the need for monthly testing.
Test in accordance with the smoke detectors manufacturers recommended procedure.
Equipment Repair: Lifeline equipment is factory serviceable and must be repaired by
Lifeline Systems, Inc. Any service performed by unauthorized personnel will nullify any
warranty. Call Technical Support at 800-451-0525, ext. 1234, should your Lifeline
Access™ Equipment need repair.
FCC Warning and
User Notification Requirement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation. Any changes or modifications not expressly approved by Lifeline
Systems, Inc. for compliance could void your authority to operate the equipment.
INDUSTRY CANADA
This apparatus complies with the class“B” limits for radio interference as specified in the
Canadian Department of Communications Radio Interference regulations.
One or more of the following US Patents may apply to this product: D277,465, 4,524,243,
4,656,319, 4,760,593, 4,622,544, 4,908,602, 4,884,059, D313,363, D313,362, 4,064,368,
3,989,900, 5,091,930
One or more of the following Canadian Patents may apply to this product: 1,274,930,
1,256,613
Installing the AT410 5
Lifeline Systems Canada Lifeline Systems
95 Barber Greene Road, Suite 105 111 Lawrence Street
Toronto, Ontario M3C 3E9 Framingham, MA 01702-
8156
Telephone: 800-387-8120 Telephone: 800-451-0525
www.lifelinesys.com www.lifelinesys.com
LSI Part # 0940455 Rev. 01
June 2004
