Liftup A S MODULE1 Module for lift operations User Manual User man

Liftup A/S Module for lift operations User man

User man

      Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   User Installation Manual MODULE1 USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0

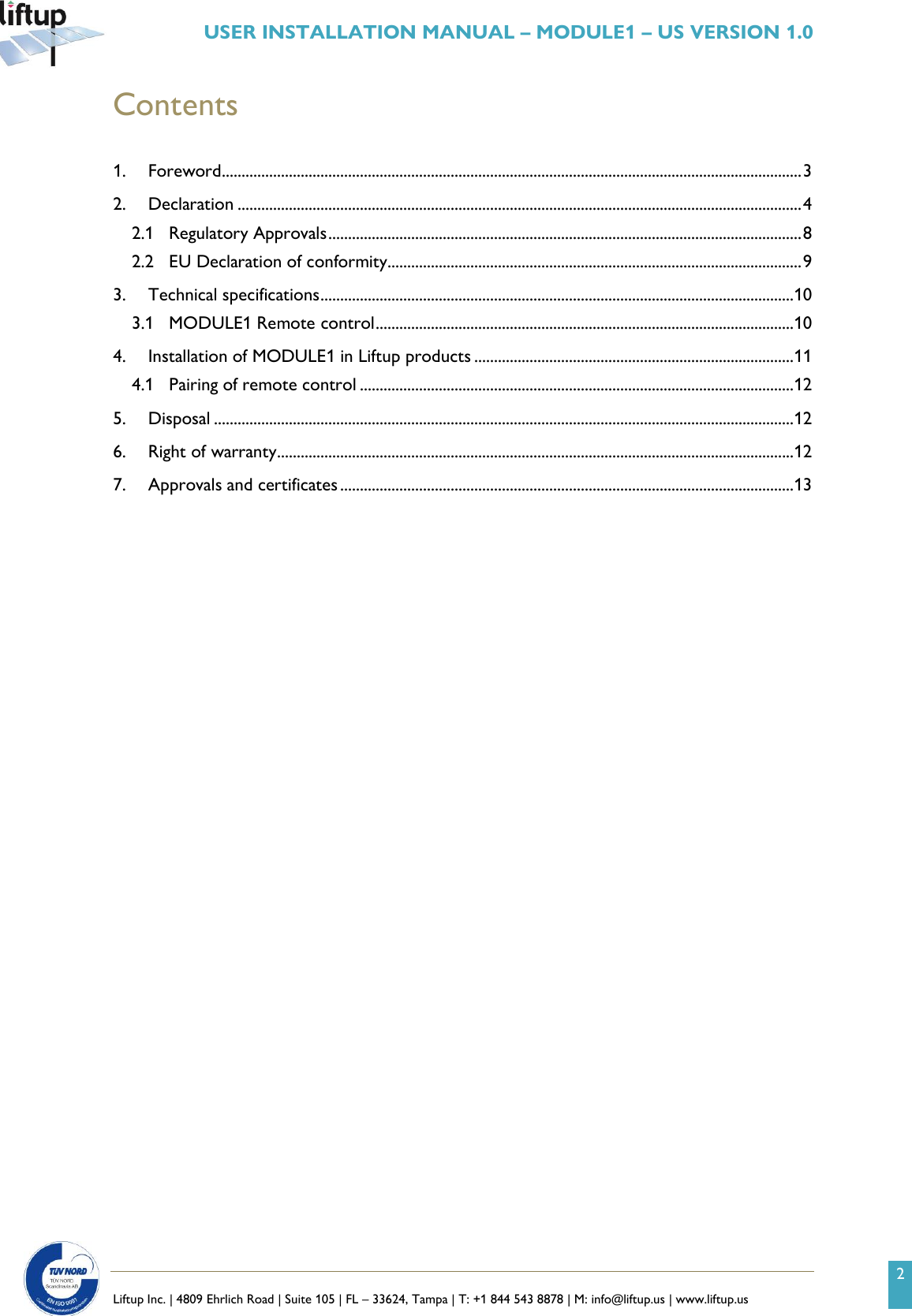

2   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 Contents  1. Foreword ................................................................................................................................................... 3 2. Declaration ............................................................................................................................................... 4 2.1 Regulatory Approvals ........................................................................................................................ 8 2.2 EU Declaration of conformity......................................................................................................... 9 3. Technical specifications ........................................................................................................................10 3.1 MODULE1 Remote control ..........................................................................................................10 4. Installation of MODULE1 in Liftup products .................................................................................11 4.1 Pairing of remote control ..............................................................................................................12 5. Disposal ...................................................................................................................................................12 6. Right of warranty ...................................................................................................................................12 7. Approvals and certificates ...................................................................................................................13

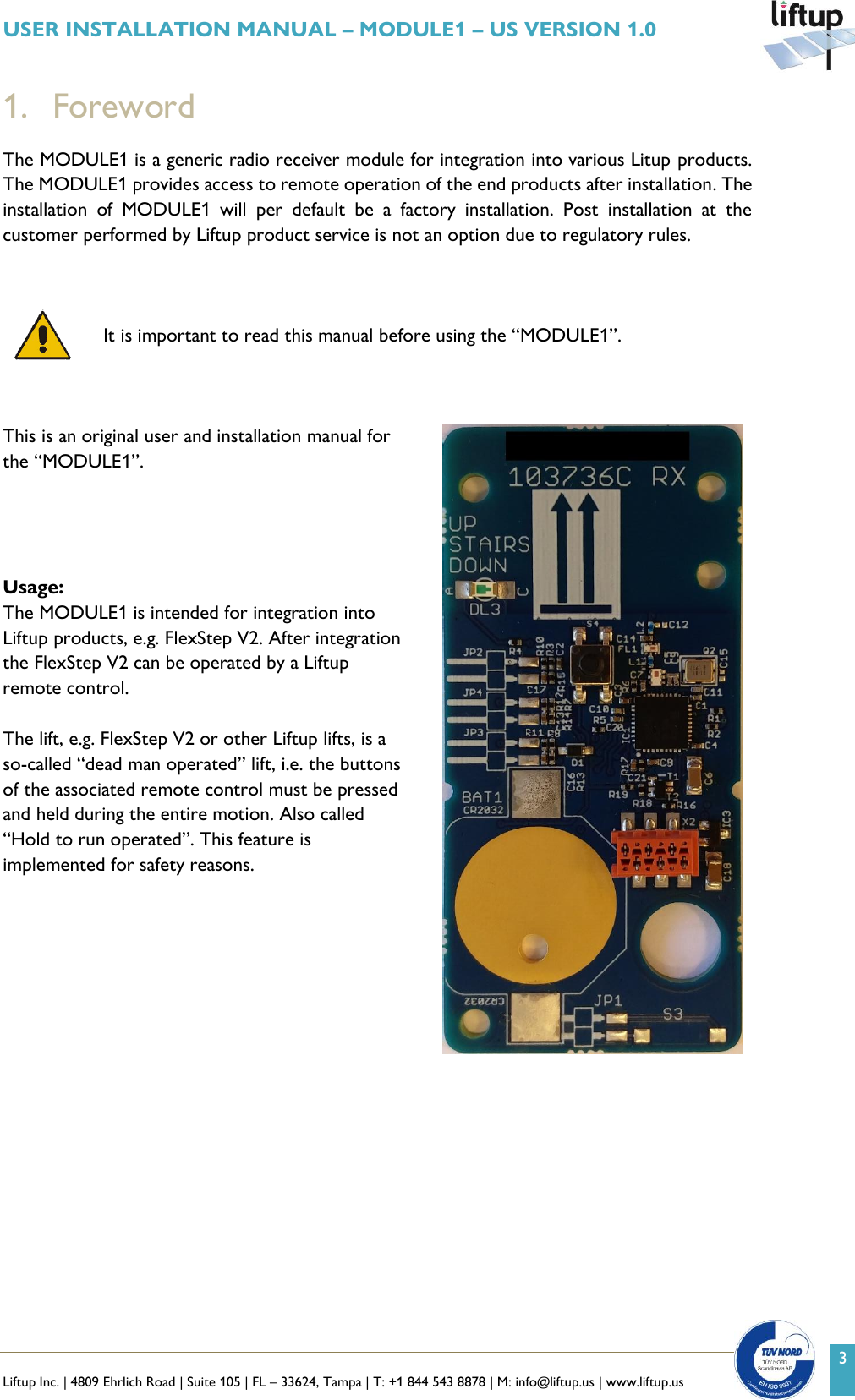

  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 3 1. Foreword The MODULE1 is a generic radio receiver module for integration into various Litup products. The MODULE1 provides access to remote operation of the end products after installation. The installation  of  MODULE1  will  per  default  be  a  factory  installation.  Post  installation  at  the customer performed by Liftup product service is not an option due to regulatory rules.    It is important to read this manual before using the “MODULE1”.   This is an original user and installation manual for the “MODULE1”.     Usage: The MODULE1 is intended for integration into Liftup products, e.g. FlexStep V2. After integration the FlexStep V2 can be operated by a Liftup remote control.   The lift, e.g. FlexStep V2 or other Liftup lifts, is a so-called “dead man operated” lift, i.e. the buttons of the associated remote control must be pressed and held during the entire motion. Also called “Hold to run operated”. This feature is implemented for safety reasons.
4   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 2. Declaration Corporate Office: Manufacturer: Liftup Inc. 4809 Ehrlich Road Suite 105 FL – 33624, Tampa Phone: +1 844 543 8878 www.liftup.us Liftup A/S Hagensvej 21 DK–9530 Stoevring Denmark Phone: +45 9686 3020 www.liftup.dk  Copyright and Trademarks © Liftup A/S. All rights reserved. Liftup, the Liftup logo and Liftup are trademarks of Liftup A/S, registered in the United States and in other countries. All other trademarks are the property of their respective owners.  Release Notice This document is release 1.0 of the MODULE1 User Installation Manual.  End product statements The final end product e.g. lift must provide the following claims in the user manual for the lift according to the regulatory rules specified for EU, US, Canada and Australia:   The  following  Product  Limited  Warranty  gives  Resellers  specific  legal  rights.  You  may  have others, which vary from state/jurisdiction to state/jurisdiction.  Product Limited Warranty Subject to the terms and conditions set forth herein, Liftup A/S (“Liftup”) makes the following warranty  only  to  its  Resellers  who  purchase  the  MODULE1  hardware  product  (“Product”) directly from Liftup: for a period of one (1) year from the date of shipment from Liftup, the Product will substantially conform to Liftup’s standard published specifications for the Product and the Product hardware will be substantially free from defects in materials and workmanship. The foregoing warranty shall not apply to embedded software/firmware components.  THIS PRODUCT LIMITED WARRANTY IS PROVIDED TO RESELLERS AND TO RESELLERS ONLY. RESELLER IS SOLELY RESPONSIBLE FOR ANY AND ALL WARRANTIES MADE TO ITS CUSTOMERS, AND LIFTUP MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AND SHALL HAVE NO OBLIGATIONS OR LIABILITY TO RESELLER’S CUSTOMERS  OR END- USERS OF THE PRODUCT. RESELLER SHALL NOT MAKE ANY REPRESENTATIONS OR WARRANTIES  ON  LIFTUP’S  BEHALF,  AND  SHALL  FULLY  INDEMNIFY,  DEFEND  AND HOLD  LIFTUP  HARMLESS  FROM  ANY  BREACH  OF  THE  FOREGOING.  IF  RESELLER DISTRIBUTES  PRODUCT  TO  END-USER  CUSTOMERS,  RESELLER  SHALL  BE  SOLELY RESPONSIBLE  FOR  PREPARING  AND  PROVIDING  PRODUCT  WARRANTIES  AND PRODUCT LITERATURE TO END-USERS.  Warranty Remedies If  the  Product  fails  during the  warranty period for  reasons  covered  by this  Product  Limited Warranty and Reseller notifies Liftup of such failure during the warranty period, Liftup at its

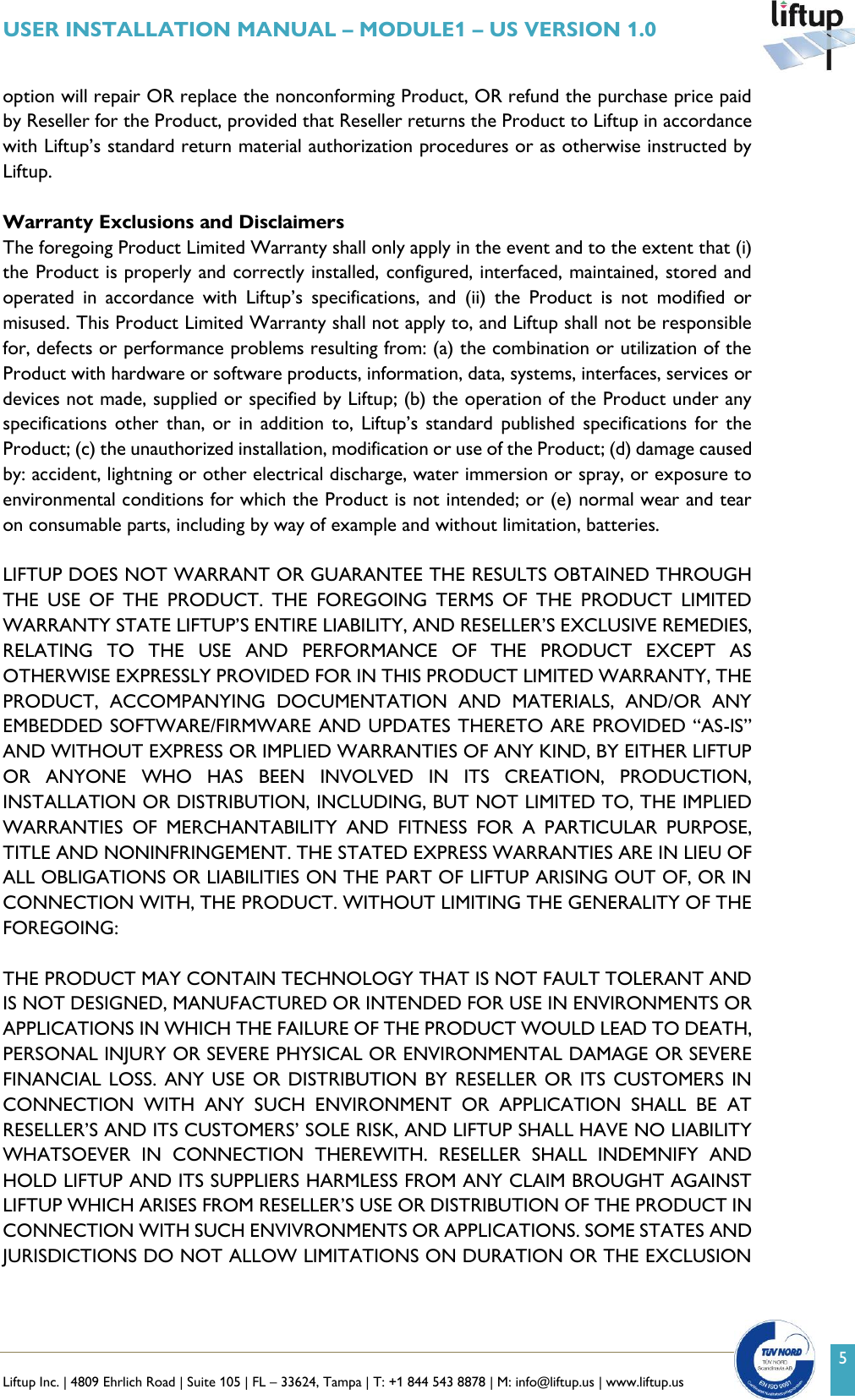

  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 5 option will repair OR replace the nonconforming Product, OR refund the purchase price paid by Reseller for the Product, provided that Reseller returns the Product to Liftup in accordance with Liftup’s standard return material authorization procedures or as otherwise instructed by Liftup.  Warranty Exclusions and Disclaimers The foregoing Product Limited Warranty shall only apply in the event and to the extent that (i) the Product is properly and correctly installed, configured, interfaced, maintained, stored and operated  in  accordance  with  Liftup’s  specifications,  and  (ii)  the  Product  is  not  modified  or misused. This Product Limited Warranty shall not apply to, and Liftup shall not be responsible for, defects or performance problems resulting from: (a) the combination or utilization of the Product with hardware or software products, information, data, systems, interfaces, services or devices not made, supplied or specified by Liftup; (b) the operation of the Product under any specifications other  than, or  in  addition to,  Liftup’s  standard  published specifications for  the Product; (c) the unauthorized installation, modification or use of the Product; (d) damage caused by: accident, lightning or other electrical discharge, water immersion or spray, or exposure to environmental conditions for which the Product is not intended; or (e) normal wear and tear on consumable parts, including by way of example and without limitation, batteries.  LIFTUP DOES NOT WARRANT OR GUARANTEE THE RESULTS OBTAINED THROUGH THE  USE  OF  THE  PRODUCT.  THE  FOREGOING  TERMS  OF  THE  PRODUCT  LIMITED WARRANTY STATE LIFTUP’S ENTIRE LIABILITY, AND RESELLER’S EXCLUSIVE REMEDIES, RELATING  TO  THE  USE  AND  PERFORMANCE  OF  THE  PRODUCT  EXCEPT  AS OTHERWISE EXPRESSLY PROVIDED FOR IN THIS PRODUCT LIMITED WARRANTY, THE PRODUCT,  ACCOMPANYING  DOCUMENTATION  AND  MATERIALS,  AND/OR  ANY EMBEDDED SOFTWARE/FIRMWARE AND UPDATES THERETO ARE PROVIDED “AS-IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTIES OF ANY KIND, BY EITHER LIFTUP OR  ANYONE  WHO  HAS  BEEN  INVOLVED  IN  ITS  CREATION,  PRODUCTION, INSTALLATION OR DISTRIBUTION, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES  OF  MERCHANTABILITY  AND  FITNESS  FOR  A  PARTICULAR  PURPOSE, TITLE AND NONINFRINGEMENT. THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE PART OF LIFTUP ARISING OUT OF, OR IN CONNECTION WITH, THE PRODUCT. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING:  THE PRODUCT MAY CONTAIN TECHNOLOGY THAT IS NOT FAULT TOLERANT AND IS NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE IN ENVIRONMENTS OR APPLICATIONS IN WHICH THE FAILURE OF THE PRODUCT WOULD LEAD TO DEATH, PERSONAL INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE OR SEVERE FINANCIAL LOSS.  ANY USE  OR  DISTRIBUTION BY  RESELLER OR ITS  CUSTOMERS IN CONNECTION  WITH  ANY  SUCH  ENVIRONMENT  OR  APPLICATION  SHALL  BE  AT RESELLER’S AND ITS CUSTOMERS’ SOLE RISK, AND LIFTUP SHALL HAVE NO LIABILITY WHATSOEVER  IN  CONNECTION  THEREWITH.  RESELLER  SHALL  INDEMNIFY  AND HOLD LIFTUP AND ITS SUPPLIERS HARMLESS FROM ANY CLAIM BROUGHT AGAINST LIFTUP WHICH ARISES FROM RESELLER’S USE OR DISTRIBUTION OF THE PRODUCT IN CONNECTION WITH SUCH ENVIVRONMENTS OR APPLICATIONS. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON DURATION OR THE EXCLUSION

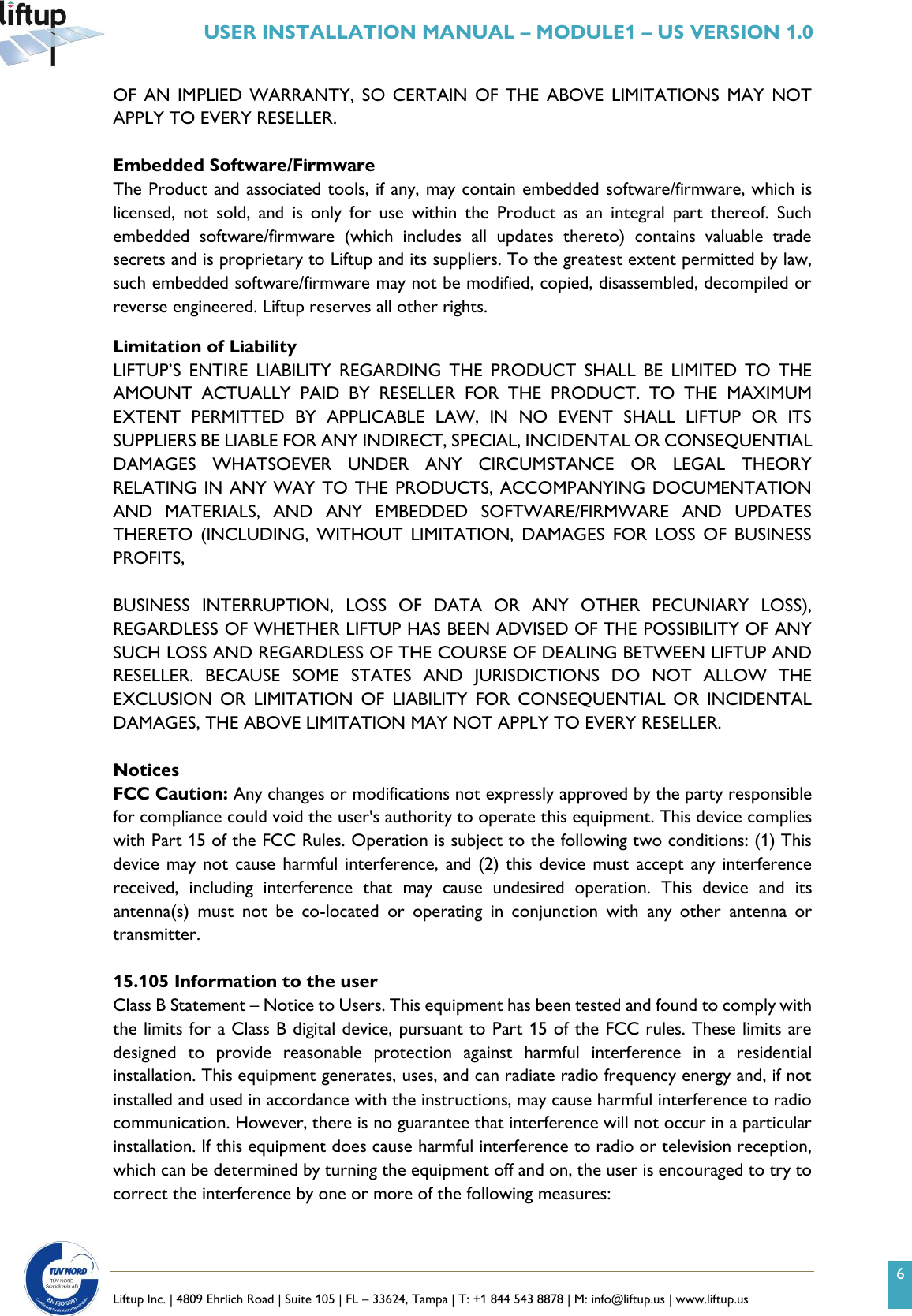

6   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 OF  AN  IMPLIED  WARRANTY,  SO  CERTAIN  OF  THE  ABOVE  LIMITATIONS  MAY  NOT APPLY TO EVERY RESELLER.  Embedded Software/Firmware The Product and associated tools, if any, may contain embedded software/firmware, which is licensed,  not  sold,  and  is  only  for  use  within  the  Product  as  an  integral  part  thereof.  Such embedded  software/firmware  (which  includes  all  updates  thereto)  contains  valuable  trade secrets and is proprietary to Liftup and its suppliers. To the greatest extent permitted by law, such embedded software/firmware may not be modified, copied, disassembled, decompiled or reverse engineered. Liftup reserves all other rights.  Limitation of Liability LIFTUP’S  ENTIRE  LIABILITY  REGARDING  THE  PRODUCT  SHALL  BE  LIMITED  TO  THE AMOUNT  ACTUALLY  PAID  BY  RESELLER  FOR  THE  PRODUCT.  TO  THE  MAXIMUM EXTENT  PERMITTED  BY  APPLICABLE  LAW,  IN  NO  EVENT  SHALL  LIFTUP  OR  ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES  WHATSOEVER  UNDER  ANY  CIRCUMSTANCE  OR  LEGAL  THEORY RELATING IN  ANY WAY TO THE PRODUCTS, ACCOMPANYING DOCUMENTATION AND  MATERIALS,  AND  ANY  EMBEDDED  SOFTWARE/FIRMWARE  AND  UPDATES THERETO  (INCLUDING,  WITHOUT  LIMITATION,  DAMAGES  FOR  LOSS  OF  BUSINESS PROFITS,  BUSINESS  INTERRUPTION,  LOSS  OF  DATA  OR  ANY  OTHER  PECUNIARY  LOSS), REGARDLESS OF WHETHER LIFTUP HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS OF THE COURSE OF DEALING BETWEEN LIFTUP AND RESELLER.  BECAUSE  SOME  STATES  AND  JURISDICTIONS  DO  NOT  ALLOW  THE EXCLUSION  OR  LIMITATION  OF  LIABILITY  FOR  CONSEQUENTIAL  OR  INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO EVERY RESELLER.  Notices FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this  device must accept any interference received,  including  interference  that  may  cause  undesired  operation.  This  device  and  its antenna(s)  must  not  be  co-located  or  operating  in  conjunction  with  any  other  antenna  or transmitter.  15.105 Information to the user Class B Statement – Notice to Users. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed  to  provide  reasonable  protection  against  harmful  interference  in  a  residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

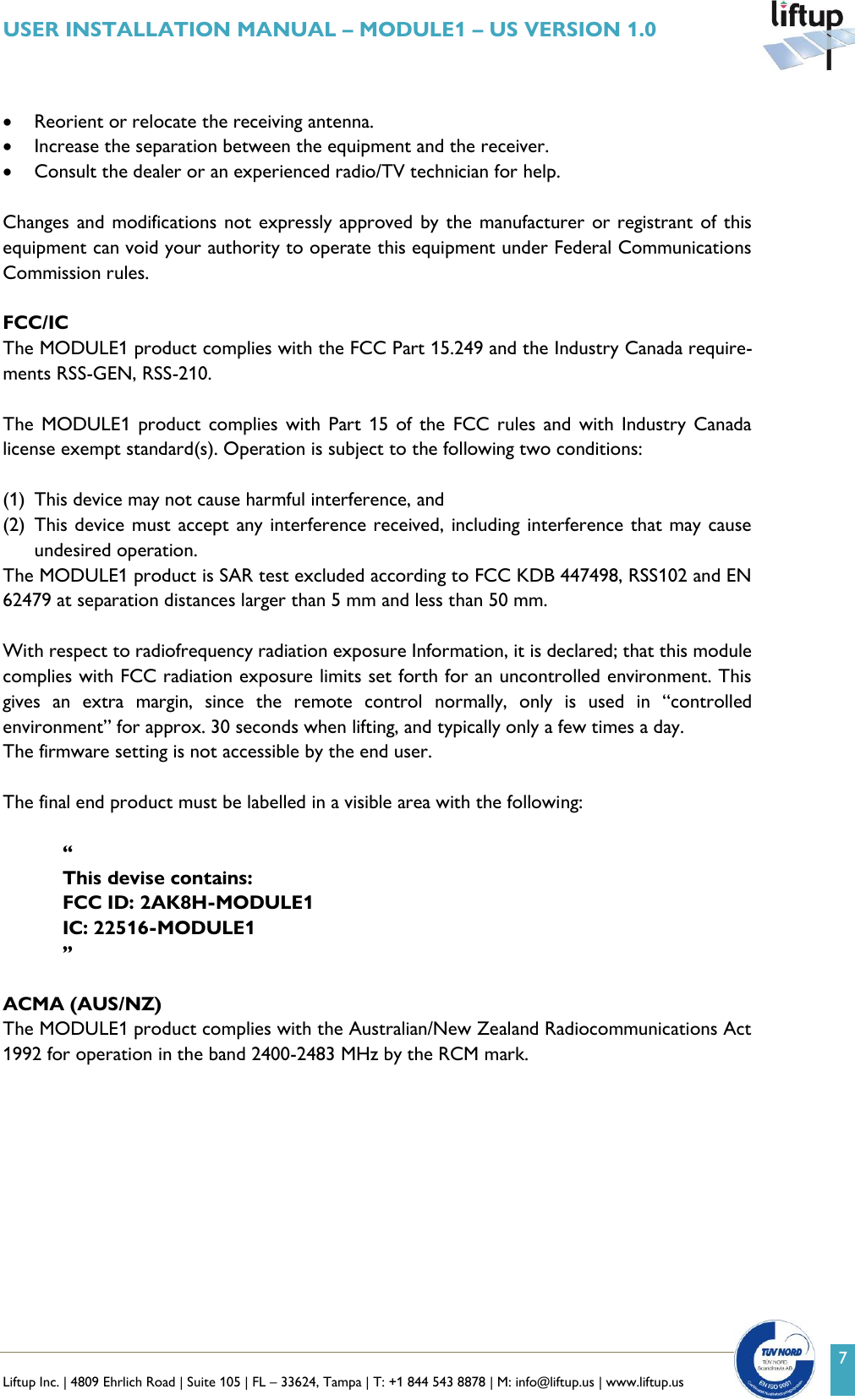

  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 7  • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Consult the dealer or an experienced radio/TV technician for help.  Changes and  modifications not expressly approved by  the manufacturer or  registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules.  FCC/IC The MODULE1 product complies with the FCC Part 15.249 and the Industry Canada require- ments RSS-GEN, RSS-210.  The  MODULE1  product complies  with  Part  15  of  the  FCC  rules  and  with  Industry  Canada license exempt standard(s). Operation is subject to the following two conditions:  (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The MODULE1 product is SAR test excluded according to FCC KDB 447498, RSS102 and EN 62479 at separation distances larger than 5 mm and less than 50 mm.  With respect to radiofrequency radiation exposure Information, it is declared; that this module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This gives  an  extra  margin,  since  the  remote  control  normally,  only  is  used  in  “controlled environment” for approx. 30 seconds when lifting, and typically only a few times a day. The firmware setting is not accessible by the end user.  The final end product must be labelled in a visible area with the following:  “ This devise contains: FCC ID: 2AK8H-MODULE1 IC: 22516-MODULE1 ”  ACMA (AUS/NZ) The MODULE1 product complies with the Australian/New Zealand Radiocommunications Act 1992 for operation in the band 2400-2483 MHz by the RCM mark.
8   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 2.1 Regulatory Approvals CE The  MODULE1  product  comply  with  the  essential  requirements  of  the  RED  Directive 2014/53/EU  as  stated  by  the  EU  Declaration  of  Conformity  (CE).  The  MODULE1  product comply with the European Telecommunications Standards Institute Specifications EN 300 440 operating in 2.400 GHz to 2.483 GHz band for Radio Equipment and Systems.  EU/International The  MODULE1  product  comply  with  the  essential  requirements  of  the  RED  Directive 2014/53/EU  as  stated  by  the  EU  Declaration  of  Conformity  (CE).  The  MODULE1  product comply with the European Telecommunications Standards Institute Specifications EN 300 440 operating in the 2.400 GHz to 2.483 GHz band for Radio Equipment and Systems  The MODULE1 complies with the essential requirements of the 2011/65/EU directive on the restriction of the use  of certain hazardous  substances in  electrical  and electronic equipment (ROHS 2). Complies  with  the  essential  requirements  of  the  EU  1907/2006  regulation  concerning  the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH). Complies with the requirements of the 2012/19/EU directive on waste electrical and electronic equipment and directive 2006/66/EC on  batteries  and  accumulators  and  waste batteries and accumulators (WEEE).

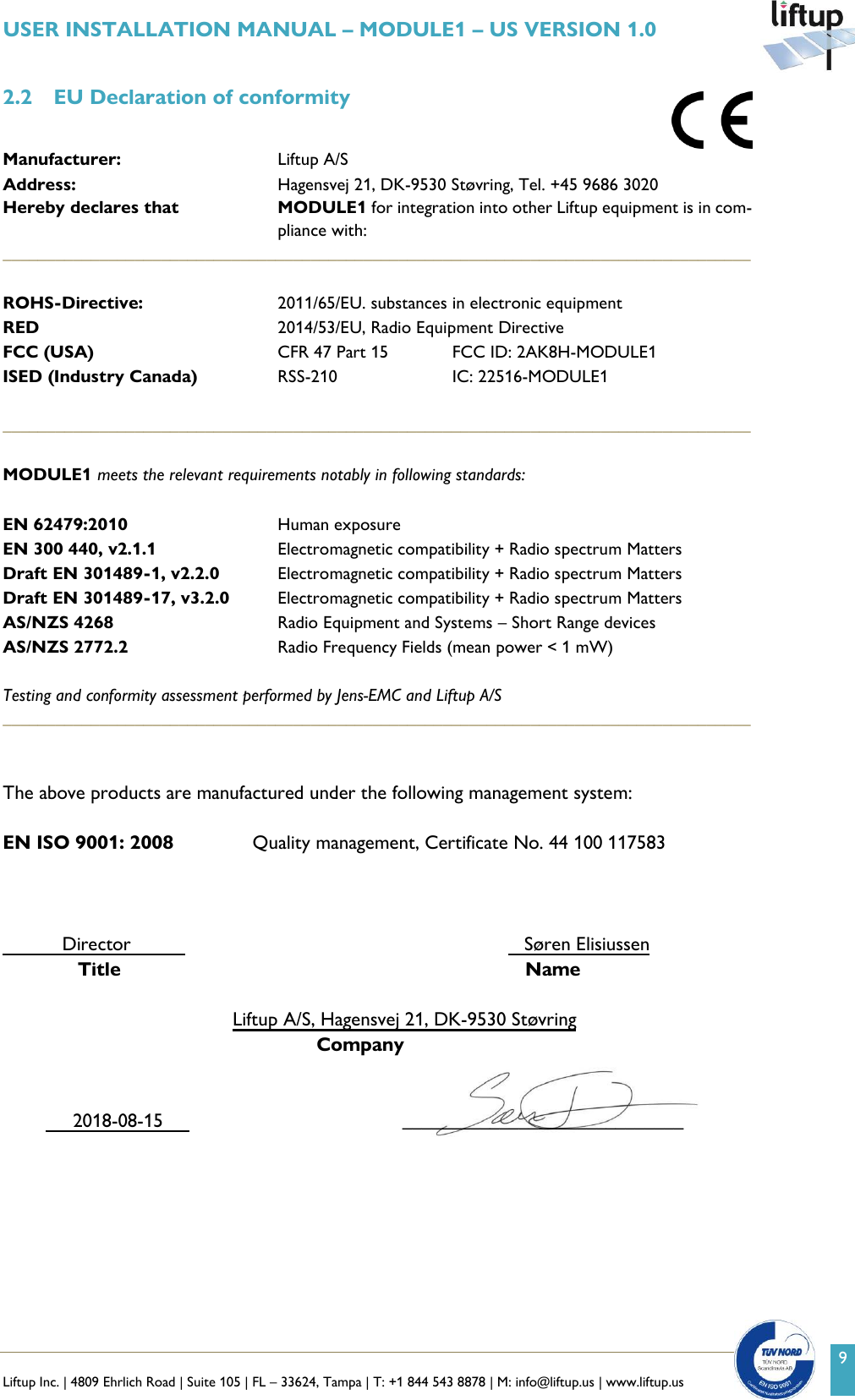

  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 9 2.2 EU Declaration of conformity  Manufacturer:  Liftup A/S Address:  Hagensvej 21, DK-9530 Støvring, Tel. +45 9686 3020 Hereby declares that     MODULE1 for integration into other Liftup equipment is in com-pliance with: _____________________________________________________________________________________  ROHS-Directive:  2011/65/EU. substances in electronic equipment RED  2014/53/EU, Radio Equipment Directive FCC (USA)  CFR 47 Part 15  FCC ID: 2AK8H-MODULE1 ISED (Industry Canada)  RSS-210  IC: 22516-MODULE1  _____________________________________________________________________________________  MODULE1 meets the relevant requirements notably in following standards:  EN 62479:2010  Human exposure EN 300 440, v2.1.1  Electromagnetic compatibility + Radio spectrum Matters Draft EN 301489-1, v2.2.0  Electromagnetic compatibility + Radio spectrum Matters  Draft EN 301489-17, v3.2.0  Electromagnetic compatibility + Radio spectrum Matters  AS/NZS 4268  Radio Equipment and Systems – Short Range devices AS/NZS 2772.2  Radio Frequency Fields (mean power < 1 mW)  Testing and conformity assessment performed by Jens-EMC and Liftup A/S _____________________________________________________________________________________   The above products are manufactured under the following management system:  EN ISO 9001: 2008    Quality management, Certificate No. 44 100 117583               Director                  Søren Elisiussen        Title        Name  Liftup A/S, Hagensvej 21, DK-9530 Støvring                                    Company           2018-08-15                      _____________________________

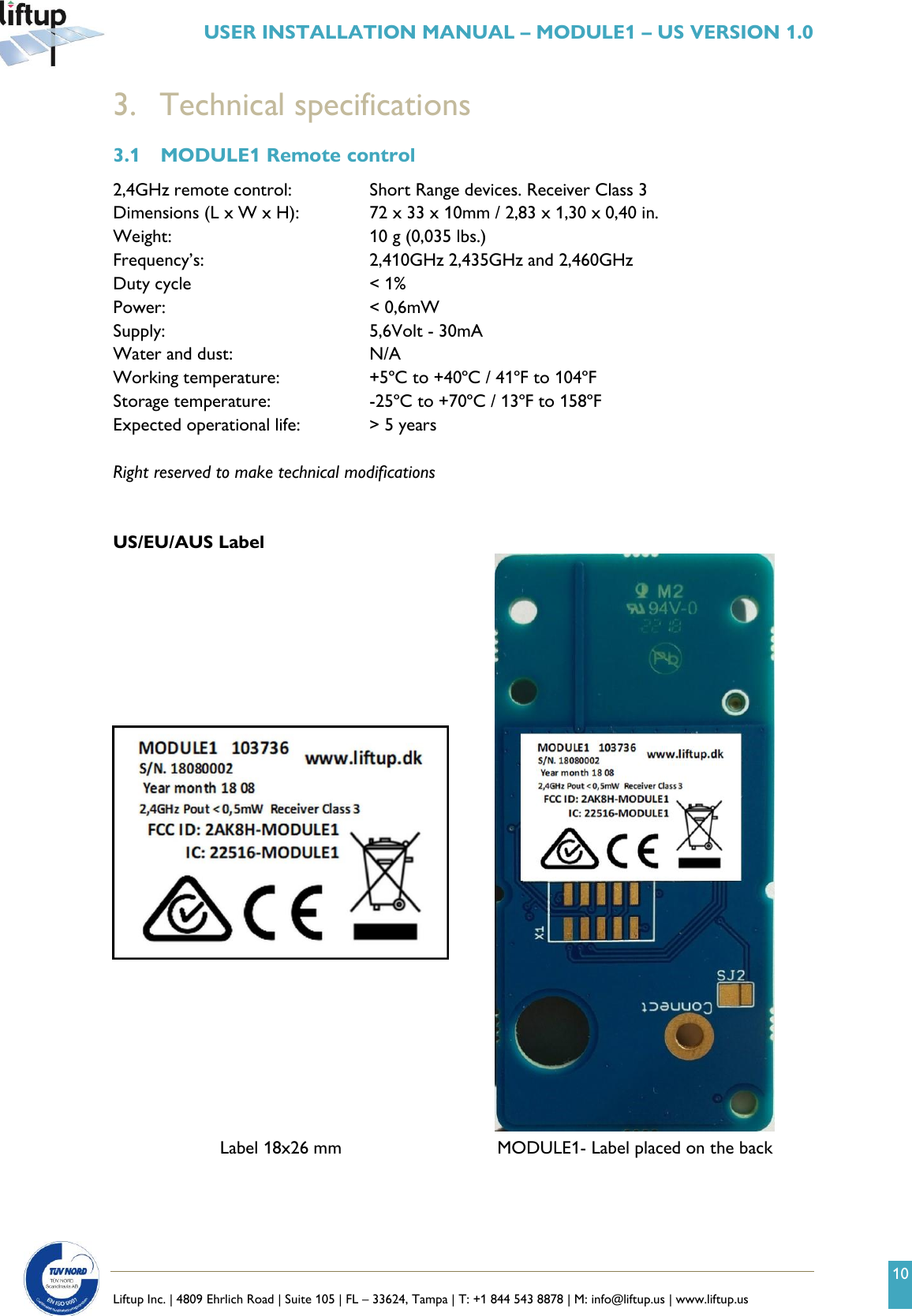

10   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 3. Technical specifications 3.1 MODULE1 Remote control  2,4GHz remote control:  Short Range devices. Receiver Class 3  Dimensions (L x W x H):  72 x 33 x 10mm / 2,83 x 1,30 x 0,40 in.  Weight:  10 g (0,035 lbs.) Frequency’s:  2,410GHz 2,435GHz and 2,460GHz Duty cycle  < 1% Power:  < 0,6mW  Supply:  5,6Volt - 30mA Water and dust:  N/A Working temperature:  +5ºC to +40ºC / 41ºF to 104ºF  Storage temperature:  -25ºC to +70ºC / 13ºF to 158ºF Expected operational life:  > 5 years  Right reserved to make technical modifications   US/EU/AUS Label   Label 18x26 mm MODULE1- Label placed on the back
  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 11 4. Installation of MODULE1 in Liftup products For FlexStep V2  Parts: PCB 103736 The multi-cable “MODULE1 Lid for Wall Profile RH, FS2” 1. Pull the 6-pole multi-cable through the Wall Profile RH, inside the back lane.    2. Connect  the  multi-cable  to  the  con-nection-board on the bottom rail.    3. Connect the multi-cable to MODULE1    4. Mount the “MODULE1” inside the “Lid for Wall Profile RH, FS2”  Insert  the  Module  in  the  top  of  the aluminium Wall Profile RH

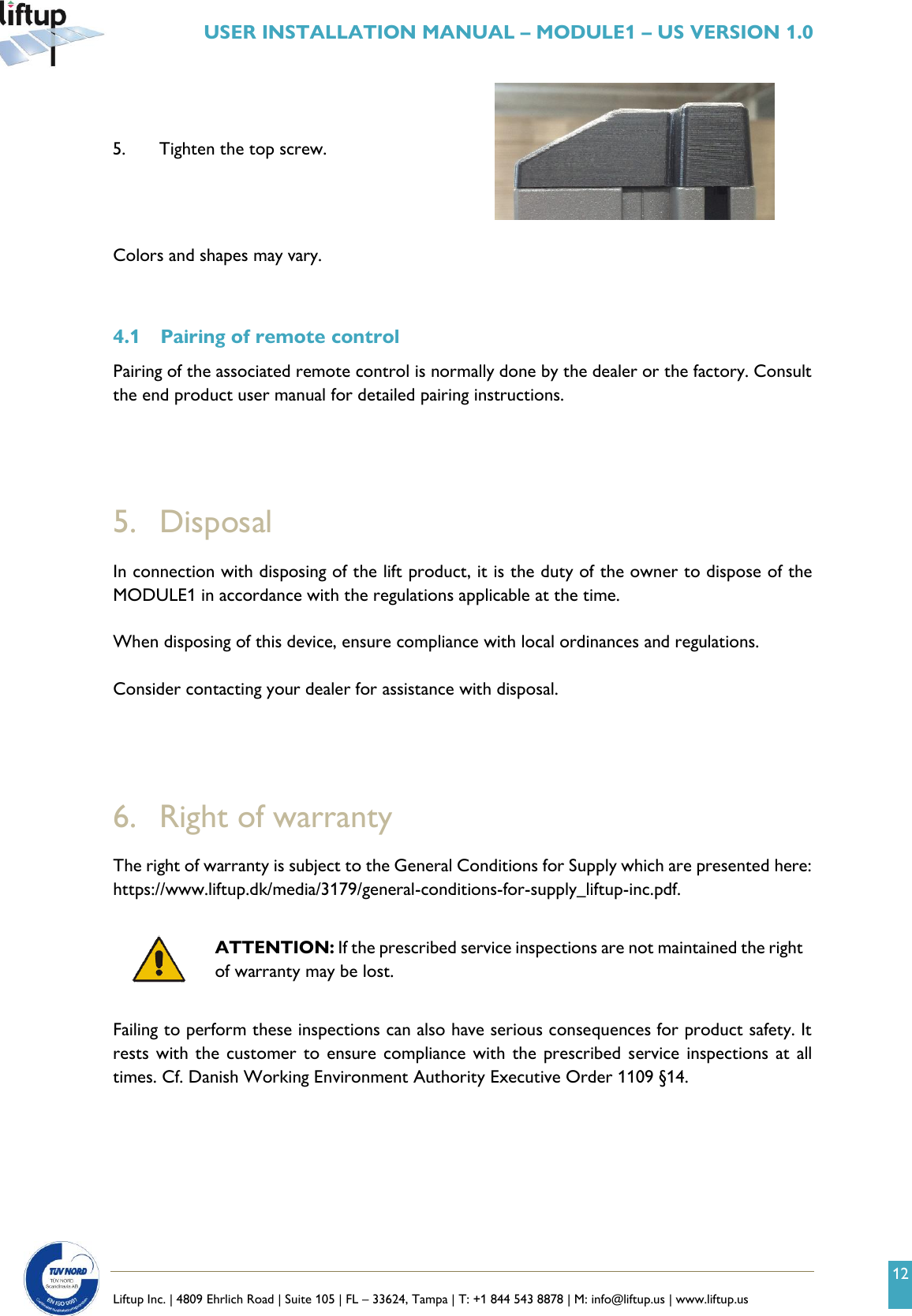

12   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 5. Tighten the top screw.   Colors and shapes may vary.   4.1 Pairing of remote control Pairing of the associated remote control is normally done by the dealer or the factory. Consult the end product user manual for detailed pairing instructions.     5. Disposal In connection with disposing of the lift product, it is the duty of the owner to dispose of the MODULE1 in accordance with the regulations applicable at the time.  When disposing of this device, ensure compliance with local ordinances and regulations.  Consider contacting your dealer for assistance with disposal.     6. Right of warranty The right of warranty is subject to the General Conditions for Supply which are presented here: https://www.liftup.dk/media/3179/general-conditions-for-supply_liftup-inc.pdf.   ATTENTION: If the prescribed service inspections are not maintained the right of warranty may be lost.  Failing to perform these inspections can also have serious consequences for product safety. It rests  with the  customer  to  ensure compliance with the prescribed service inspections  at  all times. Cf. Danish Working Environment Authority Executive Order 1109 §14.

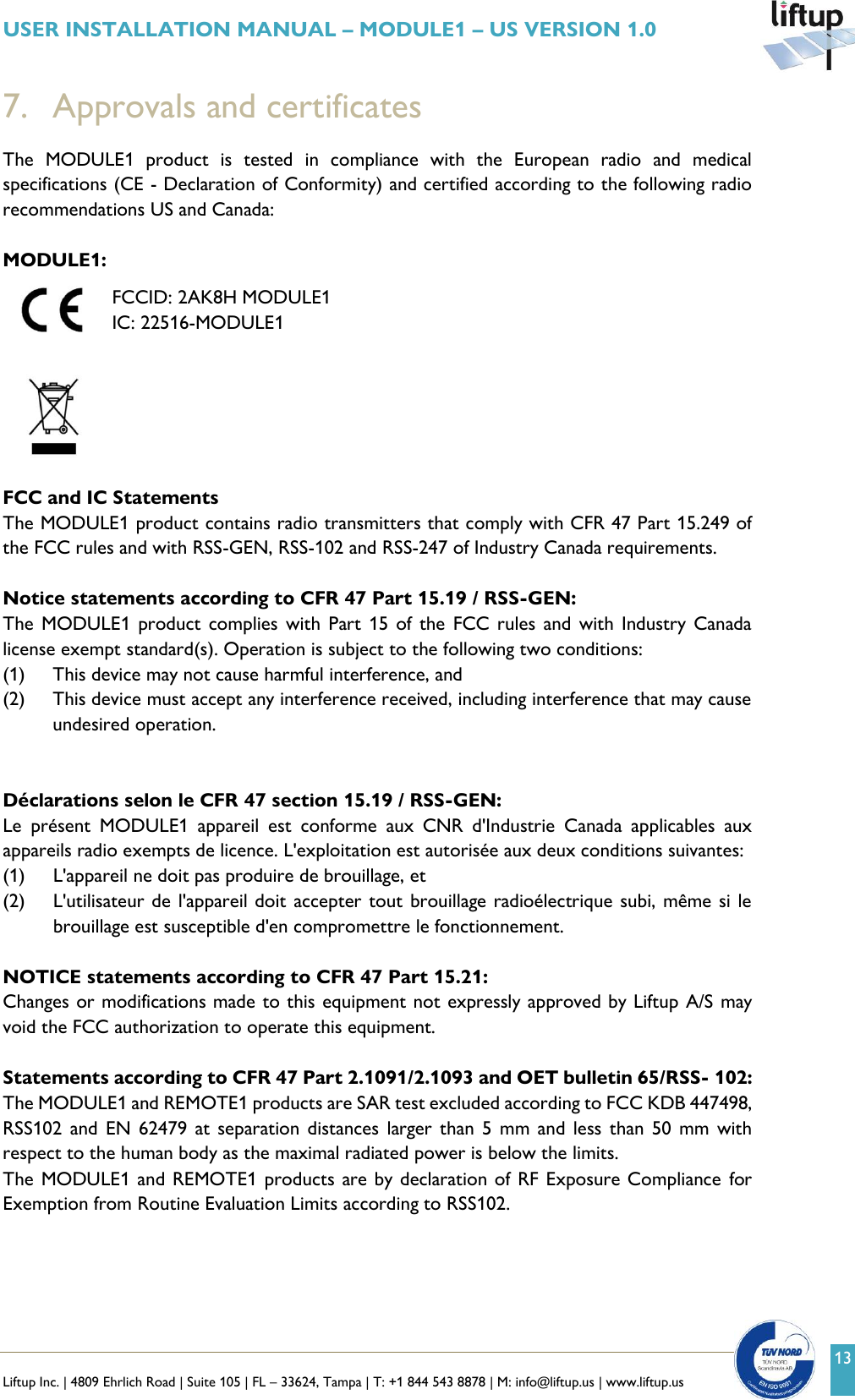

  Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us    USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 13 7. Approvals and certificates The  MODULE1  product  is  tested  in  compliance  with  the  European  radio  and  medical specifications (CE - Declaration of Conformity) and certified according to the following radio recommendations US and Canada:  MODULE1:  FCCID: 2AK8H MODULE1 IC: 22516-MODULE1     FCC and IC Statements The MODULE1 product contains radio transmitters that comply with CFR 47 Part 15.249 of the FCC rules and with RSS-GEN, RSS-102 and RSS-247 of Industry Canada requirements.  Notice statements according to CFR 47 Part 15.19 / RSS-GEN: The  MODULE1  product complies  with  Part  15  of  the  FCC  rules  and  with  Industry  Canada license exempt standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.   Déclarations selon le CFR 47 section 15.19 / RSS-GEN: Le  présent  MODULE1  appareil  est  conforme  aux  CNR  d'Industrie  Canada  applicables  aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) L'appareil ne doit pas produire de brouillage, et (2) L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  NOTICE statements according to CFR 47 Part 15.21: Changes or modifications made to this equipment not expressly approved by Liftup A/S may void the FCC authorization to operate this equipment.  Statements according to CFR 47 Part 2.1091/2.1093 and OET bulletin 65/RSS- 102:  The MODULE1 and REMOTE1 products are SAR test excluded according to FCC KDB 447498, RSS102  and  EN  62479  at separation  distances  larger  than  5  mm  and  less  than  50  mm  with respect to the human body as the maximal radiated power is below the limits. The MODULE1 and REMOTE1 products are by declaration of  RF  Exposure Compliance  for Exemption from Routine Evaluation Limits according to RSS102.

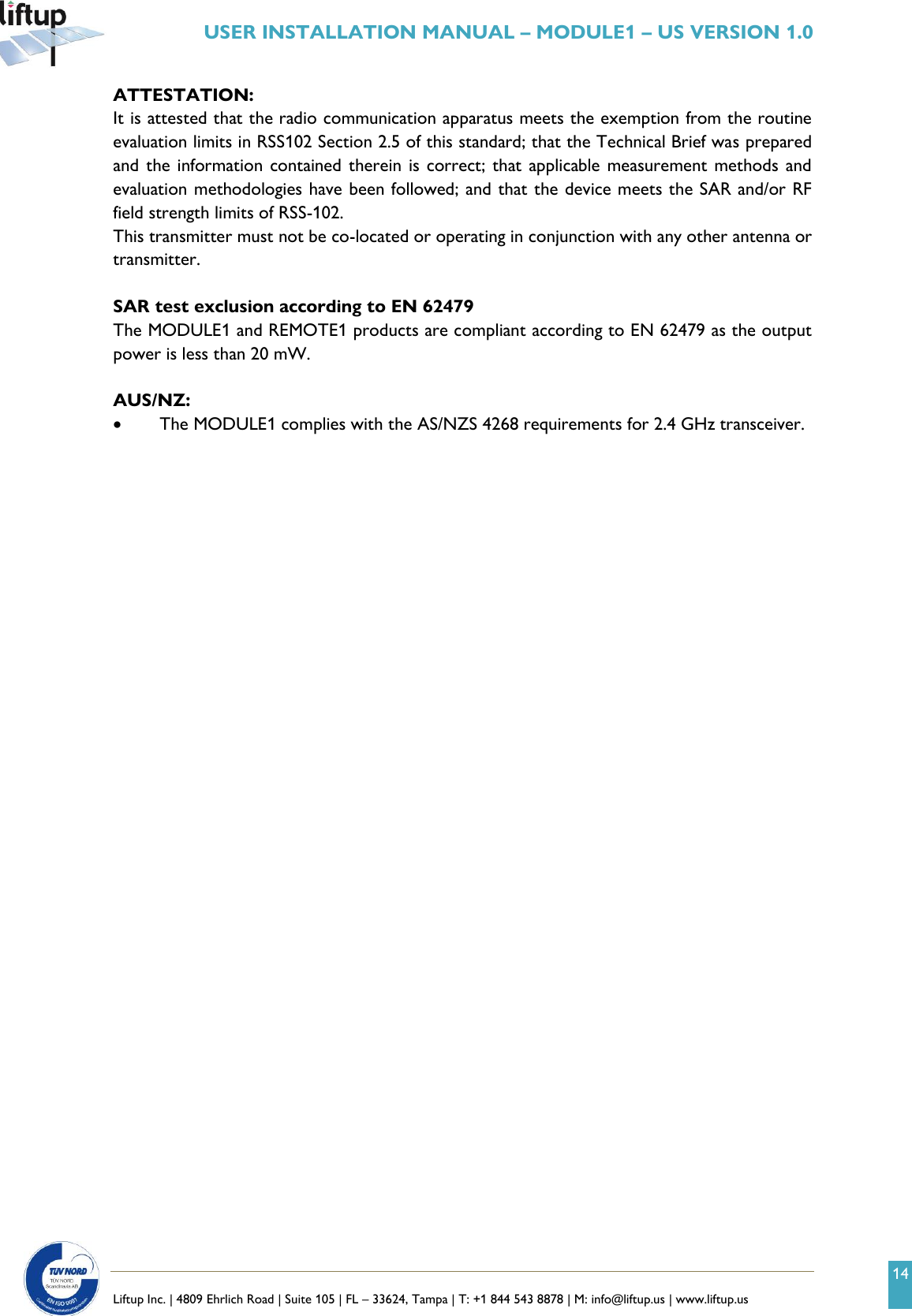

14   Liftup Inc. | 4809 Ehrlich Road | Suite 105 | FL – 33624, Tampa | T: +1 844 543 8878 | M: info@liftup.us | www.liftup.us   USER INSTALLATION MANUAL – MODULE1 – US VERSION 1.0 ATTESTATION: It is attested that the radio communication apparatus meets the exemption from the routine evaluation limits in RSS102 Section 2.5 of this standard; that the Technical Brief was prepared and the  information contained therein  is correct; that applicable measurement  methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  SAR test exclusion according to EN 62479 The MODULE1 and REMOTE1 products are compliant according to EN 62479 as the output power is less than 20 mW.  AUS/NZ: • The MODULE1 complies with the AS/NZS 4268 requirements for 2.4 GHz transceiver.
