FCHRCB User Manual HTML Version

User Manual

Flexible Audio for Group Learning

1POWER 2

TABLE OF CONTENTS

SECTION 1: 4 Important safety instructions

Overview 5 System components and unpacking

6 Optional components

7 Redcat Access controls, connections & indicators

9 Flexmike controls and connections

10 Flexcat pod controls and connections

11 Remote control functions and indicators

SECTION 2: 12 1. Determine set-up locations

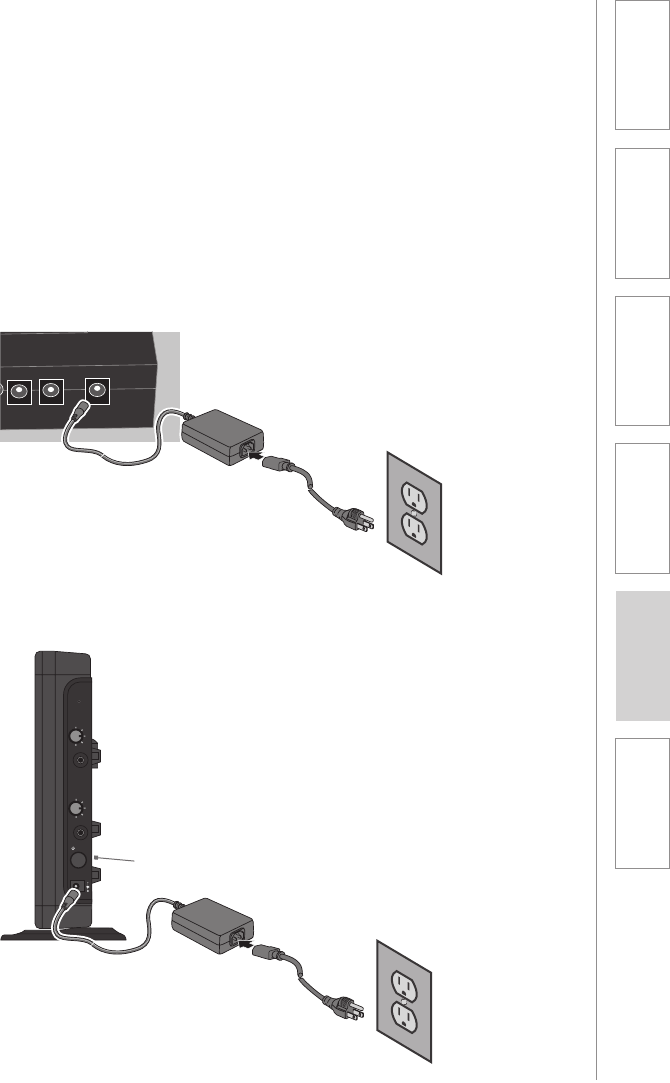

Initial Set-up 13 2. Plug in the charging station and Redcat

14 3. Charge Flexcat components

15 4. Power on all components

15 5. Ensure all components are ready

16 6. Set up the Flexmike + earbud

17 7. Determine placement of the speaker pods

18 8. Setting system volume levels

SECTION 3: 19 Daily operation instructions

Daily Operation 19 Remove and place the pods

19 Remove the microphone and put it on

19 Remove the remote and begin instruction

20 Using the remote

20 Pod call button

20 Return all components to charging station

SECTION 4: 21 Tips and Tricks

Additional

Operation

Information

22 Using optional pods #5-6

23 Multimedia audio integration

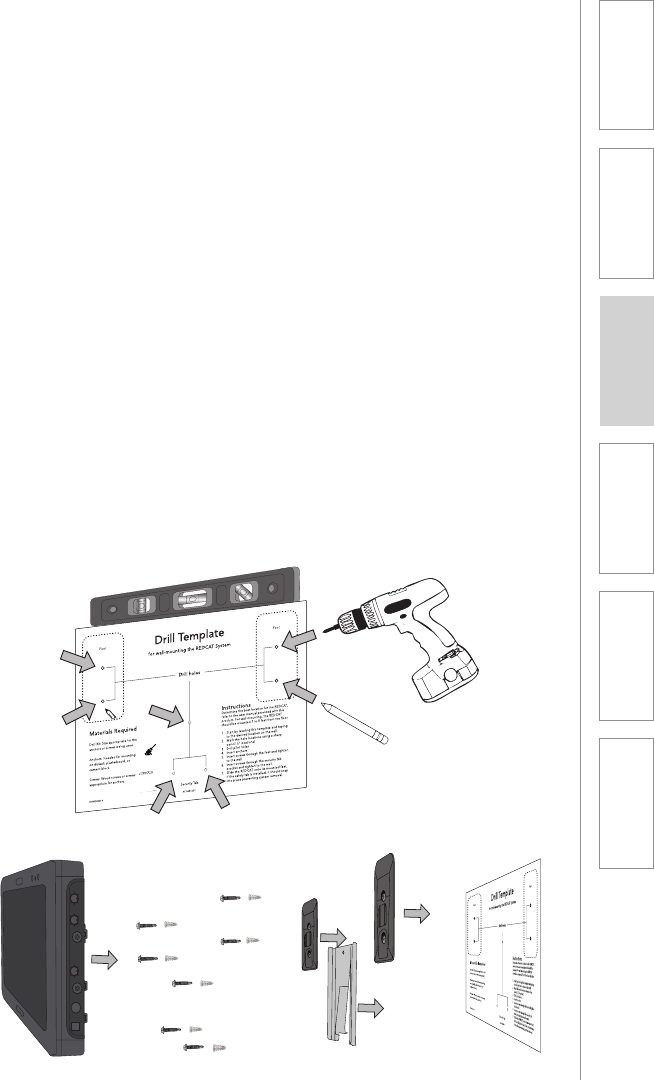

25 Wall-mounting Redcat Access speaker

SECTION 5: 26 Component registration overview

Maintenance and

Troubleshooting

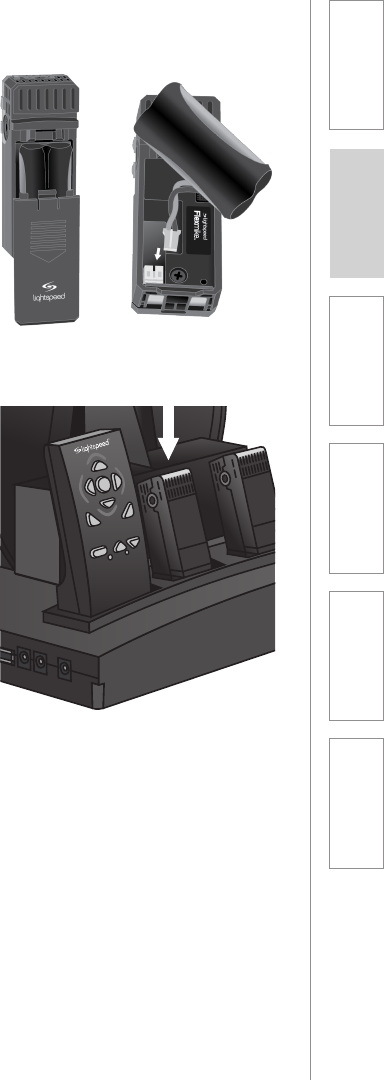

26 Battery replacement

29 Troubleshooting

SECTION 6: 32 Warranty statement

Warranty, Safety

and Speciﬁcations

33 Safety warnings and certiﬁcations

37 System speciﬁcations

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the apparatus near

water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance

with the manufacturer’s

instructions.

8. Do not install near any heat

sources such as radiators,

heat registers, stoves, or other

apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose

of the polarized or grounding-

type plug. A polarized plug

has two blades with one wider

than the other. A grounding-

type plug has two blades and

a third grounding prong. The

wide blade or the third prong is

provided for your safety. If the

provided plug does not fit into

your outlet, consult an electrician

for replacement of the obsolete

outlet.

10. Protect the power cord from

being walked on or pinched

particularly at plugs, convenience

receptacles, and the point where

they exit from the apparatus.

11. Only use attachments/

accessories specified by the

manufacturer.

13. Unplug this apparatus during

lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified

service personnel. Servicing is

required when the apparatus

has been damaged in any way,

such as power-supply cord or

plug is damaged, liquid has been

spilled or objects have fallen into

the apparatus, the apparatus

has been exposed to rain or

moisture, does not operate

normally, or has been dropped.

15. When the mains plug or

appliance coupler is used as the

disconnect device, it shall remain

readily operable.

16. Please keep the unit in a good

ventilation environment.

17. WARNING: To reduce the risk

of ﬁre or electric shock, do not

expose this apparatus to rain or

moisture.

18. Apparatus shall not be exposed

to dripping or splashing and no

objects ﬁlled with liquids, such

as vases, shall be placed on the

apparatus.

12. Use only with a cart,

stand, tripod, bracket or

table specified by the

manufacturer, or sold with

the apparatus. When a cart is

used, use caution when moving

the cart/apparatus combination

to avoid injury from tip-over.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SECTION 1:

OVERVIEW

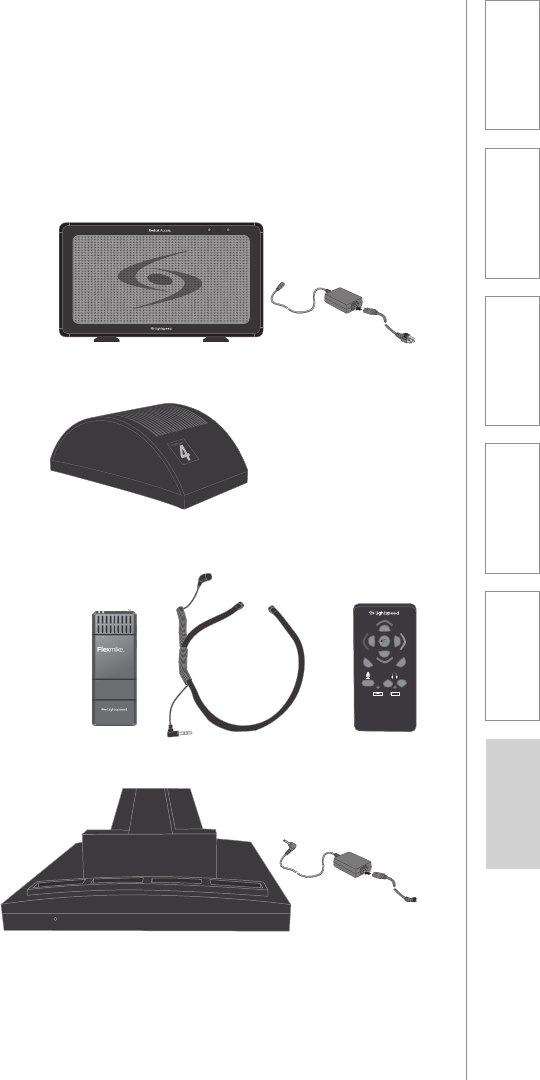

SYSTEM COMPONENTS AND UNPACKING

The standard conﬁguration of the Flexcat will contain:

Flexmike + earbud lanyard

& teacher remote

Charging station with

power supply

Small group speaker

Pods (4-6)

POWER

VolVol

Mute

UP DN

1POWER 2

Redcat Access whole class

speaker with power supply

PLEASE NOTE: Redcat, speaker pods, Flexmike(s) and remote(s) are registered

together at the factory and are labeled as such. Please keep all components

together as a system. Moving them from one system, or room, to another will

result in the need to re-register them to function.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

Standard Components

RCA Redcat Access whole room speaker w/ power supply

FCCS Flexcat charging station with power supply

FCP Flexcat speaker pod with rechargeable battery pack

FCTT Flexcat team-teaching kit (Flexmike, earbud lanyard

& remote control)

FM-EBL Flexmike pendant microphone with earbud lanyard

and battery pack

FCHRC Flexcat handheld remote control with rechargeable

battery pack

EBL Flexmike earbud lanyard

NH6V 6V NiMH rechargeable battery pack for speaker pods

NH2.4V 2.4V NiMH rechargeable battery pack for Flexmike

and remote

16V-2.0-NA 16V/2.0A power supply and AC cable for RCA and

FCCS

Optional Accessories

16VCC DC charging cable for optional speaker pods #5-6

MSC3535 3.5mm-3.5mm stereo audio cable

USB-MCB USB Type A-Micro B charging cable for Flexmike

OPTIONAL COMPONENTS

Equipment which may be part of your Flexcat:

Additional

speaker pods

Team teaching kit:

2nd Flexmike + earbud

lanyard and remote

VolVol

Mute

UP DN

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

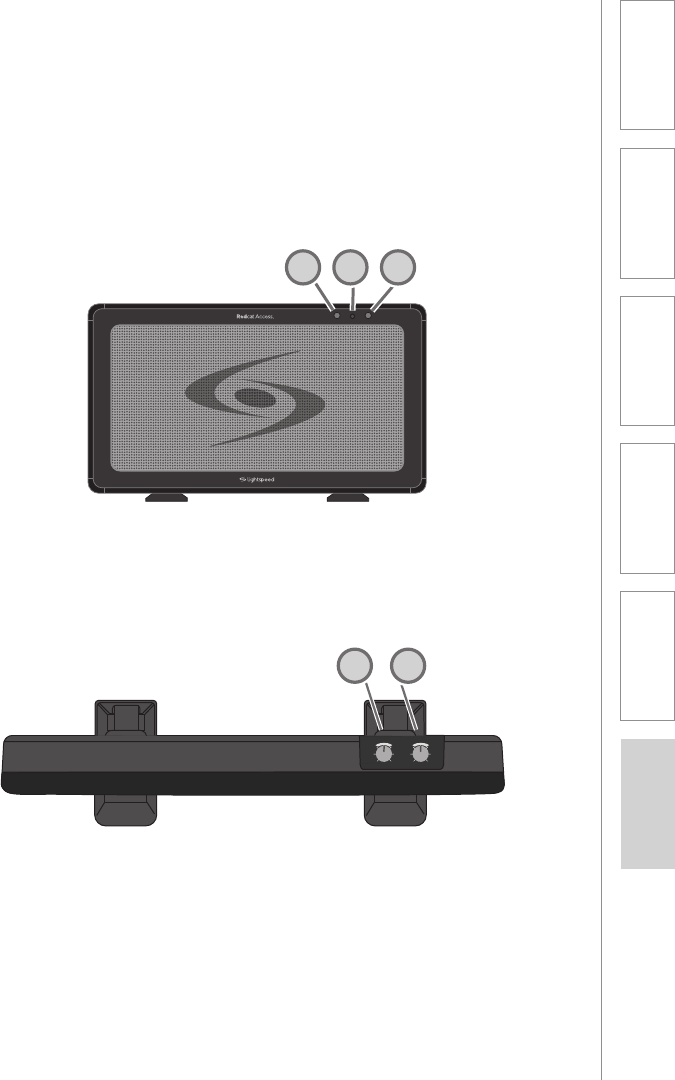

REDCAT SPEAKER CONTROLS,

CONNECTIONS AND INDICATORS

3. MICROPHONE VOLUME: Controls the volume level of teacher

microphone(s) and student sharing from pods.

4. TONE CONTROL: Adjusts the audio tone, adding more bass or treble

for a more rich or crisp sound.

MICROPHONE

VOLUME

MINMAX BASSTREBLE

TONE

(TOP VIEW)

1POWER 2

1. POWER ON INDICATOR: The power light will glow blue

when power is applied.

2. MIC 1 & MIC 2: Mic link and registration indicators

a. Flashing amber indicates registration is in process.

b. Solid green indicates a link has been established.

(FRONT VIEW)

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

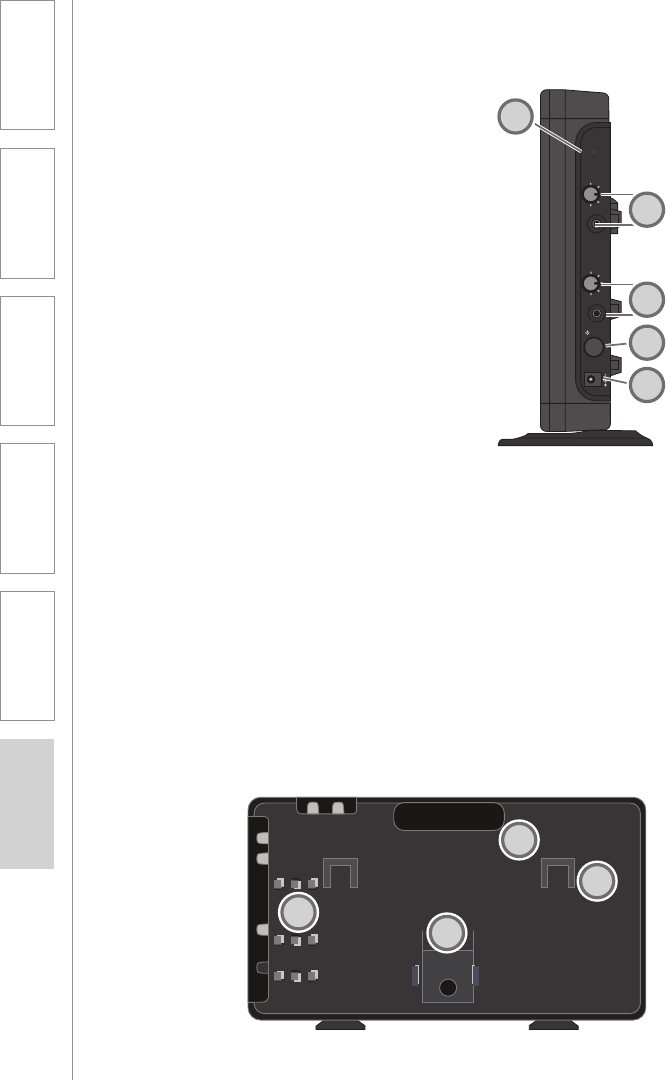

REDCAT SPEAKER CONTROLS,

CONNECTIONS AND INDICATORS CON’T

5. REGISTRATION: Press this button if

there is a new microphone, pod, or

remote to be registered.

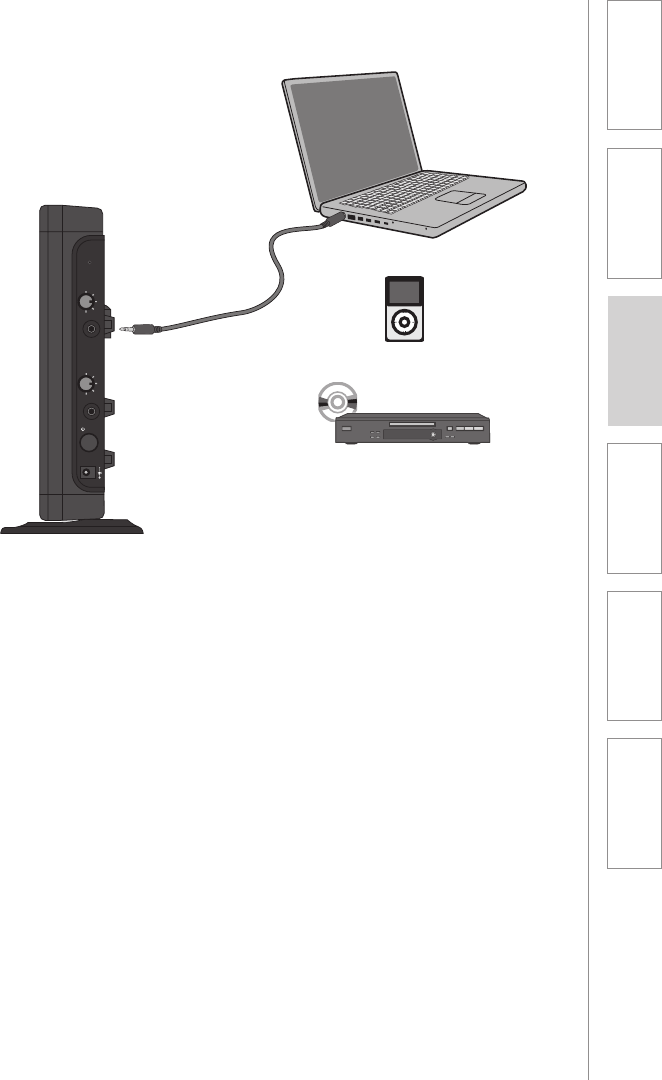

6. AUDIO INPUT JACK & VOLUME

CONTROL: 3.5mm stereo connector

for connecting multimedia sources

to the Redcat Access. Controls the

volume level of the audio input from

the connected audio source.

7. AUDIO OUTPUT JACK & VOLUME

CONTROL: 3.5mm stereo connector

for connecting to an assisted listening

device (ALD) or to a computer for

recording. Controls the volume level

of the audio output.

8. POWER BUTTON: This button is used

to turn the Redcat Access on or off.

The blue front panel will glow when

power is on.

9. POWER INPUT JACK: Plug the power

supply (16VDC/2.0A) into this jack.

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

(SIDE VIEW)

10. CARRYING INSET: Cutaway grip for moving or carrying

the Redcat.

11. CABLE MANAGEMENT AND STRAIN RELIEF

12. WALL MOUNTING SLOTS

13. SECURITY BRACKET SLOT

Testing Purposes Only

(REAR VIEW)

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

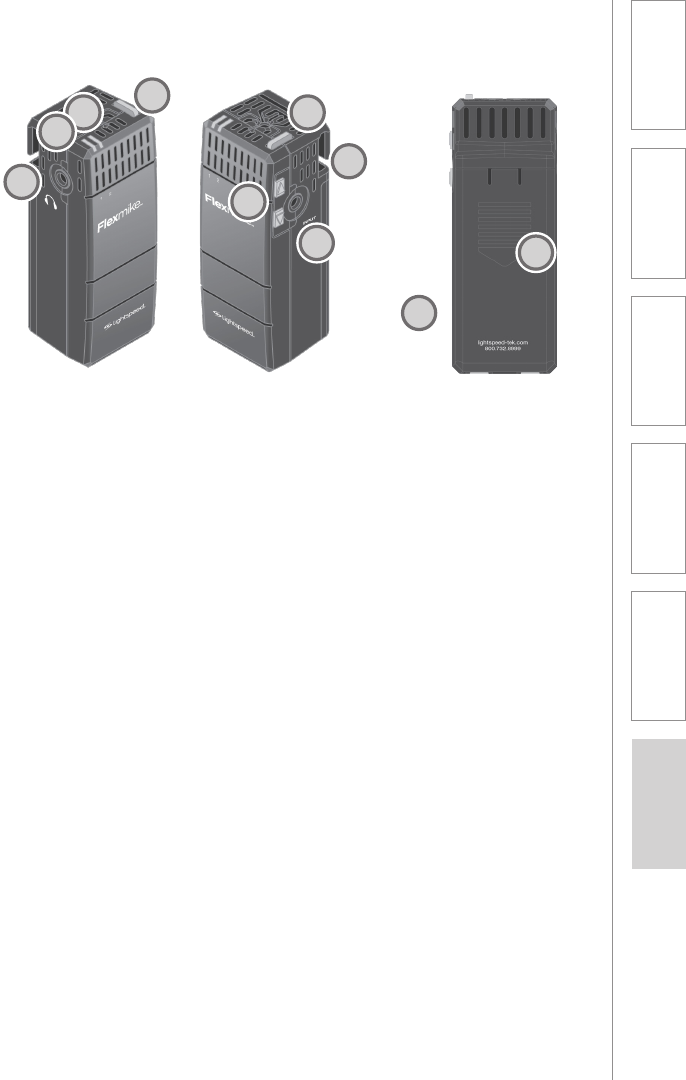

FLEXMIKE CONTROLS AND CONNECTIONS

1. POWER/MUTE SWITCH: press and hold to power on, press to mute, press

and hold to power off.

2. MIC 1 STATUS: lighted to indicate microphone is registered as MIC 1.

• Blue: solid = normal operation; ﬂashing = linking in process.

• Red: solid = muted; ﬂashing = muted while linking in process.

3. MIC 2 STATUS: lighted to indicate microphone is registered as MIC 2 (same

behavior as MIC 1 status light above).

4. EARBUD CONNECTION: connect the earbud for monitoring.

5. CHARGING/LOW BATTERY INDICATOR: lights red when charging, green

when fully charged. When in operation, turns red to indicate low battery.

6. MICROPHONE VOLUME UP/DOWN

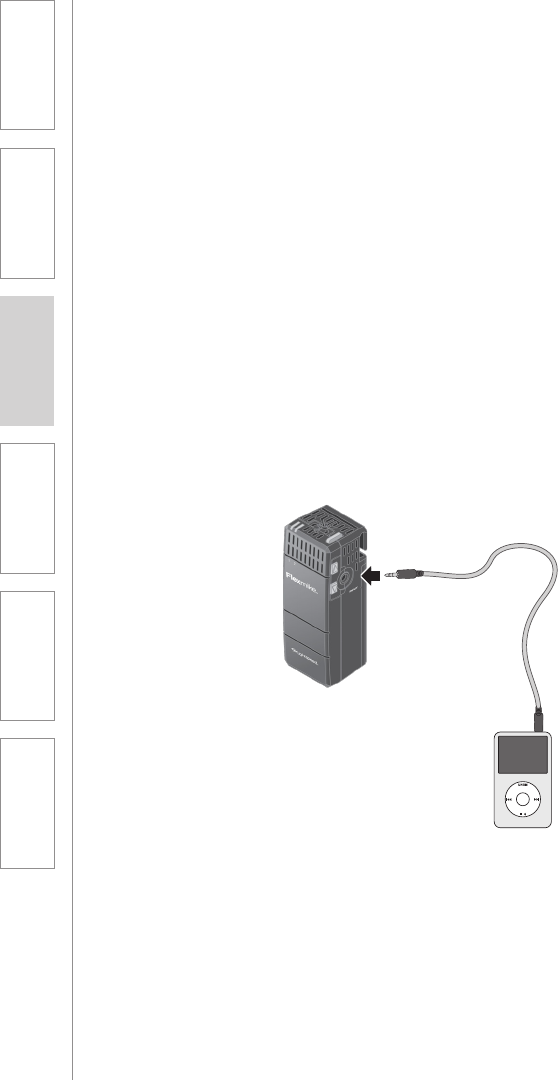

7. AUDIO INPUT: connect audio source to send to whole class.

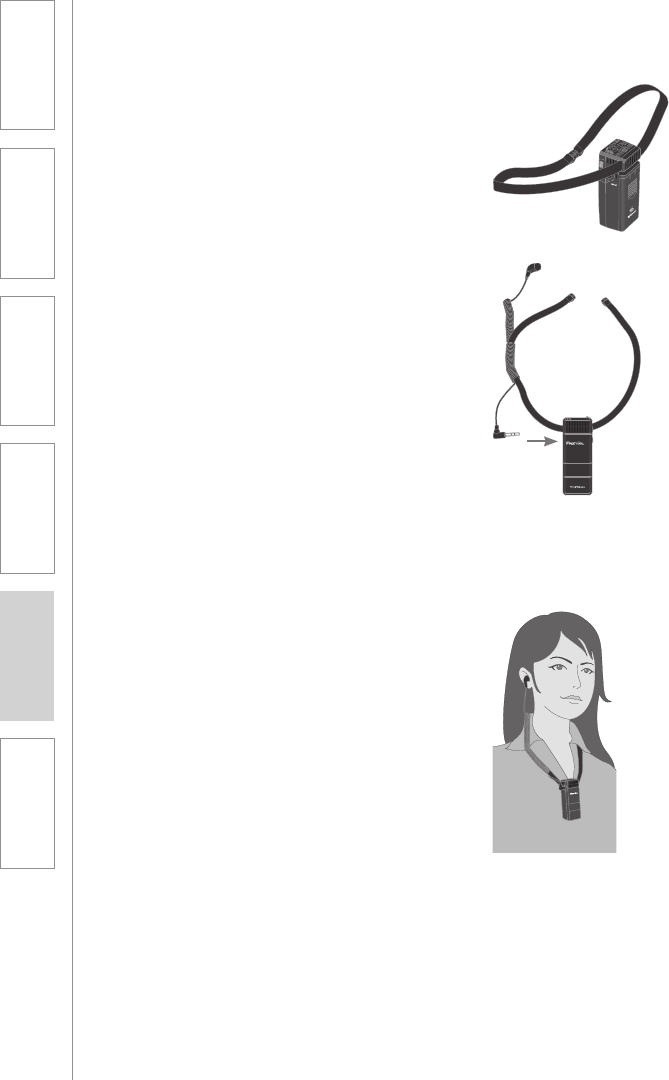

8. LANYARD INTERFACE: insert the lanyard into this hook to wear the

Flexmike.

9. BATTERY DOOR: remove the battery door to replace the rechargeable

battery pack.

10. REGISTRATION: (inside battery compartment - not shown) only used when

adding or replacing Flexmike.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

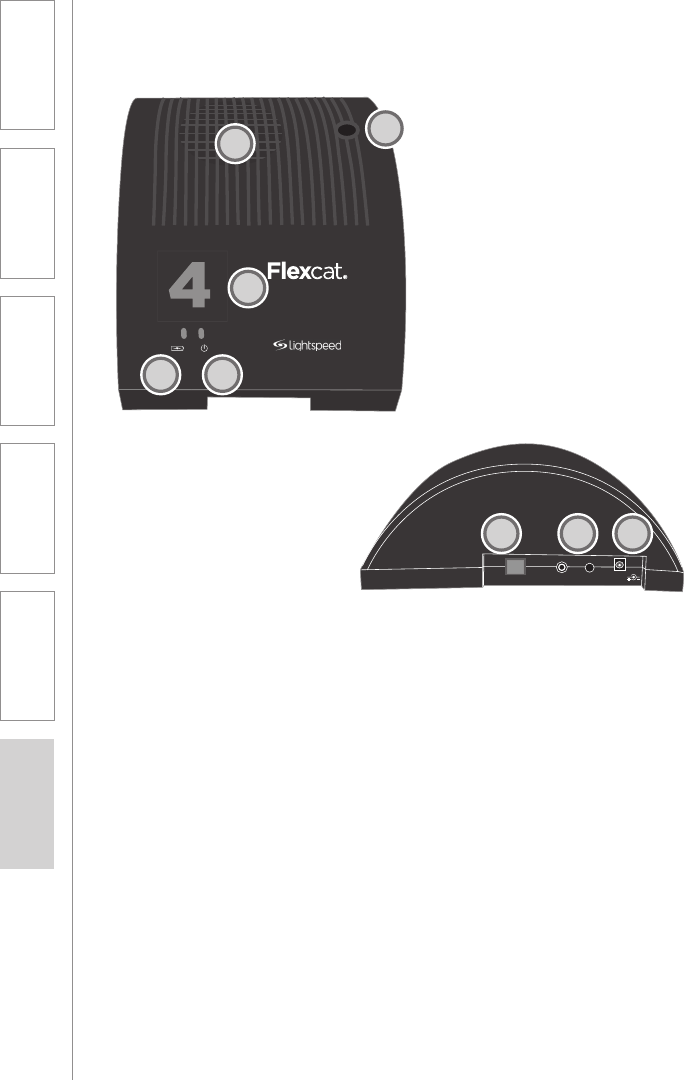

FLEXCAT POD CONTROLS AND

CONNECTIONS

1. CHARGING INDICATOR: this

light turns red when charging,

green to indicate charging

complete.

2. POWER/LOW BATTERY

INDICATOR: this light blinks

blue when powered on, turns

solid blue when ready for

operation and turns red when

the battery is low.

3. POD NUMBER STICKER: this

sticker acts as a clear visual

indicator for the teacher to

determine which speaker

represents which group number.

4. LOUDSPEAKER: the internal

loudspeaker distributes the

teacher’s voice.

5. MICROPHONE: the internal

microphone that picks up the

student’s voice.

6. CALL BUTTON: students can

press this button to notify the

teacher they need assistance.

7. AUDIO OUT: this jack and

volume adjustment connects

audio from the pod to an

assistive listening or recording

device.

8. DC CHARGING/POWER

INPUT: to charge optional pods

#5 and 6, plug the charging

cable from the base station into

this jack.

CALL AUDIO OUT VOL

CHARGE

16V/0.3A

– +

67 8

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

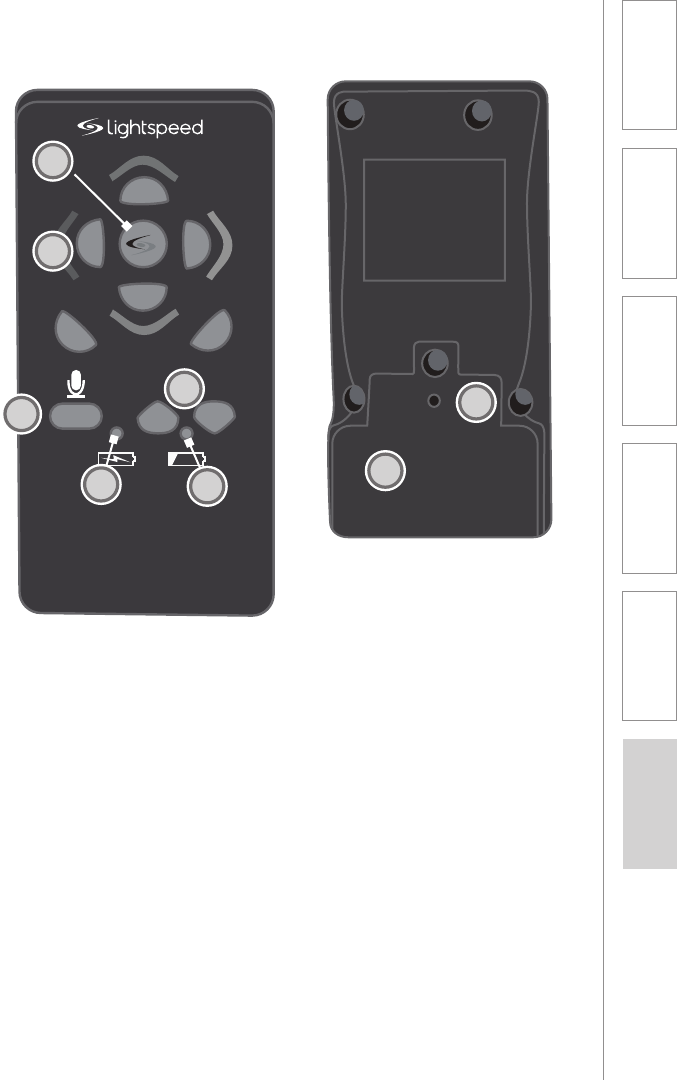

REMOTE CONTROL FUNCTIONS AND

INDICATORS

1. CLASSROOM SPEAKER

SELECTION: press to select the

Redcat speaker to address the

whole class. The button turns

green when selected.

2. SPEAKER POD SELECTION (1-

6): press to select a speciﬁc pod.

The button turns green when

addressing that group, red when

monitoring (listening only).

3. MICROPHONE MUTE

(MONITOR): press this button

to mute the microphone and

monitor the different groups.

4. EARBUD VOLUME: these

buttons turn up and down the

volume of the teacher earbud,

allowing you to hear the student

groups at a comfortable volume

level.

5. CHARGING INDICATOR: this

light turns red when charging

and green when fully recharged.

6. LOW BATTERY INDICATOR:

this light turns red when battery

is low.

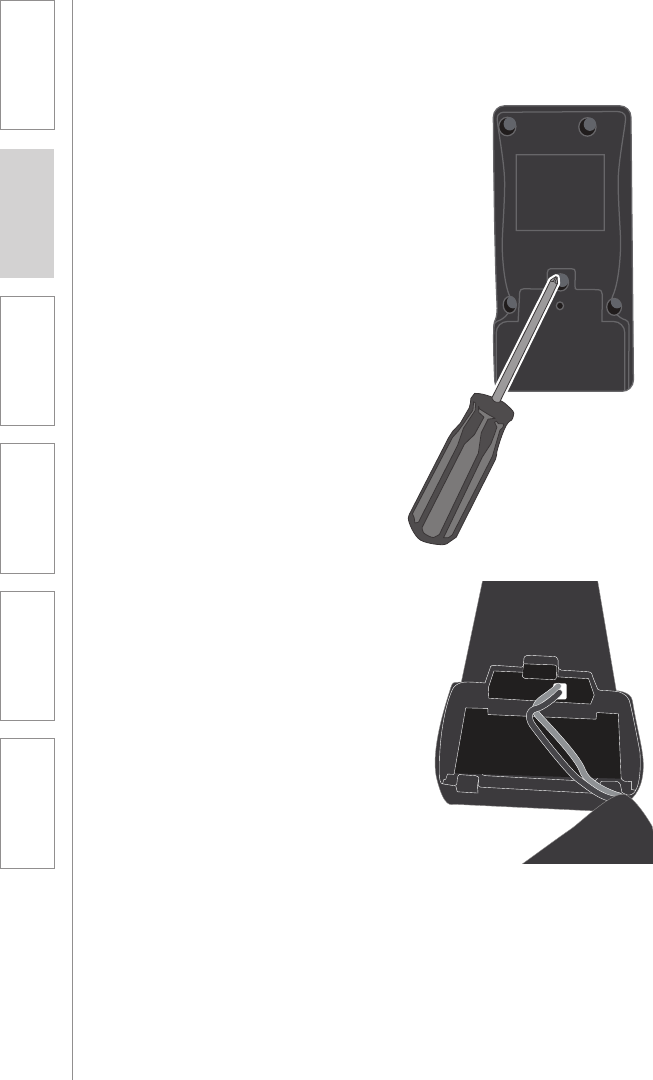

7. BATTERY COMPARTMENT:

remove screw and open to

replace rechargeable battery

pack.

8. REGISTRATION: press this

button to add/replace a remote.

REG

VolVol

Mute

UP DN

567

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

Flexcat Charging Station:

The charging station organizes and charges the pods, microphone(s) and

remote(s). It can be set up anywhere, but it is best to be near the teachers desk

and highly accessible for both teachers and students.

Key considerations:

• Close proximity to AC power outlet

• Accessible for daily charging of all components

Redcat Access Speaker:

The Redcat Access whole class speaker projects and evenly distributes audio

throughout the entire class. It can be set on a tabletop or mounted on a wall if

desired.

Key considerations:

• Close proximity to AC power outlet (within about 7 feet)

• Positioned on a surface about 4-6 feet high

• Centered along a side or rear wall of the classroom

SECTION 2:

INITIAL SET-UP

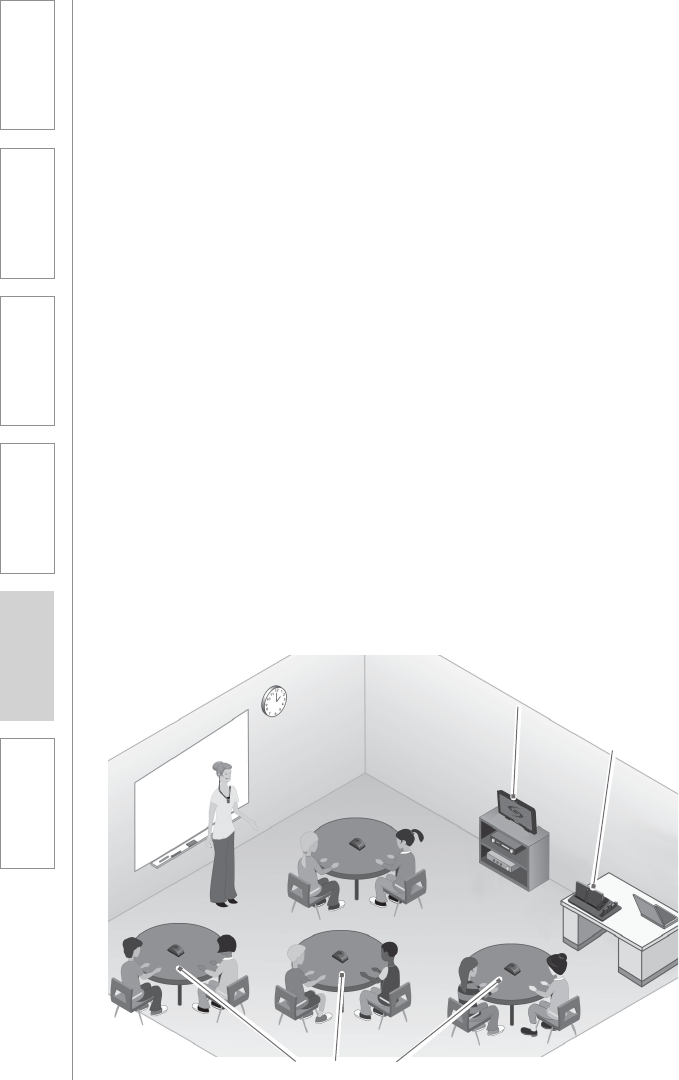

1. DETERMINE SET-UP LOCATIONS

Redcat

Speaker

Speaker Pods

Charging

Station

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

2. PLUG IN THE CHARGING STATION &

REDCAT ACCESS SPEAKER

1. Locate the two 16V power supplies and power cables -- one each for the

charging station and Redcat Access.

2. Connect the AC power cords into the DC power supplies.

3. Using the ﬁrst power supply, insert the DC connector into the “DC POWER”

jack on the charging station.

4. Plug the AC power cord into an electrical outlet.

5. The blue power light on the charging station will glow to indicate it is ready

to begin charging components.

Power On

SPEAKER

VOLUME

OUT IN

AUDIO

SPEAKER

OUTPUT

CHARGE OUT

16V/0.3A

DC POWER

16V/2.0A

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

6. Using the second power supply, insert the DC

connector into the “DC INPUT” jack on the

Redcat Access.

7. Plug the AC power cord into an electrical outlet.

8. The Redcat Access automatically powers on and

the blue power light on the front panel will glow.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

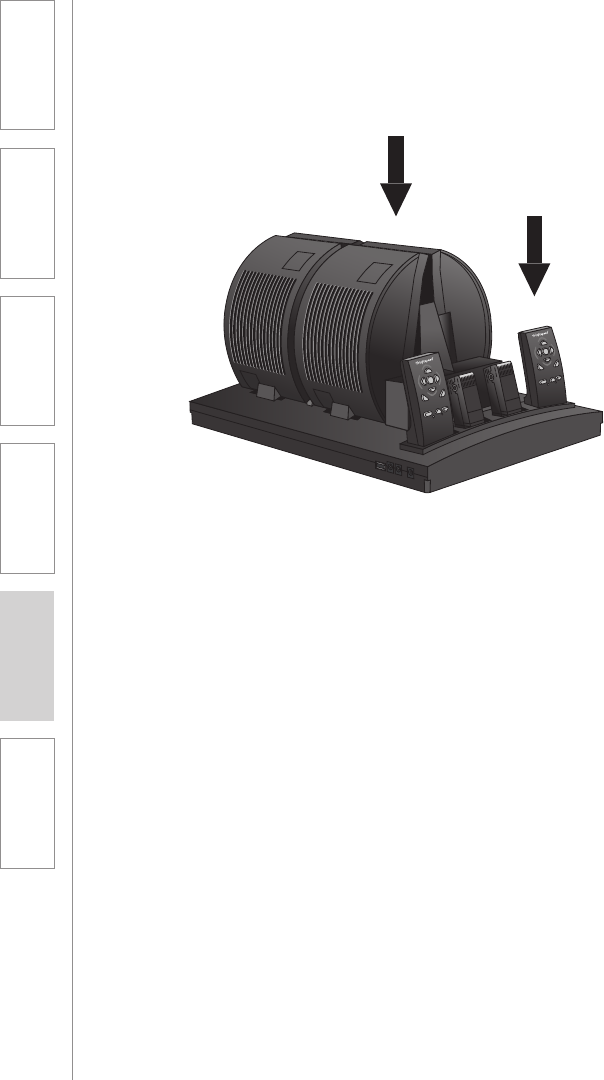

1. Insert all four pods into the charging cradle. Each pod’s charging light will

turn red to indicate normal charging. When fully charged, they will turn

green. For systems with 5-6 pods, use the charging cables to connect pods

#5-6 into the charging jacks on the side of the charging station.

2. Insert the Flexmike(s)* into the appropriate smaller center slot. The blue

microphone 1 or 2 light will blink for several seconds as it establishes a link,

then turn solid. The charging light will turn red to indicate normal charging.

When fully charged, it will turn green.

3. Insert the teacher remote(s)** into the appropriate charging slot. The

charging light will turn red to indicate normal charging. When fully charged,

it will turn green.

FOR SYSTEMS WITH 2 MICROPHONES AND REMOTES:

*If you have two Flexmikes, you will want to power them on to determine

whether it is Microphone #1 or #2 (indicated by blue light), then place it in

the appropriate charging slot.

**Check the serial number label on the back of the remote to determine

whether a remote is set to Microphone #1 or #2, then place it in the

appropriate charging slot.

3. CHARGE THE FLEXCAT COMPONENTS

Prior to full operation, all system components should be fully charged (at least 8

hours) to ensure optimum performance.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

1. REDCAT ACCESS: this will

automatically power on when

plugged into power and/or

when a Flexmike is powered on.

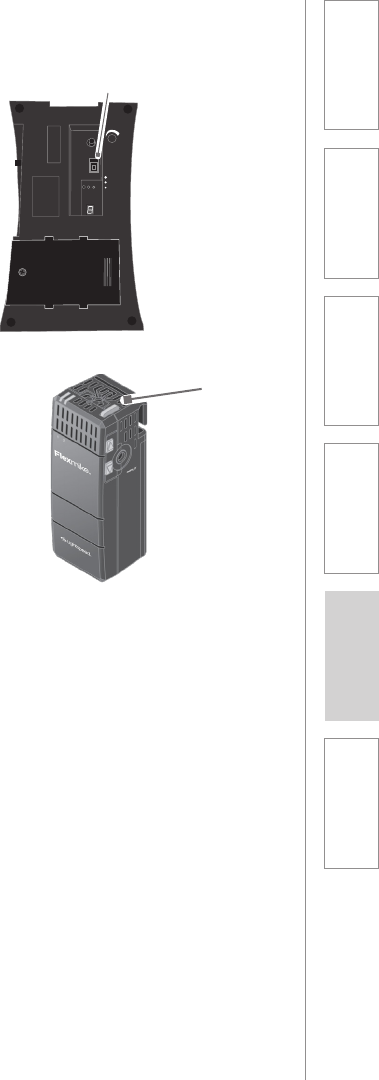

2. SPEAKER PODS: locate the

power switch on the bottom

of all the pods. Switch to the

ON position. The pod # light

will light as will the blue power

indicator on top.

3. FLEXMIKE: the microphone

will power on when removed

from the charger. The solid red

light indicates the microphone

is muted. Press to unmute the

microphone, the light will turn

blue.

4. TEACHER REMOTE: there

is no power switch on this

component, it stays ready for

operation.

1. SPEAKER PODS: the blue

power light on top of the

pod will turn solid after a few

seconds to indicate it is ready for

operation.

2. FLEXMIKE: the Teacher 1 or

Teacher 2 light will turn solid

blue to indicate it is ready for

operation.

3. TEACHER REMOTE: press

a pod # button to test. If the

button lights, the remote is

ready.

4. POWER ON ALL COMPONENTS

5. ENSURE ALL COMPONENTS ARE READY

VOL

REG

READY

GROUP

OFF

POWER

Power / Mute

Power

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

Initial Setup

• Locate the earbud lanyard

• Hang the Flexmike on the lanyard

opposite the magnetic clasp.

6. SET UP THE FLEXMIKE + EARBUD

1 2

• Plug the earbud into the headphone

connection on the Flexmike.

• NOTE: if you prefer to wear the earbud

in your left ear:

- Turn the lanyard around so the earbud

goes up to your left ear.

- Route the plug around the back side

of the microphone to plug into the

headphone jack.

Wearing the Flexmike + Earbud Lanyard

• The earbud can be worn in either

ear depending on how the lanyard is

connected to the Flexmike.

• Place the lanyard and microphone

around your neck, connecting the

magnetic clasps behind your neck.

• Insert the earbud into your ear

• If the earbud cable does not seem long

enough to comfortably ﬁt your ear,

unwind it 2-3 coils.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

The pods should be placed in the middle of student groups or learning stations

as follows:

• Placed on a stable, ﬂat surface

• Within 3-6 feet of all students in that group

• Top surface of the speaker should be clear with nothing set on top to ensure

optimum sound quality and microphone pickup.

7. DETERMINE PLACEMENT LOCATION OF

THE SPEAKER PODS

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

8. SETTING SYSTEM VOLUME LEVELS

To allow for maximum ﬂexibility the Flexmike, pods and Redcat Access speaker

all have independent volume controls. By default, all devices are set to the center

position, which is optimal in most cases.

To set the proper volume for your classroom, place the microphone around your

neck and take the following steps:

Flexmike Volume (Redcat Access and Pod speakers)

To adjust, use the up/down buttons on the

Flexmike.

1. Select an individual pod and begin speaking in

a normal voice.

2. The volume should be at a level that the kids

seated around the pod can clearly hear, but not

so loud that other nearby groups could hear.

3. Press the center button to turn on the Redcat

Access Speaker and speak in a normal voice.

4. The volume should be at a level that the kids

can clearly hear from the other side of the

room. You should just barely be able to hear

your own voice.

Volume

up/down

NOTE: at proper volume levels, there should not be any “feedback” or

squealing from the speaker outside of 2-3 feet. If there is, turn the Flexmike

volume down slightly.

Pod Sharing Volume

To adjust, use the Microphone Volume control on the Redcat Access.

5. Rapid press the pod #1 button followed by the center button to activate the

pod #1 sharing function (the center and #1 button should both be lighted).

6. With the teacher’s Flexmike muted, begin speaking into pod #1 from a

distance of 18-24”.

7. The volume should be at a level that the kids can clearly hear from the other

side of the room. You should just barely be able to hear your own voice (it

helps to have another person in the room to verify).

8. Adjust the volume on the Redcat Access up/down slightly as needed.

NOTE: check the pod sharing volume level at the pod nearest the Redcat

Access to verify there is no “feedback” or squealing from the speaker. If

there is, turn the volume down slightly.

MICROPHONE

VOLUME

MINMAX BASSTREBLE

TONE

Redcat

Volume

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

2. Remove the Flexmike from the charger

and put on.

• The microphone will default to the Mute

position, the microphone status light will

turn to red.

• Place the microphone around your neck

and insert the earbud.

• Press the power/mute button. The

microphone status light will turn blue,

indicating the microphone is active.

SECTION 3:

DAILY OPERATION

INSTRUCTIONS

1. Remove the pods from the charger and place them on the group

tables.

• The speaker pods will stay powered on while charging when the switch

is left in the on position.

• Note the location of the pod numbers.

VolVol

Mute

UP DN

Power /

Mute

3. Remove the remote and begin instruction. Use the remote to:

• Address the whole class

• Instruct small groups

• Redirect small groups

• Monitor (listen only) small groups

• Activate student group sharing

• Adjust earbud volume

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

Function Command Description

Whole Class

Instruction

Press center

button

Activates Redcat Access speaker to

distribute teachers voice to the entire class.

Pod Selection Press #1-6 Connect to each individual student group

pod. The pod # button will light and a tone

will sound in the earbud when connected

(1-2 seconds).

Small Group

Monitoring

Press MUTE Move from pod to pod to monitor (listen

only) student groups. The MUTE button will

light green and the pod button will light

red to indicate the teacher’s microphone is

muted. To unmute, simply press the MUTE

button again.

Student Group

Sharing

Press #1-6, then

center button

(rapid press)

Allows one student group to address the

whole class. Both the center and pod #

buttons will light and a tone will sound in

the earbud when connected (1-2 seconds).

Disconnect Press activated

pod # again

Disconnects the transmission and turns

any audio off. The pod # button or center

button will go dark.

Teacher

earbud volume

Press Vol UP/

DOWN arrows.

Turns the volume to the teacher's earbud

up or down. There is an audible tone in the

ear when pressing.

Using the remote:

4. Pod call button:

• Each of the pods is equipped with a call button students can press

when they need assistance.

• When the button is pressed, a tone sounds in the teacher earbud.

• The corresponding pod # will blink on the remote, alerting the teacher

which group needs assistance.

• The light will continue to blink until the teacher selects that pod.

• To clear multiple blinking lights: press center button twice (connect

and disconnect from whole class mode).

5. Return the components to the charging station for nightly recharging:

• For convenience, we recommend leaving the pods powered on. They

are designed to charge normally in the ON position.

• Place all components in their respective charging slots:

– Pods: insert with charging contacts facing down.

– Flexmike(s): use corresponding mic 1 or 2 center charging slot.

– Remote(s): use corresponding mic 1 or 2 outside charging slot.

• Charging lights will light - red = charging; green = fully charged.

• The units will fully charge overnight.

NOTE: the blue link lights on the Flexmike(s) and pods will stay on to

indicate the microphone number (1 or 2) and that they are ready for

operation.

DAILY OPERATION CON’T

VolVol

Mute

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SECTION 4:

ADDITIONAL

OPERATION

INFORMATION

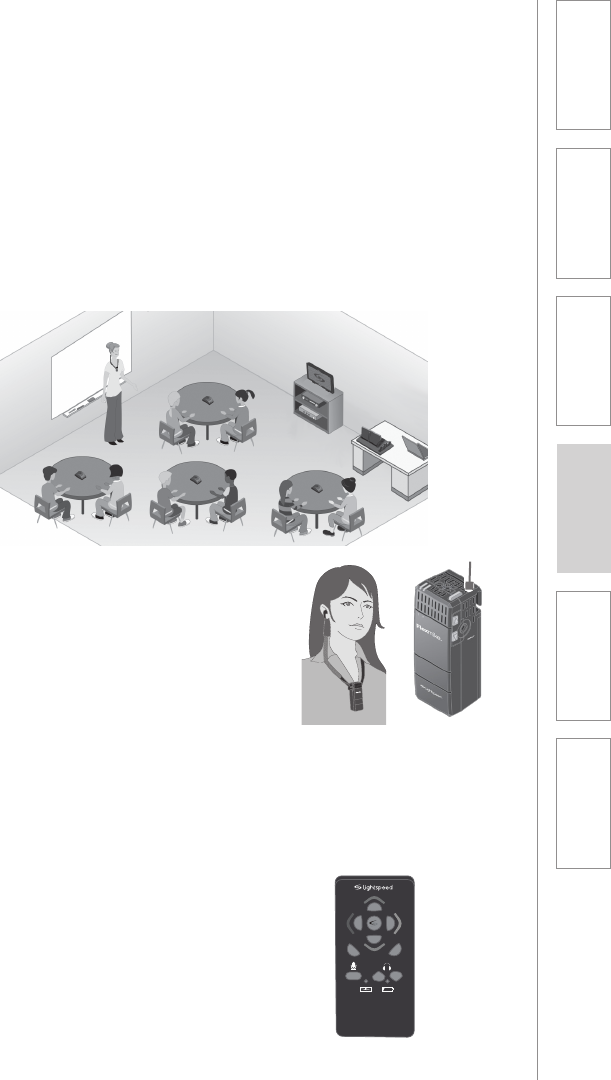

TIPS AND TRICKS TO SUCCESSFUL USE

Determining optimum placement of the pods

• Pods should be placed in the approximate center of the group

• They can be placed on the center of a table or on the ﬂoor where the

students are sitting.

• The microphone is designed to pick up students in a 360 degree radius, so

it also operates best when in the middle of a group.

Managing equipment and charging

• Leave all components in the on position.

- When you place them on the charger, they will charge as normal.

- When you remove them from the charger to start the day, they will be

fully charged and ready for operation.

• Assign students to manage the charging of the group speakers.

- Have one assigned student remove it from the charger to start the day

and place it back on the charger at the end of the day.

Determining proper volume levels

• This system is not designed to make the teachers voice louder, but to

distribute it appropriately so it is heard clearly by the selected group of

students or the whole class.

• The pods are designed to be used independently, so turning the volume up

too loud can result in bleed-over to another group.

• Typical volume levels at a group speaker are about half of the maximum

setting – approximately 12:00 on the dial.

• It should be loud enough that students in the desired group hear you as

though you were speaking directly to them at a distance of 3 feet.

• The Redcat Access speaker should also be at a level that is not loud, but

clear throughout the whole room. Typically 12:00 on the Redcat Access

‘Microphone Volume’ control is appropriate.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

TIPS AND TRICKS TO SUCCESSFUL USE

CONT’D

Student group sharing

• Press #1-6, then center button (rapid press). This allows one student group

to address the whole class. Both the center and pod # buttons will light and

a tone will sound in the earbud when connected (1-2 seconds).

• To select another group to share with the class, simply press another pod #,

followed quickly by the center button.

• For optimal voice pickup, students will likely need to lean in toward the

group speaker to within about 24”.

• Volume level is adjusted using the Redcat Access “Microphone Volume”

control. Level is optimum at the center point, but can be adjusted as

needed. NOTE: if you turn that volume up or down, you will likely need to

turn the volume on the Flexmike down or up to compensate.

• To avoid feedback between the pod and Redcat Access speaker, the nearest

pod should be more than 6 feet away from the Redcat Access.

If your system is equipped with team-teaching

• Make sure to use the corresponding Flexmike and remote for microphone 1

and 2, indicated as follows:

- Flexmike: microphone 1 or 2 light is on

- Remote: microphone 1 or 2 sticker on the back of remote (above

barcode)

USING OPTIONAL PODS #5-6

1. Operation

• If speakers #5-6 are purchased

together with the original

system, they will already be

paired together and operate just

as speakers #1-4 do.

• To select the speakers, simply

press the #5-6 buttons on the

remote. (See Section 3 for daily

operation instructions).

• If the speakers were purchased

at a separate time from the rest

of the system, they will need to

be linked to the Redcat speaker.

Please follow the website link

on the card provided with the

additional pods.

2. Charging

• Pods #5-6 charge via cables

connected to the base station.

• Connect the included charging

cable(s) to the CHARGING

OUTPUT jack(s) on the base

station.

• Connect the other end of the

jack to the CHARGE input jack

on the pod.

• The charging light on the

pod will turn RED to indicate

charging. It will turn GREEN to

indicate the unit is fully charged.

Flexcat can to operate with up to 6 speaker pods. The additional pods can be

purchased together with the main system or can be added later.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

MULTIMEDIA AUDIO INTEGRATION

1. Connect an audio cable from your computer (or other device) into the

audio input connection on the Redcat Access speaker.

2. Play the audio ﬁle on the computer.

3. Adjust the audio input volume on the Redcat Access as needed

(generally 12:00 is an appropriate nominal level).

4. Fine-tune audio levels using the volume on the computer (or other audio

source) as needed.

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

The Redcat speaker has one audio input connection with volume control for

connecting to classroom multimedia audio sources (computer, MP3, tablet,

smart phone, DVD, etc.). When connected, that audio source is ampliﬁed and

distributed to the whole classroom from the Redcat speaker.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

MULTIMEDIA AUDIO INTEGRATION

CONT’D

5. Quick connection + multimedia sharing with individual student groups

• For a fast, temporary connection to a portable audio device like an

(MP3, tablet, smart phone, etc.) connect the audio device into the

audio input on the Flexmike.

• Connecting to the Flexmike also allows the teacher to share that audio

with speciﬁc groups.

• Play the audio ﬁle on the audio device, adjusting the volume as

needed.

• Select pod # 1-6 on the teacher remote to direct that audio to a

speciﬁc group. Press the center button to share with the whole class.

NOTE: the internal Flexmike microphone will be deactivated when plugged

into an audio source.

TIP: if you have a team-teaching system (2 Flexmikes and 2 remotes) you

can send audio to one group (using Teacher 2 Flexmike) while talking to

another group (make sure to use the corresponding Teacher 2 remote to

direct the multimedia).

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

WALL-MOUNTING REDCAT ACCESS

The Redcat Access speaker projects and evenly distributes audio throughout the

entire class. The following are key considerations to choose the optimum wall-

mounting location:

• Close proximity to AC power outlet (within about 7 feet)

• Centered along a side or rear wall of the classroom

• Positioned on the wall about 6-8 feet high

• AVOID: mounting in corners or any area near to where the teacher usually

instructs.

To mount the Redcat on the wall:

1. Level template and tape to wall

2. Mark position of drill holes on wall

3. Drill pilot holes

4. Insert anchors

5. Remove feet from Redcat Access and place over anchors

6. Insert and secure screws through the Redcat Access feet into the anchors

7. If using optional security bracket, mount using the provided screws and

anchors

8. Slide the Redcat Access onto the wall mounted feet

Drill Template

for wall-mounting the REDCAT System

Drill holes

Instructions

Determine the best location for the REDCAT,

refer to the user manual provided with this

product. For wall mounting, the REDCAT

should be mounted 7 to 8 feet from the ﬂoor.

1. Start by leveling this template and taping

to the desired location on the wall.

2. Mark the hole locations using a sharp

pencil. (7 locations)

3. Drill pilot holes

4. Insert anchors

5. Insert screws through the feet and tighten

to the wall

6. Insert screws through the security tab

bracket and tighten to the wall.

7. Slide the REDCAT onto its mounted feet.

If the safety tab is installed, it should snap

into place preventing system removal.

Materials Required

Drill Bit: Size appropriate for the

anchors or screws being used.

Anchors: Needed for mounting

on drywall, plasterboard, or

cement block.

Screws: Wood screws or screws

appropriate for anchors.

Security Tab

Foot Foot

IG0432US01-0 AC-IGRC2DT

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SECTION 5:

MAINTENANCE &

TROUBLESHOOTING

REGISTRATION OF REPLACEMENT OR

ADDITIONAL EQUIPMENT

In order for all system components to operate and communicate with one

another, they must be registered to the Redcat Access speaker. When purchased

as a complete system, major components (Flexmikes, remotes, and pods) will

be pre-registered and ready for use, so there is no need to manually register

anything.

In the event a component needs to be replaced or an additional component

is added down the road, it will need to be registered. Please refer to the

Registration Guide provided with the new components or on the Lightspeed

website.

BATTERY REPLACEMENT

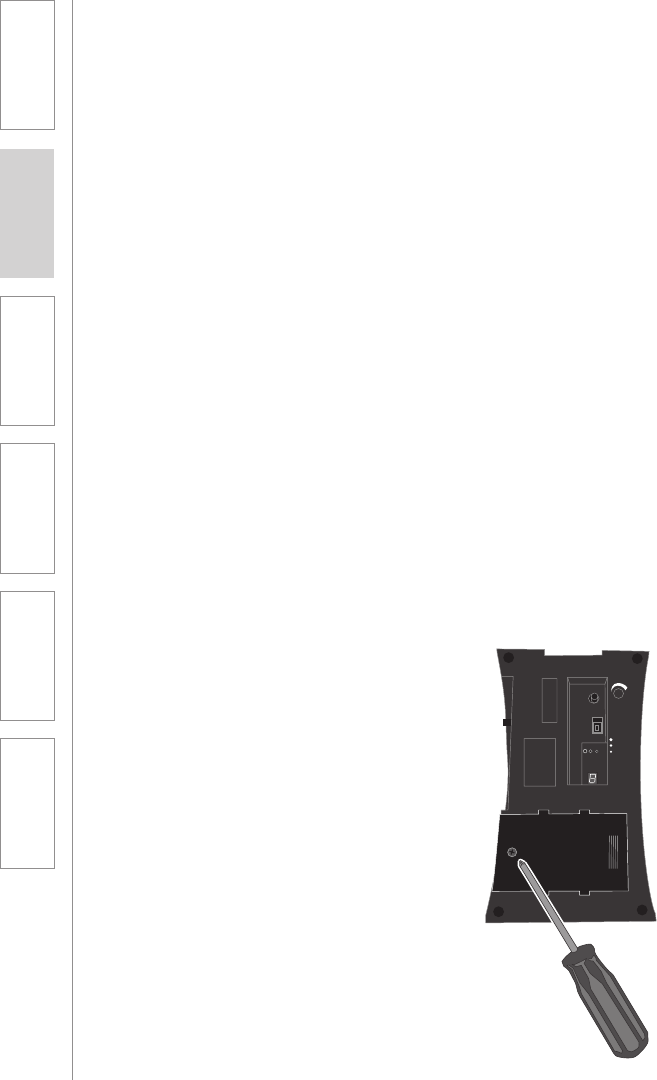

Replacement of battery pack in speaker pod

1. Use a screwdriver to remove the screw

and the slide the battery door open.

2. Slide the battery pack out and disconnect

the cable.

3. Take the new battery pack, connect the

cable and insert the battery pack into the

compartment.

4. Slide the cover back on and tighten the

screw to secure the door.

5. Place the pod in the charging station to

fully charge the new battery pack.

6. The charging light will turn red. It will

turn green when fully charged (up to 10

hours).

Overview of batteries

The pods, Flexmike and remote contain rechargeable battery packs that require

daily charging. The battery packs are covered under warranty for 1-year but have

a useful life of about 2+ years before they should be replaced. The battery packs

must be purchased directly from Lightspeed, but can easily be installed by the

user.

VOL

REG

READY

GROUP

OFF

POWER

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

BATTERY REPLACEMENT CONT’D

Replacement of battery pack in

Flexmike.

1. Slide the battery door open.

2. Disconnect the cable and slide

the battery pack out.

3. Take the new battery pack,

connect the cable as shown and

insert the battery pack into the

compartment.

4. Slide the cover back on and

snap into place.

5. Place the Flexmike in the

charging station to fully charge

the new battery pack.

6. The charging light will turn red.

It will turn green when fully

charged (up to 10 hours).

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

BATTERY REPLACEMENT CONT’D

Replacement of battery pack in

remote

1. Use a screwdriver to remove the

screw and the slide the battery

door open.

2. Disconnect the cable and slide

the battery pack out.

3. Take the new battery pack,

connect the cable as shown and

insert the battery pack into the

compartment.

4. Slide the cover back on and

tighten the screw to secure the

door.

5. Place the remote in the charging

station to fully charge the new

battery pack.

6. The charging light will turn red.

It will turn green when fully

charged (up to 10 hours).

REG

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

PROBLEM: low battery condition.

SOLUTION: check the batteries and ensure proper charging.

• Conﬁrm batteries are properly charged each night. Full charging can take up

to 10 hours.

• When placing a component in a charger, ensure the red charging light turns

on. The green charging light will turn on when a full charge is reached.

• Regardless of battery life, the red light will turn on for 20-30 minutes to check

status. When battery is full, the light will turn green at some time after that.

• Fully charged batteries will operate properly throughout a full school day for

a period of at least 1-2 years. If the batteries are older, they may need to be

replaced.

PROBLEM: No audio from a speaker pod when selected.

SOLUTION: follow these steps to isolate and eliminate the problem.

• When the pod # button is selected on remote, ensure it turns green.

- If it does not turn green, this indicates the pod or other component is

either not on or not properly registered.

- If the button turns red, this indicates the microphone is muted. Press the

mute button on the remote.

• Ensure speaker pod is on and ready for use as indicated by a solid blue power

light.

- Power the unit on by sliding the switch on the bottom of the pod.

- Try turning the speaker off, then on again and wait up to 30 seconds for it

to properly link.

• Ensure the group speaker volume is set to a nominal level. If it is turned all the

way down, there will be no audio.

• Ensure the Flexmike is on and ready for use as indicated by a steady blue

status light (#1 or #2).

- If the microphone status light is blinking that indicates the Flexmike is not

linked up to the Redcat Access. Ensure the Redcat is plugged in to power.

- If the microphone status light is red, that indicates the Flexmike is muted.

Press the mute button on the remote or Flexmike to unmute.

• Ensure the proper teacher remote is being used.

- If there are 2 microphones with the Flexcat system, each Flexmike must be

paired together with a speciﬁc remote, marked Teacher 1 or Teacher 2.

- Check microphone status indicator light (1 or 2) is on. Ensure you are using

the corresponding remote, marked Teacher 1 or Teacher 2 on the serial

number label on the back.

Note: Many problems are directly related to low battery power. Please run

through the “Battery Check” items ﬁrst. For remaining troubleshooting, use

known good, fully-charged batteries.

TROUBLESHOOTING

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

• Ensure teacher remote is working properly.

- Press the center “Whole Class” button. It should be lighted green.

- If it doesn’t light, make sure the Redcat Access is plugged into power and

the blue power light is on.

- Ensure there is a corresponding green 1 or 2 ready light on the Redcat

Access.

- Ensure the batteries are fully charged. If the red battery low light is on, it

can experience intermittent operation.

PROBLEM: Remote does not light or activate a speaker pod(s).

SOLUTION:

• Ensure the batteries have a charge. They should be charged nightly.

- If the red low battery light is on, it can experience intermittent operation.

• Try pressing the center “Whole Class” button. It should be lighted green.

- If this button lights, the remote has a battery charge and is properly linked

up. The problem is likely with the pod or pods that do not activate, refer to

the “No audio from speaker pod” troubleshooting section.

- If this button doesn’t light, make sure the Redcat Access is plugged into

power.

- Check to see that there is a corresponding green 1 or 2 ready light on the

Redcat Access.

- Check to see that the Flexmike is powered on and linked, as indicated

by a solid blue light. If that light does not go solid blue, try powering the

Flexmike and Redcat Access off, then on again.

- If the microphone still does not link up (turn solid blue), it may need to be

re-registered to the Redcat Access. Please refer to the Flexcat registration

guide on the Lightspeed website.

- If there is a second remote, check to see if that operates correctly.

PROBLEM: Feedback or squealing from pod speaker

SOLUTION:

• Make sure the teacher’s Flexmike is 2 feet or more away from the pod.

Operation at very close distance can cause feedback.

• Try turning the volume down on the bottom of the pod. Typical volume levels

should be around the mid-point (12:00 on the dial).

• Make sure the teacher’s Flexmike is 2 feet or more away from the pod.

Operation at very close distance can cause feedback.

• Turn the volume on the Flexmike down 1-2 clicks.

TROUBLESHOOTING CONT’D

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

PROBLEM: Feedback or squealing from Redcat speaker

SOLUTION:

• Make sure the teacher’s Flexmike is 2-3 feet or more away from the Redcat.

Operation at very close distance can cause feedback.

• Make sure the nearest pod operating in student sharing mode is at least 6 feet

away from the Redcat. Operation at very close distance can cause feedback.

• Mute the teacher’s Flexmike. If the feedback or squealing persists, the

feedback is being caused by a pod that is in student sharing mode.

- If the feedback or squealing goes away, the feedback is being caused by

that Flexmike, likely due to the volume level being too high. Press the

volume down button on the Flexmike 1-2 clicks.

- If the feedback or squealing persists, the feedback is being caused by a

pod that is in student sharing mode. Turn the “Microphone Volume” on

the Redcat speaker down slightly. (NOTE: you may need to press the UP

volume on the Flexmike up 1-2 clicks to compensate).

PROBLEM: Cannot hear students in monitor mode

SOLUTION:

• Ensure the desired pod is selected as indicated by a green or red light on the

pod # button on the remote.

• Make sure the earbud volume is turn up loud enough to hear by pressing the

Vol UP button on the remote (Vol button on left).

• Make sure the earbud is fully plugged into the headphone jack on the

Flexmike.

• Select another pod to see if you are able to hear audio from that pod. If you

hear audio, the issue is with one speciﬁc pod.

• Turn the power of the problematic pod off, wait several seconds, then on

again. Let the pod link back up again as indicated by a solid blue light, then

try selecting that pod again.

PROBLEM: Student sharing volume is too loud or too quiet

SOLUTION:

• This is designed to work with a student speaking within about 18-24” of

the pod microphone. If the volume is too quiet from a further distance, the

student should move the pod closer.

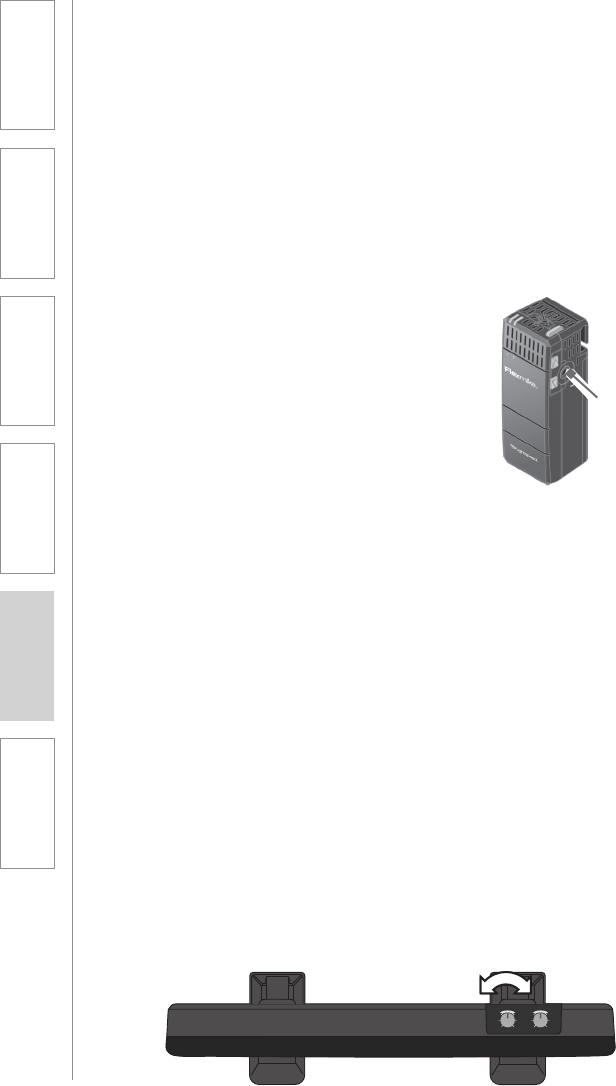

• To adjust the student sharing volume, turn the “Microphone Volume” on the

Redcat up or down. NOTE: this may cause you to adjust the volume on the

Flexmike up or down to compensate.

TROUBLESHOOTING CONT’D

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

Our Service Department (800.732.8999, 5 a.m. – 5 p.m., PST) will handle all your

repair/replacement needs. Customers outside the U.S. should contact their local

reseller.

Lightspeed’s Flexcat Group Audio System is covered under warranty against

malfunction due to defects in materials and workmanship for a period of THREE

(3) YEARS, beginning at the date of the purchase invoice. If such malfunction

occurs, the product will be repaired or replaced (at Lightspeed’s option) without

charge during the warranty period.

Lightspeed’s Warranty Exchange Program applies to Flexcat systems and

components within the warranty period indicated below. If any system

component has an issue that requires service, a refurbished replacement will

immediately be sent to the customer to minimize downtime. Customers will

receive the exchange product(s) or component(s) within 2-3 days. A prepaid

return label will be included with exchanged products so original malfunctioning

equipment can be returned to Lightspeed. Any exchanged equipment will

remain covered under the original three (3) year warranty.

1. Warranty on Flexcat speaker pods, charging station and handheld remote

components is THREE (3) YEARS.

2. Warranty on Redcat Access and Flexmike components is FIVE (5) YEARS.

3. Warranty on earbud lanyard, Lightspeed NiMH rechargeable battery packs

and other cables and minor accessories is one (1) year.

4. Prepaid shipping label provided by Lightspeed for warranty repairs

within the United States. Customers outside the U.S. should refer to the

Lightspeed website (ww.lightspeed-tek.com) for warranty repair instructions.

5. Warranty does not extend to ﬁnish, appearance items, or malfunctions due

to abuse or operation other than speciﬁed conditions, nor does it extend

to incidental or consequential damages. Repair by other than Lightspeed

or its authorized service agencies will void this warranty. Information on

authorized service agencies is available from Lightspeed Technologies, Inc.

SECTION 6:

WARRANTY, SAFETY &

SPECIFICATIONS

THREE-YEAR LIMITED WARRANTY

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SAFETY WARNINGS AND CERTIFICATIONS

CERTIFICATIONS

This product conforms with the essential requirements of

the following European Union Directives: 2004/108/EC

Electromagnetic Compatibility (EMC) and 2006/95/EC Low

Voltage Directive (LVD).

The exclamation mark inside an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instruction in the

literature accompanying this product.

This product is manufactured using lead-free processes

and is free of other materials harmful to the environment.

It conforms to the most stringent new European guidelines

for consumer products (RoHS).

Lightspeed Technologies launched a formal product

recycle program in Europe that complies with the

European Union Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (“WEEE Directive”). Please

visit our website at www.Lightspeed-tek.com for more

information.

ATTENTION

RISQUE D’ÉLECTROCUTION

NE PAS OUVRIR

CONFORMÉMENT AUX NORMES D’INSTALLATION APPLICABLES,

CE PRODUIT DOIT ÊTRE INSTALLÉ PAR UNE PERSONNE FAMILIARI-

SÉE AVEC LA CONCEPTION ET LE FONCTIONNEMENT DU PRODUIT

ET CONSCIENTE DES RISQUE ENCOURUS.

This product is listed to UL standards and requirements for

electrical safety by Underwriters Laboratories Inc.

The lightning ﬂash with arrowhead symbol inside an

equilateral triangle is intended to alert the user to the

presence of non insulated “hazardous voltage” within the

product’s enclosure, which may be of sufﬁcient magnitude

to induce a risk of electric shock to persons.

USE A LIGHTSPEED

SUPPLIED BATTERY ONLY

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

PRÉCAUTIONS DE SÉCURITÉ ET

CERTIFICATIONS

Le point d’exclamation contenu dans un triangle équilatéral

avertit l’utilisateur de la présence d’importantes instructions

d’exploitation et de maintenance dans la documentation qui

accompagne ce produit.

ATTENTION

RISQUE D’ÉLECTROCUTION

NE PAS OUVRIR

CONFORMÉMENT AUX NORMES D’INSTALLATION APPLICABLES,

CE PRODUIT DOIT ÊTRE INSTALLÉ PAR UNE PERSONNE FAMILIARI-

SÉE AVEC LA CONCEPTION ET LE FONCTIONNEMENT DU PRODUIT

ET CONSCIENTE DES RISQUE ENCOURUS.

L’éclair ﬂèche dans un triangle équilatéral avertit l’utilisateur

de la présence d’une “tension dangereuse” non isolée a

l’interieur de l’appareil, qui peut être d’une ampleur sufﬁsante

pour constituir un risque d’électrocution.

Ce produit est certiﬁé conforme aux normes et aux exigences

UL en matière de sécurité électrique par Underwriters

Laboratories Inc.

Ce produit est conforme aux principales exigences des

directives de l’Union Européenne suivantes : 2004/108/EC

Electromagnetic Compatibility (EMC) and 2006/95/EC Low

Voltage Directive (LVD).

Lightspeed Technologies a lancé un programme de recyclage

de produits en Europe conformément à la directive de l’Union

Européenne 2002/96/CE relative aux déchets d’équipements

électriques et électroniques (directive « DEEE »). Veuillez

visiter notre page Web www.Lightspeed-tek.com pour plus de

renseignements.

Ce produit est fabriqué en utilisant des processus sans plomb

ni aucune autre matière nuisible à l’environnement. Il est

conforme aux nouvelles règles européennes les plus strictes

en matière de biens de consommation (RoHS).

UTILISEZ UNIQUEMENT LA BATTERIE

LIGHTSPEED FOURNIE

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

FCC Notice to user

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference; and

(2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is receiving” the interference).

•Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.

•Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna

is connected.

FCC RF Radiation Exposure Statement

For body worn operation, the portable part (Flexmike) has been tested and meets FCC RF exposure guidelines.

This device must not be co-located or operating in conjunction with any other antenna or transmitter. The changes or

modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

Notice to Canada User

English

This device complies with Industry Canada licence‐exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

French

Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisee aux deux conditions suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en

compromettre le fonctionnement

RF Radiation Exposure Statement

English

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves

(radio frequency electromagnetic ﬁelds) recommended by international guidelines. The guidelines were developed by

Health Canada and include a substantial safety margin designed to assure the safety of all persons, regardless of age

and health.

French

Votre appareil mobile est un émetteur-récepteur radio. Il est conçu pour ne pas dépasser les limites d’exposition aux ondes

radio (champs électromagnétiques de fréquence radio) recommandées par les directives internationales. Les lignes

directrices ont été élaborées par Santé Canada et comprennent une marge de sécurité importante destinée à assurer

la sécurité de toutes les personnes, indépendamment de l’âge et de la santé.

SAFETY WARNINGS AND CERTIFICATIONS

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SAFETY WARNINGS AND CERTIFICATIONS

NOTICE FOR USB

NOTE: Lightspeed is not responsible for any changes or modiﬁcations not expressly approved by the party responsible for

compliance. Such modiﬁcations could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

EU DECLARATION OF CONFORMITY

EU Declaration of Conformity

According to EC Directives EMC 2004/108/EC, LVD 2006/42/EC, R&TTE 1999/5/EC

Manufacturer: Lightspeed Technologies, Inc.

Address: 11509 SW Herman Rd,

Tualatin, Oregon 97062

We herewith declare that the following systems comply with the appropriate basic safety and health

requirements of the Directive based on its design and type, as brought into circulation by us. In case of

alteration of the system, not agreed upon by us, this declaration will lose its validity.

Products: Redcat Access, Flexmike, Flexcat Pod, Flexcat Charging Station,

Flexcat Hand Remote Control, Media Connector Access, Sharemike, Topcat, Access Link,

955 Access, TCQ2

Model Numbers: LSRCA 1881, LSFM 1881, FCP 1881, FCCS, FCHRC, LSMCA 1881,

LSSM 1881, LSTCA 1881, LSAL 1881, LS955 1881, TCQ2

As appropriate, products conform to the following EC/AS/NZ standards listed below:

Safety Standards: IEC/EN 60065 and amendments

EMC/RF Standards: EN301 406 V2.1.1 (2009-07)

EN 301489-1/-6

EN 301489-1/-17

EN 50371 (2002)

EN 50385 (2002)

EN 300 328

EN 55022

EN 55024

AS/NZ CISPER 22

AS/NZ 4268

The Technical Construction File is available to proper authorities and the product is CE marked.

Lightspeed Representative:

Date: 09/29/2015

Michael Frost, Compliance Engineer

P/N: 085-0013-03

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

SYSTEM SPECIFICATIONS

SPEAKER PODS (1-6)

Battery power: 6V NiMH battery pack

Battery life: 10+ hours (fully charged)

Power output: 5 Watts per speaker

Integrated Speaker: 2” balanced mode radiator (BMR)

Integrated microphone: Omni-directional electret

Audio output: 3.5mm with volume control

Battery charging: 2 contacts for cradle charging +

16V/0.3A DC input

Wireless communication: Access Technology (1.9 GHz)

Wireless range (from Redcat Access): up to 200 ft (60 m); up to 100 ft (30 m)

with walls

Dimensions (L x W x H): 8.5” x 5” x 3.5” (216 x 127 x 89mm)

Weight (with battery pack): 1.4 lbs (0.64 kg)

REDCAT ACCESS SPEAKER

Power output: 20W

Acoustic frequency response: 120 Hz - 13 kHz

DC power Input: 16V / 2.0A

Total harmonic distortion <1% @ 10W

Wireless communication: Access Technology (1.9 GHz + RF4CE)

Tone control: 1 bass/treble control

Audio input: 3.5mm stereo w/ volume control

Audio output: 3.5mm stereo w/ volume control

Integrated speaker: Exciter technology, ﬂat-panel speaker

Audio Link indicators: 2 indicators for Flexmike 1 and 2

Device Registration: Push button for pod(s), Flexmike(s),

and remote(s)

Dimensions (W x H x D): 16” x 9” x 1.75” (406 x 241 x 45mm)

Weight: 2.9 lbs (1.3 kg)

1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional

Information

5. Maintenance &

Troubleshooting

6. Safety &

Speciﬁcations

FLEXMIKE (1-2):

Description: Pendant-style microphone

Earbud lanyard: magnetic clasp with integrated earbud

Wireless communication: Access Technology (1.9 GHz)

Audio distortion: <1%

Integrated microphone: Uni-directional electret

Earbud output: 3.5mm

Audio input: 3.5mm

Volume control: +/- 6 dB

Battery power: 2.5V NiMH battery pack

Battery life: 8 hours (fully charged)

Charging: 2 contacts for cradle charging

USB connection: type Micro-B for charging and audio

Power: on/off switch

Registration: push button for registration with

Redcat Access

Dimensions (L x W x H): 2.9” x 1.1” x 1.0” (74 x 28 x 25mm)

Weight: 1.8 oz (51 g)

HANDHELD REMOTE (1-2)

Battery Power: 2.5V NiMH battery pack

Cradle charging: 2 contacts for cradle charging

Wireless communication: Access Technology (RF4CE)

Controls: Pod selection 1-6; whole class speaker

selection; microphone mute; earbud

volume

Registration: push button and LED for registration

with Redcat Access

Dimensions (L x W x H): 4.25” x 2.0” x 1.0” (108 x 51 x 25mm)

Weight: 3.4 oz (98 g)

CHARGING STATION

DC power input: 16V / 2.0A

Cradle charging: 4 speaker pods; 2 Flexmikes; 2 remotes

DC charging ports: 2 additional speaker pods with cable

USB charging: 5V USB charging output

SYSTEM SPECIFICATIONS CONT’D

LIGHTSPEED TECHNOLOGIES

11509 SW HERMAN ROAD / TUALATIN, OR 97062

TOLL FREE: 800.732.8999 / PHONE: 503.684.5538 / FAX: 503.684.3197

LIGHTSPEED-TEK.COM

MN0473US01-2

Lightspeed Technologies FCHRCB FCHRC User Manual

Lightspeed Technologies Inc. FCHRC

User Manual

Navigation menu

Namespaces

Views

Navigation
