Lingan Intelligent Technology UCC1 Smart center User Manual
Shenzhen Lingan Intelligent Technology Co.,Ltd Smart center Users Manual
User Manual
Smart Center User Manual
Dear customers,
Thank you for choosing our company's product
universal infrared remote control, which adopted
today's emerging Wi-Fi
technology and refined so-
phisticated manufacturing processes, developed
from research experiences integrated from many
years. This product can support mobile app to pe-
rform local and remote control of household elect-
ronic
-
In order to give y-
ou a better experience of installation and usage of-
this product, please read this description carefully.
I. Product Features
1. Support wireless network protocol Wi-Fi2.4GHz
802.11b/g;
2. SmartLink (demodulation drive) IGRS speedily
access network with 2 seconds;
3. Status indicator;
4. Support all infrared device control;
other network;
and Zigbee Technology
Such as air conditioner, television, set top
box, DVD stereo and Zigbee devices(such as d
oor lock, curtain, lighting and etc)
6. Match the remote control automatically;
7. Have the function of learning infrared code;
Operating environment: Indoor
Operating temperature: -20 -60
Operating humidity: 80% RH
:

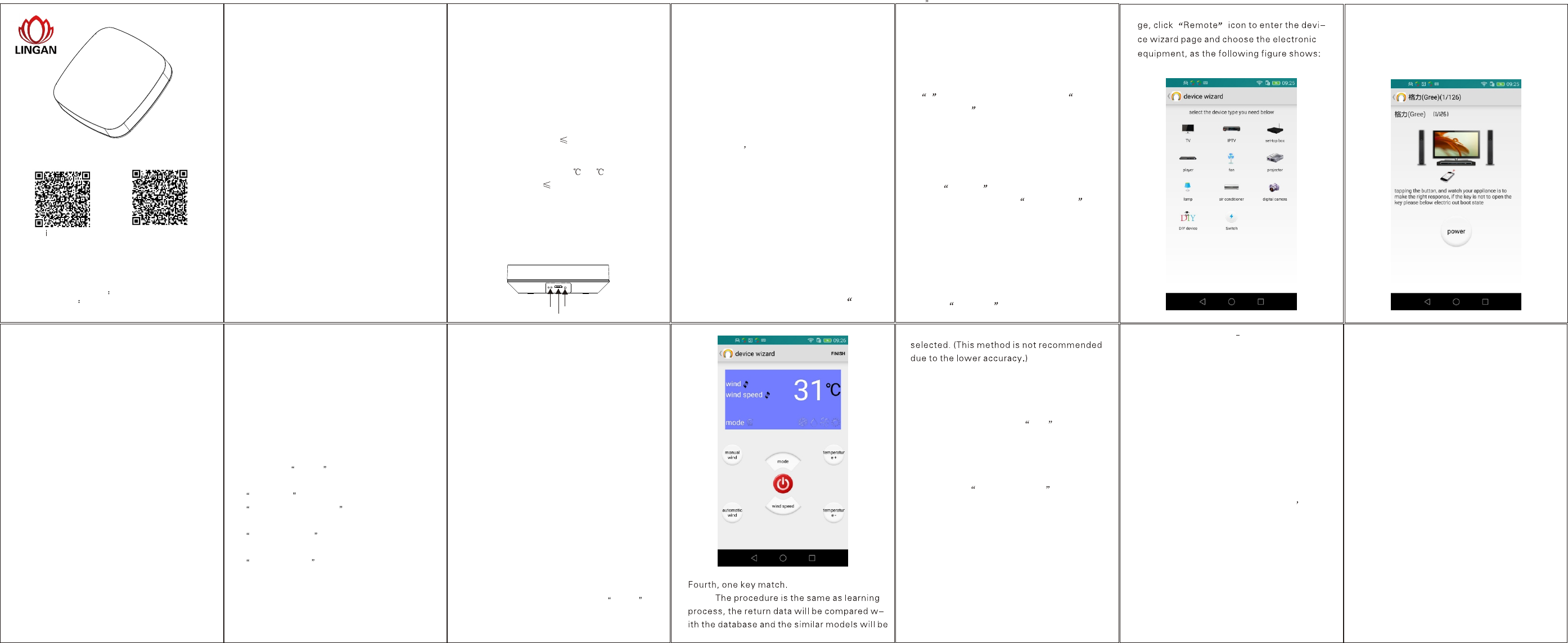

III. Figure of the Product
Zigbee parameter
Wireless RF mode frequency: 2445 Mhz
Wireless communication protocol: IEEE802.15.4
Working channel: channel 01
Indicator light
USB
Reset button
Click the Power button, there will pop-
up a test dialog box:
Last step -send the previous command;
Send the code again ---- re-send the
current command;
No, next group ---- send the next com-
mand
Yes, next step ---- click this button to
go to next step when the current equipm-
ent has response.
Second, the models match.
Click the brand and each one will be l-
IV. Reset Button Function and Indicator
Light Status
a. Restore Factory Defaults
Long press reset button after access to
power, until the indicator light turns to blue
with quick flash which shows the restore s-
uccessful.
b. AP configuration mode
When indicator light shows blue flashing, it
means the devices is in AP configuration m-
ode, and after 2-3 times slowly flash when t-
he indicator is off, it means connection is s-
uccessful. If the indicator light twinkles con-
tinuously, it s disconnected.
c. Operation of APP control button has perf-
ormed: red light flash.
8. Can be laid flat, hang on a wall or magnetic to
other places.
9.
II. Product Parameters
Input voltage: DC 5V
Input Current: 1A
Infrared Frequency: 38 KHz
Wireless Type: Wi-Fi2.4GHz 802.11 b/g
Total power consumption: 1.2W
Self-organized network
10.Connect and control zigbee products
V. APP Operation
Scan two-dimensional code in instructions
and click the "Download" button when the "
eFamily" app download page appears. Af-
ter the download is complete, click "Install"
to f-inish system installation automatical-
ly. After installation of this app, click "Expe-
rience Immediately" to enter the app, then
click "Register" (Please read Terms of ser-
vice before re-gistration) and click Next
10. Take air conditioner as an example: follo-
wing the operation the page jumps to the
list of brand (default), there are 3 options
and 4 ways in total on the bottom of this p-
age:
First, the default mode.
Click brand to enter all matching page
directly, which will test the switching comman-
d of all the devices of this brand one by one till
the device response.
abeled with its model type, in order to facilita-
te the equipment of known model to build new
remote control (for example: if you know the
air conditioner type is Gree YB-OF2, please
select Gree quickly located in the right list,
and click YB-OF2 to set new remote control.)
Third, intelligent learn.
Learning remote control code (required
original remote), click intelligent learning to e-
nter learning page.
Click the key you want to learn, it will send l-
earning code to the infrared device which will
enter learning state. At this moment, you on-
ly need to align the remote control to the infr-
ared device and long press the corresponding
device key for 1 to 2 seconds. If the control le
arned the command, there will pop-up a dial-
og box in which you can test the learned com-
mand. If the command is correct, click save t-
o store the command. When all the keys you
want to learn has complete, click Finish b-
utton on the right top corner to create new re-
mote control.
step after entering the cellphone number,af-
terwards input the verification code the cellph-
one received into the box and click "Next step "
to set log in password, then click" Finish ".
1.
.
2.
3.
Note: Make sure the Wi-Fi name is the same
as the cellphone connection.
4.
5. When the app displays 1 connected , it
means that the configuration is successful,
now the blue light stop flicking.
6.
-
-
When connect the power of smart center d
evice, the blue light is flashing
Enter the app, and click the top right corner
+ of home page, and then click quick c-
onfiguration
Enter WiFi password (Note: please confirm
the WiFi name is the same as the cellphoen
connection)
Click Confirm
There are 2 icons show on the home page
(one is gateway, the other one is IR remote),
if this smart center connected to Zigbee de
vices, please click gateway icon into the co
ntrolled page
7. to enter homepa-1.Click R remote Icon
Note:
1. After create a new remote control success-
fully, in the home page, the main scene or the
sub scene, click the corresponding remote co
ntrol to control the device. Edit button on
the top right corner is the learning control sw-
itch. When you select the learning mode, long
press the button you want to learn to start lea-
rning.
2. Long press Remote Control button to m
odify name and remove the remote control, t-
he remote control in the main scene cannot b-
e delete, and the remote control will appear
on the homepage after delete in the sub scene.
VI. Common Questions
Q: What to do if the intelligent household elec-
tronic infrared can't be conne-
cted?
A: a. Check if the cellphone and the device are
connecting to the same Wi-Fi.
Smart Center
1. Any change, correction, abridged or illegi-
ble handwriting on the purchase tags or p-
roduct instructions.
2. Malfunction caused by damage, incorrect
connection or misusage.
3. Undesirable phenomena due to the extre-
b. Click system set up authority managem-
ent to check whether authorized.
c. Reset the device. (Long press the reset bu-
tton for 3 seconds to reset.)
Q: What to do if the device can to be matched
with the network?
A: a. Check if the password entered by one key
configuration is correct.
b. Reset the device. (Long press the reset b-
utton for 3 seconds to reset.)
VII. Instructions
The one year warranty of our company s pro-
duct only applies to the situation that all the o-
perations comply with the instructions. The fo-
llowing situations are not covered by the warr-
anty:
Q: How to control Zigbee devices
A: Please refer to Zigbee products Instructions
me environment rather than the inherent c-
auses of this product (such as lightning, flo-
od,fire, etc.)
4. This product has been opened or disassem-
bled.
5. Badness caused by any usage, maintenanc-
e or custody not according to the product sp-
e cifications (such as moisture, corrosion).
6. Product badness, appearance deformation,
appearance damage or any other physical
damage caused by external forces.
If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipm
ent and receiver.
-- Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio
/TV technician for help.
10. Take air conditioner as an example: follo-
wing the operation the page jumps to the
list of brand (default), there are 3 options
and 4 ways in total on the bottom of this p-
age:
OS APP Android APP
(Scan QR code to download our APP)
Product name Smart Center
Model UCC1
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation
is subject to the condition that this device does not cause
harmful interference (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the
party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician
for help.
To maintain compliance with FCC’s RF Exposure guidelines,
This equipment should be installed and operated with
minimum distance between 20cm the radiator your body: Use
only the supplied antenna.
FCC ID: 2AJK8-UCC1
5. Support remote/
ZigBee devices products Instructions

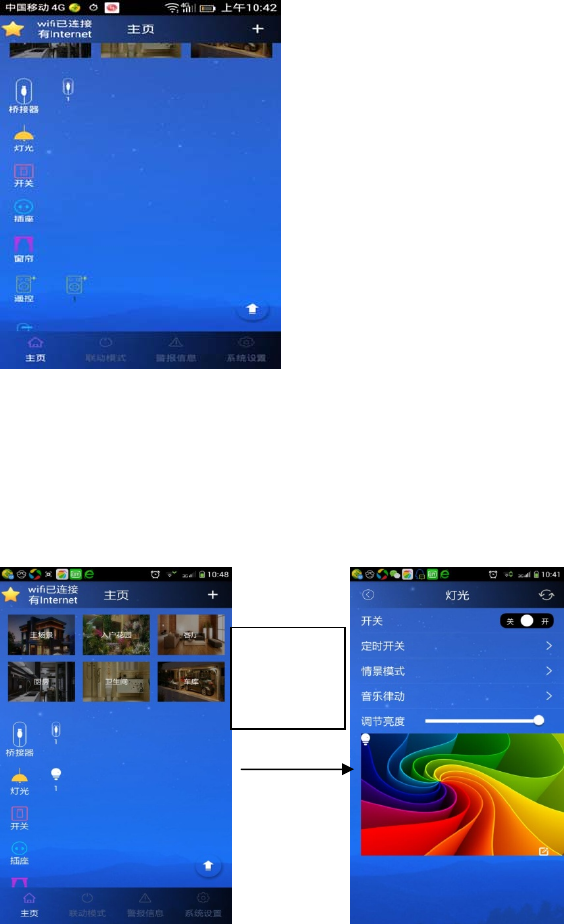

After connecting Smart Center on the APP Home Page, it will appear 2 icons on the
home page, one is bridge icon, another one is infrared device icon
Click bridge1 icon, and pulling down the home page, will search out the Zigbee
lamps, if having other Zigbee devices also can search out, which will be arranged
in the behind the left side of type list. You can fix name or switch control the
lamp, group control freely(grouping is that dragging the Zigbee devices icons into
the scenes).And you also can control the lamps separately by clicking the single
lamp.
Click the upper left corner icon back to home page.
Click the device icon directly can search other ZigBee devices, appears control
interface, operate on the control interface.
Click the
light
icon
