RollRiteRADIOFREQUENCYRECEIVER/RADIOFREQUENCYTRANSMITTERInstruction Page1RollRiteAutomatedTarpSystemRemoteControlOwner’sGuideComponentPhotosRadioFrequencyTransmitter(figure)RadioFrequencyReceiver(figure)ConnectingRFReceivertoMotorControllerInstallationRequirements Allelectricalterminalsshallbecoatedwithdielectricgrease,SyntheticNLGIGrade2orequivalent RemovenegativeelectricalterminalsofallchassisbatteriespriortoinstallationofRollRitecomponents RollRitemotorrelayandRadioFrequencyReceivershallbeinstalledonaverticalplanewiththewiresfromterminalsfacingdown.ThisistheonlyapprovedinstallationorientationforRollRiteelectricalcomponents TorqueMotorRelayTerminal7/16”fastenersto8ft.lb(11Nm)InstallationProcedure1. DisconnectallMainNegativeBatteryTerminalsfromtheVehicleBatterySystem,therebyisolatingstoredelectricalenergyfromRollRitetarpsystemcomponents2. ConnectRollRiteMotorControllera. ConnectPositivePowertoBat+Terminal,SlideRedBootoverTerminalconnectionb. ConnectNegativePowertoGNDTerminal,SlideBlackBootoverTerminalconnectionc. ConnectBlueMotorCabletoM1Terminal,SlideBlueBootoverTerminalconnection
RollRiteRADIOFREQUENCYRECEIVER/RADIOFREQUENCYTRANSMITTERInstruction Page2d. ConnectYellowMotorCabletoM2Terminal,SlideYellowBootoverTerminalconnection3. ConnectRadioFrequencyReceivertoRollRiteMotorControllera. Adddielectricgreasetoall¼”terminalsoftheRadioFrequencyReceiverandMotorControllerb. Connect¼”FlagTerminalofRedWiretoBAT+Terminalc. Connect¼”FlagTerminalofBlackWiretoGNDTerminald. Connect¼”FlagTerminalofYellowWiretoFWDTerminale. Connect¼”FlagTerminalofBlueWiretoREVTerminal4. InstallMotorRelayandRFReceiveronvehiclechassis,followinginstallationrequirementsinthisdocument5. ConnectMainNegativeBatteryTerminalstoMainNegativeWiresonChassisWiringHarnessWiringDiagram(figure)PairingtheSingleFunctionTransmitterwithOneReceiver1. CompleteallelectricalconnectionsbetweenRadioFrequencyReceiverand2. InstallRadioFrequencyReceiveronvehiclebody3. Onthereceiver,pressUncoverandPairatthesametime,theReceiverLEDwillflashindicatingpairinghasstarted(figure)4. Pressthepairbuttonthetransmitter,theReceiverLEDwillilluminatesolid,indicatingthereceiverhaspairedwiththetransmitter(figure)5. Onthetransmitter,PresstheCoverandUncoverbuttonssimultaneouslytosetthereceiverastheprimarymotorcontroller.ThereceiverLEDwillilluminateonceindicatingthepairinghascompleted.(figure)PairingtheMulti‐FunctionTransmitterWithMoreThanOneReceiverTheRollRiteTransmittercanbeconfiguredtodrivebetween1and3receivers.Thisisimplementedwhenmorethanonemotorisworkingonatruckortrailer.Forexample,atypicalgraintrailerwillhaveonemotoroperatingthetarpandonemotorperautomatedhopperdoor.Thetotalmotorsandreceiversisthreeinthisexample.TarpMotorPairing:1. Onthereceiver/relayconnectedtothetarpmotor,pressUncoverandPairatthesametime,theReceiverLEDwillflashindicatingpairinghasstarted(figure)2. Pressthepairbuttonthetransmitter,theReceiverLEDwillilluminatesolid,indicatingthereceiverhaspairedwiththetransmitter(figure)

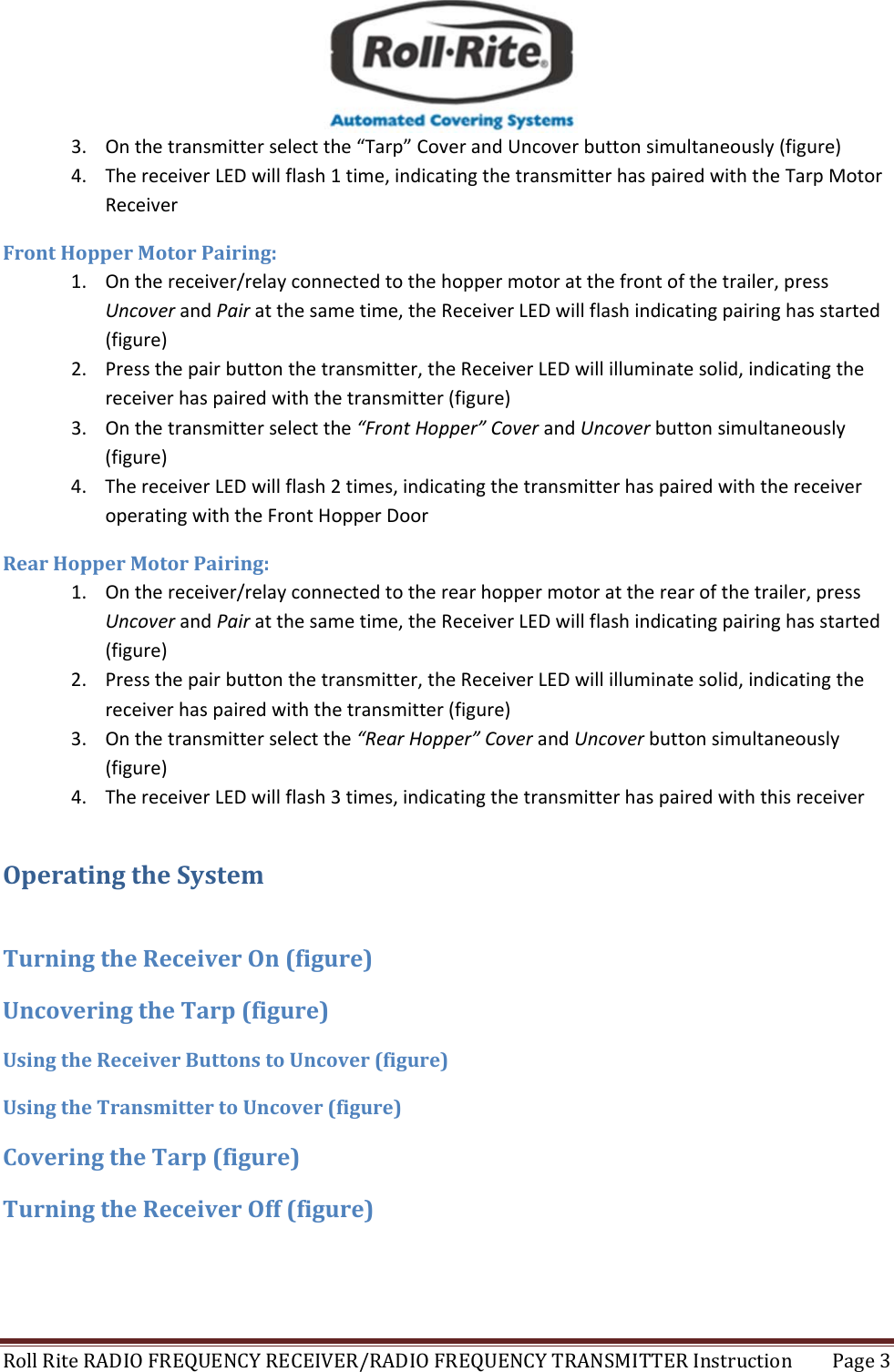

RollRiteRADIOFREQUENCYRECEIVER/RADIOFREQUENCYTRANSMITTERInstruction Page33. Onthetransmitterselectthe“Tarp”CoverandUncoverbuttonsimultaneously(figure)4. ThereceiverLEDwillflash1time,indicatingthetransmitterhaspairedwiththeTarpMotorReceiverFrontHopperMotorPairing:1. Onthereceiver/relayconnectedtothehoppermotoratthefrontofthetrailer,pressUncoverandPairatthesametime,theReceiverLEDwillflashindicatingpairinghasstarted(figure)2. Pressthepairbuttonthetransmitter,theReceiverLEDwillilluminatesolid,indicatingthereceiverhaspairedwiththetransmitter(figure)3. Onthetransmitterselectthe“FrontHopper”CoverandUncoverbuttonsimultaneously(figure)4. ThereceiverLEDwillflash2times,indicatingthetransmitterhaspairedwiththereceiveroperatingwiththeFrontHopperDoorRearHopperMotorPairing:1. Onthereceiver/relayconnectedtotherearhoppermotorattherearofthetrailer,pressUncoverandPairatthesametime,theReceiverLEDwillflashindicatingpairinghasstarted(figure)2. Pressthepairbuttonthetransmitter,theReceiverLEDwillilluminatesolid,indicatingthereceiverhaspairedwiththetransmitter(figure)3. Onthetransmitterselectthe“RearHopper”CoverandUncoverbuttonsimultaneously(figure)4. ThereceiverLEDwillflash3times,indicatingthetransmitterhaspairedwiththisreceiverOperatingtheSystemTurningtheReceiverOn(figure)UncoveringtheTarp(figure)UsingtheReceiverButtonstoUncover(figure)UsingtheTransmittertoUncover(figure)CoveringtheTarp(figure)TurningtheReceiverOff(figure)
RollRiteRADIOFREQUENCYRECEIVER/RADIOFREQUENCYTRANSMITTERInstruction Page4SpecificationsFCCStatementofComplianceThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:*Reorientorrelocatethereceivingantenna.*Increasetheseparationbetweentheequipmentandreceiver.*Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.*Consultthedealeroranexperiencedradio/TVtechnicianforhelp.InordertomaintaincompliancewithFCCregulations,shieldedcablesmustbeusedwiththisequipment.Operationwithnon‐approvedequipmentorunshieldedcablesislikelytoresultininterferencetoradioandTVreception.Theuseriscautionedthatchangesandmodificationsmadetotheequipmentwithouttheapprovalofmanufacturercouldvoidtheuser'sauthoritytooperatethisequipment.ICStatementofCompliance‐EnglishUnderIndustryCanadaregulations,thisradiotransmittermayonlyoperateusinganantennaofatypeandmaximum(orlesser)gainapprovedforthetransmitterbyIndustryCanada.Toreducepotentialradiointerferencetootherusers,theantennatypeanditsgainshouldbesochosenthattheequivalentisotropicallyradiatedpower(e.i.r.p.)isnotmorethanthatnecessaryforsuccessfulcommunication.Thisradiotransmitter(IC:[ICCompanynumberofyourproduct])hasbeenapprovedbyIndustryCanadatooperatewiththeantennatypeslistedbelowwiththemaximumpermissiblegainandrequiredantennaimpedanceforeachantennatypeindicated.Antennatypesnotincludedinthislist,havingagaingreaterthanthemaximumgainindicatedforthattype,arestrictlyprohibitedforusewiththisdevice.ICDéclarationdeConformitéConformémentàlaréglementationd'IndustrieCanada,leprésentémetteurradiopeutfonctionneravecuneantenned'untypeetd'ungainmaximal(ouinférieur)approuvépourl'émetteurparIndustrieCanada.Danslebutderéduirelesrisquesdebrouillageradioélectriqueàl'intentiondesautresutilisateurs,ilfautchoisirletyped'antenneetsongaindesortequela

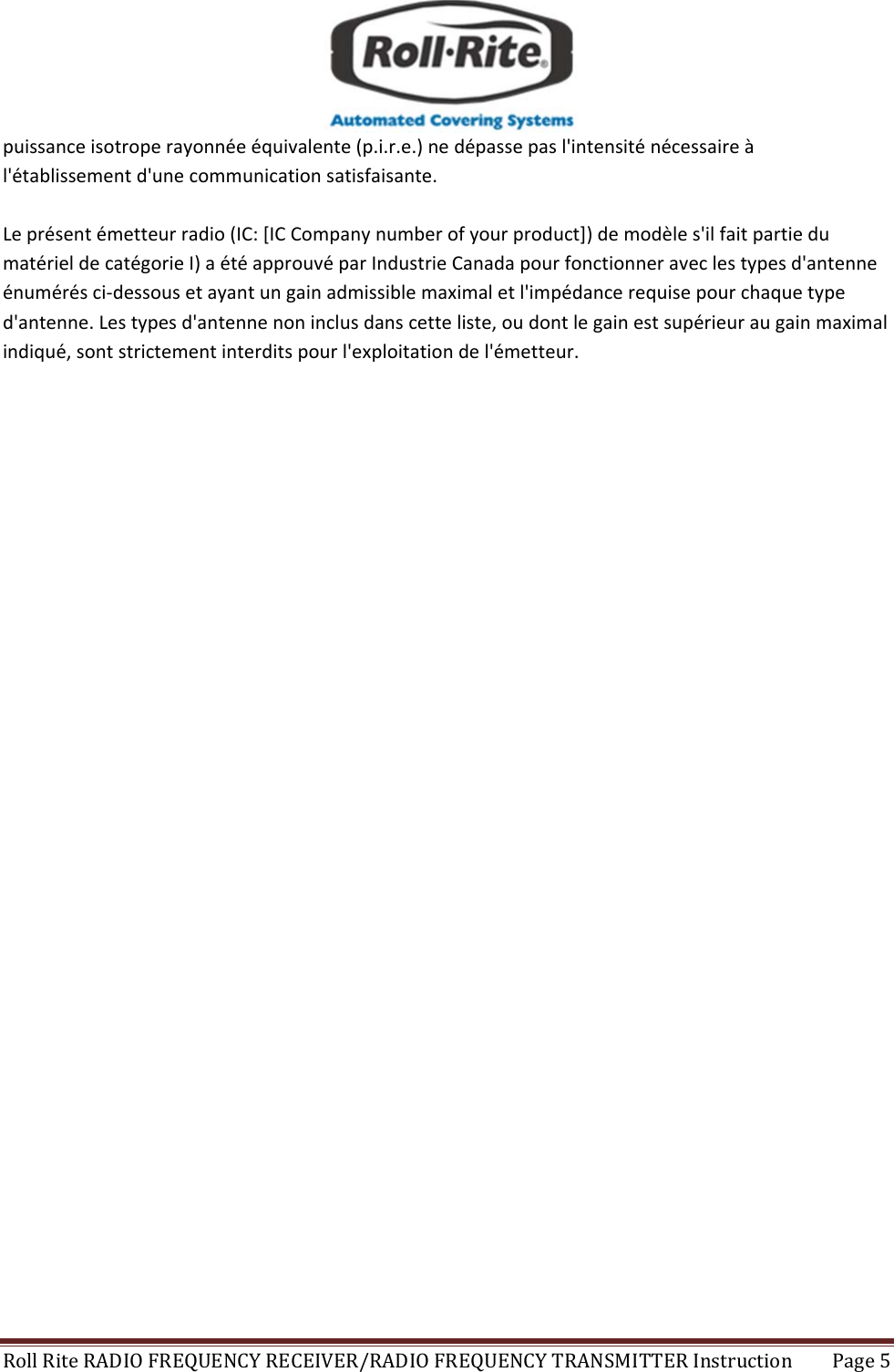

RollRiteRADIOFREQUENCYRECEIVER/RADIOFREQUENCYTRANSMITTERInstruction Page5puissanceisotroperayonnéeéquivalente(p.i.r.e.)nedépassepasl'intensiténécessaireàl'établissementd'unecommunicationsatisfaisante.Leprésentémetteurradio(IC:[ICCompanynumberofyourproduct])demodèles'ilfaitpartiedumatérieldecatégorieI)aétéapprouvéparIndustrieCanadapourfonctionneraveclestypesd'antenneénumérésci‐dessousetayantungainadmissiblemaximaletl'impédancerequisepourchaquetyped'antenne.Lestypesd'antennenoninclusdanscetteliste,oudontlegainestsupérieuraugainmaximalindiqué,sontstrictementinterditspourl'exploitationdel'émetteur.
