5.8GHz Cordless Telephone WithCaller ID/Call Waiting50 CHANNEL AUTOSCANModel GH5815OWNER’S MANUAL INSTALLATION AND OPERATING INSTRUCTIONSPLEASE READ THISMANUAL CAREFULLYBEFORE USE.KEEP FOR YOURREFERENCE.For installation information,please see “Getting Started”instructions on page 5 or yourseparate Quick Start guide.Visit Us on the Web:www.uselectronics.info© 2004 BellSouth CorporationSave/PauseDelChanmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 1
Special Features Special Feaongratulations on your selection of a quality BellSouth Product. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. BellSouth is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to:U.S. Electronics105 Madison AvenueNew York, NY 10016When examining your new BellSouth cordless telephone, you will find an array of special featuresincluding:Filtered Sound™ System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 50 Channel Autoscan - Press the /Option button on the HANDSET to find and lock on tothe clearest channel for any call.Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing.Automated Functions - Redial the last number called and automatic STANDBY mode.Security - Ensures greater privacy because of a built-in security code with 65,536 possible combinations that prevents use of your telephone line by another nearby cordless phone.Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. Thebattery low warning tone tells you when the BATTERY PACK needs recharging (See page 27).Special Services - Use the /Flash button to access special services such as Call Waitingsupplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call.When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode(ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBYmode until you activate the button.Battery Power Saver - Recharge your BATTERY PACK many times with the built-in CHARGER.Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximumof five days without the need for recharging. Length of charge depends on frequency of use.Luminous LCD Screen - The LCD Screen emits light for 10 seconds every time you press any ofthe TELEPHONE KEYPAD buttons.HANDSET Ringer Control Switch - Select the ringer sound level (HI, LOW, OFF).HANDSET Volume Level - Select the receiver volume level (HI, MID, LOW).HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.CEditTalkChmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 2
Special FeaturesCALLER ID SYSTEMMulti-Function Large LCD Screen - Shows the number you are dialing, and with Caller IDservice (available through subscription from your local telephone company), displaysinformation about the caller before you answer the call. Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke.Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone whocalled. The name, phone number, time and date of the call are recorded. Allows you to returntheir calls with a few key strokes.Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screenand a special ring will be heard. Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY(PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and the ringer will be disabled.Repeat Call Indicator - Shows if a new incoming call has called more than once.Unavailable Call Indicator - Advises you that the origin of the incoming call does not support the Caller ID system.Call Waiting Service - Displays the name and number of the second caller, if you have subscribedfor Call Waiting service from your local telephone company (see page 13).Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service andrequested Visual Message Indication from your local telephone company (see page 13).manual 5815 analog.qxd 3/16/2004 2:40 PM Page 3
HANDSET Controls HANDSET C10. HANDSET ANTENNA11. SCROLL UP-DOWN Button13. Dir (DIRECTORY)/ SAVE Button12. CID (CALLER ID) Button14. REDIAL/DELETE Button16. SHIFT RIGHT Button17. Ch (CHANNEL)/ OPTION Button18. Charge Contacts1. NEW CALL/MESSAGE WAITING LED Indicator 2. LARGE LCD SCREEN 4. TALK Button 3. MENU Button 5. VOICE MAIL Button 6. HEADSET JACK 7. TELEPHONE KEYPAD 8. SHIFT LEFT/ TEMPORARY TONE (*) Button 9. EDIT/FLASH Button 1. New Call/Message Waiting Led Indicator: (New Call) Blinks RED to indicate that you have a new Caller ID call stored in memory. (Message Waiting) Blinks GREEN when receiving a Message Waiting signal, if you have subscribed to a Voice Mail message service from your local telephone company.HANDSET ControlsDeleteChOptionNew Call/Msg WtgMenu Cid Savemanual 5815 analog.qxd 3/16/2004 2:40 PM Page 4

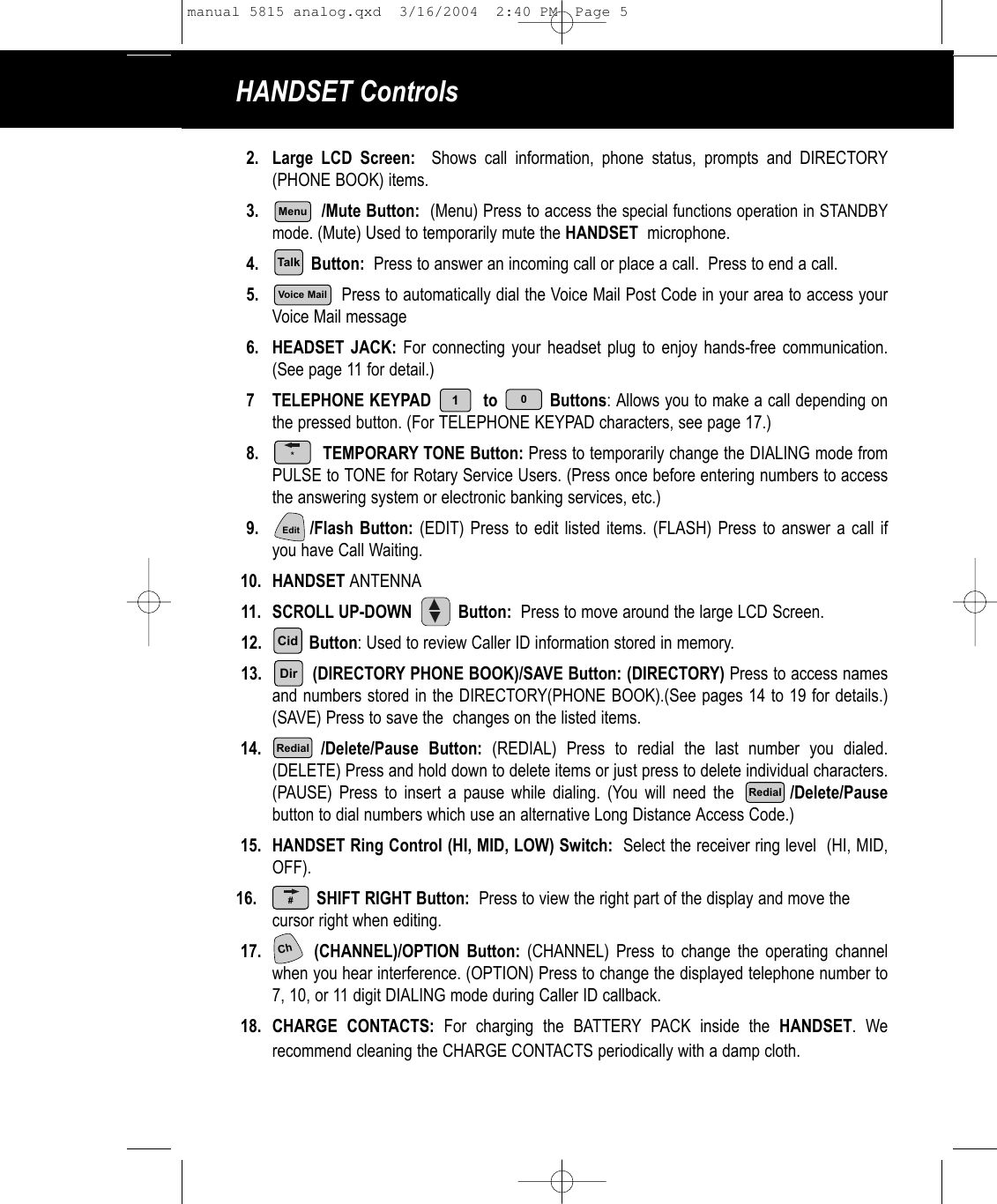

HANDSET Controls2. Large LCD Screen: Shows call information, phone status, prompts and DIRECTORY(PHONE BOOK) items.3. /Mute Button: (Menu) Press to access the special functions operation in STANDBYmode. (Mute) Used to temporarily mute the HANDSET microphone. 4. Button: Press to answer an incoming call or place a call. Press to end a call.5. Press to automatically dial the Voice Mail Post Code in your area to access your Voice Mail message6. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication. (See page 11 for detail.)7 TELEPHONE KEYPAD to Buttons: Allows you to make a call depending on the pressed button. (For TELEPHONE KEYPAD characters, see page 17.)8. TEMPORARY TONE Button: Press to temporarily change the DIALING mode fromPULSE to TONE for Rotary Service Users. (Press once before entering numbers to accessthe answering system or electronic banking services, etc.)9. /Flash Button: (EDIT) Press to edit listed items. (FLASH) Press to answer a call ifyou have Call Waiting.10. HANDSET ANTENNA11. SCROLL UP-DOWN Button: Press to move around the large LCD Screen.12. Button: Used to review Caller ID information stored in memory.13. (DIRECTORY PHONE BOOK)/SAVE Button: (DIRECTORY) Press to access namesand numbers stored in the DIRECTORY(PHONE BOOK).(See pages 14 to 19 for details.) (SAVE) Press to save the changes on the listed items. 14. /Delete/Pause Button: (REDIAL) Press to redial the last number you dialed.(DELETE) Press and hold down to delete items or just press to delete individual characters.(PAUSE) Press to insert a pause while dialing. (You will need the /Delete/Pausebutton to dial numbers which use an alternative Long Distance Access Code.)15. HANDSET Ring Control (HI, MID, LOW) Switch: Select the receiver ring level (HI, MID, OFF).16. SHIFT RIGHT Button: Press to view the right part of the display and move thecursor right when editing.17. (CHANNEL)/OPTION Button: (CHANNEL) Press to change the operating channel when you hear interference. (OPTION) Press to change the displayed telephone number to 7, 10, or 11 digit DIALING mode during Caller ID callback.18. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE CONTACTS periodically with a damp cloth. Menu10EditDirRedialRedialTalkVoice Mail*CidCh#manual 5815 analog.qxd 3/16/2004 2:40 PM Page 5
BASE UNIT Controls BASE UNIT C1. TELEPHONE LINE CONNECTION JACK Pg. 4, 6, 133. TONE/PULSE SELECT SWITCH Pg. 5, 132. POWER-IN CONNECTION JACK Pg. 5, 66. CHARGE TERMINALS5. BASE UNIT ANTENNA 8. IN USE/CHARGE LED INDICATOR Pg. 87. PAGE BUTTON4. HANDSET RETAINER TAB Pg. 6 manual 5815 analog.qxd 3/16/2004 2:40 PM Page 6
BASE UNIT Controls1. TELEPHONE LINE CONNECTION JACK2. POWER-IN CONNECTION JACK3. TONE/PULSE Select Switch4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall mounting the telephone. 5. BASE UNIT ANTENNA6. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For best performance,clean the CHARGE TERMINALS periodically with a damp cloth.7. Button: Press to page the HANDSET. Press again to stop.8. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is inTALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNITfor charging.PAGEmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 7

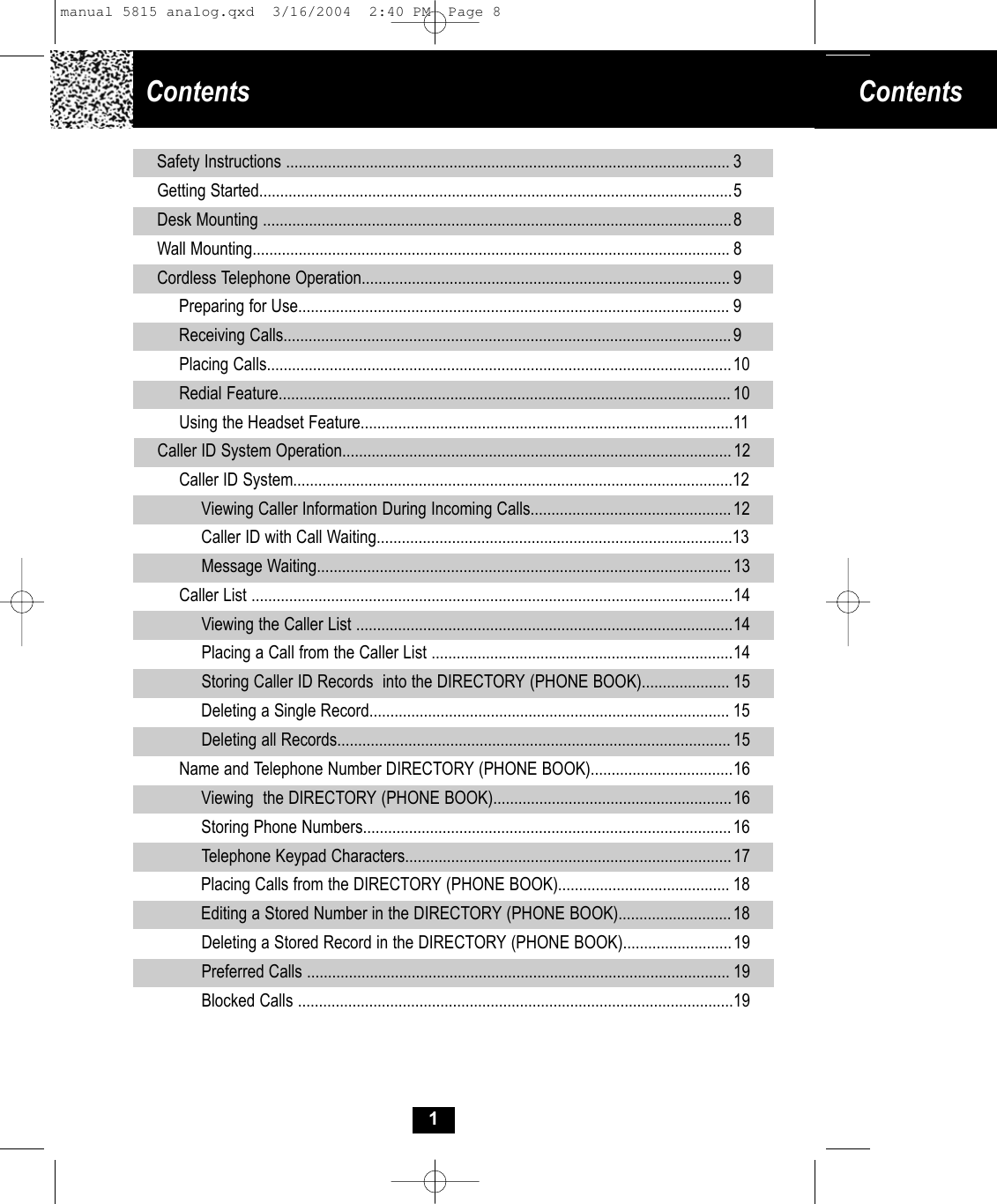

Contents Contents Safety Instructions .......................................................................................................... 3Getting Started.................................................................................................................5Desk Mounting ................................................................................................................8Wall Mounting.................................................................................................................. 8Cordless Telephone Operation........................................................................................ 9Message Waiting................................................................................................... 13Caller ID System Operation............................................................................................. 12Name and Telephone Number DIRECTORY (PHONE BOOK)..................................16Redial Feature............................................................................................................ 10Deleting a Single Record...................................................................................... 15Receiving Calls...........................................................................................................9Placing a Call from the Caller List ........................................................................14Caller List ...................................................................................................................14Viewing Caller Information During Incoming Calls................................................12Caller ID with Call Waiting.....................................................................................13Preparing for Use....................................................................................................... 9Placing Calls...............................................................................................................10Viewing the Caller List ..........................................................................................14Storing Caller ID Records into the DIRECTORY (PHONE BOOK)..................... 15Deleting all Records.............................................................................................. 15Using the Headset Feature.........................................................................................11Viewing the DIRECTORY (PHONE BOOK).........................................................16Telephone Keypad Characters.............................................................................. 17Caller ID System.........................................................................................................12Storing Phone Numbers........................................................................................16Placing Calls from the DIRECTORY (PHONE BOOK)......................................... 18Editing a Stored Number in the DIRECTORY (PHONE BOOK)...........................18Deleting a Stored Record in the DIRECTORY (PHONE BOOK)..........................191Preferred Calls ..................................................................................................... 19Blocked Calls ........................................................................................................19manual 5815 analog.qxd 3/16/2004 2:40 PM Page 8
Contents Forwarded Calls.................................................................................................... 19Function Settings...................................................................................................20A. Setting the Ringer Level............................................................................. 21K. Setting the Area Code................................................................................ 25G. Changing the Flash Time........................................................................... 23E. Adjusting the Contrast................................................................................ 23FCC Requirements.......................................................................................................... 31C. Turning the First Ring ON or OFF.............................................................. 22Problem Solving...............................................................................................................29Recharging the BATTERY PACK.....................................................................................27I. Programming One-Touch Voice Mail Dialing............................................. 24J. Deleting Message Waiting Indication.......................................................... 25B. Changing the Language............................................................................. 21D. Setting the Time and Date..........................................................................22Changing the BATTERY PACK........................................................................................28Technical Information............... .......................................................................................30Warranty Information............... ....................................................................................... 33F. Setting the PBX Number............................................................................. 23Security............................................................................................................................ 26H. Changing the Pause Time..........................................................................24Wall Mount Template....................................................................................................... 372Long Distance Calls.............................................................................................. 19manual 5815 analog.qxd 3/16/2004 2:40 PM Page 9
Safety Instructions Safety Instr3IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow thesebasic safety precautions when using your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, or anywhere else where there is water.4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 5. Do not use the telephone to report a gas leak in the vicinity of the leak.6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do notdispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check withlocal codes for possible special disposal instructions. 7. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the Owner’s Manual. If you are not sure of the voltage in your home, consult your dealer or local power company.8. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERYPACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp clothfor cleaning.9. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls.10. Do not cover the slots and openings on this telephone. This telephone should never beplaced near or over a radiator or heat register. This telephone should not be placed in abuilt-in installation unless proper ventilation is provided.11. Do not place anything on the power cord. Install the telephone where no one will step or trip on the cord.12. Do not overload wall outlets or extension cords as this can increase the risk of fire orelectric shock.13. Never push any objects through the slots in the telephone. They could touch dangerousvoltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the telephone.14. To reduce the risk of electric shock, do not take this telephone apart. If service or repair work is required on this telephone, take it to a qualified service representative. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrectreassembly can cause electric shock when the appliance is subsequently used. 15. Unplug this telephone from the wall outlet and consult a qualified service representative inany of the following situations.A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operating instructions. Adjustonly those controls that are covered by the operating instructions. Improper adjustment mayrequire extensive work by a qualified technician to restore the telephone to normaloperation.manual 5815 analog.qxd 3/16/2004 2:40 PM Page 10
Safety InstructionsE. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.16. Never install telephone wiring during a lightning storm.17. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.18. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.19. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Risk of explosion if BATTERY PACK replaced with an incorrect type. Dispose of used batteries according to the instructions. Replace only with the same or equivalent type. To reduce the risk of fire or personal injury,read and follow these instructions:1. Use only the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: model B658(See page 30 for ordering information.)2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes for possible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY PACK is corrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK with conductive materials such as rings, bracelets, and keys. The BATTERY PACK or conductor may overheat and cause burns.5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only in accordance with the instructions and limitations specified in this manual.6. Observe proper polarity orientation between the BATTERY PACK and BATTERY CHARGER.SAVE THESE INSTRUCTIONSATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. 4manual 5815 analog.qxd 3/16/2004 2:40 PM Page 11

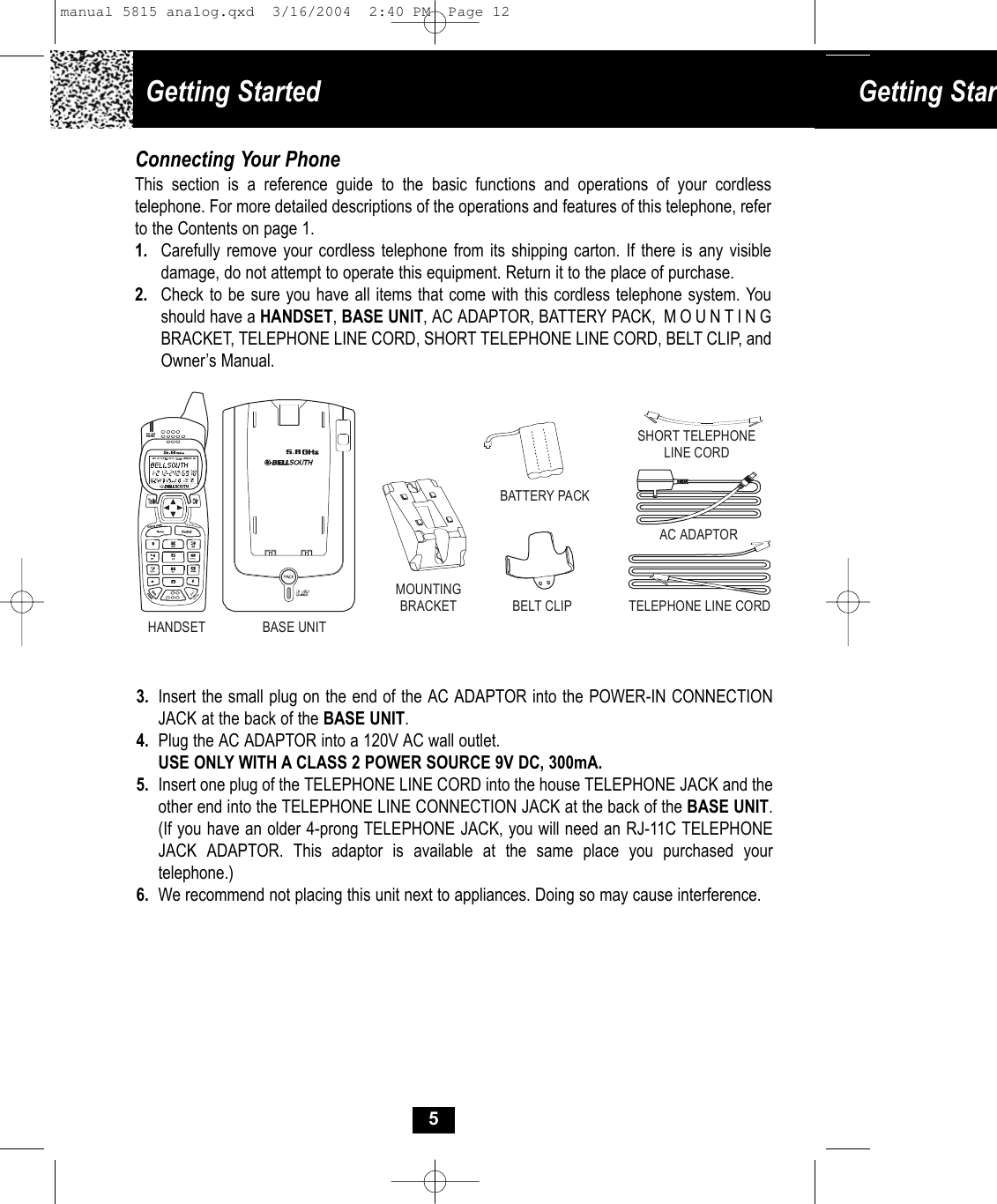

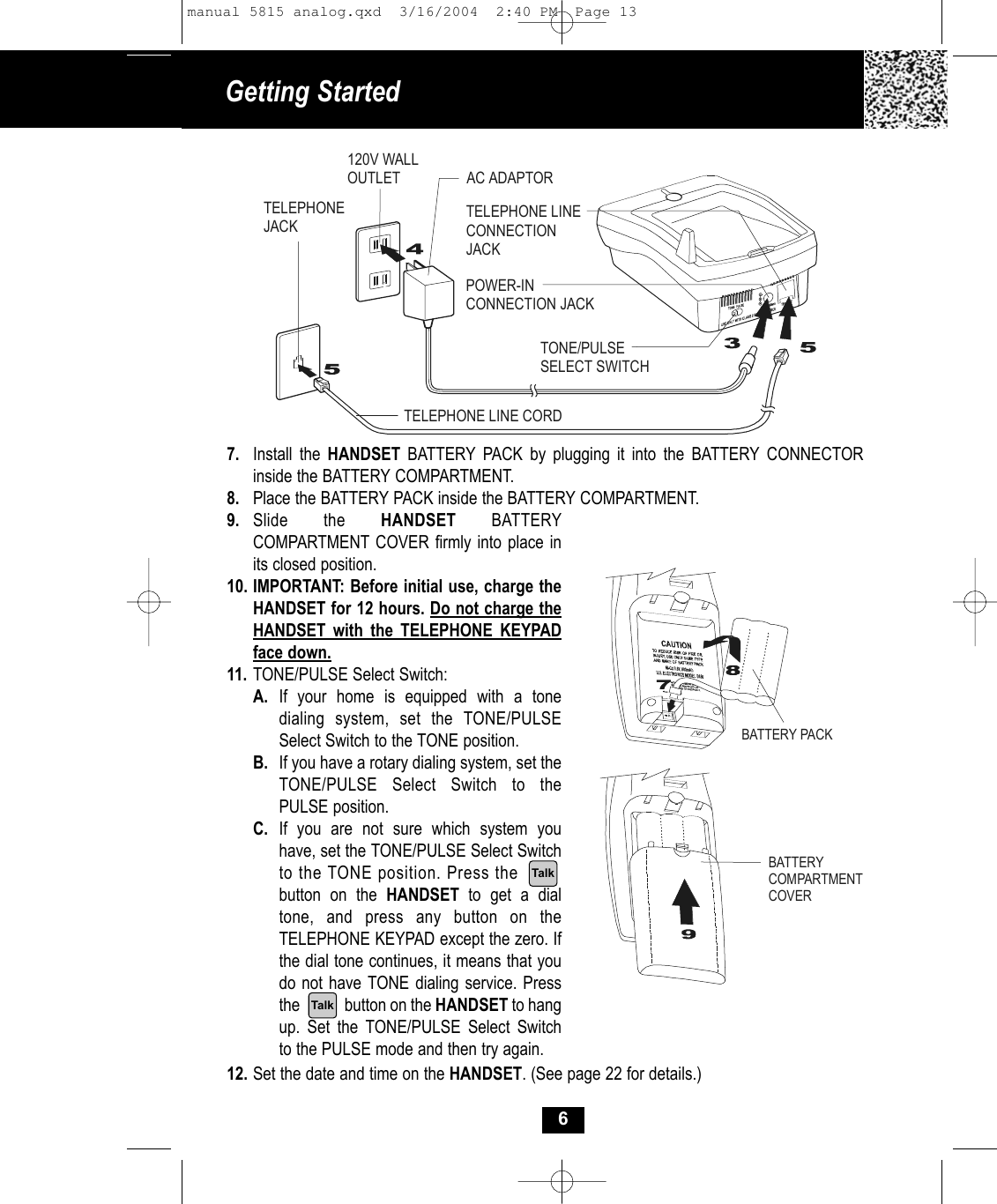

Getting Started Getting StarConnecting Your PhoneThis section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1.1. Carefully remove your cordless telephone from its shipping carton. If there is any visibledamage, do not attempt to operate this equipment. Return it to the place of purchase.2. Check to be sure you have all items that come with this cordless telephone system. You should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK, MOUNTING BRACKET, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, BELT CLIP, and Owner’s Manual.3. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION JACK at the back of the BASE UNIT.4. Plug the AC ADAPTOR into a 120V AC wall outlet.USE ONLY WITH A CLASS 2 POWER SOURCE 9V DC, 300mA.5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK ADAPTOR. This adaptor is available at the same place you purchased yourtelephone.)6. We recommend not placing this unit next to appliances. Doing so may cause interference.5Save/PauseDelChanSHORT TELEPHONE LINE CORDTELEPHONE LINE CORDAC ADAPTORMOUNTINGBRACKET BELT CLIPBATTERY PACKHANDSET BASE UNITmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 12
Getting Started 69. Slide the HANDSET BATTERYCOMPARTMENT COVER firmly into place inits closed position.10. IMPORTANT: Before initial use, charge theHANDSET for 12 hours. Do not charge the HANDSET with the TELEPHONE KEYPAD face down.11. TONE/PULSE Select Switch:A. If your home is equipped with a tone dialing system, set the TONE/PULSE Select Switch to the TONE position.B. If you have a rotary dialing system, set the TONE/PULSE Select Switch to the PULSE position.C. If you are not sure which system you have, set the TONE/PULSE Select Switchto the TONE position. Press the button on the HANDSET to get a dial tone, and press any button on the TELEPHONE KEYPAD except the zero. If the dial tone continues, it means that you do not have TONE dialing service. Pressthe button on the HANDSET to hang up. Set the TONE/PULSE Select Switch to the PULSE mode and then try again.12. Set the date and time on the HANDSET. (See page 22 for details.)7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside the BATTERY COMPARTMENT. 8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.AC ADAPTORTELEPHONE LINE CORDTELEPHONEJACK120V WALLOUTLETTONE/PULSESELECT SWITCHPOWER-INCONNECTION JACKTELEPHONE LINECONNECTION JACKBATTERY PACKBATTERY COMPARTMENTCOVERTalkTalkmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 13

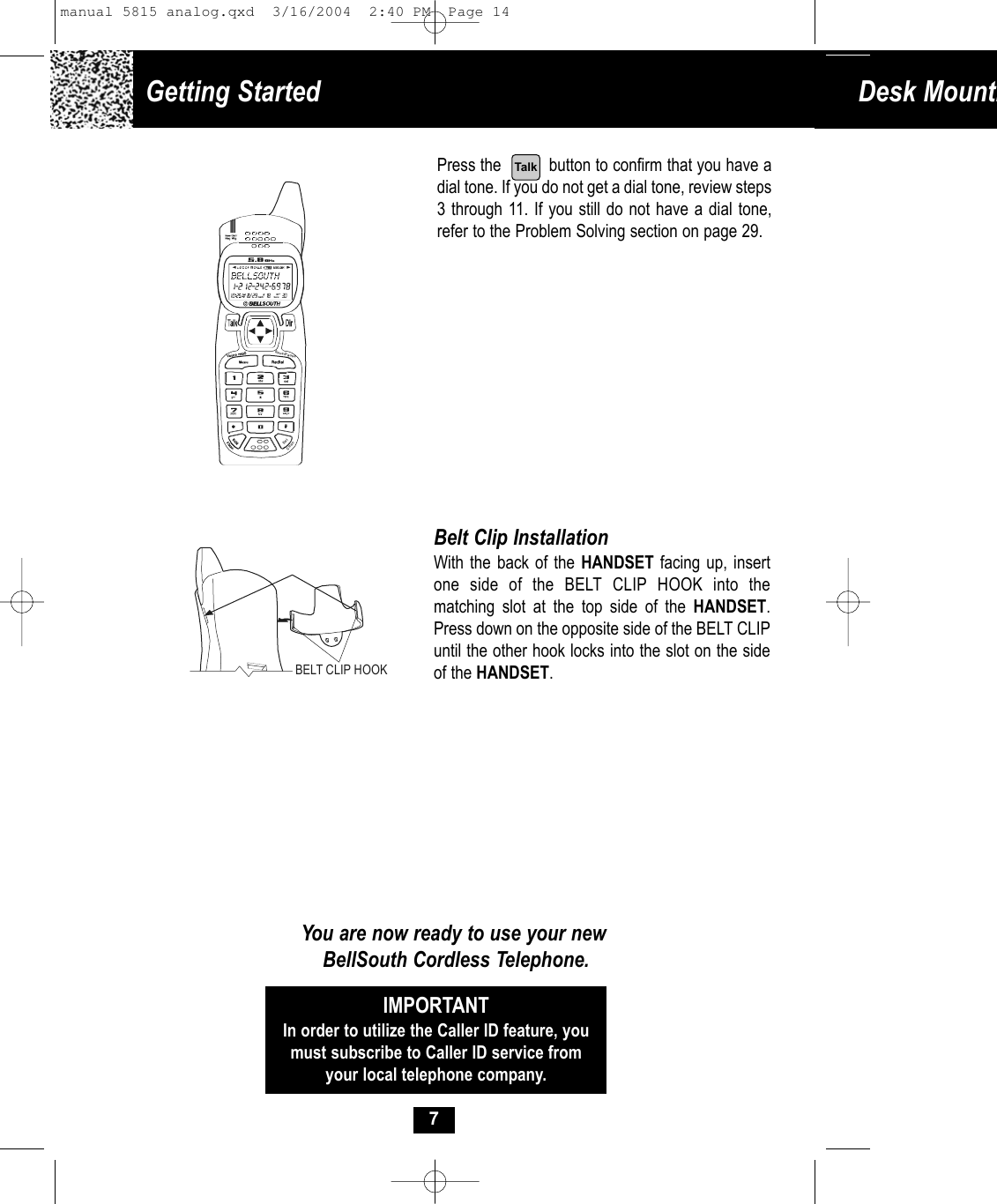

Getting Started Desk Mounti7Press the button to confirm that you have adial tone. If you do not get a dial tone, review steps3 through 11. If you still do not have a dial tone,refer to the Problem Solving section on page 29.Belt Clip InstallationWith the back of the HANDSET facing up, insertone side of the BELT CLIP HOOK into the matching slot at the top side of the HANDSET.Press down on the opposite side of the BELT CLIPuntil the other hook locks into the slot on the sideof the HANDSET.You are now ready to use your newBellSouth Cordless Telephone.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.BELT CLIP HOOKSave/PauseDelChanTalkmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 14

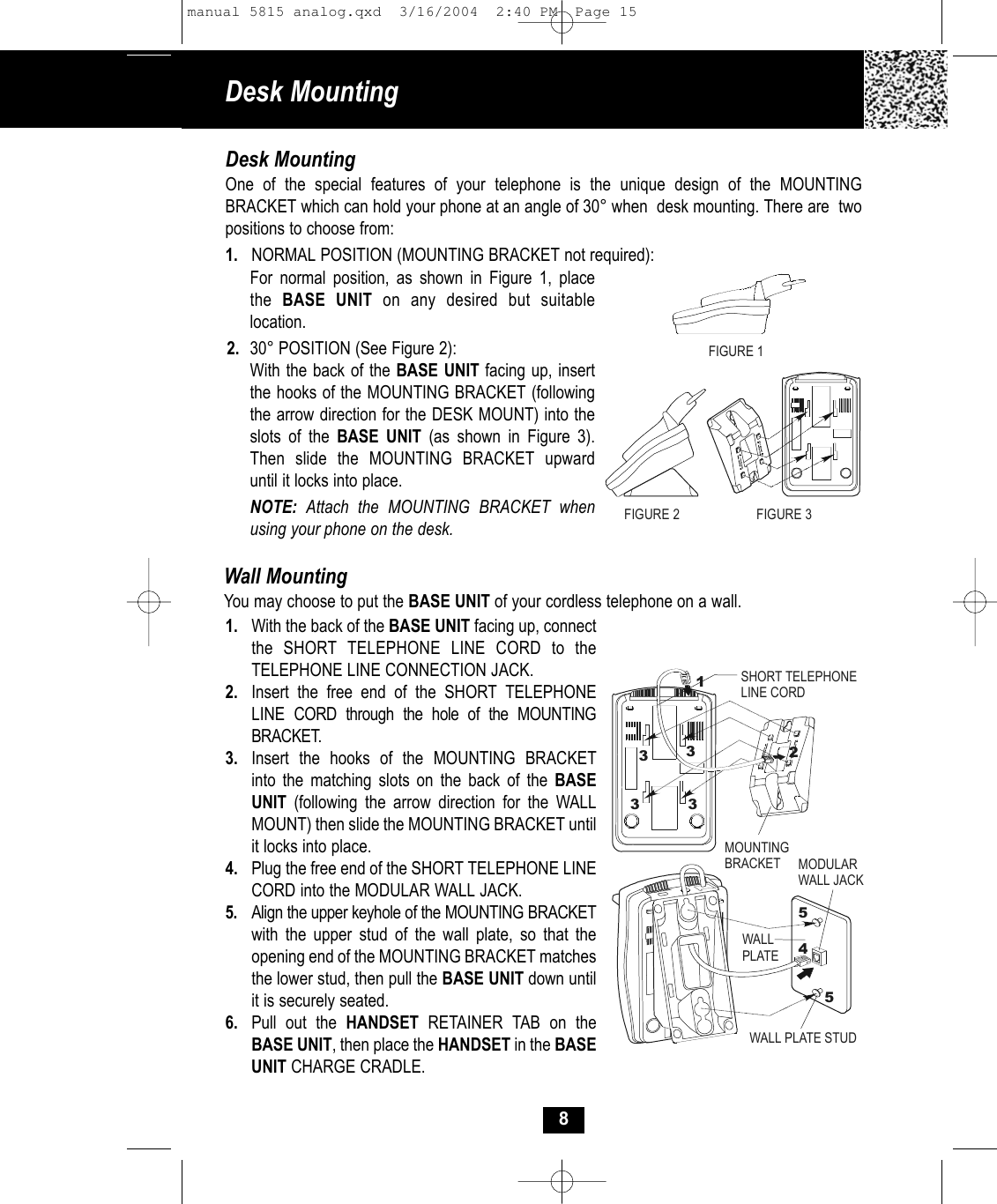

Desk Mounting 8Desk MountingOne of the special features of your telephone is the unique design of the MOUNTING BRACKET which can hold your phone at an angle of 30° when desk mounting. There are twopositions to choose from:1. NORMAL POSITION (MOUNTING BRACKET not required):For normal position, as shown in Figure 1, placethe BASE UNIT on any desired but suitablelocation.2. 30° POSITION (See Figure 2):With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET (following the arrow direction for the DESK MOUNT) into theslots of the BASE UNIT (as shown in Figure 3).Then slide the MOUNTING BRACKET upwarduntil it locks into place.NOTE: Attach the MOUNTING BRACKET whenusing your phone on the desk.Wall MountingYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, connect the SHORT TELEPHONE LINE CORD to the TELEPHONE LINE CONNECTION JACK. 2. Insert the free end of the SHORT TELEPHONELINE CORD through the hole of the MOUNTING BRACKET.3. Insert the hooks of the MOUNTING BRACKET into the matching slots on the back of the BASEUNIT (following the arrow direction for the WALLMOUNT) then slide the MOUNTING BRACKET until it locks into place. 4. Plug the free end of the SHORT TELEPHONE LINECORD into the MODULAR WALL JACK. 5. Align the upper keyhole of the MOUNTING BRACKETwith the upper stud of the wall plate, so that the opening end of the MOUNTING BRACKET matchesthe lower stud, then pull the BASE UNIT down until it is securely seated.6. Pull out the HANDSET RETAINER TAB on the BASE UNIT, then place the HANDSET in the BASEUNIT CHARGE CRADLE.FIGURE 2 FIGURE 3MOUNTINGBRACKET MODULAR WALL JACKWALL PLATEWALL PLATE STUDSHORT TELEPHONELINE CORD124553333FIGURE 1manual 5815 analog.qxd 3/16/2004 2:40 PM Page 15
Cordless Telephone Operation Cordless Tel9Preparing for UseBefore you can use your cordless telephone, you must charge the HANDSET for 12 hours.Failure to do so will require recharging of the BATTERY PACK more often. 1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require more frequent charging of the BATTERY PACK.See page 27 for more information on the BATTERY PACK.NOTE: Depending on the frequency of use, once the HANDSET is fully charged, it remainsfunctional for approximately 6 hours of continuous use and approximately 6 days when the HANDSET is off the BASE UNIT in STANDBY mode. Receiving Calls1. When the phone rings, the LCD Screen will display “RING.” If you have Caller ID, the LCD Screen will display the Caller ID information after the first ring.2. With the HANDSET on or off of the BASE UNIT, press the button. “TALK” will be displayed and the Call Timer starts to count. Start your conversation.3. To end your conversation, either press the buttonor place the HANDSET on the BASE UNIT. If youplace the HANDSET on the BASE UNIT CHARGECRADLE, you activate the AUTOMATIC STANDBYfeature. TalkTalkNOTE: The Call Timer will start to count once you press the button. TalkIMPORTANTDo not use this telephone within 20 ft. of a microwave ovenwhile it is working, as you may experience interference.This is a normal occurrence with 5.8 GHz phones andshould not be interpreted as a defect in the product.TALK02 08Call Timer DisplayMinutesSecondsmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 16
Cordless Telephone Operation10Placing Calls1. Press the button. “TALK” will display and the CallTimer starts to count. 2. Wait until you hear a dial tone and then dial the phonenumber.3. When you have finished your call, press the button again or place the HANDSET on the BASEUNIT. Redial Feature1. If you get a busy tone, press the button or placethe HANDSET on the BASE UNIT to hang up.2. Later, press the button again.3. Listen for a dial tone.4. Press the /Del button. This will automaticallyredial the last telephone number you called.5. When you have finished with your call, either press thebutton again or place the HANDSET on theBASE UNIT. Or1. Press the /Del button.2. Press the button. The number displayed will beautomatically redial.3. When you finished with your call, pres the buttonagain or place the HANDSET on the BASE UNIT.HANDSET Ringer Volume1. Adjust the HANDSET ringer volume using the Ringerswitch on the right side of the HANDSET.2. Select between Hi, Low, Off Ringer.Save/PauseDelChan1, 3TalkTalkTalkTalkTalkRedialNOTE: If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to warn you that the background noise level is too high for proper communicationbetween the HANDSET and the BASE UNIT. When you hear this sound, you shouldmove closer to the BASE UNIT to reduce the noise level. Otherwise, the call willautomatically cut off.Save/PauseDelChan1, 2, 54TalkTalkRedialmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 17

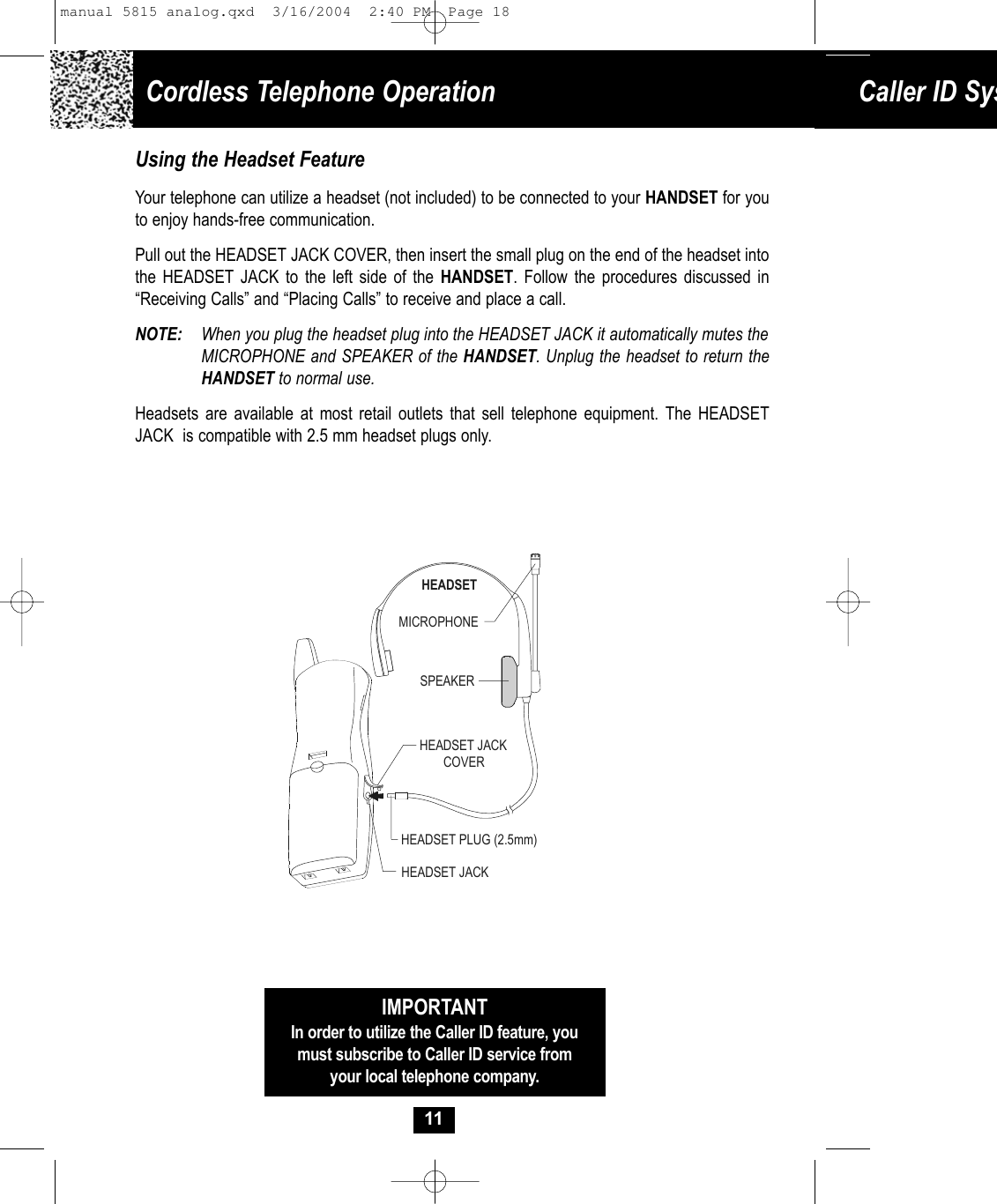

Cordless Telephone Operation Caller ID Sys11Using the Headset FeatureYour telephone can utilize a headset (not included) to be connected to your HANDSET for youto enjoy hands-free communication. Pull out the HEADSET JACK COVER, then insert the small plug on the end of the headset into the HEADSET JACK to the left side of the HANDSET. Follow the procedures discussed in “Receiving Calls” and “Placing Calls” to receive and place a call. NOTE: When you plug the headset plug into the HEADSET JACK it automatically mutes theMICROPHONE and SPEAKER of the HANDSET. Unplug the headset to return the HANDSET to normal use. Headsets are available at most retail outlets that sell telephone equipment. The HEADSET JACK is compatible with 2.5 mm headset plugs only. MICROPHONEHEADSETSPEAKERHEADSET JACKHEADSET JACKCOVERHEADSET PLUG (2.5mm)IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.manual 5815 analog.qxd 3/16/2004 2:40 PM Page 18

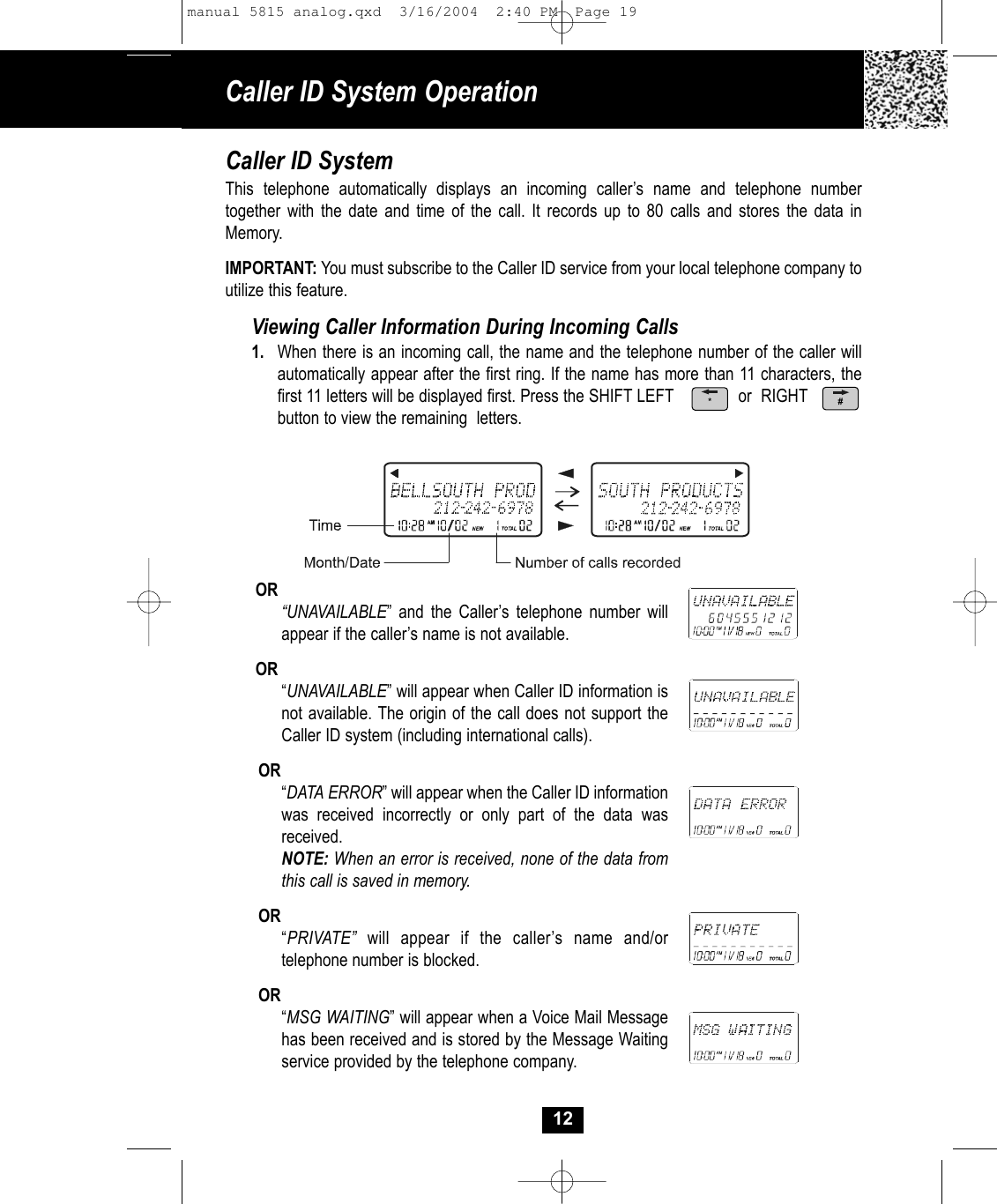

Caller ID System Operation12Caller ID SystemThis telephone automatically displays an incoming caller’s name and telephone number together with the date and time of the call. It records up to 80 calls and stores the data in Memory. IMPORTANT: You must subscribe to the Caller ID service from your local telephone company toutilize this feature.Viewing Caller Information During Incoming Calls1. When there is an incoming call, the name and the telephone number of the caller will automatically appear after the first ring. If the name has more than 11 characters, thefirst 11 letters will be displayed first. Press the SHIFT LEFT or RIGHT button to view the remaining letters.OR“UNAVAILABLE” and the Caller’s telephone number will appear if the caller’s name is not available.OR“UNAVAILABLE” will appear when Caller ID information is not available. The origin of the call does not support the Caller ID system (including international calls).OR“DATA ERROR” will appear when the Caller ID information was received incorrectly or only part of the data wasreceived.NOTE: When an error is received, none of the data from this call is saved in memory. OR“PRIVATE” will appear if the caller’s name and/or telephone number is blocked.OR“MSG WAITING” will appear when a Voice Mail Message has been received and is stored by the Message Waitingservice provided by the telephone company.#*manual 5815 analog.qxd 3/16/2004 2:40 PM Page 19

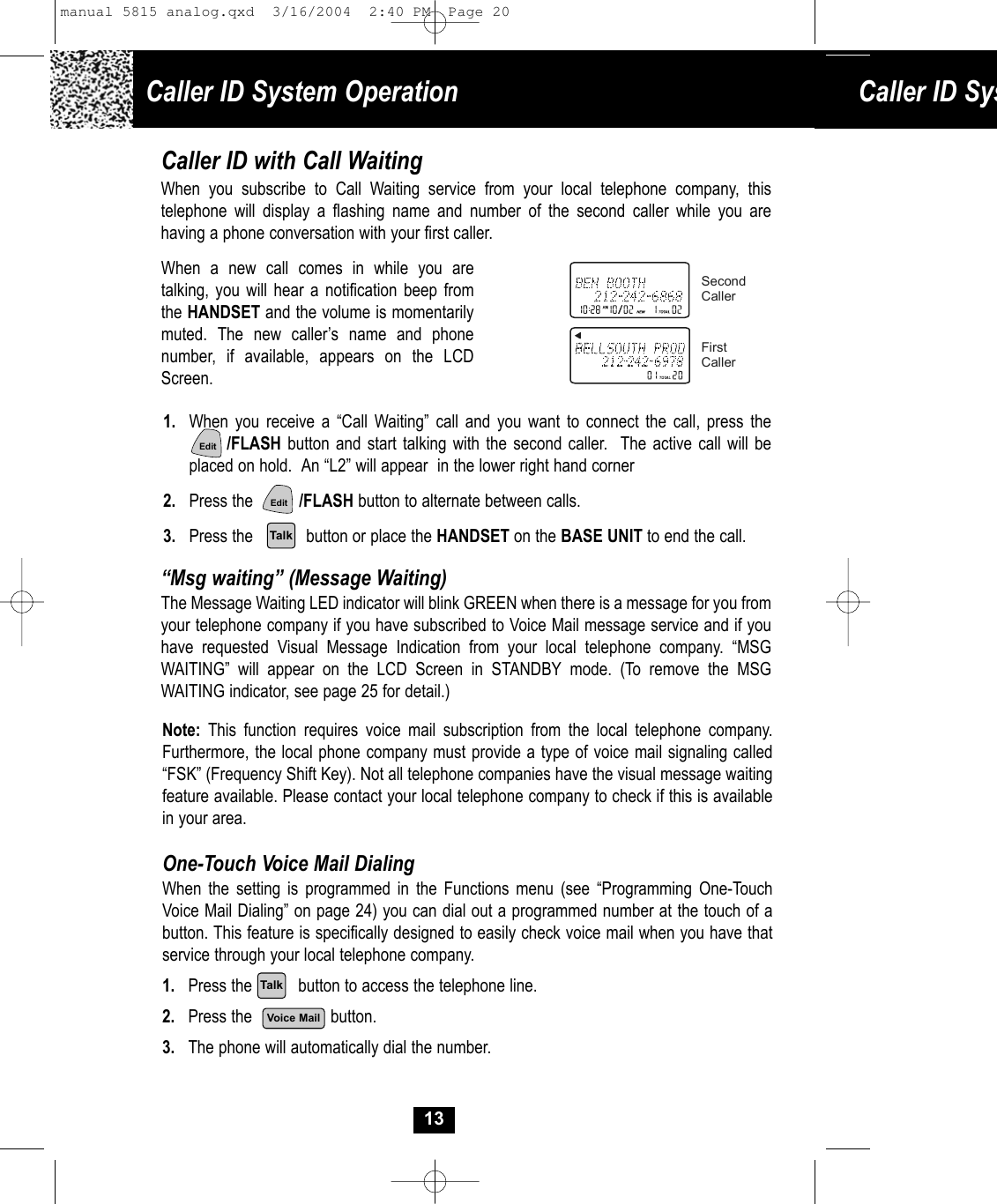

Caller ID System Operation Caller ID Sys13Caller ID with Call WaitingWhen you subscribe to Call Waiting service from your local telephone company, thistelephone will display a flashing name and number of the second caller while you arehaving a phone conversation with your first caller.When a new call comes in while you aretalking, you will hear a notification beep fromthe HANDSET and the volume is momentarilymuted. The new caller’s name and phonenumber, if available, appears on the LCDScreen. 1. When you receive a “Call Waiting” call and you want to connect the call, press the/FLASH button and start talking with the second caller. The active call will be placed on hold. An “L2” will appear in the lower right hand corner2. Press the /FLASH button to alternate between calls.3. Press the button or place the HANDSET on the BASE UNIT to end the call.SecondCallerFirstCaller“Msg waiting” (Message Waiting)The Message Waiting LED indicator will blink GREEN when there is a message for you from your telephone company if you have subscribed to Voice Mail message service and if you have requested Visual Message Indication from your local telephone company. “MSGWAITING” will appear on the LCD Screen in STANDBY mode. (To remove the MSGWAITING indicator, see page 25 for detail.)Note: This function requires voice mail subscription from the local telephone company. Furthermore, the local phone company must provide a type of voice mail signaling called “FSK” (Frequency Shift Key). Not all telephone companies have the visual message waiting feature available. Please contact your local telephone company to check if this is available in your area.One-Touch Voice Mail DialingWhen the setting is programmed in the Functions menu (see “Programming One-Touch Voice Mail Dialing” on page 24) you can dial out a programmed number at the touch of abutton. This feature is specifically designed to easily check voice mail when you have that service through your local telephone company.1. Press the button to access the telephone line.2. Press the button.3. The phone will automatically dial the number.EditEditTalkVoice MailTalkmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 20

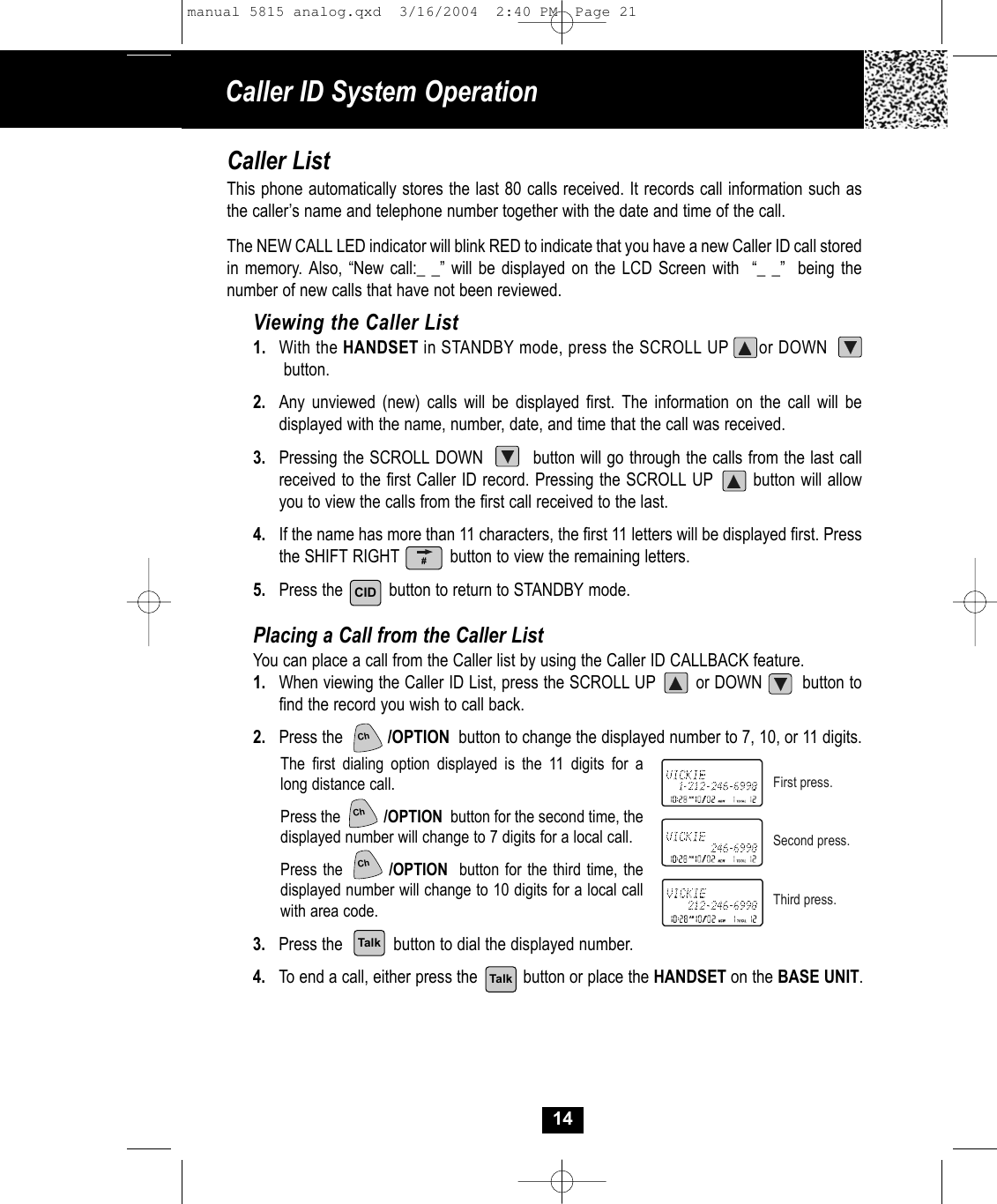

Caller ID System Operation14Caller ListThis phone automatically stores the last 80 calls received. It records call information such asthe caller’s name and telephone number together with the date and time of the call. The NEW CALL LED indicator will blink RED to indicate that you have a new Caller ID call storedin memory. Also, “New call:_ _” will be displayed on the LCD Screen with “_ _” being thenumber of new calls that have not been reviewed.Viewing the Caller List1. With the HANDSET in STANDBY mode, press the SCROLL UP or DOWNbutton. 2. Any unviewed (new) calls will be displayed first. The information on the call will bedisplayed with the name, number, date, and time that the call was received.3. Pressing the SCROLL DOWN button will go through the calls from the last callreceived to the first Caller ID record. Pressing the SCROLL UP button will allowyou to view the calls from the first call received to the last.4. If the name has more than 11 characters, the first 11 letters will be displayed first. Pressthe SHIFT RIGHT button to view the remaining letters. 5. Press the button to return to STANDBY mode.Placing a Call from the Caller ListYou can place a call from the Caller list by using the Caller ID CALLBACK feature.1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to call back.2. Press the /OPTION button to change the displayed number to 7, 10, or 11 digits.The first dialing option displayed is the 11 digits for a long distance call.Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.3. Press the button to dial the displayed number. 4. To end a call, either press the button or place the HANDSET on the BASE UNIT.First press.Second press.Third press.CIDTalkTalk#ChChChmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 21

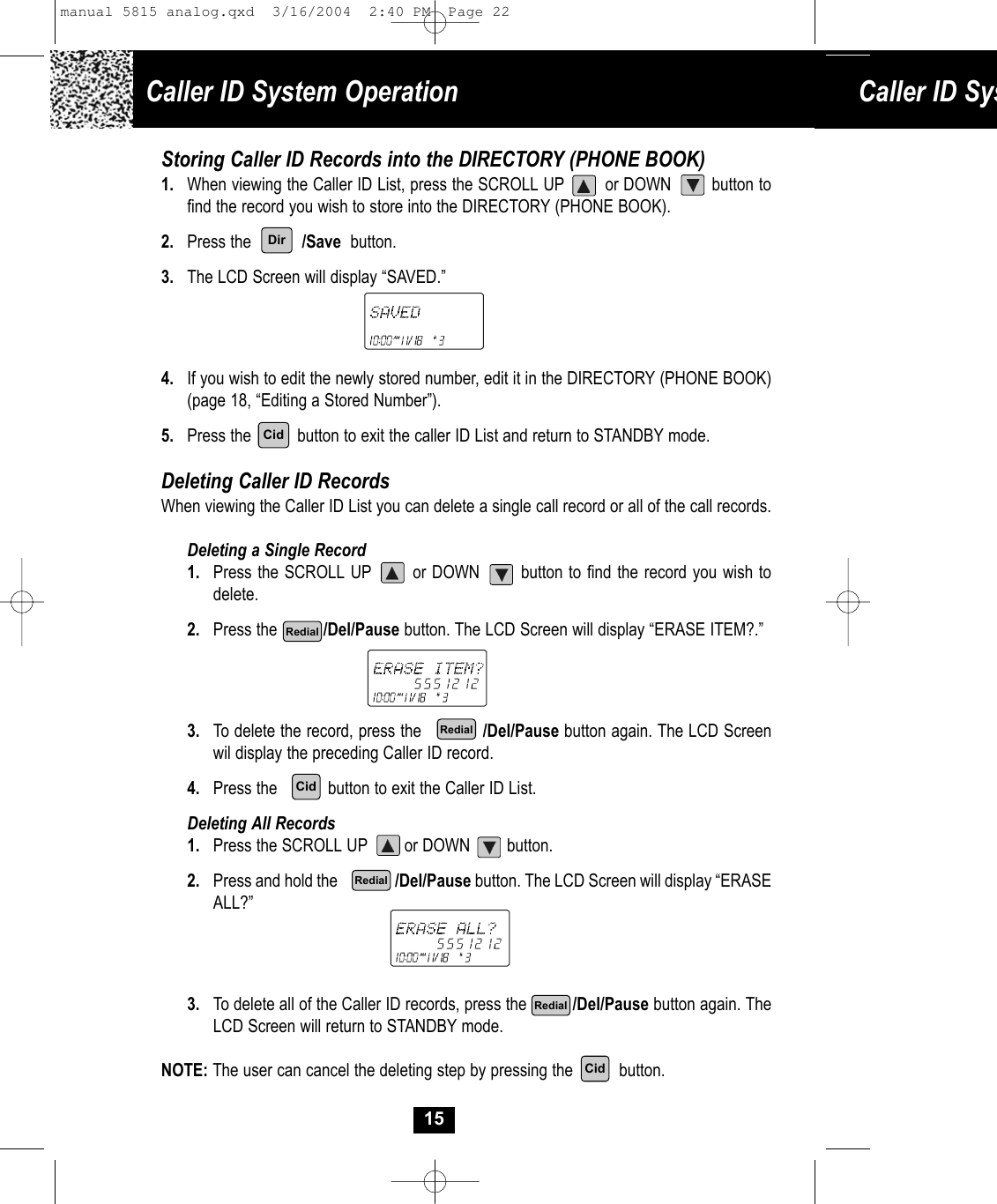

Caller ID System Operation Caller ID Sys15Storing Caller ID Records into the DIRECTORY (PHONE BOOK)1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to store into the DIRECTORY (PHONE BOOK).2. Press the /Save button.3. The LCD Screen will display “SAVED.”4. If you wish to edit the newly stored number, edit it in the DIRECTORY (PHONE BOOK) (page 18, “Editing a Stored Number”).5. Press the button to exit the caller ID List and return to STANDBY mode.Deleting Caller ID RecordsWhen viewing the Caller ID List you can delete a single call record or all of the call records.Deleting a Single Record1. Press the SCROLL UP or DOWN button to find the record you wish to delete.2. Press the /Del/Pause button. The LCD Screen will display “ERASE ITEM?.”3. To delete the record, press the /Del/Pause button again. The LCD Screen wil display the preceding Caller ID record.4. Press the button to exit the Caller ID List.Deleting All Records1. Press the SCROLL UP or DOWN button. 2. Press and hold the /Del/Pause button. The LCD Screen will display “ERASE ALL?”3. To delete all of the Caller ID records, press the /Del/Pause button again. TheLCD Screen will return to STANDBY mode.NOTE: The user can cancel the deleting step by pressing the button. CidCidCidRedialRedialRedialRedialDirmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 22
NOTES: 1. If there are no memory locations left in the speed dial DIRECTORY (PHONE BOOK) theLCD Screen will display “MEMORY FULL.” To continue with memory programming, you must delete or edit existing speed dial numbers.2. If you mis-type entering the phone number, you can move through the number and edit it by pressing and holding the SHIFT RIGHT or LEFT button. To delete acharacter or number inside the cursor, press and hold the /DEL button.Caller ID System Operation16Name and Telephone Number DIRECTORY (PHONE BOOK)This DIRECTORY (PHONE BOOK) lets you scroll through the list to find the person you needfor one touch dialing. You can store up to 40 names and telephone numbers in the Memory.Viewing the DIRECTORY (PHONE BOOK)1. Press the /Save button. The LCD Screen willdisplay “PHONE BOOK.”2. Press the SCROLL UP or DOWN button tofind the record you wish to view.3. If the name has more than 11 characters, the first 11 letters will be displayed first. Press the SHIFT RIGHTbutton to view all the following letters and/or numbers.4. Press the /Save button to exit the DIRECTORY(PHONE BOOK). Storing Phone Numbers1. With the HANDSET in STANDBY mode, press the /Save button.The LCD Screenwill display “PHONE BOOK.”2. Press the /FLASH button to create a new DIRECTORY (PHONE BOOK) entry.3. Enter the name you wish to store using the TELEPHONE KEYPAD to buttons to enter the name, (see page 17 for detail) you can store up to 15 letters. To move the cursor to the right, press SHIFT RIGHT button. To create a space or toenter a new letter, press the keypad button. 4. Press the SCROLL DOWN button, and dial the telephone number you wish to storeusing the TELEPHONE KEYPAD to buttons. You can store up to 16 digits. 5. Press the /Save button to store the number into memory.Save/PauseDelChanDirDirDir2abc 9WXYZEdit2abc 9WXYZ1DirRedial###*manual 5815 analog.qxd 3/16/2004 2:40 PM Page 23
&SpaceCaller ID System Operation Caller ID Sys17Telephone Keypad CharactersThe TELEPHONE KEYPAD buttons are used to enter characters when entering names and numbers. Press the appropriate TELEPHONE KEYPAD button to get the following characters. You can store a maximum of 15 characters on the letter icon and a maximum of 16 digits on the number icon. EXAMPLE: If you want to enter the name “ALEX” with telephone number “2426978,” dial this sequence:1. Press the /Save button. The LCD Screen will display “PHONE BOOK.” 2. Press the /FLASH button to create a new DIRECTORY (PHONE BOOK) entry.3. Press the following TELEPHONE KEYPAD buttons to get the desired letters:4. Press the SCROLL DOWN button to move the cursor to the number icon.5. Press the TELEPHONE KEYPAD to buttons to get the desired numbers.6. Press the /Save button to store the data in the DIRECTORY (PHONE BOOK)memory.TELEPHONE KEYPAD BUTTON 2 555 33 99LETTER A L E XKeypadButtons1stPress2ndPress3rdPress4thPress5thPress6thPress7thPress8thPress12 A B C 2A B C 23 D E F 3 D E F 34 G H I 4 G H I 45 J K L 5 J K L 56 M N O 6 M N 0 67 P Q R S 7 P Q R8 T U V 8 T U V 89 W X Y Z 9 W X Y0 0 0 0 0 0 0 0 0 (,)*.10DirEdit19thPressSpaceADGJMSTZ0 Dirmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 24

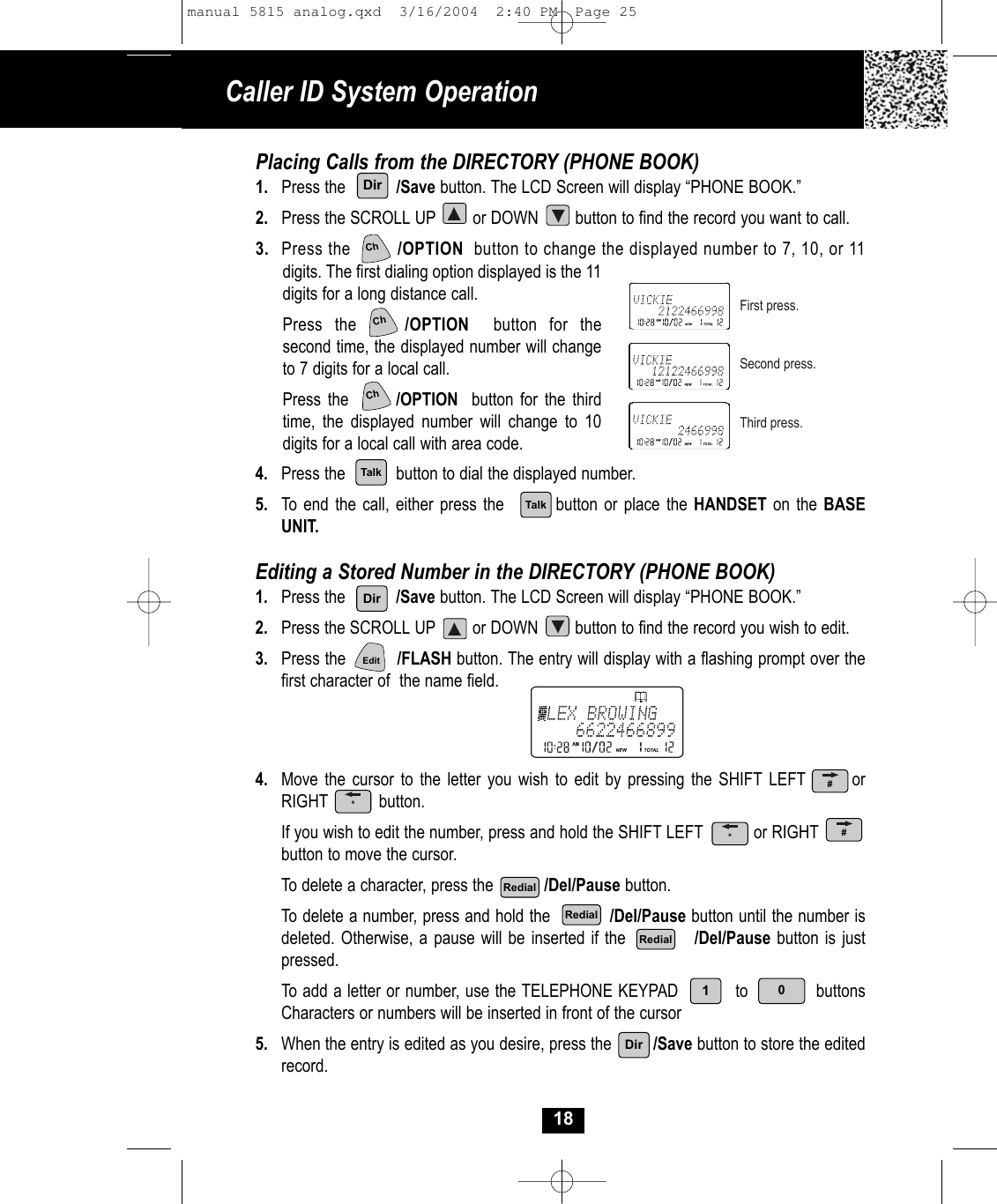

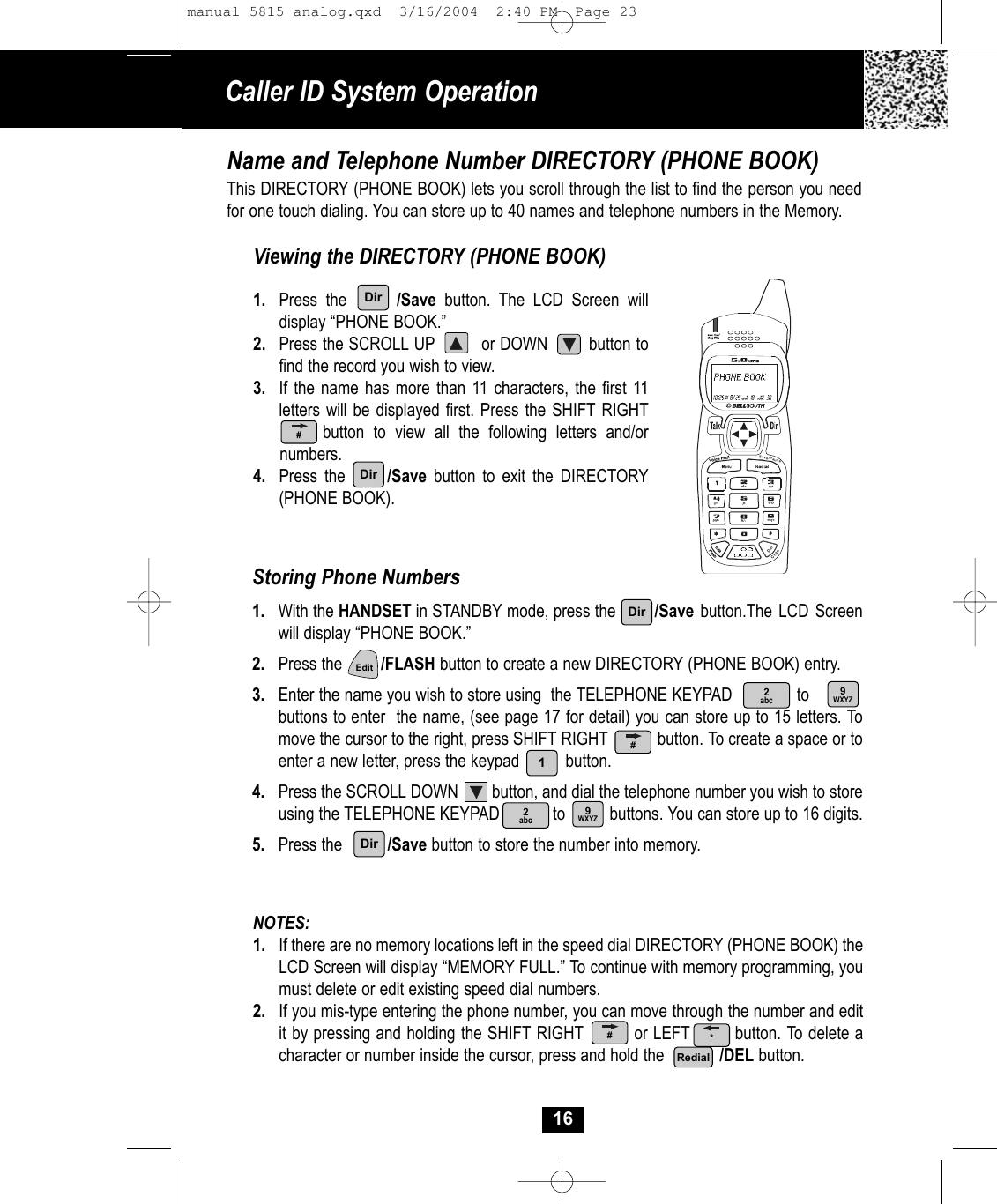

Caller ID System Operation18Placing Calls from the DIRECTORY (PHONE BOOK)1. Press the /Save button. The LCD Screen will display “PHONE BOOK.” 2. Press the SCROLL UP or DOWN button to find the record you want to call.3. Press the /OPTION button to change the displayed number to 7, 10, or 11digits. The first dialing option displayed is the 11 digits for a long distance call. Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.4. Press the button to dial the displayed number.5. To end the call, either press the button or place the HANDSET on the BASEUNIT.Editing a Stored Number in the DIRECTORY (PHONE BOOK)1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”2. Press the SCROLL UP or DOWN button to find the record you wish to edit.3. Press the /FLASH button. The entry will display with a flashing prompt over thefirst character of the name field.4. Move the cursor to the letter you wish to edit by pressing the SHIFT LEFT orRIGHT button.If you wish to edit the number, press and hold the SHIFT LEFT or RIGHTbutton to move the cursor. To delete a character, press the /Del/Pause button. To delete a number, press and hold the /Del/Pause button until the number isdeleted. Otherwise, a pause will be inserted if the /Del/Pause button is just pressed.To add a letter or number, use the TELEPHONE KEYPAD to buttonsCharacters or numbers will be inserted in front of the cursor 5. When the entry is edited as you desire, press the /Save button to store the editedrecord.First press.Second press.Third press.DirTalkTalkDirEdit01Ch#*RedialRedialRedialDirChCh*#manual 5815 analog.qxd 3/16/2004 2:40 PM Page 25

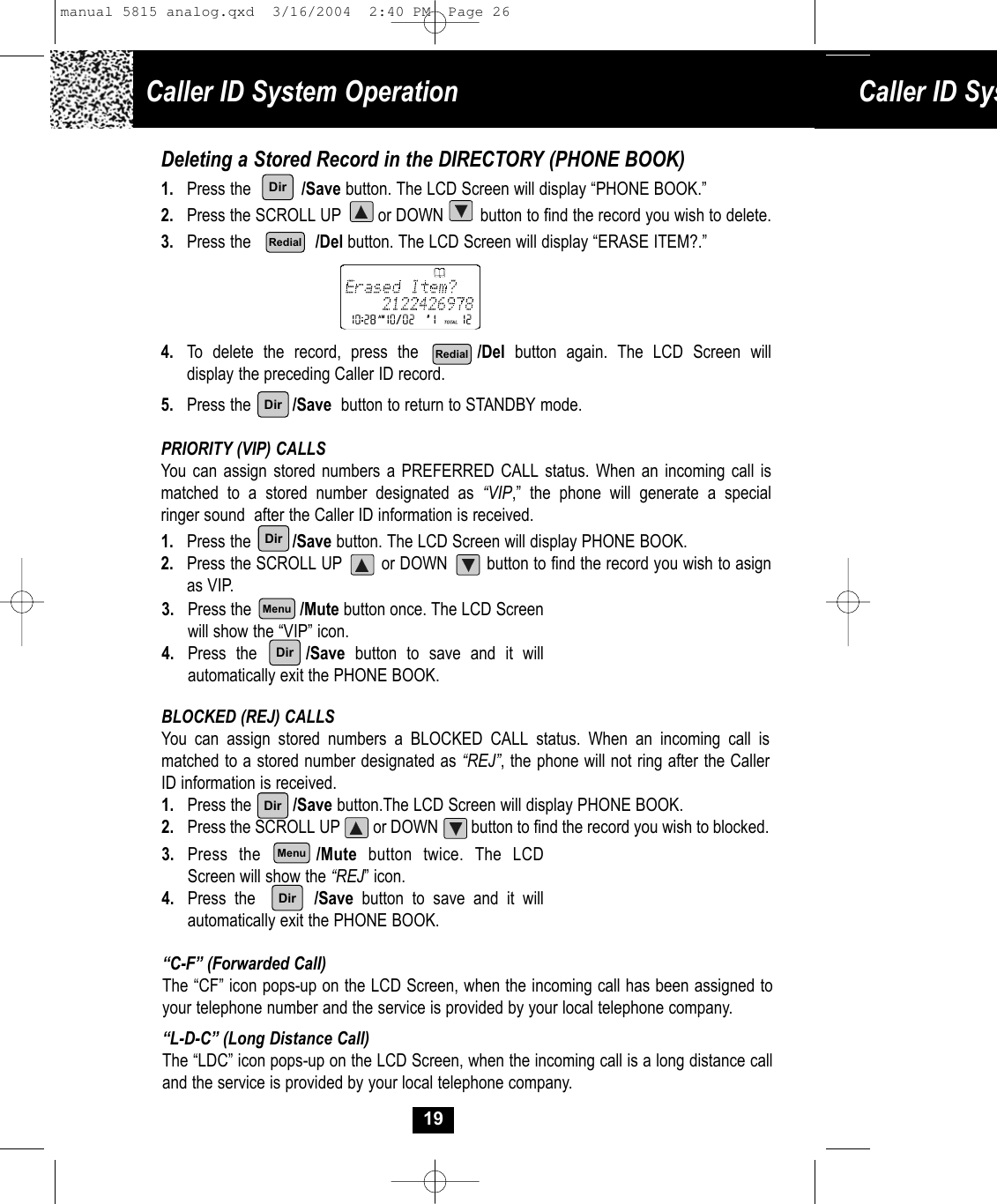

3. Press the /Mute button once. The LCD Screenwill show the “VIP” icon.4. Press the /Save button to save and it willautomatically exit the PHONE BOOK. Caller ID System Operation Caller ID Sys19Deleting a Stored Record in the DIRECTORY (PHONE BOOK)1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”2. Press the SCROLL UP or DOWN button to find the record you wish to delete.3. Press the /Del button. The LCD Screen will display “ERASE ITEM?.”4. To delete the record, press the /Del button again. The LCD Screen will display the preceding Caller ID record.5. Press the /Save button to return to STANDBY mode.PRIORITY (VIP) CALLSYou can assign stored numbers a PREFERRED CALL status. When an incoming call ismatched to a stored number designated as “VIP,” the phone will generate a special ringer sound after the Caller ID information is received.1. Press the /Save button. The LCD Screen will display PHONE BOOK.2. Press the SCROLL UP or DOWN button to find the record you wish to asign as VIP.BLOCKED (REJ) CALLSYou can assign stored numbers a BLOCKED CALL status. When an incoming call is matched to a stored number designated as “REJ”, the phone will not ring after the CallerID information is received.1. Press the /Save button.The LCD Screen will display PHONE BOOK.2. Press the SCROLL UP or DOWN button to find the record you wish to blocked.“C-F” (Forwarded Call)The “CF” icon pops-up on the LCD Screen, when the incoming call has been assigned to your telephone number and the service is provided by your local telephone company.“L-D-C” (Long Distance Call)The “LDC” icon pops-up on the LCD Screen, when the incoming call is a long distance call and the service is provided by your local telephone company.DirDirRedialRedialDirMenuDir3. Press the /Mute button twice. The LCDScreen will show the “REJ” icon.4. Press the /Save button to save and it willautomatically exit the PHONE BOOK. DirMenuDirmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 26

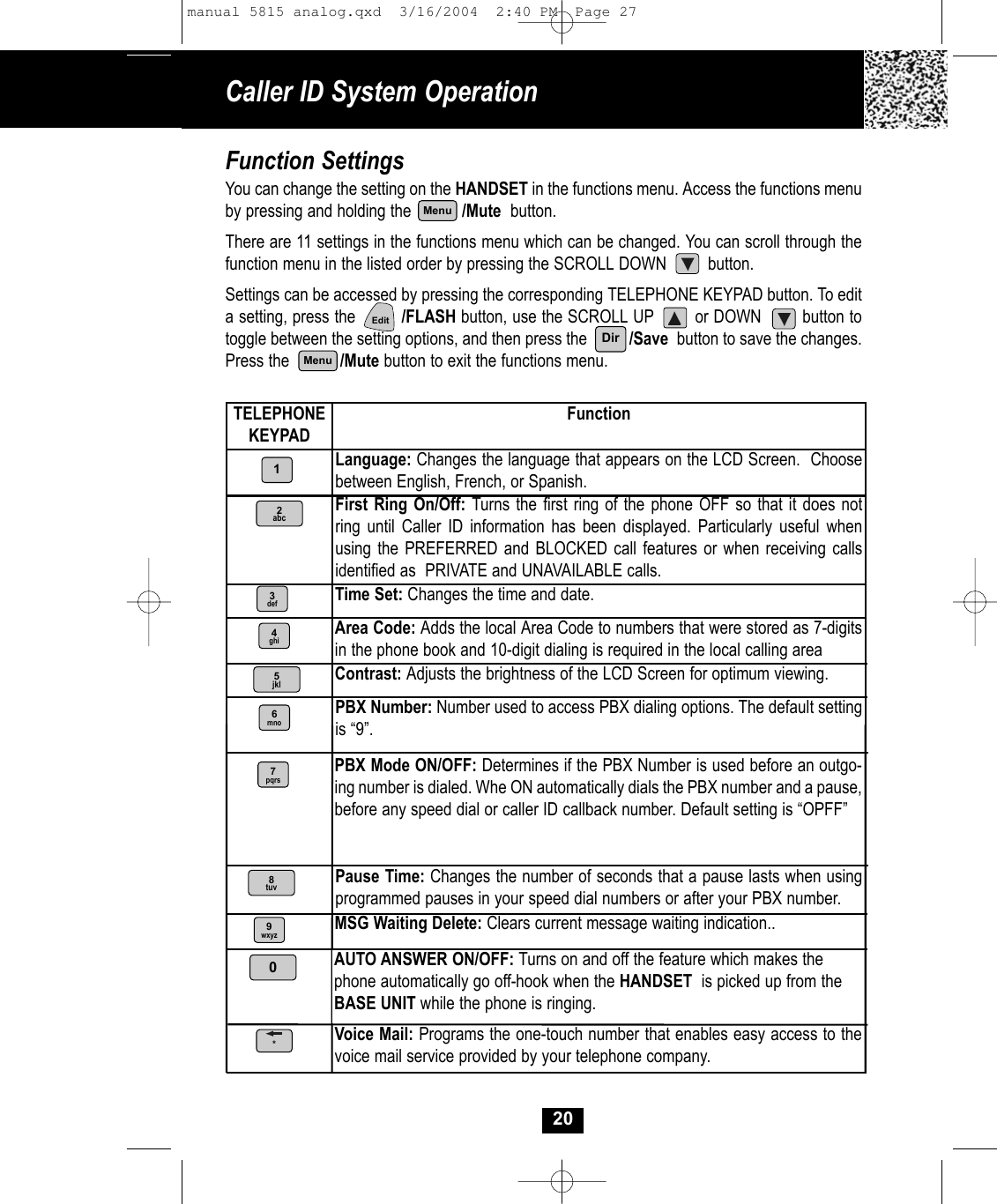

Caller ID System Operation20Function SettingsYou can change the setting on the HANDSET in the functions menu. Access the functions menuby pressing and holding the /Mute button.There are 11 settings in the functions menu which can be changed. You can scroll through thefunction menu in the listed order by pressing the SCROLL DOWN button. Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit a setting, press the /FLASH button, use the SCROLL UP or DOWN button to toggle between the setting options, and then press the /Save button to save the changes.Press the /Mute button to exit the functions menu.TELEPHONEKEYPAD FunctionLanguage: Changes the language that appears on the LCD Screen. Choosebetween English, French, or Spanish.First Ring On/Off: Turns the first ring of the phone OFF so that it does not ring until Caller ID information has been displayed. Particularly useful whenusing the PREFERRED and BLOCKED call features or when receiving calls identified as PRIVATE and UNAVAILABLE calls.Time Set: Changes the time and date.Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.12abc3def4ghi5jklMenuMenuEditPBX Number: Number used to access PBX dialing options. The default settingis “9”.PBX Mode ON/OFF: Determines if the PBX Number is used before an outgo-ing number is dialed. Whe ON automatically dials the PBX number and a pause,before any speed dial or caller ID callback number. Default setting is “OPFF”Pause Time: Changes the number of seconds that a pause lasts when usingprogrammed pauses in your speed dial numbers or after your PBX number.Voice Mail: Programs the one-touch number that enables easy access to thevoice mail service provided by your telephone company.MSG Waiting Delete: Clears current message waiting indication..Area Code: Adds the local Area Code to numbers that were stored as 7-digitsin the phone book and 10-digit dialing is required in the local calling area8tuv6mno7pqrs9wxyz0DirAUTO ANSWER ON/OFF: Turns on and off the feature which makes thephone automatically go off-hook when the HANDSET is picked up from theBASE UNIT while the phone is ringing.*manual 5815 analog.qxd 3/16/2004 2:40 PM Page 27
Caller ID System Operation Caller ID Sys21NOTE: At any time during options programming you can quit and the settings that you have changed will be saved. Press the /Mute button to quit the options menu or let the options programming time out by not pressing any TELEPHONE KEYPAD buttons for 20 seconds.A. Changing the Language1. Press and hold the /Menu button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the /FLASH button to change the setting. “ENGLISH” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH, ESPANOL, and FRANCAIS.5. When the desired setting is displayed, press the /Save button to save the setting. A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBY mode.B. Turning the FIRST RING ON or OFF1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the /FLASH button to change the setting. “On” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH, ESPANOL, and FRANCAIS.5. When the desired setting is displayed, press the /Save button to save the setting.A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return toSTANDBYmode.MenuEditMenuMenu1EditMenu2abcDirMenuDirmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 28

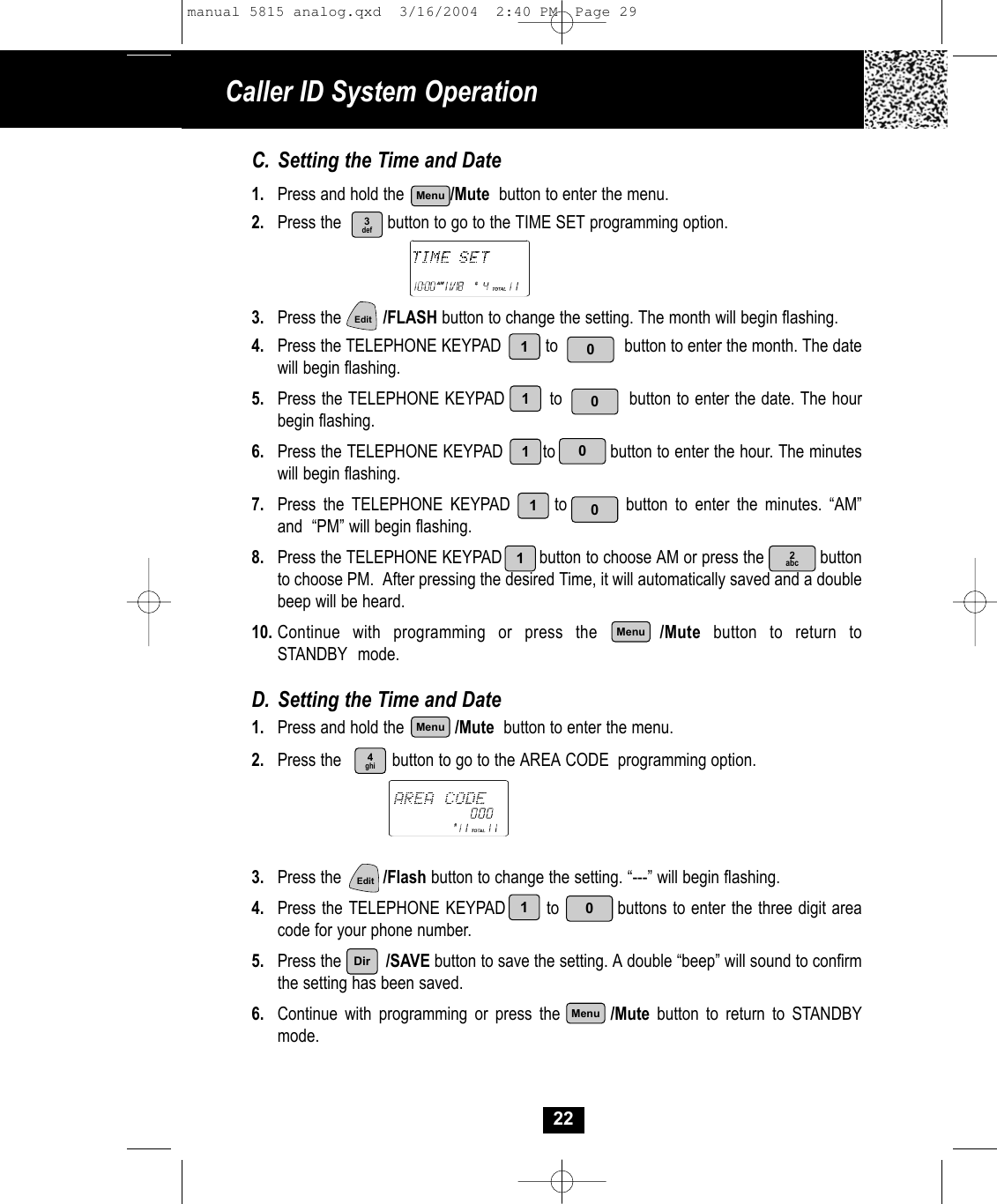

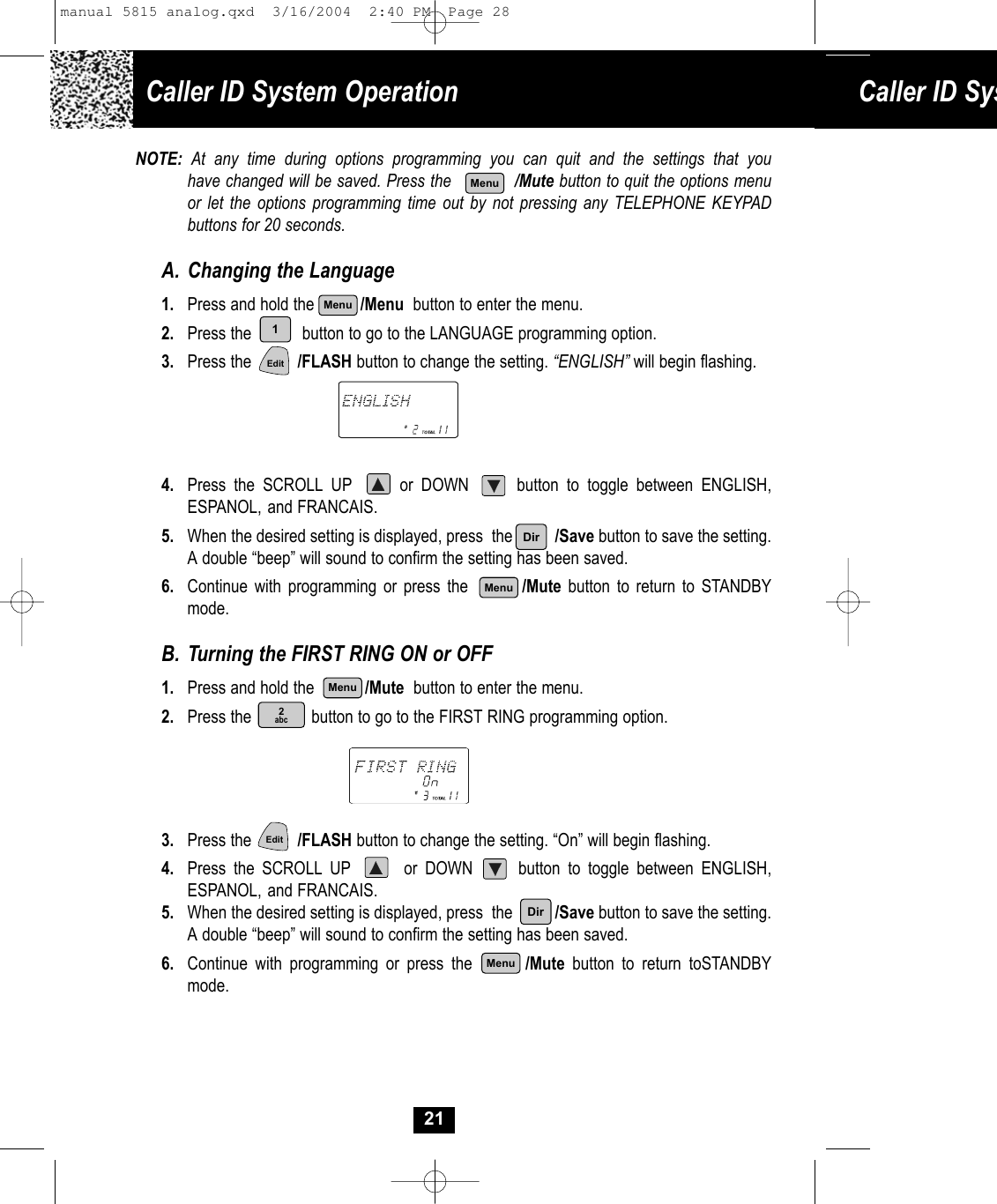

Caller ID System OperationC. Setting the Time and Date1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the TIME SET programming option.3. Press the /FLASH button to change the setting. The month will begin flashing.4. Press the TELEPHONE KEYPAD to button to enter the month. The date will begin flashing.5. Press the TELEPHONE KEYPAD to button to enter the date. The hour begin flashing.6. Press the TELEPHONE KEYPAD to button to enter the hour. The minuteswill begin flashing.7. Press the TELEPHONE KEYPAD to button to enter the minutes. “AM”and “PM” will begin flashing. 8. Press the TELEPHONE KEYPAD button to choose AM or press the button to choose PM. After pressing the desired Time, it will automatically saved and a double beep will be heard.10. Continue with programming or press the /Mute button to return toSTANDBY mode.D. Setting the Time and Date1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the /Flash button to change the setting. “---” will begin flashing.4. Press the TELEPHONE KEYPAD to buttons to enter the three digit areacode for your phone number. 5. Press the /SAVE button to save the setting. A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.22Edit3def0101010112abcMenuMenu4ghiDirMenu01MenuEditmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 29

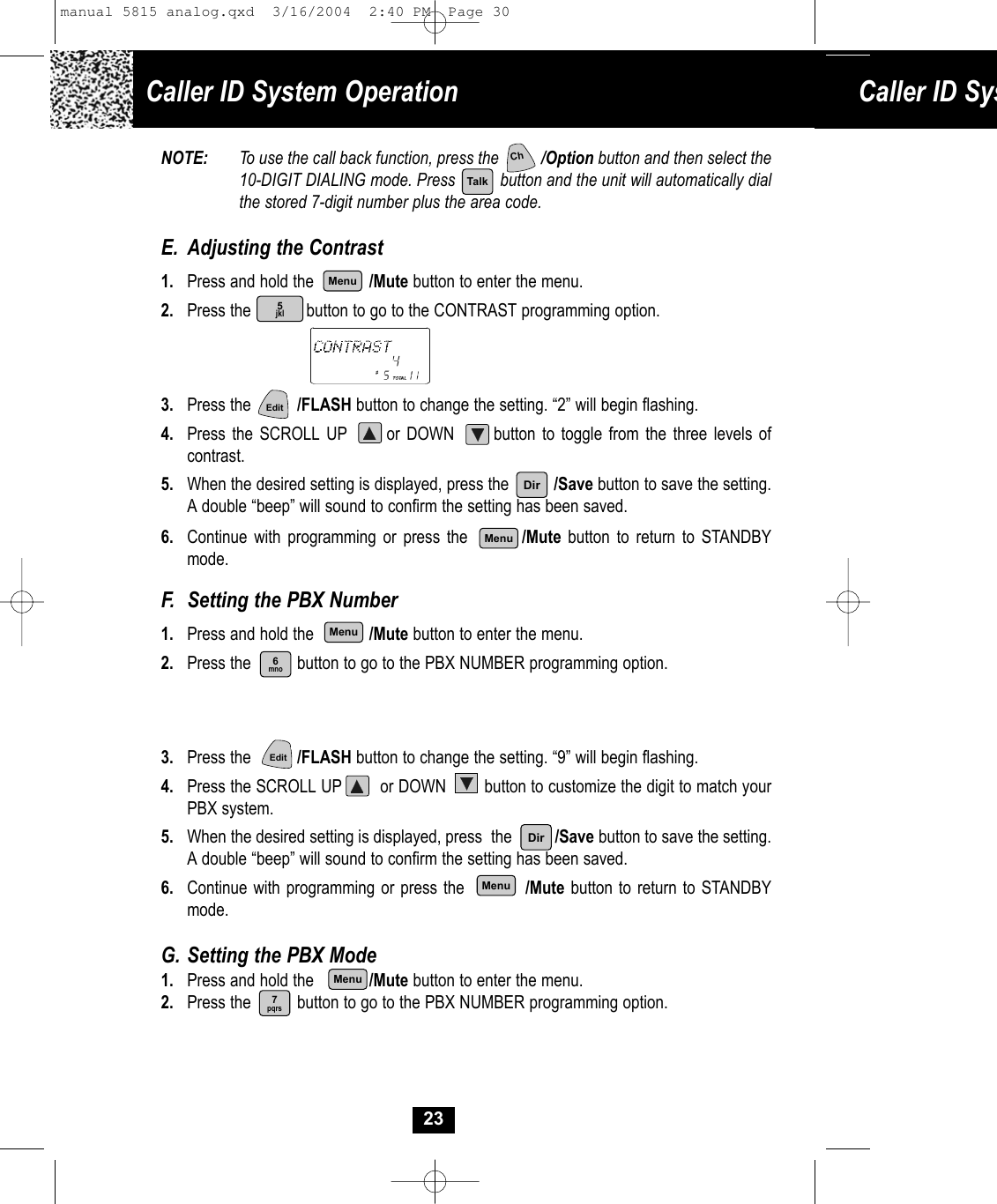

Caller ID System Operation Caller ID Sys23NOTE: To use the call back function, press the /Option button and then select the10-DIGIT DIALING mode. Press button and the unit will automatically dial the stored 7-digit number plus the area code.E. Adjusting the Contrast1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the /FLASH button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle from the three levels ofcontrast.5. When the desired setting is displayed, press the /Save button to save the setting.A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.F. Setting the PBX Number1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the /FLASH button to change the setting. “9” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match your PBX system.5. When the desired setting is displayed, press the /Save button to save the setting.A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.G. Setting the PBX Mode1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.5jkl6mno7pqrsEditMenuEditMenuMenuTalkDirMenuDirMenuChmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 30

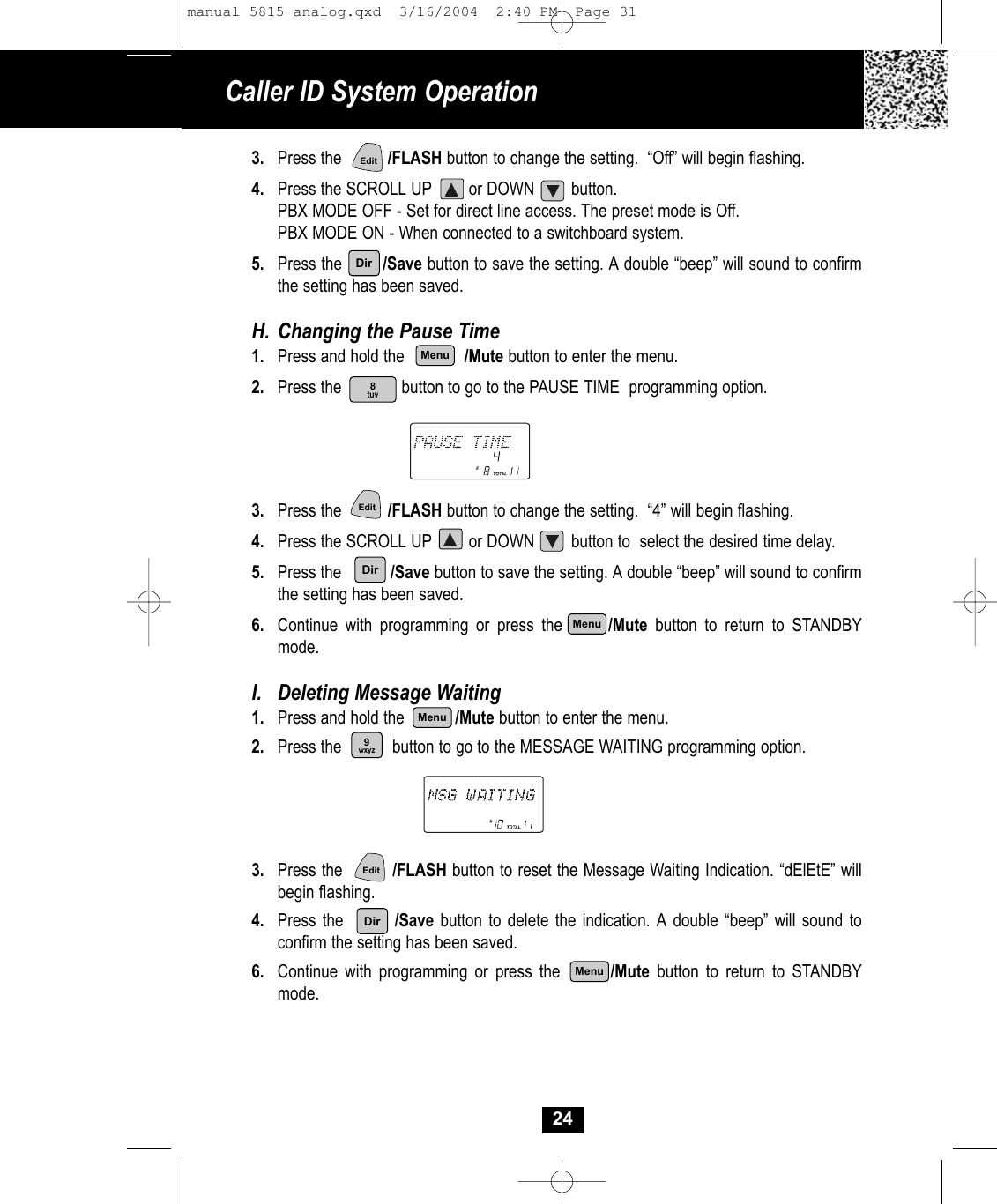

Caller ID System Operation243. Press the /FLASH button to change the setting. “Off” will begin flashing.4. Press the SCROLL UP or DOWN button.PBX MODE OFF - Set for direct line access. The preset mode is Off.PBX MODE ON - When connected to a switchboard system.5. Press the /Save button to save the setting. A double “beep” will sound to confirm the setting has been saved.H. Changing the Pause Time1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the PAUSE TIME programming option.3. Press the /FLASH button to change the setting. “4” will begin flashing.4. Press the SCROLL UP or DOWN button to select the desired time delay.5. Press the /Save button to save the setting. A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.I. Deleting Message Waiting1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the /FLASH button to reset the Message Waiting Indication. “dElEtE” will begin flashing.4. Press the /Save button to delete the indication. A double “beep” will sound toconfirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.8tuv9wxyzMenuEditMenuEditEditDirDirMenuDirMenumanual 5815 analog.qxd 3/16/2004 2:40 PM Page 31

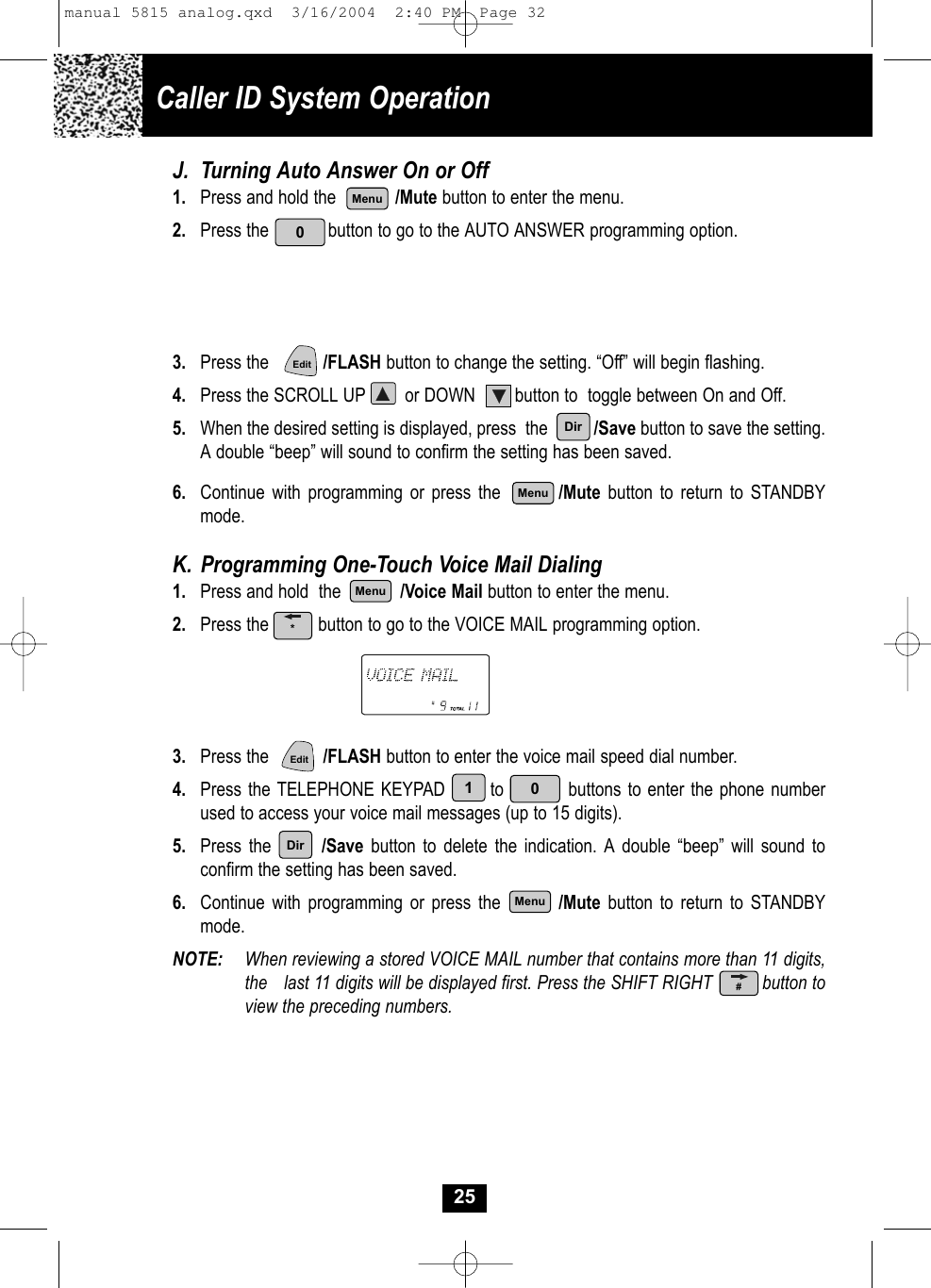

Caller ID System OperationJ. Turning Auto Answer On or Off1. Press and hold the /Mute button to enter the menu.2. Press the button to go to the AUTO ANSWER programming option.3. Press the /FLASH button to change the setting. “Off” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between On and Off.5. When the desired setting is displayed, press the /Save button to save the setting.A double “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.K. Programming One-Touch Voice Mail Dialing1. Press and hold the /Voice Mail button to enter the menu.2. Press the button to go to the VOICE MAIL programming option.3. Press the /FLASH button to enter the voice mail speed dial number.4. Press the TELEPHONE KEYPAD to buttons to enter the phone number used to access your voice mail messages (up to 15 digits).5. Press the /Save button to delete the indication. A double “beep” will sound toconfirm the setting has been saved.6. Continue with programming or press the /Mute button to return to STANDBYmode.NOTE: When reviewing a stored VOICE MAIL number that contains more than 11 digits, the last 11 digits will be displayed first. Press the SHIFT RIGHT button toview the preceding numbers.250MenuMenuMenuEdit01EditDirDirMenu*#manual 5815 analog.qxd 3/16/2004 2:40 PM Page 32

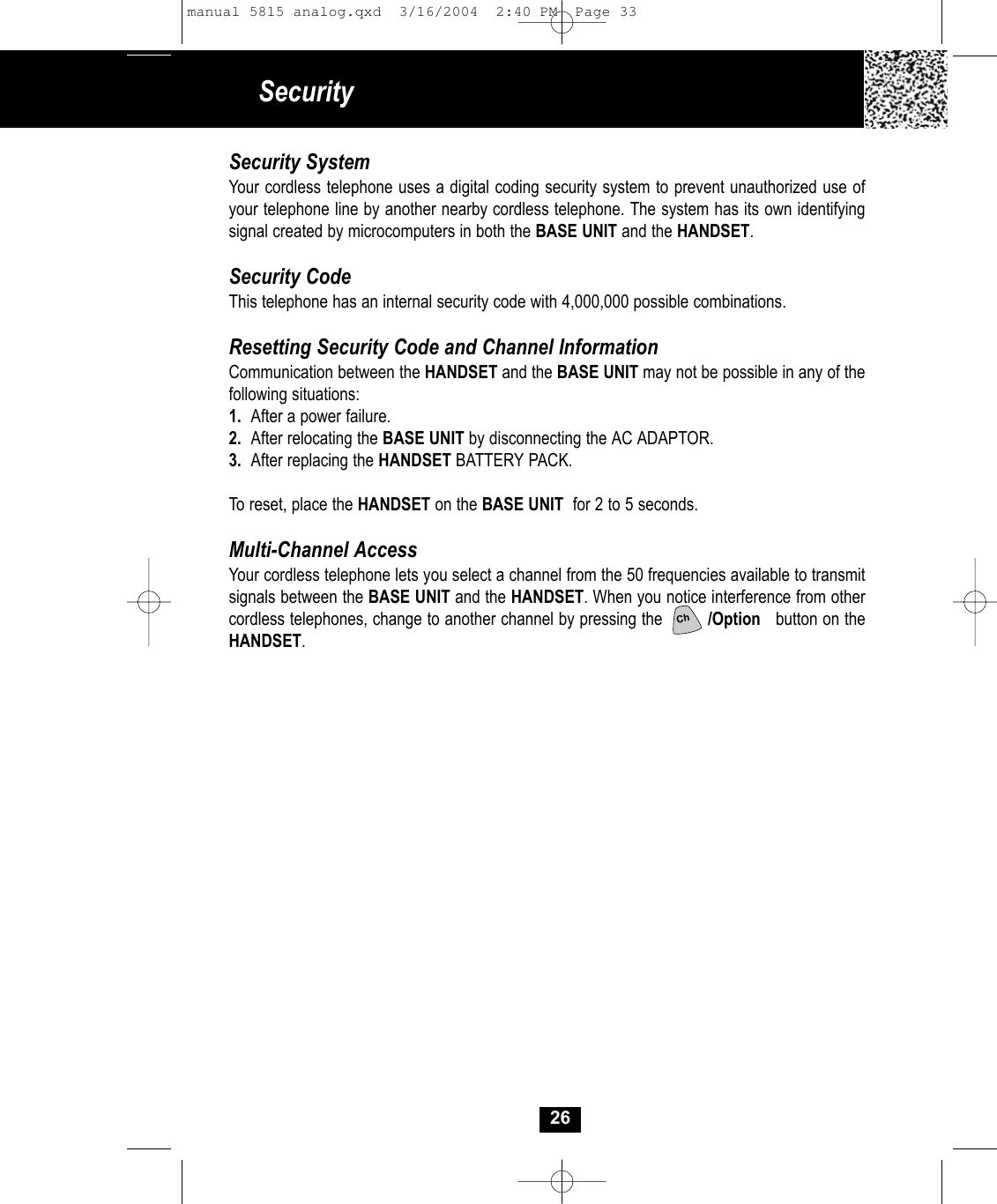

Security26Security SystemYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.Security Code This telephone has an internal security code with 4,000,000 possible combinations. Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in any of the following situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.Multi-Channel AccessYour cordless telephone lets you select a channel from the 50 frequencies available to transmitsignals between the BASE UNIT and the HANDSET. When you notice interference from other cordless telephones, change to another channel by pressing the /Option button on theHANDSET.Chmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 33
27Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B658 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES:1. During a power interruption, the BASE UNIT does not operate, and a phone conversation cannot be made on the HANDSET.2. To ensure your phone charges properly, place the HANDSET securely TELEPHONE KEYPAD face up on the BASE UNIT.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times using the built-in charger in the BASE UNIT.When the LCD Screen display “LOW BATTERY,” the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”Once subjected to a regular short discharging routine, the BATTERY PACK assumes the discharging pattern it was subjected to. This causes rapid discharging thereby shortening theBATTERY PACK charge span. If you believe your BATTERY PACK has developed a “MEMORY” condition, do not charge the HANDSET until “LOW BATTERY” appear on the LCDScreen. When “LOW BATTERY” appears on the LCD Screen, then charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.Recharging the BATTERY PACKmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 34

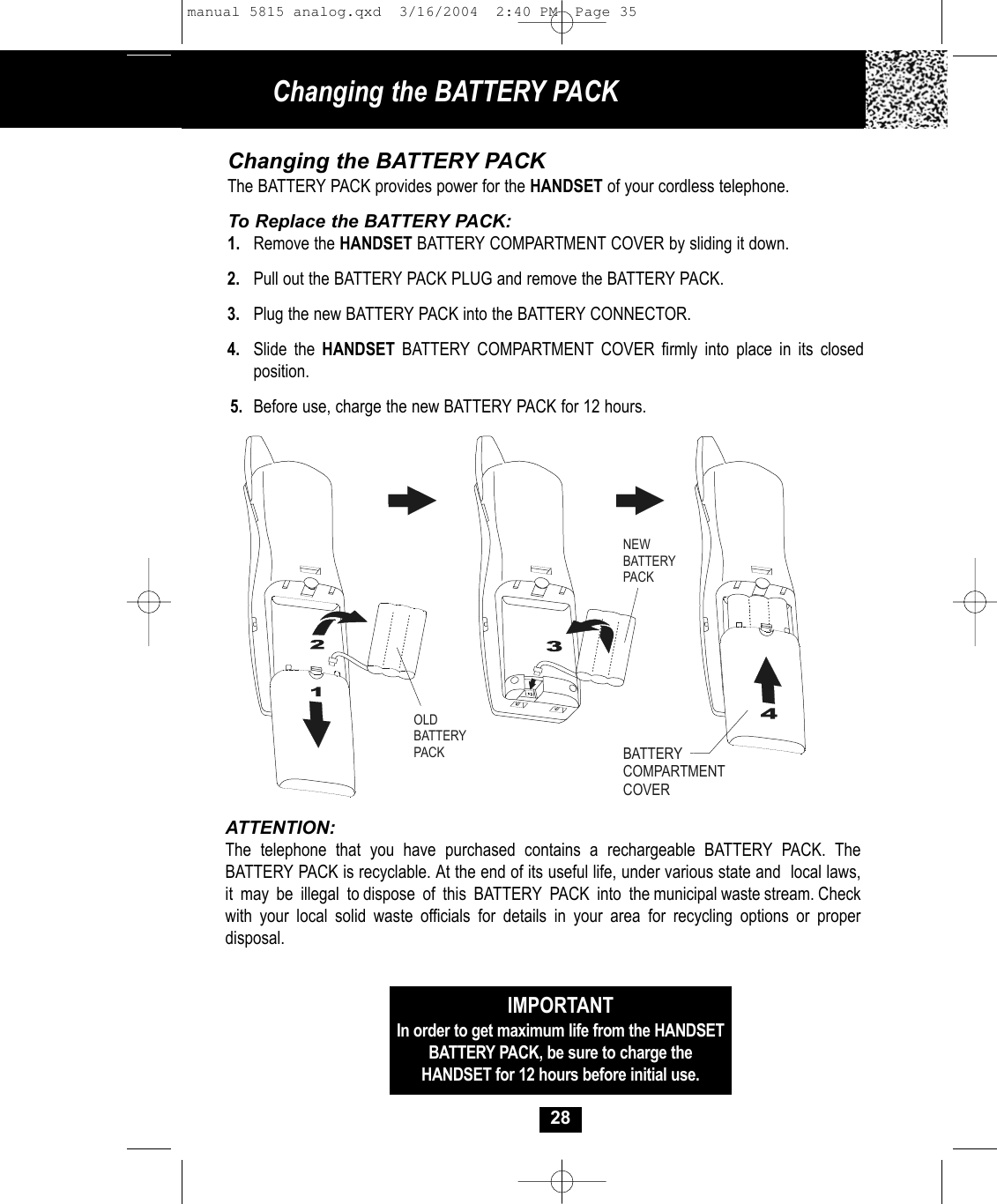

Changing the BATTERY PACK 28Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.5. Before use, charge the new BATTERY PACK for 12 hours.ATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Checkwith your local solid waste officials for details in your area for recycling options or proper disposal.OLDBATTERY PACKNEWBATTERY PACKBATTERY COMPARTMENTCOVERIMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.manual 5815 analog.qxd 3/16/2004 2:40 PM Page 35

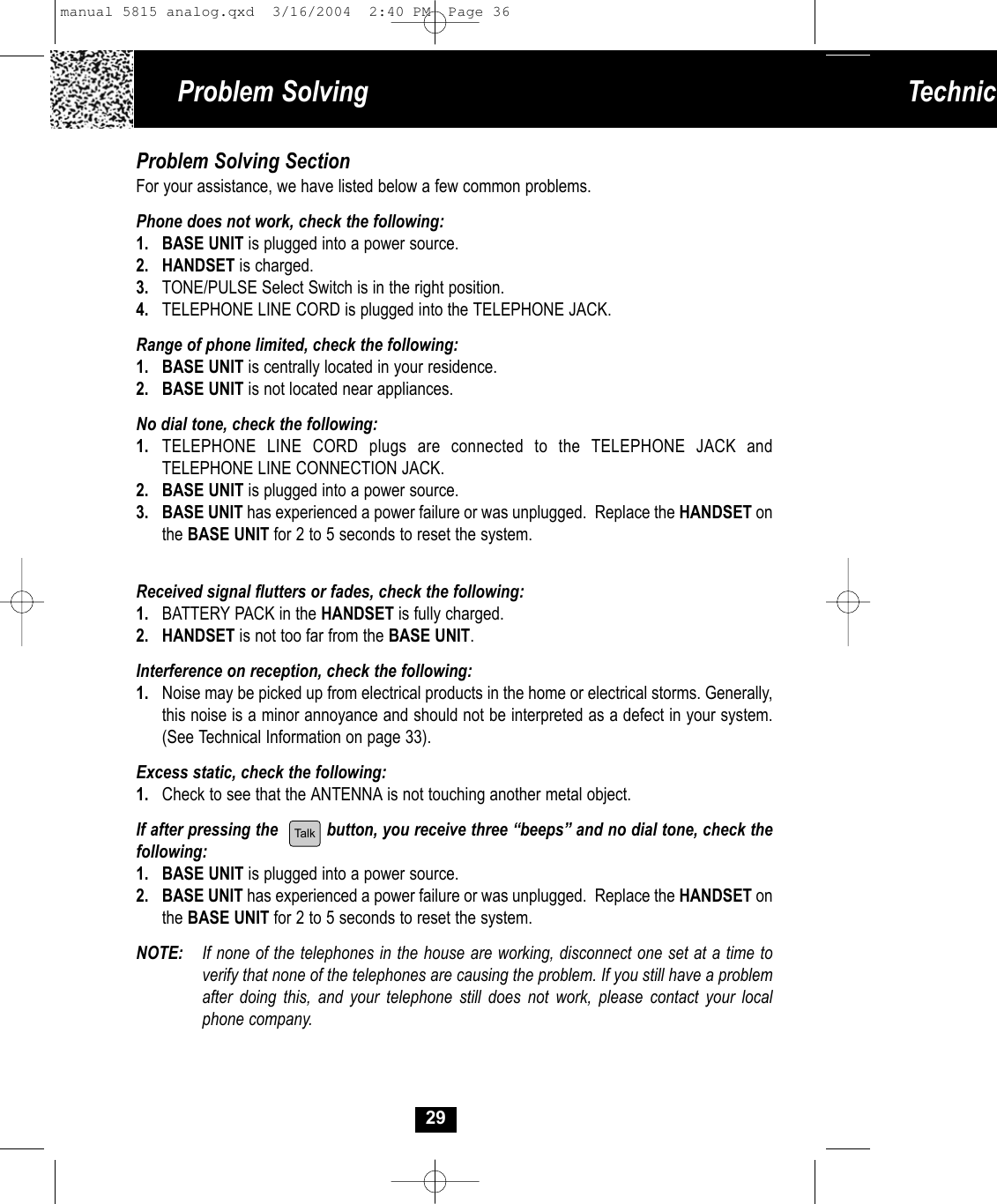

Technic29Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.3. BASE UNIT has experienced a power failure or was unplugged. Replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this noise is a minor annoyance and should not be interpreted as a defect in your system. (See Technical Information on page 33).Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing: 1. BASE UNIT is plugged into a power source.2. BASE UNIT has experienced a power failure or was unplugged. Replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.NOTE: If none of the telephones in the house are working, disconnect one set at a time toverify that none of the telephones are causing the problem. If you still have a problem after doing this, and your telephone still does not work, please contact your local phone company.Problem SolvingTalkmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 36

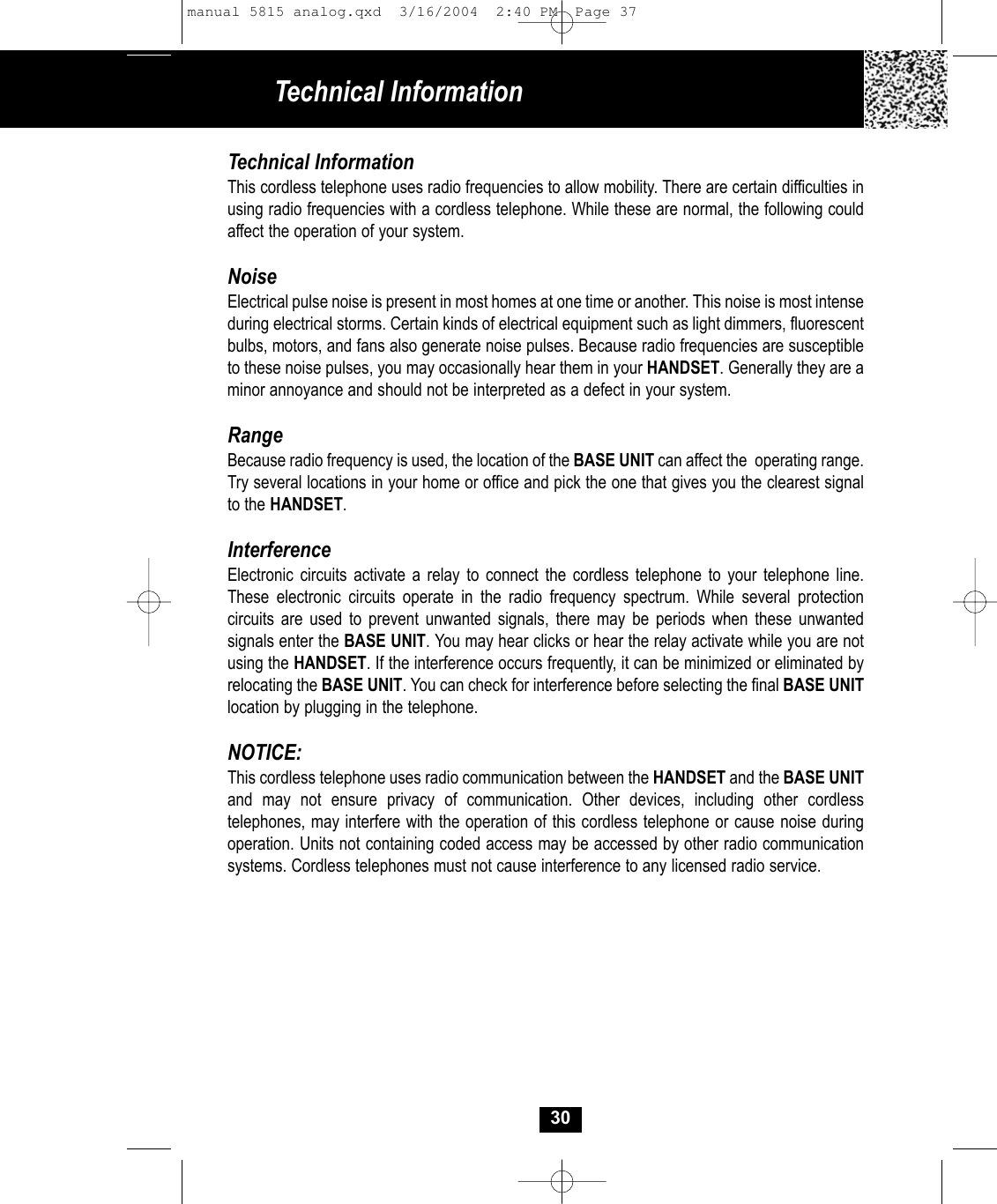

Technical Information30Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are aminor annoyance and should not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the operating range. Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protection circuits are used to prevent unwanted signals, there may be periods when these unwanted signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and the BASE UNITand may not ensure privacy of communication. Other devices, including other cordless telephones, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communication systems. Cordless telephones must not cause interference to any licensed radio service.manual 5815 analog.qxd 3/16/2004 2:40 PM Page 37

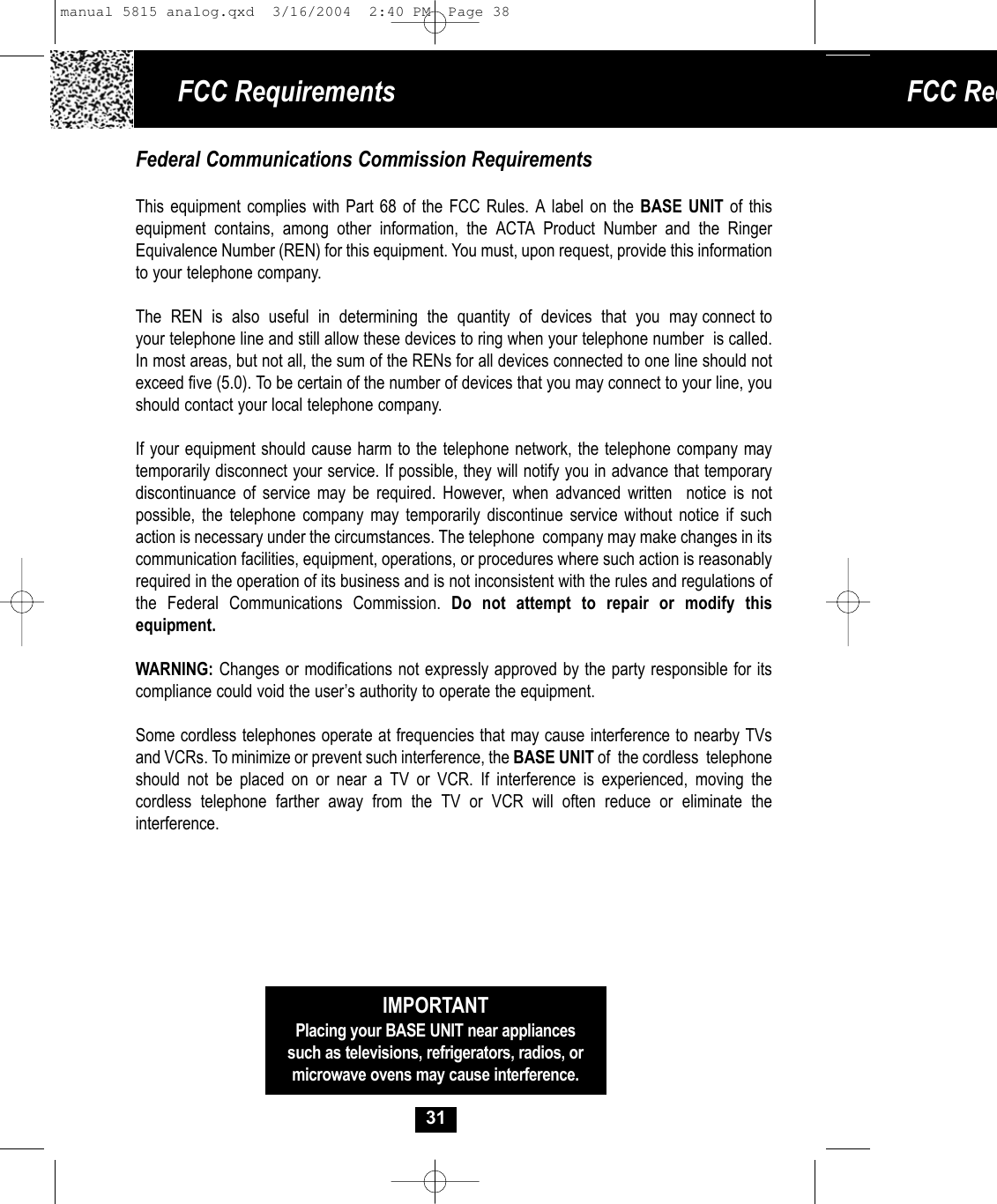

FCC Req31IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.Federal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipment contains, among other information, the ACTA Product Number and the RingerEquivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connect toyour telephone line and still allow these devices to ring when your telephone number is called.In most areas, but not all, the sum of the RENs for all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, they will notify you in advance that temporarydiscontinuance of service may be required. However, when advanced written notice is not possible, the telephone company may temporarily discontinue service without notice if suchaction is necessary under the circumstances. The telephone company may make changes in itscommunication facilities, equipment, operations, or procedures where such action is reasonablyrequired in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications Commission. Do not attempt to repair or modify this equipment. WARNING: Changes or modifications not expressly approved by the party responsible for its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TVsand VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.FCC Requirements manual 5815 analog.qxd 3/16/2004 2:40 PM Page 38

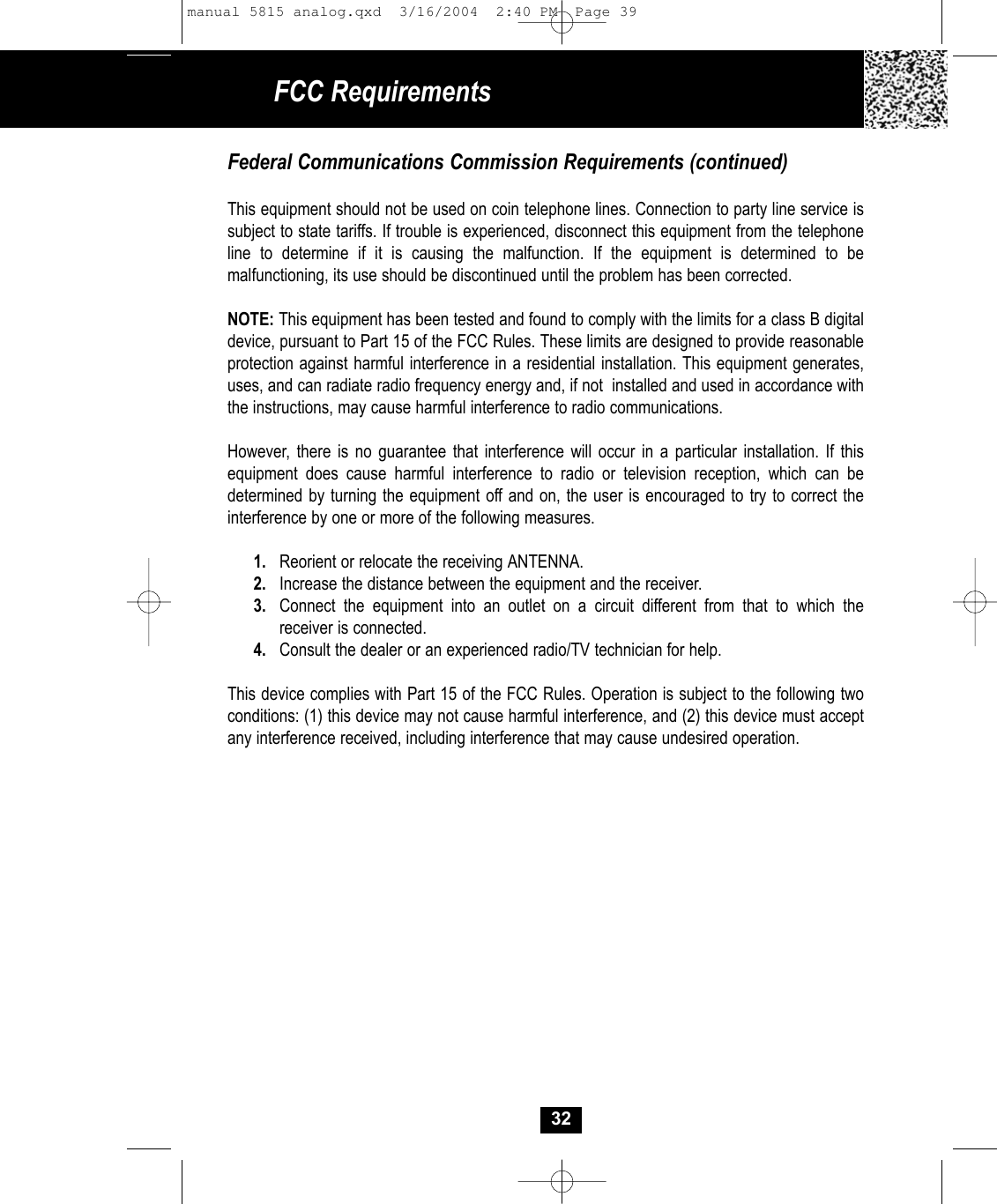

FCC RequirementsFederal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning, its use should be discontinued until the problem has been corrected.NOTE: This equipment has been tested and found to comply with the limits for a class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.32manual 5815 analog.qxd 3/16/2004 2:40 PM Page 39
Warranty Warranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding your product. There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other expressed warranties. This warranty begins when you purchase the telephone and continues for one (1) year unless yousell or rent the telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your original purchase of the telephone. BellSouth Products assumes no responsibility for any special, incidental, or consequential damages. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion andlimitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse, improperinstallation or operation, lack of reasonable care, unauthorized modification, the affixing of anyattachment not provided by BellSouth Products with the telephone and/or loss of parts. This warranty is voided in the event any unauthorized person opens, alters or repairs the telephone.All BellSouth equipment being returned for repair must be suitably packaged. Telephonecompanies use different types of equipment and offer various types of services to customers.BellSouth Products does not warrant that this telephone is compatible with the type ofequipment of any particular telephone company or the services provided by it.33Warrantymanual 5815 analog.qxd 3/16/2004 2:40 PM Page 40

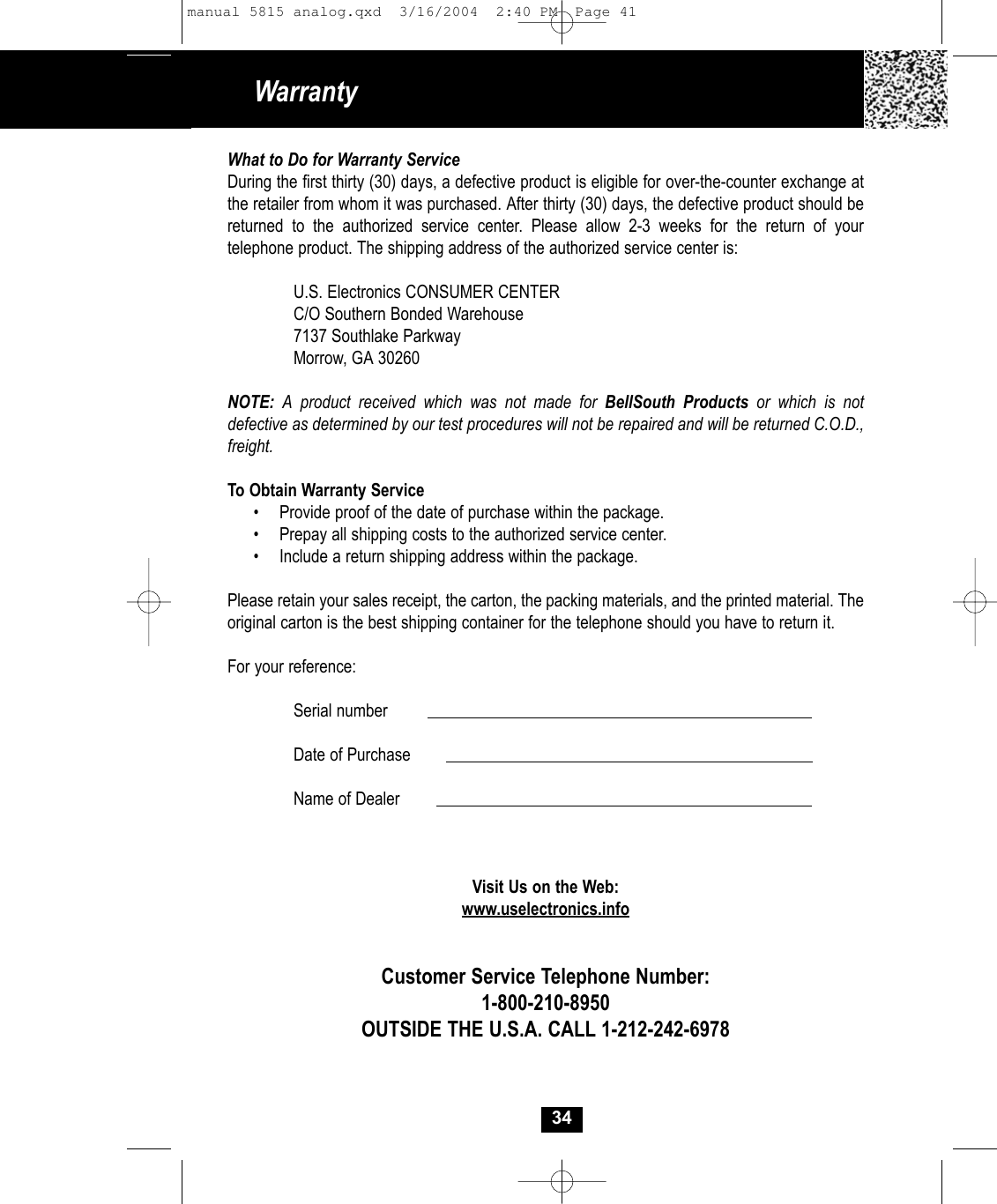

Warranty What to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product. The shipping address of the authorized service center is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is not defective as determined by our test procedures will not be repaired and will be returned C.O.D., freight.To Obtain Warranty Service• Provide proof of the date of purchase within the package.• Prepay all shipping costs to the authorized service center.• Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. The original carton is the best shipping container for the telephone should you have to return it.For your reference:Serial numberDate of PurchaseName of DealerVisit Us on the Web:www.uselectronics.infoCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-697834manual 5815 analog.qxd 3/16/2004 2:40 PM Page 41
Notes35Notesmanual 5815 analog.qxd 3/16/2004 2:40 PM Page 42
Notes36manual 5815 analog.qxd 3/16/2004 2:40 PM Page 43

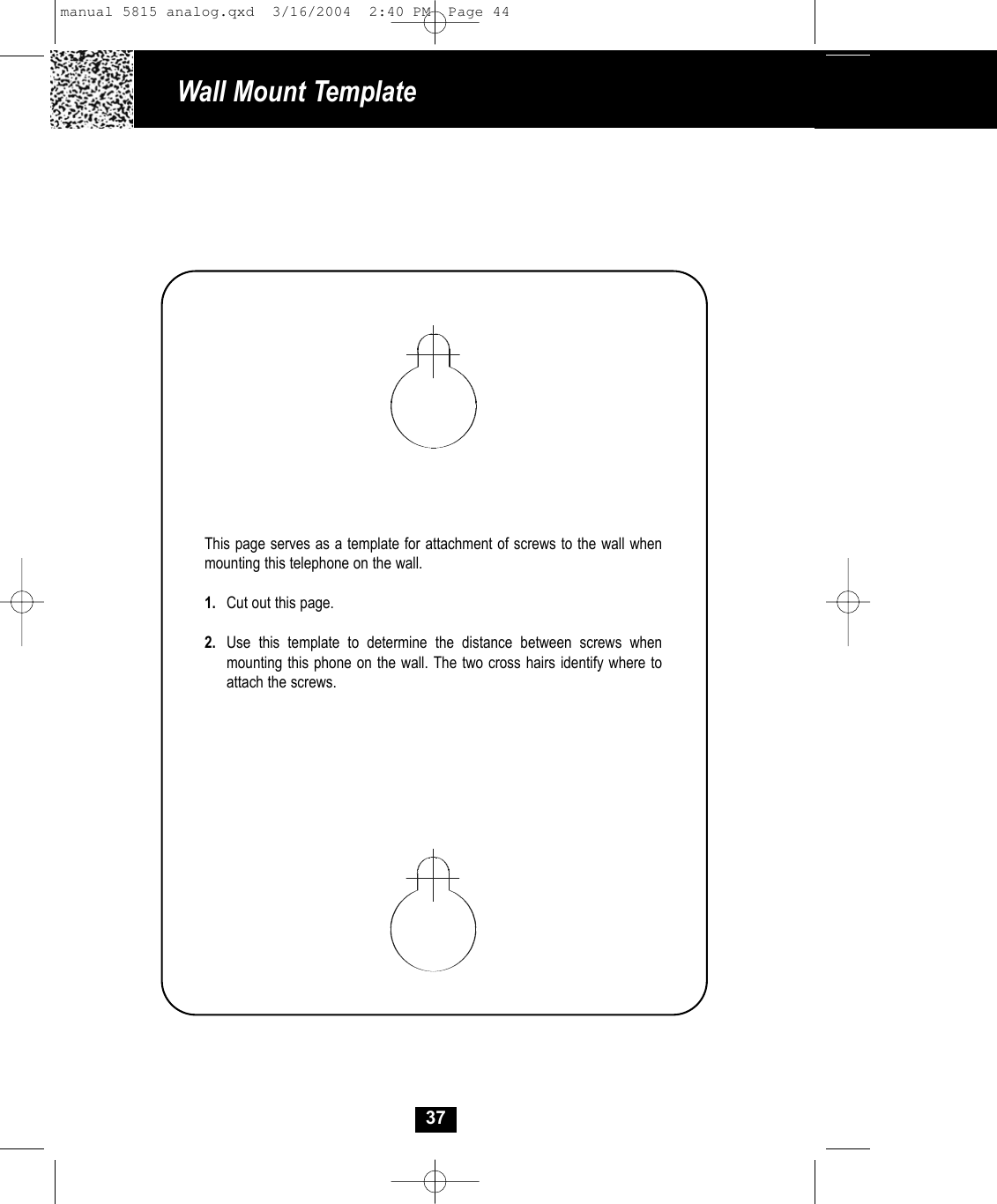

This page serves as a template for attachment of screws to the wall whenmounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screws whenmounting this phone on the wall. The two cross hairs identify where toattach the screws.37Wall Mount Template manual 5815 analog.qxd 3/16/2004 2:40 PM Page 44

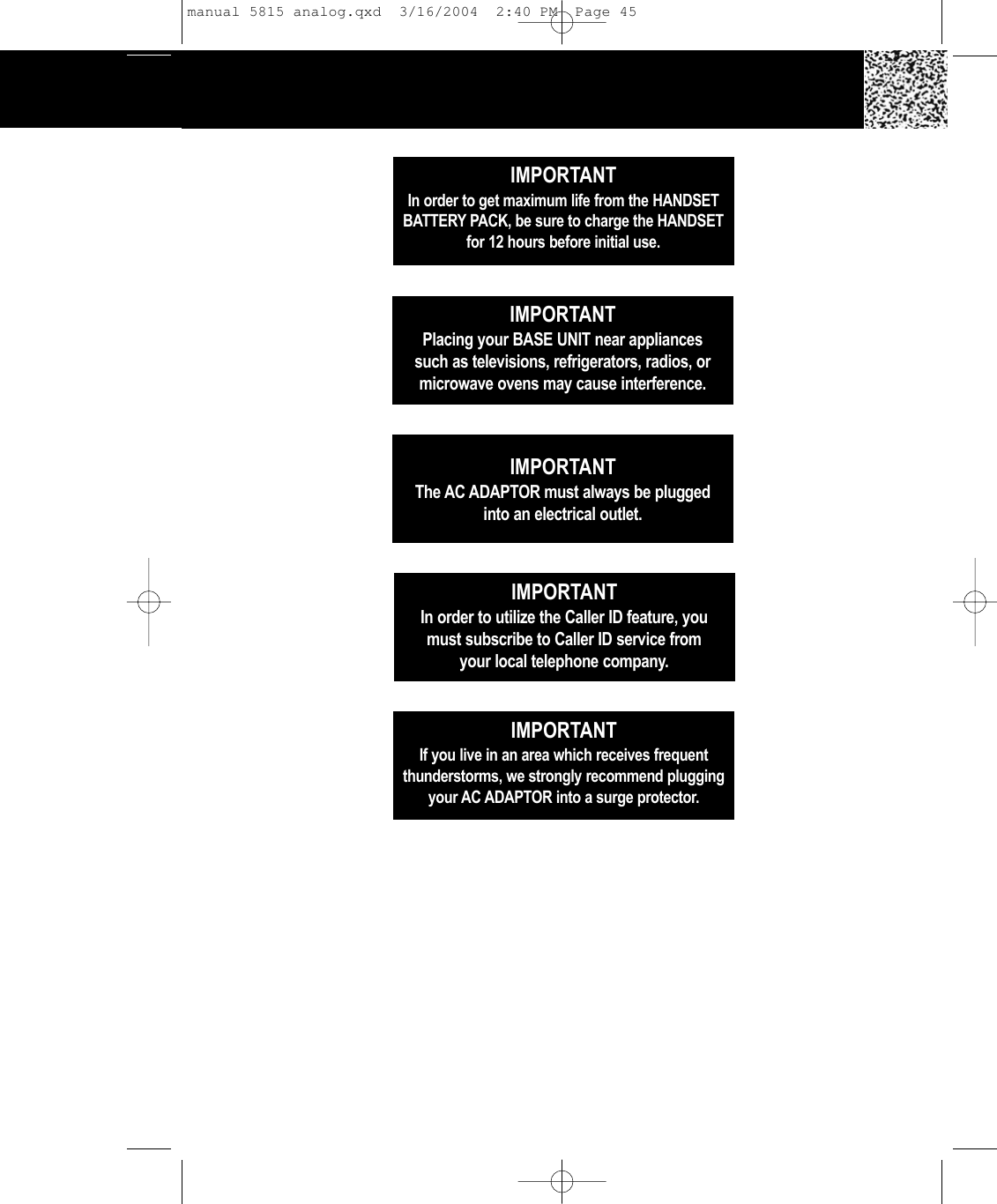

IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.IMPORTANTThe AC ADAPTOR must always be pluggedinto an electrical outlet.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.IMPORTANTIf you live in an area which receives frequent thunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.manual 5815 analog.qxd 3/16/2004 2:40 PM Page 45
Make certain you receive the bestperformance from your telephone.Read this manual first.GH5815 Made in ChinaXXX LDVisit Us on the Web:www.uselectronics.infomanual 5815 analog.qxd 3/16/2004 2:40 PM Page 46
