Lionda Technology Co GH5815BALD04 Analog Cordless Phone User Manual manual 5815 analog
Lionda Technology Co Ltd Analog Cordless Phone manual 5815 analog
Users Manual
5.8GHz Cordless Telephone With
Caller ID/Call Waiting
50 CHANNEL AUTOSCAN
Model GH5815
OWNER’S MANUAL
INSTALLATION AND
OPERATING INSTRUCTIONS
PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
For installation information,
please see “Getting Started”
instructions on page 5 or your
separate Quick Start guide.
Visit Us on the Web:
www.uselectronics.info
© 2004 BellSouth Corporation
Save/Pause
Del
Chan
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 1
Special Features Special Fea
ongratulations on your selection of a quality BellSouth Product. With proper care and
adherence to the set-up and user instructions in this Owner's Manual, this unit will provide
you with years of trouble-free service.
BellSouth is committed to providing quality products that fit your needs. We would like to have any
comments or suggestions you might have on this product. You may mail your comments to:
U.S. Electronics
105 Madison Avenue
New York, NY 10016
When examining your new BellSouth cordless telephone, you will find an array of special features
including:
Filtered Sound™ System - Receives considerably less noise than conventional cordless
telephones because of a special circuit which delivers the clearest possible reception.
50 Channel Autoscan - Press the /Option button on the HANDSET to find and lock on to
the clearest channel for any call.
Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.
TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary)
dialing.
Automated Functions - Redial the last number called and automatic STANDBY mode.
Security - Ensures greater privacy because of a built-in security code with 65,536 possible
combinations that prevents use of your telephone line by another nearby cordless phone.
Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. The
battery low warning tone tells you when the BATTERY PACK needs recharging (See page 27).
Special Services - Use the /Flash button to access special services such as Call Waiting
supplied by your telephone company or company switchboard.
STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call.
When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode
(ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY
mode until you activate the button.
Battery Power Saver - Recharge your BATTERY PACK many times with the built-in CHARGER.
Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum
of five days without the need for recharging. Length of charge depends on frequency of use.
Luminous LCD Screen - The LCD Screen emits light for 10 seconds every time you press any of
the TELEPHONE KEYPAD buttons.
HANDSET Ringer Control Switch - Select the ringer sound level (HI, LOW, OFF).
HANDSET Volume Level - Select the receiver volume level (HI, MID, LOW).
HEADSET JACK - Your telephone can utilize a headset for hands-free communication.
BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.
C
Edit
Talk
Ch
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 2
Special Features
CALLER ID SYSTEM
Multi-Function Large LCD Screen - Shows the number you are dialing, and with Caller ID
service (available through subscription from your local telephone company), displays
information about the caller before you answer the call.
Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that
you can call them with a single key stroke.
Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone who
called. The name, phone number, time and date of the call are recorded. Allows you to return
their calls with a few key strokes.
Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY
(PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen
and a special ring will be heard.
Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY
(PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen
and the ringer will be disabled.
Repeat Call Indicator - Shows if a new incoming call has called more than once.
Unavailable Call Indicator - Advises you that the origin of the incoming call does not support the
Caller ID system.
Call Waiting Service - Displays the name and number of the second caller, if you have subscribed
for Call Waiting service from your local telephone company (see page 13).
Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service and
requested Visual Message Indication from your local telephone company (see page 13).
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 3
HANDSET Controls HANDSET C
10. HANDSET ANTENNA
11. SCROLL UP-DOWN
Button
13. Dir (DIRECTORY)/
SAVE Button
12. CID (CALLER ID)
Button
14. REDIAL/DELETE
Button
16. SHIFT RIGHT Button
17. Ch (CHANNEL)/
OPTION Button
18. Charge Contacts

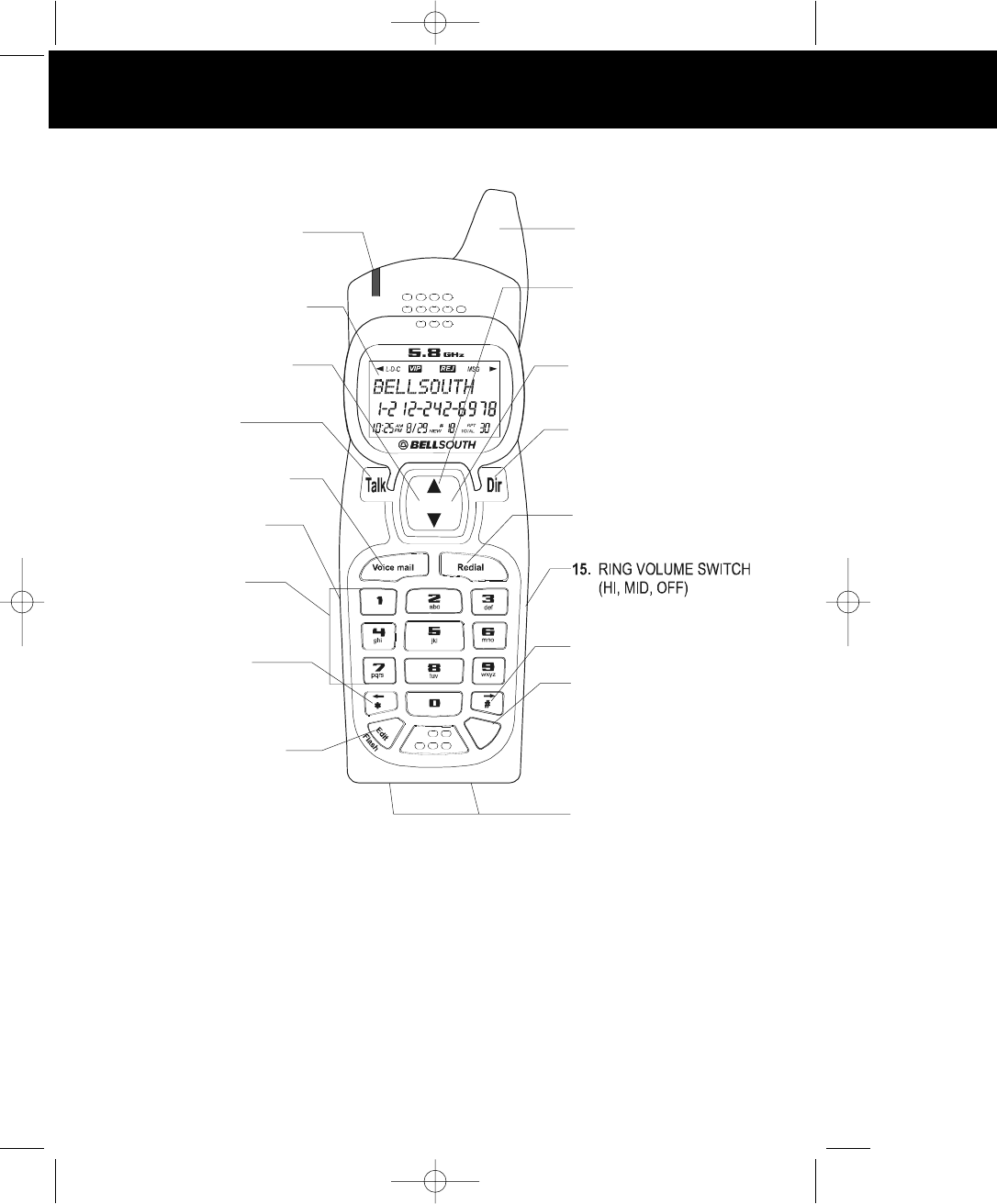

1. NEW CALL/MESSAGE
WAITING LED Indicator
2. LARGE LCD SCREEN
4. TALK Button
3. MENU Button
5. VOICE MAIL Button
6. HEADSET JACK
7. TELEPHONE
KEYPAD
8. SHIFT LEFT/
TEMPORARY
TONE (*) Button
9. EDIT/FLASH Button
1. New Call/Message Waiting Led Indicator: (New Call) Blinks RED to indicate that you have
a new Caller ID call stored in memory. (Message Waiting) Blinks GREEN when receiving a
Message Waiting signal, if you have subscribed to a Voice Mail message service from your
local telephone company.
HANDSET Controls
Delete
Ch
Option
New Call/
Msg Wtg
Menu Cid Save
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 4
HANDSET Controls
2. Large LCD Screen: Shows call information, phone status, prompts and DIRECTORY
(PHONE BOOK) items.
3. /Mute Button: (Menu) Press to access the special functions operation in STANDBY
mode. (Mute) Used to temporarily mute the HANDSET microphone.
4. Button: Press to answer an incoming call or place a call. Press to end a call.
5. Press to automatically dial the Voice Mail Post Code in your area to access your
Voice Mail message
6. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication.
(See page 11 for detail.)
7 TELEPHONE KEYPAD to Buttons: Allows you to make a call depending on
the pressed button. (For TELEPHONE KEYPAD characters, see page 17.)
8. TEMPORARY TONE Button: Press to temporarily change the DIALING mode from
PULSE to TONE for Rotary Service Users. (Press once before entering numbers to access
the answering system or electronic banking services, etc.)
9. /Flash Button: (EDIT) Press to edit listed items. (FLASH) Press to answer a call if
you have Call Waiting.
10. HANDSET ANTENNA
11. SCROLL UP-DOWN Button: Press to move around the large LCD Screen.
12. Button: Used to review Caller ID information stored in memory.
13. (DIRECTORY PHONE BOOK)/SAVE Button: (DIRECTORY) Press to access names
and numbers stored in the DIRECTORY(PHONE BOOK).(See pages 14 to 19 for details.)
(SAVE) Press to save the changes on the listed items.
14. /Delete/Pause Button: (REDIAL) Press to redial the last number you dialed.
(DELETE) Press and hold down to delete items or just press to delete individual characters.
(PAUSE) Press to insert a pause while dialing. (You will need the /Delete/Pause
button to dial numbers which use an alternative Long Distance Access Code.)
15. HANDSET Ring Control (HI, MID, LOW) Switch: Select the receiver ring level (HI, MID,
OFF).
16. SHIFT RIGHT Button: Press to view the right part of the display and move the
cursor right when editing.
17. (CHANNEL)/OPTION Button: (CHANNEL) Press to change the operating channel
when you hear interference. (OPTION) Press to change the displayed telephone number to
7, 10, or 11 digit DIALING mode during Caller ID callback.
18. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We
recommend cleaning the CHARGE CONTACTS periodically with a damp cloth.
Menu
10
Edit
Dir
Redial
Redial
Talk
Voice Mail
*
Cid
Ch
#
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 5
BASE UNIT Controls BASE UNIT C
1. TELEPHONE LINE
CONNECTION JACK
Pg. 4, 6, 13
3. TONE/PULSE
SELECT SWITCH
Pg. 5, 13
2. POWER-IN
CONNECTION JACK
Pg. 5, 6
6. CHARGE TERMINALS
5. BASE UNIT ANTENNA

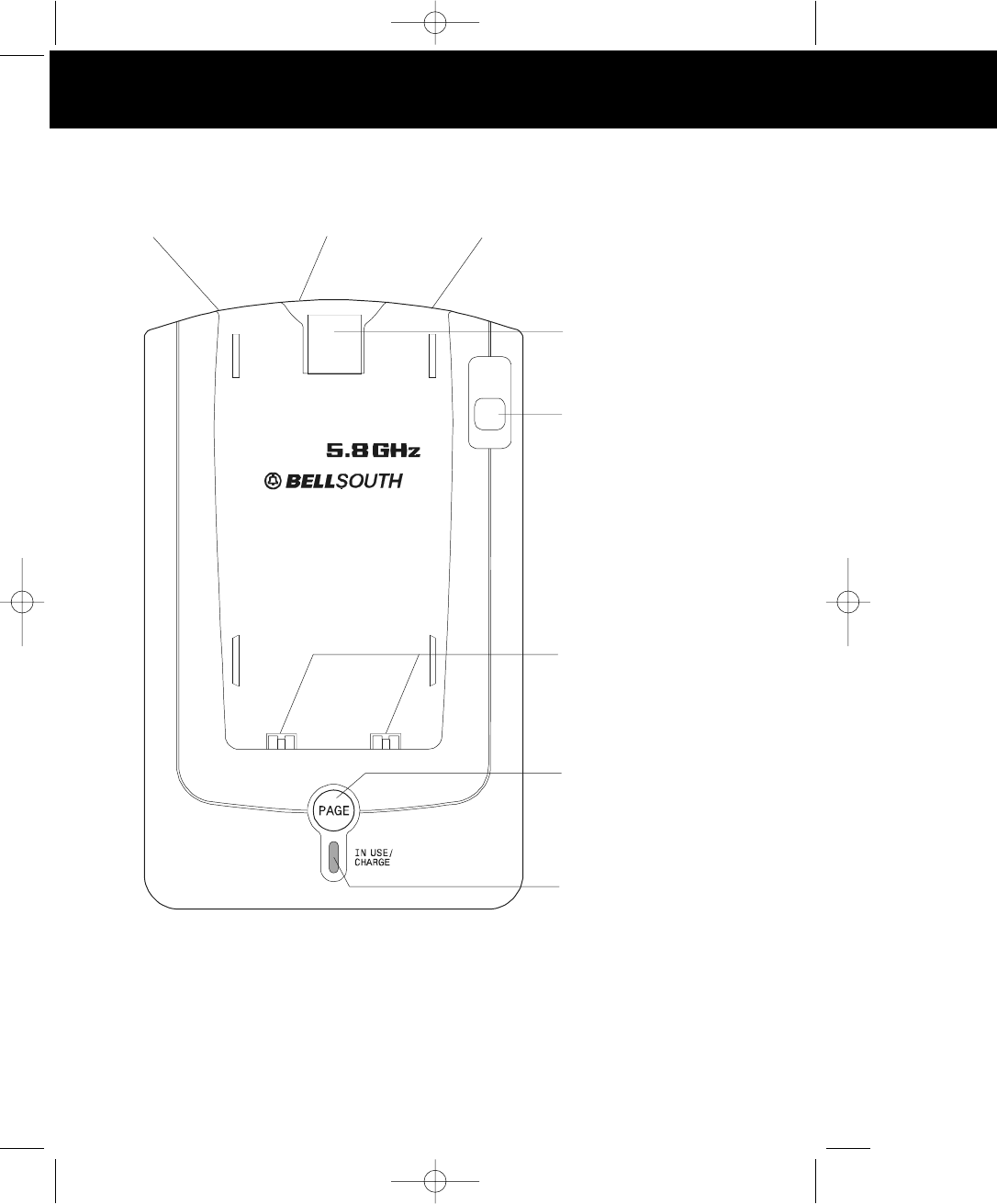

8. IN USE/CHARGE
LED INDICATOR
Pg. 8
7. PAGE BUTTON
4. HANDSET RETAINER
TAB Pg. 6
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 6
BASE UNIT Controls
1. TELEPHONE LINE CONNECTION JACK
2. POWER-IN CONNECTION JACK
3. TONE/PULSE Select Switch
4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall
mounting the telephone.
5. BASE UNIT ANTENNA
6. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For best performance,
clean the CHARGE TERMINALS periodically with a damp cloth.
7. Button: Press to page the HANDSET. Press again to stop.
8. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is in
TALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNIT
for charging.
PAGE
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 7
Contents Contents
Safety Instructions .......................................................................................................... 3
Getting Started.................................................................................................................5

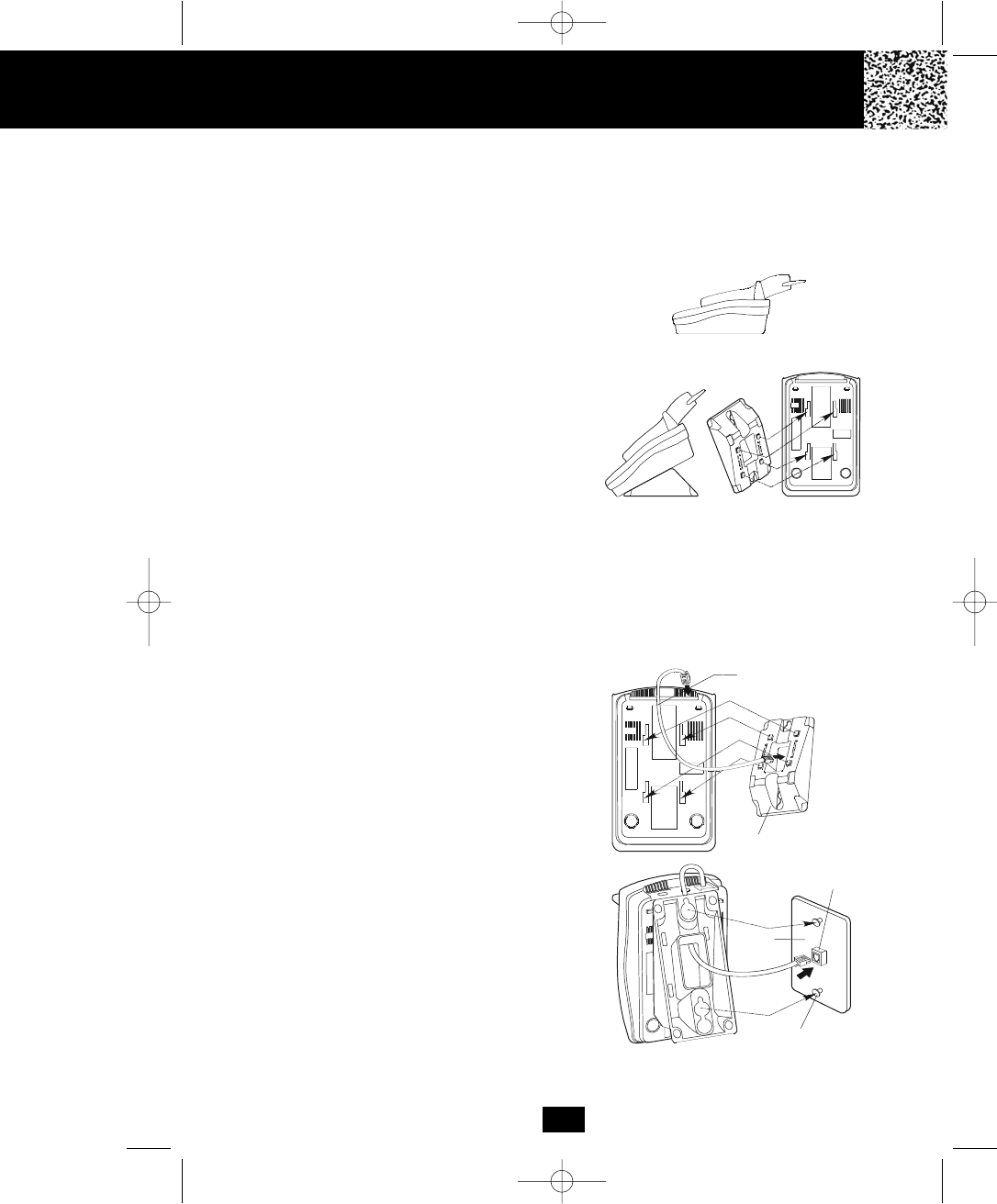

Desk Mounting ................................................................................................................8

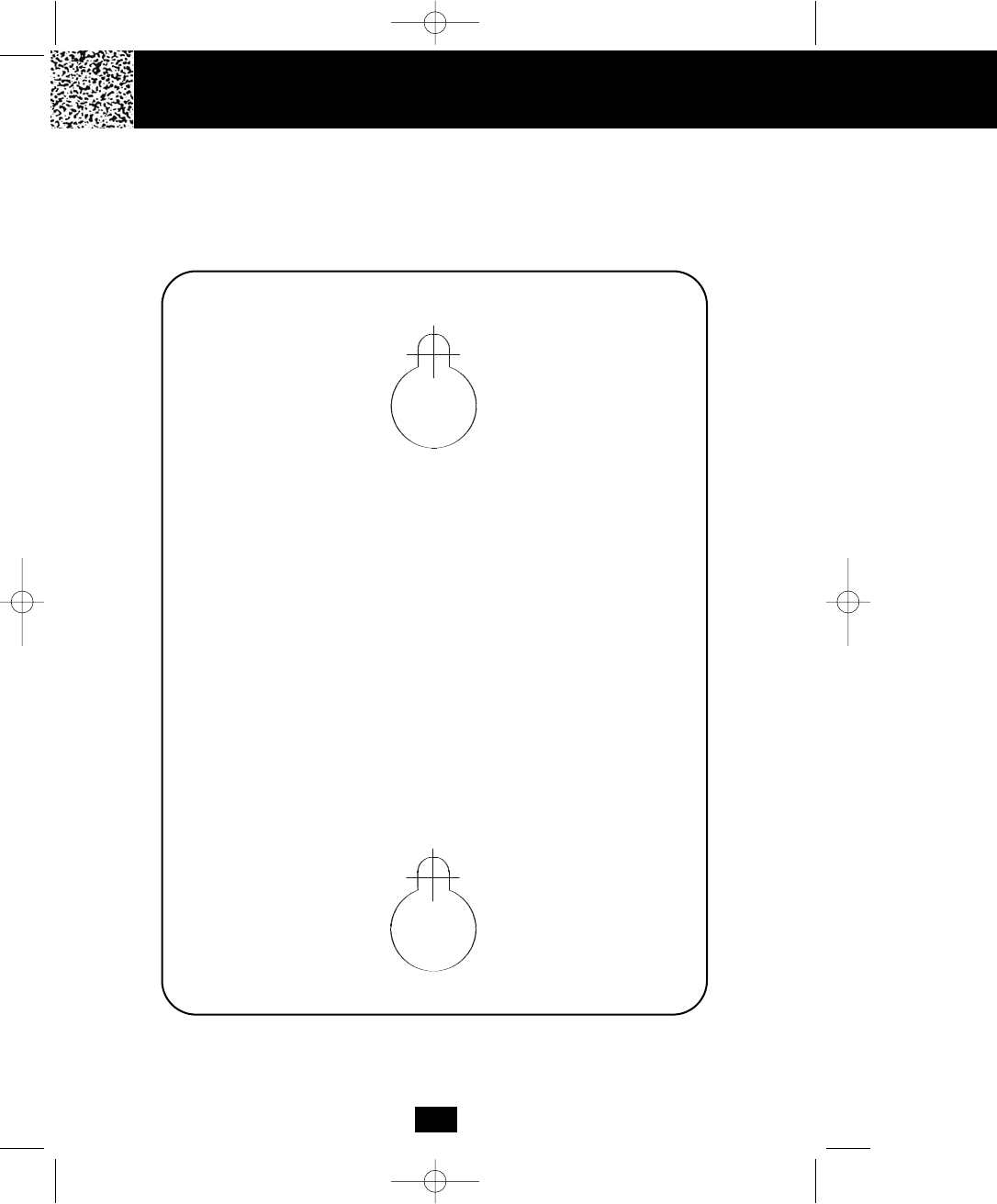

Wall Mounting.................................................................................................................. 8
Cordless Telephone Operation........................................................................................ 9
Message Waiting................................................................................................... 13
Caller ID System Operation............................................................................................. 12
Name and Telephone Number DIRECTORY (PHONE BOOK)..................................16
Redial Feature............................................................................................................ 10
Deleting a Single Record...................................................................................... 15
Receiving Calls...........................................................................................................9
Placing a Call from the Caller List ........................................................................14
Caller List ...................................................................................................................14
Viewing Caller Information During Incoming Calls................................................12
Caller ID with Call Waiting.....................................................................................13
Preparing for Use....................................................................................................... 9
Placing Calls...............................................................................................................10
Viewing the Caller List ..........................................................................................14
Storing Caller ID Records into the DIRECTORY (PHONE BOOK)..................... 15
Deleting all Records.............................................................................................. 15
Using the Headset Feature.........................................................................................11
Viewing the DIRECTORY (PHONE BOOK).........................................................16
Telephone Keypad Characters.............................................................................. 17
Caller ID System.........................................................................................................12
Storing Phone Numbers........................................................................................16
Placing Calls from the DIRECTORY (PHONE BOOK)......................................... 18
Editing a Stored Number in the DIRECTORY (PHONE BOOK)...........................18
Deleting a Stored Record in the DIRECTORY (PHONE BOOK)..........................19
1
Preferred Calls ..................................................................................................... 19
Blocked Calls ........................................................................................................19
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 8
Contents
Forwarded Calls.................................................................................................... 19

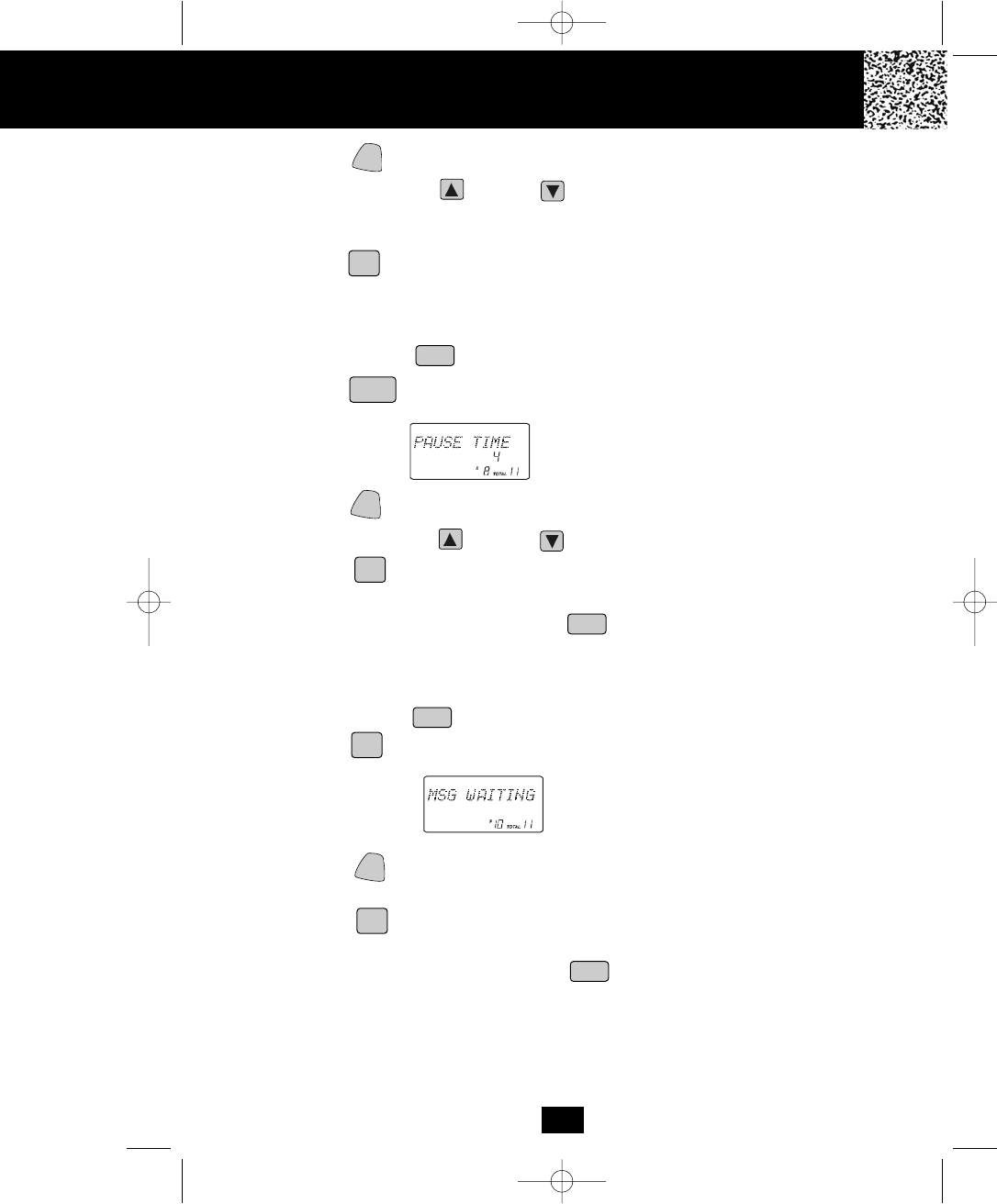

Function Settings...................................................................................................20
A. Setting the Ringer Level............................................................................. 21
K. Setting the Area Code................................................................................ 25
G. Changing the Flash Time........................................................................... 23
E. Adjusting the Contrast................................................................................ 23
FCC Requirements.......................................................................................................... 31

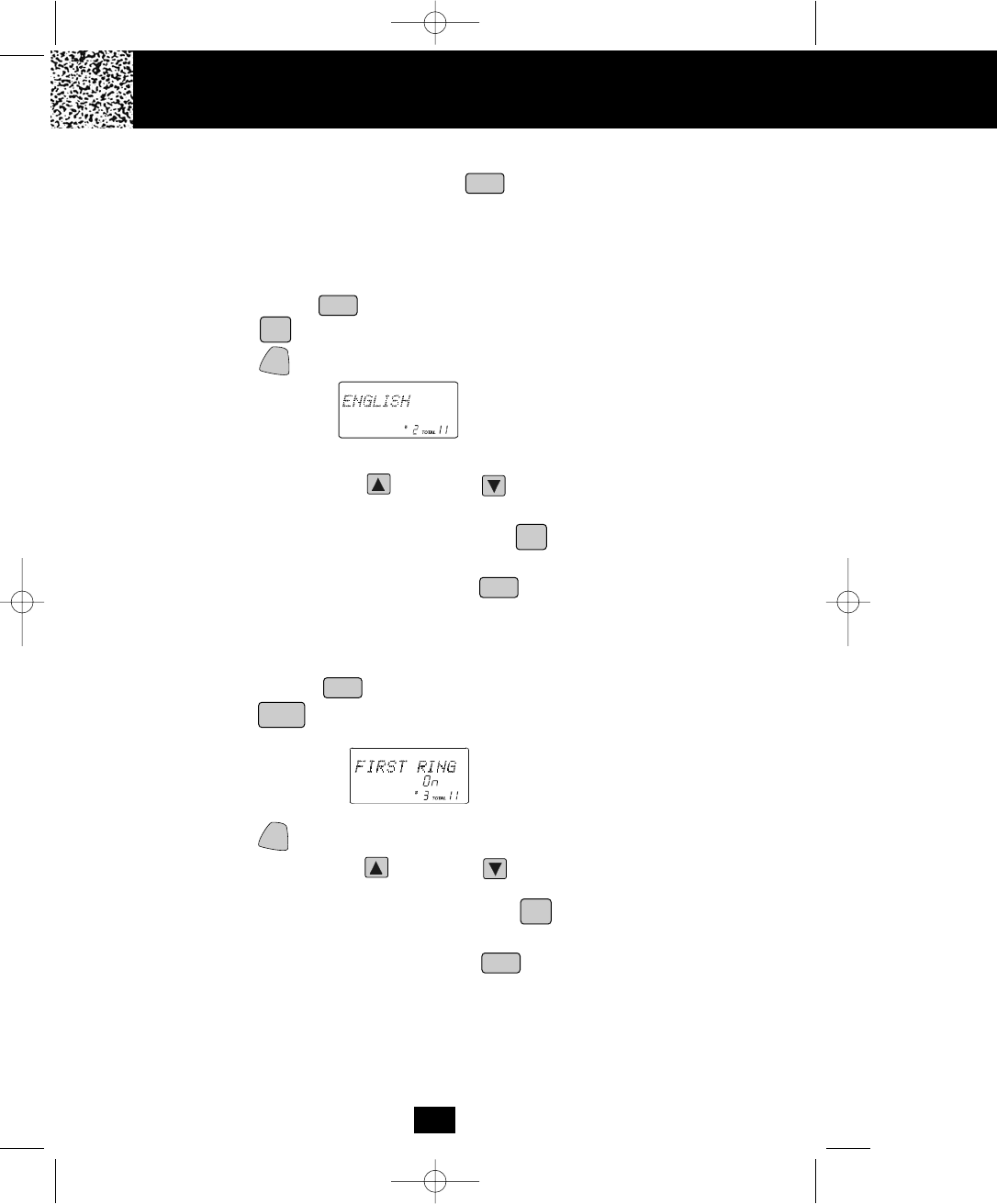

C. Turning the First Ring ON or OFF.............................................................. 22
Problem Solving...............................................................................................................29
Recharging the BATTERY PACK.....................................................................................27
I. Programming One-Touch Voice Mail Dialing............................................. 24
J. Deleting Message Waiting Indication.......................................................... 25
B. Changing the Language............................................................................. 21
D. Setting the Time and Date..........................................................................22
Changing the BATTERY PACK........................................................................................28
Technical Information............... .......................................................................................30
Warranty Information............... ....................................................................................... 33
F. Setting the PBX Number............................................................................. 23
Security............................................................................................................................ 26
H. Changing the Pause Time..........................................................................24
Wall Mount Template....................................................................................................... 37
2
Long Distance Calls.............................................................................................. 19
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 9
Safety Instructions Safety Instr
3
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock and/or injury, always follow these
basic safety precautions when using your cordless telephone equipment.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, or anywhere else where there is water.
4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may
be a remote risk of electric shock from lightning.
5. Do not use the telephone to report a gas leak in the vicinity of the leak.
6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do not
dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check with
local codes for possible special disposal instructions.
7. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the
Owner’s Manual. If you are not sure of the voltage in your home, consult your dealer or
local power company.
8. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY
PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth
for cleaning.
9. Place this telephone on a stable surface. Serious damage and/or injury may result if the
telephone falls.
10. Do not cover the slots and openings on this telephone. This telephone should never be
placed near or over a radiator or heat register. This telephone should not be placed in a
built-in installation unless proper ventilation is provided.
11. Do not place anything on the power cord. Install the telephone where no one will step or
trip on the cord.
12. Do not overload wall outlets or extension cords as this can increase the risk of fire or
electric shock.
13. Never push any objects through the slots in the telephone. They could touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never
spill liquid of any kind on the telephone.
14. To reduce the risk of electric shock, do not take this telephone apart. If service or repair
work is required on this telephone, take it to a qualified service representative. Opening or
removing covers may expose you to dangerous voltage or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
15. Unplug this telephone from the wall outlet and consult a qualified service representative in
any of the following situations.
A. When the power supply cord is frayed or damaged.
B. If liquid has been spilled into the telephone.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions. Improper adjustment may
require extensive work by a qualified technician to restore the telephone to normal
operation.
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 10
Safety Instructions
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.
16. Never install telephone wiring during a lightning storm.
17. Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
18. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
19. Use caution when installing or modifying telephone lines.
Battery Safety
CAUTION:
Risk of explosion if BATTERY PACK replaced with an incorrect type.
Dispose of used batteries according to the instructions. Replace only with
the same or equivalent type. To reduce the risk of fire or personal injury,
read and follow these instructions:
1. Use only the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-Cd BATTERY PACK: model B658
(See page 30 for ordering information.)
2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes for
possible special disposal instructions.
3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY PACK
is corrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if
swallowed.
4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK with
conductive materials such as rings, bracelets, and keys. The BATTERY PACK or conductor
may overheat and cause burns.
5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only in
accordance with the instructions and limitations specified in this manual.
6. Observe proper polarity orientation between the BATTERY PACK and BATTERY
CHARGER.
SAVE THESE INSTRUCTIONS
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, it
may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.
4
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 11
Getting Started Getting Star
Connecting Your Phone
This section is a reference guide to the basic functions and operations of your cordless
telephone. For more detailed descriptions of the operations and features of this telephone, refer
to the Contents on page 1.

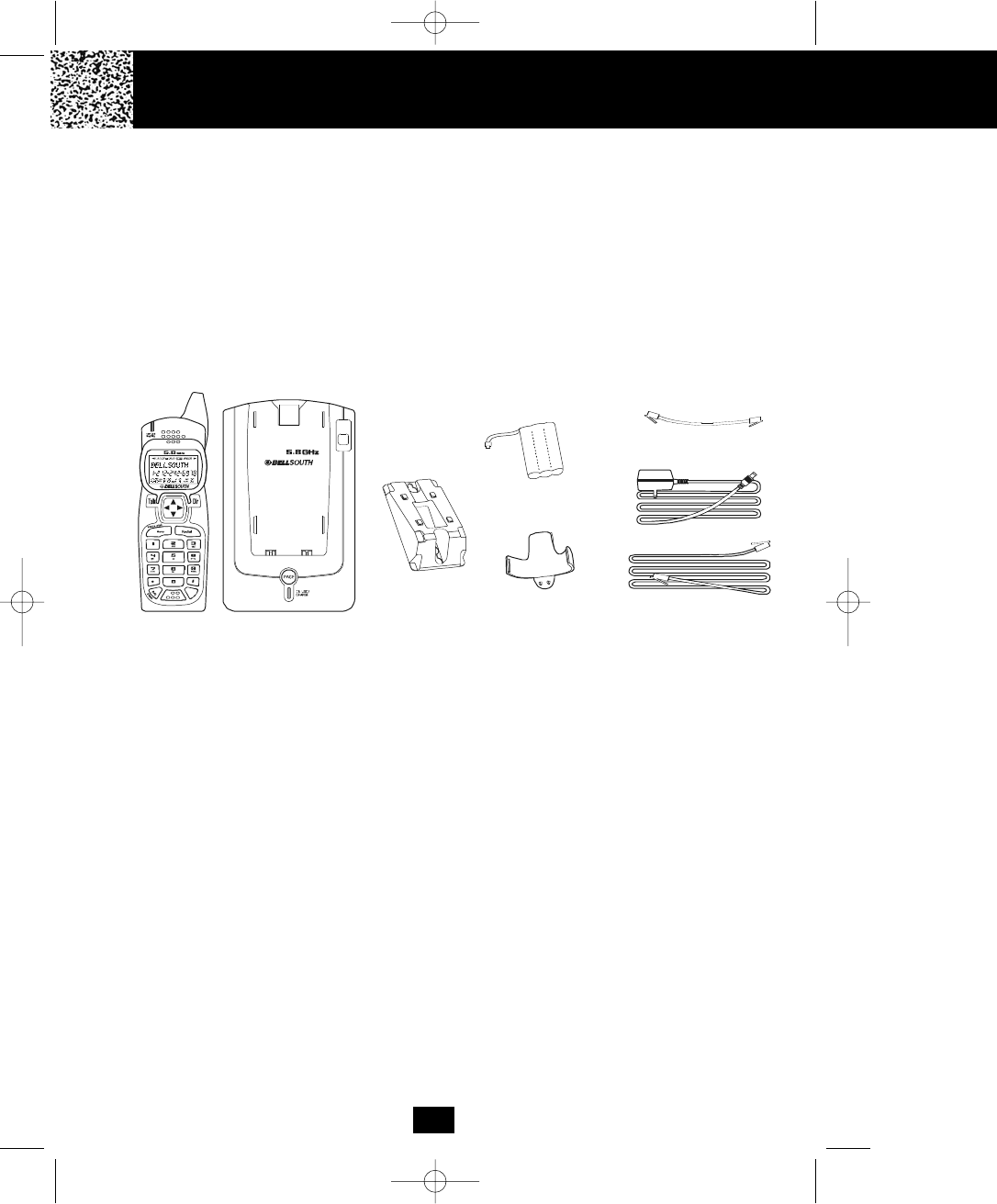

1. Carefully remove your cordless telephone from its shipping carton. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place of purchase.
2. Check to be sure you have all items that come with this cordless telephone system. You
should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK, MOUNTING
BRACKET, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, BELT CLIP, and
Owner’s Manual.

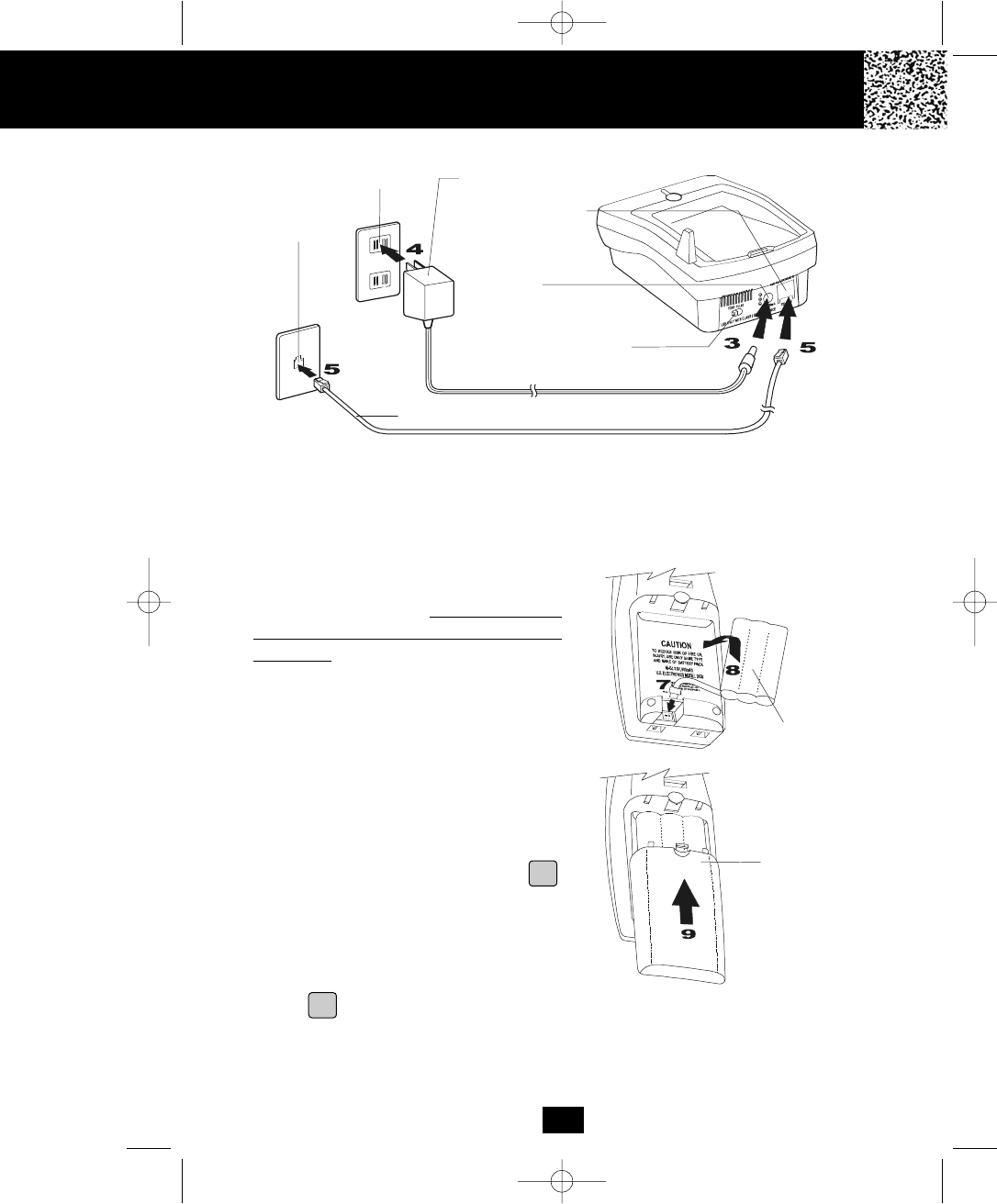

3. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION
JACK at the back of the BASE UNIT.
4. Plug the AC ADAPTOR into a 120V AC wall outlet.
USE ONLY WITH A CLASS 2 POWER SOURCE 9V DC, 300mA.
5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the
other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT.
(If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE
JACK ADAPTOR. This adaptor is available at the same place you purchased your
telephone.)
6. We recommend not placing this unit next to appliances. Doing so may cause interference.
5
Save/Pause
Del
Chan
SHORT TELEPHONE
LINE CORD
TELEPHONE LINE CORD
AC ADAPTOR
MOUNTING
BRACKET BELT CLIP
BATTERY PACK
HANDSET BASE UNIT
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 12
Getting Started
6
9. Slide the HANDSET BATTERY
COMPARTMENT COVER firmly into place in
its closed position.
10. IMPORTANT: Before initial use, charge the
HANDSET for 12 hours. Do not charge the
HANDSET with the TELEPHONE KEYPAD
face down.
11. TONE/PULSE Select Switch:
A. If your home is equipped with a tone
dialing system, set the TONE/PULSE
Select Switch to the TONE position.
B. If you have a rotary dialing system, set the
TONE/PULSE Select Switch to the
PULSE position.
C. If you are not sure which system you
have, set the TONE/PULSE Select Switch
to the TONE position. Press the
button on the HANDSET to get a dial
tone, and press any button on the
TELEPHONE KEYPAD except the zero. If
the dial tone continues, it means that you
do not have TONE dialing service. Press
the button on the HANDSET to hang
up. Set the TONE/PULSE Select Switch
to the PULSE mode and then try again.
12. Set the date and time on the HANDSET. (See page 22 for details.)

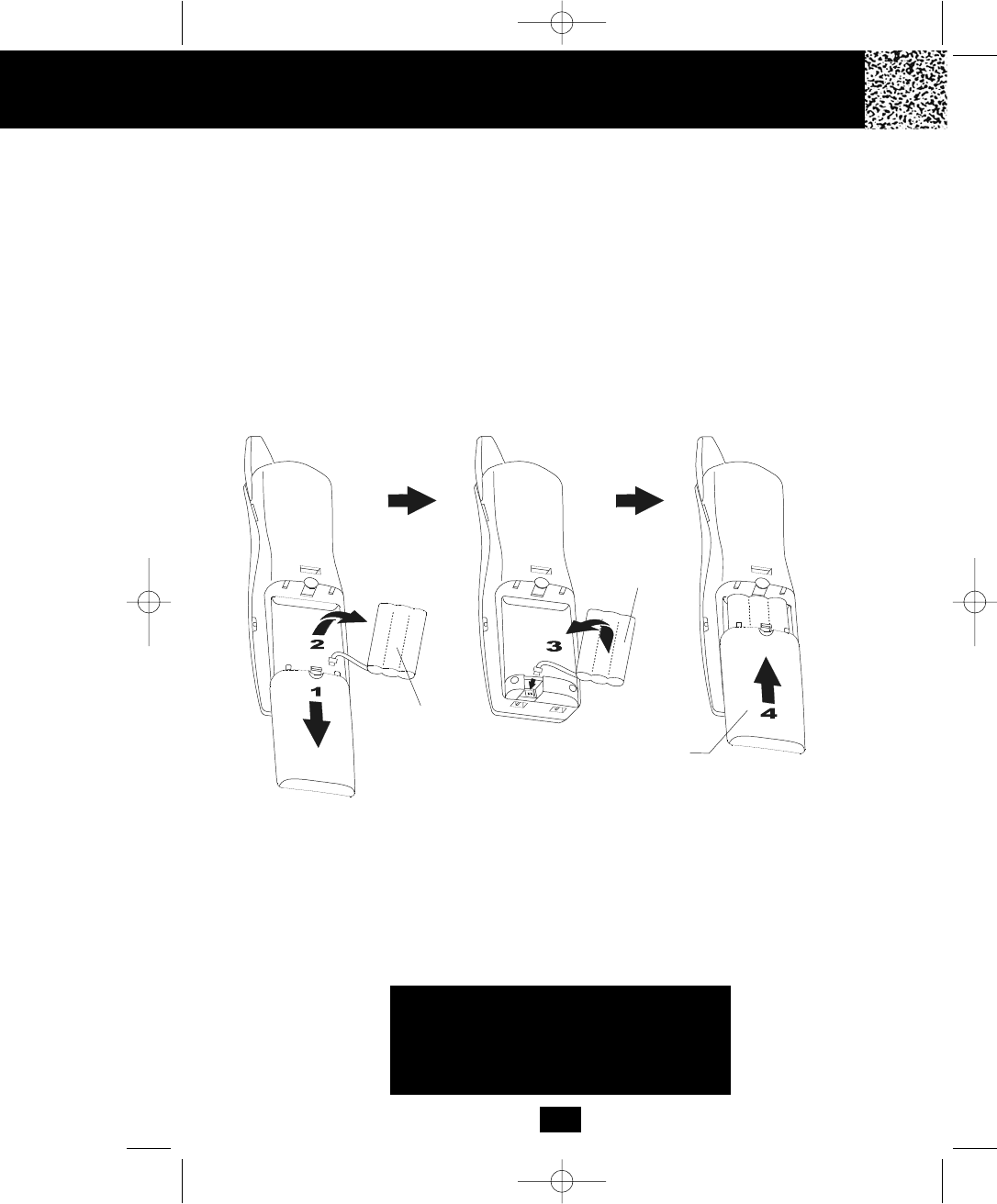

7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR
inside the BATTERY COMPARTMENT.
8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.
AC ADAPTOR
TELEPHONE LINE CORD
TELEPHONE
JACK
120V WALL
OUTLET
TONE/PULSE
SELECT SWITCH
POWER-IN
CONNECTION JACK
TELEPHONE LINE
CONNECTION
JACK
BATTERY PACK
BATTERY
COMPARTMENT
COVER
Talk
Talk
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 13
Getting Started Desk Mounti
7
Press the button to confirm that you have a
dial tone. If you do not get a dial tone, review steps
3 through 11. If you still do not have a dial tone,
refer to the Problem Solving section on page 29.
Belt Clip Installation
With the back of the HANDSET facing up, insert
one side of the BELT CLIP HOOK into the
matching slot at the top side of the HANDSET.
Press down on the opposite side of the BELT CLIP
until the other hook locks into the slot on the side
of the HANDSET.
You are now ready to use your new
BellSouth Cordless Telephone.
IMPORTANT
In order to utilize the Caller ID feature, you
must subscribe to Caller ID service from
your local telephone company.
BELT CLIP HOOK
Save/Pause
Del
Chan
Talk
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 14
Desk Mounting
8
Desk Mounting
One of the special features of your telephone is the unique design of the MOUNTING
BRACKET which can hold your phone at an angle of 30° when desk mounting. There are two
positions to choose from:
1. NORMAL POSITION (MOUNTING BRACKET not required):
For normal position, as shown in Figure 1, place
the BASE UNIT on any desired but suitable
location.
2. 30° POSITION (See Figure 2):
With the back of the BASE UNIT facing up, insert
the hooks of the MOUNTING BRACKET (following
the arrow direction for the DESK MOUNT) into the
slots of the BASE UNIT (as shown in Figure 3).
Then slide the MOUNTING BRACKET upward
until it locks into place.
NOTE: Attach the MOUNTING BRACKET when
using your phone on the desk.
Wall Mounting
You may choose to put the BASE UNIT of your cordless telephone on a wall.
1. With the back of the BASE UNIT facing up, connect
the SHORT TELEPHONE LINE CORD to the
TELEPHONE LINE CONNECTION JACK.
2. Insert the free end of the SHORT TELEPHONE
LINE CORD through the hole of the MOUNTING
BRACKET.
3. Insert the hooks of the MOUNTING BRACKET
into the matching slots on the back of the BASE
UNIT (following the arrow direction for the WALL
MOUNT) then slide the MOUNTING BRACKET until
it locks into place.
4. Plug the free end of the SHORT TELEPHONE LINE
CORD into the MODULAR WALL JACK.
5. Align the upper keyhole of the MOUNTING BRACKET
with the upper stud of the wall plate, so that the
opening end of the MOUNTING BRACKET matches
the lower stud, then pull the BASE UNIT down until
it is securely seated.
6. Pull out the HANDSET RETAINER TAB on the
BASE UNIT, then place the HANDSET in the BASE
UNIT CHARGE CRADLE.
FIGURE 2 FIGURE 3
MOUNTING
BRACKET MODULAR
WALL JACK
WALL
PLATE
WALL PLATE STUD
SHORT TELEPHONE
LINE CORD
1
2
4
5
5
33
33
FIGURE 1
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 15
Cordless Telephone Operation Cordless Tel
9
Preparing for Use
Before you can use your cordless telephone, you must charge the HANDSET for 12 hours.
Failure to do so will require recharging of the BATTERY PACK more often.
1. Place the HANDSET on the BASE UNIT for 12 hours.
2. After 12 hours, remove the HANDSET from the BASE UNIT.
Before you can use your cordless telephone, you must charge the HANDSET for
12 hours. Failure to do so will require more frequent charging of the BATTERY PACK.
See page 27 for more information on the BATTERY PACK.
NOTE: Depending on the frequency of use, once the HANDSET is fully charged, it remains
functional for approximately 6 hours of continuous use and approximately 6 days
when the HANDSET is off the BASE UNIT in STANDBY mode.
Receiving Calls
1. When the phone rings, the LCD Screen will display
“RING.” If you have Caller ID, the LCD Screen will
display the Caller ID information after the first ring.
2. With the HANDSET on or off of the BASE UNIT,
press the button. “TALK” will be displayed and
the Call Timer starts to count. Start your conversation.
3. To end your conversation, either press the button
or place the HANDSET on the BASE UNIT. If you
place the HANDSET on the BASE UNIT CHARGE
CRADLE, you activate the AUTOMATIC STANDBY
feature.
Talk
Talk
NOTE: The Call Timer will start to count once you press the button.
Talk
IMPORTANT
Do not use this telephone within 20 ft. of a microwave oven
while it is working, as you may experience interference.
This is a normal occurrence with 5.8 GHz phones and
should not be interpreted as a defect in the product.
TALK
02 08
Call Timer Display
Minutes
Seconds
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 16
Cordless Telephone Operation
10
Placing Calls
1. Press the button. “TALK” will display and the Call
Timer starts to count.
2. Wait until you hear a dial tone and then dial the phone
number.
3. When you have finished your call, press the
button again or place the HANDSET on the BASE
UNIT.
Redial Feature
1. If you get a busy tone, press the button or place
the HANDSET on the BASE UNIT to hang up.
2. Later, press the button again.
3. Listen for a dial tone.
4. Press the /Del button. This will automatically
redial the last telephone number you called.
5. When you have finished with your call, either press the
button again or place the HANDSET on the
BASE UNIT.
Or
1. Press the /Del button.
2. Press the button. The number displayed will be
automatically redial.
3. When you finished with your call, pres the button
again or place the HANDSET on the BASE UNIT.
HANDSET Ringer Volume
1. Adjust the HANDSET ringer volume using the Ringer
switch on the right side of the HANDSET.
2. Select between Hi, Low, Off Ringer.
Save/Pause
Del
Chan
1, 3
Talk
Talk
Talk
Talk
Talk
Redial
NOTE: If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds to
warn you that the background noise level is too high for proper communication
between the HANDSET and the BASE UNIT. When you hear this sound, you should
move closer to the BASE UNIT to reduce the noise level. Otherwise, the call will
automatically cut off.
Save/Pause
Del
Chan
1, 2, 5
4
Talk
Talk
Redial
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 17
Cordless Telephone Operation Caller ID Sys
11

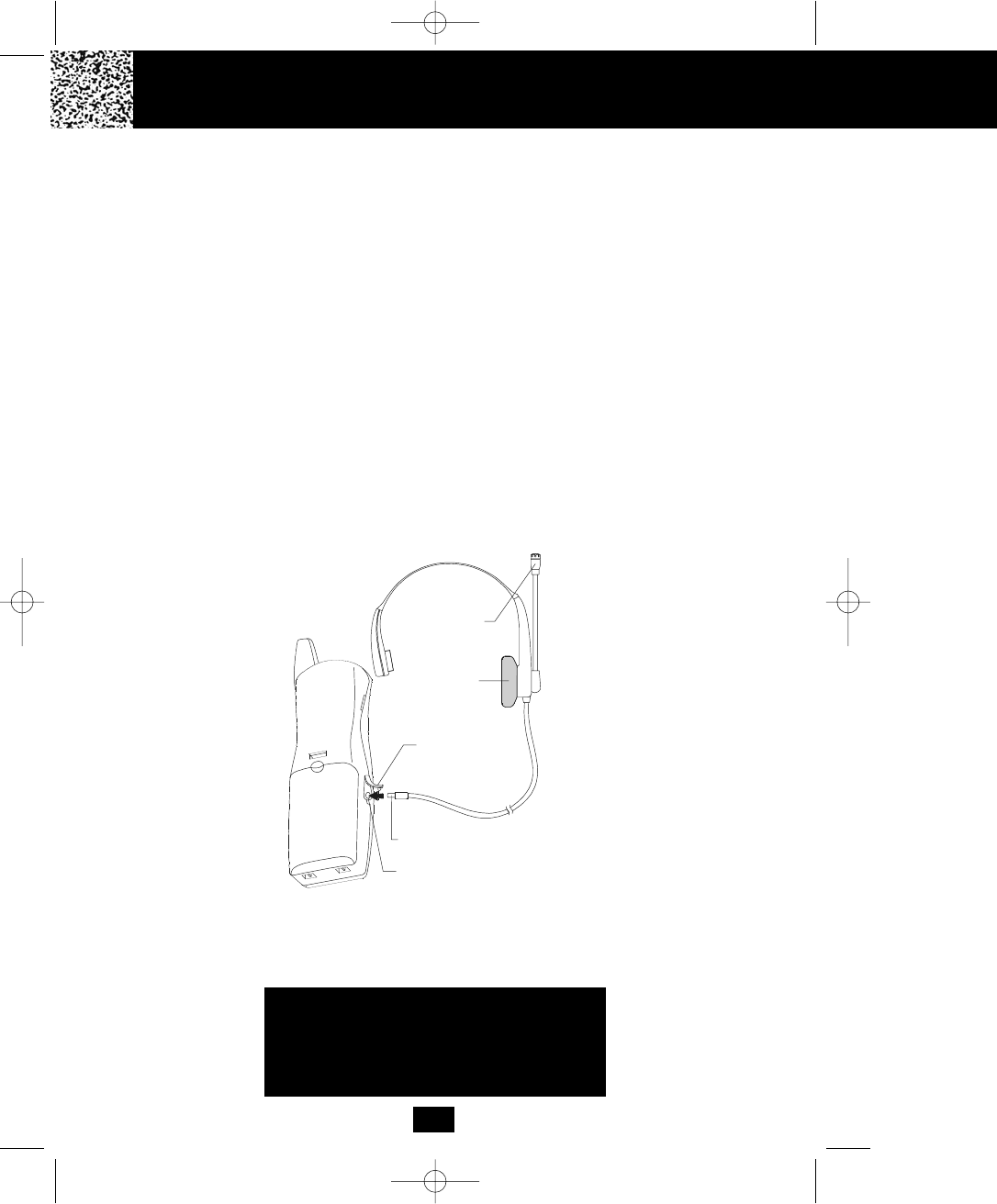

Using the Headset Feature
Your telephone can utilize a headset (not included) to be connected to your HANDSET for you
to enjoy hands-free communication.
Pull out the HEADSET JACK COVER, then insert the small plug on the end of the headset into
the HEADSET JACK to the left side of the HANDSET. Follow the procedures discussed in
“Receiving Calls” and “Placing Calls” to receive and place a call.
NOTE: When you plug the headset plug into the HEADSET JACK it automatically mutes the
MICROPHONE and SPEAKER of the HANDSET. Unplug the headset to return the
HANDSET to normal use.
Headsets are available at most retail outlets that sell telephone equipment. The HEADSET
JACK is compatible with 2.5 mm headset plugs only.
MICROPHONE
HEADSET
SPEAKER
HEADSET JACK
HEADSET JACK
COVER
HEADSET PLUG (2.5mm)
IMPORTANT
In order to utilize the Caller ID feature, you
must subscribe to Caller ID service from
your local telephone company.
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 18
Caller ID System Operation
12
Caller ID System
This telephone automatically displays an incoming caller’s name and telephone number
together with the date and time of the call. It records up to 80 calls and stores the data in
Memory.
IMPORTANT: You must subscribe to the Caller ID service from your local telephone company to
utilize this feature.

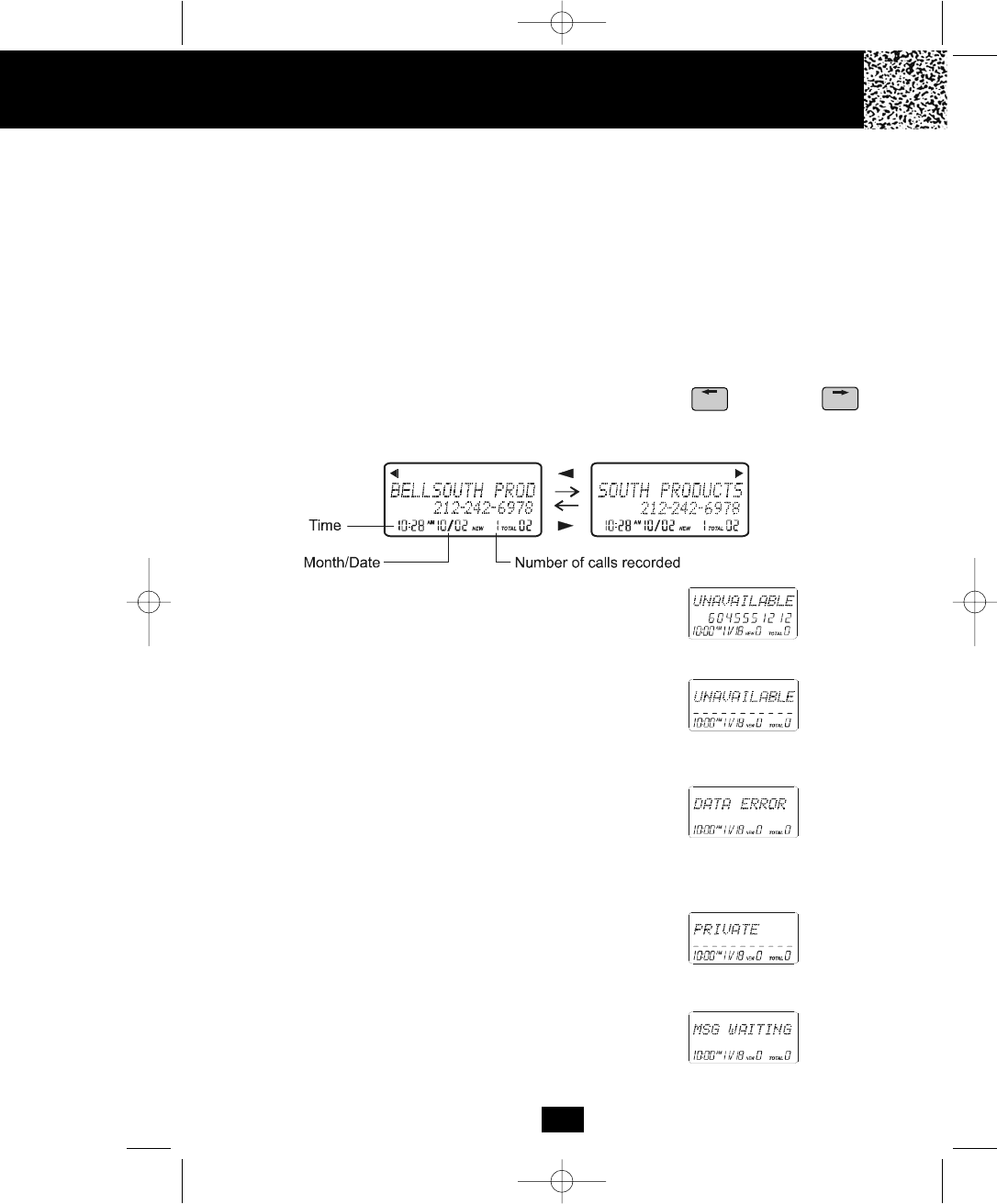

Viewing Caller Information During Incoming Calls
1. When there is an incoming call, the name and the telephone number of the caller will
automatically appear after the first ring. If the name has more than 11 characters, the
first 11 letters will be displayed first. Press the SHIFT LEFT or RIGHT
button to view the remaining letters.
OR
“UNAVAILABLE” and the Caller’s telephone number will
appear if the caller’s name is not available.
OR
“UNAVAILABLE” will appear when Caller ID information is
not available. The origin of the call does not support the
Caller ID system (including international calls).
OR
“DATA ERROR” will appear when the Caller ID information
was received incorrectly or only part of the data was
received.
NOTE: When an error is received, none of the data from
this call is saved in memory.
OR
“PRIVATE” will appear if the caller’s name and/or
telephone number is blocked.
OR
“MSG WAITING” will appear when a Voice Mail Message
has been received and is stored by the Message Waiting
service provided by the telephone company.
#
*
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 19
Caller ID System Operation Caller ID Sys
13

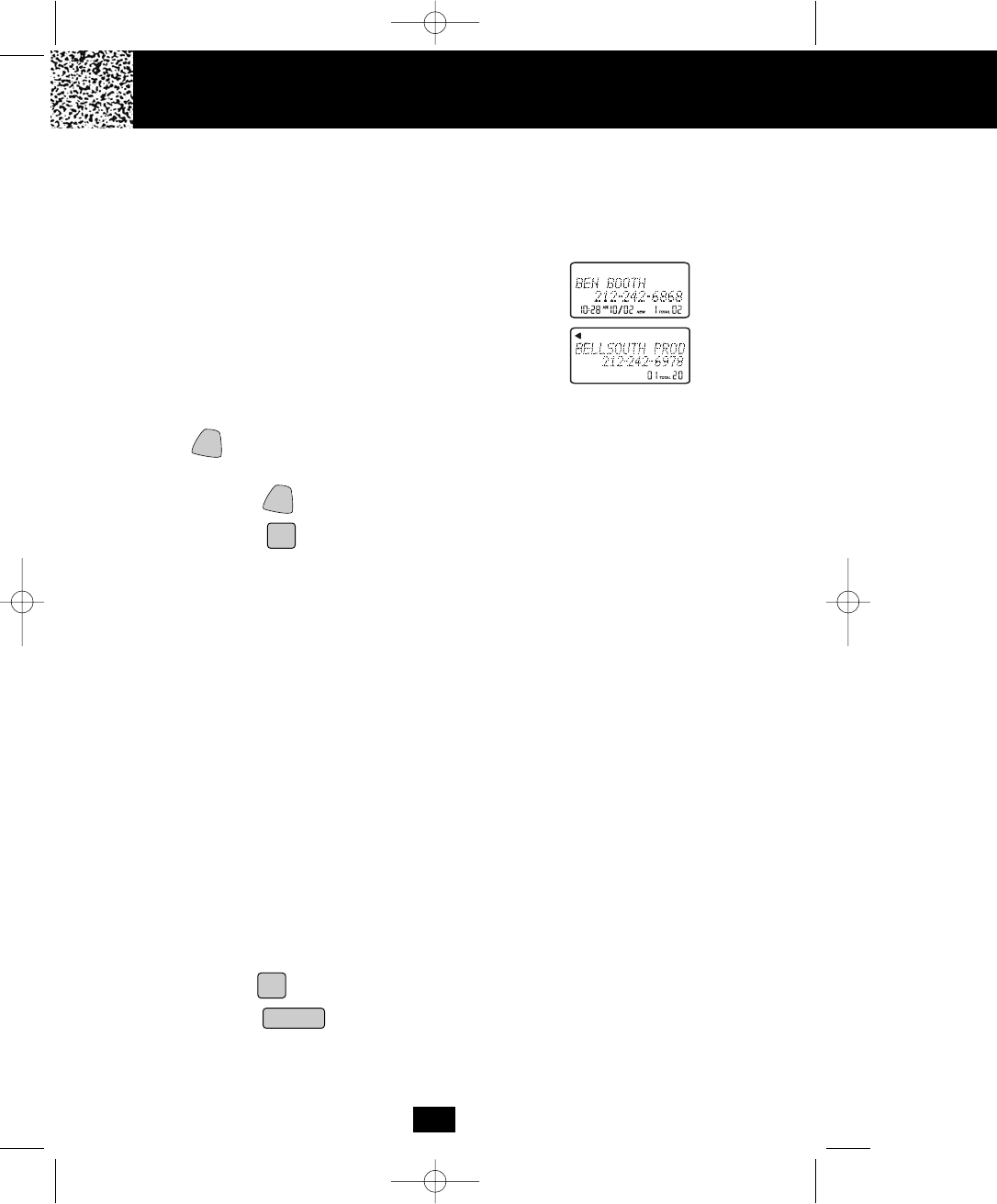

Caller ID with Call Waiting
When you subscribe to Call Waiting service from your local telephone company, this
telephone will display a flashing name and number of the second caller while you are
having a phone conversation with your first caller.
When a new call comes in while you are
talking, you will hear a notification beep from
the HANDSET and the volume is momentarily
muted. The new caller’s name and phone
number, if available, appears on the LCD
Screen.
1. When you receive a “Call Waiting” call and you want to connect the call, press the
/FLASH button and start talking with the second caller. The active call will be
placed on hold. An “L2” will appear in the lower right hand corner
2. Press the /FLASH button to alternate between calls.
3. Press the button or place the HANDSET on the BASE UNIT to end the call.
Second
Caller
First
Caller
“Msg waiting” (Message Waiting)
The Message Waiting LED indicator will blink GREEN when there is a message for you from
your telephone company if you have subscribed to Voice Mail message service and if you
have requested Visual Message Indication from your local telephone company. “MSG
WAITING” will appear on the LCD Screen in STANDBY mode. (To remove the MSG
WAITING indicator, see page 25 for detail.)
Note: This function requires voice mail subscription from the local telephone company.
Furthermore, the local phone company must provide a type of voice mail signaling called
“FSK” (Frequency Shift Key). Not all telephone companies have the visual message waiting
feature available. Please contact your local telephone company to check if this is available
in your area.

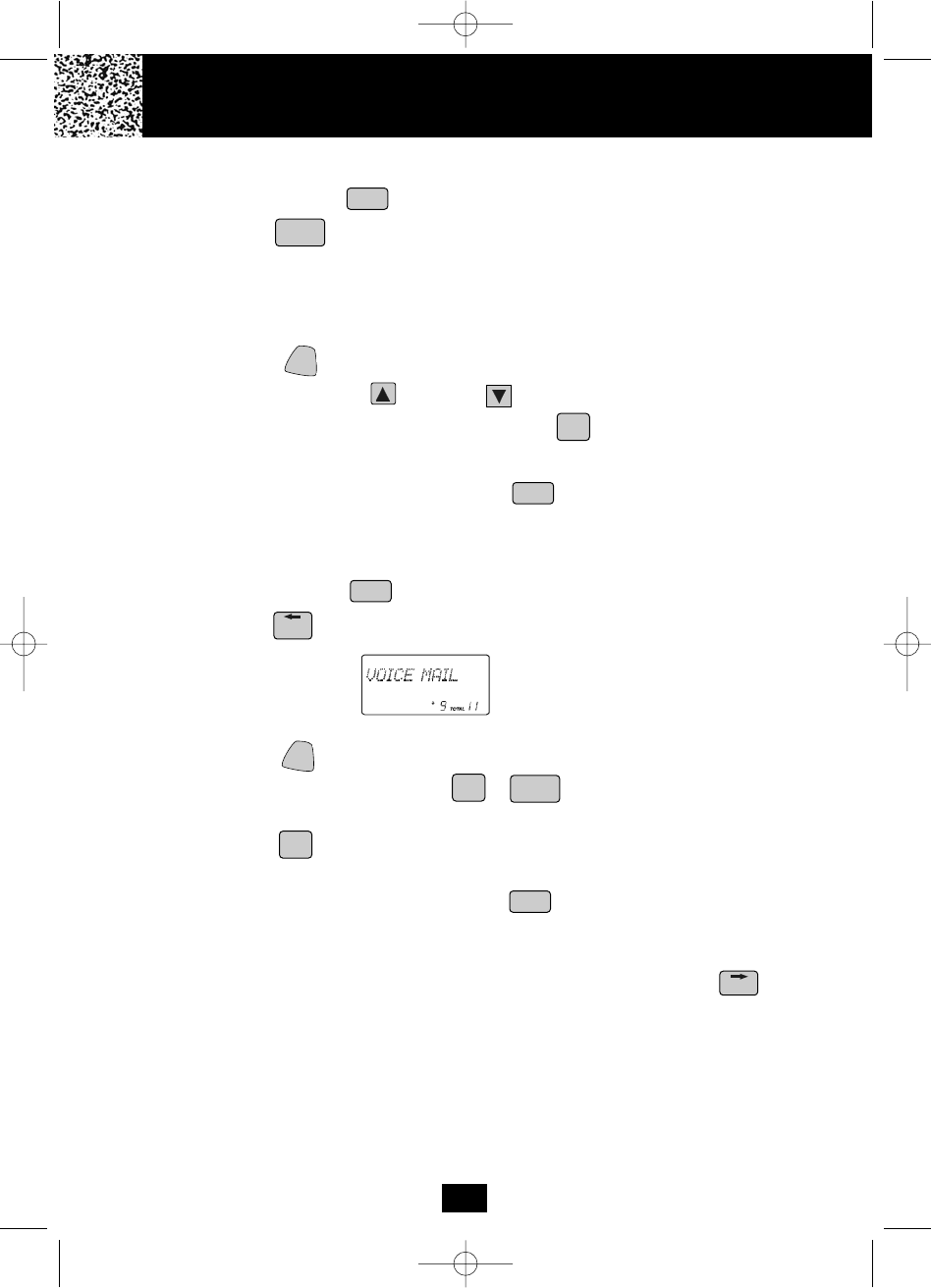

One-Touch Voice Mail Dialing
When the setting is programmed in the Functions menu (see “Programming One-Touch
Voice Mail Dialing” on page 24) you can dial out a programmed number at the touch of a
button. This feature is specifically designed to easily check voice mail when you have that
service through your local telephone company.
1. Press the button to access the telephone line.
2. Press the button.
3. The phone will automatically dial the number.
Edit
Edit
Talk
Voice Mail
Talk
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 20
Caller ID System Operation
14
Caller List
This phone automatically stores the last 80 calls received. It records call information such as
the caller’s name and telephone number together with the date and time of the call.
The NEW CALL LED indicator will blink RED to indicate that you have a new Caller ID call stored
in memory. Also, “New call:_ _” will be displayed on the LCD Screen with “_ _” being the
number of new calls that have not been reviewed.
Viewing the Caller List
1. With the HANDSET in STANDBY mode, press the SCROLL UP or DOWN
button.
2. Any unviewed (new) calls will be displayed first. The information on the call will be
displayed with the name, number, date, and time that the call was received.
3. Pressing the SCROLL DOWN button will go through the calls from the last call
received to the first Caller ID record. Pressing the SCROLL UP button will allow
you to view the calls from the first call received to the last.
4. If the name has more than 11 characters, the first 11 letters will be displayed first. Press
the SHIFT RIGHT button to view the remaining letters.
5. Press the button to return to STANDBY mode.
Placing a Call from the Caller List
You can place a call from the Caller list by using the Caller ID CALLBACK feature.
1. When viewing the Caller ID List, press the SCROLL UP or DOWN button to
find the record you wish to call back.
2. Press the /OPTION button to change the displayed number to 7, 10, or 11 digits.
The first dialing option displayed is the 11 digits for a
long distance call.
Press the /OPTION button for the second time, the
displayed number will change to 7 digits for a local call.
Press the /OPTION button for the third time, the
displayed number will change to 10 digits for a local call
with area code.
3. Press the button to dial the displayed number.
4. To end a call, either press the button or place the HANDSET on the BASE UNIT.
First press.
Second press.
Third press.
CID
Talk
Talk
#
Ch
Ch
Ch
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 21
Caller ID System Operation Caller ID Sys
15
Storing Caller ID Records into the DIRECTORY (PHONE BOOK)
1. When viewing the Caller ID List, press the SCROLL UP or DOWN button to
find the record you wish to store into the DIRECTORY (PHONE BOOK).
2. Press the /Save button.
3. The LCD Screen will display “SAVED.”
4. If you wish to edit the newly stored number, edit it in the DIRECTORY (PHONE BOOK)
(page 18, “Editing a Stored Number”).
5. Press the button to exit the caller ID List and return to STANDBY mode.
Deleting Caller ID Records
When viewing the Caller ID List you can delete a single call record or all of the call records.
Deleting a Single Record
1. Press the SCROLL UP or DOWN button to find the record you wish to
delete.
2. Press the /Del/Pause button. The LCD Screen will display “ERASE ITEM?.”
3. To delete the record, press the /Del/Pause button again. The LCD Screen
wil display the preceding Caller ID record.
4. Press the button to exit the Caller ID List.
Deleting All Records
1. Press the SCROLL UP or DOWN button.
2. Press and hold the /Del/Pause button. The LCD Screen will display “ERASE
ALL?”
3. To delete all of the Caller ID records, press the /Del/Pause button again. The
LCD Screen will return to STANDBY mode.
NOTE: The user can cancel the deleting step by pressing the button.
Cid
Cid
Cid
Redial
Redial
Redial
Redial
Dir
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 22
NOTES:
1. If there are no memory locations left in the speed dial DIRECTORY (PHONE BOOK) the
LCD Screen will display “MEMORY FULL.” To continue with memory programming, you
must delete or edit existing speed dial numbers.
2. If you mis-type entering the phone number, you can move through the number and edit
it by pressing and holding the SHIFT RIGHT or LEFT button. To delete a
character or number inside the cursor, press and hold the /DEL button.
Caller ID System Operation
16
Name and Telephone Number DIRECTORY (PHONE BOOK)
This DIRECTORY (PHONE BOOK) lets you scroll through the list to find the person you need
for one touch dialing. You can store up to 40 names and telephone numbers in the Memory.
Viewing the DIRECTORY (PHONE BOOK)

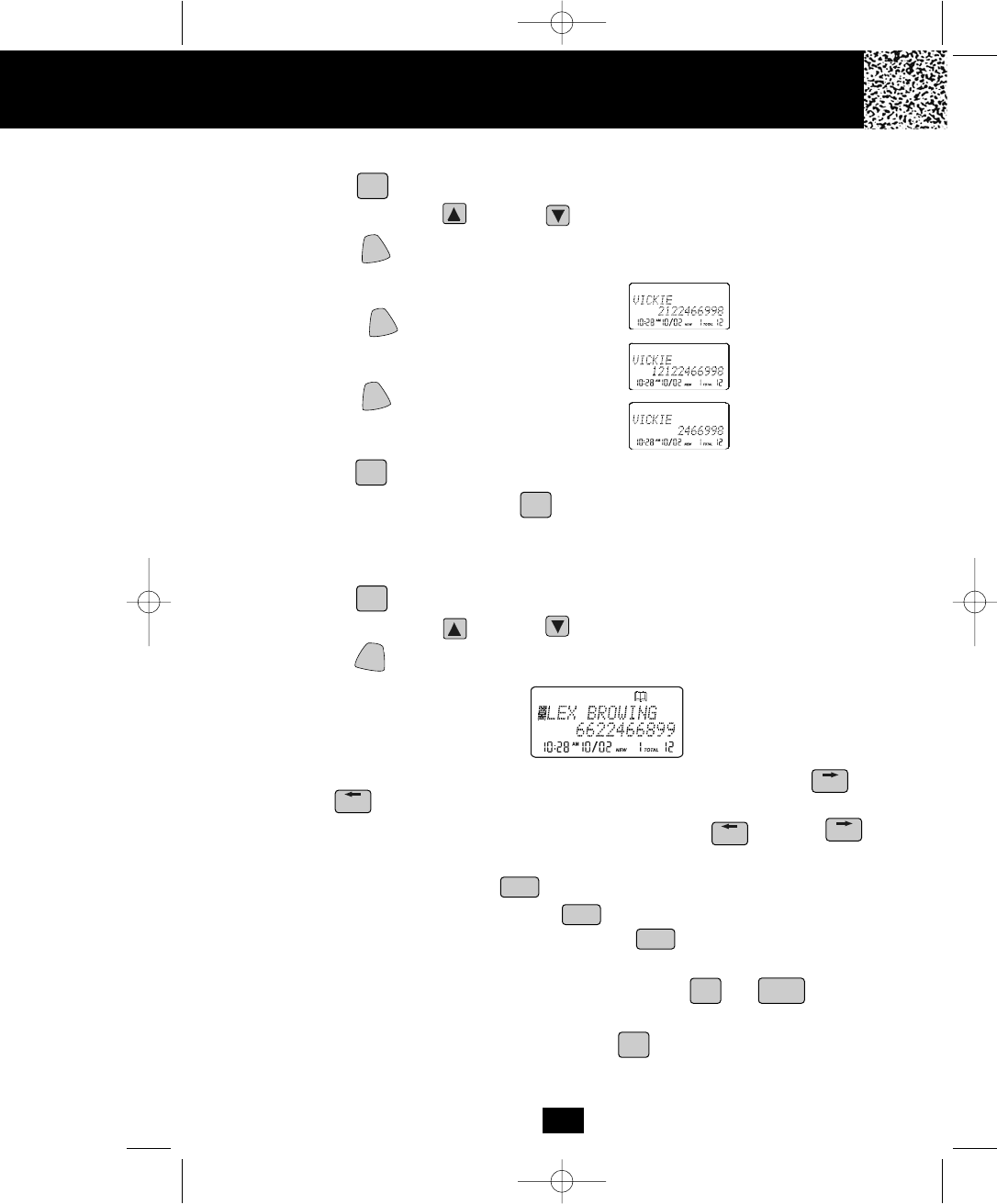

1. Press the /Save button. The LCD Screen will
display “PHONE BOOK.”
2. Press the SCROLL UP or DOWN button to
find the record you wish to view.
3. If the name has more than 11 characters, the first 11
letters will be displayed first. Press the SHIFT RIGHT
button to view all the following letters and/or
numbers.
4. Press the /Save button to exit the DIRECTORY
(PHONE BOOK).

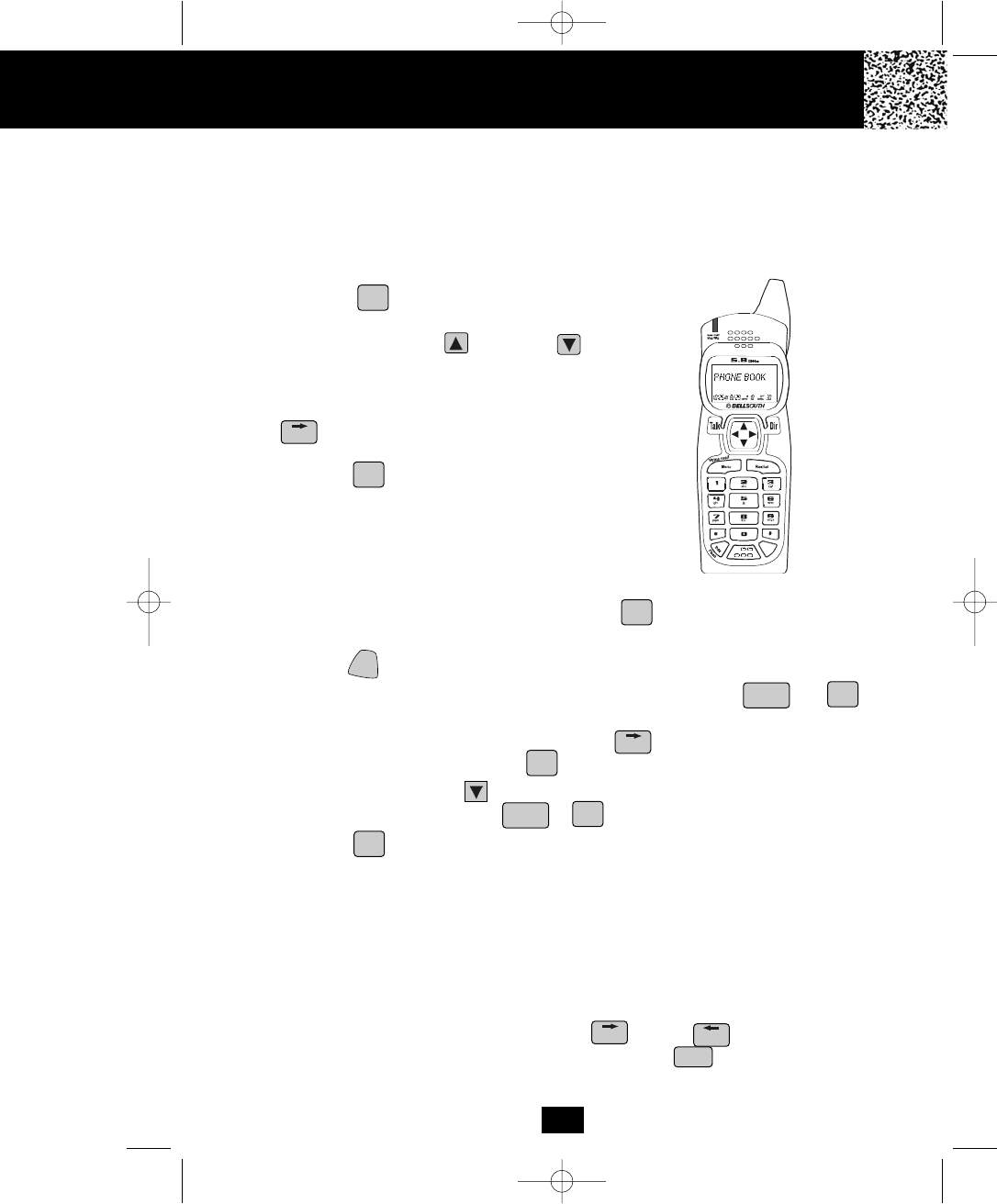

Storing Phone Numbers
1. With the HANDSET in STANDBY mode, press the /Save button.The LCD Screen
will display “PHONE BOOK.”
2. Press the /FLASH button to create a new DIRECTORY (PHONE BOOK) entry.
3. Enter the name you wish to store using the TELEPHONE KEYPAD to
buttons to enter the name, (see page 17 for detail) you can store up to 15 letters. To
move the cursor to the right, press SHIFT RIGHT button. To create a space or to
enter a new letter, press the keypad button.
4. Press the SCROLL DOWN button, and dial the telephone number you wish to store
using the TELEPHONE KEYPAD to buttons. You can store up to 16 digits.
5. Press the /Save button to store the number into memory.
Save/Pause
Del
Chan
Dir
Dir
Dir
2
abc 9
WXYZ
Edit
2
abc 9
WXYZ
1
Dir
Redial
#
#
#*
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 23
&
Space
Caller ID System Operation Caller ID Sys
17
Telephone Keypad Characters
The TELEPHONE KEYPAD buttons are used to enter characters when entering names and
numbers. Press the appropriate TELEPHONE KEYPAD button to get the following
characters. You can store a maximum of 15 characters on the letter icon and a maximum of
16 digits on the number icon.
EXAMPLE:
If you want to enter the name “ALEX” with telephone number “2426978,” dial this sequence:
1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”
2. Press the /FLASH button to create a new DIRECTORY (PHONE BOOK) entry.
3. Press the following TELEPHONE KEYPAD buttons to get the desired letters:
4. Press the SCROLL DOWN button to move the cursor to the number icon.
5. Press the TELEPHONE KEYPAD to buttons to get the desired numbers.
6. Press the /Save button to store the data in the DIRECTORY (PHONE BOOK)
memory.
TELEPHONE KEYPAD BUTTON 2 555 33 99
LETTER A L E X
Keypad
Buttons
1st
Press
2nd
Press
3rd
Press
4th
Press
5th
Press
6th
Press
7th
Press
8th
Press
1
2 A B C 2A B C 2
3 D E F 3 D E F 3
4 G H I 4 G H I 4
5 J K L 5 J K L 5
6 M N O 6 M N 0 6
7 P Q R S 7 P Q R
8 T U V 8 T U V 8
9 W X Y Z 9 W X Y
0 0 0 0 0 0 0 0 0
(
,)*.1
0
Dir
Edit
1
9th
Press
Space
A
D
G
J
M
S
T
Z
0
Dir
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 24
Caller ID System Operation
18
Placing Calls from the DIRECTORY (PHONE BOOK)
1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”
2. Press the SCROLL UP or DOWN button to find the record you want to call.
3. Press the /OPTION button to change the displayed number to 7, 10, or 11
digits. The first dialing option displayed is the 11
digits for a long distance call.
Press the /OPTION button for the
second time, the displayed number will change
to 7 digits for a local call.
Press the /OPTION button for the third
time, the displayed number will change to 10
digits for a local call with area code.
4. Press the button to dial the displayed number.
5. To end the call, either press the button or place the HANDSET on the BASE
UNIT.
Editing a Stored Number in the DIRECTORY (PHONE BOOK)
1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”
2. Press the SCROLL UP or DOWN button to find the record you wish to edit.
3. Press the /FLASH button. The entry will display with a flashing prompt over the
first character of the name field.
4. Move the cursor to the letter you wish to edit by pressing the SHIFT LEFT or
RIGHT button.
If you wish to edit the number, press and hold the SHIFT LEFT or RIGHT
button to move the cursor.
To delete a character, press the /Del/Pause button.
To delete a number, press and hold the /Del/Pause button until the number is
deleted. Otherwise, a pause will be inserted if the /Del/Pause button is just
pressed.
To add a letter or number, use the TELEPHONE KEYPAD to buttons
Characters or numbers will be inserted in front of the cursor
5. When the entry is edited as you desire, press the /Save button to store the edited
record.
First press.
Second press.
Third press.
Dir
Talk
Talk
Dir
Edit
0
1
Ch
#
*
Redial
Redial
Redial
Dir
Ch
Ch
*#
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 25
3. Press the /Mute button once. The LCD Screen
will show the “VIP” icon.
4. Press the /Save button to save and it will
automatically exit the PHONE BOOK.
Caller ID System Operation Caller ID Sys
19
Deleting a Stored Record in the DIRECTORY (PHONE BOOK)
1. Press the /Save button. The LCD Screen will display “PHONE BOOK.”
2. Press the SCROLL UP or DOWN button to find the record you wish to delete.
3. Press the /Del button. The LCD Screen will display “ERASE ITEM?.”
4. To delete the record, press the /Del button again. The LCD Screen will
display the preceding Caller ID record.
5. Press the /Save button to return to STANDBY mode.
PRIORITY (VIP) CALLS
You can assign stored numbers a PREFERRED CALL status. When an incoming call is
matched to a stored number designated as “VIP,” the phone will generate a special
ringer sound after the Caller ID information is received.
1. Press the /Save button. The LCD Screen will display PHONE BOOK.
2. Press the SCROLL UP or DOWN button to find the record you wish to asign
as VIP.
BLOCKED (REJ) CALLS
You can assign stored numbers a BLOCKED CALL status. When an incoming call is
matched to a stored number designated as “REJ”, the phone will not ring after the Caller
ID information is received.
1. Press the /Save button.The LCD Screen will display PHONE BOOK.
2. Press the SCROLL UP or DOWN button to find the record you wish to blocked.
“C-F” (Forwarded Call)
The “CF” icon pops-up on the LCD Screen, when the incoming call has been assigned to
your telephone number and the service is provided by your local telephone company.
“L-D-C” (Long Distance Call)
The “LDC” icon pops-up on the LCD Screen, when the incoming call is a long distance call
and the service is provided by your local telephone company.
Dir
Dir
Redial
Redial
Dir
Menu
Dir
3. Press the /Mute button twice. The LCD
Screen will show the “REJ” icon.
4. Press the /Save button to save and it will
automatically exit the PHONE BOOK.
Dir
Menu
Dir
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 26
Caller ID System Operation
20
Function Settings
You can change the setting on the HANDSET in the functions menu. Access the functions menu
by pressing and holding the /Mute button.
There are 11 settings in the functions menu which can be changed. You can scroll through the
function menu in the listed order by pressing the SCROLL DOWN button.
Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit
a setting, press the /FLASH button, use the SCROLL UP or DOWN button to
toggle between the setting options, and then press the /Save button to save the changes.
Press the /Mute button to exit the functions menu.
TELEPHONE
KEYPAD
Function
Language: Changes the language that appears on the LCD Screen. Choose
between English, French, or Spanish.
First Ring On/Off: Turns the first ring of the phone OFF so that it does not
ring until Caller ID information has been displayed. Particularly useful when
using the PREFERRED and BLOCKED call features or when receiving calls
identified as PRIVATE and UNAVAILABLE calls.
Time Set: Changes the time and date.
Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.
1
2
abc
3
def
4
ghi
5
jkl
Menu
Menu
Edit
PBX Number: Number used to access PBX dialing options. The default setting
is “9”.
PBX Mode ON/OFF: Determines if the PBX Number is used before an outgo-
ing number is dialed. Whe ON automatically dials the PBX number and a pause,
before any speed dial or caller ID callback number. Default setting is “OPFF”
Pause Time: Changes the number of seconds that a pause lasts when using
programmed pauses in your speed dial numbers or after your PBX number.
Voice Mail: Programs the one-touch number that enables easy access to the
voice mail service provided by your telephone company.
MSG Waiting Delete: Clears current message waiting indication..
Area Code: Adds the local Area Code to numbers that were stored as 7-digits
in the phone book and 10-digit dialing is required in the local calling area
8
tuv
6
mno
7
pqrs
9
wxyz
0
Dir
AUTO ANSWER ON/OFF: Turns on and off the feature which makes the
phone automatically go off-hook when the HANDSET is picked up from the
BASE UNIT while the phone is ringing.
*
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 27
Caller ID System Operation Caller ID Sys
21
NOTE: At any time during options programming you can quit and the settings that you
have changed will be saved. Press the /Mute button to quit the options menu
or let the options programming time out by not pressing any TELEPHONE KEYPAD
buttons for 20 seconds.
A. Changing the Language
1. Press and hold the /Menu button to enter the menu.
2. Press the button to go to the LANGUAGE programming option.
3. Press the /FLASH button to change the setting. “ENGLISH” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between ENGLISH,
ESPANOL, and FRANCAIS.
5. When the desired setting is displayed, press the /Save button to save the setting.
A double “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
B. Turning the FIRST RING ON or OFF
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the FIRST RING programming option.
3. Press the /FLASH button to change the setting. “On” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between ENGLISH,
ESPANOL, and FRANCAIS.
5. When the desired setting is displayed, press the /Save button to save the setting.
A double “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return toSTANDBY
mode.
Menu
Edit
Menu
Menu
1
Edit
Menu
2
abc
Dir
Menu
Dir
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 28
Caller ID System Operation

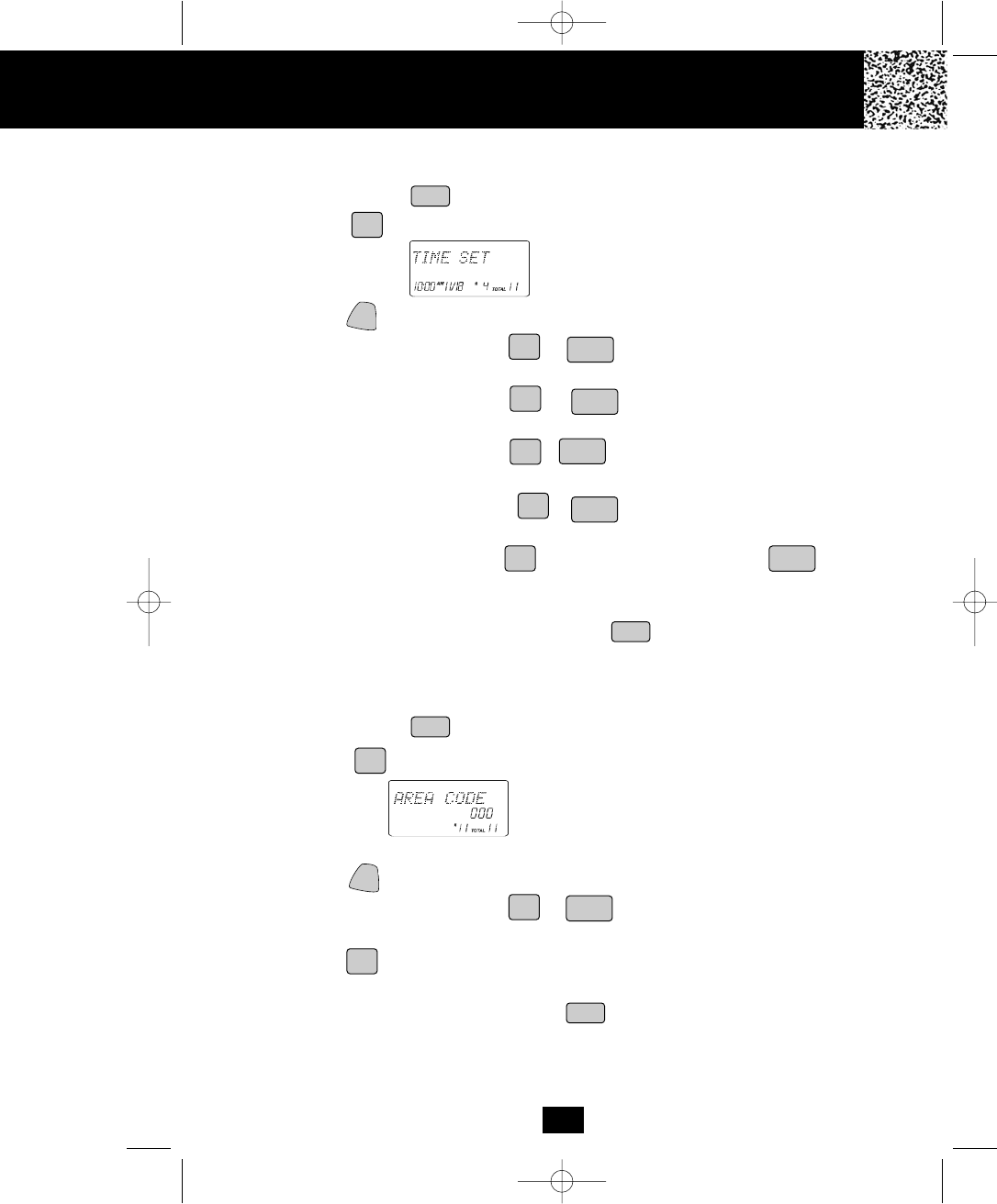

C. Setting the Time and Date
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the TIME SET programming option.
3. Press the /FLASH button to change the setting. The month will begin flashing.
4. Press the TELEPHONE KEYPAD to button to enter the month. The date
will begin flashing.
5. Press the TELEPHONE KEYPAD to button to enter the date. The hour
begin flashing.
6. Press the TELEPHONE KEYPAD to button to enter the hour. The minutes
will begin flashing.
7. Press the TELEPHONE KEYPAD to button to enter the minutes. “AM”
and “PM” will begin flashing.
8. Press the TELEPHONE KEYPAD button to choose AM or press the button
to choose PM. After pressing the desired Time, it will automatically saved and a double
beep will be heard.
10. Continue with programming or press the /Mute button to return to
STANDBY mode.
D. Setting the Time and Date
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the AREA CODE programming option.
3. Press the /Flash button to change the setting. “---” will begin flashing.
4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area
code for your phone number.
5. Press the /SAVE button to save the setting. A double “beep” will sound to confirm
the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
22
Edit
3
def
0
1
0
1
0
1
0
1
12
abc
Menu
Menu
4
ghi
Dir
Menu
0
1
Menu
Edit
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 29
Caller ID System Operation Caller ID Sys
23
NOTE: To use the call back function, press the /Option button and then select the
10-DIGIT DIALING mode. Press button and the unit will automatically dial
the stored 7-digit number plus the area code.
E. Adjusting the Contrast
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the CONTRAST programming option.
3. Press the /FLASH button to change the setting. “2” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle from the three levels of
contrast.
5. When the desired setting is displayed, press the /Save button to save the setting.
A double “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
F. Setting the PBX Number
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the PBX NUMBER programming option.
3. Press the /FLASH button to change the setting. “9” will begin flashing.
4. Press the SCROLL UP or DOWN button to customize the digit to match your
PBX system.
5. When the desired setting is displayed, press the /Save button to save the setting.
A double “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
G. Setting the PBX Mode
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the PBX NUMBER programming option.
5
jkl
6
mno
7
pqrs
Edit
Menu
Edit
Menu
Menu
Talk
Dir
Menu
Dir
Menu
Ch
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 30
Caller ID System Operation
24
3. Press the /FLASH button to change the setting. “Off” will begin flashing.
4. Press the SCROLL UP or DOWN button.
PBX MODE OFF - Set for direct line access. The preset mode is Off.
PBX MODE ON - When connected to a switchboard system.
5. Press the /Save button to save the setting. A double “beep” will sound to confirm
the setting has been saved.
H. Changing the Pause Time
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the PAUSE TIME programming option.
3. Press the /FLASH button to change the setting. “4” will begin flashing.
4. Press the SCROLL UP or DOWN button to select the desired time delay.
5. Press the /Save button to save the setting. A double “beep” will sound to confirm
the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
I. Deleting Message Waiting
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the MESSAGE WAITING programming option.
3. Press the /FLASH button to reset the Message Waiting Indication. “dElEtE” will
begin flashing.
4. Press the /Save button to delete the indication. A double “beep” will sound to
confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
8
tuv
9
wxyz
Menu
Edit
Menu
Edit
Edit
Dir
Dir
Menu
Dir
Menu
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 31
Caller ID System Operation
J. Turning Auto Answer On or Off
1. Press and hold the /Mute button to enter the menu.
2. Press the button to go to the AUTO ANSWER programming option.
3. Press the /FLASH button to change the setting. “Off” will begin flashing.
4. Press the SCROLL UP or DOWN button to toggle between On and Off.
5. When the desired setting is displayed, press the /Save button to save the setting.
A double “beep” will sound to confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
K. Programming One-Touch Voice Mail Dialing
1. Press and hold the /Voice Mail button to enter the menu.
2. Press the button to go to the VOICE MAIL programming option.
3. Press the /FLASH button to enter the voice mail speed dial number.
4. Press the TELEPHONE KEYPAD to buttons to enter the phone number
used to access your voice mail messages (up to 15 digits).
5. Press the /Save button to delete the indication. A double “beep” will sound to
confirm the setting has been saved.
6. Continue with programming or press the /Mute button to return to STANDBY
mode.
NOTE: When reviewing a stored VOICE MAIL number that contains more than 11 digits,
the last 11 digits will be displayed first. Press the SHIFT RIGHT button to
view the preceding numbers.
25
0
Menu
Menu
Menu
Edit
0
1
Edit
Dir
Dir
Menu
*
#
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 32
Security
26
Security System
Your cordless telephone uses a digital coding security system to prevent unauthorized use of
your telephone line by another nearby cordless telephone. The system has its own identifying
signal created by microcomputers in both the BASE UNIT and the HANDSET.
Security Code
This telephone has an internal security code with 4,000,000 possible combinations.
Resetting Security Code and Channel Information
Communication between the HANDSET and the BASE UNIT may not be possible in any of the
following situations:
1. After a power failure.
2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.
3. After replacing the HANDSET BATTERY PACK.
To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.
Multi-Channel Access
Your cordless telephone lets you select a channel from the 50 frequencies available to transmit
signals between the BASE UNIT and the HANDSET. When you notice interference from other
cordless telephones, change to another channel by pressing the /Option button on the
HANDSET.
Ch
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 33
27
Battery Type
Use the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-Cd BATTERY PACK: Model B658 Ni-Cd
This BATTERY PACK is available through:
U.S. Electronics Service Center
105 Madison Avenue
New York, NY 10016
1-800-828-5208
NOTES:
1. During a power interruption, the BASE UNIT does not operate, and a phone
conversation cannot be made on the HANDSET.
2. To ensure your phone charges properly, place the HANDSET securely
TELEPHONE KEYPAD face up on the BASE UNIT.
Recharging the BATTERY PACK
The nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times
using the built-in charger in the BASE UNIT.
When the LCD Screen display “LOW BATTERY,” the BATTERY PACK needs to be recharged.
Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.
When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will
be necessary.
The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”
Once subjected to a regular short discharging routine, the BATTERY PACK assumes the
discharging pattern it was subjected to. This causes rapid discharging thereby shortening the
BATTERY PACK charge span. If you believe your BATTERY PACK has developed a
“MEMORY” condition, do not charge the HANDSET until “LOW BATTERY” appear on the LCD
Screen. When “LOW BATTERY” appears on the LCD Screen, then charge the HANDSET fully
for 12 hours.
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.
Recharging the BATTERY PACK
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 34
Changing the BATTERY PACK
28
Changing the BATTERY PACK
The BATTERY PACK provides power for the HANDSET of your cordless telephone.
To Replace the BATTERY PACK:
1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.
2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.
3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.
4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed
position.
5. Before use, charge the new BATTERY PACK for 12 hours.
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,
it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper
disposal.
OLD
BATTERY
PACK
NEW
BATTERY
PACK
BATTERY
COMPARTMENT
COVER
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the
HANDSET for 12 hours before initial use.
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 35
Technic
29
Problem Solving Section
For your assistance, we have listed below a few common problems.
Phone does not work, check the following:
1. BASE UNIT is plugged into a power source.
2. HANDSET is charged.
3. TONE/PULSE Select Switch is in the right position.
4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.
Range of phone limited, check the following:
1. BASE UNIT is centrally located in your residence.
2. BASE UNIT is not located near appliances.
No dial tone, check the following:
1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and
TELEPHONE LINE CONNECTION JACK.
2. BASE UNIT is plugged into a power source.
3. BASE UNIT has experienced a power failure or was unplugged. Replace the HANDSET on
the BASE UNIT for 2 to 5 seconds to reset the system.
Received signal flutters or fades, check the following:
1. BATTERY PACK in the HANDSET is fully charged.
2. HANDSET is not too far from the BASE UNIT.
Interference on reception, check the following:
1. Noise may be picked up from electrical products in the home or electrical storms. Generally,
this noise is a minor annoyance and should not be interpreted as a defect in your system.
(See Technical Information on page 33).
Excess static, check the following:
1. Check to see that the ANTENNA is not touching another metal object.
If after pressing the button, you receive three “beeps” and no dial tone, check the
following:
1. BASE UNIT is plugged into a power source.
2. BASE UNIT has experienced a power failure or was unplugged. Replace the HANDSET on
the BASE UNIT for 2 to 5 seconds to reset the system.
NOTE: If none of the telephones in the house are working, disconnect one set at a time to
verify that none of the telephones are causing the problem. If you still have a problem
after doing this, and your telephone still does not work, please contact your local
phone company.
Problem Solving
Talk
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 36
Technical Information
30
Technical Information
This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in
using radio frequencies with a cordless telephone. While these are normal, the following could
affect the operation of your system.
Noise
Electrical pulse noise is present in most homes at one time or another. This noise is most intense
during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent
bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible
to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are a
minor annoyance and should not be interpreted as a defect in your system.
Range
Because radio frequency is used, the location of the BASE UNIT can affect the operating range.
Try several locations in your home or office and pick the one that gives you the clearest signal
to the HANDSET.
Interference
Electronic circuits activate a relay to connect the cordless telephone to your telephone line.
These electronic circuits operate in the radio frequency spectrum. While several protection
circuits are used to prevent unwanted signals, there may be periods when these unwanted
signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are not
using the HANDSET. If the interference occurs frequently, it can be minimized or eliminated by
relocating the BASE UNIT. You can check for interference before selecting the final BASE UNIT
location by plugging in the telephone.
NOTICE:
This cordless telephone uses radio communication between the HANDSET and the BASE UNIT
and may not ensure privacy of communication. Other devices, including other cordless
telephones, may interfere with the operation of this cordless telephone or cause noise during
operation. Units not containing coded access may be accessed by other radio communication
systems. Cordless telephones must not cause interference to any licensed radio service.
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 37
FCC Req
31
IMPORTANT
Placing your BASE UNIT near appliances
such as televisions, refrigerators, radios, or
microwave ovens may cause interference.
Federal Communications Commission Requirements
This equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this
equipment contains, among other information, the ACTA Product Number and the Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this information
to your telephone company.
The REN is also useful in determining the quantity of devices that you may connect to
your telephone line and still allow these devices to ring when your telephone number is called.
In most areas, but not all, the sum of the RENs for all devices connected to one line should not
exceed five (5.0). To be certain of the number of devices that you may connect to your line, you
should contact your local telephone company.
If your equipment should cause harm to the telephone network, the telephone company may
temporarily disconnect your service. If possible, they will notify you in advance that temporary
discontinuance of service may be required. However, when advanced written notice is not
possible, the telephone company may temporarily discontinue service without notice if such
action is necessary under the circumstances. The telephone company may make changes in its
communication facilities, equipment, operations, or procedures where such action is reasonably
required in the operation of its business and is not inconsistent with the rules and regulations of
the Federal Communications Commission. Do not attempt to repair or modify this
equipment.
WARNING: Changes or modifications not expressly approved by the party responsible for its
compliance could void the user’s authority to operate the equipment.
Some cordless telephones operate at frequencies that may cause interference to nearby TVs
and VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephone
should not be placed on or near a TV or VCR. If interference is experienced, moving the
cordless telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
FCC Requirements
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 38
FCC Requirements
Federal Communications Commission Requirements (continued)
This equipment should not be used on coin telephone lines. Connection to party line service is
subject to state tariffs. If trouble is experienced, disconnect this equipment from the telephone
line to determine if it is causing the malfunction. If the equipment is determined to be
malfunctioning, its use should be discontinued until the problem has been corrected.
NOTE: This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
1. Reorient or relocate the receiving ANTENNA.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
32
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 39
Warranty
Warranty Information
BellSouth Products
One-Year Limited Warranty
This limited warranty sets forth all BellSouth Products responsibilities regarding your product.
There are no other expressed or implied warranties from BellSouth Products.
Warranty Service Provided
If you purchased the telephone new from a retail vendor, BellSouth Products warrants the
telephone against defects in material and workmanship for a period of one (1) year from the
original date of purchase. This warranty is in lieu of all other expressed warranties. This
warranty begins when you purchase the telephone and continues for one (1) year unless you
sell or rent the telephone, in which case the warranty stops.
BellSouth Products disclaims any implied warranty, including the warranty of merchantability
and the warranty of fitness for a particular purpose, as of the date of 90 days from your original
purchase of the telephone. BellSouth Products assumes no responsibility for any special,
incidental, or consequential damages.
This warranty gives you specific legal rights and you may have other rights which vary from state
to state. Some states do not allow the exclusion or limitations of special, incidental or
consequential damages, or limitations on how long a warranty lasts, so the above exclusion and
limitation may not apply to you.
Warranty Service Not Provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper
installation or operation, lack of reasonable care, unauthorized modification, the affixing of any
attachment not provided by BellSouth Products with the telephone and/or loss of parts. This
warranty is voided in the event any unauthorized person opens, alters or repairs the telephone.
All BellSouth equipment being returned for repair must be suitably packaged. Telephone
companies use different types of equipment and offer various types of services to customers.
BellSouth Products does not warrant that this telephone is compatible with the type of
equipment of any particular telephone company or the services provided by it.
33
Warranty
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 40
Warranty
What to Do for Warranty Service
During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at
the retailer from whom it was purchased. After thirty (30) days, the defective product should be
returned to the authorized service center. Please allow 2-3 weeks for the return of your
telephone product. The shipping address of the authorized service center is:
U.S. Electronics CONSUMER CENTER
C/O Southern Bonded Warehouse
7137 Southlake Parkway
Morrow, GA 30260
NOTE: A product received which was not made for BellSouth Products or which is not
defective as determined by our test procedures will not be repaired and will be returned C.O.D.,
freight.
To Obtain Warranty Service
• Provide proof of the date of purchase within the package.
• Prepay all shipping costs to the authorized service center.
• Include a return shipping address within the package.
Please retain your sales receipt, the carton, the packing materials, and the printed material. The
original carton is the best shipping container for the telephone should you have to return it.
For your reference:
Serial number
Date of Purchase
Name of Dealer
Visit Us on the Web:
www.uselectronics.info
Customer Service Telephone Number:
1-800-210-8950
OUTSIDE THE U.S.A. CALL 1-212-242-6978
34
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 41
Notes
35
Notes
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 42
Notes
36
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 43
This page serves as a template for attachment of screws to the wall when
mounting this telephone on the wall.
1. Cut out this page.
2. Use this template to determine the distance between screws when
mounting this phone on the wall. The two cross hairs identify where to
attach the screws.
37
Wall Mount Template
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 44
IMPORTANT
In order to get maximum life from the HANDSET
BATTERY PACK, be sure to charge the HANDSET
for 12 hours before initial use.
IMPORTANT
Placing your BASE UNIT near appliances
such as televisions, refrigerators, radios, or
microwave ovens may cause interference.
IMPORTANT
The AC ADAPTOR must always be plugged
into an electrical outlet.
IMPORTANT
In order to utilize the Caller ID feature, you
must subscribe to Caller ID service from
your local telephone company.
IMPORTANT
If you live in an area which receives frequent
thunderstorms, we strongly recommend plugging
your AC ADAPTOR into a surge protector.
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 45
Make certain you receive the best
performance from your telephone.
Read this manual first.
GH5815 Made in China
XXX LD
Visit Us on the Web:
www.uselectronics.info
manual 5815 analog.qxd 3/16/2004 2:40 PM Page 46
