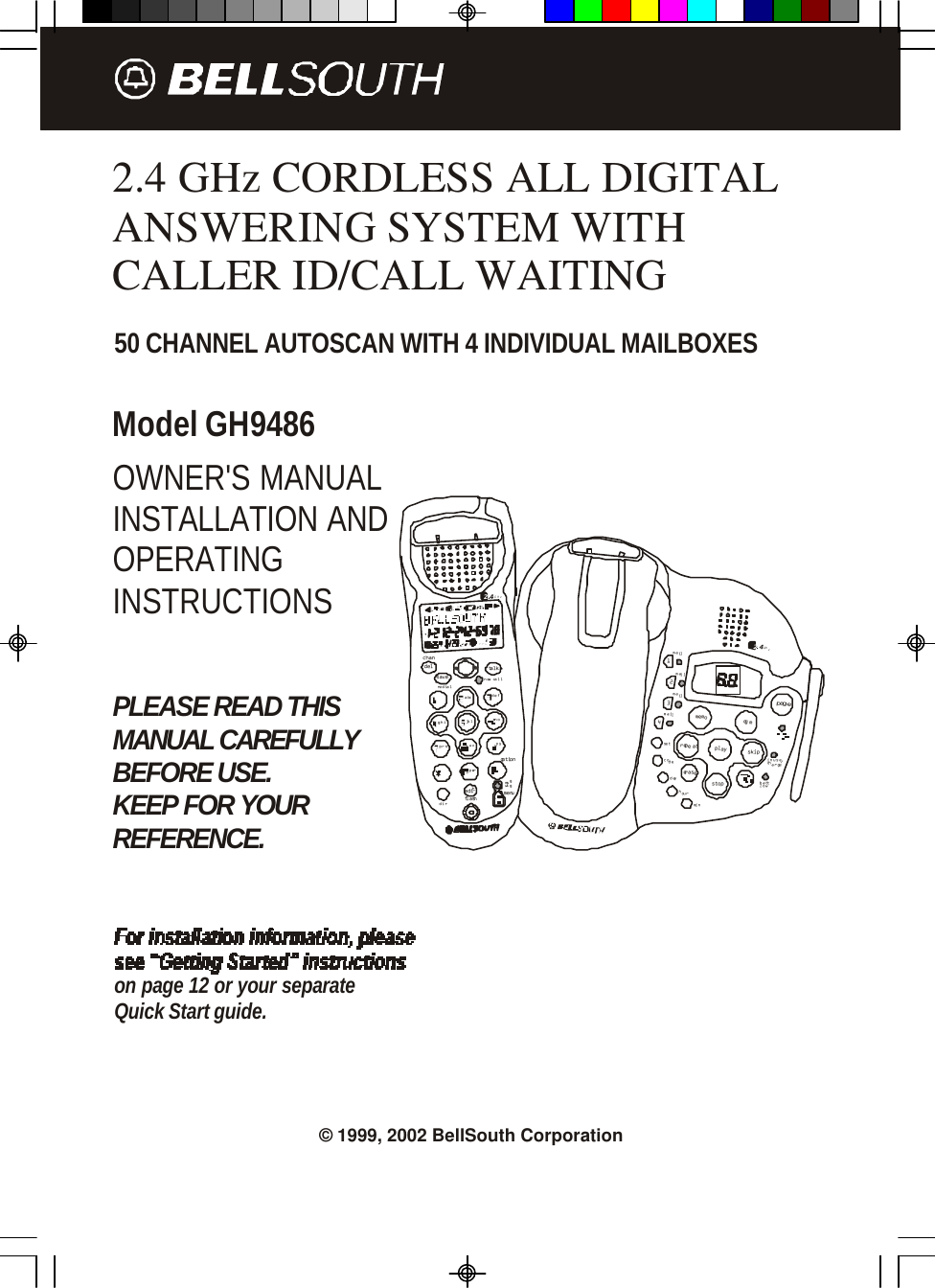

ongratulations on your selection of a quality BellSouth Product. With propercare, and by following the setup and user instructions in this manual, this unitwill provide you with years of trouble free service.BellSouth is committed to providing quality products that fit your needs. We would like tohave any comments or suggestions you might have on this product. You may mail yourcomments to: U.S. Electronics105 Madison AvenueNew York, NY 10016When examining your new BellSouth cordless telephone, you will find an array ofspecial features including:Filtered Sound™ System - Receives considerably less noise than conventional cordlesstelephones because of a special circuit which delivers the clearest possiblereception.50 Channel Autoscan - Press the /scan button on the HANDSET to find and lockon to the clearest channel for any call.Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone.TONE or PULSE Dialing - Use this phone for either TONE (rotary) or PULSE (push-button) dialing.Automated Functions - Redial the last number called and automatic STANDBY mode.Security - Ensures greater privacy because a built-in security code with 65,536combinations prevents use of your telephone line by another nearby cordlesstelephone.Dependable Battery - Recharge your BATTERY PACK many times with the built-incharger. The battery low warning tone tells you when the BATTERY PACK needsrecharging (See page 27).Special Services - Use the /flash button to access special services such as CallWaiting supplied by your telephone company or company switchboard.STANDBY Mode - When in STANDBY mode (ON-HOOK), the telephone is capable ofreceiving a call. When the HANDSET is on the BASE UNIT, it is automatically in theSTANDBY mode (ON-HOOK). When the HANDSET is taken off the BASE UNIT, itremains in the STANDBY mode until you activate the button.Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET canreceive/send calls for a maximum of five days without the need for recharging.Length of charge depends on frequency of use.HANDSET Ringer Level - Select the ringer sound level (HI, LOW, OFF).HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW).HEADSET JACK - Your telephone can utilize a headset for hands-free communication.BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt.CSpecial Featuresdel

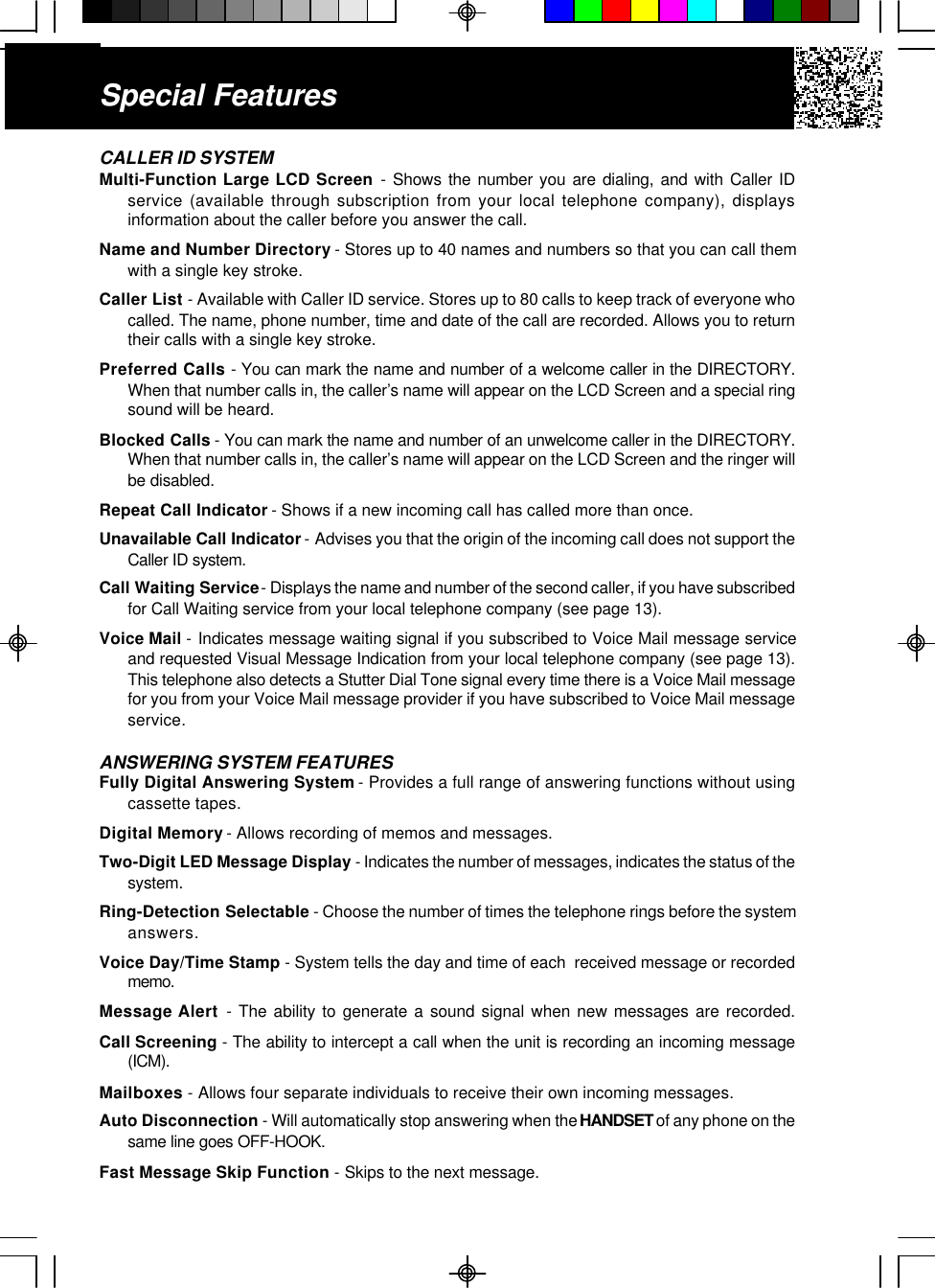

Special FeaturesCALLER ID SYSTEMMulti-Function Large LCD Screen - Shows the number you are dialing, and with Caller IDservice (available through subscription from your local telephone company), displaysinformation about the caller before you answer the call.Name and Number Directory - Stores up to 40 names and numbers so that you can call themwith a single key stroke.Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone whocalled. The name, phone number, time and date of the call are recorded. Allows you to returntheir calls with a single key stroke.Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY.When that number calls in, the caller’s name will appear on the LCD Screen and a special ringsound will be heard.Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY.When that number calls in, the caller’s name will appear on the LCD Screen and the ringer willbe disabled.Repeat Call Indicator - Shows if a new incoming call has called more than once.Unavailable Call Indicator - Advises you that the origin of the incoming call does not support theCaller ID system.Call Waiting Service - Displays the name and number of the second caller, if you have subscribedfor Call Waiting service from your local telephone company (see page 13).Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message serviceand requested Visual Message Indication from your local telephone company (see page 13).This telephone also detects a Stutter Dial Tone signal every time there is a Voice Mail messagefor you from your Voice Mail message provider if you have subscribed to Voice Mail messageservice.ANSWERING SYSTEM FEATURESFully Digital Answering System - Provides a full range of answering functions without usingcassette tapes.Digital Memory - Allows recording of memos and messages.Two-Digit LED Message Display - Indicates the number of messages, indicates the status of thesystem.Ring-Detection Selectable - Choose the number of times the telephone rings before the systemanswers.Voice Day/Time Stamp - System tells the day and time of each received message or recordedmemo.Message Alert - The ability to generate a sound signal when new messages are recorded.Call Screening - The ability to intercept a call when the unit is recording an incoming message(ICM).Mailboxes - Allows four separate individuals to receive their own incoming messages.Auto Disconnection - Will automatically stop answering when the HANDSET of any phone on thesame line goes OFF-HOOK.Fast Message Skip Function - Skips to the next message.
1. LARGE LCD SCREEN8. DIRECTORY BUTTON Pg. 14, 15, 16, 18, 1913. TALK BUTTON Pg. 6, 7, 9, 10, 13, 14, 18, 296. 10 BUTTON Pg. 14DIAL 18. VOICE MAIL BUTTON Pg. 13, 20~25FUNCTION/ 17. MESSAGE WAITING LED INDICATOR Pg. 1312. VOLUME CONTROL (HI, MID, LOW) SWITCH11. BATT LOW INDICATOR Pg. 2715. HEADSET JACK Pg. 114. REDIAL/PAUSE BUTTON Pg. 10, 15, 16 18, 20~25SAVE/16. TELEPHONE KEYPAD Pg. 16~18, 20, 21, 24, 255. 1+ /# BUTTON Pg. 14, 19DIAL 9. FLASH/ BUTTON Pg. 13, 14, 16, 18, 20~25EDIT10. CHARGE CONTACTSHANDSET Controls7. 7 /TEMPORARYDIAL Pg. 14, 19HANDSET Controls1. items.defopertuvjklghi mnoprs wxyabc.42GHztalknew calldelredialchansavemsgwtgflashdiredit menu2. SCROLL UP-DOWN/SHIFT LEFT-RIGHT BUTTON Pg. 12, 14~16, 18~243. SCAN/DEL ( BUTTON Pg. 9, 15, 16, 18, 19, 26, 29, 30DELETE)14. NEW CALL LED INDICATOR Pg. 142. SCROLL UP -DOWN , SHIFT LEFT -RIGHT Button: 3. scan/ del (DELETE) Button: Press to move around(SCAN) Press to change the operating channel when the large LCD Screen.you hear interference. (DELETE) - Press and hold down to delete items or individualcharacters.option

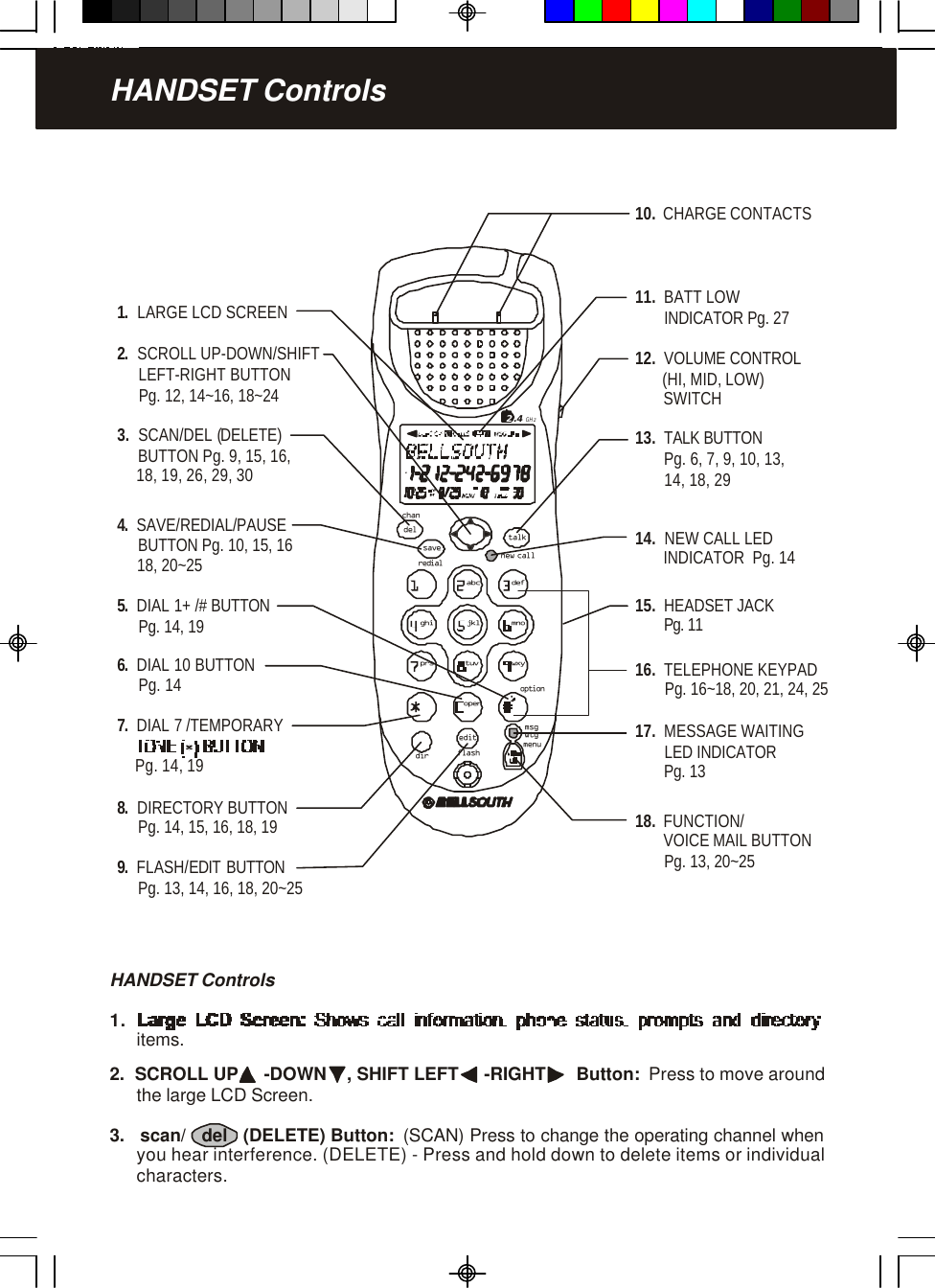

HANDSET Controls4. /re (REDIAL)/pa (PAUSE) Button: (SAVE) Press and hold down to save thechanges on the listed items. (REDIAL) Press to redial the last number you dialed.(PAUSE) Press to insert a pause while dialing. (You will need the /re/pa buttonto dial numbers which use an alternative Long Distance Access Code.)5. DIAL 1+/# Button: (DIAL 1+) Press and hold down to place a long distance call.(Automatically adds the number 1 at the beginning of the displayed telephonenumber.)6. DIAL 10/0 Button: (DIAL 10) Press and hold down to place a local call withArea Code.7. DIAL 7/TEMPORARY TONE Button: (DIAL 7) Press and hold down to place alocal call. (**) Press to temporarily change the dialing mode from PULSE to TONEfor Rotary Service Users. (Press once before entering numbers to access theAnswering System or electronic banking services, etc.)8. (DIRECTORY) Button: Press to access names and numbers stored in theDIRECTORY. (See pages 16 to 19 for details.)9. /flash Button: (FLASH) Press to answer a call if you have Call Waiting.(EDIT) Press to edit listed items.10. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. Werecommend cleaning the CHARGE CONTACTS periodically with a damp cloth.11.BATT LOW INDICATOR: Appears on the LCD Screen when the battery charge is low.(See page 27 for detail.)12. HANDSET Volume Control (hi, mid, low) Switch: Select the receiver volume level(HI, MID, LOW).13. Button: Press to answer an incoming call or to place a call. Press to end a call.14. NEW CALL LED Indicator: Blinks when recording a new incoming call.15. HEADSET JACK: For connecting your headset plug to enjoy hands-freecommunication. (See page 11 for detail.)16. TELEPHONE KEYPAD Buttons: Allows you to make a call depending on pressedbutton. (For TELEPHONE KEYPAD characters, see page 17.)17.MSG (MESSAGE) WAITING LED Indicator: Blinks when receiving a MessageWaiting signal, if you have subscribed to a Voice Mail message service from yourlocal telephone company. (See page 13.)18. /func (FUNCTION) Button: (FUNCTION) Press to access special functionsoperation in STANDBY mode. (For special functions see page 20~21.)(VOICE MAIL) -Press to automatically dial the Voice Mail Post Code in your area toaccess your Voice Mail message.savesave#0 oper*
18. MAILBOX LED INDICATORS Pg. 11, 36~3823. BASE UNIT ANTENNA Pg. 9, 12, 17, 45, 4725. IN USE/CHARGE LED INDICATOR Pg. 9, 17~ 1926. BATTERY LOW LED INDICATOR Pg. 914. TELEPHONE LINE CONNECTION JACK Pg. 9, 12, 13, 16, 4519. LED MESSAGE DISPLAY Pg. 11, 35, 38, 3917. POWER-IN CONNECTION JACK Pg. 9, 12, 1327. SKIP BUTTON Pg. 11, 377. SET BUTTON Pg. 11, 3310. DAY BUTTON Pg. 11, 33, 408. CODE BUTTON Pg. 11, 33, 4011. HOUR BUTTON Pg. 11, 33, 4030. MINUTE BUTTON Pg. 11, 4012. PLAY BUTTON Pg. 11, 3729. STOP BUTTON Pg. 11, 35, 373. MAILBOX 2 BUTTON Pg. 10, 384. MAILBOX 3 BUTTON Pg. 10, 3821. OUTGOING MESSAGE BUTTON Pg. 10, 346. REPEAT BUTTON Pg. 11, 371. CHARGE TERMINALS Pg. 913. MICROPHONE Pg. 34, 37pagein use/battmemo ogmrepeat play skiperasestop.42GHzmailmail1234mailmailset5. MAILBOX 4 BUTTON Pg. 10, 382. MAILBOX 1 BUTTON Pg. 10, 38 20. MEMO BUTTON Pg. 11, 35, 38, 3922. PAGE BUTTON Pg. 10, 349. ERASE BUTTON Pg. 11, 35codedayhourmin31. MINUTE BUTTON Pg. 11, 4015. RESET BUTTON Pg. 9, 12, 13, 16, 45chargelow16. TONE-PULSE SELECT SWITCH 32. ANNOUNCE ONLY/ INCOMING MESSAGE SWITCH Pg. 11, 4033. MESSAGE ALERT SWITCH Pg. 11, 4035. RINGER ON/OFF SWITCH Pg. 11, 4034. RING SELECT SWITCH Pg. 11, 40

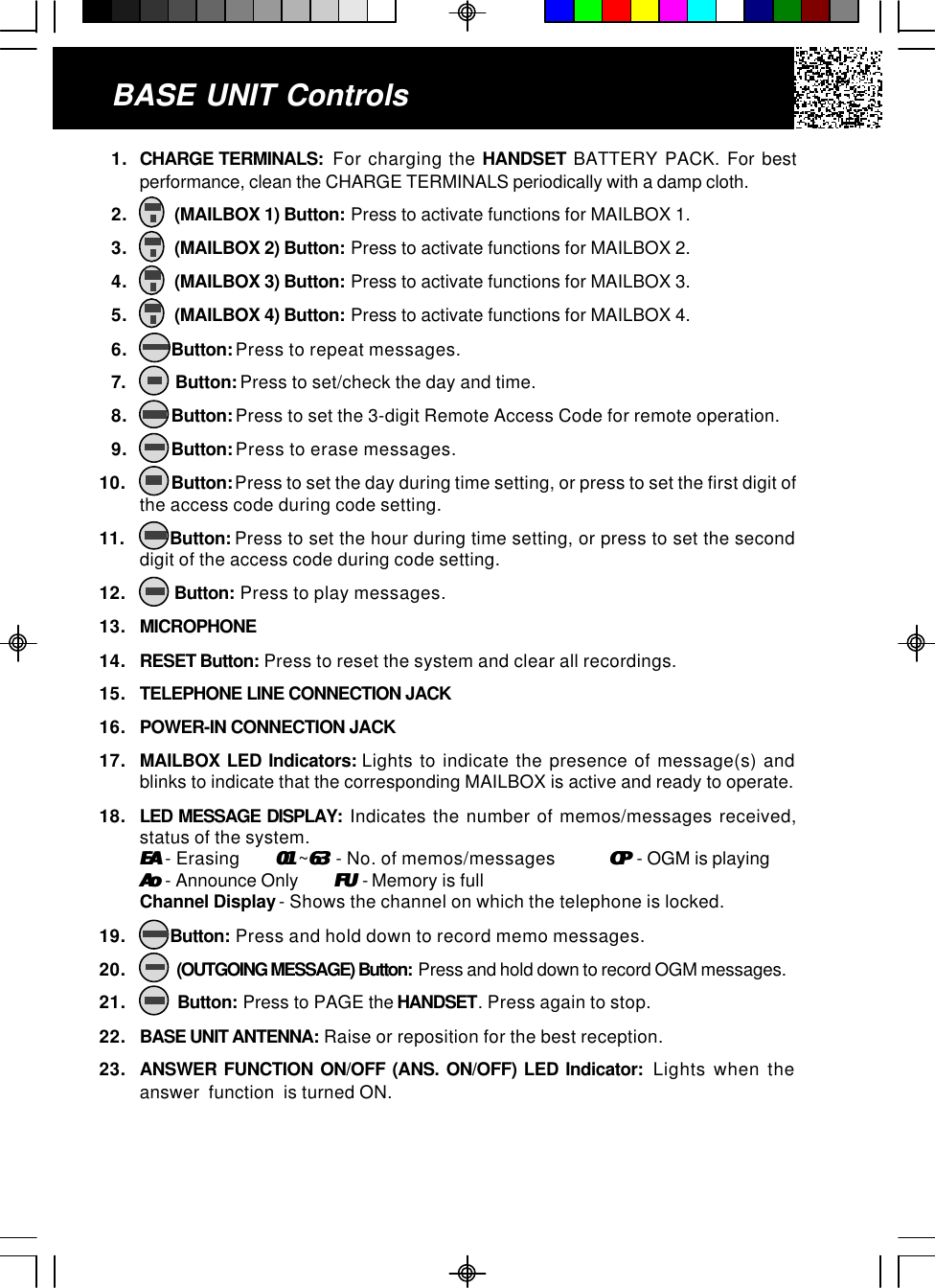

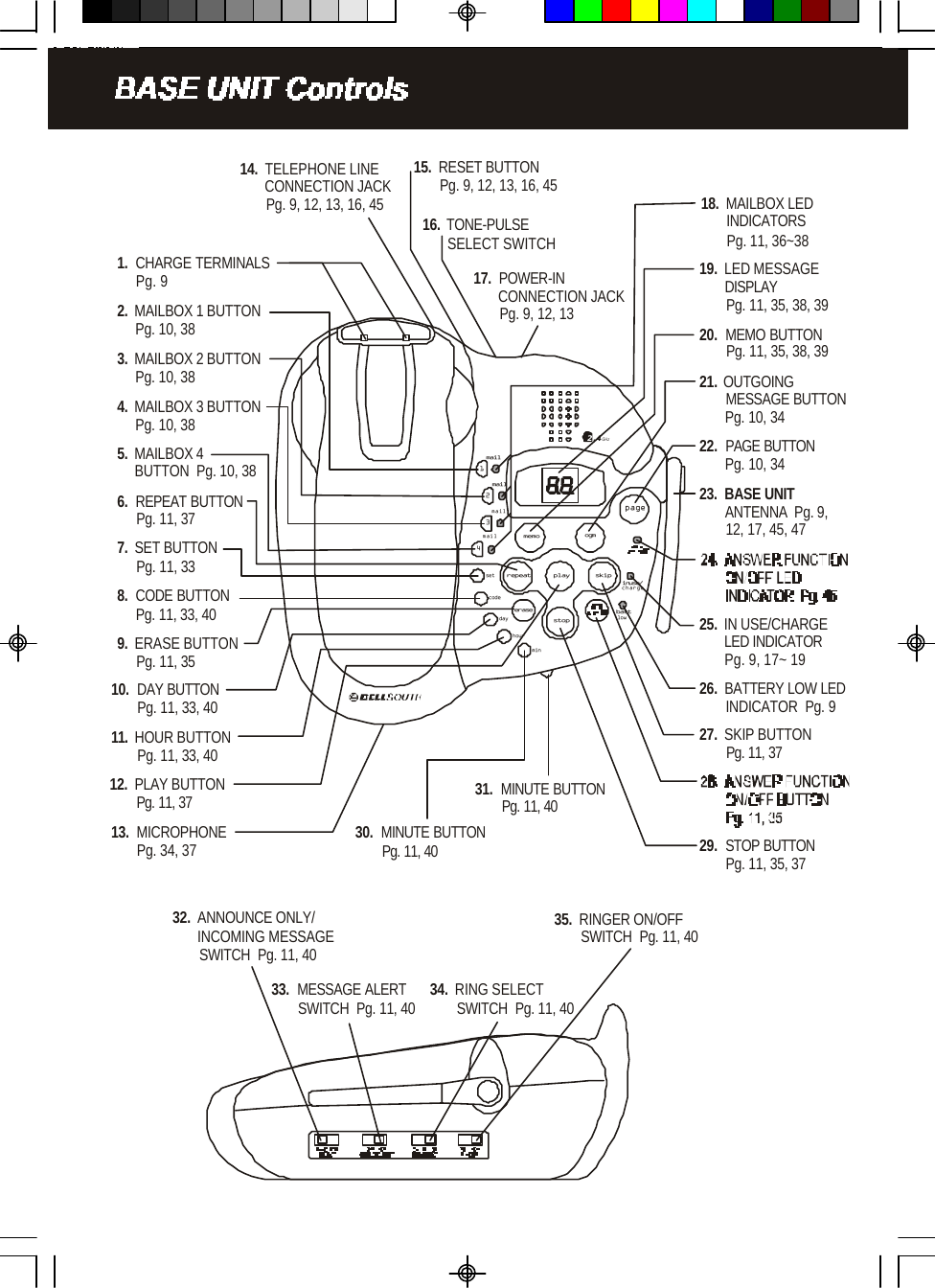

BASE UNIT Controls1. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For bestperformance, clean the CHARGE TERMINALS periodically with a damp cloth.2. (MAILBOX 1) Button: Press to activate functions for MAILBOX 1.3. (MAILBOX 2) Button: Press to activate functions for MAILBOX 2.4. (MAILBOX 3) Button: Press to activate functions for MAILBOX 3.5. (MAILBOX 4) Button: Press to activate functions for MAILBOX 4.6. Button: Press to repeat messages.7. Button: Press to set/check the day and time.8. Button: Press to set the 3-digit Remote Access Code for remote operation.9. Button: Press to erase messages.10. Button: Press to set the day during time setting, or press to set the first digit ofthe access code during code setting.11. Button: Press to set the hour during time setting, or press to set the seconddigit of the access code during code setting.12. Button: Press to play messages.13. MICROPHONE14. RESET Button: Press to reset the system and clear all recordings.15. TELEPHONE LINE CONNECTION JACK16. POWER-IN CONNECTION JACK17. MAILBOX LED Indicators: Lights to indicate the presence of message(s) andblinks to indicate that the corresponding MAILBOX is active and ready to operate.18. LED MESSAGE DISPLAY: Indicates the number of memos/messages received,status of the system.EAEA - Erasing 01 01 ~63 63 - No. of memos/messages OP OP - OGM is playingAoAo - Announce Only FU FU - Memory is fullChannel Display - Shows the channel on which the telephone is locked.19. Button: Press and hold down to record memo messages.20. (OUTGOING MESSAGE) Button: Press and hold down to record OGM messages.21. Button: Press to PAGE the HANDSET. Press again to stop.22. BASE UNIT ANTENNA: Raise or reposition for the best reception.23. ANSWER FUNCTION ON/OFF (ANS. ON/OFF) LED Indicator: Lights when theanswer function is turned ON.

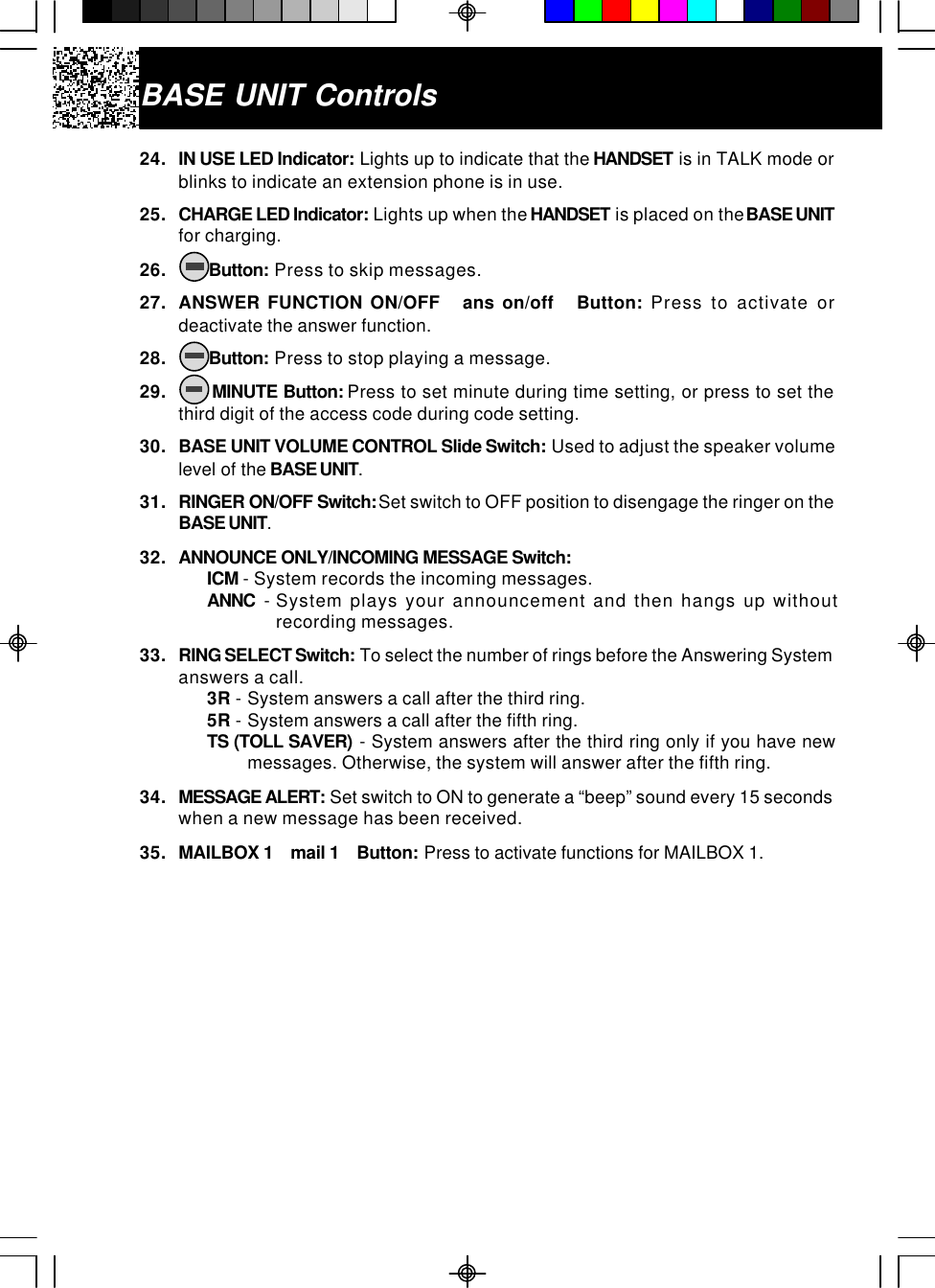

24. IN USE LED Indicator: Lights up to indicate that the HANDSET is in TALK mode orblinks to indicate an extension phone is in use.25. CHARGE LED Indicator: Lights up when the HANDSET is placed on the BASE UNITfor charging.26. Button: Press to skip messages.27. ANSWER FUNCTION ON/OFF ans on/off Button: Press to activate ordeactivate the answer function.28. Button: Press to stop playing a message.29. MINUTE Button: Press to set minute during time setting, or press to set thethird digit of the access code during code setting.30. BASE UNIT VOLUME CONTROL Slide Switch: Used to adjust the speaker volumelevel of the BASE UNIT.31. RINGER ON/OFF Switch: Set switch to OFF position to disengage the ringer on theBASE UNIT.32. ANNOUNCE ONLY/INCOMING MESSAGE Switch:ICM - System records the incoming messages.ANNC -System plays your announcement and then hangs up withoutrecording messages.33. RING SELECT Switch: To select the number of rings before the Answering Systemanswers a call.3R -System answers a call after the third ring.5R -System answers a call after the fifth ring.TS (TOLL SAVER) - System answers after the third ring only if you have newmessages. Otherwise, the system will answer after the fifth ring.34. MESSAGE ALERT: Set switch to ON to generate a “beep” sound every 15 secondswhen a new message has been received.35. MAILBOX 1 mail 1 Button: Press to activate functions for MAILBOX 1.BASE UNIT Controls

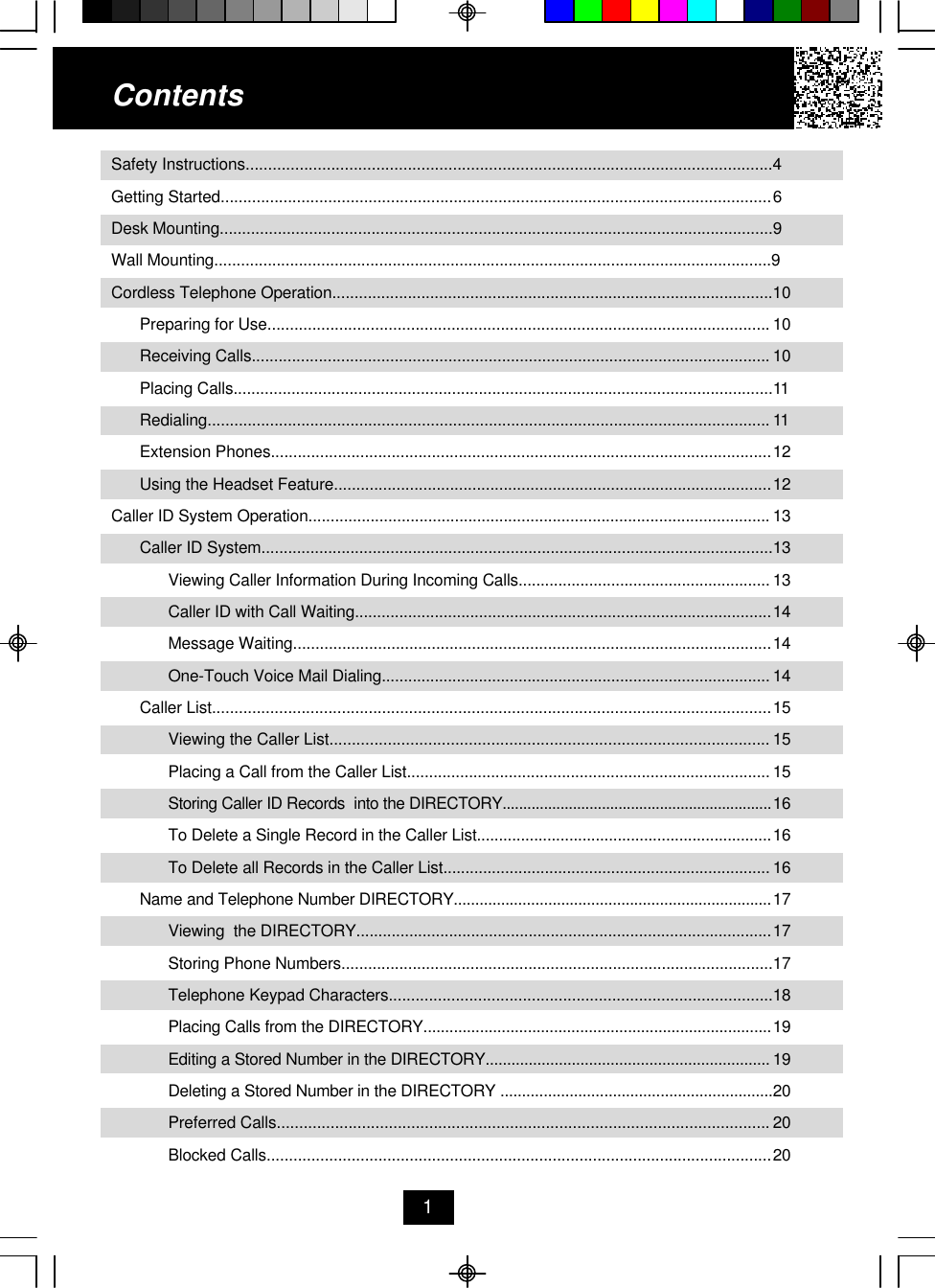

Safety Instructions.....................................................................................................................4Getting Started...........................................................................................................................6Desk Mounting............................................................................................................................9Wall Mounting.............................................................................................................................9Cordless Telephone Operation...................................................................................................10Preparing for Use................................................................................................................ 10Receiving Calls.................................................................................................................... 10Placing Calls.........................................................................................................................11Redialing.............................................................................................................................. 11Extension Phones................................................................................................................12Using the Headset Feature..................................................................................................12Caller ID System Operation........................................................................................................ 13Caller ID System...................................................................................................................13Viewing Caller Information During Incoming Calls......................................................... 13Caller ID with Call Waiting..............................................................................................14Message Waiting...........................................................................................................14One-Touch Voice Mail Dialing........................................................................................ 14Caller List.............................................................................................................................15Viewing the Caller List.................................................................................................. 15Placing a Call from the Caller List.................................................................................. 15Storing Caller ID Records into the DIRECTORY.................................................................16To Delete a Single Record in the Caller List...................................................................16To Delete all Records in the Caller List.......................................................................... 16Name and Telephone Number DIRECTORY..........................................................................17Viewing the DIRECTORY..............................................................................................17Storing Phone Numbers.................................................................................................17Telephone Keypad Characters......................................................................................18Placing Calls from the DIRECTORY................................................................................19Editing a Stored Number in the DIRECTORY.................................................................. 19Deleting a Stored Number in the DIRECTORY ...............................................................20Preferred Calls.............................................................................................................. 20Blocked Calls.................................................................................................................20Contents1
Function Settings................................................................................................................21A. Setting the Ringer Level.........................................................................................22B. Changing the Language.........................................................................................22C. Turning the First Ring ON or OFF........................................................................... 23D. Setting the Time and Date...................................................................................... 23E. Adjusting the Contrast........................................................................................... 24F. Setting the PBX Number......................................................................................... 24G. Changing the Flash Time........................................................................................24H. Changing the Pause Time.......................................................................................25I. Programming One-Touch Voice Mail Dialinbg......................................................... 25J. Deleting Message Waiting Indication......................................................................26K. Setting the Area Code............................................................................................26Answering System Operation.................................................................................................... 27Setting the Day/Time Stamp................................................................................................27Recording your Outgoing Messages..................................................................................27Turning the Answering System ON/OFF............................................................................ 29Setting to Answer Calls..................................................................................................... 29Setting to Announce Only...................................................................................................29Message Alert.................................................................................................................... 30Setting Ring Select......................................................................................................... 30Recording a Memo..........................................................................................................30Playing of Messages/Memos.......................................................................................... 31Saving Mesages.............................................................................................................32Erasing Messages..........................................................................................................32When the Memory is Full................................................................................................ 32Two-Way Recording...................................................................................................... 32Remote Operation through a Tone Telephone................................................................. 33Remote Access Codes.................................................................................................. 33Changing of the Remote Access Codes........................................................................ 33Using the Remote Instruction Code.................................................................................34Contents2

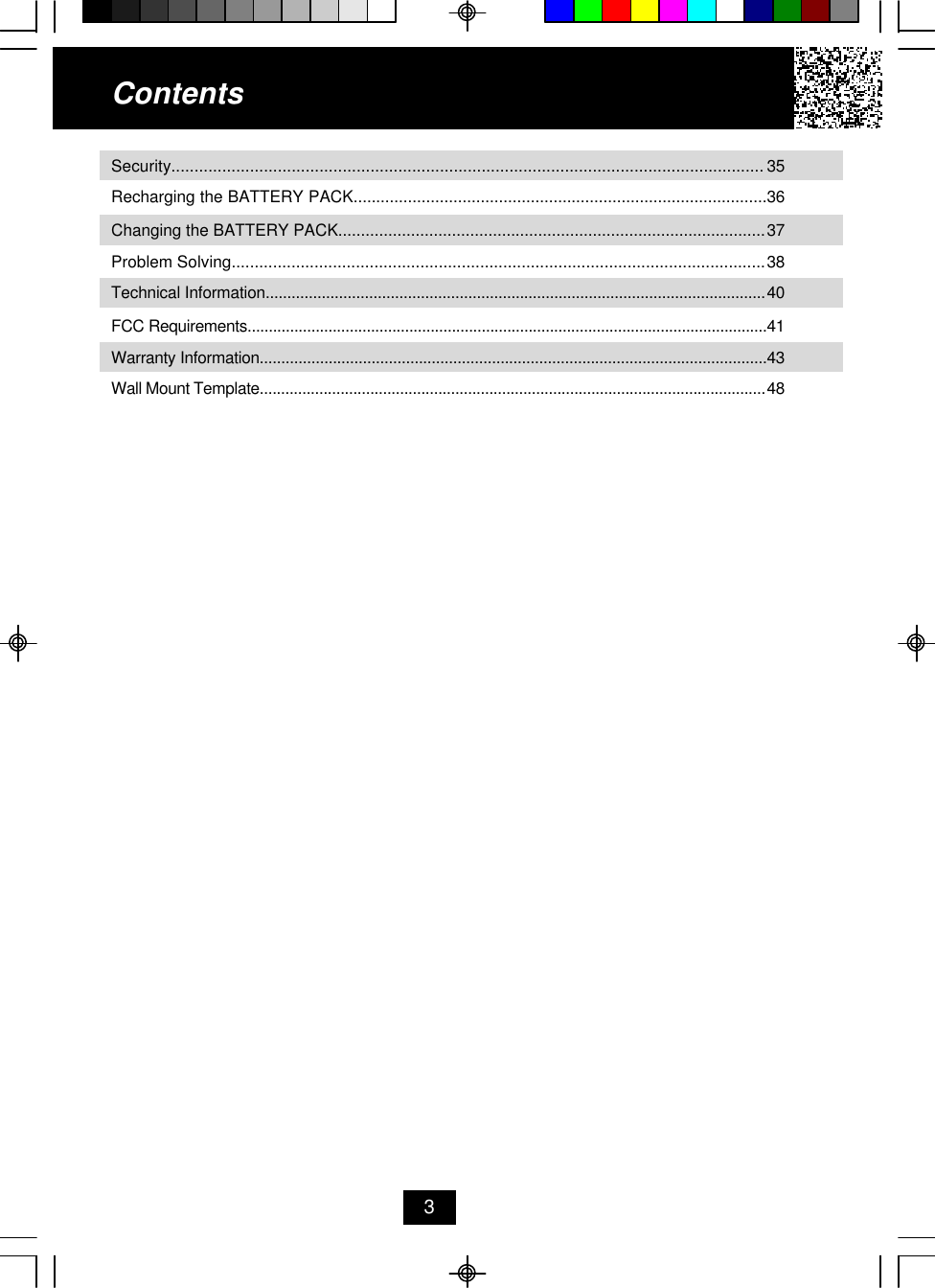

Security................................................................................................................................ 35Recharging the BATTERY PACK...........................................................................................36Changing the BATTERY PACK..............................................................................................37Problem Solving....................................................................................................................38Technical Information....................................................................................................................40FCC Requirements..........................................................................................................................41Warranty Information......................................................................................................................43Wall Mount Template.......................................................................................................................48Contents3

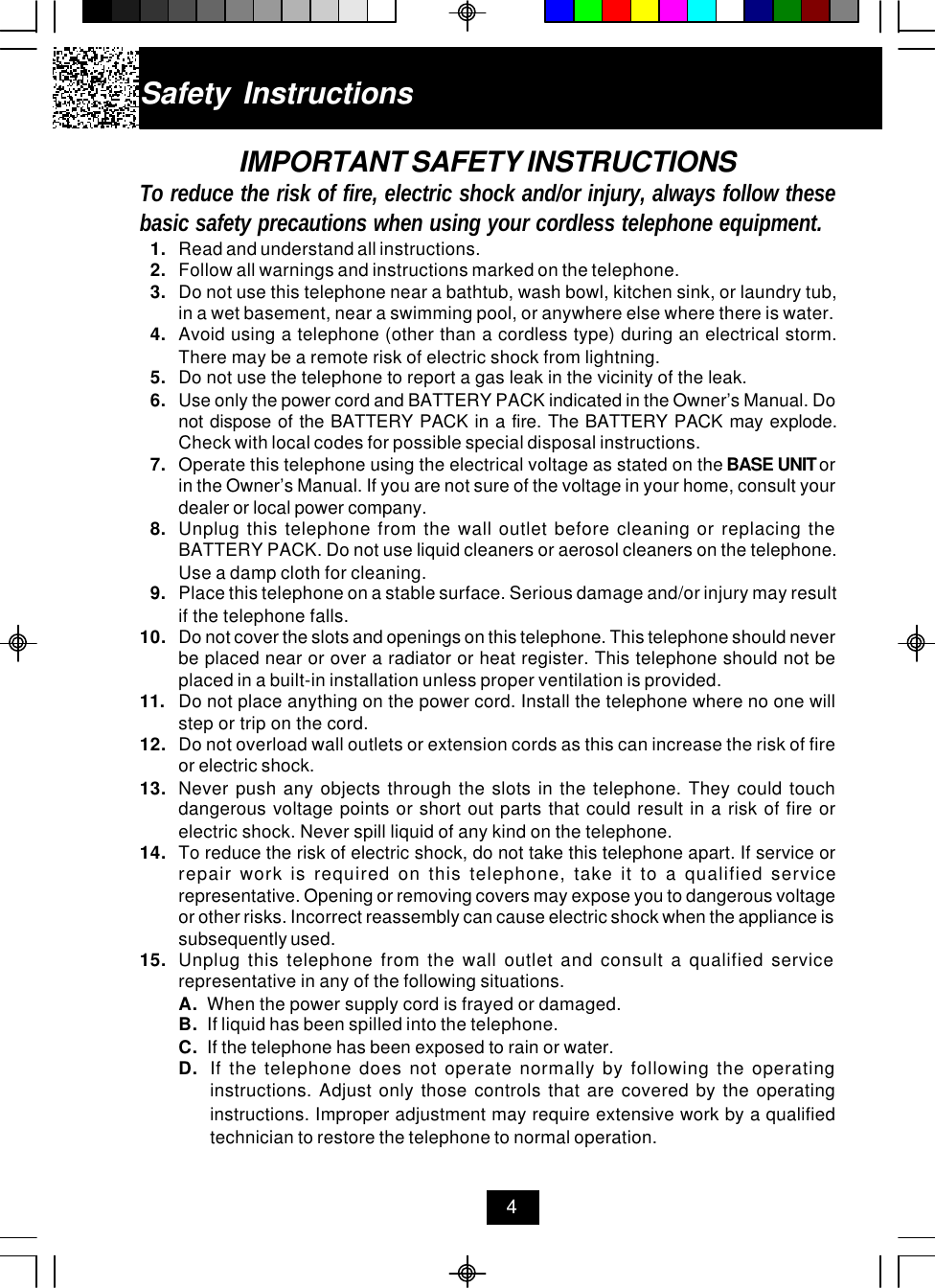

Safety Instructions4IMPORTANT SAFETY INSTRUCTIONSTo reduce the risk of fire, electric shock and/or injury, always follow thesebasic safety precautions when using your cordless telephone equipment.1. Read and understand all instructions.2. Follow all warnings and instructions marked on the telephone.3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub,in a wet basement, near a swimming pool, or anywhere else where there is water.4. Avoid using a telephone (other than a cordless type) during an electrical storm.There may be a remote risk of electric shock from lightning.5. Do not use the telephone to report a gas leak in the vicinity of the leak.6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Donot dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode.Check with local codes for possible special disposal instructions.7. Operate this telephone using the electrical voltage as stated on the BASE UNIT orin the Owner’s Manual. If you are not sure of the voltage in your home, consult yourdealer or local power company.8. Unplug this telephone from the wall outlet before cleaning or replacing theBATTERY PACK. Do not use liquid cleaners or aerosol cleaners on the telephone.Use a damp cloth for cleaning.9. Place this telephone on a stable surface. Serious damage and/or injury may resultif the telephone falls.10. Do not cover the slots and openings on this telephone. This telephone should neverbe placed near or over a radiator or heat register. This telephone should not beplaced in a built-in installation unless proper ventilation is provided.11. Do not place anything on the power cord. Install the telephone where no one willstep or trip on the cord.12. Do not overload wall outlets or extension cords as this can increase the risk of fireor electric shock.13. Never push any objects through the slots in the telephone. They could touchdangerous voltage points or short out parts that could result in a risk of fire orelectric shock. Never spill liquid of any kind on the telephone.14. To reduce the risk of electric shock, do not take this telephone apart. If service orrepair work is required on this telephone, take it to a qualified servicerepresentative. Opening or removing covers may expose you to dangerous voltageor other risks. Incorrect reassembly can cause electric shock when the appliance issubsequently used.15. Unplug this telephone from the wall outlet and consult a qualified servicerepresentative in any of the following situations.A. When the power supply cord is frayed or damaged.B. If liquid has been spilled into the telephone.C. If the telephone has been exposed to rain or water.D. If the telephone does not operate normally by following the operatinginstructions. Adjust only those controls that are covered by the operatinginstructions. Improper adjustment may require extensive work by a qualifiedtechnician to restore the telephone to normal operation.
E. If the telephone has been dropped or the case has been damaged.F. If the telephone exhibits a distinct change in performance.16. Never install telephone wiring during a lightning storm.17. Never install telephone jacks in wet locations unless the jack is specificallydesigned for wet locations.18. Never touch uninsulated telephone wires or terminals unless the telephone linehasbeen disconnected at the network interface.19. Use caution when installing or modifying telephone lines.Battery SafetyCAUTION:Danger of explosion if BATTERY PACK is incorrectly replaced. Replace onlywith the same or equivalent type. To reduce the risk of fire or personalinjury, read and follow these instructions:1. Use only the following type and size of BATTERY PACK:A. For HANDSETCordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: model B650(See page 29 for ordering information.)B. For BASE UNIT9V Alkaline Cell Battery (not included in the package.)2. Do not dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode.Check with local codes for possible special disposal instructions.3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERYPACK is corrosive and may cause damage to the eyes or skin. Electrolyte may betoxic if swallowed.4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERYPACK with conductive materials such as rings, bracelets and keys. The BATTERYPACK or conductor may overheat and cause burns.FOR BASE UNIT BATTERIES:5. Do not attempt to recharge the battery(ies) identified for use with this telephone.The battery(ies) may leak corrosive electrolyte or explode.6. Do not attempt to rejuvenate the battery(ies) identified for use with this telephoneby heating them. Sudden release of the battery electrolyte may occur, causingburns or irritation to eyes or skin.Safety Instructions5

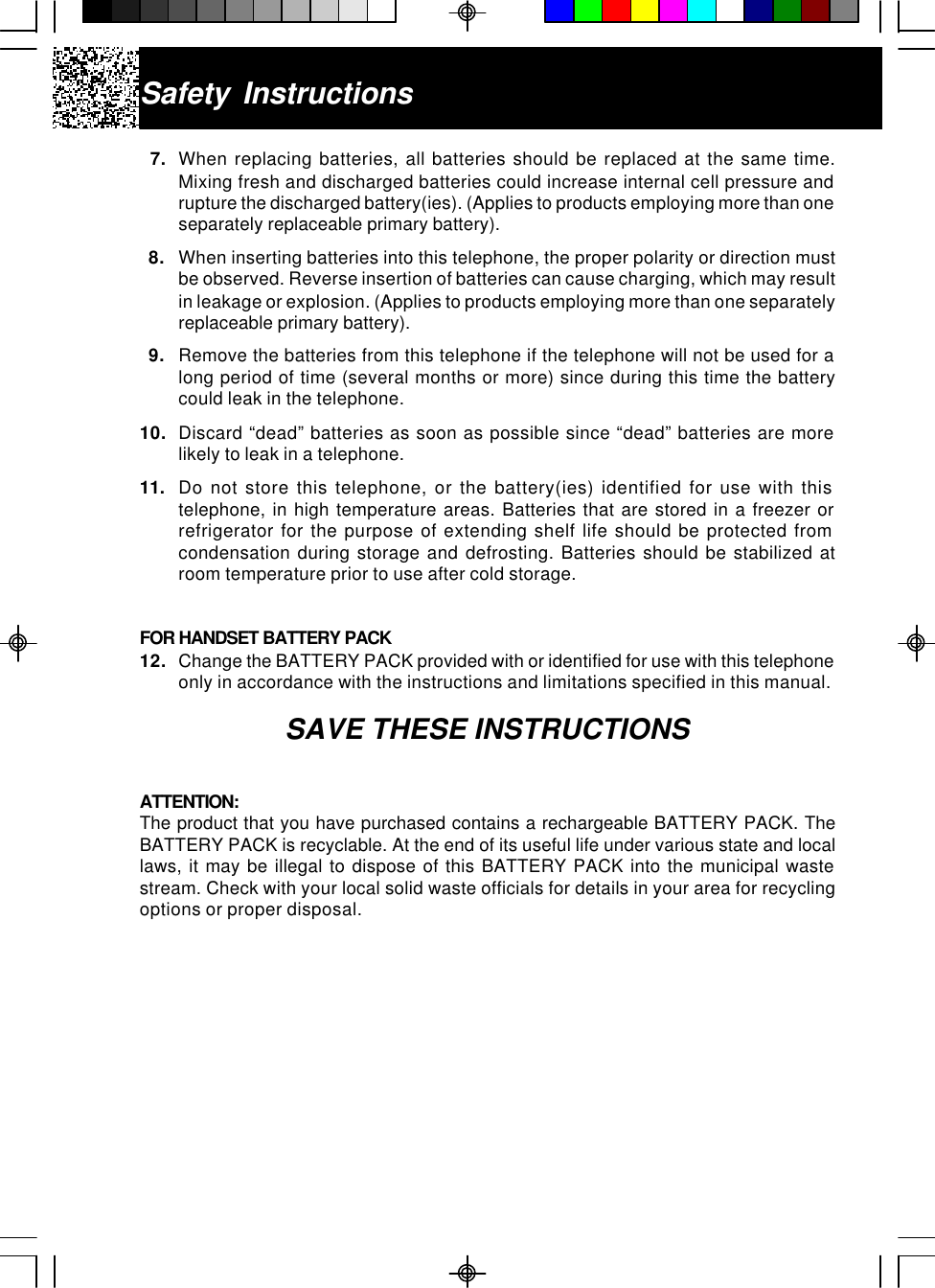

Safety Instructions7. When replacing batteries, all batteries should be replaced at the same time.Mixing fresh and discharged batteries could increase internal cell pressure andrupture the discharged battery(ies). (Applies to products employing more than oneseparately replaceable primary battery). 8. When inserting batteries into this telephone, the proper polarity or direction mustbe observed. Reverse insertion of batteries can cause charging, which may resultin leakage or explosion. (Applies to products employing more than one separatelyreplaceable primary battery). 9. Remove the batteries from this telephone if the telephone will not be used for along period of time (several months or more) since during this time the batterycould leak in the telephone.10. Discard “dead” batteries as soon as possible since “dead” batteries are morelikely to leak in a telephone.11. Do not store this telephone, or the battery(ies) identified for use with thistelephone, in high temperature areas. Batteries that are stored in a freezer orrefrigerator for the purpose of extending shelf life should be protected fromcondensation during storage and defrosting. Batteries should be stabilized atroom temperature prior to use after cold storage.FOR HANDSET BATTERY PACK12. Change the BATTERY PACK provided with or identified for use with this telephoneonly in accordance with the instructions and limitations specified in this manual.SAVE THESE INSTRUCTIONSATTENTION:The product that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life under various state and locallaws, it may be illegal to dispose of this BATTERY PACK into the municipal wastestream. Check with your local solid waste officials for details in your area for recyclingoptions or proper disposal.

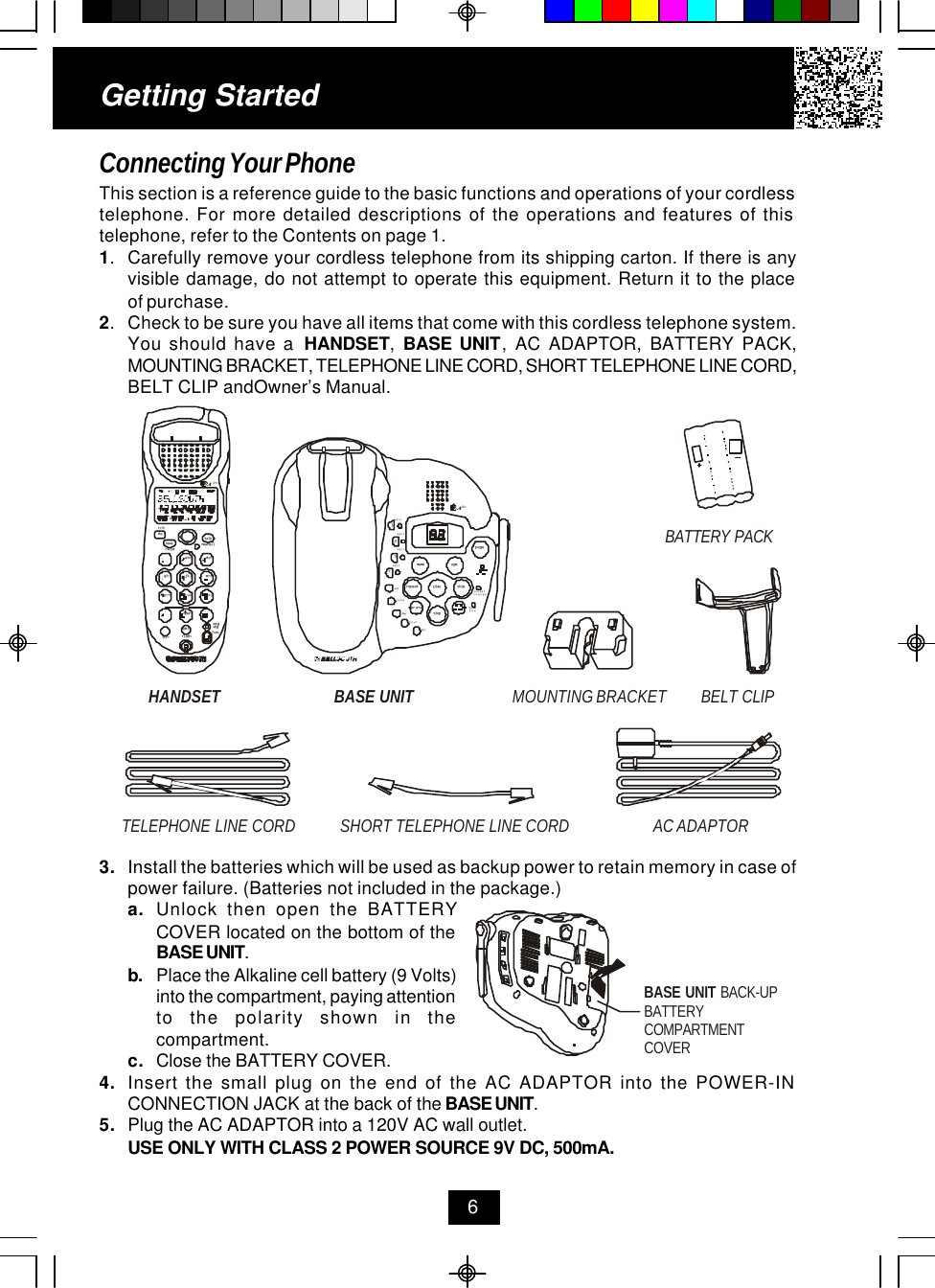

Getting StartedConnecting Your PhoneThis section is a reference guide to the basic functions and operations of your cordlesstelephone. For more detailed descriptions of the operations and features of thistelephone, refer to the Contents on page 1.1.Carefully remove your cordless telephone from its shipping carton. If there is anyvisible damage, do not attempt to operate this equipment. Return it to the placeof purchase.2.Check to be sure you have all items that come with this cordless telephone system.You should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK,MOUNTING BRACKET, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD,BELT CLIP andOwner’s Manual.63. Install the batteries which will be used as backup power to retain memory in case ofpower failure. (Batteries not included in the package.)a. Unlock then open the BATTERYCOVER located on the bottom of theBASE UNIT.b. Place the Alkaline cell battery (9 Volts)into the compartment, paying attentionto the polarity shown in thecompartment.c. Close the BATTERY COVER.4. Insert the small plug on the end of the AC ADAPTOR into the POWER-INCONNECTION JACK at the back of the BASE UNIT.5. Plug the AC ADAPTOR into a 120V AC wall outlet.USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 500mA.HANDSET BELT CLIPTELEPHONE LINE CORDAC ADAPTORSHORT TELEPHONE LINE CORDBASE UNIT MOUNTING BRACKETdefopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg wtgflashdireditfuncBATTERY PACKmailmail1234mailmailpagein use/battlowmemo ogmrepeat play skiperasestopsetcharge.42GHzcodedayhourmindialBASE UNIT BACK-UPBATTERY COMPARTMENTCOVER
Getting Started6. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACKand the other end into the TELEPHONE LINE CONNECTION JACK at the back ofthe BASE UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need anRJ-11C TELEPHONE JACK ADAPTOR. This adaptor is available at the same placeyou purchased your telephone.)7. Raise or reposition the ANTENNA on the BASE UNIT for the best reception.8. We recommend not placing this unit next to appliances. Doing so may causeinterference.9. Place the HANDSET BATTERY PACK into the BATTERY COMPARTMENT with theTERMINAL PLATES facing the CONTACT SPRINGS in the BATTERYCOMPARTMENT.10. Slide the HANDSET BATTERYCOMPARTMENT COVER firmly intoplace in its closed position.11. IMPORTANT: Before initial use, chargethe HANDSET for 12 hours.12. TONE/PULSE Select Switch:A.If your home is equipped with a tonedialing system, set the TONE/PULSE Select Switch to the TONEposition.B.If you have a rotary dialing system,set the TONE/PULSE Select Switchto the PULSE position.C.If you are unsure which system youhave, set the TONE/PULSE SelectSwitch to the TONE position. Pressthe button on the HANDSETand make a call. If the call connects,leave the switch as is; otherwise setto the PULSE position.7AC ADAPTERRaise the ANTENNABASE UNITTELEPHONE LINE CORDTELEPHONEJACK120V WALLOUTLETTONE/PULSESELECT SWITCHTELEPHONE LINECONNECTION JACKPOWER-INCONNECTION JACKTERMINAL PLATESBATTERY COMPARTMENTCOVERBATTERY PACKCONTACT SPRINGS

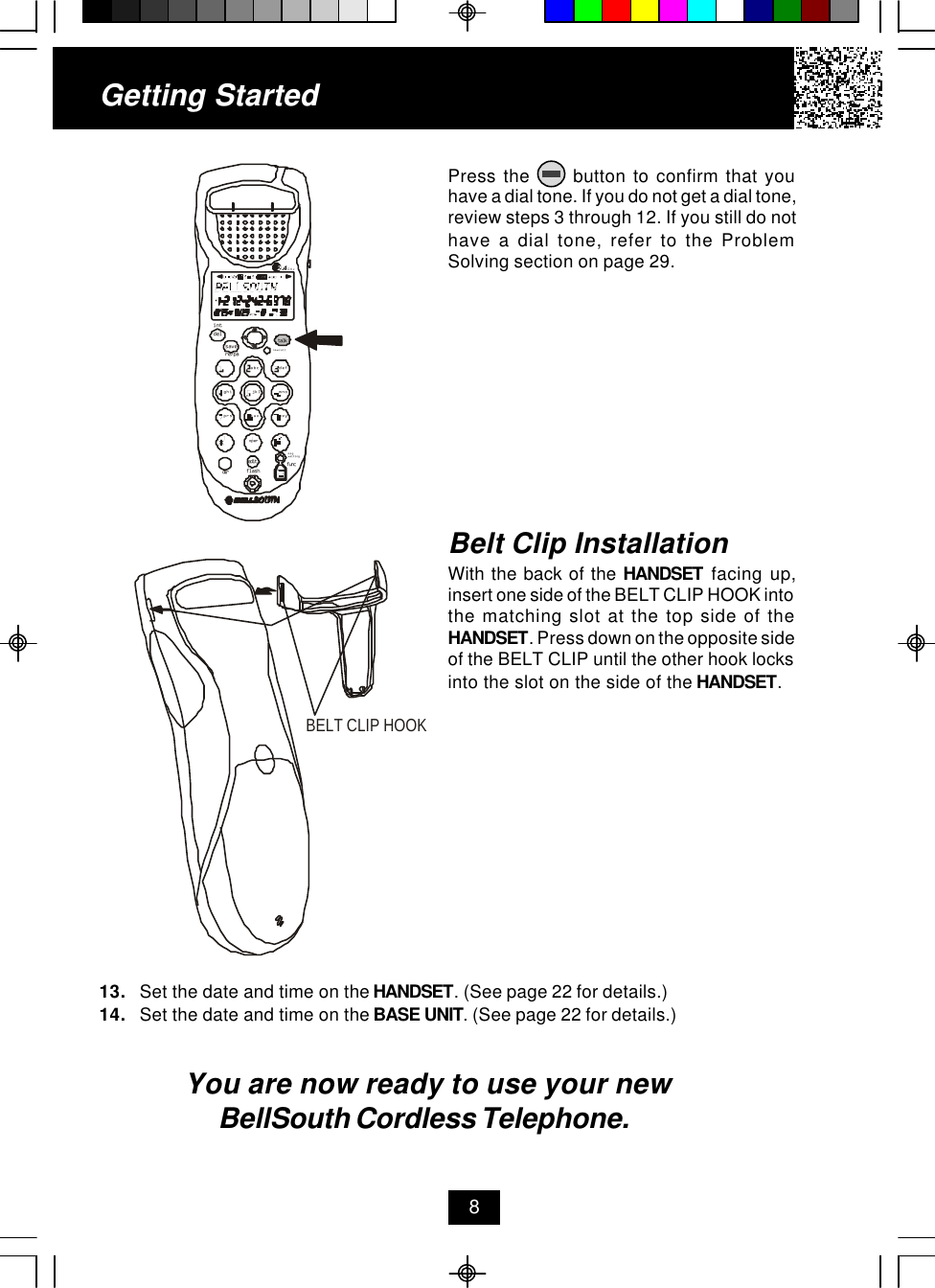

Getting StartedPress the button to confirm that youhave a dial tone. If you do not get a dial tone,review steps 3 through 12. If you still do nothave a dial tone, refer to the ProblemSolving section on page 29.13. Set the date and time on the HANDSET. (See page 22 for details.)14. Set the date and time on the BASE UNIT. (See page 22 for details.)You are now ready to use your new BellSouth Cordless Telephone.Belt Clip InstallationWith the back of the HANDSET facing up,insert one side of the BELT CLIP HOOK intothe matching slot at the top side of theHANDSET. Press down on the opposite sideof the BELT CLIP until the other hook locksinto the slot on the side of the HANDSET.8defopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg waitingflashdiredit funcBELT CLIP HOOK

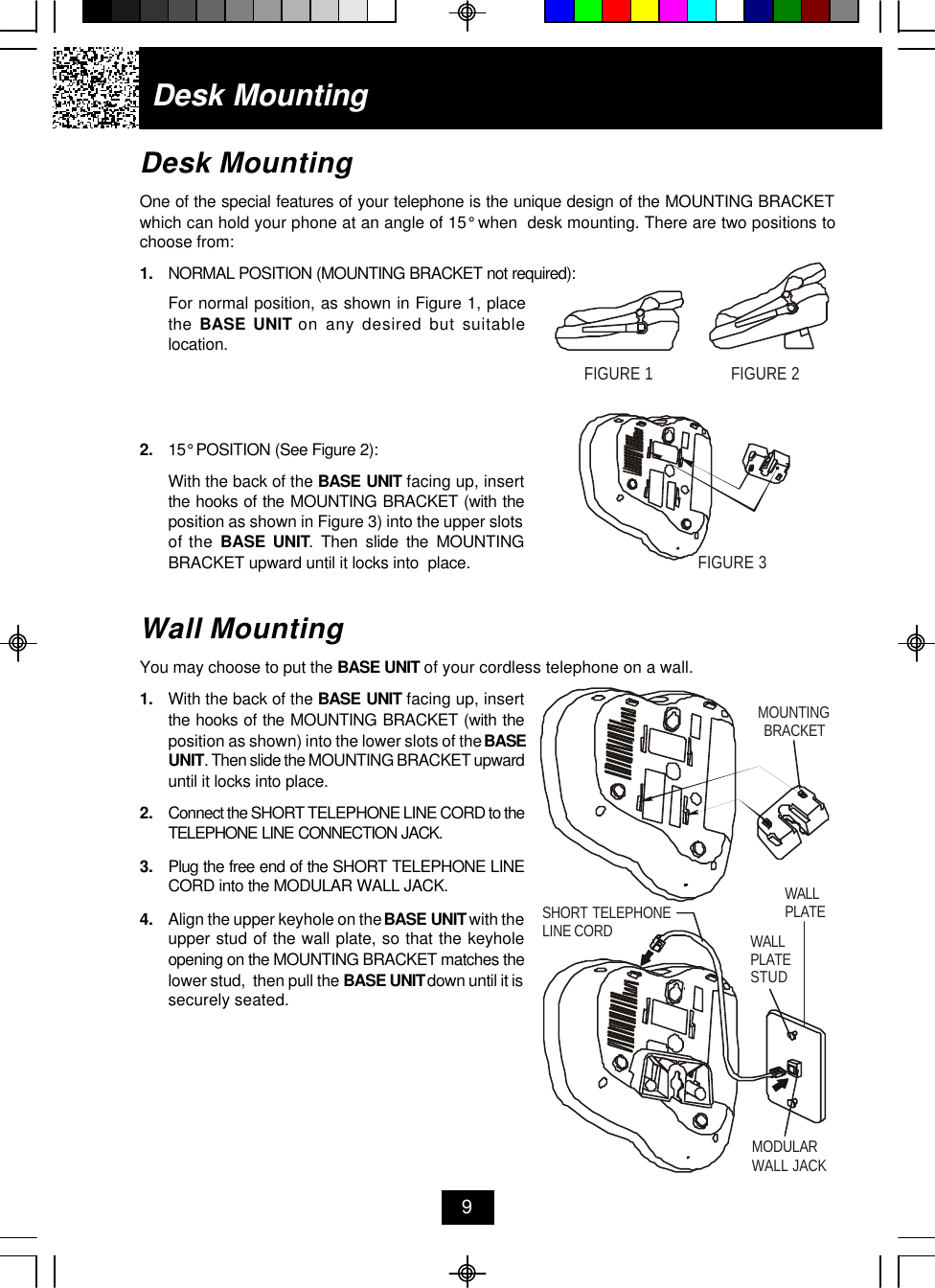

Desk MountingOne of the special features of your telephone is the unique design of the MOUNTING BRACKETwhich can hold your phone at an angle of 15° when desk mounting. There are two positions tochoose from:1. NORMAL POSITION (MOUNTING BRACKET not required):For normal position, as shown in Figure 1, placethe BASE UNIT on any desired but suitablelocation.2. 15° POSITION (See Figure 2):With the back of the BASE UNIT facing up, insertthe hooks of the MOUNTING BRACKET (with theposition as shown in Figure 3) into the upper slotsof the BASE UNIT. Then slide the MOUNTINGBRACKET upward until it locks into place.Wall MountingYou may choose to put the BASE UNIT of your cordless telephone on a wall.1. With the back of the BASE UNIT facing up, insertthe hooks of the MOUNTING BRACKET (with theposition as shown) into the lower slots of the BASEUNIT. Then slide the MOUNTING BRACKET upwarduntil it locks into place.2. Connect the SHORT TELEPHONE LINE CORD to theTELEPHONE LINE CONNECTION JACK.3. Plug the free end of the SHORT TELEPHONE LINECORD into the MODULAR WALL JACK.4. Align the upper keyhole on the BASE UNIT with theupper stud of the wall plate, so that the keyholeopening on the MOUNTING BRACKET matches thelower stud, then pull the BASE UNIT down until it issecurely seated.Desk Mounting9FIGURE 1FIGURE 2FIGURE 3MOUNTINGBRACKETSHORT TELEPHONELINE CORDMODULAR WALL JACKWALL PLATEWALL PLATE STUD

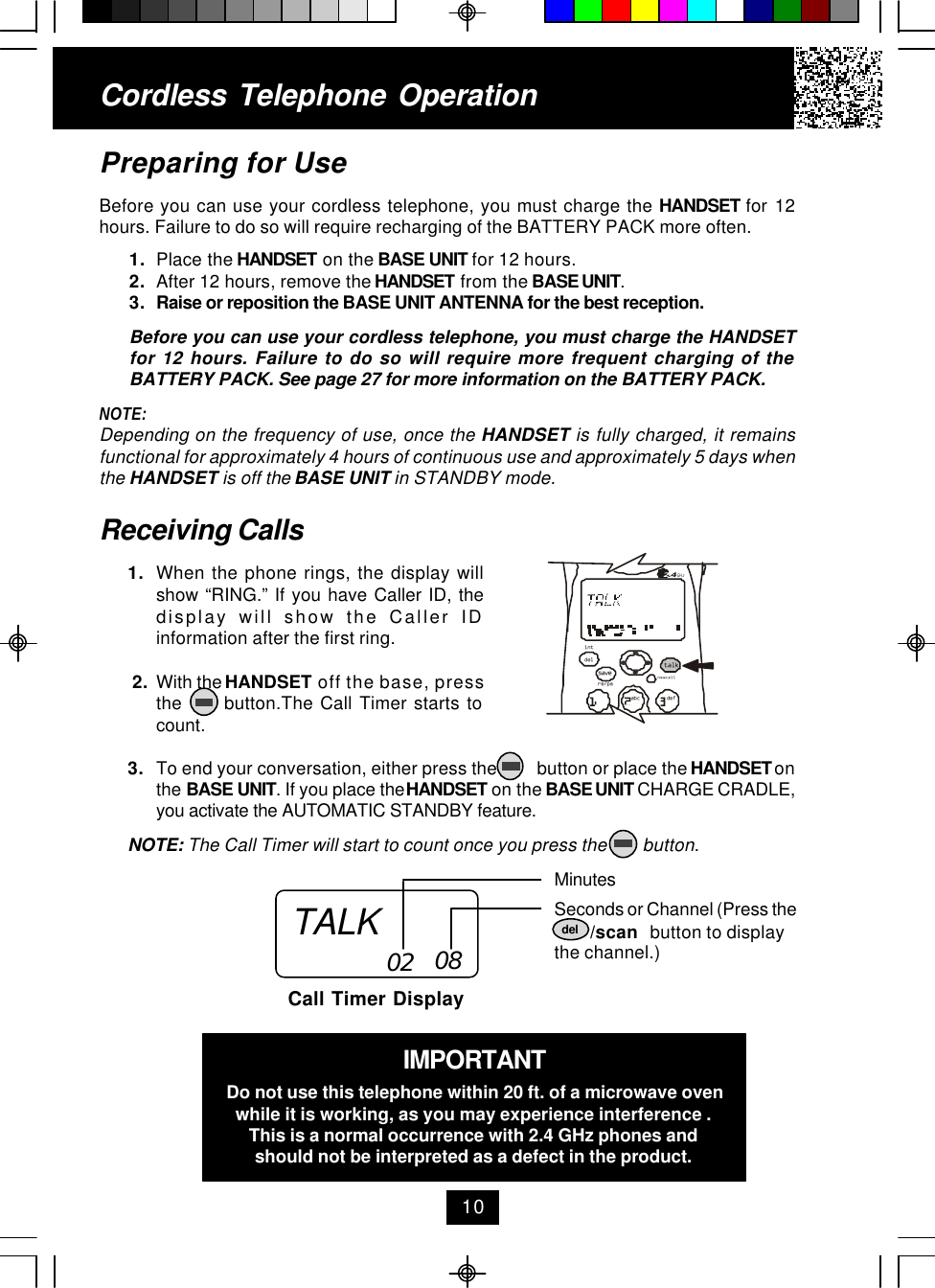

Cordless Telephone Operation10Receiving Calls1. When the phone rings, the display willshow “RING.” If you have Caller ID, thedisplay will show the Caller IDinformation after the first ring. 2. With the HANDSET off the base, pressthe button.The Call Timer starts tocount.3. To end your conversation, either press the button or place the HANDSET onthe BASE UNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE,you activate the AUTOMATIC STANDBY feature.NOTE: The Call Timer will start to count once you press the button.MinutesSeconds or Channel (Press the /scan button to displaythe channel.)Call Timer Display02 08IMPORTANTDo not use this telephone within 20 ft. of a microwave ovenwhile it is working, as you may experience interference .This is a normal occurrence with 2.4 GHz phones andshould not be interpreted as a defect in the product.Preparing for UseBefore you can use your cordless telephone, you must charge the HANDSET for 12hours. Failure to do so will require recharging of the BATTERY PACK more often.1. Place the HANDSET on the BASE UNIT for 12 hours.2. After 12 hours, remove the HANDSET from the BASE UNIT.3. Raise or reposition the BASE UNIT ANTENNA for the best reception.Before you can use your cordless telephone, you must charge the HANDSETfor 12 hours. Failure to do so will require more frequent charging of theBATTERY PACK. See page 27 for more information on the BATTERY PACK.NOTE:Depending on the frequency of use, once the HANDSET is fully charged, it remainsfunctional for approximately 4 hours of continuous use and approximately 5 days whenthe HANDSET is off the BASE UNIT in STANDBY mode.TALK deldefabc.42GHztalknew calldelre/paintsave

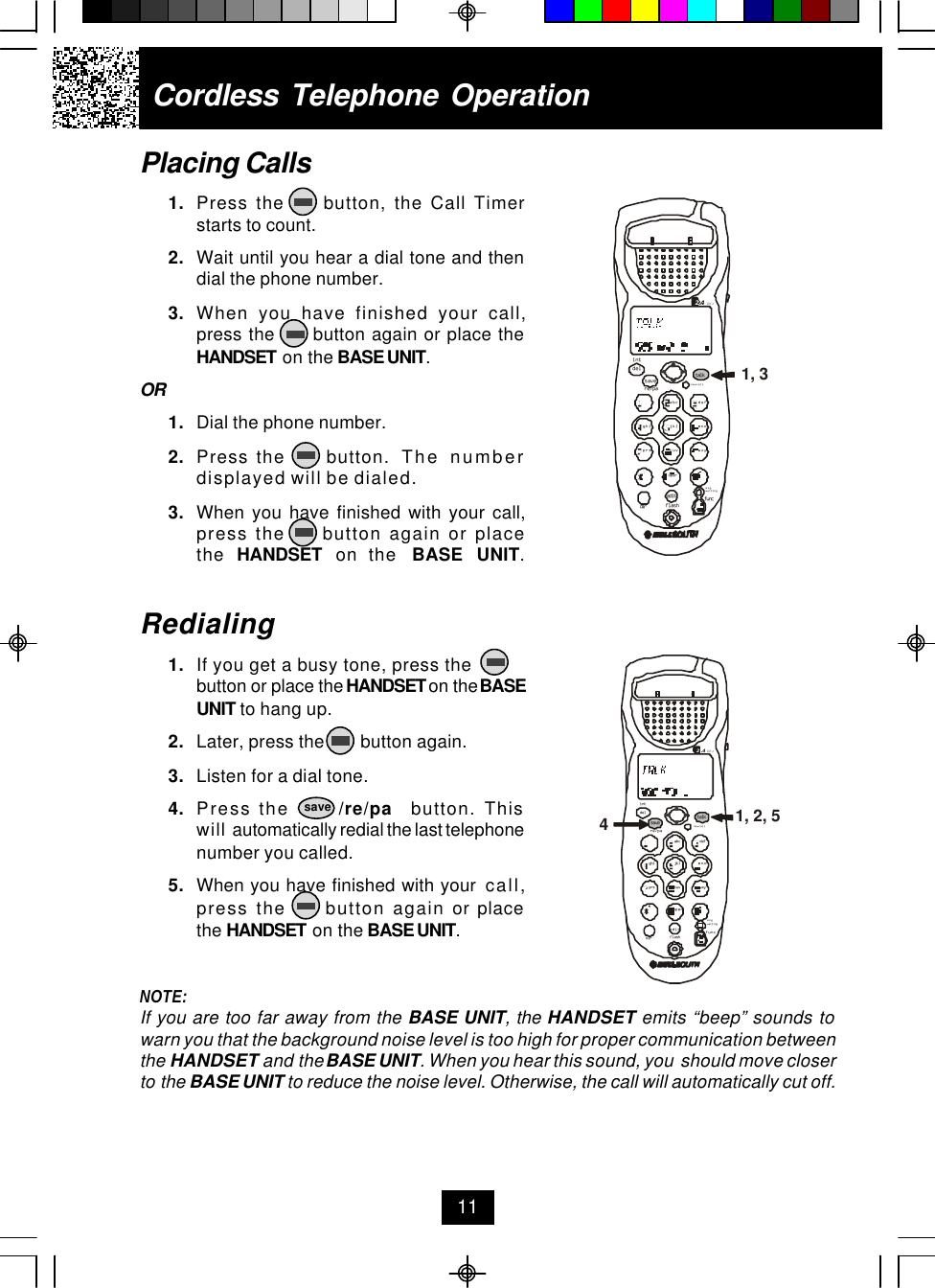

Cordless Telephone OperationPlacing Calls1. Press the button, the Call Timerstarts to count.2. Wait until you hear a dial tone and thendial the phone number.3. When you have finished your call,press the button again or place theHANDSET on the BASE UNIT.OR1. Dial the phone number.2. Press the button. The numberdisplayed will be dialed.3. When you have finished with your call,press the button again or placethe HANDSET on the BASE UNIT.Redialing1. If you get a busy tone, press thebutton or place the HANDSET on the BASEUNIT to hang up.2. Later, press the button again.3. Listen for a dial tone.4. Press the /re/pa button. Thiswill automatically redial the last telephonenumber you called.5. When you have finished with your call,press the button again or placethe HANDSET on the BASE UNIT.NOTE:If you are too far away from the BASE UNIT, the HANDSET emits “beep” sounds towarn you that the background noise level is too high for proper communication betweenthe HANDSET and the BASE UNIT. When you hear this sound, you should move closerto the BASE UNIT to reduce the noise level. Otherwise, the call will automatically cut off.11savedefopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg waitingflashdiredit func1, 2, 54defopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg waitingflashdiredit func1, 3

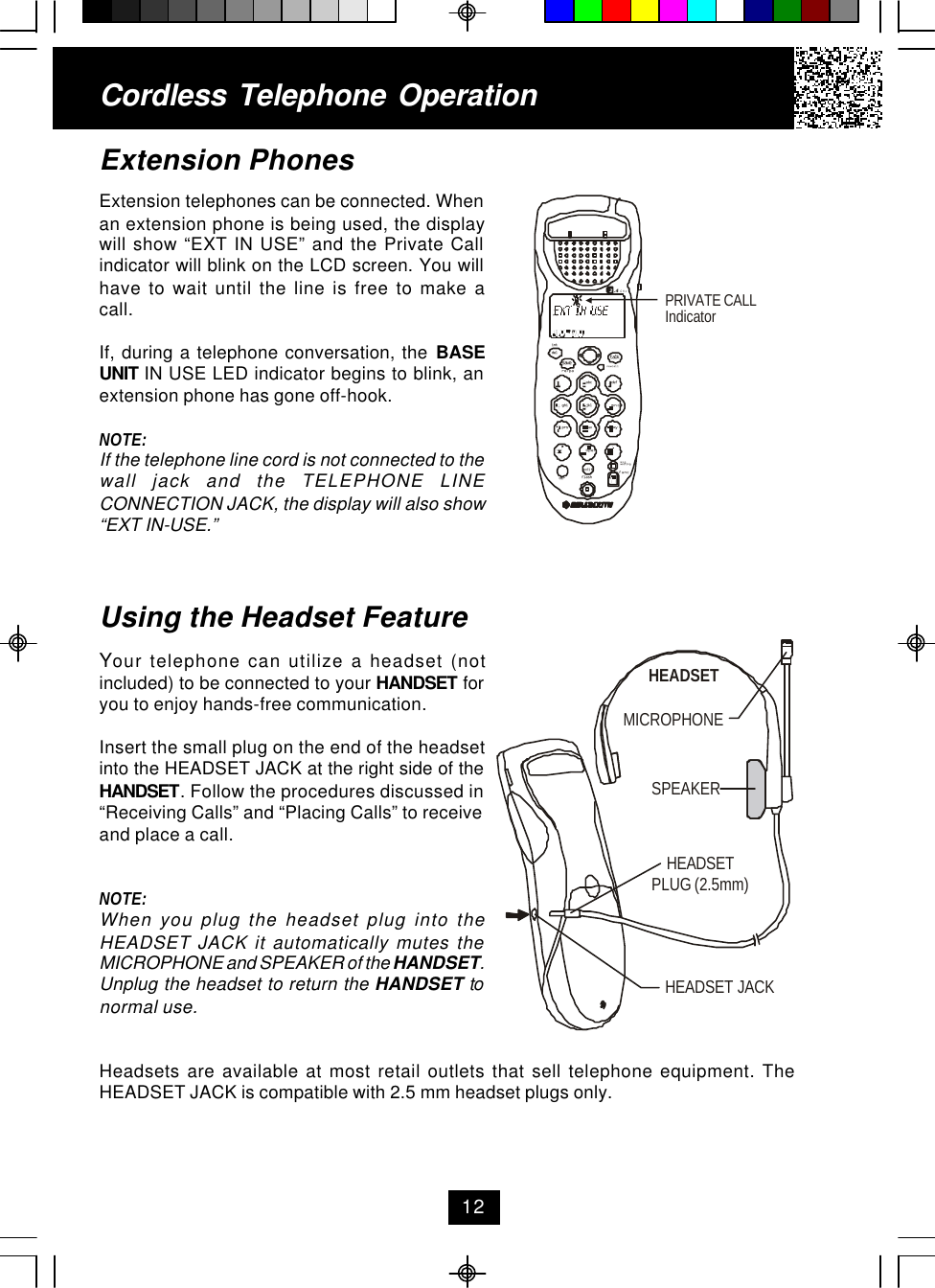

Extension PhonesExtension telephones can be connected. Whenan extension phone is being used, the displaywill show “EXT IN USE” and the Private Callindicator will blink on the LCD screen. You willhave to wait until the line is free to make acall.If, during a telephone conversation, the BASEUNIT IN USE LED indicator begins to blink, anextension phone has gone off-hook.NOTE:If the telephone line cord is not connected to thewall jack and the TELEPHONE LINECONNECTION JACK, the display will also show“EXT IN-USE.”Using the Headset FeatureYour telephone can utilize a headset (notincluded) to be connected to your HANDSET foryou to enjoy hands-free communication.Insert the small plug on the end of the headsetinto the HEADSET JACK at the right side of theHANDSET. Follow the procedures discussed in“Receiving Calls” and “Placing Calls” to receiveand place a call.NOTE:When you plug the headset plug into theHEADSET JACK it automatically mutes theMICROPHONE and SPEAKER of the HANDSET.Unplug the headset to return the HANDSET tonormal use.Headsets are available at most retail outlets that sell telephone equipment. TheHEADSET JACK is compatible with 2.5 mm headset plugs only.Cordless Telephone Operation12defopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg waitingflashdiredit funcPRIVATE CALLIndicatorMICROPHONEHEADSETSPEAKERHEADSET JACKHEADSETPLUG (2.5mm)

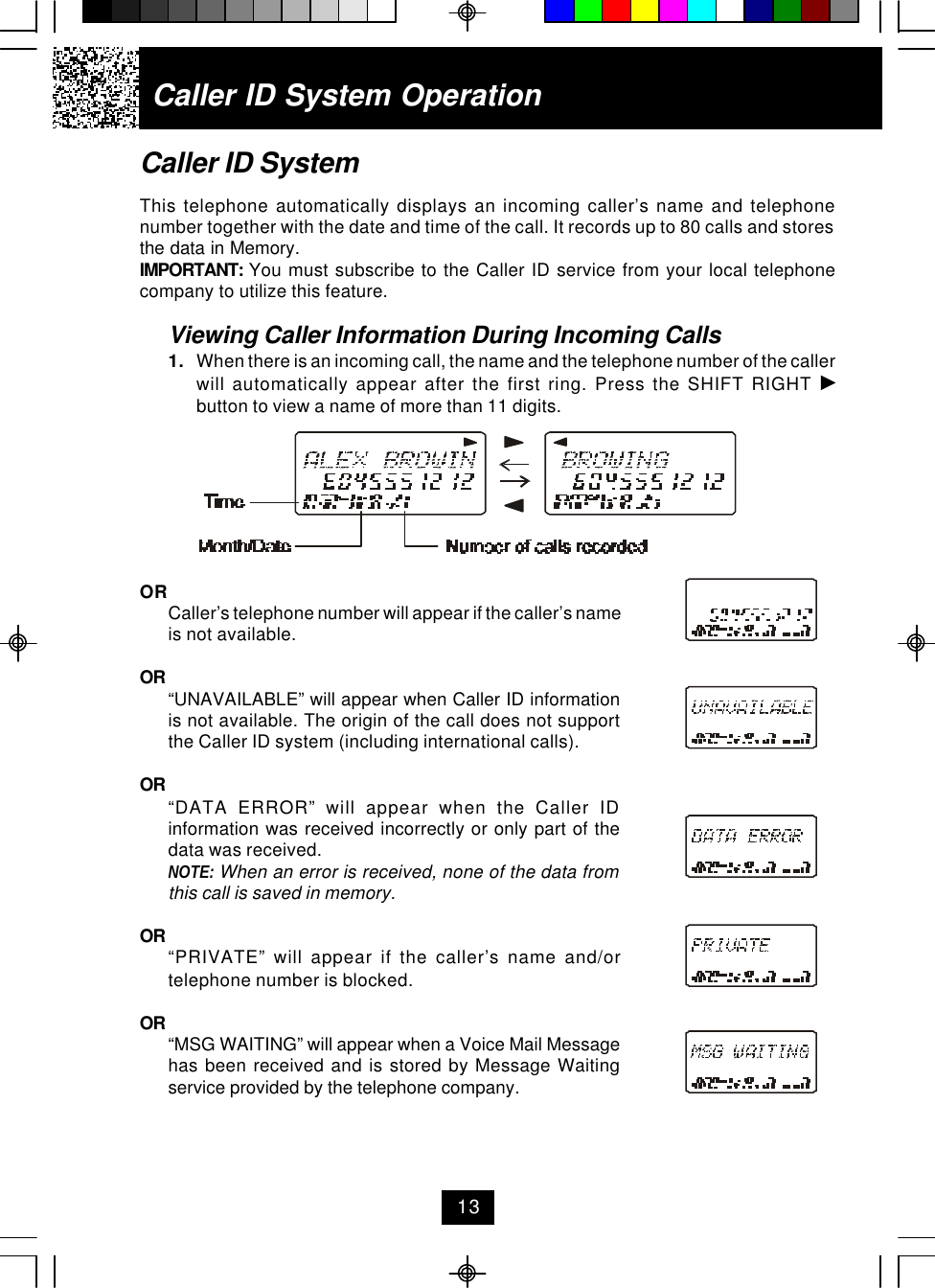

Caller ID System OperationCaller ID SystemThis telephone automatically displays an incoming caller’s name and telephonenumber together with the date and time of the call. It records up to 80 calls and storesthe data in Memory.IMPORTANT: You must subscribe to the Caller ID service from your local telephonecompany to utilize this feature.Viewing Caller Information During Incoming Calls1. When there is an incoming call, the name and the telephone number of the callerwill automatically appear after the first ring. Press the SHIFT RIGHT button to view a name of more than 11 digits.ORCaller’s telephone number will appear if the caller’s nameis not available.OR “UNAVAILABLE” will appear when Caller ID informationis not available. The origin of the call does not supportthe Caller ID system (including international calls).OR “DATA ERROR” will appear when the Caller IDinformation was received incorrectly or only part of thedata was received.NOTE: When an error is received, none of the data fromthis call is saved in memory.OR “PRIVATE” will appear if the caller’s name and/ortelephone number is blocked.OR “MSG WAITING” will appear when a Voice Mail Messagehas been received and is stored by Message Waitingservice provided by the telephone company.13

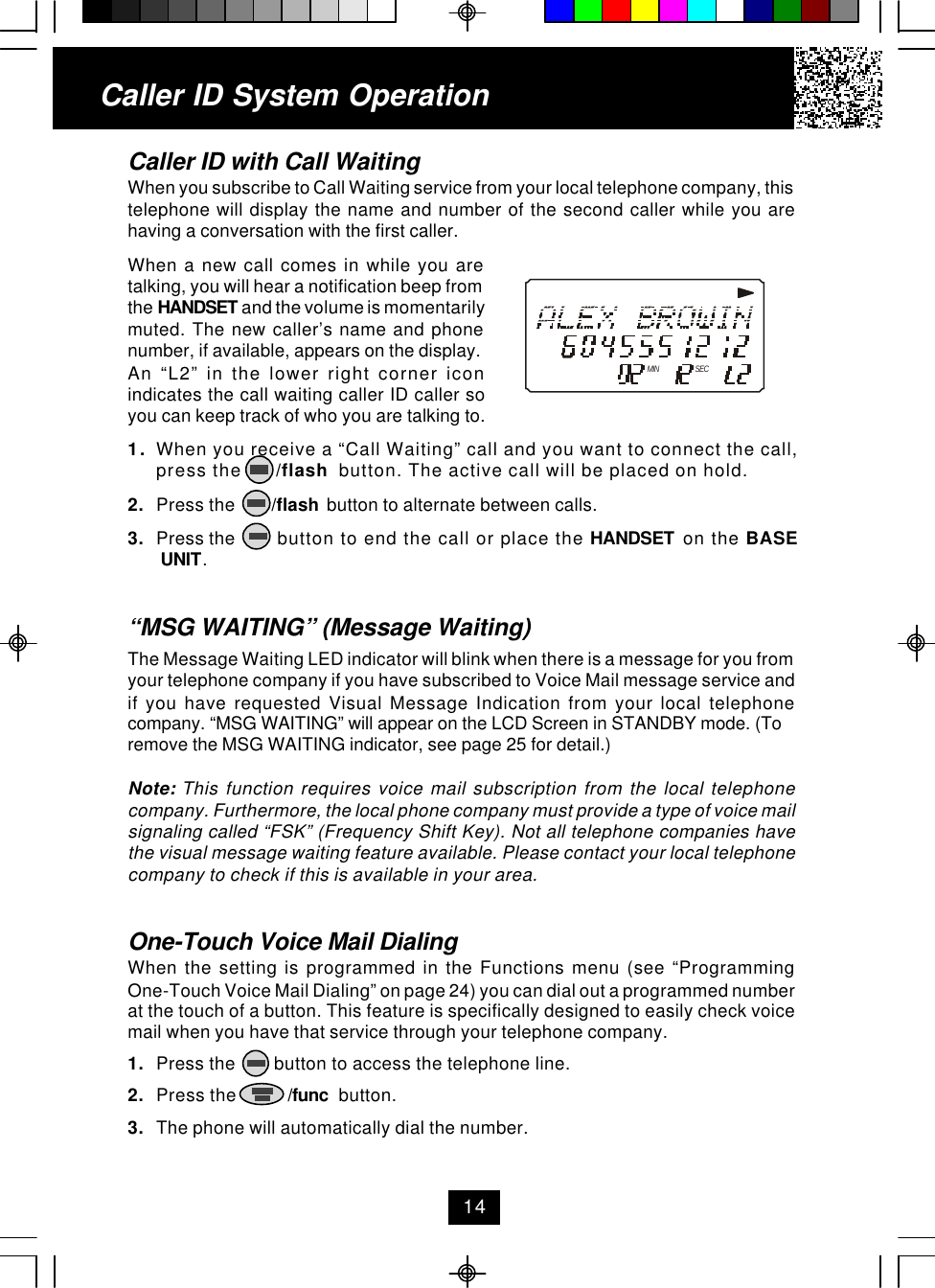

Caller ID with Call WaitingWhen you subscribe to Call Waiting service from your local telephone company, thistelephone will display the name and number of the second caller while you arehaving a conversation with the first caller.When a new call comes in while you aretalking, you will hear a notification beep fromthe HANDSET and the volume is momentarilymuted. The new caller’s name and phonenumber, if available, appears on the display.An “L2” in the lower right corner iconindicates the call waiting caller ID caller soyou can keep track of who you are talking to.1. When you receive a “Call Waiting” call and you want to connect the call,press the /flash button. The active call will be placed on hold.2. Press the /flash button to alternate between calls.3. Press the button to end the call or place the HANDSET on the BASE UNIT.“MSG WAITING” (Message Waiting)The Message Waiting LED indicator will blink when there is a message for you fromyour telephone company if you have subscribed to Voice Mail message service andif you have requested Visual Message Indication from your local telephonecompany. “MSG WAITING” will appear on the LCD Screen in STANDBY mode. (Toremove the MSG WAITING indicator, see page 25 for detail.)Note: This function requires voice mail subscription from the local telephonecompany. Furthermore, the local phone company must provide a type of voice mailsignaling called “FSK” (Frequency Shift Key). Not all telephone companies havethe visual message waiting feature available. Please contact your local telephonecompany to check if this is available in your area.One-Touch Voice Mail DialingWhen the setting is programmed in the Functions menu (see “ProgrammingOne-Touch Voice Mail Dialing” on page 24) you can dial out a programmed numberat the touch of a button. This feature is specifically designed to easily check voicemail when you have that service through your telephone company.1. Press the button to access the telephone line.2. Press the /func button.3. The phone will automatically dial the number.Caller ID System OperationMIN SEC14

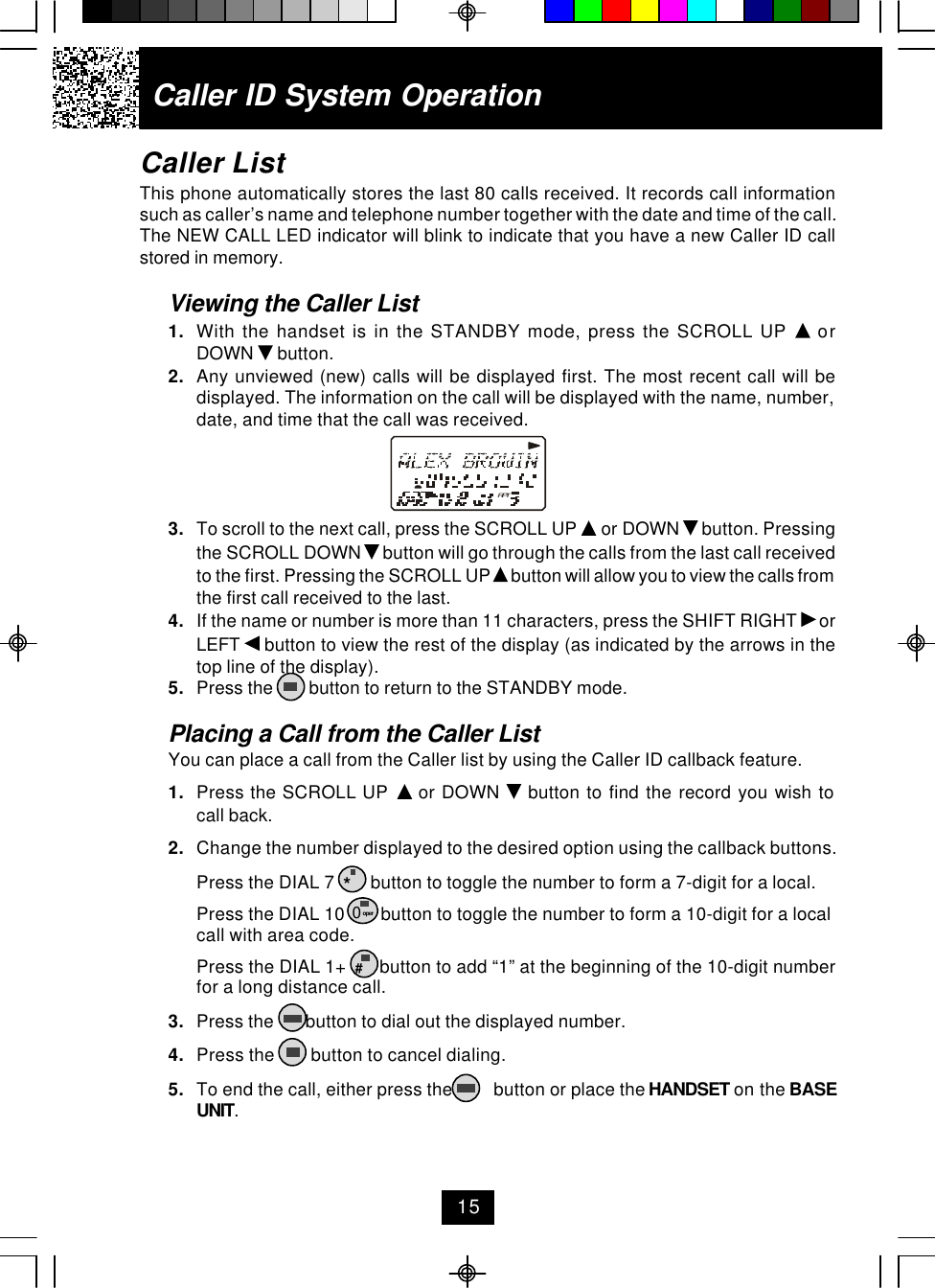

Caller ID System OperationCaller ListThis phone automatically stores the last 80 calls received. It records call informationsuch as caller’s name and telephone number together with the date and time of the call.The NEW CALL LED indicator will blink to indicate that you have a new Caller ID callstored in memory.Viewing the Caller List1. With the handset is in the STANDBY mode, press the SCROLL UP orDOWN button.2. Any unviewed (new) calls will be displayed first. The most recent call will bedisplayed. The information on the call will be displayed with the name, number,date, and time that the call was received.3. To scroll to the next call, press the SCROLL UP or DOWN button. Pressingthe SCROLL DOWN button will go through the calls from the last call receivedto the first. Pressing the SCROLL UP button will allow you to view the calls fromthe first call received to the last.4. If the name or number is more than 11 characters, press the SHIFT RIGHT orLEFT button to view the rest of the display (as indicated by the arrows in thetop line of the display).5. Press the button to return to the STANDBY mode.Placing a Call from the Caller ListYou can place a call from the Caller list by using the Caller ID callback feature.1. Press the SCROLL UP or DOWN button to find the record you wish tocall back.2. Change the number displayed to the desired option using the callback buttons.Press the DIAL 7 button to toggle the number to form a 7-digit for a local.Press the DIAL 10 button to toggle the number to form a 10-digit for a localcall with area code.Press the DIAL 1+ button to add “1” at the beginning of the 10-digit numberfor a long distance call.3. Press the button to dial out the displayed number.4. Press the button to cancel dialing.5. To end the call, either press the button or place the HANDSET on the BASEUNIT.15*0 oper#RPT

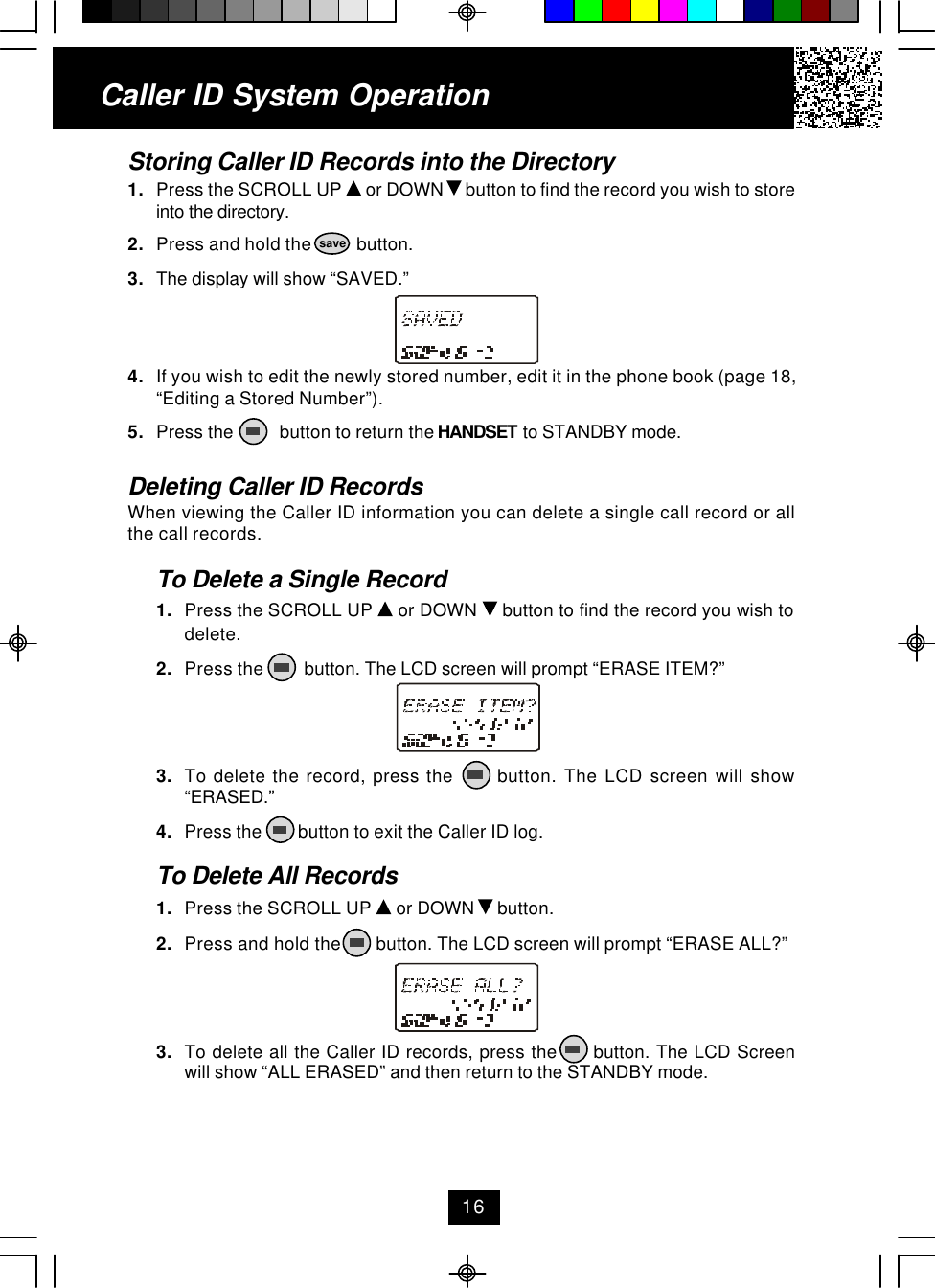

Caller ID System OperationStoring Caller ID Records into the Directory1. Press the SCROLL UP or DOWN button to find the record you wish to storeinto the directory.2. Press and hold the button.3. The display will show “SAVED.”4. If you wish to edit the newly stored number, edit it in the phone book (page 18,“Editing a Stored Number”).5. Press the button to return the HANDSET to STANDBY mode.Deleting Caller ID RecordsWhen viewing the Caller ID information you can delete a single call record or allthe call records.To Delete a Single Record1. Press the SCROLL UP or DOWN button to find the record you wish todelete.2. Press the button. The LCD screen will prompt “ERASE ITEM?”3. To delete the record, press the button. The LCD screen will show“ERASED.”4. Press the button to exit the Caller ID log.To Delete All Records1. Press the SCROLL UP or DOWN button.2. Press and hold the button. The LCD screen will prompt “ERASE ALL?”3. To delete all the Caller ID records, press the button. The LCD Screenwill show “ALL ERASED” and then return to the STANDBY mode.16save

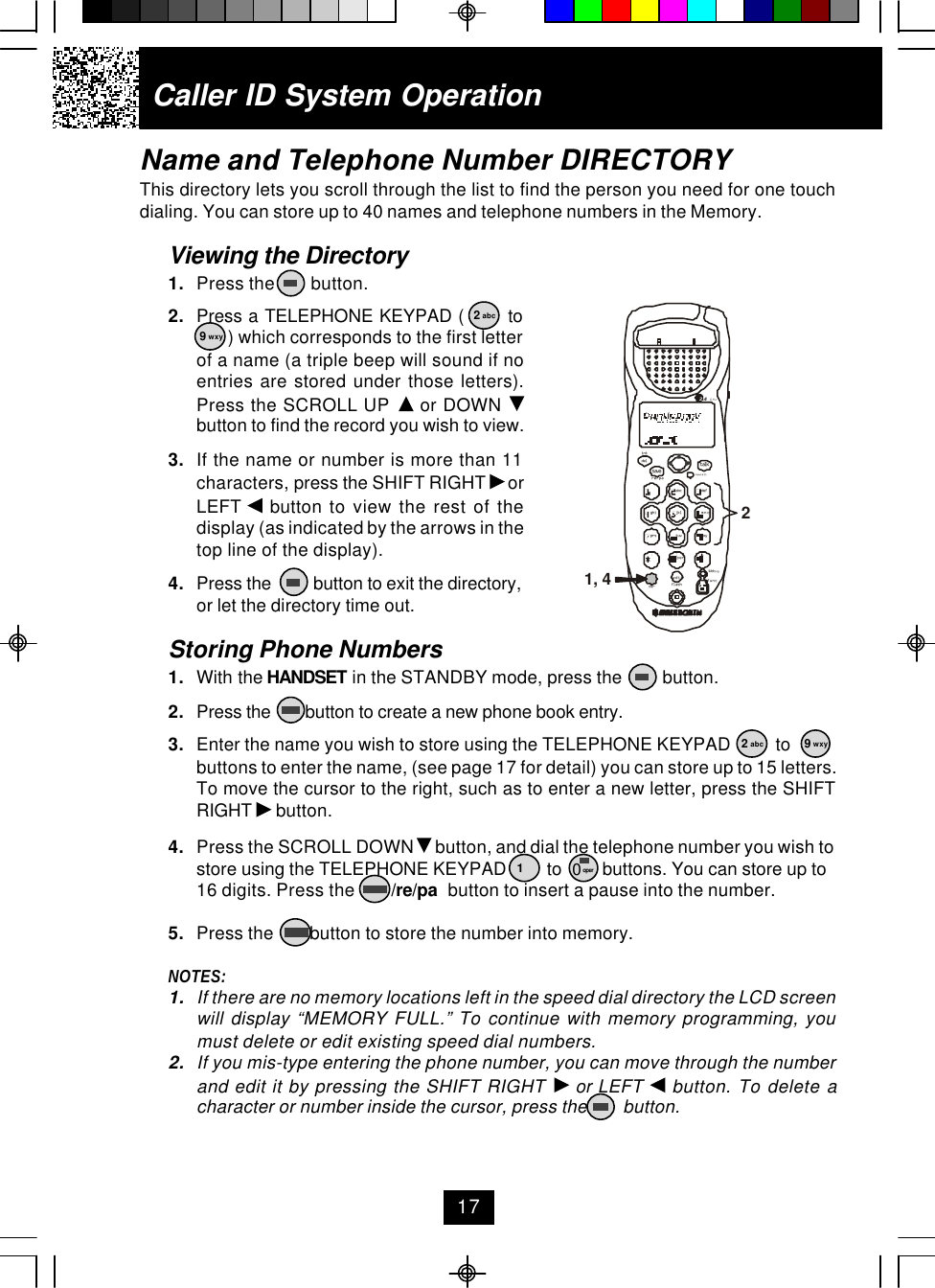

Caller ID System OperationName and Telephone Number DIRECTORYThis directory lets you scroll through the list to find the person you need for one touchdialing. You can store up to 40 names and telephone numbers in the Memory.Viewing the Directory1. Press the button.2. Press a TELEPHONE KEYPAD ( to ) which corresponds to the first letterof a name (a triple beep will sound if noentries are stored under those letters).Press the SCROLL UP or DOWN button to find the record you wish to view.3. If the name or number is more than 11characters, press the SHIFT RIGHT orLEFT button to view the rest of thedisplay (as indicated by the arrows in thetop line of the display).4. Press the button to exit the directory,or let the directory time out.Storing Phone Numbers1. With the HANDSET in the STANDBY mode, press the button.2. Press the button to create a new phone book entry.3. Enter the name you wish to store using the TELEPHONE KEYPAD tobuttons to enter the name, (see page 17 for detail) you can store up to 15 letters.To move the cursor to the right, such as to enter a new letter, press the SHIFTRIGHT button.4. Press the SCROLL DOWN button, and dial the telephone number you wish tostore using the TELEPHONE KEYPAD to buttons. You can store up to16 digits. Press the /re/pa button to insert a pause into the number.5. Press the button to store the number into memory.NOTES:1. If there are no memory locations left in the speed dial directory the LCD screenwill display “MEMORY FULL.” To continue with memory programming, youmust delete or edit existing speed dial numbers.2. If you mis-type entering the phone number, you can move through the numberand edit it by pressing the SHIFT RIGHT or LEFT button. To delete acharacter or number inside the cursor, press the button.172 abc9 wxy2 abc 9 wxy10 operdefopertuvjklghi mnoprs wxyabc.42GHztalknew calldelre/paintsavemsg waitingflashdiredit func1, 42

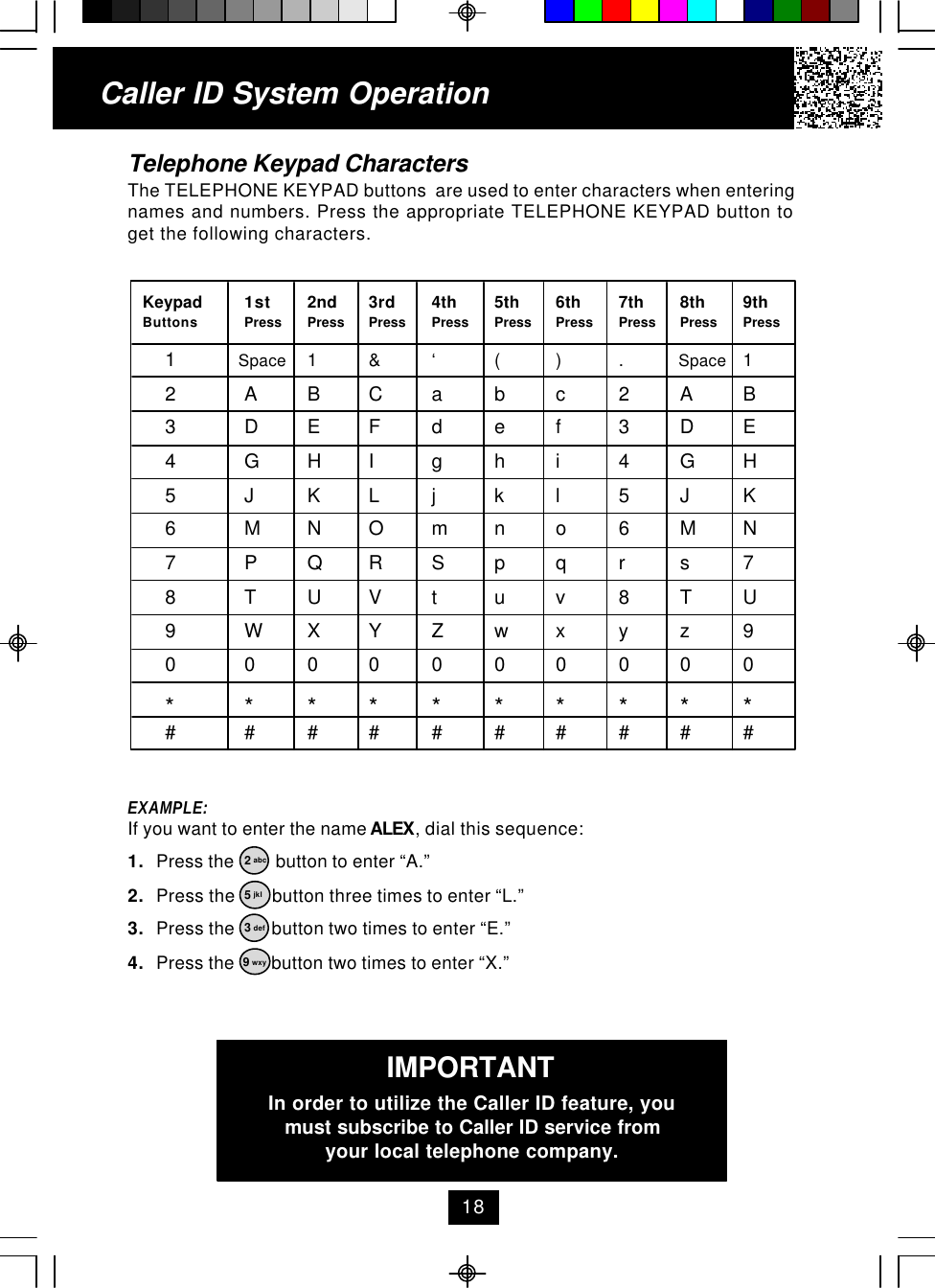

Caller ID System OperationTelephone Keypad CharactersThe TELEPHONE KEYPAD buttons are used to enter characters when enteringnames and numbers. Press the appropriate TELEPHONE KEYPAD button toget the following characters. Keypad 1st 2nd 3rd 4th 5th 6th 7th 8th 9th Buttons Press Press Press Press Press Press Press Press Press1 Space 1&‘( ) . Space 12A B Ca b c2A B3DEFd e f3DE4GHIg h i4GH5JKLjkl5JK6MNOmno6MN7PQRSp q rs78TUVtuv8TU9WX Y Zwxyz90 0 0 0 0 0 0 0 0 0* * * * * * * * * *# # # # # # # # # #EXAMPLE:If you want to enter the name ALEX, dial this sequence:1. Press the button to enter “A.”2. Press the button three times to enter “L.”3. Press the button two times to enter “E.”4. Press the button two times to enter “X.”2 abc5 jkl3 def9 wxy18IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.
Caller ID System OperationPlacing Calls from the DIRECTORY1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you want to call.ORPress a TELEPHONE KEYPAD ( to ) which corresponds to the first letterof a name. Press the SCROLL UP or DOWN button to find the record youwish to call.3. Press the button to dial out the displayed number.4. To end the call, either press the button or place the HANDSET on the BASEUNIT.Editing a Stored Number in the DIRECTORY1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you wish to edit.3. Press the button. The entry will display with a flashing prompt over the firstcharacter.4. Move the cursor to the letter or number you wish to edit by pressing the SCROLLUP or DOWN , SHIFT RIGHT or LEFT button.To erase a character or digit, press the button.To add a letter or number, use the TELEPHONE KEYPAD ~ buttons.Characters or numbers will be inserted in front of the cursor (See page 17 fordetails.)5. When the entry is edited as you desire, press and hold the button to storethe edited record.192 abc 9 wxy10 opersaveTOTAL

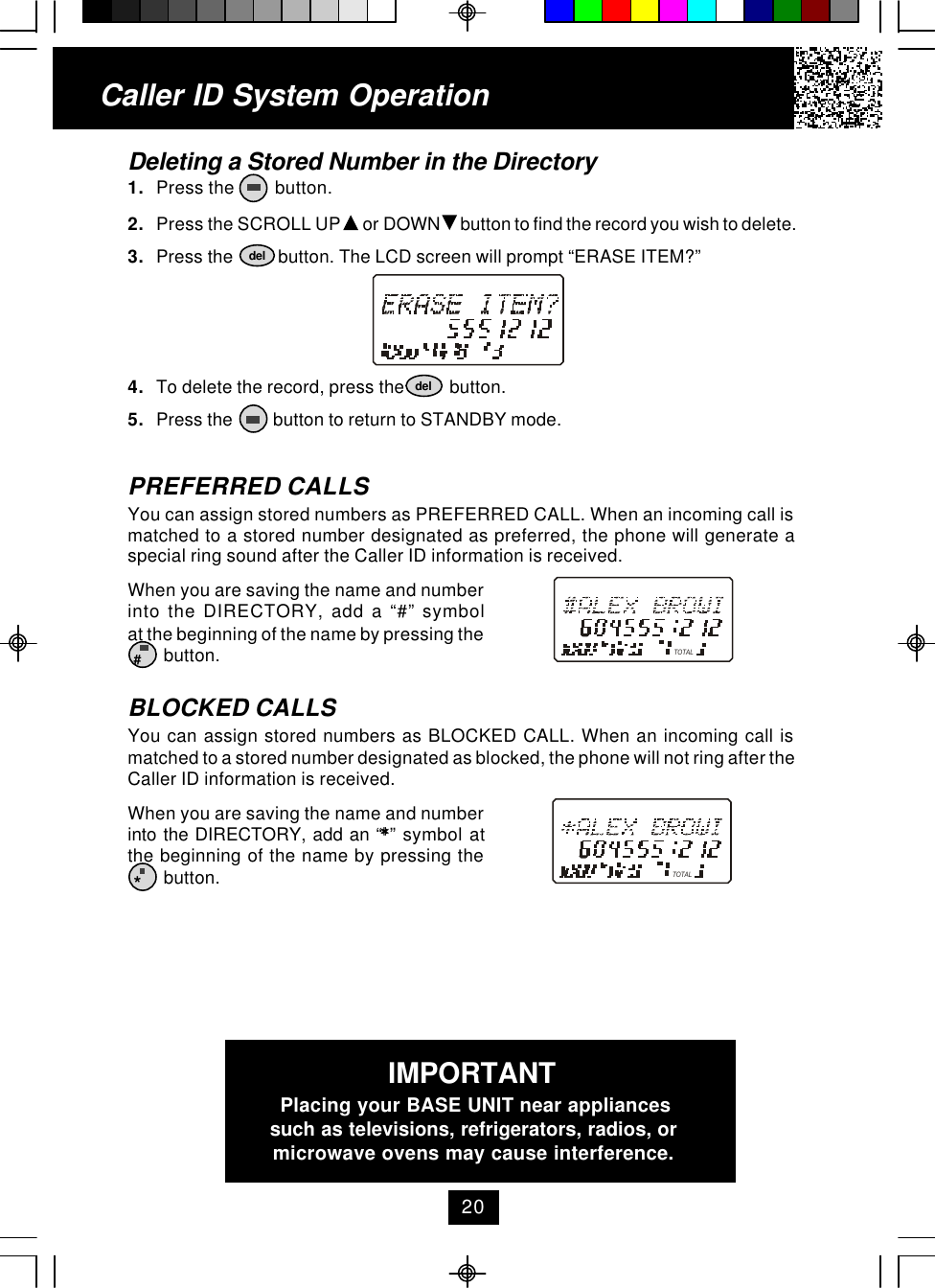

Caller ID System OperationDeleting a Stored Number in the Directory1. Press the button.2. Press the SCROLL UP or DOWN button to find the record you wish to delete.3. Press the button. The LCD screen will prompt “ERASE ITEM?”4. To delete the record, press the button.5. Press the button to return to STANDBY mode.PREFERRED CALLSYou can assign stored numbers as PREFERRED CALL. When an incoming call ismatched to a stored number designated as preferred, the phone will generate aspecial ring sound after the Caller ID information is received.When you are saving the name and numberinto the DIRECTORY, add a “#” symbolat the beginning of the name by pressing the button.BLOCKED CALLSYou can assign stored numbers as BLOCKED CALL. When an incoming call ismatched to a stored number designated as blocked, the phone will not ring after theCaller ID information is received.When you are saving the name and numberinto the DIRECTORY, add an “**” symbol atthe beginning of the name by pressing the button.deldel#*TOTALTOTAL20IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.

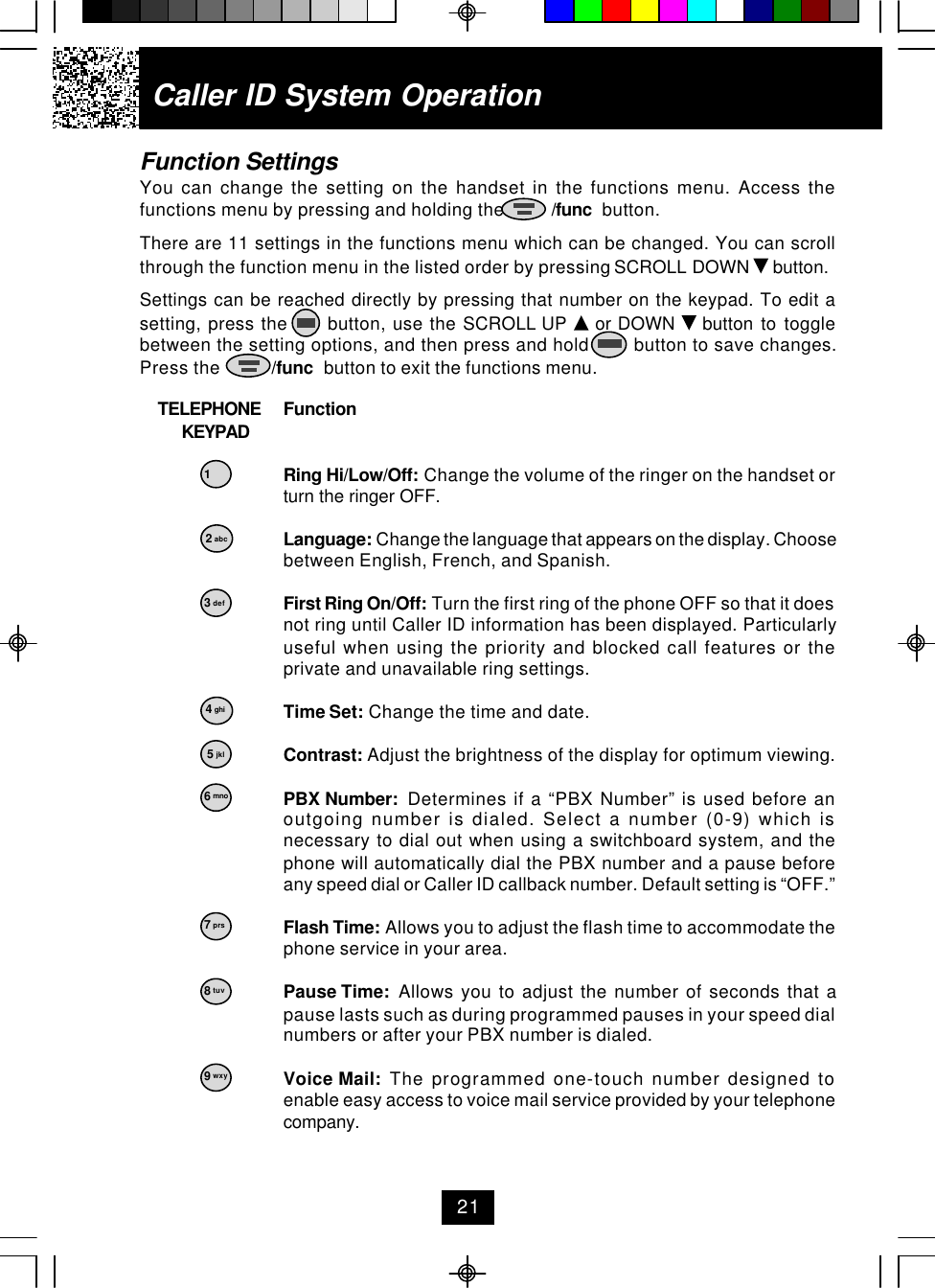

Caller ID System OperationFunction SettingsYou can change the setting on the handset in the functions menu. Access thefunctions menu by pressing and holding the /func button.There are 11 settings in the functions menu which can be changed. You can scrollthrough the function menu in the listed order by pressing SCROLL DOWN button.Settings can be reached directly by pressing that number on the keypad. To edit asetting, press the button, use the SCROLL UP or DOWN button to togglebetween the setting options, and then press and hold button to save changes.Press the /func button to exit the functions menu. TELEPHONE Function KEYPAD1Ring Hi/Low/Off: Change the volume of the ringer on the handset orturn the ringer OFF.2Language: Change the language that appears on the display. Choosebetween English, French, and Spanish.3First Ring On/Off: Turn the first ring of the phone OFF so that it doesnot ring until Caller ID information has been displayed. Particularlyuseful when using the priority and blocked call features or theprivate and unavailable ring settings.4Time Set: Change the time and date.5Contrast: Adjust the brightness of the display for optimum viewing.6PBX Number: Determines if a “PBX Number” is used before anoutgoing number is dialed. Select a number (0-9) which isnecessary to dial out when using a switchboard system, and thephone will automatically dial the PBX number and a pause beforeany speed dial or Caller ID callback number. Default setting is “OFF.”7Flash Time: Allows you to adjust the flash time to accommodate thephone service in your area.8Pause Time: Allows you to adjust the number of seconds that apause lasts such as during programmed pauses in your speed dialnumbers or after your PBX number is dialed.9Voice Mail: The programmed one-touch number designed toenable easy access to voice mail service provided by your telephonecompany.2 abc13 def4 ghi5 jkl6 mno7 prs8 tuv9 wxy21

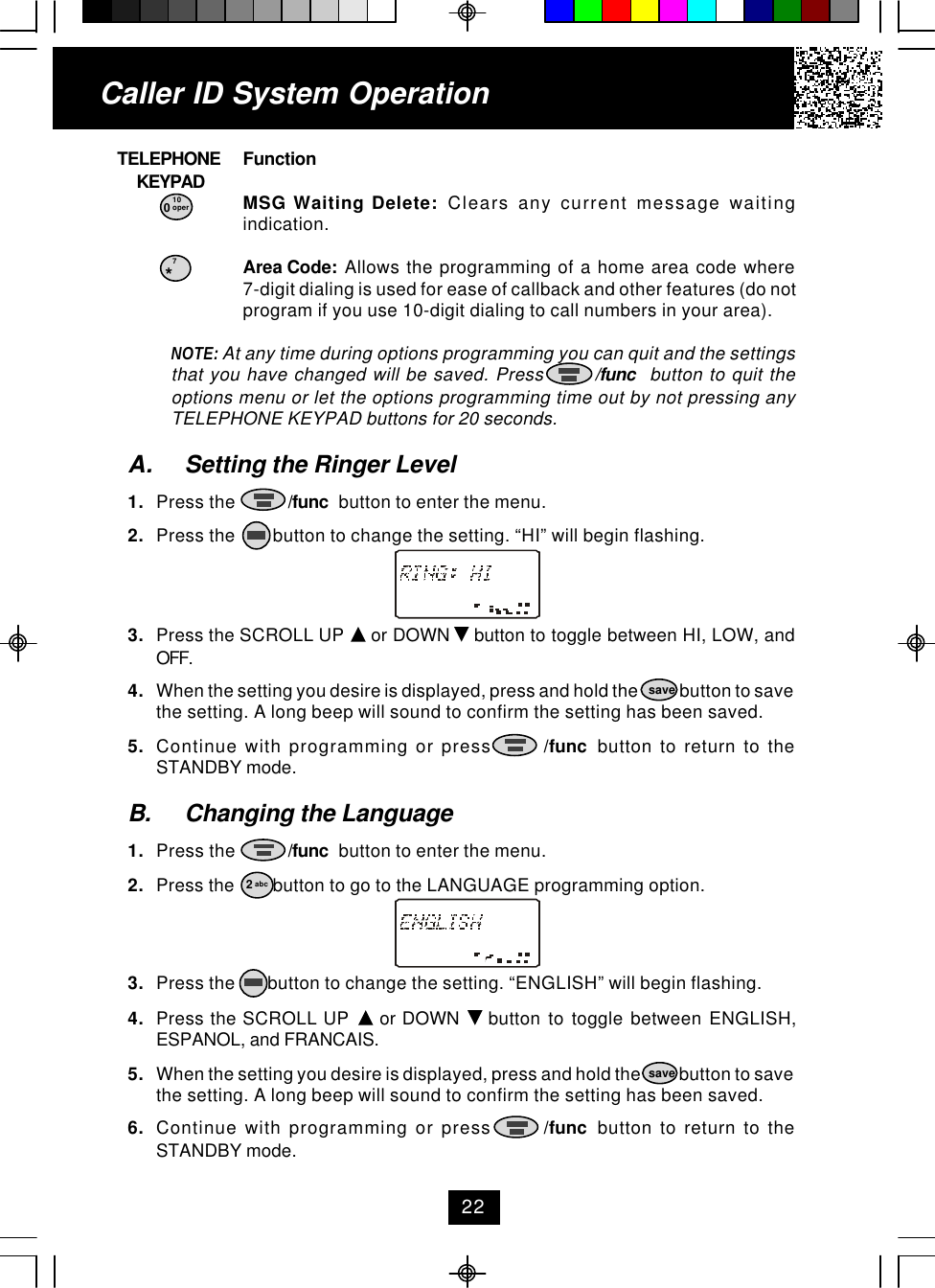

TELEPHONE Function KEYPAD0MSG Waiting Delete: Clears any current message waitingindication.*Area Code: Allows the programming of a home area code where7-digit dialing is used for ease of callback and other features (do notprogram if you use 10-digit dialing to call numbers in your area).NOTE: At any time during options programming you can quit and the settingsthat you have changed will be saved. Press /func button to quit theoptions menu or let the options programming time out by not pressing anyTELEPHONE KEYPAD buttons for 20 seconds.A. Setting the Ringer Level1. Press the /func button to enter the menu.2. Press the button to change the setting. “HI” will begin flashing.3. Press the SCROLL UP or DOWN button to toggle between HI, LOW, andOFF.4. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.5. Continue with programming or press /func button to return to theSTANDBY mode.B. Changing the Language1. Press the /func button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the button to change the setting. “ENGLISH” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH,ESPANOL, and FRANCAIS.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.0 oper10*7save2 abcsaveCaller ID System Operation22

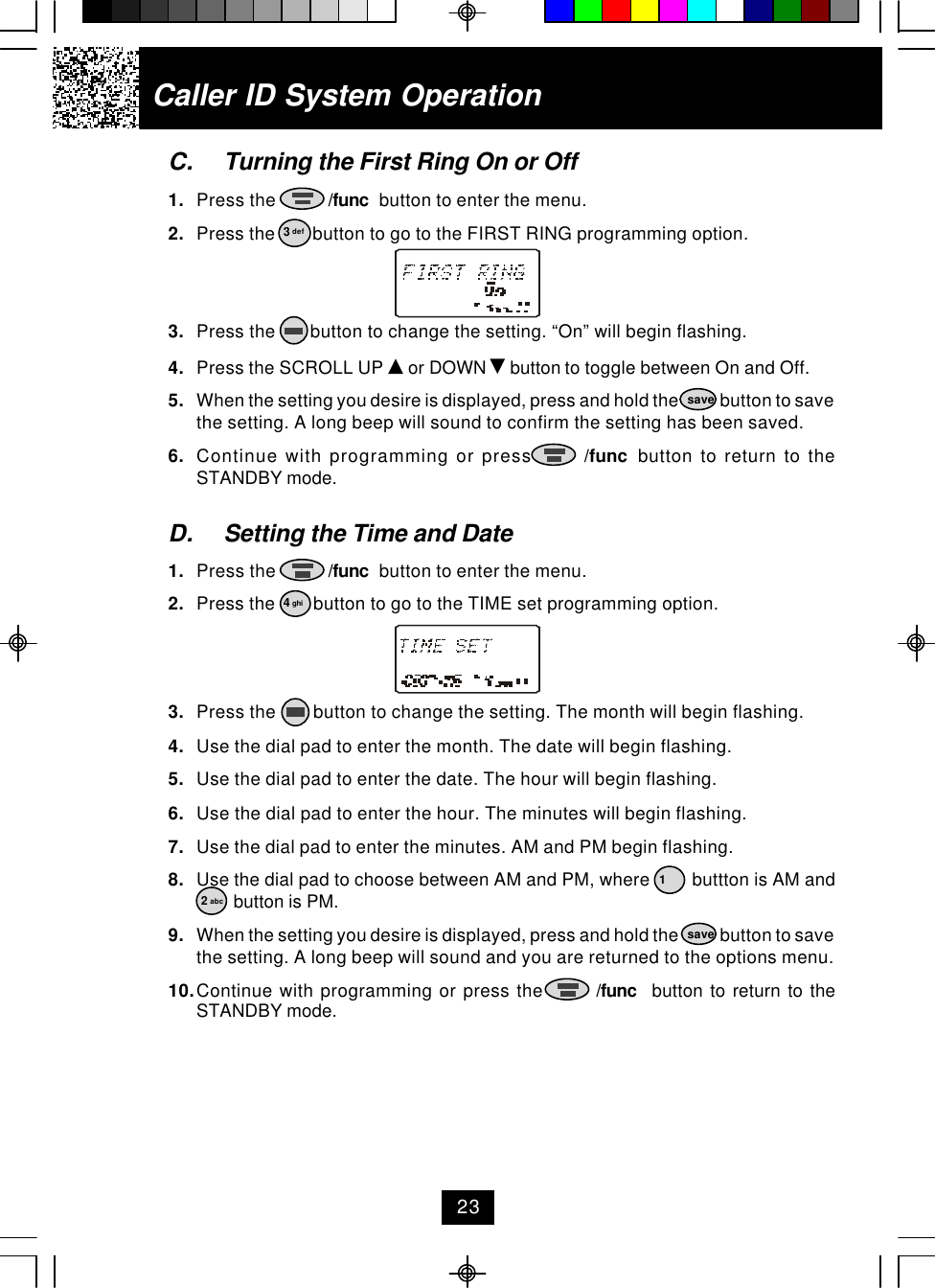

C. Turning the First Ring On or Off1. Press the /func button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the button to change the setting. “On” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between On and Off.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.D. Setting the Time and Date1. Press the /func button to enter the menu.2. Press the button to go to the TIME set programming option.3. Press the button to change the setting. The month will begin flashing.4. Use the dial pad to enter the month. The date will begin flashing.5. Use the dial pad to enter the date. The hour will begin flashing.6. Use the dial pad to enter the hour. The minutes will begin flashing.7. Use the dial pad to enter the minutes. AM and PM begin flashing.8. Use the dial pad to choose between AM and PM, where buttton is AM and button is PM.9. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound and you are returned to the options menu.10.Continue with programming or press the /func button to return to theSTANDBY mode.Caller ID System Operation3 def4 ghisave12 abcsave23

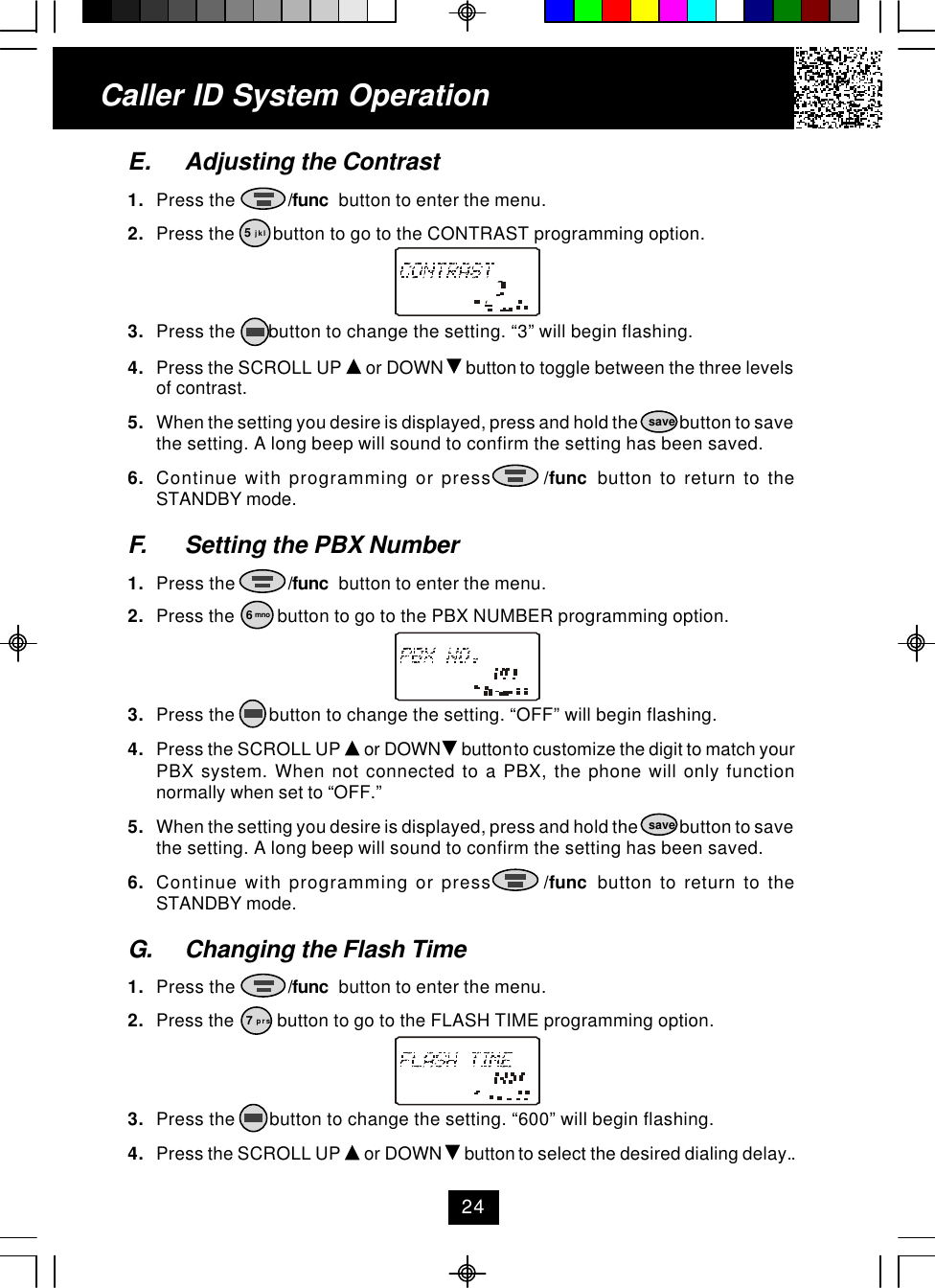

Caller ID System OperationE. Adjusting the Contrast1. Press the /func button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the button to change the setting. “3” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between the three levelsof contrast.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.F. Setting the PBX Number1. Press the /func button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the button to change the setting. “OFF” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match yourPBX system. When not connected to a PBX, the phone will only functionnormally when set to “OFF.”5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.G. Changing the Flash Time1. Press the /func button to enter the menu.2. Press the button to go to the FLASH TIME programming option.3. Press the button to change the setting. “600” will begin flashing.4. Press the SCROLL UP or DOWN button to select the desired dialing delay..5 jkl6 mnosavesave7 prs24
Caller ID System Operation5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.NOTE: The standard and default flash time setting is 600msec. This is the settingyou should use to access standard telephone services such as call waiting. Thissetting is adjustable to allow for PBX and other special uses.H. Changing the Pause Time1. Press the /func button to enter the menu.2. Press the button to go to the PAUSE TIME programming option.3. Press the button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to select the desired time delay..5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.I. Programming One-Touch Voice Mail Dialing1. Press the /func button to enter the menu.2. Press the button to go to the VOICE MAIL programming option.3. Press the button to enter the voice mail speed dial number.4. Press the TELEPHONE KEYPAD ~ buttons to enter the phone numberused to access your voice mail messages (up to 15 digits).5. When the phone number you desire is displayed, press the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Continue with programming or press /func button to return to theSTANDBY mode.8 tuvsavesave19 wxysave0 oper25

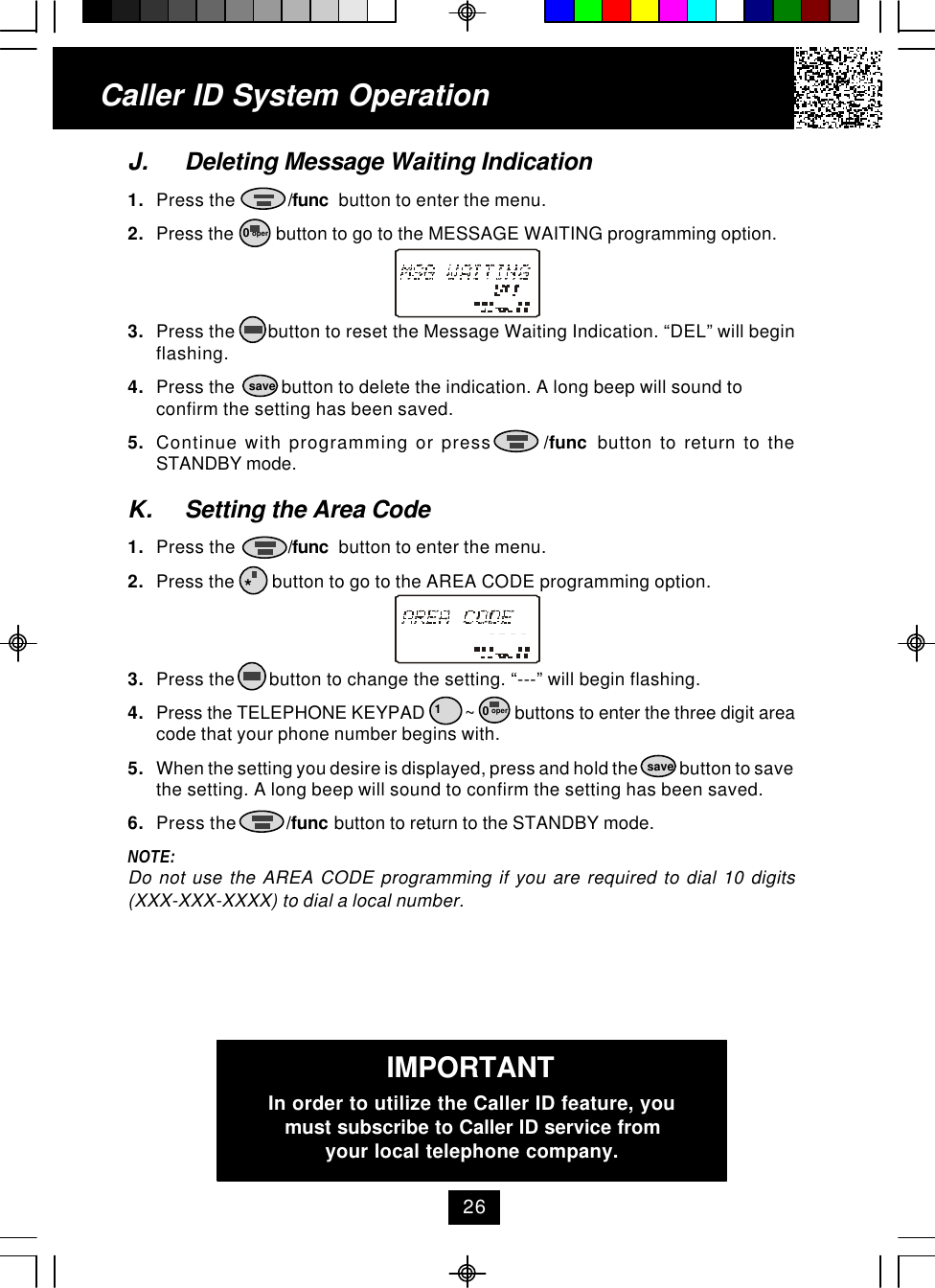

J. Deleting Message Waiting Indication1. Press the /func button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the button to reset the Message Waiting Indication. “DEL” will beginflashing.4. Press the button to delete the indication. A long beep will sound toconfirm the setting has been saved.5. Continue with programming or press /func button to return to theSTANDBY mode.K. Setting the Area Code1. Press the /func button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the button to change the setting. “---” will begin flashing.4. Press the TELEPHONE KEYPAD ~ buttons to enter the three digit areacode that your phone number begins with.5. When the setting you desire is displayed, press and hold the button to savethe setting. A long beep will sound to confirm the setting has been saved.6. Press the /func button to return to the STANDBY mode.NOTE:Do not use the AREA CODE programming if you are required to dial 10 digits(XXX-XXX-XXXX) to dial a local number.Caller ID System Operationsave0 opersave*10 oper26IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.

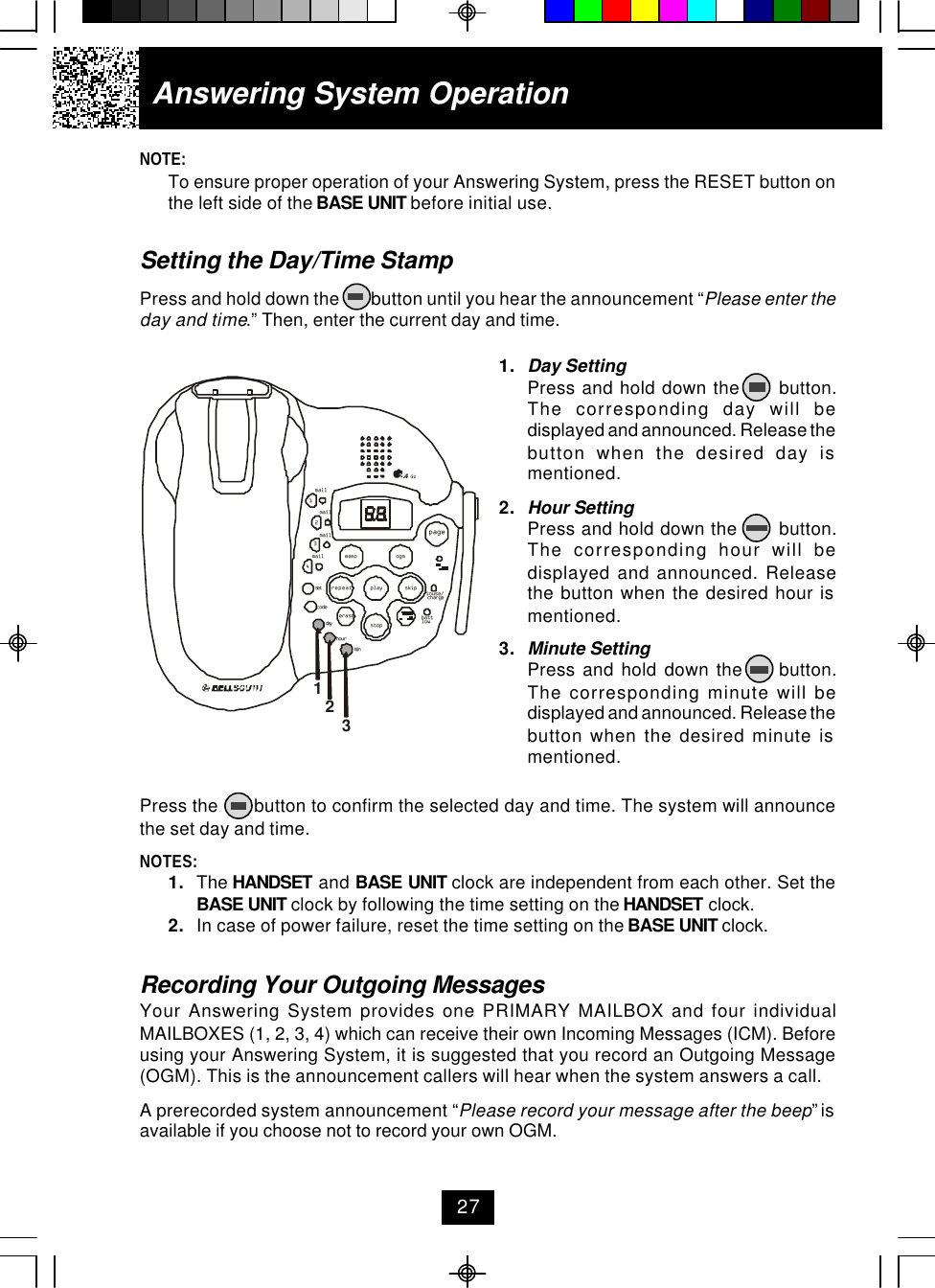

NOTE:To ensure proper operation of your Answering System, press the RESET button onthe left side of the BASE UNIT before initial use.Setting the Day/Time StampPress and hold down the button until you hear the announcement “Please enter theday and time.” Then, enter the current day and time.Press the button to confirm the selected day and time. The system will announcethe set day and time.NOTES:1. The HANDSET and BASE UNIT clock are independent from each other. Set theBASE UNIT clock by following the time setting on the HANDSET clock.2. In case of power failure, reset the time setting on the BASE UNIT clock.Recording Your Outgoing MessagesYour Answering System provides one PRIMARY MAILBOX and four individualMAILBOXES (1, 2, 3, 4) which can receive their own Incoming Messages (ICM). Beforeusing your Answering System, it is suggested that you record an Outgoing Message(OGM). This is the announcement callers will hear when the system answers a call.A prerecorded system announcement “Please record your message after the beep” isavailable if you choose not to record your own OGM.1. Day SettingPress and hold down the button.The corresponding day will bedisplayed and announced. Release thebutton when the desired day ismentioned.2. Hour SettingPress and hold down the button.The corresponding hour will bedisplayed and announced. Releasethe button when the desired hour ismentioned.3. Minute SettingPress and hold down the button.The corresponding minute will bedisplayed and announced. Release thebutton when the desired minute ismentioned.Answering System Operation27123mailmail1234mailmailpagein use/battlowmemo ogmrepeat play skiperasestopsetcharge.42GHzcodedayhourmin

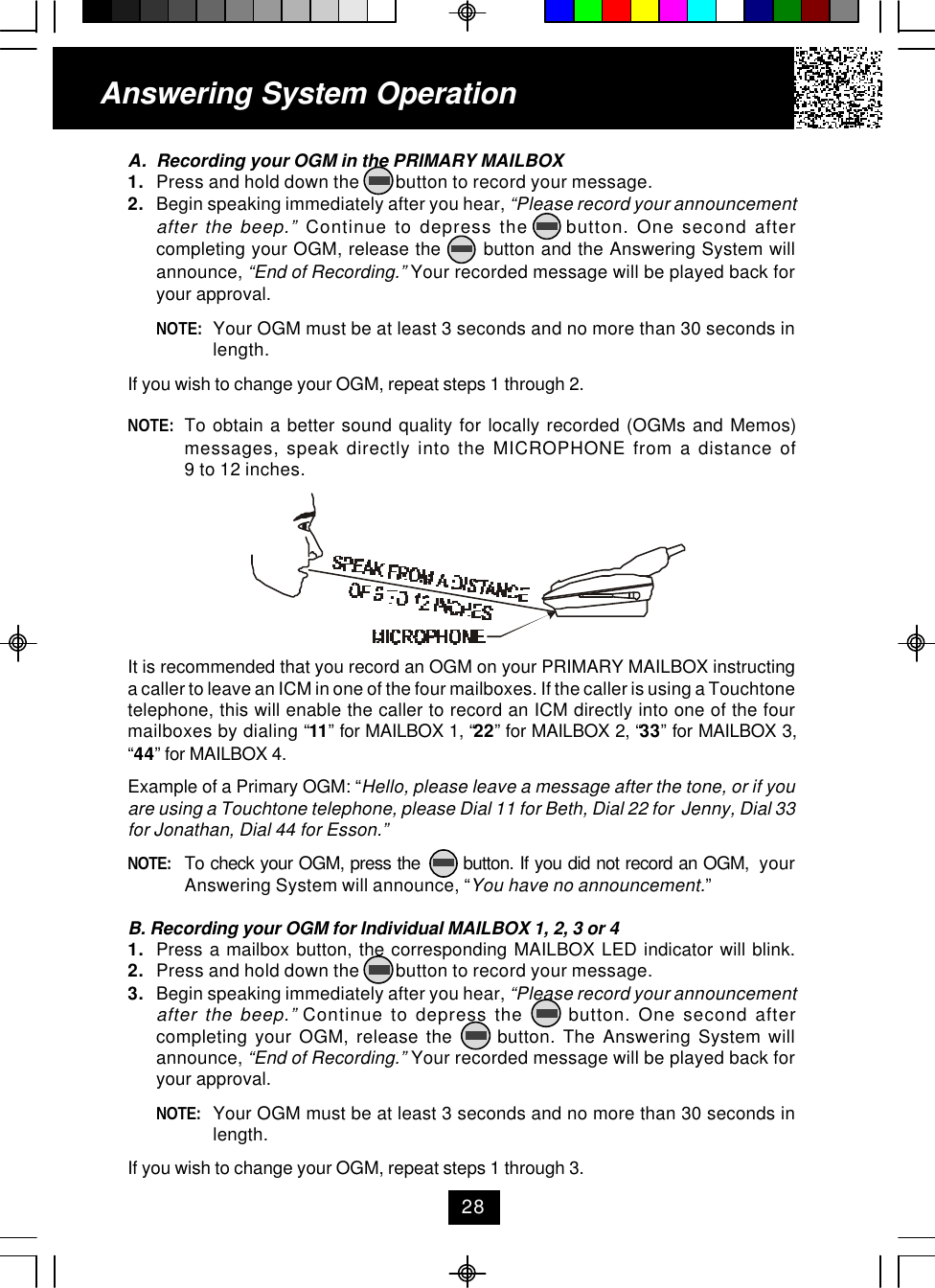

A. Recording your OGM in the PRIMARY MAILBOX1. Press and hold down the button to record your message.2. Begin speaking immediately after you hear, “Please record your announcementafter the beep.” Continue to depress the button. One second aftercompleting your OGM, release the button and the Answering System willannounce, “End of Recording.” Your recorded message will be played back foryour approval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds inlength.If you wish to change your OGM, repeat steps 1 through 2.NOTE: To obtain a better sound quality for locally recorded (OGMs and Memos)messages, speak directly into the MICROPHONE from a distance of9 to 12 inches.It is recommended that you record an OGM on your PRIMARY MAILBOX instructinga caller to leave an ICM in one of the four mailboxes. If the caller is using a Touchtonetelephone, this will enable the caller to record an ICM directly into one of the fourmailboxes by dialing “11” for MAILBOX 1, “22” for MAILBOX 2, “33” for MAILBOX 3,“44” for MAILBOX 4.Example of a Primary OGM: “Hello, please leave a message after the tone, or if youare using a Touchtone telephone, please Dial 11 for Beth, Dial 22 for Jenny, Dial 33for Jonathan, Dial 44 for Esson.”NOTE: To check your OGM, press the button. If you did not record an OGM, yourAnswering System will announce, “You have no announcement.”B. Recording your OGM for Individual MAILBOX 1, 2, 3 or 41. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.2. Press and hold down the button to record your message.3. Begin speaking immediately after you hear, “Please record your announcementafter the beep.” Continue to depress the button. One second aftercompleting your OGM, release the button. The Answering System willannounce, “End of Recording.” Your recorded message will be played back foryour approval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds inlength.If you wish to change your OGM, repeat steps 1 through 3.Answering System Operation28
NOTE: To check your OGM in a mailbox, press a mailbox button and then pressthe button. If you do not have an OGM in a mailbox, it will announce“You have no announcement, MAILBOX #.” Once a mailbox is activated, itscorresponding MAILBOX LED indicator blinks slowly to show that themailbox is active. If you do not press a button to activate another functionwithin 10 seconds, the Answering System will return to the PRIMARYMAILBOX. You may return to the PRIMARY MAILBOX at anytime bypressing the button.Turning the Answering System ON/OFF1. Press the button to turn ON the Answering System. You will hear the followingmessage, “Answering machine is ON.”2. Press the button again to turn OFF the Answering System. You will now hearthe following, “Answering machine is OFF.”NOTE: Once turned OFF, the answer function will answer only after the tenth ring,allowing you to turn the Answering System ON from a remote location.Setting to Answer CallsThe ANSWER ON/OFF LED indicator must be ON for the Answering System toanswer calls. Depending on the setting of the ANNC/ICM switch, the AnsweringSystem will either hang up after your announcement (ANNC) or begin to record yourcaller’s messages (ICM). After the caller leaves an ICM, the time and day will bestamped at the end of each recorded ICM. The ICM is stored in the MEMORY andthe LED Message Display shows the total number of ICMs currently stored.NOTE: ICMs are limited to a maximum of 2 minutes. If the ICM is more than 2minutes, the system “beeps” three times and hangs up; or if the AnsweringSystem’s MEMORY runs out, the Answering System announces, “Memoryfull” and hangs up.Setting to Announce OnlyDuring ANNC (Announce) mode, your system answers incoming calls with yourrecorded ANNC but will not record any ICMs.1. Set the ANNC/ICM select switch to ANNC. A confirmation “beep” sound will beheard from the BASE UNIT and the LED Message Display shows “Ao.”2. Press and hold down the button to record your ANNC.3. Begin speaking after you hear, “Please record your announcement after thebeep.” Do not release the button until you have copleted your announcementOGM.4. One second after completing your ANNC, release the button and you willhear, “End of recording.” Your recorded ANNC will be played back for yourapproval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds inlength. If you have not recorded an ANNC, the Answering System will answer“Memory Full” and hangs up.Answering System Operation29
Message AlertWhen the message alert switch is “ON,” the unit will generate a “beep” sound every15 seconds after a new message has been recorded. If you do not want to hear the“beep,” set the switch to “OFF.” A confirmation “beep” sound will be heard from theBASE UNIT.Setting Ring SelectTo choose the number of times the phone rings before the Answering System re-sponds, set the Ring Select switch to 3R, 5R or TS (TOLL SAVER)Set to 3R -System answers call after the third ring.Set to 5R - System answers call after the fifth ring.Set to TS -Use “TOLL SAVER” (TS) when you will be checking your system formessage from a remote location using long distance services or froma pay phone. The Answering System responds after the third ring onlyif you have new message waiting. If there are no new message, thephone will answer after the fifth ring. You can then hang up after thefourth ring to avoid paying for the call.Recording a MemoA. To record a Memo in the PRIMARY MAILBOX1. Press and hold down the button to record your Memo.2. Begin speaking immediately after you hear, “Please record your message afterthe beep.” Continue to depress the button. One second after completingyour Memo, release the button and you will hear, “End of recording.” Day andtime are automatically stamped at the end of the message.NOTE: The Answering System advances the message count automatically after theactual message is recorded.B. To record a Memo in an individual MAILBOX (1, 2, 3, 4)1. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.2. Press and hold down the button to record your Memo.3. Begin speaking immediately after you hear, “Please record your message afterthe beep.” Continue to depress the button. One second after completingyour Memo, release the button and you will hear, “End of Recording.”Day and time are automatically stamped at the end of the message.NOTE: The Answering System advances the message count automatically afterthe actual message is recorded.Answering System Operation30

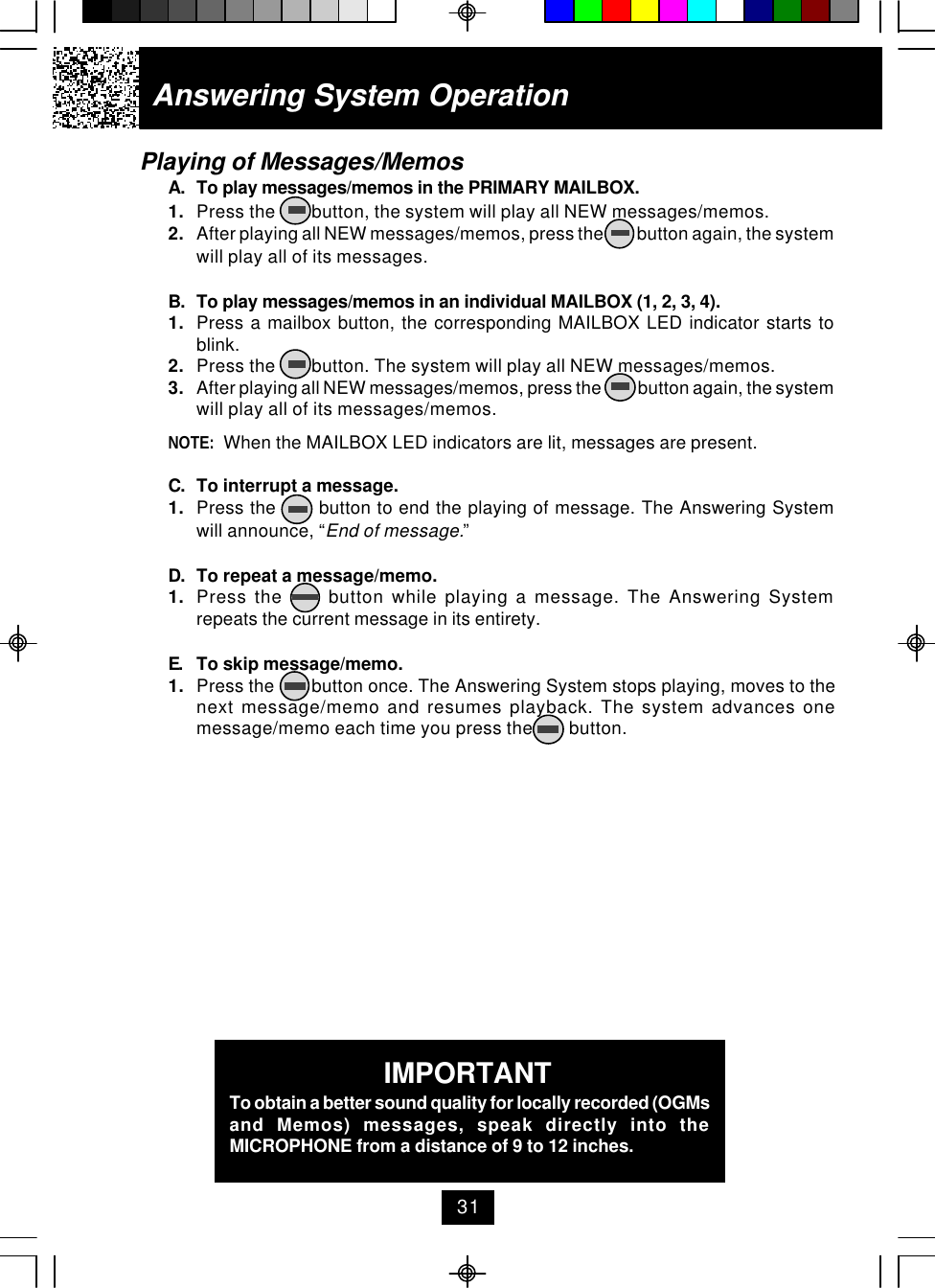

Playing of Messages/MemosA. To play messages/memos in the PRIMARY MAILBOX.1. Press the button, the system will play all NEW messages/memos.2. After playing all NEW messages/memos, press the button again, the systemwill play all of its messages.B. To play messages/memos in an individual MAILBOX (1, 2, 3, 4).1. Press a mailbox button, the corresponding MAILBOX LED indicator starts toblink.2. Press the button. The system will play all NEW messages/memos.3. After playing all NEW messages/memos, press the button again, the systemwill play all of its messages/memos.NOTE: When the MAILBOX LED indicators are lit, messages are present.C. To interrupt a message.1. Press the button to end the playing of message. The Answering Systemwill announce, “End of message.”D. To repeat a message/memo.1. Press the button while playing a message. The Answering Systemrepeats the current message in its entirety.E. To skip message/memo.1. Press the button once. The Answering System stops playing, moves to thenext message/memo and resumes playback. The system advances onemessage/memo each time you press the button.Answering System Operation31IMPORTANTTo obtain a better sound quality for locally recorded (OGMsand Memos) messages, speak directly into theMICROPHONE from a distance of 9 to 12 inches.

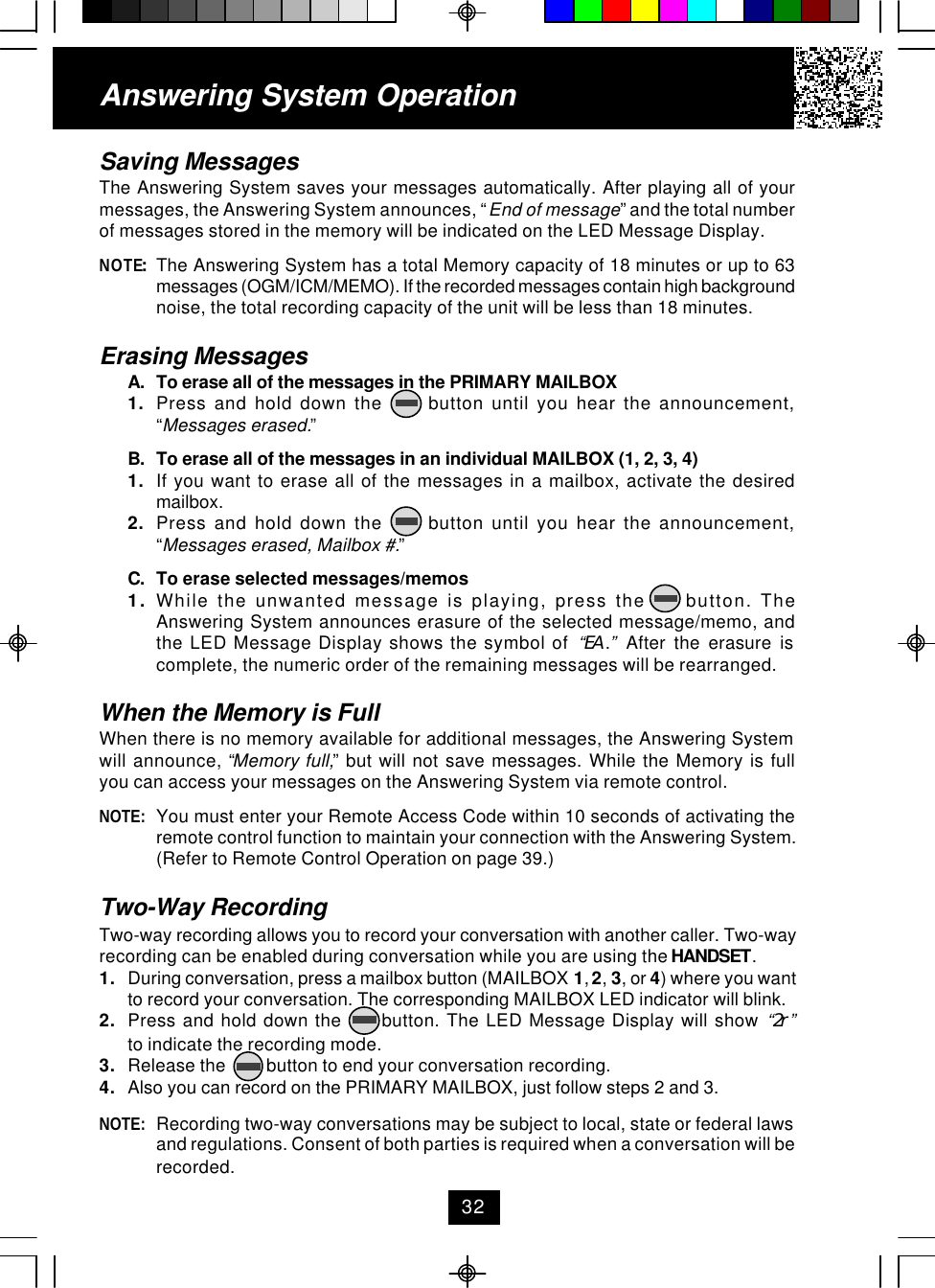

Saving MessagesThe Answering System saves your messages automatically. After playing all of yourmessages, the Answering System announces, “End of message” and the total numberof messages stored in the memory will be indicated on the LED Message Display.NOTE:The Answering System has a total Memory capacity of 18 minutes or up to 63messages (OGM/ICM/MEMO). If the recorded messages contain high backgroundnoise, the total recording capacity of the unit will be less than 18 minutes.Erasing MessagesA. To erase all of the messages in the PRIMARY MAILBOX1. Press and hold down the button until you hear the announcement,“Messages erased.”B. To erase all of the messages in an individual MAILBOX (1, 2, 3, 4)1. If you want to erase all of the messages in a mailbox, activate the desiredmailbox.2. Press and hold down the button until you hear the announcement,“Messages erased, Mailbox #.”C. To erase selected messages/memos1. While the unwanted message is playing, press the button. TheAnswering System announces erasure of the selected message/memo, andthe LED Message Display shows the symbol of “EA .” After the erasure iscomplete, the numeric order of the remaining messages will be rearranged.When the Memory is FullWhen there is no memory available for additional messages, the Answering Systemwill announce, “Memory full,” but will not save messages. While the Memory is fullyou can access your messages on the Answering System via remote control.NOTE: You must enter your Remote Access Code within 10 seconds of activating theremote control function to maintain your connection with the Answering System.(Refer to Remote Control Operation on page 39.)Two-Way RecordingTwo-way recording allows you to record your conversation with another caller. Two-wayrecording can be enabled during conversation while you are using the HANDSET.1. During conversation, press a mailbox button (MAILBOX 1, 2, 3, or 4) where you wantto record your conversation. The corresponding MAILBOX LED indicator will blink.2. Press and hold down the button. The LED Message Display will show “2r”to indicate the recording mode.3. Release the button to end your conversation recording.4. Also you can record on the PRIMARY MAILBOX, just follow steps 2 and 3.NOTE: Recording two-way conversations may be subject to local, state or federal lawsand regulations. Consent of both parties is required when a conversation will berecorded.Answering System Operation32

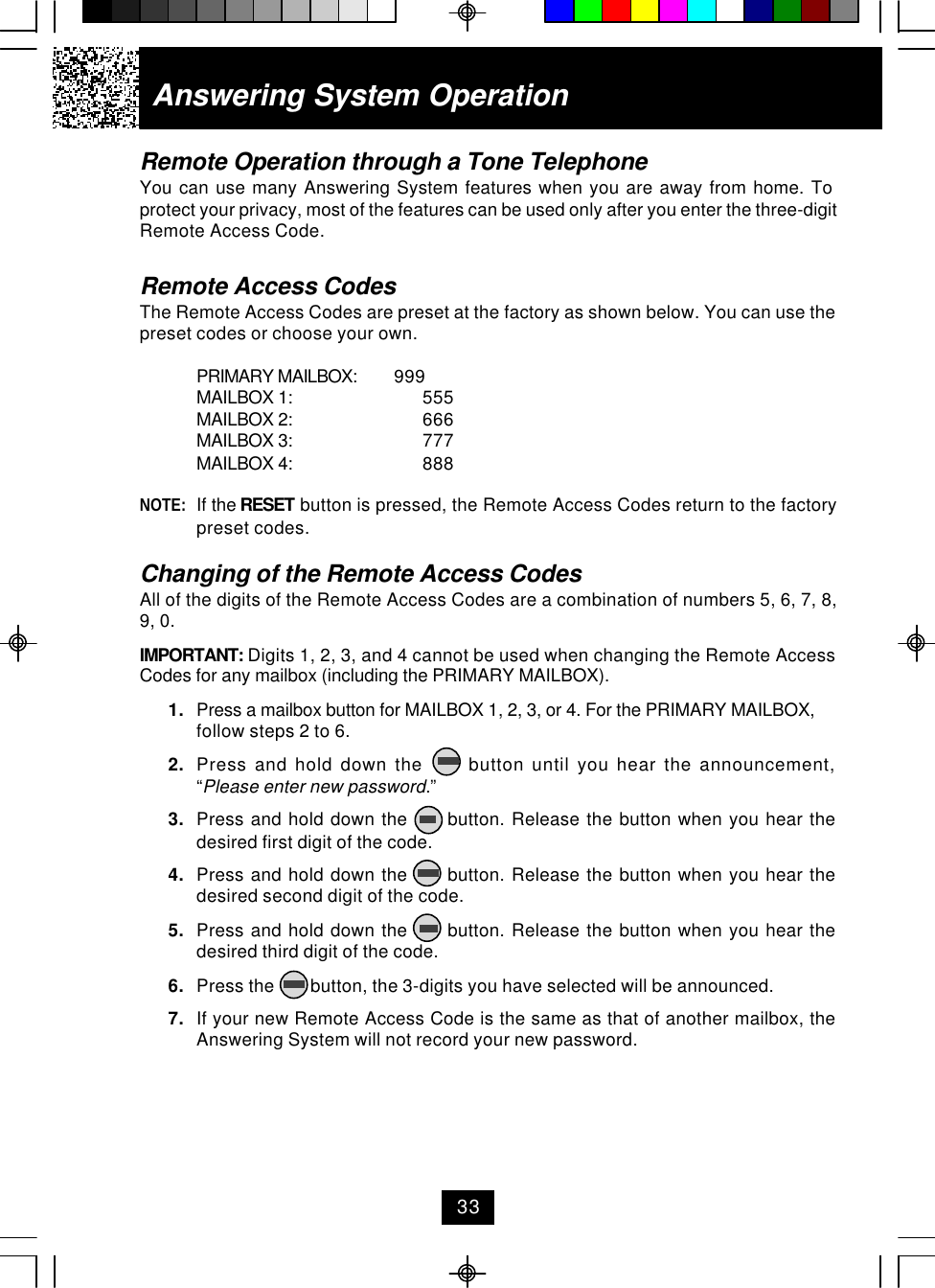

Remote Operation through a Tone TelephoneYou can use many Answering System features when you are away from home. Toprotect your privacy, most of the features can be used only after you enter the three-digitRemote Access Code.Remote Access CodesThe Remote Access Codes are preset at the factory as shown below. You can use thepreset codes or choose your own.PRIMARY MAILBOX: 999MAILBOX 1: 555MAILBOX 2: 666MAILBOX 3: 777MAILBOX 4: 888NOTE: If the RESET button is pressed, the Remote Access Codes return to the factorypreset codes.Changing of the Remote Access CodesAll of the digits of the Remote Access Codes are a combination of numbers 5, 6, 7, 8,9, 0.IMPORTANT: Digits 1, 2, 3, and 4 cannot be used when changing the Remote AccessCodes for any mailbox (including the PRIMARY MAILBOX).1. Press a mailbox button for MAILBOX 1, 2, 3, or 4. For the PRIMARY MAILBOX,follow steps 2 to 6.2. Press and hold down the button until you hear the announcement,“Please enter new password.”3. Press and hold down the button. Release the button when you hear thedesired first digit of the code.4. Press and hold down the button. Release the button when you hear thedesired second digit of the code.5. Press and hold down the button. Release the button when you hear thedesired third digit of the code.6. Press the button, the 3-digits you have selected will be announced.7. If your new Remote Access Code is the same as that of another mailbox, theAnswering System will not record your new password.Answering System Operation33

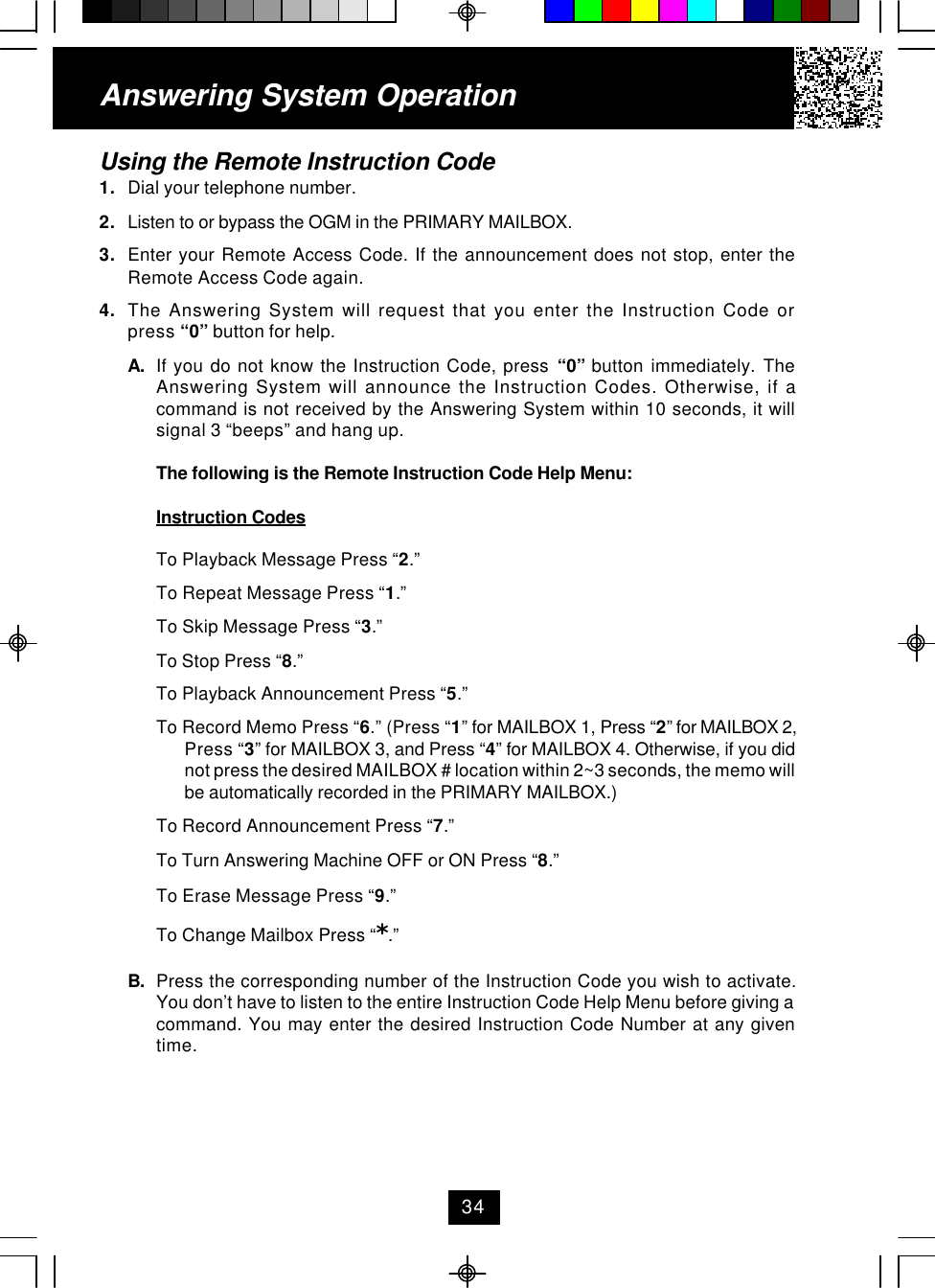

Using the Remote Instruction Code1. Dial your telephone number.2. Listen to or bypass the OGM in the PRIMARY MAILBOX.3. Enter your Remote Access Code. If the announcement does not stop, enter theRemote Access Code again.4. The Answering System will request that you enter the Instruction Code orpress “0” button for help.A. If you do not know the Instruction Code, press “0” button immediately. TheAnswering System will announce the Instruction Codes. Otherwise, if acommand is not received by the Answering System within 10 seconds, it willsignal 3 “beeps” and hang up.The following is the Remote Instruction Code Help Menu:Instruction CodesTo Playback Message Press “2.”To Repeat Message Press “1.”To Skip Message Press “3.”To Stop Press “8.”To Playback Announcement Press “5.”To Record Memo Press “6.” (Press “1” for MAILBOX 1, Press “2” for MAILBOX 2,Press “3” for MAILBOX 3, and Press “4” for MAILBOX 4. Otherwise, if you didnot press the desired MAILBOX # location within 2~3 seconds, the memo willbe automatically recorded in the PRIMARY MAILBOX.)To Record Announcement Press “7.”To Turn Answering Machine OFF or ON Press “8.”To Erase Message Press “9.”To Change Mailbox Press “*.”B. Press the corresponding number of the Instruction Code you wish to activate.You don’t have to listen to the entire Instruction Code Help Menu before giving acommand. You may enter the desired Instruction Code Number at any giventime.Answering System Operation34

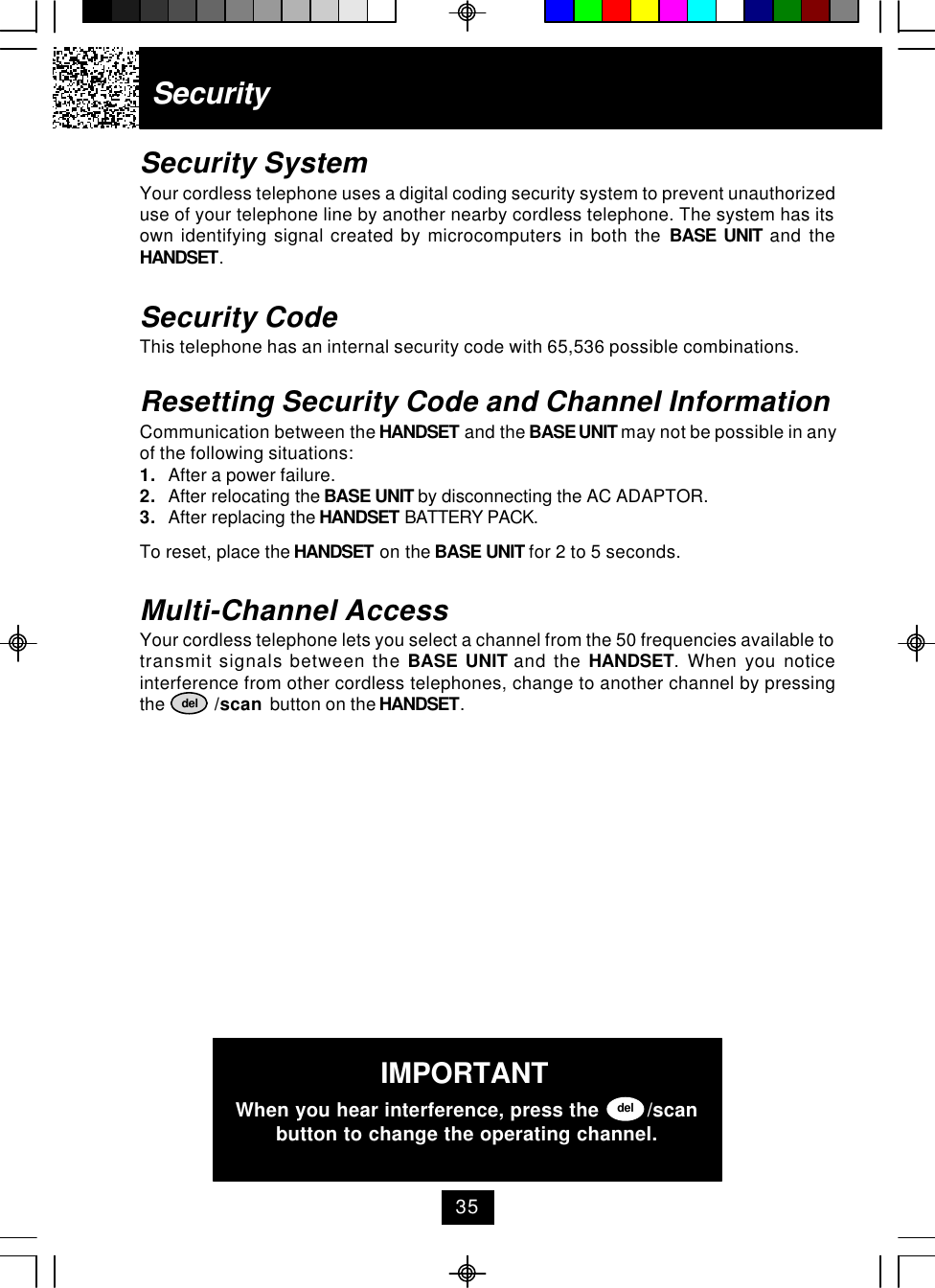

SecuritySecurity SystemYour cordless telephone uses a digital coding security system to prevent unauthorizeduse of your telephone line by another nearby cordless telephone. The system has itsown identifying signal created by microcomputers in both the BASE UNIT and theHANDSET.Security CodeThis telephone has an internal security code with 65,536 possible combinations.Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in anyof the following situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.To reset, place the HANDSET on the BASE UNIT for 2 to 5 seconds.Multi-Channel AccessYour cordless telephone lets you select a channel from the 50 frequencies available totransmit signals between the BASE UNIT and the HANDSET. When you noticeinterference from other cordless telephones, change to another channel by pressingthe /scan button on the HANDSET.delIMPORTANTWhen you hear interference, press the /scanbutton to change the operating channel.del35
Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 600mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B650 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTE: During a power interruption, the BASE UNIT does not operate, and a phoneconversation cannot be made on the HANDSET.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged manytimes using the built-in charger in the BASE UNIT.When the BATT LOW symbol appears on the LCD Screen, a “beep” sound will be heardevery 10 seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid batteryfailure. When the BATTERY PACK can no longer be charged, replacement of theBATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as“MEMORY.” Once subjected to a regular short discharging routine, the BATTERY PACKassumes the discharging pattern it was subjected to. This causes rapid dischargingthereby shortening the BATTERY PACK charge span. If you believe your BATTERY PACKhas developed a “MEMORY” condition, do not charge the HANDSET until the BATT LOWsymbol appears on the LCD Screen. When the BATT LOW symbol appears on the LCDScreen, charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.Recharging the BATTERY PACK36

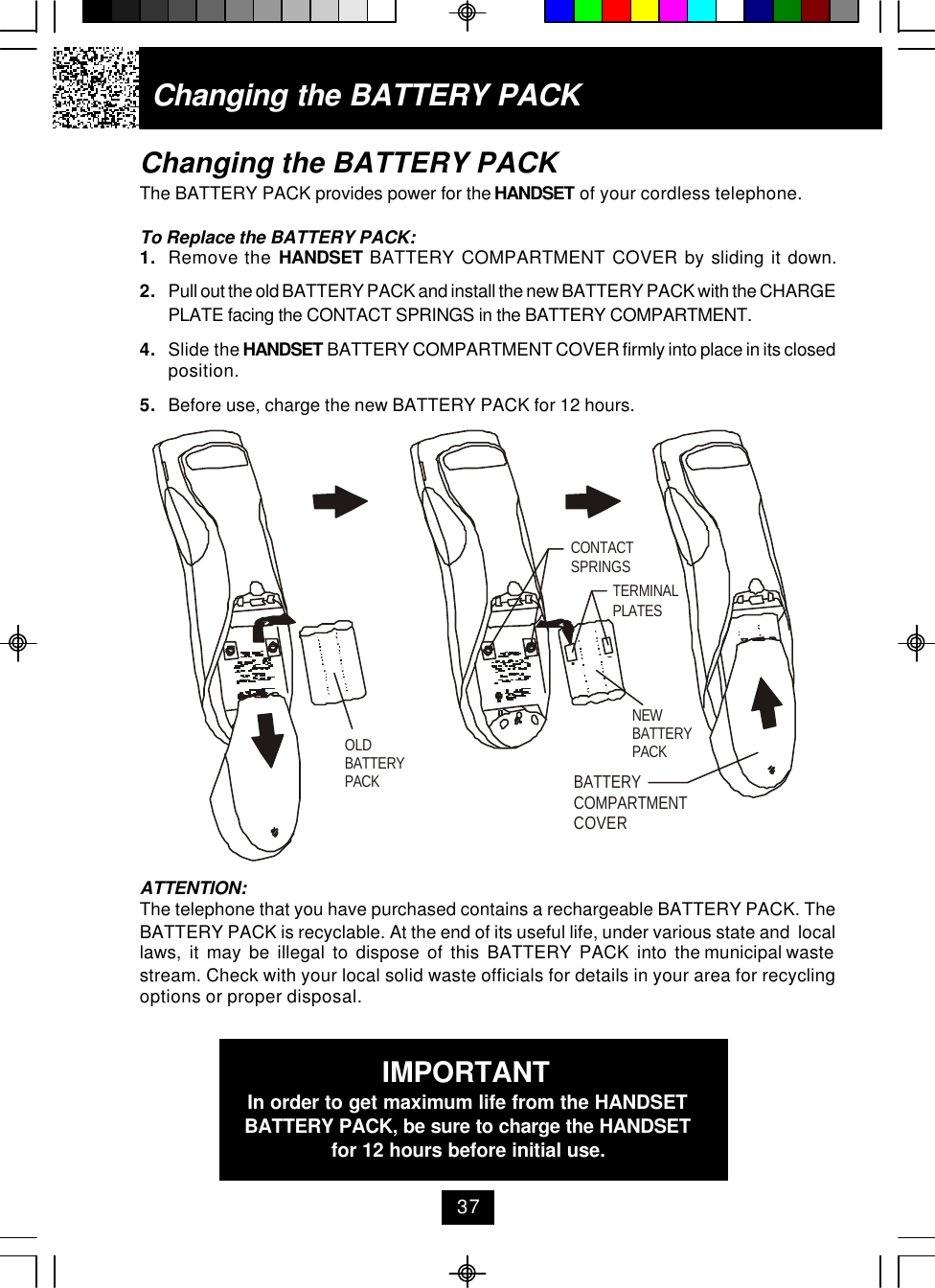

Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the old BATTERY PACK and install the new BATTERY PACK with the CHARGEPLATE facing the CONTACT SPRINGS in the BATTERY COMPARTMENT.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closedposition.5. Before use, charge the new BATTERY PACK for 12 hours.Changing the BATTERY PACKATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and locallaws, it may be illegal to dispose of this BATTERY PACK into the municipal wastestream. Check with your local solid waste officials for details in your area for recyclingoptions or proper disposal.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.TERMINAL PLATESBATTERY COMPARTMENTCOVERCONTACT SPRINGSOLDBATTERY PACKNEWBATTERY PACK37

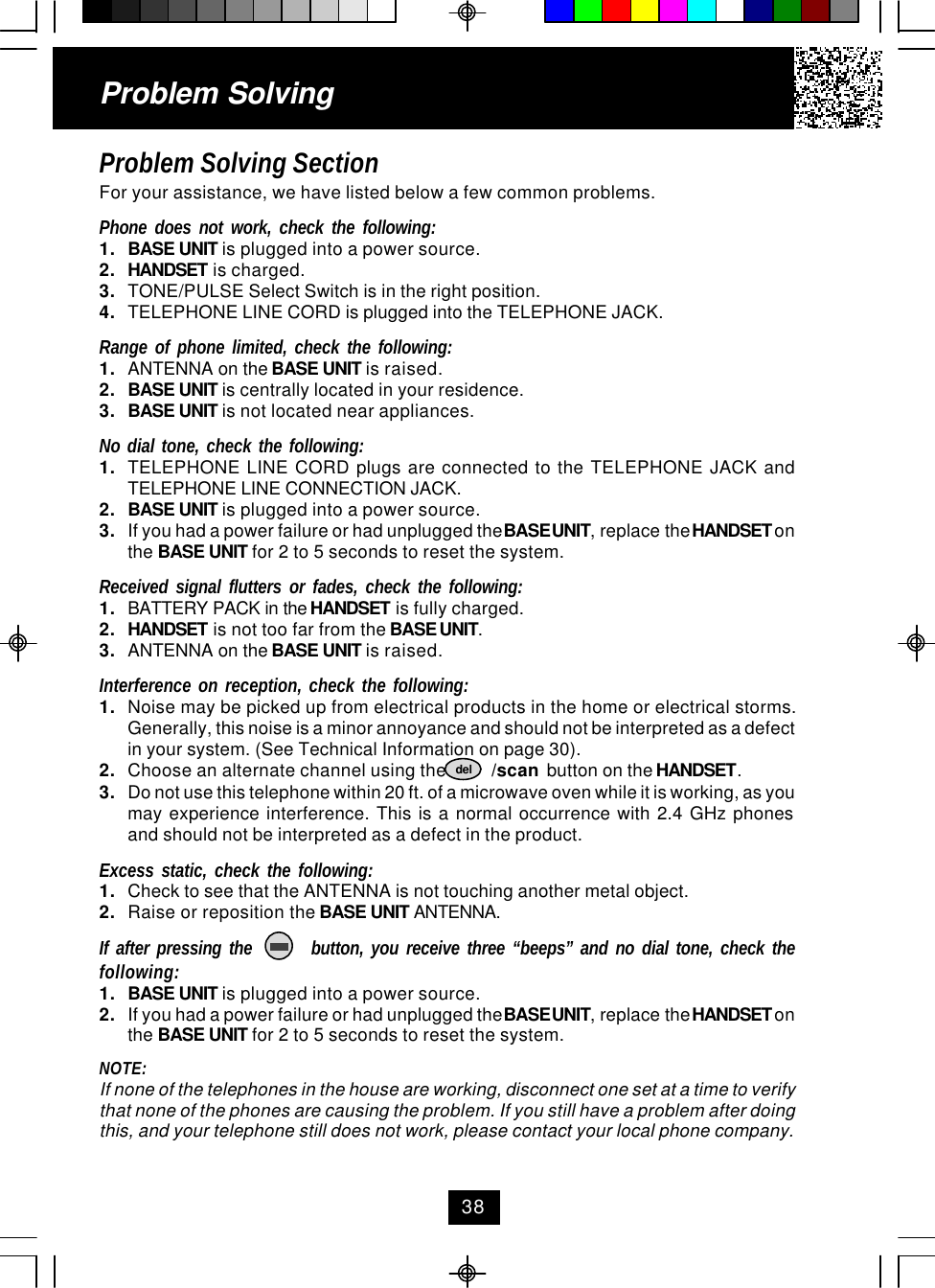

Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. ANTENNA on the BASE UNIT is raised.2. BASE UNIT is centrally located in your residence.3. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK andTELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.3. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.3. ANTENNA on the BASE UNIT is raised.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms.Generally, this noise is a minor annoyance and should not be interpreted as a defectin your system. (See Technical Information on page 30).2. Choose an alternate channel using the /scan button on the HANDSET.3. Do not use this telephone within 20 ft. of a microwave oven while it is working, as youmay experience interference. This is a normal occurrence with 2.4 GHz phonesand should not be interpreted as a defect in the product.Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.2. Raise or reposition the BASE UNIT ANTENNA.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing:1. BASE UNIT is plugged into a power source.2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSET onthe BASE UNIT for 2 to 5 seconds to reset the system.NOTE:If none of the telephones in the house are working, disconnect one set at a time to verifythat none of the phones are causing the problem. If you still have a problem after doingthis, and your telephone still does not work, please contact your local phone company.Problem Solvingdel38
If after pressing the button, you receive three “beeps” and no dialtone, check the following:1. BASE UNIT is plugged into the power source.2. If you had a power failure or had unplugged the BASE UNIT, replace the HANDSETon the BASE UNIT for 2 to 5 seconds to reset the system.Answering System does not work, check the following:1. BASE UNIT is plugged into the power source.2. Reset the system by pressing the RESET button at the side of the BASE UNIT.Answering System does not answer calls, check the following:1. ANSWER ON/OFF LED indicator is lit.Answers calls only after 10 rings, check the following:1. ANSWER ON/OFF LED indicator is lit.2. Message Memory is not full.Does not respond to remote commands, ensure the following:1. Correct Remote Access Code is entered.2. A TONE telephone is being used.Messages are incomplete, ensure the following:1. Message Memory is not full.2. Caller may be hesitating and pausing for more than 7 seconds.Answers calls but does not record messages, check the following:1. ANNC/ICM switch is set to ICM.2. Memory is not full.3. Extension telephone was not picked up.NOTE: If none of the telephones in the house are working, disconnect one set at a timetoverify that none of the telephones are causing the problem. If you still have a problemafter doing this, and your telephone still does not work, please contact your local phonecompany.Problem Solving39

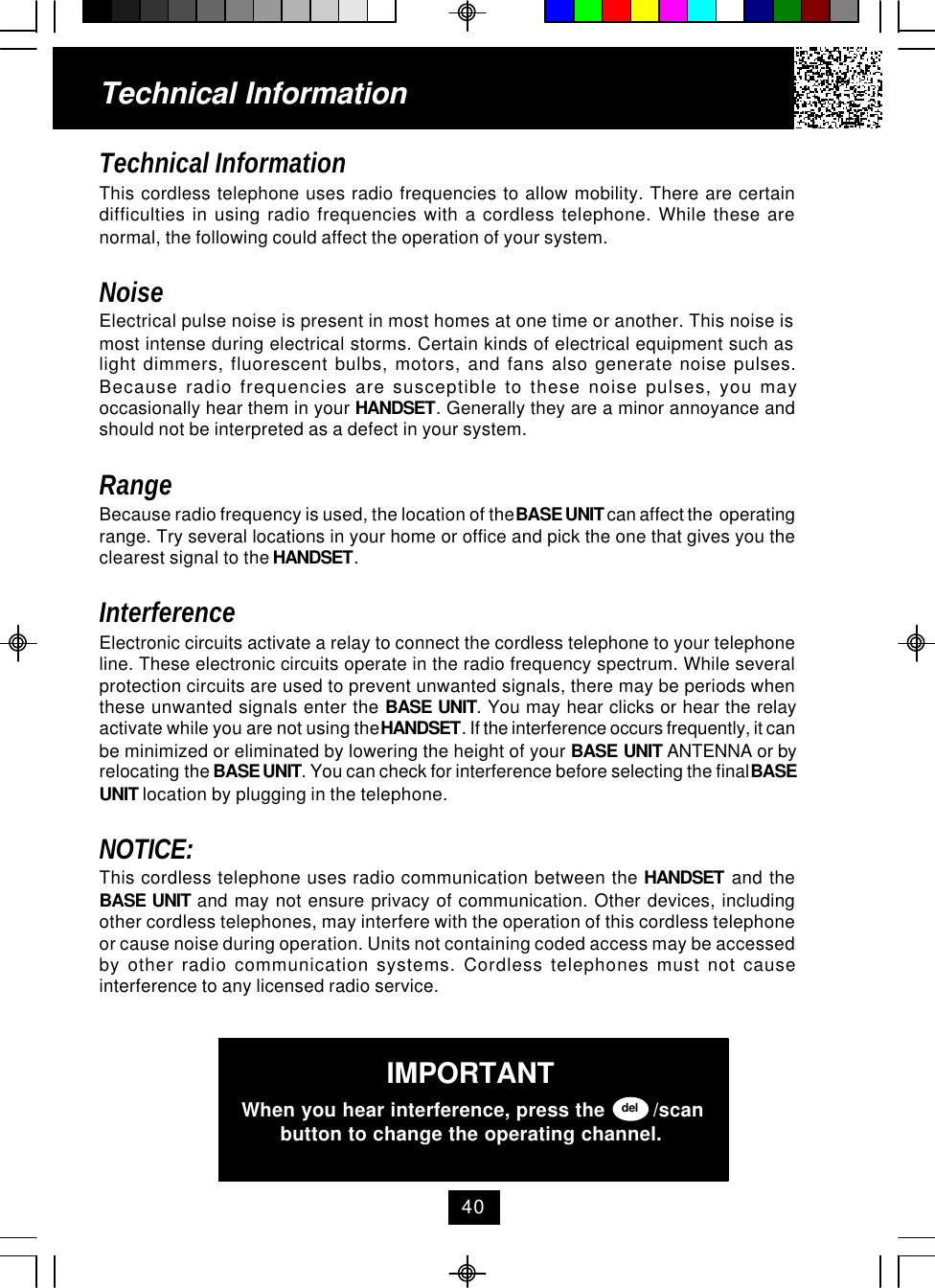

Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certaindifficulties in using radio frequencies with a cordless telephone. While these arenormal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise ismost intense during electrical storms. Certain kinds of electrical equipment such aslight dimmers, fluorescent bulbs, motors, and fans also generate noise pulses.Because radio frequencies are susceptible to these noise pulses, you mayoccasionally hear them in your HANDSET. Generally they are a minor annoyance andshould not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the operatingrange. Try several locations in your home or office and pick the one that gives you theclearest signal to the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephoneline. These electronic circuits operate in the radio frequency spectrum. While severalprotection circuits are used to prevent unwanted signals, there may be periods whenthese unwanted signals enter the BASE UNIT. You may hear clicks or hear the relayactivate while you are not using the HANDSET. If the interference occurs frequently, it canbe minimized or eliminated by lowering the height of your BASE UNIT ANTENNA or byrelocating the BASE UNIT. You can check for interference before selecting the final BASEUNIT location by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and theBASE UNIT and may not ensure privacy of communication. Other devices, includingother cordless telephones, may interfere with the operation of this cordless telephoneor cause noise during operation. Units not containing coded access may be accessedby other radio communication systems. Cordless telephones must not causeinterference to any licensed radio service.Technical InformationIMPORTANTWhen you hear interference, press the /scanbutton to change the operating channel.del40

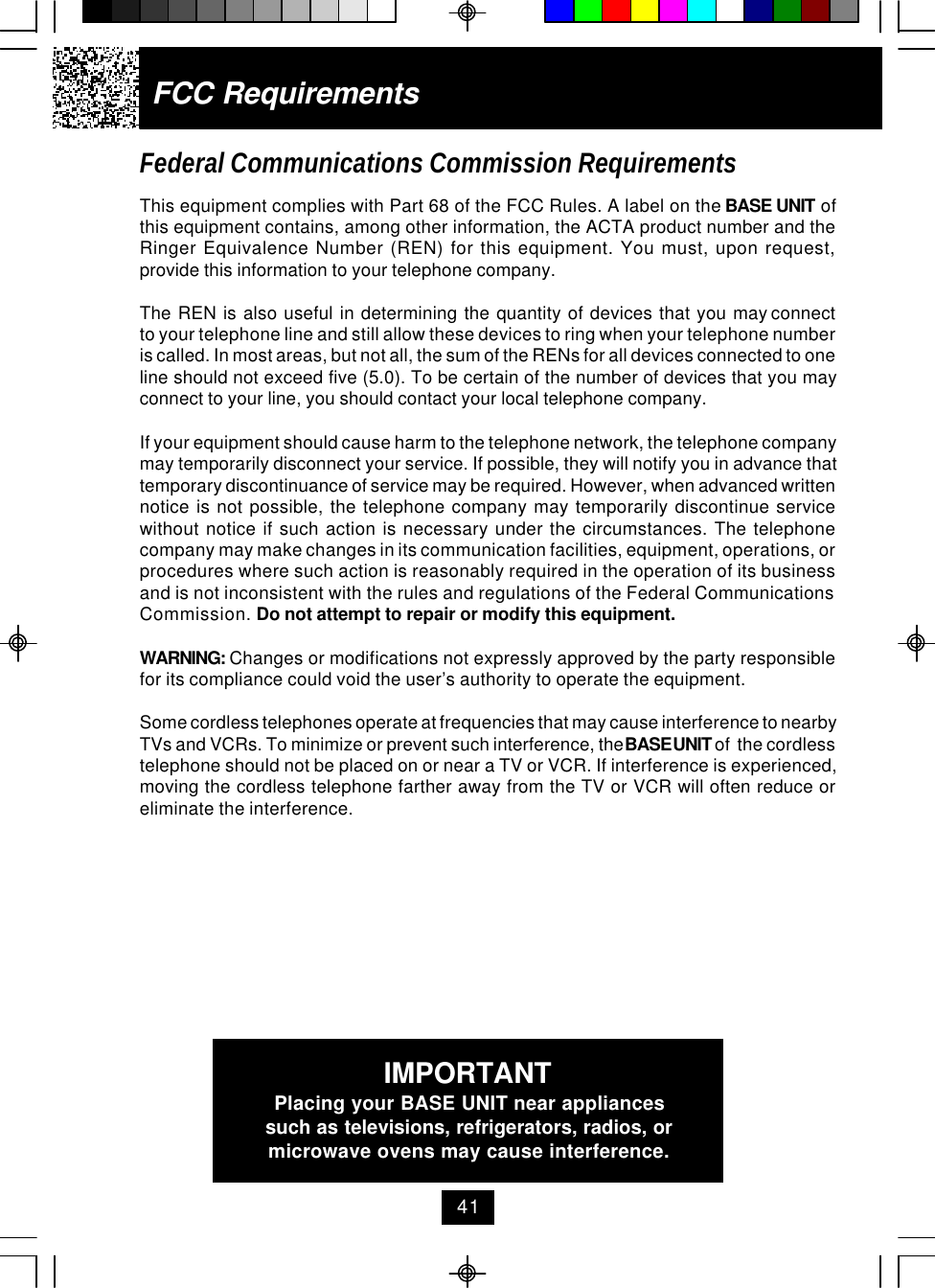

FCC RequirementsFederal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT ofthis equipment contains, among other information, the ACTA product number and theRinger Equivalence Number (REN) for this equipment. You must, upon request,provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connectto your telephone line and still allow these devices to ring when your telephone numberis called. In most areas, but not all, the sum of the RENs for all devices connected to oneline should not exceed five (5.0). To be certain of the number of devices that you mayconnect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone companymay temporarily disconnect your service. If possible, they will notify you in advance thattemporary discontinuance of service may be required. However, when advanced writtennotice is not possible, the telephone company may temporarily discontinue servicewithout notice if such action is necessary under the circumstances. The telephonecompany may make changes in its communication facilities, equipment, operations, orprocedures where such action is reasonably required in the operation of its businessand is not inconsistent with the rules and regulations of the Federal CommunicationsCommission. Do not attempt to repair or modify this equipment.WARNING: Changes or modifications not expressly approved by the party responsiblefor its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearbyTVs and VCRs. To minimize or prevent such interference, the BASE UNIT of the cordlesstelephone should not be placed on or near a TV or VCR. If interference is experienced,moving the cordless telephone farther away from the TV or VCR will often reduce oreliminate the interference.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.41
Federal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party lineservice is subject to state tariffs. If trouble is experienced, disconnect this equipmentfrom the telephone line to determine if it is causing the malfunction. If the equipment isdetermined to be malfunctioning, its use should be discontinued until the problem hasbeen corrected.NOTE: This equipment has been tested and found to comply with the limits for a classB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interferenceto radio communications.However, there is no guarantee that interference will occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.FCC Requirements42
WarrantyWarranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding yourproduct. There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrantsthe telephone against defects in material and workmanship for a period of one (1) yearfrom the original date of purchase. This warranty is in lieu of all other expressedwarranties. This warranty begins when you purchase the telephone and continues forone (1) year unless you sell or rent the telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty ofmerchantability and the warranty of fitness for a particular purpose, as of the date of 90days from your original purchase of the telephone. BellSouth Products assumes noresponsibility for any special, incidental, or consequential damages.This warranty gives you specific legal rights and you may have other rights which varyfrom state to state. Some states do not allow the exclusion or limitations of special,incidental or consequential damages, or limitations on how long a warranty lasts, sothe above exclusion and limitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse,improper installation or operation, lack of reasonable care, unauthorized modification,the affixing of any attachment not provided by BellSouth Products with the telephoneand/or loss of parts. This warranty is voided in the event any unauthorized personopens, alters or repairs the telephone. All BellSouth equipment being returned forrepair must be suitably packaged. Telephone companies use different types ofequipment and offer various types of services to customers. BellSouth Products doesnot warrant that this telephone is compatible with the type of equipment of any particulartelephone company or the services provided by it.43

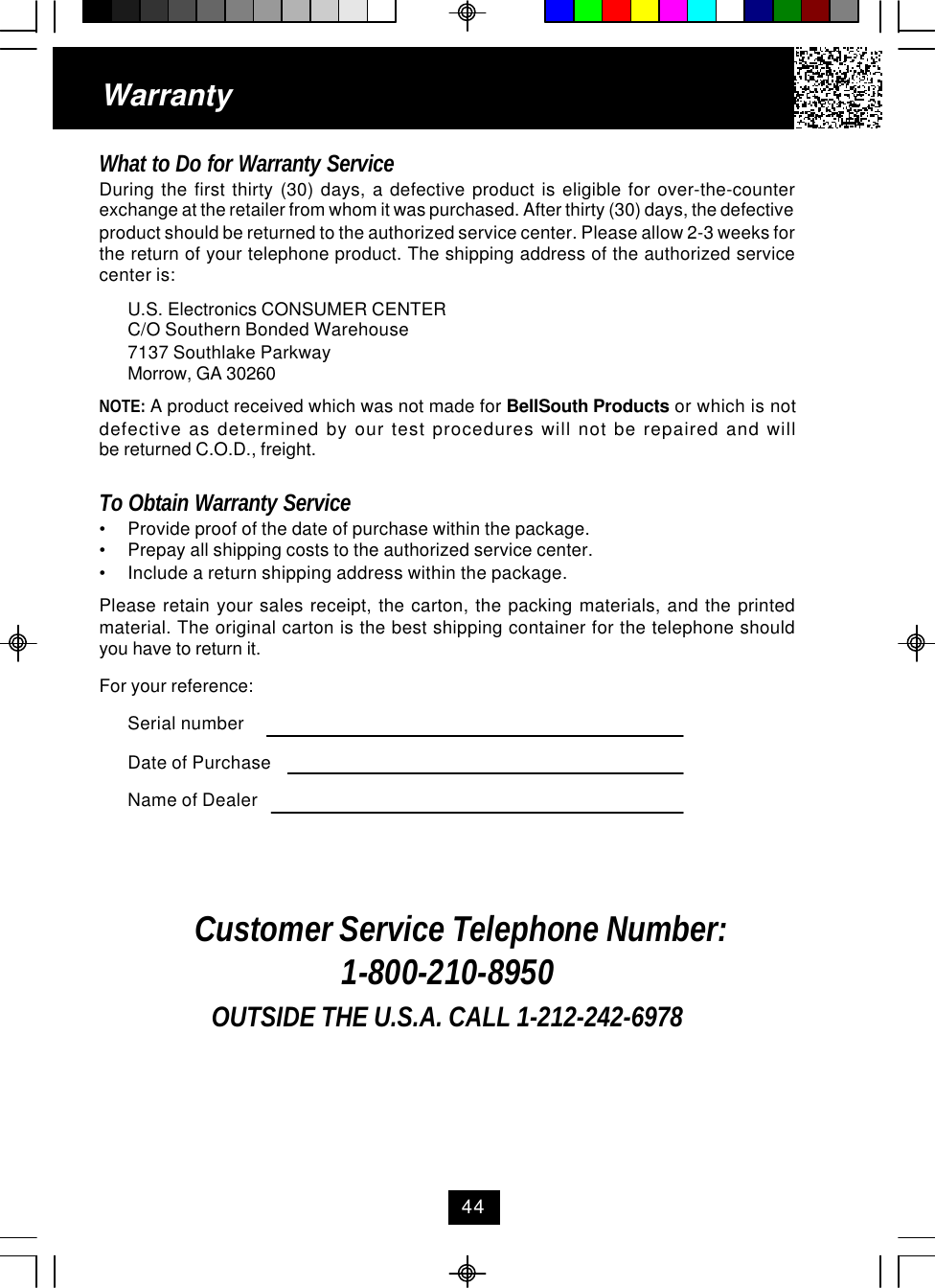

WarrantyWhat to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counterexchange at the retailer from whom it was purchased. After thirty (30) days, the defectiveproduct should be returned to the authorized service center. Please allow 2-3 weeks forthe return of your telephone product. The shipping address of the authorized servicecenter is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is notdefective as determined by our test procedures will not be repaired and willbe returned C.O.D., freight.To Obtain Warranty Service•Provide proof of the date of purchase within the package.•Prepay all shipping costs to the authorized service center.•Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printedmaterial. The original carton is the best shipping container for the telephone shouldyou have to return it.For your reference:Serial numberDate of PurchaseName of DealerCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-697844

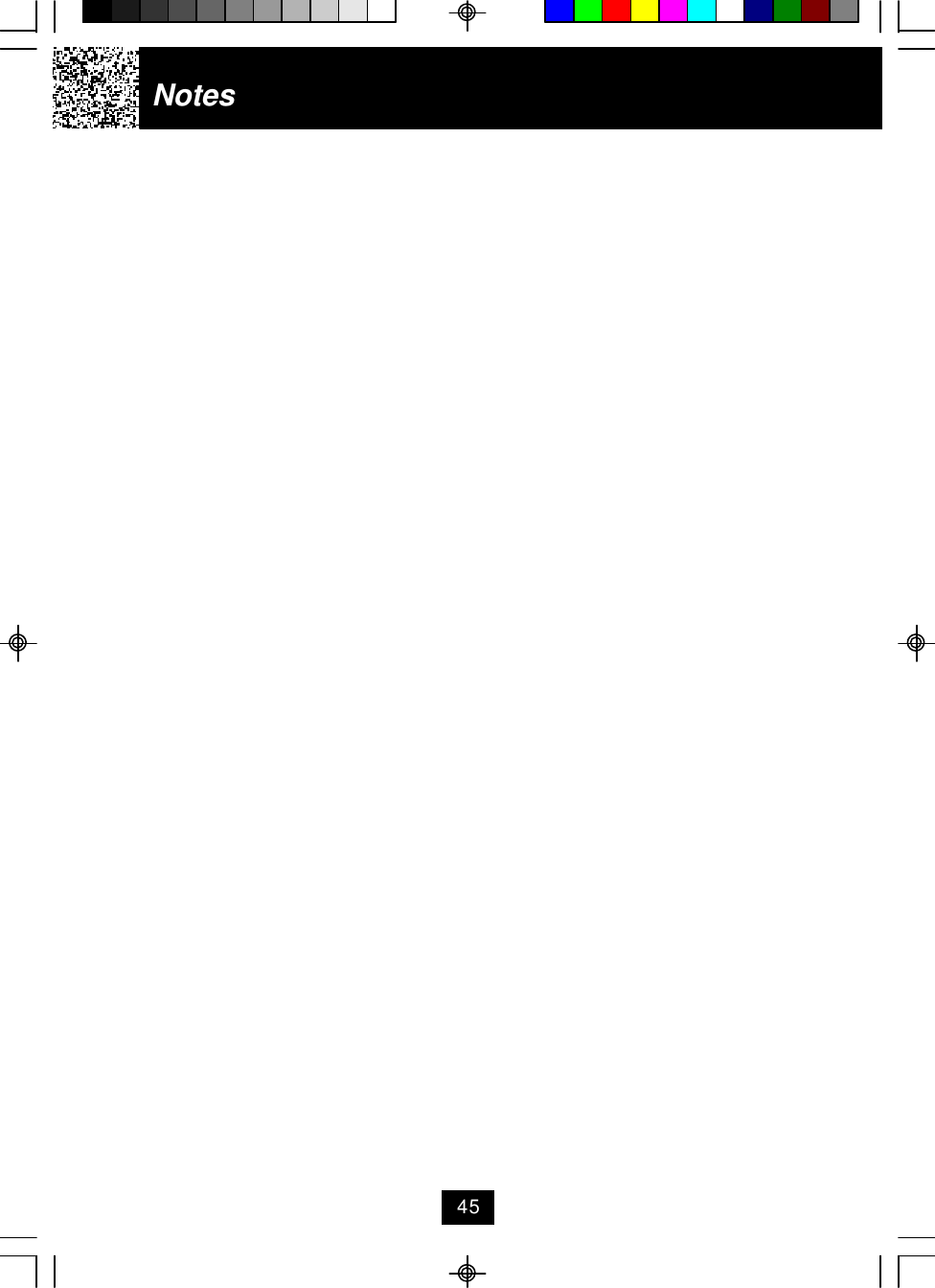

Notes45

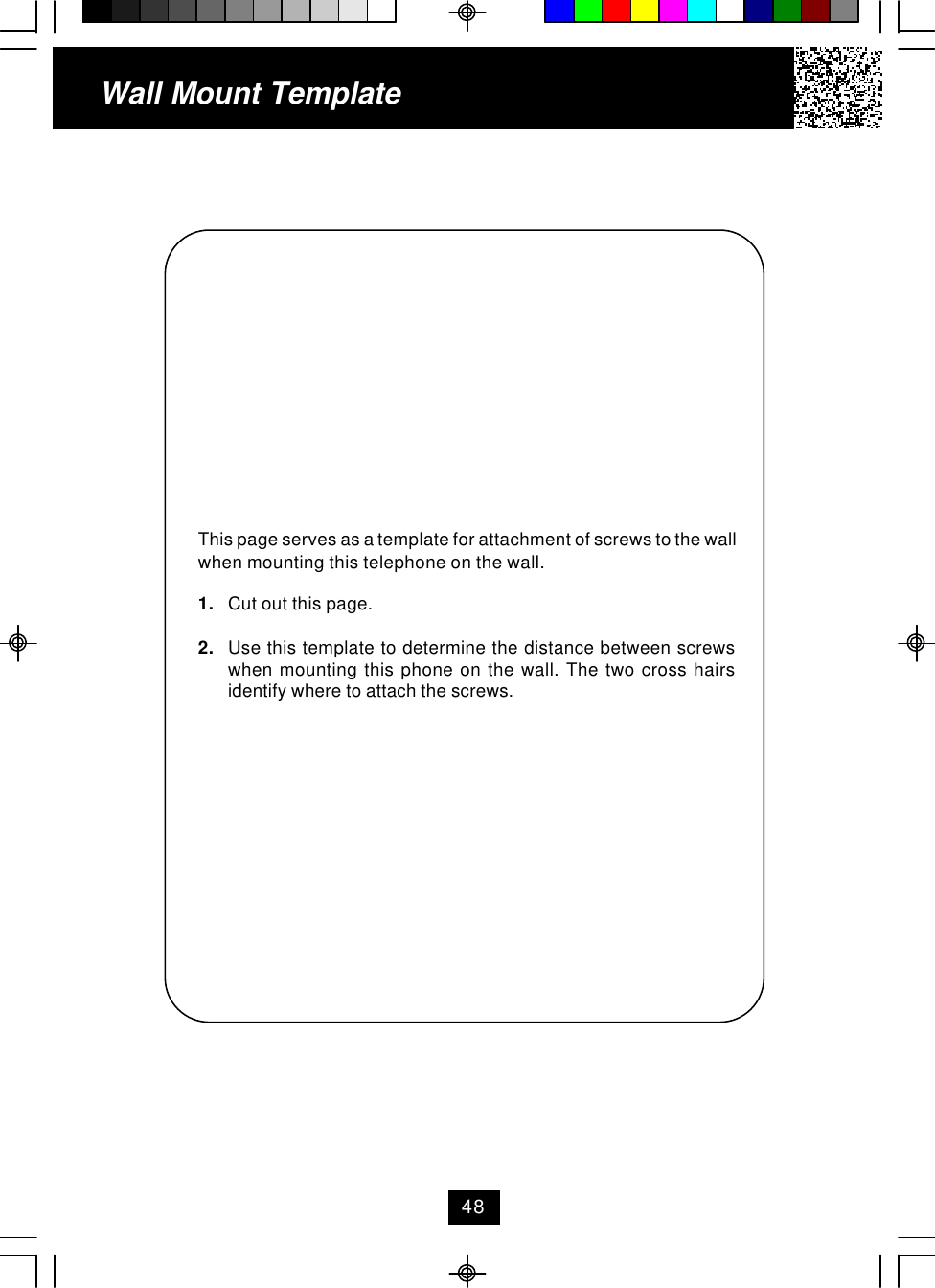

Wall Mount TemplateThis page serves as a template for attachment of screws to the wallwhen mounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screwswhen mounting this phone on the wall. The two cross hairsidentify where to attach the screws.48
