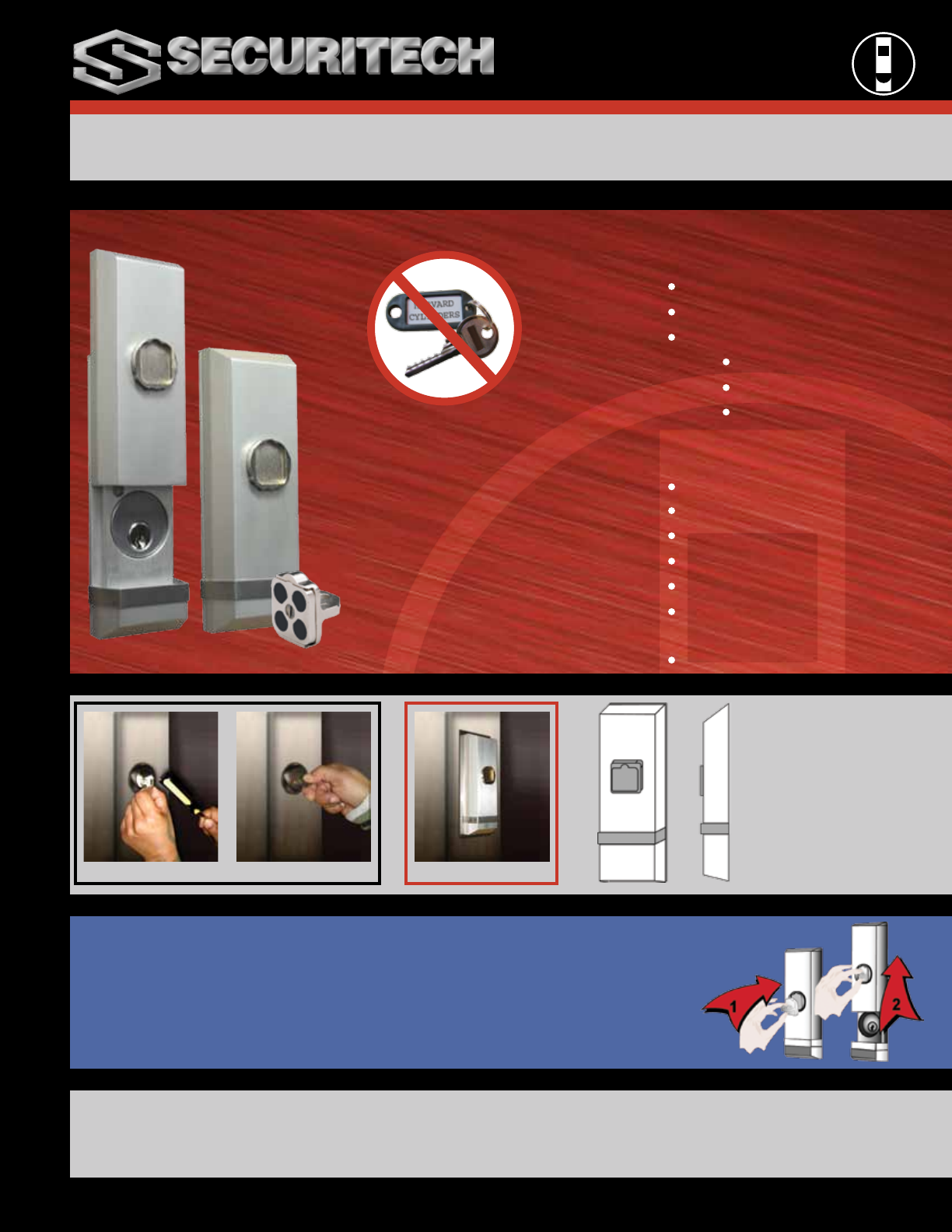

SECURIGUARDTM
Concealed Cylinder Resists Vandalism, Bumping & Unauthorized Key Use
SECURIGUARDTM Stops Krazy Glue & Bump Keys
SecuriguardTM has a sliding shield that covers the cylinder. Prevents vandalism by Krazy
Glue and “Bump Keys” cannot be used.
The shield is raised and lowered via a special magnetic key.
When the shield is up, the key can be used. When the shield is down, the cylinder is
100% concealed.
SECURIGUARDTM Protects Against
Bumping
Unauthorized Key Use
Vandalism
Picking
Wrenching
Krazy Glue
SECURIGUARDTM Offers
Bump Key Protection
Simple Access Control
100% Cylinder Concealment
Prevention Of Cylinder Icing
Easy Installation
Special Magnetic Keys That
Cannot Be Duplicated
Ease Of Use
What is “Bumping”?
Burglars take a regular key and
mill it down, creating a “Bump
Key”. It is inserted into the lock
and with a tap of a hammer on the
“Bump Key” the lock opens. It’s
so easy an eight-year-old can do
it!
The technique has been around
for over 20 years and is spreading
like wildre thanks to the internet.
Bump Key
PROBLEM SOLUTION
MODEL #6300
Size
Height: 5 3/4”
Width: 2”
Depth: 1 3/8”
Finish: Clear Aluminum
Furnished with 2
Magnetic Keys
SECURIGUARDTM Key Info
There are millions of SecuriguardTM key combinations. Additional keys can be ordered and SecuriguardTM can be ordered to
work with the same magnetic key. Regular magnets cannot open the SecuriguardTM.
SECURITECH GROUP, INC. 54-60 46th St., Maspeth, NY 11378 800.622.LOCK 718.392.9000 fax 718.392.8944 www.securitech.com
z 2011 Securitech Group, Inc. M1.0
Designed To Fit Over Removable Core or Standard Cylinders
You Want, We Do
M1.1
54-60 46th Street, Maspeth NY 11378 800.622.LOCK local: 718.392.9000 fax: 718.392.8944 www.securitech.com
SECURIGUARDTM Model Builder
MODELSPARTS &
OPTIONS
6300 Use Over Standard Or High-Security Cylinders.
Furnished With 2 Magnetic Keys.
6302 For Use With “Schlage” Deadbolts. Includes
Modied Filler Plate & Collar.
6305 Combination Of 6300 & BAP. For Use With
“Best” Or Other Raised Face Removable Core
Cylinders.
6310 Identical To 6300, Furnished With 3 Magnetic
Keys Per Securiguard
6315 Identical To 6305, Furnished With 3 Magnetic
Keys Per Securiguard
63PP Securiguard Is Mounted On A Stainless Steel
Pull Plate For Use With Exit Device. Contact
Factory With Specic Exit Device Name & Model
Number For Custom Model.
63MP Securiguard Is Mounted On A Stainless Steel
Plate For Use With Exit Device Or Other Lock.
Contact Factory With Specic Exit Device Name
& Model Number For Custom Model.
64 Change “63” To “64” For A Securigaurd With
Removable Bay
63BAP Adapter Plate (Spacer) For Use With Raised
Face I/C Cylinders
63KEY Additional Key
63BAY Replacement Locking Bay With 2 Keys
OPERATION:
The SECURIGUARDTM shield is raised by
the magnetic key. The lock key may then
be inserted and used.
The shield will remain open until lowered
by use of the magnetic key.
KEY LOCK-OUT FUNCTION:
This function is used to lock-out keys and restrict access to the
cylinder, in addition to cylinder protection.
Typically, a manager will raise the shield at the start of the day.
Regular keys can then be used to operate the lock. At the end
of the day, the manager uses the magnetic key to lower the
shield.
KEY COMBINATIONS:
SECURIGUARDTM is available keyed different or keyed alike to
a new or existing combination.
AVAILABLE FINISHES:
JB = Jet Black Finish.
AL = Aluminum Finish (clear).
ADDITIONAL KEYS:
SECURIGUARDTM keys can be ordered
from the factory to match code numbers.
Keys are stamped with code numbers.
Codes may be registered to prevent
ordering by unauthorized individuals.
NOTE: SPECIAL CYLINDER CAPS:
Some cylinders use special caps over the face of the cylinder
for different nishes. Certain caps add too much to the diameter
of the cylinder and need to be removed prior to insertion in the
Securiguard. This does not affect the cylinder operation.
FINISH
AL Aluminum
JB Jet Black
APPLICATIONS:
Areas where cylinders are prone to vandalism
Areas where cylinders are prone to weather issues
Doors where dual verication for entry is needed
Doors needing restricted access
POPULAR MODELS:
6300-AL Standard unit with two keys; aluminum
6300-JB Standard unit with two keys; jet black
6305-AL Standard unit with adapter plate
for use with “Best” or other raised face
removable core cylinders; aluminum
6305-JB Standard unit with adapter plate for
use with “Best” or other raised face
removable core cylinders; jet black
General Solutions Binder 2012 V9.2
Exterior
Lever Handle
Trim With
Interior
Solenoid
(Cut-
Away
View)
Interior
Lever
Handle
Trim
(UG Style)
Mortise
Latch Lock
S E C U R I T E C H G R O U P , I N C . ( 8 0 0 ) 6 2 2 - L O C K ( 7 1 8 ) 3 9 2 - 9 0 0 0 ( 7 1 8 ) 3 9 2 - 8 9 4 4 f a x w w w . s e c u r i t e c h . c o m
z:\lit & stuff\!!! binder 2001\1a\A21 Cat Electrolatch V3.vsd\front\as of1/27/12
made in u.s.a.

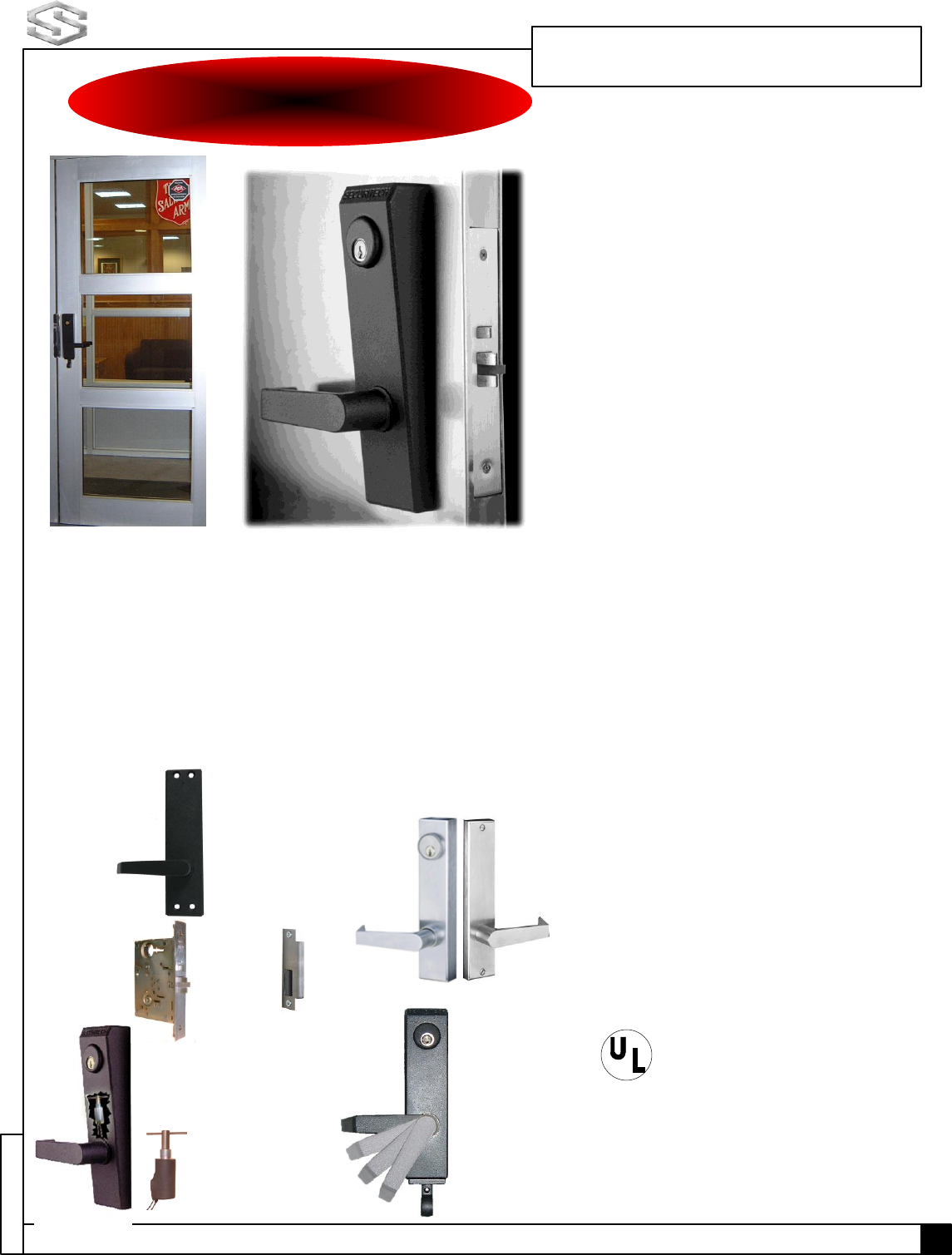

Electrically-Released Trim & Latch Lock
Ideal for Access Control System Integration
Electrolatch
SECURITECH SOLUTIONS
RELIABILITY & DURABILITY
· Electric Release In The Trim, Not The
Strike
· No Moving Parts In The Strike Plate To
Wear Out
· Operates Standard Size Heavy-Duty
Mortise Lock With Deadlatch
· Vandal-Resistant LeverEx™ Slip-Clutch
Within Stainless Steel Exterior Lever
Handle Breaks Away When Forced
Without Damage
· Code Compliant Release Action Meets
ADA Requirements
· Works With All Access Control & Intercom
Systems
· Reduced Service And Maintenance Costs
Due To Patented Design
· Easy Retrofit To Existing Doors
· Thermasol™ Solenoid Cuts-off
Automatically If There Is A Stuck Button
On The Intercom
· Patented Quick-Switch Cylinder Change
Method
· Lever Movement Restrictors Prolong Life
Of Mortise Lock By Reducing Wear & Tear
· Ideal For
Apartment Building Entrances
Card Access Controlled Doors
Public Housing Entrances/Exits
Office Building Stairwell Doors
DOOR & FRAME PREPARATION:
Standard ANSI Mortise lock door & frame prep.
HANDING: LH, LHR, RH, RHR - Not Field
Reversible.
CYLINDER: Mortise Cylinder Required,
Cloverleaf Cam (By Others).
How Does It Work?
ELECTROLATCH™ operates as if it were a mechanical lockset. Depress the
interior lever to exit. To enter, use the key to release the exterior lever
momentarily. An access control system or intercom would energize the
solenoid and allow entry by depressing the lever.
The electric release solenoid is within the trim, not the strike plate, for maximum
vandal-resistance and durability.
ELECTROLATCH™'s patented design creates the most rugged and durable
lock for high-traffic and vandal-prone locations.
TM
Stainless
Steel
Strike Plate
(No Moving
Parts)
®
NYC
MEA
New architectural
designs and finishes
available (GG Series)
UG & GG
Trims
feature
LevereX™
anti-vandal
slipclutch
A21
ELECTROLATCH is extremely versatile. The most popular model is #9010, but other functions are available:

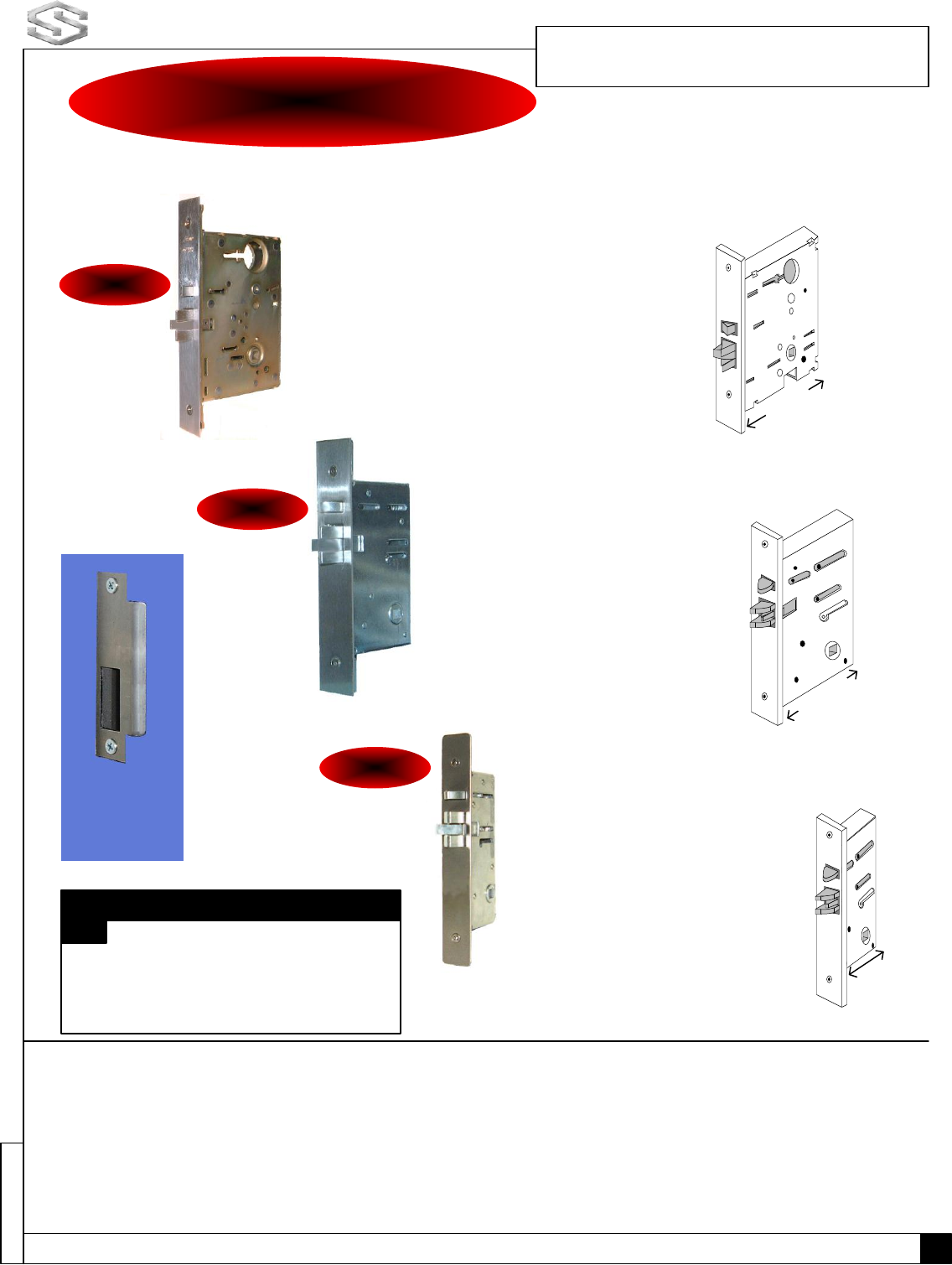

Lock Bodies
AML
1-1/4"x 8"
faceplate
ANSI type,
Fire-Rated
Lockset
ASL
fits “Adams-
Rite” type
faceplate
1"x6-7/8"
MML
1-1/4"x 6-7/8"
faceplate
FML
1-1/4"x 8"
faceplate
Mortise cylinder required for all exterior trims (by others)
How To Order
Build a model using the following system:
Sample Model #
9010-GG-DC-AML-630-LHR
Cylinder
Protector
(UG Trim Only)
Full face steel cylinder
protector is standard
for regular cylinders.
-RC
Classroom Function
Key unlocks lever for extended
period, until key is used to re-lock
lever. Lock functions in passage mode while
exterior lever is in unlocked mode.
-CF
R-T-E Switch
Interior trims may include an
optional signal switch for use with
alarmed or access control doors. Depressing
the interior lever actuates the switch.
-CX
Electric Release Options
24vAC, 30va transformer required
-AC
24vDC transformer required
-DC
24vDC, Fail-Safe Re-Entry Function
-RE
O
P
TI
O
N
S-YC
“BEST”-type IC core
cylinders require a “8”
plug opening
Yale IC core cylinders
require an oval
keyhole opening
Trim Styles
AESTHETIC,
ARCHITECTURAL FINISH
NARROW TRIM
Variety of finishes available.
GG
BIG, HEAVIEST
DUTY TRIM
Available with powder coated
black finish
UG
A22
Model Selector
Interior lever trim, free exit at all times.
Exterior lever trim unlocked by key or electric release.
Exterior lever is FAIL-SECURE with loss of power (keyed
entry, free exiting).
SPECIAL RE-ENTRY MODEL.
Interior lever trim, free exit at all times. Exterior lever trim
unlocked by key or electric release (24vDC). Exterior trim
unlocks with loss of power or signal from fire alarm system.
(Fail Safe Both Sides).
Identical to 9010, with extra heavy-duty exterior trim
brackets to resist vandalism.
Non-electric release model. Lever trim with key release
Exterior lever trim unlocked by key or electric release.
No Interior Trim or operation.
9010
9010-RE
9012
9007
9009
SPECIAL DOUBLE LOCK MODEL
Interior & Exterior Lever Trim with key & electric release
(Fail-Secure Interior, Fail-Secure Exterior). Other
configurations available. Contact factory for further info.
9015
for regular doors
or wide-stile aluminum for 3-1/4” medium
stile alum. tube for 2” stile iron
or alum. tube 4-7/8”
Stainless
Steel
Strike
Supplied
With All
Models
Special Options
8' leads eliminates wire connections at lock area
-LL
Latch position switch for use with alarms & access control
-LPS
Key Usage Switch activated when key is used in place of
access control system. Sends distinct signal to alarm system.
-KU
Access Control Cut-Off Switch
Access control systems can be complicated
to program and turn on and off. Frequently a computer
is needed to change status, time zones, etc. The cut-
off switch feature allows a clockwise rotation of the
key to toggle the access control system on or off. The
supervisor does not need to have any programming
skills to turn the system off for a defined period (after
hours, weekend, etc) or turn it back on.
-CS
NSL 1-1/4"
faceplate
A) B) C) D) E) F) G) H) Handing (LH, RH, LHR or RHR)
9007 -UG -AC -AML for UG models -CF for UG & LR models
9009 -GG -DC -MML Specials: -CS -676 Black Powder Coat
9010 -LR -RE -FML -RC -CX for GG Models
9012 -ASL -YC -630 Satin stainless steel
9015 -NSL -606 Satin brass
-XML (no lock body) Contact factory for custom finishes
Trim
Style
Model
/Function
Mortise
Lock Type
Finish
Cylinder
Protector
Special
Options
Electric
Release
m a d e i n u s a b y S E C U R I T E C H G R O U P , I N C . 5 4 - 4 5 4 4 t h S t . M a s p e t h , N Y 1 1 3 7 8
(800)622-5625 ( 7 1 8 ) 3 9 2 - 9 0 0 0 ( 7 1 8 ) 3 9 2 - 8 9 4 4 f a x w w w . s e c u r i t e c h . c o m
ELECTROLATCH MODELS
Cutaway view
of interior trim
& switch
Cutaway
view of
electric
release
solenoid
within
exterior trim
The slipclutch lever
handle breaks-
away if forced, but
will not open the
door and is not
damaged
SECURITECH GROUP, INC. (800)622-LOCK (718)392-9000 (718)392-8944 fax www.securitech.com

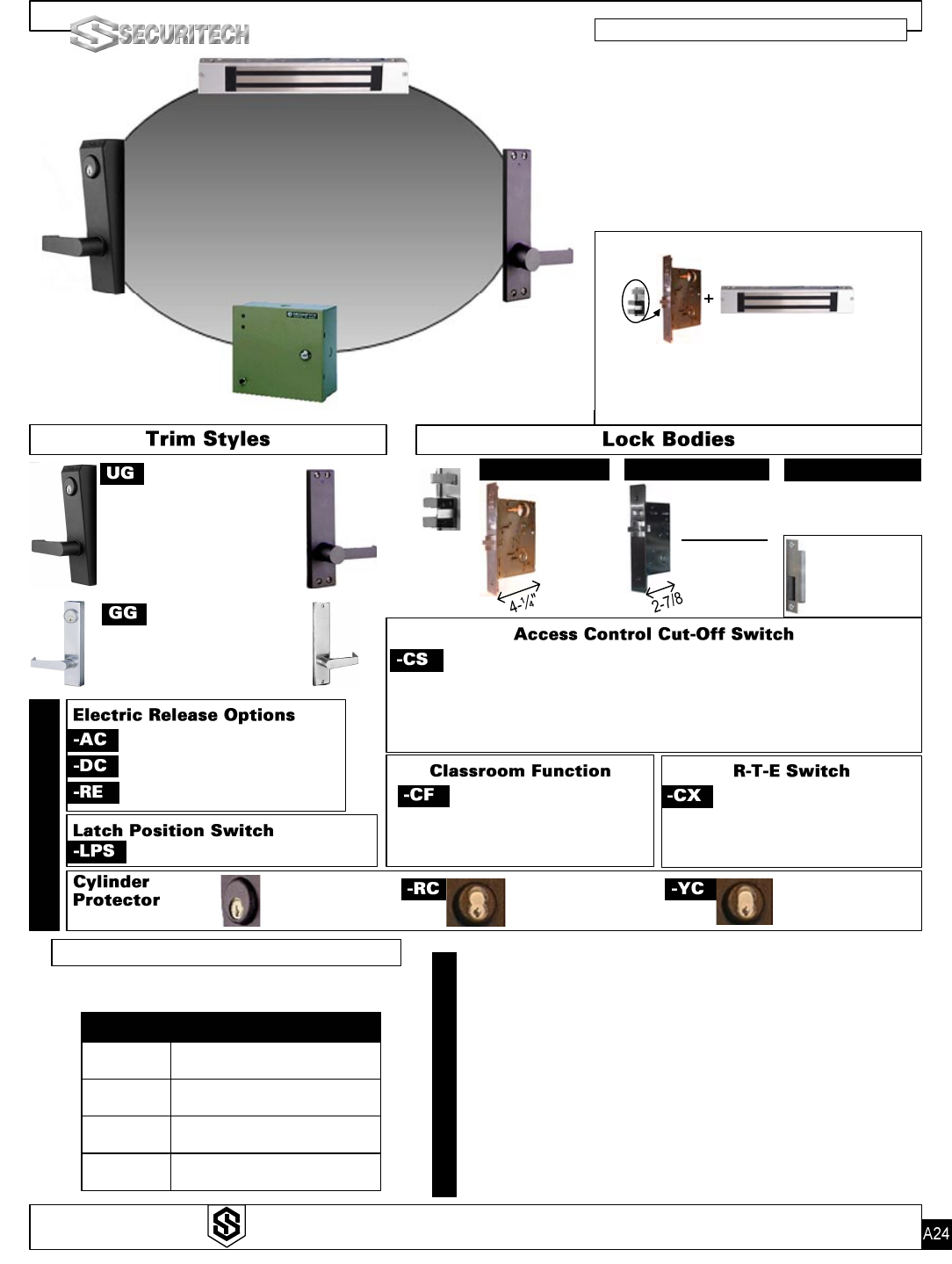

Electrically-Released Trim With Latch
Lock & Electromagnetic Lock Control
SECURITECH SOLUTIONS
Code Compliant Release
Action Allows Use Of
Electromagnetic Lock
Dual Locking Principle Provides
Locked Door In The Event Of
Power Failure
Reliability Protects Against
"Negligent Security" Lawsuits
Electric Release Within Trim Instead
Of Strike Offers Greater Durability
And Vandal-Resistance
Durable Design Of Trim, Levers,
Simple Strike & Electromagnet
Withstand Abuse In The Roughest
Neighborhoods
Reduced Service And Maintenance
Costs Due To Patented Design
Single Action Release Of Latch &
Electromagnetic Lock (Invisible
Magnet Action)
Vandal-Resistant LeverEx™ Slip-
Clutch Within Stainless Steel
Exterior Lever Handle Breaks Away
When Forced Without Damage
Thermasol™ Solenoid Cuts-Off
Automatically If There Is A Stuck
Button On The Intercom
Switches Within Trim Units Invisibly
Release The Electromagnetic Lock
Mortise Latch Lock Physically Locks
The Door Each Time It Closes For
Fail-Secure Protection
Patented Quick-Switch Cylinder
Change Method And Removable
Spindle For Easy Service
Ideal For
Apartment Building Entrances
Card Access Controlled Doors
Public Housing Entrances/Exits
Office Building Stairwell Doors
DOOR & FRAME
PREPARATION:
Standard 1-¼x8" Mortise And 4-7/8”
Strike Prep.
HANDING: LH, Rh, LHR, RHR
CYLINDER: Mortise Cylinder
Required (By Others).
How Does It Work?

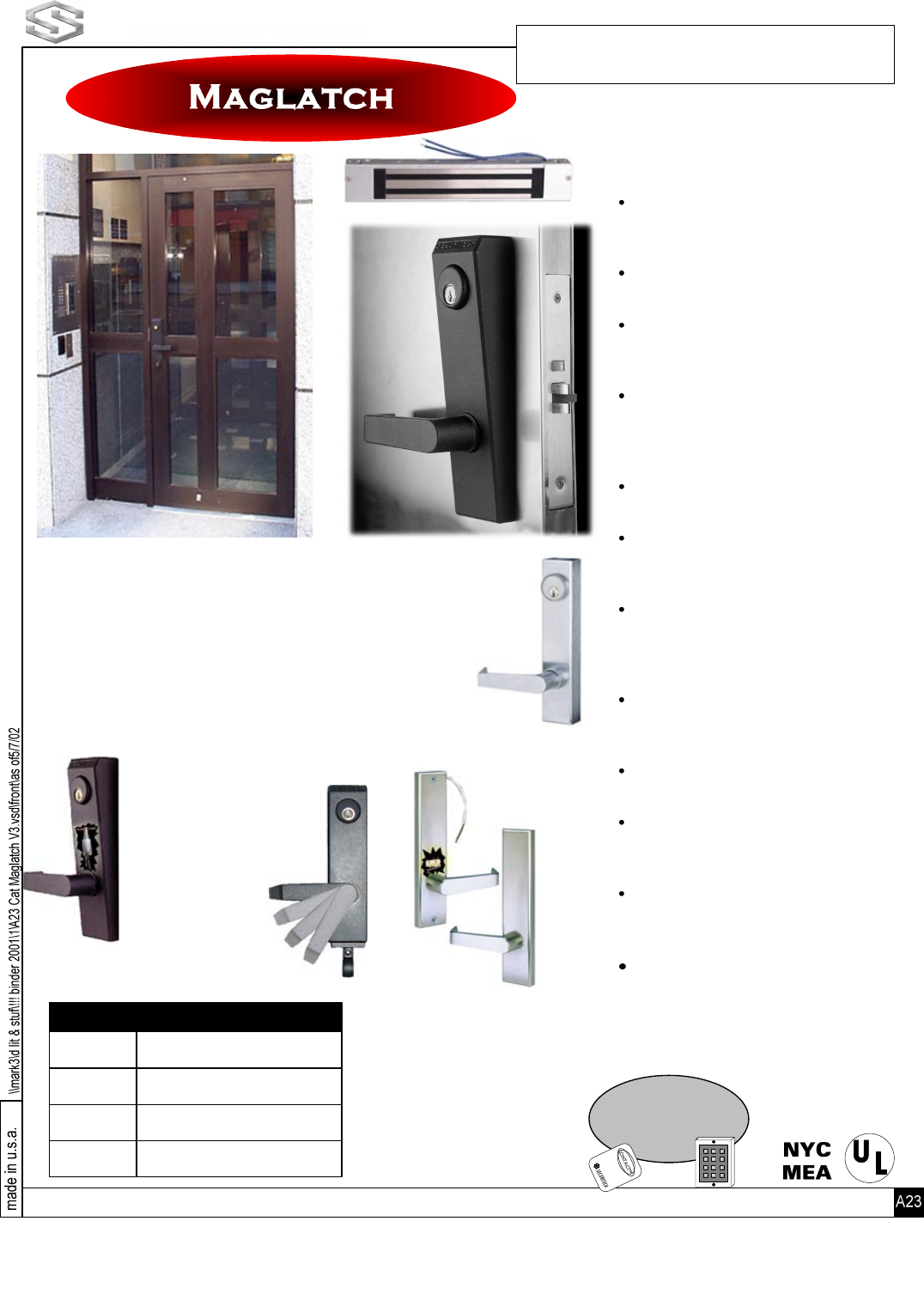

MAGLATCH™ is an integrated locking system featuring positive
latching and electromagnetic locking for "Dual Locking."
Retracting the exterior or interior lever releases both locks
simultaneously providing easy "No special knowledge" operation
and code compliance.
MAGLATCH™'s patented design creates the most rugged and
durable lock for high-traffic and vandal-prone locations.
TM
Integrates Perfectly With
All Card Access & Digital
Keypads
®
UG Style Trim
GG Style
Trim
with
architectural
finishes
MODELS
9030 Includes trim; mortise latch lock;
1,200 lbf. electromagnetic lock
9032 #9030 elements with heavy-duty
trim package
9034-HA #9032 modified with additional
elements for NYC Housing Auth.
9020 Includes trim; mortise latch lock;
electromagnetic lock by others
ADA Compliant
NFPA Compliant
Fail-Safe Exiting
“No Special Knowledge” Exiting
No Special Wiring
No Relays - No Timers
DUAL LOCKING
Positive latching at the center of the door and
electromagnetic lock at the head… the door is held
in place at two-points with two-technologies… but
only one action to unlock!
The MAGLATCH Principle
Depressing either lever
instantly releases the
electromagnetic lock by
interrupting the power
AML
1-1/4"x 8"
faceplate
ANSI type,
Fire-Rated
Lockset
MML
1-1/4"x 6-7/8"
faceplate
FML
1-1/4"x 8"
faceplate
Heavy
Duty
Dead-
latch
Regular Doors Medium-Stile Alum.
MODELS
9030 Includes trim; mortise latch lock;
1,200 lbf. electromagnetic lock
9032 #9030 elements with heavy-duty
trim package
9034-HA #9032 modified with additional
elements for NYC Housing Auth.
9020 Includes trim; mortise latch lock;
electromagnetic lock by others
(UG Trim Only)
Full face steel cylinder
protector is standard
for regular cylinders.
24vAC, 30va transformer required
24vDC transformer required
24vDC, Fail-Safe Re-Entry Function
O
P
T
I
O
N
S
“BEST”-type IC core
cylinders require a “8”
plug opening
Yale IC core cylinders
require an oval
keyhole opening
Access control systems can be complicated to program and turn on and off.
Frequently a computer is needed to change status, time zones, etc. The cut-off switch
feature allows a clockwise rotation of the key to toggle the access control system on or
off. The supervisor does not need to have any programming skills to turn the system
off for a defined period (after hours, weekend, etc) or turn it back on.
How To Order
Build a model number using the matrix to the right.
Sample Model: 9030-UG-AC-AML-676-RH
Lock By Others
XML
Contact Factory For
Requirements
4-7/8” Stainless
Steel Strike
Supplied With
All Lock Bodies
AModel/Function 9030, 9032, 9034-HA, 9020
BTrim Style UG, GG
CElectric Release AC, DC, RE
DMortise Lock AML, MML, FML, XML
ECylinder Protector UG models Only; RC, YC
(Designation needed only if other than standard)
FSpecial Options CF, CS, CX, LL, LPS, KU
GFinish UG= 676
GG 630 (satin stainless steel)
or 606 (satin brass)
Contact factory for cutom finishes
HHanding LH, RH, LHR, RHR
BIG, HEAVIEST DUTY TRIM
Features "Removable-Spindle"
for quick mortise lock service.
Available with standard powder
coated black finish
AESTHETIC, ARCHITECTURAL
FINISH NARROW TRIM
Variety of finishes available.
Optional signal switch for interior
trim for use with alarmed or
access control doors. Depressing the
interior lever actuates the switch.
Latch position switch for use with alarms
Key unlocks lever for extended
period, until key is used to re-
lock lever. Lock functions in passage mode
while exterior lever is in unlocked mode.
made in usa by SECURITECH GROUP, INC. 54-45 44th St. Maspeth, NY 11378
(800)622-5625 (718)392-9000 (718)392-8944 fax www.securitech.com
MAGLATCH MODELS
S E C U R I T E C H G R O U P , I N C . ( 8 0 0 ) 6 2 2 - L O C K ( 7 1 8 ) 3 9 2 - 9 0 0 0 ( 7 1 8 ) 3 9 2 - 8 9 4 4 f a x w w w . s e c u r i t e c h . c o m
z:\lit & stuff\!!! binder 2001\1a\A19 CAT ENDURALATCH V3.vsd\page-1\as of4/19/02
made in u.s.a.
ELECTRICALLY-RELEASED TRIM
& HEAVY-DUTY LATCH LOCK
Ideal For Narrow Stile Aluminum Doors
Enduralatch
SECURITECH SOLUTIONS
RELIABLE LOCKING
FOR HIGH-TRAFFIC DOORS
· Electric Release In The Trim, Not
The Strike
· No Moving Parts In The Strike
Plate To Wear Out
· New Narrow Stile Lock Steel Lock
Case With 3/4" Throw Steel Latch
· No Plastic Parts
· Works With All Intercom Systems
· ADA Compliant Lever Handles
· Easy Retrofit To Existing Doors
· Can Be Used In Place Of Worn-
Out Electric Strikes & Exit Paddles
· Tenants Must Use Lever To Pull
Door Open; Cylinders Won't Fall
Apart From Misuse
· Keyed Dogging Option
For Daytime Push/Pull Operation
· Ideal For
Apartment Building
Entrances
Storefront Doors
Gates
DOOR & FRAME PREPARATION:
Mortise prep (size per lock body type)
in door and 4-7/8” strike prep in frame.
HANDING: LH, RH, LHR, RHR.
Trim Is Not Field Reversible.
CYLINDER: Mortise Cylinder
Required (By Others).
How Does It Work?
ENDURALATCH’s lever trim retracts
a heavy-duty latch for easy exiting.
The exterior lever is unlocked by key
or electric release from an intercom,
card access, etc. ENDURALATCH
has been designed to bring the
principles of heavy-duty locking to
narrow stile aluminum doors.
Stainless Steel
Strike Plate:
No Moving
Parts
LR Thru-Bolted
Lever Trim
With Key
Release &
Electric Interface
Thermasol
Solenoid
Within
Exterior
Trim
Heavy Duty
Narrow Stile
Deadlatching
Latch Lock;
Fits 2" Tube
Interior Lever
Trim With
Built-In
Movement
Limiters
Exclusive Securitech Features
FULL
5 YEAR
ELECTRIC RELEASE
WARRANTEE*
*with factory registration
TM
A19
Securitech offers a heavy-duty deadlatch to work
with each trim style. Positive deadlatching with a 3/
4” bolt projection is available for narrow, medium or
wide-stile aluminum doors, as well as hollow metal
or wood doors and iron gates.
Securitech control trim (UG, GG or LR styles) is available without a
mortise lock body. This would be used where a lock body from a
different manufacturer is used throughout the project and uniformity is
desired.
The lock body should be passage function, or, for greater security, a
storeroom function lock body where the exterior hub is free moving
(locking is done in trim set, not lock body). Contact Securitech for details
when ordering. Use “XML” designation for mortise lock by others.
Stainless Steel
Strike Plate
(4-7/8” long)
supplied with all
lock types
S E C U R I T E C H G RO U P , I N C. ( 8 0 0) 6 22 - L OC K ( 71 8 ) 39 2 - 90 0 0 ( 71 8 )3 9 2 -8 9 44 f ax w w w. s ec u r it e c h. c om
z:\lit & stuff\!!! binder 2001\1a\A17 CAT Mortise Lock Types V3.vsd\page-1\as of3/25/02
made in u.s.a.
Mortise Deadlatch Lock Bodies
For Use With Securitech Electric Control Trim
Mortise Locks
SECURITECH SOLUTIONS
DOOR & FRAME PREPARATION:
See lock body and face plate sizes above.
4-7/8” strike prep for all series.
.
HANDING: Lock Bodies Are Field Reversible,
However Strike Plates Are Handed (LH/RHR
Or RH/LHR).
CYLINDER: Lock Bodies Are Not Prepared
For Cylinders. Cylinders Are Determined By
Control Trim And Function Used.
A17
ASL » 3/4" Projection Latchbolt
» Auxiliary Latch Provides Deadlatch Function
» Narrow Body Depth Allows Installation On
Narrow-Stile Aluminum Doors And Iron Gates
» Special Face Prep (1”x6-7/8" Face Plate)
» Lock Body Size Is 4-3/4" x 1-5/8"
» Handing Is Field Reversible
» 1-1/4" Backset for Use With GG & LR Trims
» No Plastic Parts
NSL Lock Body is identical except:
» Face Plate Prep: 1-1/4"x6-7/8" Face Plate
1-5/8”
MML
» Special Shallower Design Allows Installation On Medium-Stile
Aluminum Doors And Iron Gates
» 3/4" Projection Latchbolt
» Auxiliary Latch Provides Deadlatch Function
» Face Plate Prep: 1-1/4"x6-7/8" Face Plate
» Custom 1-1/8" Face Plate Available
» Lock Body Size Is 4-3/4" x 2-7/8"
» Handing Is Field Reversible
» 2" Backset
FML Lock Body is identical except:
» Face Plate Prep: 1-1/4"x8" Face Plate
2-7/8"
AML
» "A" Series: Supplied Standard With Electrolatch & Maglatch
» 3/4" Projection Latchbolt
» Auxiliary Latch Provides Deadlatch Function
» UL Listed For Fire-Rated Doors
» Face Plate: Standard ANSI Mortise Lock (1-1/4"x8" )
» Lock Body Size Is 6" x 4-1/4"
» Handing Is Field Reversible
» 2-3/4" Backset
4-¼"
For use with alarms or access control
systems. Identifies whether latch bolt is
projected. When used in conjunction with door
status contact, provides 2nd signal for reliable
security information.
Latch Position Switch
-LPS
MP POLICE LOCKTM

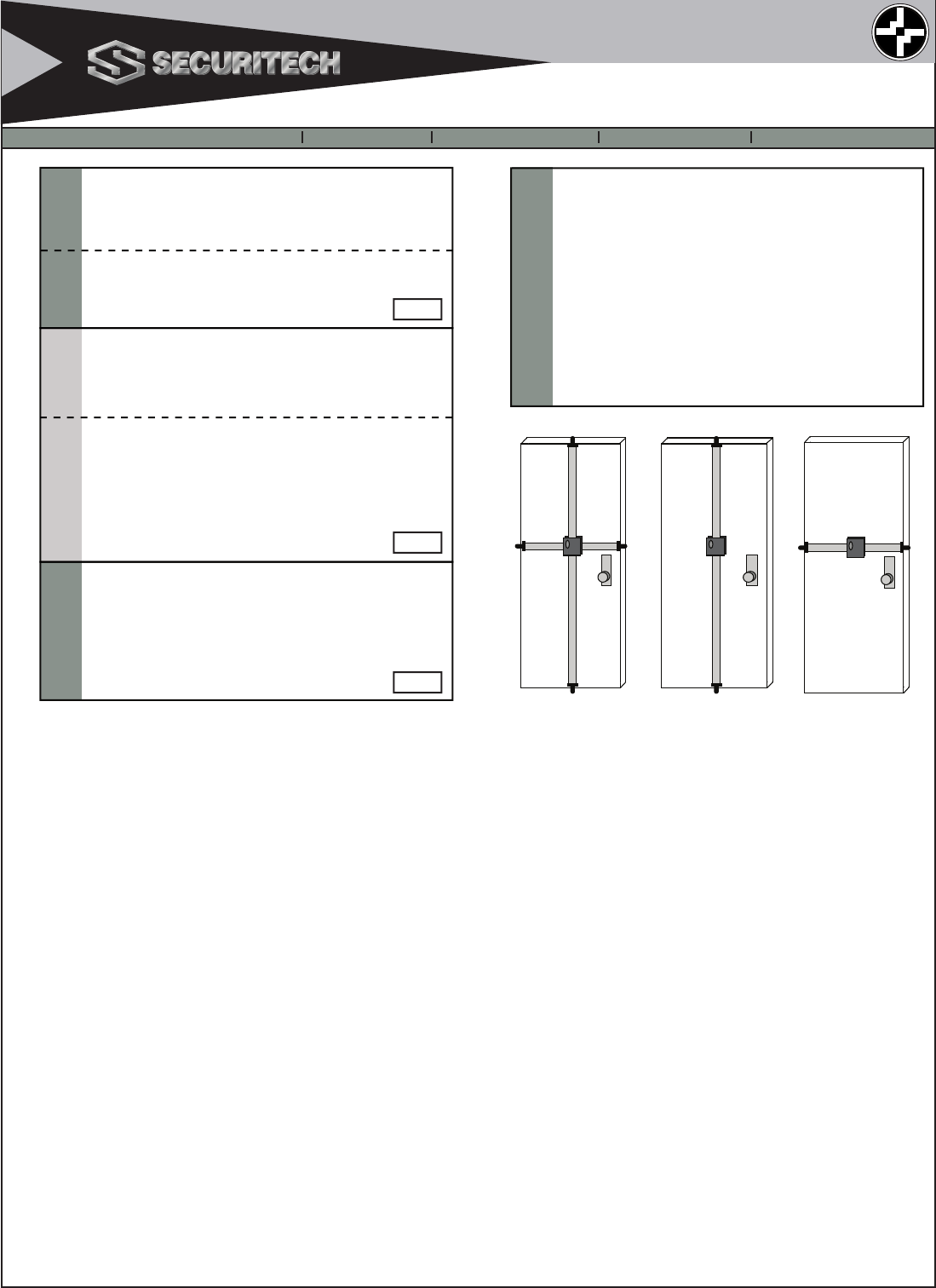

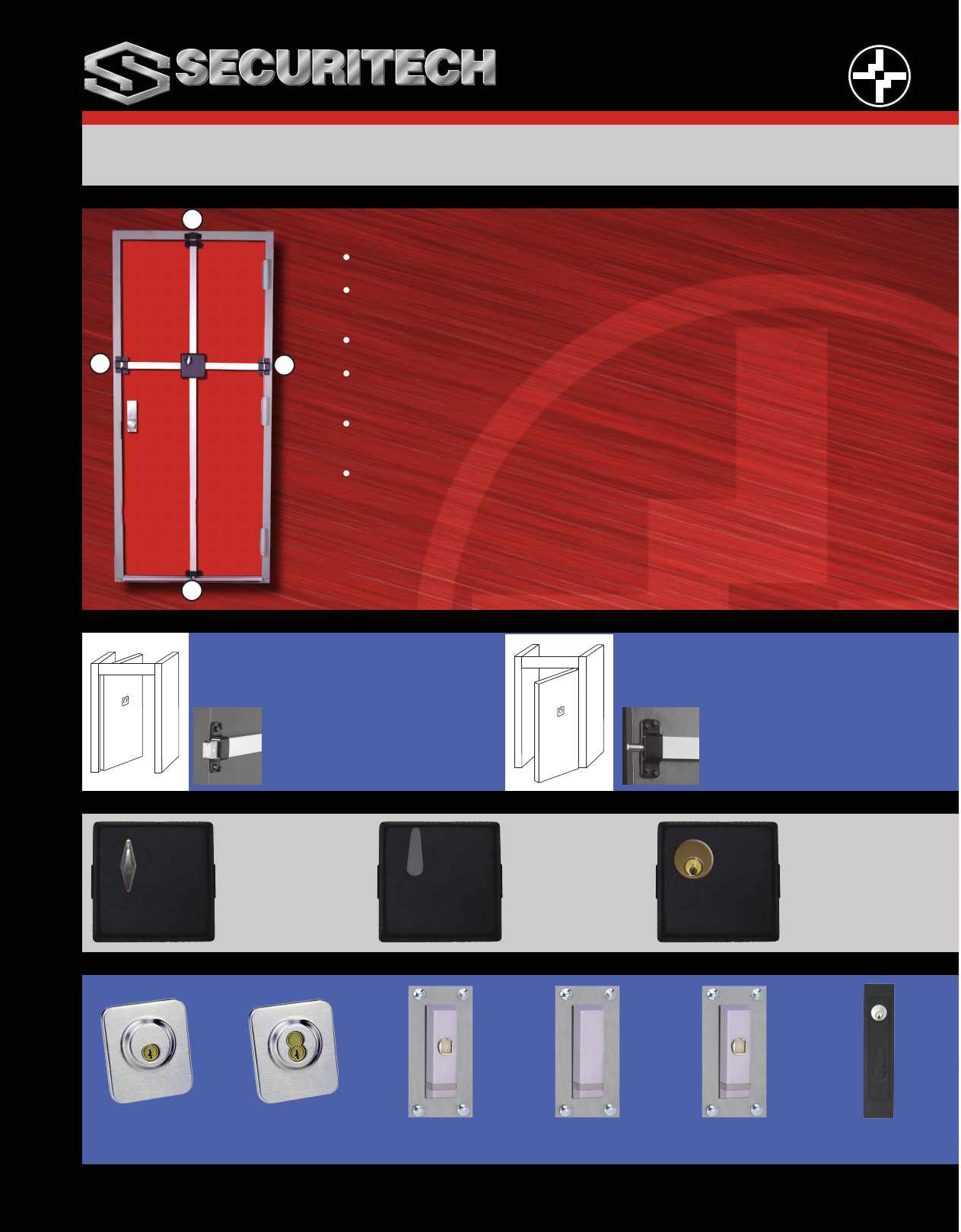

Surface Applied Multi-Point Locking Systems
Maximum Protection Against Break-Ins
Bolts the door to the frame at up to 4 independent locations
Easy operation: One turn of the key or interior knob projects or retracts all
of the bolts simultaneously
Easy installation on any solid door
4” laminated steel bolts on inswing models project into steel strike
brackets mounted on the frame
5” long, 5/8 diameter stainless steel deadbolts on outswing doors bolt into
the frame
Dustproof strike provided for rounded lower bolt on all 5-point models
Benets of Multi-Point Locking
The typical break-in occurs when a burglar tries to pry the door from the frame at
the lock area. Multi-point locking defeats this method by protecting the door like a
bank vault. Use this retrot or new construction solution on stock rooms, computer
rooms, safe rooms, utility closets, rearms storage rooms, remote buildings and
other non emergency doors.
HARDGUARD
(HG)
BESTGUARD
(BG)
Inswing Doors; Square Deadbolts (A)
Square laminated deadbolts
project into strike brackets
mounted on the frame.
Outswing Doors; Round Deadbolts (B)
Rounded deadbolts project into
holes drilled into the frame.
Bolt Type
Interior Options
Thumbturn (TT)
Standard
diamond-shaped
turnpiece
Elongated
Turnpiece (LT)
Easier-to-grasp
longer turnpiece
Keyed Cylinder (CO)
Interior keyed
operation
Exterior Options & Guard plate
SECURIGUARD
(SG)
DUST GUARD
(DG)
SECURIGUARD
Removable Bay (SR)
Thumb Guard
(TG)
z 2011 Securitech Group, Inc. M2.0
SECURITECH GROUP, INC. 54-60 46th St., Maspeth, NY 11378 800.622.LOCK 718.392.9000 fax 718.392.8944 www.securitech.com
1
2
3
4
You Want, We Do
54-60 46th Street, Maspeth NY 11378 800.622.LOCK local: 718.392.9000 fax: 718.392.8944 www.securitech.com
ENTER MODEL CODE
EXAMPLE: 4840A-TTHG-37
_______-_______-_____
1 2 3
*Please note that some of the elds are optional and you may not
use them all.
Contact factory for more options.
LOCKING
POINTS
4840 4-Point (2 Vertical, 2 Horizontal)
4822 2-Point (2 Vertical)
4820 2-Point (2 Horizontal)
BOLT
TYPE
INTERIOR
OPERATOR
EXTERIOR
OPERATOR
CUSTOM PARTS & ACCESSORIES
A Inswing Doors; Square Deadbolts
B Outswing Doors; Round Deadbolts
TT Thumbturn
LT Elongated Thumbturn
CO Keyed Cylinder (Cylinder Included)
XX No Exterior Operation
HG Hardguard
BG Bestguard (Small Format IC core)
SG Securiguard
DG Dust Guard
SR Securiguard With Removable Bay
TG Thumb Guard
MPK-EK6 6” Extension Rods
MPK-EK12 12” Extension Rods
MPK-EK24 24” Extension Rods
MPK-SP8 Set Of 4 Thick & Thin Shims
MPK-SB Strike Bracket
MPK-TD Thick Door Kit
MPK-IN Door Status Indicator
MPK-MS Bolt Monitor Switch
(Unavailable on 4840)
MPK-TB2 Set Of 2 Thru-Bolted Anti-Pry Plates
MPK-TB3 Set Of 3 Thru-Bolted Anti-Pry Plates
MPK-TB4 Set Of 4 Thru-Bolted Anti-Pry Plates
2
3
SIZE
27 For Doors Up To 24” Wide & 84” Tall
28 For Doors Up To 24” Wide & 96” Tall
37 For Doors Up To 36” Wide & 84” Tall
38 For Doors Up To 36” Wide & 96” Tall
47 For Doors Up To 48” Wide & 84” Tall
48 For Doors Up To 48” Wide & 96” Tall
1
MP POLICE LOCK Model Builder
M2.1
4840 4822 4820
General Solutions Binder 2012 V9.3
54-60 46th Street, Maspeth NY 11378 800.622.LOCK local: 718.392.9000 fax: 718.392.8944 www.securitech.com
Maximum Protection Against Break-Ins
Inventory Rooms
Computer Rooms
Remote Buildings (e.g. Cell Towers, Park & Recreation Equipment Sheds)
Non Emergency Perimeter Doors
Safe Rooms
Utility Closets
Firearm Storage Rooms
Dangerous Chemical Storage Rooms
MP POLICE LOCK Popular Models
4840B-TTHG-37
4-Point auxiliary lock for outswinging (round deadbolts) doors
up to 36” wide & 84” tall with a thumbturn and Hardguard.
4840A-TTHG-37
4-Point auxiliary lock for inswinging (square deadbolts) doors up
to 36” wide & 84” tall with a thumbturn and Hardguard.
4840B-TTBG-37
4-Point auxiliary lock for outswinging (round deadbolts) doors
up to 36” wide & 84” tall with a thumbturn and Bestguard.
4840A-TTBG-37
4-Point auxiliary lock for inswinging (square deadbolts) doors up
to 36” wide & 84” tall with a thumbturn and Bestguard.
General Solutions Binder 2012 V9.3
Retrot Control Trim For Exit Devices
LEXITM
1
SOLUTION
The Universal Access Control Solution For Electrifying Exit Devices
Use the LEXITM across a campus,
school system or other institutional
facility with many different exit devices.
Retrots to all major manufacturer’s
exit devices!
Mounting Plates
Operators
Easy Installation To Existing Doors
Does not require cutting into frame for electric strike.
Easy “No Special Knowledge” Operation
Unlock the lever by key, card access, keypad, intercom,
push-button or other release.
Slip Clutch Lever Handle
Stands up to abuse; will break-away when forced;
easily reset by just lifting up.
Stainless Steel Lever
Durable, rugged one-piece construction. Meets ADA
Code.
Dual Point Cylinder Holder
The cylinder is fastened to the trim with locking arms
extending into a groove on each side of the cylinder.
z 2011 Securitech Group, Inc. E2.0
SECURITECH GROUP, INC. 54-60 46th St., Maspeth, NY 11378 800.622.LOCK 718.392.9000 fax 718.392.8944 www.securitech.com
See MP&O Finder on page E2.3-E2.5 for complete listing.
See MP&O Finder on page E2.3-E2.5 for complete listing.
MOUNTING PLATE & OPERATOR
Give your doors a uniform look without
changing all the hardware.
Retroting our LEXITM Control Trim to
various exit devices is made possible by
Securitech’s Mounting Plates & Operators
(MP&O). Each MP&O is created specically
with a certain exit device in mind. We are
always creating new MP&O’s if you nd
that we do not have a MP&O for your
device, please contact Securitech.
The MP&O is mounted to the back of the
LEXITM Control Trim. This is bolted through
the door to the exit device allowing the trim
and device to work simultaneously.
LEXITM
The Universal Access Control Solution For Electrifying Exit Devices
You Want, We Do

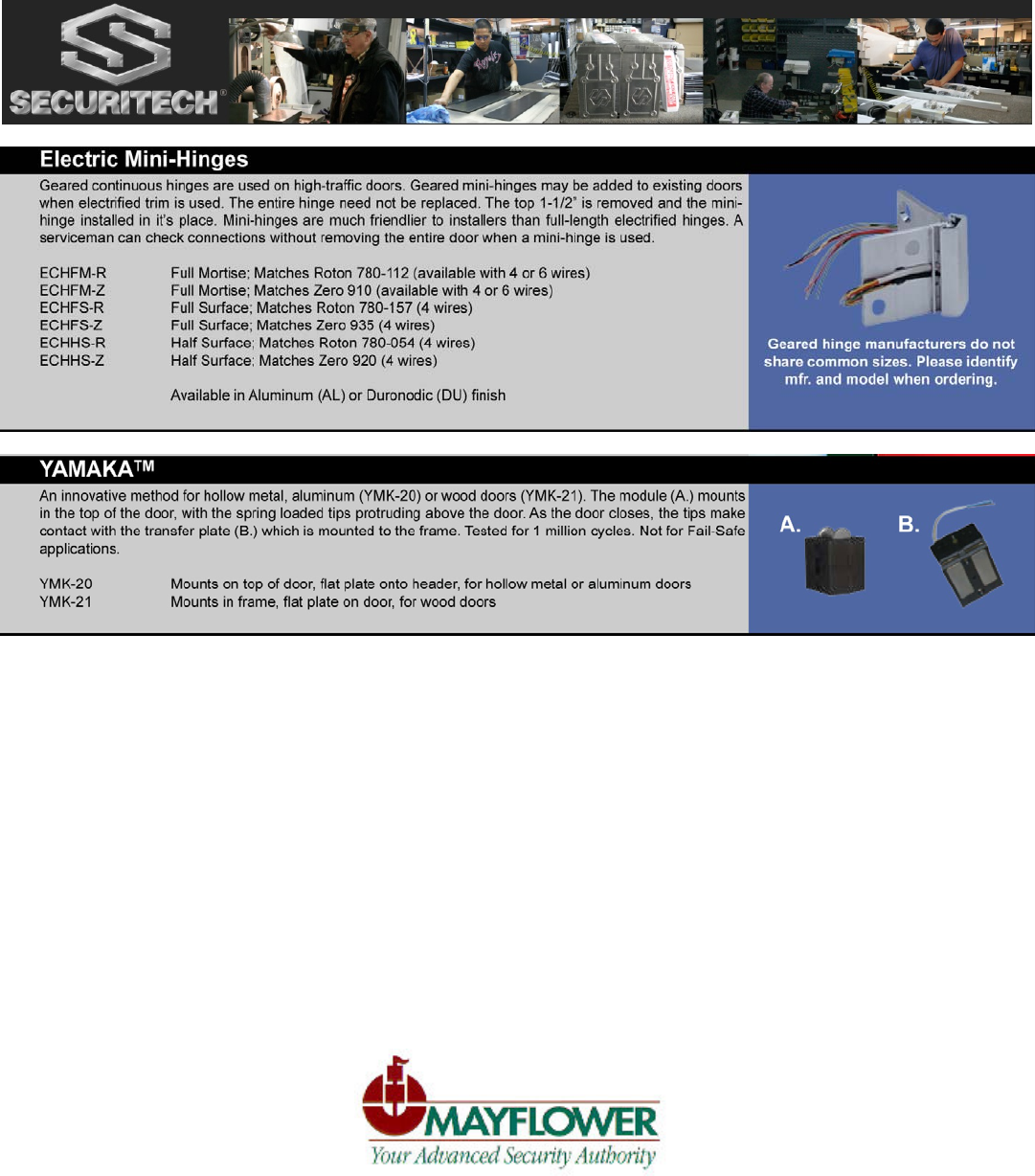

614 Bergen Street – Brooklyn, NY 11238
718-622-8785 – 800-221-2052 – FAX: 718-789-8346
www.mfsales.com
