www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Logic Standard Nucleus Profile
Setup and Quick Start Guide
Introduction
The first part of this tutorial details how to setup Logic with your SSL Nucleus. The second part details the
commands assigned to this profile.
This tutorial assumes that you have already installed all the necessary Nucleus related software on your computer
and that there is both a working network and USB connection from your DAW computer to the Nucleus. If you have
yet to configure this part of your system please refer to the Nucleus Owner’s Manual before continuing.
Installing the profile
The Logic Standard profile is automatically installed when you update your Nucleus console software to V1.6/1. In
addition, it is recommended that you have the latest version of the Nucleus remote application installed. Go to the
SSL website > Nucleus Product page > Downloads to make sure you are up-to-date.

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0

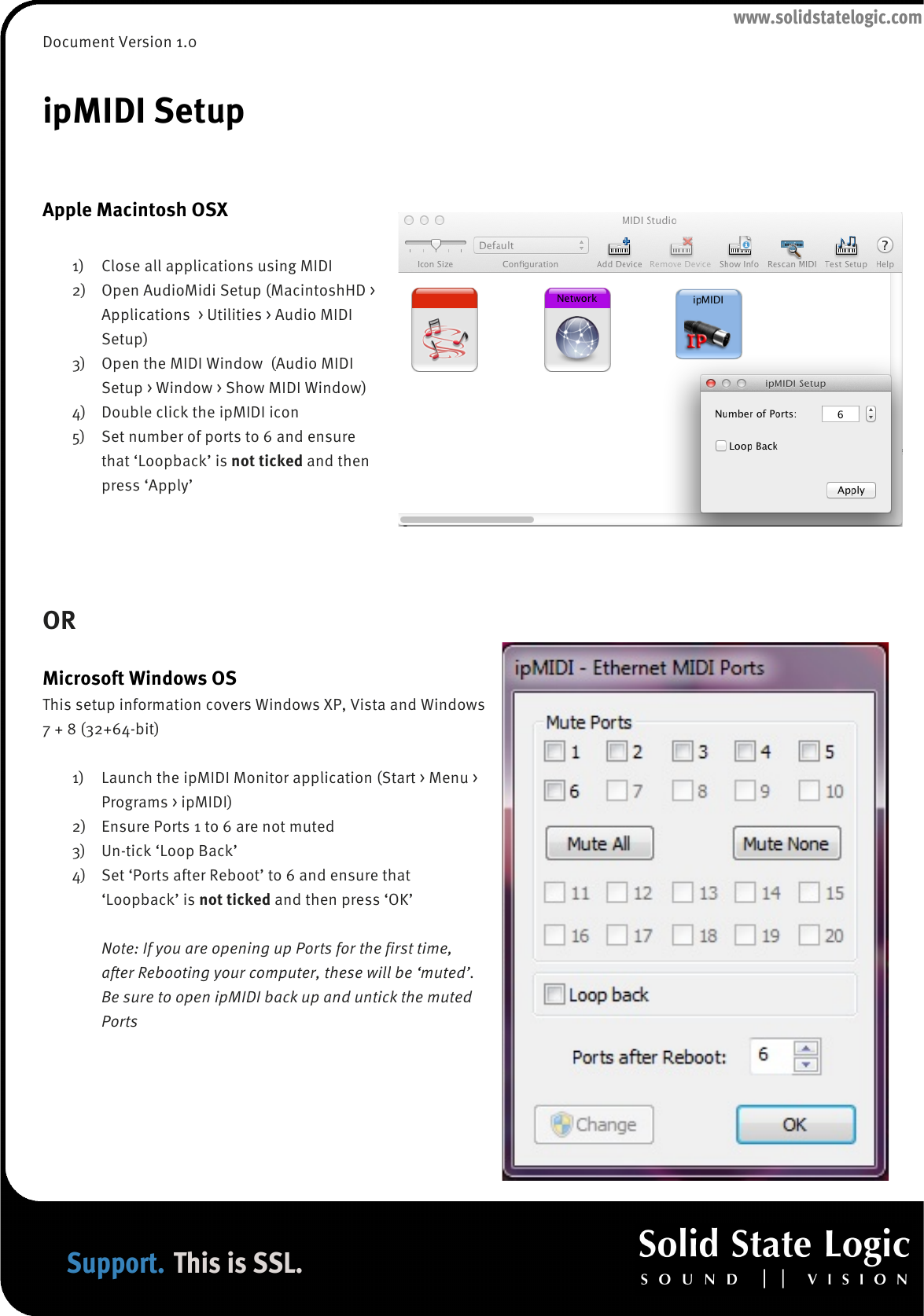

ipMIDI Setup
Apple Macintosh OSX
1) Close all applications using MIDI
2) Open AudioMidi Setup (MacintoshHD >
Applications > Utilities > Audio MIDI
Setup)
3) Open the MIDI Window (Audio MIDI
Setup > Window > Show MIDI Window)
4) Double click the ipMIDI icon
5) Set number of ports to 6 and ensure
that ‘Loopback’ is not ticked and then
press ‘Apply’
OR
Microsoft Windows OS
This setup information covers Windows XP, Vista and Windows
7 + 8 (32+64-bit)
1) Launch the ipMIDI Monitor application (Start > Menu >
Programs > ipMIDI)
2) Ensure Ports 1 to 6 are not muted
3) Un-tick ‘Loop Back’
4) Set ‘Ports after Reboot’ to 6 and ensure that
‘Loopback’ is not ticked and then press ‘OK’
Note: If you are opening up Ports for the first time,
after Rebooting your computer, these will be ‘muted’.
Be sure to open ipMIDI back up and untick the muted
Ports

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Setting up Logic
Control surfaces are setup in the Control Surfaces > Setup (or Preferences > Control Surface Setup if using Logic 9
or below) menu. In this example we will setup Logic for operation on DAW layer 1 of Nucleus.
1) Choose ‘New’ and then ‘Install…’
2) Choose ‘Mackie Control’ and then ‘Add’
3) Set both the ‘Output Port’ and the ‘Input Port’ to ‘Port 1’.
4) Again, choose ‘New’ and then ‘Install’
5) Choose ‘Mackie Control Extender’ and then ‘Add’
6) Set both the ‘Output Port’ and the ‘Input Port’ to ‘Port 2’.
Nucleus Setup
Go to the Nucleus Remote application and ensure the selected profile for DAW 1 is ‘Logic Standard’.

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Default
Above you can see the assignments for Nucleus’ Default key set. You are in the Default Key
Set when the User 1 or User 2 keys not selected.
INSTR
V-Pots control Virtual Instruments
PLUGIN
V-Pots control Plug-ins
EQ
Opens standard Logic EQ strip on selected channel (has push and hold
function)
PANSUR
V-Pots control pan parameters (has push and hold function)
SEND
V-Pots control send parameters (has push and hold function)
TRACK
Globally changes V-Pots through various ‘Track’ options (has push and
hold function)
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
--------
Unassigned
KeybID
Sets Keyboard ID on setup
Tip: The Logic Manual’s section on Mackie Controllers contains a lot of useful information that
will help you get the most from using Nucleus with Logic.

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
User 1
The image above shows the assignments for User 1.
Mixer
Opens/Closes the Mixer
AView
Shows/Hides automation lane data
TkZoom
Zooms track
Func
Accesses the Func Submenu
Marker
Creates/Deletes Markers (push and hold function)
Nudge
Nudges selected region (push and hold function)
SMPTE
Changes nudge value between SMPTE or Bar/Beats
Delete
Deletes selected region
NM/VAL
Switches V-Pot display between labels/values.
Track
Globally changes V-Pots through various ‘Track’ options (has push and hold
function)
PanSur
V-Pots control pan parameters (has push and hold function)
Send
V-Pots control send parameters (has push and hold function)
EQ
Opens standard Logic EQ strip on selected channel (Has push and hold
function)
Plugin
V-Pots control Plug-ins
Instr
V-Pots control Virtual Instruments
Click
Turns the metronome on/off

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
This page is intentionally almost blank.

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Func Submenu
The image above shows the assignments for the Func Submenu.
F1
Opens Screenset 1
F2
Opens Screenset 2
F3
Opens Screenset 3
F4
Opens Screenset 4
F5
Opens Screenset 5
F6
Opens Screenset 6
F7
Opens Screenset 7
F8
Opens Screenset 8

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0

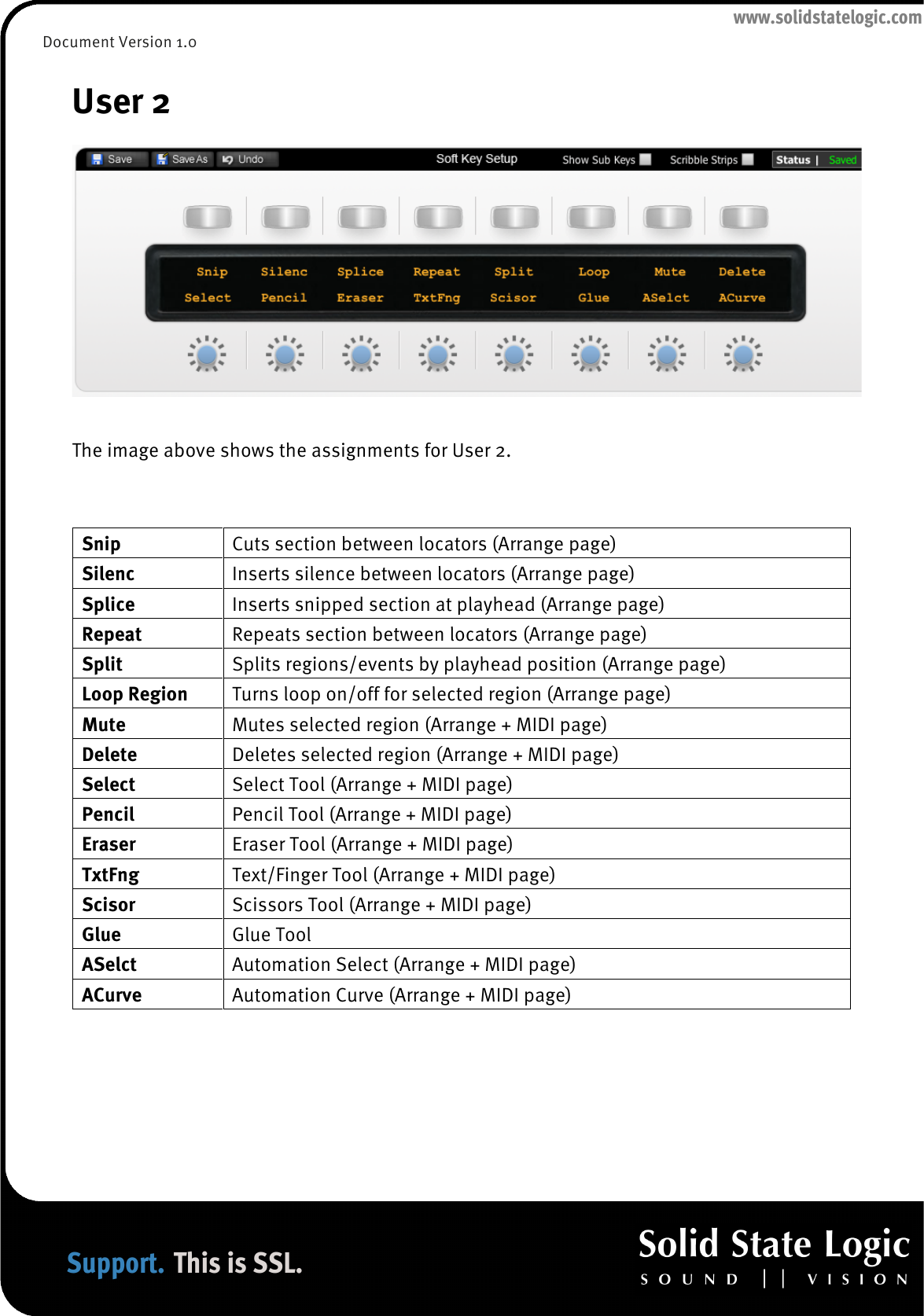

User 2
The image above shows the assignments for User 2.
Snip
Cuts section between locators (Arrange page)
Silenc
Inserts silence between locators (Arrange page)
Splice
Inserts snipped section at playhead (Arrange page)
Repeat
Repeats section between locators (Arrange page)
Split
Splits regions/events by playhead position (Arrange page)
Loop Region
Turns loop on/off for selected region (Arrange page)
Mute
Mutes selected region (Arrange + MIDI page)
Delete
Deletes selected region (Arrange + MIDI page)
Select
Select Tool (Arrange + MIDI page)
Pencil
Pencil Tool (Arrange + MIDI page)
Eraser
Eraser Tool (Arrange + MIDI page)
TxtFng
Text/Finger Tool (Arrange + MIDI page)
Scisor
Scissors Tool (Arrange + MIDI page)
Glue
Glue Tool
ASelct
Automation Select (Arrange + MIDI page)
ACurve
Automation Curve (Arrange + MIDI page)

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Transport/Utility
The image above shows the layout for the Transport/Utility section of Nucleus.
PlayFS
Play command is assigned to the first footswitch port
RecFS
Record command is assigned to the second footswitch port
Shift
Keyboard Shift (follow key state)
Ctrl
Keyboard Ctrl key (follow key state)
Cmnd
Keyboard Cmnd key (follow key state)
Alt
Keyboard Alt/Option (follow key state)
Scrub
Puts jog wheel into Scrub mode
Enter
Keyboard Enter key
Cancel
Cancel
Save
Saves project
Undo
Undo
EQ
Opens standard Logic EQ strip on selected channel (Has push and hold
function)
PrevMk
Locates to previous marker
NextMk
Locates to next marker
Cycle
Turns cycle on/off

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
List of MCU Functions
The Logic profile contains a mixture of MCU commands and USB keyboard shortcuts. To
help you see how we have renamed the commands, see the table below.
BLACK TEXT = MCU command
RED TEXT = USB keyboard shortcut
DAW CMD / KEYBOARD SHORTCUT
SOFTKEY LABEL (RE-NAMED)
Instr
Instr
Plugin
Plugin
EQ
EQ
PanSur
PanSur
Send
Send
Track
Track
KeybID
KeybID
x
Mixer
a
AView
z
TkZoom
Menu
Func
Marker
Marker
Nudge
Nudge
SMPTE/Beats
SMPTE
Backspace
Delete
Name/Value
NM/VAL
Track
Tracj
PanSur
PanSur
Send
Send
EQ
REQ
Plugin
Plugin
Instr
Instr
Click
Click
Ctrl+Cmnd+X
Snip
Ctrl+Cmnd+Z
Silenc
Ctrl+Cmnd+Y
Splice

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0
Ctrl+Cmnd+R
Repeat
/
Split
L
Loop
M
Mute
Backspace
Delete
Esc>1
Select
Esc>2
Pencil
Esc>3
Eraser
Esc>4
TxtFng
Esc>5
Scisor
Esc>6
Glue
Esc>Q
ASelct
Esc>W
ACurve
F1
F1
F2
F2
F3
F3
F4
F4
F5
F5
F6
F6
F7
F7
F8
F8
Play Foot Switch
PlayFS
Record Foot Switch
RecFS
Shift (Follow Key State)
Shift
Cmnd (Follow Key State)
Cmnd
Ctrl (Follow Key State)
Ctrl
Alt (Follow Key State)
Alt
Cntl + .
NextMk
Cntl + ,
PrevMk
Cycle
Cycle
Rewind
Rewind
Forward
Forwrd
Stop
Stop
Play
Play
Record
Record
Enter
Enter
Cancel
Cancel

www.solidstatelogic.com
Support.
This is SSL.
Document Version 1.0

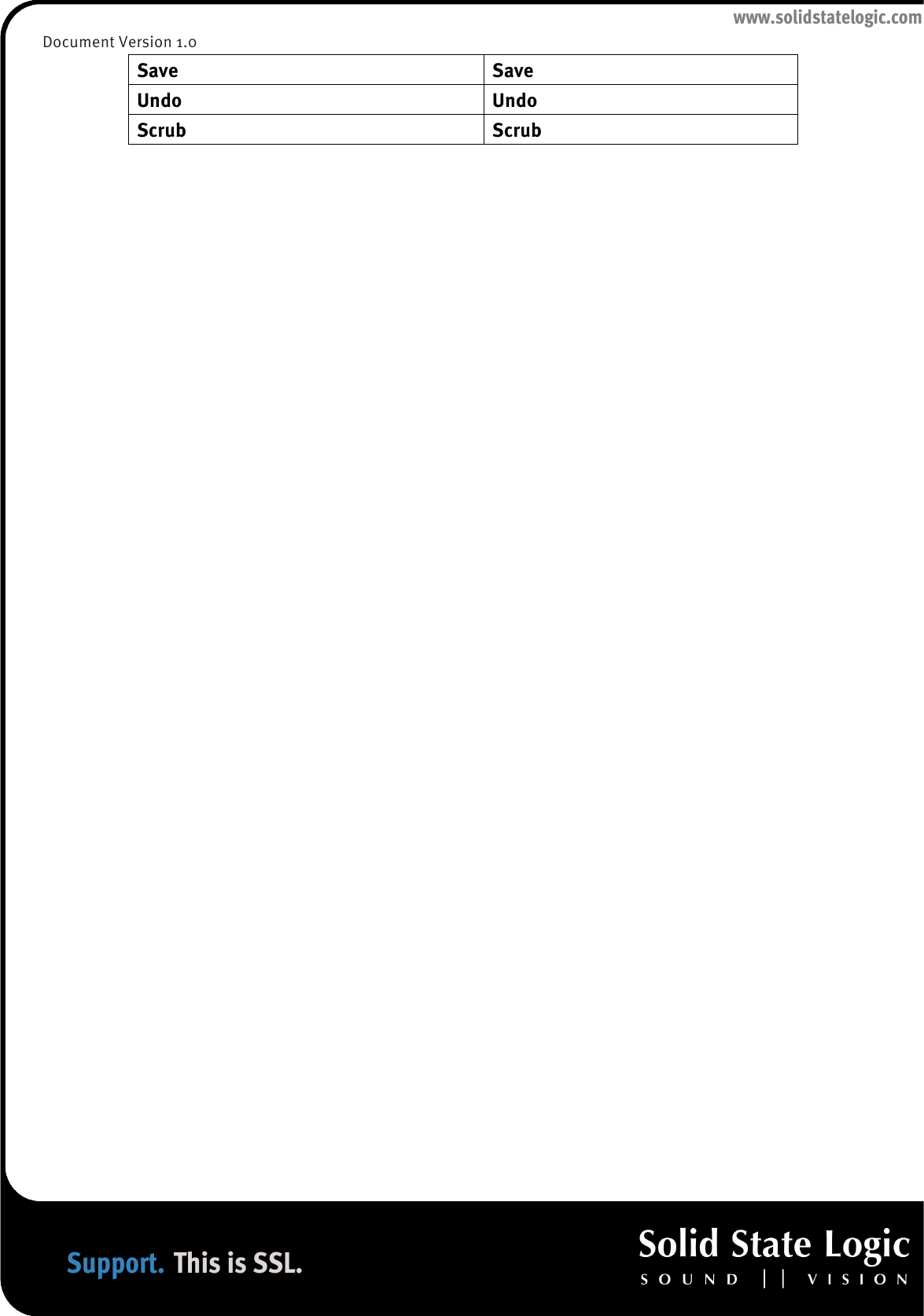

Save
Save
Undo
Undo
Scrub
Scrub
