LogicMark CS40917 CaretakerSentry Alert Watch User Manual
LogicMark, LLC CaretakerSentry Alert Watch
User Manual
![](/img.php?id=3505596&img=bg1.png)
Manufacturer’s Disclaimers and Limited Warranty
COMMUNICATION AND RESPONSE LIMITATIONS: Purchaser acknowledges
that signals which are transmitted over telephone lines, or other modes of
communication pass through communication networks wholly beyond the
control of the Manufacturer and are not maintained by the Manufacturer, and,
therefore, the Manufacturer shall not be responsible for any equipment or
communication failure which prevents transmission signals from reaching your
contact list including emergency 911 operators or damages arising therefrom.
Purchaser acknowledges that the Manufacturer provides no response to
the System’s equipment. The equipment is designed to communicate with
the a central station of your choice and the Manufacturer is not and shall not be
responsible for ambulance, police or other emergency response time or that any
response will be provided by the central monitoring station.
TESTING AND SERVICE OF THIS EQUIPMENT: The equipment, once installed,
are in the exclusive possession and control of the Purchaser, and it is Purchaser’s
sole responsibility to test the operation of equipment and request warranty
service if the equipment is under warranty.
PURCHASER’S EXCLUSIVE REMEDY: Purchaser’s exclusive remedy for the
Manufacturer’s default hereunder is to require the Manufacturer to repair or
replace, at the Manufacturer’s option, any equipment or part of the personal
emergency alert system which is non-operational during the Manufacturer’s
warranty period.
LIMITATION OF LIABILITY: This equipment is not designed or guaranteed
to prevent any loss or injury. This Limited Warranty and Disclaimer of Liability
constitutes the terms of sale and use of the equipment, and if there should arise
any liability on the part of the Manufacturer as a result of any cause whatsoever,
regardless of whether or not such loss, damage, or personal injury was caused
by or contributed to by the Manufacturer’s negligence to any degree or failure
to perform any obligation or strict products liability, such liability will be limited to
an amount paid by the Purchaser to the Manufacturer for the product, or to the
sum of $350.00, whichever is greater.
For warranty information, see your dealer for details.
BLACK Emergency Button
2 Second Push
Alert Watch in
Pendant Bezel
v7.4
Base Unit - Model 40914
FCC ID: TYD-CS40914
IC: 8471A-CS40914
Watch Pendant - Model 40917
FCC ID: TYD-CS40917
IC: 8471A-CS40917
REN 3.7
Alert Watch in
Watch Bezel
Telephone
Jacks
Line IN To House
Phone Programming Switch
Programming Mode “Emergency Call Mode”
Normal Operation
Reset
(Black)
Power DC 7.5
800 mAh
Code Learn
(Red)
Base Back View
Base Top View
Red Emergency
button
(Blue)
(Green)
(Red)
Blue CareTaker
button
Microphone
(Yellow)
Speaker
Cancel (1 second)
System Check (8
seconds)
Cellular Accessory Jack
Base Side View

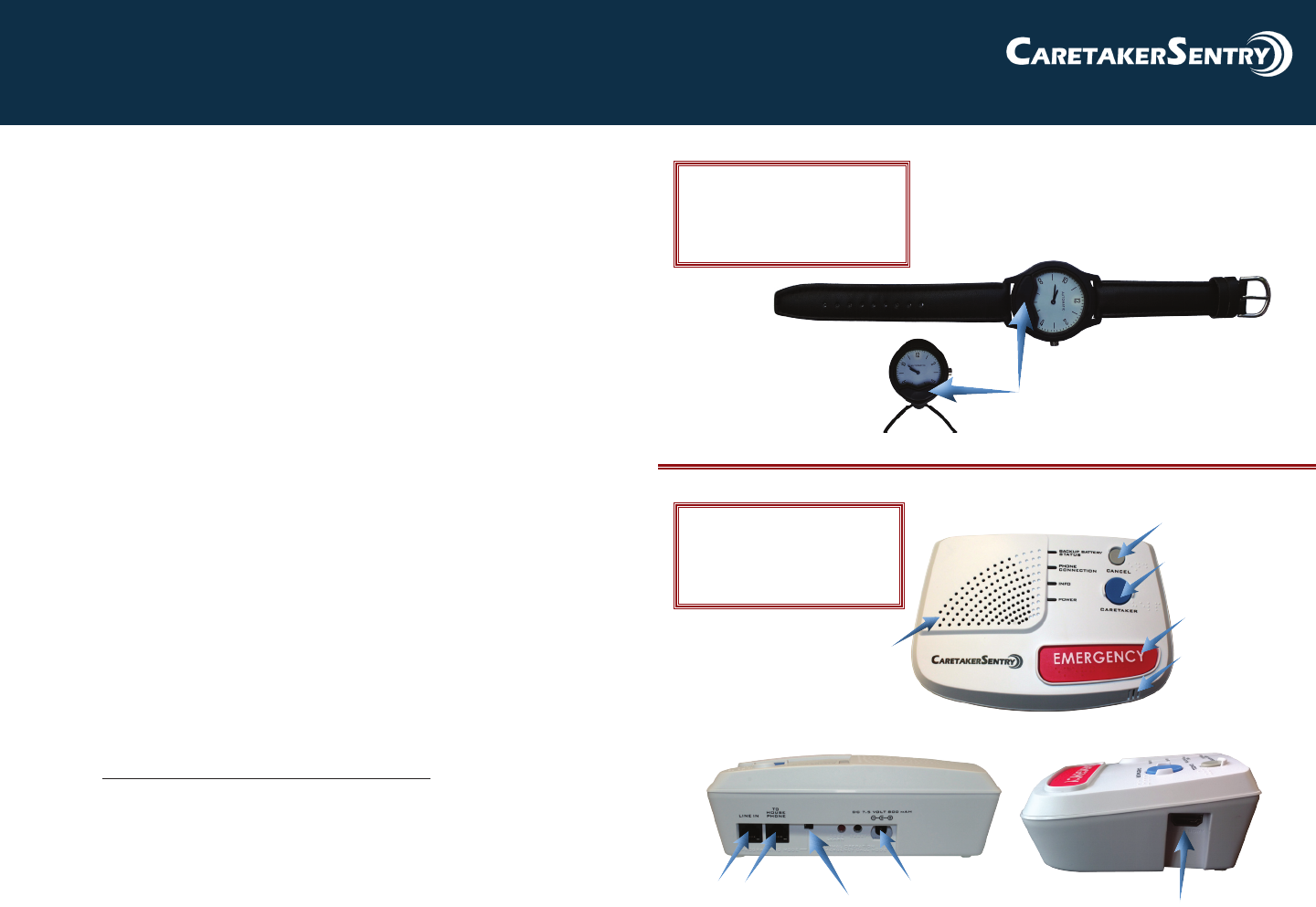

CaretakerSentry
Part #40914
Features and Details
Alert Watch
Part #40917
Features and Details
Alert Watch
Instructions for Adding
an Alert Watch to Your
CaretakerSentry
![](/img.php?id=3505596&img=bg2.png)
As with any timepiece, we recommend that both the batteries and bezels be
replaced by a watch repair professional.

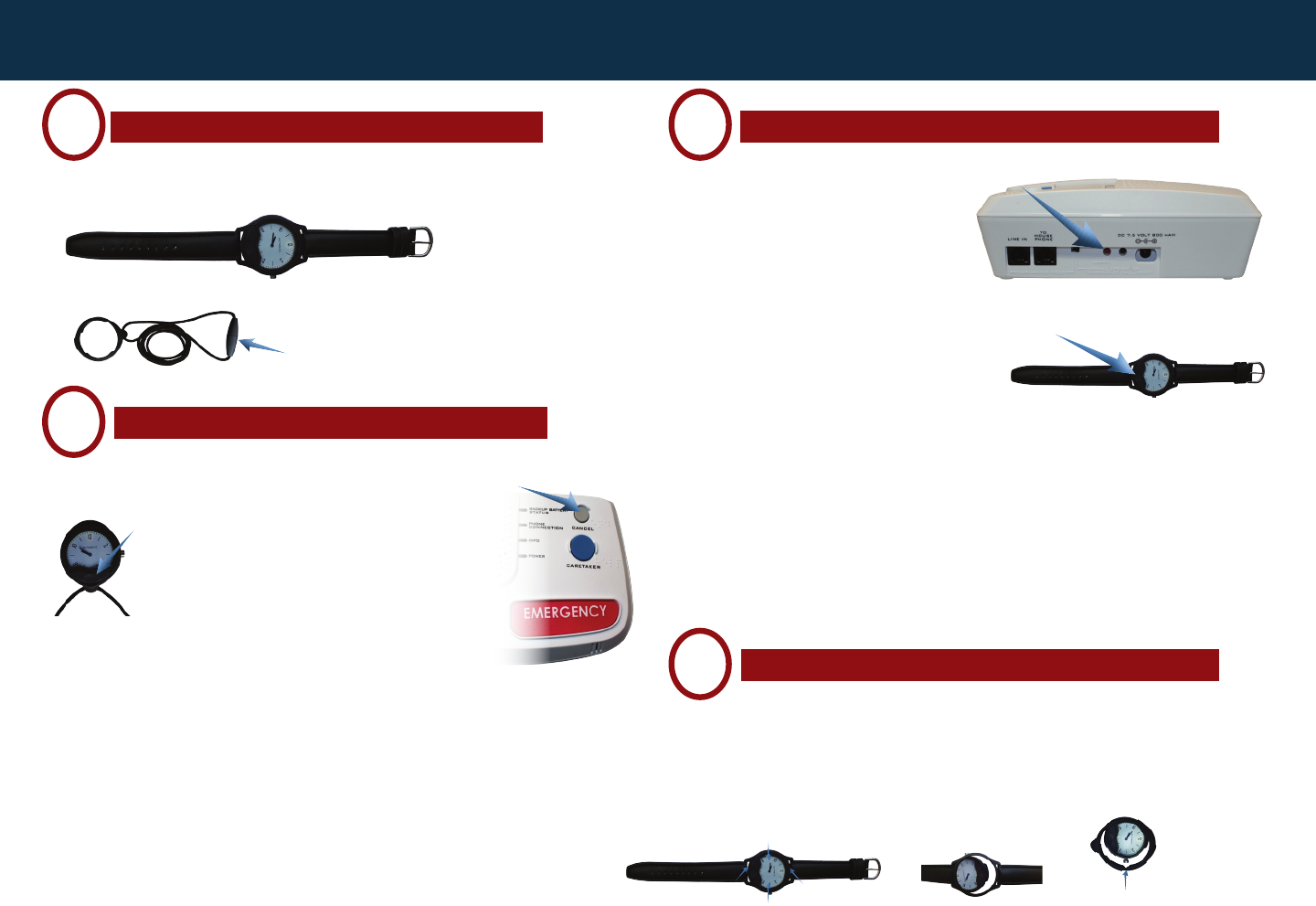

Confirm Accessories in Kit
1
Alert Watch in Bezel with
Standard 18mm watchband
Lanyard and Pendant Bezel
Test the Unit
3
On the Base Unit
a. PUSH and RELEASE the RED Code Learn button on back of
base unit. You will hear a voice prompt, “Pendant Learning.”
On the Pendant
a. PUSH the BLACK Emergency button until you hear, “Pendant
Learning” from the base. Then, release the button on the
pendant.
i. If you hear, “Base and Pendant out of Range,” STOP - wait
30 seconds and begin step 2 again.
b. When pendant learning has been successful, you will hear,
“Pendant Code Learned,” and then it will announce the call
setting that the base is set to Programming Mode or Emergency
Call Mode.
Teach the Pendant to the System
2
*NOTES:
Erasing all previously learned pendants – hold down the (Red) Code Learn button for 8
seconds. You will hear the confirmation of “Erasing All Pendants, All Pendants Erased” from
the base unit. Now you can re-teach pendants starting at Step #2.
Lost Pendants – If a pendant has been lost, follow the note for “Erasing all
previously learned pendants” and then re-teach all of the pendants starting at Step #2.
Teaching additional pendants - does not erase previously learned pendants.
Exiting Learning Mode - Base will automatically exit the pendant learning mode after
successfully learning the pendant or after the base announces “Pendant Learning Failed”.
Up to 9 Watch pendants can be taught to each base.
Place call to Emergency Operator:
a. Push the BLACK EMERGENCY button for 2 seconds on the Watch
Pendant. (The RED LED under the “12” should turn ON for 1 second.)
b. You should hear a dial tone, dialing, and then communication tones
between the CaretakerSentry and central station. Several seconds later
the operator should answer the call.
c. Talk normally to the base unit – just like into a speaker phone.
d. At the end of the conversation, the CaretakerSentry should automatically
hang-up – if not, push the CANCEL button for 1 second.
Performing a System Test
a. PUSH and HOLD the CANCEL button for 8-10 seconds to
enter “System Check”
b. Push the BLACK EMERGENCY button for 2 seconds on
Pendant. (The RED LED on the pendant under the “12”
should turn ON for 1 second.)
c. Listen for the voice prompt from base unit:
i. “All Systems are OK – Battery is OK” is heard if the system
is correctly installed.
ii. If any other voice prompt is heard, the unit will describe
the problem.
d. Push and release the CANCEL button for 1 second to exit
Test Mode. (The unit will automatically exit in 3 minutes.)
e. We recommend that you perform this System Test
weekly.
Red Code Learn
button
BLACK Emergency
button
Step-by-Step Installation Guide
The Alert Watch uses batteries CR2032 for the transmitter and SR626SW for the timepiece.
Batteries and Bezels
4
The Alert Watch can worn both as a wristwatch and as a pendant. Simply grip the edge of the bezel
and watchband and GENTLY press down on the timepiece. Then simply align the crown with the
slot on the pendant bezel and snap it into place.
Grip Grip
Press
Press
Align crown and
snap into place
NOTE: This watch uses a standard size 18mm band for easy replacement and personalization
Breakaway
Feature
