Logitech Far East YR0047B 2.4GHz Cordless Keyboard User Manual

Logitech Far East Ltd 2.4GHz Cordless Keyboard

Contents

User Manual

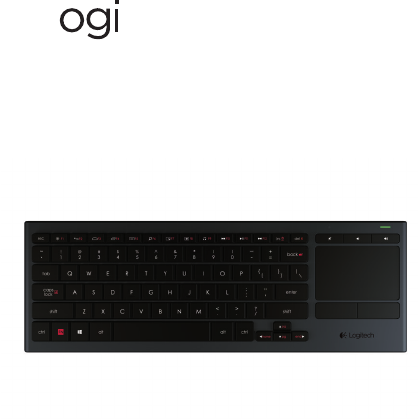

Logitech® Illuminated Living-Room
Keyboard K830
Setup Guide
Guide d’installation
Logitech Illuminated Living-Room Keyboard K830
2
English. . . . . . . . . . . . . . . . . . . . . . .3 Français . . . . . . . . . . . . . . . . . . . . . 13
www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Logitech Illuminated Living-Room Keyboard K830
English  3
Know your product
7
11
8
9
1
12
13
2 3
45 6
10
Logitech® Illuminated Living-Room
Keyboard K830
Setup Guide
Guide d’installation
1. Left mouse click
2. Micro-USB charging port
3. On/o power switch
4. Function keys
5. Automatic light sensor
6. Battery status and Bluetooth® connection
indicator
7. Hot keys
8. Touchpad
9. Mouse click buttons
10. Product documentation
11. Unifying receiver
12. USB extender cable
13. Micro-USB charging cable
Logitech Illuminated Living-Room Keyboard K830
4  English

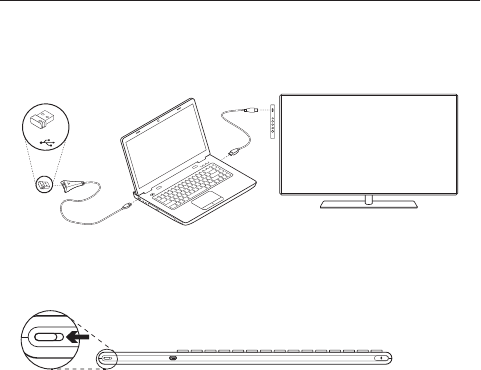

Setting up your keyboard
Using the Unifying receiver
1. Plug in the Unifying receiver into your laptop or desktop computer. You can use the USB extender
cable provided to position the Unifying receiver away from metallic objects or devices that may cause
interference.
USB
*
Note: You can also use your keyboard to control an Android™ enabled TV. Refer to the documentation
supplied by your TV manufacturer for compatibility information and further connection details.
*HDMI cable is not included.
2. Turn on your keyboard.
Logitech Illuminated Living-Room Keyboard K830
English  5
Using Bluetooth Smart without the Unifying receiver
You have the option to connect your keyboard to a compatible Windows® 8 computer or TV running Android
5.0 or later using the latest generation Bluetooth Smart technology. To pair your Bluetooth Smart Ready PC or
TV and keyboard:
1. Turn on your keyboard and ensure that the Unifying receiver is not connected to your PC or TV.
2. Press the Fn + Del buttons simultaneously.
The Bluetooth connection indicator blinks to indicate the keyboard is discoverable. It remains discoverable
for 2 minutes.
3. Complete Bluetooth Smart pairing on your compatible Windows® 8 computer:
a. Go to Control Panel Devices and Printers.
b. Click ‘Add a device’. A list of discoverable devices is displayed.
c. Select ‘K830’ from the list.
d. Click ‘Next’, and follow the on-screen instructions.
You can also pair your keyboard to an Android enabled TV. Refer to the documentation supplied by your TV
manufacturer for further connection details.
Logitech Illuminated Living-Room Keyboard K830
6  English
Bluetooth Smart connection indicator
After successfully pairing the keyboard with your computer or TV, the Bluetooth Smart connection indicator
turns solid green.
Light Description
Blinking green Fast: The keyboard is in discovery mode, ready for pairing.
Slow: The keyboard is trying to reconnect to your computer or TV.
Software for your keyboard
Download and install the Logitech software for your keyboard to:
• Customize the function keys.
• Adjust your touchpad experience. You can
modify the pointer speed, adjust scrolling, and
disable touchpad tap.
• Connect additional devices to your Unifying
receiver.
• View videos explaining gestures and providing
information about your keyboard’s behavior.
• Reverse the requirement to press the Fn key
when using function keys.
Logitech software is available at www.logitech.com/support/k830.
Logitech Illuminated Living-Room Keyboard K830
English  7
Using your keyboard
Keyboard backlighting
When you start using your keyboard, the automatic
light sensor detects the light level in the room and
adjusts the keyboard backlight intensity accordingly.
There are three intensity levels:
• In bright light: no keyboard illumination.
• In poor light: full intensity backlight.
• In the dark: half intensity backlight.
You can manually override the automatic
backlighting setting. Press the key to cycle
between the three intensity levels.
Please note:
• When your battery charge level is low,
backlighting turns o automatically to conserve
battery power.
• Automatic backlight control is restored
automatically if the keyboard is idle for 30
minutes or more, or after turning the keyboard
o and back on.
Touchpad gestures
12
34
To point, scroll and click:
1. Point and slide one finger anywhere on
the touchpad to move the screen pointer.
2. Scroll with two fingers, up or down.
3. Press for left mouse click.*
4. Press for right mouse click.
*You can also tap the touchpad surface to perform
a click.
Note: To disable gestures and touchpad tap,
press the Fn key plus the left mouse click button. To
re-enable gestures and touchpad tap, press the Fn
key plus the left mouse click button again.
Logitech Illuminated Living-Room Keyboard K830
8  English
Recharging your keyboard
Your keyboard is rechargeable. There are no batteries to be replaced.
A three-hour charge provides up to 10 days of use when you type about two hours a day with backlight on, or
about one year without backlight.
Note: The use you get between charges may vary depending on your usage pattern.
When you turn on the keyboard the battery indicator
shows the charge level.
Indicator Explanation
Blinking green The battery is charging.
Solid green The battery has adequate charge, or charging is complete.
Blinking red Battery power is low. Recharge the battery.
To charge the battery, connect the keyboard
to a computer using the Micro-USB charging cable
supplied.
The battery indicator blinks green while charging takes
place. Charge until the indicator light stops blinking.
You can use the keyboard while it charges.
Note: If the battery power is low (indicator blinking red), the keyboard backlight is disabled.
USB
Logitech Illuminated Living-Room Keyboard K830
English  9
Function keys
Adjust backlight intensity
Back
Home
Switch applications
Menu
Search
Show / Hide desktop
Maximize window
Launch media player
Previous track
Play/pause track
Next track
Fn + ins: PC sleep
Fn + del: Bluetooth Smart
Connection
Fn + backspace: Print screen
Fn + caps lock: Scroll lock
Fn + : Page up
Fn + : Page down
Fn + : Home
Fn + : End
Note:
• For keys F1 to F12:
• Press just the key to select the feature: ‘Adjust backlight intensity’...
• Press both Fn and the key to select the function key: F1, F2...
• For all other function keys, press both Fn and the key to select the feature.
• Some function keys may not be available for use on Android devices.
• You can use the Logitech software on a Windows® computer to reverse the requirement to press the Fn key.
Hot keys
Mute Volume down
Volume up
Logitech Illuminated Living-Room Keyboard K830
10  English

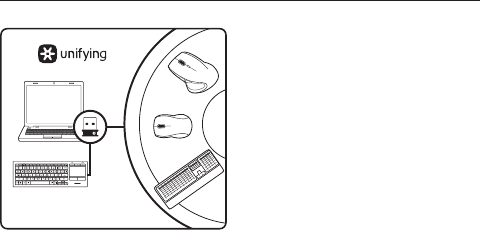

The Logitech® Unifying receiver
Plug it. Forget it. Add to it.
Your new Logitech product ships with a Unifying
receiver. Did you know you can add a compatible
Logitech wireless device that uses the same receiver
as your current Logitech Unifying product?
Are you Unifying-ready?
If you have a Logitech wireless device that’s
Unifying-ready, you can pair it with additional
Unifying devices. Just look for the orange Unifying
logo on the new device or its packaging. Build your
ideal combo. Add something. Replace something.
It’s easy, and you’ll use only one USB port for up to
six devices.
Download the Logitech Unifying software by visiting
www.logitech.com/unifying.
Bluetooth Smart
Connect and go
Your Logitech product features the latest
generation Bluetooth Smart technology. Connect
using Bluetooth Smart to eortlessly interact with
applications on your smartphone or tablet.
You can connect your Logitech product to the latest
compatible Bluetooth Smart Ready devices, such as
Bluetooth Smart Ready PCs running Windows® 8 or
later and TVs running Android 5.0 or later.
Logitech Illuminated Living-Room Keyboard K830
English  11
Visit Logitech Support
There’s more information and support online for your
product. Take a moment to visit Logitech Support to
learn more about your new keyboard.
Browse online articles for setup help, usage tips,
or information about additional features. If your
keyboard has optional software, learn about its
benefits and how it can help you customize your
product.
Connect with other users in our Community Forums
to get advice, ask questions, and share solutions.
At Logitech Support, you’ll find a wide selection
of content:
• Tutorials
• Troubleshooting
• Support community
• Software downloads
• Online documentation
• Warranty information
• Spare parts (when available)
Go to www.logitech.com/support/k830.
Troubleshooting
Keyboard not working
• Check your keyboard is powered on.
• Restart the keyboard by turning it o
then back on.
• If the battery indicator flashes red, recharge the
batteries. See ‘Recharging your keyboard.’
• Check the Unifying receiver connection.
• Use the USB extender cable provided
to position the Unifying receiver as close as
possible to your keyboard, and remove any
metallic objects between the receiver and
keyboard.
• Try plugging the Unifying receiver into
a dierent port.
• Try plugging the Unifying receiver directly
into your computer.
• If your keyboard connects via Bluetooth
Smart, verify that Bluetooth is turned on in
your device’s settings and ensure the Unifying
receiver is not plugged in.
• Check the keyboard is connecting to a
Bluetooth Smart enabled PC or TV.
What do you think?
Please take a minute to tell us.
Thank you for purchasing our product.
www.logitech.com/ithink
Logitech Illuminated Living-Room Keyboard K830
12  English

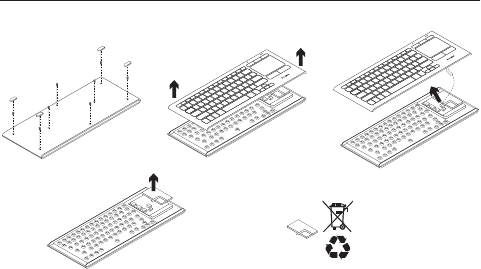

Battery disposal at product end of life
12
4
3
5
1. Remove the four feet and eight screws from the
keyboard bottom.
2. Separate the top and bottom cases.
3. Disconnect the flat and battery cables from the
main circuit board.
4. Remove the battery from the bottom case.
5. Dispose of the battery and product according
to local laws.
Logitech Illuminated Living-Room Keyboard K830
13
www.logitech.com/support/k830
M/N:C-U0007
CFT:RCPLOCU10-1356
Z855
5
IC: 4418A-CU0007
FCC ID: JNZCU0007
2205-10-3229
ANATEL ( 01 ) 07898940473243
M/N:C-U0008
5
IC: 4418A-CU0008
FCC ID: JNZCU0008
CFT: RCPLOCU11-0321
0899-11-3229
MODELO: C-U0008
ANATEL ( 01 ) 7898940473489
www.logitech.com
© 2015 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by
Logitech andmay be registered. Registered in the U.S. andother countries. The Bluetooth® word mark and logos
are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Logitech is under license.
Android is a trademark of Google Inc. Windows is a registered trademark of Microsoft Corporation in the United
States and/or other countries. All other trademarks are theproperty of theirrespective owners. Logitech assumes
no responsibility for any errors that may appear in this manual. Informationcontained herein is subject to change
without notice.
© 2015 Logitech. Tous droits réservés. Logitech, le logo Logitech et les autres marques Logitech sont la propriété
deLogitech et sont susceptibles d’être déposés. Apple, iPad, iPhone, Mac et le logo Mac sont des marques
déposées d’Apple Inc., enregistrées aux Etats-Unis et dans d’autres pays. Bluetooth est une marque déposée
de Bluetooth SIG, Inc. Toutes les autres marques commerciales sont la propriété de leurs détenteurs respectifs.
Logitech décline toute responsabilité en cas d’erreurs dans ce manuel. Les informations énoncées dans ce
document peuvent faire l’objet de modifications sans avis préalable.
620-006484.002
