Long Range Solutions T14C Portable paging system transmitter User Manual Layout 1
Long Range Systems, LLC Portable paging system transmitter Layout 1
User Manual
Usage, Installation, Warranty and Service Information
Long Range Systems, LLC
4550 Excel Parkway, Suite 200
Addison, TX 75001
800.437.4996 •www.lrsus.com

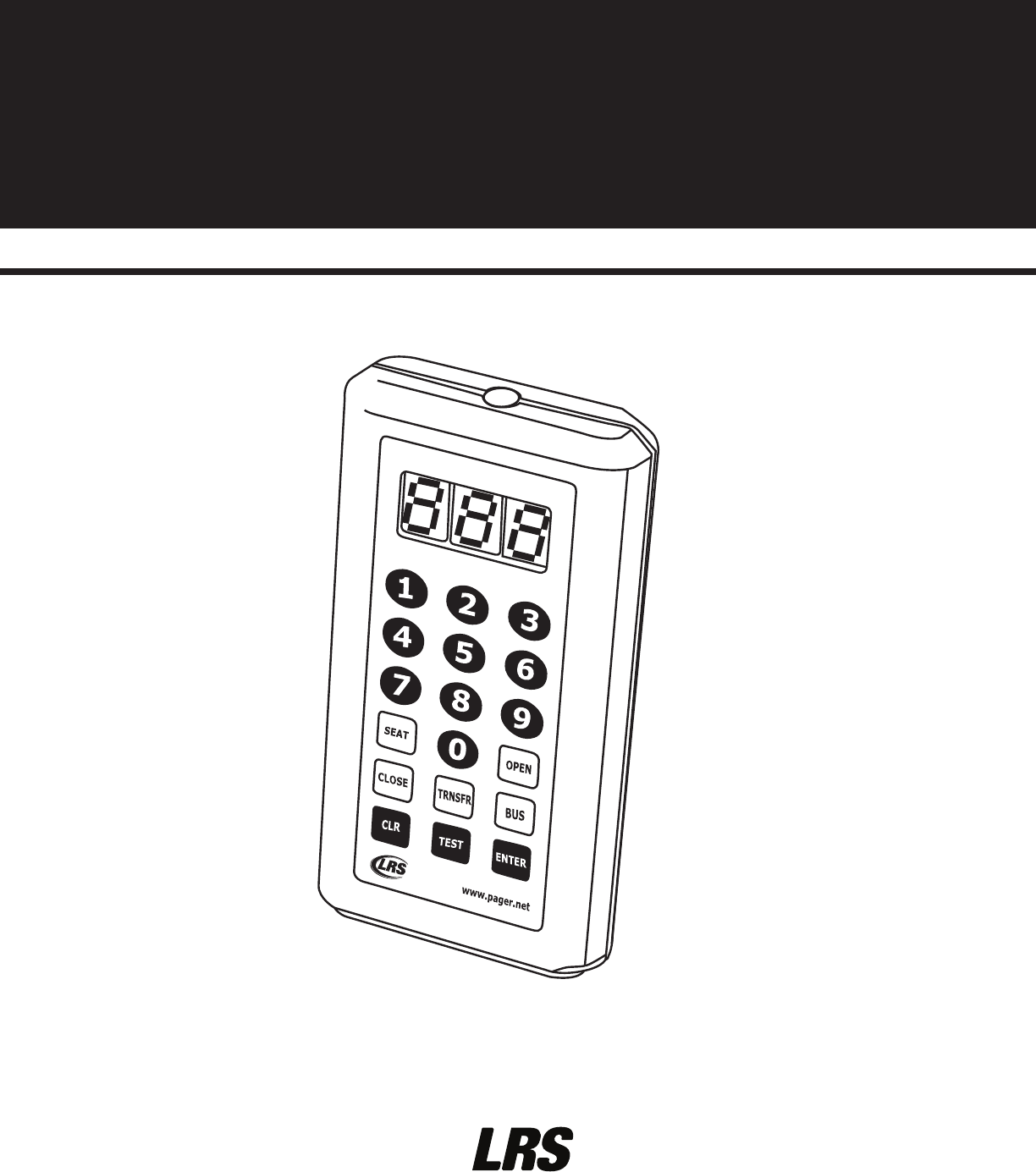

TX-14C
Table Updater for Seating Management
USER MANUAL
Table Of Contents
Long Range Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TX-14C/T7470-C232 Host Computer Table Management System Diagram . . . . 2
Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TX-14C Kyppad Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Test and Resest Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
TX-14C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Long Range Systems 1TX-14C User Manual
Long Range Systems 1TX-14C User Manual
R1201F
FCC ID: M74T7400
RS-232
Receive
Transmit
Power
9VAC
800.437.4996
www.pager.net
CONDOR
CLASS 2 TRANSFORMER
(408)745-7141
INPUT: AC 12OV 60Hz 19w
OUTPUT: AC 9V 1800mA
P/N: A91A8
RoHS
UU
LL
LISTED
C
MODEL: 48A -9- 1800
EIA 363 0635 S
MADE IN CHINA
TX-14C
Hand Held
Transmitter
Table Status
Data
12V Power
Supply
R1201 F Base
Station Receiver
RS232
Interface Cable
Table Management Host
Computer System
Long Range Systems 2TX-14C User Manual
Long Range Systems
Thank you for choosing Long Range Systems to provide your on-premise paging solution. We provide cut-
ting edge products and first-rate service to satisfy your needs for years to come. Please familiarize yourself
and your staff with the contents of this instruction in order to properly operate and maintain your system.
For help operating your system or for any service problems, please call:
(800) 437-4996
NOTE: Please keep this instruction in a safe place that is available to managers and key staff.
General Information
Table Management Systems are on-premise systems used to increase efficiency by alerting staff of the seat-
ing availability within the establishment. The LRS TX-14C updater and R1201 receiver integrate with these
Table Management Systems to enable restaurant staff to wirelessly update the status of tables with a com-
pact wireless device.
· The current status of each table is always available to the hostess station.
· Status can be changed from the floor or the hostess station.
· The T7470-C232 receiver is updated directly through a radio transmitter located in the TX-
14C hand held keypad.
NOTICE: Operation is subject to the following:
• This device may not cause interference
• This device will accept any interference including interference that may cause undesired operation of
the unit.

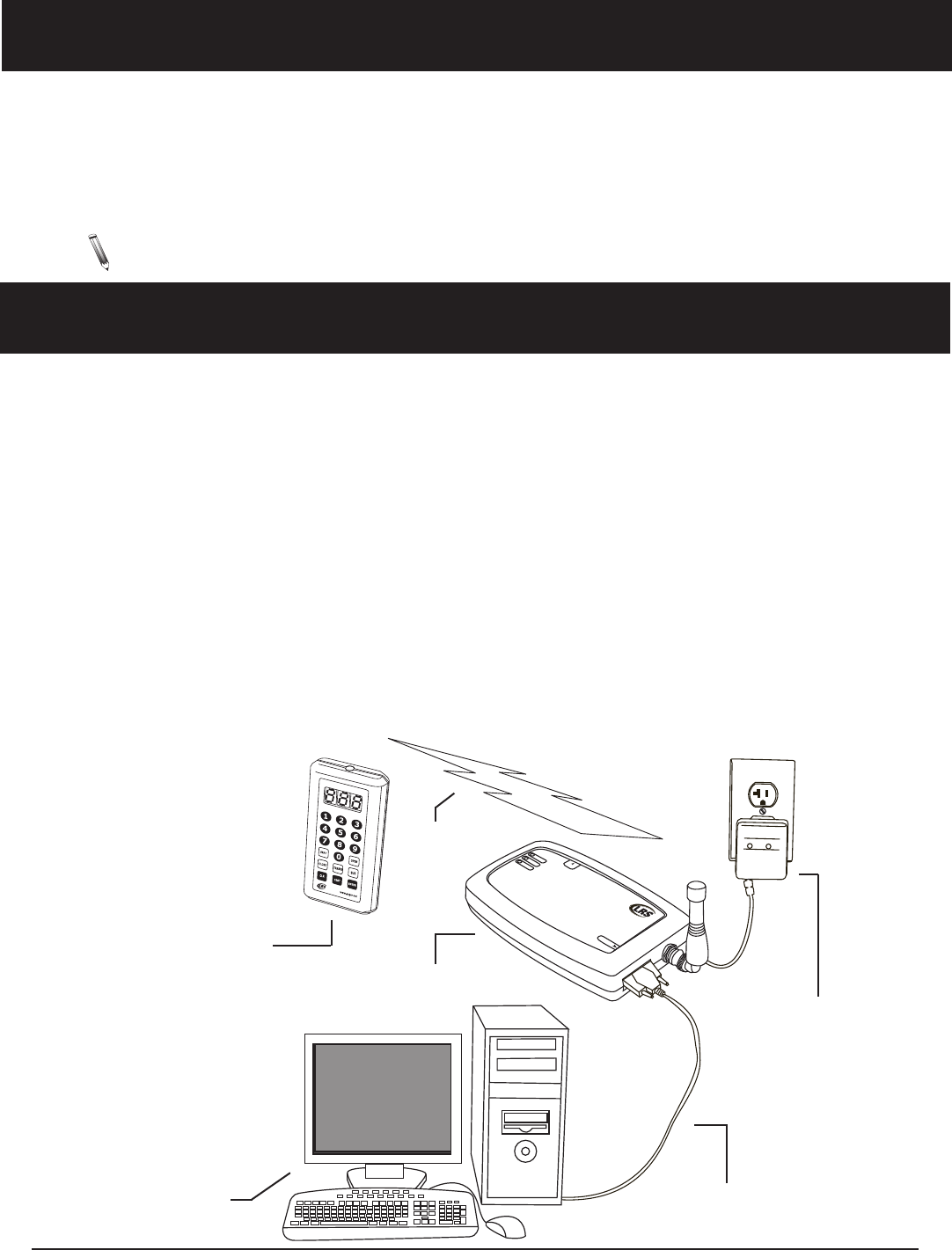

TX-14C/T7470-C232 Host Computer Table Management System
Diagram
Long Range Systems 3TX-14C User Manual
Installation and Setup
Transmitter Installation
CAUTION
:
Do not mount the TX-14C transmitter or T7470-C232 receiver antennas near any large metal objects.
NOTE: The TX-14C transmitter should be charging whenever not in use.
1. Unwrap all TX-14C transmitter and T7470-C232 receiver components.
2. The TX-14C transmitter is portable and battery powered. It is charged in the same power charger
used for LRS paddle and star pagers.
3. Connect the antenna (about 3” long) onto the connector on the back of the receiver. It is best to
mount the antenna pointing straight up, perpendicular to the ground.
4. Mount the receiver convenient to a 110/220V power and near the host computer.
5. Plug the power supply into standard 110V/220V outlet and the barrel connector end into the side
hole on the T7470-C232 receiver.
6. Connect the RS-232 cable from the T7470-C232 receiver to the host computer.
7. Upon completion, perform the initialization on the host computer system (per manufacturer’s
specifications).
!
Long Range Systems 3TX-14C User Manual
Long Range Systems 4TX-14C User Manual

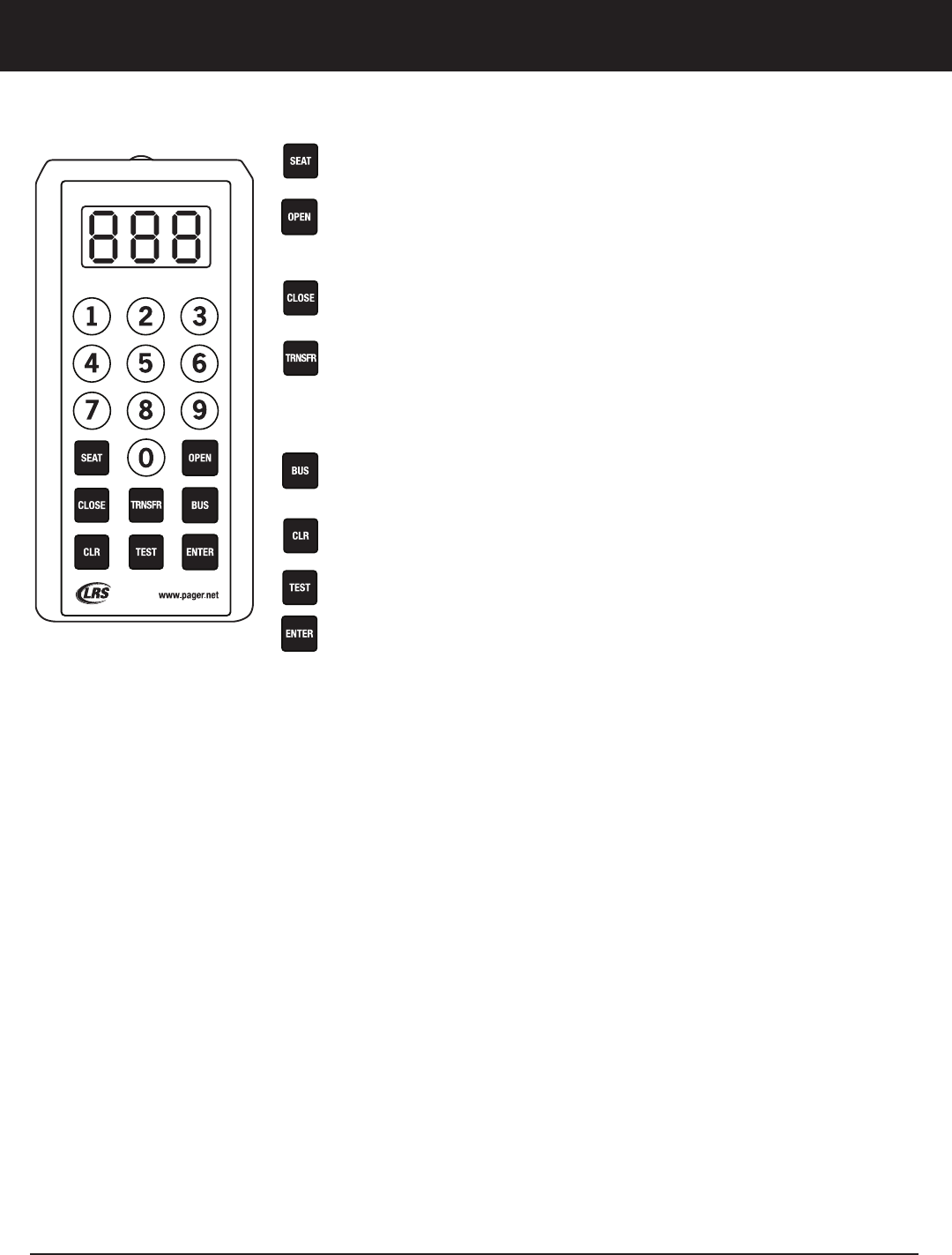

TX-14C Keypad Functions
Before you begin using the TX-14C handheld transmitter, read the following keypad descriptions.
Functions Keys
Clears the table from the Host Receiver list.
To designate a table as seated, enter the table number and press SEAT
Lists the table as ready on the Host Receiver.
To mark a table as Open and ready to be Seated, enter the table num-
ber and press OPEN
Sends the hold command to the Host Receiver.
To mark a table as Closed, enter the table number and press CLOSE
Transfers a party from one table to another
To move a party from one table to another, enter the table number
you wish to transfer from, press TRNSFR, enter the number of the
table you wish to transfer the party to, press ENTER (Table# -
Transfer - Table # - Enter).
Sends the Bus command to the Host receiver.
When a table is being bussed, enter the table number and press BUS
Clears the input to restart a new command
Checks functions of the TX-14C handheld: Version Check, Battery Level,
Handheld Reset, and Range Test,
Completes the Transfer function.
Number Number
The number keys (1 – 0) are used to enter table numbers.
Test and Reset Functions
Version Check
Press 5 then the TEST key to check the version.
Battery Check
Press the TEST key to check the battery. The display shows a number to indicate the battery charge (5 is
fully charged and 1 is very weak).
Reset
If the battery has been allowed to totally discharge, it may be necessary to reset the TX-14C for it to func-
tion properly. To reset the TX-14C:
1. Put the TX-14C on charge.
2. After the TX-14C is charged, enter 0-7-6 on the keypad.
3. Press the Test button.
Range Test
The operating range of the unit can be checked by sending continuous open and close commands to the re-
ceiver while moving around the test area. To start the test, press 1-2-3 TEST. To end the test press CLR
(Clear).
Long Range Systems 4T14C User Manual
Long Range Systems 5TX-14C User Manual
TX-14C SPECIFICATIONS
Required Voltage: One 110/220V outlet for the T7470-C232 Receiver and Charger for TX-14C
Transmitter .
Operating Frequency: 457.525Mhz
Transmit Power: 10 mW
Operating Range: Approximately 1/4 mile (unobstructed)
SERVICE QUESTIONS AND ANSWERS
My system is malfunctioning - What do I do?
Should your seating system ever fail to function properly:
Call Long Range Systems at (800) 437-4996
Monday through Friday 8:30 am to 5:00 PM Central Standard Time.
• After hours, please leave a message on the technical support line. LRS technicians are on call and
will return your call as soon as possible.
• Please keep in mind that options are limited over the weekend.
What about repairing my system after the warranty expires?
Call the LRS Customer Support Department before sending any item in for repair.
Long Range Systems 5T14C User Manual
Warranty
Long Range Systems, LLC permits a one-year manufacturer’s warranty fol-
lowing the original consumer purchase date of any LRS system. Any indi-
vidual components or products purchased will receive a 30-day manufacture
warranty. This warranty covers any defects due to faulty material or work-
manship, but does not include damage to the product resulting from acci-
dent, misuse or improper electrical connection. If the product or system
should become defective within the warranty period, we will repair or re-
place with equivalent equipment, free of charge. We will pay transporta-
tion charges to return your product via standard FedEx Ground shipping,
provided the product is shipped prepaid to:
Long Range Systems, LLC
4550 Excel Pkwy, Suite 200
Addison, TX 75001
No return or replacement can be received without prior authorization from
the LRS Customer Support department or without the proper RMA# posted
on the outside of the shipping container. Contact Customer Support at
800.437.4996 or www.pager.net. This warranty gives you specific legal
rights and you may also have rights that vary by state.
This manual contains proprietary information of Long Range Systems, LLC
(LRS) and is intended for use only by its employees or customers. None of
the material contained herein may be copied, reproduced, republished,
downloaded, displayed, posted, or transmitted in any form or by any means,
including but not limited to, electronic, mechanical, photocopying, record-
ing, or otherwise without the prior written permission of LRS. Additional
copies of this manual may be obtained by contacting LRS.
Screen displays, keyboard layouts, hardware descriptions, or software are
proprietary to LRS and are subject to copyright and other intellectual prop-
erty rights of LRS and shall be treated in accordance with the previous para-
graph.
All attempts have been made to make the information in this document
complete and accurate. LRS is not responsible for any direct or indirect
damages or loss of business resulting from inaccuracies or omissions. Spec-
ifications and other information contained within this document are sub-
ject to change without notice.
Long Range Systems, LLC reserves the right to make changes without fur-
ther notice to any products herein. LRS, LLC makes no warranty, represen-
tation or guarantee regarding the suitability of its products for any particular
purpose, nor does LRS, LLC assume any liability arising out of the applica-
tion or use of any product or circuit, and specifically disclaims any and all
liability, including without limitation consequential or incidental damages.
“Typical” parameters that may be provided in LRS, LLC data sheets and/or
specifications can and do vary in different applications and actual perform-
ance may vary over time. All operating parameters, including “Typicals”,
must be validated for each customer application by customer’s technical
experts. LRS, LLC products are not designed, intended, or authorized for
use as components in systems intended to support or sustain life, or for any
other application in which the failure of the LRS, LLC product could create
a situation where personal injury or death may occur. Should Buyer pur-
chase or use LRS, LLC products for any such unintended or unauthorized ap-
plication, Buyer shall indemnify and hold LRS, LLC and its officers,
employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees aris-
ing out of, directly or indirectly, any claim of personal injury or death asso-
ciated with such unintended or unauthorized use, even if such claim alleges
that LRS, LLC was negligent regarding the design or manufacture of the
part, device or system.
Long Range Systems 6TX-14C User Manual
XU-???? 081715
Manufactured by:Long Range Systems, LLC
4550 Excel Parkway, Ste 200
Addison, TX 75001
800.437.4996
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Changes or modifications made by the user that are not
expressly approved by Long Range Systems could void the
user's authority to operate the equipment.
Warning: Modification of this product without the express
consent of the applicant may void authority granted to the
user by the FCC to operate the device.
Industry Canada Warning
This Class B digital apparatus complies with Canadian ICES-
003 and RSS-119. Operation is subject to the following two
conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le
fonctionnement
022015
