The Znode is designed to received signals from
LRS 2.4 GHz devices and “retransmit” them.
• Required voltage: 110/120V outlet with
5Vdc power supply.
• Operating Frequency:
2.4GHz to 2.475GHz
• Transmit Power: 100 mw
• Transmit Range: 300’
• Znode
• 5VDC Power Supply
• 2.4 GHz Antenna

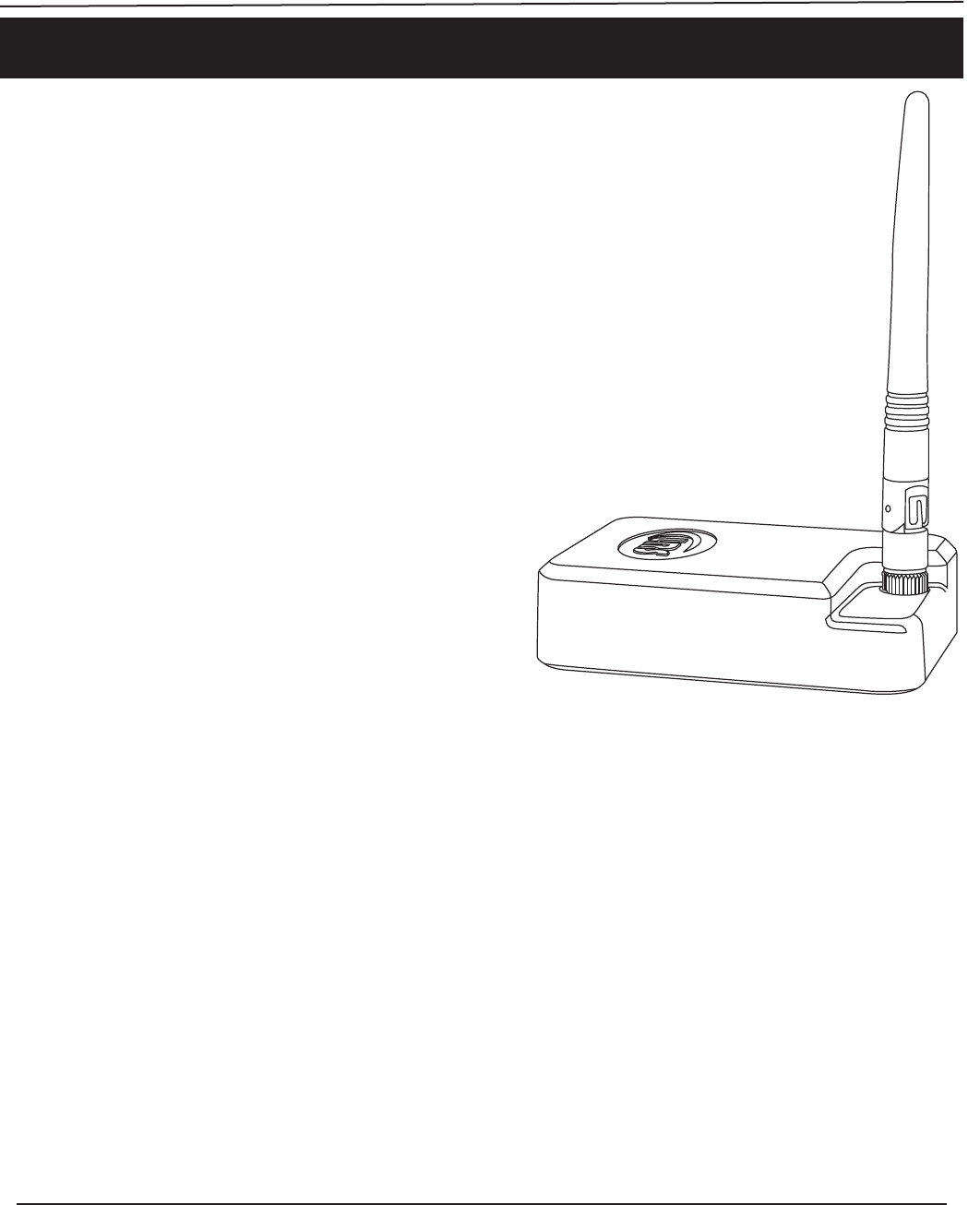

The antenna should be placed on the SMA connector on the Znode and tightened into
place (see picture)
$#
• Metal surfaces and thick walls will reduce the signal strength.
The Znode operates at its best when installed at the “fringe” of your area. This means
you should get it as far from the T750x transmitter or WIN application as possible but
still be able to communicate with the T750x or WIN application.
1. Set T750X or WIN application into Associate Mode.
2. Connect the 5VDC power supply into the Znode.
Long Range Systems 1Znode User Instructions
Znode
USER INSTRUCTIONS
3. Press the button on the side of the Znode once.
4. The LED will begin to flash. The green LEDs will flash to show that the Znode con-
nected to the T750X or WIN application.
5. The green LED will flash once every 5 seconds to show it is connected.
$$ # $ $"!$$!" ##
"## $
1. Press and hold the button on the side of the Znode for 5 seconds.
2. The LED will now be RED.
3. Put the T750x or WIN application into Associate mode.
4. Press the button on the side of the Znode once.
My LED is displaying RED all the time?
The Znode is currently waiting to be associated to a T750x or WIN application. Make
sure the T750x or WIN application is in Associate Mode, then press the button on the
side of the Znode once.
Should you have any questions, please contact us:
LRS Customer Service Department
800.437.4996 or 214.553.5308
LRS Australia LRS Brazil LRS Canada LRS Colombia
+61 (02) 995 5700 5511 41528416 877.607.7243 (+57) 1 - 7592452
www.lrsaustralia.com.au www.lrspager.com.br www.lrscanada.ca www.lrscolombia.com
LRS Europe GmbH LRS Middle East Ltd LRS South Africa LRS United Kingdom
+49 531 310542 0 +9613 81 82 84 +27 21 422 4975 +44(0)1782 537000
www.lrs.eu.com www.lrs-lb.com www.lrssa.com www.lrspagers.co.uk
WARRANTY
Any rechargeable pager left off charge for more than 30 days is not covered under the
standard warranty.
FCC ID: M74TX-ZNODE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
Long Range Systems 2Znode User Instructions
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This device is designed to operate and should be placed in an area with a minimum sep-
aration distance to nearby persons of at least 20 Centimeters.
Any modifications to the unit, unless expressly approved by Long Range Systems LLC
could void the user's authority to operate the equipment.
Long Range Systems, LLC
4550 Excel Parkway, Suite 200, Addison, TX 75001
www.pager.net •214.553.5308
