Loopcomm Technology LP-8697N Compact 802.11 B/G/N Wireless USB Dongle (2T2R) User Manual
Loopcomm Technology,.Inc. Compact 802.11 B/G/N Wireless USB Dongle (2T2R)
User manual
![](/img.php?id=2700885&img=bg1.png)
Quick Installation Guide
Model: LP-8697N
NOTE: Do not insert the USB adapter until the software/driver has been installed.
High Power Wireless-300N Compact USB Adapter
Insert the Setup CD Install Software
The menu page should appear.
Select the instruction for your operating system and
install the driver for the USB adapter.
Follow the Instructions for Driver Installation

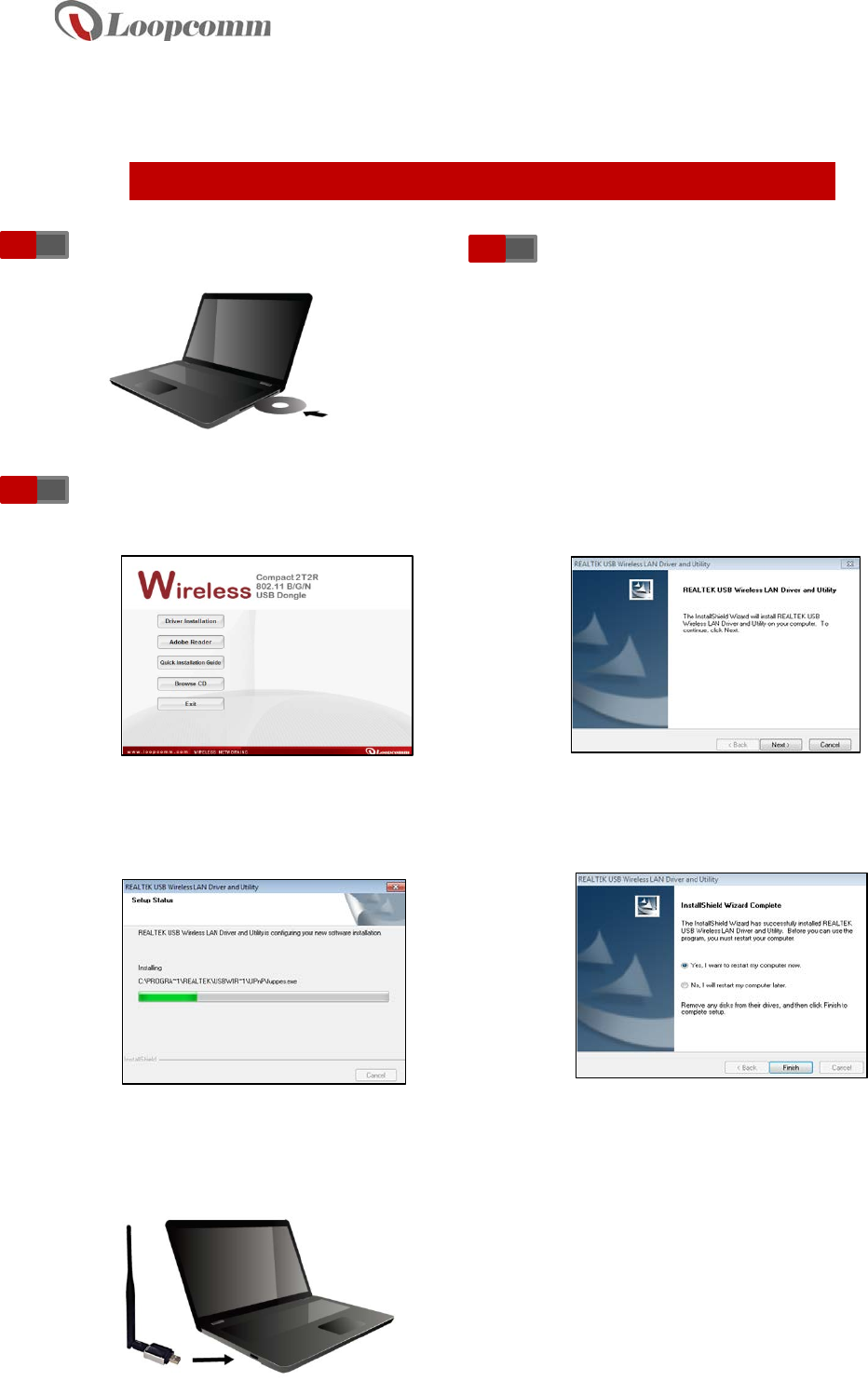

A. From the Menu page, select Driver Installation B. Start the Driver Installation
If the Menu page does not appear, browse the if prompted, click Next to begin the installation
CD drive and double-click the autorun.exe file
C. Continue the Driver Installation D. Restart your Computer
Follow the instructions that appear for installation A prompt will appear asking you to restart your
computer. Select Yes and click Finish to restart.
E. Insert the High Power USB Adapter
After the computer has fully rebooted, locate a USB port and insert the
USB Adapter. Windows should automatically begin to install the driver
for using the USB Adapter.
![](/img.php?id=2700885&img=bg2.png)
Quick Installation Guide
Model: LP-8697N
Windows 7

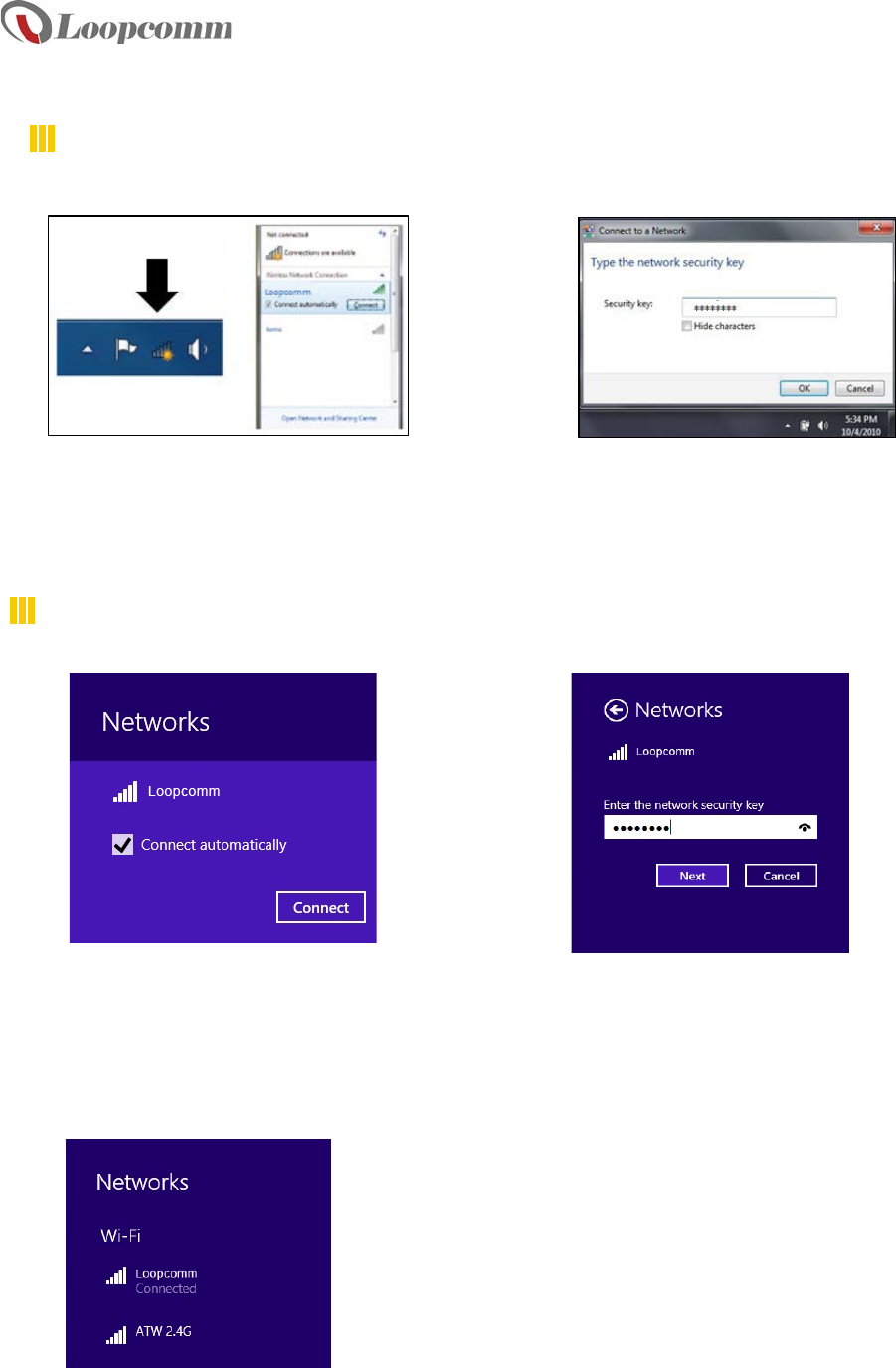

1. Connect to a Wireless Network 2. Connect to a Wireless Network
Locate the Wireless Icon in the Windows If the network you are trying to connect to has
System tray (bottom right corner) and click it to security enabled you will need to enter it here.
view available wireless Networks. Highlight your
desired network and click Connect.
Windows 8.1
1. Connect to a Wireless Network 2. Connect to a Wireless Network
Click it to view available wireless Networks. Enter the Security Key then click “Next ”.
Select the Wireless Network and tick mark the
button to connect automatically & press “Connect”.
3. The Wi-Fi Network is connected successfully.
![](/img.php?id=2700885&img=bg3.png)
Quick Installation Guide
Model: LP-8697N
How to Upgrade your Antenna

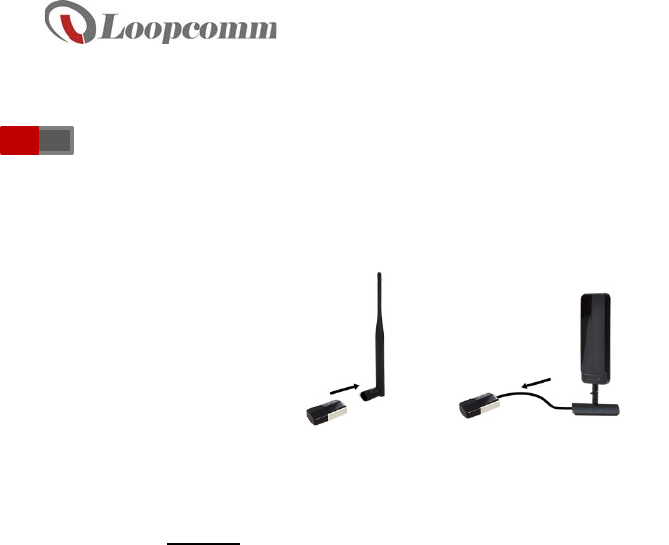

Upgrading your antenna can provide more range and distance for different types of wireless applications. The
Loopcomm High Power USB Adapter is compatible with any High Gain 2.4 GHz Wi-Fi antenna with a RP-SMA
connector. Simply unscrew the original antenna and screw on the upgraded antenna for more range and distance.
For more information on High Gain antennas visit our Loopcomm website.
Troubleshooting Tips
PROBLEM: I inserted the CD but the Installation Menu does not appear.
SOLUTION: Windows: Click Start, click My Computer (or Computer) and double-click your CD-ROM drive. Locate the autorun.exe
file and double-click it.
