MegaRAID Enterprise 1600
Hardware Guide
MAN-471
6/12/01
MegaRAID Enterprise 1600 Hardware Guide
ii
© Copyright 2001 LSI Logic Corporation
All rights reserved.
LSI Logic Corporation
6145-D Northbelt Parkway
Norcross, GA 30071
This publication contains proprietary information which is protected by copyright. No part of this publication can be reproduced, transcribed,
stored in a retrieval system, translated into any language or computer language, or transmitted in any form whatsoever without the prior written
consent of the publisher, LSI Logic Corporation. LSI Logic Corporation acknowledges the following trademarks:
Intel is a registered trademark of Intel Corporation.
Sytos Plus is a registered trademark of Sytron Corporation.
MS-DOS, and Microsoft are registered trademarks of Microsoft Corporation. Windows 95, Microsoft Windows and Windows NT are trademarks
of Microsoft Corporation.
MegaRAID is a registered trademark of LSI Logic Corporation.
SCO, UnixWare, and Unix are registered trademarks of the Santa Cruz Operation. Inc.
Novell NetWare is a registered trademark of Novell Corporation.
IBM, AT, VGA, PS/2, and OS/2 are registered trademarks and XT and CGA are trademarks of International Business Machines Corporation.
Revision History
3/20/00 Initial release.
2/23/01 Corrected RAID 0 graphic in Chapter 3, and Array Configuration Planner table in Chapter 5.
4/13/01 Added Chapter 7 Cluster Configuration and Installation, and Appendix C Cluster Configuration with a Crossover
Cable.
6/12/01 Make corrections, such as cache size (16 MB is smallest option), and the number of physical disk drives supported at
various RAID levels.
Preface iii
Table of Contents
1 Overview................................................... 1
Single Ended and Differential SCSI Buses .......................2
Maximum Cable Length for SCSI Standards....................2
Documentation Set............................................................3
2 Introduction to RAID................................ 5
RAID Overview................................................................5
RAID Levels.....................................................................6
Consistency Check............................................................6
Fault Tolerance .................................................................6
Disk Striping.....................................................................7

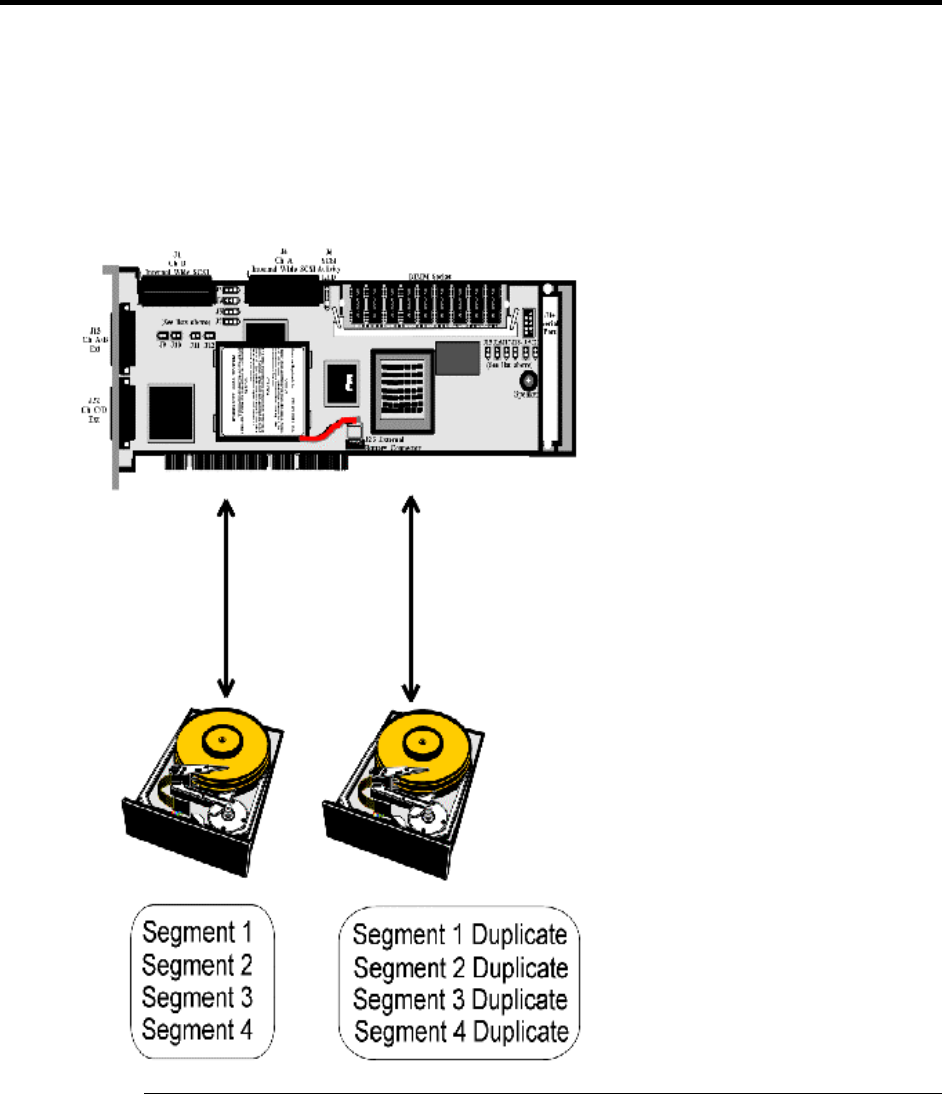

Disk Mirroring..................................................................8
Disk Spanning...................................................................9
Parity...............................................................................10
Hot Spares.......................................................................11
Disk Rebuild ...................................................................12
Logical Drive ..................................................................13
Hot Swap ........................................................................13
SCSI Drive States ...........................................................13
Logical Drive States........................................................13
Disk Array Types............................................................14
Enclosure Management...................................................14
3 RAID Levels ............................................ 15
Selecting a RAID Level ..................................................16
RAID 0 ...........................................................................17
RAID 1 ...........................................................................18
RAID 3 ...........................................................................19
RAID 5 ...........................................................................21

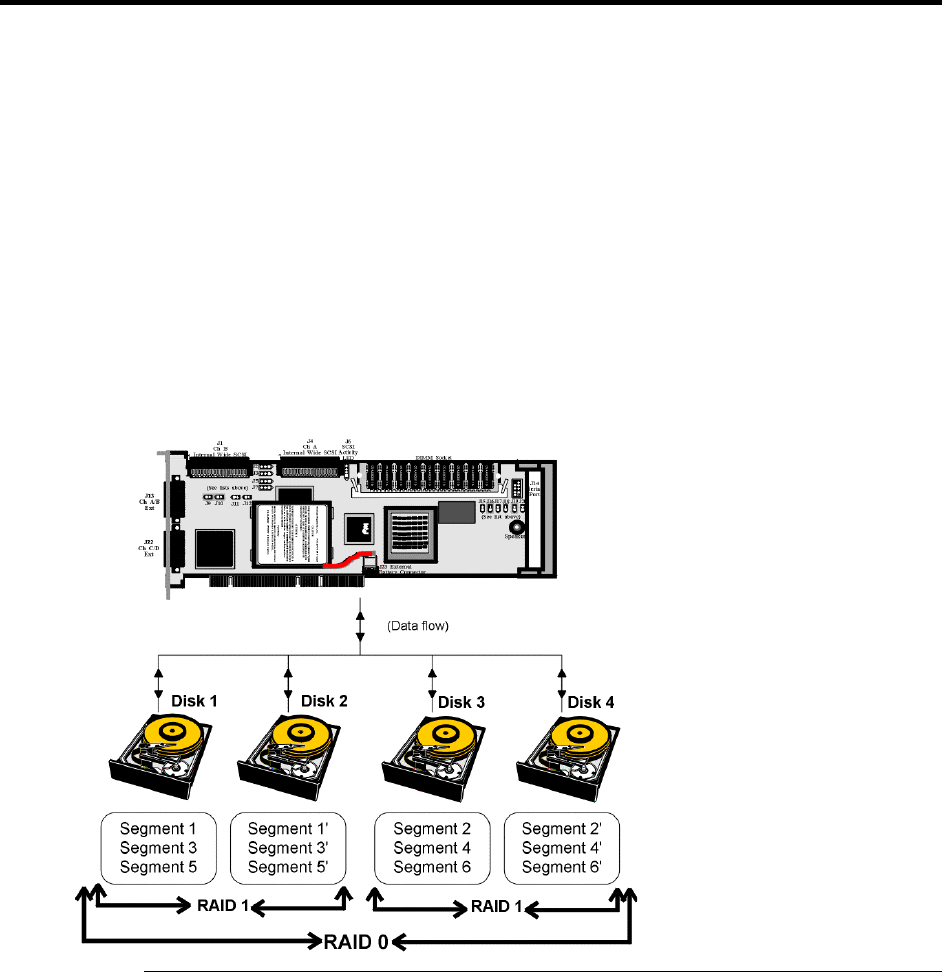

RAID 10 .........................................................................22
RAID 30 .........................................................................23

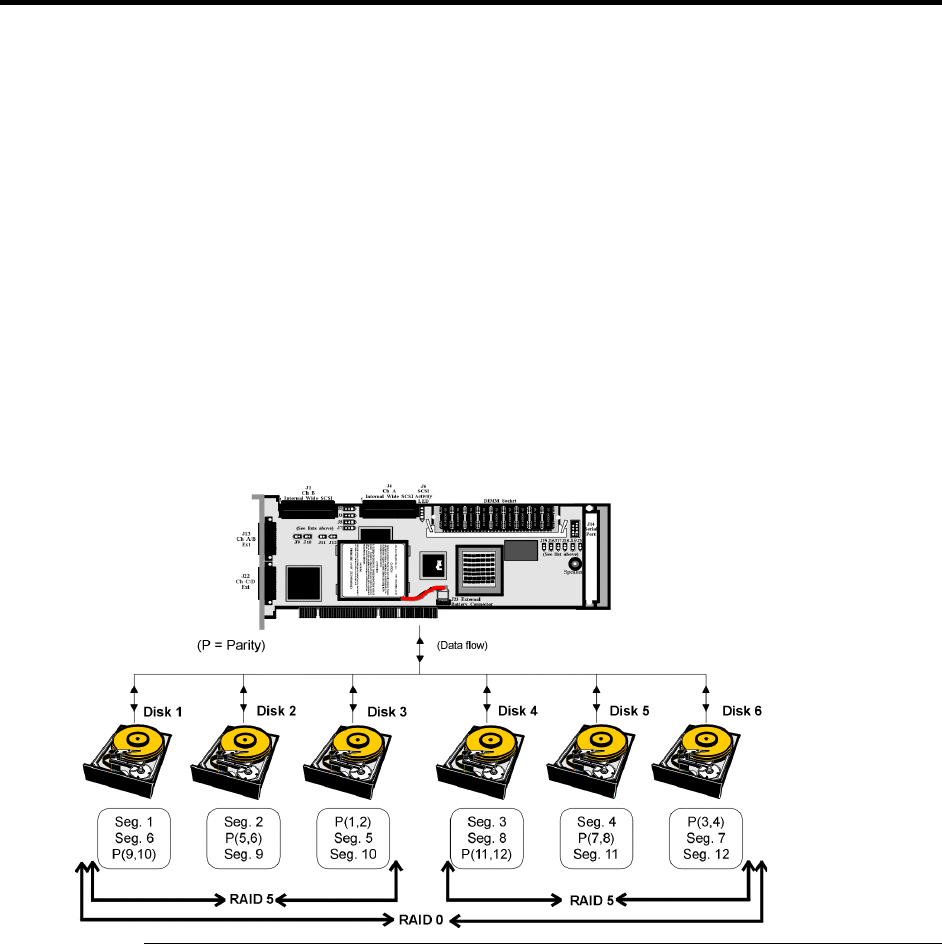

RAID 50 .........................................................................24
4 Features..................................................25
SMART Technology.......................................................25
Configuration on Disk.....................................................26
Hardware Requirements..................................................26
Configuration Features....................................................26
Hardware Architecture Features .....................................27
Array Performance Features ...........................................27
RAID Management Features...........................................28
Fault Tolerance Features.................................................28
Software Utilities ............................................................28
Operating System Software Drivers................................29
MegaRAID Specifications..............................................29
Components ....................................................................30
Summary.........................................................................32
MegaRAID Enterprise 1600 Hardware Guide
iv
Table of Contents, Continued
5 Configuring MegaRAID.......................... 33
Configuring SCSI Physical Drives..................................33
Current Configuration.....................................................34
Logical Drive Configuration...........................................36
Physical Device Layout ..................................................37
Configuring Arrays .........................................................39
Configuration Strategies .................................................40
Assigning RAID Levels ..................................................42
Configuring Logical Drives ............................................42
Optimizing Data Storage.................................................43
Planning the Array Configuration...................................44
Array Configuration Planner...........................................45
6 Hardware Installation ............................ 47
Checklist .........................................................................48
Installation Steps.............................................................49
Step 1 Unpack.................................................................50
Step 2 Power Down ........................................................50
Step 3 Configure Motherboard .......................................50
Step 4 Install Cache Memory..........................................51
Step 5 Set Jumpers..........................................................53
Step 6 Set Termination ...................................................56
SCSI Termination ...........................................................57
Step 7 Set SCSI Terminator Power.................................61
Step 8 Connect Battery Pack (Optional).........................62

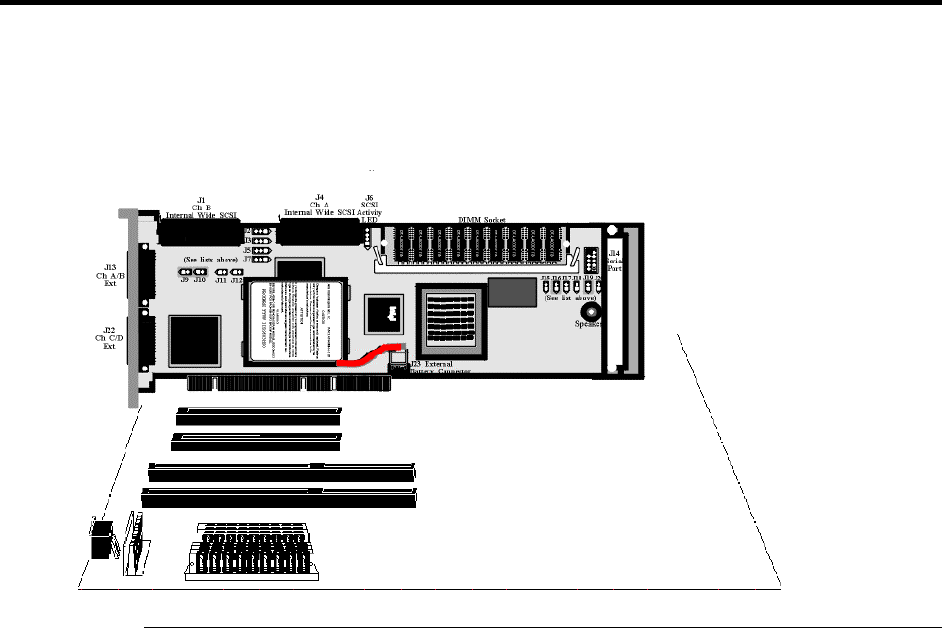

Step 9 Install MegaRAID Card.......................................66
Step 10 Connect SCSI Cables.........................................67
Step 11 Set Target IDs....................................................69
Step 12 Power Up ...........................................................71
Step 13 Run MegaRAID Configuration Utility...............71
Step 14 Install the Operating System Driver...................72
Summary.........................................................................73
Preface v
Table of Contents, Continued
7 Cluster Installation and Configuration. 75
Software Requirements...................................................75
Hardware Requirements..................................................76
Installation and Configuration ........................................77
Driver Installation Instructions under Microsoft
Windows 2000 Advanced Server....................................78
Network Requirements ...................................................83
Shared Disk Requirements..............................................83
Cluster Installation..........................................................84
Installing the Windows 2000 Operating System.............85

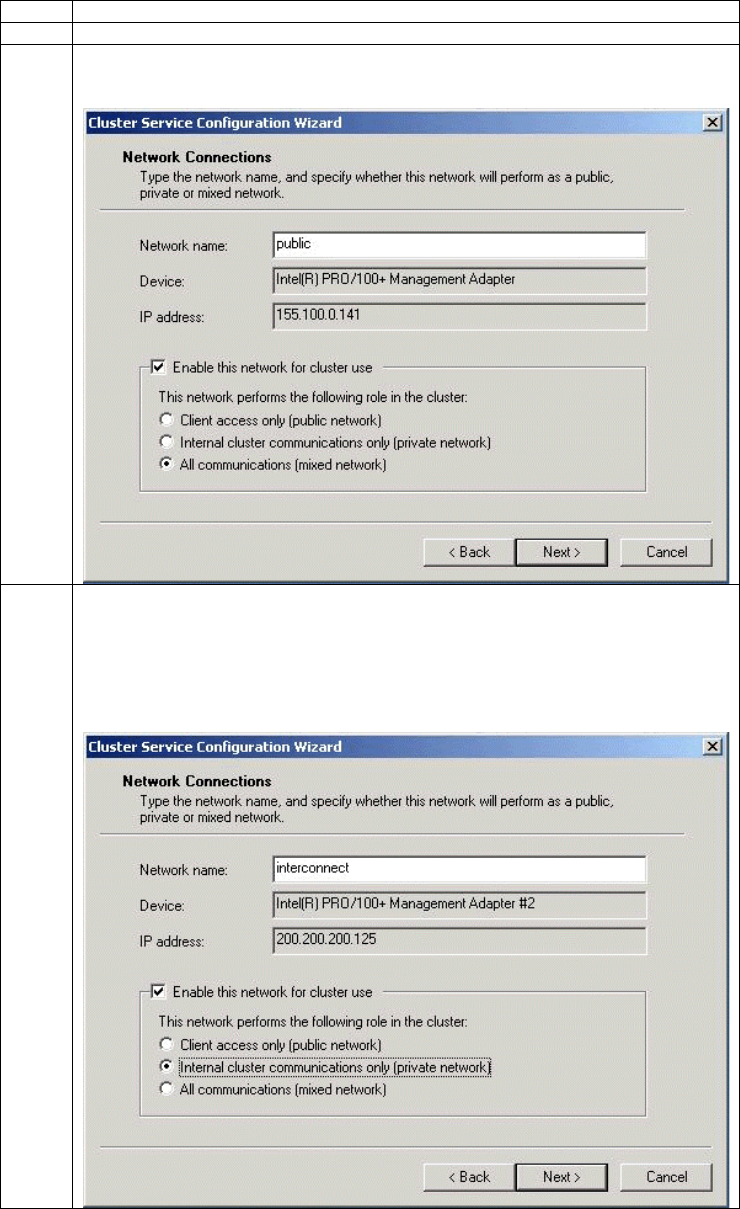

Setting Up Networks.......................................................85
Configuring the Cluster Node Network Adapter.............87
Configuring the Public Network Adapter .......................88
Verifying Connectivity and Name Resolution ................88
Verifying Domain Membership ......................................89
Setting Up a Cluster User Account .................................90
Setting Up Shared Disks .................................................91
Configuring Shared Disks...............................................92
Assigning Drive Letters ..................................................92
Verifying Disk Access and Functionality........................93

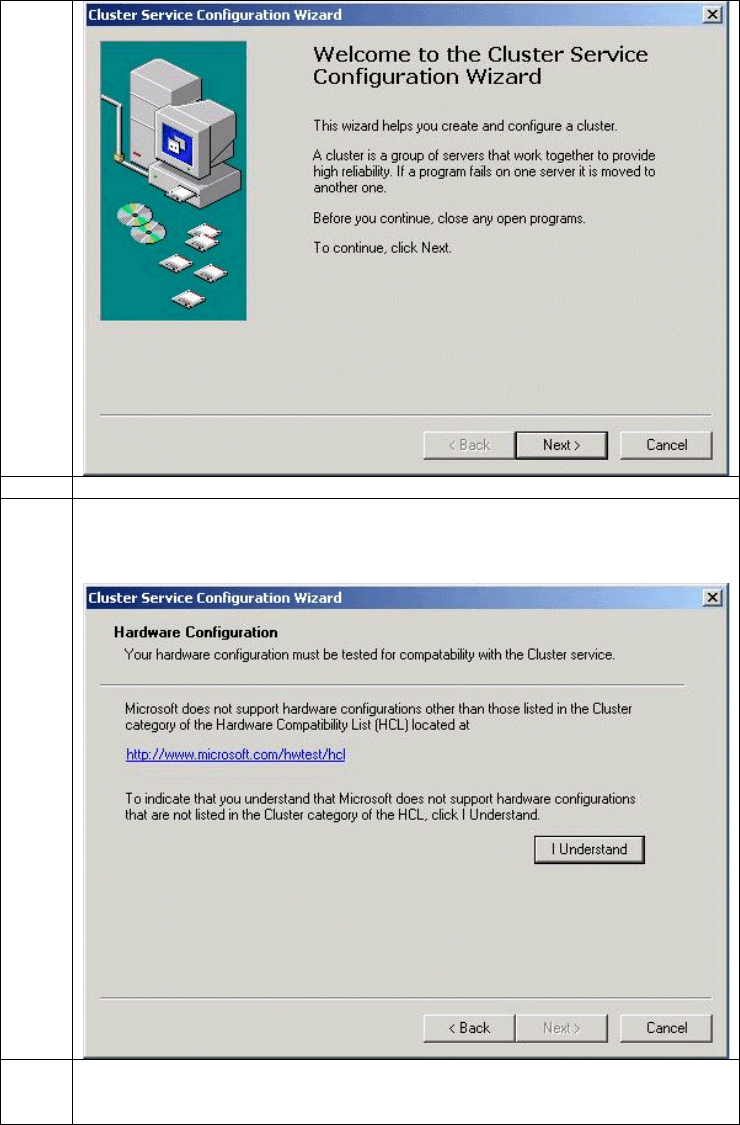

Cluster Service Software Installation..............................94
Configuring Cluster Disks...............................................97
Validating the Cluster Installation ................................103
Configuring the Second Node.......................................103
Verify Installation.........................................................104
SCSI Drive Installations ...............................................105
Configuring the SCSI Devices......................................105
Terminating the Shared SCSI Bus ................................105
8 Troubleshooting .................................. 107
BIOS Boot Error Messages ..........................................109
Other BIOS Error Messages .........................................111
DOS ASPI Driver Error Messages ...............................112
Other Potential Problems..............................................113

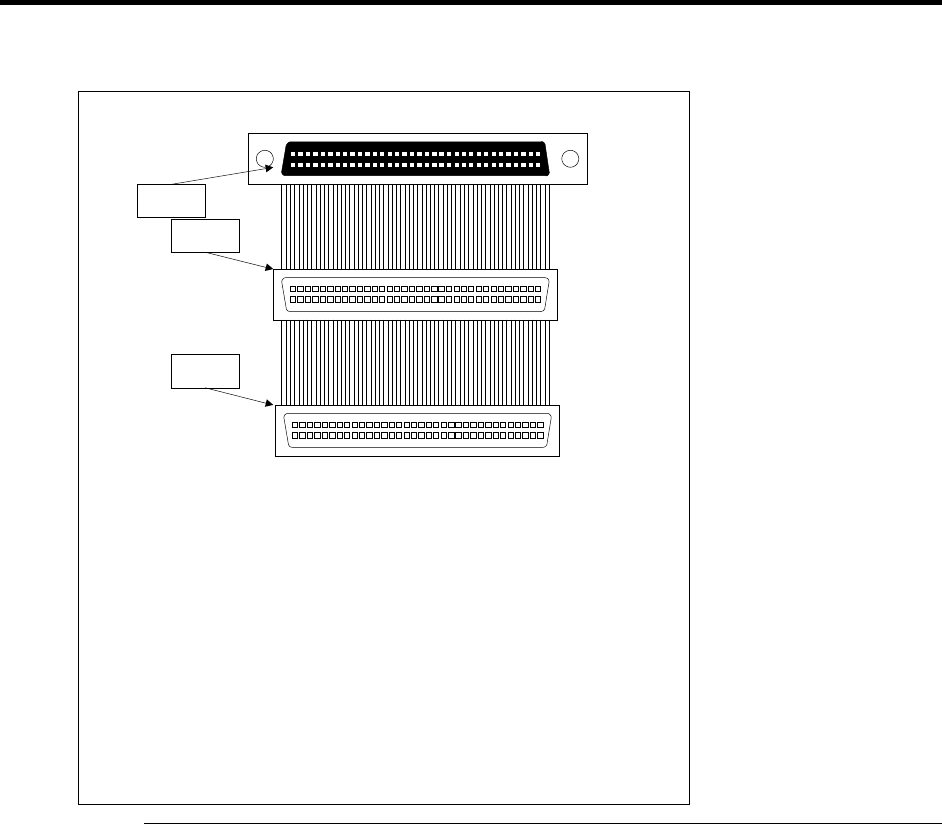

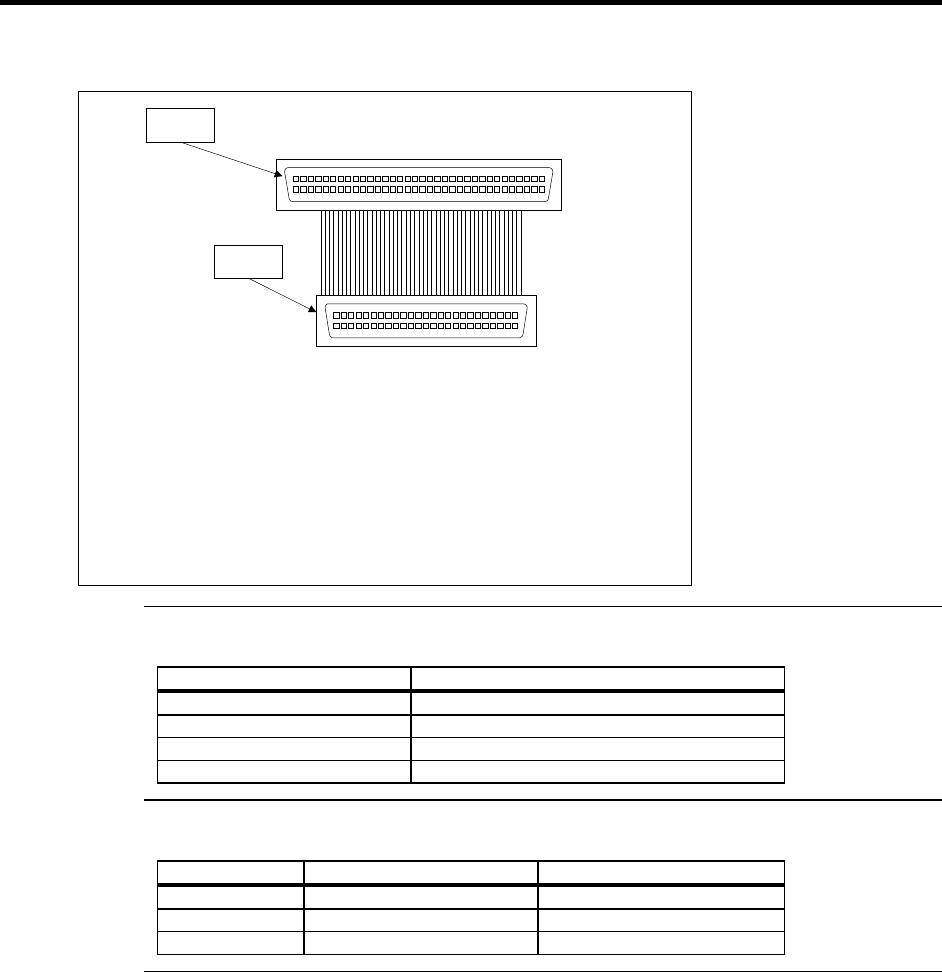

A SCSI Cables and Connectors ............. 115
SCSI Connectors...........................................................115
68-Pin High Density SCSI Internal Connectors............115
68-Pin Connector Pinout for Single-Ended SCSI .........121
68-Pin Connector Pinout for Low-Voltage Differential SCSI 123
B Audible Warnings ................................ 125
C Cluster Configuration with a Crossover Cable 127
Solution.........................................................................128
Glossary .......................................................... 129
Index ................................................................ 137
MegaRAID Enterprise 1600 Hardware Guide
vi
Preface
The MegaRAID Enterprise 1600 64-Bit 160M (Low Voltage Differential SCSI) I2O PCI Disk Array
Controller supports four Ultra and Wide SCSI channels with data transfer rates up to 160 MB/s. This manual
describes the MegaRAID Enterprise 1600 64-Bit 160M controller.
Limited Warranty The buyer agrees if this product proves to be defective, that LSI Logic Corporation is obligated only to repair
or replace this product at LSI Logic’s discretion according to the terms and conditions of the warranty
registration card that accompanies this product. LSI Logic shall not be liable in tort or contract for any loss or
damage, direct, incidental or consequential resulting from the use of this product. Please see the Warranty
Registration Card shipped with this product for full warranty details.
Limitations of Liability LSI Logic Corporation shall in no event be held liable for any loss, expenses, or damages of any kind
whatsoever, whether direct, indirect, incidental, or consequential (whether arising from the design or use of
this product or the support materials provided with the product). No action or proceeding against LSI Logic
may be commenced more than two years after the delivery of product to Licensee of Licensed Software.
Licensee agrees to defend and indemnify LSI Logic from any and all claims, suits, and liabilities (including
attorney’s fees) arising out of or resulting from any actual or alleged act or omission on the part of Licensee,
its authorized third parties, employees, or agents, in connection with the distribution of Licensed Software to
end-users, including, without limitation, claims, suits, and liability for bodily or other injuries to end-users
resulting from use of Licensee’s product not caused solely by faults in Licensed Software as provided by LSI
Logic to Licensee.
Cont’d
Preface vii
Preface, Continued
Package Contents You should have received:
• a MegaRAID Enterprise 1600 64-Bit 160M Controller
• a CD with drivers, utilities, and documentation
• a MegaRAID Enterprise 1600 Hardware Guide
• a MegaRAID Configuration Software Guide
• a MegaRAID Operating System Drivers Guide
• software license agreement
• warranty registration card
Technical Support If you need help installing, configuring, or running the MegaRAID Controller, call LSI Logic
Technical Support at 678-728-1250. Before you call, please complete the MegaRAID Problem
Report form on the next page.
Web Site We invite you to access the LSI Logic world wide web site at:
http://www.lsil.com.
MegaRAID Enterprise 1600 Hardware Guide
viii
MegaRAID Problem Report Form
Customer Information MegaRAID Information
Name Today’s Date
Company Date of Purchase
Address Invoice Number
City/State Serial Number
Country Number of Channels
email address Cache Memory
Phone Firmware Version
Fax BIOS Version
System Information
Motherboard: BIOS manufacturer:
Operating System: BIOS Date:
Op. Sys. Ver.: Video Adapter:
MegaRAID
Driver Ver.:
CPU Type/Speed:
Network Card: System Memory:
Other disk controllers
installed:
Other adapter cards
installed:
Description of problem:
Steps necessary to re-create problem:
1.
2.
3.
4.
Preface ix
Logical Drive Configuration
Logical
Drive
RAID
Level
Stripe
Size
Logical Drive
Size
Cache
Policy
Read
Policy
Write
Policy
# of
Physical
Drives
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
LD8
LD9
LD10
LD11
LD12
LD13
LD14
LD15
LD16
LD17
LD18
LD19
LD20
LD21
LD22
LD23
LD24
LD25
LD26
LD27
LD28
LD29
LD30
LD31
LD32
LD33
LD34
LD35
LD36
LD37
LD38
LD39
MegaRAID Enterprise 1600 Hardware Guide
x
Physical Device Layout
Channel A Channel B Channel C Channel D
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Preface xi
Channel A Channel B Channel C Channel D
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
MegaRAID Enterprise 1600 Hardware Guide
xii
Disclaimer
Disclaimer This manual describes the operation of the LSI Logic MegaRAID Controller. Although efforts have been made to assure
the accuracy of the information contained here, LSI Logic expressly disclaims liability for any error in this information,
and for damages, whether direct, indirect, special, exemplary, consequential or otherwise, that may result from such error,
including but not limited to the loss of profits resulting from the use or misuse of the manual or information contained
therein (even if LSI Logic has been advised of the possibility of such damages). Any questions or comments regarding this
document or its contents should be addressed to LSI Logic at the address shown on the cover.
LSI Logic provides this publication “as is” without warranty of any kind, either expressed or implied, including, but not
limited to, the implied warranties of merchantability or fitness for a specific purpose.
Some states do not allow disclaimer of express or implied warranties or the limitation or exclusion of liability for indirect,
special, exemplary, incidental or consequential damages in certain transactions; therefore, this statement may not apply to
you. Also, you may have other rights which vary from jurisdiction to jurisdiction.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in new editions of the publication. LSI Logic may make
improvements and/or revisions in the product(s) and/or the program(s) described in this publication at any time.
Requests for technical information about LSI Logic products should be made to your LSI Logic authorized reseller or
marketing representative.
Preface xiii
FCC Regulatory Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a specific installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, try to
correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and the receiver.
3) Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used with this product to ensure compliance with the Class B FCC limits.
LSI Logic Corporation MegaRAID Enterprise 1600 64-Bit 160M PCI SCSI Disk Array Controller
Model Number: Series 471
FCC ID Number: IUESER471
Disclaimer
LSI Logic certifies only that this product will work correctly when this
product is used with the same jumper settings, the same system
configuration, the same memory module parts, and the same
peripherals that were tested by LSI Logic with this product. The
complete list of tested jumper settings, system configurations,
peripheral devices, and memory modules are documented in the LSI
Logic Compatibility Report for this product. Call your LSI Logic sales
representative for a copy of the Compatibility Report for this product.
MegaRAID Enterprise 1600 Hardware Guide
xiv
Chapter 1 Overview 1
1Overview
The MegaRAID® Enterprise 1600 LVD (Low Voltage Differential SCSI) PCI RAID controller
adapter card provides four SCSI channels. Using LVD, you can use cables up to 25 meters long.
Throughput on each SCSI channel can be as high as 160 MB/s. MegaRAID supports both a low
voltage differential SCSI bus or a single ended SCSI bus.
MegaRAID Enterprise 1600 64-Bit LVD is a high performance intelligent PCI-to-SCSI host
adapter with RAID control capabilities. MegaRAID Enterprise 1600 64-Bit LVD requires no
special motherboard PCI expansion slot. The MegaRAID Enterprise 1600 card includes an Intel
i960RN processor. MegaRAID provides reliability, high performance, and fault-tolerant disk
subsystem management.
SCSI Channels MegaRAID Enterprise 1600 64-Bit LVD has four 160M SCSI channels. There are two QLogic
dual SCSI controllers, each supporting two of the four channels. Each SCSI channel supports up to
fifteen non-Ultra SCSI devices.
NVRAM and Flash ROM A 32 KB x 8 NVRAM stores RAID system configuration information. The firmware is
stored in flash memory for easy upgrade.

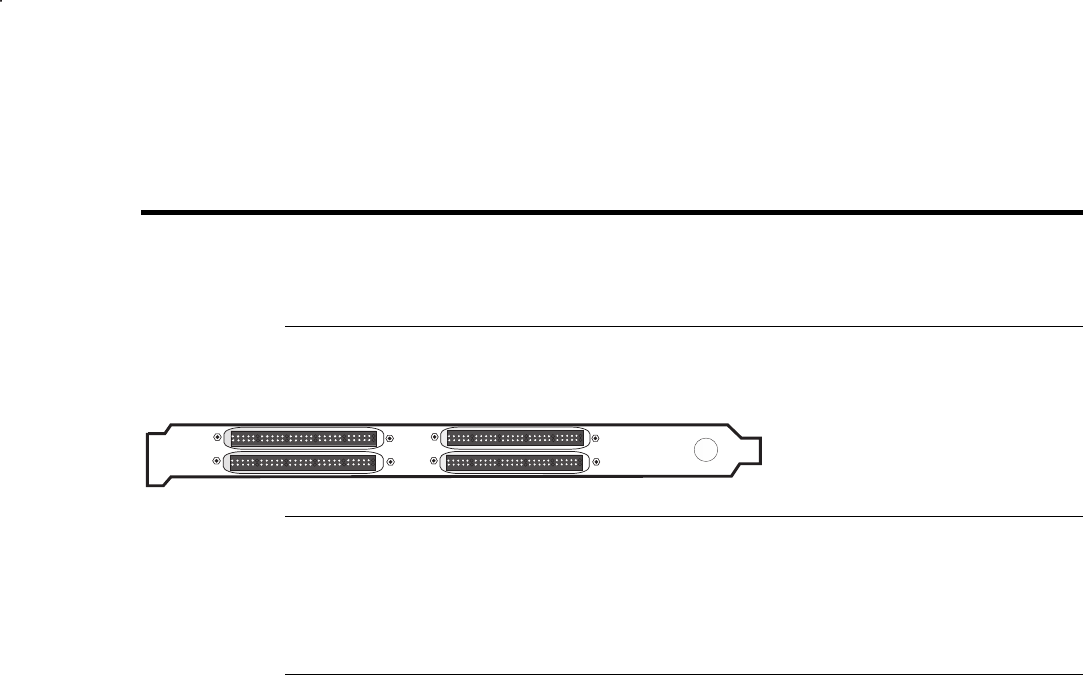

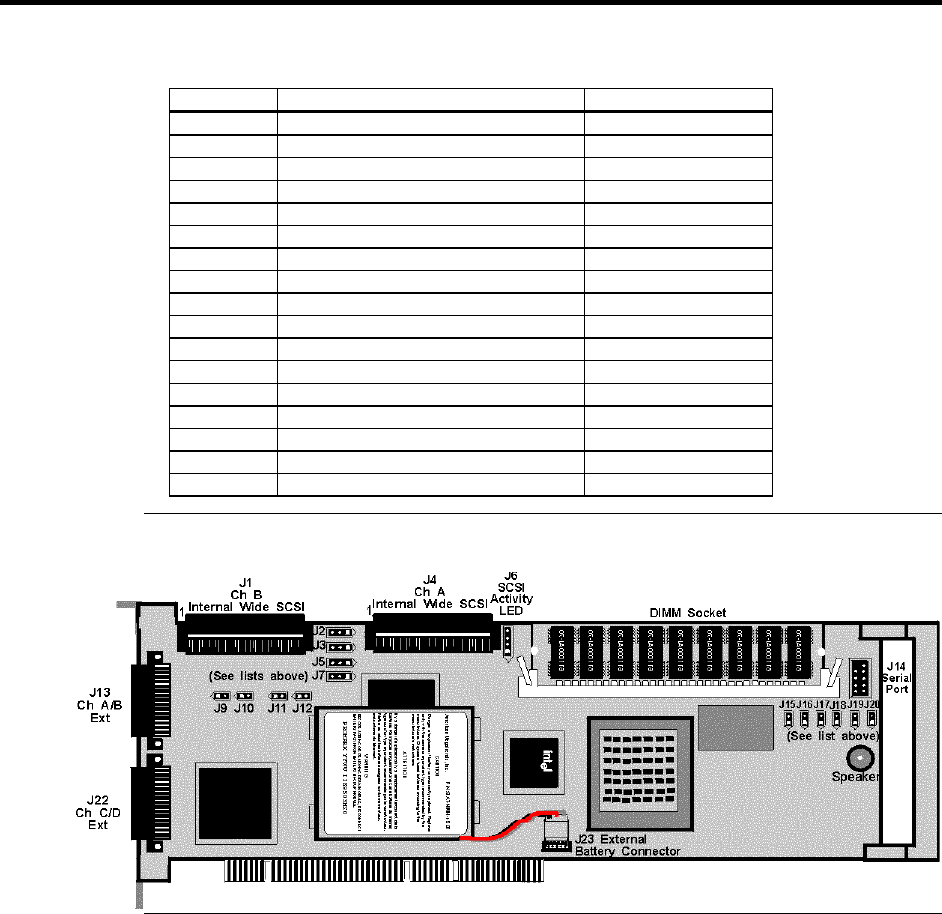

SCSI Connectors MegaRAID has four ultra high density 68-pin external SCSI connectors and two 68-pin internal
SCSI connectors for internal SCSI drives.
MegaRAID Enterprise 1600 Hardware Guide
2
Single Ended and Differential SCSI Buses
The SCSI standard defines two electrical buses:
• a single ended bus
• a differential bus
Maximum Cable Length for SCSI Standards
Standard Single ended LVD Maximum Number
of Drives
SCSI I 6 m 12 m 7
Fast SCSI 6 m 12 m 7
Fast Wide SCSI 6 m 12 m 15
Ultra SCSI 1.5 m 12 m 7
Ultra SCSI 3 m 12 m 3
Wide Ultra SCSI 12 m 15
Wide Ultra SCSI 1.5 m 12 m 7
Wide Ultra SCSI 3 m 12 m 3
Ultra2 SCSI 25 m 1
Ultra2 SCSI 12 m 7
Wide Ultra2 SCSI 25 m 1
Wide Ultra2 SCSI 12 m 15
Maximum cable length for 160M
Standard Single-ended LVD Maximum # of Drives
160M SCSI 25M 1
160M SCSI 12M 7
Wide 160M SCSI 25M 1
Wide 160M SCSI 12M 15
SCSI Bus Widths and Maximum Throughput
SCSI Standard SCSI Bus Width SCSI Throughput
SCSI I 8 bits 5 MB/s
Fast SCSI 8 bits 10 MB/s
Fast Wide SCSI 16 bits 20 MB/s
Ultra SCSI 8 bits 20 MB/s
Wide Ultra SCSI 16 bits 40 MB/s
Ultra2 SCSI 8 bits 40 MB/s
Wide Ultra2 SCSI 16 bits 80 MB/s
160M SCSI 8 bits 80 MB/s
Wide 160M SCSI 16 bits 160 MB/s
Chapter 1 Overview 3
Documentation Set
The MegaRAID Enterprise 1600 64-Bit LVD technical documentation set includes:
• the MegaRAID Enterprise 1600 Hardware Guide
• the MegaRAID Configuration Software Guide
• the WebBIOS Guide
• the MegaRAID Operating System Drivers Guide
Using MegaRAID Enterprise 1600 Manuals The MegaRAID Enterprise 1600 Hardware Guide includes a RAID
overview, RAID planning, and RAID system configuration information. Read it first.
MegaRAID Configuration Software Guide This manual describes the MegaRAID software utilities that configure
and modify RAID systems. The software utilities include:
• MegaRAID Configuration Utility
• MegaRAID Manager
• Power Console Plus
WebBIOS Guide This manual explains the operation of the WebBIOS Configuration Utility. WebBIOS allows you
to configure and manage RAID systems running in remote servers.
MegaRAID Operating System Drivers Guide This manual provides detailed information about the operating system
drivers.
MegaRAID Enterprise 1600 Hardware Guide
4
Chapter 2 Introduction to RAID 5
2 Introduction to RAID
RAID (Redundant Array of Independent Disks) is an array of multiple independent hard disk
drives that provide high performance and fault tolerance. A RAID disk subsystem improves I/O
performance. The RAID array appears to the host computer as a single storage unit or as multiple
logical units. I/O is faster because drives can be accessed simultaneously. RAID improves data
storage reliability and fault tolerance. You can prevent data loss caused by drive failure by
reconstructing missing data from the remaining data and parity drives.
RAID Overview
The following topics are discussed:
• RAID levels on page 6
• Consistency check on page 6
• Fault tolerance on page 6
• Disk striping on page 7
• Disk mirroring on page 8
• Disk spanning on page 8
• Parity on page 10
• Hot spares on page 11
• Disk rebuilds on page 12
• Logical drives on page 13
• Hot swap on page 13
• SCSI drive states on page 13
• Logical drive states on page 13
• Disk array types on page 14
• Enclosure management on page 14
MegaRAID Enterprise 1600 Hardware Guide
6
RAID Levels
RAID (Redundant Array of Independent Disks) is a collection of specifications that describe a
system for ensuring the reliability and stability of data stored on large disk subsystems. A RAID
system can be implemented in a number of different versions (or RAID Levels). The standard
RAID levels are 0, 1, 3, and 5. MegaRAID supports all standard RAID levels and RAID levels 10,
30, and 50, special RAID versions supported by MegaRAID.
Consistency Check
In RAID, check consistency verifies the correctness of redundant data in an array. For example, in
a system with dedicated parity, checking consistency means computing the parity of the data drives
and comparing the results to the contents of the dedicated parity drive.
Fault Tolerance
Fault tolerance is achieved through cooling fans, power supplies, and the ability to hot swap drives.
MegaRAID provides hot swapping through the hot spare feature. A hot spare drive is an unused
online available drive. MegaRAID can instantly rebuild a logical drive using a hot spare.
After the hot spare is automatically moved into the RAID subsystem, the failed drive can be
automatically rebuilt. The RAID disk array continues to handle requests while the rebuild occurs.
Chapter 2 Introduction to RAID 7
Disk Striping
Disk striping writes data across multiple disk drives instead of just one disk drive. Disk striping
involves partitioning each drive storage space into stripes that can vary in size from 2 KB to 128
KB. These stripes are interleaved in a repeated sequential manner. The combined storage space is
composed of stripes from each drive. MegaRAID supports stripe sizes of 2 KB, 4 KB, 8 KB, 16
KB, 32 KB, 64 KB, or 128 KB. For example, in a four-disk system using only disk striping (as in
RAID level 0), segment 1 is written to disk 1, segment 2 is written to disk 2, and so on. Disk
striping enhances performance because multiple drives are accessed simultaneously, but disk
striping does not provide data redundancy.
Stripe Width Stripe width is the number of disks involved in an array where striping is implemented. For
example, a four-disk array with disk striping has a stripe width of four.
Stripe Size The stripe size is the length of the interleaved data segments that MegaRAID writes across
multiple drives. MegaRAID supports stripe sizes of 2 KB, 4 KB, 8 KB, 16 KB, 32 KB, 64 KB, or
128 KB.
MegaRAID Enterprise 1600 Hardware Guide
8
Disk Mirroring
With mirroring (used in RAID 1), data written to one disk drive is simultaneously written to
another disk drive. If one disk drive fails, the contents of the other disk drive can be used to run the
system and reconstruct the failed drive. The primary advantage of disk mirroring is that it provides
100% data redundancy. Since the contents of the disk drive are completely written to a second
drive, it does not matter if one of the drives fails. Both drives contain the same data at all times.
Either drive can act as the operational drive.
Disk mirroring provides 100% redundancy, but is expensive because each drive in the system must
be duplicated.
Chapter 2 Introduction to RAID 9
Disk Spanning
Disk spanning allows multiple disk drives to function like one big drive. Spanning overcomes lack
of disk space and simplifies storage management by combining existing resources or adding
relatively inexpensive resources. For example, four 400 MB disk drives can be combined to appear
to the operating system as one single 1600 MB drive.
Spanning alone does not provide reliability or performance enhancements. Spanned logical drives
must have the same stripe size and must be contiguous. In the following graphic, RAID 1 array is
turned into a RAID 10 array.
This controller supports a span depth of eight. That means that eight RAID 1, 3 or 5 arrays can be
spanned to create one logical drive.
Spanning for RAID 10, RAID 30, or RAID 50
Level Description
10 Configure RAID 10 by spanning two contiguous RAID 1 logical drives.
The RAID 1 logical drives must have the same stripe size.
30 Configure RAID 30 by spanning two contiguous RAID 3 logical drives.
The RAID 3 logical drives must have the same stripe size.
50 Configure RAID 50 by spanning two contiguous RAID 5 logical drives.
The RAID 5 logical drives must have the same stripe size.
Note: Spanning two contiguous RAID 0 logical drives does not produce a new
RAID level or add fault tolerance. It does increase the size of the logical
volume and improves performance by doubling the number of spindles.
MegaRAID Enterprise 1600 Hardware Guide
10
Parity
Parity generates a set of redundancy data from two or more parent data sets. The redundancy data
can be used to reconstruct one of the parent data sets. Parity data does not fully duplicate the
parent data sets. In RAID, this method is applied to entire drives or stripes across all disk drives in
an array. A dedicated parity scheme during normal read/write operations is shown below. The
types of parity are:
Type Description
Dedicated Parity The parity of the data on two or more disk drives is
stored on an additional disk.
Distributed
Parity
The parity data is distributed across all drives in the
system.
If a single disk drive fails, it can be rebuilt from the parity and the data on the remaining drives.
RAID level 3 combines dedicated parity with disk striping. The parity disk in RAID 3 is the last
physical drive in a RAID set.
RAID level 5 combines distributed parity with disk striping. Parity provides redundancy for one
drive failure without duplicating the contents of entire disk drives, but parity generation can slow
the write process.
Chapter 2 Introduction to RAID 11
Hot Spares
A hot spare is an extra, unused disk drive that is part of the disk subsystem. It is usually in standby
mode, ready for service if a drive fails. Hot spares permit you to replace failed drives without
system shutdown or user intervention.
MegaRAID implements automatic and transparent rebuilds using hot spare drives, providing a high
degree of fault tolerance and zero downtime. MegaRAID RAID Management software allows you
to specify physical drives as hot spares. When a hot spare is needed, the MegaRAID controller
assigns the hot spare that has a capacity closest to and at least as great as that of the failed drive to
take the place of the failed drive.
Important
Hot spares are employed only in arrays with redundancy, for
example, RAID levels 1, 3, 5, 10, 30, and 50.
A hot spare connected to a specific MegaRAID controller can
only be used to rebuild a drive that is connected to the same
controller.
MegaRAID Enterprise 1600 Hardware Guide
12
Disk Rebuild
You rebuild a disk drive by recreating the data that had been stored on the drive before the drive
failed.
Rebuilding can be done only in arrays with data redundancy such as RAID level 1, 3, 5, 10, 30,
and 50.
Standby (warm spare) rebuild is employed in a mirrored (RAID 1) system. If a disk drive fails, an
identical drive is immediately available. The primary data source disk drive is the original disk
drive.
A hot spare can be used to rebuild disk drives in RAID 1, 3, 5, 10, 30, or 50 systems. If a hot spare
is not available, the failed disk drive must be replaced with a new disk drive so that the data on the
failed drive can be rebuilt.
Using hot spares, MegaRAID can automatically and transparently rebuild failed drives with user-
defined rebuild rates. If a hot spare is available, the rebuild can start automatically when a drive
fails. MegaRAID automatically restarts the system and the rebuild if the system goes down during
a rebuild.
Rebuild Rate The rebuild rate is the fraction of the compute cycles dedicated to rebuilding failed drives. A
rebuild rate of 100 percent means the system is totally dedicated to rebuilding the failed drive.
The rebuild rate can be configured between 0% and 100%. At 0%, the rebuild is only done if the
system is not doing anything else. At 100%, the rebuild has a higher priority than any other system
activity.
Physical Array A RAID array is a collection of physical disk drives governed by the RAID management software.
A RAID array appears to the host computer as one or more logical drives.
Chapter 2 Introduction to RAID 13
Logical Drive
A logical drive is a partition in a physical array of disks that is made up of contiguous data
segments on the physical disks. A logical drive can consist of any of the following:
• an entire physical array
• more than one entire physical array
• a part of an array
• parts of more than one array
• a combination of any two of the above conditions
Hot Swap
A hot swap is the manual replacement of a defective physical disk unit while the computer is still
running. When a new drive has been installed, you must issue a command to rebuild the drive.
MegaRAID can be configured to detect the new disks and to rebuild the contents of the disk drive
automatically.
SCSI Drive States
A SCSI disk drive can be in one of these states:
State Description
Online
(ONLIN)
The drive is functioning normally and is a part of a configured
logical drive.
Ready
(READY)
The drive is functioning normally but is not part of a configured
logical drive and is not designated as a hot spare.
Hot Spare
(HOTSP)
The drive is powered up and ready for use as a spare in case an
online drive fails.
Fail
(FAIL)
A fault has occurred in the drive placing it out of service.
Rebuild
(REB)
The drive is being rebuilt with data from a failed drive.
Logical Drive States
State Description
Optimal The drive operating condition is good. All configured drives are
online
Degraded The drive operating condition is not optimal. One of the
configured drives has failed or is offline.
Failed The drive has failed.
Offline The drive is not available to MegaRAID.
MegaRAID Enterprise 1600 Hardware Guide
14
Disk Array Types
The RAID disk array types are:
Type Description
Software-
Based
The array is managed by software running in a host computer using
the host CPU bandwidth. The disadvantages associated with this
method are the load on the host CPU and the need for different
software for each operating system.
SCSI to SCSI The array controller resides outside of the host computer and
communicates with the host through a SCSI adapter in the host.
The array management software runs in the controller. It is
transparent to the host and independent of the host operating
system. The disadvantage is the limited data transfer rate of the
SCSI channel between the SCSI adapter and the array controller.
Bus-Based The array controller resides on the bus (for example, a PCI or
EISA bus) in the host computer and has its own CPU to generate
the parity and handle other RAID functions. A bus-based controller
can transfer data at the speed of the host bus (PCI, ISA, EISA, VL-
Bus) but is limited to the bus it is designed for. MegaRAID resides
on a PCI bus, which can handle data transfer at up to 528 MB/s.
With MegaRAID, each channel can handle data transfer rates up to
160 MB/s per SCSI channel.
Enclosure Management
Enclosure management is the intelligent monitoring of the disk subsystem by software and/or
hardware.
The disk subsystem can be part of the host computer or separate from it. Enclosure management
helps you stay informed of events in the disk subsystem, such as a drive or power supply failure.
Enclosure management increases the fault tolerance of the disk subsystem.
Chapter 3 RAID Levels 15
3 RAID Levels
There are six official RAID levels (RAID 0 through RAID 5). MegaRAID supports RAID levels 0,
1, 3, and 5. LSI Logic has designed three additional RAID levels (10, 30, and 50) that provide
additional benefits. The RAID levels that MegaRAID supports are:
RAID Level Type turn to
0 Standard page 17
1 Standard page 18
3 Standard page 19
5 Standard page 21
10 MegaRAID only page 22
30 MegaRAID only page 23
50 MegaRAID only page 24
Select RAID Level To ensure the best performance, you should select the optimal RAID level when you create a
system drive. The optimal RAID level for your disk array depends on a number of factors:
• the number of drives in the disk array
• the capacity of the drives in the array
• the need for data redundancy
• the disk performance requirements
Selecting a RAID Level The factors you need to consider when selecting a RAID level are listed on the next page.
MegaRAID Enterprise 1600 Hardware Guide
16
Selecting a RAID Level
The factors you need to consider when selecting a RAID level are listed below.
Level Description and
Use
Pros Cons Maximum
Physical
Drives
Fault
Tolerant
0 Data divided in
blocks and
distributed
sequentially (pure
striping). Use for
non-critical data
that requires high
performance.
High data
throughput
for large
files
No fault
tolerance. All
data lost if
any drive
fails.
One to 32 No
1 Data duplicated on
another disk
(mirroring). Use
for read-intensive
fault-tolerant
systems
100% data
redundancy
Doubles disk
space.
Reduced
performance
during
rebuilds.
Two Yes
3 Disk striping with a
dedicated parity
drive. Use for non-
interactive apps
that process large
files sequentially.
Achieves
data
redundancy
at low cost
Performance
not as good as
RAID 1
Three to 32 Yes
5 Disk striping and
parity data across
all drives. Use for
high read volume
but low write
volume, such as
transaction
processing.
Achieves
data
redundancy
at low cost
Performance
not as good as
RAID 1
Three to 32 Yes
10 Data striping and
mirrored drives.
High data
transfers,
complete
redundancy
More
complicated
Four to 32
(must be a
multiple of
two)
Yes
30 Disk striping with a
dedicated parity
drive.
High data
transfers,
redundancy
More
complicated
Six to 32 Yes
50 Disk striping and
parity data across
all drives.
High data
transfers,
redundancy
More
complicated
Six to 32 Yes
Chapter 3 RAID Levels 17
RAID 0
RAID 0 provides disk striping across all drives in the RAID subsystem. RAID 0 does not provide
any data redundancy, but does offer the best performance of any RAID level. RAID 0 breaks up
data into smaller blocks and then writes a block to each drive in the array. The size of each block is
determined by the stripe size parameter, set during the creation of the RAID set. RAID 0 offers
high bandwidth. By breaking up a large file into smaller blocks, MegaRAID can use multiple SCSI
channels and drives to read or write the file faster. RAID 0 involves no parity calculations to
complicate the write operation. This makes RAID 0 ideal for applications that require high
bandwidth but do not require fault tolerance.
Uses RAID 0 provides high data throughput, especially for large
files. Any environment that does not require fault tolerance.
Strong Points Provides increased data throughput for large files. No
capacity loss penalty for parity.
Weak Points Does not provide fault tolerance. All data lost if any drive
fails.
Drives One to 32
MegaRAID Enterprise 1600 Hardware Guide
18
RAID 1
In RAID 1, MegaRAID duplicates all data from one drive to a second drive. RAID 1 provides
complete data redundancy, but at the cost of doubling the required data storage capacity.
Uses Use RAID 1 for small databases or any other environment
that requires fault tolerance but small capacity.
Strong Points RAID 1 provides complete data redundancy. RAID 1 is
ideal for any application that requires fault tolerance and
minimal capacity.
Weak Points RAID 1 requires twice as many disk drives. Performance is
impaired during drive rebuilds.
Drives Two
Chapter 3 RAID Levels 19
RAID 3
RAID 3 provides disk striping and complete data redundancy though a dedicated parity drive. The
stripe size must be 64 KB if RAID 3 is used. RAID 3 handles data at the block level, not the byte
level, so it is ideal for networks that often handle very large files, such as graphic images.
RAID 3 breaks up data into smaller blocks, calculates parity by performing an exclusive-or on the
blocks, and then writes the blocks to all but one drive in the array. The parity data created during
the exclusive-or is then written to the last drive in the array. The size of each block is determined
by the stripe size parameter, which is set during the creation of the RAID set.
If a single drive fails, a RAID 3 array continues to operate in degraded mode. If the failed drive is
a data drive, writes will continue as normal, except no data is written to the failed drive. Reads
reconstruct the data on the failed drive by performing an exclusive-or operation on the remaining
data in the stripe and the parity for that stripe. If the failed drive is a parity drive, writes will occur
as normal, except no parity is written. Reads retrieve data from the disks.
Uses Best suited for applications such as graphics, imaging,
video, or any application that calls for reading and writing
huge, sequential blocks of data.
Strong Points Provides data redundancy and high data transfer rates.
Weak Points The dedicated parity disk is a bottleneck with random I/O.
Drives Three to 32
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
20
RAID 3, Continued
RAID 5 vs RAID 3 You may find that RAID 5 is preferable to RAID 3 even for applications characterized by
sequential reads and writes, because MegaRAID has very robust caching algorithms and hardware
based exclusive-or assist.
The benefits of RAID 3 disappear if there are many small I/O operations scattered randomly and
widely across the disks in the logical drive. The RAID 3 fixed parity disk becomes a bottleneck in
such applications. For example: The host attempts to make two small writes and the writes are
widely scattered, involving two different stripes and different disk drives. Ideally both writes
should take place at the same time. But this is not possible in RAID 3, since the writes must take
turns accessing the fixed parity drive. For this reason, RAID 5 is the clear choice in this scenario.
Chapter 3 RAID Levels 21
RAID 5
RAID 5 includes disk striping at the byte level and parity. In RAID 5, the parity information is
written to several drives. RAID 5 is best suited for networks that perform a lot of small I/O
transactions simultaneously.
RAID 5 addresses the bottleneck issue for random I/O operations. Since each drive contains both
data and parity numerous writes can take place concurrently. In addition, robust caching algorithms
and hardware based exclusive-or assist make RAID 5 performance exceptional in many different
environments.
Uses RAID 5 provides high data throughput, especially for large
files. Use RAID 5 for transaction processing applications
because each drive can read and write independently. If a
drive fails, MegaRAID uses distributed parity to recreate all
missing information. Use also for office automation and
online customer service that requires fault tolerance. Use for
any application that has high read request rates but low
write request rates.
Strong Points Provides data redundancy and good performance in most
environments
Weak Points Disk drive performance will be reduced if a drive is being
rebuilt. Environments with few processes do not perform as
well because the RAID overhead is not offset by the
performance gains in handling simultaneous processes.
Drives Three to 32
MegaRAID Enterprise 1600 Hardware Guide
22
RAID 10
RAID 10 is a combination of RAID 0 and RAID 1. RAID 10 has mirrored drives. RAID 10 breaks
up data into smaller blocks, and then stripes the blocks of data to each RAID 1 raid set. Each
RAID 1 raid set then duplicates its data to its other drive. The size of each block is determined by
the stripe size parameter, which is set during the creation of the RAID set. RAID 10 can sustain
one to four drive failures while maintaining data integrity if each failed disk is in a different RAID
1 array.
Uses RAID 10 works best for data storage that must have 100%
redundancy of mirrored arrays and that also needs the
enhanced I/O performance of RAID 0 (striped arrays).
RAID 10 works well for medium-sized databases or any
environment that requires a higher degree of fault tolerance
and moderate to medium capacity.
Strong Points RAID 10 provides both high data transfer rates and
complete data redundancy.
Weak Points RAID 10 requires twice as many drives as all other RAID
levels except RAID 1.
Drives Four to 32 (must be a multiple of two)
Chapter 3 RAID Levels 23
RAID 30
RAID 30 is a combination of RAID 0 and RAID 3. RAID 30 provides high data transfer speeds
and high data reliability. RAID 30 is best implemented on two RAID 3 disk arrays with data
striped across both disk arrays. RAID 30 breaks up data into smaller blocks, and then stripes the
blocks of data to each RAID 3 raid set. RAID 3 breaks up data into smaller blocks, calculates
parity by performing an exclusive-or on the blocks, and then writes the blocks to all but one drive
in the array. The parity data created during the exclusive-or is then written to the last drive in each
RAID 3 array. The size of each block is determined by the stripe size parameter, which is set
during the creation of the RAID set.
RAID 30 can sustain one drive failure per RAID 3 array and still maintain data integrity. For
example, the RAID 30 configuration in the graphic below has two RAID 3 arrays. It can survive
two drive failures, as long as the failed drives are in different RAID 3 arrays.
Uses Use RAID 30 for sequentially written and read data, pre-
press and video on demand that requires a higher degree of
fault tolerance and medium to large capacity.
Strong Points Provides data reliability and high data transfer rates.
Weak Points Requires 2 – 4 times as many parity drives as RAID 3.
Drives Six to 32
MegaRAID Enterprise 1600 Hardware Guide
24
RAID 50
RAID 50 provides the features of both RAID 0 and RAID 5. RAID 50 includes both parity and
disk striping across multiple drives. RAID 50 is best implemented on two RAID 5 disk arrays with
data striped across both disk arrays. RAID 50 breaks up data into smaller blocks, and then stripes
the blocks of data to each RAID 5 raid set. RAID 5 breaks up data into smaller blocks, calculates
parity by performing an exclusive-or on the blocks, and then writes the blocks of data and parity to
each drive in the array. The size of each block is determined by the stripe size parameter, which is
set during the creation of the RAID set.
RAID 50 can sustain one drive failure per RAID 5 array and still maintain data integrity. For
example, the RAID 50 configuration in the graphic below has two RAID 5 arrays. It can survive
two drive failures, as long as the failed drives are in different RAID 5 arrays.
Uses RAID 50 works best when used with data that requires high
reliability, high request rates, and high data transfer and
medium to large capacity.
Strong Points RAID 50 provides high data throughput, data redundancy,
and very good performance.
Weak Points Requires 2 to 4 times as many parity drives as RAID 5.
Drives Six to 32
Chapter 4 Features 25
4 Features
MegaRAID Enterprise 1600 64-Bit LVD has four SCSI channels that support 160M and Wide
SCSI, with data transfer rates of up to 160 MB/s per SCSI channel. Each SCSI channel supports up
to 15 Wide devices and up to seven non-Wide devices.
Features MegaRAID features include:
• remote configuration and array management through MegaRAID WebBIOS
• high performance I/O migration path while preserving existing PCI-SCSI software
• SCSI data transfers up to 160 MB/s
• synchronous operation on a wide LVD SCSI bus
• up to 15 LVD SCSI devices on the wide bus
• up to 128 MB of 3.3V SDRAM cache memory in one single-sided or double-sided DIMM socket
(Cache memory is used for read and write-back caching and for RAID 3 and RAID 5 parity generation.)
• NVRAM storage for RAID configuration data
• audible alarm
• DMA chaining support
• separate DRAM bus
• support for differential or single-ended SCSI with active termination
• up to 12 MegaRAID Enterprise 1600 adapter cards per system
• support for up to 15 SCSI devices per channel
• support for RAID levels 0, 1, 3, 5, 10, 30, and 50
• span depth of eight for RAID 1, 3 or 5 arrays
• support for scatter/gather and tagged command queuing
• ability to multithread up to 256 commands simultaneously
• support for multiple rebuilds and consistency checks with transparent user-definable priority setting
• support for variable stripe sizes for all logical drives
• automatically detection of failed drives
• automatic and transparent rebuild of hot spare drives
• hot swap of new drives without taking the system down
• optional battery backup for up to 72 hours of data retention
• server clustering support
• optional firmware provides multi-initiator support
• server failover
• software drivers for major operating systems
SMART Technology
The MegaRAID Self-Monitoring Analysis and Reporting Technology (SMART) detects up to 70%
of all predictable drive failures. SMART monitors the internal performance of all motors, heads,
and drive electronics. You can recover from drive failures through RAID remapping and online
physical drive migration.
MegaRAID Enterprise 1600 Hardware Guide
26
Configuration on Disk
Configuration on Disk (drive roaming) saves configuration information both in NVRAM on
MegaRAID and on the disk drives connected to MegaRAID. If MegaRAID is replaced, the new
MegaRAID controller can detect the actual RAID configuration, maintaining the integrity of the
data on each drive, even if the drives have changed channel and/or target ID.
Hardware Requirements
MegaRAID can be installed in an IBM AT®-compatible or EISA computer with a motherboard
that has PCI expansion slots. The computer must support PCI version 2.1 or later. The computer
should have an Intel Pentium or more powerful CPU, a floppy drive, a color monitor and VGA
adapter card, a keyboard, and mouse.
Configuration Features
Specification Feature
RAID Levels 0, 1, 3, 5, 10, 30, and 50
SCSI Channels 4
Maximum number of drives per channel 15
Array interface to host 64-bit PCI
PCI bus master Supports write invalidate
Drive interface Wide 160M
Upgradable cache memory sizes 16 MB, 32 MB, 64 MB, or 128
MB,
Cache Function Write-through, write-back, ARA,
NRA, RA
Multiple logical drives/arrays per controller Up to 40 logical drives per controller
Maximum number of MegaRAID
controllers per system
12
Online capacity expansion Yes
Dedicated and pool hot spare Yes
Flashable firmware Yes
Hot swap devices supported Yes
Non-disk devices supported Yes
Mixed capacity hard disk drives Yes
Number of 16-bit internal SCSI connectors 2
Number of external SCSI connectors 4
Support for hard disk drives with capacities
of more than 8 GB
Yes
Clustering support (Failover control) Yes
Online RAID level migration Yes
RAID remapping Yes
No reboot necessary after expansion Yes
More than 200 Qtags per physical drive Yes
Hardware clustering support on the board Yes
User-specified rebuild rate Yes
Chapter 4 Features 27
Hardware Architecture Features
Specification Feature
Processor Intel i960RN
SCSI Controller One Q-Logic 12160 Dual SCSI controllers
memory type One 64-bit 168-pin SDRAM DIMM socket provides
write-through or write-back caching on a logical
drive basis. It also provides adaptive readahead.
Size of Flash ROM 1 MB
Amount of NVRAM 32 KB
Hardware XOR assistance Yes
Direct I/O Yes
Removable battery-backed
cache memory module
Yes
SCSI bus termination Active, LVD and SE
Double-sided DIMMs Yes
Direct I/O bandwidth 266 MB/s
Array Performance Features
The MegaRAID array performance features include:
Specification Feature
Host data transfer rate 266 MB/s
Drive data transfer rate 160 MB/s
Maximum Scatter/Gathers 26 elements
Maximum size of I/O requests 6.4 MB in 64 KB stripes
Maximum Queue Tags per drive 211
Stripe Sizes 2 KB, 4 KB, 8 KB, 16 KB, 32 KB, 64
KB, or 128 KB
Maximum number of concurrent
commands
255
Support for multiple initiators Yes
MegaRAID Enterprise 1600 Hardware Guide
28
RAID Management Features
The MegaRAID RAID management features include:
Specification Feature
Support for SNMP Yes
Performance Monitor provided Yes
Remote control and monitoring Yes
Event broadcast and event alert Yes
Hardware connector RS232C
Drive roaming Yes
Support for concurrent multiple stripe
sizes
Yes
Windows NT and NetWare server
support via GUI client utility
Yes
SCO Unix, OS/2, and UnixWare
server support via GUI client utility
Yes
DMI support Yes
Management through an industry-
standard browser
Yes
Fault Tolerance Features
The MegaRAID fault tolerance features include:
Specification Feature
Support for SMART Yes
optional battery backup for cache memory Standard. Provided on the
MegaRAID Controller.
Up to 72 hours data retention
Enclosure management SAF-TE compliant
Drive failure detection Automatic
Drive rebuild using hot spares Automatic and transparent
Parity Generation and checking Software and hardware
Software Utilities
The MegaRAID software utility features include:
Specification Feature
FlexRAID reconfiguration on the fly Yes
FlexRAID RAID level migration on the fly Yes
FlexRAID online capacity expansion Yes
Remote configuration and management over the Internet Yes
Graphical user interface Yes
Diagnostic utility Yes
Management utility Yes
Bootup configuration via MegaRAID Manager Yes
Online Read, Write, and cache policy switching Yes
Internet and intranet support through TCP/IP Yes
Chapter 4 Features 29
Operating System Software Drivers
Operating System Drivers MegaRAID includes a DOS software configuration utility and drivers for all major
operating systems. See the MegaRAID Operating System Drivers Guide for additional information.
The DOS drivers for MegaRAID are contained in the firmware on MegaRAID except the DOS
ASPI and CD-ROM drivers. Call LSI Logic Technical Support at 678-728-1250 or access the web
site at www.lsil.com for information about drivers for other operating systems.
MegaRAID Specifications
Parameter Specification
Card Size 12.3" x 4.2" (half length PCI)
Processor Intel i960RN @ 100 MHz
Bus Type PCI 2.2
Bus Data Transfer Rate Up to 266 MB/s
BIOS MegaRAID BIOS
Cache Configuration 16, 32, 64, or 128 MB through a single bank using
66 MHz, 3.3V unbuffered ECC SDRAM in a
single-sided or double-sided 168-pin DIMM.
Firmware 1 MB × 8 flash ROM
Nonvolatile RAM 32 KB × 8 for storing RAID configuration
Operating Voltage 5.00 V ± 0.25 V and 3.30V +/- 0.3V
SCSI Controller Two SCSI controllers for 160M and Wide support
SCSI Data Transfer
Rate
Up to 160 MB/s
SCSI Bus Low-voltage differential or SE
SCSI Termination Active
Termination Disable Automatic through cable detection
Devices per SCSI
Channel
Up to 15 wide or seven non-wide SCSI devices. Up
to 6 non-disk SCSI drives per MegaRAID
controller.
SCSI Device Types
Supported
Synchronous or Asynchronous. Disk and non-disk.
RAID Levels Supported 0, 1, 3, 5,10, 30, and 50
SCSI Connectors Two 68-pin internal high-density connectors for 16-
bit SCSI devices.
Four ultra-high density 68-pin external connectors
SCSI cables Up to 25 meters if using low voltage differential
Serial Port 9-pin RS232C-compatible berg
MegaRAID Enterprise 1600 Hardware Guide
30
Components
CPU The MegaRAID controller uses the 64-bit Intel i960RN Intelligent I/O processor with an
embedded 32-bit 80960 Jx RISC processor that runs at 100 MHz. This processor directs all
functions of the controller including command processing, PCI and SCSI bus transfers, RAID
processing, drive rebuilding, cache management, and error recovery.
Cache Memory Cache memory resides in a single 64-bit DIMM socket that requires one X8 or X16 unbuffered
3.3V SDRAM single-sided or double-sided DIMM. Possible configurations are 16, 32, 64, or 128
MB.
MegaRAID supports write-through or write-back caching, which can be selected for each logical
drive. MegaRAID does not use read-ahead caching for the current logical drive. The default setting
for the read policy is Normal, meaning no read-ahead caching. You can disable read-ahead
caching.
Warning!
Write caching is not recommended for the physical drives. When write cache is enabled,
loss of data can occur when power is interrupted.
MegaRAID BIOS The BIOS resides on a 1 MB or 2 MB × 8 flash ROM for easy upgrade. The MegaRAID BIOS
supports INT 13h calls to boot DOS without special software or device drivers. The MegaRAID
BIOS provides an extensive setup utility that can be accessed by pressing <Ctrl> <M> at BIOS
initialization. MegaRAID Configuration Utility is described in the MegaRAID Configuration
Software Guide.
Onboard Speaker MegaRAID has an onboard tone generator for audible warnings when system errors occur.
Audible warnings can be generated through this speaker. The audible warnings are listed on page
125.

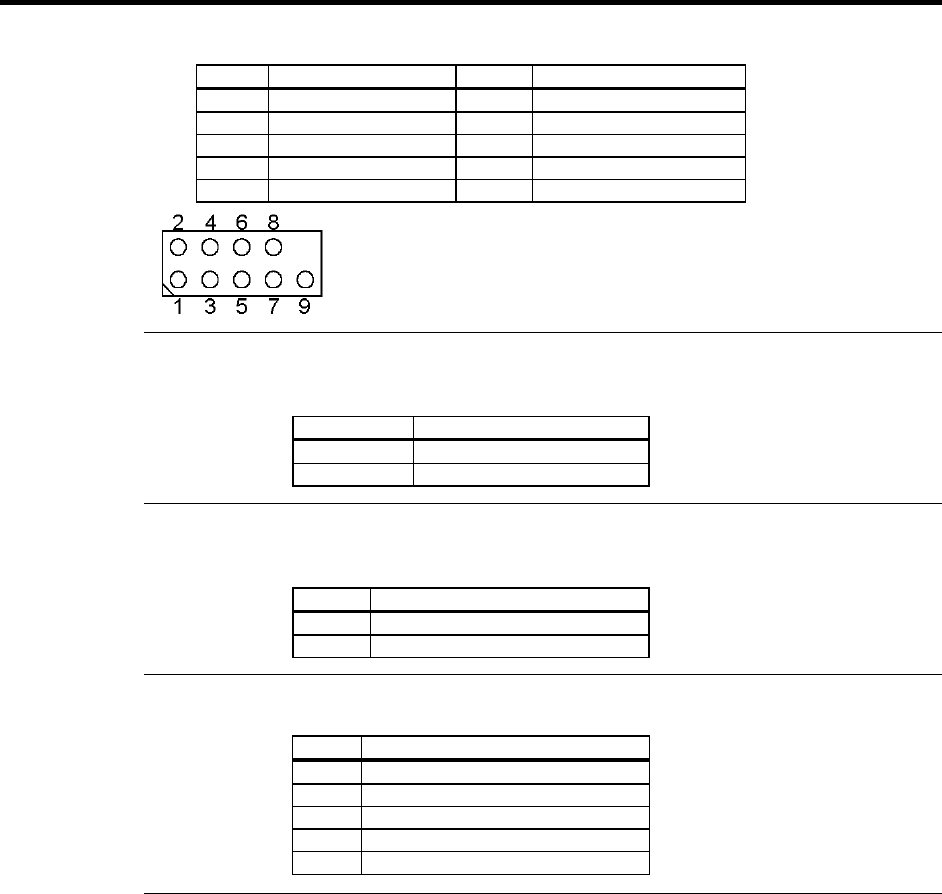

Serial Port MegaRAID includes a 9-pin RS232C-compatible serial port berg connector, which can connect to
communications devices and external storage devices.
SCSI Bus MegaRAID Enterprise 1600 has four 160M Wide SCSI channels that support low voltage
differential SCSI devices with active termination. Both synchronous and asynchronous devices are
supported. MegaRAID provides automatic termination disable via cable detection. Each channel
supports up to 15 wide or seven non-wide SCSI devices at speeds up to 160 MB/s per SCSI
channel. MegaRAID supports up to six non-disk devices per controller. The SCSI bus mode
defaults to LVD for each SCSI channel. If a single ended device is attached to a SCSI channel,
MegaRAID automatically switches to SE mode for that SCSI channel.

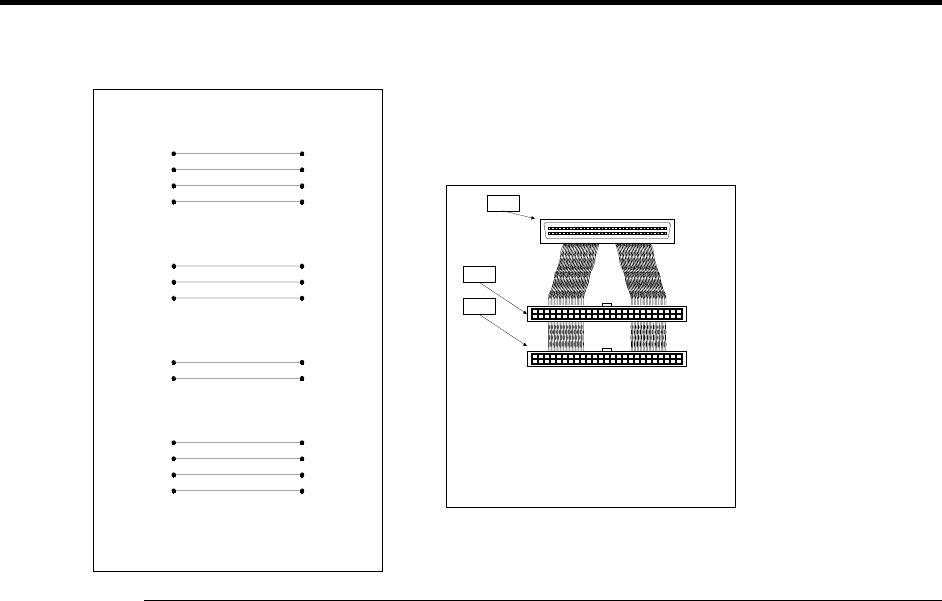

SCSI Connectors MegaRAID has two types of SCSI connectors:
• two 68-pin high density internal SCSI connectors (Channels A and B only)
• four 68-pin external ultra-high-density external SCSI connectors (Channels A, B, C, and D)
Cont’d
Chapter 4 Features 31
Components, Continued
SCSI Termination MegaRAID uses active termination on the SCSI bus conforming to Alternative 2 of the SCSI-2
specifications. Termination enable/disable is automatic through cable detection.
SCSI Firmware The firmware handles all RAID and SCSI command processing and also supports:
Feature Description
Disconnect/
Reconnect
Optimizes SCSI Bus seek.
Tagged Command
Queuing
Multiple tags to improve random access
Scatter/Gather Multiple address/count pairs
Multi-threading Up to 255 simultaneous commands with elevator sorting and
concatenation of requests per SCSI channel
Stripe Size Variable for all logical drives: 2 KB, 4 KB, 8 KB, 16 KB, 32
KB, 64 KB, or 128 KB.
Rebuild Multiple rebuilds and consistency checks with user-definable
priority.
RAID Management The RAID utilities manage and configure the RAID system and MegaRAID, create and
manage multiple disk arrays, control and monitor multiple RAID servers, provide error statistics
logging and online maintenance:
• MegaRAID Configuration Utility
• WebBIOS Configuration Utility
• Power Console
• MegaRAID Manager
MegaRAID Configuration Utility It configures and maintains RAID arrays, formats disk drives, and manages the
RAID system. It is independent of any operating system.
WebBIOS Configuration Utility It allows you to configure and manage a RAID system on a remote server over the
Internet.
Power Console Plus It configures, monitors, and manages RAID servers from any Windows NT network node or
remote server.
MegaRAID Manager A character-based utility for DOS, Linux, Solaris, SCO Unix, SCO UnixWare, OS/2, and
Novell NetWare.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
32
Components, Continued
Fault-Tolerance The MegaRAID fault-tolerance features are:
• built-in 9-pin berg connector that provides an RS-232C serial communication interface
• automatic failed drive detection
• automatic failed drive rebuild with no user intervention required
• hot swap manual replacement without bringing the system down
• SAF-TE compliant enclosure management
• cache memory
Detect Failed Drive The MegaRAID firmware automatically detects and rebuilds failed drives. This can be done
transparently with hot spares.
Hot Swap MegaRAID supports the manual replacement of a disk unit in the RAID subsystem without system
shutdown.
Compatibility MegaRAID compatibility issues include:
• server management
• SCSI device compatibility
• software compatibility
Server Management As an SNMP agent, MegaRAID supports all SNMP managers and RedAlert from Storage
Dimensions.
SCSI Device Compatibility MegaRAID supports SCSI hard disk drives, CD-ROMs, tape drives, optical drives,
DAT drives and other SCSI peripheral devices.
Software All SCSI backup and utility software should work with MegaRAID. Software that has been tested
and approved for use with MegaRAID includes Cheyenne®, CorelSCSI®, Arcserve®, and
Novaback®. This software is not provided with MegaRAID.

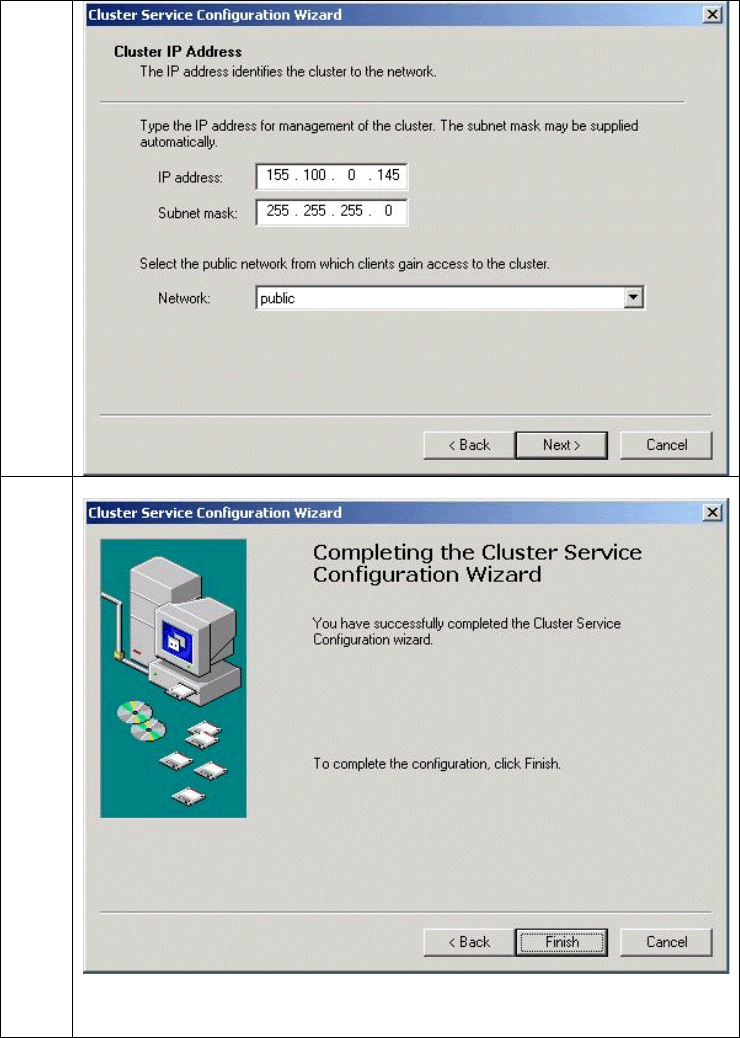

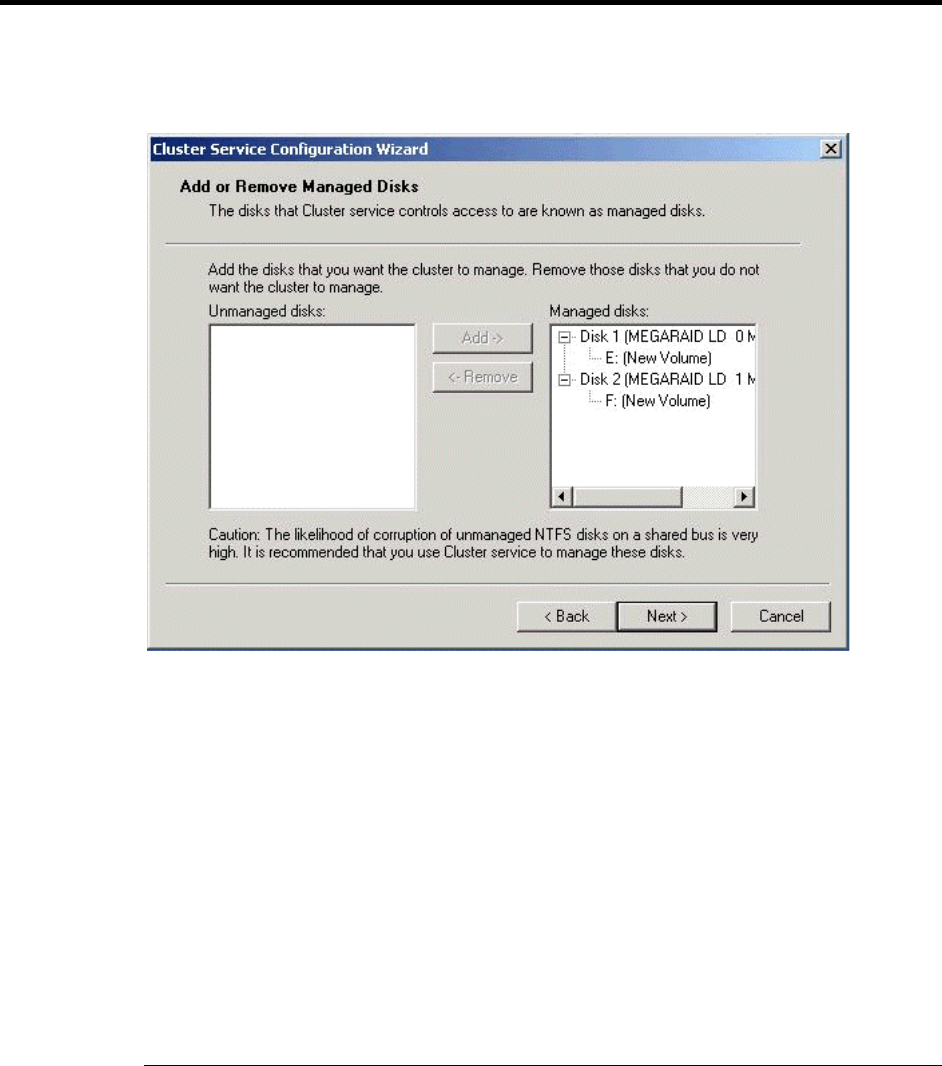

Clustering Support LSI Logic provides OEM-optional firmware with multi-initiator support. This software
provides high system availability by permitting server failover.
Summary
MegaRAID features were discussed in this chapter. In the next chapter, MegaRAID configuration
is described.
Chapter 5 Configuring MegaRAID 33
5 Configuring MegaRAID
Configuring SCSI Physical Drives
SCSI Channels Physical SCSI drives must be organized into logical drives. The arrays and logical drives that you
construct must be able to support the RAID level that you select.
Your MegaRAID adapter has four SCSI channels.
Distributing Drives Distribute the disk drives across all channels for optimal performance. It is best to stripe across
channels instead of down channels. Performance is most affected for sequential reads and writes.
MegaRAID supports SCSI CD-ROM drives, SCSI tape drives, and other SCSI devices as well as
SCSI hard disk drives. For optimal performance, all non-disk SCSI devices should be attached to
one SCSI channel.
Basic Configuration Rules You should observe the following guidelines when connecting and configuring SCSI
devices in a RAID array:
• attach non-disk SCSI devices to a single SCSI channel that does not have any disk drives
• distribute the SCSI hard disk drives equally among all available SCSI channels except any
SCSI channel that is being reserved for non-disk drives
• you can place up to 32 physical disk drives in a logical array, depending on the RAID level
• an array can contain SCSI devices that reside on an array on any channel
• include all drives that have the same capacity to the same array
• make sure any hot spare has a capacity that is at least as large as the largest drive that may be
replaced by the hot spare
• when replacing a failed drive, make sure that the replacement drive has a capacity that is at
least as large as the drive being replaced
MegaRAID Enterprise 1600 Hardware Guide
34
Current Configuration
SCSI ID Device Description Termination?
SCSI Channel A
0
1
2
3
4
5
6
8
9
10
11
12
13
14
15
SCSI Channel B
0
1
2
3
4
5
6
8
9
10
11
12
13
14
15
SCSI Channel C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SCSI Channel D
1
2
Chapter 5 Configuring MegaRAID 35
SCSI ID Device Description Termination?
3
4
5
6
7
8
9
10
11
12
13
14
15
MegaRAID Enterprise 1600 Hardware Guide
36
Logical Drive Configuration
Logical
Drive
RAID
Level
Stripe
Size
Logical
Drive Size
Cache
Policy
Read
Policy
Write
Policy
# of
Physical
Drives
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
LD8
LD9
LD10
LD11
LD12
LD13
LD14
LD15
LD16
LD17
LD18
LD19
LD20
LD21
LD22
LD23
LD24
LD25
LD26
LD27
LD28
LD29
LD30
LD31
LD32
LD33
LD34
LD35
LD36
LD37
LD38
LD39
Chapter 5 Configuring MegaRAID 37
Physical Device Layout
Channel A Channel B Channel C Channel D
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
MegaRAID Enterprise 1600 Hardware Guide
38
Channel A Channel B Channel C Channel D
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Target ID
Device Type
Logical Drive Number/
Drive Number
Manufacturer/Model
Number
Firmware level
Chapter 5 Configuring MegaRAID 39
Configuring Arrays
Connect the physical drives to MegaRAID, configure the drives, then initialize them. The number
of physical disk drives that an array can support depends on the firmware version.
For MegaRAID Enterprise 1600, an array can consist of up to 32 physical disk drives, depending
on the RAID level (see page 16 for more information.) Enterprise 1600 supports up to 40 logical
drives per controller. The number of drives in an array determines the RAID levels that can be
supported.
Arranging Arrays You must arrange the arrays to provide additional organization for the drive array. You must
arrange arrays so that you can create system drives that can function as boot devices.
You can sequentially arrange arrays with an identical number of drives so that the drives in the
group are spanned. Spanned drives can be treated as one large drive. Data can be striped across
multiple arrays as one logical drive.
You can create spanned drives by using the MegaRAID Configuration utility or the MegaRAID
Manager. See the MegaRAID Configuration Software Guide for additional information.
Creating Hot Spares Any drive that is present, formatted, and initialized but not included in a array or logical drive
is automatically designated as a hot spare.
You can also designate drives as hot spares by using the MegaRAID Configuration Utility,
MegaRAID Manager, or Power Console. See the MegaRAID Configuration Software Guide for
additional information.
Creating Logical Drives Logical drives are arrays or spanned arrays that are presented to the operating system. You
must create one or more logical drives.
The logical drive capacity can include all or any portion of a array. The logical drive capacity can
also be larger than an array by using spanning. MegaRAID Enterprise 1600 supports up to 40
logical drives.
MegaRAID Enterprise 1600 Hardware Guide
40
Configuration Strategies
The most important factors in RAID array configuration are: drive capacity, drive availability
(fault tolerance), and drive performance. You cannot configure a logical drive that optimizes all
three factors, but it is easy to choose a logical drive configuration that maximizes one factor at the
expense of the other two factors, although needs are seldom that simple.
Maximize Capacity RAID 0 achieves maximum drive capacity, but does not provide data redundancy. Maximum
drive capacity for each RAID level is shown below. OEM level firmware that can span up to 4
logical drives is assumed.
RAID
Level
Description Drives
Required
Capacity
0 Striping
without parity
1 – 32 (Number of disks) X capacity of
smallest disk
1 Mirroring 2 (Capacity of smallest disk) X (1)
3 Striping with
fixed parity
drive
3 – 32 (Number of disks) X (capacity of
smallest disk) - (capacity of 1 disk)
5 Striping with
floating parity
drive
3 – 32 (Number of disks) X (capacity of
smallest disk) - (capacity of 1 disk)
10 Mirroring and
Striping
4 – 32 (Must
be a multiple
of 2)
(Number of disks) X (capacity of
smallest disk) / (2)
30 RAID 3 and
Striping
6 – 32 (Must
be a multiple
of arrays)
(Number of disks) X (capacity of
smallest disk) – (capacity of 1 disk X
number of Arrays)
50 RAID 5 and
Striping
6 – 32 (Must
be a multiple
of arrays)
(Number of disks) X (capacity of
smallest disk) – (capacity of 1 disk X
number of Arrays)
Cont’d
Chapter 5 Configuring MegaRAID 41
Configuration Strategies, Continued
Maximize Drive Availability You can maximize the availability of data on the physical disk drive in the logical
array by maximizing the level of fault tolerance. The levels of fault tolerance provided by the
RAID levels are:
RAID Level Fault Tolerance Protection
0 No fault tolerance.
1 Disk mirroring, which provides 100% data redundancy.
3 100% protection through a dedicated parity drive.
5 100% protection through striping and parity. The data is
striped and parity data is written across a number of physical
disk drives.
10 100% protection through data mirroring.
30 100% protection through data striping. All data is striped
across all drives in two or more arrays.
50 100% protection through data striping and parity. All data is
striped and parity data is written across all drives in two or
more arrays.
Maximizing Drive Performance You can configure an array for optimal performance. But optimal drive
configuration for one type of application will probably not be optimal for any other application. A
basic guideline of the performance characteristics for RAID drive arrays at each RAID level is:
RAID Level Performance Characteristics
0 Excellent for all types of I/O activity, but provides no data
security.
1 Provides data redundancy and good performance.
3 Provides data redundancy.
5 Provides data redundancy and good performance in most
environments.
10 Provides data redundancy and excellent performance.
30 Provides data redundancy and good performance in most
environments.
50 Provides data redundancy and very good performance.
MegaRAID Enterprise 1600 Hardware Guide
42
Assigning RAID Levels
Only one RAID level can be assigned to each logical drive. The drives required per RAID level
are:
RAID
Level
Minimum Number of
Physical Drives
Maximum Number of Physical
Drives
0 One 32
1Two Two
3 Three 32
5 Three 32
10 Four 32
30 Six 32
50 Six 32
Configuring Logical Drives
After you have installed the MegaRAID controller in the server and have attached all physical disk
drives, perform the following actions to prepare a RAID disk array:
Step Action
1 Optimize the MegaRAID controller options for your system. See Chapter 3
for additional information.
2 Press <Ctrl> <M> to run the MegaRAID Manager.
3 Perform a low-level format of the SCSI drives that will be included in the
array and the drives to be used for hot spares.
4 Define and configure one or more logical drives. Select Easy Configuration
in MegaRAID Manager or select New Configuration to customize the
RAID array.
5 Create and configure one or more system drives (logical drives). Select the
RAID level, cache policy, read policy, and write policy.
6 Save the configuration.
7 Initialize the system drives. After initialization, you can install the
operating system.
Chapter 5 Configuring MegaRAID 43
Optimizing Data Storage
Data Access Requirements Each type of data stored in the disk subsystem has a different frequency of read and
write activity. If you know the data access requirements, you can more successfully determine a
strategy for optimizing the disk subsystem capacity, availability, and performance.
Servers that support Video on Demand typically read the data often, but write data infrequently.
Both the read and write operations tend to be long. Data stored on a general-purpose file server
involves relatively short read and write operations with relatively small files.
Array Functions You must first define the major purpose of the disk array. Will this disk array increase the system
storage capacity for general-purpose file and print servers? Does this disk array support any
software system that must be available 24 hours per day? Will the information stored in this disk
array contain large audio or video files that must be available on demand? Will this disk array
contain data from an imaging system?
You must identify the purpose of the data to be stored in the disk subsystem before you can
confidently choose a RAID level and a RAID configuration.
MegaRAID Enterprise 1600 Hardware Guide
44
Planning the Array Configuration
Answer the following questions about this array:
Question Answer
Number of MegaRAID SCSI channels 4
Number of physical disk drives in the array
Purpose of this array. Rank the following factors:
Maximize drive capacity
Maximize the safety of the data (fault tolerance)
Maximize hard drive performance and throughput
How many hot spares?
Amount of cache memory installed on the MegaRAID
Are all of the disk drives and the server that MegaRAID is
installed in protected by a UPS?
Using the Array Configuration Planner The following table lists the possible RAID levels, fault tolerance, and
effective capacity for all possible drive configurations for an array consisting of one to eight
drives.
The following table does not take into account any hot spare (standby) drives. You should always
have a hot spare drive in case of drive failure.
RAID 1requires two drives. RAID 10 requires at least four drives. RAID 30 and RAID 50 require
at least six drives.
Chapter 5 Configuring MegaRAID 45
Array Configuration Planner
Number of
Drives
Possible
RAID Levels
Relative
Performance
Fault
Tolerance
Effective
Capacity
1 None Excellent No 100%
1 RAID 0 Excellent No 100%
2 None Excellent No 100%
2 RAID 0 Excellent No 100%
2 RAID 1 Good Yes 50%
3 None Excellent No 100%
3 RAID 0 Excellent No 100%
3 RAID 3 Good Yes 67%
3 RAID 5 Good Yes 67%
4 None Excellent No 100%
4 RAID 0 Excellent No 100%
4 RAID 3 Good Yes 75%
4 RAID 5 Good Yes 75%
4 RAID 10 Excellent Yes 50%
5 None Excellent No 100%
5 RAID 0 Excellent No 100%
5 RAID 3 Good Yes 80%
5 RAID 5 Good Yes 80%
6 None Excellent No 100%
6 RAID 0 Excellent No 100%
6 RAID 3 Good Yes 83%
6 RAID 5 Good Yes 83%
6 RAID 10 Excellent Yes 50%
6 RAID 30 Good Yes 67%
6 RAID 50 Good Yes 67%
7 None Excellent No 100%
7 RAID 0 Excellent No 100%
7 RAID 3 Good Yes 86%
7 RAID 5 Good Yes 86%
8 RAID 0 Excellent No 100%
8 RAID 3 Good Yes 87%
8 RAID 5 Good Yes 87%
8 RAID 10 Excellent Yes 50%
8 RAID 30 Good Yes 75%
8 RAID 50 Good Yes 75%
MegaRAID Enterprise 1600 Hardware Guide
46
Chapter 6 Hardware Installation 47
6 Hardware Installation
Requirements You must have the following items before installing the MegaRAID controller in a server:
• a MegaRAID Enterprise 1600 64-Bit 160M RAID Controller
• a host computer with an available PCI expansion slot
• the MegaRAID Enterprise 1600 Installation CD
• the necessary SCSI cables and terminators (depends on the number and type of SCSI devices
to be attached)
• an Uninterruptible Power Supply (UPS) for the entire system
• 160M SCSI hard disk drives and other SCSI devices, as desired
Important
The MegaRAID Enterprise 1600 controller must be
installed in a PCI expansion slot.
Optional Equipment You may also want to install SCSI cables that interconnect MegaRAID Enterprise 1600 to
external SCSI devices.
MegaRAID Enterprise 1600 Hardware Guide
48
Checklist
Perform the steps in the installation checklist:
Check Step Action
1 Turn all power off to the server and all hard disk drives,
enclosures, and system, components.
2 Prepare the host system. See the host system technical
documentation.
3 Determine the SCSI ID and SCSI termination
requirements.
4 Make sure the jumper settings on the MegaRAID
controller are correct. Install the cache memory.
5 Connect the battery pack harness to J23 (optional)
6 Install the MegaRAID card in the server and attach the
SCSI cables and terminators as needed. Make sure Pin 1
on the cable matches Pin 1 on the connector. Make sure
that the SCSI cables you use conform to all SCSI
specifications.
7 Perform a safety check. Make sure all cables are properly
attached. Make sure the MegaRAID card is properly
installed. Turn power on after completing the safety
check. Connect the battery pack.
8 Install and configure the MegaRAID software utilities and
drivers.
9 Format the hard disk drives as needed.
10 Configure system drives (logical drives).
11 Initialize the logical drives.
12 Install the appropriate MegaRAID drivers for your
operating system.
Chapter 6 Hardware Installation 49
Installation Steps
MegaRAID provides extensive customization options. If you need only basic MegaRAID features
and your computer does not use other adapter cards with resource settings that may conflict with
MegaRAID settings, even custom installation can be quick and easy.
Step Action Additional Information
1 Unpack the MegaRAID controller and
inspect for damage. Make sure all items are
in the package.
If damaged, call LSI Logic
Technical Support at 678-
728-1250.
2 Turn the computer off and remove the
cover.
3 Make sure the motherboard jumper settings
are correct.
4 Install cache memory on the MegaRAID
card.
16 MB minimum cache
memory is required.
5 Check the jumper settings on the
MegaRAID controller.
See page 53 for the
MegaRAID jumper
settings.
6 Set SCSI termination.
7 Set SCSI terminator power (TermPWR).
8 Connect the battery harness optional
9 Install the MegaRAID card.
10 Connect the SCSI cables to SCSI devices.
11 Set the target IDs for the SCSI devices.
12 Replace the computer cover and turn the
power on.
Be sure the SCSI devices
are powered up before or at
the same time as the host
computer.
13 Run MegaRAID Configuration Utility. Optional.
14 Install software drivers for the desired
operating systems.
Each step is described in detail below.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
50
Step 1 Unpack
Unpack and install the hardware in a static-free environment. The MegaRAID controller card is
packed inside an anti-static bag between two sponge sheets. Remove the controller card and
inspect it for damage. If the card appears damaged, or if any of items listed below are missing,
contact LSI Logic Technical Support at 678-728-1250. The MegaRAID Controller is also shipped
with the following items that are on CD:
• the MegaRAID Configuration Software Guide
• the MegaRAID Operating System Drivers Guide
• the MegaRAID Enterprise 1600 Hardware Guide
• the software license agreement
• the MegaRAID Configuration Utilities for DOS
• the warranty registration card
Step 2 Power Down
Turn off the computer and remove the cover. Make sure the computer is turned off and
disconnected from any networks before installing the controller card.
Step 3 Configure Motherboard
Make sure the motherboard is configured correctly for MegaRAID. MegaRAID is essentially a
SCSI Controller. Each MegaRAID card you install will require an available PCI IRQ; make sure
an IRQ is available for each controller you install.
Chapter 6 Hardware Installation 51
Step 4 Install Cache Memory
Important
A minimum of 16 MB of cache memory is required. The cache memory
must be installed before MegaRAID is operational.

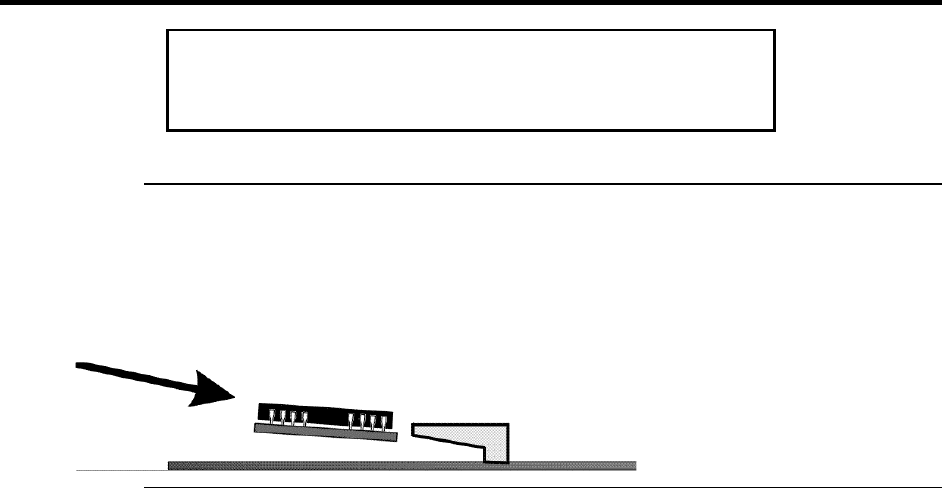

Memory Specifications Insert one in the cache memory socket.
DIMM Specifications Install cache memory DIMMs on the MegaRAID controller card in the cache memory socket.
Use a 64-bit 3.3V single-sided or double-sided 168-pin unbuffered DIMM. Lay the controller card
component-side up on a clean static-free surface. The memory socket is mounted flush with the
MegaRAID card, so the DIMM is parallel to the MegaRAID card when properly installed. The
DIMM clicks into place, indicating proper seating in the socket. The MegaRAID card is shown
lying on a flat surface below.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
52
Step 4 Install Cache Memory, Continued
Installing or Changing Memory
Important
The battery pack harness or cable must be disconnected from J23 on the
MegaRAID Enterprise 1600 160M card before you add or remove
memory.
Step Action
1 Bring down the operating system properly. Make sure that cache memory
has been flushed. You must perform a system reset if operating under DOS.
When the computer reboots, the MegaRAID controller will flush cache
memory.
2 Turn the computer power off. Disconnect the power cables from the
computer.
3 Remove the computer cover.
4 Disconnect the battery pack cable from the MegaRAID controller.
5 Remove the MegaRAID controller.
6 You can now add or remove DRAM modules from the MegaRAID
controller. Follow the instructions on page 51.
7 Reattach the battery pack harness to J23 on the MegaRAID controller.
8 Reinstall the MegaRAID controller in the computer. Follow the instructions
in this chapter.
9 Replace the computer cover and turn the computer power on.
Recommended Memory Vendors Call LSI Logic Technical Support at 678-728-1250 for a current list of
recommended memory vendors.
Chapter 6 Hardware Installation 53
Step 5 Set Jumpers
Make sure the jumper settings on the MegaRAID card are correct. The jumpers and connectors
are:
Connector Description Type
J1 Channel B Internal Wide SCSI 68-pin connector
J2 Channel A Termination Enable 3-pin header
J3 Channel B Termination Enable 3-pin header
J4 Channel A Internal Wide SCSI 68-pin connector
J5 Channel C Termination Enable 3-pin header
J6 SCSI activity LED 4-pin header
J7 Channel D Termination Enable 3-pin header
J9 Channel A TERMPWR Enable 2-pin header
J10 Channel B TERMPWR Enable 2-pin header
J11 Channel C TERMPWR Enable 2-pin header
J12 Channel D TERMPWR Enable 2-pin header
J13 Channel A/B External Wide SCSI Dual 68-pin connector
J14 Serial port connector 9-pin connector
J18 Serial EEPROM Port 2-pin header
J19 Onboard BIOS Enable 2-pin header
J22 Channel C/D External Wide SCSI Dual 68-pin connector
J23 External battery connector 5-pin connector
MegaRAID Enterprise 1600 64-Bit 160M Card Layout
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
54
Step 5 Set Jumpers, Continued
J2, J3, J5, and J7 Termination Enable J2, J3, J5, and J7 are 3-pin bergs that set the SCSI termination for each
SCSI channel:
Jumper SCSI
Channel
SCSI Termination
Controlled by
Software
SCSI Termination
Always Disabled
SCSI
Termination
Always Enabled
J2 A Short Pins 1-2 Short Pins 2-3 OPEN
J3 B Short Pins 1-2 Short Pins 2-3 OPEN
J5 C Short Pins 1-2 Short Pins 2-3 OPEN
J7 D Short Pins 1-2 Short Pins 2-3 OPEN
J9, J10, J11, and J12 TERMPWR Enable J9, J10, J11, and J12 are 2-pin bergs that enable TERMPWR to the
SCSI bus for each SCSI channel:
Jumper Term.
Power
Channel
Settings
J9 A Short Pins 1-2 to have the PCI bus on the host computer
provide TermPWR. This is the factory setting. Leave
Open to let the SCSI bus provide TermPWR.
J10 B Short Pins 1-2 to have the PCI bus on the host computer
provide TermPWR. This is the factory setting. Leave
Open to let the SCSI bus provide TermPWR.
J11 C Short Pins 1-2 to have the PCI bus on the host computer
provide TermPWR. This is the factory setting. Leave
Open to let the SCSI bus provide TermPWR.
J12 D Short Pins 1-2 to have the PCI bus on the host computer
provide TermPWR. This is the factory setting. Leave
Open to let the SCSI bus provide TermPWR.
Cont’d
Chapter 6 Hardware Installation 55
Step 5 Set Jumpers, Continued
J14 Serial Port J14 attaches to a serial cable. The pinout is:
Pin Signal Description Pin Signal Description
1 Carrier Detect 2 Data Set Ready
3 Receive Data 4 Request to Send
5 Transmit Data 6 Clear to Send
7 Data Terminal Ready 8 Ring Indicator
9 Ground 10 CUT
J19 Onboard BIOS Enable J19 is a 2-pin berg which enables or disables MegaRAID onboard BIOS. The onboard
BIOS should be enabled (J19 unjumpered) for normal board position.
J19 Setting Onboard BIOS Status
Unjumpered Enabled
Jumpered Disabled
J17 Dirty Cache LED J17 is a two-pin connector for an LED mounted on the computer enclosure. The LED
indicates when the data in the cache has yet to be written to the storage devices.
Pin Description
1High
2 Dirty Cache Signal
J23 External Battery J23 is a 5-pin berg that attaches to the optional battery pack. The J23 pinout is:
Pin Signal Description
1 +BATT Terminal (red wire)
2 Thermistor (white wire)
3 -BATT Terminal (black wire)
4 BATDQ (no wire)
5 Ground (no wire)
Cont'd
MegaRAID Enterprise 1600 Hardware Guide
56
Step 6 Set Termination
Each MegaRAID SCSI channel can be individually configured for termination enable mode by
setting the J2, J3, J5, and J7 jumpers (see the previous page).
You must terminate the SCSI bus properly. Set termination at both ends of the SCSI cable. The
SCSI bus is an electrical transmission line and must be terminated properly to minimize reflections
and losses. Termination should be set at each end of the SCSI cable(s), as shown below.

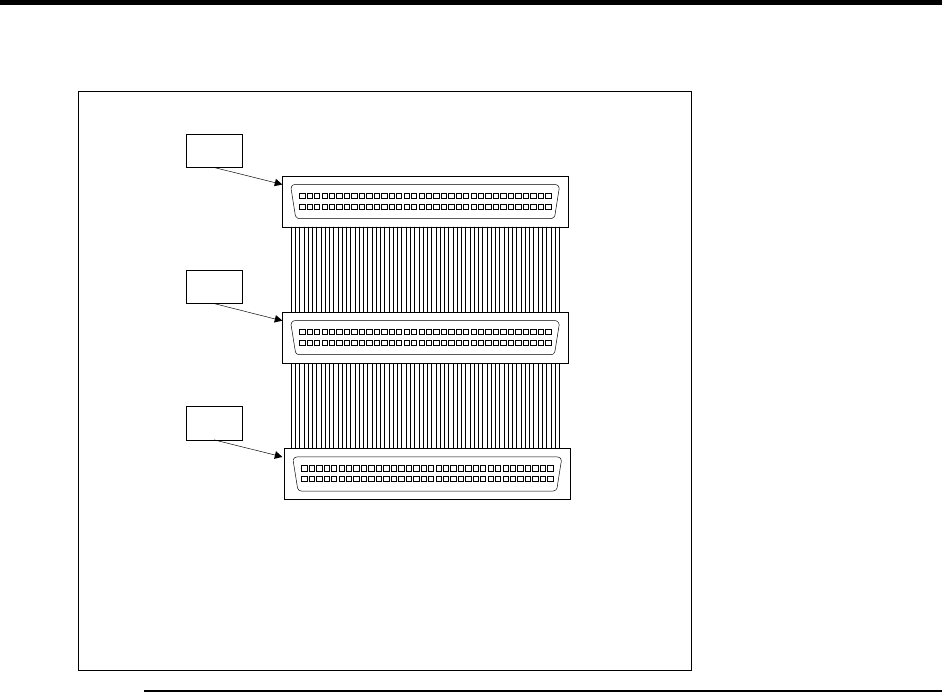

For a disk array, set SCSI bus termination so that removing or adding a SCSI device does not
disturb termination. An easy way to do this is to connect the MegaRAID card to one end of the
SCSI cable for each channel and to connect an external terminator module at the other end of each
cable. The connectors between the two ends can connect SCSI devices. Disable termination on the
SCSI devices. See the manual for each SCSI device to disable termination.
Chapter 6 Hardware Installation 57
SCSI Termination
The SCSI bus on a SCSI channel is an electrical transmission line. It must be terminated properly
to minimize reflections and losses. You complete the SCSI bus by setting termination at both ends.
MegaRAID automatically provides SCSI termination at one end of the SCSI bus for each channel.
Terminate the other end of the bus by attaching an external SCSI terminator module to the end of
the cable for each channel or by attaching a SCSI device that internally terminates the SCSI bus at
the end of each SCSI channel.
MegaRAID should always terminate each of the four SCSI buses if devices are attached to either
the internal or external SCSI connectors, but not to both.
Use standard external SCSI terminators on SCSI channels operating at 10 MB/s or higher
synchronous data transfer.
Terminating Internal SCSI Disk Arrays Set the termination so that SCSI termination and termination power are
intact when any disk drive is removed from a SCSI channel, as shown below. MegaRAID
termination should always be enabled or controlled by software. Make sure J2, J3, J5, and J7 are
either always open (termination always enabled), or Pins 1-2 are shorted (termination controlled by
software).
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
58
SCSI Termination, Continued
Terminating External Disk Arrays In most array enclosures, the end of the SCSI cable has an independent SCSI
terminator module that is not part of a SCSI drive. In this way, SCSI termination is not disturbed
when a drive is removed. MegaRAID termination should always be enabled or controlled by
software. Make sure J2, J3, J5, and J7 are either always open (termination always enabled), or Pins
1-2 are shorted (termination controlled by software).
Note: Channels C and D have only external connectors, so termination should always be either
anabled or under software control on these two channels.
Chapter 6 Hardware Installation 59
SCSI Termination, Continued
Terminating Internal and External Disk Arrays You can use both internal and external drives with MegaRAID.
You still must make sure that the proper SCSI termination and termination power is preserved.
MegaRAID termination should always be disabled or controlled by software. Make sure J2, J3, J5
and J7 have pins 2-3 shorted, or pins 1-2 are shorted (termination controlled by software).
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
60
SCSI Termination, Continued
Connecting Non-Disk SCSI Devices SCSI Tape drives, scanners, CD-ROM drives, and other non-disk drive
devices must each have a unique SCSI ID regardless of the SCSI channel they are attached to. The
general rule for Unix systems is:
• tape drive set to SCSI ID 2
• CD-ROM drive set to SCSI ID 5
• all non-disk SCSI devices attached to SCSI channel A
Make sure that no hard disk drives are attached to the same SCSI channel as the non-disk SCSI
devices. Drive performance will be significantly degraded if SCSI hard disk drives are attached to
this channel.
Chapter 6 Hardware Installation 61
Step 7 Set SCSI Terminator Power
J9, J10, J11, J12 These jumpers control TermPWR for the MegaRAID SCSI channels. See the documentation for
each SCSI device for information about enabling TermPWR. The factory settings supply
TermPWR from the PCI bus.
Important
The SCSI channels need Termination power to operate. If a channel is not
being used and no auxiliary power source is connected, change the jumper
setting for that channel to supply TermPWR from the PCI bus.
J9 SCSI Channel A – Short Pins 1-2 for PCI power.
J10 SCSI Channel B – Short Pins 1-2 for PCI power.
J11 SCSI Channel C – Short Pins 1-2 for PCI power.
J12 SCSI Channel D – Short Pins 1-2 for PCI power.
MegaRAID Enterprise 1600 Hardware Guide
62
Step 8 Connect Battery Pack (Optional)
There are two ways to install a battery pack onto the Series 471 MegaRAID Enterprise 1600 160M
RAID controller. The first way is to use a DIMM with a battery backup attached to it.
The battery pack is shown in the bottom view of the DIMM socket below. Pin 1 on the cable from
the battery pack is usually denoted by a red wire. The caution information appears on the battery
module as shown below.
J23Battery Connector Pinout
Pin Description
1 VBAT1+ (red wire)
2 TSENSE (white wire)
3 VBAT- (black wire)
4BATDQ
5 Ground
Cont’d
Chapter 6 Hardware Installation 63
Step 8 Connect Battery Pack, Continued
Board with battery The second way is to install a battery pack on the card itself. You can screw the battery to the
board through the backside of the board, using the four holes in the board. Connect the three wires
from the battery pack to J23, the external battery connector. A drawing of part of the MegaRAID
Enterprise 1600 160M RAID Controller with battery backup is shown below.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
64
Step 8 Connect Battery Pack, Continued
Configure Battery Backup After installing the MegaRAID controller and booting, press <Ctrl> <M>. Choose the
Objects menu. Select Battery Backup. The following menu displays:
Menu Item Explanation
Battery Pack PRESENT will appear if the battery pack is properly installed;
ABSENT if it is not.
Temperature GOOD appears if the temperature is within the normal range. HIGH
appears if the module is too hot.
Voltage GOOD appears if the voltage is within the normal range. BAD
appears if the voltage is out of range.
Fast
Charging
COMPLETED appears if the fast charge cycle is done. CHARGING
appears if the battery pack is charging.
No. of
Cycles
This must be configured. When first installing a battery pack, set the
Charge Cycle to 0. The screen below appears when you select No. of
Cycles. Choose YES to reset the number of cycles to zero.
After 1100 charge cycles, the life of the battery pack is assumed to
be over and you must replace the battery pack.
Chapter 6 Hardware Installation 65
Step 8 Connect Battery Pack, Continued
Changing the Battery Pack The MegaRAID configuration software warns when the battery pack must be replaced.
A new battery pack should be installed every 1 to 5 years.
Step Action
1 Bring down the operating system properly. Make sure that cache memory
has been flushed. You must perform a system reset if operating under
DOS. When the computer reboots, the MegaRAID Enterprise 1600 160M
controller flushes cache memory. Turn the computer power off. Remove
the computer cover. Remove the MegaRAID controller.
2 Disconnect the battery pack cable or harness from J23 on the MegaRAID
Enterprise 1600 160M card.
3 Install a new battery pack and connect the new battery pack to J23.
4 Disable write-back caching using MegaRAID Manager or Power Console
Plus.
Disposing of a Battery Pack
Warning
Do not dispose of the MegaRAID battery pack by fire. Do not mutilate
the battery pack. Do not damage it in any way. Toxic chemicals can be
released if it is damaged. Do not short-circuit the battery pack.
The material in the battery pack contains heavy metals that can contaminate the environment.
Federal, state, and local laws prohibit disposal of some rechargeable batteries in public landfills.
These batteries must be sent to a specific location for proper disposal. Call the Rechargeable
Battery Recycling Corporation at 352-376-6693 (FAX: 352-376-6658) for an authorized battery
disposal site near you. For a list of battery disposal sites, write to:
Rechargeable Battery Recycling Corporation
2293 NW 41st Street
Gainesville FL 32606
Voice: 352-376-6693
FAX: 352-376-6658
Battery Disposal Laws
Important
Most used Nickel-Metal Hydride batteries are not classified as
hazardous waste under the federal RCRA (Resource Conservation and
Recovery Act). Although Minnesota law requires that Nickel-Metal
Hydride batteries be labeled “easily removable” from consumer
products, and that Nickel-Metal Hydride batteries must be collected by
manufacturers, the Minnesota Pollution Control Agency (MPCA) has
granted a temporary exemption from these requirements.
Other Laws in Other Areas LSI Logic reminds you that you must comply with all applicable battery disposal and
hazardous material handling laws and regulations in the country or other jurisdiction where you are
using an optional battery pack on the MegaRAID Enterprise 1600 160M controller.
MegaRAID Enterprise 1600 Hardware Guide
66
Step 9 Install MegaRAID Card
The MegaRAID card can plug into a 32-bit or 64-bit PCI slot that receives 5 V, and, optionally,
3.3 V through the motherboard. Choose a PCI slot and align the MegaRAID controller card bus
connector to the slot. Press down gently but firmly to make sure that the card is properly seated in
the slot. The bottom edge of the controller card should be flush with the slot.
Insert the MegaRAID card in a PCI slot as shown below:
Screw the bracket to the computer frame.
Chapter 6 Hardware Installation 67
Step 10 Connect SCSI Cables
SCSI Connectors Connect the SCSI cables to the SCSI devices. MegaRAID provides two types of SCSI connectors:
• external
• internal
External Connectors J13 provides two ultra high-density external connectors for SCSI channels A and B.
J22 provides two ultra high-density connectors for SCSI channels C and D.
Internal Connectors Internal connectors are provided for channels A and B only.
J4 is the internal connector for channel A.
J1 is the internal connector for channel B.
See the board layout for the location of J4 and J1.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
68
Step 10 Connect SCSI Cables, Continued
J13 A and B External Connector J13 is a dual 68-pin ultra-high density external SCSI connectors. It is on the
MegaRAID mounting bracket.
Connect SCSI Devices When connecting SCSI devices:
Action Description
1 Disable termination on any SCSI device that does not sit at the end of
the SCSI bus.
2 Configure all SCSI devices to supply TermPWR.
3 Set proper target IDs (TIDs) for all SCSI devices.
4 Distribute SCSI devices evenly across the SCSI channels for optimum
performance.
5 The cable length should not exceed three meters for Fast SCSI (10
MB/s) devices or 1.5 meters for Ultra SCSI devices.
6 The cable length should not exceed six meters for non-Fast SCSI
devices.
7 Try to connect all non-disk SCSI devices to a SCSI channel that has no
SCSI disk drives connected to it.
Cable Suggestions System throughput problems can occur if SCSI cable use is not maximized. You should:
• use the shortest SCSI cables (in SE mode, no more than 3 meters for Fast SCSI, no more than
1.5 meters for an 8-drive Ultra SCSI system and no more than 3 meters for a 6-drive Ultra
SCSI system)
• LVD mode cable lengths should be no more than 25 meters with two devices and no more
than 12 meters with eight devices
• use active termination
• avoid clustering the stubs
• cable stub length should be no more than 0.1 meter (4 inches)
• route SCSI cables carefully
• use high impedance cables
• do not mix cable types (choose either flat or rounded and shielded or non-shielded)
• ribbon cables have fairly good cross-talk rejection characteristics
Chapter 6 Hardware Installation 69
Step 11 Set Target IDs
Set target identifiers (TIDs) on the SCSI devices. Each device in a specific SCSI channel must
have a unique TID in that channel. Non-disk devices (CD-ROM or tapes) should have unique
SCSI IDs regardless of the channel where they are connected. See the documentation for each
SCSI device to set the TIDs. The MegaRAID controller automatically occupies TID 7 in each
SCSI channel. Eight-bit SCSI devices can only use the TIDs from 0 to 6. 16-bit devices can use the
TIDs from 0 to 15. The arbitration priority for a SCSI device depends on its TID.
Priority Highest Lowest
TID 765
…2101514
…98
Important
Non-disk devices (CD-ROM or tapes) should have unique SCSI IDs
regardless of the channel they are connected to. ID 0 cannot be used
for non-disk devices because they are limited to IDs 1 through 6.
There is a limit of six IDs for non-disk devices per controller.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
70
Device Identification on MegaRAID Controllers, Continued
Example of MegaRAID ID Mapping
ID Channel A Channel B
0 A1-1 A1-2
1 A2-1 Scanner
2CD A2-3
3 A2-5 A2-6
4CD A3-1
5A4-1 Tape
6 Optical A5-1
7 Reserved Reserved
8 A5-2 A5-3
9 A5-6 A5-7
10 A6-1 A6-2
11 A6-4 A6-5
12 A6-7 A6-8
13 A7-2 A7-3
14 A7-5 A7-6
15 A7-8 A8-1
As Presented to the Operating System
ID LUN Device ID LUN Device
0 0 Disk (A1-X) 1 0 Scanner
01 Disk (A2-X) 20 CD
0 2 Disk (A3-X) 3 0 Tape
03 Disk (A4-X) 40 CD
0 4 Disk (A5-X) 5 0 Tape
0 5 Disk (A6-X) 6 0 Optical
06 Disk (A7-X)
07 Disk (A8-X)
Chapter 6 Hardware Installation 71
Step 12 Power Up
Replace the computer cover and reconnect the AC power cords. Turn power on to the host
computer. Set up the power supplies so that the SCSI devices are powered up at the same time as
or before the host computer. If the computer is powered up before a SCSI device, the device might
not be recognized.
During boot, the MegaRAID BIOS message appears:
MegaRAID Enterprise 1600 Disk Array Adapter BIOS Version x.xx date
Copyright (c) LSI Logic Corporation
Firmware Initializing... [ Scanning SCSI Device ...(etc.)... ]
The firmware takes several seconds to initialize. During this time the adapter will scan each SCSI
channel. When it is ready, the following lines appear:
Host Adapter-1 Firmware Version x.xx DRAM Size 16 MB
0 Logical Drives found on the Host Adapter
0 Logical Drives handled by BIOS
Press <Ctrl><M> to run MegaRAID Enterprise BIOS Configuration Utility
The <Ctrl> <M> prompt times out after several seconds.
The MegaRAID Enterprise 1600 host adapter (controller) number, firmware version, and cache
DRAM size are displayed in the second portion of the BIOS message. The numbering of the
controllers follows the PCI slot scanning order used by the host motherboard.
Step 13 Run MegaRAID Configuration Utility
Press <Ctrl> <M> to run the MegaRAID Configuration Utility. See the MegaRAID Configuration
Software Guide for information about running MegaRAID Configuration Utility.
MegaRAID Enterprise 1600 Hardware Guide
72
Step 14 Install the Operating System Driver
Important
When booting the system from a drive connected to a MegaRAID controller
and using EMM386.EXE, MEGASPI.SYS must be loaded in CONFIG.SYS
before EMM386.EXE is loaded. If you do not do this, you cannot access the
boot drive after EMM386 is loaded.
DOS ASPI Driver The MegaRAID DOS ASPI driver can be used under DOS, Windows 3.x, and Windows 95. The
DOS ASPI driver supports:
• up to six non-disk SCSI devices (each SCSI device must use a unique SCSI ID regardless of the SCSI
channel it resides on. SCSI IDs 1 through 6 are valid
• up to six MegaRAID adapters (you should only configure one MegaRAID adapter per system if
possible)
ASPI Driver The ASPI driver is MEGASPI.SYS. It supports disk drives, tape drives, CD-ROM drives, etc. You
can use it to run CorelSCSI, Novaback, PC Tools, and other software that requires an ASPI driver.
CorelSCSI, Novaback, and PC Tools are not provided with MegaRAID. Copy MEGASPI.SYS to
your hard disk drive. Add the following line to CONFIG.SYS. MEGASPI.SYS must be loaded in
CONFIG.SYS before EMM386.EXE is loaded.
device=<path>\MEGASPI.SYS /v
Parameters The MEGASPI.SYS parameters are:
Parameter Description
/h INT 13h support is not provided.
/v Verbose mode. All message are displayed on the screen.
/a Physical drive access mode. Permits direct access to physical drives.
/q Quiet mode. All message except error message are suppressed.
Cont’d
Chapter 6 Hardware Installation 73
Step 14 Install Operating System Driver, Continued
CD-ROM Driver A device driver is provided with MegaRAID for CD-ROM drives operating under DOS,
Windows 3.x, and Windows 95. The driver filename is AMICDROM.SYS.
The MEGASPI.SYS ASPI manager must be added to the CONFIG.SYS file before you can install
the CD-ROM device driver. See the instructions on the previous page for adding the
MEGASPI.SYS driver. Copy AMICDROM.SYS to the root directory of the C: drive. Add the
following line to CONFIG.SYS, making sure it is preceded by the line for MEGASPI.SYS:
DEVICE=C:\AMICDROM.SYS
Add the following to AUTOEXEC.BAT. Make sure it precedes the SMARTDRV.EXE line.
MSCDEX /D:MSCD001
MSCDEX is the CD-ROM drive extension file that is supplied with MS-DOS® and PC-DOS®
Version 5.0 or later. See your DOS manual for the command line parameters for MSCDEX.
Summary
This chapter discussed hardware installation. See the MegaRAID Configuration Software Guide
for information about the MegaRAID software utilities. You configure the RAID system via
software configuration utilities. The utility programs for configuring MegaRAID are:
Configuration Utility Operating System
MegaRAID Configuration
Utility
independent of the operating system
MegaRAID Manager DOS
SCO UNIX SVR3.2
Novell NetWare 3.x, 4.x
UnixWare
Power Console Microsoft Windows NT
MegaRAID Enterprise 1600 Hardware Guide
74
Chapter 7 Cluster Installation and Configuration 75
7 Cluster Installation and Configuration
Overview This chapter contains the procedures for installing Cluster Service for servers running the
Windows 2000 server operating system.
Clusters Physically, a cluster is a grouping of two independent servers that can access the same data storage
and provide services to a common set of clients. With current technology, this usually means
servers connected to common I/O buses and a common network for client access.
Logically, a cluster is a single management unit. Any server can provide any available service to
any authorized client. The servers must have access to the same data and must share a common
security model. Again, with current technology, this generally means that the servers in a cluster
will have the same architecture and run the same version of the same operating system.
The Benefits of Clusters Clusters provide three basic benefits:
• improved application and data availability
• scalability of hardware resources
• simplified management of large or rapidly growing systems
Software Requirements
The software requirments for cluster installation are:
• MS Windows 2000 Advanced Server or Windows 2000 Datacenter Server must be installed.
• You must use a name resolution method, such as Domain Naming System (DNS), Windows
Internet Naming System (WINS), or HOSTS.
• Using a Terminal Server for remote cluster administration is recommended.
MegaRAID Enterprise 1600 Hardware Guide
76
Hardware Requirements
The hardware requirements for the Cluster Service node can be found at the following web site:
http://www.microsoft.com/windows2000/upgrade/compat/default.asp.
• The cluster hardware must be on the Cluster Service Hardware Compatibility List (HCL). To
see the latest version of the Cluster Service HCL, go to the following web site:
http://www.microsoft.com/hcl/default.asp
and search using the word “Cluster.”
• Two HCL-approved computers, each with the following:
• A boot disk that has Windows 2000 Advanced Server or Windows 2000 Datacenter
Server installed. You cannot put the boot disk on the shared storage bus described below.
• A separate PCI storage host adapter (SCSI or Fibre Channel) is required for the shared
disks. This is along with the boot disk adapter.
• Each machine in the cluster needs two PCI network adapters.
• An HCL-approved external disk storage unit connected to all the computers in the cluster.
This is used as the clustered disk. RAID (redundant array of independent disks) is
recommended for this storage unit.
• Storage cables are needed to attach the shared storage device to all the computers in the
cluster.
• Make sure that all hardware is identical, slot for slot, card for card, for all nodes. This will
make it easier to configure the cluster and eliminate potential compatibility problems.
Chapter 7 Cluster Installation and Configuration 77
Installation and Configuration
Use the following procedures to install and configure your system as part of a cluster.
Step Action
1 Unpack the controller following the instructions on page 50.
2 Set the hardware termination for the controller as “always on”. Refer to the J2,
J3, J5 and J7 Termination Enable jumper settings on page 54 for more
information.
3 Configure the IDs for the drives in the enclosure. See the enclosure
configuration guide for information.
4 Install one controller at a time. Press <Ctrl> <M> at BIOS initialization to
configure the options in the steps 5 – 11. Do not attach the disks yet.
5 Set the controller to Cluster Mode in the Objects > Adapter > Cluster Mode
menu.
6 Disable the BIOS in the Objects > Adapter > Enable/Disable BIOS menu.
7 Change the initiator ID in the Objects > Adapter > Initiator ID menu.
8 Power down the first system.
9 Attach the controller to the shared array.
10 Configure the first controller to the desired arrays using the Configure > New
Configuration menu.
11 Follow the on-screen instructions to create arrays and save the
configuration. Initialize the logical drives before powering off the system.
12 Power down the first system.
13 Repeat steps 4 – 7 for the second controller.
Note: Do not have the cables for the second controller attached to the
shared enclosure yet.
14 Power down the second server.
15 Attach the cables for the second controller to the shared enclosure and power
up the second system.
16 If a configuration mismatch occurs, enter the <Ctrl> <M> utility. Go to the
Configure > View/Add Configuration > View Disk menu to view the disk
configuration. Save the configuration.
17 Proceed to the driver installation for a Microsoft cluster environment.
MegaRAID Enterprise 1600 Hardware Guide
78
Driver Installation Instructions under Microsoft Windows 2000 Advanced Server
After the hardware is set up for the MS cluster configuration, perform the following procedure to
configure the driver.
Step Action
1 When the controller is added to an existing Windows 2000 Advanced Server
installation, the operating system detects the controller.
2 Click on Cancel on all detected devices and reboot. After you reboot, install
the drivers for the new hardware.
3 The following screen displays the detected hardware device. Click on Next.
4 The following screen appears. This screen is used to locate the device driver
for the hardware device. Select Search for a suitable driver… and click on
Next.
Chapter 7 Cluster Installation and Configuration 79
Step Action
5 The following screen displays. Insert the floppy diskette with the appropriate
driver disk for Windows 2000. Select Floppy disk drives in the screen below
and click on Next.
6 The Wizard detects the device driver on the diskette and the "Completing the
upgrade device driver" wizard displays the name of the controller. Click on
Finish to complete the installation.
7 Repeat steps 1 – 5 to install the device driver on the second system.
8 After the cluster is installed, and both nodes are booted to the Microsoft
Windows 2000 Advanced Server, installation will detect a SCSI processor
device. The following screen displays. Click on Next.
MegaRAID Enterprise 1600 Hardware Guide
80
Step Action
9 On the screen below, choose to display a list of the known drivers, so that you
can choose a specific driver. Click on Next.
10 The following screen displays. Select Other devices from the list of hardware
types. Click on Next.
Chapter 7 Cluster Installation and Configuration 81
Step Action
11 The following screen displays. Select the driver that you want to install for the
device. If you have a disk with the driver you want to install, click on Have
Disk.
12 The following window displays. Insert the disk containing the driver into the
selected drive and click on OK.
MegaRAID Enterprise 1600 Hardware Guide
82
Step Action
13 The following screen displays. Select the processor device and click on Next.
14 On the final screen, click on Finish to complete the installation. Repeat the
process on the peer system.
Chapter 7 Cluster Installation and Configuration 83
Network Requirements
The network requirements for clustering are:
• A unique NetBIOS cluster name
• Five unique, static IP addresses:
• two are for the network adapters on the internal network
• two are for the network adapters on the external network
• one is for the cluster itself
• A domain user account for Cluster Service (all nodes must be part of the same domain.)
• Two network adapters for each node—one for connection to the external network and the
other for the node-to-node internal cluster network. If you do not use two network adapters for
each node, your configuration is unsupported. HCL certification requires a separate private
network adapter.
Shared Disk Requirements
Disks can be shared by the nodes. The requirements for sharing disks are as follows:
• Physically attach all shared disks, including the quorum disk, to the shared bus.
• Make sure that all disks attached to the shared bus are seen from all nodes. You can check this
at the setup level in <Ctrl><M> (the BIOS configuration utility.) See page 77 for installation
information.
• Assign unique SCSI identification numbers to the SCSI devices and terminate the devices
properly. Refer to the storage enclosure manual about installing and terminating SCSI devices.
• Configure all shared disks as basic (not dynamic.)
• Format all partitions on the disks as NTFS.
It is best to use fault-tolerant RAID configurations for all disks. This includes RAID levels 1, 3, 5,
10, 30 or 50.
MegaRAID Enterprise 1600 Hardware Guide
84
Cluster Installation
Installation Overview During installation, some nodes are shut down, and other nodes are rebooted. This is
necessary to ensure uncorrupted data on disks attached to the shared storage bus. Data corruption
can occur when multiple nodes try to write simultaneously to the same disk, if that disk is not yet
protected by the cluster software.
The table below shows which nodes and storage devices should be powered on during each step.
Step Node 1 Node 2 Storage Comments
Set Up Networks On On Off Make sure that power to all storage devices on
the shared bus is turned off. Power on all nodes.
Set up Shared Disks On Off On Power down all nodes. Next, power on the shared
storage, then power on the first node.
Verify Disk Configuration Off On On Shutdown the first node. Power on the second
node.
Configure the First Node On Off On Shutdown all nodes. Power on the first node.
Configure the Second
Node On On On Power on the second node after the first node was
successfully configured.
Post-installation On On On All nodes should be active.
Before installing the Cluster Service software you must follow the steps below:
• Install Windows 2000 Advanced Server or Windows 2000 Datacenter Server on each node
• Setup networks
• Setup disks
Note: These steps must be completed on every cluster node before proceeding with the installation of
Cluster Service on the first node.
To configure the Cluster Service on a Windows 2000-based server, you must be able to log on as
administrator or have administrative permissions on each node. Each node must be a member
server, or be domain controllers inside the same domain. A mix of domain controllers and member
servers in a cluster is not acceptable.
Chapter 7 Cluster Installation and Configuration 85
Installing the Windows 2000 Operating System
Install Microsoft Windows 2000 to each node. See your Windows 2000 manual on how to install
the Operating System.
Log on as administrator before you install the Cluster Services.
Setting Up Networks
Note: Do not allow both nodes to access the shared storage device before the Cluster Service is installed.
In order to prevent this, power down any shared storage devices and then power up nodes one at a
time. Install the Clustering Service on at least one node and make sure it is online before you
power up the second node.
Install at least two network card adapters per each cluster node. One network card adapter card is
used to access the public network. The second network card adapter is used to access the cluster
nodes.
The network card adapter that is used to access the cluster nodes establishes the following:
• Node to node communications
• Cluster status signals
• Cluster Management
Check to make sure that all the network connections are correct. Network cards that access the
public network must be connected to the public network. Network cards that access the cluster
nodes must connect to each other.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
86
Setting Up Networks, Continued
Verify that all network connections are correct, with private network adapters connected to other
private network adapters only, and public network adapters connected to the public network. View
the Network and Dial-up Connections screen to check the connections.
Note: Use crossover cables for the network card adapters that access the cluster nodes. If you do not use
the crossover cables properly, the system will not detect the network card adapter that accesses the
cluster nodes. If the network card adapter is not detected, then you cannot configure the network
adapters during the Cluster Service installation.
However, if you install Cluster Service on both nodes, and both nodes are powered on, you can
add the adapter as a cluster resource and configure it properly for the cluster node network in
Cluster Administrator.
Chapter 7 Cluster Installation and Configuration 87
Configuring the Cluster Node Network Adapter
Note: Which network adapter is private and which is public depends upon your wiring. For the purposes
of this chapter, the first network adapter (Local Area Connection) is connected to the public
network, and the second network adapter (Local Area Connection 2) is connected to the private
cluster network. This may not be the case in your network.
Renaming the Local Area Connections In order to make the network connection more clear, you can change the
name of the Local Area Connection (2). Renaming it will help you identify the connection and
correctly assign it. Follow the steps below to change the name:
Step Description
1 Right-click on the Local Area Connection 2 icon.
2 Click on Rename.
3 Type Private Cluster Connection into the textbox, then press Enter.
4 Repeat steps 1-3 to change the name of the public LAN network adapter to Public
Cluster Connection.

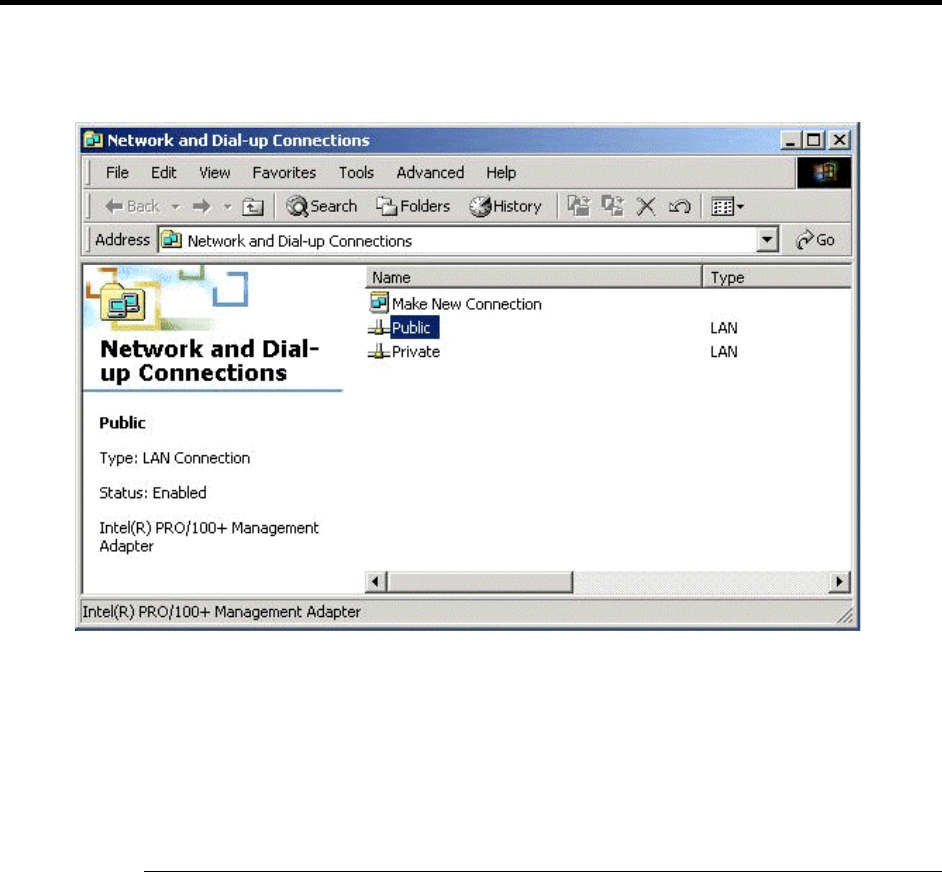

5 The renamed icons should look like those in the picture above. Close the Networking and
Dial-up Connections window. The new connection names automatically replicate to
other cluster servers as the servers are brought online.
Setting up the First Node in your Cluster Follow the steps below to setup the first node in your cluster:
Step Description
1 Right-click on My Network Places, then click on Properties.
2 Right-click the Private Connection icon.
3 Click on Status. The Private Connection Status window shows the connection status, as
well as the speed of connection.
If the window shows that the network is disconnected, examine cables and connections
to resolve the problem before proceeding.
4 Click on Close.
4 Right-click Private Connection again.
5 Click on Properties.
6 Click on Configure.
7 Click on Advanced. The network card adapter properties window displays.
8 You should set network adapters on the private network to the actual speed of the
network, rather than the default automated speed selection.
Select the network speed from the drop-down list. Do not use “Auto-select” as the setting
for speed. Some adapters can drop packets while determining the speed.
Set the network adapter speed by clicking the appropriate option, such as Media Type or
Speed.
9 Configure identically all network adapters in the cluster that are attached to the same
network, so they use the same Duplex Mode, Flow Control, Media Type, and so on.
These settings should stay the same even if the hardware is different.
10 Click on Transmission Control Protocol/Internet Protocol (TCP/IP).
11 Click on Properties.
12 Click on the radio-button for Use the following IP address.
13 Enter the IP addresses you want to use for the private network.
14 Type in the subnet mask for the network.
15 Click the Advanced radio button, then select the WINS tab.
16 Select Disable NetBIOS over TCP/IP.
MegaRAID Enterprise 1600 Hardware Guide
88
17 Click OK to return to the previous menu. Perform this step for the private network
adapter only.
Configuring the Public Network Adapter
Note: It is strongly recommended that you use static IP addresses for all network adapters in the cluster.
This includes both the network adapter used to access the cluster nodes and the network adapter
used to access the LAN (Local Area Network). If you must use a dynamic IP address through
DHCP, access to the cluster could be terminated and become unavailable if the DHCP server goes
down or goes offline.
The use of long lease periods is recommended to assure that a dynamically assigned IP address
remains valid in the event that the DHCP server is temporarily lost. In all cases, set static IP
addresses for the private network connector. Note that Cluster Service will recognize only one
network interface per subnet.
Verifying Connectivity and Name Resolution
In order to verify that the network adapters are working properly, perform the following steps.
Note: Before proceeding, you must know the IP address for each network card adapter in the cluster.
You can obtain it by using the IPCONFIG command on each node.
Step Description
1 Click on Start.
2 Click on Run.
3Type
cmd in the text box.
4 Click on OK.
5 Type ipconfig /all and press Enter. IP information displays for all network adapters in the
machine.
6 If you do not already have the command prompt on your screen, click on Start.
7 Click on Run.
8Type
cmd in the text box.
9 Click on OK.
10 Type
ping ipaddress
where ipaddress is the IP address for the corresponding network adapter in the other
node. For example, assume that the IP addresses are set as follows:
Node Network Name Network Adapter IP Address
1 Public Cluster Connection 192.168.0.171
1 Private Cluster Connection 10.1.1.1
2 Public Cluster Connection 192.168.0.172
2 Private Cluster Connection 10.1.1.2
In this example, you would type
Ping 192.168.0.172
Chapter 7 Cluster Installation and Configuration 89
and
Ping 10.1.1.1
from Node 1.
They you would type
Ping 192.168.0.172
and
10.1.1.1
from Node 2.
To confirm name resolution, ping each node from a client using the node’s machine
name instead of its IP number.
Verifying Domain Membership
All nodes in the cluster have to be members of the same domain and capable of accessing a domain
controller and a DNS Server. You can configure them as either member servers or domain
controllers. If you plan to configure one node as a domain controller, you should configure all
other nodes as domain controllers in the same domain as well.
MegaRAID Enterprise 1600 Hardware Guide
90
Setting Up a Cluster User Account
The Cluster Service requires a domain user account that the Cluster Service can run under. You
must create the user account before installing the Cluster Service. The reason for this is that setup
requires a user name and password. This user account should not belong to a user on the domain.
Step Description
1 Click on Start.
2 Point to Programs, then point to Administrative Tools.
3 Click on Active Directory Users and Computers.
4 Click the plus sign (+) to expand the domain name (if it is not already expanded.)
5 Click on Users.
6 Right-click on Users.
7 Point to New and click on User.
8 Type in the cluster name and click on Next.
9 Set the password settings to User Cannot Change Password and Password Never Expires.
10 Click on Next, then click on Finish to create this user.
Note: If your company’s security policy does not allow the use of
passwords that never expire, you must renew the password on
each node before password expiration. You must also update
the Cluster Service configuration
11 Right-click on Cluster in the left pane of the Active Directory Users and Computers
snap-in.
12 Select Properties from the context menu.
13 Click on Add Members to a Group.
14 Click on Administrators and click on OK. This gives the new user account administrative
privileges on this computer.
15 Close the Active Directory Users and Computers snap-in.
Chapter 7 Cluster Installation and Configuration 91
Setting Up Shared Disks
Warning: Make sure that Windows 2000 Advanced Server or Windows 2000 Datacenter Server and the
Cluster Service are installed and running on one node before you start an operating system on
another node. If the operating system is started on other nodes before you install and configure
Cluster Service and run it on at least one node, the cluster disks will have a high chance of
becoming corrupted.
To continue, power off all nodes. Power up the shared storage devices. Once the shared storage
device is powered up, power up node one.
Quorum Disk The quorum disk stores cluster configuration database checkpoints and log files that help manage
the cluster. Windows 2000 makes the following quorum disk recommendations:
• Create a small partition [Use a minimum of 50 megabytes (MB) as a quorum disk. Windows
2000 generally recommends a quorum disk to be 500 MB.]
• Dedicate a separate disk for a quorum resource. The failure of the quorum disk would cause
the entire cluster to fail; therefore, Windows 2000 strongly recommends that you use a volume
on a RAID disk array.
During the Cluster Service installation, you have to provide the drive letter for the quorum disk.
Note: For our example, we use the letter E for the quorum disk drive letter.
MegaRAID Enterprise 1600 Hardware Guide
92
Configuring Shared Disks
Perform the following procedure to configure the shared disks.
Step Description
1 Right-click on My Computer.
2 Click on Manage, then click on Storage.
3 Double-click on Disk Management.
4 Make sure that all shared disks are formatted as NTFS and are designated as Basic. If you
connect a new drive, the Write Signature and Upgrade Disk Wizard starts automatically.
If this occurs, click on Next to go through the wizard. The wizard sets the disk to
dynamic, but you can uncheck it at this point to set it to basic.
To reset the disk to Basic, right-click on Disk # (where # identifies the disk that you are
working with) and click on Revert to Basic Disk.
5 Right-click on unallocated disk space.
6 Click on Create Partition…
7 The Create Partition Wizard begins. Click on Next twice.
8 Enter the desired partition size in MB and click on Next.
9 Accept the default drive letter assignment by clicking on Next.
10 Click on Next to format and create a partition.
Assigning Drive Letters
After you have configured the bus, disks, and partitions, you must assign drive letters to each
partition on each clustered disk.
Note: Mountpoints is a feature of the file system that lets you mount a file system using an existing
directory without assigning a drive letter. Mountpoints is not supported on clusters. Any external
disk that is used as a cluster resource must be partitioned using NTFS partitions and have a drive
letter assigned to it. Use the procedure below to assign driver letters.
Step Description
1 Right-click on the desired partition and select Change Drive Letter and Path.
2 Select a new drive letter.
3 Repeat steps 1 and 2 for each shared disk.
4 Close the Computer Management window.
Chapter 7 Cluster Installation and Configuration 93
Verifying Disk Access and Functionality
Perform the steps below to verify disk access and functionality.
Step Description
1 Click on Start.
2 Click on Programs. Click on Accessories, then click on Notepad.
3 Type some words into Notepad and use the File/Save As command to save it as a test file
called test.txt. Close Notepad.
4 Double-click on the My Documents icon.
5 Right-click on test.txt and click on Copy.
6 Close the window.
7 Double-click on My Computer.
8 Double-click on a shared drive partition.
9 Click on Edit and click on Paste.
10 A copy of the file should now exist on the shared disk.
11 Double-click on test.txt to open it on the shared disk.
12 Close the file.
13 Highlight the file and press the Del key to delete it from the clustered disk.
14 Repeat the process for all clustered disks to make sure they can be accessed from the first
node.
After you complete the procedure, shut down the first node, power on the second node and repeat
the procedure above. Repeat again for any additional nodes. After you have verified that all nodes
can read and write from the disks, turn off all nodes except the first, and continue with this guide.
MegaRAID Enterprise 1600 Hardware Guide
94
Cluster Service Software Installation
Before you begin the Cluster Service Software installation on the first node, make sure that all
other nodes are either powered down or stopped and that all shared storage devices are powered
on.
Cluster Configuration Wizard To create the cluster, you must provide the cluster information. The Cluster
Configuration Wizard will allow you to input this information.
Step Description
1 Click on Start.
2 Click on Settings, then click on Control Panel.
3 Double-click on Add/Remove Programs.
4 Double-click on Add/Remove Windows Components. The following window displays.
5 Select Cluster Service, then click on Next.
6 Cluster Service files are located on the Windows 2000 Advanced Server or Windows
2000 Datacenter Server CD-ROM.
Enter x:\i386 (where x is the drive letter of your CD-ROM). If you installed Windows
2000 from a network, enter the appropriate network path instead. (If the Windows 2000
Setup flashscreen displays, close it.)
7 Click on OK. The following screen displays.
Chapter 7 Cluster Installation and Configuration 95
8 Click on Next.
9 The Hardware Configuration Certification window appears.
Click on I Understand to accept the condition that Cluster Service is supported only on
hardware listed on the Hardware Compatibility List.
10 This is the first node in the cluster; therefore, you must create the cluster itself. Select
The first node in the cluster, as shown below and then click on Next.
MegaRAID Enterprise 1600 Hardware Guide
96
11 Enter a name for the cluster (up to 15 characters), and click on Next. (In our example, the
cluster is named ClusterOne.)
12 Type the user name of the Cluster Service account that you created during the pre-
installation. (In our example, the user name is cluster.) Do not enter a password.
Type the domain name, then click on Next.
At this point the Cluster Service Configuration Wizard validates the user account and
password.
13 Click on Next.
The Add or Remove Managed Disks screen displays next. This screen is in the following
section about configuring cluster disks.
Chapter 7 Cluster Installation and Configuration 97
Configuring Cluster Disks
Windows 2000 Managed Disks displays all SCSI disks, as shown on the screen below. It displays
SCSI disks that do not reside on the same bus as the system disk. Because of this, a node that has
multiple SCSI buses will list SCSI disks that are not to be used as shared storage. You must
remove any SCSI disks that are internal to the node and not to be shared storage.
In production clustering scenarios, you need to use more than one private network for cluster
communication to avoid having a single point of failure. Cluster Service can use private networks
for cluster status signals and cluster management. This provides more security than using a public
network for these roles. In addition, you can use a public network for cluster management, or you
can use a mixed network for both private and public communications.
In any case, verify that at least two networks are used for cluster communication; using a single
network for node-to-node communication creates a potential single point of failure. We
recommend that you use multiple networks, with at least one network configured as a private link
between nodes and other connections through a public network. If you use more than one private
network, make sure that each uses a different subnet, as Cluster Service recognizes only one
network interface per subnet.
This document assumes that only two networks are in use. It describes how you can configure
these networks as one mixed and one private network.
The order in which the Cluster Service Configuration Wizard presents these networks can vary. In
this example, the public network is presented first.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
98
Configuring Cluster Disks, Continued
Use the following procedure to configure the clustered disks.
Step Description
1 The Add or Remove Managed Disks dialog box specifies disks on the shared SCSI bus
that will be used by Cluster Service. Add or remove disks as necessary, then click on
Next.
2 The following screen displays. Click on Next in the Configure Cluster Networks dialog
box.
3 Verify that the network name and IP address correspond to the network interface for the
Chapter 7 Cluster Installation and Configuration 99
public network.
4 Check the box Enable this network for cluster use.
5 Select the option All communications (mixed network), as shown below, and click on
Next.
6 The next dialog box configures the private network. Make sure that the network name
and IP address correspond to the network interface used for the private network.
Check the box Enable this network for cluster use.
Select the option Internal cluster communications only, then click on Next.
MegaRAID Enterprise 1600 Hardware Guide
100
7 In this example, both networks are configured so that both can be used for internal
cluster communication. The next dialog window offers an option to modify the order in
which the networks are used. Because Private Cluster Connection represents a direct
connection between nodes, it remains at the top of the list.
In normal operation, this connection is used for cluster communication. In case of the
Private Cluster Connection failure, Cluster Service automatically switches to the next
network on the list—in this case Public Cluster Connection. Verify that the first
connection in the list is the Private Cluster Connection, then click on Next.
Note: Always set the order of the connections so that the Private Cluster Connection is
first in the list.
8 Enter the unique cluster IP address and Subnet mask for your network, then click on
Next.
The Cluster Service Configuration Wizard shown below automatically associates the
cluster IP address with one of the public or mixed networks. It uses the subnet mask to
select the correct network.
Chapter 7 Cluster Installation and Configuration 101
9 Click Finish to complete the cluster configuration on the first node.
The Cluster Service Setup Wizard completes the setup process for the first node by
copying the files needed to complete the installation of Cluster Service.
MegaRAID Enterprise 1600 Hardware Guide
102
10 After the files are copied, the Cluster Service registry entries are created, the log files on
the quorum resource are created, and the Cluster Service is started on the first node.
A dialog box appears telling you that Cluster Service has started successfully. Click on
OK.
11 Close the Add/Remove Programs window.
Chapter 7 Cluster Installation and Configuration 103
Validating the Cluster Installation
Use the Cluster Administrator snap-in to validate the Cluster Service installation on the first node.
Step Description
1 Click on Start.
2 Click on Programs.
3 Click on Administrative Tools.
4 Click on Cluster Administrator.
5 The following screen displays. If your snap-in window is similar to that shown above
below, your Cluster Service was successfully installed on the first node. You are now
ready to install Cluster Service on the second node.
Configuring the Second Node
Note: For this procedure, have node one and all shared disks powered on, then power up the second
node.
Installation of Cluster Service on the second node takes less time than on the first node. Setup
configures the Cluster Service network settings on the second node based on the configuration of
the first node.
Installation of Cluster Service on the second node begins the same way as installation on the first
node. The first node must be running during installation of the second node.
Follow the same procedures used to install Cluster Service on the first node, with the following
differences:
1. In the Create or Join a Cluster dialog box, select The second or next node in the cluster, then
click Next.
2. Enter the cluster name that was previously created (it is MyCluster in this example), and click
Next.
3. Leave Connect to cluster as unchecked. The Cluster Service Configuration Wizard
automatically supplies the name of the user account selected when you installed the first node.
Always use the same account you used when you set up the first cluster node.
4. Enter the password for the account (if there is one), then click Next.
5. At the next dialog box, click Finish to complete configuration.
6. The Cluster Service will start. Click OK.
7. Close Add/Remove Programs.
If you install additional nodes, repeat these steps to install Cluster Service on all other nodes.
MegaRAID Enterprise 1600 Hardware Guide
104
Verify Installation
There are several ways to verify that Cluster Service was successfully installed. Here is a simple
one:
1. Click Start, click Programs, click Administrative Tools, then click Cluster Administrator.
The presence of two nodes (pictured below) shows that a cluster exists and is in operation.
2. Right-click the group Disk Group 1 and select the option Move. This option moves the group
and all its resources to another node. After a short period of time, the Disk F: G: will be
brought online on the second node. If you watch the screen, you will see this shift. Close the
Cluster Administrator snap-in.
Congratulations! You have completed installing Cluster Service on all nodes. The server cluster is
fully operational. Now, you are ready to install cluster resources, such as file shares, printer
spoolers, cluster aware services like IIS, Message Queuing, Distributed Transaction Coordinator,
DHCP, WINS, or cluster aware applications like Exchange or SQL Server.
Chapter 7 Cluster Installation and Configuration 105
SCSI Drive Installations
This information is provided as a generic instruction set for SCSI drive installations. If the SCSI
hard disk vendor’s instructions conflict with the instructions in this section, always use the
instructions supplied by the vendor.
The SCSI bus listed in the hardware requirements must be configured prior to installation of
Cluster Services. This includes:
• Configuring the SCSI devices.
• Configuring the SCSI controllers and hard disks to work properly on a shared SCSI bus.
• Properly terminating the bus. The shared SCSI bus must have a terminator at each end of the
bus. It is possible to have multiple shared SCSI buses between the nodes of a cluster.
In addition to the information on the next page, refer to the documentation from the SCSI device
manufacturer or the SCSI specifications, which can be ordered from the American National
Standards Institute (ANSI). The ANSI web site contains a catalog that you can search for the SCSI
specifications.
Configuring the SCSI Devices
Each device on the shared SCSI bus must have a unique SCSI ID. Since most SCSI controllers
default to SCSI ID 7, part of configuring the shared SCSI bus will be to change the SCSI ID on
one controller to a different SCSI ID, such as SCSI ID 6. If there is more than one disk that will be
on the shared SCSI bus, each disk must also have a unique SCSI ID.
Some SCSI controllers reset the SCSI bus when they initialize at boot time. If this occurs, the bus
reset can interrupt any data transfers between the other node and disks on the shared SCSI bus.
Therefore, SCSI bus resets should be disabled if possible.
Terminating the Shared SCSI Bus
You can connect Y cables to devices if the device is at the end of the SCSI bus. You can then
attach a terminator to one branch of the Y cable to terminate the SCSI bus. This method of
termination requires either disabling or removing any internal terminators the device has.
Trilink connectors can be connected to certain devices. If the device is at the end of the bus, you
can use a trilink connector to terminate the bus. This method of termination requires either
disabling or removing any internal terminators the device contains.
Y cables and trilink connectors are the recommended termination methods, as they provide
termination even when one node is not online.
Note: Any devices that are not at the end of the shared bus must have their internal termination disabled.
MegaRAID Enterprise 1600 Hardware Guide
106
Chapter 8 Troubleshooting 107
8 Troubleshooting
Problem Suggested Solution
Some operating systems do
not load in a computer with
a MegaRAID adapter.
Check the system BIOS configuration for PCI interrupt
assignments. Make sure some Interrupts are assigned
for PCI.
Initialize the logical drive before installing the
operating system.
One of the hard drive in the
array fails often
Check the drive error counts using Power Console.
Format the drive.
Rebuild the drive
If the drive continues to fail, replace the drive with
another drive with the same capacity.
Pressed <Ctrl> <M>. Ran
Megaconf.exe and tried to
make a new configuration.
The system hangs when
scanning devices.
Check the drives IDs on each channel to make sure each
device has a different ID.
Check the termination. The device at the end of the
channel must be terminated.
Replace the drive cable.
Multiple drives connected
to MegaRAID using the
same power supply. There
is a problem spinning the
drives all at once.
Set the drives to spin on command. This will allow
MegaRAID to spin two devices simultaneously.
Pressing <Ctrl> <M> or
running megaconf.exe does
not display the Management
Menu.
These utilities require a color monitor.
At system power-up with
the MegaRAID installed,
the screen display is
garbled.
At least 16 MB of memory must be installed before
power-up.
Cannot flash or update the
EEPROM.
You may need a new EEPROM.
Firmware
Initializing...
appears and remains on the
screen.
Make sure that TERMPWR is being properly provided
to each peripheral device populated channel.
Make sure that each end of the channel chain is
properly terminated using the recommended terminator
type for the peripheral device. The channel is
automatically terminated at the MegaRAID card if only
one cable is connected to a channel.
Make sure that memory modules are rate at 60 ns or
faster.
Make sure that the MegaRAID controller is properly
seated in the PCI slot.
MegaRAID Enterprise 1600 Hardware Guide
108
Problem Suggested Solution
What is the maximum
number of MegaRAID
adapters per computer?
Currently, all the utilities and drivers support up to 12
MegaRAID adapters per system.
What SCSI IDs can a non-
hard disk device have and
what is maximum number
allowed per adapter?
Non-hard disk devices can accommodate only SCSI IDs
1, 2, 3, 4, 5 or 6, regardless of the channel used.
A maximum of six non-hard disk devices are supported
per MegaRAID adapter.
Why does a failed logical
array still get a drive
assignment?
To maintain the DOS Path statement integrity.
Chapter 8 Troubleshooting 109
BIOS Boot Error Messages
Message Problem Suggested Solution
Adapter BIOS Disabled.
No Logical Drives
Handled by BIOS
The MegaRAID BIOS is
disabled. Sometimes the
BIOS is disabled to
prevent booting from the
BIOS.
Enable the BIOS via the
MegaRAID Configuration
Utility utility.
Host Adapter at Baseport
xxxx Not Responding
The BIOS cannot
communicate with the
adapter firmware.
Make sure MegaRAID is
properly installed.
Try moving the
MegaRAID card to
another PCI slot.
Run the MegaRAID
Manager Diagnostics to
verify that MegaRAID is
functioning properly.
No MegaRAID Adapter The BIOS cannot
communicate with the
adapter firmware.
Make sure MegaRAID is
properly installed.
Move the MegaRAID
card to another PCI slot.
Run the MegaRAID
Manager Diagnostics to
verify that MegaRAID is
functioning properly.
Configuration of
NVRAM and drives
mismatch.
Run View/Add
Configuration option of
Configuration Utility.
Press any key to run the
Configuration Utility.
The configuration stored
in the MegaRAID adapter
does not match the
configuration stored in the
drives.
Press a key to run
MegaRAID Manager.
Choose View/Add
Configuration from the
Configure menu.
Use View/Add
Configuration to examine
both the configuration in
NVRAM and the
configuration stored on
the disk drives. Resolve
the problem by selecting
one of the configurations.
MegaRAID Enterprise 1600 Hardware Guide
110
Message Problem Suggested Solution
Configuration of
NVRAM and drives
mismatch for Host
Adapter.
Run View/Add
Configuration option of
Configuration Utility.
Press any key to run the
Configuration Utility.
The configuration stored
in the MegaRAID adapter
does not match the
configuration stored in the
drives.
Press a key to run
MegaRAID Manager.
Choose View/Add
Configuration from the
Configure menu.
Use View/Add
Configuration to examine
both the configuration in
NVRAM and the
configuration stored on
the disk drives. Resolve
the problem by selecting
one of the configurations.
1 Logical Drive Failed A logical drive failed to
sign on.
Make sure all physical
drives are properly
connected and are
powered on.
Run MegaRAID Manager
to find out if any physical
drives are not responding.
Reconnect, replace, or
rebuild any drive that is
not responding.
X Logical Drives
Degraded
x number of logical drives
signed on in a degraded
state.
Make sure all physical
drives are properly
connected and are
powered on.
Run MegaRAID Manager
to find out if any physical
drives are not responding.
Reconnect, replace, or
rebuild any drive that is
not responding.
1 Logical Drive Degraded A logical drive signed on
in a degraded state.
Make sure all physical
drives are properly
connected and are
powered on.
Run MegaRAID Manager
to find out if any physical
drives are not responding.
Reconnect, replace, or
rebuild any drive that is
not responding.
Insufficient memory to
run BIOS. Press any key
to continue…
Not enough MegaRAID
memory to run
MegaRAID BIOS.
Make sure MegaRAID
memory has been properly
installed.
Insufficient Memory Not enough memory on
the MegaRAID adapter to
support the current
configuration.
Make sure MegaRAID
memory has been properly
installed.
Chapter 8 Troubleshooting 111
Message Problem Suggested Solution
The following SCSI IDs
are not responding:
Channel x:a.b.c
The physical drives with
SCSI IDs a, b, and c are
not responding on SCSI
channel x.
Make sure the physical
drives are properly
connected and are
powered on.
Other BIOS Error Messages
Message Problem Suggested Solution
Following SCSI
disk not found
and no empty
slot available for
mapping it
The physical disk roaming
feature did not find the physical
disk with the displayed SCSI
ID. No slot is available to map
the physical drive. MegaRAID
cannot resolve the physical
drives into the current
configuration.
Reconfigure the array.
Following SCSI
IDs have the
same data y, z
Channel x: a, b,
c
The physical drive roaming
feature found the same data on
two or more physical drive on
channel x with SCSI IDs a, b,
and c. MegaRAID cannot
determine the drive that has the
duplicate information.
Remove the drive or drives
that should not be used.
Unresolved
configuration
mismatch
between disks
and VRAM on
the adapter
The configuration stored in the
MegaRAID NVRAM does not
match the configuration stored
on the drives.
Press a key to run MegaRAID
Manager.
Choose View/Add
Configuration from the
Configure menu.
Use View/Add Configuration
to examine both the
configuration in NVRAM and
the configuration stored on
the disk drives. Resolve the
problem by selecting one of
the configurations.
MegaRAID Enterprise 1600 Hardware Guide
112
DOS ASPI Driver Error Messages
Message Corrective Action
LSI Logic ASPI Manager has
NOT been loaded.
The ASPI manager is not loaded. One of the failure
codes listed below is displayed next.
Controller setup FAILED
error code=[0xab]
Correct the condition that caused the failure. The
failure codes are:
0x40 No MegaRAID adapters found
0x80 Timed out waiting for interrupt to be posted
0x81 Timed out waiting for the MegaRAID
Response command.
0x82 Invalid command completion count.
0x83 Invalid completion status received.
0x84 Invalid command ID received.
0x85 No MegaRAID adapters found or no PCI
BIOS support.
0x90 Unknown Setup completion error
No non-disk devices were
located
The driver did not find any non-hard drive devices
during scanning. A SCSI device that is not a hard disk
drive, such as a tape drive or CD-ROM drive, must be
attached to this SCSI channel. The SCSI ID must be
unique for each adapter and cannot be SCSI ID 0. The
supported SCSI IDs are 1, 2, 3, 4, 5, and 6.
'ERROR: VDS support is
*INACTIVE* for
MegaRAID logical drives
The /h option is appended to driver in
CONFIG.SYS or this driver is used with a BIOS that
is earlier than v1.10, or no logical drives are
configured.
Chapter 8 Troubleshooting 113
Other Potential Problems
Topic Information
DOS ASPI MEGASPI.SYS, the MegaRAID DOS ASPI manager, uses
6 KB of system memory once it is loaded.
CD-ROM drives
under DOS
At this time, copied CDs are not accessible from DOS even
after loading MEGASPI.SYS and AMICDROM.SYS.
Physical Drive Errors To display the MegaRAID Manager Media Error and Other
Error options, press <F2> after selecting a physical drive
under the Physical Drive menu, selected from the Objects
menu. A Media Error is an error that occurred while
actually transferring data. An Other Error is an error that
occurs at the hardware level because of a device failure,
poor cabling, bad termination, signal loss, etc.
Virtual Sizing The FlexRAID Virtual Sizing option enables RAID
expansion. FlexRAID Virtual Sizing must be enabled to
increase the size of a logical drive or add a physical drive
to an existing logical drive. Run MegaRAID Manager by
pressing <Ctrl> <M> to enable FlexRAID Virtual Sizing.
Select the Objects menu, then select the Logical Drive
menu. Select View/Update Parameters. Set FlexRAID
Virtual Sizing to Enabled.
BSD Unix We do not provide a driver for BSDI Unix. MegaRAID
does not support BSDI Unix.
Multiple LUNs MegaRAID supports one LUN per each target ID. No
multiple LUN devices are supported.
MegaRAID Power
Requirements
The Maximum MegaRAID power requirements are 15
watts at 5V and 3 Amps.
SCSI Bus
Requirements
The ANSI specification dictates the following:
The maximum signal path length between terminators is 3
meters when using up to 4 maximum capacitance (25 pF)
devices and 1.5 meters when using more than 4 devices.
SCSI devices should be uniformly spaced between
terminators, with the end devices located as close as
possible to the terminators.
The characteristic impedance of the cable should be 90 +/-
6 ohms for the /REQ and /ACK signals and 90 +/- 10 ohms
for all other signals.
The stub length(the distance from the controller's external
connector to the mainline SCSI bus) shall not exceed.1m
(approximately 4 inches).
The spacing of devices on the mainline SCSI bus should be
at least three times the stub length.
All signal lines shall be terminated once at both ends of the
bus powered by the TERMPWR line.
MegaRAID Enterprise 1600 Hardware Guide
114
Topic Information
Windows NT
Installation
When Windows NT is installed via a bootable CD, the
devices on the MegaRAID will not be recognized until
after the initial reboot. The Microsoft documented
workaround is in SETUP.TXT:
SETUP.TXT is on the CD.
To install drivers when Setup recognizes one of the
supported SCSI host adapters without making the devices
attached to it available for use:
1 Restart Windows NT Setup.
2 When Windows NT Setup displays
Setup is inspecting your computer's
hardware Configuration...,
press <F6> to prevent Windows NT Setup from
performing disk controller detection. This allows
you to install the driver from the Drivers disk you
created. All SCSI adapters must be installed manually.
When Windows NT Setup displays
Setup could not determine the type
of one or more mass storage devices
installed in your system, or you
have chosen to manually specify
an adapter,
press S to display a list of supported SCSI host
adapters.
4 Select Other from the bottom of the list.
5 Insert the Drivers Disk you made when prompted
to do so and select MegaRAID from this list. In
some cases, Windows NT Setup repeatedly
prompts to swap disks. Windows NT will now
recognize any devices attached to this adapter.
Repeat this step for each host adapter not already
recognized by Windows NT Setup.
Appendix A SCSI Cables and Connectors 115
A SCSI Cables and Connectors
SCSI Connectors
MegaRAID provides several different types of SCSI connectors for each channel. The connectors
are:
• 68-pin high density internal connectors
• 68-pin ultra high density external connectors
68-Pin High Density SCSI Internal Connectors
Each of the SCSI channels on the MegaRAID has a 68-pin high density 0.050 inch pitch
unshielded connector.
These connectors provide all signals needed to connect MegaRAID to wide SCSI devices. The
connector pinouts are for a single-ended primary bus (P-CABLE) as specified in SCSI-3 Parallel
Interface X3T9.2, Project 885-D, revision 12b, date July 2, 1993.
The cable assemblies that interface with this 68-pin connector are:
• flat ribbon or twisted pair cable for connecting internal wide SCSI devices
• flat ribbon or twisted pair cable for connecting internal and external wide SCSI devices
• cable assembly for converting from internal wide SCSI connectors to internal non-wide (Type
2) connectors
• cable assembly for converting from internal wide to internal non-wide SCSI connectors (Type
30)
• cable assembly for converting from internal wide to internal non-wide SCSI connectors
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
116
68-Pin High Density Connectors, Continued
Cable Assembly for Internal Wide SCSI Devices The cable assembly for connecting internal wide SCSI devices is
shown below:
pin 1
pin 1
pin 1
Connectors: 68 position plug (male)
AMP - 786090-7
Cable: Flat Ribbon or Twisted-Pair Flat Cable
68 Conductor 0.025 Centerline
30 AWG
Cont’d
Appendix A SCSI Cables and Connectors 117
68-Pin High Density Connectors, Continued
Connecting Internal and External Wide Devices The cable assembly for connecting internal wide and external
wide SCSI devices is shown below:
pin 1
pin 1
pin 1
Connector A: 68 position panel mount receptacle
with 4-40 holes (female)
AMP - 786096-7
NOTE: To convert to 2-56 holes, use screwlock
kit 749087-1, 749087-2, or 750644-1
from AMP
Connector B: 68 position plug (male)
AMP - 786090-7
Cable: Flat Ribbon or Twisted-Pair Flat Cable
68 Conductor 0.025 Centerline
30 AWG
A
B
B
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
118
68-Pin High Density Connectors, Continued
Converting Internal Wide to Internal Non-Wide (Type 2) The cable assembly for converting internal wide SCSI
connectors to internal non-wide SCSI connectors is shown below:
pin 1
pin 1
Connector A:68 position plug (male)
AMP - 749925-5
Connector B:50 position IDC receptacle (female)
AMP - 499252-4, 1-746285-0, 1-746288-0
Wire: Twisted-Pair Flat Cable or
Laminated Discrete Wire Cable
25 pair 0.050 centerline
28 AWG
A
B
B
pin 1
68 POSITION
CONNECTOR
CONTACT NUMBER
50 POSITION
CONNECTOR
CONTACT NUMBER
16
240
37
441
2049
2116
2250
2317
4729
4863
4930
5064
2451
2518
2652
2719
*
*
*
*
*
*
OPEN
OPEN
OPEN
TABLE 1: CONNECTOR CONTACT
CONNECTION FOR WIDE
TO NON-WIDE CONVERSION
Cont’d
Appendix A SCSI Cables and Connectors 119
68-Pin High Density Connectors, Continued
Converting Internal Wide to Internal Non-Wide (Type 30) The cable assembly for connecting internal wide
SCSI devices to internal non-wide SCSI devices is shown below:
pin 1
pin 1
Connector A: 68 position plug (male)
AMP - 749925-5
Connector B:50 position plug (male)
AMP - 749925-3
Wire: Twisted-Pair Flat Cable or
Laminated Discrete Wire Cable
25 pair 0.050 centerline
28 AWG
A
B
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
120
68-Pin High Density Connectors, Continued
Converting from Internal Wide to Internal Non-Wide (Type 3) The cable assembly for connecting internal wide
SCSI devices to internal non-wide (Type 3) SCSI devices is shown below:
pin 1
pin 1
Connector A: 68 position plug (male)
AMP - 786090-7
Connector B:50 position plug (male)
AMP - 786090-7
Wire: Flat ribbon or twisted-pair flat cable
50 conductor 0.025 centerline
30 AWG
A
B
SCSI Cable Vendors
Manufacturer Telephone Number
Cables To Go Voice: 800-826-7904 Fax: 800-331-2841
System Connection Voice: 800-877-1985
Technical Cable Concepts Voice: 714-835-1081
GWC Voice: 800-659-1599
SCSI Connector Vendors
Manufacturer Connector Part Number Back Shell Part Number
AMP 749111-4 749193-1
Fujitsu FCN-237R050-G/F FCN-230C050-D/E
Honda PCS-XE50MA PCS-E50LA
Appendix A SCSI Cables and Connectors 121
68-Pin Connector Pinout for Single-Ended SCSI
Signal Connector
Pin
Cable
Pin
Cable
Pin
Connector
Pin
Signal
Ground 1 1 2 35 -DB(12)
Ground 2 3 4 36 -DB(13)
Ground 3 5 6 37 -DB(14)
Ground 4 7 8 38 -DB(15)
Ground 5 9 10 39 -DB(P1)
Ground 6 11 12 40 -DB(0)
Ground 7 13 14 41 -DB(1)
Ground 8 15 16 42 -DB(2)
Ground 9 17 18 43 -DB(3)
Ground 10 19 20 44 -DB(4)
Ground 11 21 22 45 -DB(5)
Ground 12 23 24 46 -DB(6)
Ground 13 25 26 47 -DB(7)
Ground 14 27 28 48 -DB(P)
Ground 15 29 30 49 Ground
Ground 16 31 32 50 Ground
TERMPWR 17 33 34 51 TERMPWR
TERMPWR 18 35 36 52 TERMPWR
Reserved 19 37 38 53 Reserved
Ground 20 39 40 54 Ground
Ground 21 41 42 55 -ATN
Ground 22 43 44 56 Ground
Ground 23 45 46 57 -BSY
Ground 24 47 48 58 -ACK
Ground 25 49 50 59 -RST
Ground 26 51 52 60 -MSG
Ground 27 53 54 61 -SEL
Ground 28 55 56 62 -C/D
Ground 29 57 58 63 -REQ
Ground 30 59 60 64 -I/O
Ground 31 61 62 65 -DB(8)
Ground 32 63 64 66 -DB(9)
Ground 33 65 66 67 -DB(10)
Ground 34 67 68 68 -DB(11)
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
122
68-Pin SCSI Connector Pinout, Continued
High-Density Connector The following applies to the high-density SCSI connector table on the previous page:
• A hyphen before a signal name indicates that signal is active low
• The connector pin refers to the conductor position when using 0.025 inch centerline flat
ribbon cable with a high-density connector (AMPLIMITE.050 Series connectors)
• Eight-bit devices connected to the P-Cable must leave the following signals open: -DB (8), -
DB (9), -DB (10), -DB (11), -DB(12), -DB (13), -DB (14), -DB 15), and -DB (P1)
• All other signals should be connected as defined
Caution
Lines labeled RESERVED should be connected to Ground
in the bus terminator assemblies or in the end devices on the
SCSI cable.
RESERVED lines should be open in the other SCSI
devices, but can be connected to Ground.
Appendix A SCSI Cables and Connectors 123
68-Pin Connector Pinout for Low-Voltage Differential SCSI
Signal Connector
Pin
Cable
Pin
Cable
Pin
Connector
Pin
Signal
+DB(12) 1 1 2 35 -DB(12)
+DB(13) 2 3 4 36 -DB(13)
+DB(14) 3 5 6 37 -DB(14)
+DB(15) 4 7 8 38 -DB(15)
+DB(P1) 5 9 10 39 -DB(P1)
+DB(0) 6 11 12 40 -DB(0)
+DB(1) 7 13 14 41 -DB(1)
+DB(2) 8 15 16 42 -DB(2)
+DB(3) 9 17 18 43 -DB(3)
+DB(4) 10 19 20 44 -DB(4)
+DB(5) 11 21 22 45 -DB(5)
+DB(6) 12 23 24 46 -DB(6)
+DB(7) 13 25 26 47 -DB(7)
+DB(P) 14 27 28 48 -DB(P)
Ground 15 29 30 49 Ground
DIFFSENS 16 31 32 50 Ground
TERMPWR 17 33 34 51 TERMPWR
TERMPWR 18 35 36 52 TERMPWR
Reserved 19 37 38 53 Reserved
Ground 20 39 40 54 Ground
+ATN 21 41 42 55 -ATN
Ground 22 43 44 56 Ground
+BSY 23 45 46 57 -BSY
+ACK 24 47 48 58 -ACK
+RST 25 49 50 59 -RST
+MSG 26 51 52 60 -MSG
+SEL 27 53 54 61 -SEL
+C/D 28 55 56 62 -C/D
+REQ 29 57 58 63 -REQ
+I/O 30 59 60 64 -I/O
+DB(8) 31 61 62 65 -DB(8)
+DB(9) 32 63 64 66 -DB(9)
+DB(10) 33 65 66 67 -DB(10)
+DB(11) 34 67 68 68 -DB(11)
Notes The conductor number refers to the conductor position when using flat-ribbon cable.
MegaRAID Enterprise 1600 Hardware Guide
124
Appendix B Audible Warnings 125
B Audible Warnings
MegaRAID has an onboard tone generator that indicates events and errors.
Tone Pattern Meaning Examples
Three seconds on
and one second
off
A logical drive is
offline.
One or more drives in a RAID
0 configuration failed.
Two or more drives in a RAID
1, 3, or 5 configuration failed.
One second on
and one second
off
A logical drive is
running in degraded
mode.
One drive in a RAID 3 or 5
configuration failed.
One second on
and three seconds
off
An automatically
initiated rebuild has
been completed.
While you were away from the
system, a disk drive in a RAID
1, 3, or 5 configuration failed
and was rebuilt.
MegaRAID Enterprise 1600 Hardware Guide
126
Appendix C Cluster Configuration with a Crossover Cable 127
C Cluster Configuration with a Crossover
Cable
When you are installing the Cluster Service on the first node in a server cluster, Setup may not
detect the network adapter that is connected with a crossover cable. The icon in Network and
Dial-up Connections that represents the network adapter connected to the crossover cable is
displayed with a red X, and the Network cable unplugged icon in displayed on the taskbar.
You may also receive one of the following error messages:
During installation:
Only a singled Adapter is configured for internal cluster use. If you
have multiple adapters you may reconfigure them to avoid a single point
of failure.
Or, depending on the network role designated on other network adapters that are detected:
No network adapter was configured for internal cluster use.
The reason for this is because Media Sense is a default feature in Windows 2000 that removes
bound protocols from an adapter sensed as "down" or "disconnected." Because the second node is
powered off to avoid contention on the shared disk, Media Sense flags the network as
"disconnected" because there is no end-to-end signal. During installation, the Cluster Service does
not detect the adapter because there are no protocols bound to the adapter.
MegaRAID Enterprise 1600 Hardware Guide
128
Solution
Note: Using Registry Editor incorrectly can cause serious problems that may require you to reinstall your
operating system. Use Registry Editor at your own risk. You should back up the registry before
you edit it. If you are running Windows NT or Windows 2000, you should also update your
Emergency Repair Disk (ERD).
Disable the Media Sense feature:
1. Start Registry Editor (Regedt32.exe).
2. Locate the following key in the registry:
HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Tcpip\Parameters
3. On the Edit menu, click Add Value, and then add the following registry value:
Value Name: DisableDHCPMediaSense
Data Type: REG_DWORD
Value: 1
4. Quit Registry Editor, and then restart the computer.
The network adapter still shows the "disconnected" status, but the cluster installation process can
detect the adapter as available for cluster communication.
Alternatively, when you install the Cluster Service on the first node, you can have the second node
powered up to the Control M (<Ctrl> <M>) menu. On the first node, a network connection will be
detected for the private network.
Glossary 129
Glossary
Array A grouping or array of disk drives combines the storage space on the disk drives into a single
segment of contiguous storage space. MegaRAID can group disk drives on one or more SCSI
channels into an array. A hot spare drive does not participate in an array.
Array Management Software Software that provides common control and management for a disk array. Array
Management Software most often executes in a disk controller or intelligent host bus adapter, but
can also execute in a host computer. When it executes in a disk controller or adapter, Array
Management Software is often called firmware.
Array Spanning Array spanning by a logical drive combines storage space in two arrays of disk drives into a single,
contiguous storage space in a logical drive. MegaRAID logical drives can span consecutively
numbered arrays that each consist of the same number of disk drives. Array spanning promotes
RAID levels 1, 3, and 5 to RAID levels 10, 30, and 50, respectively. See also Disk Spanning.
Asynchronous Operations Operations that bear no relationship to each other in time and can overlap. The concept
of asynchronous I/O operations is central to independent access arrays in throughput-intensive
applications.
Cache I/O A small amount of fast memory that holds recently accessed data. Caching speeds subsequent
access to the same data. It is most often applied to processor-memory access, but can also be used
to store a copy of data accessible over a network. When data is read from or written to main
memory, a copy is also saved in cache memory with the associated main memory address. The
cache memory software monitors the addresses of subsequent reads to see if the required data is
already stored in cache memory. If it is already in cache memory (a cache hit), it is read from
cache memory immediately and the main memory read is aborted (or not started.) If the data is not
cached (a cache miss), it is fetched from main memory and saved in cache memory.
Channel An electrical path for the transfer of data and control information between a disk and a disk
controller.
Consistency Check An examination of the disk system to determine whether all conditions are valid for the
specified configuration (such as parity.)
Cold Swap A cold swap requires that you turn the power off before replacing a defective hard drive in a disk
subsystem.
Data Transfer Capacity The amount of data per unit time moved through a channel. For disk I/O, bandwidth is
expressed in megabytes per second (MB/s).
Degraded A drive that has become non-functional or has decreased in performance.
Disk A non-volatile, randomly addressable, rewritable mass storage device, including both rotating
magnetic and optical disks and solid-state disks, or non-volatile electronic storage elements. It does
not include specialized devices such as write-once-read-many (WORM) optical disks, nor does it
include so-called RAM disks implemented using software to control a dedicated portion of a host
computer volatile random access memory.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
130
Glossary, Continued
Disk Array A collection of disks from one or more disk subsystems combined with array management
software. It controls the disks and presents them to the array operating environment as one or more
virtual disks.
Disk Duplexing A variation on disk mirroring where a second disk adapter or host adapter and redundant disk
drives are present.
Disk Mirroring Writing duplicate data to more than one (usually two) hard disks to protect against data loss in the
event of device failure. It is a common feature of RAID systems.
Disk Spanning Disk spanning allows multiple disk drives to function like one big drive. Spanning overcomes lack
of disk space and simplifies storage management by combining existing resources or adding
relatively inexpensive resources. For example, four 400 MB disk drives can be combined to appear
to the operating system as one single 1600 MB drive. See also Array Spanning and Spanning.
Disk Striping A type of disk array mapping. Consecutive stripes of data are mapped round-robin to consecutive
array members. A striped array (RAID Level 0) provides high I/O performance at low cost, but
provides lowers data reliability than any of its member disks.
Disk Subsystem A collection of disks and the hardware that connects them to one or more host computers. The
hardware can include an intelligent controller or the disks can attach directly to a host computer
I/O a bus adapter.
Double Buffering A technique that achieves maximum data transfer bandwidth by constantly keeping two I/O
requests for adjacent data outstanding. A software component begins a double-buffered I/O stream
by issuing two requests in rapid sequence. Thereafter, each time an I/O request completes, another
is immediately issued. If the disk subsystem is capable of processing requests fast enough, double
buffering allows data to be transferred at the full-volume transfer rate.
Failed Drive A drive that has ceased to function or consistently functions improperly.
Fast SCSI A variant on the SCSI-2 bus. It uses the same 8-bit bus as the original SCSI-1, but runs at up to
10MB (double the speed of SCSI-1.)
Firmware Software stored in read-only memory (ROM) or Programmable ROM (PROM). Firmware is often
responsible for the behavior of a system when it is first turned on. A typical example would be a
monitor program in a computer that loads the full operating system from disk or from a network
and then passes control to the operating system.
FlexRAID Power Fail Option The FlexRAID Power Fail option allows a reconstruction to restart if a power failure
occurs. This is the advantage of this option. The disadvantage is, once the reconstruction is active,
the performance is slower because an additional activity is added.
Cont’d
Glossary 131
Glossary, Continued
Format The process of writing zeros to all data fields in a physical drive (hard drive) to map out
unreadable or bad sectors. Because most hard drives are factory formatted, formatting is usually
only done if a hard disk generates many media errors.
GB Shorthand for 1,000,000,000 (10 to the ninth power) bytes. It is the same as 1,000 MB
(megabytes).
Host-based Array A disk array with an Array Management Software in its host computer rather than in a disk
subsystem.
Host Computer Any computer that disks are directly attached to. Mainframes, servers, workstations, and personal
computers can all be considered host computers.
Hot Spare A stand-by drive ready for use if another drive fails. It does not contain any user data. Up to eight
disk drives can be assigned as hot spares for an adapter. A hot spare can be dedicated to a single
redundant array or it can be part of the global hot-spare pool for all arrays controlled by the
adapter.
Hot Swap The substitution of a replacement unit in a disk subsystem for a defective one, where the
substitution can be performed while the subsystem is running (performing its normal functions).
Hot swaps are manual.
I/O Driver A host computer software component (usually part of the operating system) that controls the
operation of peripheral controllers or adapters attached to the host computer. I/O drivers
communicate between applications and I/O devices, and in some cases participates in data transfer.
Initialization The process of writing zeros to the data fields of a logical drive and generating the corresponding
parity to put the logical drive in a Ready state. Initializing erases previous data and generates parity
so that the logical drive will pass a consistency check. Arrays can work without initializing, but
they can fail a consistency check because the parity fields have not been generated.
Logical Disk A set of contiguous chunks on a physical disk. Logical disks are used in array implementations as
constituents of logical volumes or partitions. Logical disks are normally transparent to the host
environment, except when the array containing them is being configured.
Logical Drive A virtual drive within an array that can consist of more than one physical drive. Logical drives
divide the contiguous storage space of an array of disk drives or a spanned group of arrays of
drives. The storage space in a logical drive is spread across all the physical drives in the array or
spanned arrays. Each MegaRAID adapter can be configured with up to 40 logical drives in any
combination of sizes. Configure at least one logical drive for each array.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
132
Glossary, Continued
Mapping The conversion between multiple data addressing schemes, especially conversions between
member disk block addresses and block addresses of the virtual disks presented to the operating
environment by Array Management Software.
MB (Megabyte) An abbreviation for 1,000,000 (10 to the sixth power) bytes. It is the same as 1,000
KB (kilobytes).
Multi-threaded Having multiple concurrent or pseudo-concurrent execution sequences. Used to describe processes
in computer systems. Multi-threaded processes allow throughput-intensive applications to
efficiently use a disk array to increase I/O performance.
Operating Environment The operating environment includes the host computer where the array is attached, any I/O
buses and adapters, the host operating system, and any additional software required to operate the
array. For host-based arrays, the operating environment includes I/O driver software for the
member disks, but does not include Array Management Software, which is regarded as part of the
array itself.
Parity Parity is an extra bit added to a byte or word to reveal errors in storage (in RAM or disk) or
transmission. Parity is used to generate a set of redundancy data from two or more parent data sets.
The redundancy data can be used to reconstruct one of the parent data sets. However, parity data
does not fully duplicate the parent data sets. In RAID, this method is applied to entire drives or
stripes across all disk drives in an array. Parity consists of dedicated parity, in which the parity of
the data on two or more drives is stored on an additional drive, and distributed parity, in which the
parity data are distributed among all the drives in the system. If a single drive fails, it can be rebuilt
from the parity of the respective data on the remaining drives.
Partition An array virtual disk made up of logical disks rather than physical ones. Also known as logical
volume.
Physical Disk A hard disk drive that stores data. A hard disk drive consists of one or more rigid magnetic discs
rotating about a central axle with associated read/write heads and electronics.
Physical Disk Roaming The ability of some adapters to detect when hard drives have been moved to a different
slots in the computer, for example, after a hot swap.
Protocol A set of formal rules describing how to transmit data, especially across a network. Low level
protocols define the electrical and physical standards to be observed, bit- and byte- ordering, and
the transmission and error detection and correction of the bit stream. High level protocols deal with
the data formatting, including the message syntax, the terminal-to-computer dialogue, character
sets, and sequencing of messages.
Cont’d
Glossary 133
Glossary, Continued
RAID Redundant Array of Independent Disks (originally Redundant Array of Inexpensive Disks) is an
array of multiple small, independent hard disk drives that yields performance exceeding that of a
Single Large Expensive Disk (SLED). A RAID disk subsystem improves I/O performance on a
server using only a single drive. The RAID array appears to the host server as a single storage unit.
I/O is expedited because several disks can be accessed simultaneously.
RAID Levels A style of redundancy applied to a logical drive. It can increase the performance of the logical
drive and can decrease usable capacity. Each logical drive must have a RAID level assigned to it.
The RAID level drive requirements are: RAID 0 requires one or more physical drives, RAID 1
requires exactly two physical drives, RAID 3 requires at least three physical drives, RAID 5
requires at least three physical drives. RAID levels 10, 30, and 50 result when logical drives span
arrays. RAID 10 results when a RAID 1 logical drive spans arrays. RAID 30 results when a RAID
3 logical drive spans arrays. RAID 50 results when a RAID 5 logical drive spans arrays.
RAID Migration RAID migration is used to move between optimal RAID levels or to change from a degraded
redundant logical drive to an optimal RAID 0. In Novell, the utility used for RAID migration is
MEGAMGR and in Windows NT its Power Console. If a RAID 1 is being converted to a RAID 0,
instead of performing RAID migration, one drive can be removed and the other reconfigured on
the controller as a RAID 0. This is due to the same data being written to each drive.
Read-Ahead A memory caching capability in some adapters that allows them to read sequentially ahead of
requested data and store the additional data in cache memory, anticipating that the additional data
will be needed soon. Read-Ahead supplies sequential data faster, but is not as effective when
accessing random data.
Ready State A condition in which a workable hard drive is neither online nor a hot spare and is available to add
to an array or to designate as a hot spare.
Rebuild The regeneration of all data from a failed disk in a RAID level 1, 3, 4, 5, or 6 array to a
replacement disk. A disk rebuild normally occurs without interruption of application access to data
stored on the array virtual disk.
Rebuild Rate The percentage of CPU resources devoted to rebuilding.
Reconstruct The act of remaking a logical drive after changing RAID levels or adding a physical drive to an
existing array.
Redundancy The provision of multiple interchangeable components to perform a single function to cope with
failures or errors. Redundancy normally applies to hardware; a common form of hardware
redundancy is disk mirroring.
Replacement Disk A disk available to replace a failed member disk in a RAID array.
Replacement Unit A component or collection of components in a disk subsystem that are always replaced as a unit
when any part of the collection fails. Typical replacement units in a disk subsystem includes disks,
controller logic boards, power supplies, and cables. Also called a hot spare.
Cont’d
MegaRAID Enterprise 1600 Hardware Guide
134
Glossary, Continued
SAF-TE SCSI Accessed Fault-Tolerant Enclosure. An industry protocol for managing RAID enclosures and
reporting enclosure environmental information.
SCSI (Small Computer System Interface) A processor-independent standard for system-level interfacing
between a computer and intelligent devices, including hard disks, floppy disks, CD-ROM, printers,
scanners, etc. SCSI can connect up to 7 devices to a single adapter (or host adapter) on the
computer's bus. SCSI transfers eight or 16 bits in parallel and can operate in either asynchronous
or synchronous modes. The synchronous transfer rate is up to 40 MB/s. SCSI connections
normally use single ended drivers, as opposed to differential drivers. The original standard is now
called SCSI-1 to distinguish it from SCSI-2 and SCSI-3, which include specifications of Wide
SCSI (a 16-bit bus) and Fast SCSI (10 MB/s transfer).
SCSI Channel MegaRAID controls the disk drives via SCSI-2 buses (channels) over which the system transfers
data in either Fast and Wide or Ultra SCSI mode. Each adapter can control up to three SCSI
channels.
Service Provider The Service Provider, (SP), is a program that resides in the desktop system or server and is
responsible for all DMI activities. This layer collects management information from products
(whether system hardware, peripherals or software) stores that information in the DMI’s database
and passes it to management applications as requested.
SMARTer Self-Monitoring, Analysis, and Reporting Technology with Error Recovery. An industry standard
protocol for reporting server system information. Self-Monitoring, Analysis and Reporting
Technology for disk drives is a specification designed to offer an early warning for some disk drive
failures. These failures are predicted based upon actual performance degradation of drive
components that are then reported through a graphical interface.
SNMP Simple Network Management Protocol is the most widely used protocol for communication
management information between the managed elements of a network and a network manager. It
focuses primarily on the network backbone. The Internet standard protocol developed to manage
nodes on an Internet Protocol (IP) network.
Spanning Array spanning by a logical drive combines storage space in two arrays of disk drives into a single,
contiguous storage space in a logical drive. MegaRAID logical drives can span consecutively
numbered arrays that each consist of the same number of disk drives. Array spanning promotes
RAID levels 1, 3, and 5 to RAID levels 10, 30, and 50, respectively. See also Disk Spanning and
Spanning.
Spare A hard drive available to back up the data of other drives.
Stripe Size The amount of data contiguously written to each disk. You can specify stripe sizes of 2 KB, 4 KB,
8 KB, 16 KB, 32 KB, 64 KB, and 128 KB for each logical drive. For best performance, choose a
stripe size equal to or smaller than the block size used by the host computer.
Cont’d
Glossary 135
Glossary, Continued
Stripe Width The number of disk drives across which the data are striped.
Striping Segmentation of logically sequential data, such as a single file, so that segments can be written to
multiple physical devices in a round-robin fashion. This technique is useful if the processor can
read or write data faster than a single disk can supply or accept it. While data is being transferred
from the first disk, the second disk can locate the next segment. Data striping is used in some
modern databases and in certain RAID devices.
Terminator A resistor connected to a signal wire in a bus or network for impedance matching to prevent
reflections, e.g., a 50 ohm resistor connected across the end of an Ethernet cable. SCSI chains and
some LocalTalk wiring schemes also require terminators.
Ultra 160M A subset of Ultra3 SCSI, allows a maximum throughput of 160 MB/s, which is more than twice as
fast as Wide Ultra2 SCSI. Ultra 160M allows the attachment of up to 15 SCSI devices (one SCSI
ID is reserved for the controller), including a combination of LVD and older, single-end legacy
devices, while maintaining backward compatibility with older versions of SCSI.
Ultra-SCSI An extension of SCSI-2 that doubles the transfer speed of Fast-SCSI, providing 20MB/s on an 8-
bit connection and 40MB/s on a 16-bit connection.
Virtual Sizing FlexRAID Virtual Sizing is used to create a logical drive up to 80 GB. A maximum of 40 logical
drives can be configured on a RAID controller and RAID migration is possible for all logical
drives except the fortieth. Because it is not possible to do migration on the last logical drive, the
maximum space available for RAID migration is 560 GB.
Wide SCSI A variant on the SCSI-2 interface. Wide SCSI uses a 16-bit bus, double the width of the original
SCSI-1. Wide SCSI devices cannot be connected to a SCSI-1 bus. Wide SCSI supports transfer
rates up to 20 MB/s, like Fast SCSI.
Write-Through/Write-Back When the processor writes to main memory, the data is first written to cache memory,
assuming that the processor will probably read this data again soon. In write-through cache, data is
written to main memory at the same time it is written to cache memory. In write-back cache, data is
written only to main memory when it is forced out of cache memory. Write-through caching is
simpler than write-back because an entry to cache memory that must be replaced can be
overwritten in cache memory because it will already have been copied to main memory. Write-
back requires cache memory to initiate a main memory write of the flushed entry followed (for a
processor read) by a main memory read. However, write-back is more efficient because an entry
can be written many times to cache memory without a main memory access.
MegaRAID Enterprise 1600 Hardware Guide
136
Index 137
Index
0
0 DIMM socket, 51
1
160M and WIDE SCSI, 25
6
68-Pin High Density Connectors, 115
A
AMICDROM.SYS, 73
AMPLIMITE .050 Series connectors, 122
Array, 129
Array Configuration Planner, 45
Array Management Software, 129
Array Performance Features, 27
Array Spanning, 129
ASPI Driver Error Messages, 112
ASPI Drivers, 72
ASPI manager, 112
Assigning Drive Letters, 92
Assigning RAID Levels, 42
Asynchronous Operations, 129
Audible Warnings, 125
Automatic Failed Drive Detection and Rebuild, 32
B
Battery Disposal Laws, 65
Battery Pack, 62
BIOS, 29
BIOS Boot Error Messages, 109
BIOS Setup, 71
Bus Data Transfer Rate, 29
Bus Type, 29
C
Cable Assembly for Internal Wide SCSI Devices, 116
Cables To Go, 120
Cache Configuration, 29
Cache I/O, 129
Cache Memory, 30
Installing, 51
Card Size, 29
CD-ROM Driver, 73
Changing DRAM Modules, 52, 65
Changing the Battery Pack, 65
Channel, 129
Cluster Configuration, 77
Windows 2000, 75
Cluster Configuration with Crossover Cable, 127
Cluster Configuration Wizard, 94
Cluster Disks
Configuration, 97
Cluster Installation, 77, 84
Hardware requirements, 76
Overview, 84
Software requirements, 75
Validation, 103
Cluster Node Network Adapter
Configuration, 87
Cluster Service, 75
Assigning Drive Letters, 92
Cluster Node Network Adapter, 87
Cluster User Account, 90
Configuring Cluster Disks, 97
Connectivity and Name Resolution, 88
Disk Access and Functionality, 93
Domain Membership, 89
Public Network Adapter, 88
SCSI Drive Installations, 105
Setting Up Networks, 85
Shared Disks Configuration, 92
Shared Disks Setup, 91
Software Installation, 94
Validating the Cluster Installation, 103
Cluster User Account
Setup, 90
Clustering
Network Requirements, 83
Shared Disk Requirements, 83
Clustering Support, 32
Clusters, 75
Benefits, 75
Cold Swap, 129
Compatibility, 32
Components, 30
Configuration Features, 26
Configuration on Disk, 26
Configuration Strategies, 40
Maximize Capacity, 40
Maximize Drive Availability, 41
Maximize Drive Performance, 41
Configuring Arrays, 39
Arranging Arrays, 39
Creating Hot Spares, 39
Creating Logical Drives, 39
Configuring Logical Drives, 42
Configuring SCSI Physical Drives, 33
Basic Configuration Rules, 33
Distributing Drives, 33
MegaRAID Enterprise 1600 Hardware Guide
138
SCSI Channels, 33
Connecting Internal and External Wide Devices, 117
Consistency Check, 6, 129
Converting from Internal Wide to Internal Non-Wide (Type
3), 120
Converting Internal Wide to Internal Non-Wide, 118
Converting Internal Wide to Internal Non-Wide (Type 30),
119
CPU, 30
Crossover Cable, 127
Current Configuration, 34
D
Data redundancy
Using mirroring, 8
Data Transfer Capacity, 129
Dedicated Parity, 10
Degraded, 129
Devices per SCSI Channel, 29
DIMM socket, 51
DIMMs, 51
Dirty Cache LED Connector, 55
Disconnect/Reconnect, 31
Disk, 129
Disk Access and Functionality, 93
Disk Array, 130
Disk Array Types, 14
Bus Based, 14
SCSI to SCSI, 14
Software-Based, 14
Disk Duplexing, 130
Disk Mirroring, 8, 130
Disk Rebuild, 12
Disk Spanning, 9, 130
Disk Striping, 7, 130
Disk Subsystem, 130
Disposing of a Battery Pack, 65
Distributed Parity, 10
DOS ASPI driver, 72
DOS CD-ROM Driver, 72
Double Buffering, 130
Drive roaming, 26
Drive States, 13
Drivers, 72
E
Enclosure Management, 14
Error
Failure codes, 112
Error Messages
ASPI Driver, 112
F
Fail, 13
Failed Drive, 130
Fast SCSI, 130
Fault Tolerance, 6
Fault Tolerance Features, 28
Fault-Tolerance, 32
Features, 25
Firmware, 29, 130
Flash ROM, 1
FlexRAID Power Fail Option, 130
Format, 131
G
GB, 131
Glossary, 129
GWC, 120
H
Hardware Architecture Features, 27
Hardware Installation, 47
Optimal Equipment, 47
Requirements, 47
Hardware Requirements, 26
High-Density 68-Pin SCSI Connector and P-Cable Single-
Ended Cable Pinouts, 121, 123
High-Density Connector, 122
Host Computer, 131
Host-based Array, 131
Hot spare
Using during disk rebuild, 12
Hot Spare, 11, 13, 131
Hot Swap, 13, 32, 131
I
I/O Driver, 131
Initialization, 131
Install Cache Memory, 51
Install Drivers, 72
Installation Steps
Custom, 49
J
J1 Channel B Internal Wide SCSI, 53
J10 Channel A TERMPWR Enable, 53
J11 Channel D TERMPWR Enable, 53
J12 Channel C TERMPWR Enable, 53
J13 Channel A External Wide SCSI, 53
J14 Serial port connector, 53
J17 Dirty Cache LED, 55
J18 Serial EEPROM Port, 53
J19 Onboard BIOS Enable, 53, 55
J2 Channel A Termination Enable, 53
J2, J3, J5, and J7 Termination Enable, 54
J22 Channel C/D External Wide SCSI, 53
J23 Battery Connector Pinout, 62
J23 External Battery, 55
J23 External battery connector, 53
J3 Channel B Termination Enable, 53
J4 Channel A Internal Wide SCSI, 53
J4 Serial Port, 55
J5 Channel C Termination Enable, 53
Index 139
J7 A and B External Connector, 68
J7 Channel D Termination Enable, 53
J9 Channel B TERMPWR Enable, 53
J9, J10, J11, and J12 TermPWR Enable, 54
J9, J10, J11, J12, 61
Jumpers, 53, 54
on motherboard, 50
L
Logical Disk, 131
Logical Drive, 13, 131
Logical Drive Configuration, ix, 36
Logical Drive States, 13
Degraded, 13
Failed, 13
Offline, 13
Optimal, 13
M
Mapping, 132
Maximum Cable Length, 2
MB, 132
MegaRAID BIOS, 30
MegaRAID BIOS Setup, 31
MegaRAID Card
Installing, 66
MegaRAID Enterprise 1600 64-bit 160M Card Layout, 53
MegaRAID Manager, 31, 65
MegaRAID Specifications, 29
BIOS, 29
Bus Data Transfer Rate, 29
Bus Type, 29
Cache Configuration, 29
Card Size, 29
Devices per SCSI Channel, 29
Firmware, 29
Nonvolatile RAM, 29
Operating Voltage, 29
Processor, 29
RAID Levels Supported, 29
SCSI Bus, 29
SCSI cables, 29
SCSI Connectors, 29
SCSI Controller, 29
SCSI Data Transfer Rate, 29
SCSI Device Types Supported, 29
Serial Port, 29
Termination Disable, 29
Mirroring, 8
Motherboard Jumpers, 50
Multi-threaded, 132
Multi-threading, 31
N
Nonvolatile RAM, 29
NVRAM, 1
O
Onboard Speaker, 30
Online
Drive state, 13
Operating Environment, 132
Operating System Software Drivers, 29
Operating Voltage, 29
Optimizing Data Storage, 43
Array Functions, 43
Data Access Requirement, 43
OS/2 2.x, 31
Other BIOS Error Messages, 111
P
Package Contents, vii
Packing Slip, vii
Parity, 10, 132
Partition, 132
Physical Array, 12
Physical Device Layout, 37
Physical Disk, 132
Physical Disk Roaming, 132
Physical drive, 12
Planning the Array Configuration, 44
Power Console, 31
Power Console Plus, 65
Power Down, 50
Processor, 29
Protocol, 132
Public Network Adapter
Configuration, 88
R
RAID, 133
Introduction to, 5
RAID 0, 17
RAID 1, 18
Spanning to configure RAID 10, 9
RAID 10, 22
Configuring, 9
RAID 3, 19
Parity disk, 10
Spanning to configure RAID 30, 9
RAID 30, 23
Configuring, 9
RAID 5, 21
Spanning to make RAID 50, 9
RAID 50, 24
Configuring, 9
RAID Levels, 6, 15, 133
RAID Levels Supported, 29
RAID Management, 31
RAID Management Features, 28
RAID Migration, 133
Read-Ahead, 133
Ready, 13
Ready State, 133
MegaRAID Enterprise 1600 Hardware Guide
140
Rebuild, 13, 31
Rebuild Rate, 12, 133
Rebuilding a disk, 12
Reconnect, 31
Reconstruct, 133
Reconstruction, 133
RedAlert, 32
Redundancy, 133
Replacement Disk, 133
Replacement Unit, 133
S
SAF-TE, 134
Scatter/Gather, 31
SCO Unix, 31
SCSI, 134
SCSI backup and utility software, 32
SCSI Bus, 29, 30
SCSI Bus Widths and Maximum Throughput, 2
SCSI Cable Vendors, 120
SCSI cables, 29
SCSI Cables
Attaching, 67
SCSI Channel, 134
SCSI Connectors, 29, 30, 115
SCSI Controller, 29
SCSI Data Transfer Rate, 29
SCSI Device Compatibility, 32
SCSI Device Types Supported, 29
SCSI Devices
Configuration, 105
SCSI Drive Installations, 105
SCSI Drive States, 13
SCSI Firmware, 31
SCSI Termination, 29, 31, 57
Connecting Non-Disk SCSI Devices, 60
Selecting a Terminator, 57
Set, 56
Terminating External Disk Arrays, 58
Terminating Internal and External Disk Arrays, 59
Terminating Internal SCSI Disk Arrays, 57
SCSI terminator power (TermPWR
Setting), 61
Serial Port, 29, 30
Server Management, 32
Service Provider, 134
Set SCSI Termination, 56
Shared Disks
Configuration, 92
Setup, 91
Shared SCSI Bus
Termination, 105
SMART Technology, 25
SMARTer, 134
SNMP, 134
SNMP agent, 32
SNMP managers, 32
Software Utilities, 28
Spanning, 9, 134
Spare, 134
Standby rebuild, 12
Stripe Size, 7, 31, 134
Stripe Width, 7, 135
Striping, 135
System Connection, 120
System Management and Reporting Technologies with
Error Recovery., 134
T
Tagged Command Queuing, 31
Target identifiers
Setting, 69
Technical Cable Concepts, 120
Technical Support, vii
Termination Disable, 29
Terminator, 135
TermPWR Enable, 54
Troubleshooting, 107
U
Ultra SCSI, 135
UnixWare, 31
Unpack, 50
V
Virtual Sizing, 135
W
WebBIOS Configuration Utility, 31
WebBIOS Guide, 3
Wide SCSI, 135
Windows 2000
Cluster Configuration, 75
Windows 2000 Advanced Server
Driver Installation, 78
Windows 2000 Operating System
Installation, 85
Write-back caching, 65
Write-Through/Write-Back, 135
