PCI Express to 3.0 Gbit/s Serial Attached SCSI (SAS) Host Adapters

DB15-000363-00

USER’S

GUIDE

PCI Express to 3.0 Gbit/s

Serial Attached SCSI

(SAS) Host Adapters

August 2006

Version 1.0

Model Numbers:

LSISAS3041E, LSISAS3041EL

LSISAS3080E, LSISAS3080EL

LSISAS3081E, LSISAS3081EL

LSISAS3442E, LSISAS3442EL

LSISAS3443E, LSISAS3443EL

LSISAS3444E, LSISAS3444EL

LSISAS3800E

LSISAS3801E, LSISAS3801EL

Electromagnetic Compatibility Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Shielded cables for SCSI connection external to the cabinet are used in the compliance testing of this Product.

LSI Logic is not responsible for any radio or television interference caused by unauthorized modiﬁcation of this

equipment or the substitution or attachment of connecting cables and equipment other than those speciﬁed by

LSI Logic. The correction of interferences caused by such unauthorized modiﬁcation, substitution, or attachment will

be the responsibility of the user.

The LSI Logic PCI Express to 3.0 Gbit/s SAS host adapters (LSISAS3041E, LSISAS3041EL, LSISAS3080E,

LSISAS3080EL, LSISAS3081E, LSISAS3081EL, LSISAS3442E, LSISAS3442EL, LSISAS3443E, LSISAS3443EL,

LSISAS3444E, LSISAS3444EL, LSISAS3800E, LSISAS3801E, and LSISAS3801EL) are tested to comply with FCC

standards for home or ofﬁce use.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du

Canada.

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information

Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may

cause radio interference. Install and use the equipment according to the instruction manual.

SI Logic Asia, Inc. Taiwan Branch

10/F, 156, Min Sheng E. Rd., Section 3,

aipei, Taiwan, R.O.C.

el: 886.2.2718.7828

AX: 886.2.2718.8869

LSI Logic Corporation

North American Headquarters

Milpitas, CA

Tel: 408.433.8000

iii

This document is preliminary. As such, it contains data derived from functional

simulations and performance estimates. LSI Logic has not veriﬁed either the

functional descriptions, or the electrical and mechanical speciﬁcations using

production parts.

This document contains proprietary information of LSI Logic Corporation. The

information contained herein is not to be used by or disclosed to third parties

without the express written permission of an ofﬁcer of LSI Logic Corporation.

LSI Logic products are not intended for use in life-support appliances, devices,

or systems. Use of any LSI Logic product in such applications without written

consent of the appropriate LSI Logic ofﬁcer is prohibited.

Document DB15-000363-00, Version 1.0, August 2006

This document describes the LSI Logic Corporation LSISAS3041E,

LSISAS3041EL, LSISAS3080E, LSISAS3080EL, LSISAS3081E, LSISAS3081EL,

LSISAS3442E, LSISAS3442EL, LSISAS3443E, LSISAS3443EL, LSISAS3444E,

LSISAS3444EL, LSISAS3800E, LSISAS3801E, and LSISAS3801EL PCI

Express to 3.0 Gbit/s SAS host adapters and will remain the ofﬁcial reference

source for all revisions/releases of these products until rescinded by an update.

LSI Logic Corporation reserves the right to make changes to any products herein

at any time without notice. LSI Logic does not assume any responsibility or

liability arising out of the application or use of any product described herein,

except as expressly agreed to in writing by LSI Logic; nor does the purchase or

use of a product from LSI Logic convey a license under any patent rights,

copyrights, trademark rights, or any other of the intellectual property rights of

LSI Logic or third parties.

TRADEMARK ACKNOWLEDGMENT

LSI Logic, the LSI Logic logo design and Fusion-MPT are trademarks or

registered trademarks of LSI Logic Corporation. Windows and Windows NT are

registered trademarks of Microsoft Corporation. All other brand and product

names may be trademarks of their respective companies.

To receive product literature, visit us at http://www.lsilogic.com.

For a current list of our distributors, sales ofﬁces, and design resource

centers, view our web page located at

http://www.lsilogic.com/contacts/index.html

PCIe to 3.0 Gbit/s SAS Host Adapters User’s Guide v

Preface

This document is the user’s guide for the LSI Logic PCI Express to

3.0 Gbit/s SAS host adapters, referred to as LSI PCIe to SAS host

adapters. It contains a functional description of the LSI PCIe to SAS host

adapters as well as physical and electrical speciﬁcations. It also contains

instructions for installing the host adapters and for connecting SAS

devices.

Audience

This document assumes that you have some familiarity with Serial

Attached SCSI (SAS) devices and PCI Express devices. This document

beneﬁts people installing and using the LSI PCIe to SAS host adapter.

Organization

This document has the following chapters:

•Chapter 1, Introduction, describes the LSI PCIe to SAS host

adapters.

•Chapter 2, Hardware Installation, describes how to install the LSI

PCIe to SAS host adapters in a system.

•Chapter 3, Host Adapter Characteristics, provides the

environmental and electrical speciﬁcations for the LSI PCIe to SAS

host adapters. This chapter also provides the mechanical drawings

and connector locations for the LSI PCIe to SAS host adapters.

vi Preface

Related Publications

LSI Logic Documents

LSISAS1064E PCI Express to 4-Port Serial Attached SCSI Controller

Technical Manual, Document No. DB14-000331-02

LSISAS1068E PCI Express to 8-Port Serial Attached SCSI Controller

Technical Manual, Document No. DB14-000330-02

Fusion-MPT™ Device Management User’s Guide, Document No.

DB15-000186-01

Integrated RAID User’s Guide, Document No. DB15-000292-00

Integrated RAID for SAS User’s Guide, Document No. DB15-000357-00

LSI Logic World Wide Web Home Page

www.lsilogic.com

ANSI

11 West 42nd Street

New York, NY 10036

(212) 642-4900

InterNational Committee on Information Technology Standards

(INCITIS) T10 Technical Committee

http://www.t10.org

Global Engineering Documents

15 Inverness Way East

Englewood, CO 80112

(800) 854-7179 or (303) 397-7956 (outside U.S.); FAX (303) 397-2740

PCI Special Interest Group

2575 N. E. Katherine

Hillsboro, OR 97214

(800) 433-5177; (503) 693-6232 (International); FAX (503) 693-8344

Preface vii

Revision Record

Version Date Remarks

1.0 8/2006 This release provides information about the LSISAS3041E, LSISAS3041EL,

LSISAS3080E, LSISAS3080EL, LSISAS3081E, LSISAS3081EL, LSISAS3442E,

LSISAS3442EL, LSISAS3443E, LSISAS3443EL, LSISAS3444E,

LSISAS3444EL, LSISAS3800E, LSISAS3801E, and LSISAS3801EL PCI

Express to 3.0 Gbit/s SAS host adapters. Several of these host adapters were

previously featured in the 3 Gbit/s Serial Attached SCSI Host Adapters User’s

Guide (March 2006, Version 2.0).

viii Preface

Contents ix

Contents

Chapter 1

Introduction

1.1 Overview 1-1

1.2 Features 1-3

1.3 PCI Performance 1-4

1.3.1 PCI Express Features 1-4

1.4 Software 1-6

Chapter 2

Hardware Installation

2.1 Quick Installation Instructions 2-1

2.2 Detailed Installation Instructions 2-2

Chapter 3

Host Adapter Characteristics

3.1 Characteristics of the LSI PCIe to SAS Host Adapters 3-1

3.1.1 LSISAS3041E and LSISAS3041EL Host Adapters

Characteristics 3-2

3.1.2 LSISAS3080E and LSISAS3080EL Host Adapters

Characteristics 3-4

3.1.3 LSISAS3081E and LSISAS3081EL Host Adapters

Characteristics 3-6

3.1.4 LSISAS3442E and LSISAS3442EL Host Adapters

Characteristics 3-8

3.1.5 LSISAS3443E and LSISAS3443EL Host Adapters

Characteristics 3-10

3.1.6 LSISAS3444E and LSISAS3444EL Host Adapters

Characteristics 3-12

3.1.7 LSISAS3800E Host Adapter Characteristics 3-14

x Contents

3.1.8 LSISAS3801E and LSISAS3801EL Host Adapters

Characteristics 3-16

3.2 Electrical and Environmental Speciﬁcations 3-18

3.2.1 Electrical Characteristics 3-18

3.2.2 Thermal and Atmospheric Characteristics 3-19

3.2.3 Safety Characteristics 3-19

Customer Feedback

Contents xi

Figures

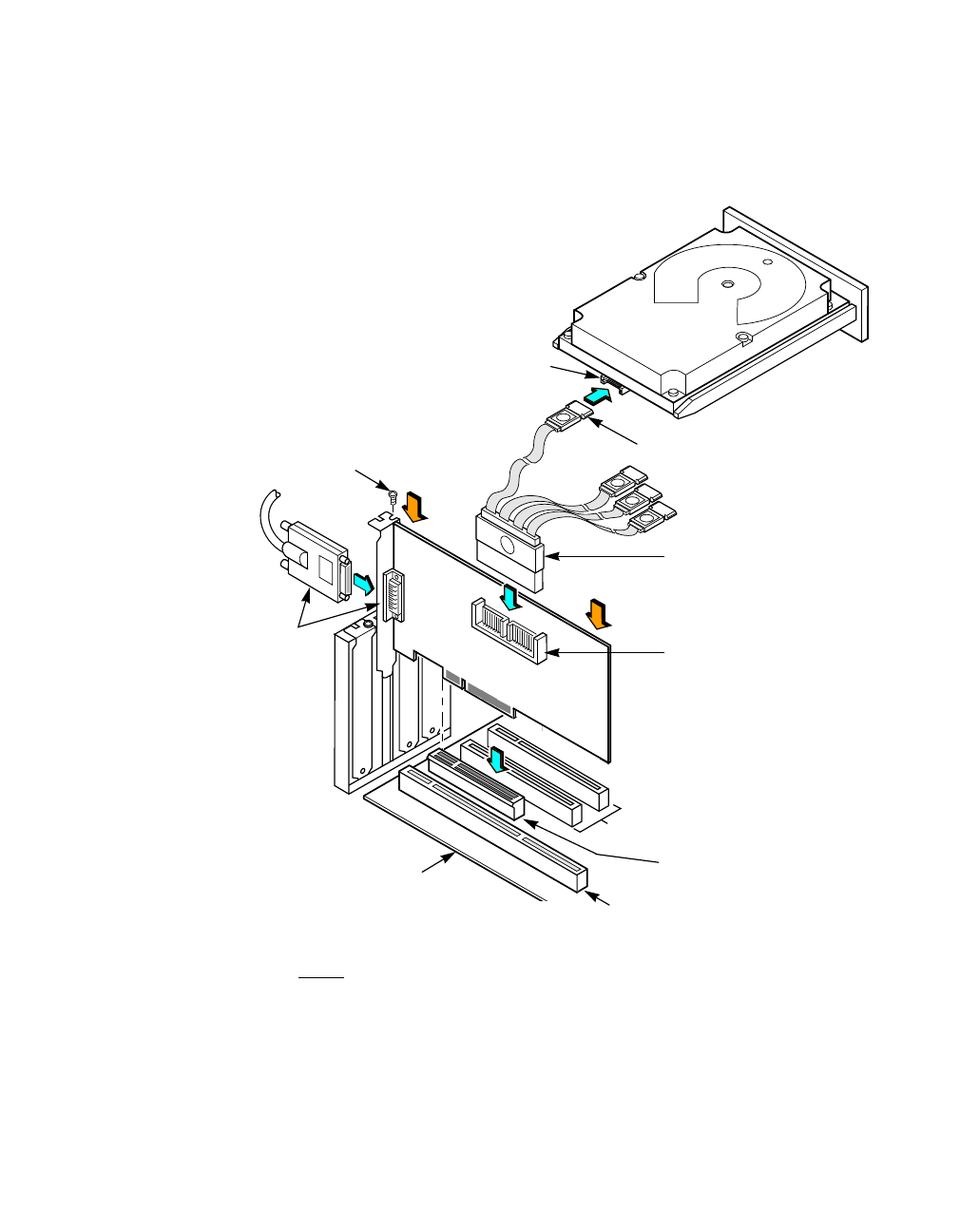

2.1 Installing an LSI PCIe to SAS x8 Host Adapter in a

PCI Express Slot 2-3

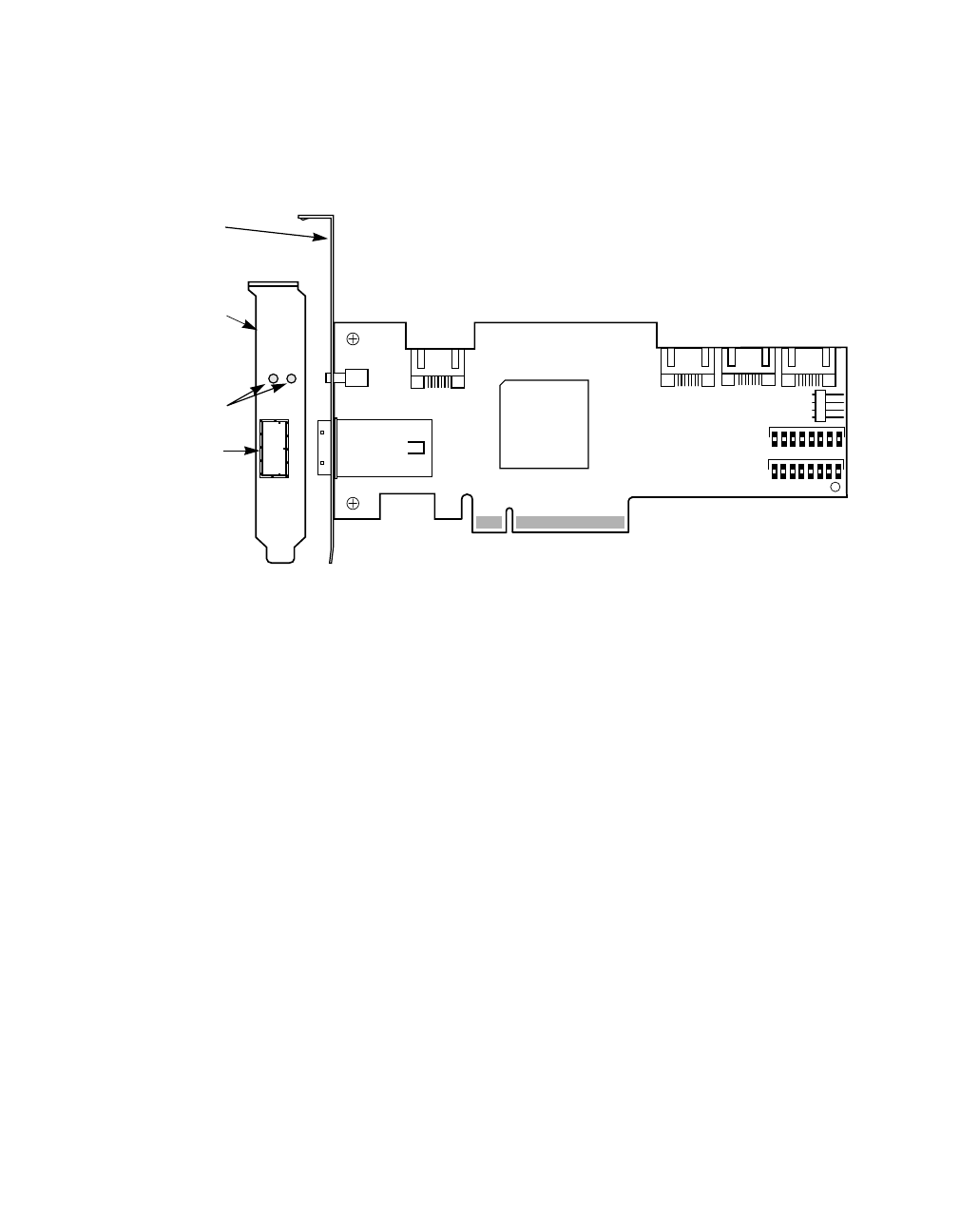

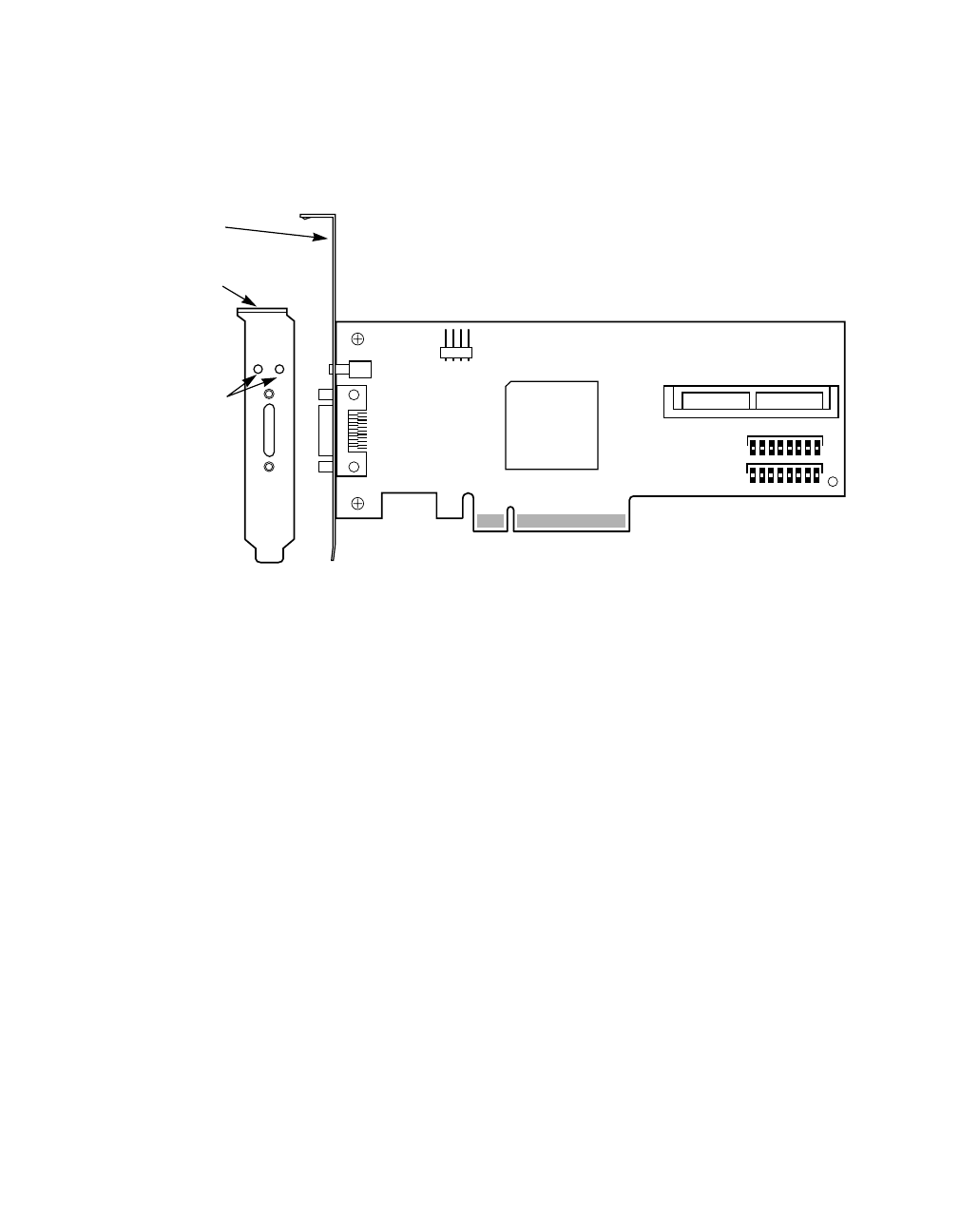

3.1 LSISAS3041E and LSISAS3041EL Board Layout 3-3

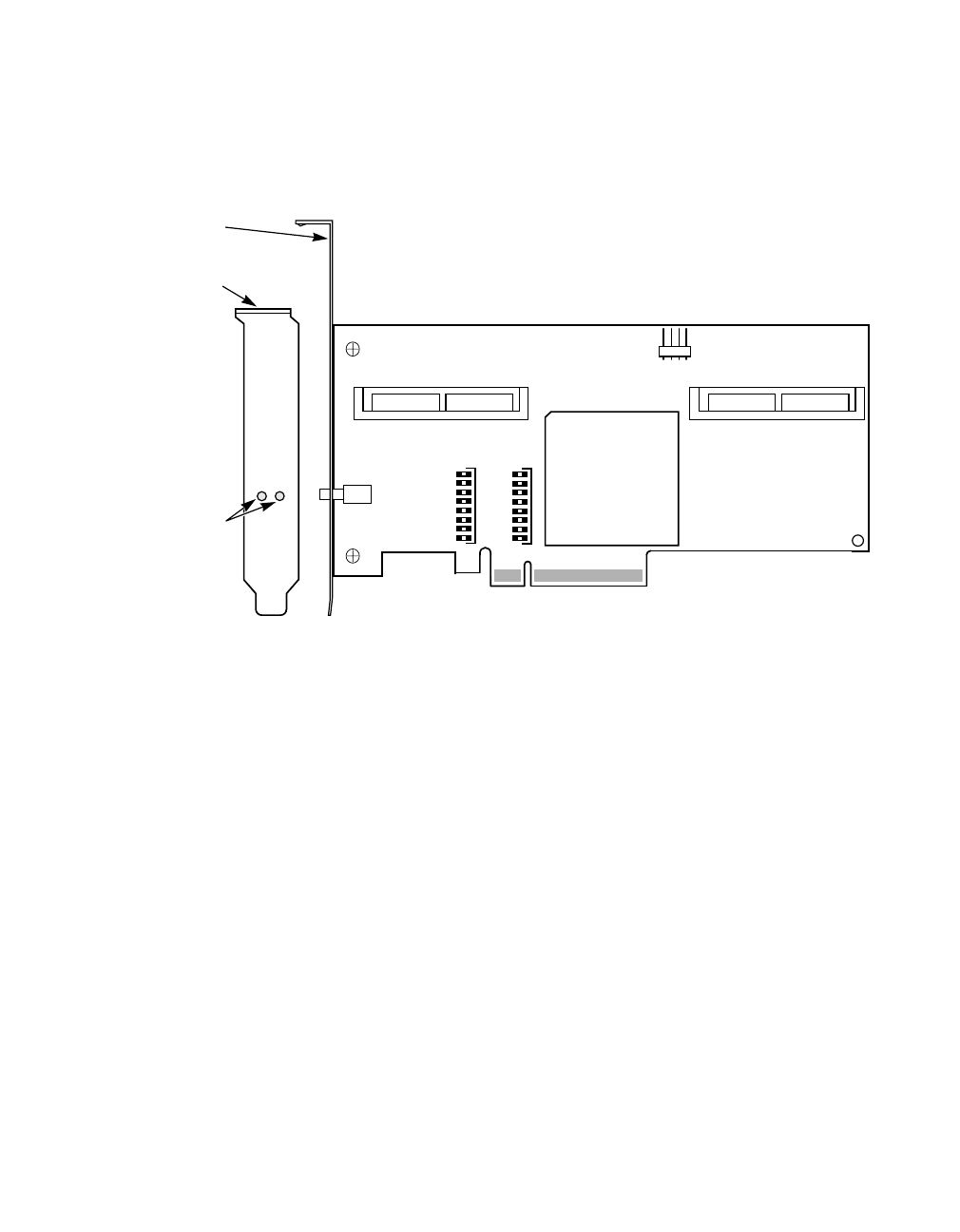

3.2 LSISAS3080E and LSISAS3080EL Board Layout 3-5

3.3 LSISAS3081E and LSISAS3081EL Board Layout 3-7

3.4 LSISAS3442E and LSISAS3442EL Board Layout 3-9

3.5 LSISAS3443E and LSISAS3443EL Board Layout 3-11

3.6 LSISAS3444E and LSISAS3444EL Board Layout 3-13

3.7 LSISAS3800E Board Layout 3-15

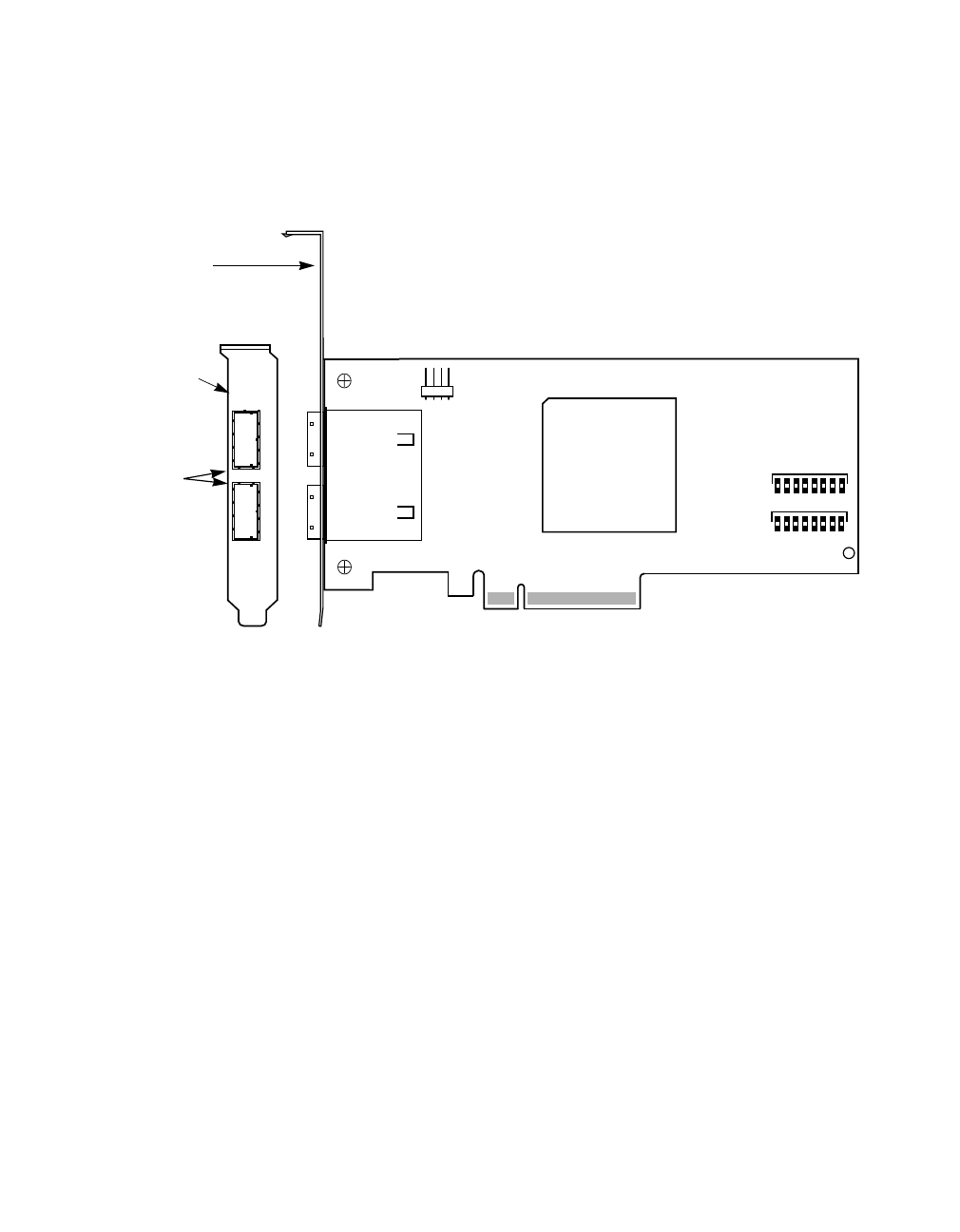

3.8 LSISAS3801E and LSISAS3801EL Board Layout 3-17

xii Contents

Contents xiii

Tables

1.1 LSI PCIe to SAS Host Adapters and Controllers 1-2

1.2 SAS Bandwidths 1-3

1.3 Software Support 1-6

3.1 Maximum Power Requirements 3-18

xiv Contents

PCIe to 3.0 Gbit/s SAS Host Adapters User’s Guide 1-1

Chapter 1

Introduction

This chapter describes the LSI Logic PCI Express to 3.0 Gbit/s SAS host

adapters and consists of the following sections:

•Section 1.1, “Overview”

•Section 1.2, “Features”

•Section 1.3, “PCI Performance”

•Section 1.4, “Software”

1.1 Overview

The LSI PCIe to SAS host adapters provide four or eight serial ports for

connection to SAS/SATA (Serial ATA) devices. Each port is capable of

3.0 Gbit/s SAS link rates and 3.0 Gbit/s SATA link rates. The PCI Express

transmission and reception data rate is 2.5 Gbits/s in each direction,

yielding a total bandwidth of 5.0 Gbits/s for each full-duplex lane. The LSI

PCIe to SAS host adapters are implemented using four or eight PCI

Express phys, which provide possible host-side maximum transmission

and reception rates of up to 4.0 Gbytes/s.

The LSI PCIe to SAS host adapters contain Flash ROM for storing the

BIOS and ﬁrmware, and NVSRAM for storing nonvolatile RAID

information. The LSISAS3442E, LSISAS3442EL, LSISAS3443E,

LSISAS3443EL, LSISAS3444E, LSISAS3444EL, LSISAS3800E,

LSISAS3801E, and LSISAS3801EL host adapters provide a 128 K x

36-bit PBSRAM memory device for storing SAS Address Port information

allowing for connection to more than 128 devices. The LEDs on the host

adapters report a heartbeat, activity, and fault conditions when detected

by ﬁrmware. Fusion-MPT™ ﬁrmware operates the host adapter.

1-2 Introduction

The PCI Express interface is compliant with the PCI Express

Speciﬁcation, revision 1.0a. All PCI software is backwards compliant with

previous versions of the PCI/PCI-X speciﬁcations. The LSI PCIe to SAS

products implement the PCI Express interface as a x4 or x8 interface.

The LSI PCIe to SAS host adapters use either a standard PCI or a low-

proﬁle PCI bracket type. The LSI PCIe to SAS host adapter SAS

interface is compatible with the ANSI Serial Attached SCSI Speciﬁcation,

revision 1.0 and the Serial ATA Speciﬁcation, revision 1.0a.

The functionality of LSI PCIe to SAS host adapters come from either the

LSISAS1064E controller chip or the LSISAS1068E controller chips. The

LSISAS1064E integrates four high-performance SAS/SATA phys and the

LSISAS1068E integrates eight high-performance SAS/SATA phys. The

design of LSI PCIe to SAS host adapters makes it easy to add SAS

interfaces to any computer, workstation, or server with a PCI Express

bus.

Table 1.1 shows the LSI PCIe to SAS controllers and their associated

host adapters that support SAS/SATA devices. All board numbers contain

an “E” after the numeric portion of their name, indicating that they use

the PCI Express bus. Boards without an “L” after the numbers in their

name use a standard PCI bracket type. Boards with an “L” after the

numbers in their name use a low-proﬁle PCI bracket type.

Table 1.1 LSI PCIe to SAS Host Adapters and Controllers

Controllers LSI PCIe to SAS Host Adapters

LSISAS1064E LSISAS3041E, LSISAS3041EL

LSISAS1068E LSISAS3080E, LSISAS3080EL, LSISAS3081E,

LSISAS3081EL, LSISAS3442E, LSISAS3442EL,

LSISAS3443E, LSISAS3443EL, LSISAS3444E,

LSISAS3444EL, LSISAS3800E, LSISAS3801E,

LSISAS3801E

Features 1-3

1.2 Features

This section lists features of the LSI PCIe to SAS host adapters:

•Supports narrow port and wide port as shown in Table 1.2.

•Supports SSP, STP, and SMP as deﬁned in the Serial Attached SCSI

(SAS) Speciﬁcation, version 1.0.

•Supports SATA as deﬁned in the Serial ATA Speciﬁcation, version

1.0a.

•Provides conﬁgurable drive spin-up sequencing on a per-phy basis.

•Simpliﬁes cabling with a point-to-point, serial architecture.

•Provides smaller and thinner cables that do not restrict airﬂow.

•Provides a serial, point-to-point, enterprise-level storage interface.

•Transfers data using SCSI information units.

•Provides two LEDs for each phy to indicate link activity and faults for

the LSISAS3041E, LSISAS3041EL, LSISAS3080E, LSISAS3080EL,

LSISAS3081E, LSISAS3081EL, LSISAS3442E, LSISAS3442EL,

LSISAS3443E, LSISAS3443EL, LSISAS3444E, LSISAS3444EL,

LSISAS3800E, LSISAS3801E, and LSISAS3801EL host board

adapters (HBAs).

•Provides two light pipes routed through the PCI bracket for the

LSISAS3041E, LSISAS3041EL, LSISAS3080E, LSISAS3080EL,

LSISAS3081E, LSISAS3081EL, LSISAS3442E, LSISAS3442EL,

LSISAS3443E, LSISAS3443EL, LSISAS3444E, LSISAS3444EL, and

LSISAS3800E host adapters. One light pipe indicates activity on any

phy. The other light pipe indicates a heartbeat or a fault condition.

The LSISAS3801E and LSISAS3801EL use two LEDs routed

through the PCI bracket for the same purpose.

•Provides compatibility with SATA target devices.

Table 1.2 SAS Bandwidths

Half Duplex Full Duplex

Narrow Port (1 Lane)—300 Mbytes/s Narrow Port (1 Lane)—600 Mbytes/s

Wide Port (2 Lanes)—600 Mbytes/s Wide Port (2 Lanes)—1200 Mbytes/s

Wide Port (4 Lanes)—1200 Mbytes/s Wide Port (4 Lanes)—2400 Mbytes/s

1-4 Introduction

1.3 PCI Performance

LSI PCIe to SAS host adapter boards support the PCI Express interface.

The following lists are of their features.

1.3.1 PCI Express Features

The PCI Express features of the LSI PCIe to SAS host adapters include:

•Provides four (boards using LSISAS1064E) or eight (boards using

LSISAS1068E) PCI Express phys

•Supports a single-phy (1 lane) link transfer rate up to 2.5 Gbits/s in

each direction

•Supports x8, x4, and x1 link widths

•Automatically downshifts to a x4 link width if plugged into a x4

connector or into a x8 connector that is wired as a x4 connector

•Provides a scalable interface

– Single-lane aggregate bandwidth of up to 0.5 Gbytes/s

(500 Mbytes/s)

– Quad-lane aggregate bandwidth of up to 2.0 Gbytes/s

(2000 Mbytes/s)

– 8-lane aggregate bandwidth of up to 4.0 Gbytes/s

(4000 Mbytes/s)

•Supports serial, point-to-point interconnections between devices

– Reduces the electrical load of the connection

– Enables higher transmission and reception frequencies

•Supports lane reversal and polarity inversion

•Supports PCI Express Hot Plug

•Supports Power Management

– Supports PCI Power Management 1.2

– Supports Active State Power Management (ASPM), including the

L0, L0s, L1 states, by placing links in a power-savings mode

during times of no link activity

PCI Performance 1-5

•Contains a replay buffer that preserves a copy of the data for

retransmission in case a CRC error occurs

•Supports the PCI Express Advanced Error Reporting capabilities

•Uses a packetized and layered architecture

•Achieves a high bandwidth per pin with low overhead and low latency

•PCI Express is software compatible with PCI and PCI-X software

– Leverages existing PCI device drivers

– Supports the Memory, I/O, and Conﬁguration address spaces

– Supports memory read/write transactions, I/O read/write

transactions, and conﬁguration read/write transactions

•Provides 4 Kbytes of PCI Conﬁguration address space per device

•Supports posted and non-posted transactions

•Provides quality of service (QOS) link conﬁguration and arbitration

policies

•Supports Trafﬁc Class 0 and one virtual channel

•Supports Message Signaled Interrupts (both MSI and MSI-X) as well

as INTx interrupt signaling for legacy PCI support

•Supports end-to-end CRC (ECRC) and Advanced Error Reporting

1-6 Introduction

1.4 Software

The LSI PCIe to SAS host adapters support all major operating systems,

as shown in Table 1.3.

The LSI PCIe to SAS host adapters use the Fusion-MPT architecture for

all major operating systems, which allows for thinner drivers for better

performance. To obtain a device driver that supports your operating

system, contact the LSI Technical Support team at 719-533-7230 or visit

our web site at http://www.lsilogic.com.

Table 1.3 Software Support

OS Support Versions

Windows XP, 2000, Server 2003 32-bit and 64-bit

(x86, AMD, and IA-64)

Linux: Red Hat Enterprise Linux (RHEL) 3 and 4

Linux: SuSE Enterprise Server (SLES) 8 and 9

Novel NetWare 5.1 and 6.5

Sun Sparc Solaris 2.6, 2.7, 2.8, 2.9, and 2.10

Utilities Install, Flash and BIOS Conﬁguration Utility

PCIe to 3.0 Gbit/s SAS Host Adapters User’s Guide 2-1

Chapter 2

Hardware Installation

This chapter provides both quick instructions and detailed instructions on

how to install the LSI PCIe to 3.0 Gbit/s SAS host adapter. This chapter

consists of the following sections:

•Section 2.1, “Quick Installation Instructions”

•Section 2.2, “Detailed Installation Instructions”

2.1 Quick Installation Instructions

The following steps summarizes the installation instructions.

Use these instructions to install your LSI PCIe to SAS host adapter if you

are comfortable with the installation procedure. Section 2.2, “Detailed

Installation Instructions” provides detailed installation instructions.

Step 1. Unpack the host adapter and inspect it for damage.

Step 2. Turn off the system and remove the power cord(s).

Step 3. Remove the cover from the system.

Step 4. Insert the host adapter in an available PCI Express slot.

Step 5. Secure the bracket to the system’s chassis.

Step 6. Connect the serial cable(s) between the host adapter and the

serial hard disk drive(s). Figure 2.1 illustrates the locations of

the connectors on your host adapter.

Step 7. Replace the cover and the power cord(s), then power-up the

system.

LSI PCIe to SAS host adapter hardware installation is complete.

2-2 Hardware Installation

2.2 Detailed Installation Instructions

The following steps provide detailed installation instructions:

Step 1. Unpack the host adapter and inspect it for damage.

Unpack the host adapter in a static-free environment. Remove

the host adapter from the anti-static bag and inspect it for

damage. Contact LSI or your OEM support representative if the

host adapter appears damaged.

Step 2. Turn off the system and disconnect the power cord(s).

Turn off the system’s power and physically remove the power

cord(s) from the system.

Step 3. Remove the cover from the system.

Remove the cover from the system’s chassis. Disconnect the

system from any networks.

Step 4. Insert the host adapter in an available PCI Express slot.

Locate an empty PCI Express slot. Remove the blank bracket

panel on the back of the computer that is aligned with the PCI

Express slot you have selected. Save the bracket screw when

present.

Align the host adapter to a PCI Express slot. Press down gently

but ﬁrmly to properly seat the host adapter in the slot.

Figure 2.1 illustrates how to insert the host adapter in a PCI

Express slot.

Step 5. Secure the bracket to the system’s chassis.

Install the bracket screw, when present, or engage the system’s

retention mechanism to secure the host adapter to the system’s

chassis.

Step 6. Connect the serial cable(s) between the host adapter and the

serial hard disk drive(s) (HDD). Figure 2.1 illustrates the

locations of the connectors on your host adapter.

Step 7. Replace the cover and the power cord(s), then power-up the

system.

Replace the system’s cover, reconnect the power cord(s) and

any network cables. Turn power on to the system.

Detailed Installation Instructions 2-3

LSI PCIe to SAS host adapter hardware installation is complete.

Figure 2.1 Installing an LSI PCIe to SAS x8 Host Adapter in a

PCI Express Slot

Note: The HBA shape, size, and locations of components on your

x8 (or x4) HBA and its bracket may vary from this

illustration. A PCI Express connector is smaller than a

PCI/PCI-X connector.

32-bit Slots

64-bit Slots

(3.3 V)

Edge of

Host Board

Bracket

Press Here

HDD

Connector

Serial Signal

Cables

HBA to HDD

4 Lane Internal

HBA Connector

4 Lane

External

PCB

Receptacle

and Cable

with

Jackscrews

Screw

SFF-8484

SFF-8470

Breakout Cable

PCI Express x8 Slot

2-4 Hardware Installation

PCIe to 3.0 Gbit/s SAS Host Adapters User’s Guide 3-1

Chapter 3

Host Adapter Characteristics

This chapter describes the characteristics of the LSI PCIe to 3.0 Gbit/s

SAS host adapters. The chapter includes these topics:

•Section 3.1, “Characteristics of the LSI PCIe to SAS Host Adapters”

•Section 3.2, “Electrical and Environmental Speciﬁcations”

3.1 Characteristics of the LSI PCIe to SAS Host Adapters

The LSI PCIe to SAS host adapters use either the LSISAS1064E

controller or the LSISAS1068E controller. The LSISAS1064E controller

connects up to four SAS/SATA devices to a computer system through the

PCI Express interface. The LSISAS1068E controller connects up to eight

SAS/SATA devices to a computer system through the PCI Express

interface. The LSI controllers are implemented using either four

(LSISAS1064E) or eight (LSISAS1068E) PCI Express phys. Each phy

operates at 2.5 Gbits/s which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s.

The LSISAS1064E and the LSISAS1068E controller chips contain the

PCI Express functionality for the LSI PCIe to SAS host adapters. The

controller chip connects directly to the PCI Express bus and generates

timing and protocol in compliance with the PCI Express speciﬁcation.

The LSISAS1064E and the LSISAS1068E controller chips contain the

SAS/SATA functionality for the LSI PCIe to SAS host adapters. The

controller chips connect channels directly to the SAS/SATA devices.

The LSI PCIe to SAS host adapters provide a 2M x 8-bit Flash ROM for

storing the BIOS and ﬁrmware. The LSI PCIe to SAS host adapters

provide up to 32 K x 8-bit NVSRAM for storing the nonvolatile RAID

information when a system failure happens. The LSISAS3442E,

3-2 Host Adapter Characteristics

LSISAS3442EL, LSISAS3443E, LSISAS3443EL, LSISAS3444E,

LSISAS3444EL, LSISAS3800E, LSISAS3801E, and LSISAS3801EL

host adapters provide a 128 K x 36-bit PBSRAM memory device for

storing SAS Address Port information allowing for connection to more

than 128 devices.

3.1.1 LSISAS3041E and LSISAS3041EL Host Adapters Characteristics

The LSISAS3041E and LSISAS3041EL are the same HBA with the

exception of the PCI bracket. The LSISAS3041E uses a standard PCI

bracket and the LSISAS3041EL uses the low-proﬁle (LPPCI) PCI

bracket. Figure 3.1 shows the HBAs and their brackets.

3.1.1.1 LEDs

The LSISAS3041E and LSISAS3041EL host adapters have four LEDs,

labeled A0–A3, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP3, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.1 for LED locations.

The LSISAS3041E and LSISAS3041EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1064E heartbeat, or it turns yellow when the

LSISAS1064E ﬁrmware detects a fault condition.

3.1.1.2 Connectors

This section provides a description of the ﬁve different connectors on the

LSISAS3041E and LSISAS3041EL host adapters. See Figure 3.1 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has four PCI

Express phys, which provide possible host-side maximum transmission

and reception rates of up to 2.0 Gbytes/s. The PCI Express connection

is made through the edge connector J1. The signal deﬁnitions and pin

numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2, J5–J7) – The LSISAS3041E supports

SAS/SATA connections through connectors J2, J5, J6, and J7. These

connectors are SATA internal right-angle connectors.

Characteristics of the LSI PCIe to SAS Host Adapters 3-3

Activity LED Header (J3) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

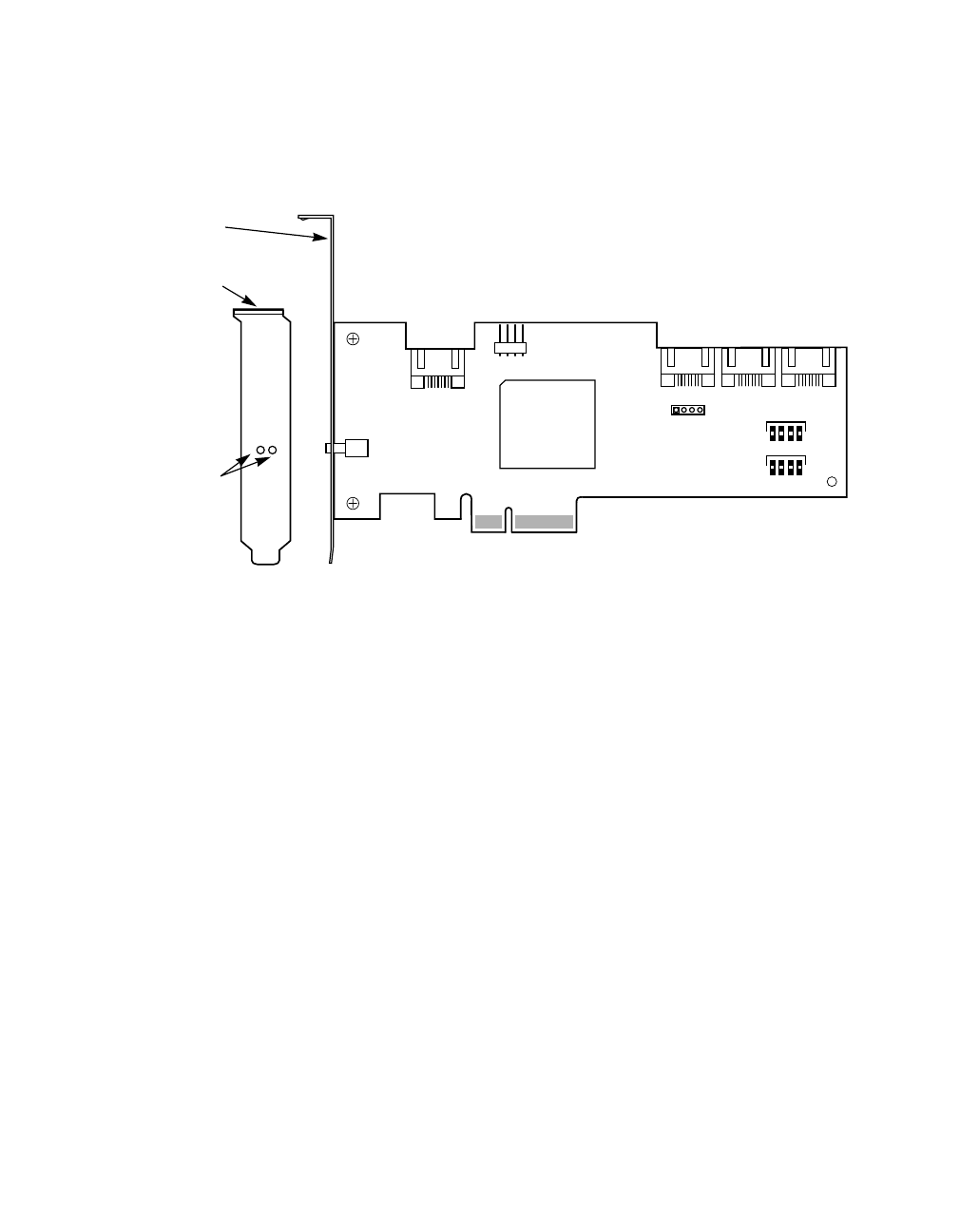

Figure 3.1 LSISAS3041E and LSISAS3041EL Board Layout

•J1: PCI Express x4 lane board edge connector

•J2, J5–J7: SATA internal right-angle connectors

•J3: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LEDs

3.1.1.3 Physical Characteristics

The LSISAS3041E and LSISAS3041EL boards are 6.6 inches x

2.713 inches. PCI Express x4 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3041E and LSISAS3041EL boards follows the PCI Express

speciﬁcations.

J5 J6 J7

J2 J4

Standard PCI Bracket

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3041E

LSISAS3041EL

Two Light Pipes,

One Green and

One Bi-color

LSISAS1064E

Activity LEDs

Link Not Present LEDs

Port 0

Port 1

Port 3 Port 2

3-4 Host Adapter Characteristics

3.1.2 LSISAS3080E and LSISAS3080EL Host Adapters Characteristics

The LSISAS3080E and LSISAS3080EL are identical HBAs with the

exception of the PCI bracket. The LSISAS3080E uses a standard PCI

bracket and the LSISAS3080EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.2 shows the HBAs and their brackets.

3.1.2.1 LEDs

The LSISAS3080E and LSISAS3080EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.2 for LED locations.

The LSISAS3080E and LSISAS3080EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1068E heartbeat, or it turns yellow when the

LSISAS1068E ﬁrmware detects a fault condition.

3.1.2.2 Connectors

This section provides a description of the four different connectors on the

LSISAS3080E and LSISAS3080EL host adapters. See Figure 3.2 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3080E or LSISAS3080EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The PCI

Express connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J5) – The LSISAS3080E and

LSISAS3080EL support SAS connections through connectors J2 and J3.

The J2 and J3 connectors are SFF-8484 SAS internal right-angle

connectors with four sideband lines.

Characteristics of the LSI PCIe to SAS Host Adapters 3-5

Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

Figure 3.2 LSISAS3080E and LSISAS3080EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2, J5: SFF-8484 SAS internal right-angle connectors with four

sideband lines

•J6: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.2.3 Physical Characteristics

The LSISAS3080E and LSISAS3080EL boards are 6.3 inches x

2.713 inches. PCI Express connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3080E and LSISAS3080EL boards follows the PCI Express

speciﬁcations.

LSISAS1068E

Standard PCI Bracket

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3080E

LSISAS3080EL

Two Light Pipes,

One Green and

One Bi-color

Link Activity

LEDs

Not Present

3-6 Host Adapter Characteristics

3.1.3 LSISAS3081E and LSISAS3081EL Host Adapters Characteristics

The LSISAS3081E and LSISAS3081EL are identical HBAs with the

exception of the PCI bracket. The LSISAS3081E uses a standard PCI

bracket and the LSISAS3081EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.3 shows the HBAs and their brackets.

3.1.3.1 LEDs

The LSISAS3081E and LSISAS3081EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.3 for LED locations.

The LSISAS3081E and LSISAS3081EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1068E heartbeat, or it turns yellow when the

LSISAS1068E ﬁrmware detects a fault condition.

3.1.3.2 Connectors

This section provides a description of the four different connectors on the

LSISAS3081E and LSISAS3081EL host adapters. See Figure 3.2 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3081E or LSISAS3081EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The PCI

Express connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J5) – The LSISAS3081E and

LSISAS3081EL support SAS connections through connectors J2 and J5.

The J2 and J5 connectors are SFF-8087 mini-SAS internal right-angle

connectors.

Characteristics of the LSI PCIe to SAS Host Adapters 3-7

Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

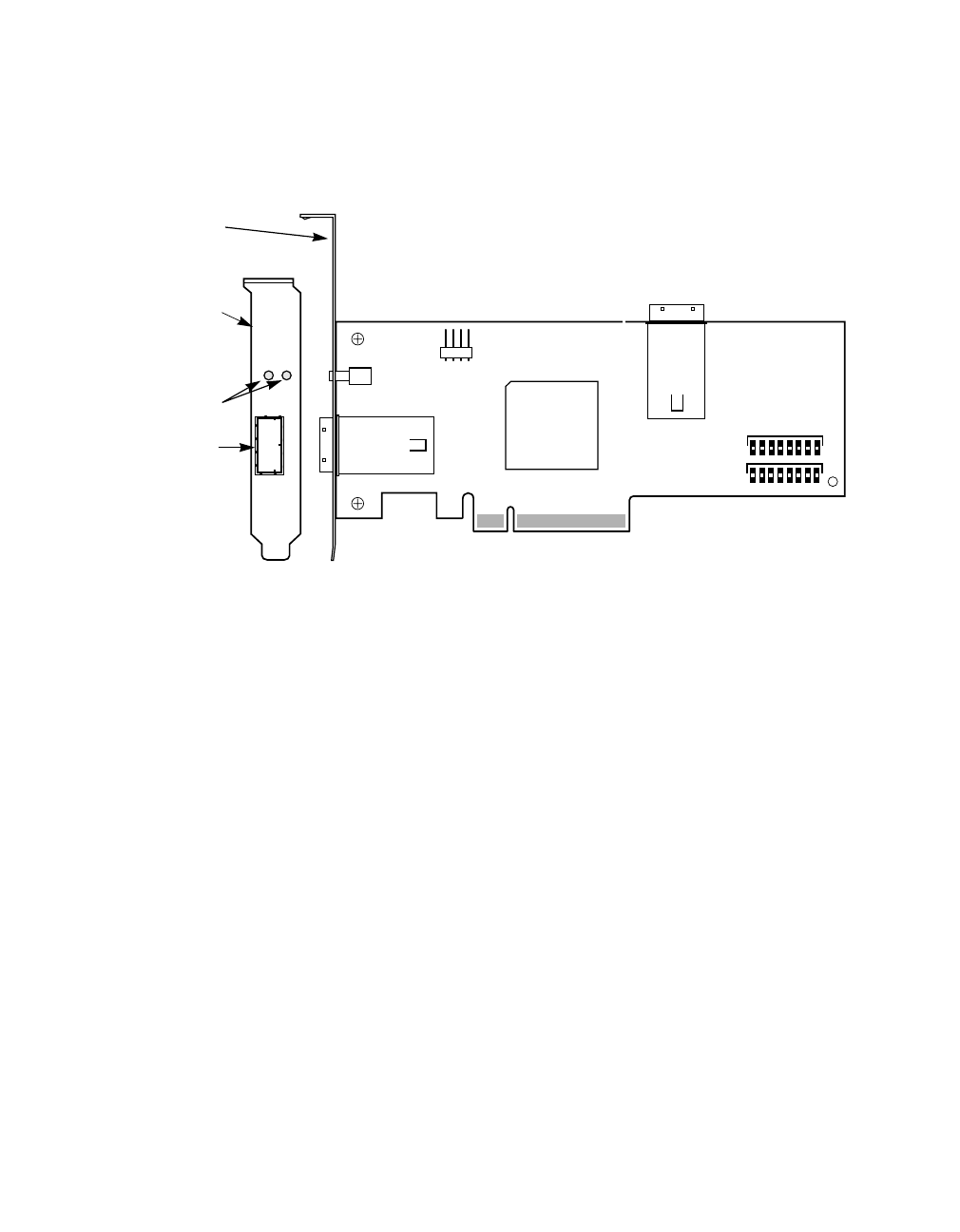

Figure 3.3 LSISAS3081E and LSISAS3081EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2, J5: SFF-8087 mini-SAS internal right-angle connectors

•J6: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.3.3 Physical Characteristics

The LSISAS3081E and LSISAS3081EL boards are 6.6 inches x

2.713 inches. PCI Express connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3081E and LSISAS3081EL boards follows the PCI Express

speciﬁcations.

LSISAS1068E

Standard PCI Bracket

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3081E

LSISAS3081EL

Two Light Pipes,

One Green and

One Bi-color

J5J2

Link Activity

LEDs

Not Present

3-8 Host Adapter Characteristics

3.1.4 LSISAS3442E and LSISAS3442EL Host Adapters Characteristics

The LSISAS3442E and LSISAS3442EL are the same HBA with the

exception of the PCI bracket. The LSISAS3442E uses a standard PCI

bracket and the LSISAS3442EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.4 shows the HBAs and their brackets.

3.1.4.1 LEDs

The LSISAS3442E and LSISAS3442EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.4 for LED locations.

The LSISAS3442E and LSISAS3442EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1068E heartbeat, or it turns yellow when the

LSISAS1068E ﬁrmware detects a fault condition.

3.1.4.2 Connectors

This section provides a description of the four different connectors on the

LSISAS3442E and LSISAS3442EL host adapters. See Figure 3.4 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3442E or LSISAS3442EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The

connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J5) – The LSISAS3442E and

LSISAS3442EL support SAS connections through connectors J2 and J5.

The J5 connector is an SFF-8484 SAS internal right-angle connector

with four sideband lines. The J2 connector is an SFF-8470 SAS external

right-angle connector.

Characteristics of the LSI PCIe to SAS Host Adapters 3-9

Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

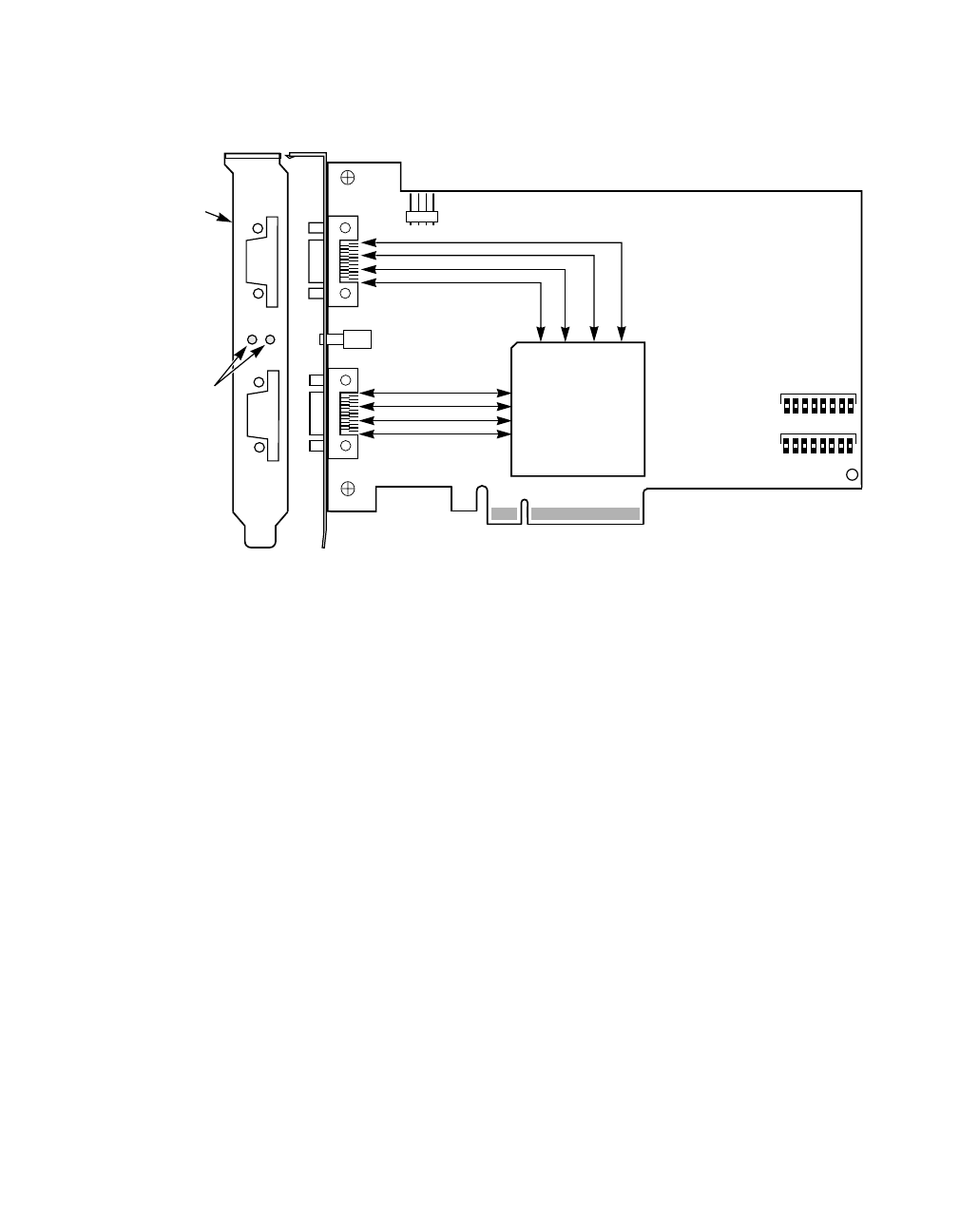

Figure 3.4 LSISAS3442E and LSISAS3442EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2: SFF-8470 SAS external right-angle connector

•J5: SFF-8484 SAS internal right-angle connector with four sideband

lines

•J6: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.4.3 Physical Characteristics

The LSISAS3442E and LSISAS3442EL boards are 6.6 inches x

2.713 inches. PCI Express x8 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3442E and LSISAS3442EL boards follows the PCI Express

speciﬁcations.

Standard PCI Bracket

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3442E

LSISAS3442EL

Two Light Pipes,

One Green and

One Bi-color LSISAS1068E Link

Activity

LEDs

Not Present

3-10 Host Adapter Characteristics

3.1.5 LSISAS3443E and LSISAS3443EL Host Adapters Characteristics

The LSISAS3443E and LSISAS3443EL are the same HBA with the

exception of the PCI bracket. The LSISAS3443E uses a standard PCI

bracket and the LSISAS3443EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.5 shows the HBAs and their brackets.

3.1.5.1 LEDs

The LSISAS3443E and LSISAS3443EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.5 for LED locations.

The LSISAS3443E and LSISAS3443EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1068E heartbeat, or it turns yellow when the

LSISAS1068E ﬁrmware detects a fault condition.

3.1.5.2 Connectors

This section provides a description of the four different connectors on the

LSISAS3443E and LSISAS3443EL host adapters. See Figure 3.5 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3443E or LSISAS3443EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The

connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J5) – The LSISAS3443E and

LSISAS3443EL support SAS connections through connectors J2 and J5.

The J2 connector is an SFF-8088 mini-SAS external connector. The J5

connector is an SFF-8087 mini-SAS internal connector.

Characteristics of the LSI PCIe to SAS Host Adapters 3-11

Activity LED Header (J6) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

Figure 3.5 LSISAS3443E and LSISAS3443EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2: SFF-8088 mini-SAS external right-angle connector

•J5: SFF-8087 mini-SAS internal right-angle connector with four

sideband lines

•J6: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.5.3 Physical Characteristics

The LSISAS3443E and LSISAS3443EL boards are 6.6 inches x

2.713 inches. PCI Express x8 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3443E and LSISAS3443EL boards follows the PCI Express

speciﬁcations.

Standard PCI Bracket

LSISAS3443E

LSISAS1068E

SFF-8088

Mini-SAS

Connector

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3443EL

Two Light Pipes,

One Green and

One Bi-color

Link

Activity

LEDs

Not Present

3-12 Host Adapter Characteristics

3.1.6 LSISAS3444E and LSISAS3444EL Host Adapters Characteristics

The LSISAS3444E and LSISAS3444EL are the same HBA with the

exception of the PCI bracket. The LSISAS3444E uses a standard PCI

bracket and the LSISAS3444EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.6 shows the HBAs and their brackets.

3.1.6.1 LEDs

The LSISAS3444E and LSISAS3444EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.6 for LED locations.

The LSISAS3444E and LSISAS3444EL host adapters have two light

pipes routed through the PCI bracket. One light pipe turns green to

indicate activity on any phy. The other light pipe is bi-color. It ﬂashes

green to indicate the LSISAS1068E heartbeat, or it turns yellow when the

LSISAS1068E ﬁrmware detects a fault condition.

3.1.6.2 Connectors

This section provides a description of the seven different connectors on

the LSISAS3444E and LSISAS3444EL host adapters. See Figure 3.6 for

connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3444E or LSISAS3444EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The

connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J3, J6–J8) – The LSISAS3444E and

LSISAS3444EL support SAS connections through these connectors. The

J3 and J6–J8 connectors are SATA internal latching right-angle

connectors. The J2 connector is an SFF-8088 mini-SAS external right-

angle connector.

Characteristics of the LSI PCIe to SAS Host Adapters 3-13

Activity LED Header (J9) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

Figure 3.6 LSISAS3444E and LSISAS3444EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2: SFF-8088 mini-SAS external right-angle connector

•J3, J6–J8: SATA internal latching right-angle connectors

•J9: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.6.3 Physical Characteristics

The LSISAS3444E and LSISAS3444EL boards are 6.6 inches x

2.713 inches. PCI Express x8 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3444E and LSISAS3444EL boards follows the PCI Express

speciﬁcations.

Standard PCI Bracket

LSISAS3444E

LSISAS1068E

Port 0

Port 1

Port 3 Port 2

Activity

LEDs

Link Not

LEDs

Present

SFF-8088

Mini-SAS

Connector

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3444EL

Two Light Pipes,

One Green and

One Bi-color

3-14 Host Adapter Characteristics

3.1.7 LSISAS3800E Host Adapter Characteristics

The LSISAS3800E uses a standard PCI bracket. Figure 3.7 shows the

HBA and its bracket.

3.1.7.1 LEDs

The LSISAS3800E host adapter has eight LEDs, labeled A0–A7, that

turn green to indicate an activity condition on any of the eight phys.

There are eight LEDs, labeled LNP0–LNP7, that turn yellow to indicate

a fault condition on any of the eight phys. See Figure 3.7 for LED

locations.

The LSISAS3800E host adapter has two light pipes routed through the

PCI bracket. One light pipe turns green to indicate activity on any phy.

The other light pipe is bi-color. It ﬂashes green to indicate the

LSISAS1068E heartbeat, or it turns yellow when the LSISAS1068E

ﬁrmware detects a fault condition.

3.1.7.2 Connectors

This section provides a description of the four different connectors on the

LSISAS3800E host adapter. See Figure 3.7 for connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3800E supports x8, x4, and x1 PCI Express link widths, and

automatically downshifts if plugged into either a x4 connector or into a

x8 connector that is wired as a x4 connector. The connection is made

through the edge connector J1. The signal deﬁnitions and pin numbers

conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J3) – The LSISAS3800E supports

SAS/SATA connections through connectors J2 and J3. The J2 and J3

connectors are SFF-8470 SAS external right-angle connectors.

Activity LED Header (J4) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

Characteristics of the LSI PCIe to SAS Host Adapters 3-15

Figure 3.7 LSISAS3800E Board Layout

•J1: PCI Express x8 lane board edge connector

•J2 and J3: SFF-8470 SAS external right-angle connector

•J4: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.7.3 Physical Characteristics

The LSISAS3800E is 6.6 inches x 4.375 inches. PCI Express connection

is made through the edge connector J1. The component height on the

top and bottom of the LSISAS3800E board follows the PCI Express

speciﬁcations.

LSISAS1068E

Standard

PCI Bracket

LSISAS3800E

Two Light Pipes,

One Green and

One Bi-color

Activity

LEDs

Link Not

LEDs

Present

3-16 Host Adapter Characteristics

3.1.8 LSISAS3801E and LSISAS3801EL Host Adapters Characteristics

The LSISAS3801E and LSISAS3801EL are the same HBA with the

exception of the PCI bracket. The LSISAS3801E uses a standard PCI

bracket and the LSISAS3801EL uses a low-proﬁle (LPPCI) PCI bracket.

Figure 3.8 shows the HBAs and their brackets.

3.1.8.1 LEDs

The LSISAS3801E and LSISAS3801EL host adapters have eight LEDs,

labeled A0–A7, that turn green to indicate an activity condition on any of

the eight phys. There are also eight LEDs, labeled LNP0–LNP7, that turn

yellow to indicate a fault condition on any of the eight phys. See

Figure 3.8 for LED locations.

The LSISAS3801E and LSISAS3801EL host adapters contain two

additional LEDs. One LED turns green to indicate activity on any phy.

The other LED is bi-color. It ﬂashes green to indicate the LSISAS1068E

heartbeat, or it turns yellow when the LSISAS1068E ﬁrmware detects a

fault condition.

3.1.8.2 Connectors

This section provides a description of the four different types of

connectors on the LSISAS3801E and LSISAS3801EL host adapters.

See Figure 3.8 for connector locations.

PCI Express Connector (J1) – The PCI Express interface has eight

PCI Express phys, which provide possible host-side maximum

transmission and reception rates of up to 4.0 Gbytes/s. The

LSISAS3801E or LSISAS3801EL supports x8, x4, and x1 PCI Express

link widths, and automatically downshifts if plugged into either a x4

connector or into a x8 connector that is wired as a x4 connector. The

connection is made through the edge connector J1. The signal

deﬁnitions and pin numbers conform to the PCI Express speciﬁcations.

SAS/SATA Connectors (J2 and J3) – The LSISAS3801E and

LSISAS3801EL support SAS connections through connectors J2 and J3.

These connectors are SFF-8088 mini-SAS external right-angle

connectors.

Characteristics of the LSI PCIe to SAS Host Adapters 3-17

Activity LED Header (J4) – 4-pin, right angle, 0.1-inch pitch, pin header

for driving external activity LEDs.

Figure 3.8 LSISAS3801E and LSISAS3801EL Board Layout

•J1: PCI Express x8 lane board edge connector

•J2 and J3: SFF-8088 mini-SAS external right-angle connectors

•J4: 4-pin, right angle, 0.1” pitch, pin header for driving external

activity LED

3.1.8.3 Physical Characteristics

The LSISAS3801E and LSISAS3801EL boards are 6.6 inches x

2.713 inches. PCI Express x8 connection is made through the edge

connector J1. The component height on the top and bottom of the

LSISAS3801E and LSISAS3801EL boards follows the PCI Express

speciﬁcations.

LSISAS1068 Link Not Present

Activity

SFF-8088

Mini-SAS

Connectors

(LPPCI)

Low-Proﬁle

PCI Bracket

LSISAS3801EL

Standard

PCI Bracket

LSISAS3801E

3-18 Host Adapter Characteristics

3.2 Electrical and Environmental Speciﬁcations

The design and implementation of the LSI PCIe to SAS host adapters

minimize electromagnetic emissions, susceptibility to radio frequency

energy, and the effects of electrostatic discharge. The board carries the

CE mark, C-Tick mark, Canadian Compliance Statement, Korean MIC,

Taiwan BSMI, Japan VCCI, FCC Class B and is marked with the FCC

Self-Certiﬁcation logo. The board also meets the requirements of CISPR

Class B.

3.2.1 Electrical Characteristics

Table 3.1 lists the maximum power requirements for the LSI PCIe to SAS

host adapters under normal operation.

Table 3.1 Maximum Power Requirements

Host Adapters PCI Express

+12.0 V Power Operating Range

LSISAS3041E,

LSISAS3041EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3080E,

LSISAS3080EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3081E,

LSISAS3081EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3442E,

LSISAS3442EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3443E,

LSISAS3443EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3444E,

LSISAS3444EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3800E 0.5 A 6.0 W 0 ˚C to 60 ˚C

LSISAS3801E,

LSISAS3801EL 0.5 A 6.0 W 0 ˚C to 60 ˚C

Electrical and Environmental Speciﬁcations 3-19

3.2.2 Thermal and Atmospheric Characteristics

The atmospheric characteristics for the LSI PCIe to SAS host adapters

are:

•Temperature range: 0 ˚C to 60 ˚C (dry bulb)

•Relative humidity range: 5% to 90% non-condensing

•Maximum dew point temperature: 32 ˚C

The following parameters deﬁne the storage and transit environment for

the LSI PCIe to SAS host adapters:

•Temperature range: −45 ˚C to +105 ˚C (dry bulb)

•Relative humidity range: 5% to 90% non-condensing

3.2.3 Safety Characteristics

All LSI PCIe to SAS host adapters meet or exceed the requirements of

UL ﬂammability rating 94V-0. Each bare board is marked with the

supplier’s name or trademark, type, and UL ﬂammability rating. Because

these boards are installed in a PCI Express bus slot, all voltages are

below the SELV 42.4 V limit.

3-20 Host Adapter Characteristics

PCIe to 3.0 Gbit/s SAS Host Adapters User’s Guide

Customer Feedback

We would appreciate your feedback on this document. Please copy the

following page, add your comments, and fax it to us at the number

shown.

If appropriate, please also fax copies of any marked-up pages from this

document.

Important: Please include your name, phone number, fax number, and

company address so that we may contact you directly for

clariﬁcation or additional information.

Thank you for your help in improving the quality of our documents.

Customer Feedback

Reader’s Comments

Fax your comments to: LSI Logic Corporation

Technical Publications

M/S AF-198

Fax: 408.433.4333

Please tell us how you rate this document: PCIe to 3.0 Gbit/s SAS Host

Adapters User’s Guide. Place a check mark in the appropriate blank for

each category.

What could we do to improve this document?

If you found errors in this document, please specify the error and page

number. If appropriate, please fax a marked-up copy of the page(s).

Please complete the information below so that we may contact you

directly for clariﬁcation or additional information.

Excellent Good Average Fair Poor

Completeness of information ____ ____ ____ ____ ____

Clarity of information ____ ____ ____ ____ ____

Ease of ﬁnding information ____ ____ ____ ____ ____

Technical content ____ ____ ____ ____ ____

Usefulness of examples and

illustrations ____ ____ ____ ____ ____

Overall manual ____ ____ ____ ____ ____

Name Date

Telephone

Title

Company Name

Street

City, State, Zip

Department Mail Stop

Fax

Lsi Sas3041E Users Manual PCI Express To 3.0 Gbit/s Serial Attached SCSI (SAS) Host Adapters User’s Guide

860-0477-001 860-0477-001

SAS3041E to the manual dad56017-51a0-4caa-8304-4075431b4ee9

Navigation menu

Versions of this User Manual:

Views

Navigation
