Luidia Global IPBT-210 eQuil SmartPen 2 User Manual

PNF CO.,LTD eQuil SmartPen 2

User Manual

6 7
4
3
2
1
5
6
8
7
9
10
11
12
13
5
10 11
6
7
8
12
13
1
2
3
4
RESET
9

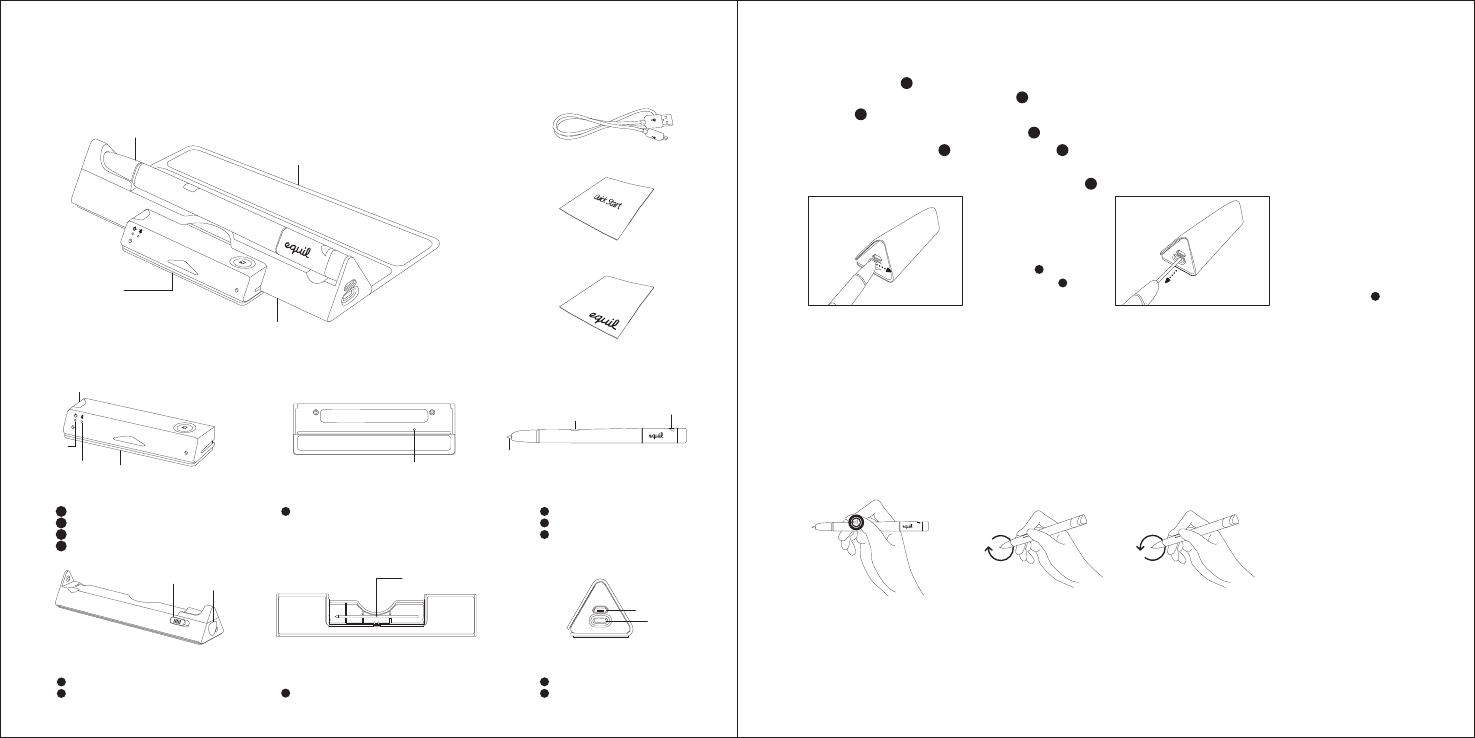

Components
B. Charging cable
Digital pen
Charging cradle
Cradle cover
Receiver
C. Quick Start
A. eQuil Smartpen 2
D. User’s Guide (Warranty included)
Components Details
Receiver - Front
Power LED
Bluetooth LED
Receiver magnet clip
Receiver power button
Receiver - Bottom
Receiver reset button
Digital Pen
Pen tip
Pen power button
LED
Charging cradle (Side)
Charging socket
Pen lead ejector
Charging cradle (Bottom)
(with receiver removed)
Pen rell
Receiver – Charging cradle (Back)
Pen lid ejector
Pen lid
Tip!
1. When the Pen tip is pushed over a minute, the Pen power turns o to save the battery life.
In that case, push the Pen power button once to turn the Pen on.
2. The LED blinks when the Receiver battery is weak.
3. You need to charge the Pen when the LED keeps blinking.
4. Lights on the Power LED and Digital pen LED are on when charging.
When it is completely charged, the lights are o.
5. You can do pen relling by using the Pen lead ejector .
6. The replaceable cradle cover will be available in various colors from November 2013.
1)
Place the Pen tip on the left side
of the Pen lead ejector and
slide it down to the right.
2)
Pull the Pen towards you to eject the pen
lead. Place the Pen rell into the pen.
7
6
1
8
81
13
11
6
13
Key Feature
a b c
1. Gesture Functions
Remove the pen from the paper and hover above the paper to perform certain actions, including:
※Dierent apps features dierent gesture functions – check out our app tutorial for more details.
(App → Setting → Tutorial)
a. Double click the pen button
b. Draw a circle counter clockwise in the air
while keeping holding the button.
c. Draw a circle clockwise in the air keeping
holding the button.
2. Other functions
Cloud function (Cloud/Dropbox), photoshop convertible function, and many other functions to come – check out
our app tutorial. (App → Setting → Tutorial)
2cm
8 9
1
2
4
12

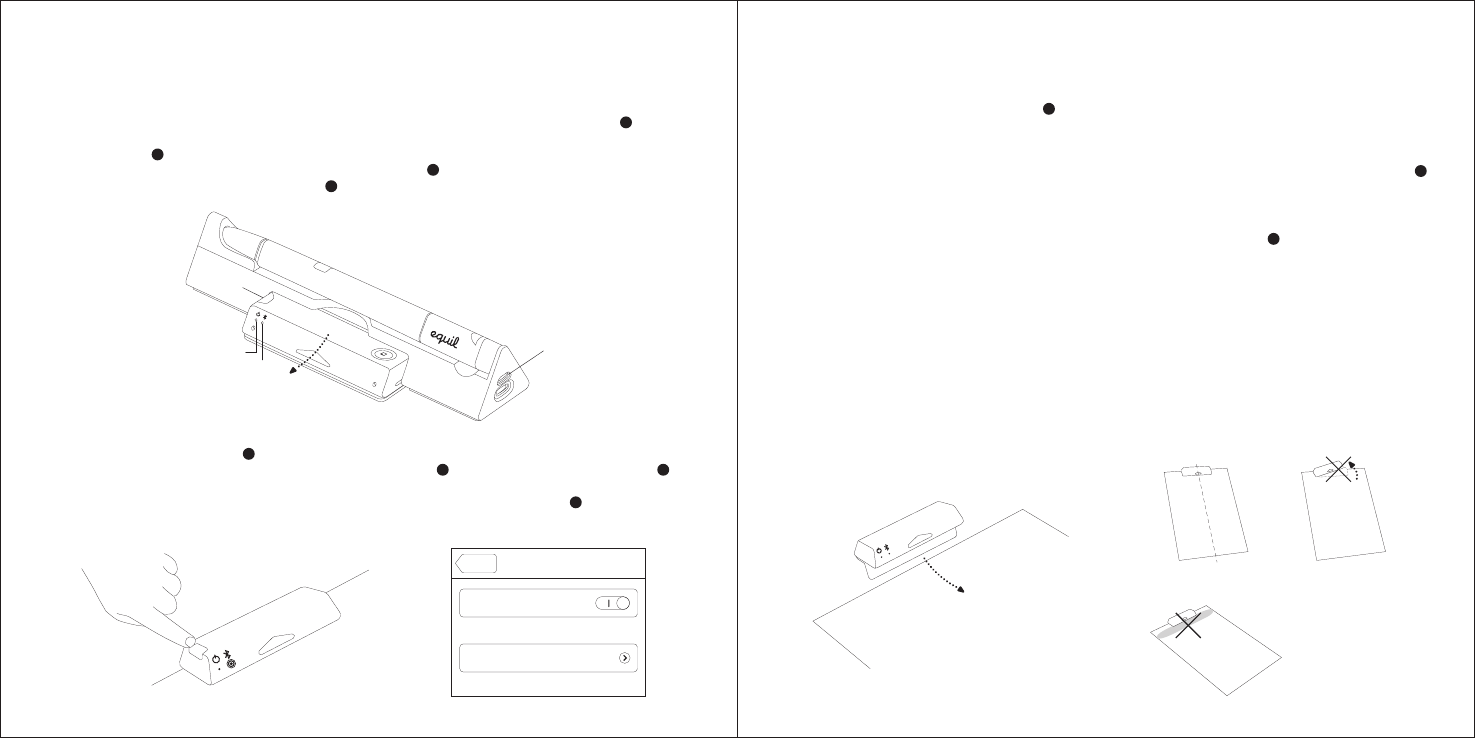

Bluetooth Connection <Pairing>
1.Turning on the Receiver
Make sure to fully charge the eQuil Smartpen 2 before use
(How to charge: place both the Pen and the Receiver into the Cradle and connect the Charging socket
with the Charging cable (B)).
The Power LED automatically turns on when the Receiver is removed from the Cradle, and automatically turns
o when the Receiver is put back to the Cradle. The Bluetooth LED is slowly blinking when the Receiver turns
on. You can also use the Receiver power button to manually turn the Receiver on.
2. Bluetooth Pairing
Click the Receiver power button to completely turn o the power.
Make sure the power is o, keep holding the Receiver power button , and wait until the blue Bluetooth LED is
blinking fast (approx. 5 times/sec.). Then go to the device that you wish to pair with to nd ‘Setting → Bluetooth →
Equil-xxxxxx(Individual Serial No.)’ to connect. When pairing is completed, the Bluetooth LED starts to blink
slowly (approx. once every 2 sec.) again.
12
1
2
4
4 2
4
2
Devices
Bluetooth
Bluetooth
settings
Connected
How to Use
<bad example> <good example>
<not available to use within a 2-cm radius>
3. Ready to Use
If pairing is completed, the Bluetooth LED should be always on while the designated application (“app”)
is running.
Notice!
※ Once paired, eQuil Smartpen 2 and your device are automatically connected when the Receiver power button
is on. When there are 2 or more devices within the range of Bluetooth use, however, the Bluetooth setting of the
previously used one should be turned o, and Step 1, 2, and 3 of Bluetooth connection repeated.
※ Ensuring proper position of the Bluetooth switch button
The Bluetooth switch button can be found when ipping the Receiver magnet clip over.
Make sure the button is switched towards iOS side when using Bluetooth on iPhone/ iPad/ iPod, and Others side
when using Macbooks or PCs.
1. Place the Receiver on the top of the paper.
When you wish to pair your device through Bluetooth for the rst time, refer to the page on the left to
connect. Once paired, the eQuil Smartpen 2 and your device are automatically connected as soon as the
Receiver is on. Try to pair again on your setting when pairing is not automatically done.
(only if you use 1 device. If 2 or more, refer to the ‘Notice!’ )
2
4
3
10
2. Go to the app store to download the designated app (The app‘Equil’is available on the app store).
At the moment the app‘Equil Note’ and ‘Equil Sketch’ are available and there are more to come.
If you wish to use the app on Macbook / MacPro / Windows, go to www.myequil.com to download
the relevant apps.
3. Make sure the Bluetooth LED on the Receiver is on after running the app.
4. Make sure the LED is blinking (white light) and the Pen tip makes a little ultrasonic
sound whenever you press the Pen power button . If you cannot hear the sound,
you should check the charging status of the eQuil Smartpen 2.
5. eQuil Smartpen 2 is ready now. Have fun!
Caution
1. If the Pen still writes even hovering above the paper, push the Pen power button for over 5 seconds
until the Pen LED blinks fast three times.
2. Do not place any obstacles between the Receiver and the device, or the Receiver and the Pen you use.
3. This product was developed using ultrasonic and infrared rays.
Therefore, below are environments that can cause malfunctions and you should be avoid:
a. Where there is strong metallic sound (e.g. coins)
b. Directly underneath air-conditioners/heaters
c. Directly underneath strong lights or rays of the sun
d. Where humidity is high (e.g. bathroom)
4. Built-in batteries might be totally discharged upon purchase – the cradle & the pen, as a set, needs to
be charged. (completely charged within 2 hours; up to 8-hour working time)
5. The ideal temperature range for the product usage is between 10℃ and 40℃.
6. There might be malfunctions when grabbing near the Pen tip .
Warranty
Equil – 1 year warranty Equil guarantees its hardware products and accessary for their material and technical defaults for a year upon the date of the purchase. Equil does not guarantee general wear-out, any
unexpected damages or abuses. If you wish to have our warranty service, call the operators of Equi,l or visit direct retailers of Equil or authorized service provider of Equil. A range of possible service options vary
depending on which country you request from. There might be phone charge or international shipping costs. Refer to www.myequil.com for the entire terms and conditions of the service. A copy of this Warranty can
be provided by email. Warranty benets are applied along with rights provided by local Consumer Laws.
2
8 6
7
<bad example> <good example>
6
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technical for help.
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technical for help.
WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may
cause undesirable operation.
Hereby, PNF Co.,Ltd. declares that this IPBT-210 is in compliance with the essential requirements
and other relevant provisions of directive 1999/5/EC.
CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
