Lumi United Technology WXKG02LM Wireless Remote Switch User Manual

Lumi United Technology Co., Ltd Wireless Remote Switch Users Manual

Users Manual revised

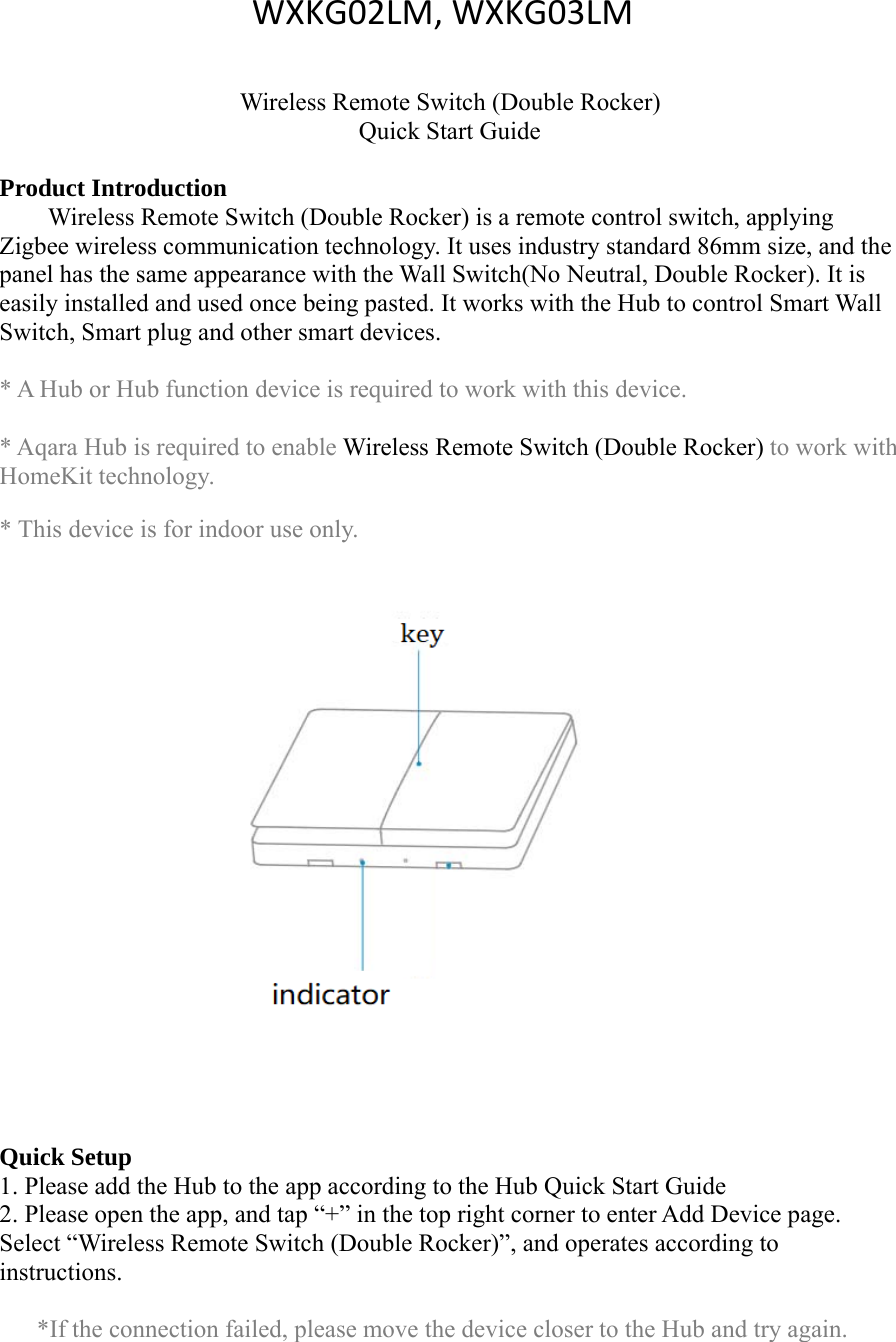

Wireless Remote Switch (Double Rocker)Quick Start GuideProduct IntroductionWireless Remote Switch (Double Rocker) is a remote control switch, applyingZigbee wireless communication technology. It uses industry standard 86mm size, and thepanel has the same appearance with the Wall Switch(No Neutral, Double Rocker). It iseasily installed and used once being pasted. It works with the Hub to control Smart WallSwitch, Smart plug and other smart devices.* A Hub or Hub function device is required to work with this device.* Aqara Hub is required to enable Wireless Remote Switch (Double Rocker) to work withHomeKit technology.* This device is for indoor use only.Quick Setup1. Please add the Hub to the app according to the Hub Quick Start Guide2. Please open the app, and tap “+” in the top right corner to enter Add Device page.Select “Wireless Remote Switch (Double Rocker)”, and operates according toinstructions.*If the connection failed, please move the device closer to the Hub and try again.WXKG02LM, WXKG03LM

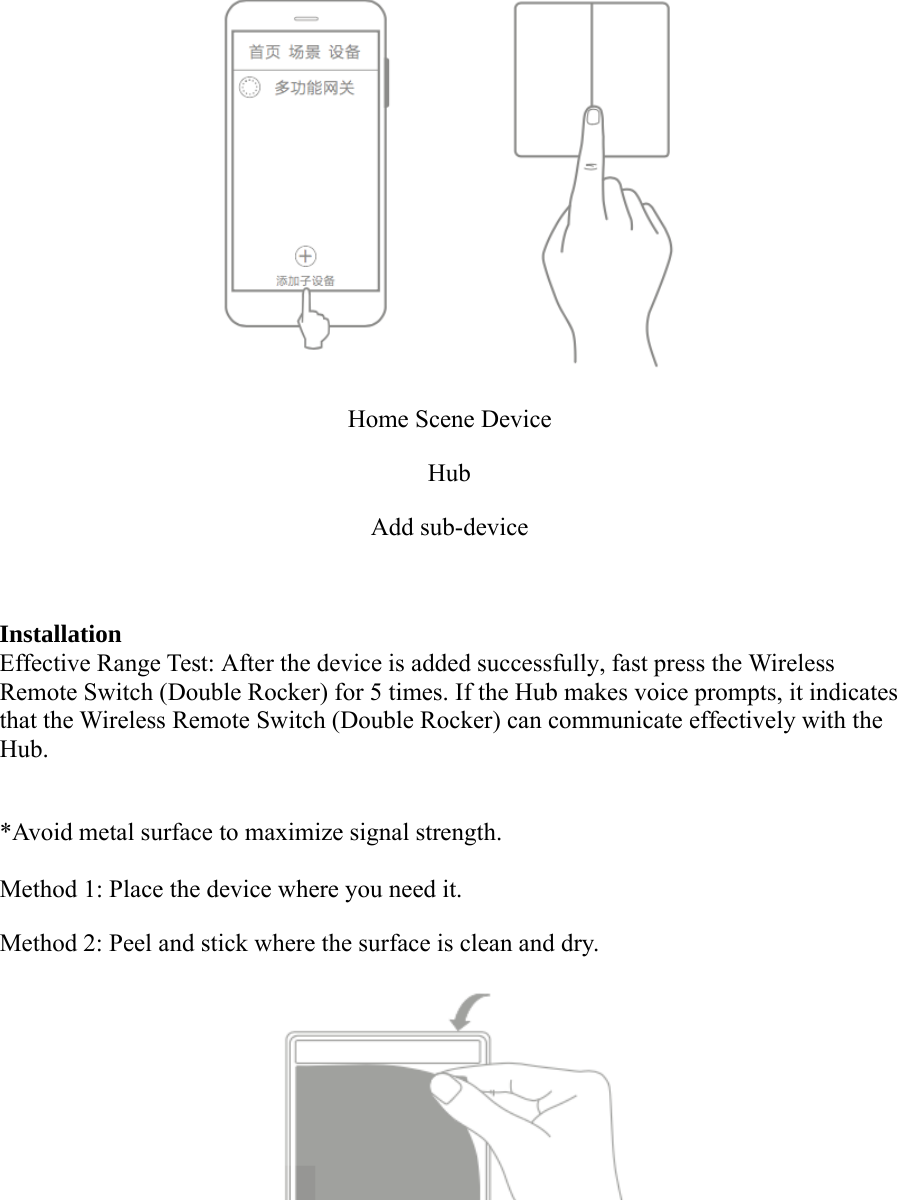

Home Scene DeviceHubAdd sub-deviceInstallationEffective Range Test: After the device is added successfully, fast press the WirelessRemote Switch (Double Rocker) for 5 times. If the Hub makes voice prompts, it indicatesthat the Wireless Remote Switch (Double Rocker) can communicate effectively with theHub.*Avoid metal surface to maximize signal strength.Method 1: Place the device where you need it.Method 2: Peel and stick where the surface is clean and dry.

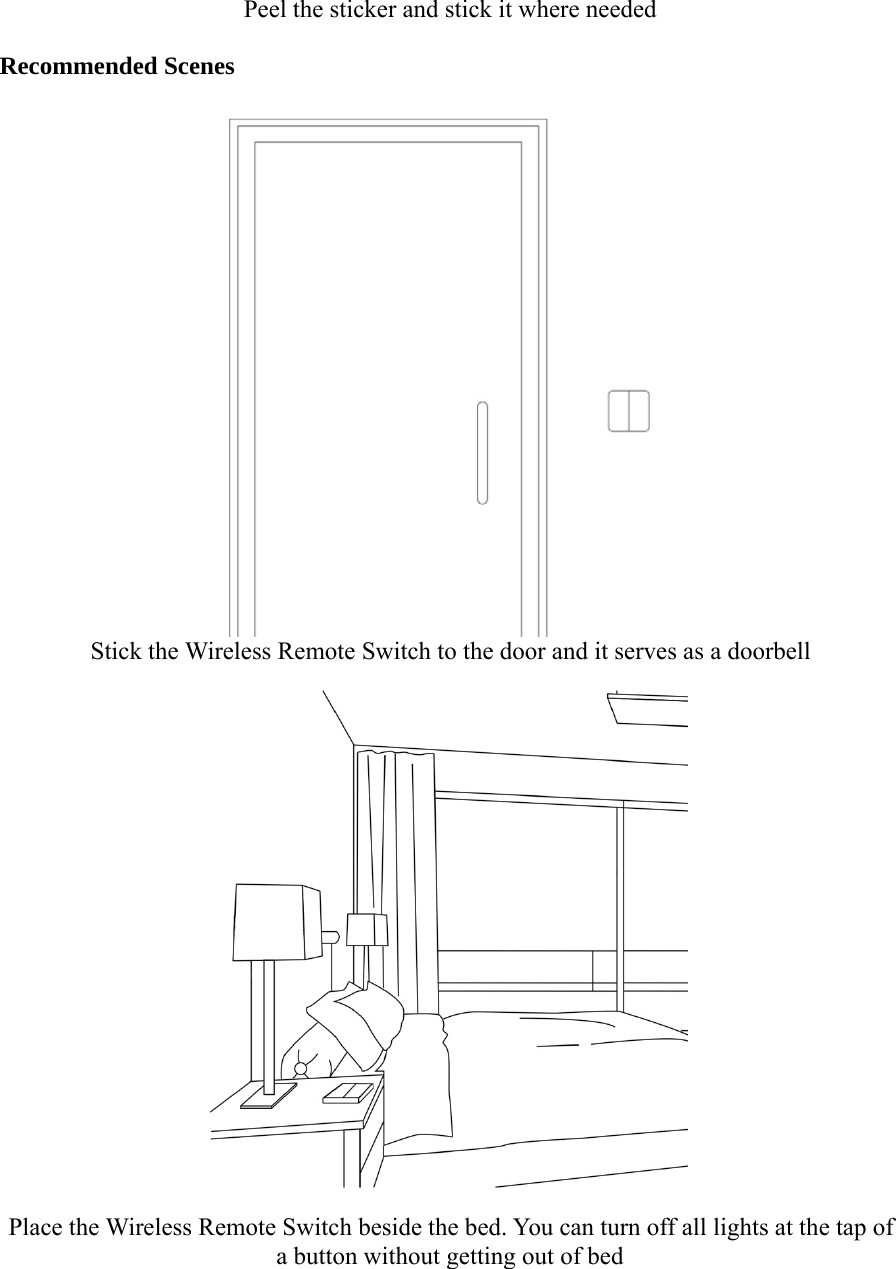

Peel the sticker and stick it where neededRecommended ScenesStick the Wireless Remote Switch to the door and it serves as a doorbellPlace the Wireless Remote Switch beside the bed. You can turn off all lights at the tap ofa button without getting out of bed

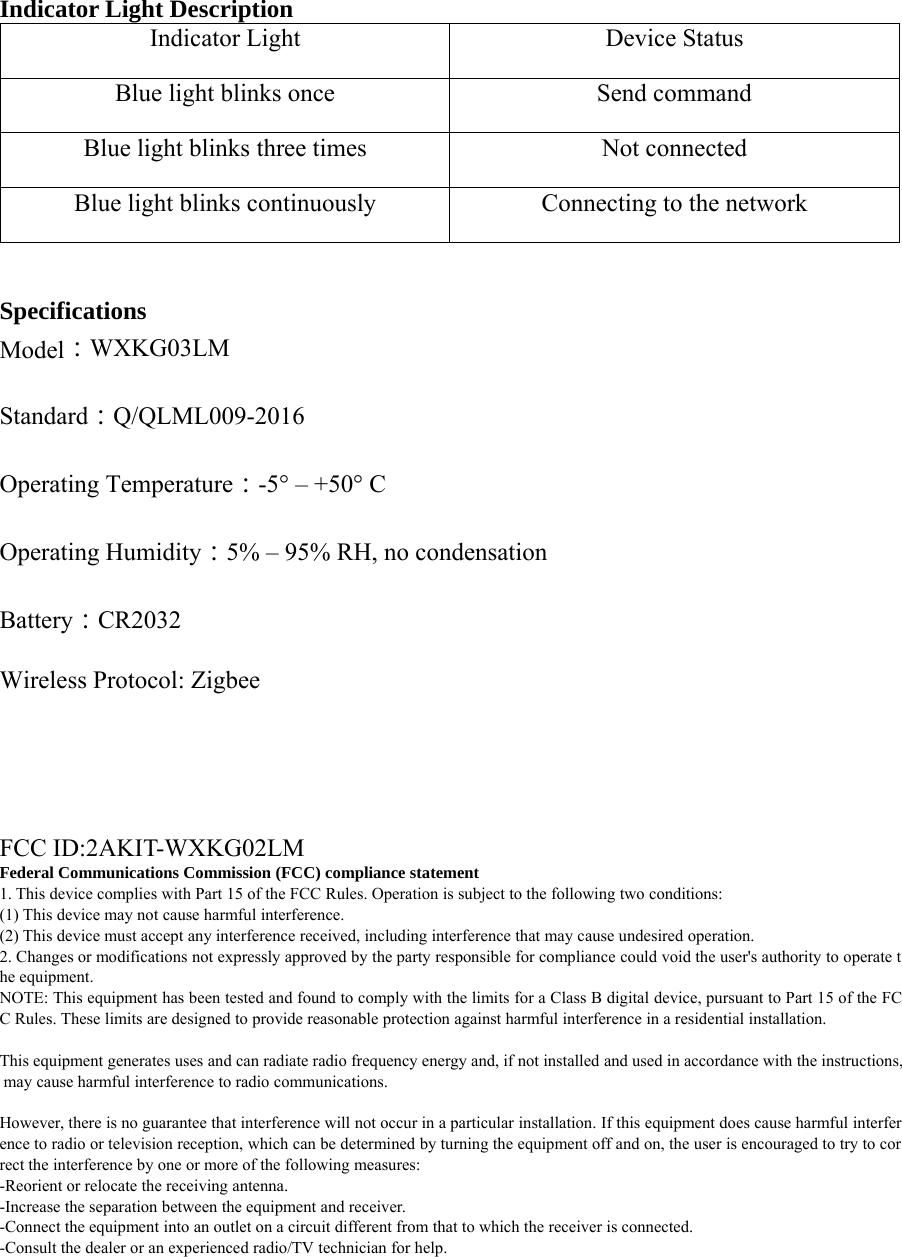

Indicator Light DescriptionIndicator Light Device StatusBlue light blinks once Send commandBlue light blinks three times Not connectedBlue light blinks continuously Connecting to the networkSpecificationsModel：WXKG03LMStandard：Q/QLML009-2016Operating Temperature：-5° – +50° COperating Humidity：5% – 95% RH, no condensationBattery：CR2032Wireless Protocol: ZigbeeFCC ID:2AKIT-WXKG02LMFederal Communications Commission (FCC) compliance statement1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.

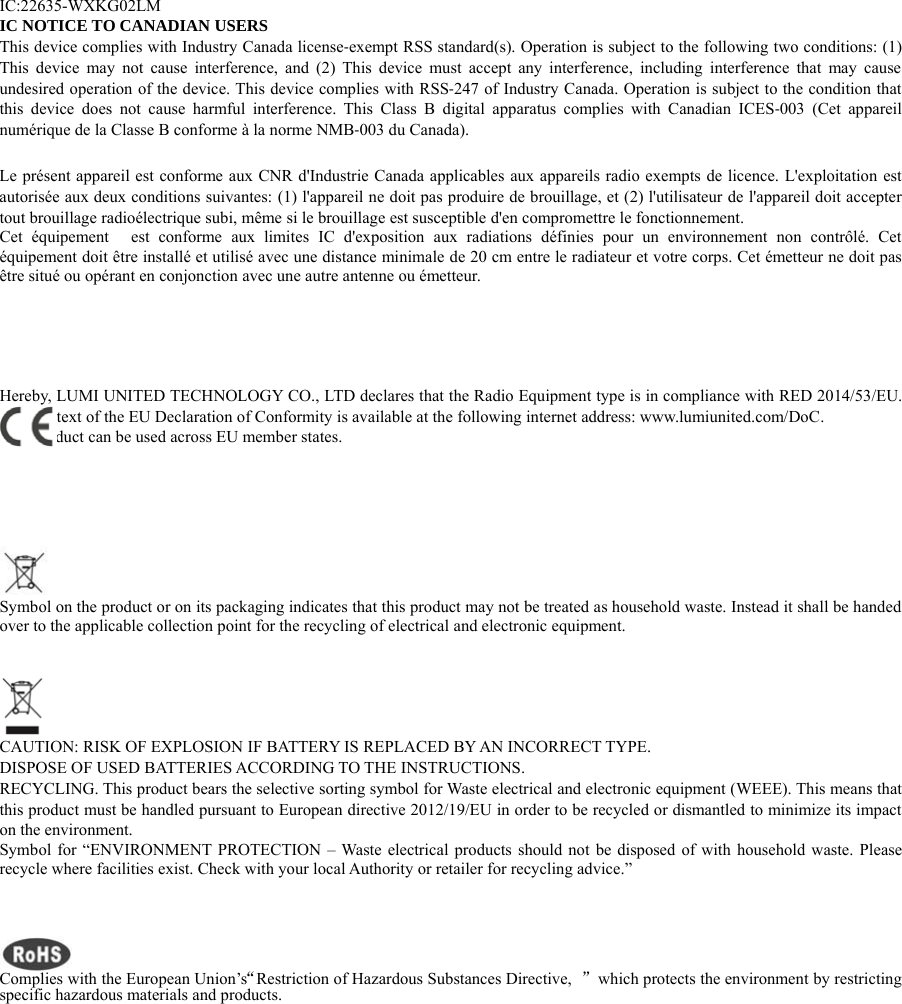

IC:22635-WXKG02LMIC NOTICE TO CANADIAN USERSThis device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2) This device must accept any interference, including interference that may causeundesired operation of the device. This device complies with RSS‐247 of Industry Canada. Operation is subject to the condition thatthis device does not cause harmful interference. This Class B digital apparatus complies with Canadian ICES‐003 (Cet appareilnumérique de la Classe B conforme à la norme NMB‐003 du Canada).Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit acceptertout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.Cet équipement est conforme aux limites IC d'exposition aux radiations définies pour un environnement non contrôlé. Cetéquipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pasêtre situé ou opérant en conjonction avec une autre antenne ou émetteur.Hereby, LUMI UNITED TECHNOLOGY CO., LTD declares that the Radio Equipment type is in compliance with RED 2014/53/EU.The full text of the EU Declaration of Conformity is available at the following internet address: www.lumiunited.com/DoC.This product can be used across EU member states.Symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handedover to the applicable collection point for the recycling of electrical and electronic equipment.CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.RECYCLING. This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means thatthis product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impacton the environment.Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Pleaserecycle where facilities exist. Check with your local Authority or retailer for recycling advice.”Complies with the EuropeanUnion’s“Restriction of Hazardous Substances Directive, ”whichprotects the environmentbyrestrictingspecific hazardous materials and products.
