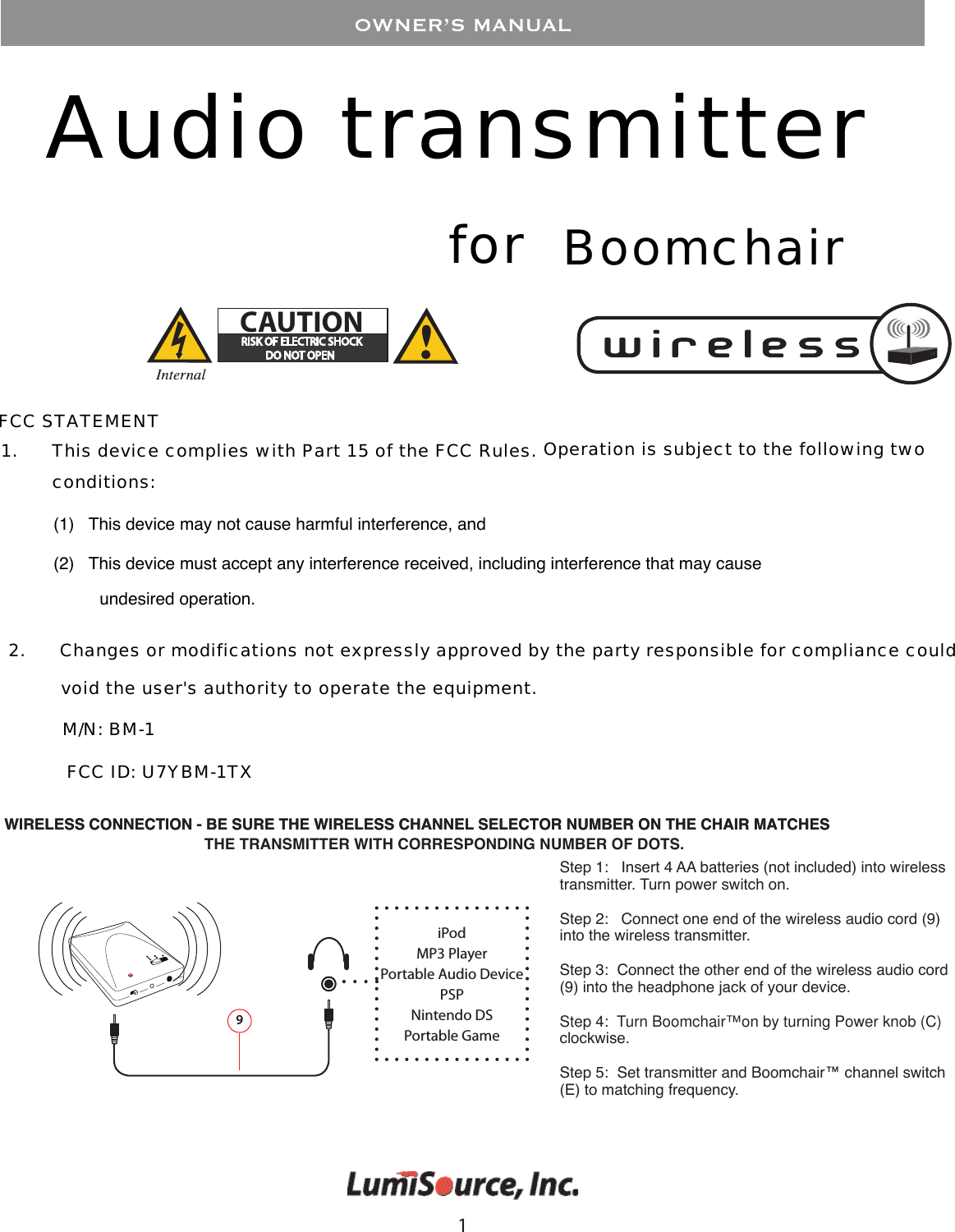

1OWNER’S MANUALAudio transmitter #!54)/.for BoomchairFCC STATEMENT1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause 2. Changes or modifications not expressly approved by the party responsible for compliance could conditions:undesired operation.void the user's authority to operate the equipment.M/N: BM-1 FCC ID: U7YBM-1TXWIRELESS CONNECTION - BE SURE THE WIRELESS CHANNEL SELECTOR NUMBER ON THE CHAIR MATCHES 9iPodMP3 PlayerPortable Audio DevicePSPNintendo DSPortable GameStep 1: Insert 4 AA batteries (not included) into wireless transmitter. Turn power switch on.Step 2: Connect one end of the wireless audio cord (9) into the wireless transmitter. Step 3: Connect the other end of the wireless audio cord (9) into the headphone jack of your device.Step 4: Turn Boomchair™ on by turning Power knob (C) clockwise.Step 5: Set transmitter and Boomchair™ channel switch (E) to matching frequency.THE TRANSMITTER WITH CORRESPONDING NUMBER OF DOTS.WIRELESS CONNECTION - BE SURE THE WIRELESS CHANNEL SELECTOR NUMBER ON THE CHAIR MATCHES

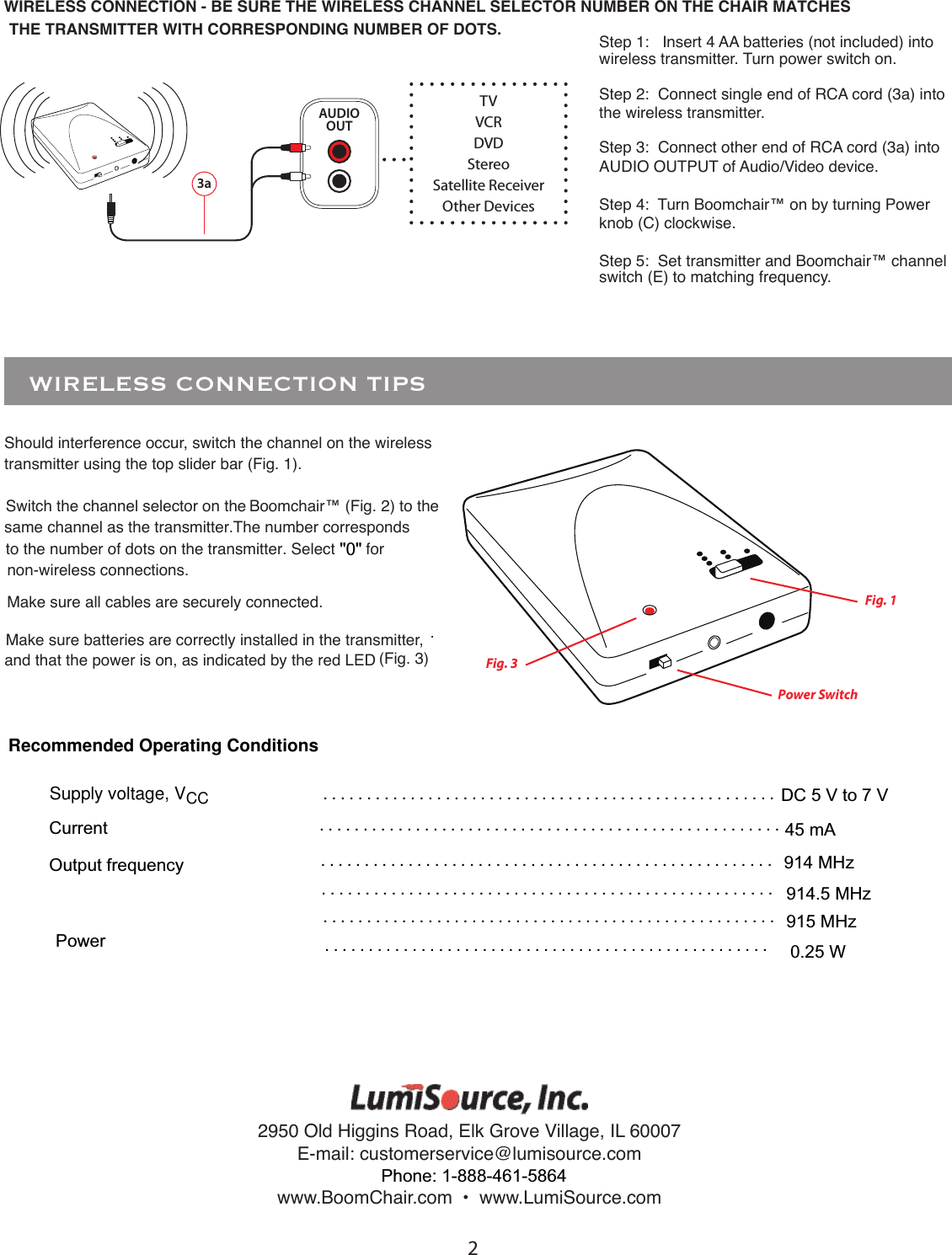

23aAUDIOOUTStep 1: Insert 4 AA batteries (not included) into wireless transmitter. Turn power switch on. Step 2: Connect single end of RCA cord (3a) into the wireless transmitter. Step 3: Connect other end of RCA cord (3a) into AUDIO OUTPUT of Audio/Video device.Step 4: Turn Boomchair™ on by turning Power knob (C) clockwise.Step 5: Set transmitter and Boomchair™ channel switch (E) to matching frequency.TVVCRDVDStereoSatellite ReceiverOther DevicesWIRELESS CONNECTION - BE SURE THE WIRELESS CHANNEL SELECTOR NUMBER ON THE CHAIR MATCHES THE TRANSMITTER WITH CORRESPONDING NUMBER OF DOTS.Should interference occur, switch the channel on the wireless transmitter using the top slider bar (Fig. 1).Switch the channel selector on the Boomchair™ (Fig. 2) to the same channel as the transmitter.The number correspondsMake sure all cables are securely connected.Make sure batteries are correctly installed in the transmitter, and that the power is on, as indicated by the red LED (Fig. 3). WIRELESS CONNECTION TIPS Fig. 1Fig. 3Power Switchto the number of dots on the transmitter. Select for "0"non-wireless connections.Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2950 Old Higgins Road, Elk Grove Village, IL 60007E-mail: customerservice@lumisource.comwww.BoomChair.com • www.LumiSource.comPhone: 1-888-461-5864DC 5 V to 7 VRecommended Operating ConditionsCurrent 45 mAOutput frequency 914 MHz914.5 MHz915 MHzPower 0.25 W
