USERS MANUAL FOR HRT SIGNAL REPEATER
Codes: Install in accordance with all local and national
electrical codes.
Environment: Ambient operating temperature:
0-40°C, 32-104°F, 0-90% humidity, non-condensing.
Indoor use only.
Cleaning: Clean with a soft damp cloth only. Do not use
any chemical or abrasive cleaners.
RF Device Placement: RF Signal Repeaters must be
located within 60 feet (18m) of an RF Processor or
another RF Signal Repeater.
Power: Use only the DC adapter provided by Lutron with
your unit (Lutron model # T120-9DC-3-WH).
Caution - Using a DC adapter not rated at the
following specifications could damage the con-
trol and possibly overheat the DC adapter.
• Input: AC 120/127V 50/60Hz
• Output: DC 9V/300mA Class 2
Please Read Before Installing
Installation Instructions
Overview
The HomeWorks RF Signal Repeater provides additional
coverage area for Radio Frequency (RF) signals sent
between HomeWorks RF Dimmers/Switches, and RF
Keypads. Each RF Signal Repeater covers approximately
2500 square feet (232m2) of living space.
RF Signal Repeater
HR-REP-SW
120/127VAC, 50/60Hz (DC Adapter)
AUXILIARY ACTIVATE TEST
HR-REP-SW
2
DC Adapter Installation
1. Find a suitable location for the RF Signal
Repeater. Place the Repeater in a convenient and
accessible location. Note: RF Signal Repeaters
should be located within 60 feet (18m) of another
RF Signal Repeater or an RF Processor.
2. Apply power to the RF Signal Repeater.
Optional Wall Mounting
RF Signal Repeaters may be wall mounted using the
supplied wall bracket.
Verify Auxiliary
LED is lit when
powered Plug in power
cord and DC
adapter

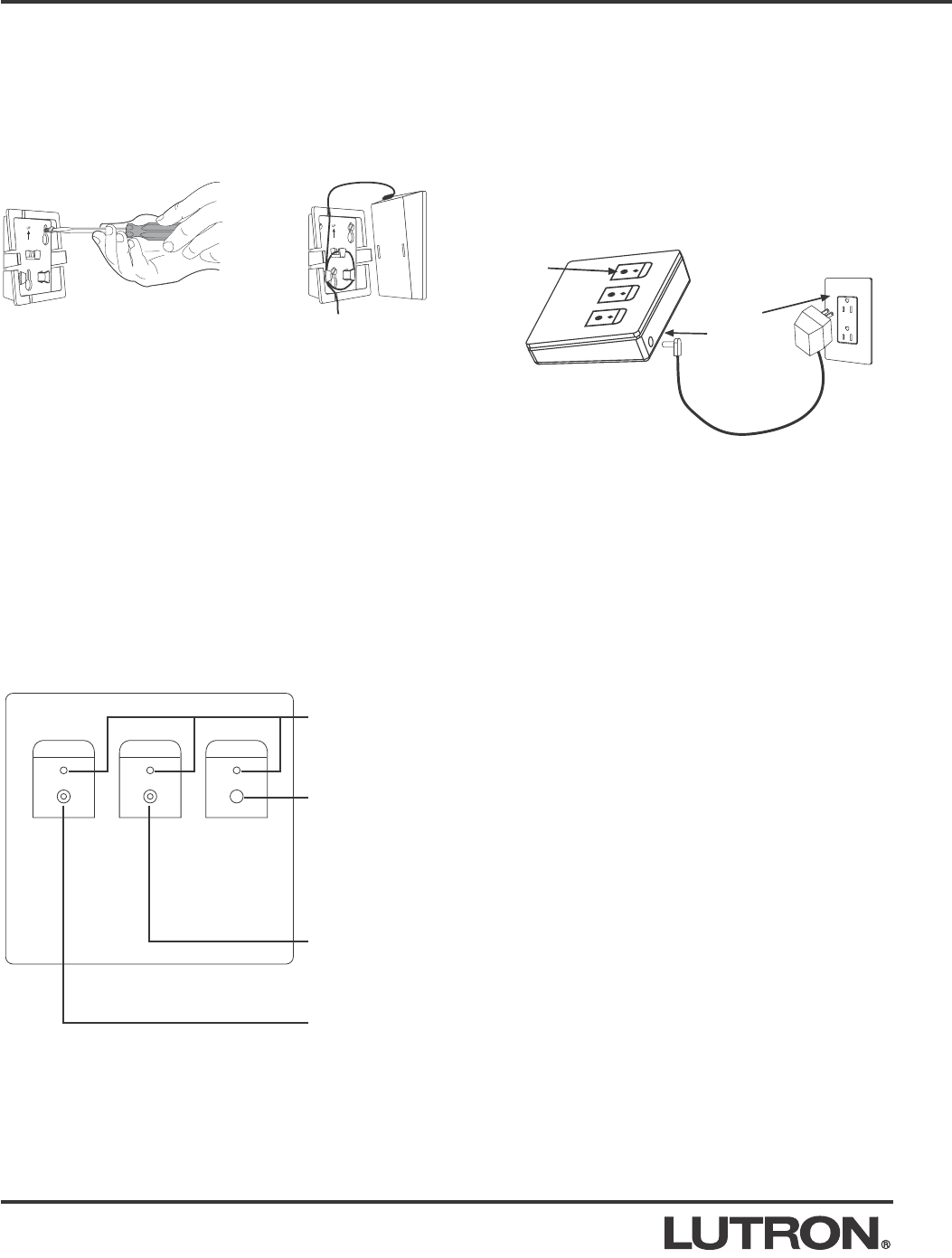

Attach wall bracket to wall using the
supplied screws and wall anchors.
Wrap excess DC Adapter cord
around the cord holder. Align
Repeater and snap onto wall
bracket.
UP UP
AUXILIARY ACTIVATE TEST
Function LEDs
Test Button
Tests whether RF
components can
“hear” RF Signal
Repeater, and if RF
Signal Repeater can
“hear” RF compo-
nents.
Activate Button
Used when adding
RF Signal Repeater
to the system.
Auxiliary Button
LED indicates RF
Signal Repeater is
powered (button is
not used).
Operation
System Communications
3
#
#
P/N 292
-
153
P/N 292153
Notes
• RF Dimmers and Keypads must be locat-
ed within 30 feet (9m) of an RF Signal
Repeater or an RF Processor. Multiple
repeaters may be necessary to provide
adequate coverage.
• RF Dimmers cannot be controlled by the
system and RF Keypads do not function
until they are addressed and programmed.
See the HomeWorks Utility online help.
RF Tabletop
Keypad
RF Dimmer
30 Feet (9m) maximum
RF Processor
RF Keypad

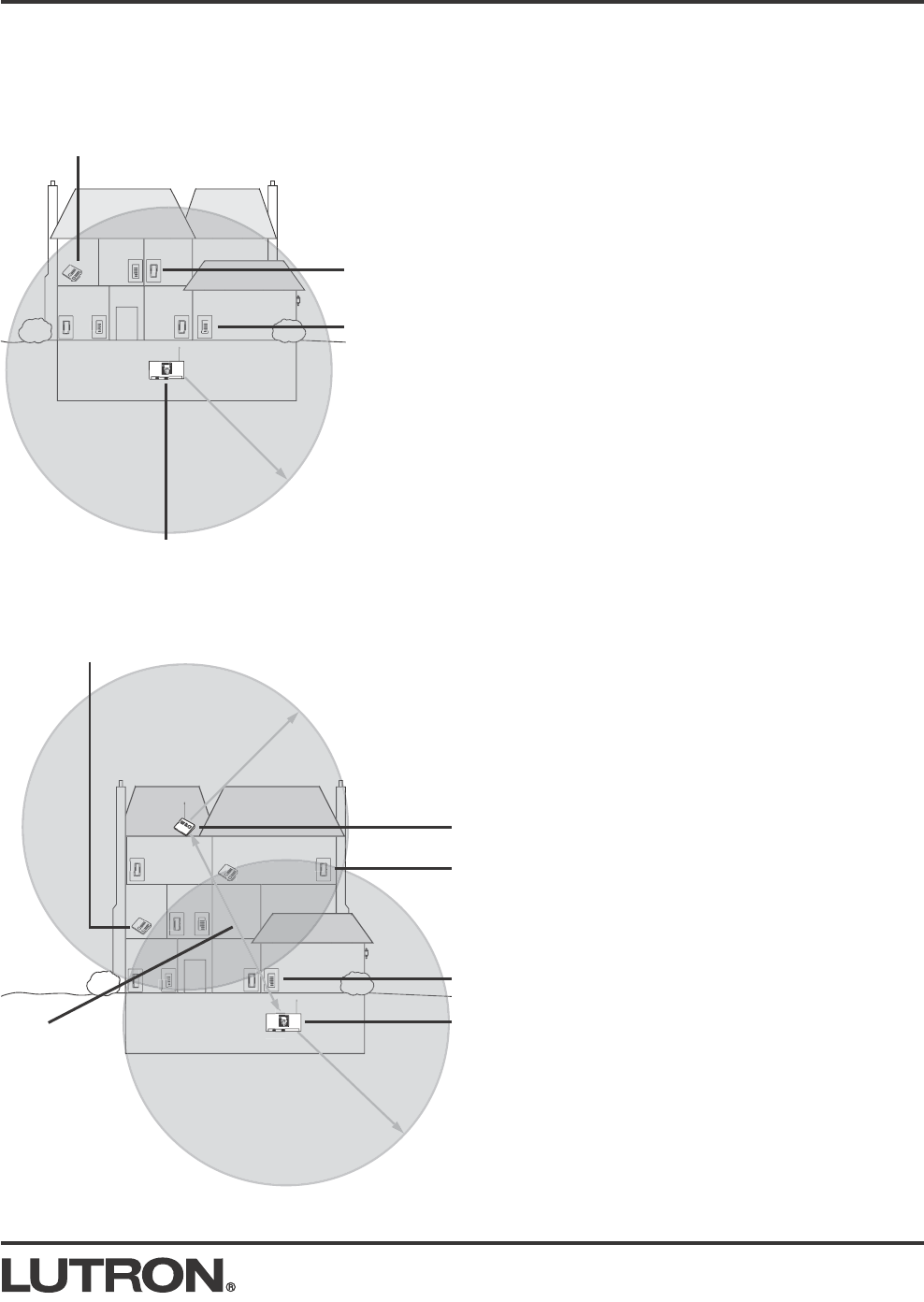

Home A: 2500 sq. ft. (232m2) or less - all RF devices within 30' (9m) of RF Processor
#
#
P/N 292
-
153
P/N 292153
RF Tabletop
Keypad
RF Dimmer
30 Feet (9m) maximum
RF Processor
RF Keypad
Home B: 2500 sq. ft. (232m2) or greater - some RF devices more than 30' (9m) from RF Processor
RF Signal Repeater
30 Feet (9m) maximum
60 Feet (18m)
maximum
between RF
Processors and
Repeaters, or
between
Repeaters
LIMITED WARRANTY
Lutron will, at its option, repair or replace any unit that is defective in materials or manufac-
ture within two years after purchase. After the two year period, a pro-rated warranty applies
to this product until eight years after the purchase. For warranty service, return unit to place
of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-
paid. Telephone the Lutron Technical Support Center toll free at 800-523-9466. For more
information regarding this warranty contact your Lutron representative.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE
IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO TWO YEARS FROM PUR-
CHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION,
REMOVAL OR REINSTALLATION, OR DAMAGE RESULTING FROM MISUSE, ABUSE,
OR IMPROPER OR INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. LUTRON’S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT
OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY,
OR USE OF THE UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you. Some states do not allow the exclusion or limi-
tation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.This product may be covered by one or more of the following U.S. patents:
4,835,343; 5,736,965; 5,838,226; 5,848,054; 5,905,442; 5,982,103; DES 389,805; DES
404,013 and corresponding foreign patents. U.S. and foreign patents pending. Lutron and
HomeWorks are registered trademarks of Lutron Electronics Co., Inc.
© 2002 Lutron Electronics Co., Inc.
Technical and Sales Assistance
If you need assistance, call the toll-free Lutron
Technical Support Center. Please provide exact
model number when calling.
(800) 523-9466 (U.S.A., Canada and the Caribbean)
Other countries call:
Tel: (610) 282-3800
Fax: (610) 282-3090
Visit our Web site at www.lutron.com
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Made and printed in the U.S.A. 11/02 P/N 043-110 Rev. A
HomeWorks®Interactive RF Signal Repeater Troubleshooting
Symptom Cause and Action
No power available to unit.
• Faulty power supply. Replace power supply.
Repeater not programmed.
• Refer to the HomeWorks Utility online help for program-
ming instructions.
Repeater appears not to be working.
FCC Information
Note: This equipment has been tested and found to comply with the limits for a Class B digi-
tal device, pursuant to Part 15 of the FCC rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could
void the user’s authority to operate this equipment.
Industry Canada Information
The term “IC:” before the radio certification number only signifies that Industry Canada tech-
nical specifications were met.
Orange Auxiliary LED is flashing. Repeater is out of system communication range.
• Move repeater to within 60 feet (18m) of the RF
Processor or another repeater.
